2. PN-JUNCTION DIODE
Diode is a electronic component , generally used as a switch, as LED, as
a rectifier to convert A.C current to D.C current, as a transistor & in
various other circuits.
It can be represented in a circuit diagram as : -
3. A diode is formed by placing two semi conductors
together one of N-type & another of P-type .
• P-N junctions are formed by joining n-type and p-
type semiconductor materials.
P-type semiconductor have holes as
majority charge carrier. Due to trivalent
impurity(Aluminium: Al)
N-type semiconductor have electrons as
majority charge carrier. Due to
pentavalent impurity.(Arsenic: As)

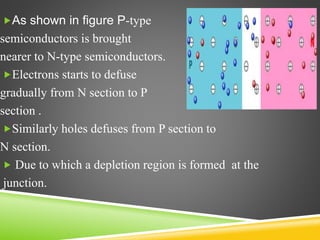

4. As shown in figure P-type
semiconductors is brought
nearer to N-type semiconductors.
Electrons starts to defuse
gradually from N section to P
section .
Similarly holes defuses from P section to
N section.
Due to which a depletion region is formed at the
junction.
5. As electron from impurity of N
section is defused to the impurities of
P section & vice versa, the Al
atoms becomes negative ion and
As atom become positive ion near
Junction forming depletion layer
As the diffusion process continues
the +ve & -ve charge increases respectively.
Due to this an Electric field is also produced which now opposes the flow of
electrons and holes.
The process of diffusion stops when sufficient electric field is produced.
This is how a PN junction diode is formed.

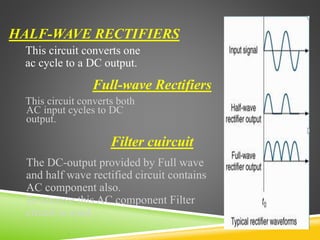

7. HALF-WAVE RECTIFIERS
This circuit converts one
ac cycle to a DC output.
Full-wave Rectifiers
This circuit converts both
AC input cycles to DC
output.
Filter cuircuit
The DC-output provided by Full wave
and half wave rectified circuit contains
AC component also.
To remove this AC component Filter
circuit is used.

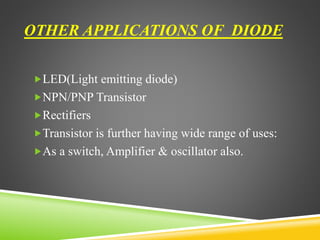

8. OTHER APPLICATIONS OF DIODE
LED(Light emitting diode)
NPN/PNP Transistor
Rectifiers
Transistor is further having wide range of uses:
As a switch, Amplifier & oscillator also.
