Inheritance allows classes to inherit characteristics from other classes. There are three types of inheritance: public, protected, and private. Public inheritance makes base class members public or protected in the derived class. Protected inheritance makes base class members protected in the derived class. Private inheritance makes base class members private in the derived class. Polymorphism allows functions to have different implementations depending on the type of object that calls it. Virtual functions provide polymorphism by allowing derived classes to override base class function implementations through late binding.

1. Inheritance and Its types
In OOP, inheritance means assigning characteristics of one
class object to another class object.

2. How we do it?
When creating a class, instead of writing
completely new data members and member
functions, the programmer can designate that the
new class should inherit the members of an
existing class.
class derived-class: access-specifier base-class

3. Base Class
This existing class is called the base class
class derived-class: access-specifier base-class

4. Derived Class
The new class is the derived class
class derived-class: access-specifier base-class

5. Access Specifier
class derived-class: access-specifier base-class
access-specifier is one the of public, protected, or private
Class members

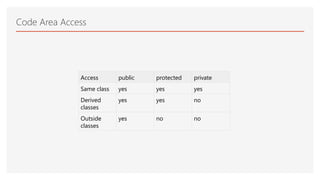

6. Code Area Access
Access public protected private
Same class yes yes yes
Derived
classes
yes yes no
Outside
classes
yes no no

7. Conversion of Public, Private and protected base members (IMPORTANT)
Public Inheritance: When deriving a class from a public base class,
public members of the base class become public members of the
derived class and protected members of the base class become
protected members of the derived class. A base class's private
members are never accessible directly from a derived class, but can
be accessed through calls to the public and protected members of
the base class.
Protected Inheritance: When deriving from a protected base class,
public and protected members of the base class become protected
members of the derived class.
Private Inheritance: When deriving from a private base class,
public and protected members of the base class become private
members of the derived class.

8. Example of public inheritance

9. Multiple Inheritance
class derived-class: access baseA, access baseB....

10. Friend Function
This function is defined outside the class but is the member of a class

11. • If the keyword friend is written with a function prototype
inside a class, then
1. It is the member of the same class
2. It is defined outside the class
3. It can be called with creating object of the same class
4. It can take another class object as its input argument
Example:
Friend Function
1. When an ordinary class function is declared inside a class, then
2. The keyword friend is not written with it.
3. It can only be accessed from an object of this same class
4. It is defined inside class or class is specified for it while defining it outside
class
For Example, if class name is BOOK
And its member function is void pages ()
The we will either define it inside class or it can be defined outside class as
void BOOK::pages(){//remaining definition}
class class_name {
...... .... ........
friend return_type function_name(argument/s);
...... .... ........ }

12. Friend Function declaration
#include <iostream>
using namespace std;
class Distance {
private:
int meter;
public:
Distance(): meter(0){ }
friend int func(Distance); //friend function
};
int func(Distance d) //function definition
{ d.meter=5; //accessing private data from non-member function
return d.meter;
}
int main()
{ Distance D;
cout<<"Distance: "<<func(D); //no need of object with friend
return 0;
}

13. More Explanation
#include <iostream>
using namespace std;
class B; // forward declaration
class A {
private:
int data;
public:
A(): data(12){ }
friend int func(A , B); //friend function Declaration
};
class B {
private:
int data;
public:
B(): data(1){ }
friend int func(A , B); //friend function Declaration
};
int func(A d1,B d2)
/*Function func() is the friend function of both classes A and B. So,
the private data of both class can be accessed from this function.*/
{
return (d1.data+d2.data);
}
int main()
{ A a;
B b;
cout<<"Data: "<<func(a,b);
return 0;
}

14. Polymorphism and Virtual Keyword
The word polymorphism means having many forms.

15. What is Polymorphism in C++
C++ polymorphism means that a call to a member
function will cause a different function to be
executed depending on the type of object that
invokes the function.

16. Virtual Function and Late binding is used for achieving polymorphs
Achieving Polymorphs

17. A virtual function is a function in a base class that is declared using the
keyword virtual.
Defining in a base class a virtual function, with another version in a derived class,
signals to the compiler that we don't want static linkage for this function
Virtual Function

18. When we declare a function but does not assign any definition to it
in the parent class.
Then define it inside a child class
This sort of operation is referred to as dynamic linkage, or late
binding.
Late Binding

19. If we define same function in two different classes such
that
• Both classes are inherited from a single parent class
• Then, the parent function can call the child function
from any line of the code.
• For this purpose we load each child object to the parent
object and the call the function
• We use virtual keyword in the parent class
• It is different from overloading in the sense that in
overloading we have different function parameters
(input/return type)
More About Polymorphism

20. Calling in MAIN()

21. Modification by using Virtual
Virtual means that
this specific thing
does not exist here.
But, if we want to
place something in
this area, this placed
is reserved for that
thing in advance
Such function is
known as virtual
Function
