Ibn Sina University
Faculty of Dentistry
Department of Orthodontics
Development of
Dentition and
Occlusion
Mohanad Elsherif
BDS (U of K), MFD RCSI, MFDS RCPS(Glasg), MSc (Orthodontics), M.Orth. RCSEd

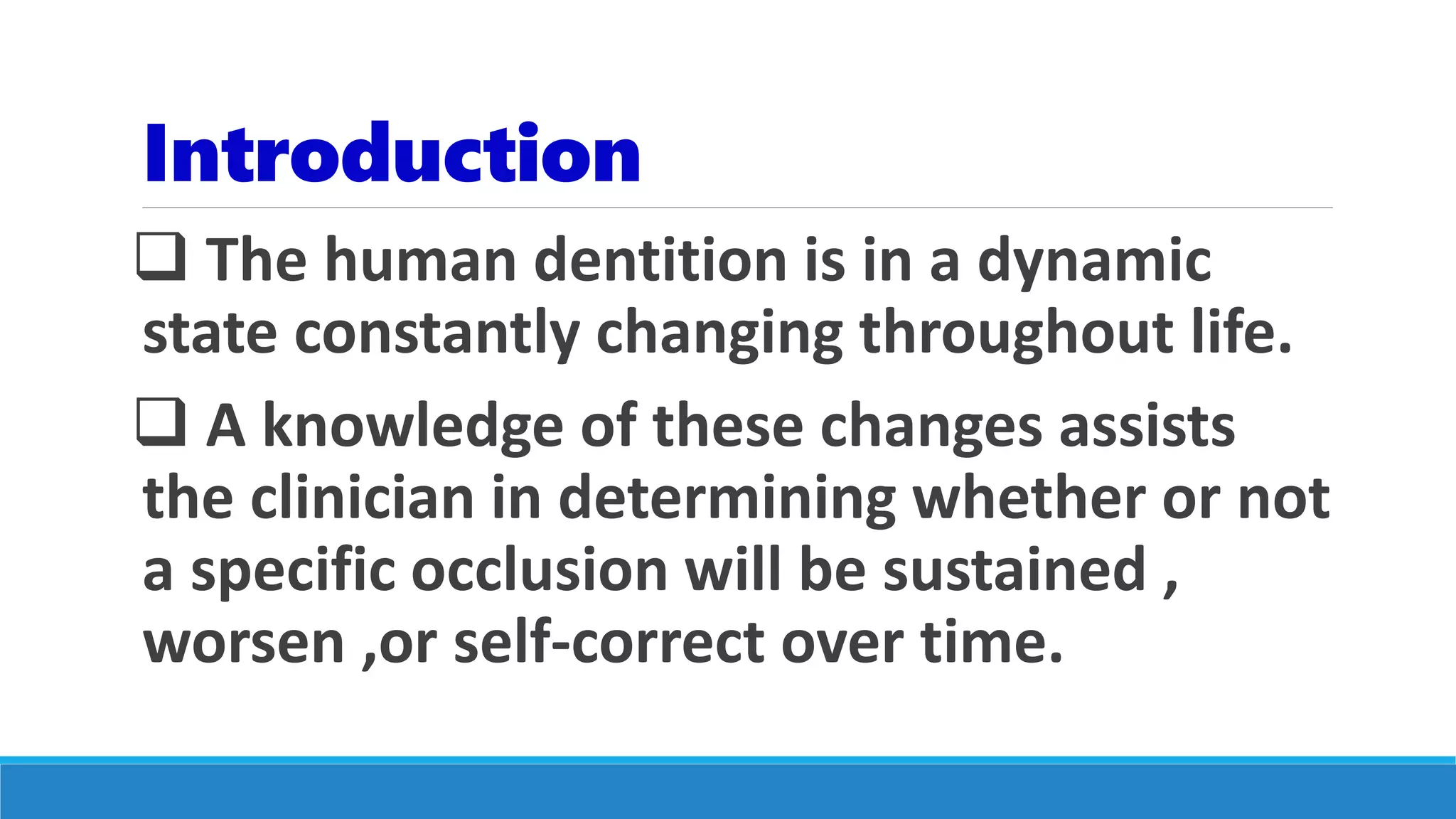

Introduction
 The human dentition is in a dynamic
state constantly changing throughout life.
 A knowledge of these changes assists
the clinician in determining whether or not
a specific occlusion will be sustained ,
worsen ,or self-correct over time.

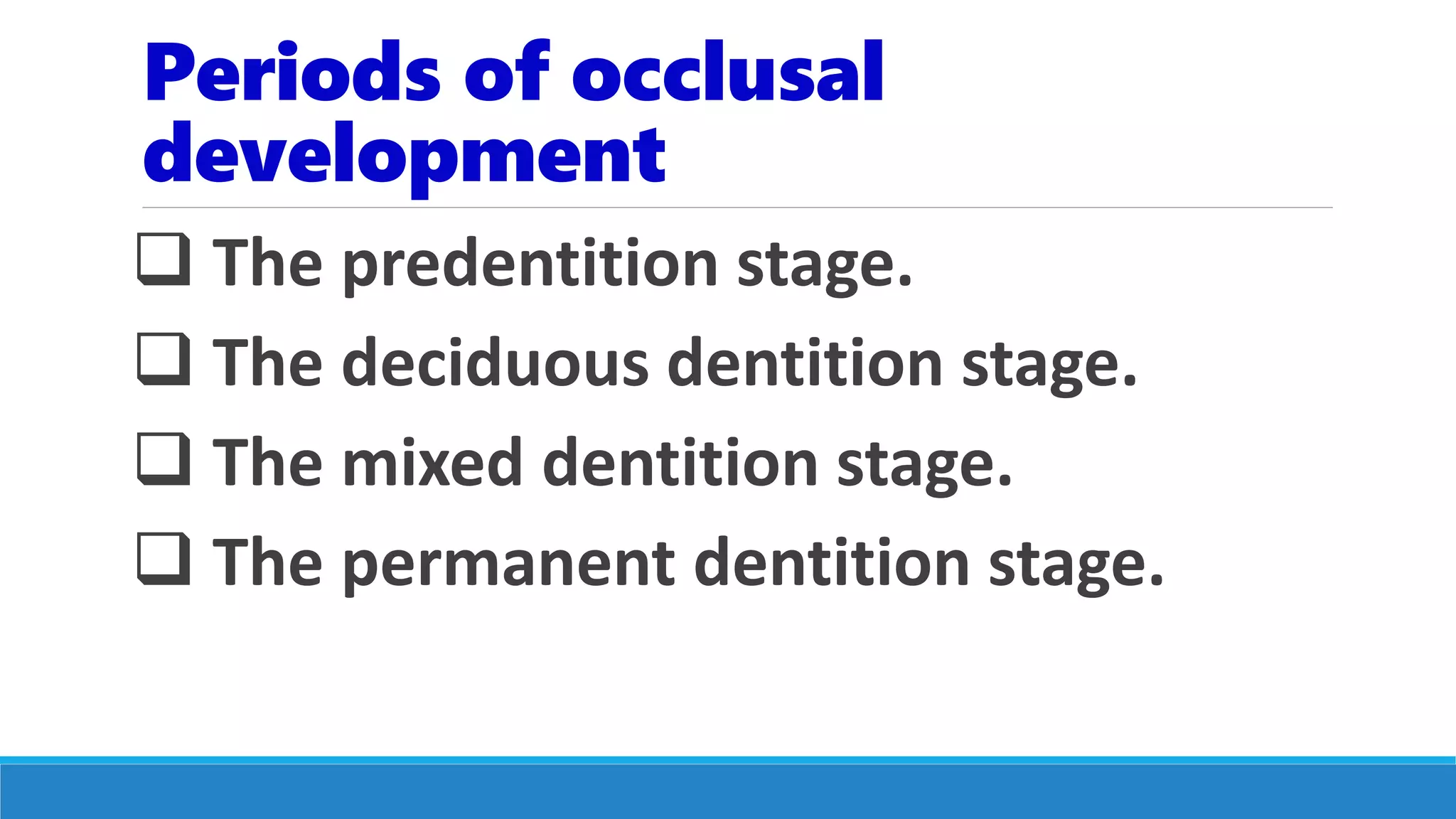

Periods of occlusal
development
 The predentition stage.
 The deciduous dentition stage.
 The mixed dentition stage.
 The permanent dentition stage.

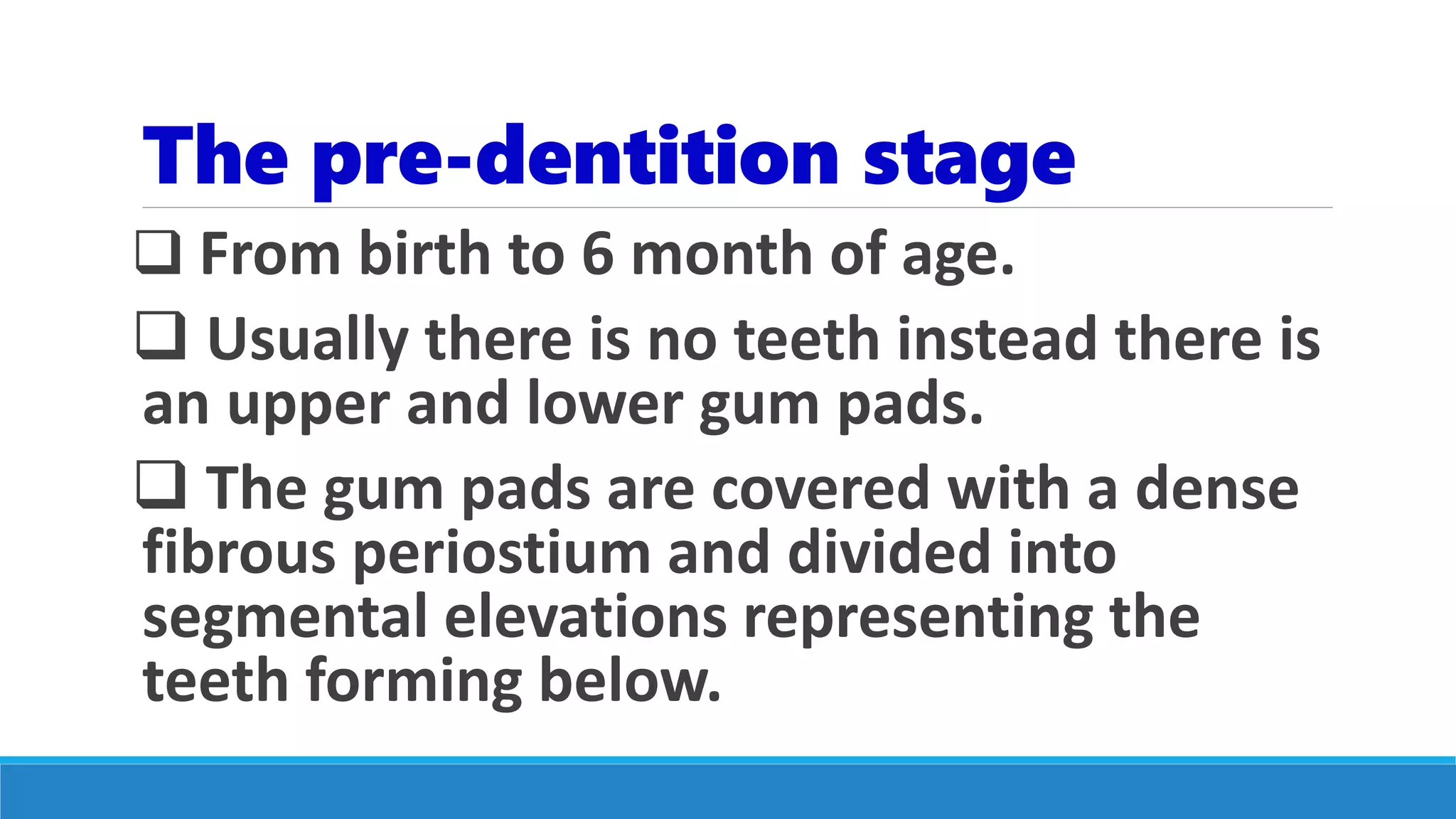

The pre-dentition stage
 From birth to 6 month of age.
 Usually there is no teeth instead there is
an upper and lower gum pads.
 The gum pads are covered with a dense
fibrous periostium and divided into
segmental elevations representing the
teeth forming below.

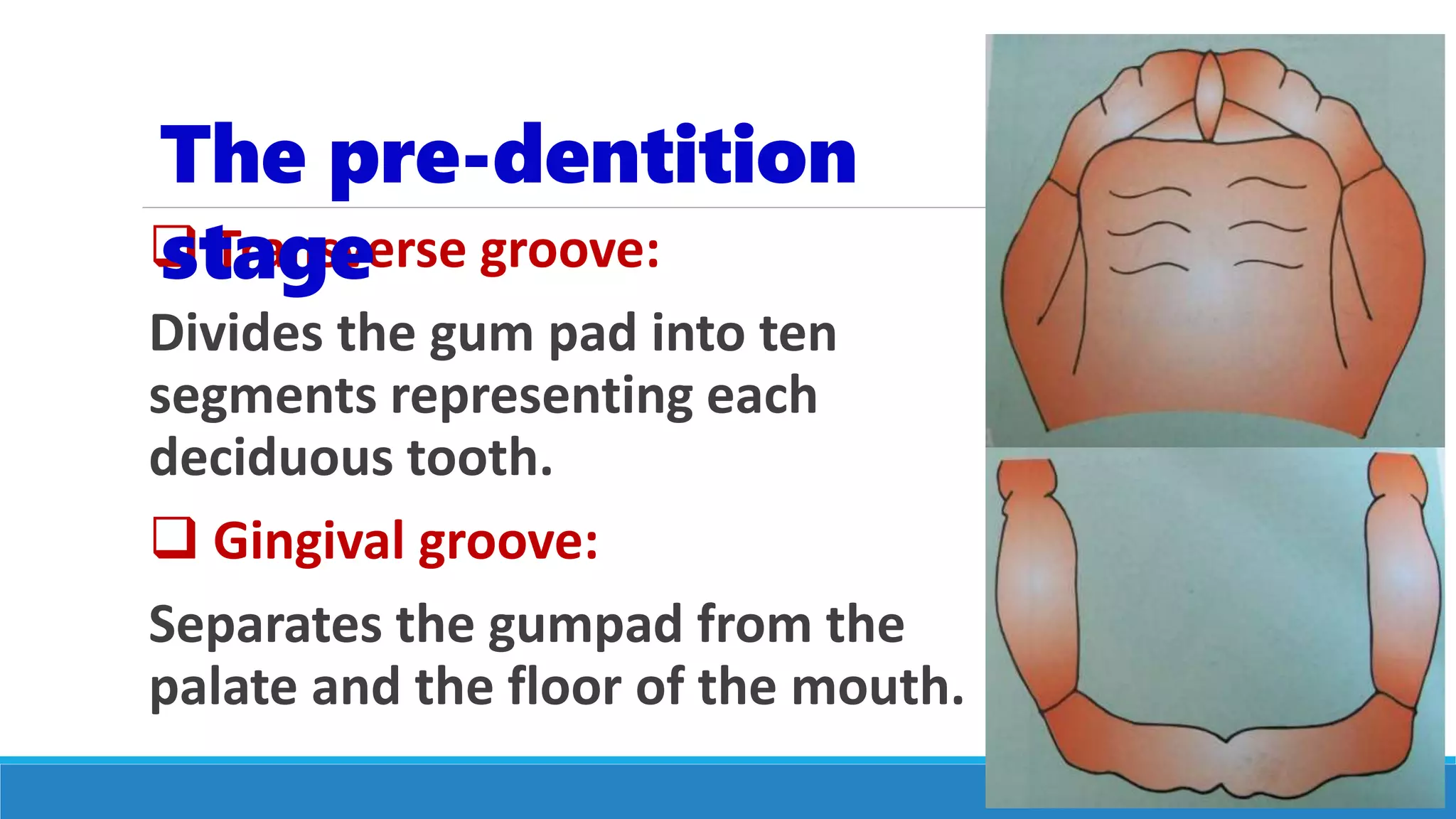

 Transverse groove:
Divides the gum pad into ten
segments representing each
deciduous tooth.
 Gingival groove:
Separates the gumpad from the
palate and the floor of the mouth.

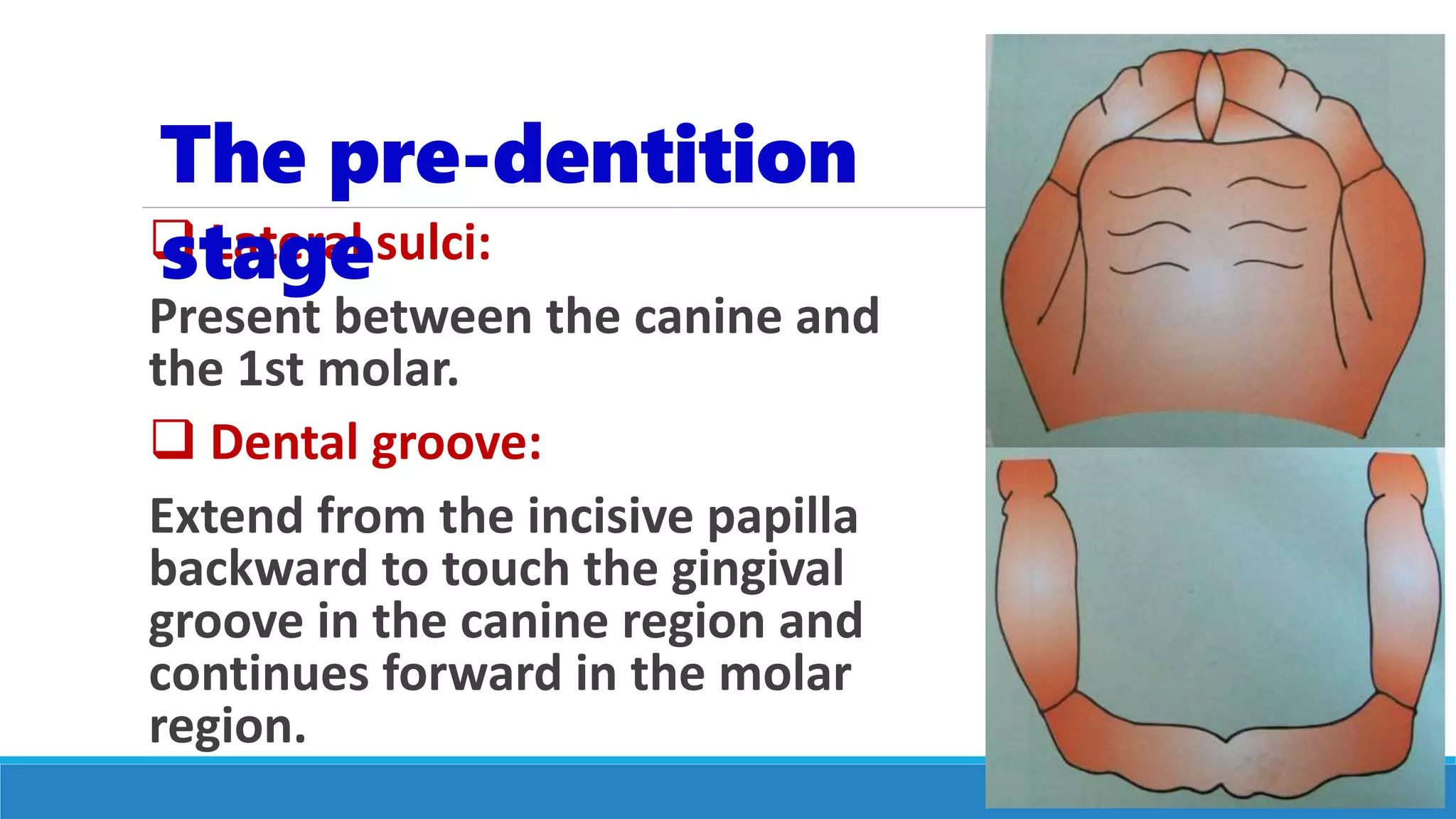

The pre-dentition
stage
 Lateral sulci:
Present between the canine and
the 1st molar.
 Dental groove:
Extend from the incisive papilla
backward to touch the gingival
groove in the canine region and
continues forward in the molar
region.
The pre-dentition
stage

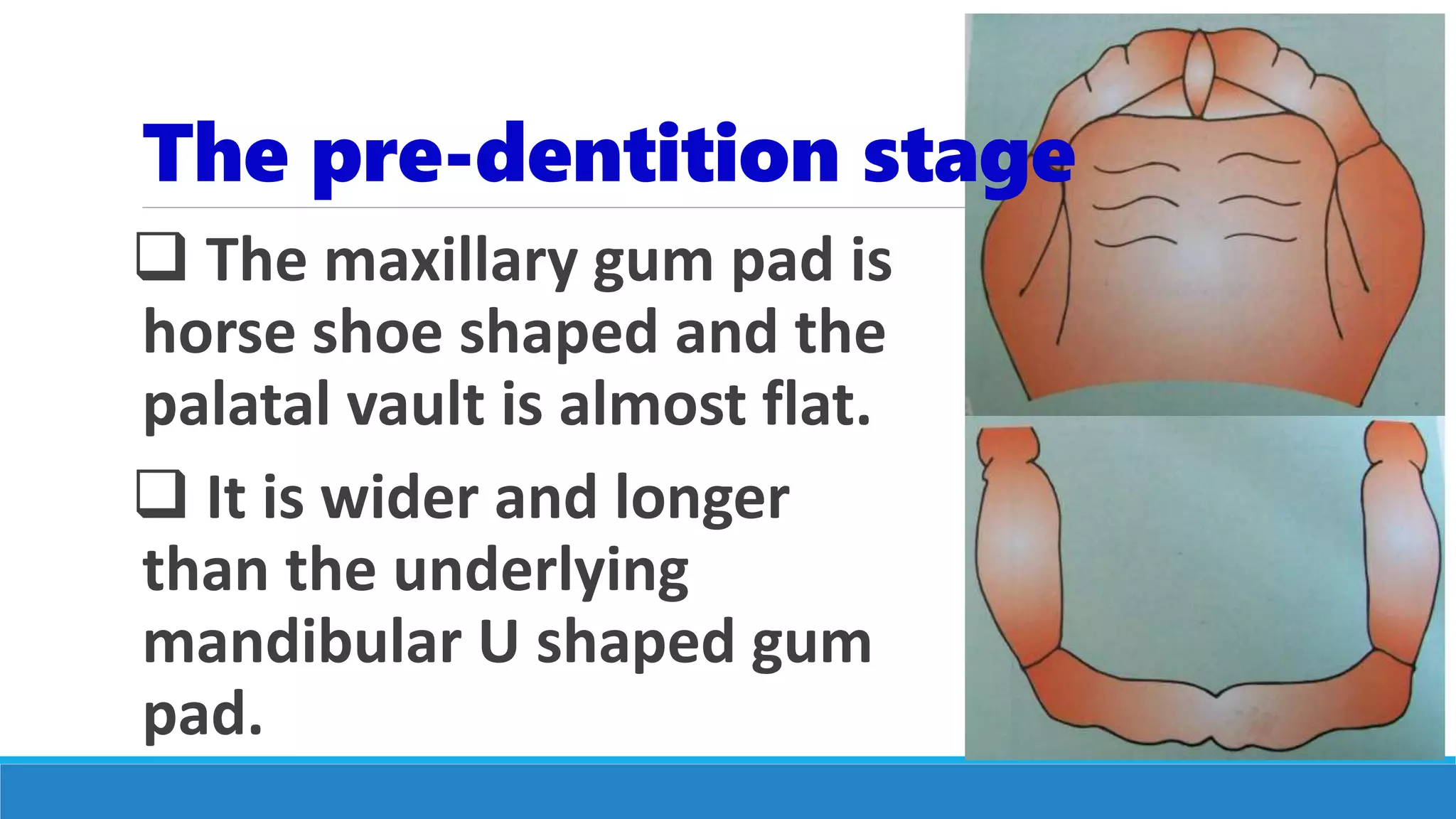

 The maxillary gum pad is
horse shoe shaped and the
palatal vault is almost flat.
 It is wider and longer
than the underlying
mandibular U shaped gum
pad.
The pre-dentition stage

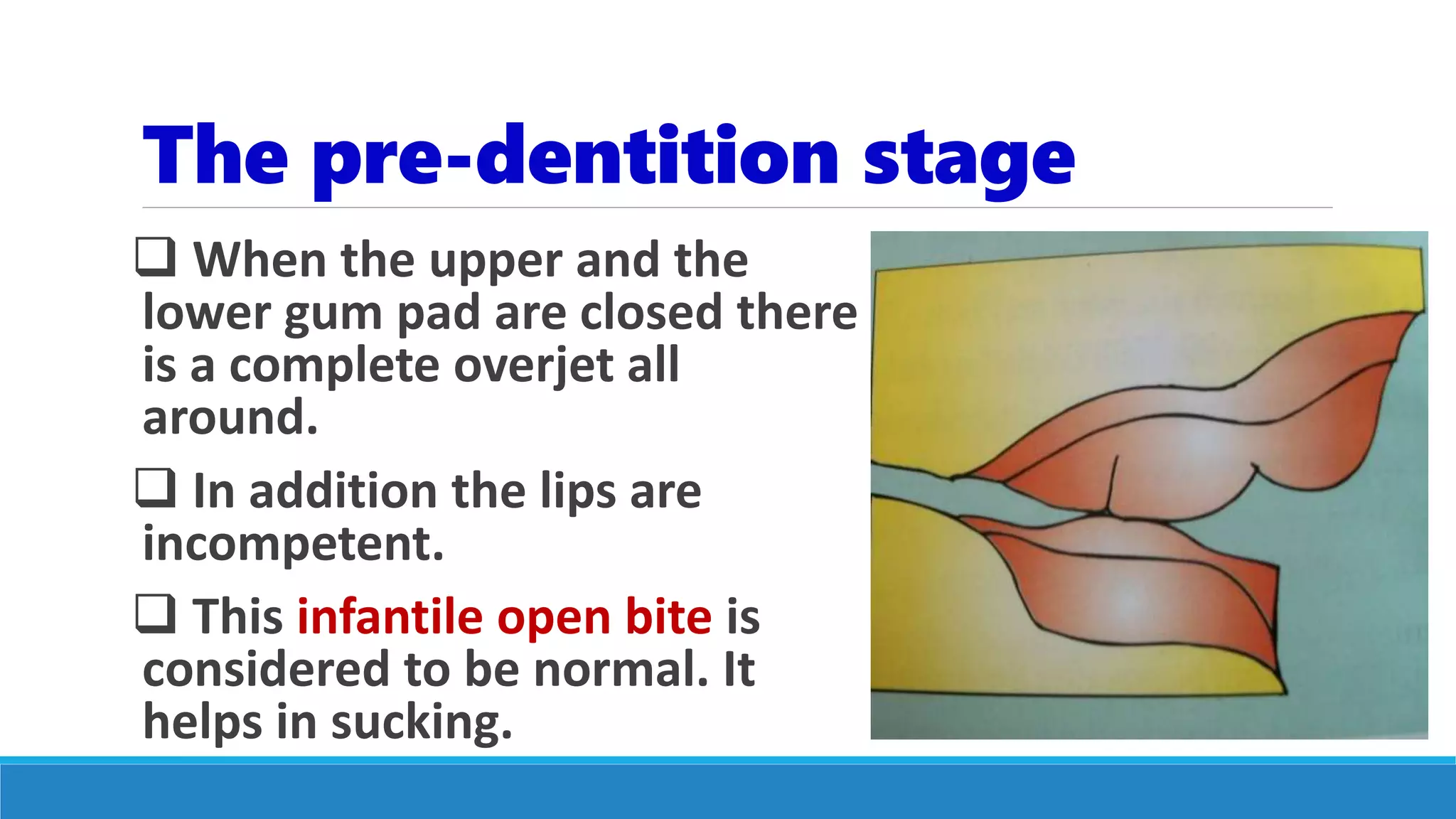

The pre-dentition stage
 When the upper and the
lower gum pad are closed there
is a complete overjet all
around.
 In addition the lips are
incompetent.
 This infantile open bite is
considered to be normal. It
helps in sucking.

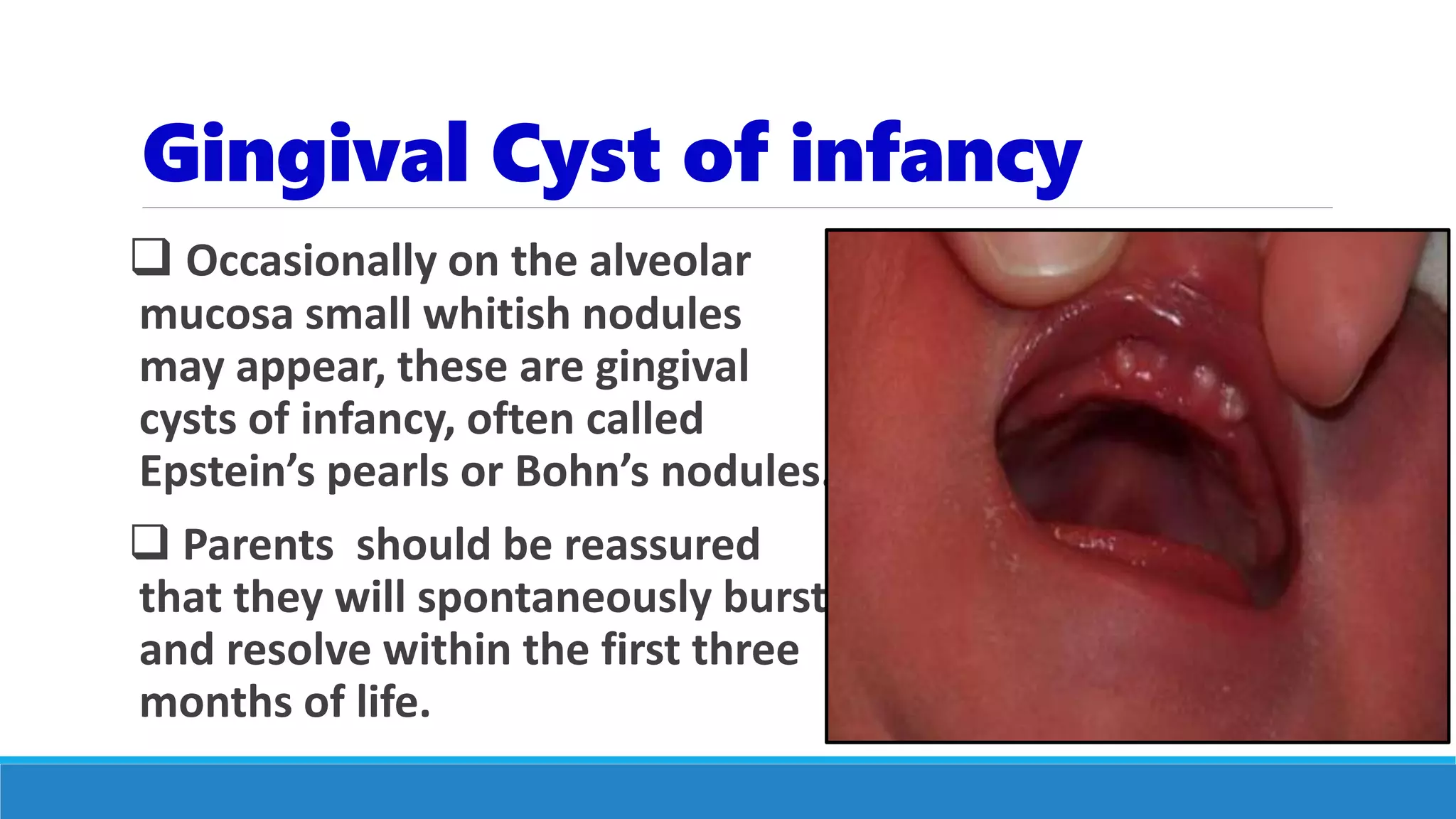

Gingival Cyst of infancy
 Occasionally on the alveolar
mucosa small whitish nodules
may appear, these are gingival
cysts of infancy, often called
Epstein’s pearls or Bohn’s nodules.
 Parents should be reassured
that they will spontaneously burst
and resolve within the first three
months of life.

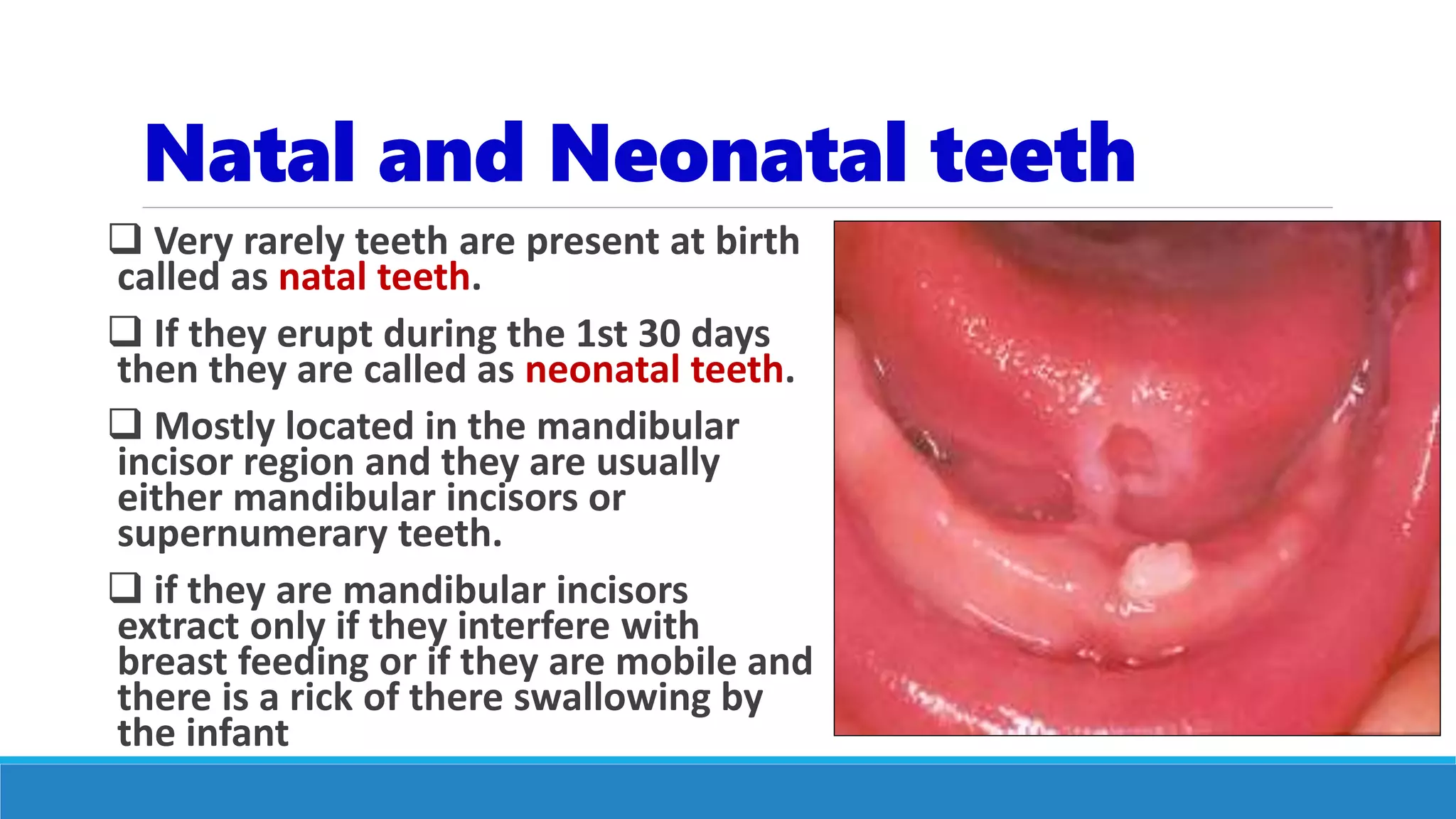

Natal and Neonatal teeth
 Very rarely teeth are present at birth
called as natal teeth.
 If they erupt during the 1st 30 days
then they are called as neonatal teeth.
 Mostly located in the mandibular
incisor region and they are usually
either mandibular incisors or
supernumerary teeth.
 if they are mandibular incisors
extract only if they interfere with
breast feeding or if they are mobile and
there is a rick of there swallowing by
the infant

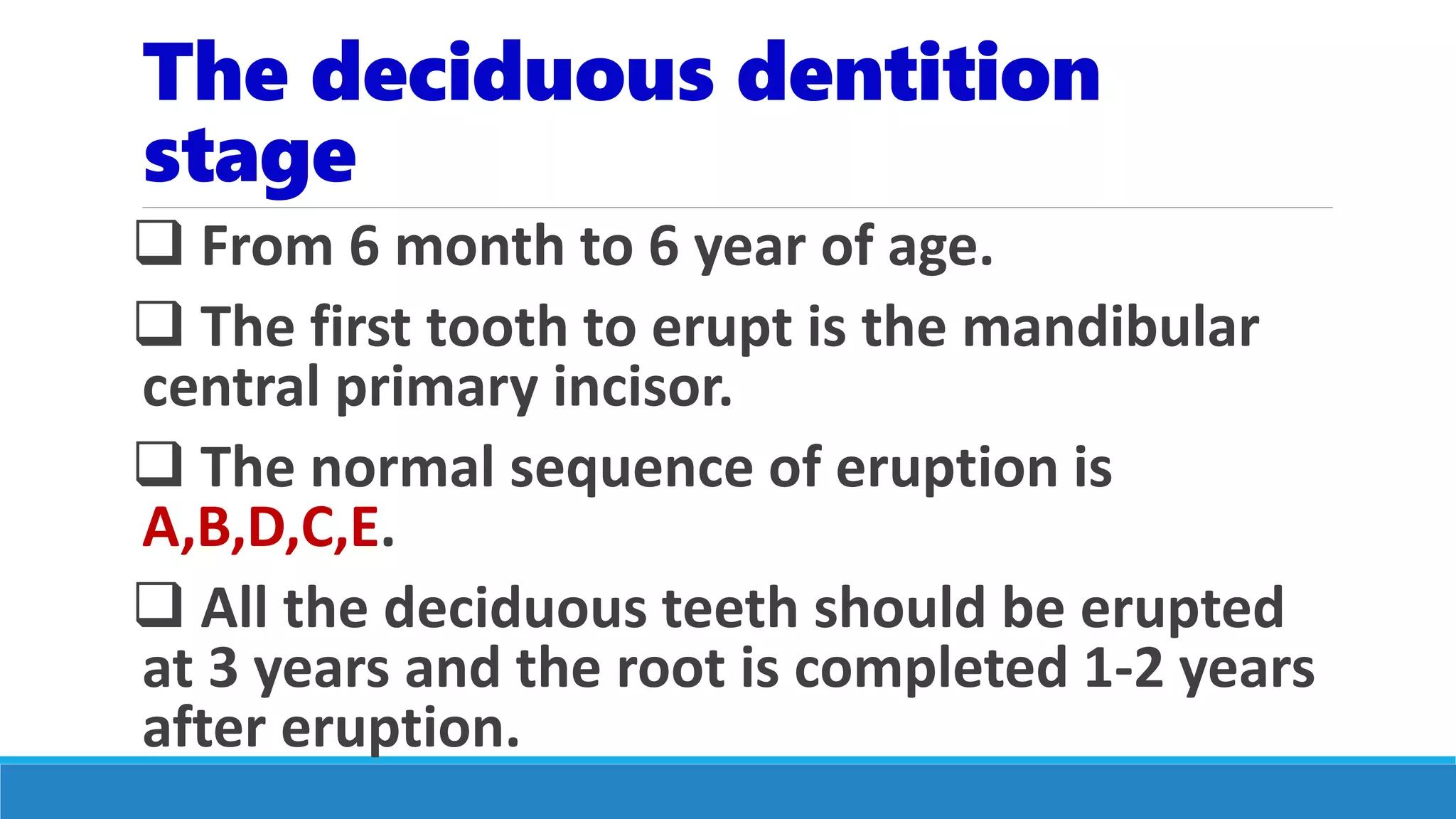

The deciduous dentition
stage
 From 6 month to 6 year of age.
 The first tooth to erupt is the mandibular
central primary incisor.
 The normal sequence of eruption is
A,B,D,C,E.
 All the deciduous teeth should be erupted
at 3 years and the root is completed 1-2 years
after eruption.

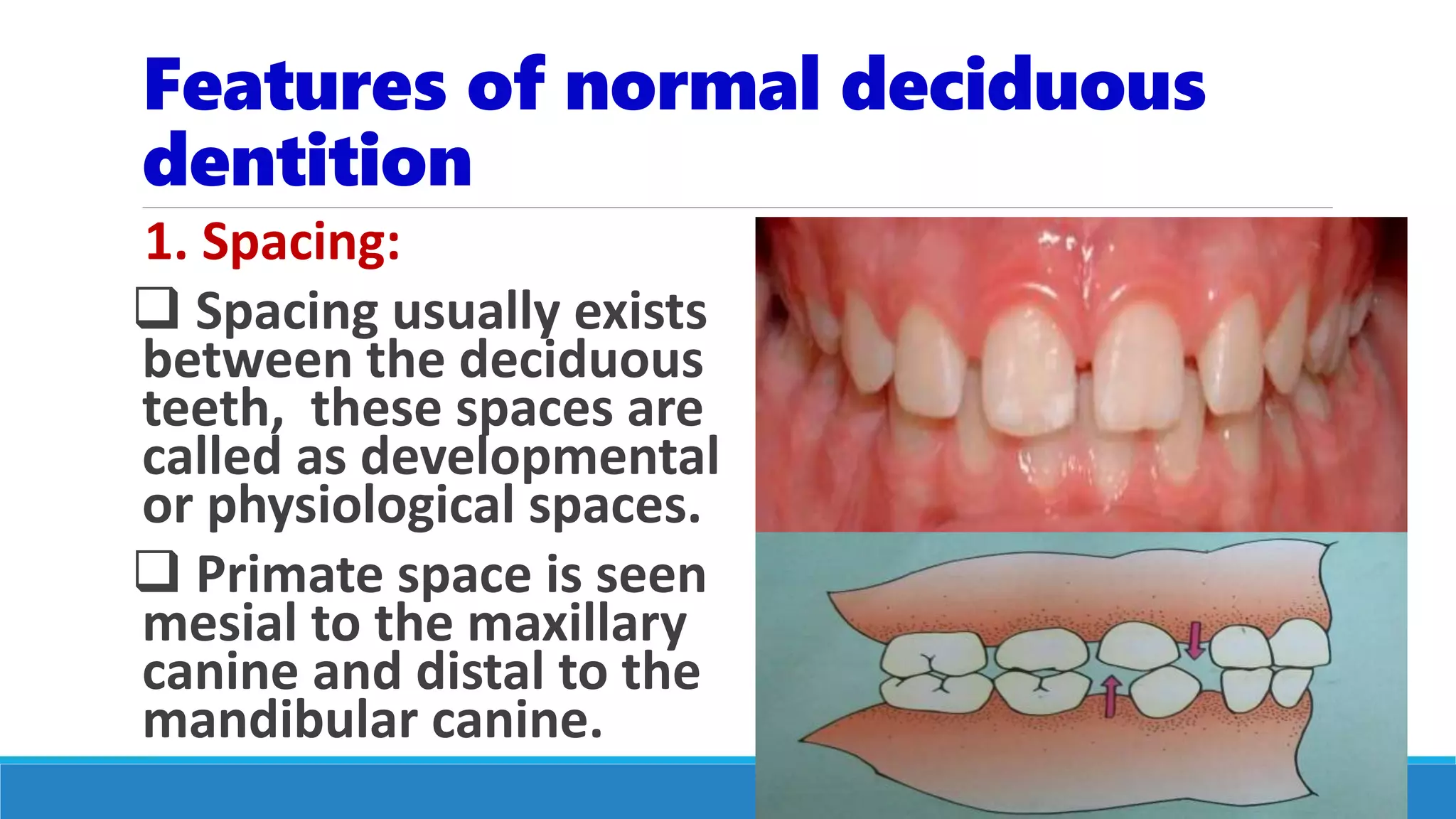

Features of normal deciduous
dentition
1. Spacing:
 Spacing usually exists
between the deciduous
teeth, these spaces are
called as developmental
or physiological spaces.
 Primate space is seen
mesial to the maxillary
canine and distal to the
mandibular canine.
Features of normal deciduous
dentition
2. Deep bite:
 The deep bite occur because
the deciduous incisors are more
upright than their permanent
counterparts.
 The deep bite reduces to an
almost edge to edge bite by 5-6
years of age due to:
 Eruption of deciduous molars.
 Attrition of incisors.
 Forward movement of
mandible due to growth.
Features of normal deciduous
dentition

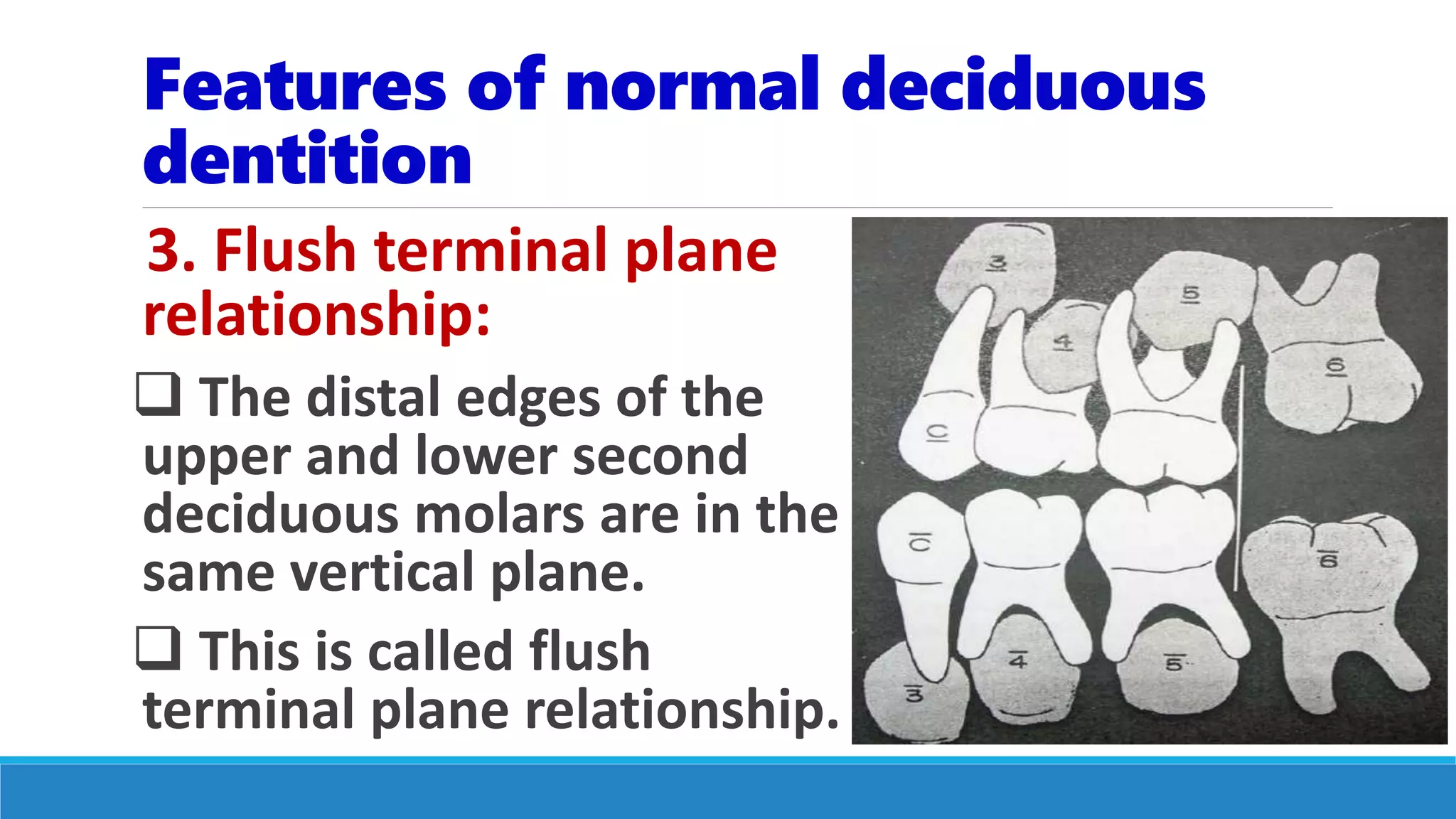

3. Flush terminal plane
relationship:
 The distal edges of the
upper and lower second
deciduous molars are in the
same vertical plane.
 This is called flush
terminal plane relationship.

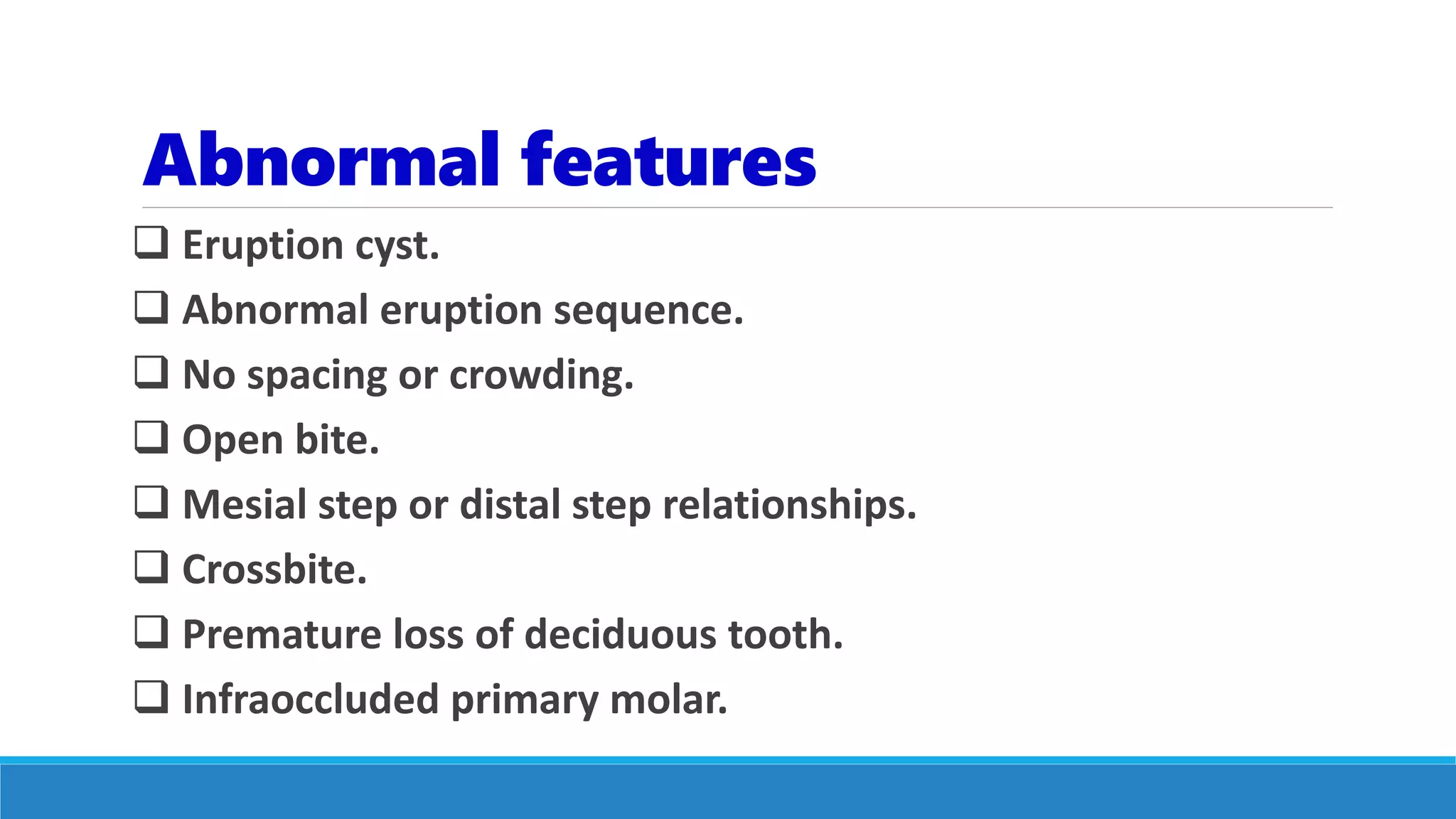

Abnormal features
 Eruption cyst.
 Abnormal eruption sequence.
 No spacing or crowding.
 Open bite.
 Mesial step or distal step relationships.
 Crossbite.
 Premature loss of deciduous tooth.
 Infraoccluded primary molar.

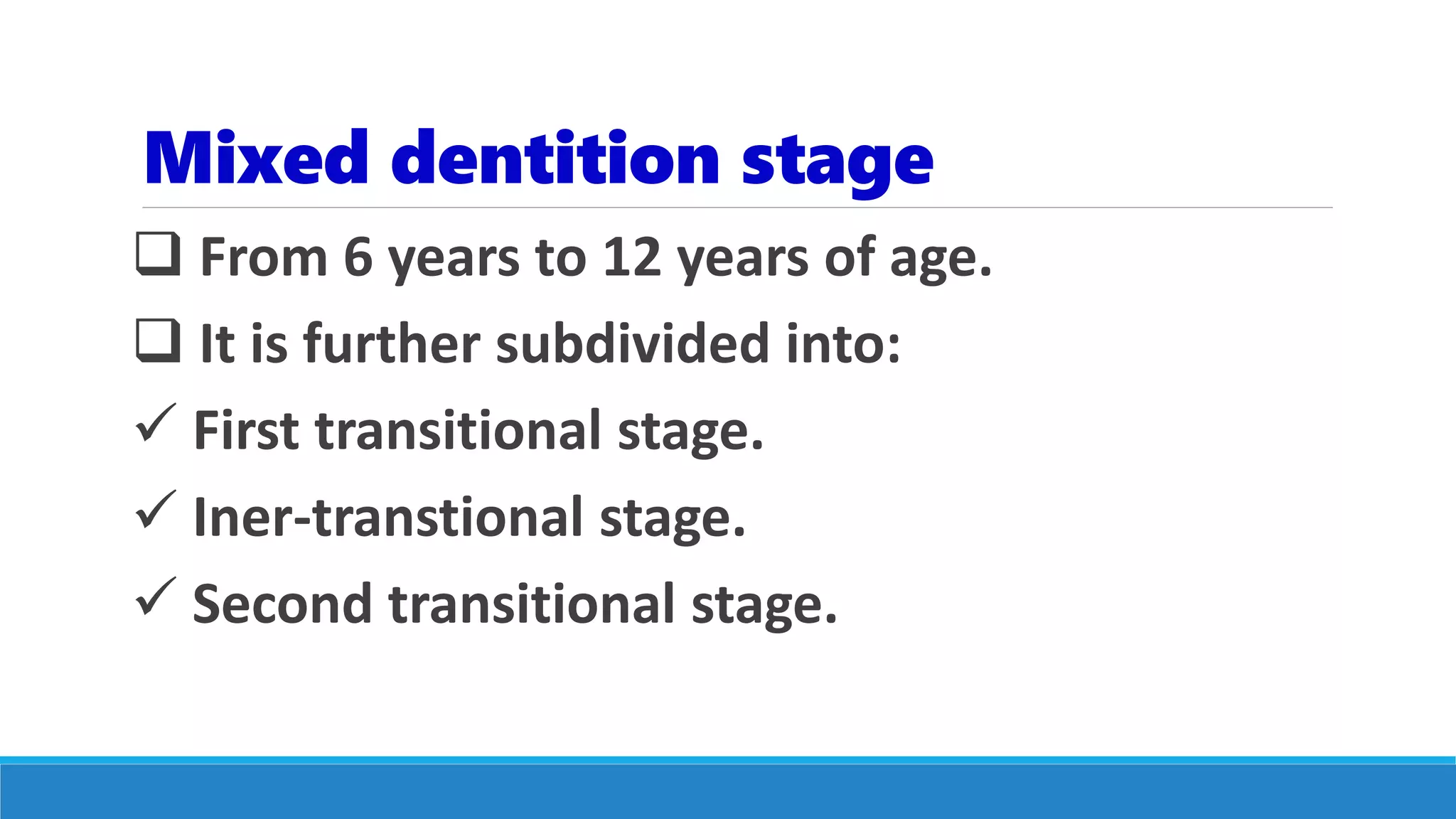

Mixed dentition stage
 From 6 years to 12 years of age.
 It is further subdivided into:
 First transitional stage.
 Iner-transtional stage.
 Second transitional stage.

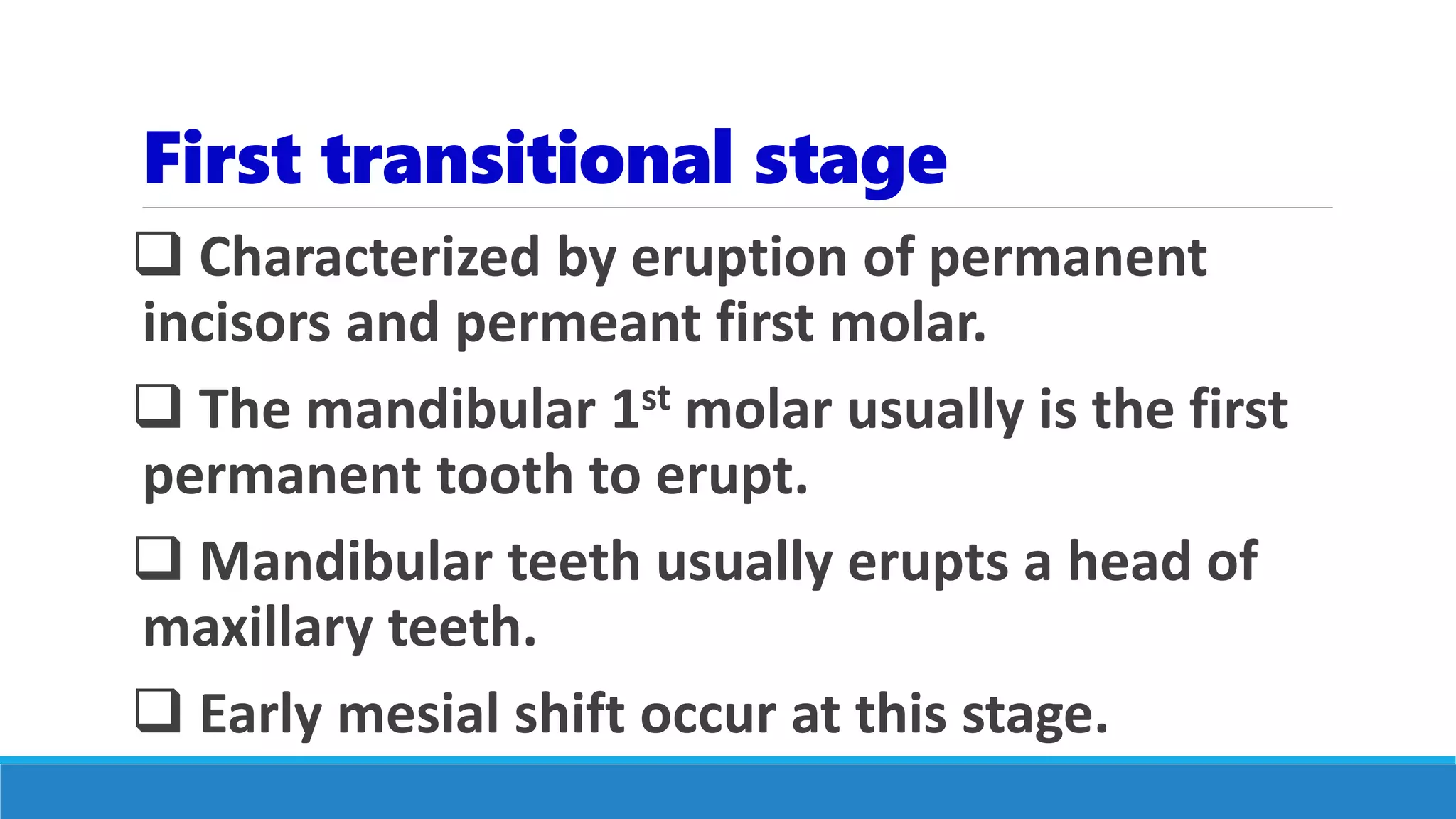

First transitional stage
 Characterized by eruption of permanent
incisors and permeant first molar.
 The mandibular 1st molar usually is the first
permanent tooth to erupt.
 Mandibular teeth usually erupts a head of
maxillary teeth.
 Early mesial shift occur at this stage.

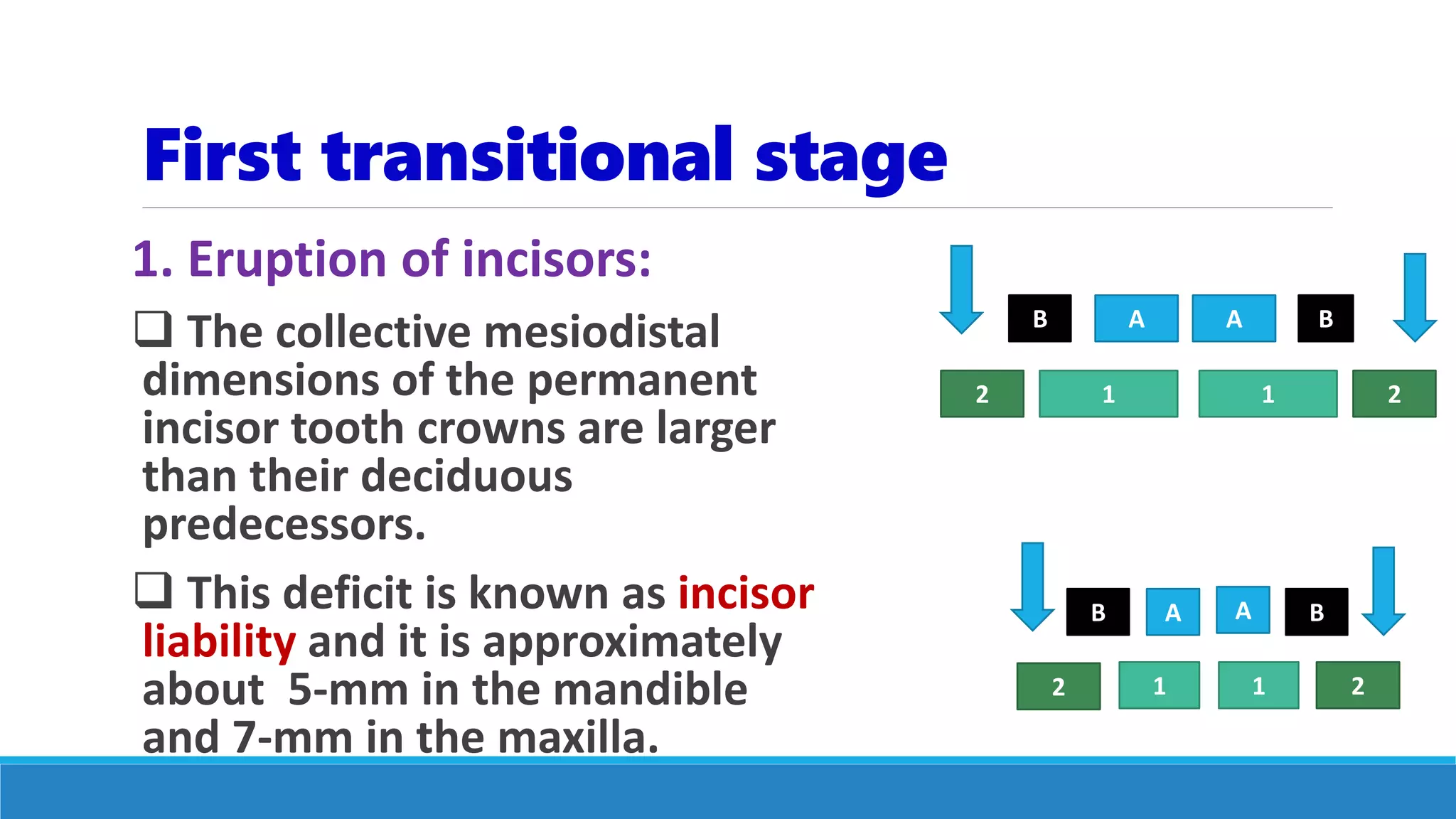

First transitional stage
1. Eruption of incisors:
 The collective mesiodistal
dimensions of the permanent
incisor tooth crowns are larger
than their deciduous
predecessors.
 This deficit is known as incisor
liability and it is approximately
about 5-mm in the mandible
and 7-mm in the maxilla.
A A BB
2 21 1
1 12 2
A AB B

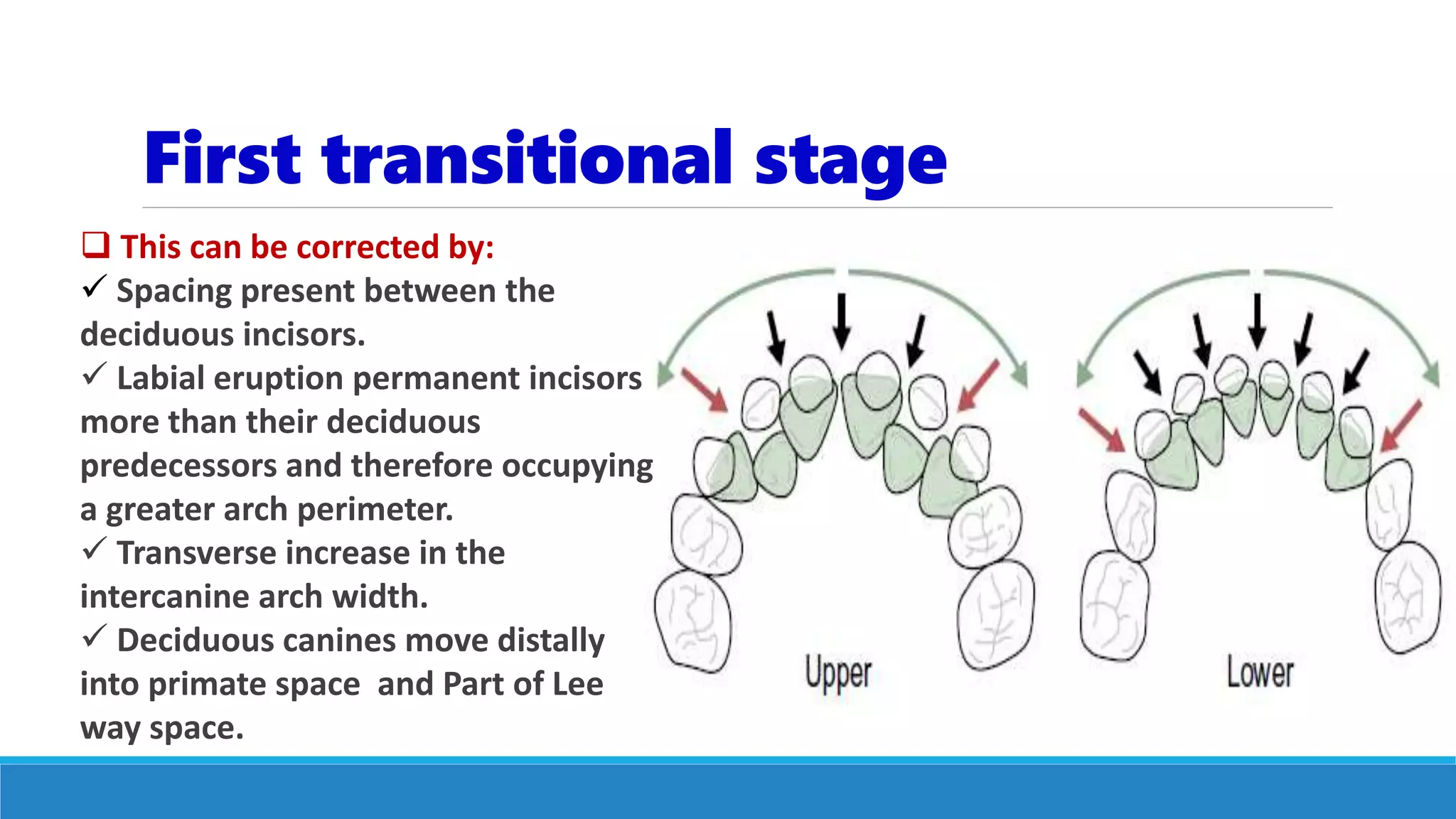

First transitional stage
 This can be corrected by:
 Spacing present between the
deciduous incisors.
 Labial eruption permanent incisors
more than their deciduous
predecessors and therefore occupying
a greater arch perimeter.
 Transverse increase in the
intercanine arch width.
 Deciduous canines move distally
into primate space and Part of Lee
way space.

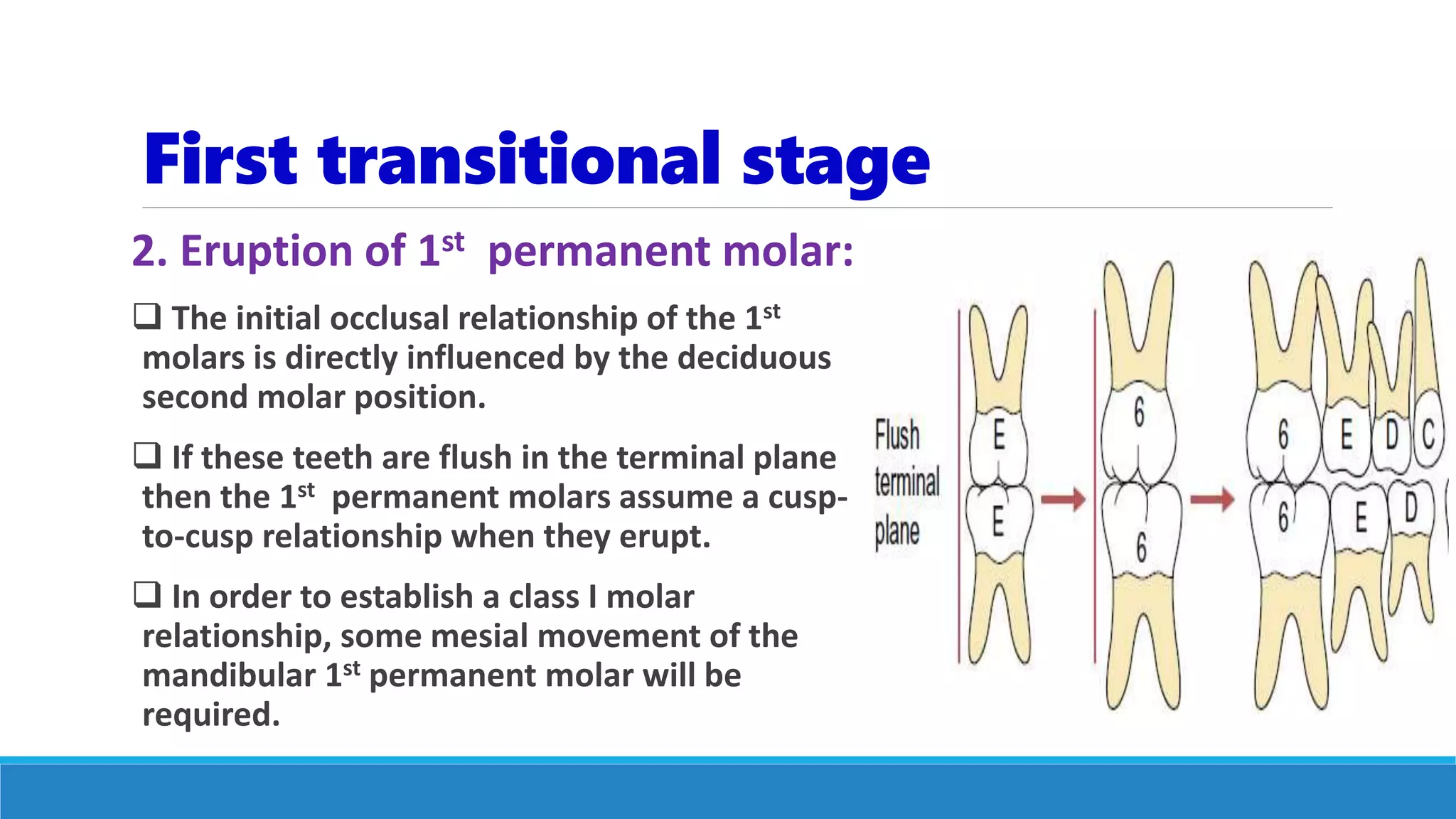

First transitional stage
2. Eruption of 1st permanent molar:
 The initial occlusal relationship of the 1st
molars is directly influenced by the deciduous
second molar position.
 If these teeth are flush in the terminal plane
then the 1st permanent molars assume a cusp-
to-cusp relationship when they erupt.
 In order to establish a class I molar
relationship, some mesial movement of the
mandibular 1st permanent molar will be
required.

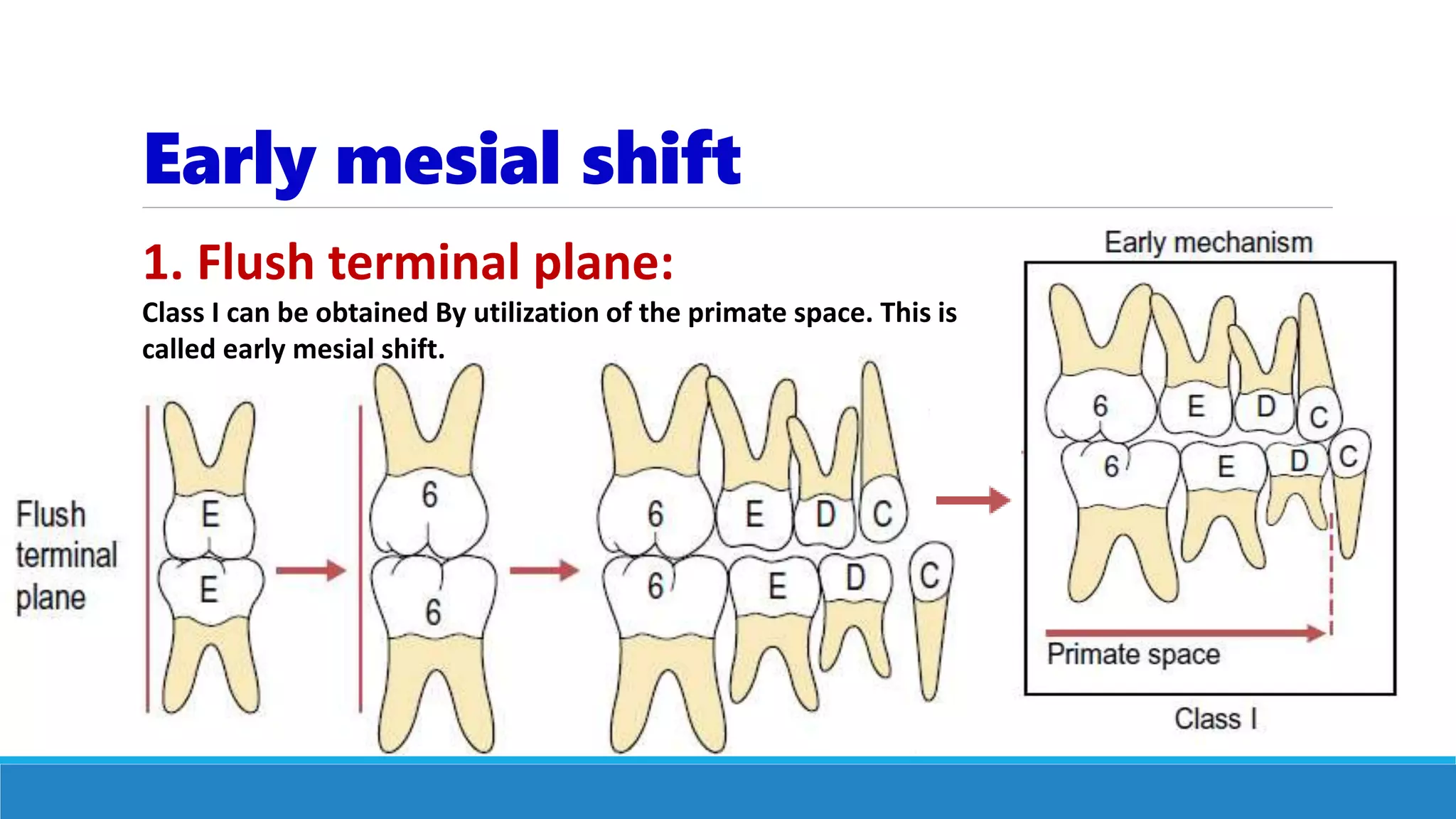

Early mesial shift
1. Flush terminal plane:
Class I can be obtained By utilization of the primate space. This is
called early mesial shift.

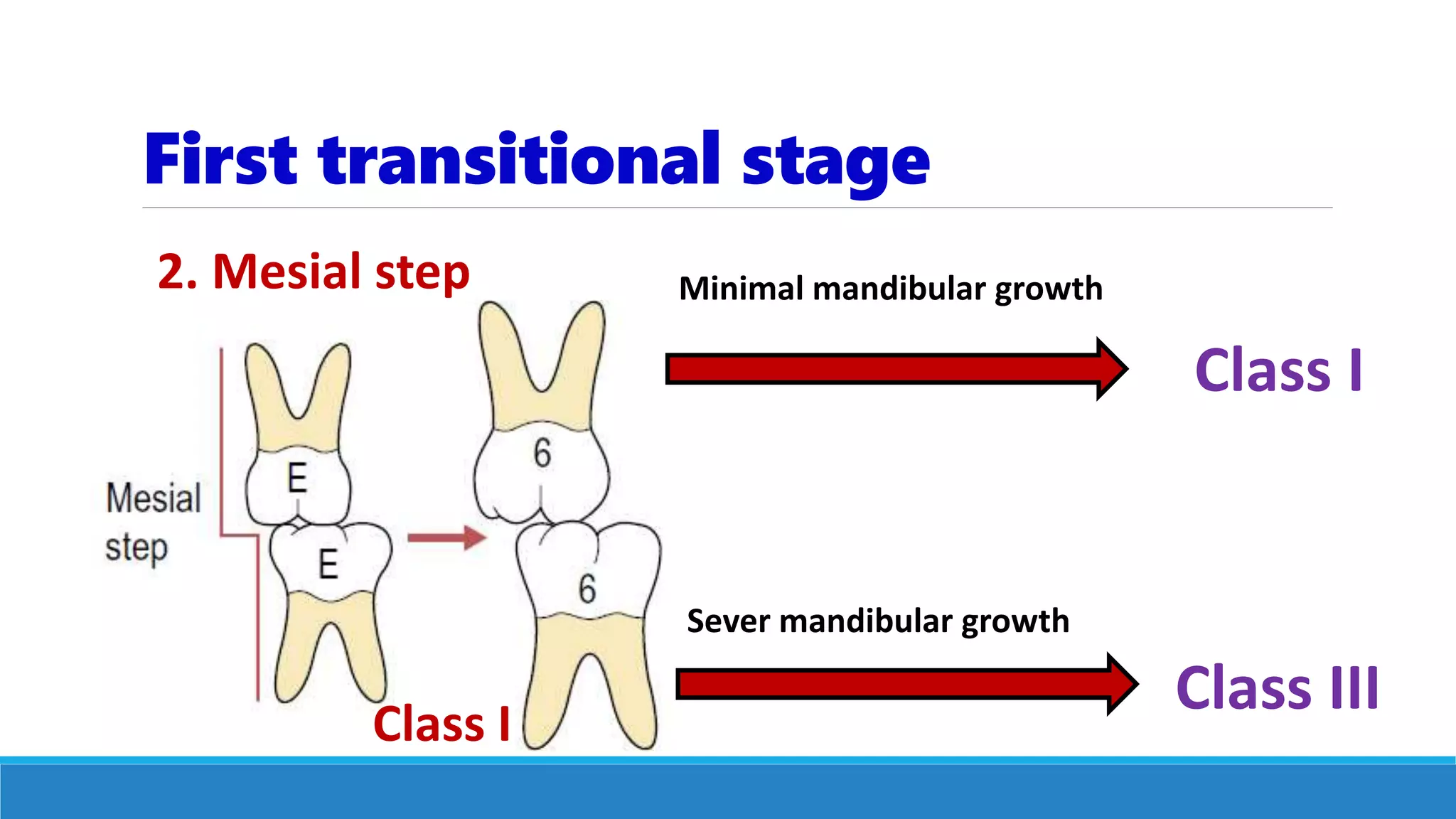

First transitional stage
Class I
Class IIIClass I
Minimal mandibular growth
Sever mandibular growth
2. Mesial step
First transitional stage

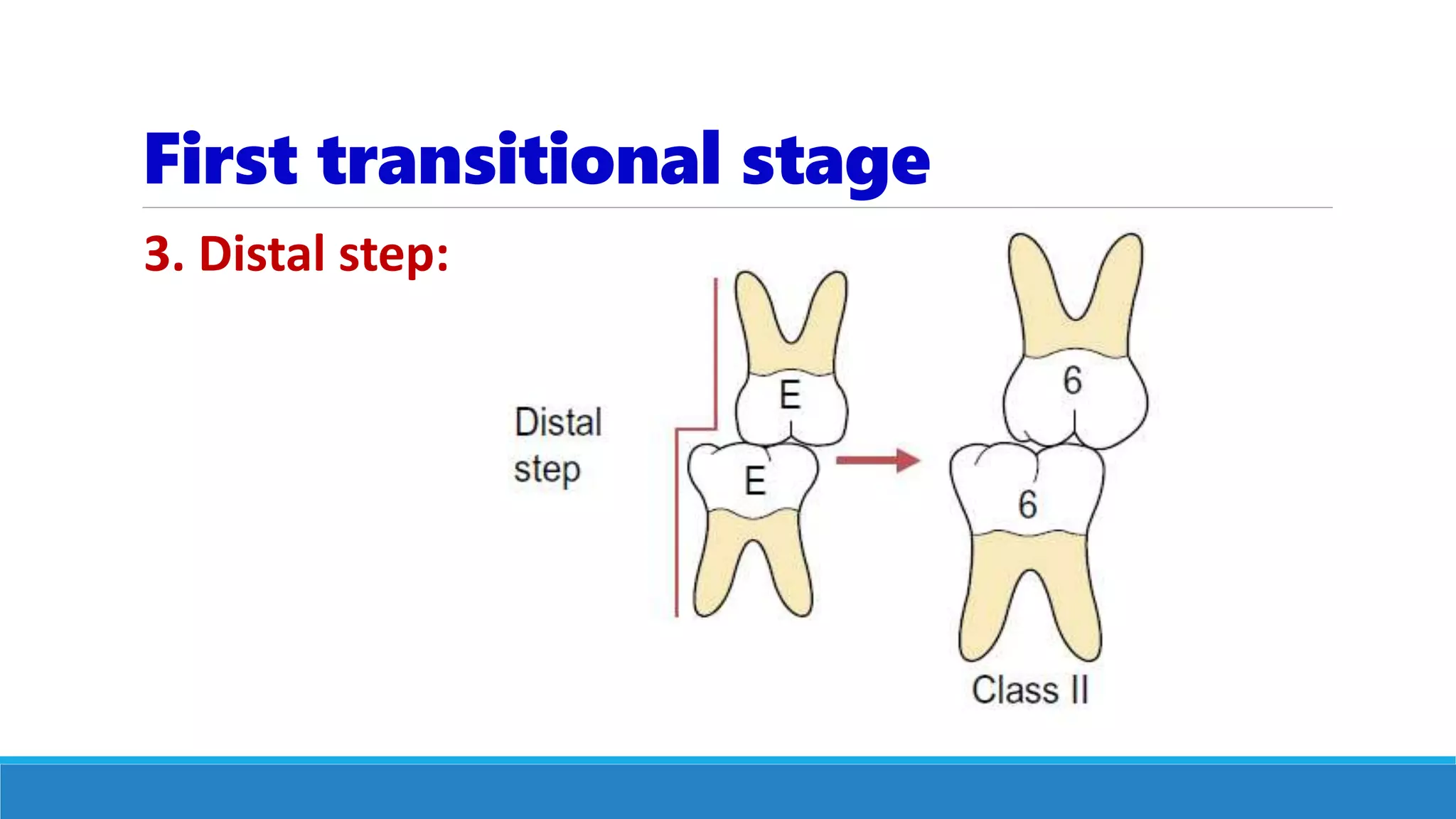

3. Distal step:

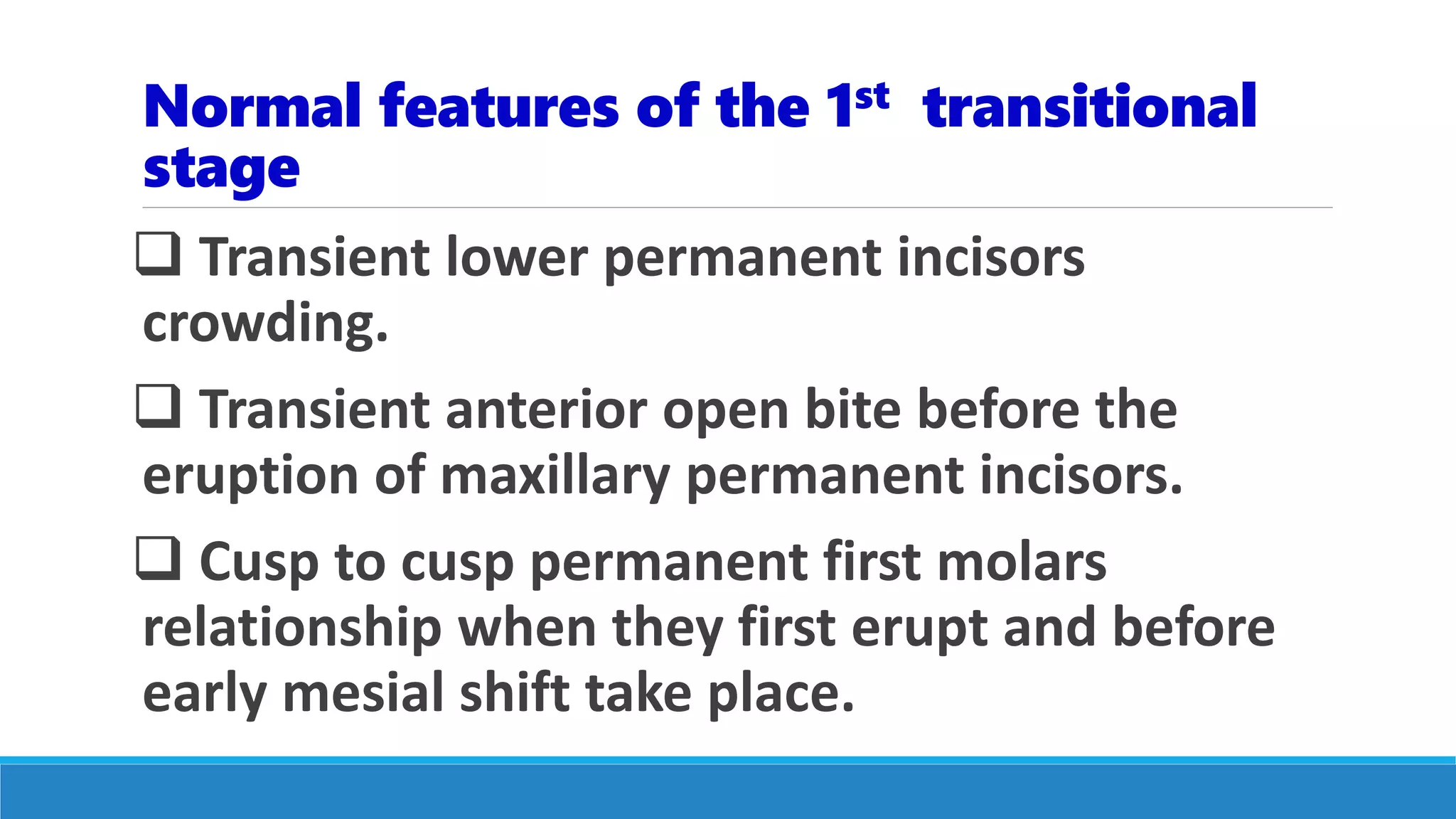

Normal features of the 1st transitional
stage
 Transient lower permanent incisors
crowding.
 Transient anterior open bite before the
eruption of maxillary permanent incisors.
 Cusp to cusp permanent first molars
relationship when they first erupt and before
early mesial shift take place.

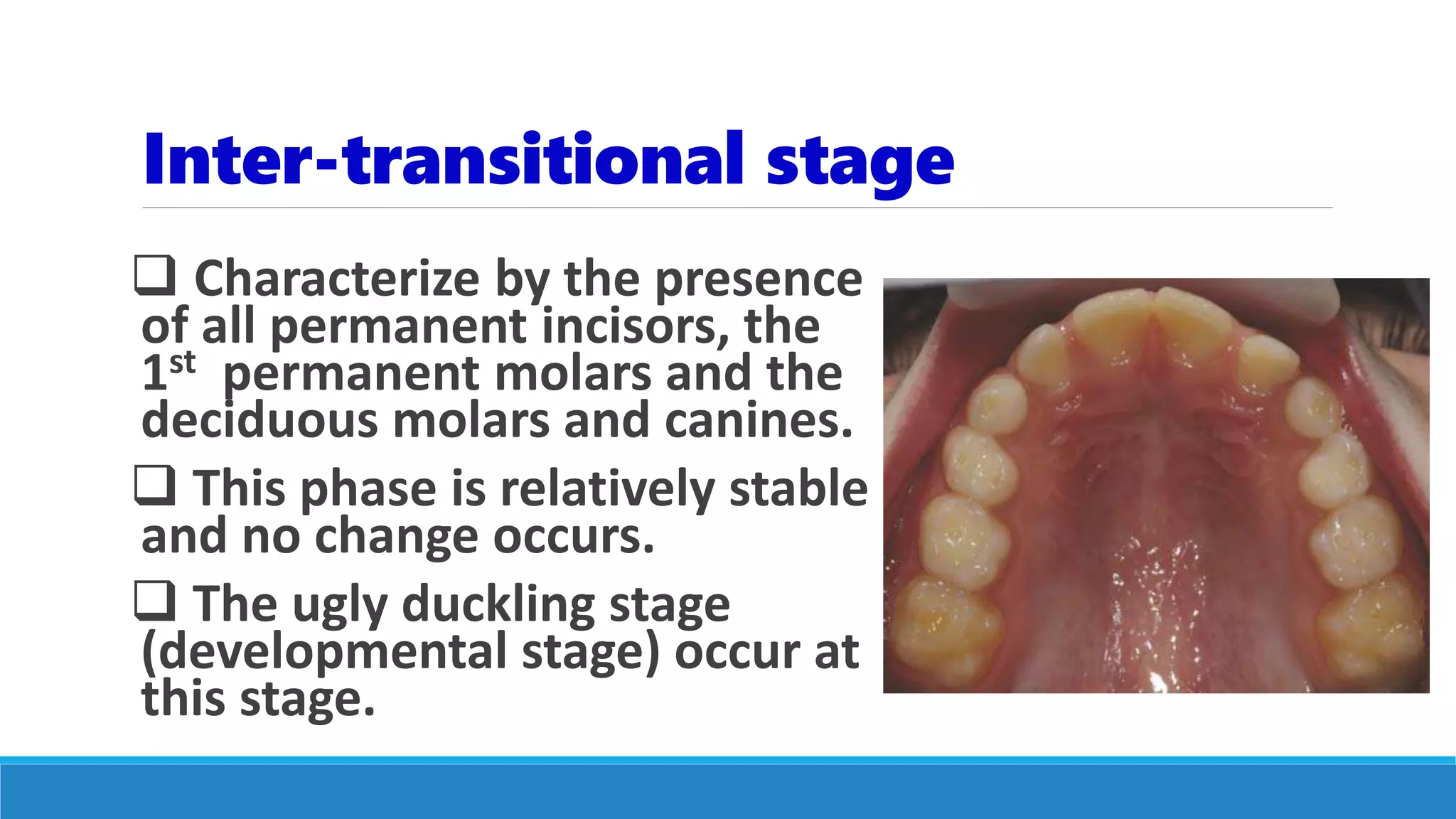

 Characterize by the presence
of all permanent incisors, the
1st permanent molars and the
deciduous molars and canines.
 This phase is relatively stable
and no change occurs.
 The ugly duckling stage
(developmental stage) occur at
this stage.
Inter-transitional stage

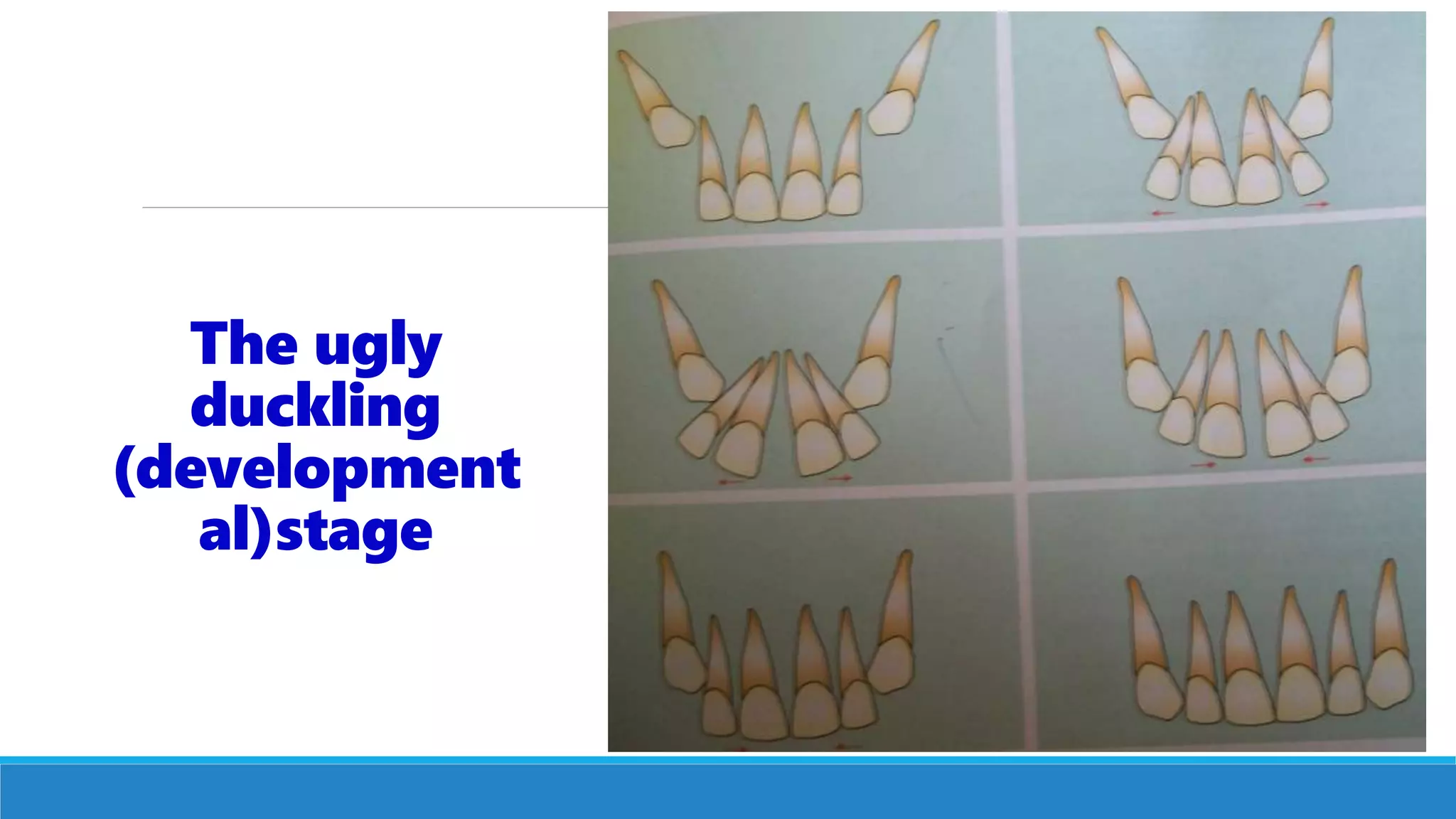

The ugly duckling (developmental)
stage
The ugly
duckling
(development
al)stage

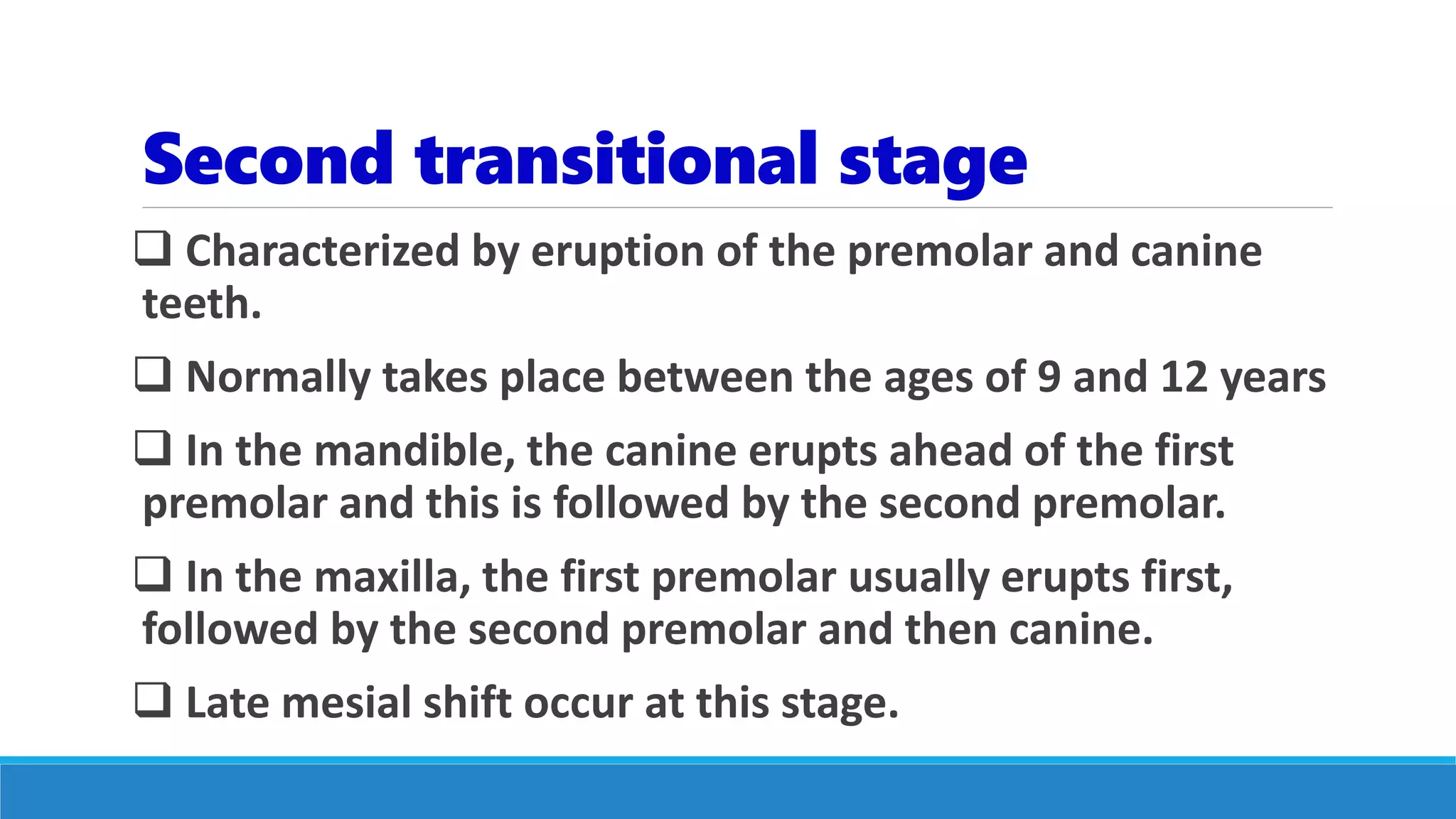

Second transitional stage
 Characterized by eruption of the premolar and canine
teeth.
 Normally takes place between the ages of 9 and 12 years
 In the mandible, the canine erupts ahead of the first
premolar and this is followed by the second premolar.
 In the maxilla, the first premolar usually erupts first,
followed by the second premolar and then canine.
 Late mesial shift occur at this stage.

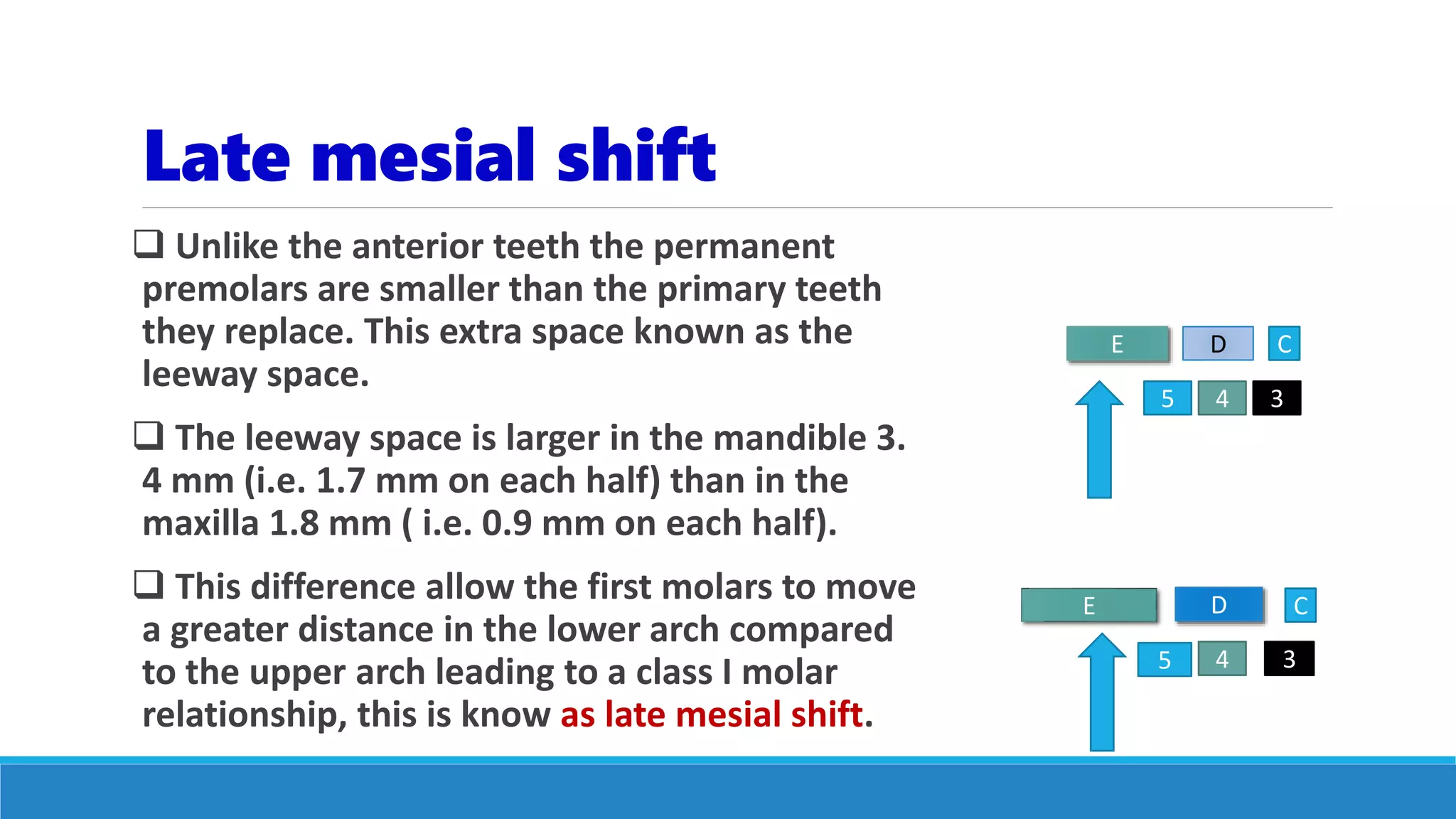

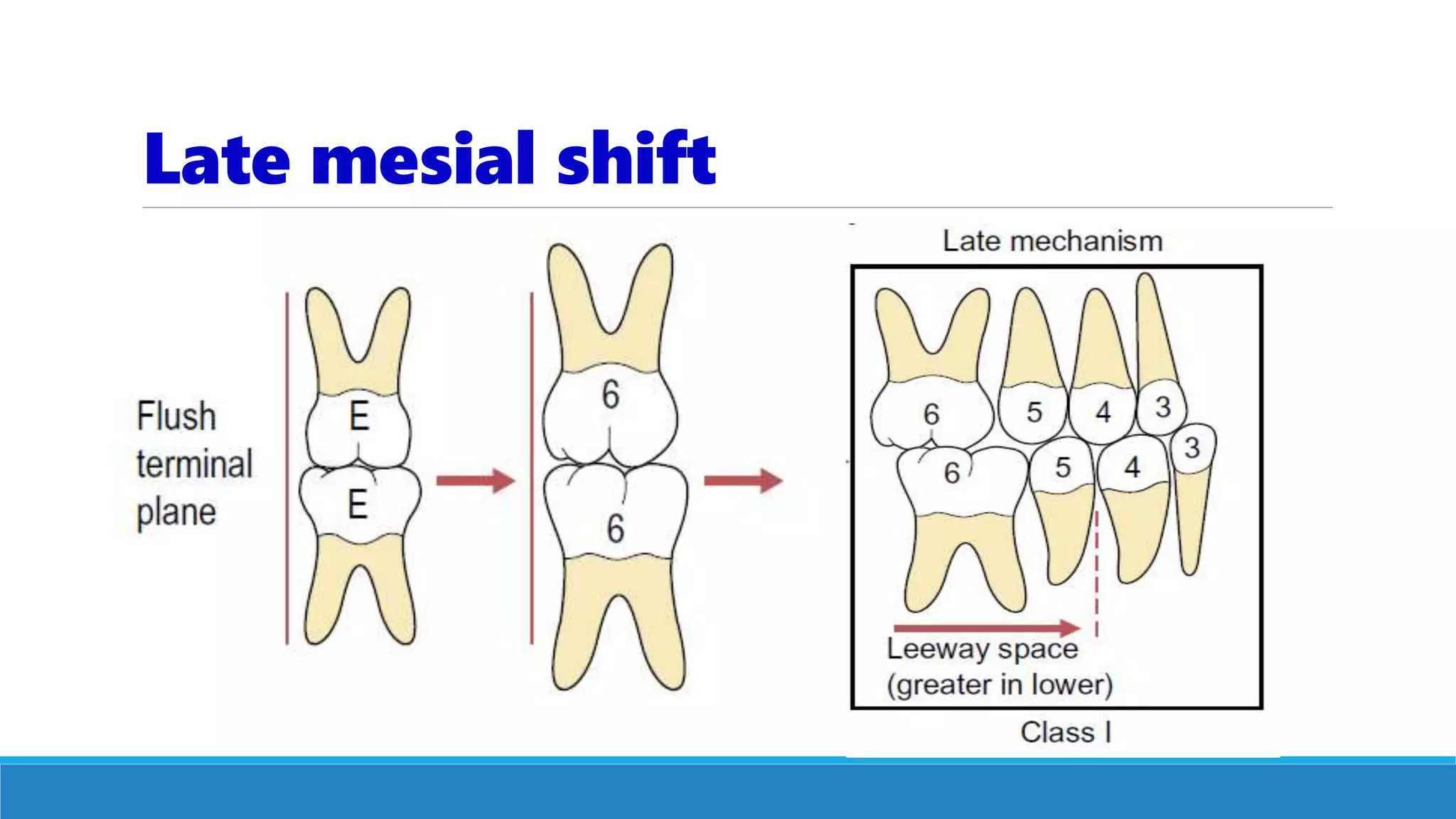

Late mesial shift
 Unlike the anterior teeth the permanent
premolars are smaller than the primary teeth
they replace. This extra space known as the
leeway space.
 The leeway space is larger in the mandible 3.
4 mm (i.e. 1.7 mm on each half) than in the
maxilla 1.8 mm ( i.e. 0.9 mm on each half).
 This difference allow the first molars to move
a greater distance in the lower arch compared
to the upper arch leading to a class I molar
relationship, this is know as late mesial shift.
CDE
345
E D C
345
Late mesial shift

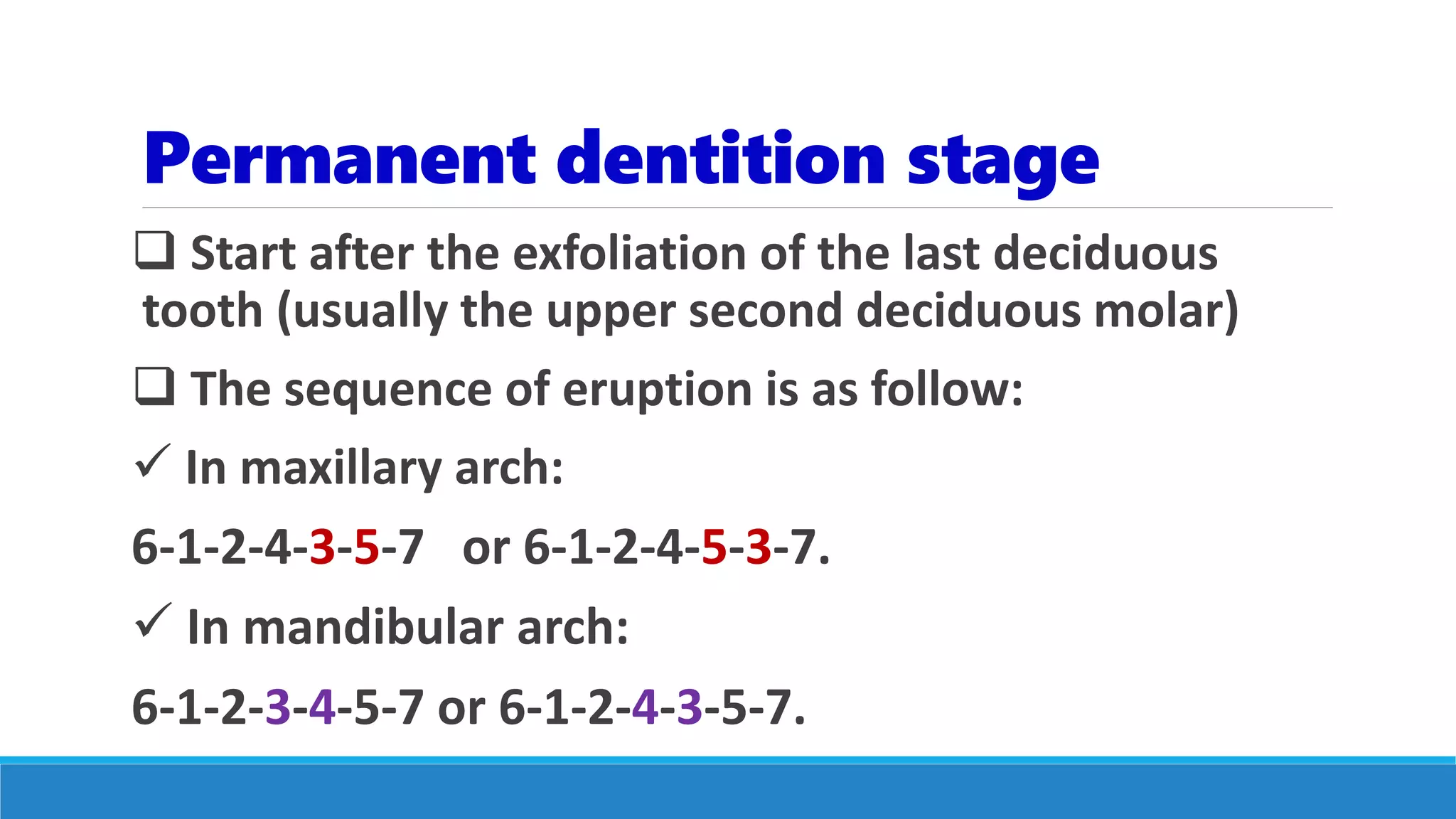

Permanent dentition stage
 Start after the exfoliation of the last deciduous
tooth (usually the upper second deciduous molar)
 The sequence of eruption is as follow:
 In maxillary arch:
6-1-2-4-3-5-7 or 6-1-2-4-5-3-7.
 In mandibular arch:
6-1-2-3-4-5-7 or 6-1-2-4-3-5-7.

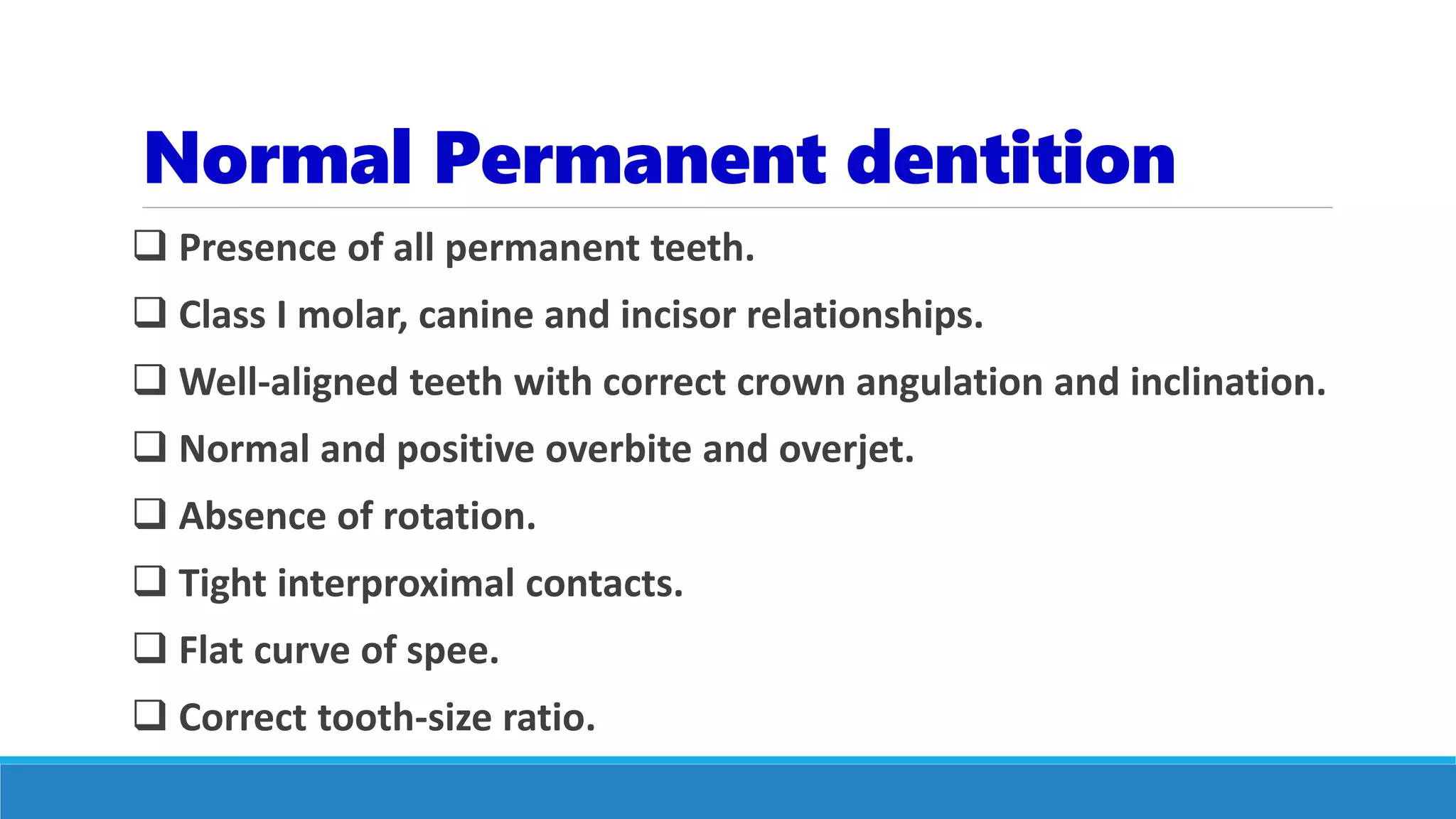

Normal Permanent dentition
 Presence of all permanent teeth.
 Class I molar, canine and incisor relationships.
 Well-aligned teeth with correct crown angulation and inclination.
 Normal and positive overbite and overjet.
 Absence of rotation.
 Tight interproximal contacts.
 Flat curve of spee.
 Correct tooth-size ratio.

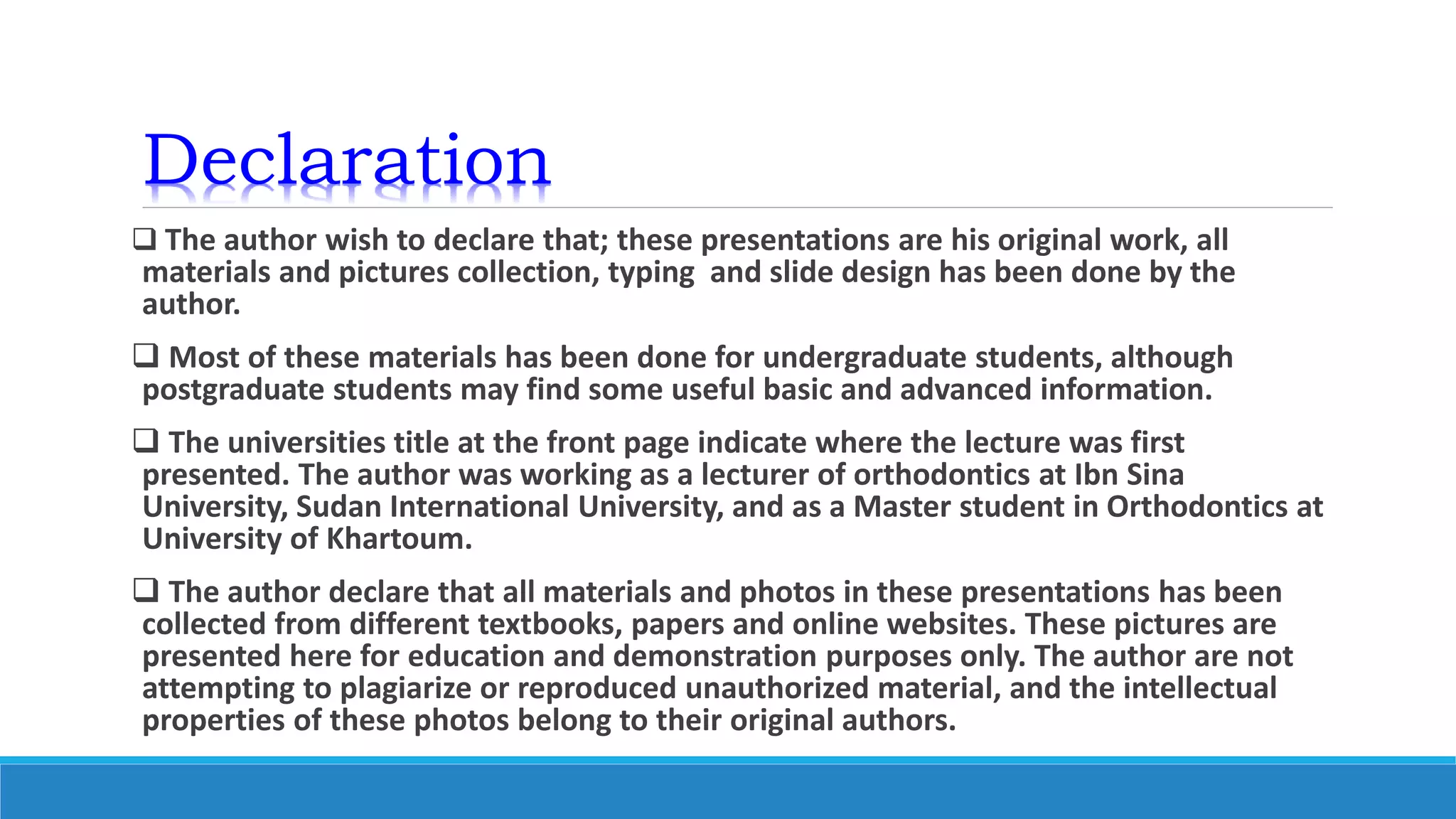

Declaration
 The author wish to declare that; these presentations are his original work, all
materials and pictures collection, typing and slide design has been done by the
author.
 Most of these materials has been done for undergraduate students, although
postgraduate students may find some useful basic and advanced information.
 The universities title at the front page indicate where the lecture was first
presented. The author was working as a lecturer of orthodontics at Ibn Sina
University, Sudan International University, and as a Master student in Orthodontics at
University of Khartoum.
 The author declare that all materials and photos in these presentations has been
collected from different textbooks, papers and online websites. These pictures are
presented here for education and demonstration purposes only. The author are not
attempting to plagiarize or reproduced unauthorized material, and the intellectual
properties of these photos belong to their original authors.
Declaration

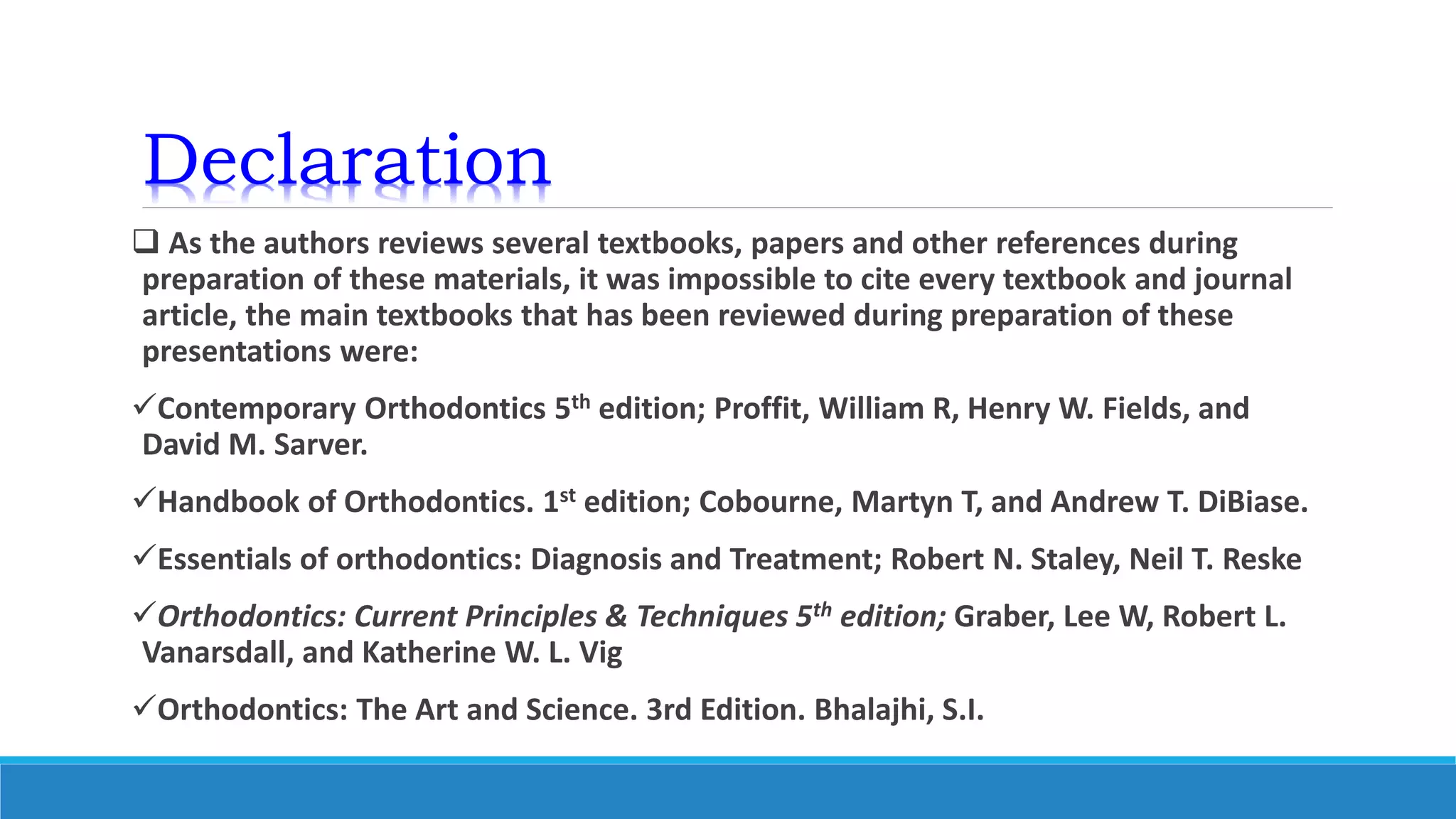

 As the authors reviews several textbooks, papers and other references during
preparation of these materials, it was impossible to cite every textbook and journal
article, the main textbooks that has been reviewed during preparation of these
presentations were:
Contemporary Orthodontics 5th edition; Proffit, William R, Henry W. Fields, and
David M. Sarver.
Handbook of Orthodontics. 1st edition; Cobourne, Martyn T, and Andrew T. DiBiase.
Essentials of orthodontics: Diagnosis and Treatment; Robert N. Staley, Neil T. Reske
Orthodontics: Current Principles & Techniques 5th edition; Graber, Lee W, Robert L.
Vanarsdall, and Katherine W. L. Vig
Orthodontics: The Art and Science. 3rd Edition. Bhalajhi, S.I.

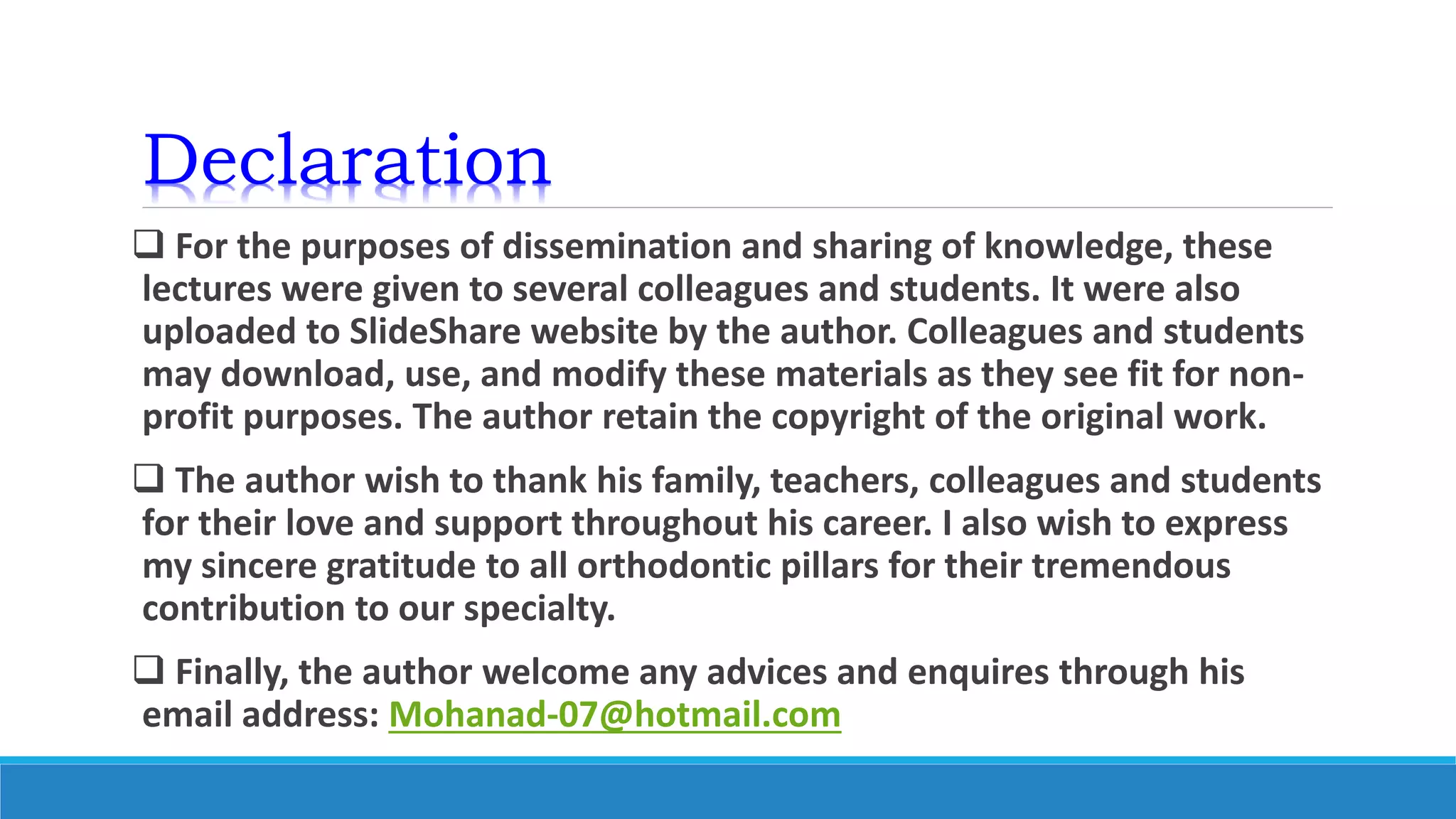

Declaration
 For the purposes of dissemination and sharing of knowledge, these
lectures were given to several colleagues and students. It were also
uploaded to SlideShare website by the author. Colleagues and students
may download, use, and modify these materials as they see fit for non-
profit purposes. The author retain the copyright of the original work.
 The author wish to thank his family, teachers, colleagues and students
for their love and support throughout his career. I also wish to express
my sincere gratitude to all orthodontic pillars for their tremendous
contribution to our specialty.
 Finally, the author welcome any advices and enquires through his
email address: Mohanad-07@hotmail.com
Thank You

More Related Content

What's hot

Development of dentition and occlusion
Development of dentition and occlusionDevelopment of dentition and occlusion
Development of dentition and occlusion
Nida Sumra

Development of occlusion
Development  of occlusionDevelopment  of occlusion
Development of occlusion
Dr Pooja Chaturvedi

Space regainers
Space regainersSpace regainers
Space regainers
aravindhanarumugam1

Pedia stainless steel crown
Pedia stainless steel crownPedia stainless steel crown
Pedia stainless steel crown
IAU Dent

Prenatal and postnatal growth of mandible
Prenatal and postnatal growth of mandiblePrenatal and postnatal growth of mandible
Prenatal and postnatal growth of mandibleshayonisen2012

Tongue thrusting - Dr. TALAT NAZ
Tongue thrusting - Dr. TALAT NAZTongue thrusting - Dr. TALAT NAZ
Tongue thrusting - Dr. TALAT NAZ
drtalat

Factors affecting normal occlusion
Factors affecting normal occlusion Factors affecting normal occlusion
Factors affecting normal occlusion
Kritika Suroliya

Development of dentition and occlsion
Development of dentition and occlsionDevelopment of dentition and occlsion
Development of dentition and occlsion
Amritha James

Andrew’s six keys of normal occlusion
Andrew’s six keys of normal occlusion Andrew’s six keys of normal occlusion
Andrew’s six keys of normal occlusion
Maher Fouda

EXPANSION SCREWS
EXPANSION SCREWSEXPANSION SCREWS
EXPANSION SCREWS
Farzana Nafi

Dental Occlusion
Dental OcclusionDental Occlusion
Dental Occlusion
dentistry

Growth & development of maxilla and mandible
Growth & development of maxilla and mandibleGrowth & development of maxilla and mandible
Growth & development of maxilla and mandibleRajesh Bariker

Retention and Relapse in orthodontics
Retention and Relapse in orthodonticsRetention and Relapse in orthodontics
Retention and Relapse in orthodonticsEkta Chaudhary

classification of malocclusion
classification of malocclusionclassification of malocclusion
classification of malocclusion
Waqar Jeelani

mouth-breathing-habit-in-children-pedo
 mouth-breathing-habit-in-children-pedo mouth-breathing-habit-in-children-pedo
mouth-breathing-habit-in-children-pedoParth Thakkar

Try in of complete dentures
Try in of complete denturesTry in of complete dentures
Try in of complete dentures
Sushant Kumar

Centric relation relevance and role in complete denture construction
Centric relation relevance and role in complete denture construction Centric relation relevance and role in complete denture construction
Centric relation relevance and role in complete denture construction
NAMITHA ANAND


What's hot (20)

Development of dentition and occlusion
Development of dentition and occlusionDevelopment of dentition and occlusion
Development of dentition and occlusion

Oral habits
Oral habitsOral habits
Oral habits

Development of occlusion
Development  of occlusionDevelopment  of occlusion
Development of occlusion

Space regainers
Space regainersSpace regainers
Space regainers

Pedia stainless steel crown
Pedia stainless steel crownPedia stainless steel crown
Pedia stainless steel crown

Prenatal and postnatal growth of mandible
Prenatal and postnatal growth of mandiblePrenatal and postnatal growth of mandible
Prenatal and postnatal growth of mandible

Occlusion
OcclusionOcclusion
Occlusion

Tongue thrusting - Dr. TALAT NAZ
Tongue thrusting - Dr. TALAT NAZTongue thrusting - Dr. TALAT NAZ
Tongue thrusting - Dr. TALAT NAZ

Factors affecting normal occlusion
Factors affecting normal occlusion Factors affecting normal occlusion
Factors affecting normal occlusion

Development of dentition and occlsion
Development of dentition and occlsionDevelopment of dentition and occlsion
Development of dentition and occlsion

Andrew’s six keys of normal occlusion
Andrew’s six keys of normal occlusion Andrew’s six keys of normal occlusion
Andrew’s six keys of normal occlusion

EXPANSION SCREWS
EXPANSION SCREWSEXPANSION SCREWS
EXPANSION SCREWS

serial extraction
 serial extraction  serial extraction
serial extraction

Dental Occlusion
Dental OcclusionDental Occlusion
Dental Occlusion

Growth & development of maxilla and mandible
Growth & development of maxilla and mandibleGrowth & development of maxilla and mandible
Growth & development of maxilla and mandible

Retention and Relapse in orthodontics
Retention and Relapse in orthodonticsRetention and Relapse in orthodontics
Retention and Relapse in orthodontics

classification of malocclusion
classification of malocclusionclassification of malocclusion
classification of malocclusion

mouth-breathing-habit-in-children-pedo
 mouth-breathing-habit-in-children-pedo mouth-breathing-habit-in-children-pedo
mouth-breathing-habit-in-children-pedo

Try in of complete dentures
Try in of complete denturesTry in of complete dentures
Try in of complete dentures

Centric relation relevance and role in complete denture construction
Centric relation relevance and role in complete denture construction Centric relation relevance and role in complete denture construction
Centric relation relevance and role in complete denture construction


Similar to Development of dentition and occlusion

Development of occlusion
Development   of occlusionDevelopment   of occlusion
Development of occlusion
supreet jammu

Development of occlusion
Development of occlusionDevelopment of occlusion
Development of occlusion
Maher Fouda

Development of occlusion
Development of occlusion Development of occlusion
Development of occlusion
Gouthami Gummadi

DEVELOPMENT OF OCCLUSION IN PEDIATRIC DENTISTRY
DEVELOPMENT OF OCCLUSION IN PEDIATRIC DENTISTRYDEVELOPMENT OF OCCLUSION IN PEDIATRIC DENTISTRY
DEVELOPMENT OF OCCLUSION IN PEDIATRIC DENTISTRY
Chsaiteja3

Normal development of occlusion part 1
Normal development of occlusion part 1Normal development of occlusion part 1
Normal development of occlusion part 1
Maher Fouda

DEVELOPMENT OF OCCLUSION - final.ppt
DEVELOPMENT OF OCCLUSION -  final.pptDEVELOPMENT OF OCCLUSION -  final.ppt
DEVELOPMENT OF OCCLUSION - final.ppt
drsunithachandra

Development of occlusion.
Development of  occlusion.Development of  occlusion.
Development of occlusion.Piyush Verma

Occlusion
OcclusionOcclusion
Occlusion
Dr Monika Negi

Development of dentition and occlusion
Development of dentition and occlusionDevelopment of dentition and occlusion
Development of dentition and occlusion
Saibel Farishta

Development of occlusion
Development of occlusion Development of occlusion
Development of occlusion
Priyanka Parihar

Development of occlusion1
Development of occlusion1Development of occlusion1
Development of occlusion1
Indian dental academy

develpment of occlusion.pptx
develpment of occlusion.pptxdevelpment of occlusion.pptx
develpment of occlusion.pptx
Dr Shyam Chandak

development of normal occlusion
development of normal occlusiondevelopment of normal occlusion
development of normal occlusion
Ashraf almassri

Development of occlusion
Development of occlusionDevelopment of occlusion
Development of occlusion
princesoni3954

Development of dentition & occlusion /certified fixed orthodontic courses by ...
Development of dentition & occlusion /certified fixed orthodontic courses by ...Development of dentition & occlusion /certified fixed orthodontic courses by ...
Development of dentition & occlusion /certified fixed orthodontic courses by ...
Indian dental academy

Development of dentition
Development of dentition Development of dentition
Development of dentition
Sarbajit Halder

4 Development of Occlusion.pptx
4 Development of Occlusion.pptx4 Development of Occlusion.pptx
4 Development of Occlusion.pptx
shreepriyasinghania1

Development of Dentition AND Anomalies
Development of Dentition AND AnomaliesDevelopment of Dentition AND Anomalies
Development of Dentition AND Anomalies
Nishant Khurana

Development of occlusion.
Development of  occlusion.Development of  occlusion.
Development of occlusion.koilonychia

Development of occlusion
Development of occlusionDevelopment of occlusion
Development of occlusion
KOMAL BAGDE


Similar to Development of dentition and occlusion (20)

Development of occlusion
Development   of occlusionDevelopment   of occlusion
Development of occlusion

Development of occlusion
Development of occlusionDevelopment of occlusion
Development of occlusion

Development of occlusion
Development of occlusion Development of occlusion
Development of occlusion

DEVELOPMENT OF OCCLUSION IN PEDIATRIC DENTISTRY
DEVELOPMENT OF OCCLUSION IN PEDIATRIC DENTISTRYDEVELOPMENT OF OCCLUSION IN PEDIATRIC DENTISTRY
DEVELOPMENT OF OCCLUSION IN PEDIATRIC DENTISTRY

Normal development of occlusion part 1
Normal development of occlusion part 1Normal development of occlusion part 1
Normal development of occlusion part 1

DEVELOPMENT OF OCCLUSION - final.ppt
DEVELOPMENT OF OCCLUSION -  final.pptDEVELOPMENT OF OCCLUSION -  final.ppt
DEVELOPMENT OF OCCLUSION - final.ppt

Development of occlusion.
Development of  occlusion.Development of  occlusion.
Development of occlusion.

Occlusion
OcclusionOcclusion
Occlusion

Development of dentition and occlusion
Development of dentition and occlusionDevelopment of dentition and occlusion
Development of dentition and occlusion

Development of occlusion
Development of occlusion Development of occlusion
Development of occlusion

Development of occlusion1
Development of occlusion1Development of occlusion1
Development of occlusion1

develpment of occlusion.pptx
develpment of occlusion.pptxdevelpment of occlusion.pptx
develpment of occlusion.pptx

development of normal occlusion
development of normal occlusiondevelopment of normal occlusion
development of normal occlusion

Development of occlusion
Development of occlusionDevelopment of occlusion
Development of occlusion

Development of dentition & occlusion /certified fixed orthodontic courses by ...
Development of dentition & occlusion /certified fixed orthodontic courses by ...Development of dentition & occlusion /certified fixed orthodontic courses by ...
Development of dentition & occlusion /certified fixed orthodontic courses by ...

Development of dentition
Development of dentition Development of dentition
Development of dentition

4 Development of Occlusion.pptx
4 Development of Occlusion.pptx4 Development of Occlusion.pptx
4 Development of Occlusion.pptx

Development of Dentition AND Anomalies
Development of Dentition AND AnomaliesDevelopment of Dentition AND Anomalies
Development of Dentition AND Anomalies

Development of occlusion.
Development of  occlusion.Development of  occlusion.
Development of occlusion.

Development of occlusion
Development of occlusionDevelopment of occlusion
Development of occlusion


More from Mohanad Elsherif

Periodontal instrument and principle of instrumentation
Periodontal instrument and principle of instrumentationPeriodontal instrument and principle of instrumentation
Periodontal instrument and principle of instrumentation
Mohanad Elsherif

Infection control
Infection controlInfection control
Infection control
Mohanad Elsherif

Growth of the maxilla
Growth of the maxillaGrowth of the maxilla
Growth of the maxilla
Mohanad Elsherif

Digital cephalometry
Digital cephalometryDigital cephalometry
Digital cephalometry
Mohanad Elsherif

Development of the face
Development of the faceDevelopment of the face
Development of the face
Mohanad Elsherif

Grwoth prediction
Grwoth predictionGrwoth prediction
Grwoth prediction
Mohanad Elsherif

Part two the royal london space planning
Part two the royal london space planningPart two the royal london space planning
Part two the royal london space planning
Mohanad Elsherif

Part one the royal london space planning
Part one the royal london space planningPart one the royal london space planning
Part one the royal london space planning
Mohanad Elsherif

Evidence regarding functional appliance treatment of class ii malocclusion
Evidence regarding functional appliance treatment of class ii malocclusionEvidence regarding functional appliance treatment of class ii malocclusion
Evidence regarding functional appliance treatment of class ii malocclusion
Mohanad Elsherif

Anchorage in Orthodontic
Anchorage in OrthodonticAnchorage in Orthodontic
Anchorage in Orthodontic
Mohanad Elsherif

Biomechanics and mechanics of tooth movement
Biomechanics and mechanics of tooth movementBiomechanics and mechanics of tooth movement
Biomechanics and mechanics of tooth movement
Mohanad Elsherif

Lecture 3 managment of the developing dentition
Lecture 3 managment of the developing dentitionLecture 3 managment of the developing dentition
Lecture 3 managment of the developing dentition
Mohanad Elsherif

Lecture 2 managment of the developing dentition
Lecture 2 managment of the developing dentitionLecture 2 managment of the developing dentition
Lecture 2 managment of the developing dentition
Mohanad Elsherif

Lecture 1 managment of the developing dentition
Lecture 1 managment of the developing dentitionLecture 1 managment of the developing dentition
Lecture 1 managment of the developing dentition
Mohanad Elsherif

Fixed appliances
Fixed appliancesFixed appliances
Fixed appliances
Mohanad Elsherif

Class iii malocclusion
Class iii malocclusionClass iii malocclusion
Class iii malocclusion
Mohanad Elsherif

Cast analysis
Cast analysisCast analysis
Cast analysis
Mohanad Elsherif

Impacted canine
Impacted canineImpacted canine
Impacted canine
Mohanad Elsherif

Adults orthodotnics
Adults orthodotnicsAdults orthodotnics
Adults orthodotnics
Mohanad Elsherif

Orthognathic surgery
Orthognathic surgeryOrthognathic surgery
Orthognathic surgery
Mohanad Elsherif


More from Mohanad Elsherif (20)

Periodontal instrument and principle of instrumentation
Periodontal instrument and principle of instrumentationPeriodontal instrument and principle of instrumentation
Periodontal instrument and principle of instrumentation

Infection control
Infection controlInfection control
Infection control

Growth of the maxilla
Growth of the maxillaGrowth of the maxilla
Growth of the maxilla

Digital cephalometry
Digital cephalometryDigital cephalometry
Digital cephalometry

Development of the face
Development of the faceDevelopment of the face
Development of the face

Grwoth prediction
Grwoth predictionGrwoth prediction
Grwoth prediction

Part two the royal london space planning
Part two the royal london space planningPart two the royal london space planning
Part two the royal london space planning

Part one the royal london space planning
Part one the royal london space planningPart one the royal london space planning
Part one the royal london space planning

Evidence regarding functional appliance treatment of class ii malocclusion
Evidence regarding functional appliance treatment of class ii malocclusionEvidence regarding functional appliance treatment of class ii malocclusion
Evidence regarding functional appliance treatment of class ii malocclusion

Anchorage in Orthodontic
Anchorage in OrthodonticAnchorage in Orthodontic
Anchorage in Orthodontic

Biomechanics and mechanics of tooth movement
Biomechanics and mechanics of tooth movementBiomechanics and mechanics of tooth movement
Biomechanics and mechanics of tooth movement

Lecture 3 managment of the developing dentition
Lecture 3 managment of the developing dentitionLecture 3 managment of the developing dentition
Lecture 3 managment of the developing dentition

Lecture 2 managment of the developing dentition
Lecture 2 managment of the developing dentitionLecture 2 managment of the developing dentition
Lecture 2 managment of the developing dentition

Lecture 1 managment of the developing dentition
Lecture 1 managment of the developing dentitionLecture 1 managment of the developing dentition
Lecture 1 managment of the developing dentition

Fixed appliances
Fixed appliancesFixed appliances
Fixed appliances

Class iii malocclusion
Class iii malocclusionClass iii malocclusion
Class iii malocclusion

Cast analysis
Cast analysisCast analysis
Cast analysis

Impacted canine
Impacted canineImpacted canine
Impacted canine

Adults orthodotnics
Adults orthodotnicsAdults orthodotnics
Adults orthodotnics

Orthognathic surgery
Orthognathic surgeryOrthognathic surgery
Orthognathic surgery


Recently uploaded

micro teaching on communication m.sc nursing.pdf
micro teaching on communication m.sc nursing.pdfmicro teaching on communication m.sc nursing.pdf
micro teaching on communication m.sc nursing.pdf
Anurag Sharma

Couples presenting to the infertility clinic- Do they really have infertility...
Couples presenting to the infertility clinic- Do they really have infertility...Couples presenting to the infertility clinic- Do they really have infertility...
Couples presenting to the infertility clinic- Do they really have infertility...
Sujoy Dasgupta

Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness JourneyTom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
greendigital

New Drug Discovery and Development .....
New Drug Discovery and Development .....New Drug Discovery and Development .....
New Drug Discovery and Development .....
NEHA GUPTA

Physiology of Chemical Sensation of smell.pdf
Physiology of Chemical Sensation of smell.pdfPhysiology of Chemical Sensation of smell.pdf
Physiology of Chemical Sensation of smell.pdf
MedicoseAcademics

For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #GirlsFor Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
Savita Shen $i11

heat stroke and heat exhaustion in children
heat stroke and heat exhaustion in childrenheat stroke and heat exhaustion in children
heat stroke and heat exhaustion in children
SumeraAhmad5

HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
GL Anaacs

ACUTE SCROTUM.....pdf. ACUTE SCROTAL CONDITIOND
ACUTE SCROTUM.....pdf. ACUTE SCROTAL CONDITIONDACUTE SCROTUM.....pdf. ACUTE SCROTAL CONDITIOND
ACUTE SCROTUM.....pdf. ACUTE SCROTAL CONDITIOND
DR SETH JOTHAM

Flu Vaccine Alert in Bangalore Karnataka
Flu Vaccine Alert in Bangalore KarnatakaFlu Vaccine Alert in Bangalore Karnataka
Flu Vaccine Alert in Bangalore Karnataka
addon Scans

How STIs Influence the Development of Pelvic Inflammatory Disease.pptx
How STIs Influence the Development of Pelvic Inflammatory Disease.pptxHow STIs Influence the Development of Pelvic Inflammatory Disease.pptx
How STIs Influence the Development of Pelvic Inflammatory Disease.pptx
FFragrant

Pharynx and Clinical Correlations BY Dr.Rabia Inam Gandapore.pptx
Pharynx and Clinical Correlations BY Dr.Rabia Inam Gandapore.pptxPharynx and Clinical Correlations BY Dr.Rabia Inam Gandapore.pptx
Pharynx and Clinical Correlations BY Dr.Rabia Inam Gandapore.pptx
Dr. Rabia Inam Gandapore

Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...
Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...
Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...
Savita Shen $i11

BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdfBENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
DR SETH JOTHAM

TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
kevinkariuki227

263778731218 Abortion Clinic /Pills In Harare ,
263778731218 Abortion Clinic /Pills In Harare ,263778731218 Abortion Clinic /Pills In Harare ,
263778731218 Abortion Clinic /Pills In Harare ,
sisternakatoto

Are There Any Natural Remedies To Treat Syphilis.pdf
Are There Any Natural Remedies To Treat Syphilis.pdfAre There Any Natural Remedies To Treat Syphilis.pdf
Are There Any Natural Remedies To Treat Syphilis.pdf
Little Cross Family Clinic

Maxilla, Mandible & Hyoid Bone & Clinical Correlations by Dr. RIG.pptx
Maxilla, Mandible & Hyoid Bone & Clinical Correlations by Dr. RIG.pptxMaxilla, Mandible & Hyoid Bone & Clinical Correlations by Dr. RIG.pptx
Maxilla, Mandible & Hyoid Bone & Clinical Correlations by Dr. RIG.pptx
Dr. Rabia Inam Gandapore

Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...
Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...
Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...
Oleg Kshivets

BRACHYTHERAPY OVERVIEW AND APPLICATORS
BRACHYTHERAPY OVERVIEW  AND  APPLICATORSBRACHYTHERAPY OVERVIEW  AND  APPLICATORS
BRACHYTHERAPY OVERVIEW AND APPLICATORS
Krishan Murari


Recently uploaded (20)

micro teaching on communication m.sc nursing.pdf
micro teaching on communication m.sc nursing.pdfmicro teaching on communication m.sc nursing.pdf
micro teaching on communication m.sc nursing.pdf

Couples presenting to the infertility clinic- Do they really have infertility...
Couples presenting to the infertility clinic- Do they really have infertility...Couples presenting to the infertility clinic- Do they really have infertility...
Couples presenting to the infertility clinic- Do they really have infertility...

Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness JourneyTom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey

New Drug Discovery and Development .....
New Drug Discovery and Development .....New Drug Discovery and Development .....
New Drug Discovery and Development .....

Physiology of Chemical Sensation of smell.pdf
Physiology of Chemical Sensation of smell.pdfPhysiology of Chemical Sensation of smell.pdf
Physiology of Chemical Sensation of smell.pdf

For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #GirlsFor Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls

heat stroke and heat exhaustion in children
heat stroke and heat exhaustion in childrenheat stroke and heat exhaustion in children
heat stroke and heat exhaustion in children

HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...

ACUTE SCROTUM.....pdf. ACUTE SCROTAL CONDITIOND
ACUTE SCROTUM.....pdf. ACUTE SCROTAL CONDITIONDACUTE SCROTUM.....pdf. ACUTE SCROTAL CONDITIOND
ACUTE SCROTUM.....pdf. ACUTE SCROTAL CONDITIOND

Flu Vaccine Alert in Bangalore Karnataka
Flu Vaccine Alert in Bangalore KarnatakaFlu Vaccine Alert in Bangalore Karnataka
Flu Vaccine Alert in Bangalore Karnataka

How STIs Influence the Development of Pelvic Inflammatory Disease.pptx
How STIs Influence the Development of Pelvic Inflammatory Disease.pptxHow STIs Influence the Development of Pelvic Inflammatory Disease.pptx
How STIs Influence the Development of Pelvic Inflammatory Disease.pptx

Pharynx and Clinical Correlations BY Dr.Rabia Inam Gandapore.pptx
Pharynx and Clinical Correlations BY Dr.Rabia Inam Gandapore.pptxPharynx and Clinical Correlations BY Dr.Rabia Inam Gandapore.pptx
Pharynx and Clinical Correlations BY Dr.Rabia Inam Gandapore.pptx

Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...
Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...
Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...

BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdfBENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf

TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...

263778731218 Abortion Clinic /Pills In Harare ,
263778731218 Abortion Clinic /Pills In Harare ,263778731218 Abortion Clinic /Pills In Harare ,
263778731218 Abortion Clinic /Pills In Harare ,

Are There Any Natural Remedies To Treat Syphilis.pdf
Are There Any Natural Remedies To Treat Syphilis.pdfAre There Any Natural Remedies To Treat Syphilis.pdf
Are There Any Natural Remedies To Treat Syphilis.pdf

Maxilla, Mandible & Hyoid Bone & Clinical Correlations by Dr. RIG.pptx
Maxilla, Mandible & Hyoid Bone & Clinical Correlations by Dr. RIG.pptxMaxilla, Mandible & Hyoid Bone & Clinical Correlations by Dr. RIG.pptx
Maxilla, Mandible & Hyoid Bone & Clinical Correlations by Dr. RIG.pptx

Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...
Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...
Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...

BRACHYTHERAPY OVERVIEW AND APPLICATORS
BRACHYTHERAPY OVERVIEW  AND  APPLICATORSBRACHYTHERAPY OVERVIEW  AND  APPLICATORS
BRACHYTHERAPY OVERVIEW AND APPLICATORS


Development of dentition and occlusion

  • 1. Ibn Sina University Faculty of Dentistry Department of Orthodontics Development of Dentition and Occlusion Mohanad Elsherif BDS (U of K), MFD RCSI, MFDS RCPS(Glasg), MSc (Orthodontics), M.Orth. RCSEd
  • 2. Introduction  The human dentition is in a dynamic state constantly changing throughout life.  A knowledge of these changes assists the clinician in determining whether or not a specific occlusion will be sustained , worsen ,or self-correct over time.
  • 3. Periods of occlusal development  The predentition stage.  The deciduous dentition stage.  The mixed dentition stage.  The permanent dentition stage.
  • 4. The pre-dentition stage  From birth to 6 month of age.  Usually there is no teeth instead there is an upper and lower gum pads.  The gum pads are covered with a dense fibrous periostium and divided into segmental elevations representing the teeth forming below.
  • 5.  Transverse groove: Divides the gum pad into ten segments representing each deciduous tooth.  Gingival groove: Separates the gumpad from the palate and the floor of the mouth. The pre-dentition stage
  • 6.  Lateral sulci: Present between the canine and the 1st molar.  Dental groove: Extend from the incisive papilla backward to touch the gingival groove in the canine region and continues forward in the molar region. The pre-dentition stage
  • 7.  The maxillary gum pad is horse shoe shaped and the palatal vault is almost flat.  It is wider and longer than the underlying mandibular U shaped gum pad. The pre-dentition stage
  • 8. The pre-dentition stage  When the upper and the lower gum pad are closed there is a complete overjet all around.  In addition the lips are incompetent.  This infantile open bite is considered to be normal. It helps in sucking.
  • 9. Gingival Cyst of infancy  Occasionally on the alveolar mucosa small whitish nodules may appear, these are gingival cysts of infancy, often called Epstein’s pearls or Bohn’s nodules.  Parents should be reassured that they will spontaneously burst and resolve within the first three months of life.
  • 10. Natal and Neonatal teeth  Very rarely teeth are present at birth called as natal teeth.  If they erupt during the 1st 30 days then they are called as neonatal teeth.  Mostly located in the mandibular incisor region and they are usually either mandibular incisors or supernumerary teeth.  if they are mandibular incisors extract only if they interfere with breast feeding or if they are mobile and there is a rick of there swallowing by the infant
  • 11. The deciduous dentition stage  From 6 month to 6 year of age.  The first tooth to erupt is the mandibular central primary incisor.  The normal sequence of eruption is A,B,D,C,E.  All the deciduous teeth should be erupted at 3 years and the root is completed 1-2 years after eruption.
  • 12. Features of normal deciduous dentition 1. Spacing:  Spacing usually exists between the deciduous teeth, these spaces are called as developmental or physiological spaces.  Primate space is seen mesial to the maxillary canine and distal to the mandibular canine.
  • 13. Features of normal deciduous dentition 2. Deep bite:  The deep bite occur because the deciduous incisors are more upright than their permanent counterparts.  The deep bite reduces to an almost edge to edge bite by 5-6 years of age due to:  Eruption of deciduous molars.  Attrition of incisors.  Forward movement of mandible due to growth.
  • 14. Features of normal deciduous dentition 3. Flush terminal plane relationship:  The distal edges of the upper and lower second deciduous molars are in the same vertical plane.  This is called flush terminal plane relationship.
  • 15. Abnormal features  Eruption cyst.  Abnormal eruption sequence.  No spacing or crowding.  Open bite.  Mesial step or distal step relationships.  Crossbite.  Premature loss of deciduous tooth.  Infraoccluded primary molar.
  • 16. Mixed dentition stage  From 6 years to 12 years of age.  It is further subdivided into:  First transitional stage.  Iner-transtional stage.  Second transitional stage.
  • 17. First transitional stage  Characterized by eruption of permanent incisors and permeant first molar.  The mandibular 1st molar usually is the first permanent tooth to erupt.  Mandibular teeth usually erupts a head of maxillary teeth.  Early mesial shift occur at this stage.
  • 18. First transitional stage 1. Eruption of incisors:  The collective mesiodistal dimensions of the permanent incisor tooth crowns are larger than their deciduous predecessors.  This deficit is known as incisor liability and it is approximately about 5-mm in the mandible and 7-mm in the maxilla. A A BB 2 21 1 1 12 2 A AB B
  • 19. First transitional stage  This can be corrected by:  Spacing present between the deciduous incisors.  Labial eruption permanent incisors more than their deciduous predecessors and therefore occupying a greater arch perimeter.  Transverse increase in the intercanine arch width.  Deciduous canines move distally into primate space and Part of Lee way space.
  • 20. First transitional stage 2. Eruption of 1st permanent molar:  The initial occlusal relationship of the 1st molars is directly influenced by the deciduous second molar position.  If these teeth are flush in the terminal plane then the 1st permanent molars assume a cusp- to-cusp relationship when they erupt.  In order to establish a class I molar relationship, some mesial movement of the mandibular 1st permanent molar will be required.
  • 21. Early mesial shift 1. Flush terminal plane: Class I can be obtained By utilization of the primate space. This is called early mesial shift.
  • 22. First transitional stage Class I Class IIIClass I Minimal mandibular growth Sever mandibular growth 2. Mesial step
  • 24. Normal features of the 1st transitional stage  Transient lower permanent incisors crowding.  Transient anterior open bite before the eruption of maxillary permanent incisors.  Cusp to cusp permanent first molars relationship when they first erupt and before early mesial shift take place.
  • 25.  Characterize by the presence of all permanent incisors, the 1st permanent molars and the deciduous molars and canines.  This phase is relatively stable and no change occurs.  The ugly duckling stage (developmental stage) occur at this stage. Inter-transitional stage
  • 26. The ugly duckling (developmental) stage
  • 28. Second transitional stage  Characterized by eruption of the premolar and canine teeth.  Normally takes place between the ages of 9 and 12 years  In the mandible, the canine erupts ahead of the first premolar and this is followed by the second premolar.  In the maxilla, the first premolar usually erupts first, followed by the second premolar and then canine.  Late mesial shift occur at this stage.
  • 29. Late mesial shift  Unlike the anterior teeth the permanent premolars are smaller than the primary teeth they replace. This extra space known as the leeway space.  The leeway space is larger in the mandible 3. 4 mm (i.e. 1.7 mm on each half) than in the maxilla 1.8 mm ( i.e. 0.9 mm on each half).  This difference allow the first molars to move a greater distance in the lower arch compared to the upper arch leading to a class I molar relationship, this is know as late mesial shift. CDE 345 E D C 345
  • 31. Permanent dentition stage  Start after the exfoliation of the last deciduous tooth (usually the upper second deciduous molar)  The sequence of eruption is as follow:  In maxillary arch: 6-1-2-4-3-5-7 or 6-1-2-4-5-3-7.  In mandibular arch: 6-1-2-3-4-5-7 or 6-1-2-4-3-5-7.
  • 32. Normal Permanent dentition  Presence of all permanent teeth.  Class I molar, canine and incisor relationships.  Well-aligned teeth with correct crown angulation and inclination.  Normal and positive overbite and overjet.  Absence of rotation.  Tight interproximal contacts.  Flat curve of spee.  Correct tooth-size ratio.
  • 33. Declaration  The author wish to declare that; these presentations are his original work, all materials and pictures collection, typing and slide design has been done by the author.  Most of these materials has been done for undergraduate students, although postgraduate students may find some useful basic and advanced information.  The universities title at the front page indicate where the lecture was first presented. The author was working as a lecturer of orthodontics at Ibn Sina University, Sudan International University, and as a Master student in Orthodontics at University of Khartoum.  The author declare that all materials and photos in these presentations has been collected from different textbooks, papers and online websites. These pictures are presented here for education and demonstration purposes only. The author are not attempting to plagiarize or reproduced unauthorized material, and the intellectual properties of these photos belong to their original authors.
  • 34. Declaration  As the authors reviews several textbooks, papers and other references during preparation of these materials, it was impossible to cite every textbook and journal article, the main textbooks that has been reviewed during preparation of these presentations were: Contemporary Orthodontics 5th edition; Proffit, William R, Henry W. Fields, and David M. Sarver. Handbook of Orthodontics. 1st edition; Cobourne, Martyn T, and Andrew T. DiBiase. Essentials of orthodontics: Diagnosis and Treatment; Robert N. Staley, Neil T. Reske Orthodontics: Current Principles & Techniques 5th edition; Graber, Lee W, Robert L. Vanarsdall, and Katherine W. L. Vig Orthodontics: The Art and Science. 3rd Edition. Bhalajhi, S.I.
  • 35. Declaration  For the purposes of dissemination and sharing of knowledge, these lectures were given to several colleagues and students. It were also uploaded to SlideShare website by the author. Colleagues and students may download, use, and modify these materials as they see fit for non- profit purposes. The author retain the copyright of the original work.  The author wish to thank his family, teachers, colleagues and students for their love and support throughout his career. I also wish to express my sincere gratitude to all orthodontic pillars for their tremendous contribution to our specialty.  Finally, the author welcome any advices and enquires through his email address: Mohanad-07@hotmail.com
