VIJAI KRISHNANV.
M.Tech Student
Transportation Engineering
Rajiv Gandhi Institute ofTechnology, Kottayam, Kerala

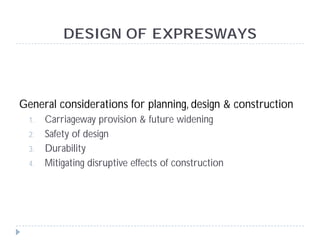

DESIGN OF EXPRESWAYS
General considerations for planning, design & construction
1. Carriageway provision & future widening
2. Safety of design
3. Durability
4. Mitigating disruptive effects of construction
Geometric Design & General Features
1. Design Speed
 Terrain varying for short stretch < 1km is not considered
 Speed limit should justify - Economy
- Environment
- Driver Expectancy
Terrain Cross Slope
Design Speed
(km/h)
Plain < 10 % 120
Rolling 10 – 25 % 100
Hilly/Mountainous > 25 % 80
2. Right of Way (ROW)
 Min. right of way in Plain/Rolling terrain
 Additional land required – grade separated structure
– interchange
– toll plaza
– bridge approach
 No service road permitted within ROW
Section ROW width
Rural 90 – 120 m
Semi-rural passing through semi – urban areas 120 m

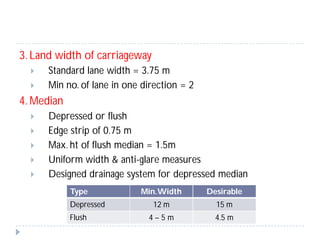

3. Land width of carriageway
 Standard lane width = 3.75 m
 Min no. of lane in one direction = 2
4. Median
 Depressed or flush
 Edge strip of 0.75 m
 Max. ht of flush median = 1.5m
 Uniform width & anti-glare measures
 Designed drainage system for depressed median
Type Min.Width Desirable
Depressed 12 m 15 m
Flush 4 – 5 m 4.5 m

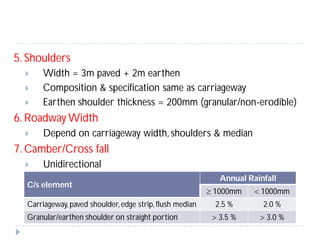

5. Shoulders
 Width = 3m paved + 2m earthen
 Composition & specification same as carriageway
 Earthen shoulder thickness = 200mm (granular/non-erodible)
6. Roadway Width
 Depend on carriageway width, shoulders & median
7. Camber/Cross fall
 Unidirectional
C/s element
Annual Rainfall
 1000mm  1000mm
Carriageway,paved shoulder,edge strip, flush median 2.5 % 2.0 %
Granular/earthen shoulder on straight portion  3.5 %  3.0 %

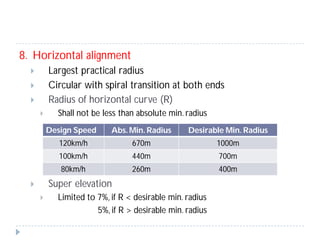

8. Horizontal alignment
 Largest practical radius
 Circular with spiral transition at both ends
 Radius of horizontal curve (R)
 Shall not be less than absolute min. radius
 Super elevation
 Limited to 7%, if R < desirable min. radius
5%, if R > desirable min. radius
Design Speed Abs. Min. Radius Desirable Min. Radius
120km/h 670m 1000m
100km/h 440m 700m
80km/h 260m 400m

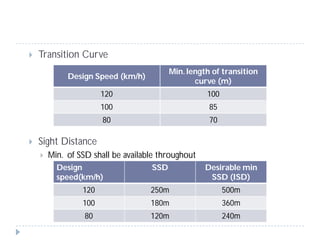

 Transition Curve
 Sight Distance
 Min. of SSD shall be available throughout
Design Speed (km/h)
Min. length of transition
curve (m)
120 100
100 85
80 70
Design
speed(km/h)
SSD Desirable min
SSD (ISD)
120 250m 500m
100 180m 360m
80 120m 240m
 Decision sight distance
 Provided at critical locations or decision points where change in c/s
occur (toll plaza, intersections etc...)
9. Vertical Alignment
 Grade change shall not be too frequent
Design speed(km/h) Decision Sight Distance
120 360m
100 315m
80 230m
Terrain Ruling Gradient Limiting Gradient
Plain 2.5% 3%
Ruling 3% 4%

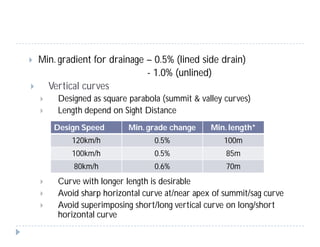

 Min. gradient for drainage – 0.5% (lined side drain)
- 1.0% (unlined)
 Vertical curves
 Designed as square parabola (summit & valley curves)
 Length depend on Sight Distance
 Curve with longer length is desirable
 Avoid sharp horizontal curve at/near apex of summit/sag curve
 Avoid superimposing short/long vertical curve on long/short
horizontal curve
Design Speed Min. grade change Min. length*
120km/h 0.5% 100m
100km/h 0.5% 85m
80km/h 0.6% 70m

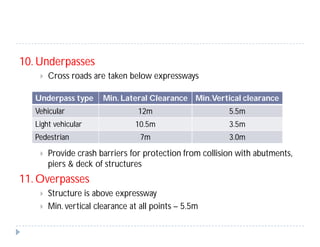

10. Underpasses
 Cross roads are taken below expressways
 Provide crash barriers for protection from collision with abutments,
piers & deck of structures
11. Overpasses
 Structure is above expressway
 Min. vertical clearance at all points – 5.5m
Underpass type Min. Lateral Clearance Min.Vertical clearance
Vehicular 12m 5.5m
Light vehicular 10.5m 3.5m
Pedestrian 7m 3.0m

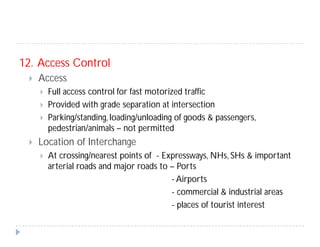

12. Access Control
 Access
 Full access control for fast motorized traffic
 Provided with grade separation at intersection
 Parking/standing, loading/unloading of goods & passengers,
pedestrian/animals – not permitted
 Location of Interchange
 At crossing/nearest points of - Expressways, NHs, SHs & important
arterial roads and major roads to – Ports
- Airports
- commercial & industrial areas
- places of tourist interest
 Connecting Roads
 For proper circulation of local traffic
 Continuity of travel
 To facilitate crossing over to other side of expressways through under
or overpass
 Fencing is provided
 Width = 7m
13. Grade separated structures
 Approach gradient < 2.5%
 Intersection where parallel cross roads are located within 2km,
design as staggered crossing
 In built-up areas, expressway is elevated on viaduct

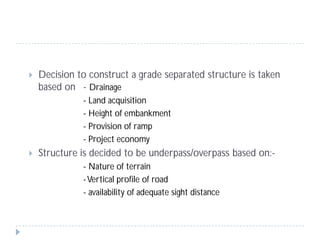

 Decision to construct a grade separated structure is taken
based on - Drainage
- Land acquisition
- Height of embankment
- Provision of ramp
- Project economy
 Structure is decided to be underpass/overpass based on:-
- Nature of terrain
-Vertical profile of road
- availability of adequate sight distance

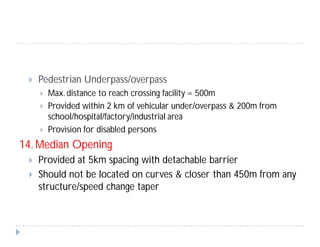

 Pedestrian Underpass/overpass
 Max. distance to reach crossing facility = 500m
 Provided within 2 km of vehicular under/overpass & 200m from
school/hospital/factory/industrial area
 Provision for disabled persons
14. Median Opening
 Provided at 5km spacing with detachable barrier
 Should not be located on curves & closer than 450m from any
structure/speed change taper

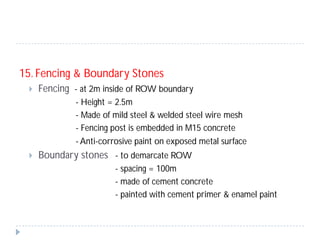

15. Fencing & Boundary Stones
 Fencing - at 2m inside of ROW boundary
- Height = 2.5m
- Made of mild steel & welded steel wire mesh
- Fencing post is embedded in M15 concrete
- Anti-corrosive paint on exposed metal surface
 Boundary stones - to demarcate ROW
- spacing = 100m
- made of cement concrete
- painted with cement primer & enamel paint

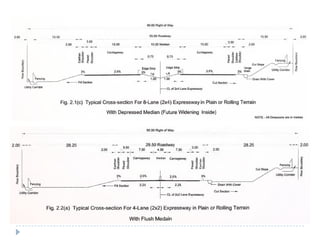

Design of expressways
