Cyber crimes are evolving rapidly as technology advances. Cyber forensics provides an effective tool to investigate cyber crimes by identifying, preserving, and analyzing digital evidence. However, cyber forensics faces multi-dimensional challenges, including technical issues due to rapidly changing technology, large amounts of data, and unclear legal standards for digital evidence. Advanced tools and techniques like password cracking grids, biometrics, and stylometry are helping address some challenges, but cyber forensics must continue adapting to investigate new types of crimes.

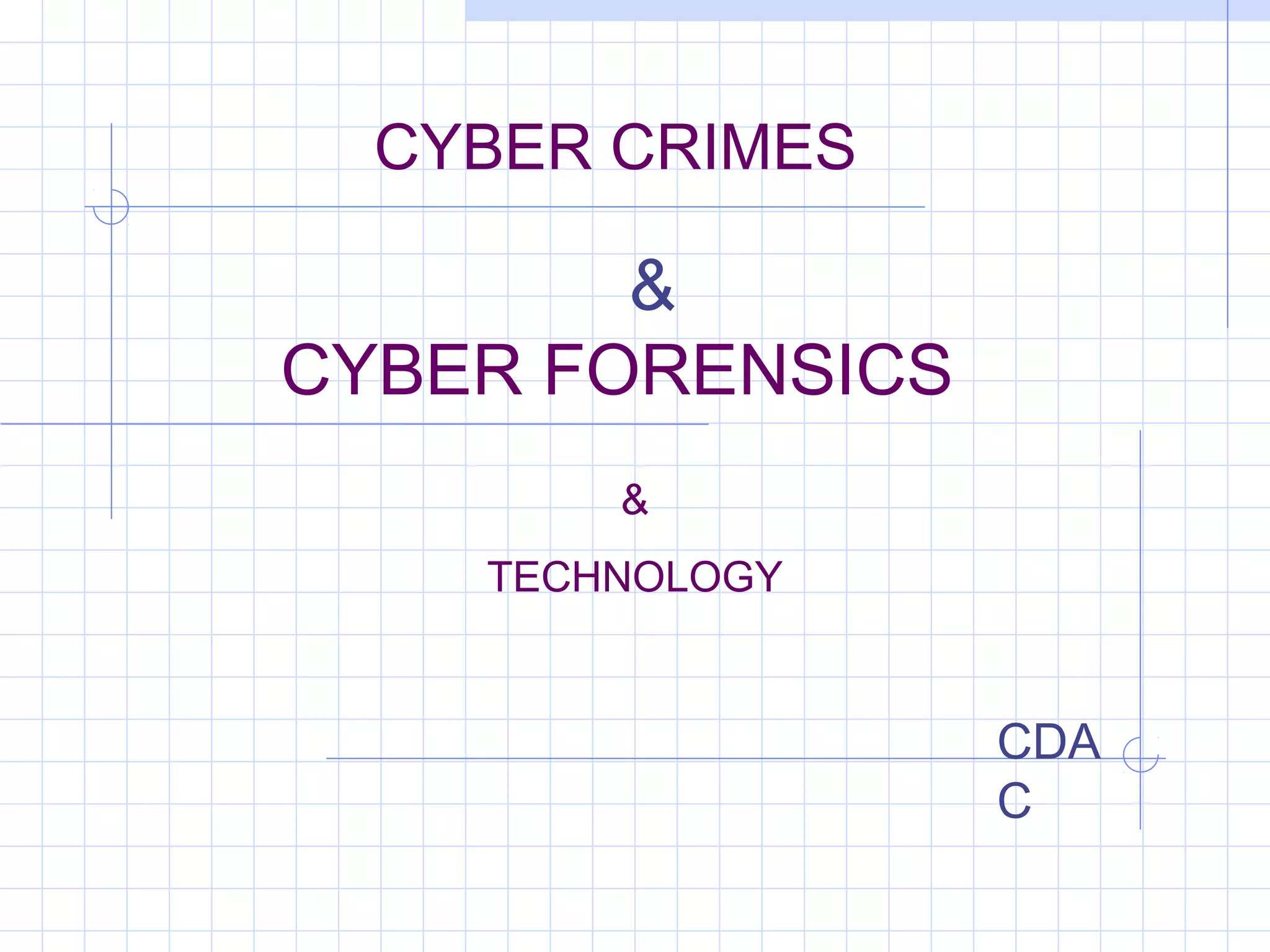

1. CYBER CRIMES
CDA
C
&
CYBER FORENSICS
&
TECHNOLOGY

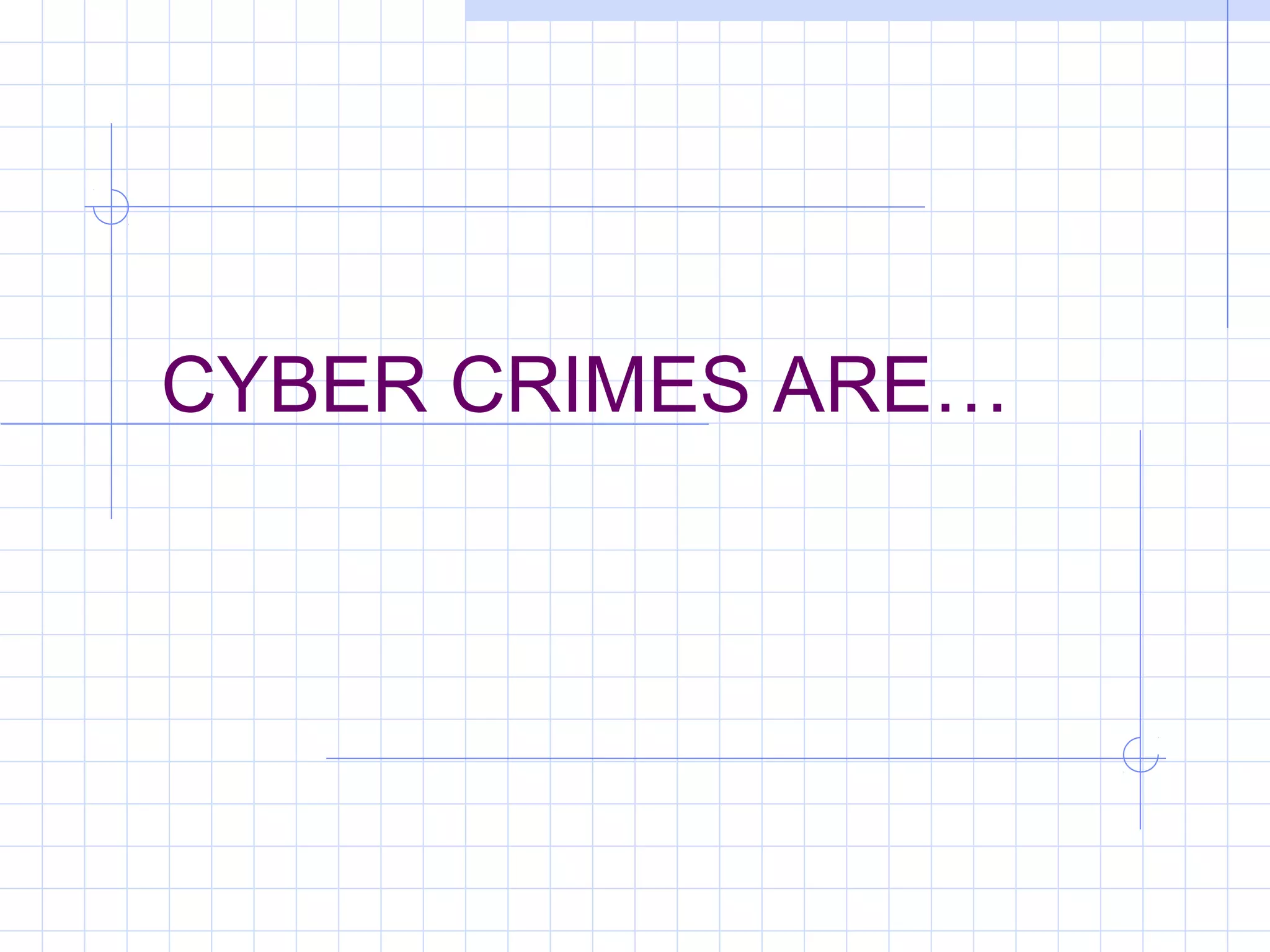

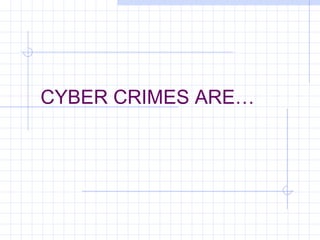

2. CYBER CRIMES ARE…

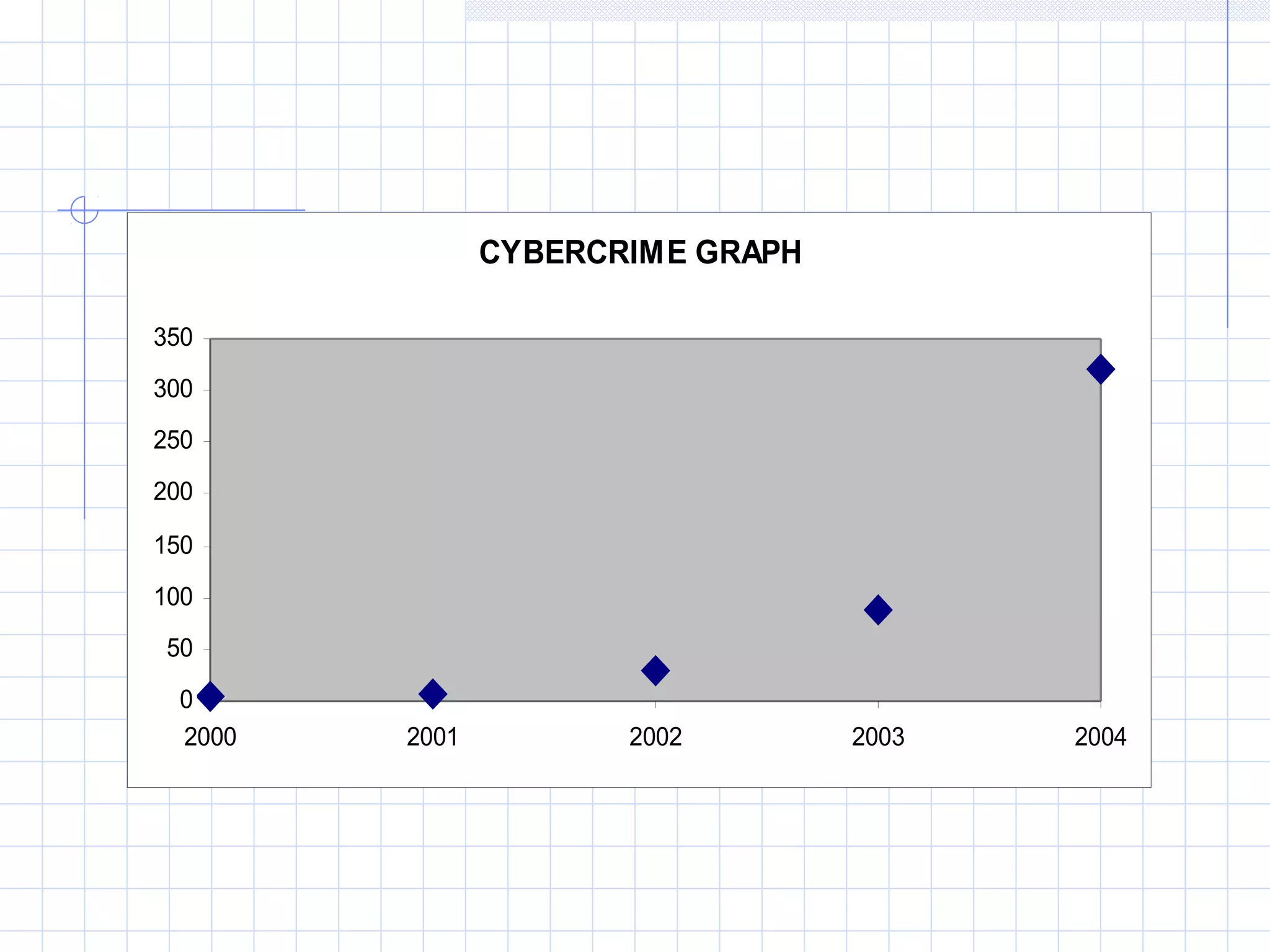

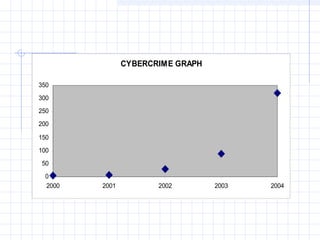

3. CYBERCRIME GRAPH
0
50
100
150
200
250
300
350
2000 2001 2002 2003 2004

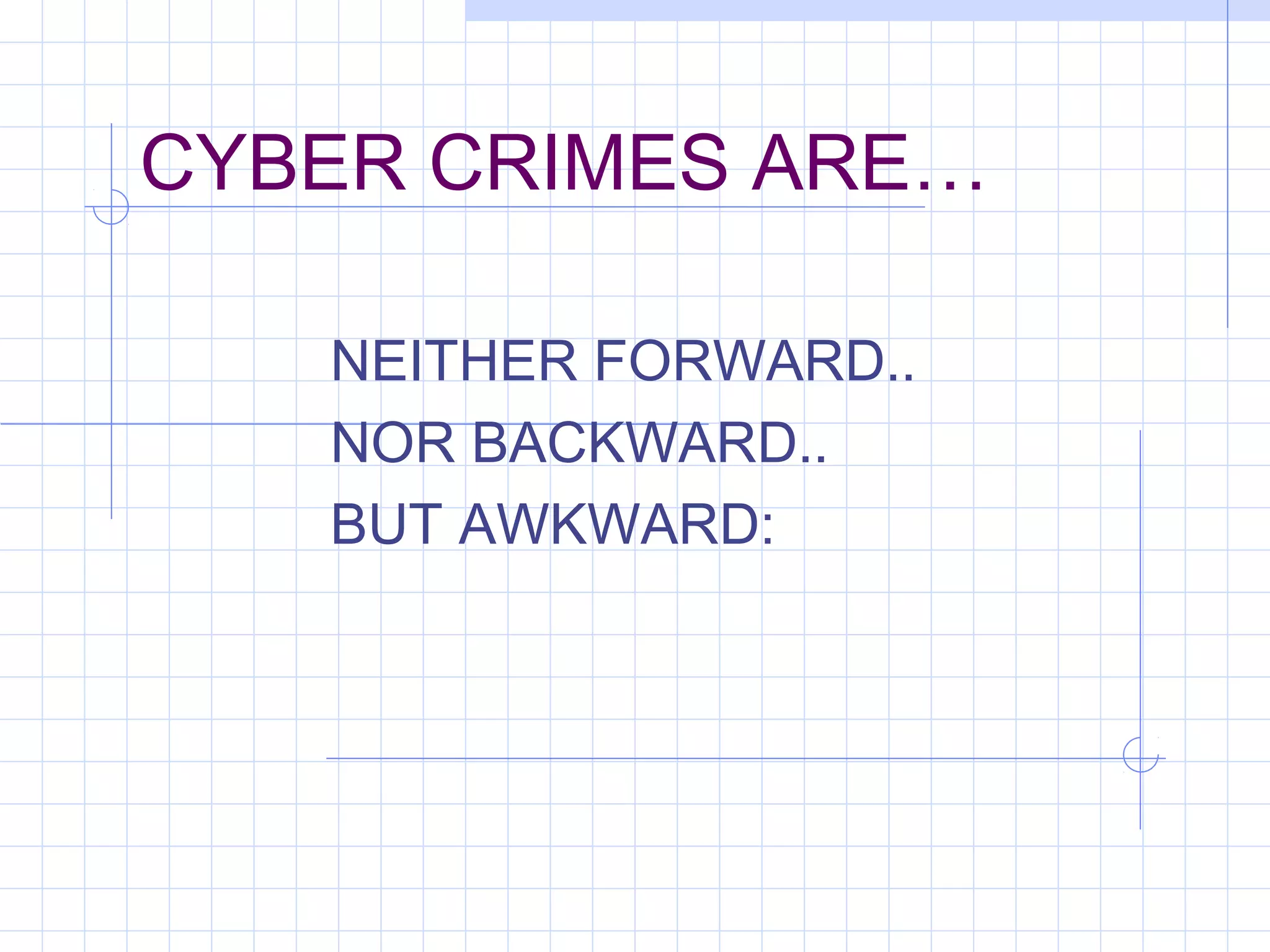

4. CYBER CRIMES ARE…
NEITHER FORWARD..
NOR BACKWARD..
BUT AWKWARD:

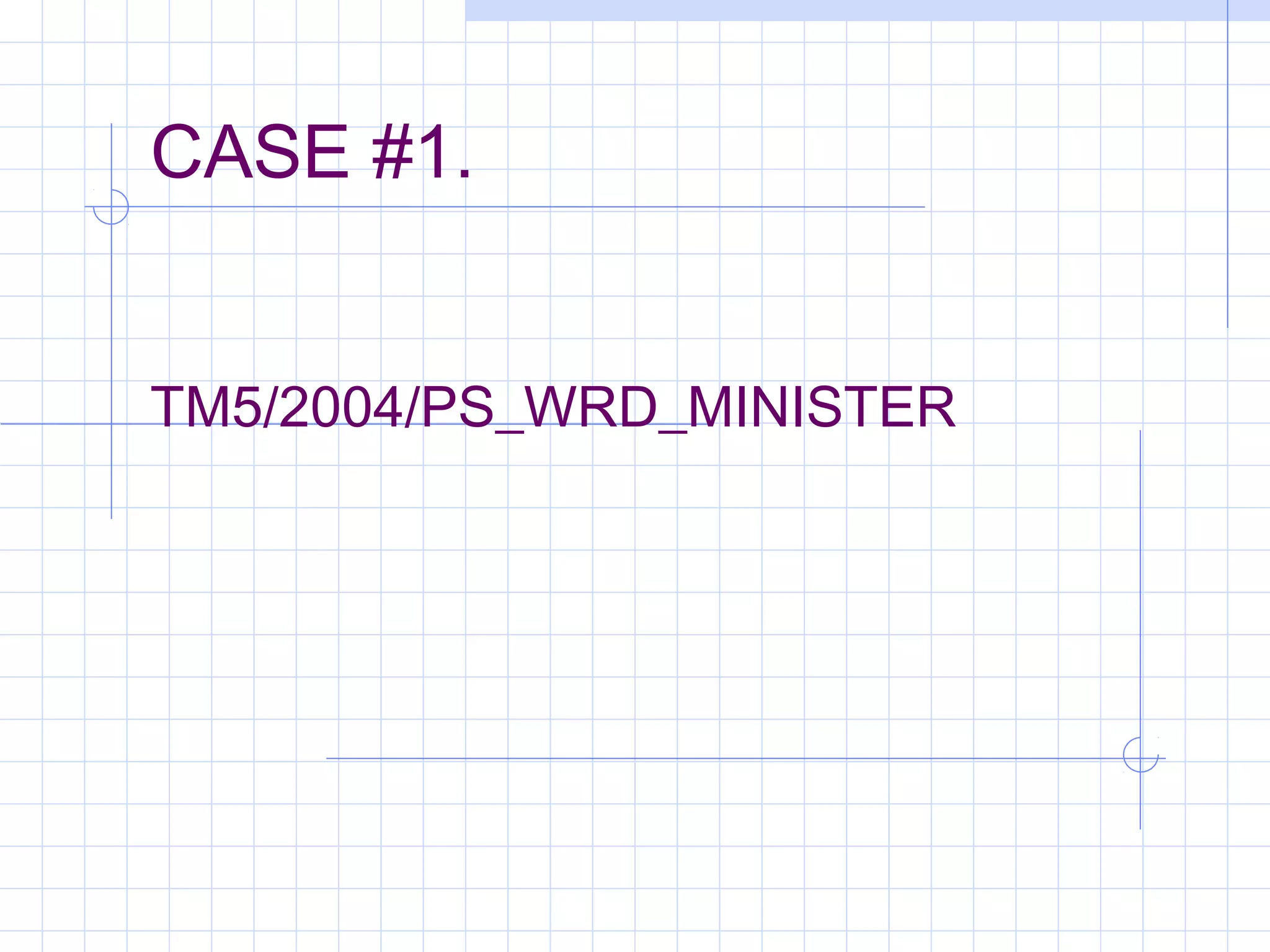

5. CASE #1.
TM5/2004/PS_WRD_MINISTER

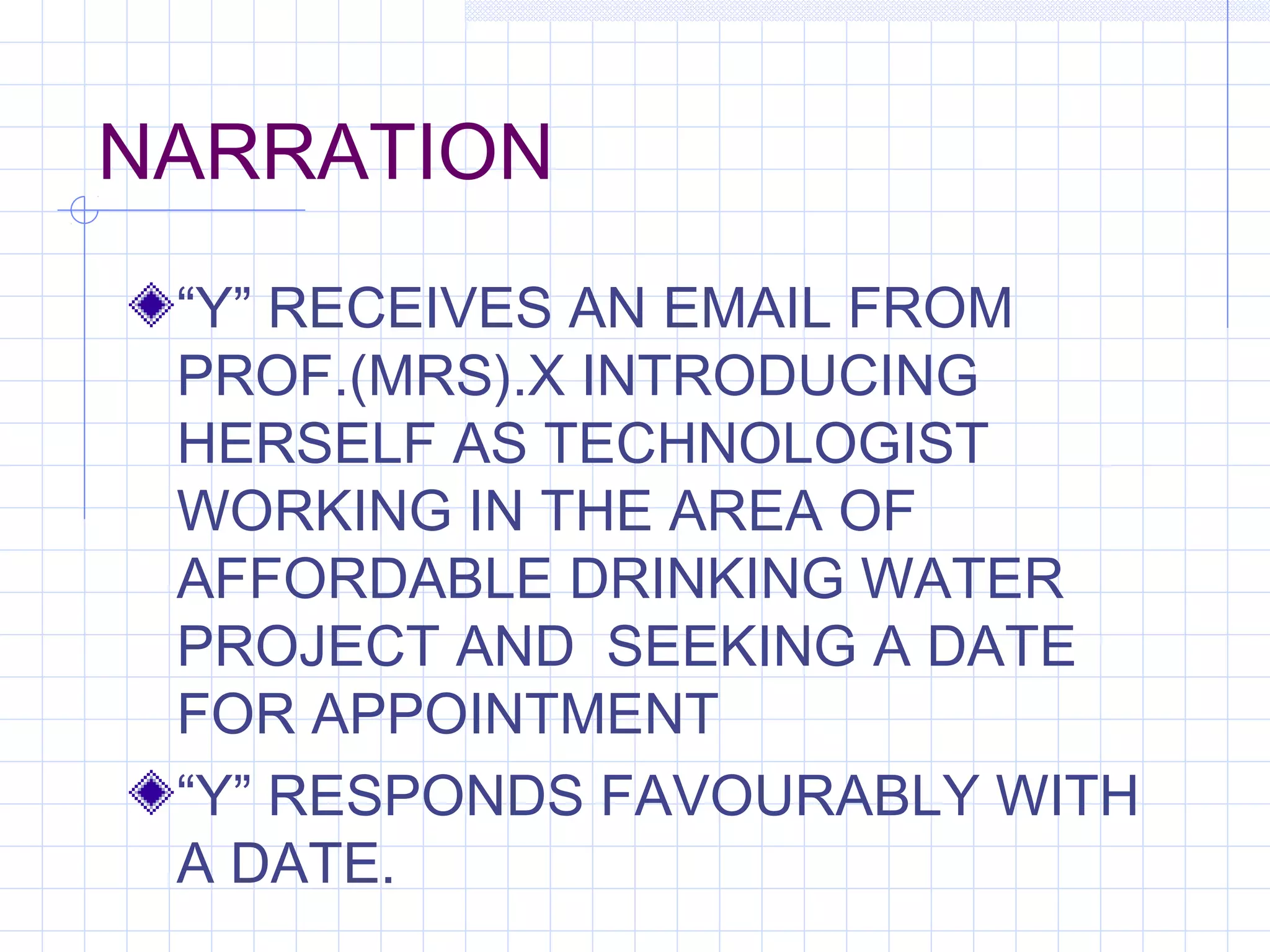

6. NARRATION
“Y” RECEIVES AN EMAIL FROM
PROF.(MRS).X INTRODUCING
HERSELF AS TECHNOLOGIST
WORKING IN THE AREA OF
AFFORDABLE DRINKING WATER
PROJECT AND SEEKING A DATE
FOR APPOINTMENT
“Y” RESPONDS FAVOURABLY WITH
A DATE.

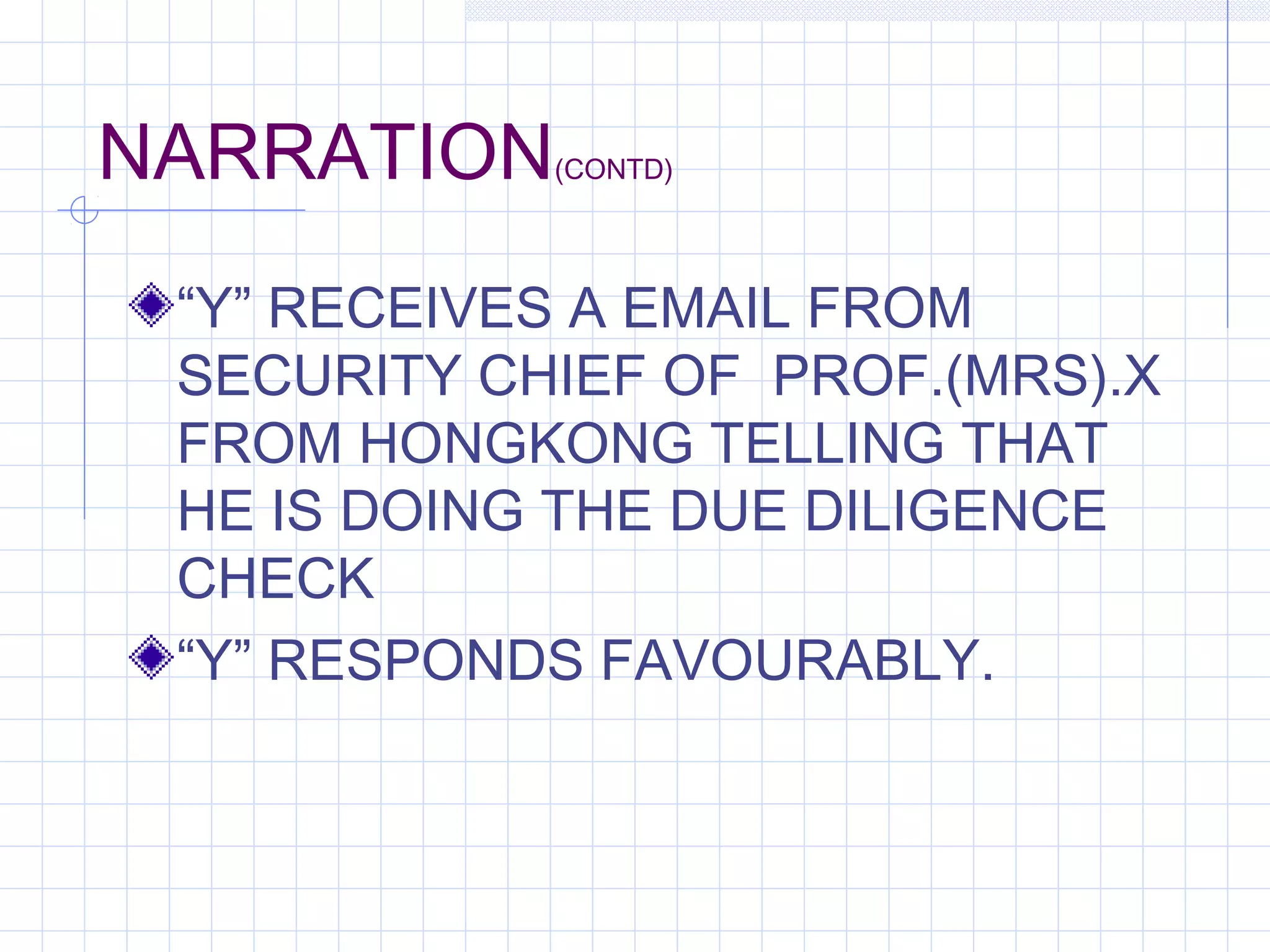

7. NARRATION(CONTD)
“Y” RECEIVES A EMAIL FROM
SECURITY CHIEF OF PROF.(MRS).X
FROM HONGKONG TELLING THAT
HE IS DOING THE DUE DILIGENCE
CHECK
“Y” RESPONDS FAVOURABLY.

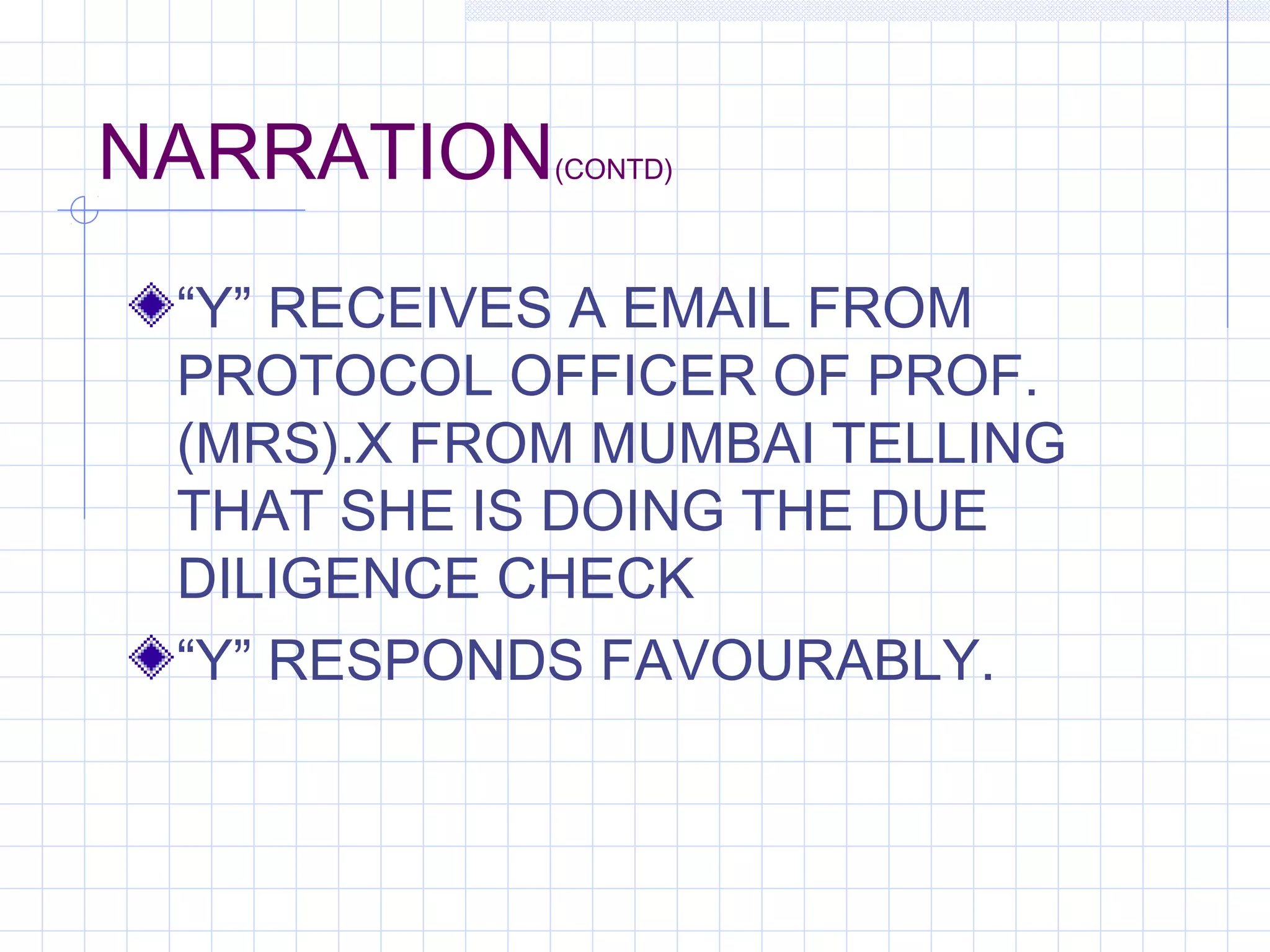

8. NARRATION(CONTD)
“Y” RECEIVES A EMAIL FROM
PROTOCOL OFFICER OF PROF.
(MRS).X FROM MUMBAI TELLING
THAT SHE IS DOING THE DUE
DILIGENCE CHECK
“Y” RESPONDS FAVOURABLY.

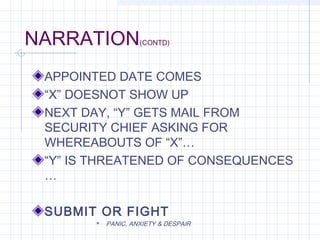

9. NARRATION(CONTD)
APPOINTED DATE COMES
“X” DOESNOT SHOW UP
NEXT DAY, “Y” GETS MAIL FROM
SECURITY CHIEF ASKING FOR
WHEREABOUTS OF “X”…
“Y” IS THREATENED OF CONSEQUENCES
…
SUBMIT OR FIGHT
 PANIC, ANXIETY & DESPAIR

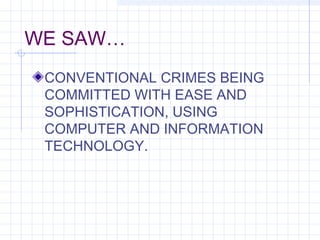

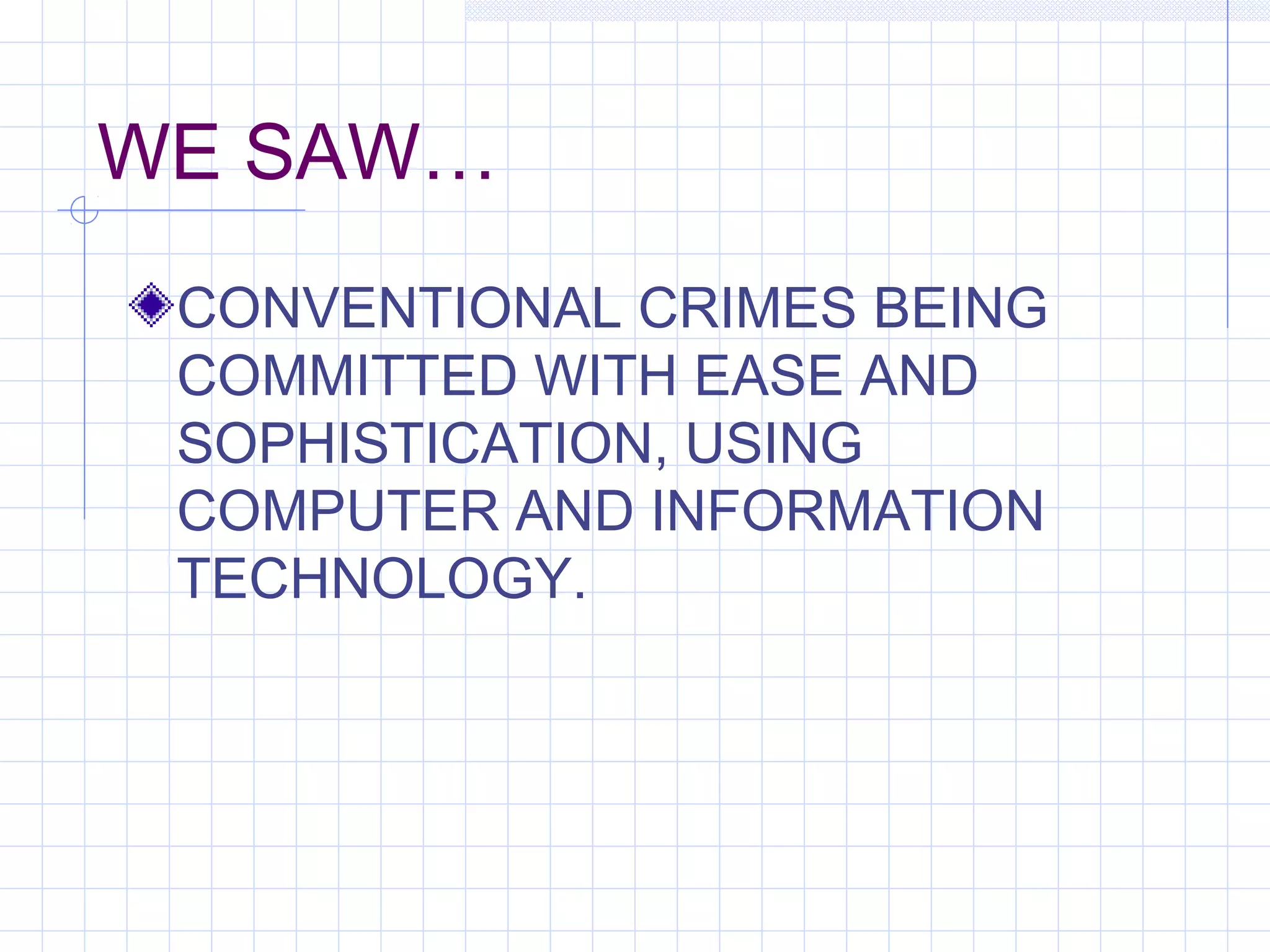

10. WE SAW…
CONVENTIONAL CRIMES BEING
COMMITTED WITH EASE AND
SOPHISTICATION, USING
COMPUTER AND INFORMATION
TECHNOLOGY.

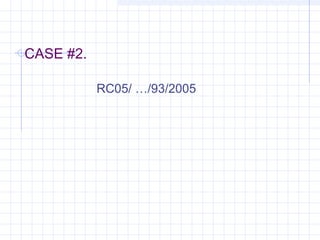

11. CASE #2.
RC05/ …/93/2005

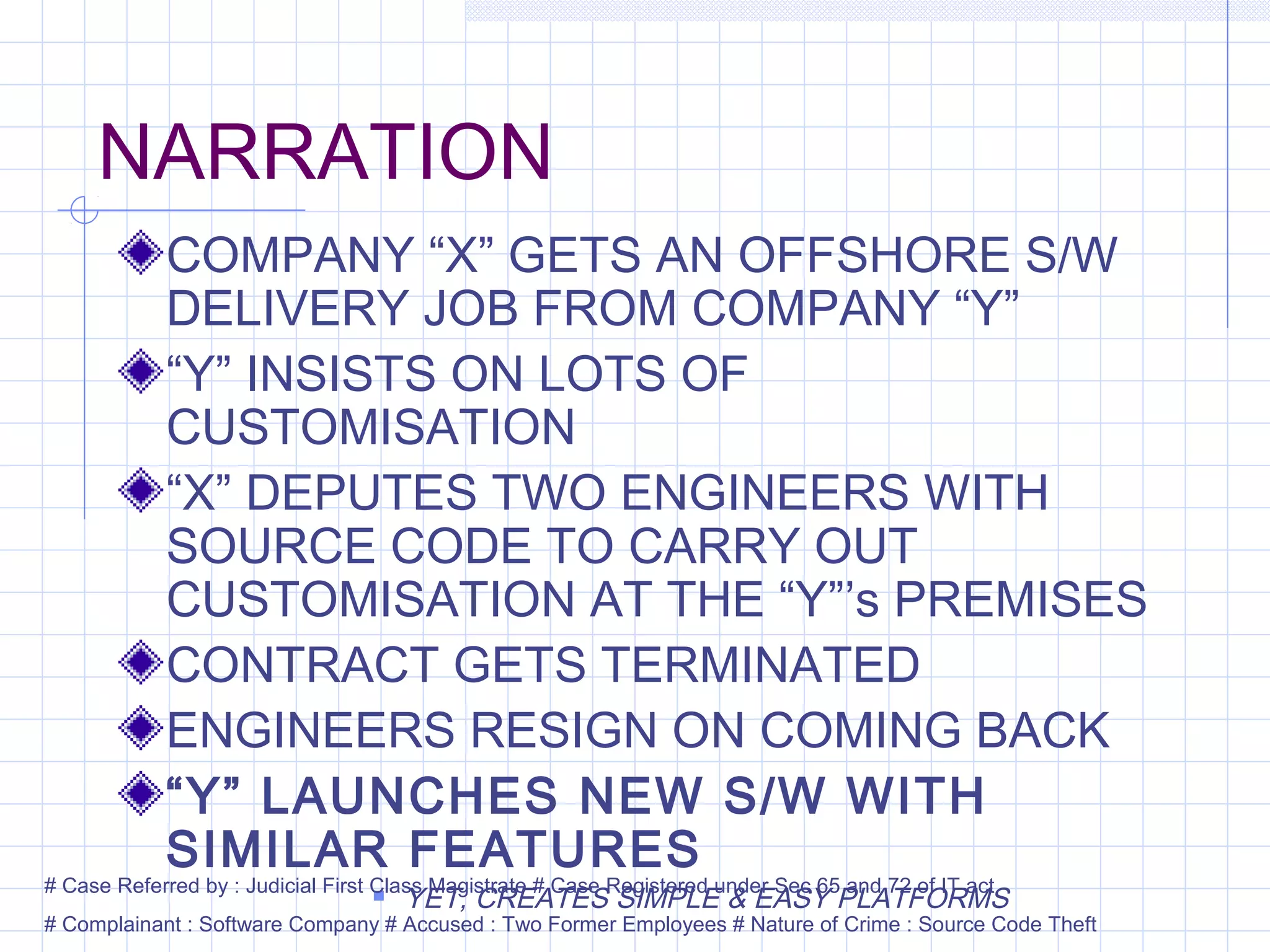

12. NARRATION
COMPANY “X” GETS AN OFFSHORE S/W
DELIVERY JOB FROM COMPANY “Y”
“Y” INSISTS ON LOTS OF
CUSTOMISATION
“X” DEPUTES TWO ENGINEERS WITH
SOURCE CODE TO CARRY OUT
CUSTOMISATION AT THE “Y”’s PREMISES
CONTRACT GETS TERMINATED
ENGINEERS RESIGN ON COMING BACK
“Y” LAUNCHES NEW S/W WITH
SIMILAR FEATURES
 YET, CREATES SIMPLE & EASY PLATFORMS
# Case Referred by : Judicial First Class Magistrate # Case Registered under Sec 65 and 72 of IT act
# Complainant : Software Company # Accused : Two Former Employees # Nature of Crime : Source Code Theft

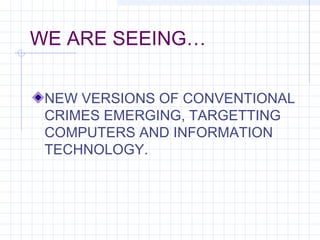

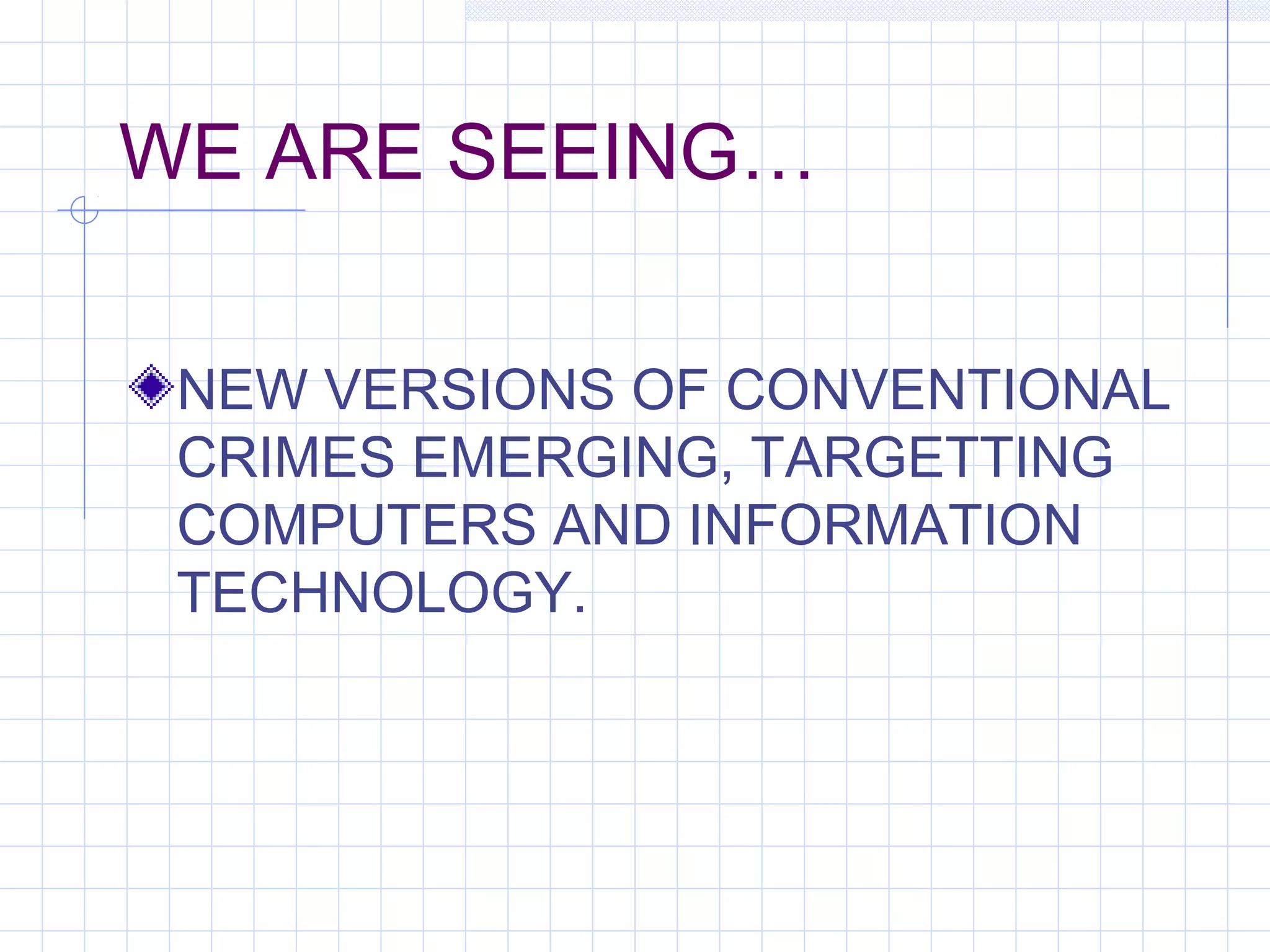

13. WE ARE SEEING…
NEW VERSIONS OF CONVENTIONAL
CRIMES EMERGING, TARGETTING
COMPUTERS AND INFORMATION
TECHNOLOGY.

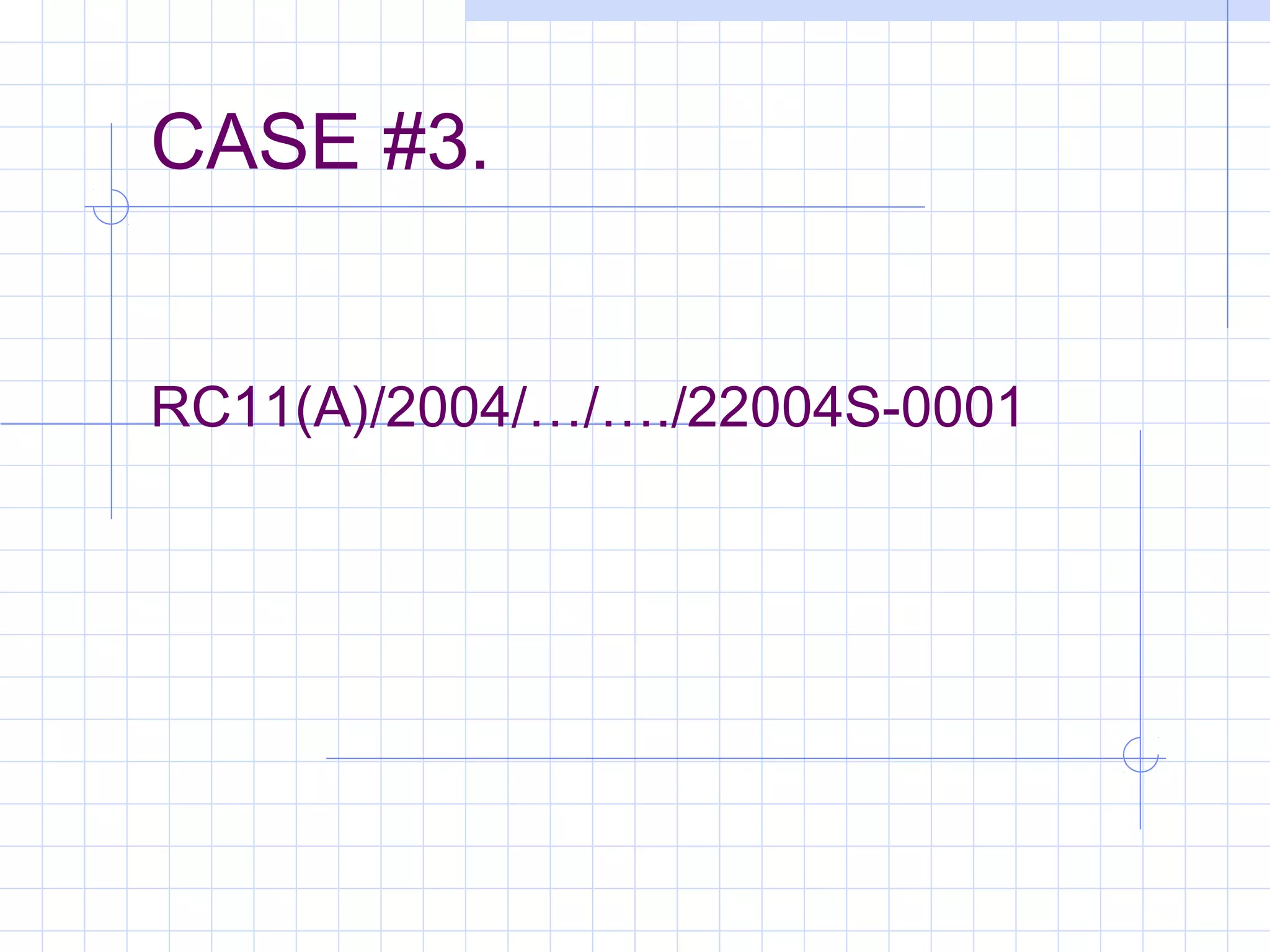

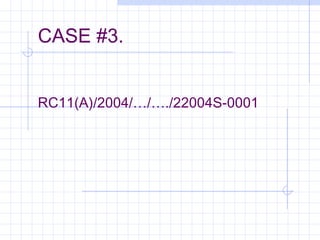

14. CASE #3.
RC11(A)/2004/…/…./22004S-0001

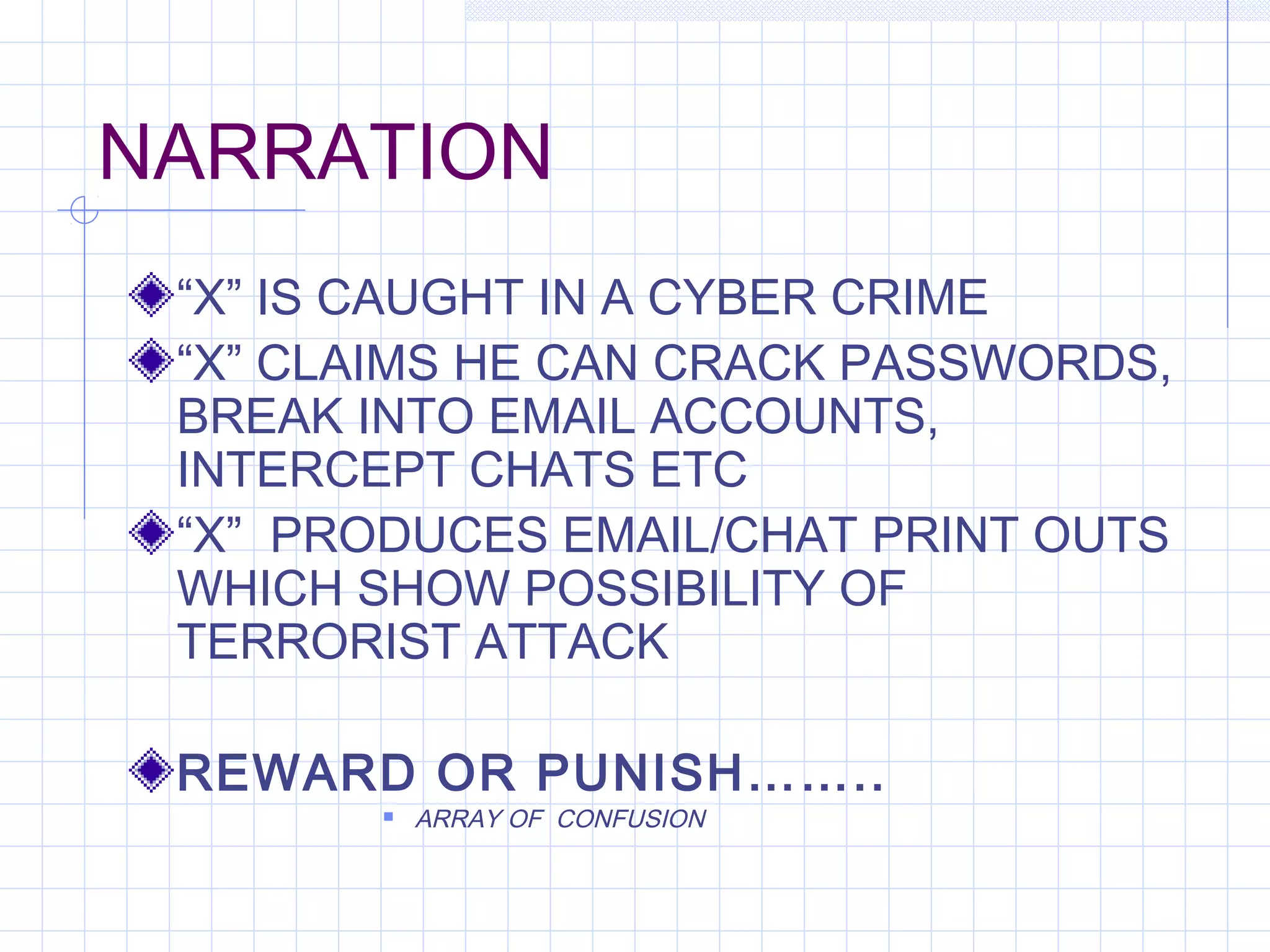

15. NARRATION
“X” IS CAUGHT IN A CYBER CRIME
“X” CLAIMS HE CAN CRACK PASSWORDS,
BREAK INTO EMAIL ACCOUNTS,
INTERCEPT CHATS ETC
“X” PRODUCES EMAIL/CHAT PRINT OUTS
WHICH SHOW POSSIBILITY OF
TERRORIST ATTACK
REWARD OR PUNISH……..
 ARRAY OF CONFUSION

16. NOW WE SEE…
NEW CRIMES BEING INVENTED,
CONFUSING COMPUTERS AND
INFORMATION TECHNOLOGY

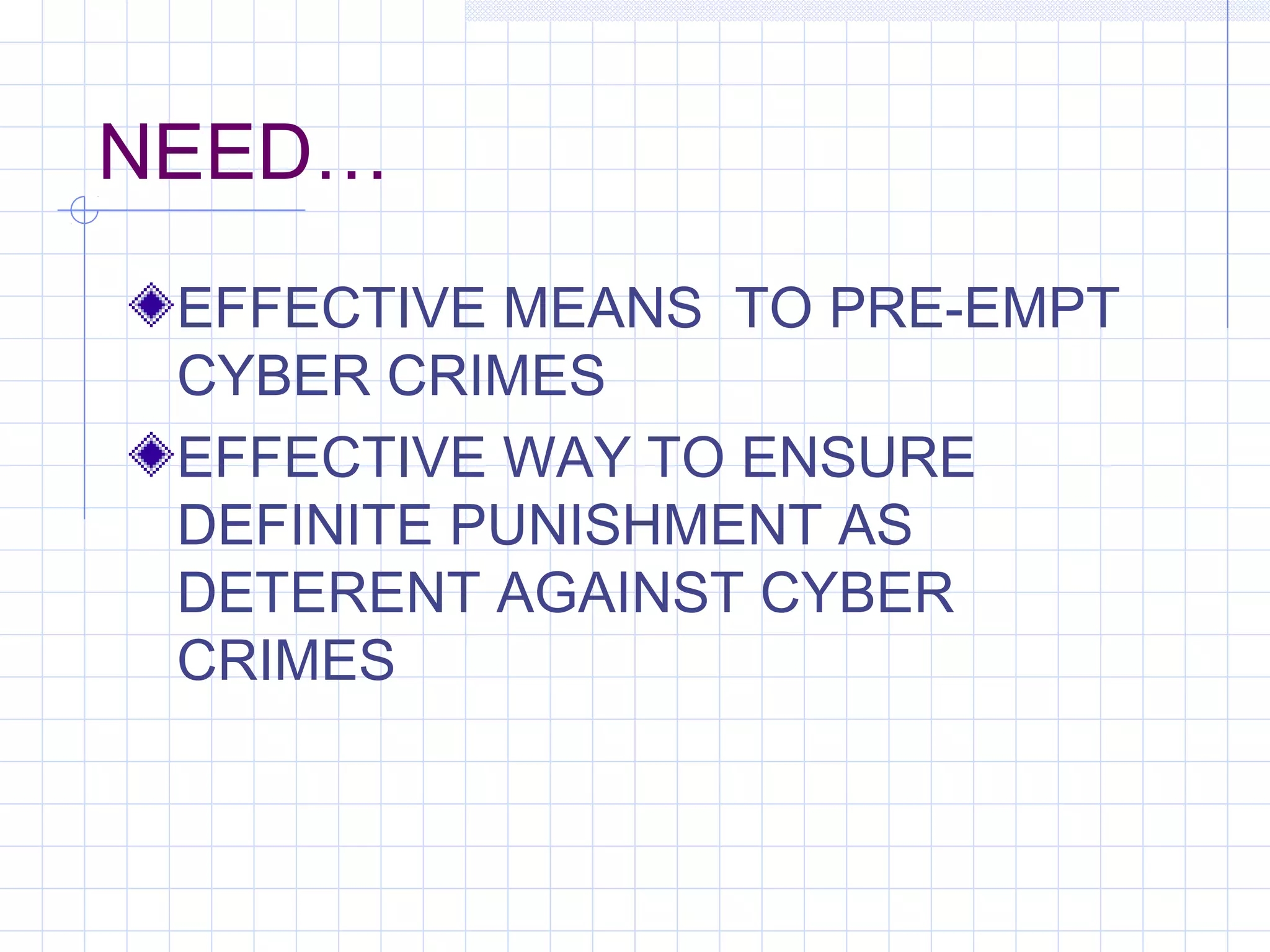

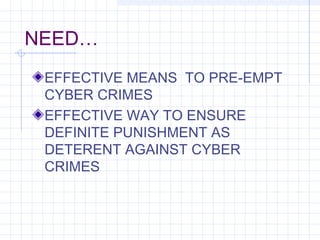

17. NEED…
EFFECTIVE MEANS TO PRE-EMPT
CYBER CRIMES
EFFECTIVE WAY TO ENSURE
DEFINITE PUNISHMENT AS
DETERENT AGAINST CYBER
CRIMES

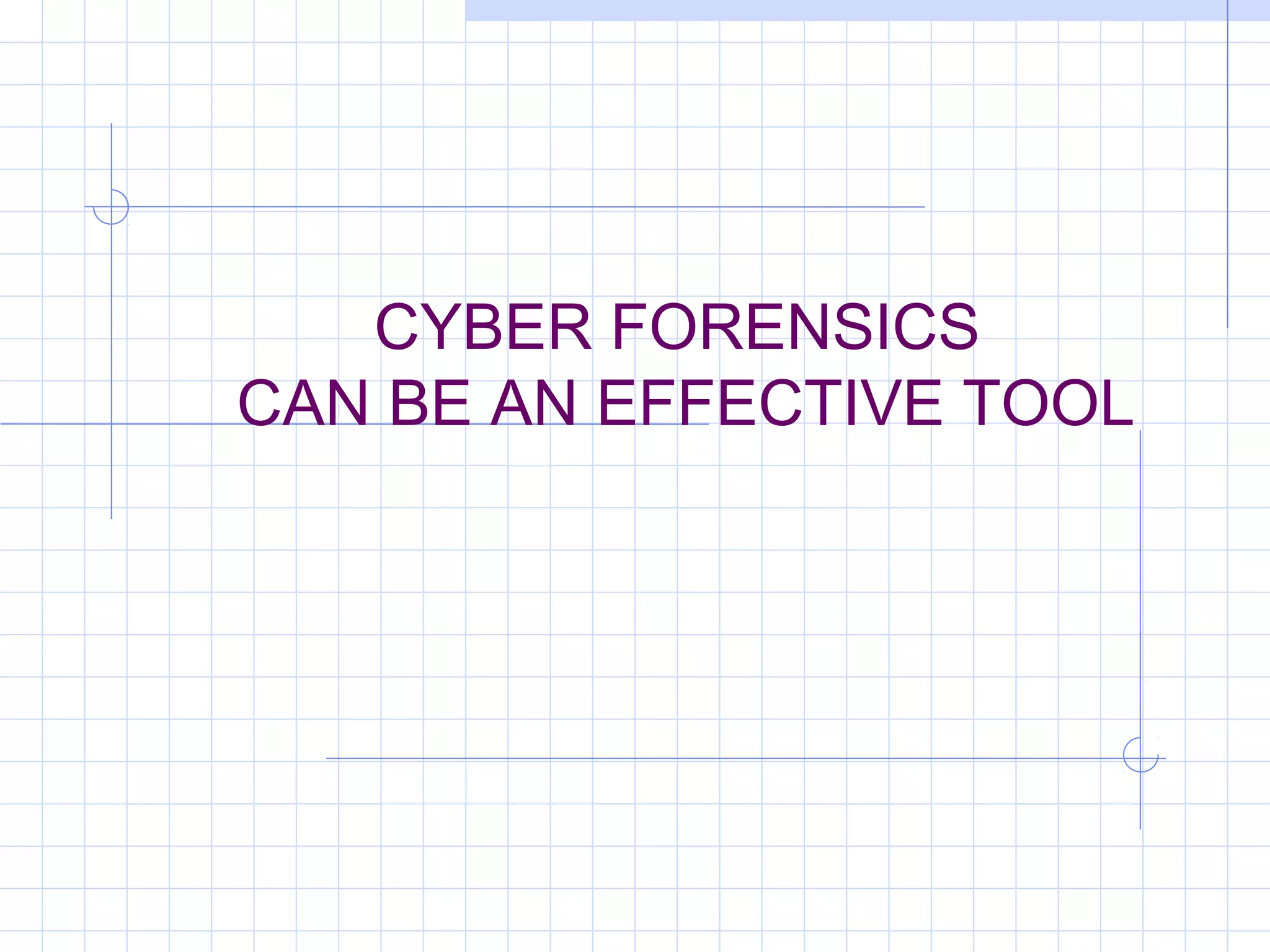

18. CYBER FORENSICS
CAN BE AN EFFECTIVE TOOL

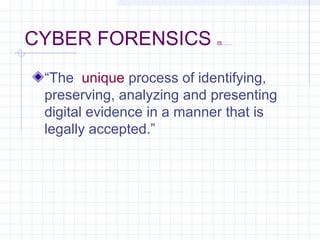

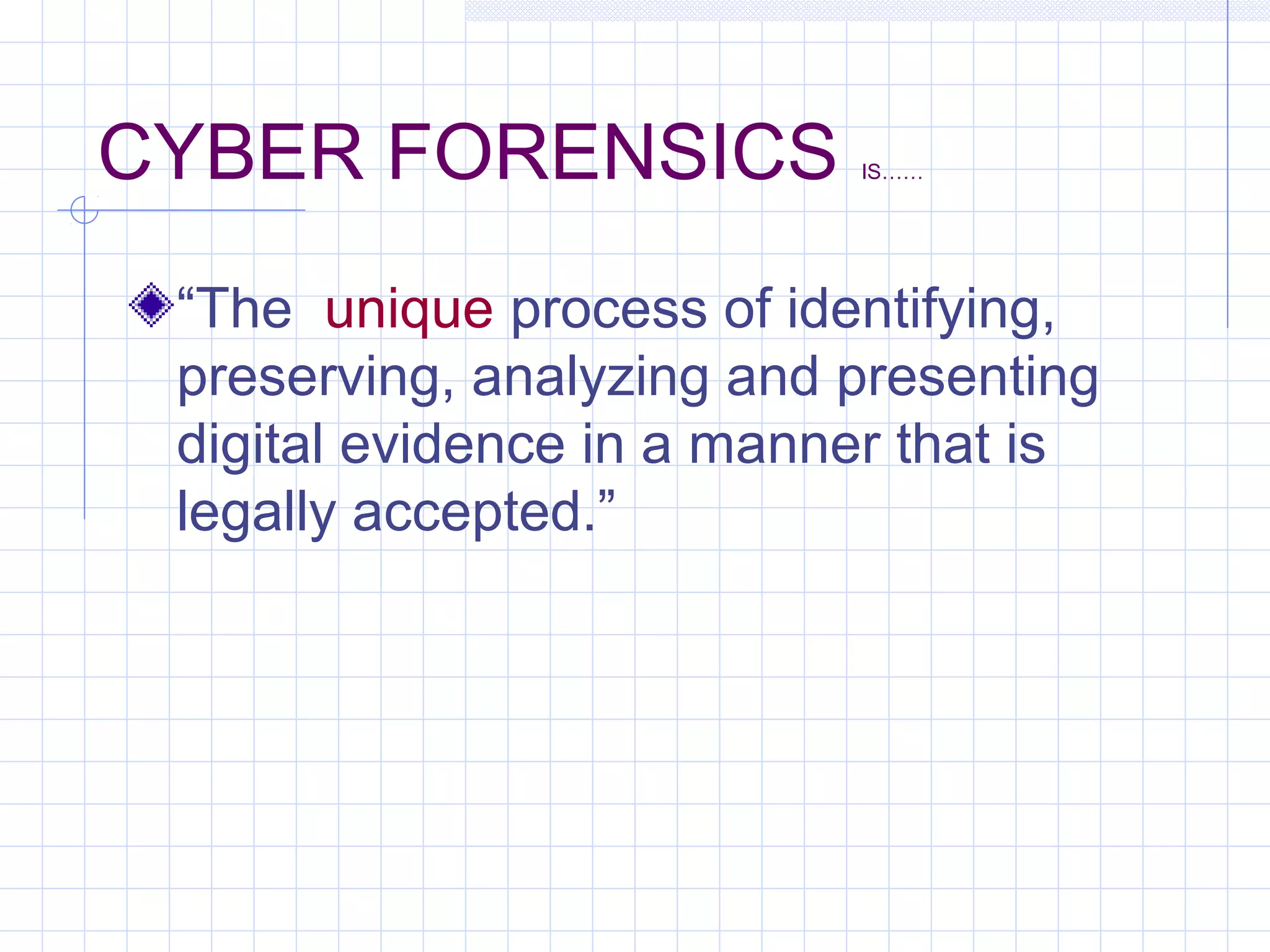

19. CYBER FORENSICS IS……
“The unique process of identifying,
preserving, analyzing and presenting
digital evidence in a manner that is
legally accepted.”

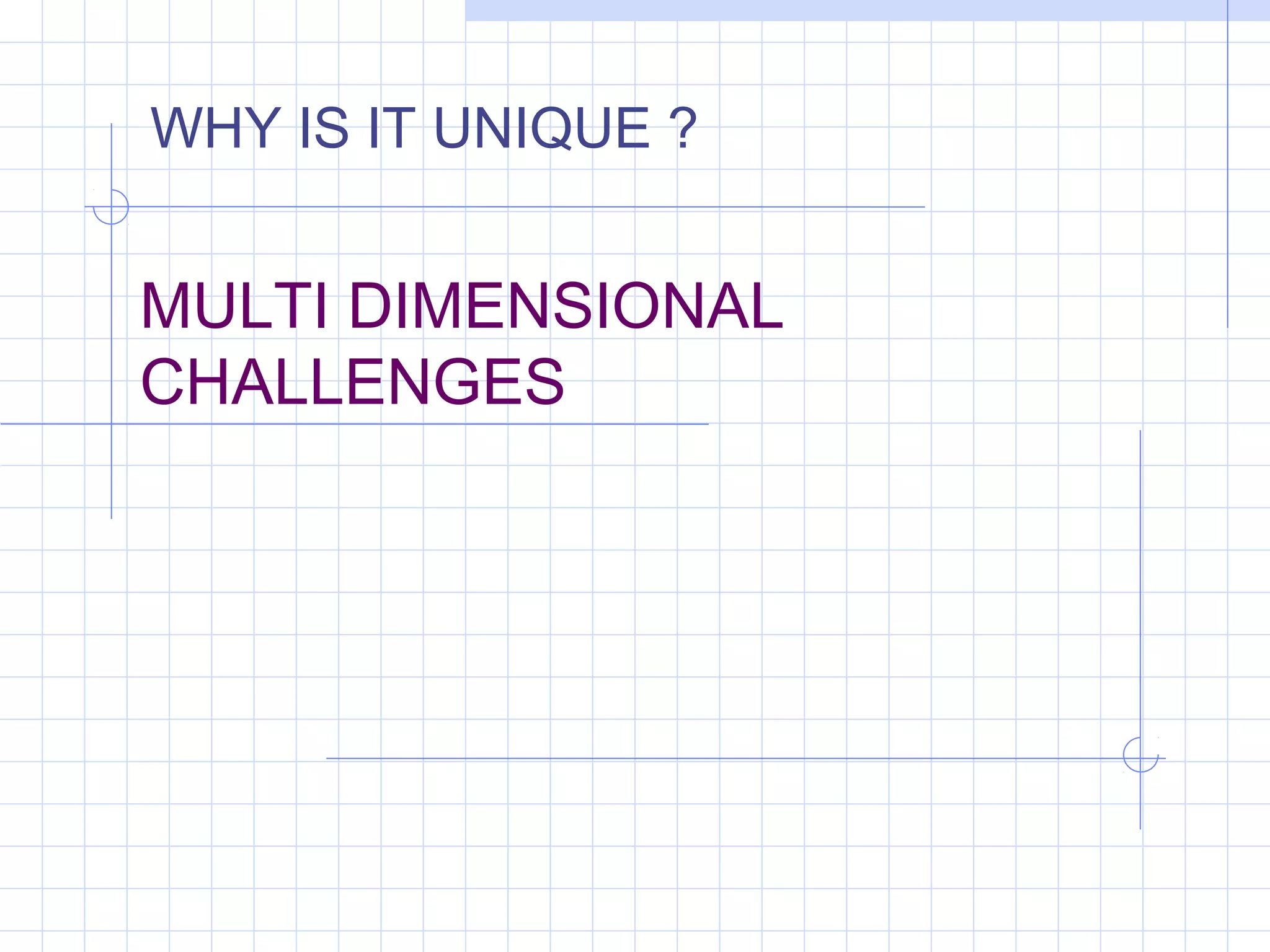

20. MULTI DIMENSIONAL
CHALLENGES
WHY IS IT UNIQUE ?

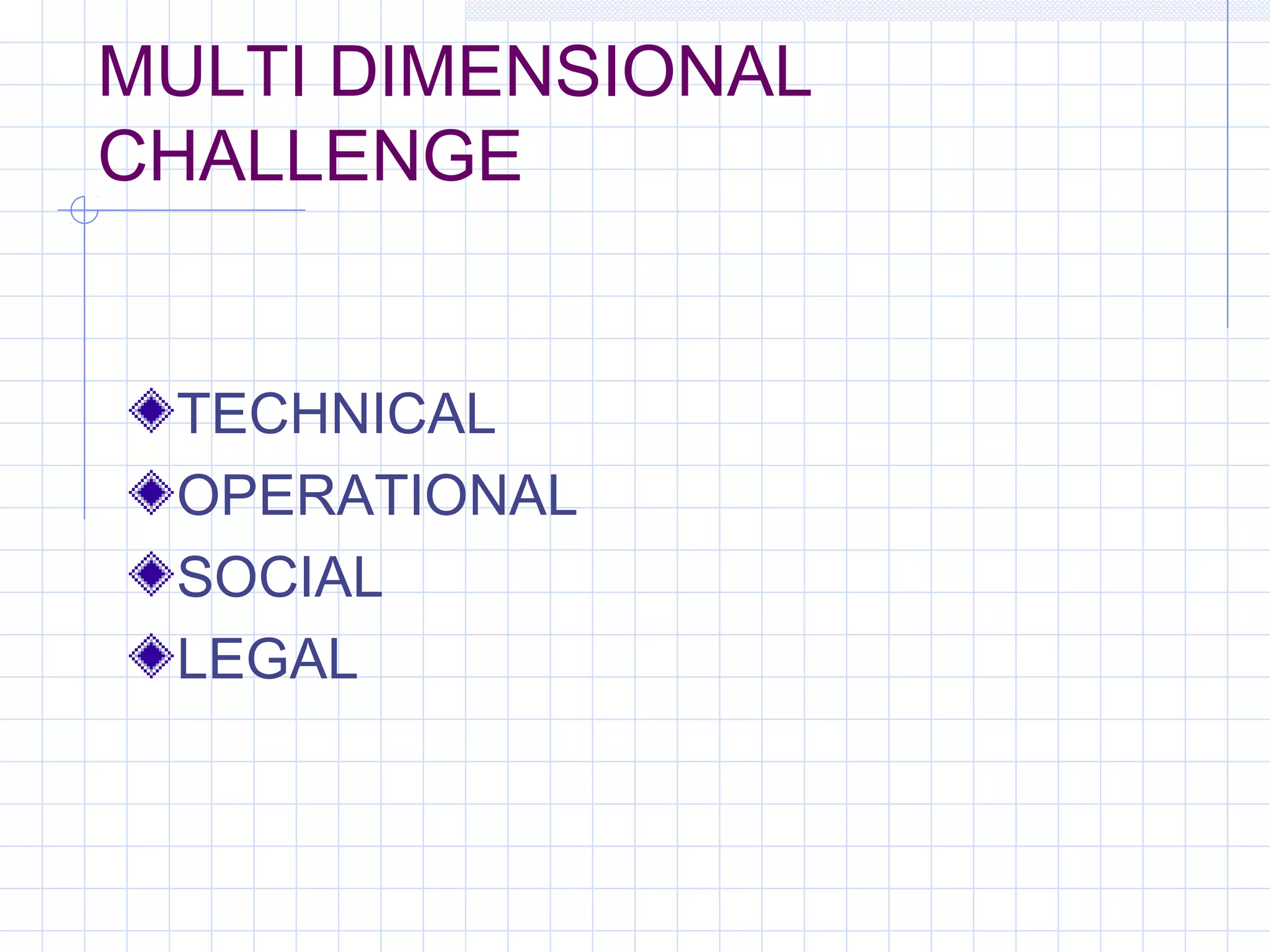

21. MULTI DIMENSIONAL
CHALLENGE
TECHNICAL
OPERATIONAL
SOCIAL
LEGAL

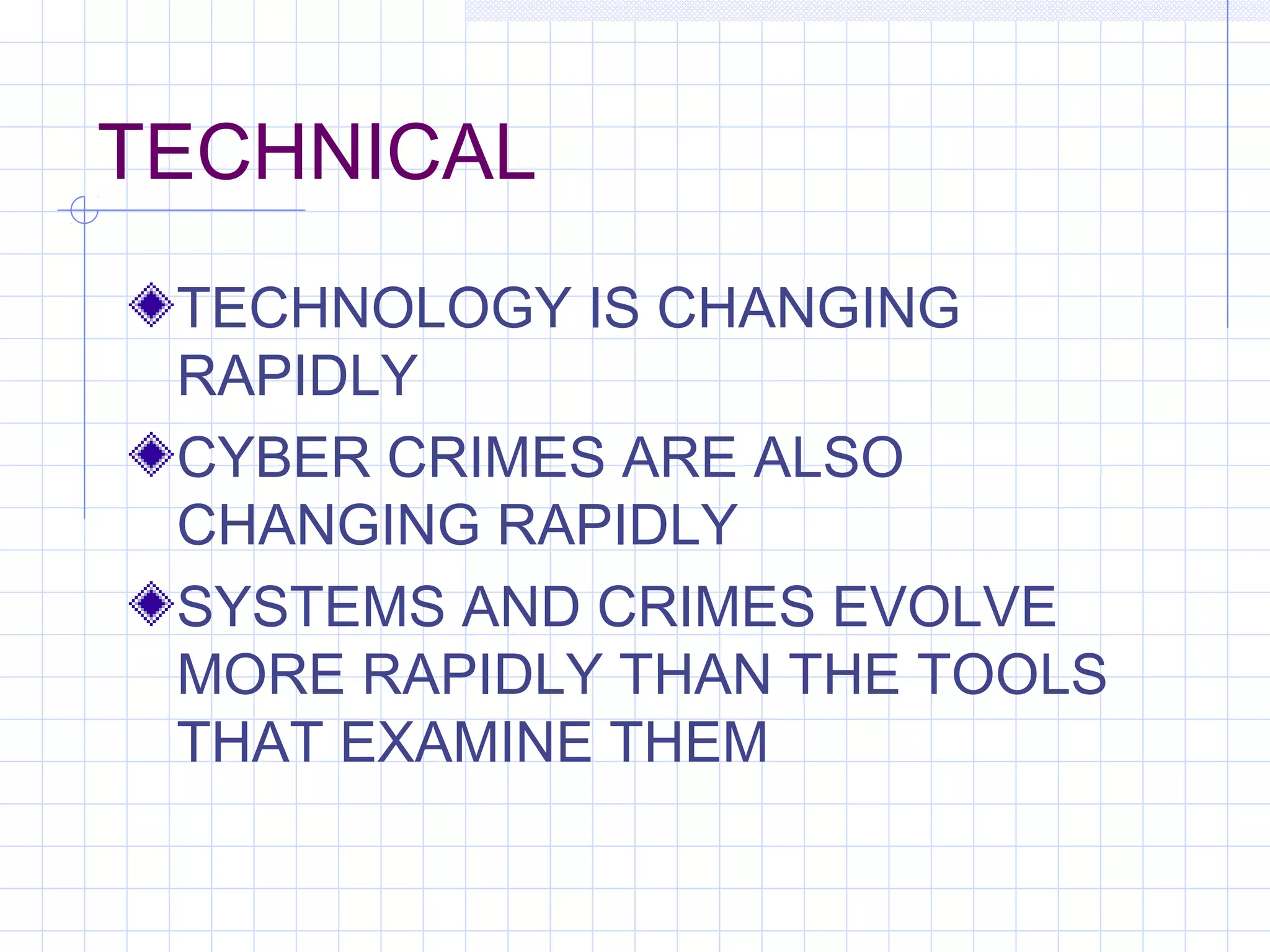

22. TECHNICAL
TECHNOLOGY IS CHANGING
RAPIDLY
CYBER CRIMES ARE ALSO
CHANGING RAPIDLY
SYSTEMS AND CRIMES EVOLVE
MORE RAPIDLY THAN THE TOOLS
THAT EXAMINE THEM

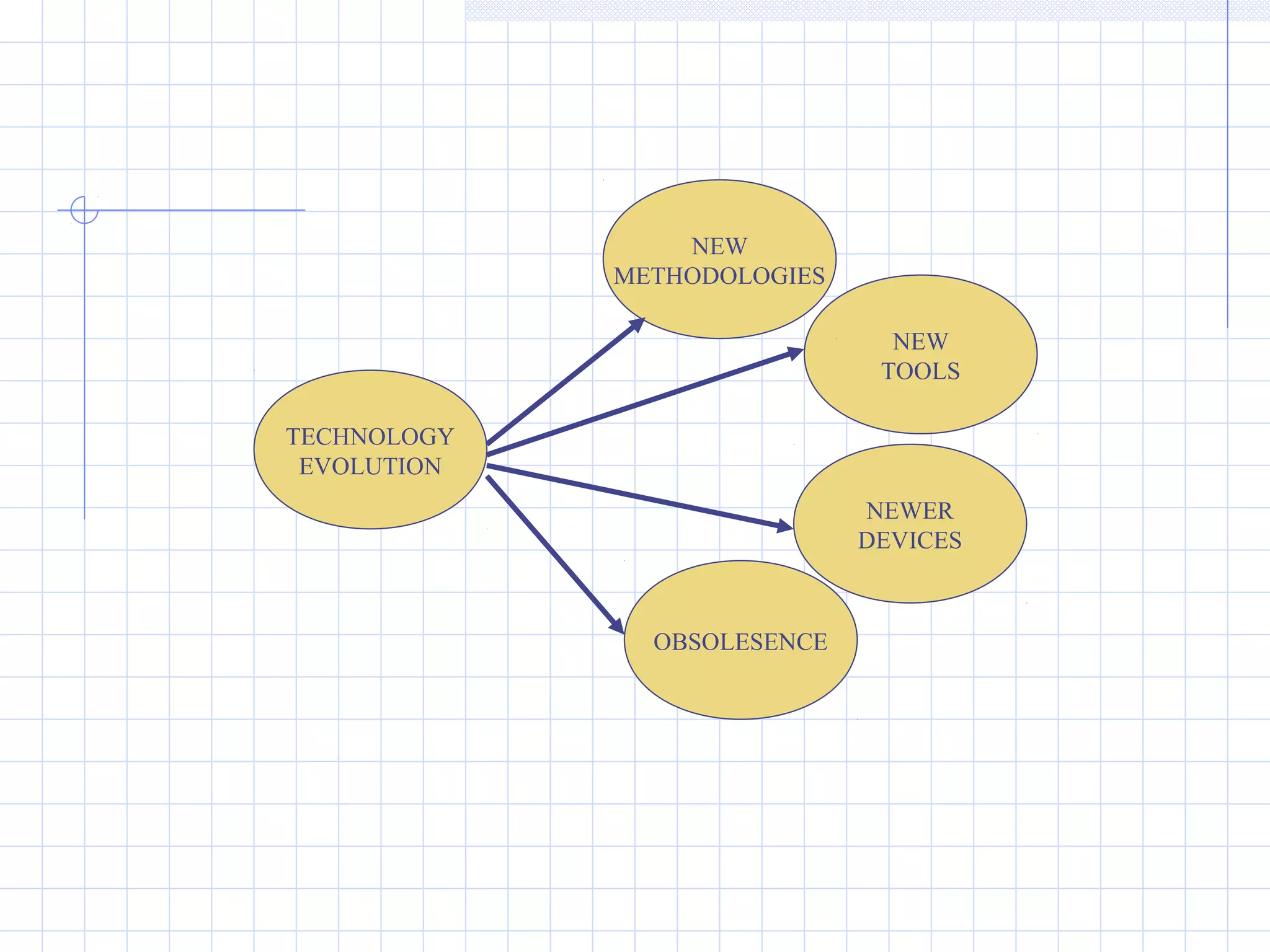

23. TECHNOLOGY
EVOLUTION
OBSOLESENCE
NEWER
DEVICES
NEW
TOOLS
NEW
METHODOLOGIES

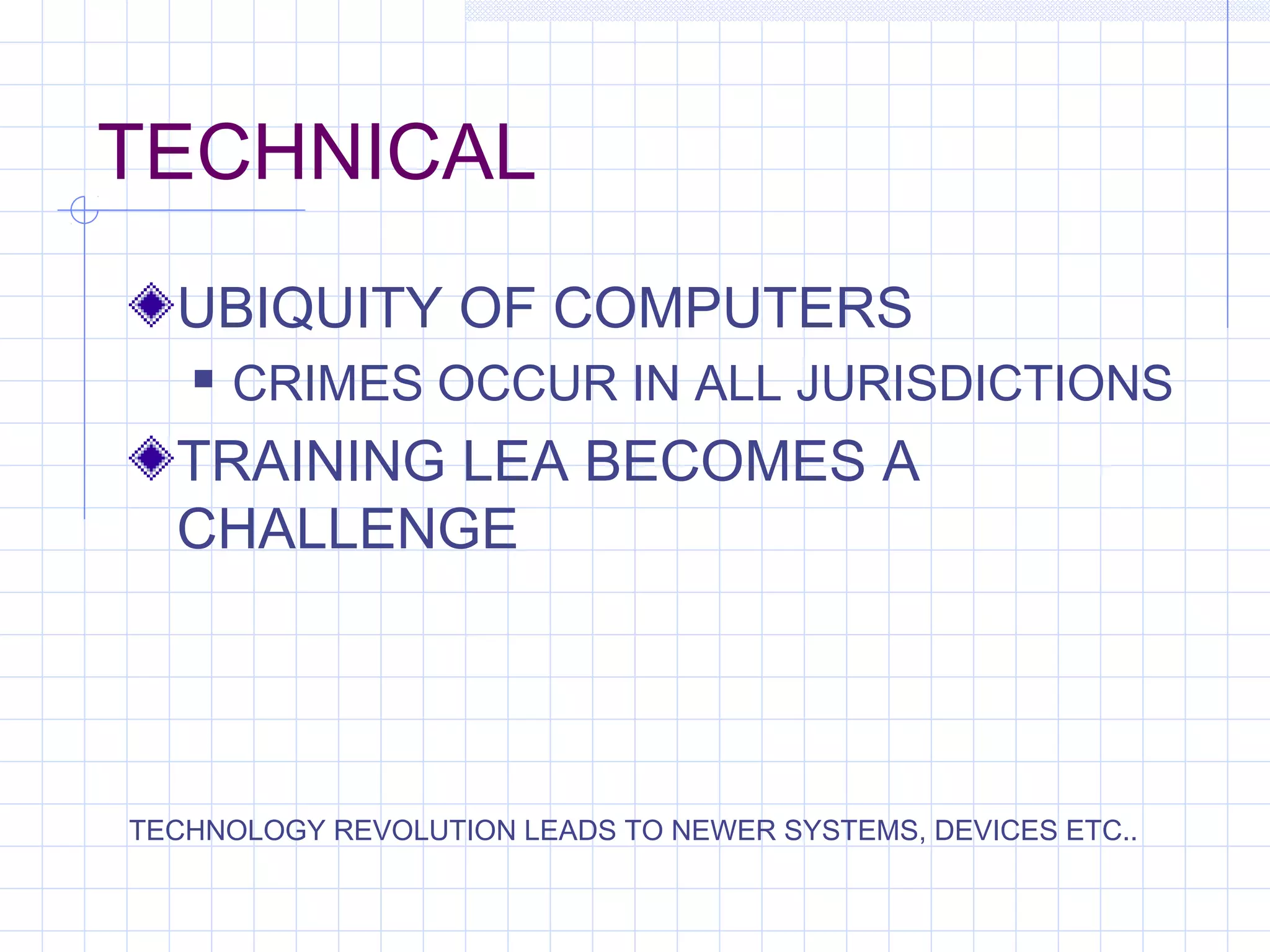

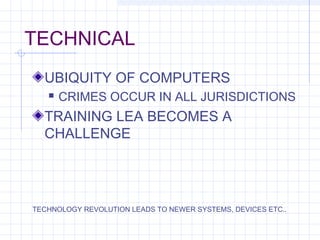

24. TECHNICAL
UBIQUITY OF COMPUTERS
 CRIMES OCCUR IN ALL JURISDICTIONS
TRAINING LEA BECOMES A
CHALLENGE
TECHNOLOGY REVOLUTION LEADS TO NEWER SYSTEMS, DEVICES ETC..

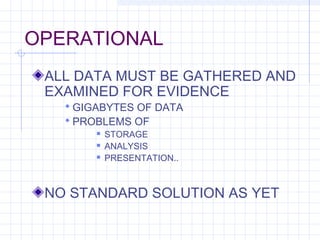

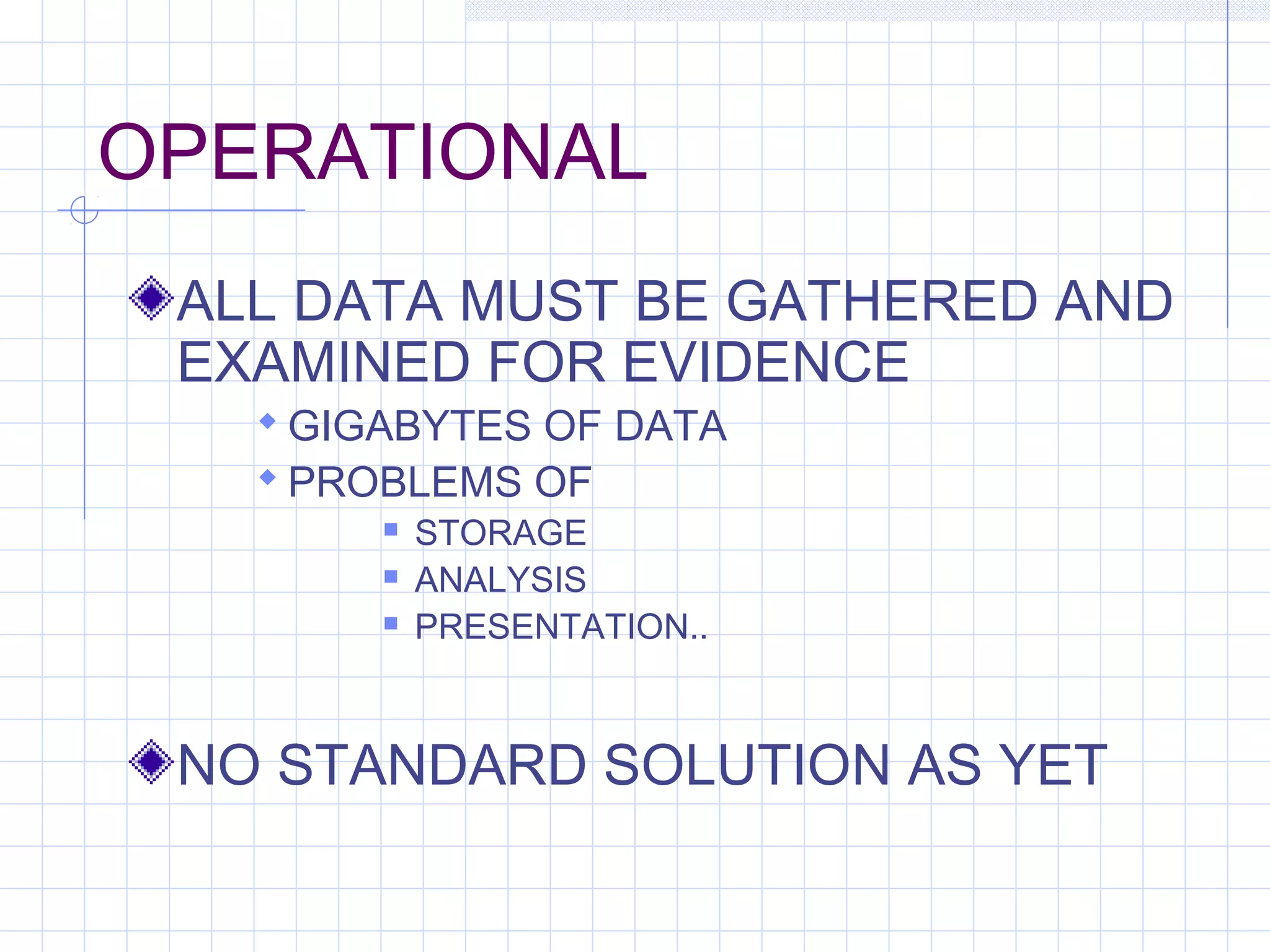

25. OPERATIONAL
ALL DATA MUST BE GATHERED AND
EXAMINED FOR EVIDENCE
 GIGABYTES OF DATA
 PROBLEMS OF
 STORAGE
 ANALYSIS
 PRESENTATION..
NO STANDARD SOLUTION AS YET

26. SOCIAL
IT RESULTS IN
 UNCERTAINITIES ABOUT
EFFECTIVENESS OF CURRENT
INVESTIGATION TECHNIQUES
 SUB OPTIMAL USE OF RESOURCES
PRIVACY CONCERNS

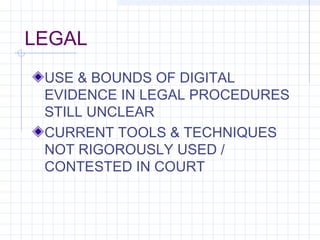

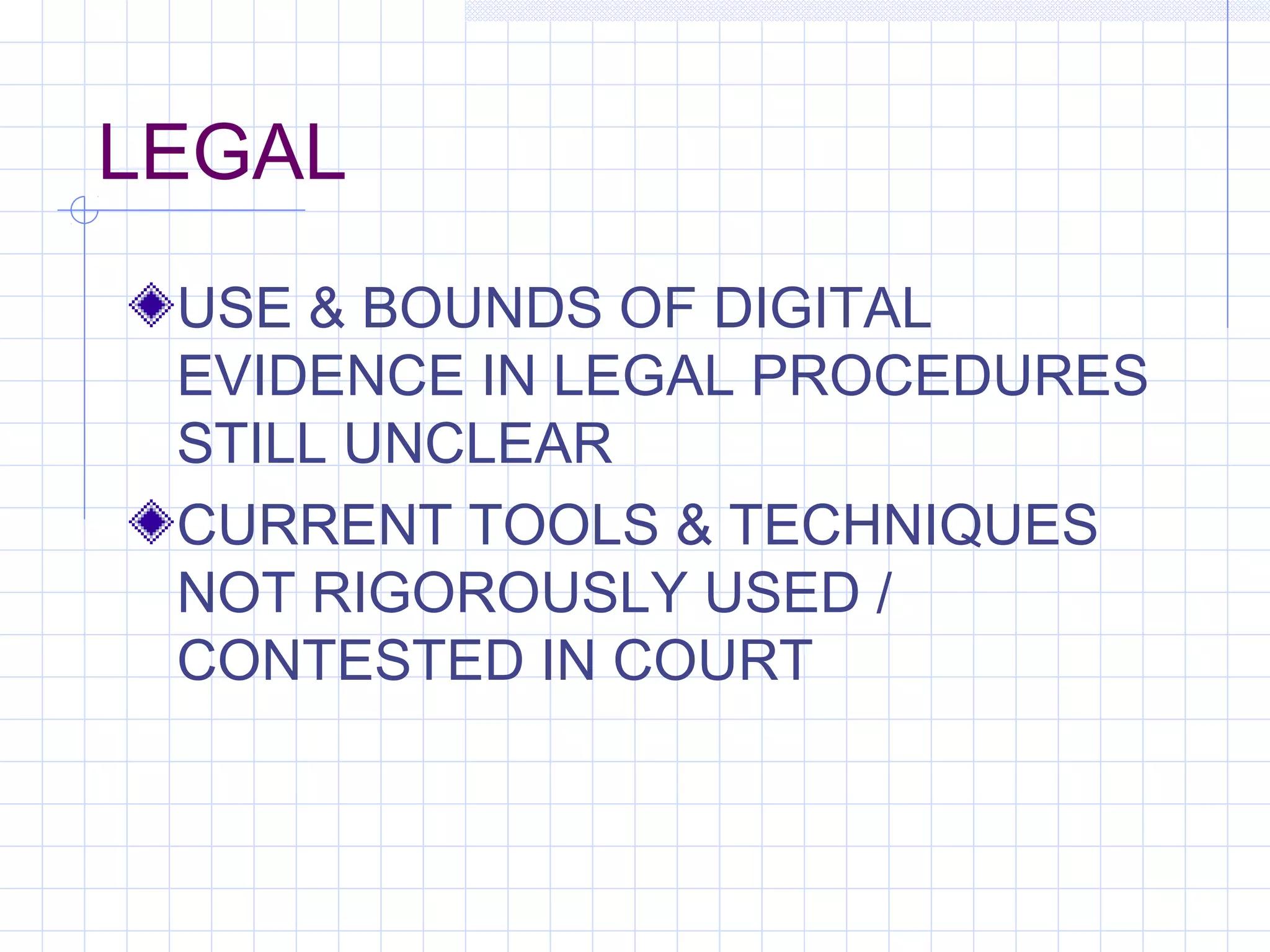

27. LEGAL
USE & BOUNDS OF DIGITAL
EVIDENCE IN LEGAL PROCEDURES
STILL UNCLEAR
CURRENT TOOLS & TECHNIQUES
NOT RIGOROUSLY USED /
CONTESTED IN COURT

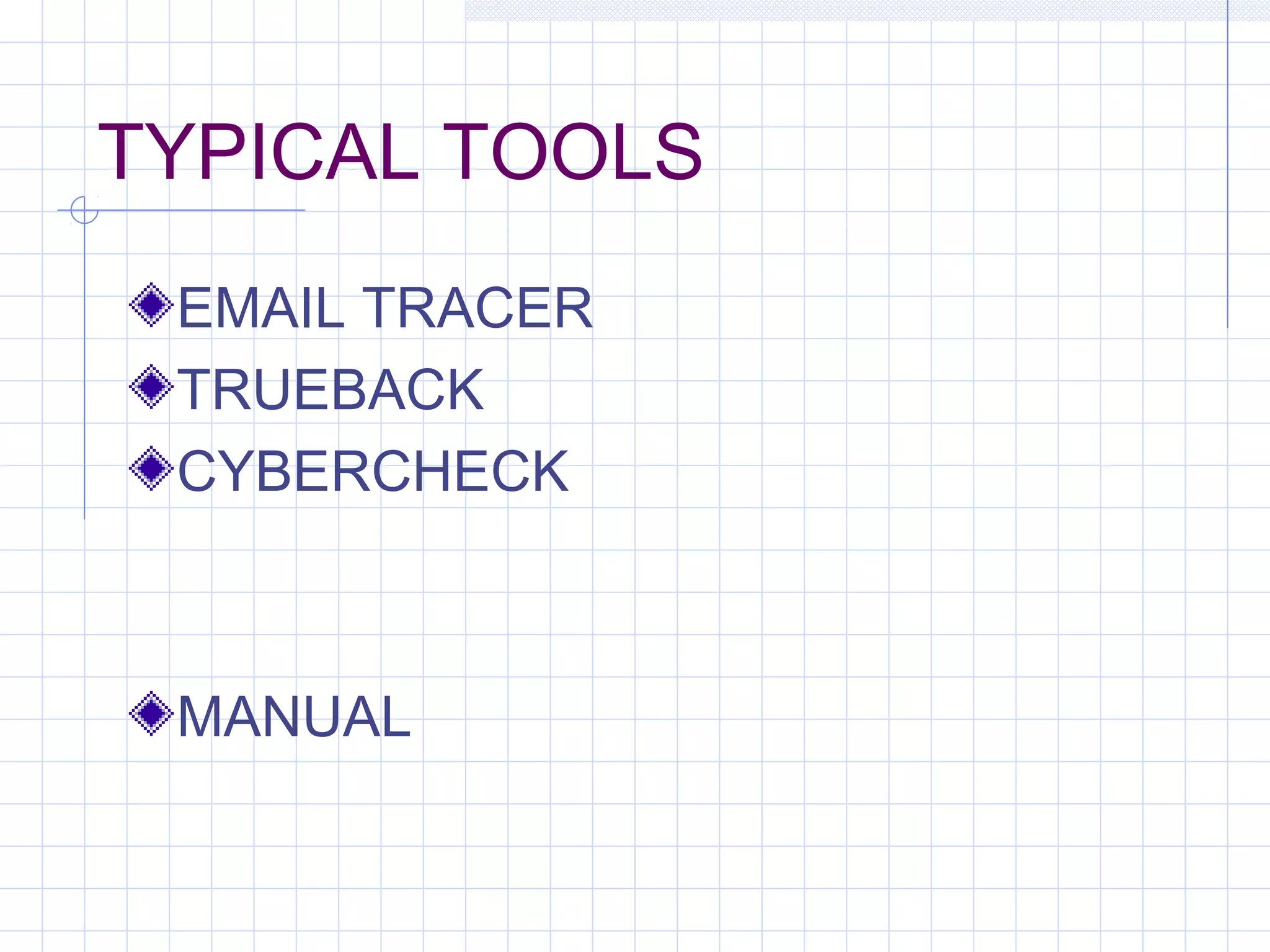

28. TYPICAL TOOLS
EMAIL TRACER
TRUEBACK
CYBERCHECK
MANUAL

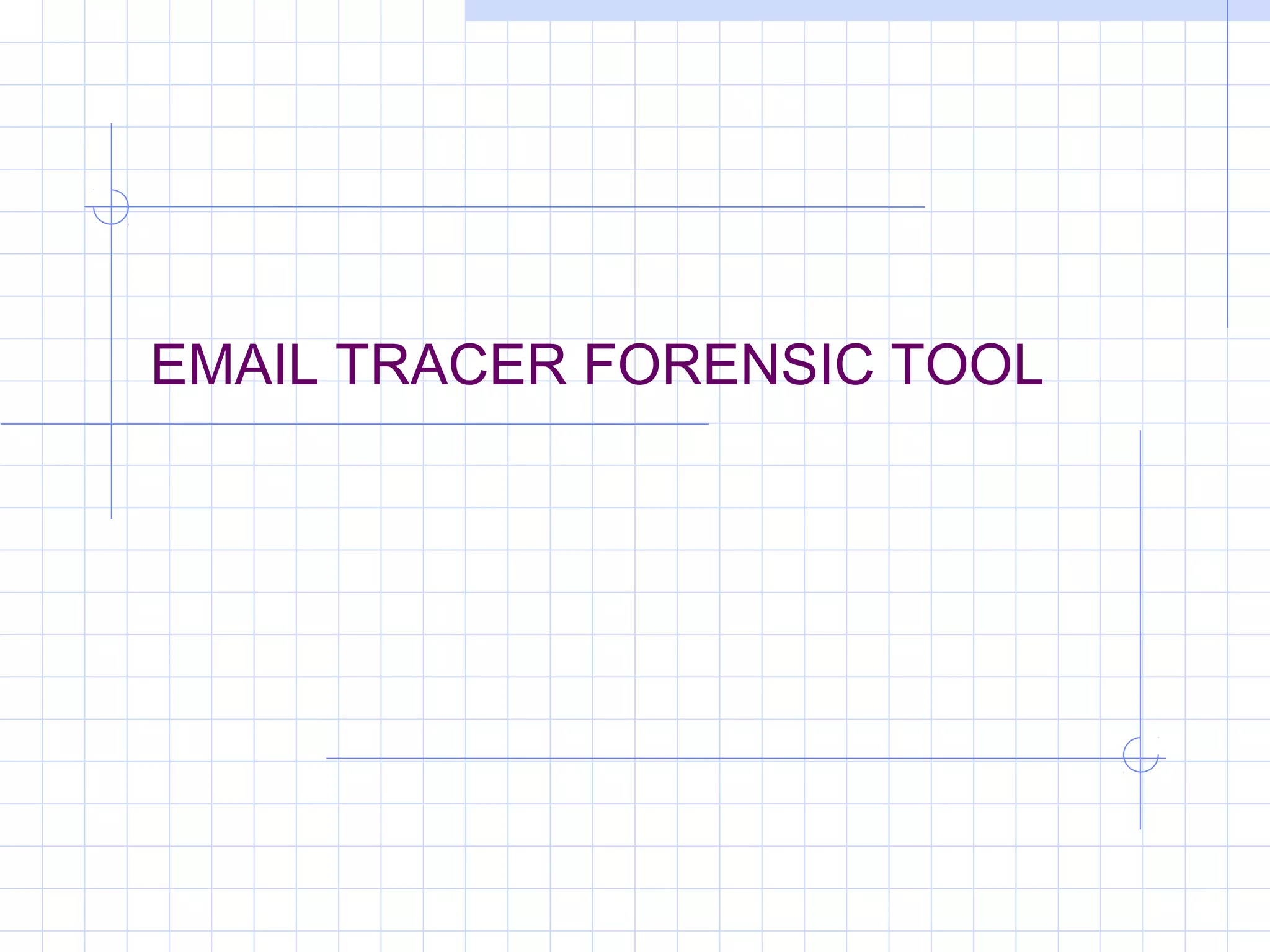

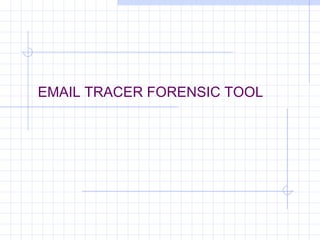

29. EMAIL TRACER FORENSIC TOOL

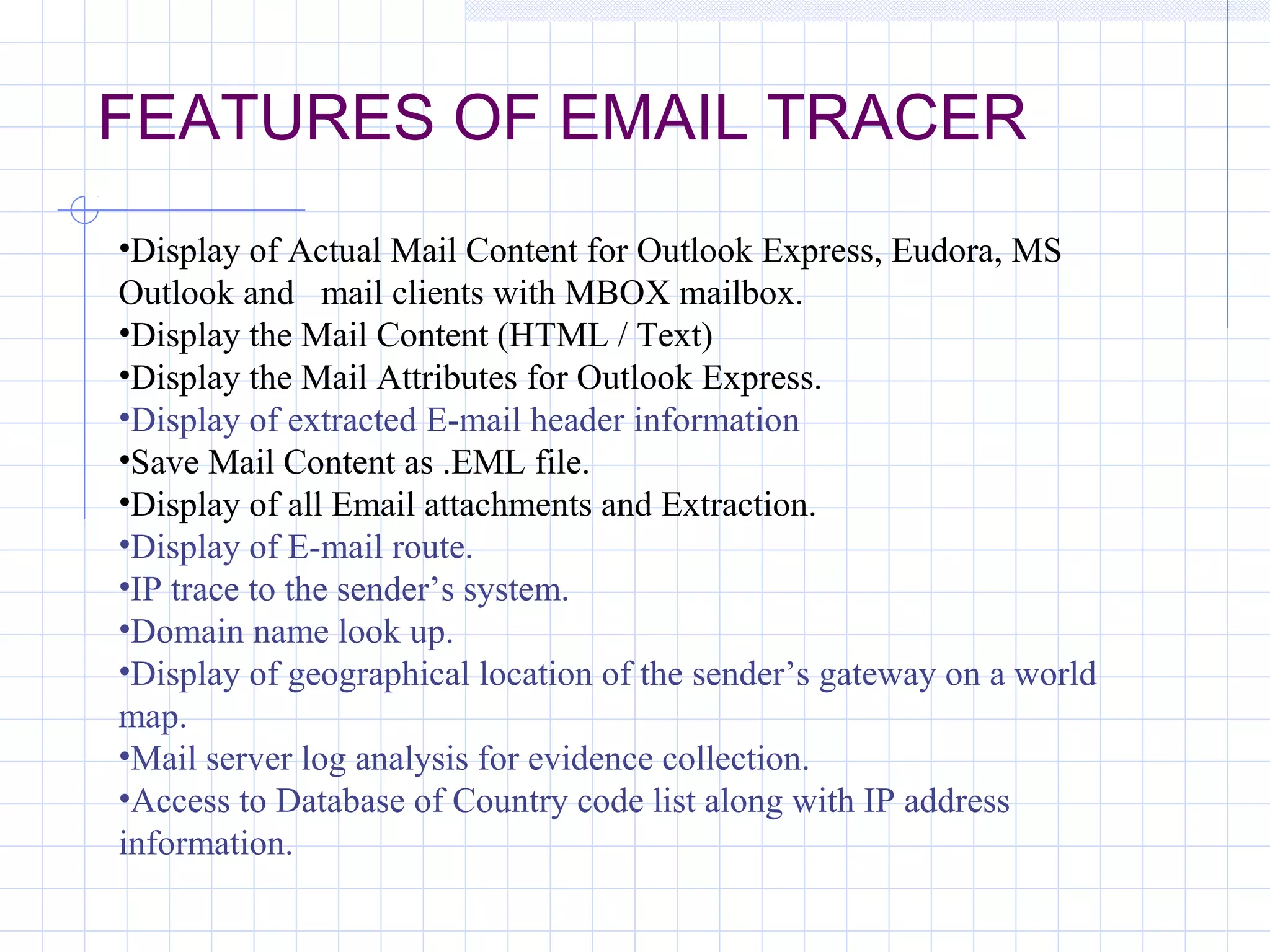

30. FEATURES OF EMAIL TRACER
•Display of Actual Mail Content for Outlook Express, Eudora, MS
Outlook and mail clients with MBOX mailbox.
•Display the Mail Content (HTML / Text)
•Display the Mail Attributes for Outlook Express.
•Display of extracted E-mail header information
•Save Mail Content as .EML file.
•Display of all Email attachments and Extraction.
•Display of E-mail route.
•IP trace to the sender’s system.
•Domain name look up.
•Display of geographical location of the sender’s gateway on a world
map.
•Mail server log analysis for evidence collection.
•Access to Database of Country code list along with IP address
information.

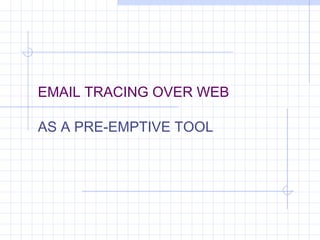

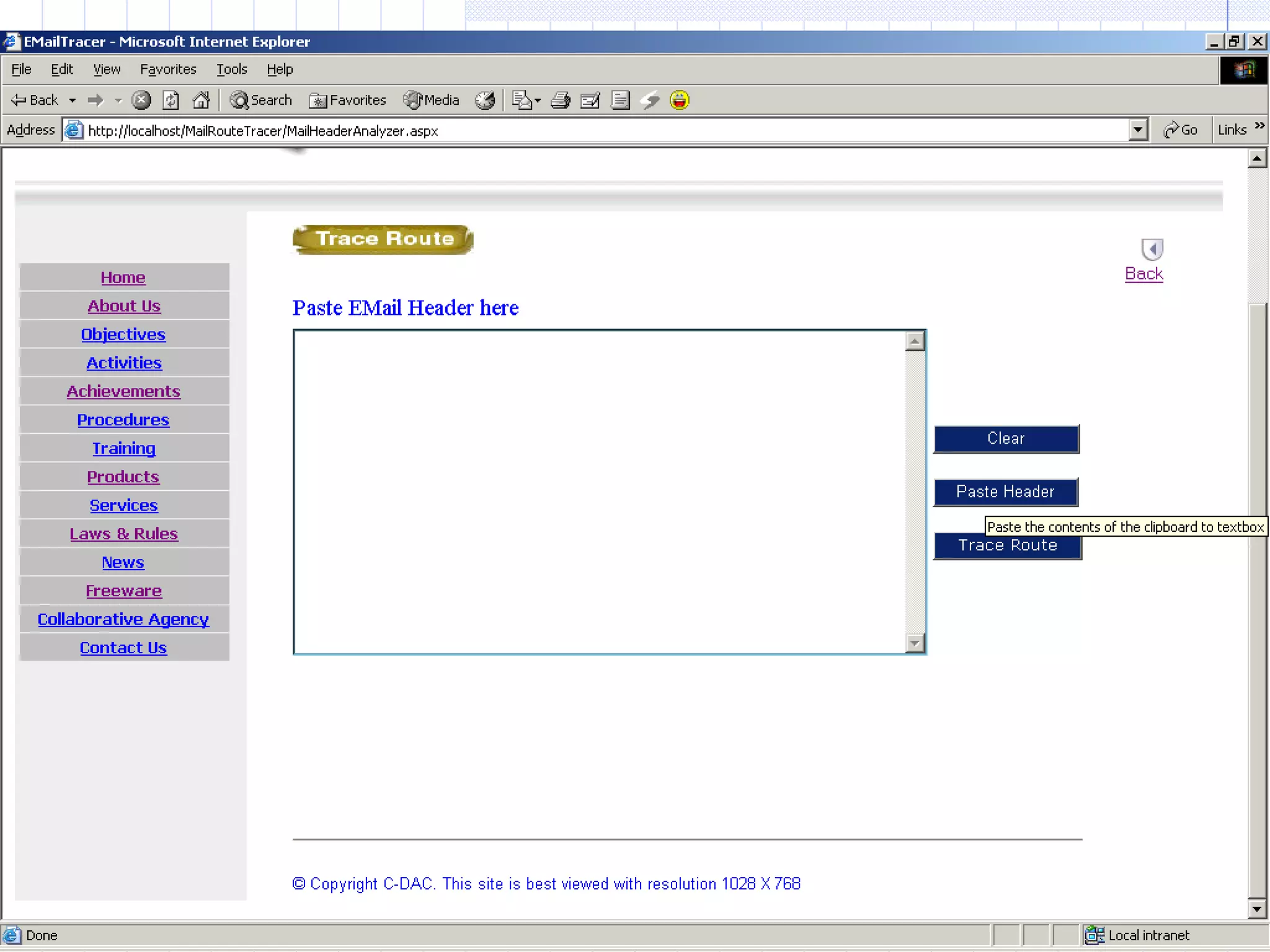

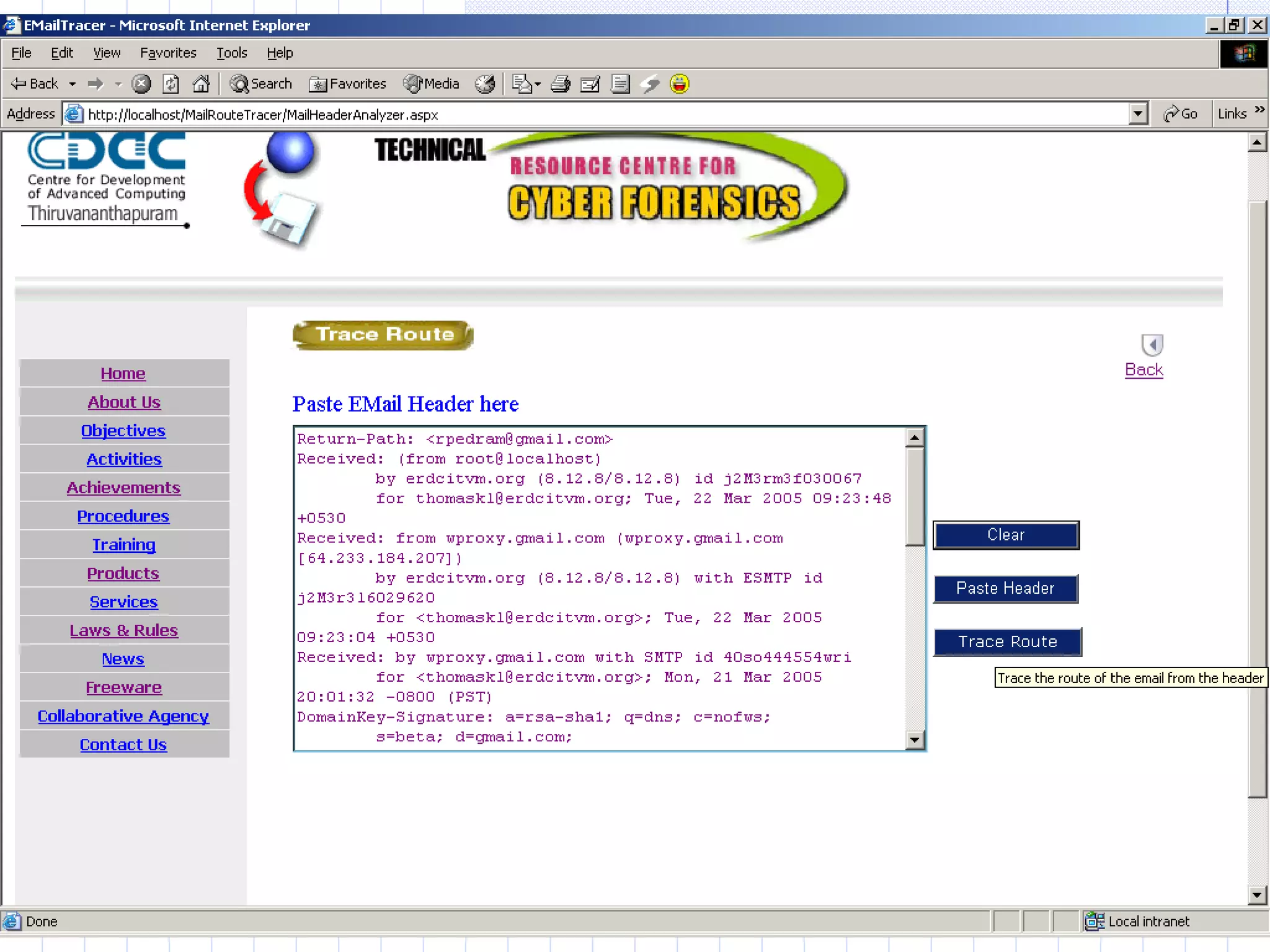

31. EMAIL TRACING OVER WEB
AS A PRE-EMPTIVE TOOL

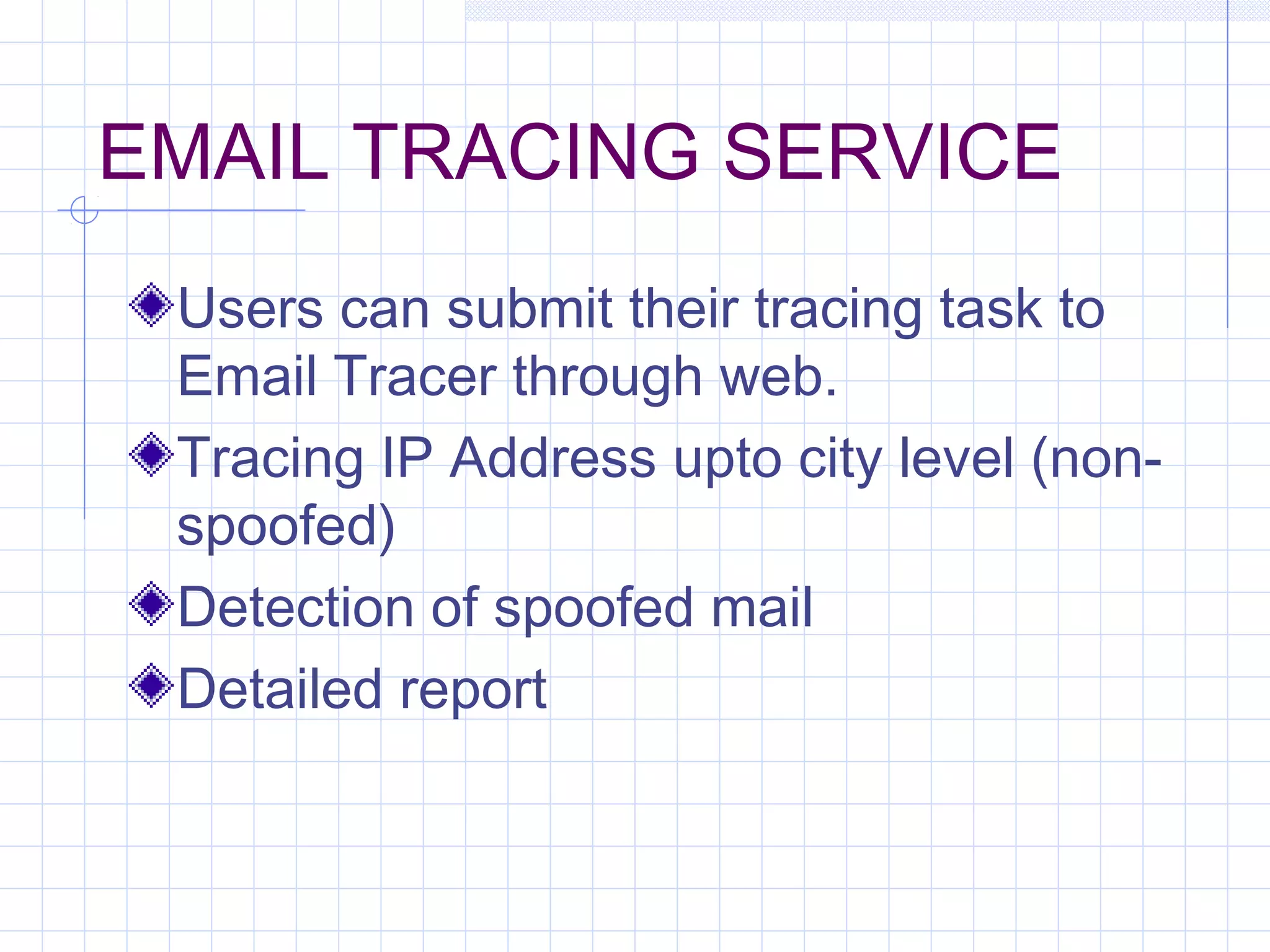

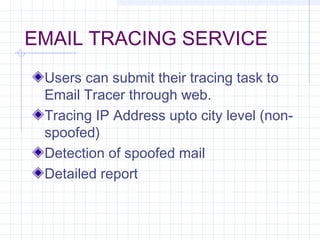

32. EMAIL TRACING SERVICE
Users can submit their tracing task to
Email Tracer through web.
Tracing IP Address upto city level (non-
spoofed)
Detection of spoofed mail
Detailed report

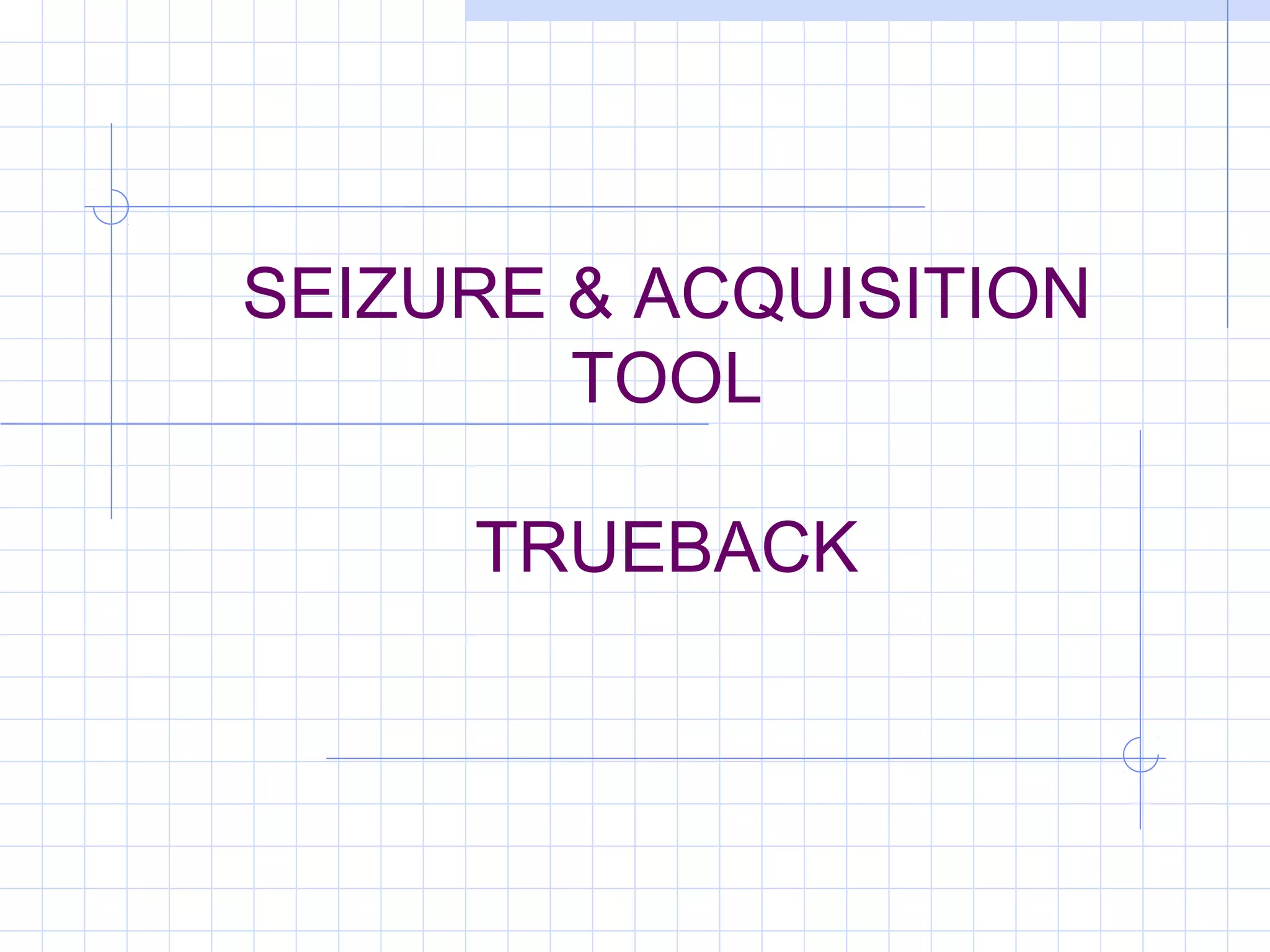

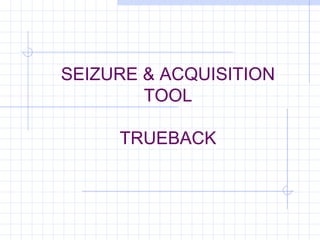

36. SEIZURE & ACQUISITION
TOOL
TRUEBACK

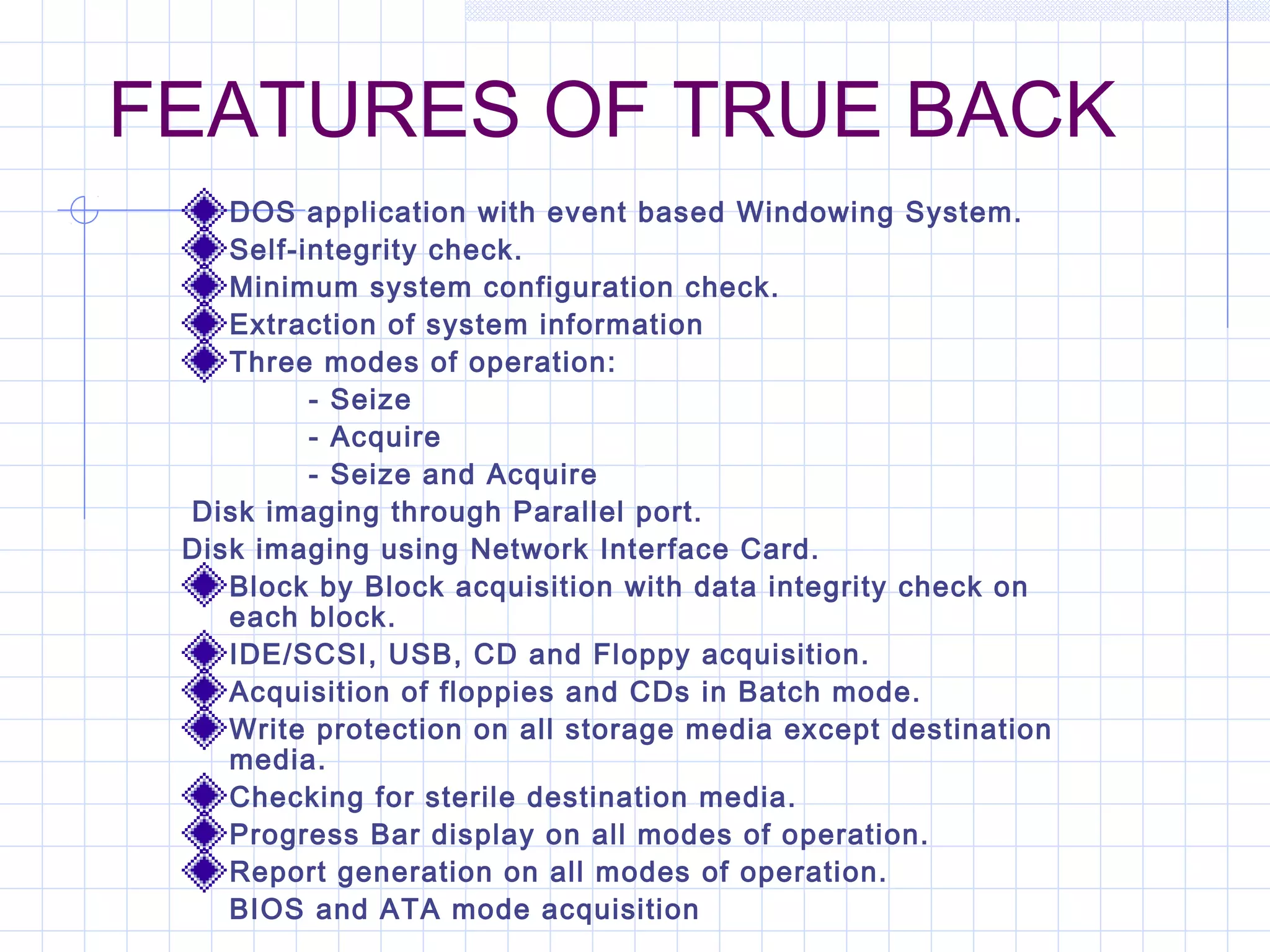

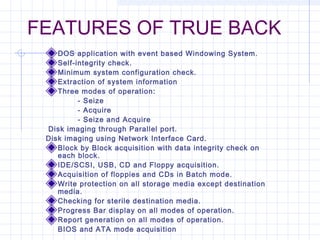

37. FEATURES OF TRUE BACK
DOS application with event based Windowing System.
Self-integrity check.
Minimum system configuration check.
Extraction of system information
Three modes of operation:
- Seize
- Acquire
- Seize and Acquire
Disk imaging through Parallel port.
Disk imaging using Network Interface Card.
Block by Block acquisition with data integrity check on
each block.
IDE/SCSI, USB, CD and Floppy acquisition.
Acquisition of floppies and CDs in Batch mode.
Write protection on all storage media except destination
media.
Checking for sterile destination media.
Progress Bar display on all modes of operation.
Report generation on all modes of operation.
BIOS and ATA mode acquisition

38. ANALYSIS TOOL
CYBER CHECK

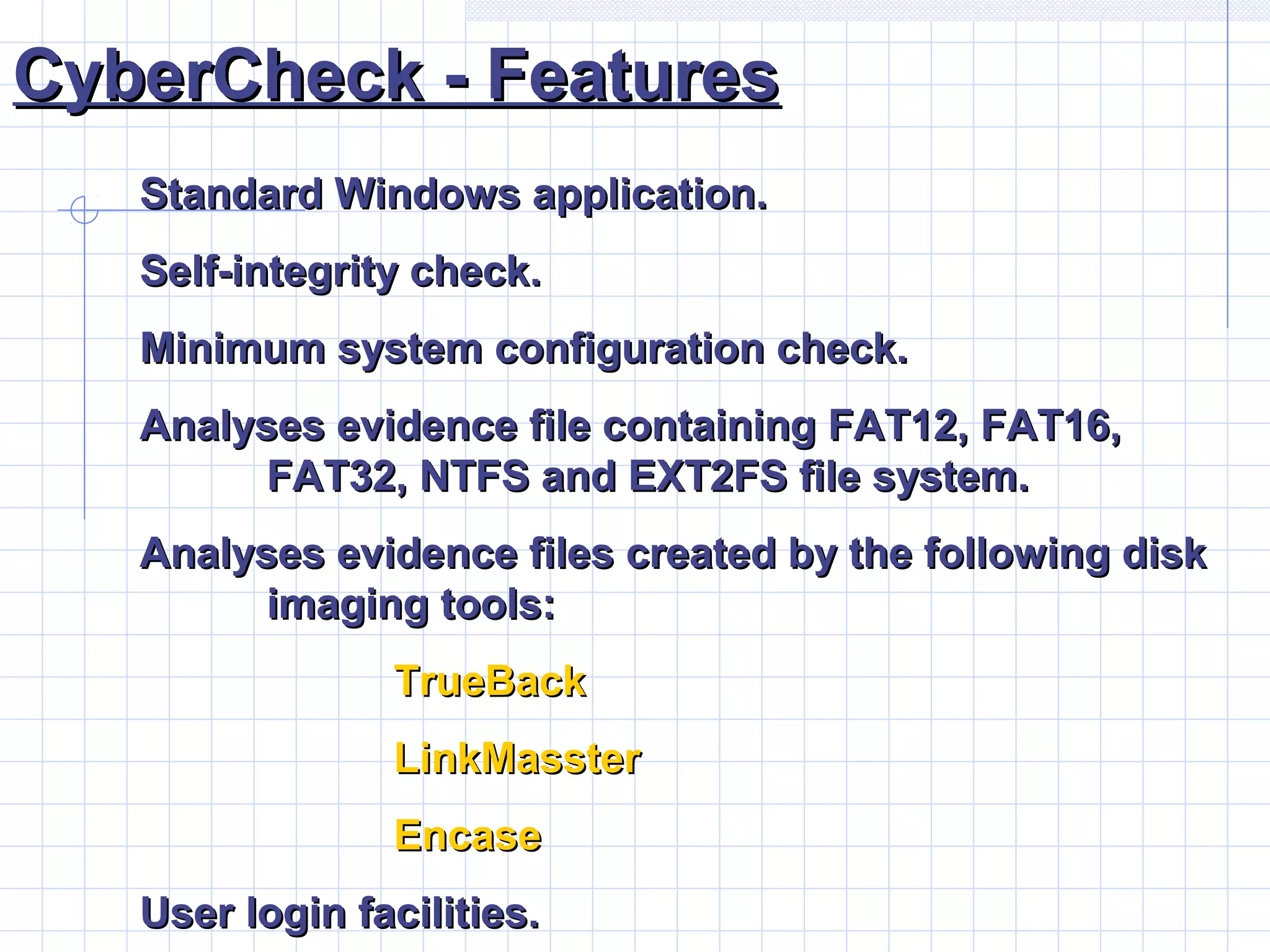

39. CyberCheck - FeaturesCyberCheck - Features
Standard Windows application.Standard Windows application.
Self-integrity check.Self-integrity check.
Minimum system configuration check.Minimum system configuration check.
Analyses evidence file containing FAT12, FAT16,Analyses evidence file containing FAT12, FAT16,
FAT32, NTFS and EXT2FS file system.FAT32, NTFS and EXT2FS file system.
Analyses evidence files created by the following diskAnalyses evidence files created by the following disk
imaging tools:imaging tools:
TrueBackTrueBack
LinkMassterLinkMasster
EncaseEncase
User login facilities.User login facilities.

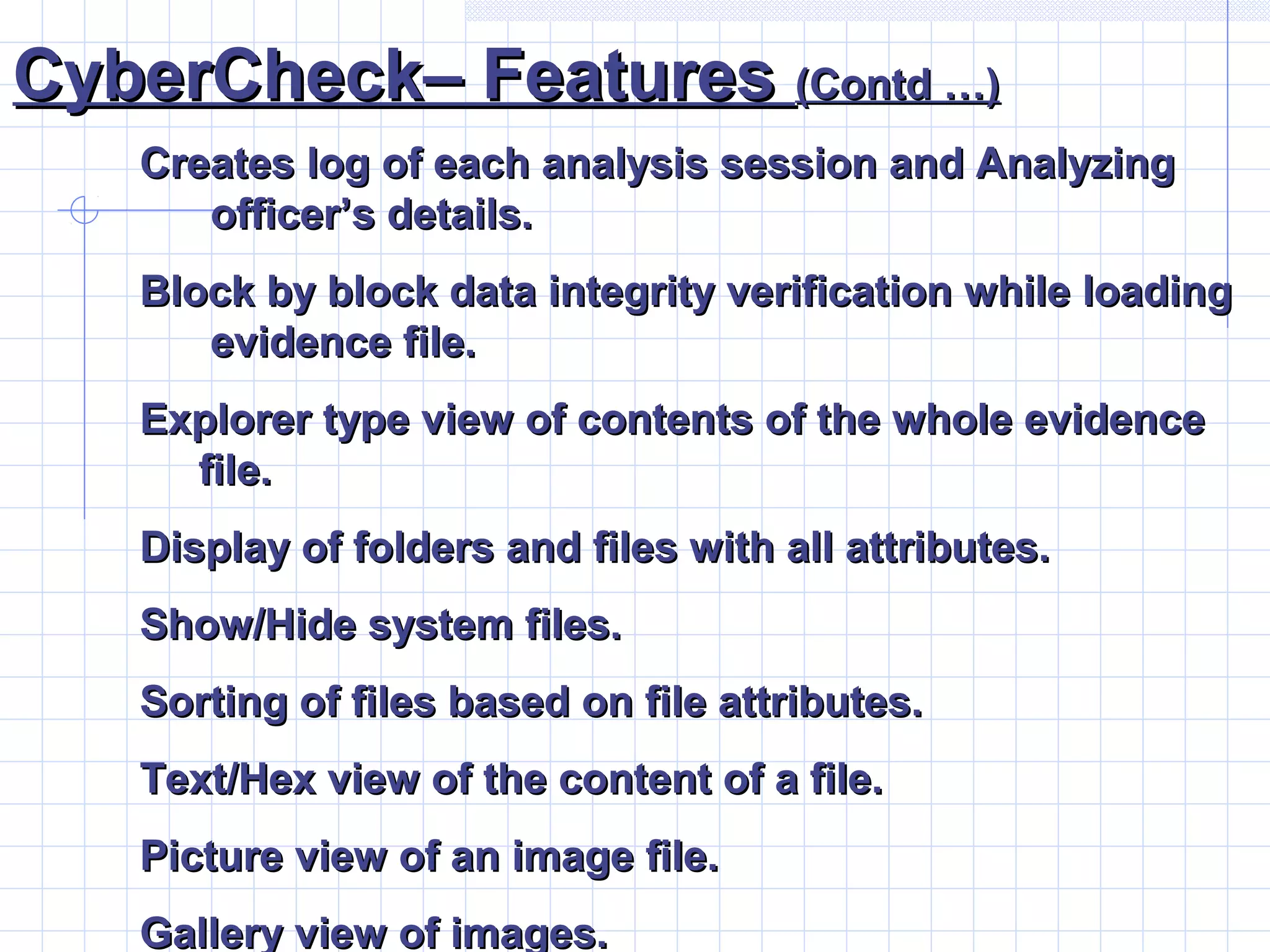

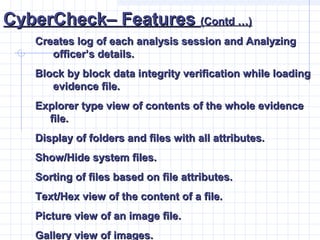

40. CyberCheck– FeaturesCyberCheck– Features (Contd …)(Contd …)
Creates log of each analysis session and AnalyzingCreates log of each analysis session and Analyzing
officer’s details.officer’s details.
Block by block data integrity verification while loadingBlock by block data integrity verification while loading
evidence file.evidence file.
Explorer type view of contents of the whole evidenceExplorer type view of contents of the whole evidence
file.file.
Display of folders and files with all attributes.Display of folders and files with all attributes.
Show/Hide system files.Show/Hide system files.
Sorting of files based on file attributes.Sorting of files based on file attributes.
Text/Hex view of the content of a file.Text/Hex view of the content of a file.
Picture view of an image file.Picture view of an image file.
Gallery view of images.Gallery view of images.

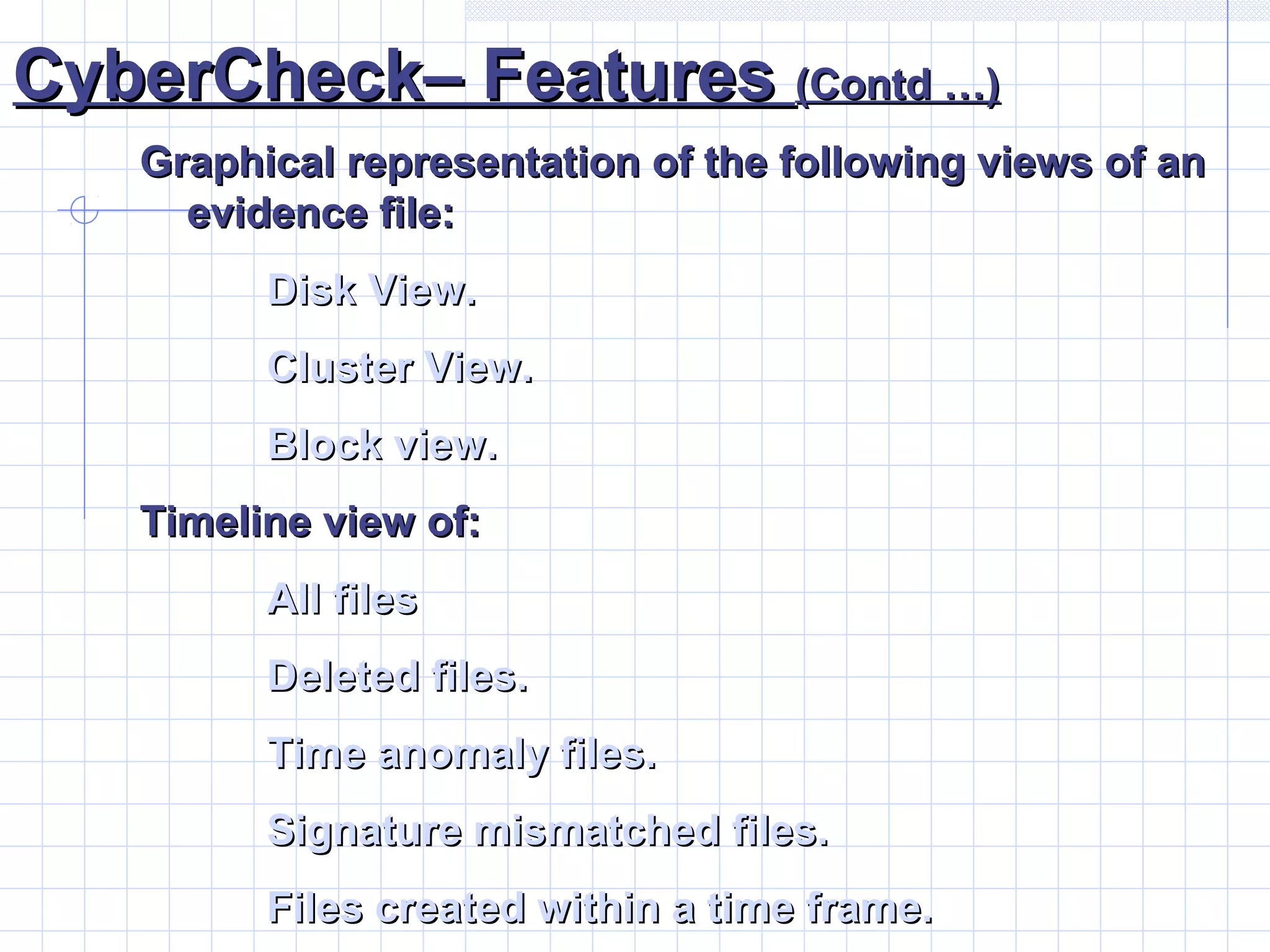

41. CyberCheck– FeaturesCyberCheck– Features (Contd …)(Contd …)
Graphical representation of the following views of anGraphical representation of the following views of an
evidence file:evidence file:
Disk View.Disk View.
Cluster View.Cluster View.
Block view.Block view.
Timeline view of:Timeline view of:
All filesAll files
Deleted files.Deleted files.
Time anomaly files.Time anomaly files.
Signature mismatched files.Signature mismatched files.
Files created within a time frame.Files created within a time frame.

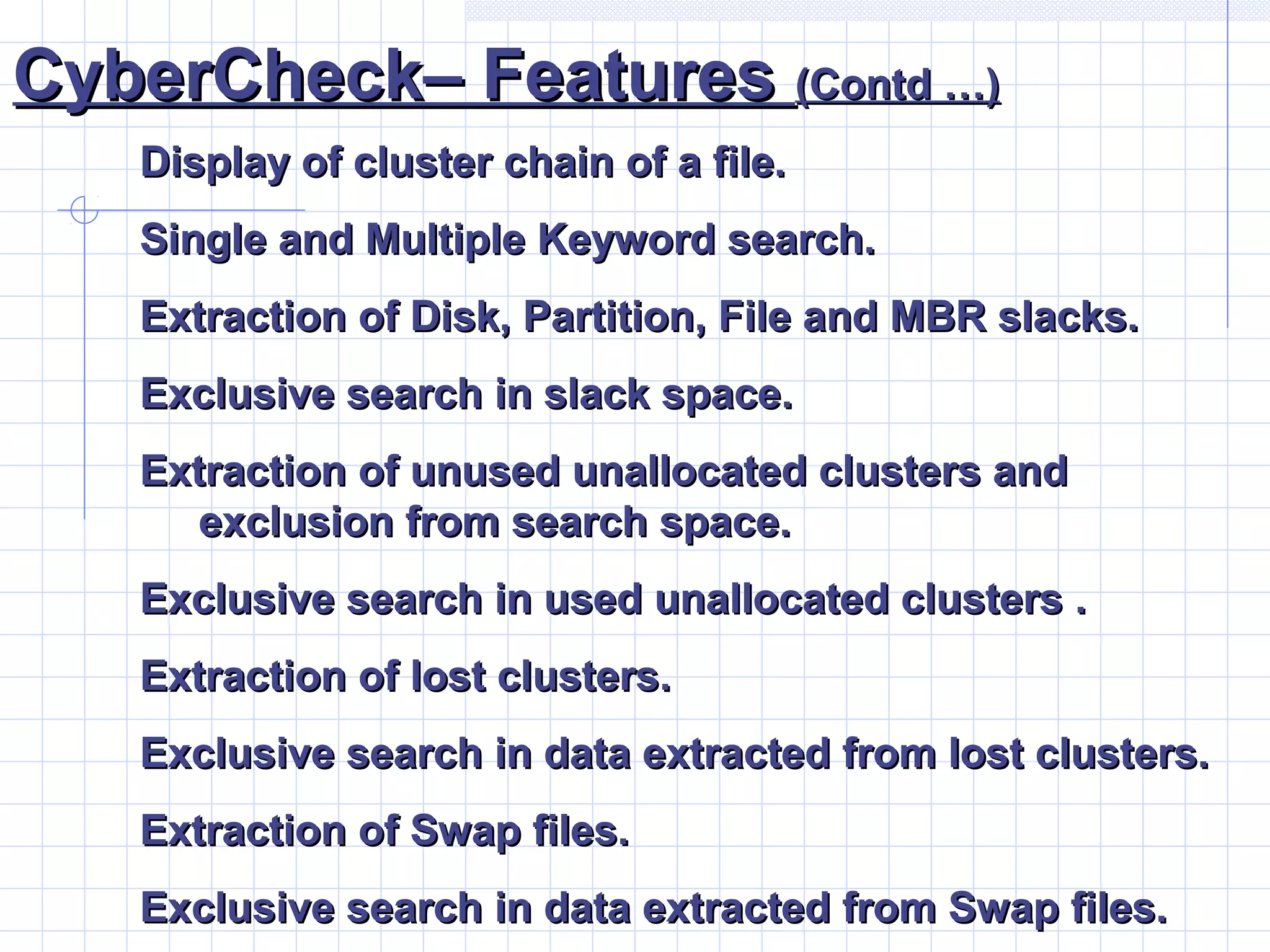

42. CyberCheck– FeaturesCyberCheck– Features (Contd …)(Contd …)
Display of cluster chain of a file.Display of cluster chain of a file.
Single and Multiple Keyword search.Single and Multiple Keyword search.
Extraction of Disk, Partition, File and MBR slacks.Extraction of Disk, Partition, File and MBR slacks.
Exclusive search in slack space.Exclusive search in slack space.
Extraction of unused unallocated clusters andExtraction of unused unallocated clusters and
exclusion from search space.exclusion from search space.
Exclusive search in used unallocated clusters .Exclusive search in used unallocated clusters .
Extraction of lost clusters.Extraction of lost clusters.
Exclusive search in data extracted from lost clusters.Exclusive search in data extracted from lost clusters.
Extraction of Swap files.Extraction of Swap files.
Exclusive search in data extracted from Swap files.Exclusive search in data extracted from Swap files.

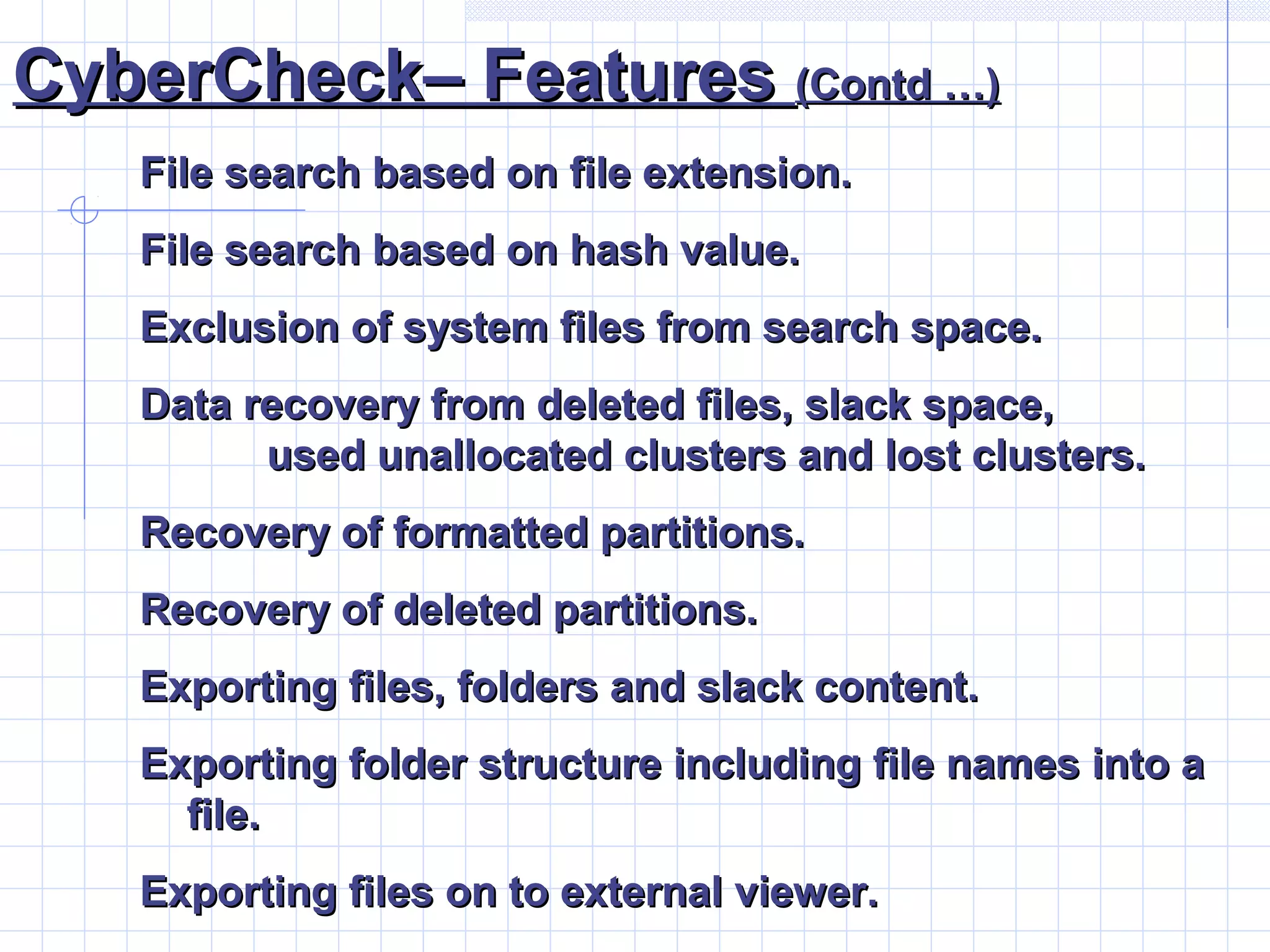

43. CyberCheck– FeaturesCyberCheck– Features (Contd …)(Contd …)
File search based on file extension.File search based on file extension.
File search based on hash value.File search based on hash value.
Exclusion of system files from search space.Exclusion of system files from search space.
Data recovery from deleted files, slack space,Data recovery from deleted files, slack space,
used unallocated clusters and lost clusters.used unallocated clusters and lost clusters.
Recovery of formatted partitions.Recovery of formatted partitions.
Recovery of deleted partitions.Recovery of deleted partitions.
Exporting files, folders and slack content.Exporting files, folders and slack content.
Exporting folder structure including file names into aExporting folder structure including file names into a
file.file.
Exporting files on to external viewer.Exporting files on to external viewer.

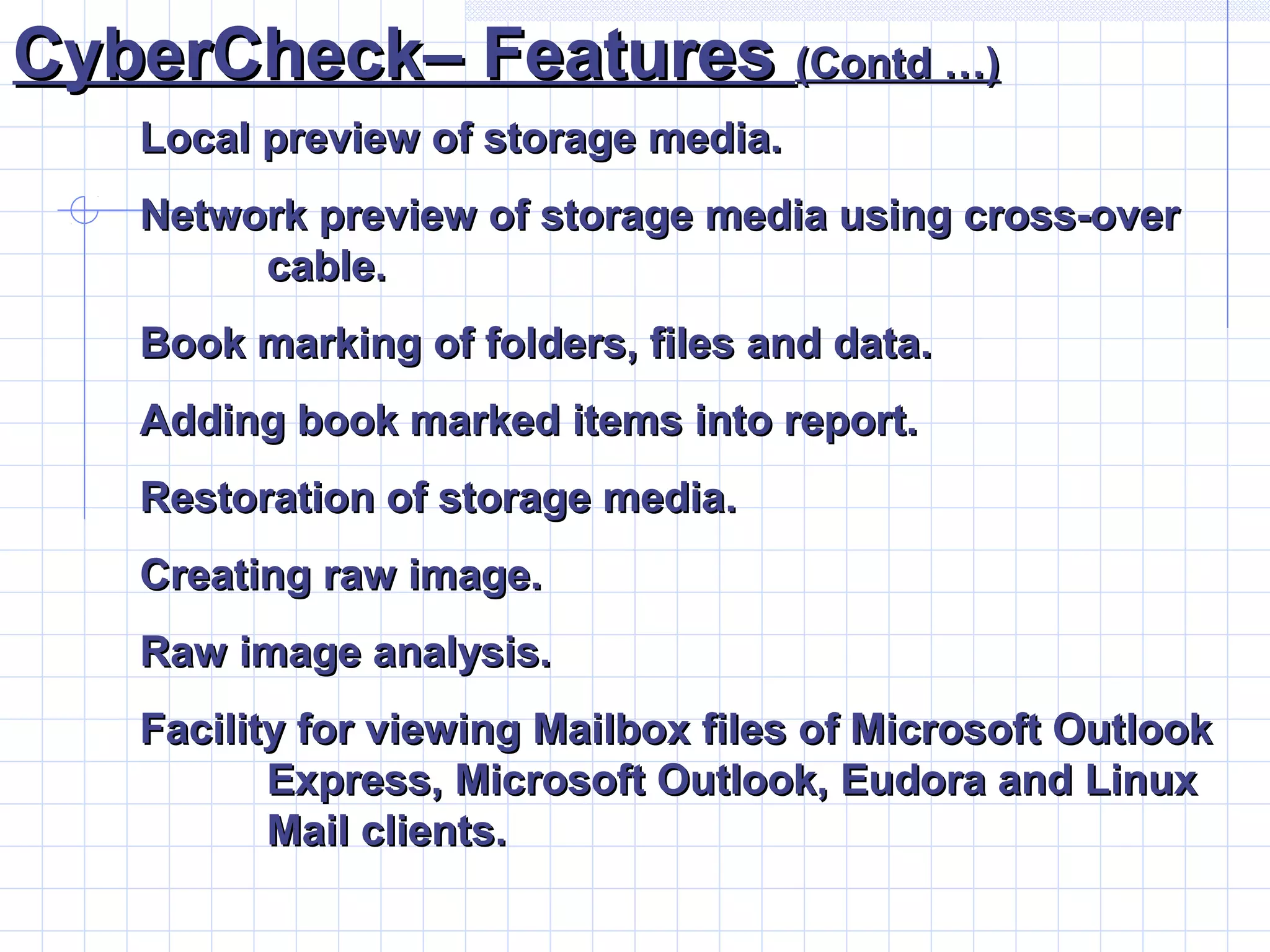

44. CyberCheck– FeaturesCyberCheck– Features (Contd …)(Contd …)
Local preview of storage media.Local preview of storage media.
Network preview of storage media using cross-overNetwork preview of storage media using cross-over
cable.cable.
Book marking of folders, files and data.Book marking of folders, files and data.
Adding book marked items into report.Adding book marked items into report.
Restoration of storage media.Restoration of storage media.
Creating raw image.Creating raw image.
Raw image analysis.Raw image analysis.
Facility for viewing Mailbox files of Microsoft OutlookFacility for viewing Mailbox files of Microsoft Outlook
Express, Microsoft Outlook, Eudora and LinuxExpress, Microsoft Outlook, Eudora and Linux
Mail clients.Mail clients.

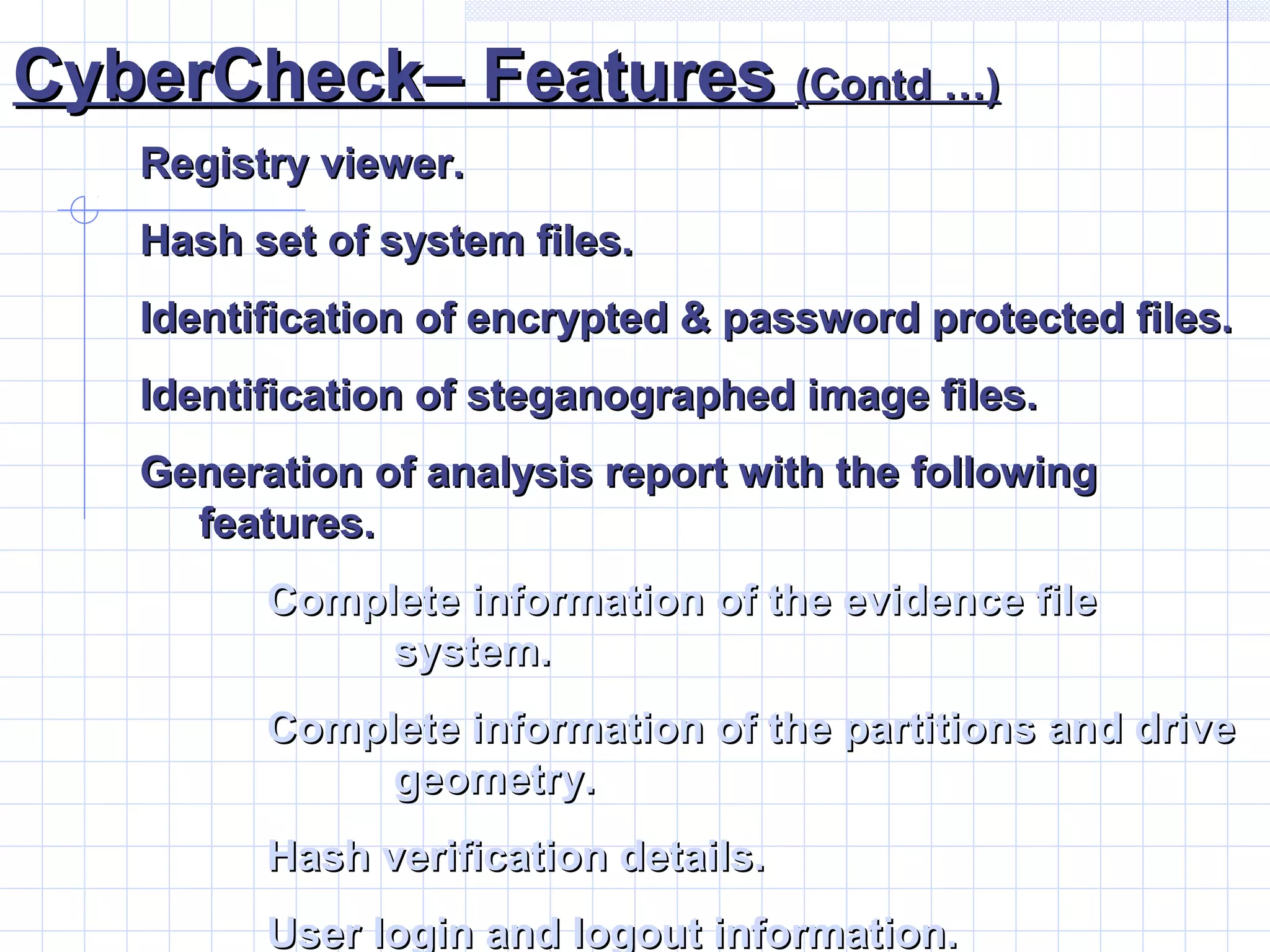

45. CyberCheck– FeaturesCyberCheck– Features (Contd …)(Contd …)
Registry viewer.Registry viewer.
Hash set of system files.Hash set of system files.
Identification of encrypted & password protected files.Identification of encrypted & password protected files.
Identification of steganographed image files.Identification of steganographed image files.
Generation of analysis report with the followingGeneration of analysis report with the following
features.features.
Complete information of the evidence fileComplete information of the evidence file
system.system.
Complete information of the partitions and driveComplete information of the partitions and drive
geometry.geometry.
Hash verification details.Hash verification details.
User login and logout information.User login and logout information.

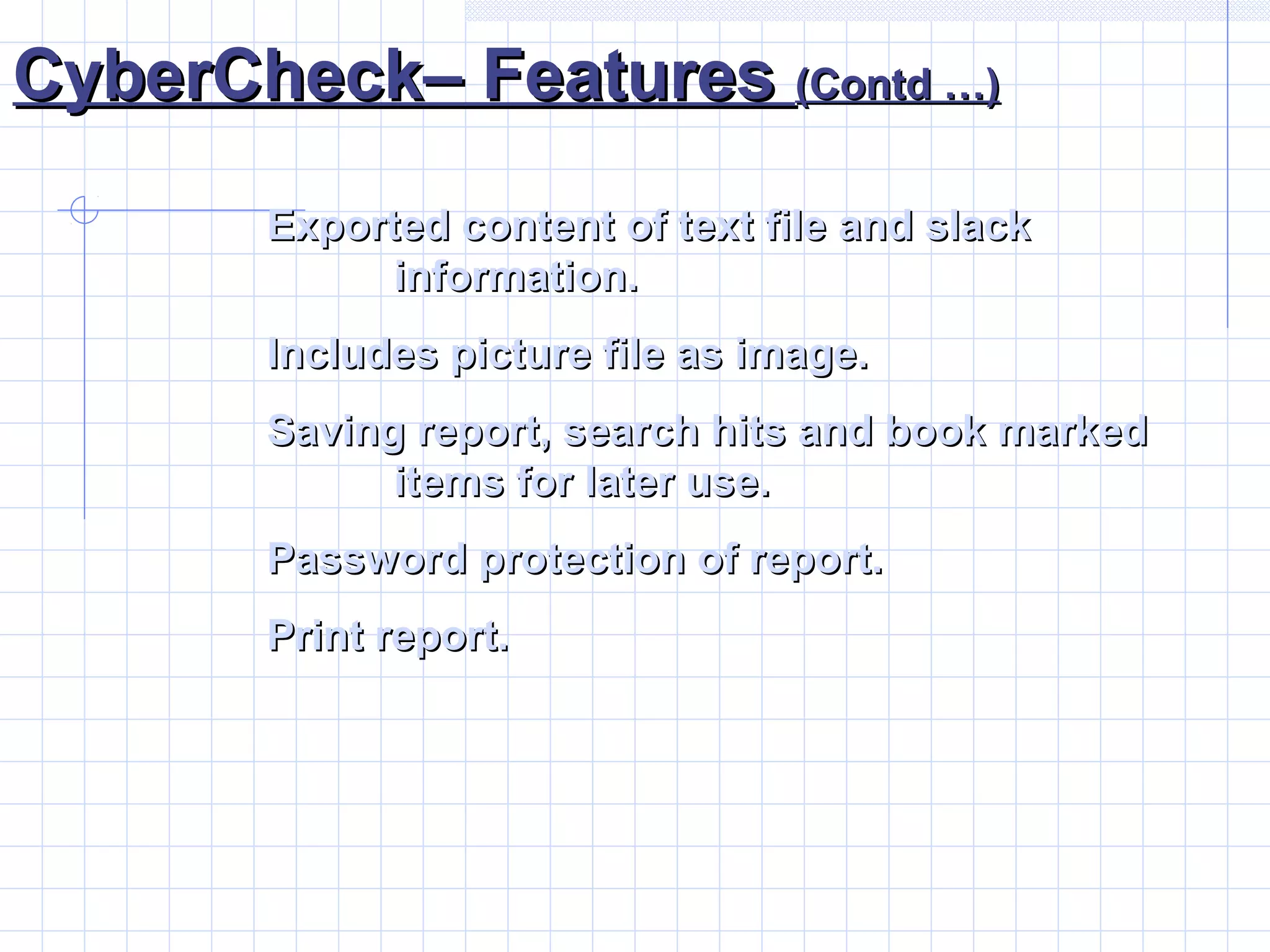

46. CyberCheck– FeaturesCyberCheck– Features (Contd …)(Contd …)
Exported content of text file and slackExported content of text file and slack
information.information.
Includes picture file as image.Includes picture file as image.
Saving report, search hits and book markedSaving report, search hits and book marked
items for later use.items for later use.
Password protection of report.Password protection of report.
Print report.Print report.

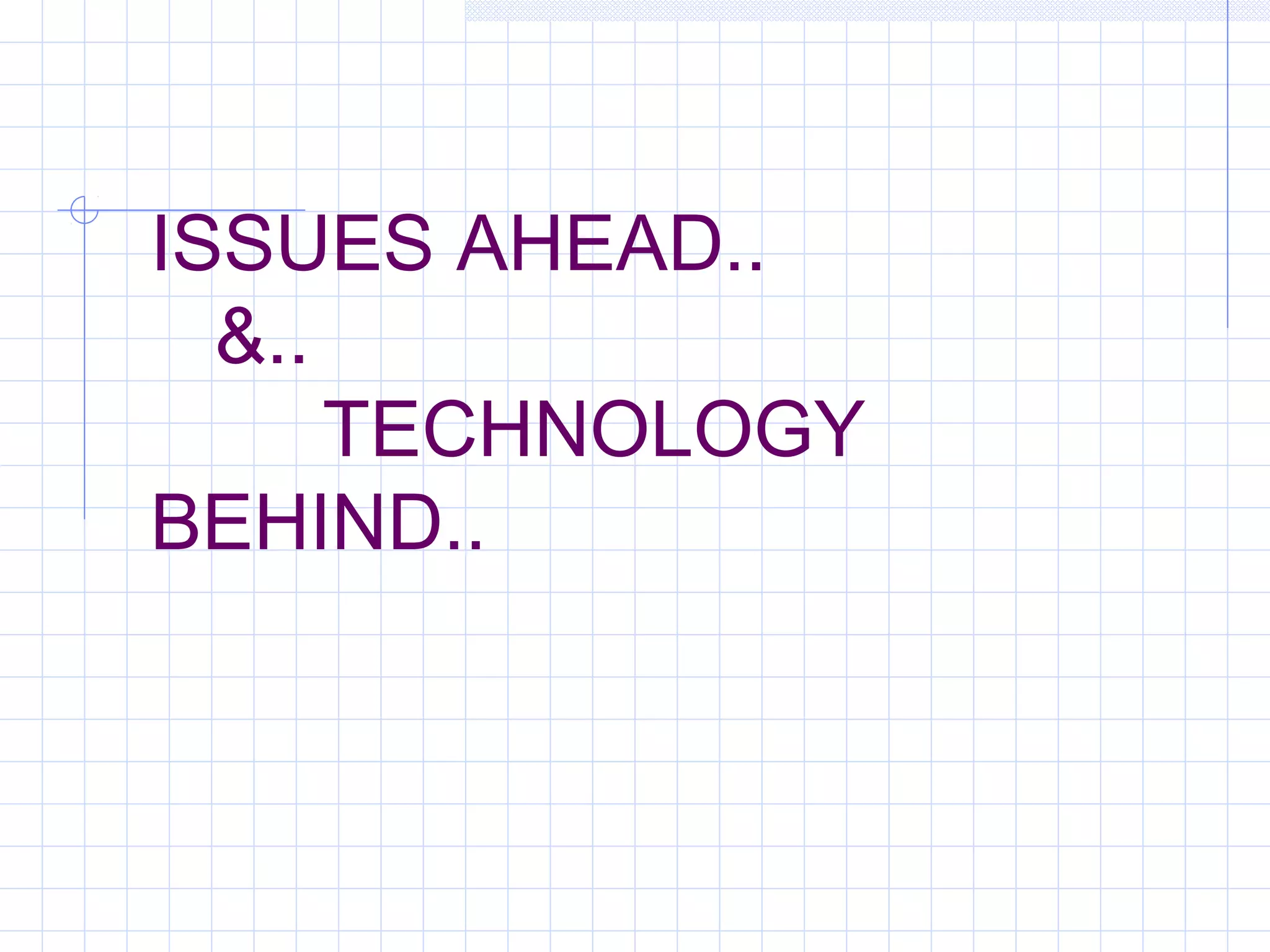

47. ISSUES AHEAD..
&..
TECHNOLOGY
BEHIND..

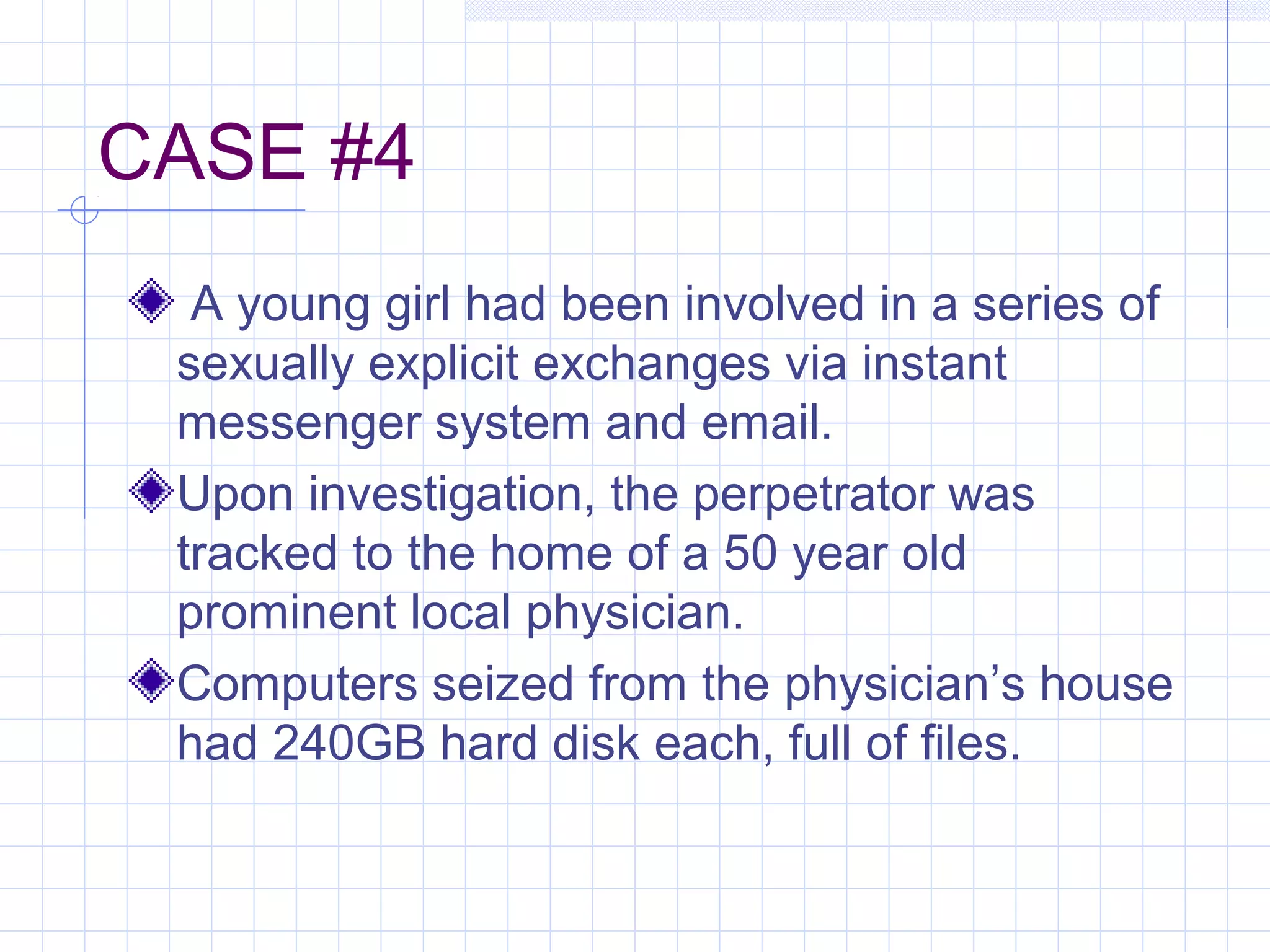

48. CASE #4
A young girl had been involved in a series of
sexually explicit exchanges via instant
messenger system and email.
Upon investigation, the perpetrator was
tracked to the home of a 50 year old
prominent local physician.
Computers seized from the physician’s house
had 240GB hard disk each, full of files.

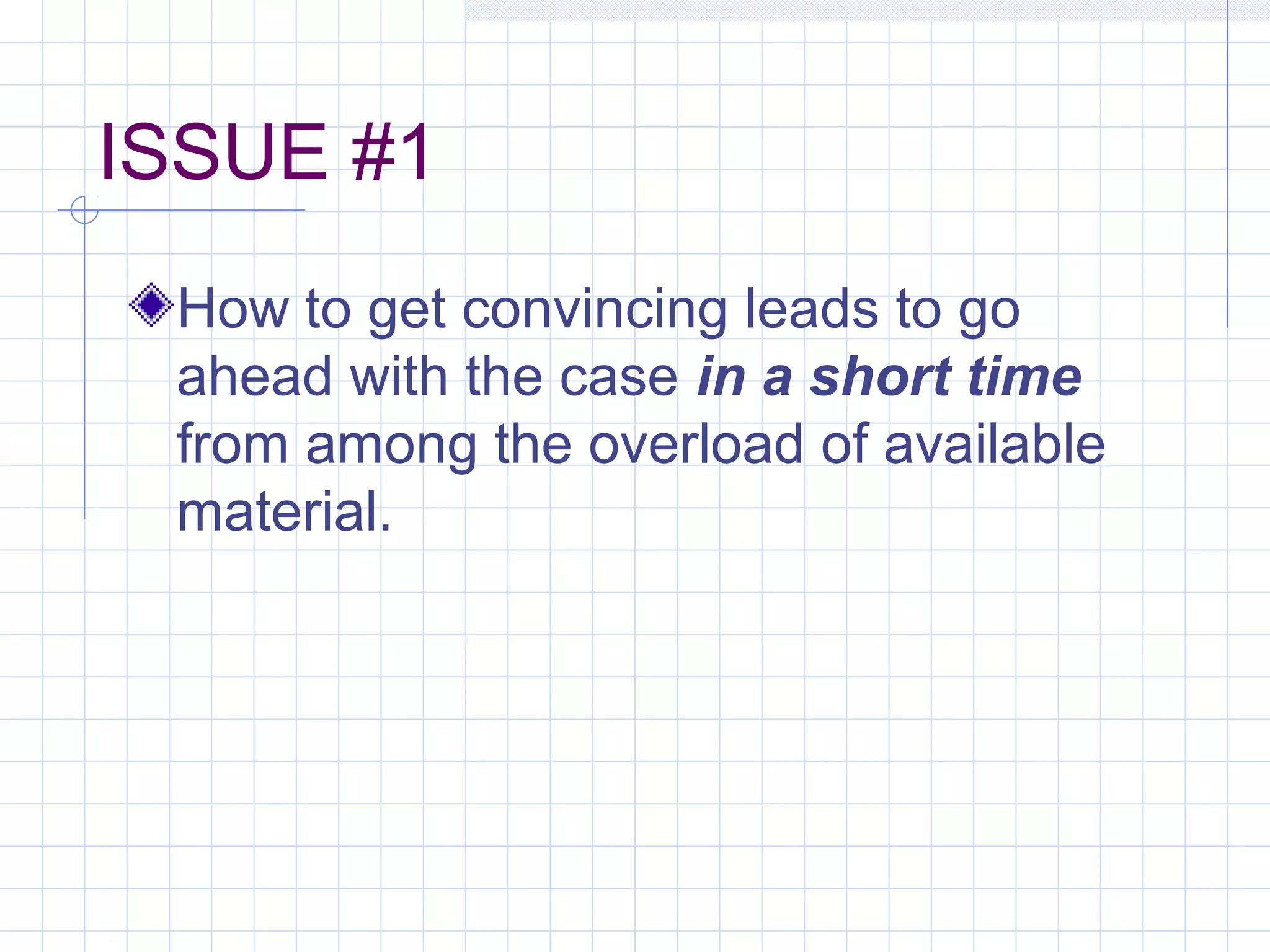

49. ISSUE #1
How to get convincing leads to go
ahead with the case in a short time
from among the overload of available
material.

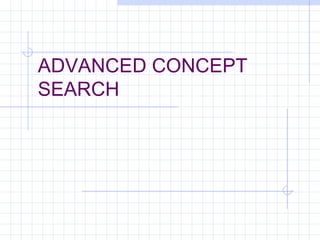

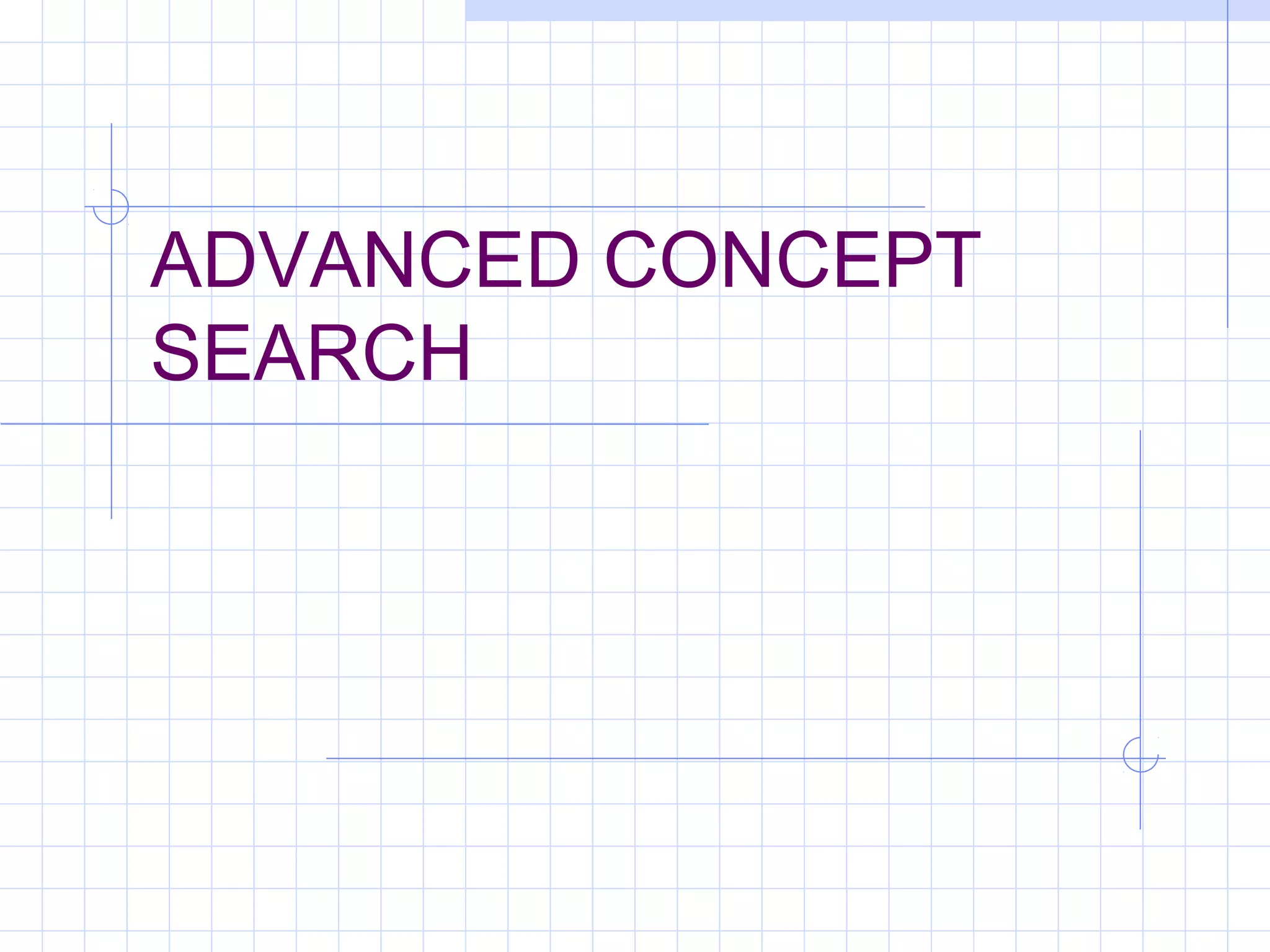

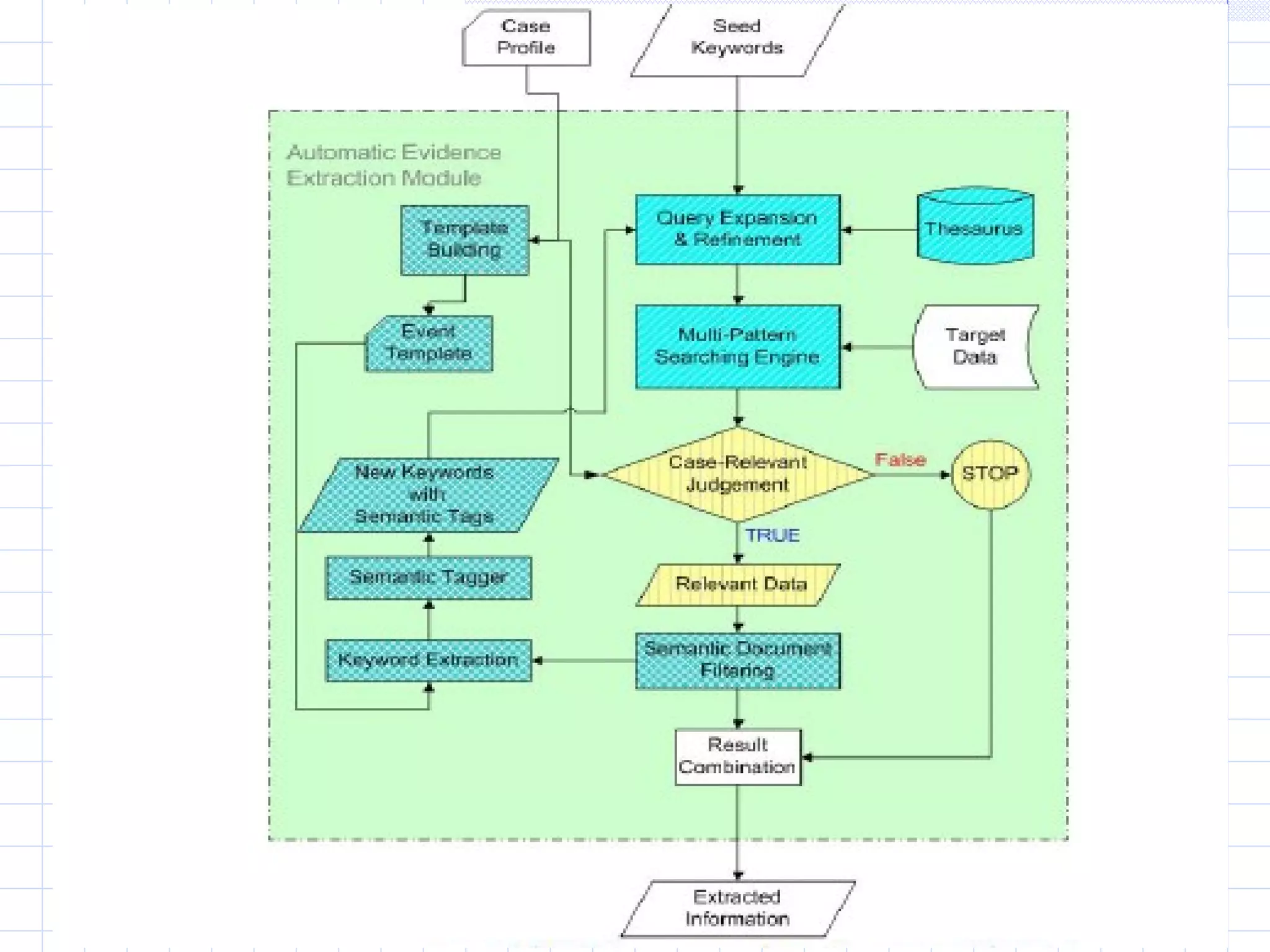

50. ADVANCED CONCEPT
SEARCH

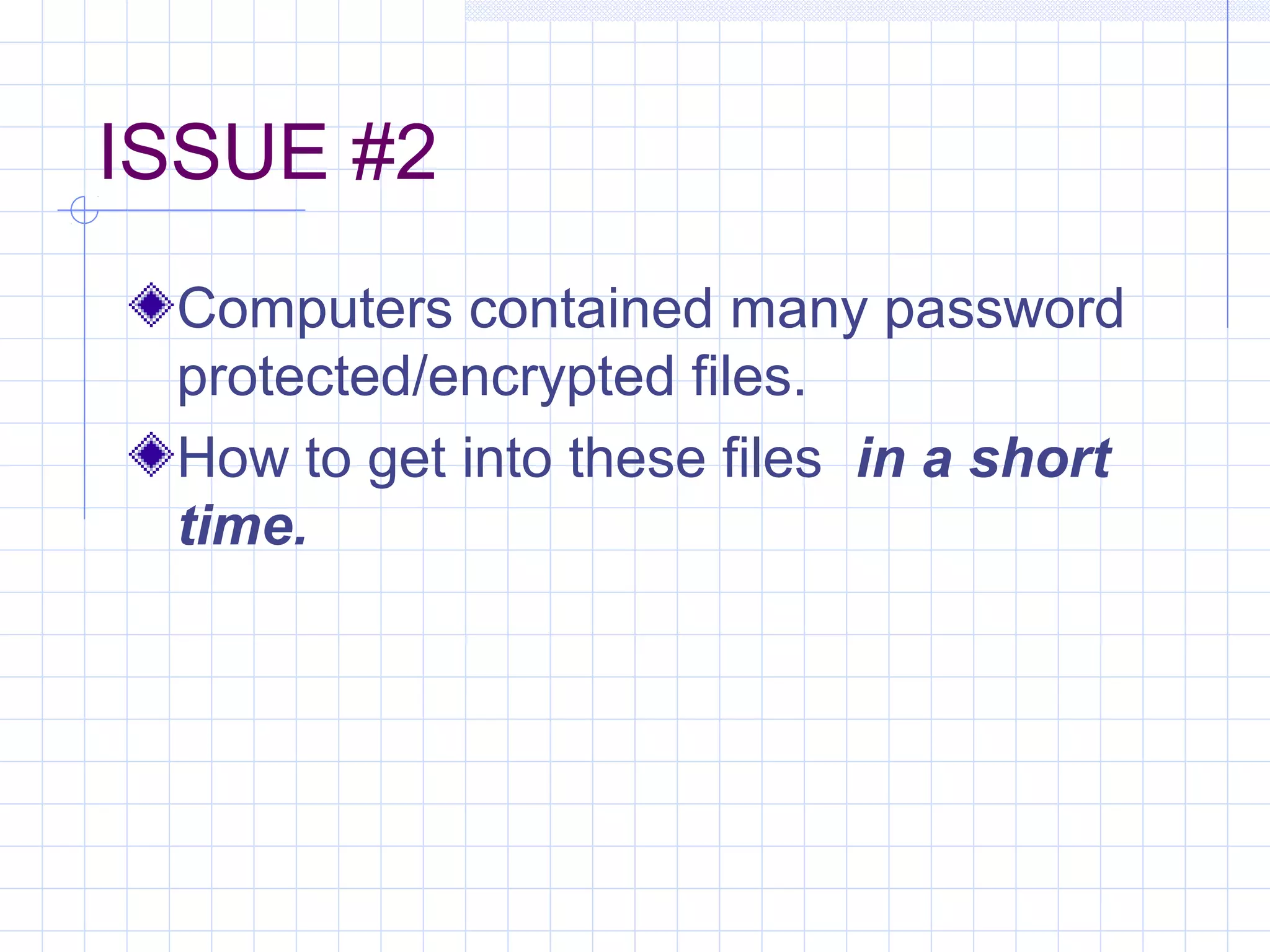

52. ISSUE #2
Computers contained many password
protected/encrypted files.
How to get into these files in a short
time.

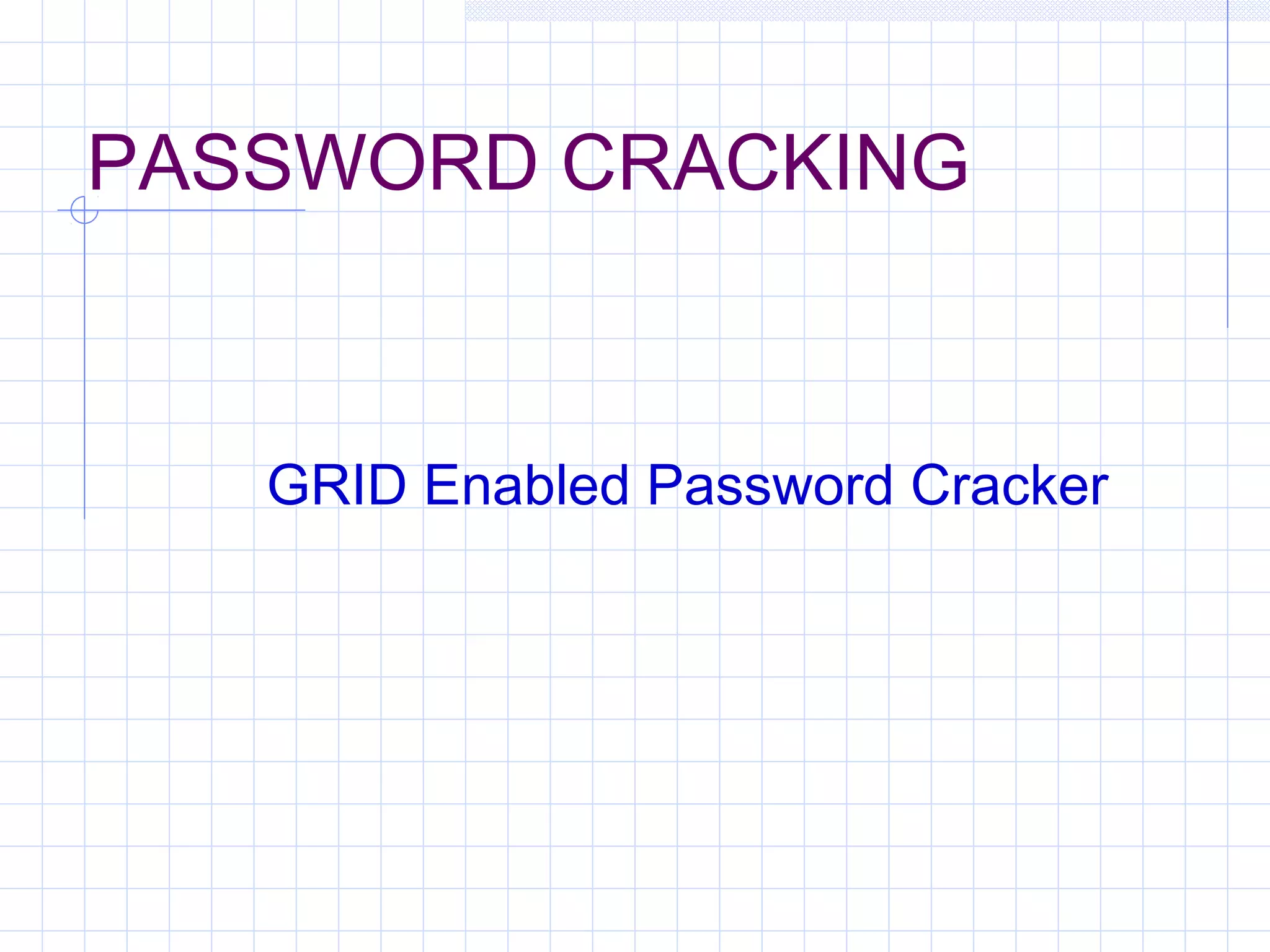

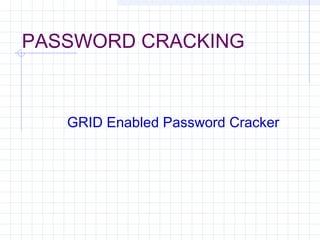

53. PASSWORD CRACKING
GRID Enabled Password Cracker

54. GRID
GRID
SERVER
FSL
POLICE CRIME CELL
CBI
INTERNET

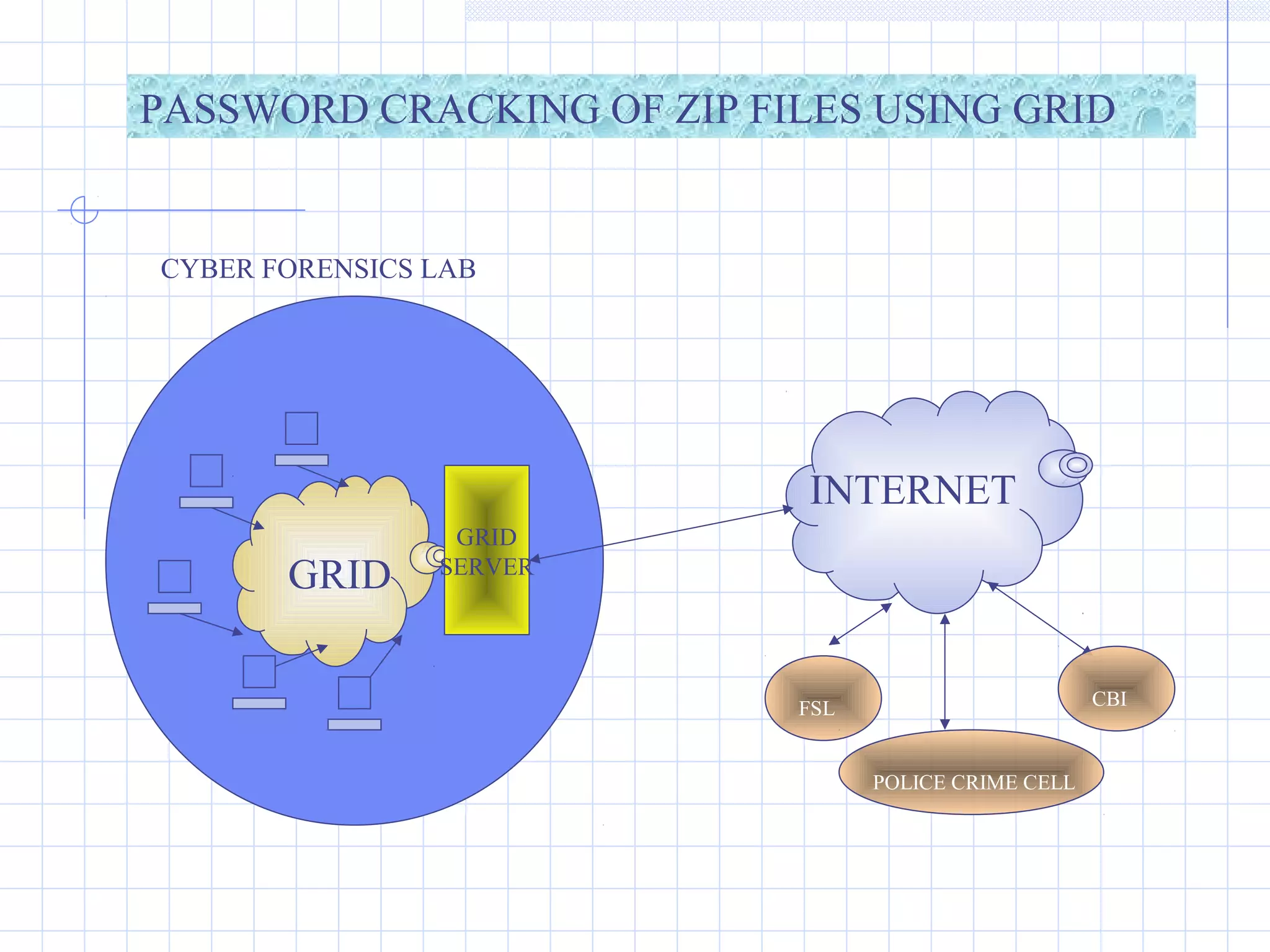

PASSWORD CRACKING OF ZIP FILES USING GRID
CYBER FORENSICS LAB

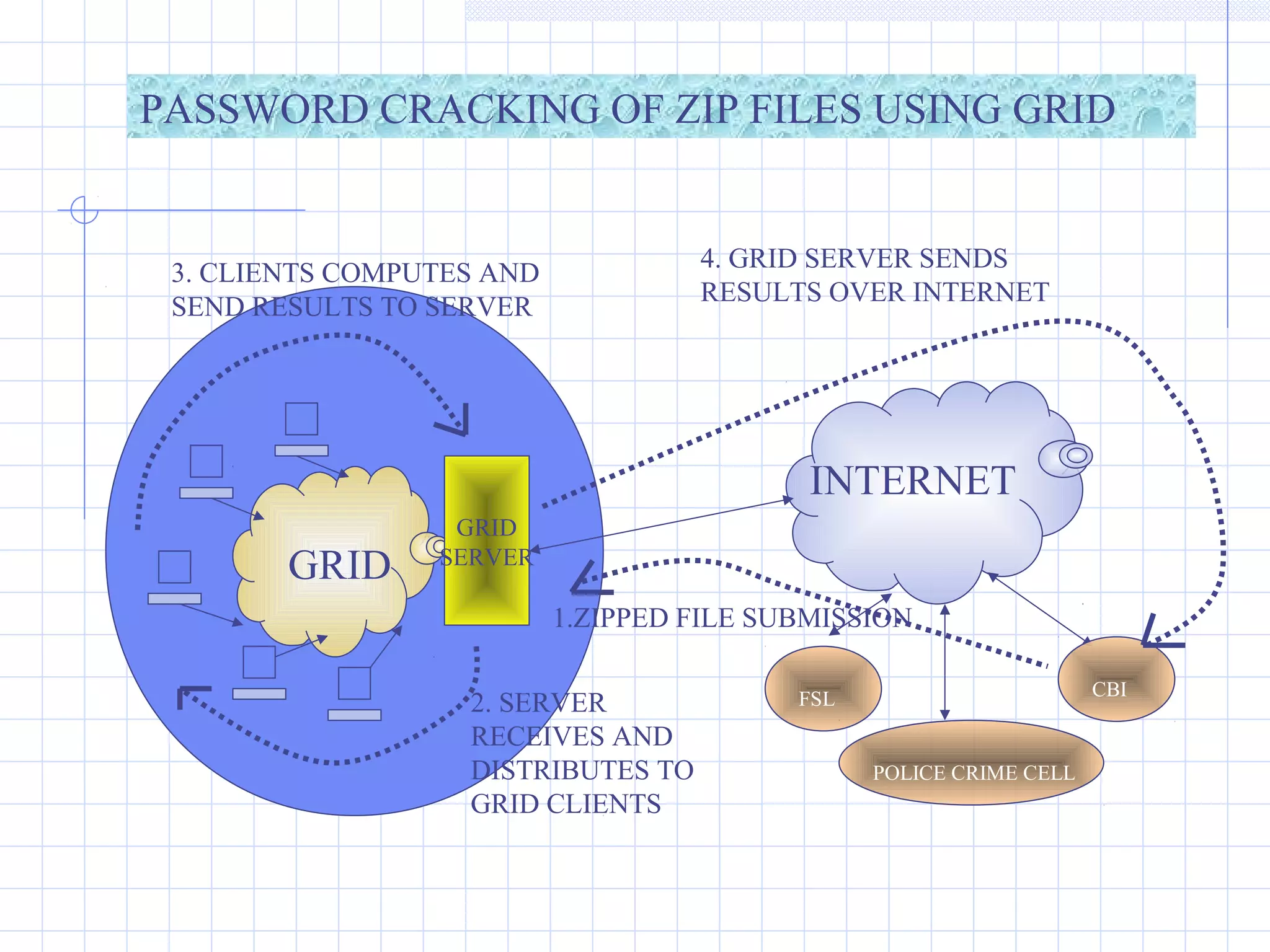

55. GRID
GRID
SERVER
FSL
POLICE CRIME CELL
CBI
INTERNET
PASSWORD CRACKING OF ZIP FILES USING GRID
1.ZIPPED FILE SUBMISSION
2. SERVER
RECEIVES AND
DISTRIBUTES TO
GRID CLIENTS
3. CLIENTS COMPUTES AND
SEND RESULTS TO SERVER
4. GRID SERVER SENDS
RESULTS OVER INTERNET

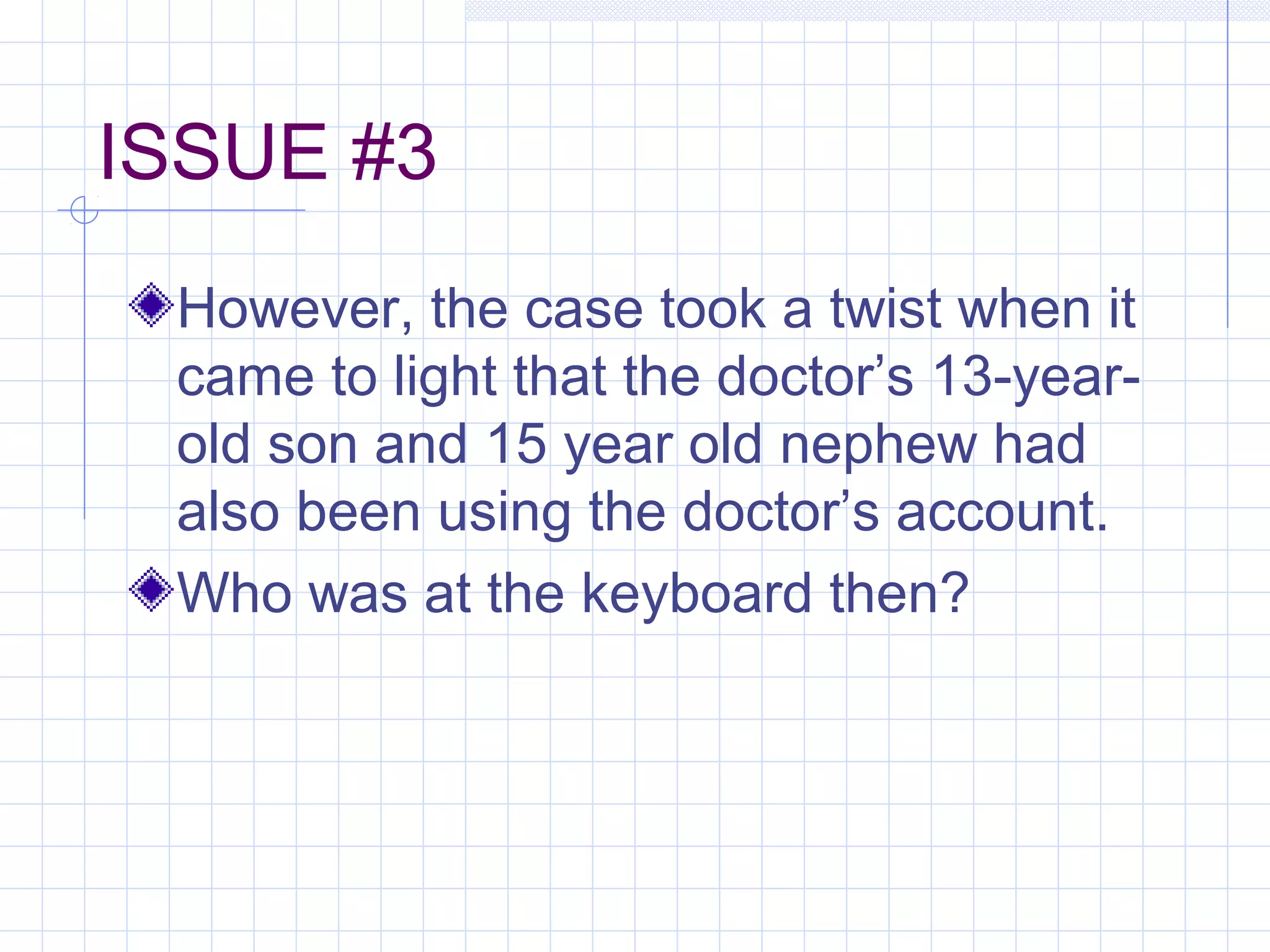

56. ISSUE #3
However, the case took a twist when it
came to light that the doctor’s 13-year-
old son and 15 year old nephew had
also been using the doctor’s account.
Who was at the keyboard then?

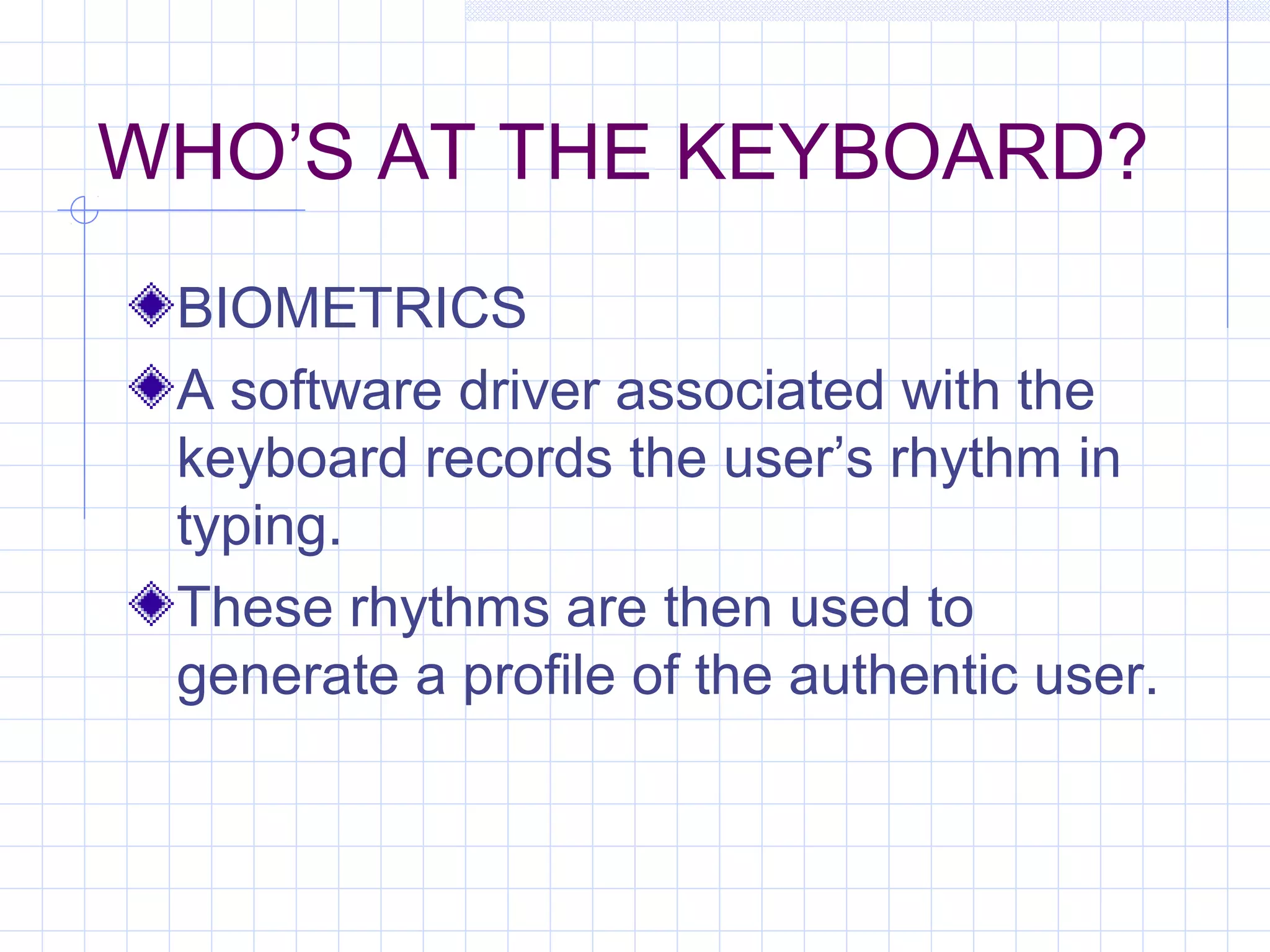

57. WHO’S AT THE KEYBOARD?
BIOMETRICS
A software driver associated with the
keyboard records the user’s rhythm in
typing.
These rhythms are then used to
generate a profile of the authentic user.

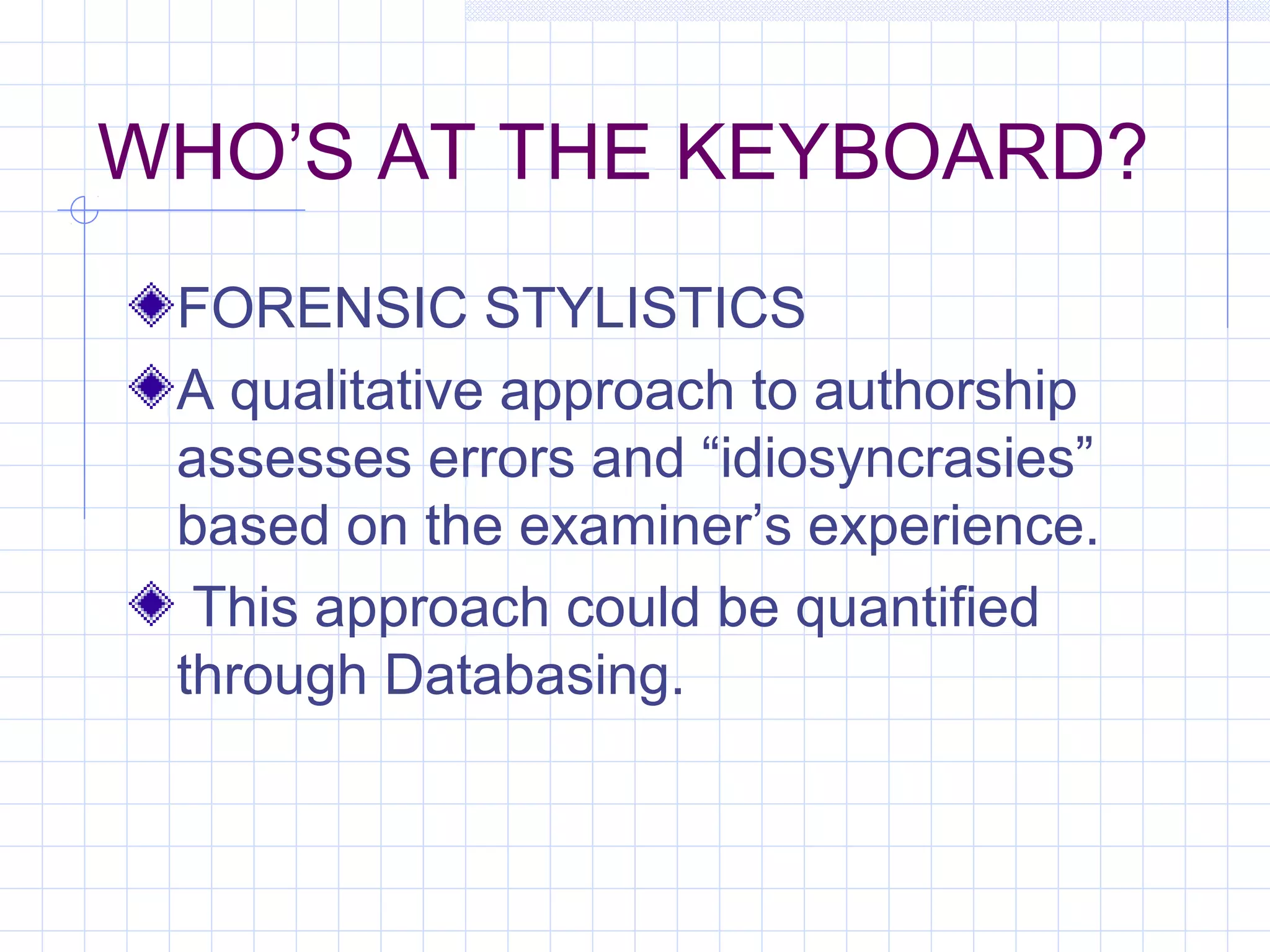

58. WHO’S AT THE KEYBOARD?
FORENSIC STYLISTICS
A qualitative approach to authorship
assesses errors and “idiosyncrasies”
based on the examiner’s experience.
This approach could be quantified
through Databasing.

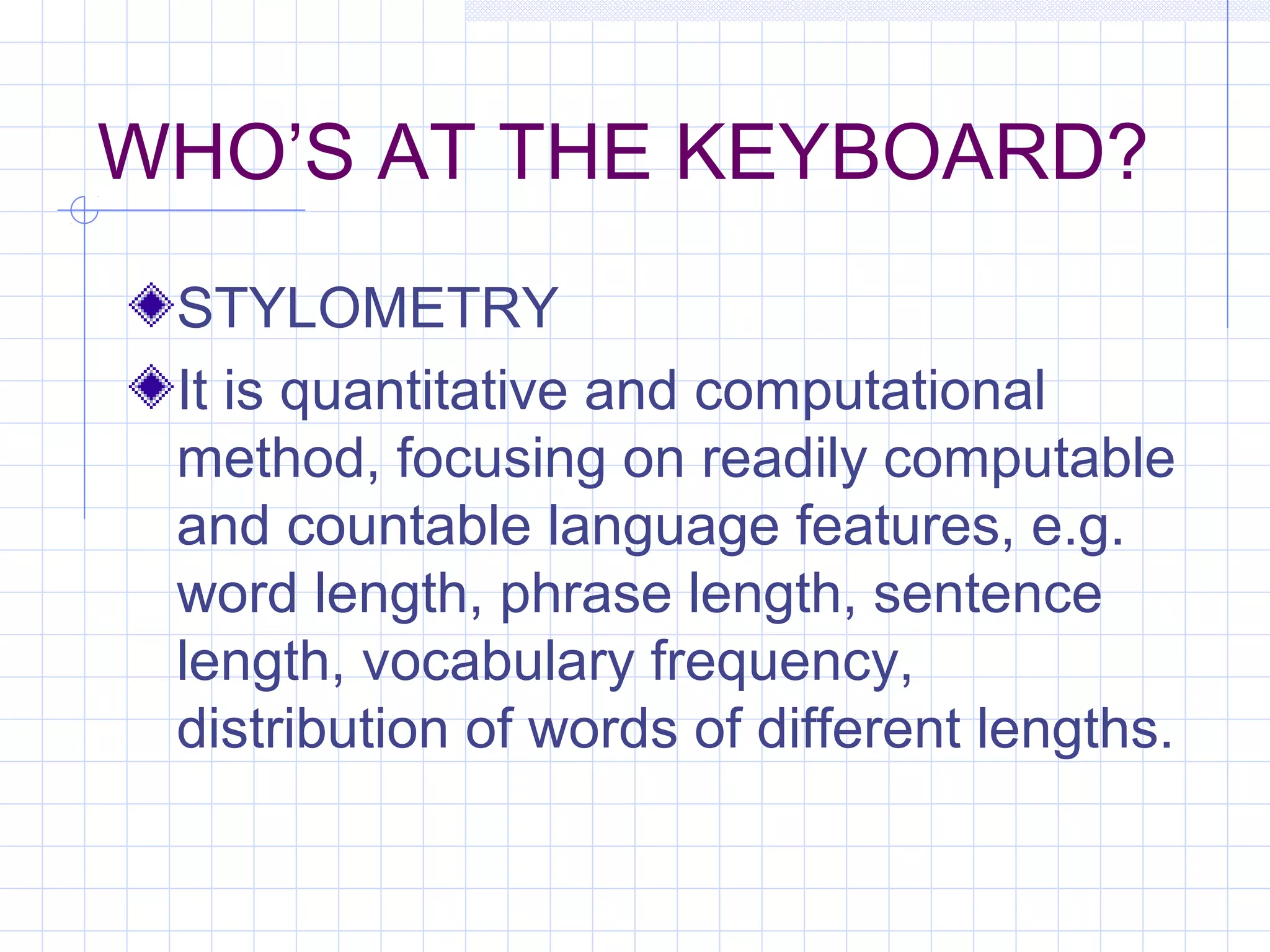

59. WHO’S AT THE KEYBOARD?
STYLOMETRY
It is quantitative and computational
method, focusing on readily computable
and countable language features, e.g.
word length, phrase length, sentence
length, vocabulary frequency,
distribution of words of different lengths.

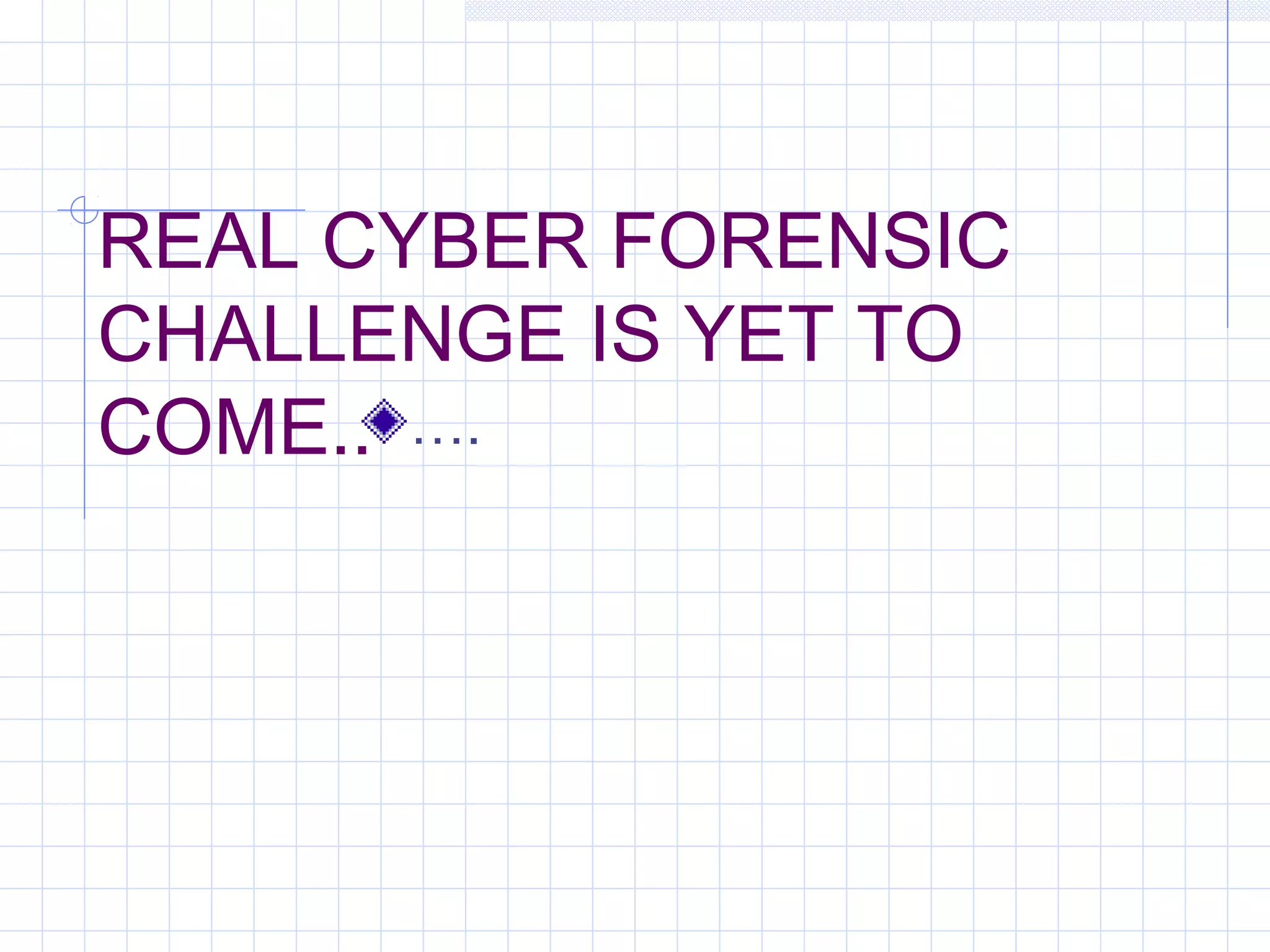

60. REAL CYBER FORENSIC
CHALLENGE IS YET TO
COME.. ….

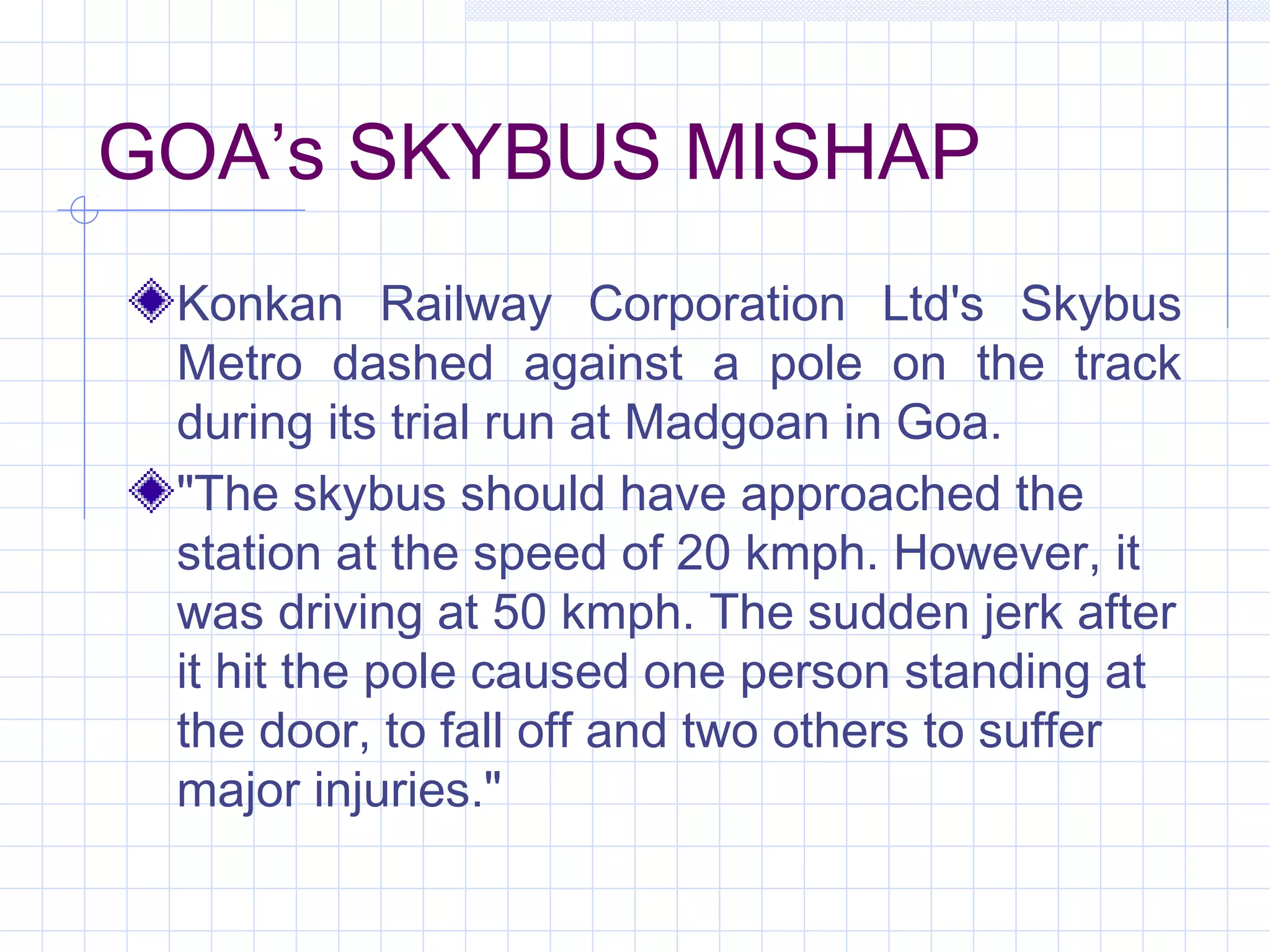

61. GOA’s SKYBUS MISHAP
Konkan Railway Corporation Ltd's Skybus
Metro dashed against a pole on the track
during its trial run at Madgoan in Goa.
"The skybus should have approached the
station at the speed of 20 kmph. However, it
was driving at 50 kmph. The sudden jerk after
it hit the pole caused one person standing at
the door, to fall off and two others to suffer
major injuries."

62. QUESTIONS BEING ASKED
Had the SKYBUS been tested
sufficiently and should this controller
bug have been found out during
testing?
WHO developed the control system
software?
Who carried out the design and who
carried out the design approval?
