This document discusses email forensics and investigating email crimes. It provides information on email client/server architecture, protected accounts, and challenges like faking and spoofing emails. The document outlines steps for email investigations including obtaining emails, recovering deleted emails, and copying email messages. It describes email headers and the important information they contain, such as the sender/recipient, dates, and IP addresses. The document provides guidance on viewing email headers in different email programs and examining them for details that can aid investigations.

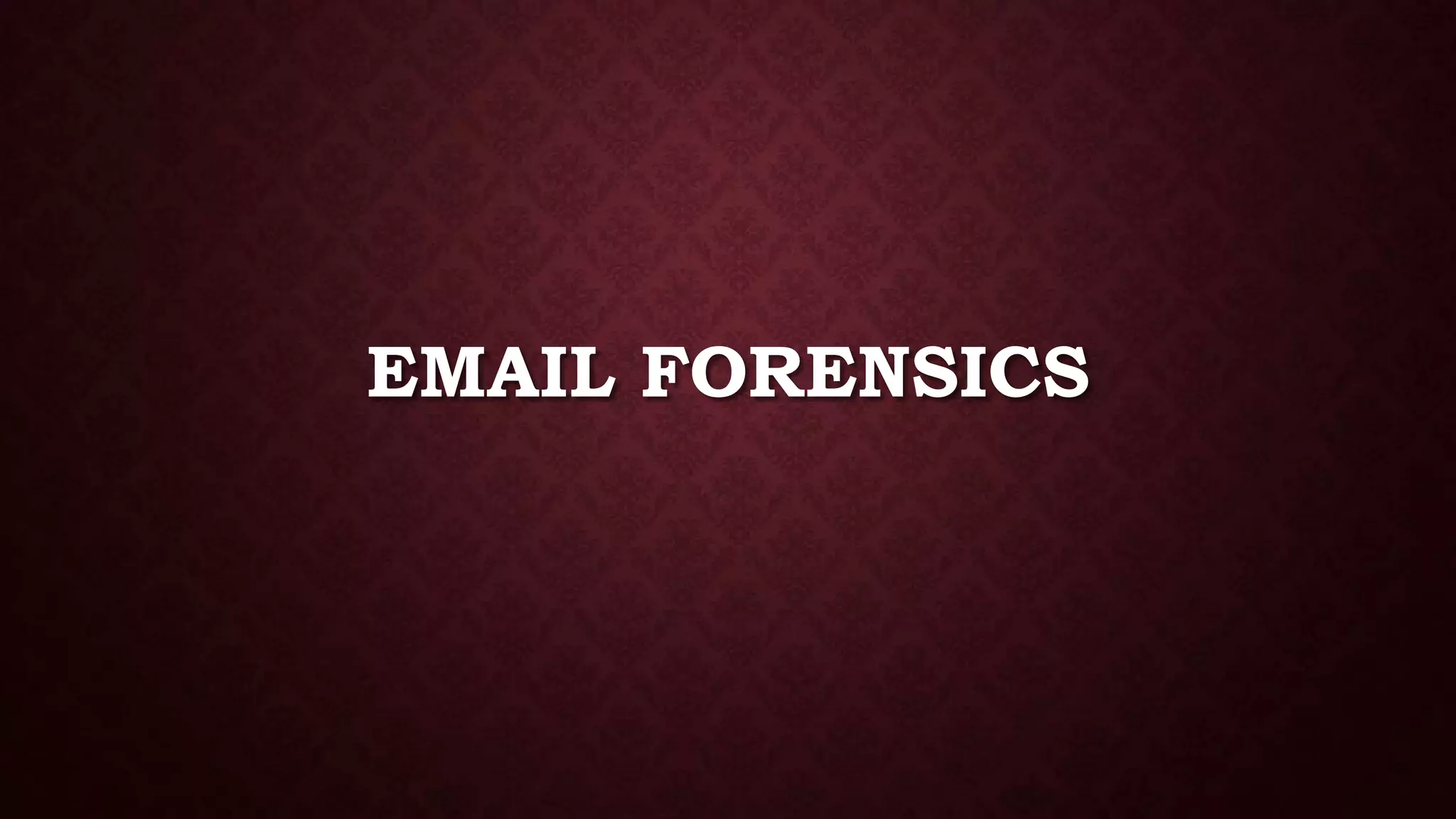

1. EMAIL FORENSICS

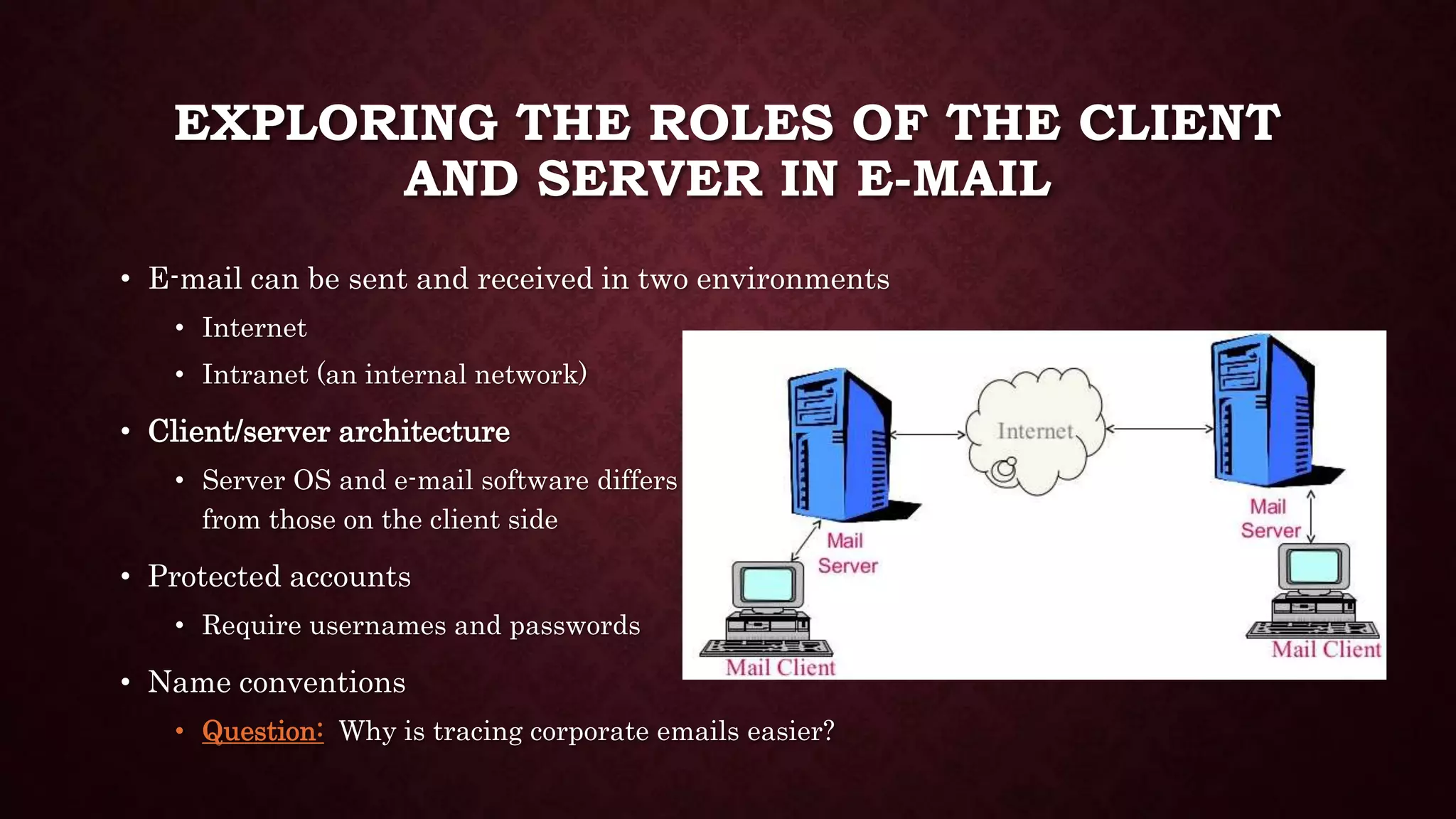

2. EXPLORING THE ROLES OF THE CLIENT
AND SERVER IN E-MAIL
• E-mail can be sent and received in two environments
• Internet
• Intranet (an internal network)
• Client/server architecture
• Server OS and e-mail software differs
from those on the client side
• Protected accounts
• Require usernames and passwords
• Name conventions
• Question: Why is tracing corporate emails easier?

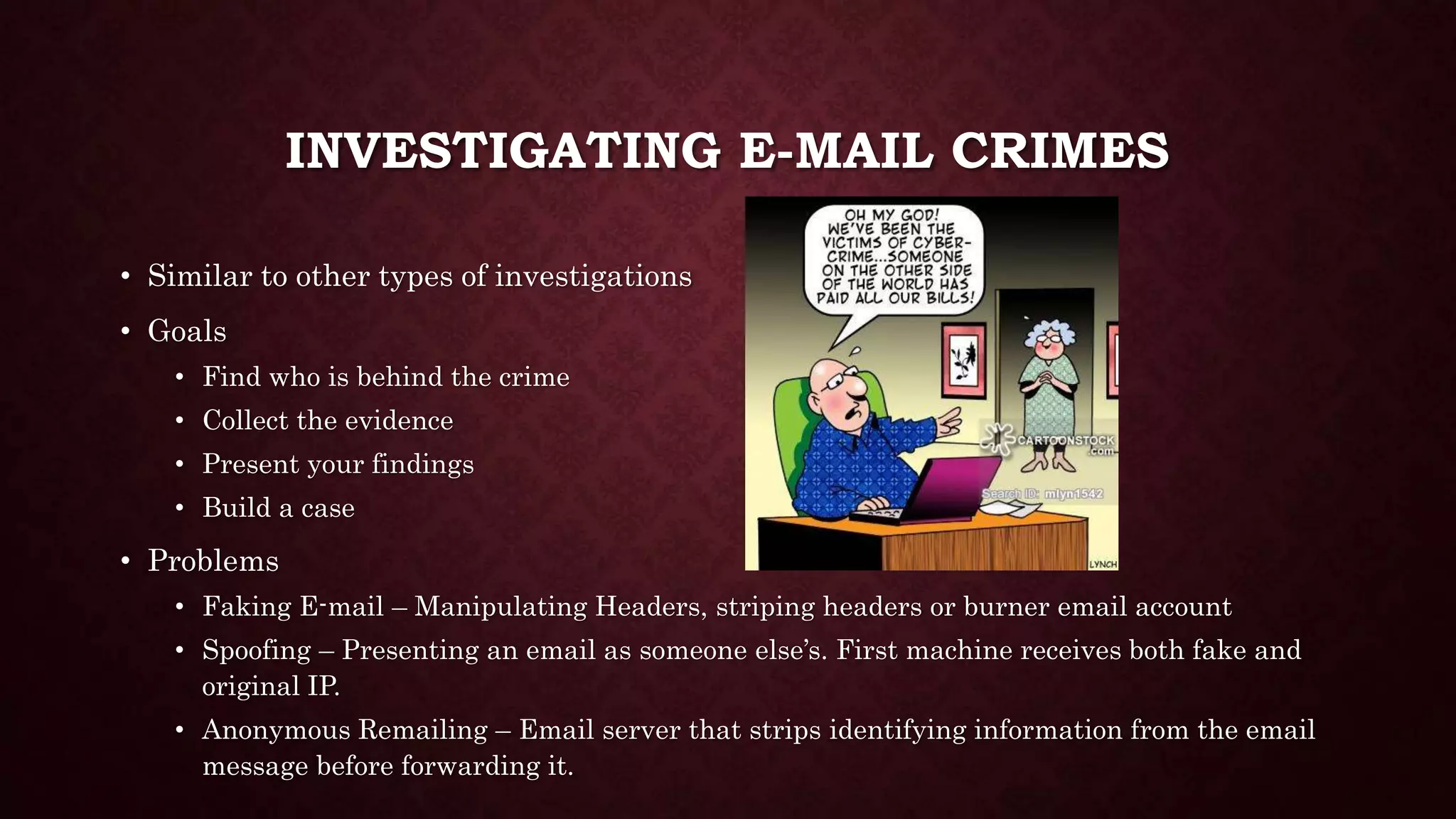

3. INVESTIGATING E-MAIL CRIMES
• Similar to other types of investigations
• Goals
• Find who is behind the crime
• Collect the evidence
• Present your findings
• Build a case
• Problems
• Faking E-mail – Manipulating Headers, striping headers or burner email account
• Spoofing – Presenting an email as someone else’s. First machine receives both fake and
original IP.
• Anonymous Remailing – Email server that strips identifying information from the email
message before forwarding it.

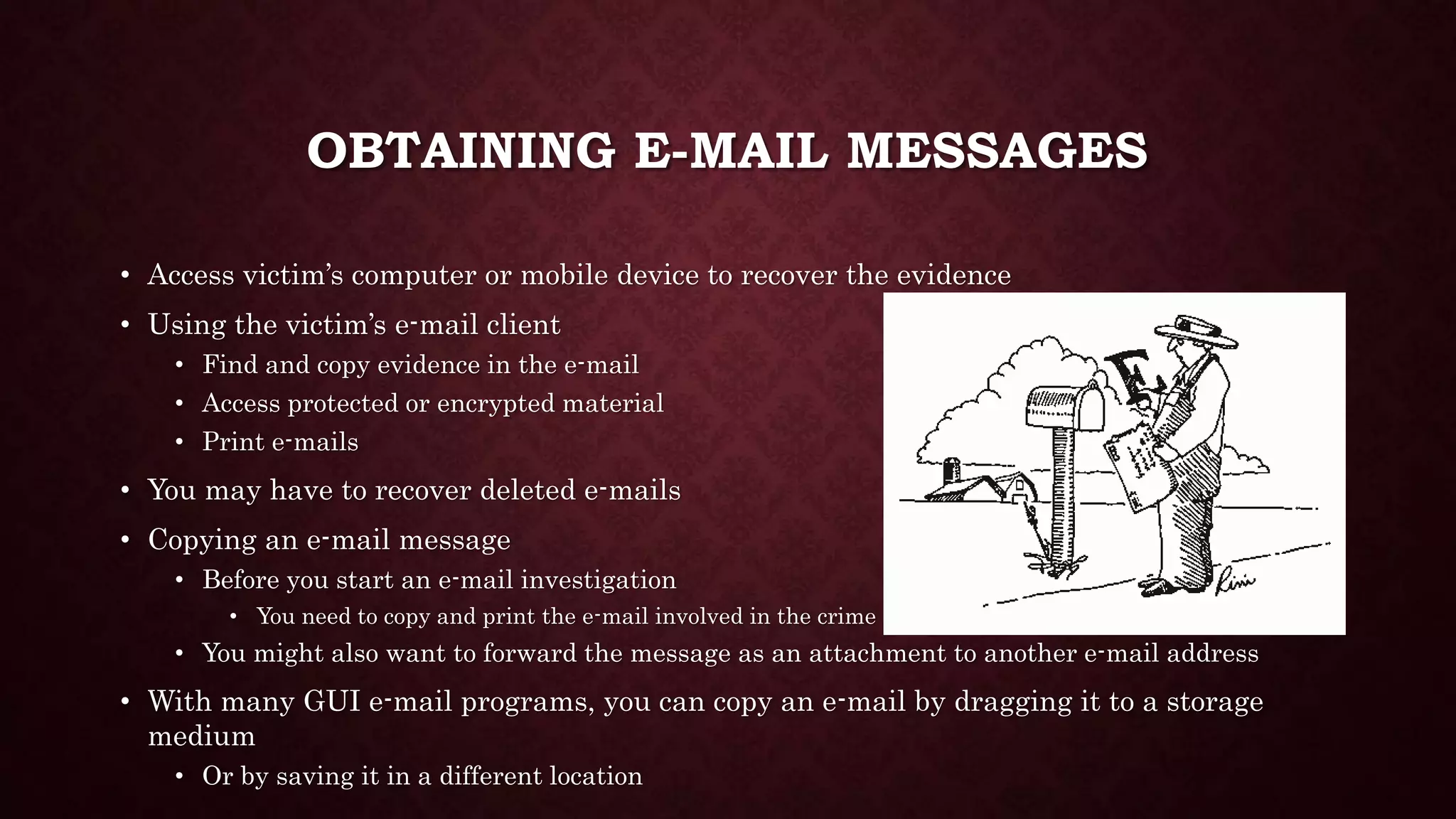

4. OBTAINING E-MAIL MESSAGES
• Access victim’s computer or mobile device to recover the evidence
• Using the victim’s e-mail client
• Find and copy evidence in the e-mail
• Access protected or encrypted material
• Print e-mails
• You may have to recover deleted e-mails
• Copying an e-mail message
• Before you start an e-mail investigation
• You need to copy and print the e-mail involved in the crime
• You might also want to forward the message as an attachment to another e-mail address
• With many GUI e-mail programs, you can copy an e-mail by dragging it to a storage
medium
• Or by saving it in a different location

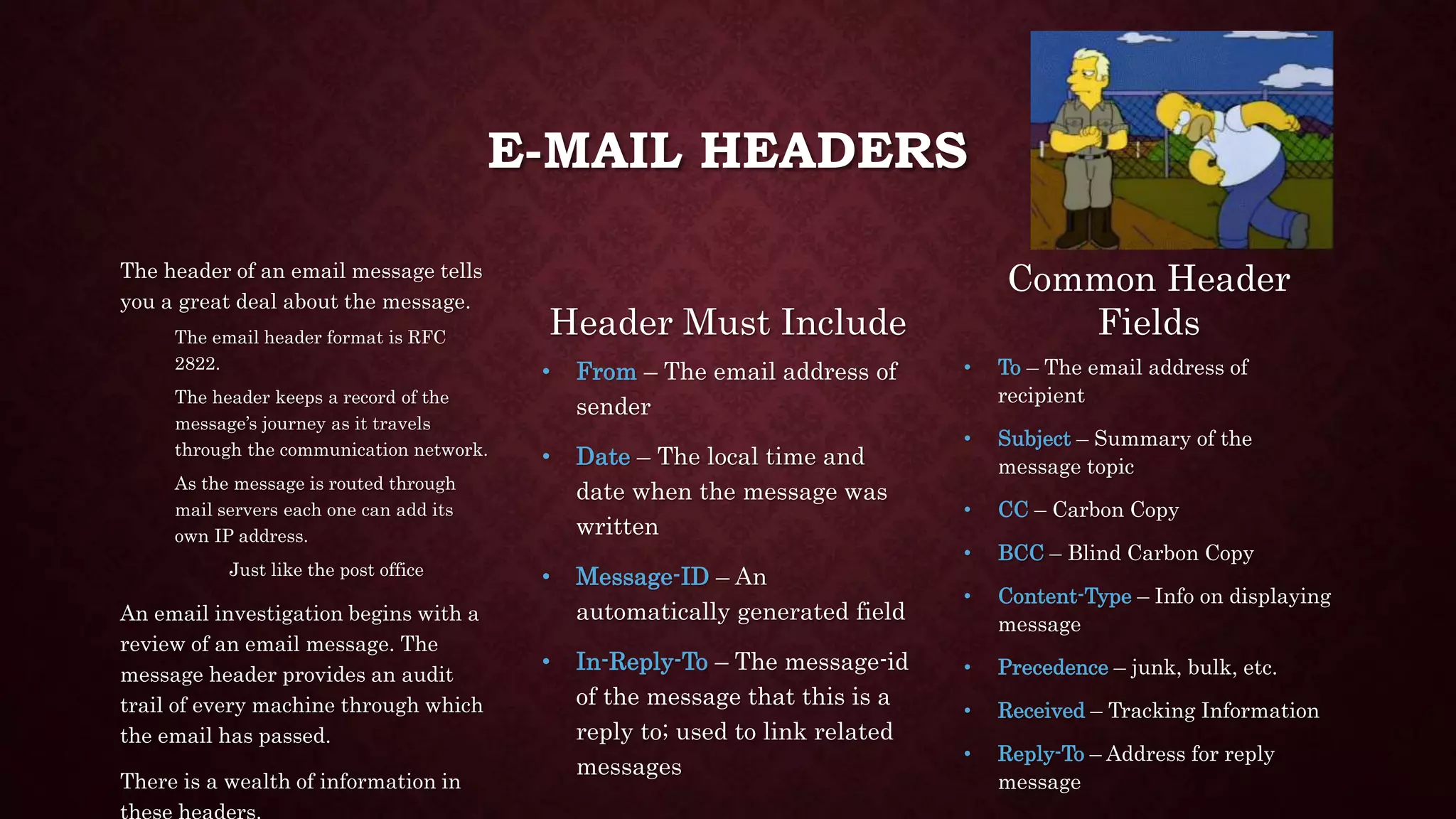

5. E-MAIL HEADERS
The header of an email message tells
you a great deal about the message.
The email header format is RFC
2822.
The header keeps a record of the
message’s journey as it travels
through the communication network.
As the message is routed through
mail servers each one can add its
own IP address.
Just like the post office
An email investigation begins with a
review of an email message. The
message header provides an audit
trail of every machine through which
the email has passed.
There is a wealth of information in
Header Must Include
• From – The email address of
sender
• Date – The local time and
date when the message was
written
• Message-ID – An
automatically generated field
• In-Reply-To – The message-id
of the message that this is a
reply to; used to link related
messages
Common Header
Fields
• To – The email address of
recipient
• Subject – Summary of the
message topic
• CC – Carbon Copy
• BCC – Blind Carbon Copy
• Content-Type – Info on displaying
message
• Precedence – junk, bulk, etc.
• Received – Tracking Information
• Reply-To – Address for reply
message

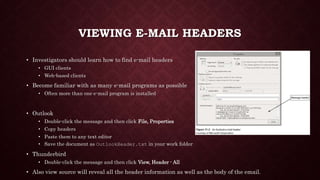

6. VIEWING E-MAIL HEADERS
• Investigators should learn how to find e-mail headers
• GUI clients
• Web-based clients
• Become familiar with as many e-mail programs as possible
• Often more than one e-mail program is installed
• Outlook
• Double-click the message and then click File, Properties
• Copy headers
• Paste them to any text editor
• Save the document as OutlookHeader.txt in your work folder
• Thunderbird
• Double-click the message and then click View, Header - All
• Also view source will reveal all the header information as well as the body of the email.

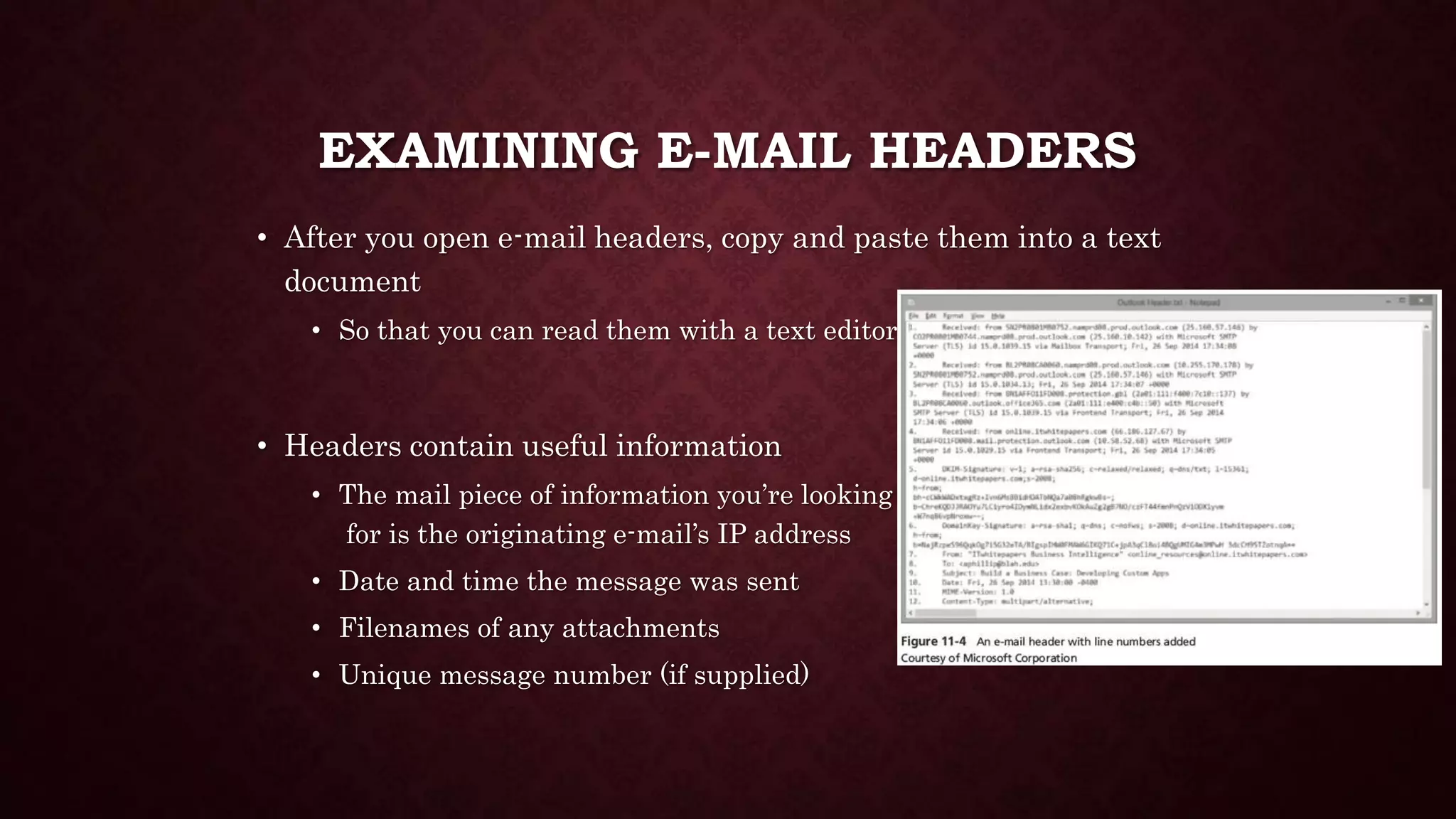

7. EXAMINING E-MAIL HEADERS
• After you open e-mail headers, copy and paste them into a text
document
• So that you can read them with a text editor
• Headers contain useful information
• The mail piece of information you’re looking
for is the originating e-mail’s IP address
• Date and time the message was sent
• Filenames of any attachments
• Unique message number (if supplied)
