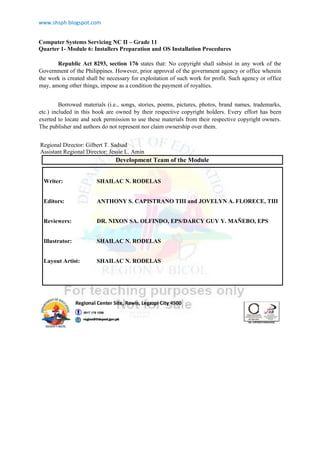

Computer Systems Servicing NC II – Grade 11
Quarter 1- Module 6: Installers Preparation and OS Installation Procedures
Republic Act 8293, section 176 states that: No copyright shall subsist in any work of the
Government of the Philippines. However, prior approval of the government agency or office wherein
the work is created shall be necessary for exploitation of such work for profit. Such agency or office
may, among other things, impose as a condition the payment of royalties.
Borrowed materials (i.e., songs, stories, poems, pictures, photos, brand names, trademarks,
etc.) included in this book are owned by their respective copyright holders. Every effort has been
exerted to locate and seek permission to use these materials from their respective copyright owners.
The publisher and authors do not represent nor claim ownership over them.
Regional Director: Gilbert T. Sadsad
Assistant Regional Director: Jessie L. Amin
Development Team of the Module
Writer: SHAILAC N. RODELAS
Editors: ANTHONY S. CAPISTRANO TIII and JOVELYN A. FLORECE, TIII
Reviewers: DR. NIXON SA. OLFINDO, EPS/DARCY GUY Y. MAÑEBO, EPS
Illustrator: SHAILAC N. RODELAS
Layout Artist: SHAILAC N. RODELAS

1
Computer Systems Servicing NC II - Grade 11
Quarter 1- Module 6: Installers Preparation and OS Installation Procedures
Every Computer requires an Installation (or setup) of a computer program (including device
drivers and plugins) for making its programs ready for execution. Installation is the particular
configuration of a software or hardware with a view to making it usable with the computer. A soft or
digital copy of the piece of software (program) is needed to install in a specific Operating System.
This module will give you an in-depth explanation of Installers Preparation and OS
Installation Procedures.
Learning Competency: LO 2. Prepare Installer
 Identify the Software Installation Types and Portable Installer Software (TLE_IACSS9-
12ICCS-If-j-29)
 Determine the use of a Portable Bootable Device and how it is made using the Rufus
Application (TLE_IACSS9-12ICCS-If-j-29)
 Acquire the steps in creating a bootable USB device using Rufus Application (TLE_IACSS9-
12ICCS-If-j-29)
 Identify the Operating System Installation Guidelines (TLE_IACSS9-12ICCS-If-j-29)
 Embrace the importance of Installation Concepts (TLE_IACSS9-12ICCS-If-j-29)
 Apply troubleshooting in creating USB Bootable Devices (TLE_IACSS9-12ICCS-If-j-29)
For better understanding of the lesson , here is the list of words and their meanings.
Read and understand them carefully.
 Boot Device
Devices inside the computer where a user can select to boot from
 Bootable
containing the software required to boot a computer
 Compressed
squeeze data and files altogether
 Configuration
Introduction
I.
Objectives
II.
Vocabulary List
III.
Source:https://en.wikipedia.org/wiki/Installation_(computer_programs)

2
arrangement and settings of a computer system
 Executable
program understood by an operating system of a computer and makes the computer perform a
particular task.
 Extract
describe the process of decompressing and moving one or more files in a compressed file
 Firewall
software utility or hardware device that acts as a filter for data entering or leaving a network
or computer.
 ISO file
computer file that contains the complete contents of a CD, DVD, or other disc or disk
 Portable Application
software product designed to be easily moved from one computing environment to another.
 Rufus
program used for creating bootable USB flash drives
TRUE OR FALSE
Directions: Read each sentence carefully. In a ¼ sheet of paper, write TRUE if the statement is
correct and FALSE if otherwise. DO NOT WRITE ANYTHING IN THIS MODULE.
1. A computer has boot sequence options for the user to change the order of the drives available.
2. Rufus Application requires at least a minimum of 8 Gigabyte USB flash drive storage capacity.
3. Windows Installation can be done using bootable devices such as thumb drives or pen drives.
4. A firewall does not prevent downloading and installations of software inside a computer.
5. Installation of various applications in Windows Operating System do not demand any software or
hardware requirements at all.
Pre-Test
IV.
Source: https://dictionary.cambridge.org/us/dictionary/english/bootable
https://www.computerhope.com
https://searchcloudcomputing.techtarget.com/definition/portable-app

3
Learning Activity 1. Take Me, Pick Me: A Jar of Thoughts
In the previous module, you have been given an in-depth explanation of the types Multimedia
Storage Devices, the Sound Card Connections and the Video Card Ports as well.
This time, you will be taken to another series of learning activities and discover new concepts
of computer that will definitely enrich your previous learning.
What are we waiting for? Here is the first activity of the module.
Given below is an illustration of a jar containing terms associated to the lesson.
Examine them and pick out those terms familiar to you.
Provide a short description or definition of your own to the terms you have picked out from
the jar.
Write your answers in your data notebook.
Mechanics of the Activity:
Learning Activities
V.
Installation
OS
Creative Commons. (n.d.). Jar Transparent | PNG All [Illustration]. PNG ALL. http://www.pngall.com/jar-png/download/34299

4
The previous task allowed you to explore your minds and write what you know about
different terms related to the lesson.
This time, let’s check how much you know about Installation concepts. In order to do so, here is
the second activity you need to complete.
Given below are three empty containers having different labels and colors
On the first container, identify two bootable devices and write them inside the container box.
On the second one, identify two operating systems you recognize.
On the third container, name two applications you have used before.
Write your answers in your data notebook.
Learning Activity 3. Four Elements as One: The Relationship
Matrix
The previous task gave you a chance to explore your minds about the different examples of
bootable devices, operating systems and applications you have used before.
This time, you will be given another task to improve your learning about the installation
processes inside a computer. Let me take you to the third activity.
Learning Activity 2. Triple Two: Exploring My Mind!
Two Bootable
Devices
Two
Operating
Systems
Two
Applications

5
Given below is an Installation Process Matrix showing the relationship of 4 components
namely: External Devices, Installation Procedure, Computer System and Installer
Application to a whole in quadrants.
By looking at these terms, reflect and think on how are they related to one another.
Your answer/s may be in a sentence or paragraph form.
Write your answer/s in your data notebook in a completely written thought.
External
Devices
Installation
Procedure
Computer
System
Installer
Application

6
A program that doesn't have any configuration options is also a portable application
.A portable application (portable app), sometimes also called standalone, is a program designed to
read and write its configuration settings into an accessible folder in the computer, usually the folder
where the portable application can be found. This makes it easier to transfer the program with the
user's preferences and data between different computers (Wikipedia contributors, 2020)
Like any application, portable applications must be compatible with the computer system
hardware and operating system. If we are trying to install Windows Operating System on a laptop that
does not have a DVD drive, or we want a portable installation tool that we can use on a lot of
computers, creating a bootable USB Windows installation drive may be the answer we are looking
for (Wikipedia contributors, 2020) .
|Installers Preparation|
An installer is a piece of software that is used to install software p
Installers simplify the process of installing software by providing the user
with the ability to select the desired options (Computer Hope, 2017).
 What is an Installer? 
Source: https://www.computerhope.com/jargon/i/installer.htm
According to ServerWatch Staff, in their originally published online article in their
website ServerWatch Tutorials, the following are the Different Types of Software Installation.
Media - based software installation - This is the most common type of installation. It will
take all of the files that make up your software and place them onto a span of disks. It will
contain some form of an executable to call the process as well.
Web - based software installation - This is a pretty cool way to deploy software that has been
picking up popularity in the web. In a web-based, it will do an integrity check and only
download the files that your system needs. This saves you time in downloading. The
problems with this type of installation come up when you introduce firewalls and strict
security.
Single exe installation - This is one that most of us are familiar with, the install is a self-
compressed executable file that you run which will extract itself and contains all of the files
needed to run your installation as well as the explanation file which tells the software where to
load and what changes to make. .
Windows Installer installation - With the introduction of Windows 2000 into our lives came
the introduction of the Windows Installer service, which resides on a client machine and runs
your installations for you given that you provide the correct information
 Types of Software Installation 
Source: https://www.serverwatch.com/author/ServerWatch-Staff-81680.htm
 Portable Installer Software 
Source: https://en.wikipedia.org/wiki/Portable_application

7

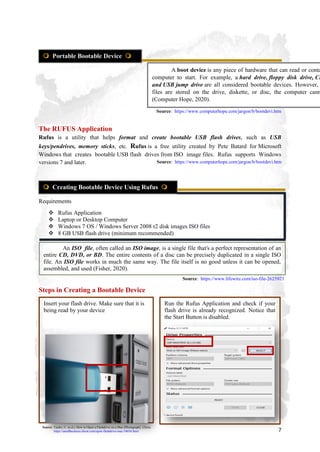

The RUFUS Application
Rufus is a utility that helps format and create bootable USB flash drives, such as USB
keys/pendrives, memory sticks, etc. Rufus is a free utility created by Pete Batard for Microsoft
Windows that creates bootable USB flash drives from ISO image files. Rufus supports Windows
versions 7 and later.
Requirements
 Rufus Application
 Laptop or Desktop Computer
 Windows 7 OS / Windows Server 2008 r2 disk images ISO files
 8 GB USB flash drive (minimum recommended)
Steps in Creating a Bootable Device
 Portable Bootable Device 
A boot device is any piece of hardware that can read or conta
computer to start. For example, a hard drive, floppy disk drive, CD
and USB jump drive are all considered bootable devices. However,
files are stored on the drive, diskette, or disc, the computer cann
(Computer Hope, 2020).
Source: https://www.computerhope.com/jargon/b/bootdevi.htm
 Creating Bootable Device Using Rufus 
Source: https://www.computerhope.com/jargon/b/bootdevi.htm
Insert your flash drive. Make sure that it is
being read by your device
Run the Rufus Application and check if your
flash drive is already recognized. Notice that
the Start Button is disabled.
Source: Taylor, C. (n.d.). How to Open a Flashdrive on a Mac [Photograph]. Chron.
https://smallbusiness.chron.com/open-flashdrive-mac-54034.html
An ISO file, often called an ISO image, is a single file that's a perfect representation of an
entire CD, DVD, or BD. The entire contents of a disc can be precisely duplicated in a single ISO
file. An ISO file works in much the same way. The file itself is no good unless it can be opened,
assembled, and used (Fisher, 2020).
Source: https://www.lifewire.com/iso-file-2625923

8
I
n the
next
modu
les,
you
will
be
taugh
t on
how to Install the Windows Operating
Click “Select” to browse the Disk Images of
the ISO files of the Windows 7 OS /
Windows Server 2008 r2.
Notice that the boot selection part has
recognized now the ISO file
Press “START” to initiate the process. A warning prompts because the USB device
has existing data inside. Click OK to continue.
Notice that the START button is already
available. Click START to continue.
The device is now ready. Click CLOSE
button.
|Operating Systems (OS) Installation Procedures|

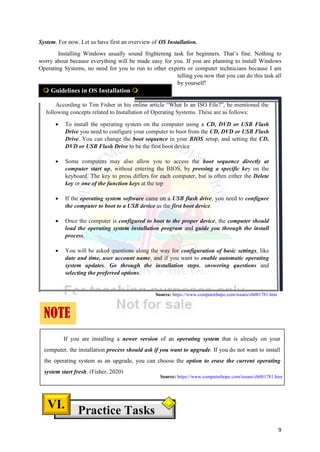

9
System. For now. Let us have first an overview of OS Installation.
Installing Windows usually sound frightening task for beginners. That’s fine. Nothing to
worry about because everything will be made easy for you. If you are planning to install Windows
Operating Systems, no need for you to run to other experts or computer technicians because I am
telling you now that you can do this task all
by yourself!
According to Tim Fisher in his online article “What Is an ISO File?”, he mentioned the
following concepts related to Installation of Operating Systems. These are as follows:
 To install the operating system on the computer using a CD, DVD or USB Flash
Drive you need to configure your computer to boot from the CD, DVD or USB Flash
Drive. You can change the boot sequence in your BIOS setup, and setting the CD,
DVD or USB Flash Drive to be the first boot device
 Some computers may also allow you to access the boot sequence directly at
computer start up, without entering the BIOS, by pressing a specific key on the
keyboard. The key to press differs for each computer, but is often either the Delete
key or one of the function keys at the top
 If the operating system software came on a USB flash drive, you need to configure
the computer to boot to a USB device as the first boot device.
 Once the computer is configured to boot to the proper device, the computer should
load the operating system installation program and guide you through the install
process.
 You will be asked questions along the way for configuration of basic settings, like
date and time, user account name, and if you want to enable automatic operating
system updates. Go through the installation steps, answering questions and
selecting the preferred options.
Practice Tasks
VI.
 Guidelines in OS Installation 
Source: https://www.computerhope.com/issues/ch001781.htm
NOTE
If you are installing a newer version of an operating system that is already on your
computer, the installation process should ask if you want to upgrade. If you do not want to install
the operating system as an upgrade, you can choose the option to erase the current operating
system start fresh. (Fisher, 2020)
Source: https://www.computerhope.com/issues/ch001781.htm

10

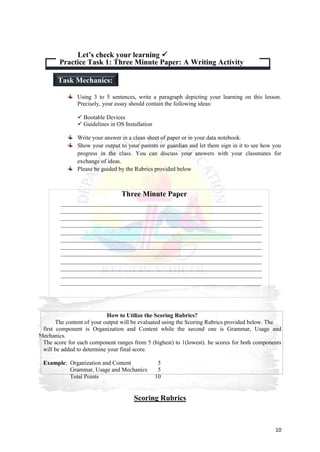

Using 3 to 5 sentences, write a paragraph depicting your learning on this lesson.
Precisely, your essay should contain the following ideas:
 Bootable Devices
 Guidelines in OS Installation
Write your answer in a clean sheet of paper or in your data notebook.
Show your output to your parents or guardian and let them sign in it to see how you
progress in the class. You can discuss your answers with your classmates for
exchange of ideas.
Please be guided by the Rubrics provided below
How to Utilize the Scoring Rubrics?
The content of your output will be evaluated using the Scoring Rubrics provided below. The
first component is Organization and Content while the second one is Grammar, Usage and
Mechanics.
The score for each component ranges from 5 (highest) to 1(lowest). he scores for both components
will be added to determine your final score.
Example: Organization and Content 5
Grammar, Usage and Mechanics 5
Total Points 10
Scoring Rubrics
Practice Task 1: Three Minute Paper: A Writing Activity
Let’s check your learning 
Task Mechanics:
Three Minute Paper

11

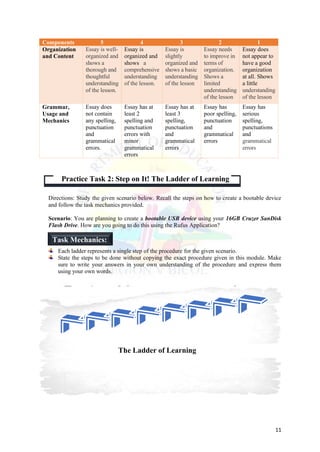

Components 5 4 3 2 1
Organization
and Content
Essay is well-
organized and
shows a
thorough and
thoughtful
understanding
of the lesson.
Essay is
organized and
shows a
comprehensive
understanding
of the lesson.
Essay is
slightly
organized and
shows a basic
understanding
of the lesson
Essay needs
to improve in
terms of
organization.
Shows a
limited
understanding
of the lesson
Essay does
not appear to
have a good
organization
at all. Shows
a little
understanding
of the lesson
Grammar,
Usage and
Mechanics
Essay does
not contain
any spelling,
punctuation
and
grammatical
errors.
Essay has at
least 2
spelling and
punctuation
errors with
minor
grammatical
errors
Essay has at
least 3
spelling,
punctuation
and
grammatical
errors
Essay has
poor spelling,
punctuation
and
grammatical
errors
Essay has
serious
spelling,
punctuations
and
grammatical
errors
Directions: Study the given scenario below. Recall the steps on how to create a bootable device
and follow the task mechanics provided.
Scenario: You are planning to create a bootable USB device using your 16GB Cruzer SanDisk
Flash Drive. How are you going to do this using the Rufus Application?
Each ladder represents a single step of the procedure for the given scenario.
State the steps to be done without copying the exact procedure given in this module. Make
sure to write your answers in your own understanding of the procedure and express them
using your own words.
Practice Task 2: Step on It! The Ladder of Learning
Task Mechanics:
The Ladder of Learning

12

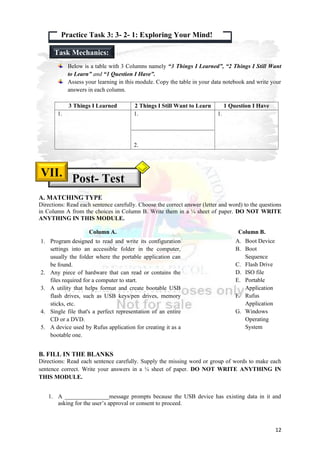

Below is a table with 3 Columns namely “3 Things I Learned”, “2 Things I Still Want
to Learn” and “1 Question I Have”.
Assess your learning in this module. Copy the table in your data notebook and write your
answers in each column.
3 Things I Learned 2 Things I Still Want to Learn 1 Question I Have
1. 1.
2.
1.
A. MATCHING TYPE
Directions: Read each sentence carefully. Choose the correct answer (letter and word) to the questions
in Column A from the choices in Column B. Write them in a ¼ sheet of paper. DO NOT WRITE
ANYTHING IN THIS MODULE.
Column A. Column B.
B. FILL IN THE BLANKS
Directions: Read each sentence carefully. Supply the missing word or group of words to make each
sentence correct. Write your answers in a ¼ sheet of paper. DO NOT WRITE ANYTHING IN
THIS MODULE.
1. A _______________message prompts because the USB device has existing data in it and
asking for the user’s approval or consent to proceed.
1. Program designed to read and write its configuration
settings into an accessible folder in the computer,
usually the folder where the portable application can
be found.
2. Any piece of hardware that can read or contains the
files required for a computer to start.
3. A utility that helps format and create bootable USB
flash drives, such as USB keys/pen drives, memory
sticks, etc.
4. Single file that's a perfect representation of an entire
CD or a DVD.
5. A device used by Rufus application for creating it as a
bootable one.
A. Boot Device
B. Boot
Sequence
C. Flash Drive
D. ISO file
E. Portable
Application
F. Rufus
Application
G. Windows
Operating
System
Post- Test
VII.
Practice Task 3: 3- 2- 1: Exploring Your Mind!
Task Mechanics:

13
2. Once the _____________ is configured to boot to the proper device, the computer should load
the operating system installation program and guide you through the install process.
3. If you are installing a newer version of an operating system that is already on your computer,
the installation process should ask if you want to _______________ the system.
4. Rufus is a free utility created by Pete Batard for Microsoft Windows that creates
________________ USB flash drives from ISO image files. Rufus supports Windows
versions 7 and later.
5. If the operating system software came on a USB flash drive, you need to configure the
computer to boot to ___________________as the first boot device.
A. Directions: Below is a scenario associated to the creation of a USB bootable device.
Analyze it and answer the Guide Questions that follow. Write your answers in your data
notebook. DO NOT WRITE ANYTHING IN THIS MODULE.
Scenario: Your USB flash drive was recognized by your computer and the Rufus
Application as well. However, when you try to browse the Windows 7 Operating System
disk image file, you were prompted by an error.
Guide Questions:
1. What conclusions can you make based on what was stated in the scenario?
2. How are you going to troubleshoot the issue?
3. As a CSS student, what was the impact of this lesson to you?
B. Answer the following questions and write them in your data notebook. You can surf the
internet, borrow notes, browse old notes from previous CSS students and other means.
Guide Questions:
1. What is a device driver?
2. What is the importance of installing device drivers in your computer?
Assignment/Additional Activities
VIII.

14

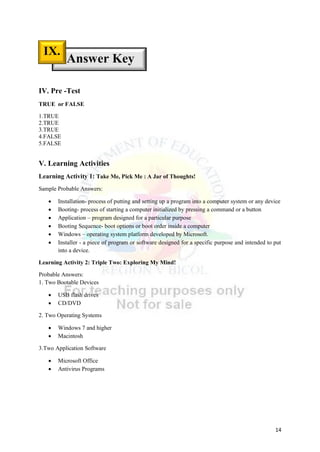

IV. Pre -Test
TRUE or FALSE
1.TRUE
2.TRUE
3.TRUE
4.FALSE
5.FALSE
V. Learning Activities
Learning Activity 1: Take Me, Pick Me : A Jar of Thoughts!
Sample Probable Answers:
 Installation- process of putting and setting up a program into a computer system or any device
 Booting- process of starting a computer initialized by pressing a command or a button
 Application – program designed for a particular purpose
 Booting Sequence- boot options or boot order inside a computer
 Windows – operating system platform developed by Microsoft.
 Installer - a piece of program or software designed for a specific purpose and intended to put
into a device.
Learning Activity 2: Triple Two: Exploring My Mind!
Probable Answers:
1. Two Bootable Devices
 USB flash drives
 CD/DVD
2. Two Operating Systems
 Windows 7 and higher
 Macintosh
3.Two Application Software
 Microsoft Office
 Antivirus Programs
Answer Key
IX.
.

15
Learning Activity 3: Four Elements as One: The Relationship Matrix
Probable Answers:
Most of the installation procedure requires any external device as medium for the transmission of the
installer or applications intended to be utilized by an end user in a particular computer system.
VI. Practice Tasks
Practice Task 1: Three Minute Paper: A Writing Activity
Probable Answers:
A bootable device could be a an internal Hard Disk Drive or other Secondary Storage
Devices like CD, DVD and floppy and USB flash drives. Before they become a bootable device, they
have to undergo the process and store necessary data in order for the computer to recognize them as a
bootable device. We should take note that if the operating system software came on a USB flash
drive, you need to configure the computer to boot to a USB device as the first boot device. Same
concept applies to the rest of the storage devices mentioned above.
Practice Task 2: Step on It! The Ladder of Learning
Step 1: I have to insert my flash drive into the USB port and make sure that it is being read by the
computer so that the Rufus Application would be able to recognize it as well.
Step 2: I can now launch the Rufus Application and check if it has detected my USB flash drive.
Step 3 : I will press “SELECT” button in the right side and navigate my folders to see where my
Windows OS ISO file has been saved.
Step 4 : I have to check it once more to see if I am picking the correct Windows OS ISO file.
Step 5 : If the ISO file has appeared in the Boot Selection, I can now proceed to the next step and
click the “START” button.
Step 6: I will allow the process to continue and wait for the Progress bar to initiate.
Step 7 : I will wait for the progress bar to finish until the “READY” status has appeared. I will press
on CLOSE to continue.
Practice Task 3: 3-2-1 : Exploring Your Mind!
Probable Answers:
3 Things I learned
 Rufus is a utility for creating Bootable USB devices
 Boot Sequence can be configured using the BIOS Setup Utility
 Any piece of hardware, if configured properly can be act as a bootable device.
2 Things I Still Want to Learn
 I Still want to learn how to create .ISO files
 I Still want to learn how to how to make use of Rufus in other purposes.
1 Question I have

16

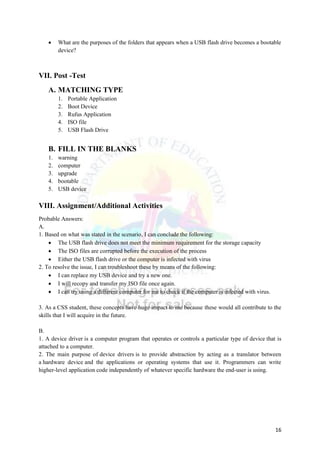

 What are the purposes of the folders that appears when a USB flash drive becomes a bootable
device?
VII. Post -Test
A. MATCHING TYPE
1. Portable Application
2. Boot Device
3. Rufus Application
4. ISO file
5. USB Flash Drive
B. FILL IN THE BLANKS
1. warning
2. computer
3. upgrade
4. bootable
5. USB device
VIII. Assignment/Additional Activities
Probable Answers:
A.
1. Based on what was stated in the scenario, I can conclude the following:
 The USB flash drive does not meet the minimum requirement for the storage capacity
 The ISO files are corrupted before the execution of the process
 Either the USB flash drive or the computer is infected with virus
2. To resolve the issue, I can troubleshoot these by means of the following:
 I can replace my USB device and try a new one.
 I will recopy and transfer my ISO file once again.
 I can try using a different computer for me to check if the computer is infected with virus.
3. As a CSS student, these concepts have huge impact to me because these would all contribute to the
skills that I will acquire in the future.
B.
1. A device driver is a computer program that operates or controls a particular type of device that is
attached to a computer.
2. The main purpose of device drivers is to provide abstraction by acting as a translator between
a hardware device and the applications or operating systems that use it. Programmers can write
higher-level application code independently of whatever specific hardware the end-user is using.

17

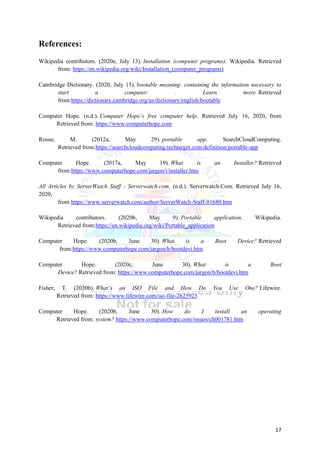

References:
Wikipedia contributors. (2020e, July 13). Installation (computer programs). Wikipedia. Retrieved
from: https://en.wikipedia.org/wiki/Installation_(computer_programs)
Cambridge Dictionary. (2020, July 15). bootable meaning: containing the information necessary to
start a computer: . Learn more. Retrieved
from:https://dictionary.cambridge.org/us/dictionary/english/bootable
Computer Hope. (n.d.). Computer Hope’s free computer help. Retrieved July 16, 2020, from
Retrieved from: https://www.computerhope.com
Rouse, M. (2012a, May 29). portable app. SearchCloudComputing.
Retrieved from:https://searchcloudcomputing.techtarget.com/definition/portable-app
Computer Hope. (2017a, May 19). What is an Installer? Retrieved
from:https://www.computerhope.com/jargon/i/installer.htm
All Articles by ServerWatch Staff - Serverwatch.com. (n.d.). Serverwatch.Com. Retrieved July 16,
2020,
from https://www.serverwatch.com/author/ServerWatch-Staff-81680.htm
Wikipedia contributors. (2020b, May 9). Portable application. Wikipedia.
Retrieved from:https://en.wikipedia.org/wiki/Portable_application
Computer Hope. (2020b, June 30). What is a Boot Device? Retrieved
from:https://www.computerhope.com/jargon/b/bootdevi.htm
Computer Hope. (2020c, June 30). What is a Boot
Device? Retrieved from: https://www.computerhope.com/jargon/b/bootdevi.htm
Fisher, T. (2020b). What’s an ISO File and How Do You Use One? Lifewire.
Retrieved from: https://www.lifewire.com/iso-file-2625923
Computer Hope. (2020b, June 30). How do I install an operating
Retrieved from: system? https://www.computerhope.com/issues/ch001781.htm

CSS G11 Module 6 Q1 computer systems servicing for grade 12

More Related Content

What's hot

Similar to CSS G11 Module 6 Q1 computer systems servicing for grade 12

Recently uploaded

CSS G11 Module 6 Q1 computer systems servicing for grade 12
