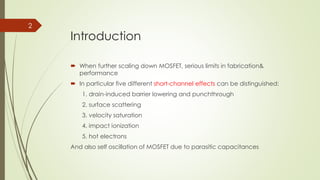

2. Introduction
When further scaling down MOSFET, serious limits in fabrication&
performance
In particular five different short-channel effects can be distinguished:
1. drain-induced barrier lowering and punchthrough
2. surface scattering
3. velocity saturation
4. impact ionization
5. hot electrons
And also self oscillation of MOSFET due to parasitic capacitances
2
3. Solutions to overcome
Modification on existing structures & technologies
High - K insulating material, metal gate electrode
Using new materials to replace silicon MOSFETs
3

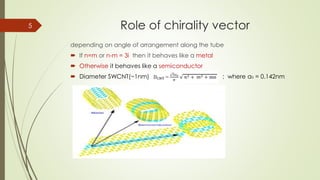

5. Role of chirality vector
depending on angle of arrangement along the tube
If n=m or n-m = 3i then it behaves like a metal
Otherwise it behaves like a semiconductor
Diameter SWCNT(~1nm) ; where a0 = 0.142nm
5
6. CNTFET
Formed by CNT connecting
two metal electrodes.
Gate electrode is separated
CNT by thin oxide film.
There is no scattering in the CNT channell
The net current is carried by carriers
with energy between μ1 and μ2 that
travel from contact 1 to contact 2.
L = |Ch| = a *
6

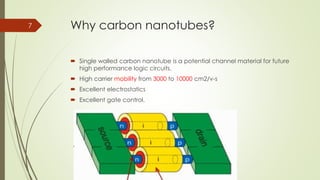

7. Why carbon nanotubes?
Single walled carbon nanotube is a potential channel material for future
high performance logic circuits.
High carrier mobility from 3000 to 10000 cm2/v-s
Excellent electrostatics
Excellent gate control.
7

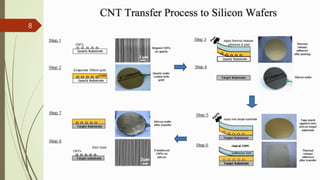

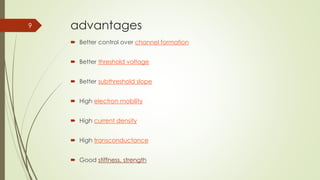

9. advantages
Better control over channel formation
Better threshold voltage
Better subthreshold slope
High electron mobility
High current density
High transconductance
Good stiffness, strength
9

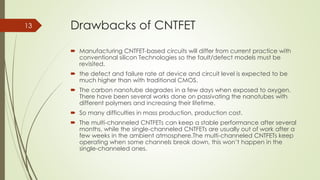

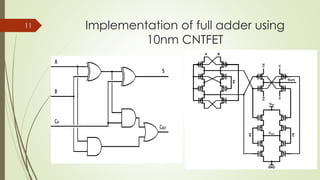

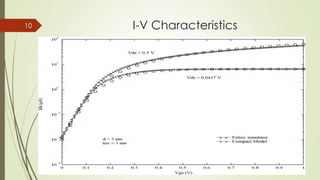

13. Drawbacks of CNTFET
Manufacturing CNTFET-based circuits will differ from current practice with
conventional silicon Technologies so the fault/defect models must be
revisited.
the defect and failure rate at device and circuit level is expected to be
much higher than with traditional CMOS.
The carbon nanotube degrades in a few days when exposed to oxygen.
There have been several works done on passivating the nanotubes with
different polymers and increasing their lifetime.
So many difficulties in mass production, production cost.
The multi-channeled CNTFETs can keep a stable performance after several
months, while the single-channeled CNTFETs are usually out of work after a
few weeks in the ambient atmosphere.The multi-channeled CNTFETs keep
operating when some channels break down, this won’t happen in the
single-channeled ones.
13
