1. Delivering Clean Energy to Your Doorstep
PT IEV Gas - 2014
Prepared by Danu Jaya

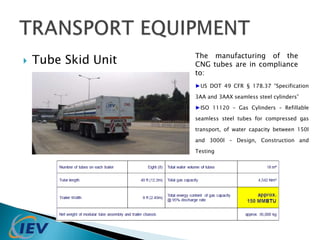

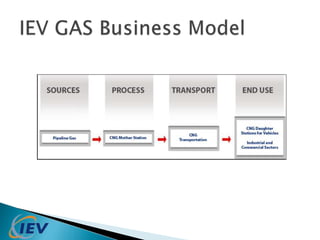

3.  Tube Skid Unit
The manufacturing of the
CNG tubes are in compliance
to:
►US DOT 49 CFR § 178.37 “Specification
3AA and 3AAX seamless steel cylinders”
►ISO 11120 – Gas Cylinders – Refillable
seamless steel tubes for compressed gas
transport, of water capacity between 150l
and 3000l – Design, Construction and
Testing

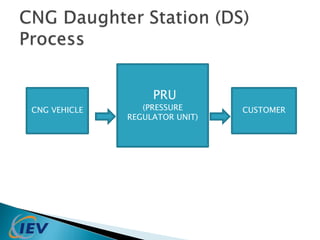

4. CNG VEHICLE
PRU
(PRESSURE
REGULATOR UNIT)
CUSTOMER

5. Natural gas properties – Ignition and fire
 Gas released in the open space will quickly
disperse harmlessly
 Gas in a confined space, if ignited, will create
a localized high pressure
 Confined areas are pits, ceiling or roof
pockets.
 The gas/air concentration range for
flammability is narrow at low pressure (5 to
15% by volume)

6. Properties of Natural Gas
1971
1 0

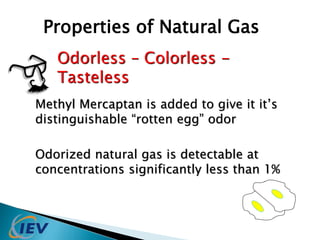

7. Properties of Natural Gas
Odorless – Colorless -
Tasteless
Methyl Mercaptan is added to give it it’s
distinguishable “rotten egg” odor
Odorized natural gas is detectable at
concentrations significantly less than 1%

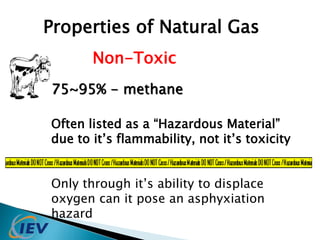

8. Properties of Natural Gas
Non-Toxic
75~95% - methane
Often listed as a “Hazardous Material”
due to it’s flammability, not it’s toxicity
Only through it’s ability to displace
oxygen can it pose an asphyxiation
hazard

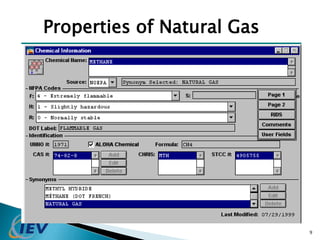

9. 9
Properties of Natural Gas

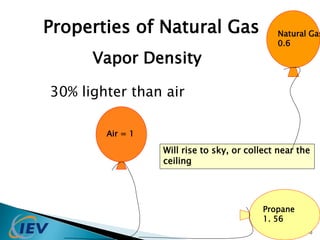

10. Natural Gas
0.6
10
Properties of Natural Gas
Vapor Density
30% lighter than air
Will rise to sky, or collect near the
ceiling
Air = 1
Propane
1. 56

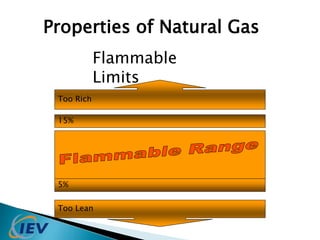

11. Properties of Natural Gas
Flammable
Limits
Too Rich
15%
5%
Too Lean

12. Properties of Natural Gas
Heating Value
1,000 BTU per cubic foot

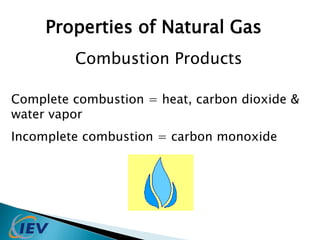

13. Properties of Natural Gas
Combustion Products
Complete combustion = heat, carbon dioxide &
water vapor
Incomplete combustion = carbon monoxide

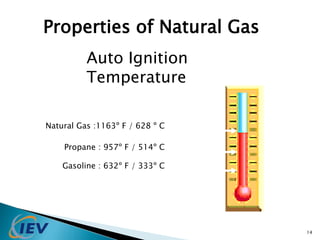

14. 14
Properties of Natural Gas
Auto Ignition
Temperature
Natural Gas :1163º F / 628 º C
Propane : 957º F / 514º C
Gasoline : 632º F / 333º C

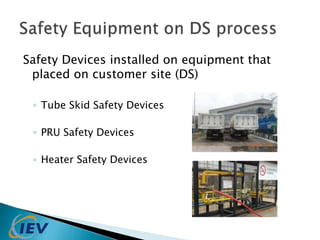

15. Safety Devices installed on equipment that
placed on customer site (DS)
◦ Tube Skid Safety Devices
◦ PRU Safety Devices
◦ Heater Safety Devices

16.  Rupture Disc
◦ A rupture disc, also
known as a bursting
disc or burst
diaphragm, is a non-reclosing
pressure
relief device that, in
most uses, protects a
pressure vessel,
equipment or system
from over
pressurization or
potentially damaging
vacuum conditions

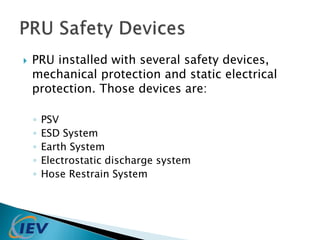

17.  PRU installed with several safety devices,
mechanical protection and static electrical
protection. Those devices are:
◦ PSV
◦ ESD System
◦ Earth System
◦ Electrostatic discharge system
◦ Hose Restrain System

18.  Pressure Safety Valve
◦ is a valve mechanism
which automatically
releases a substance
from a boiler, pressure
vessel, or other system,
when the pressure or
temperature exceeds
preset limits

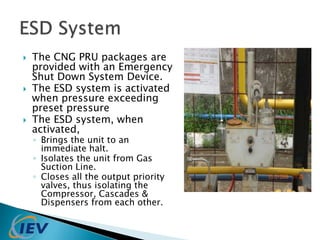

19.  The CNG PRU packages are
provided with an Emergency
Shut Down System Device.
 The ESD system is activated
when pressure exceeding
preset pressure
 The ESD system, when
activated,
◦ Brings the unit to an
immediate halt.
◦ Isolates the unit from Gas
Suction Line.
◦ Closes all the output priority
valves, thus isolating the
Compressor, Cascades &
Dispensers from each other.

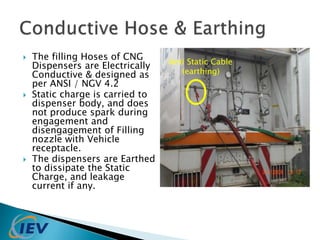

20.  The filling Hoses of CNG
Dispensers are Electrically
Conductive & designed as
per ANSI / NGV 4.2
 Static charge is carried to
dispenser body, and does
not produce spark during
engagement and
disengagement of Filling
nozzle with Vehicle
receptacle.
 The dispensers are Earthed
to dissipate the Static
Charge, and leakage
current if any.
Anti Static Cable
(earthing)

21.  To prevent hose accidentally disengage in
hazardous movement, hose restrain system
installed during hose connection process
before opening TS valve.
 Restrain system can hold 2000 Kgs force

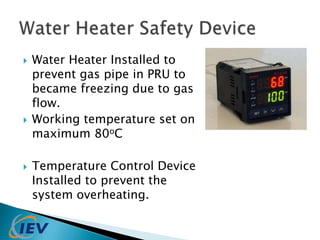

22.  Water Heater Installed to
prevent gas pipe in PRU to
became freezing due to gas
flow.
 Working temperature set on
maximum 80oC
 Temperature Control Device
Installed to prevent the
system overheating.

24. DoRisk Assessments prior to work
DoSafety Awareness to Team work
Doinspection of Safe Condition
Doproper PPE according to risk
Dofollow safety instruction

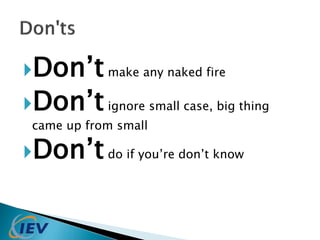

25. Don’t make any naked fire
Don’t ignore small case, big thing
came up from small
Don’t do if you’re don’t know

26.  July, 2014
 PT IEV Gas
