- 1. PREPARED BY:- Karm Balar ASST.Prof. S.S.A.S.I.T. S.S.A.S.I.T G.T.U SHREE SWAMI ATMANAND SARASWATI INSTITUTE OF TECHNOLOGY, SURAT PERSPECTIVE DRAWING building & town planning
- 2. Necessity of perspectivedrawings • The perspective drawing is very helpful for the all types of drawing because of it is closely approximate view from the human eyes. • This will required for two agencies… 1. Architect or planner 2. Clients or owner of property.
- 3. Technical terms fordrawings…
- 5. Elements of Perspectivedrawings… • For understanding the perspective drawing following definitions will be most essential. • Ground line :- The line which is represent the ground level on which the observer is standing and meeting place of picture plane and ground.
- 6. Station point • Stationpoint :- it is the point from where the observer is looking at the building. It is always in the front of building as well as of picture plane. The size and shape of the perspective view of building largely depends upon the position of station point.
- 7. Vanishing point (VP) •The topical characteristics feature of a perspective drawing is the vanishing of all parallel lines of object to a point at infinite distance. • The point at which a parallel lines of the object was inclined to the picture plane and appears at that points is known as VP.

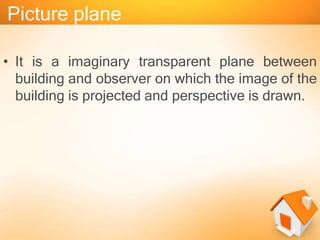

- 8. Picture plane • Itis a imaginary transparent plane between building and observer on which the image of the building is projected and perspective is drawn.

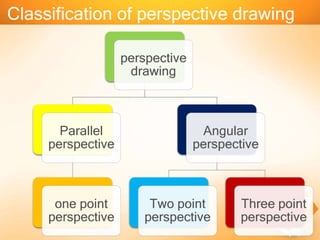

- 9. Classification of perspectivedrawing perspective drawing Parallel perspective one point perspective Angular perspective Two point perspective Three point perspective
