Basic Electric Circuits Session 10 Homework solutions
•
0 likes
•
87 views
International Institute of Information Technology - Bangalore
Follow

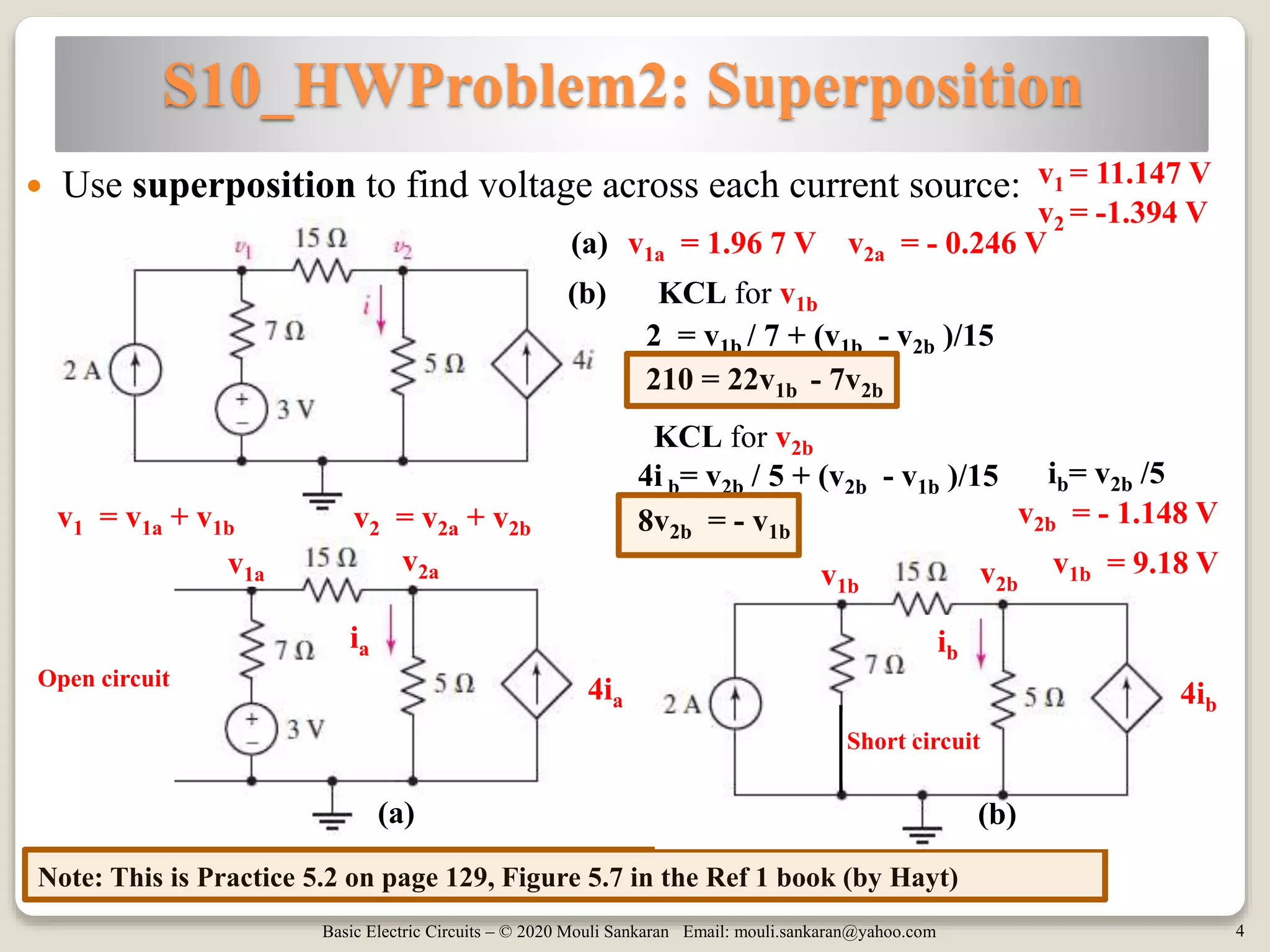

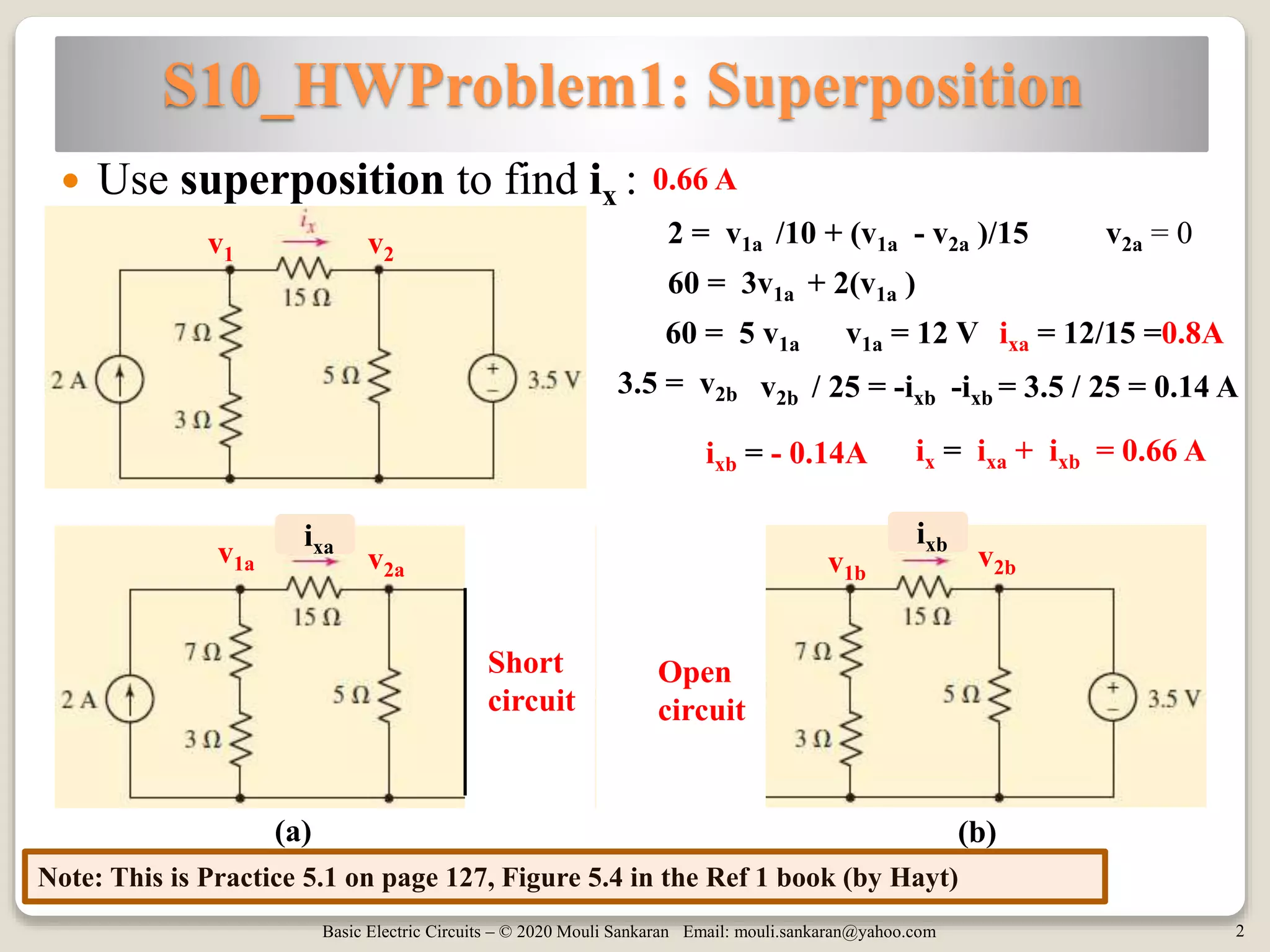

Homework problem solutions Superposition
Read less
Read more
Engineering
Report
Share
Report
Share
1 of 5
