1. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com

2. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 2
Session 14: Focus
 Multiplexers (MUX)
◦ Usage in Real-life Applications
 Demultiplexer (DEMUX)
◦ 1-to-4-line Demultiplexer
◦ Symbols or Representation
◦ Usage in Real-life Applications
 Solving problems
◦ With Basic Gates
 Solving Logical problems
 Home work problems
◦ Logic Gates
◦ K-maps

3. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com
Multiplexer (MUX)

4. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 4

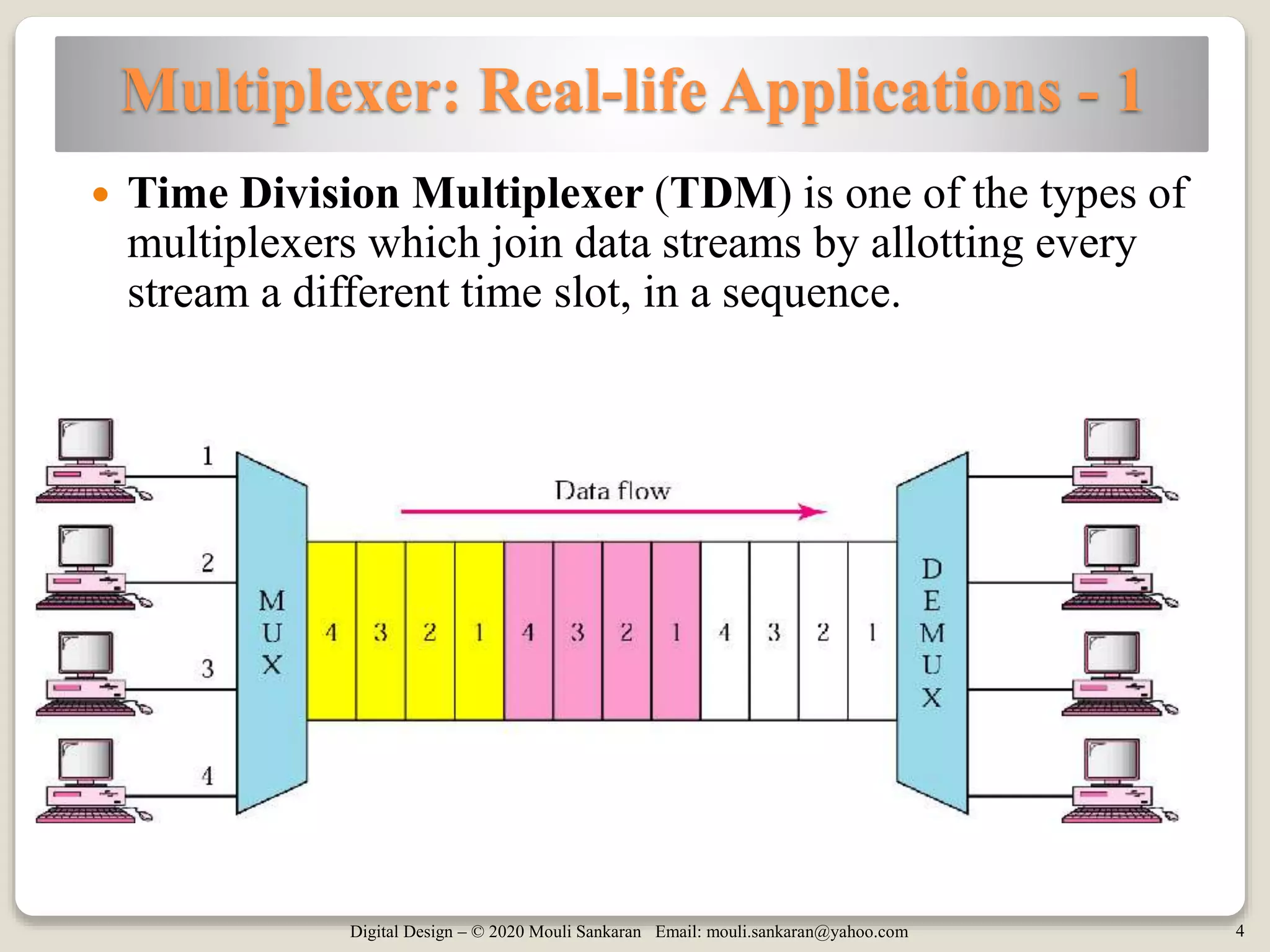

Multiplexer: Real-life Applications - 1
 Time Division Multiplexer (TDM) is one of the types of
multiplexers which join data streams by allotting every
stream a different time slot, in a sequence.

5. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 5
Multiplexer: Real-life Applications - 2
 Choosing one input from multiple input lines, to be
given to Arithmetic Logic Unit (ALU)
Selector
Inputs Output Lines
Bringing out
One of the
Input values

6. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com
Demultiplexer (DEMUX)

7. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 7
Demultiplexer (DEMUX)
 A demultiplexer
(DEMUX) basically
reverses the multiplexing
function
 It takes digital
information from one
line and distributes it to
one of the output lines
 Based on the data-select
inputs
 For this reason, it is also
known as data
distributor
3 Select Lines
8 Output
Lines

8. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 8

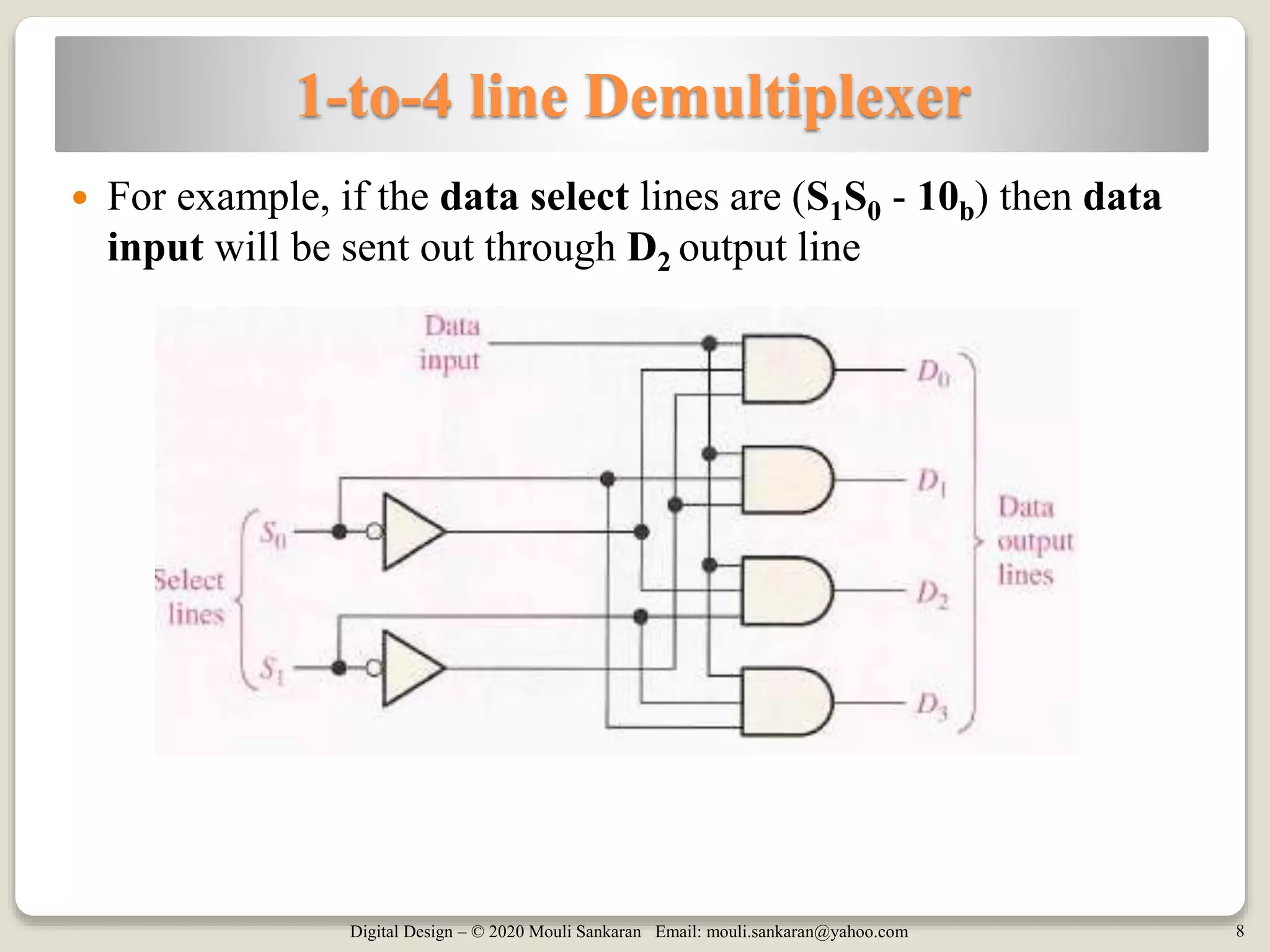

1-to-4 line Demultiplexer
 For example, if the data select lines are (S1S0 - 10b) then data
input will be sent out through D2 output line

9. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 9
Quiz 1: Draw the Output Waveforms
 Given data-input and data-select waveforms, draw the output
waveforms on D0 to D3

10. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 10
DEMUX: Symbol or Representations

11. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 11

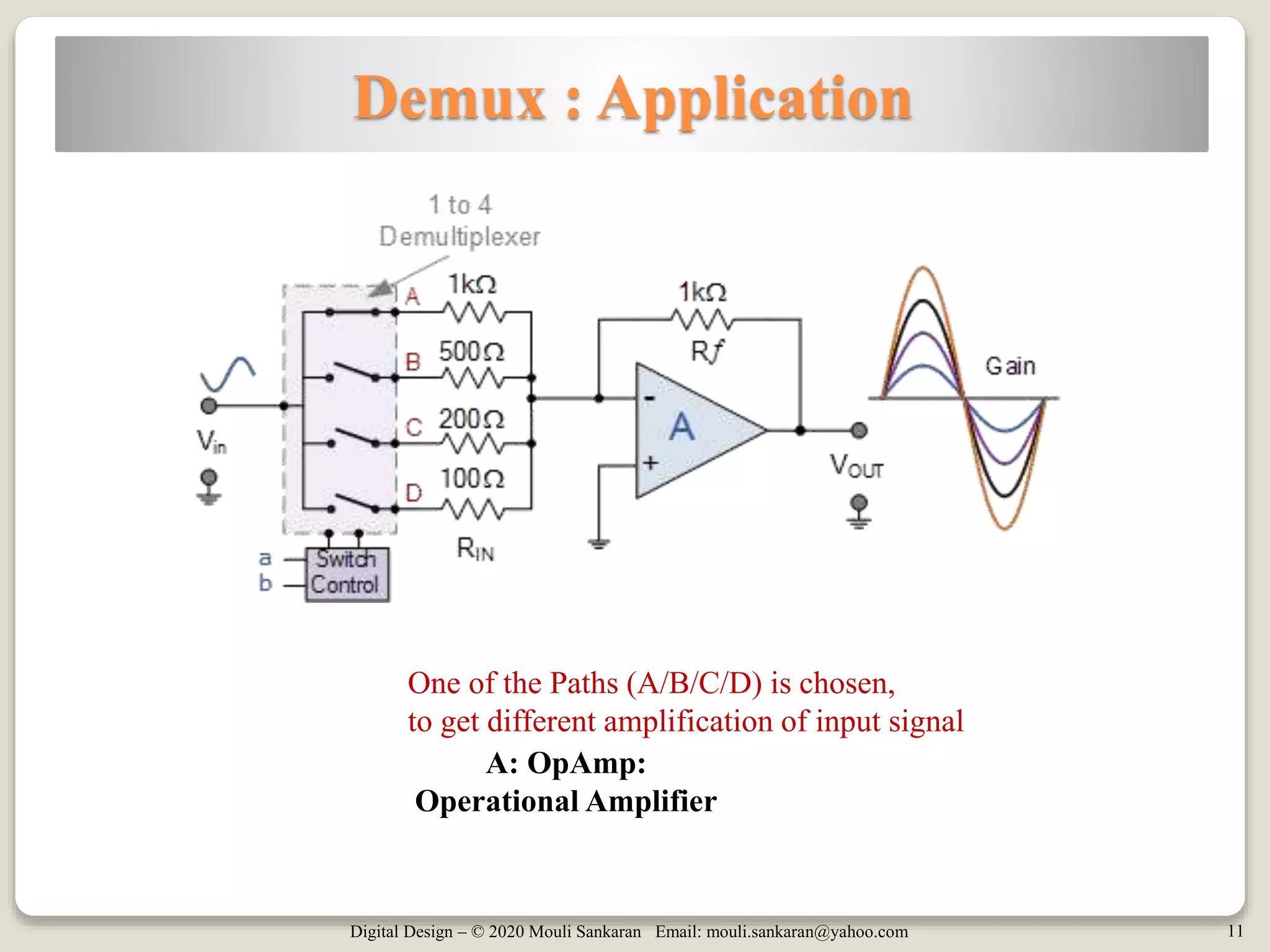

Demux : Application
One of the Paths (A/B/C/D) is chosen,
to get different amplification of input signal
A: OpAmp:
Operational Amplifier

12. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com
Solving Problems with Basic Gates

13. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 13
Problem 1: Draw the output waveform

14. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 14
Problem 2: Draw the output waveform

15. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 15

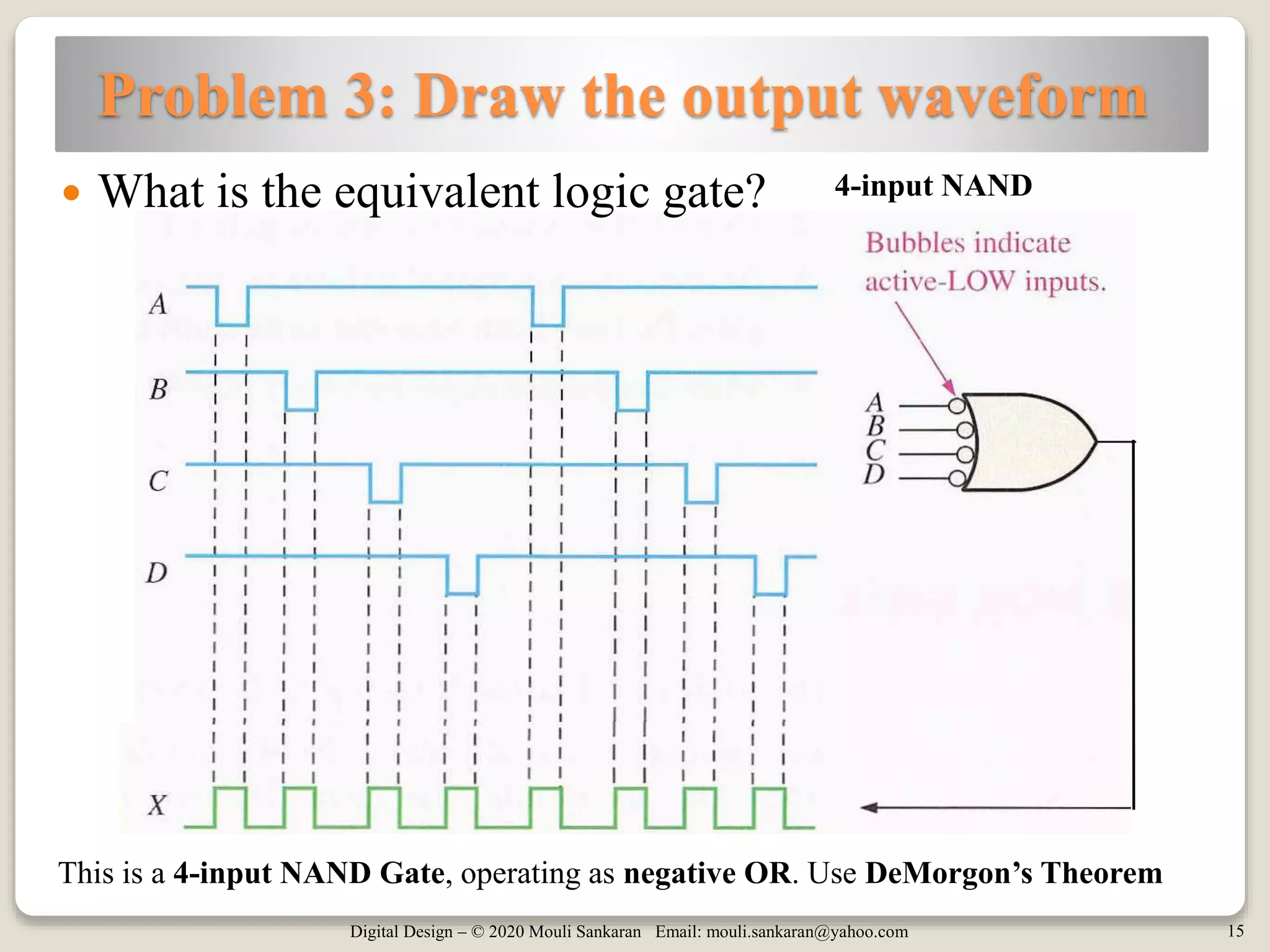

Problem 3: Draw the output waveform
This is a 4-input NAND Gate, operating as negative OR. Use DeMorgon’s Theorem
 What is the equivalent logic gate? 4-input NAND

16. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 16

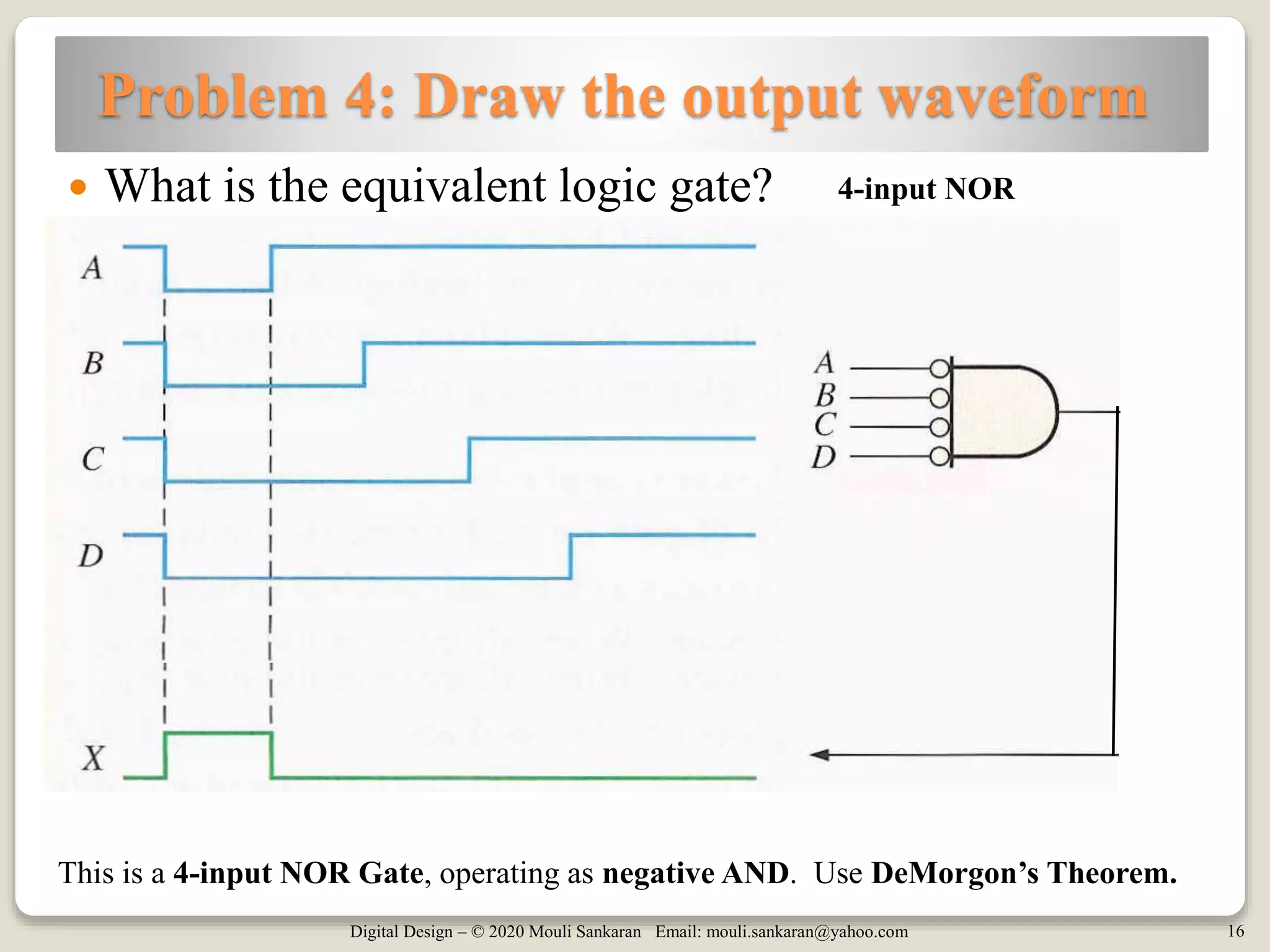

Problem 4: Draw the output waveform
This is a 4-input NOR Gate, operating as negative AND. Use DeMorgon’s Theorem.
 What is the equivalent logic gate? 4-input NOR

17. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 17
Problem 5: Draw the output waveform

18. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 18
Problem 6: Draw the output waveforms
XNOR Gate
XOR Gate

19. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com
Solving Some Logical Problems

20. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 20
Problem 7: When does the alarm sound?
 The alarm sounds when any one of the three doors are opened.

21. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 21

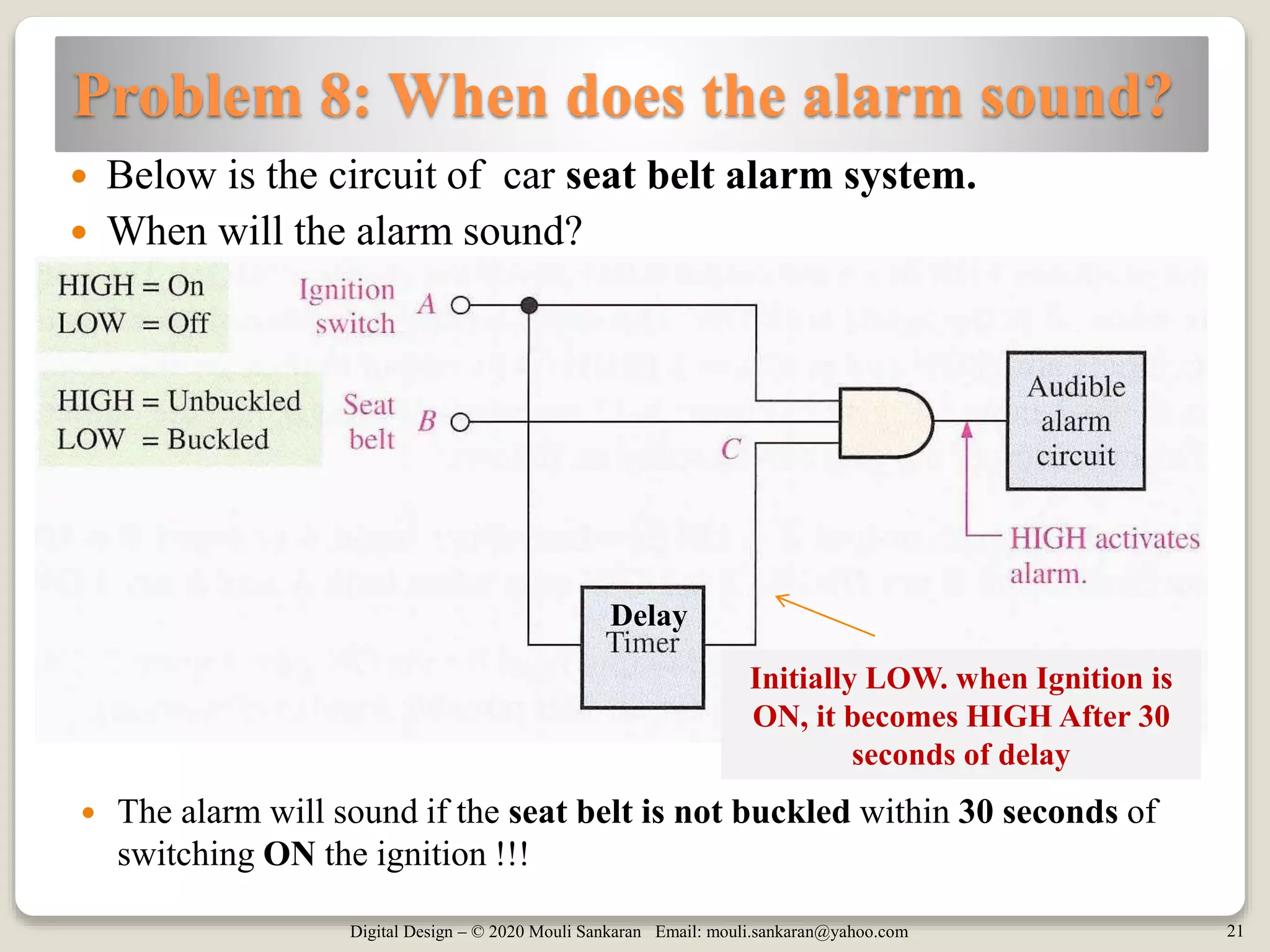

Problem 8: When does the alarm sound?
 Below is the circuit of car seat belt alarm system.
 When will the alarm sound?
 The alarm will sound if the seat belt is not buckled within 30 seconds of
switching ON the ignition !!!
Delay
Initially LOW. when Ignition is
ON, it becomes HIGH After 30
seconds of delay

22. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 22
Problem 9: Staircase Two-way Switch
How does it work?

23. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com
Home Work Problems

24. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 24
HW 1: Draw the output waveform

25. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 25
HW 2: Draw the output waveform

26. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 26

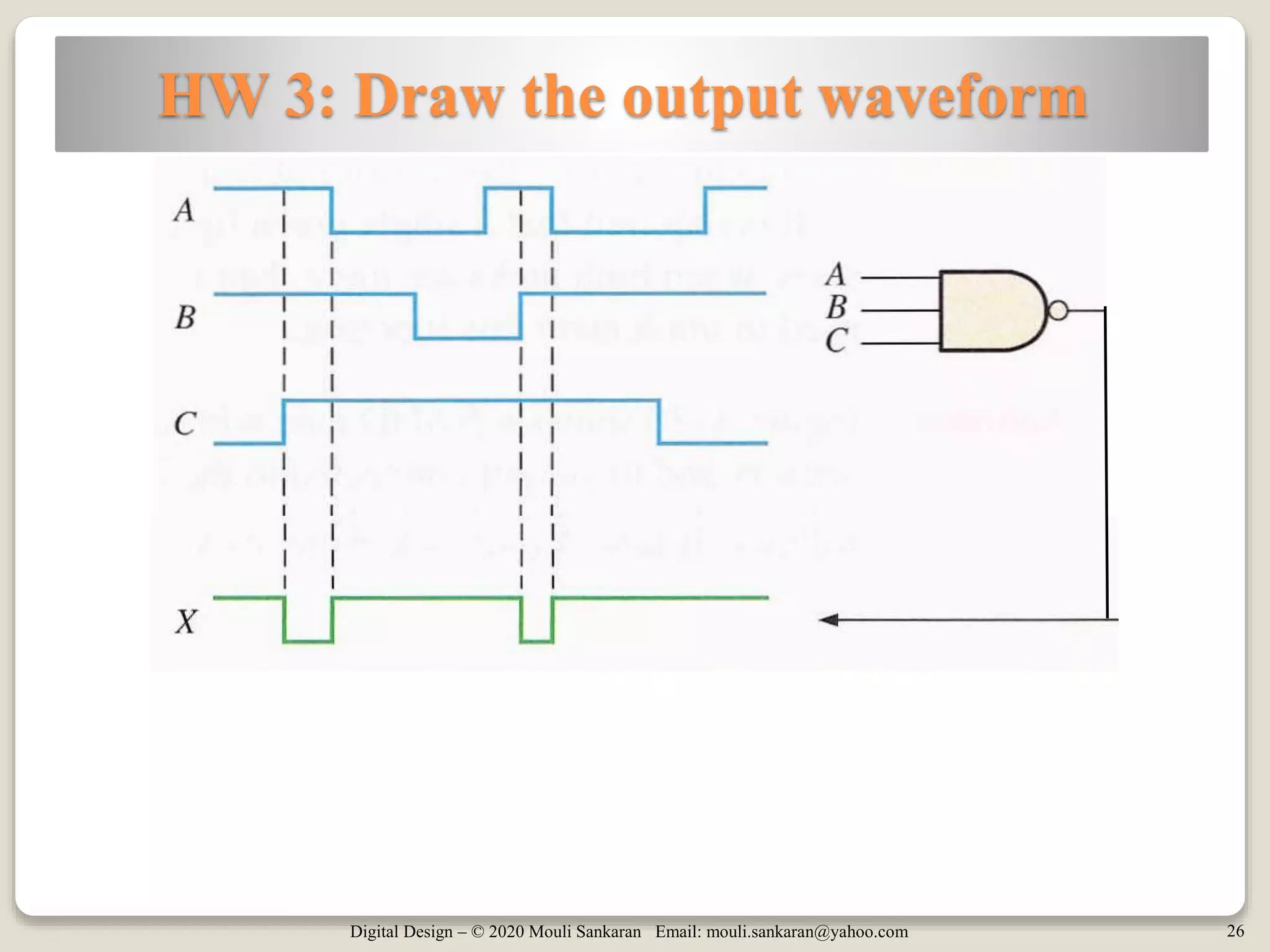

HW 3: Draw the output waveform

27. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 27
HW 4: Draw the output waveform

28. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com
Solving Problems
with
K-maps

29. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 29

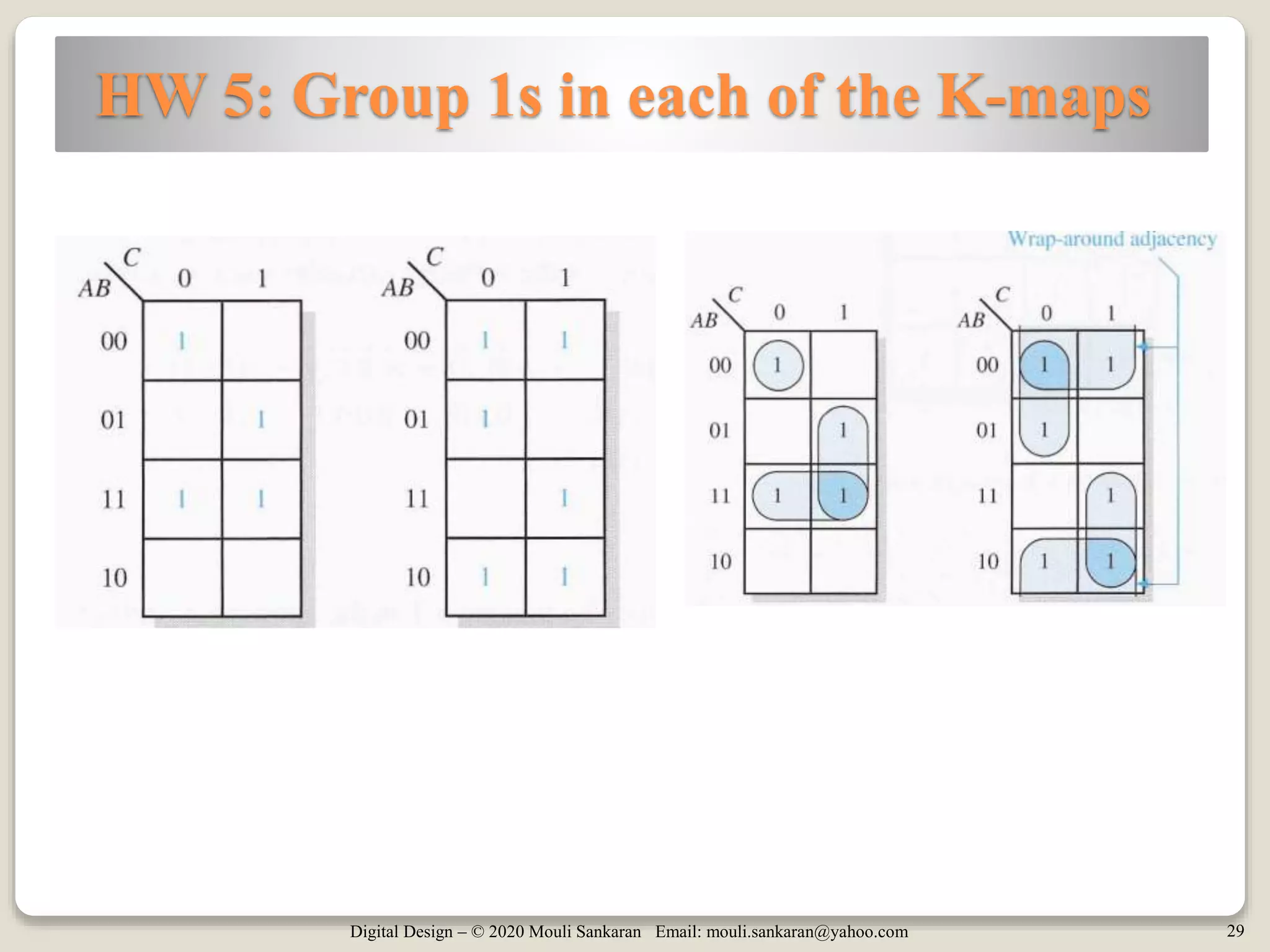

HW 5: Group 1s in each of the K-maps

30. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 30
HW 6: Group the 1s the K-map

31. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 31
HW 7: Find the SOP terms

32. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 32

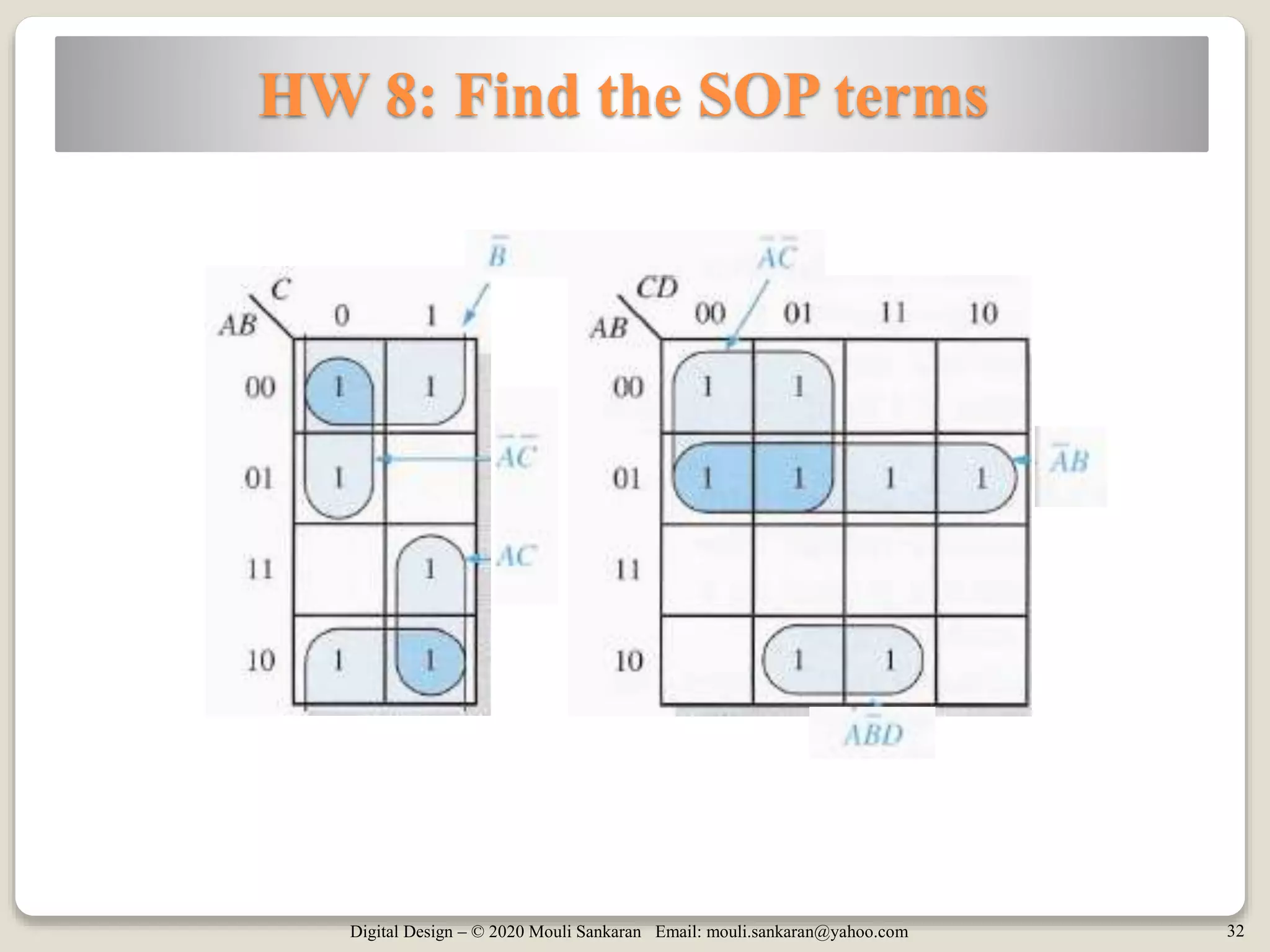

HW 8: Find the SOP terms

33. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 33
HW 9: Map to K-map from Truth table
What is the simplified expression in sum-of-products form? AB

34. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 34
HW 10: Find the POS terms

35. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 35

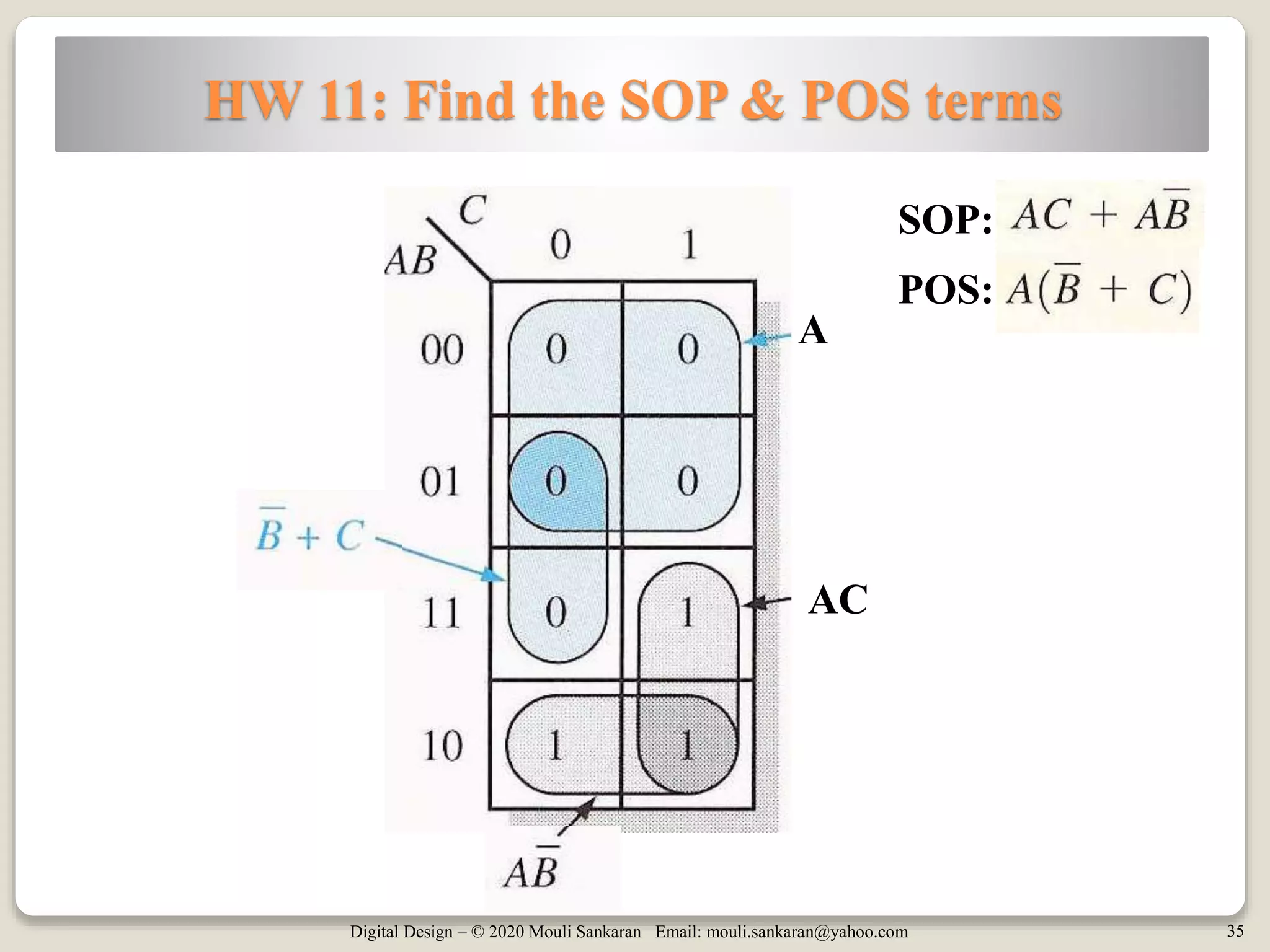

HW 11: Find the SOP & POS terms
A
AC
SOP:
POS:

36. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 36
HW 12: Group the 1s in the K-map

37. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 37

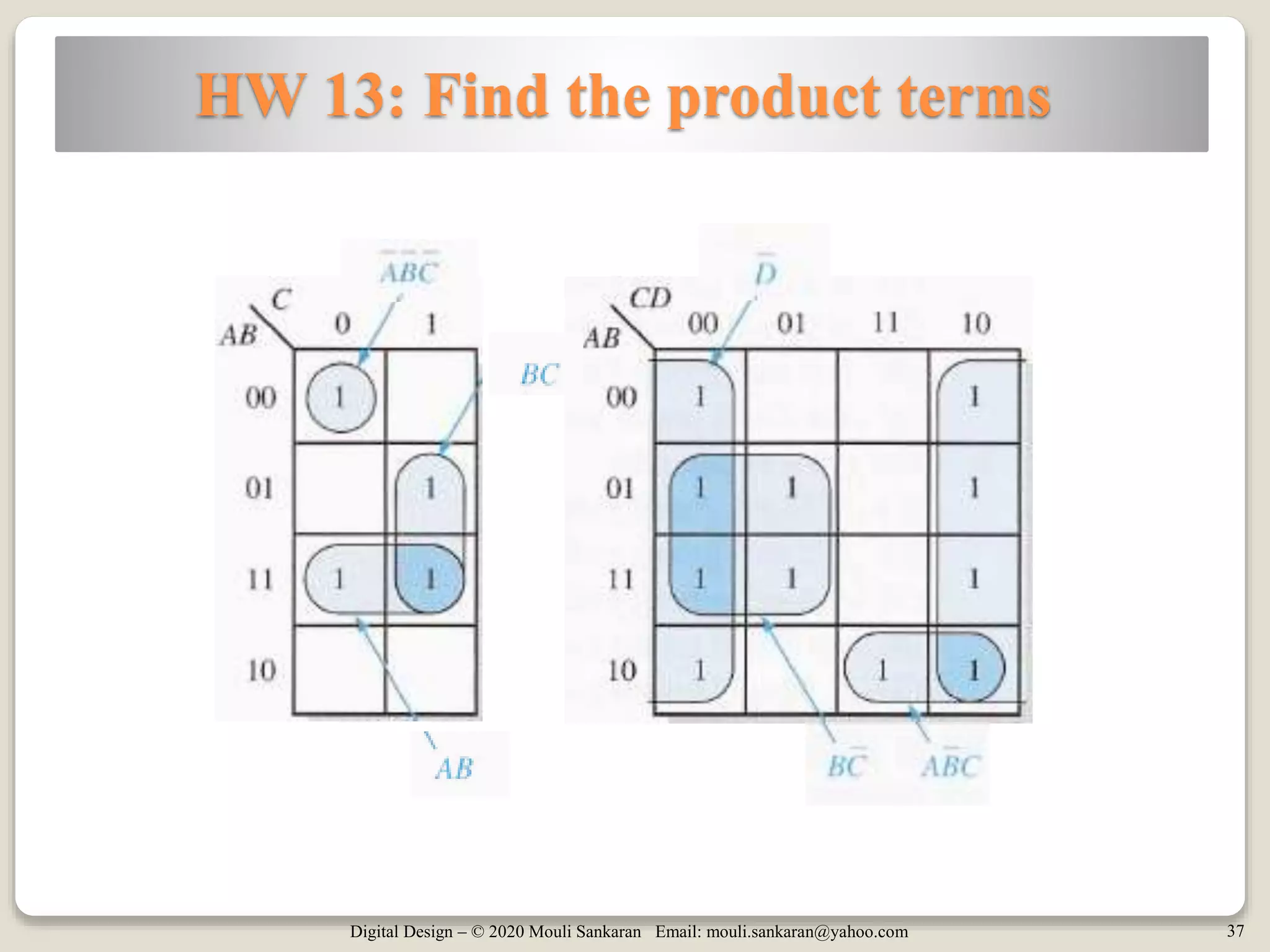

HW 13: Find the product terms

38. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 38
HW 14: Simplify using 5-variable K-map

39. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 39

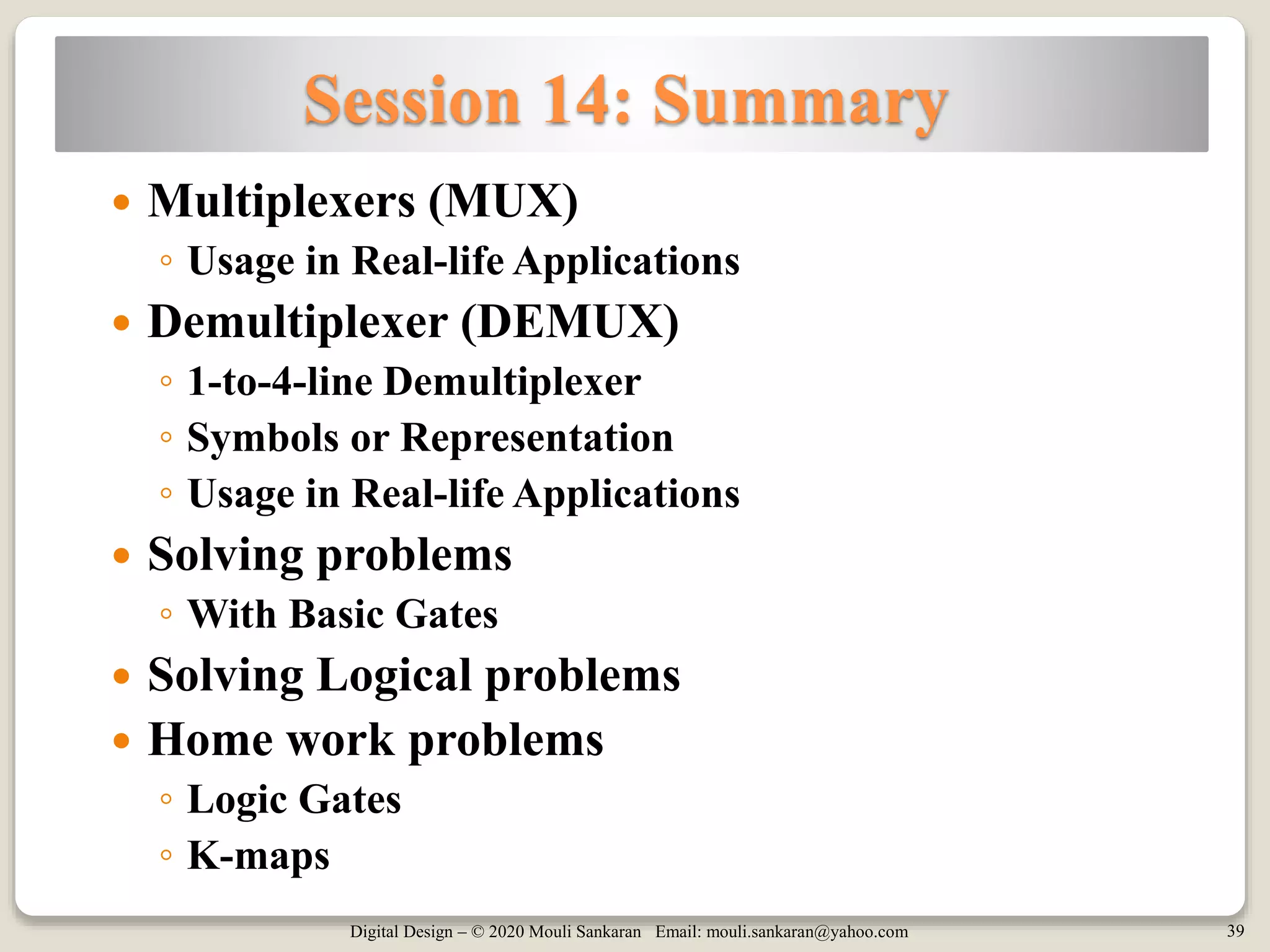

Session 14: Summary
 Multiplexers (MUX)
◦ Usage in Real-life Applications
 Demultiplexer (DEMUX)
◦ 1-to-4-line Demultiplexer
◦ Symbols or Representation
◦ Usage in Real-life Applications
 Solving problems
◦ With Basic Gates
 Solving Logical problems
 Home work problems
◦ Logic Gates
◦ K-maps

40. Digital Design – © 2020 Mouli Sankaran Email: mouli.sankaran@yahoo.com 40
References
Ref 1 Ref 2
