Basic antenas
- 1. Key Points 1. Principalsof EM Radiation 2. Introduction to Propagation & Antennas 3. Antenna Characterization 1

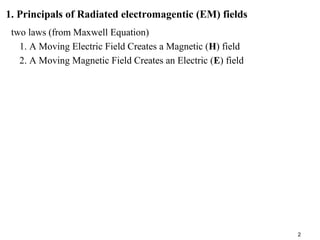

- 2. 1. Principals ofRadiated electromagentic (EM) fields two laws (from Maxwell Equation) 1. A Moving Electric Field Creates a Magnetic (H) field 2. A Moving Magnetic Field Creates an Electric (E) field 2

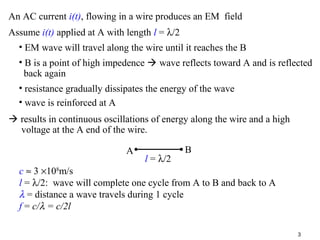

- 3. An AC currenti(t), flowing in a wire produces an EM field Assume i(t) applied at A with length l = λ/2 • EM wave will travel along the wire until it reaches the B • B is a point of high impedence wave reflects toward A and is reflected back again • resistance gradually dissipates the energy of the wave • wave is reinforced at A results in continuous oscillations of energy along the wire and a high voltage at the A end of the wire. A l = λ/2 B c ≈ 3 ×108m/s l = λ/2: wave will complete one cycle from A to B and back to A λ = distance a wave travels during 1 cycle f = c/λ = c/2l 3

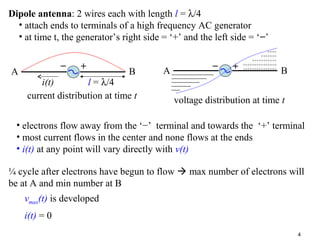

- 4. Dipole antenna: 2wires each with length l = λ/4 • attach ends to terminals of a high frequency AC generator • at time t, the generator’s right side = ‘+’ and the left side = ‘−’ − + B i(t) l = λ/4 current distribution at time t A − ------------------------------------------------------------------------ A + ++++ +++++++ +++++++++++ +++++++++++++++ +++++++++++++++ B voltage distribution at time t • electrons flow away from the ‘−’ terminal and towards the ‘+’ terminal • most current flows in the center and none flows at the ends • i(t) at any point will vary directly with v(t) ¼ cycle after electrons have begun to flow max number of electrons will be at A and min number at B vmax(t) is developed i(t) = 0 4

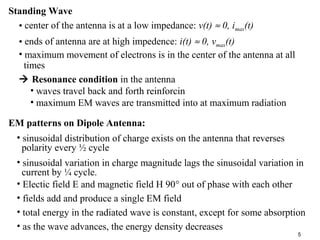

- 5. Standing Wave • centerof the antenna is at a low impedance: v(t) ≈ 0, imax(t) • ends of antenna are at high impedence: i(t) ≈ 0, vmax(t) • maximum movement of electrons is in the center of the antenna at all times Resonance condition in the antenna • waves travel back and forth reinforcin • maximum EM waves are transmitted into at maximum radiation EM patterns on Dipole Antenna: • sinusoidal distribution of charge exists on the antenna that reverses polarity every ½ cycle • sinusoidal variation in charge magnitude lags the sinusoidal variation in current by ¼ cycle. • Electic field E and magnetic field H 90° out of phase with each other • fields add and produce a single EM field • total energy in the radiated wave is constant, except for some absorption • as the wave advances, the energy density decreases 5
- 6. POLARIZATION • EM fieldis composed of electric & magnetic lines of force that are orthogonal to each other • E determines the direction of polarization of the wave vertical polarization: electric force lines lie in a vertical direction horizontal polarization : electric force lines lie in a horizontal direction circular polarization: electric force lines rotate 360° every cycle An antenna extracts maximumenergy from a passing EM wave when it is oriented in the same direction as E • use vertical antenna for the efficient reception of vertically polarized waves • use horizontal antenna for the reception of horizontally polarized waves if E rotates as the wave travels through space wave has. horizontal and vertical components 6

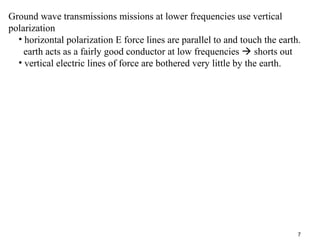

- 7. Ground wave transmissionsmissions at lower frequencies use vertical polarization • horizontal polarization E force lines are parallel to and touch the earth. earth acts as a fairly good conductor at low frequencies shorts out • vertical electric lines of force are bothered very little by the earth. 7
- 8. 2. Introduction toAntennas and Propagation Types of antennas • simple antennas: dipole, long wire • complex antennas: additional components to shape radiated field provide high gain for long distances or weak signal reception size ≈ frequency of operation • combinations of identical antennas phased arrays electrically shape and steer antenna transmit antenna: radiate maximum energy into surroundings receive antenna: capture maximum energy from surrounding • radiating transmission line is technically an antenna • good transmission line = poor antenna 8
- 9. Transition from guidedwave to free space wave 9

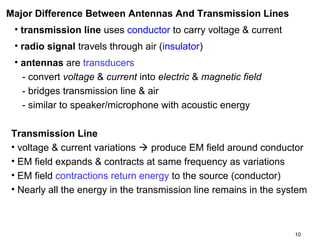

- 10. Major Difference BetweenAntennas And Transmission Lines • transmission line uses conductor to carry voltage & current • radio signal travels through air (insulator) • antennas are transducers - convert voltage & current into electric & magnetic field - bridges transmission line & air - similar to speaker/microphone with acoustic energy Transmission Line • voltage & current variations produce EM field around conductor • EM field expands & contracts at same frequency as variations • EM field contractions return energy to the source (conductor) • Nearly all the energy in the transmission line remains in the system 10
- 11. Antenna • Designed toPrevent most of the Energy from returning to Conductor • Specific Dimensions & EM wavelengths cause field to radiate several λ before the Cycle Reversal - Cycle Reversal - Field Collapses Energy returns to Conductor - Produces 3-Dimensional EM field - Electric Field ⊥ Magnetic Field - Wave Energy Propagation ⊥ Electric Field & Magnetic Field 11

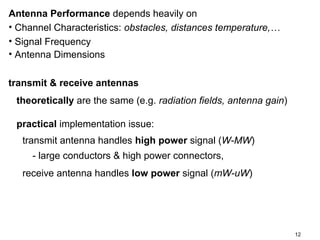

- 12. Antenna Performance dependsheavily on • Channel Characteristics: obstacles, distances temperature,… • Signal Frequency • Antenna Dimensions transmit & receive antennas theoretically are the same (e.g. radiation fields, antenna gain) practical implementation issue: transmit antenna handles high power signal (W-MW) - large conductors & high power connectors, receive antenna handles low power signal (mW-uW) 12

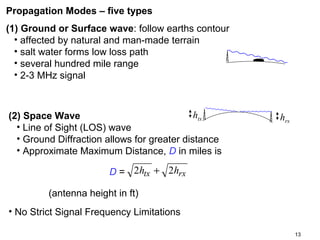

- 13. Propagation Modes –five types (1) Ground or Surface wave: follow earths contour • affected by natural and man-made terrain • salt water forms low loss path • several hundred mile range • 2-3 MHz signal htx (2) Space Wave • Line of Sight (LOS) wave • Ground Diffraction allows for greater distance • Approximate Maximum Distance, D in miles is hrx D = 2htx + 2hrx (antenna height in ft) • No Strict Signal Frequency Limitations 13

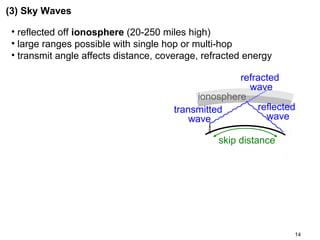

- 14. (3) Sky Waves •reflected off ionosphere (20-250 miles high) • large ranges possible with single hop or multi-hop • transmit angle affects distance, coverage, refracted energy refracted wave ionosphere reflected transmitted wave wave skip distance 14

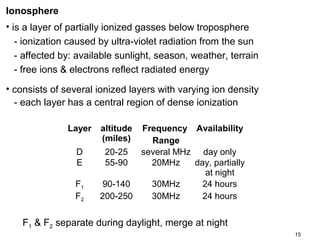

- 15. Ionosphere • is alayer of partially ionized gasses below troposphere - ionization caused by ultra-violet radiation from the sun - affected by: available sunlight, season, weather, terrain - free ions & electrons reflect radiated energy • consists of several ionized layers with varying ion density - each layer has a central region of dense ionization Layer D E F1 F2 altitude (miles) Frequency Availability Range 20-25 several MHz day only 55-90 20MHz day, partially at night 90-140 30MHz 24 hours 200-250 30MHz 24 hours F1 & F2 separate during daylight, merge at night 15
- 16. Usable Frequency andAngles Critical Frequency: frequency that won’t reflect vertical transmission - critical frequency is relative to each layer of ionosphere - as frequency increases eventually signal will not reflect Maximum Usable Frequency (MUF): highest frequency useful for reflected transmissions - absorption by ionosphere decreases at higher frequencies - absorption of signal energy = signal loss - best results when MUF is used Frequency Trade-Off • high frequency signals eventually will not reflect back to ground • lower frequency signals are attenuated more in the ionosphere 16
- 17. Critical Angle angle ofradiation: transmitted energy relative to surface tangent - smaller angle requires less ionospheric refraction to return to earth - too large an angle results in no reflection - 3o-60o are common angles critical angle: maximum angle of radiation that will reflect energy to earth Determination of minimum skip distance: - critical angle - small critical angle long skip distance - height of ionosphere - higher layers give longer skip distances for a fixed angle multipath: signal takes different paths to the destination ionosphere angle of radiation 17

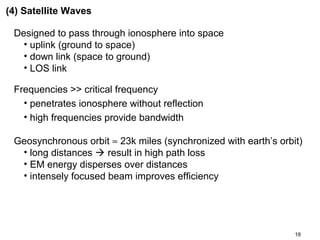

- 18. (4) Satellite Waves Designedto pass through ionosphere into space • uplink (ground to space) • down link (space to ground) • LOS link Frequencies >> critical frequency • penetrates ionosphere without reflection • high frequencies provide bandwidth Geosynchronous orbit ≈ 23k miles (synchronized with earth’s orbit) • long distances result in high path loss • EM energy disperses over distances • intensely focused beam improves efficiency 18

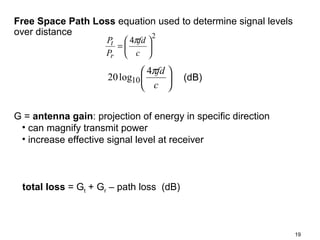

- 19. Free Space PathLoss equation used to determine signal levels over distance 2 Pt 4πfd = Pr c 4πfd 20 log10 c (dB) G = antenna gain: projection of energy in specific direction • can magnify transmit power • increase effective signal level at receiver total loss = Gt + Gr – path loss (dB) 19

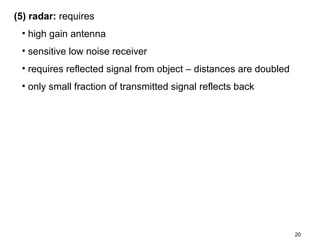

- 20. (5) radar: requires •high gain antenna • sensitive low noise receiver • requires reflected signal from object – distances are doubled • only small fraction of transmitted signal reflects back 20

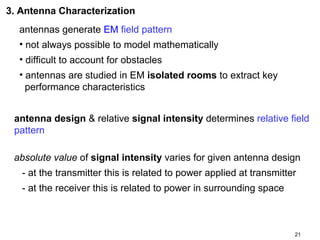

- 21. 3. Antenna Characterization antennasgenerate EM field pattern • not always possible to model mathematically • difficult to account for obstacles • antennas are studied in EM isolated rooms to extract key performance characteristics antenna design & relative signal intensity determines relative field pattern absolute value of signal intensity varies for given antenna design - at the transmitter this is related to power applied at transmitter - at the receiver this is related to power in surrounding space 21

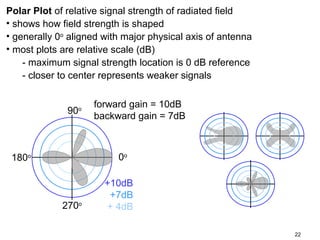

- 22. Polar Plot ofrelative signal strength of radiated field • shows how field strength is shaped • generally 0o aligned with major physical axis of antenna • most plots are relative scale (dB) - maximum signal strength location is 0 dB reference - closer to center represents weaker signals 90 o forward gain = 10dB backward gain = 7dB 0o 180o 270o +10dB +7dB + 4dB 22

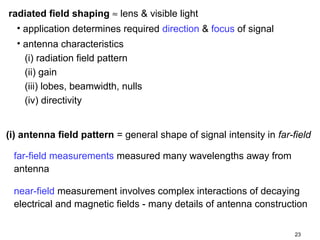

- 23. radiated field shaping≈ lens & visible light • application determines required direction & focus of signal • antenna characteristics (i) radiation field pattern (ii) gain (iii) lobes, beamwidth, nulls (iv) directivity (i) antenna field pattern = general shape of signal intensity in far-field far-field measurements measured many wavelengths away from antenna near-field measurement involves complex interactions of decaying electrical and magnetic fields - many details of antenna construction 23

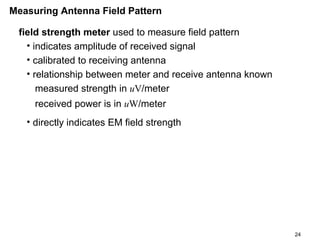

- 24. Measuring Antenna FieldPattern field strength meter used to measure field pattern • indicates amplitude of received signal • calibrated to receiving antenna • relationship between meter and receive antenna known measured strength in uV/meter received power is in uW/meter • directly indicates EM field strength 24
- 25. Determination of overallAntenna Field Pattern form Radiation Polar Plot Pattern • use nominal field strength value (e.g. 100uV/m) • measure points for 360o around antenna • record distance & angle from antenna • connect points of equal field strength practically • distance between meter & antenna kept constant 90o • antenna is rotated • plot of field strength versus angle is made 0o 180o 270o 100 uV/m 25
- 26. Why Shape theAntenna Field Pattern ? • transmit antennas: produce higher effective power in direction of intended receiver • receive antennas: concentrate energy collecting ability in direction of transmitter - reduced noise levels - receiver only picks up intended signal • avoid unwanted receivers (multiple access interference = MAI): - security - multi-access systems • locate target direction & distance – e.g. radar not always necessary to shape field pattern, standard broadcast is often omnidirectional - 360o 26

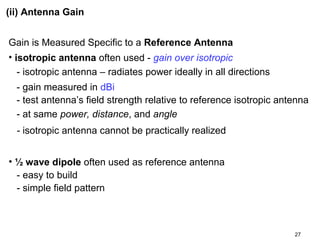

- 27. (ii) Antenna Gain Gainis Measured Specific to a Reference Antenna • isotropic antenna often used - gain over isotropic - isotropic antenna – radiates power ideally in all directions - gain measured in dBi - test antenna’s field strength relative to reference isotropic antenna - at same power, distance, and angle - isotropic antenna cannot be practically realized • ½ wave dipole often used as reference antenna - easy to build - simple field pattern 27

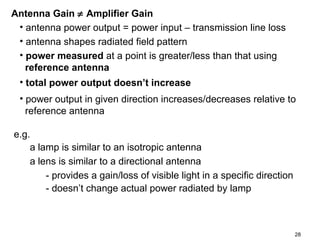

- 28. Antenna Gain ≠Amplifier Gain • antenna power output = power input – transmission line loss • antenna shapes radiated field pattern • power measured at a point is greater/less than that using reference antenna • total power output doesn’t increase • power output in given direction increases/decreases relative to reference antenna e.g. a lamp is similar to an isotropic antenna a lens is similar to a directional antenna - provides a gain/loss of visible light in a specific direction - doesn’t change actual power radiated by lamp 28
- 29. • transmit antennawith 6dB gain in specific direction over isotropic antenna 4× transmit power in that direction • receive antenna with 3dB gain is some direction receives 2× as much power than reference antenna Antenna Gain often a cost effective means to (i) increase effective transmit power (ii) effectively improve receiver sensitivity may be only technically viable means • more power may not be available (batteries) • front end noise determines maximum receiver sensitivity Rotational Antennas can vary direction of antenna gain Directional Antennas focus antenna gain in primary direction 29

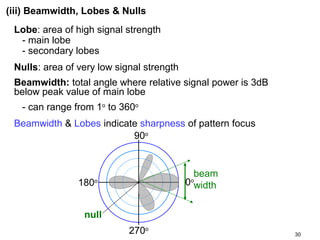

- 30. (iii) Beamwidth, Lobes& Nulls Lobe: area of high signal strength - main lobe - secondary lobes Nulls: area of very low signal strength Beamwidth: total angle where relative signal power is 3dB below peak value of main lobe - can range from 1o to 360o Beamwidth & Lobes indicate sharpness of pattern focus 90o beam 0 width 180 o o null 270o 30
- 31. Center Frequency =optimum operating frequency Antenna Bandwidth ≡ -3dB points of antenna performance Bandwidth Ratio: Bandwidth/Center Frequency e.g. fc = 100MHz with 10MHz bandwidth - radiated power at 95MHz & 105MHz = ½ radiated power at fc - bandwidth ratio = 10/100 = 10% 31
- 32. Antenna Design Basics MainTrade-offs for Antenna Design • directivity & beam width • acceptable lobes • maximum gain • bandwidth • radiation angle Bandwidth Issues High Bandwidth Antennas tend to have less gain than narrowband antennas Narrowband Receive Antenna reduces interference from adjacent signals & reduce received noise power Antenna Dimensions • operating frequencies determine physical size of antenna elements • design often uses λ as a variable (e.g. 1.5 λ length, 0.25 λ spacing) 32

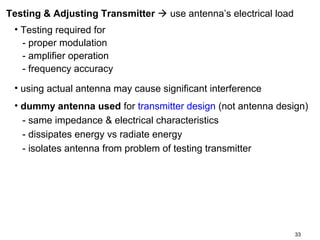

- 33. Testing & AdjustingTransmitter use antenna’s electrical load • Testing required for - proper modulation - amplifier operation - frequency accuracy • using actual antenna may cause significant interference • dummy antenna used for transmitter design (not antenna design) - same impedance & electrical characteristics - dissipates energy vs radiate energy - isolates antenna from problem of testing transmitter 33

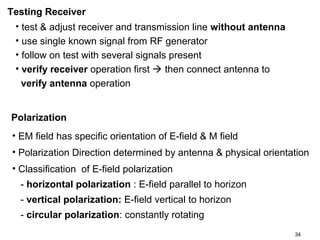

- 34. Testing Receiver • test& adjust receiver and transmission line without antenna • use single known signal from RF generator • follow on test with several signals present • verify receiver operation first then connect antenna to verify antenna operation Polarization • EM field has specific orientation of E-field & M field • Polarization Direction determined by antenna & physical orientation • Classification of E-field polarization - horizontal polarization : E-field parallel to horizon - vertical polarization: E-field vertical to horizon - circular polarization: constantly rotating 34

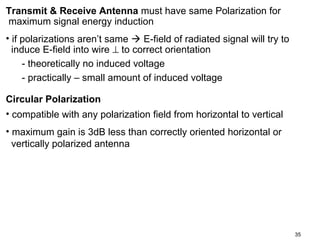

- 35. Transmit & ReceiveAntenna must have same Polarization for maximum signal energy induction • if polarizations aren’t same E-field of radiated signal will try to induce E-field into wire ⊥ to correct orientation - theoretically no induced voltage - practically – small amount of induced voltage Circular Polarization • compatible with any polarization field from horizontal to vertical • maximum gain is 3dB less than correctly oriented horizontal or vertically polarized antenna 35

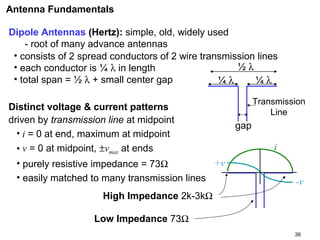

- 36. Antenna Fundamentals Dipole Antennas(Hertz): simple, old, widely used - root of many advance antennas • consists of 2 spread conductors of 2 wire transmission lines ½λ • each conductor is ¼ λ in length • total span = ½ λ + small center gap ¼λ ¼λ Distinct voltage & current patterns driven by transmission line at midpoint • i = 0 at end, maximum at midpoint • v = 0 at midpoint, ±vmax at ends +v • purely resistive impedance = 73Ω • easily matched to many transmission lines Transmission Line gap i -v High Impedance 2k-3kΩ Low Impedance 73Ω 36

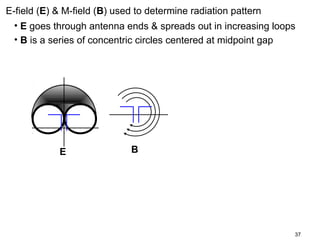

- 37. E-field (E) &M-field (B) used to determine radiation pattern • E goes through antenna ends & spreads out in increasing loops • B is a series of concentric circles centered at midpoint gap E B 37

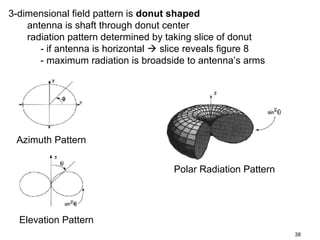

- 38. 3-dimensional field patternis donut shaped antenna is shaft through donut center radiation pattern determined by taking slice of donut - if antenna is horizontal slice reveals figure 8 - maximum radiation is broadside to antenna’s arms Azimuth Pattern Polar Radiation Pattern Elevation Pattern 38

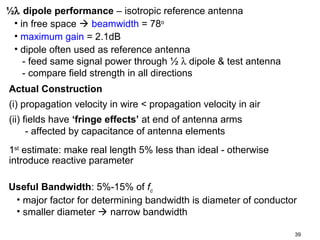

- 39. ½λ dipole performance– isotropic reference antenna • in free space beamwidth = 78o • maximum gain = 2.1dB • dipole often used as reference antenna - feed same signal power through ½ λ dipole & test antenna - compare field strength in all directions Actual Construction (i) propagation velocity in wire < propagation velocity in air (ii) fields have ‘fringe effects’ at end of antenna arms - affected by capacitance of antenna elements 1st estimate: make real length 5% less than ideal - otherwise introduce reactive parameter Useful Bandwidth: 5%-15% of fc • major factor for determining bandwidth is diameter of conductor • smaller diameter narrow bandwidth 39

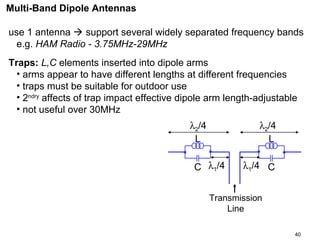

- 40. Multi-Band Dipole Antennas use1 antenna support several widely separated frequency bands e.g. HAM Radio - 3.75MHz-29MHz Traps: L,C elements inserted into dipole arms • arms appear to have different lengths at different frequencies • traps must be suitable for outdoor use • 2ndry affects of trap impact effective dipole arm length-adjustable • not useful over 30MHz λ2/4 L λ2/4 L C λ1/4 λ1/4 C Transmission Line 40

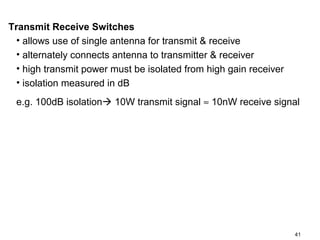

- 41. Transmit Receive Switches •allows use of single antenna for transmit & receive • alternately connects antenna to transmitter & receiver • high transmit power must be isolated from high gain receiver • isolation measured in dB e.g. 100dB isolation 10W transmit signal ≈ 10nW receive signal 41

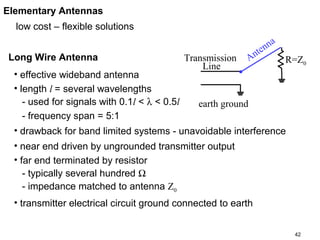

- 42. Elementary Antennas low cost– flexible solutions Long Wire Antenna • effective wideband antenna • length l = several wavelengths - used for signals with 0.1l < λ < 0.5l - frequency span = 5:1 Transmission Line n en nt A a R=Z0 earth ground • drawback for band limited systems - unavoidable interference • near end driven by ungrounded transmitter output • far end terminated by resistor - typically several hundred Ω - impedance matched to antenna Z0 • transmitter electrical circuit ground connected to earth 42

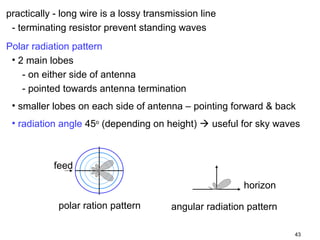

- 43. practically - longwire is a lossy transmission line - terminating resistor prevent standing waves Polar radiation pattern • 2 main lobes - on either side of antenna - pointed towards antenna termination • smaller lobes on each side of antenna – pointing forward & back • radiation angle 45o (depending on height) useful for sky waves feed horizon polar ration pattern angular radiation pattern 43
- 44. poor efficiency: transmit power -50% of transmit power radiated - 50% dissapated in termination resistor receive power - 50% captured EM energy converted to signal for reciever - 50% absorbed by terminating resistor 44

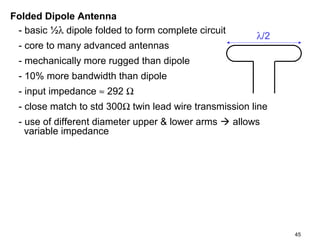

- 45. Folded Dipole Antenna -basic ½λ dipole folded to form complete circuit - core to many advanced antennas λ/2 - mechanically more rugged than dipole - 10% more bandwidth than dipole - input impedance ≈ 292 Ω - close match to std 300Ω twin lead wire transmission line - use of different diameter upper & lower arms allows variable impedance 45

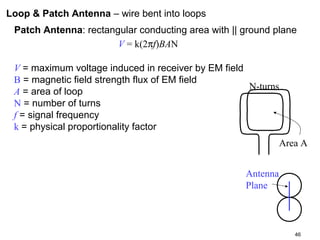

- 46. Loop & PatchAntenna – wire bent into loops Patch Antenna: rectangular conducting area with || ground plane V = k(2πf)BAN V = maximum voltage induced in receiver by EM field B = magnetic field strength flux of EM field N-turns A = area of loop N = number of turns f = signal frequency k = physical proportionality factor Area A Antenna Plane 46

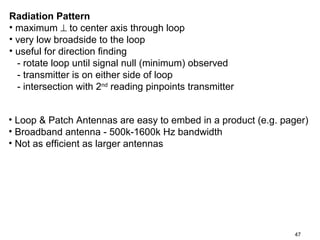

- 47. Radiation Pattern • maximum⊥ to center axis through loop • very low broadside to the loop • useful for direction finding - rotate loop until signal null (minimum) observed - transmitter is on either side of loop - intersection with 2nd reading pinpoints transmitter • Loop & Patch Antennas are easy to embed in a product (e.g. pager) • Broadband antenna - 500k-1600k Hz bandwidth • Not as efficient as larger antennas 47
