This document provides a detailed study of cockroaches, specifically focusing on the species Periplaneta americana and Blatta orientalis. It covers their systematic classification, external and internal anatomy, nervous and circulatory systems, respiratory functions, and reproductive biology. The text highlights key features such as their omnivorous diet, nocturnal behavior, and structural adaptations for survival.

1. Study of Animal Type

2. dr. aarif

3. dr. aarif

4. SYSTEMATIC
POSITION
Kingdom: Animalia
Phylum: Arthropoda (Arthos -
jointed; poda- legs).
They have jointed appendages.
Body is chitinous and segmented.
Class: Insecta (They possess two
pairs of flight appendages- wings
and three pairs of walking legs).
Genus: Periplaneta (straight wings,
nocturnal, chewing type of mouth
parts)
Species: americana (origin in
Mexico, USA
dr. aarif

5. Periplaneta americana Blatta orientalis
i. It is lighter in color. i. It is darker in color.
i. It is about 38 mm long. i. It is about 25 mm long.
i. Wings are present in both the sexes i. Wings are rudimentary in the female
and extend beyond the posterior end and
of the body. do not reach the hind end of the body
in
the male. dr. aarif

6. Cockroaches are omnipresent usually found in
warm, dark damp places such as kitchens, store
houses, manholes etc.
They are nocturnal i.e. they are active at night
and come out for feeding. During the day time
they hide themselves in the cracks and crevices
or under the objects in kitchen, cupboards, etc.
They are omnivorous and feed on all plant and
animal material.
They are cursorial in nature i.e. they are fast
runners.
They have wings and can fly but rarely do they
exhibit their ability to fly.
dr. aarif

7. EXTERNAL FEATURES OF COCKROACH
Dorso-ventrally flattened body
Reddish-brown
3 to 5 cm in length
1.5 to 2 cm in breadth
bilaterally symmetrical,
triploblastic and coelomate
water proof chitinous exoskeleton
With hardened plates called sclerites
Each segment subdivided into four plates namely:
dorsal tergum, ventral sternum and two lateral pleurons
dr. aarif

8. BODY DIVISIONS
dr. aarif

9. HEAD
Ovate, flattened dorso-ventrally ,pear-shaped,
attached at the right angles to the thorax by a
thin, narrow, movable neck or cervicum.
Head is formed of six sclerites. These fuse in
adults and form the head capsule.
Head bears four important parts:
1. COMPOUND EYES
2. ANTENNAE
3. FENESTRAE
4. MOUTH PARTS OR TROPHI-MOUTH PARTS
dr. aarif

10. COMPOUND EYES
These are paired, dark, kidney shaped structures
placed on the lateral sides of the head and are
made up of large number of hexagonal facets
called ommatidia (singular-ommatidium).
Each ommatidium acts as a single simple eye and
forms a part of image of an object.
All the images combine together in the brain &
form a complete single blur mosaic image.
A single ommatidium
dr. aarif

11. ANTENNAE
- They are paired, long slender filamentous,
many jointed structures present between
the compound eyes.
- They are lodged in the membranous pits
called antennal sockets. These are the
tacto-receptors or organs of olfaction
(sense of smell) useful in localizing the food
material in the vicinity.
- Antennae have sensory receptors that help
in monitoring the environment.
FENESTRAE
- They are also called the oscillar spots
situated at the base of each antenna and
they appear as white spots.
- They are sensitive to light.
dr. aarif

12. MOUTH :
They are of chewing and biting type because they are used for masticating
the food.
These are movable, segmented appendages which assist in ingestion of
food
Parts of the mouth : Labrum, Maxilla, Mandible and Labrum
dr. aarif

13. LABRUM :
Labrum or upper lip is flap like or
shield like movable structure which
covers the mouth from the upper
side.
Thus, it forms the anterior wall (roof)
of the mouth cavity.
It is also useful in holding of the food
during feeding.
It bears on its inner surface a
chitinous ridge called the epipharynx.
The epipharynx carries the taste
receptors
dr. aarif

14. MANDIBLES
Mandibles or true jaws are two
dark, hard chitinous structures
with serrated margins with
teeth present below the labium
on either side of the mouth.
These are useful in cutting and
crushing the food.
dr. aarif

15. dr. aarif

16. MAXILLAE
Maxillae or accessory jaws are paired
appendages situated on the either side
of the mouth behind the mandibles.
Each maxilla is many jointed structure
with maxillary palp.
These are also called first pair of
maxillae.
dr. aarif

17. LABIUM
Labium or lower lip is also called the
second maxillae which covers the
mouth from the ventral side and is
firmly attached to the posterior part of
head.
It has labial palp which is three jointed.
These are sensory in function.
Labium is useful in pushing the chewed
food in the preoral cavity and also
prevents the loss of food falling from
mandibles during the chewing.
dr. aarif

18. HYPOPHARYNX
Hypo-pharynx or tongue is a
long, prominent medially
placed appendage.
It hangs in the preoral cavity
just in front of the labium
between the first maxillae.
It receives saliva from the
salivary duct and directs it on
to the food.
dr. aarif

19. THORAX
Thorax is made up of three distinct
segments:
Anterior prothorax,
middle mesothorax and
posterior metathorax.
The exoskeleton of each segment is
made of 4 sclerites, a dorsal tergum, a
ventral sternum and 2 lateral pleurons.
The mesothorax and metathorax bear a
pair of spiracles.
VENTRALLY : a pair of walking legs (all 3
segments)
DORSALLY : a pair of wings (meso and
meta)
dr. aarif

20. WINGS
Dorsally the thorax bears two pairs of
membranous wings- fore wing and hind wings.
Fore Wings:
Forewings are first pair of dark, opaque,
thick wings which are protective in
function.
Hind wings:
They are thin, broad membranous,
delicate and transparent second pair of wing
attached to tergum of metathorax. These are
useful in flight and hence are also called true
wings.
dr. aarif

21. LEGS
Three pairs of thoracic legs are present
on ventral side.
Each leg is five jointed or segmented and
is covered with the sensory bristles and
spines.
Each leg has five podomeres namely:
Coxa, Trochanter, Femur, Tibia, and
Tarsus
Tarsus is the last segment and is made up
of five movable segments or tarsomeres.
Last segment of the tarsus bears a pair of
claws and arolium helpful in clinging.
dr. aarif

23. The abdomen is the largest of the
three regions and contains most of
the viscera.
Its segmentation is conspicuous both
dorsally and ventrally.
The abdomen consists of 11
segments of which the 11th is
reduced and fused with the 10th so
that a maximum of ten segments are
distinct and visible.
Dorsally each segment is covered by
a tergite and, ventrally by a sternite.
Laterally, tergites and sternites are
connected by un-sclerotized flexible
pleura.
dr. aarif

24. Cockroaches exhibit sexual dimorphism.
In males, anal styles are present in
segment 9. These are absent in females.
Most abdominal segments lack
appendages but segment 10 bears a pair
of large, segmented cerci, called anal
cerci, which are visible in both dorsal
and ventral views. These are sensitive to
air movements, including sound, and
perhaps to ground vibrations.
Eight pairs of spiracles are present in
the abdomen.
Genital openings are present on
different segments in both the sexes
and are surrounded by the chitinous
plates in both, which are collectively
called gonapophyses.
dr. aarif

25. NERVOUS SYSTEM
dr. aarif

26. NERVOUS SYSTEM
Central Nervous System
Pereipheral Nervous System
Autonomic Nervous System
dr. aarif

27. Central Nervous System : 1. Nerve ring Perpheral Nervous System
2. Nerve cord
Protocerebrum 2 pairs of OPTIC nerves that innervate the
compound eyes
Supra oesophageal
ganglion
(BRAIN) Duetocerebrum 2 pairs ANTENNAL nerves. They supply to
the antennae
Tritocerebrum 2 pairs of nerves. They supply to labrum.
Nerve Circum oesophageal They arise from the supra oesophageal
ring connective ganglia and are a pair of nerves which are
connected to the sub oesophageal ganglia,
encircling the oesophagus
Sub oesophageal nerves that supply to the mandibles,
ganglion maxillae and labium.
dr. aarif

28. CNS PNS
Pro-thoracic 6 pairs
ganglion
Thoracic Nerve supply to the thoracic
Meso-thoracic 5 pairs
muscles, wings, legs and other
ganglion
internal organs found in the
thorax.
Meta-thoracic 5 pairs
ganglion
Nerve 1st abd. Ganglion (1)
cord
2nd abd. Ganglion (2)
Nerve supply to the organs
found in the abdomen to
3rd abd. Ganglion (3)
control respiration, circulation
4th abd. Ganglion (4) and movements of alimentary
canal
Abdominal 5th abd. Ganglion (5)
6th abd. Ganglion (7) dr. aarif

29. Autonomic Nervous System
Autonomous is also called somatogastric or visceral nervous system.
It includes 4 nerve ganglia and nerves which connect them and supply to visceral organs.
The nerve ganglia are:
Frontal ganglion: It is present on the pharynx, just in front of the brain.
Occipital ganglion or Hypocerebral ganglion: It is present behind the brain
above the oesophagus.
Visceral ganglion or Ingluvial ganglion: It is present on the wall of crop.
Proventricular ganglion: It is present on gizzard.
Somatogastric nervous system supply nerves to alimentary canal, heart and other visceral
organs.
It regulates the functions of those organs hence it is called visceral nervous system
dr. aarif

30. CIRCULATORY SYSTEM
dr. aarif

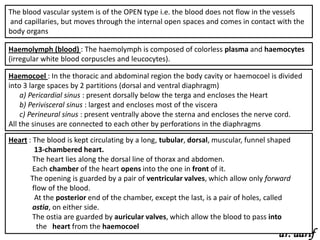

31. The blood vascular system is of the OPEN type i.e. the blood does not flow in the vessels
and capillaries, but moves through the internal open spaces and comes in contact with the
body organs
Haemolymph (blood) : The haemolymph is composed of colorless plasma and haemocytes
(irregular white blood corpuscles and leucocytes).
Haemocoel : In the thoracic and abdominal region the body cavity or haemocoel is divided
into 3 large spaces by 2 partitions (dorsal and ventral diaphragm)
a) Pericardial sinus : present dorsally below the terga and encloses the Heart
b) Perivisceral sinus : largest and encloses most of the viscera
c) Perineural sinus : present ventrally above the sterna and encloses the nerve cord.
All the sinuses are connected to each other by perforations in the diaphragms
Heart : The blood is kept circulating by a long, tubular, dorsal, muscular, funnel shaped
13-chambered heart.
The heart lies along the dorsal line of thorax and abdomen.
Each chamber of the heart opens into the one in front of it.
The opening is guarded by a pair of ventricular valves, which allow only forward
flow of the blood.
At the posterior end of the chamber, except the last, is a pair of holes, called
ostia, on either side.
The ostia are guarded by auricular valves, which allow the blood to pass into
the heart from the haemocoel
dr. aarif

32. dr. aarif

33. DIGESTIVE
SYSTEM
dr. aarif

34. Digestive System
Alimentary canal Digestive Glands
Foregut Midgut Hindgut Salivary Hepatic Glands of
Glands Caecae mesenteron
Ileum Colon Rectum
Pre-oral Mouth Pharynx Oesophagus Crop Gizzard
Cavity
dr. aarif

35. ALIMENTARY CANAL

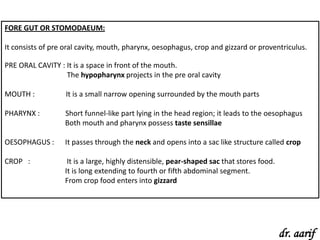

36. FORE GUT OR STOMODAEUM:
It consists of pre oral cavity, mouth, pharynx, oesophagus, crop and gizzard or proventriculus.
PRE ORAL CAVITY : It is a space in front of the mouth.
The hypopharynx projects in the pre oral cavity
MOUTH : It is a small narrow opening surrounded by the mouth parts
PHARYNX : Short funnel-like part lying in the head region; it leads to the oesophagus
Both mouth and pharynx possess taste sensillae
OESOPHAGUS : It passes through the neck and opens into a sac like structure called crop
CROP : It is a large, highly distensible, pear-shaped sac that stores food.
It is long extending to fourth or fifth abdominal segment.
From crop food enters into gizzard
dr. aarif

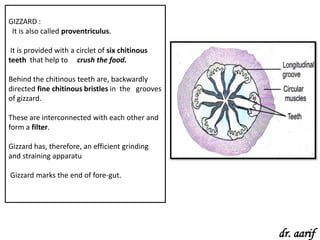

37. GIZZARD :
It is also called proventriculus.
It is provided with a circlet of six chitinous
teeth that help to crush the food.
Behind the chitinous teeth are, backwardly
directed fine chitinous bristles in the grooves
of gizzard.
These are interconnected with each other and
form a filter.
Gizzard has, therefore, an efficient grinding
and straining apparatu
Gizzard marks the end of fore-gut.
dr. aarif

38. MID GUT OR MESENTERON:
It consists of ventriculus (stomach) and eight hepatic caecae.
Hepatic caeca are thin, transparent, blind tubules arranged in a
whorl or rosette fashion in the anterior part of the stomach. They
secrete digestive enzymes.
Ventriculus or stomach is a short and narrow tube of uniform
diameter. It is concerned with digestion of food.
The mid-gut is the major organ of digestion and absorption
dr. aarif

39. HIND GUT OR PROCTODAEUM:
Hind-gut consists of ileum, colon and rectum.
It is slightly broader than the mid-gut.
At its junction with mid-gut, are present a ring of up to 150
yellow thread-like blind Malpighian tubules which are
excretory in nature.
It helps in removal of excretory products from
the haemolymph.
Their product is poured into the ileum.
Ileum is short and narrow
Colon is coiled and wide tube.
Rectum is the last part of the hind-gut. Rectum opens to
the outside by anus which lies below the 10thtergum
dr. aarif

40. Cockroach has two salivary glands, one on each SALIVARY GLANDS
side of crop.
Each gland has two glandular lobes and a
receptacle or reservoir.
Glandular lobes consist of several irregular, white
colored lobules which are provided with
collecting ducts. They secrete saliva.
The two gland ducts of two salivary glands unite
and form a common salivary duct.
Thin walled transparent bag-like structures called
salivary receptacles store saliva.
The common salivary receptacular duct runs
below the oesophagus through the neck and
opens at the base of the tongue or hypo pharynx.
Salivary glands open by the common salivary duct
into the preoral cavity.
Saliva contains amylase, chitinase and cellulase
dr. aarif

41. RESPIRATORY SYSTEM
The respiratory system consists of a network of white, shining tubes, the
trachea, that open out by 10 pairs of lateral apertures called the stigmata
or spiracles (2 pairs in the thorax and 8 pairs in the abdomen).
The opening of the spiracles is regulated by the sphincters.
The trachea divides and sub-divides forming fine tracheoles that penetrate
the tissues.
Terminal parts of tracheoles contain fluid that facilitates exchange of O2 and
CO2 by diffusion.
During intense activity, fluid is withdrawn from the tracheoles so that more
empty surface area is available and air reaches the tissue cells directly for
quick O2 supply.
Blood has no role to play in respiratory gas exchange.
dr. aarif

43. REPRODUCTIVE SYSTEM
Cockroaches are dioecious, i.e. sexes are separate and distinguishable externally.
That is to say, cockroaches exhibit sexual dimorphism.
Both sexes have well developed reproductive organs
MALE FEMALE

44. MALE REPRODUCTIVE SYSTEM

45. 1. TESTES : - A pair of testes
- in the 4th/5th abdominal segemnts
- Trilobed, dorsolaterally below the terga
2. VASA DEFERENTIA :- Arises from each testis
- white thread like tube
- pass downwards & enters seminal vesicles
3. SEMINAL VESICLES : - Sac-like structures which store sperms
4. EJACULATORY DUCT : - Formed by the union of 2 seminal vesicles at the base of
utricular gland
- Elongated tube which opens through the male genital pore
5. UTRICULAR GLAND : - present at the junction of vasa deferentia and ejaculatory duct
- formed by several tubules arising from seminal vesicles
- present in the 6th and 7th segments
- Utricular gland = long tubules + short tubules + seminal vesicle
6. MALE GENITAL PORE : - between the 9th and the 10th abdominal segement, ventrally
dr. aarif

46. 7. GONAPOPHYSES / PHALLOMERES : - The male genital pore is surrounded by chitinous
hooks and plates called gonapophyses which help
in copulation
8. SPERMATOPHORES : - The sperms are bundled into spermatophores wherein they are
glued together and covered by a 3-layered protective covering.
- Inner layer ----- by tubules of utricular gland
Middle layer ----- by ejaculatory duct
Outer layer ------ by phallic gland
dr. aarif

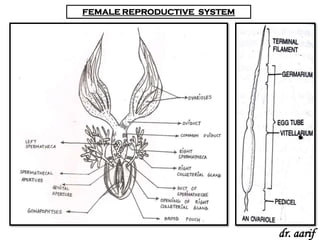

47. FEMALE REPRODUCTIVE SYSTEM
dr. aarif

48. 1. OVARIES : - pair of Ovaries lying laterally in the 4th – 6th segment
- each ovary is made up of 8 ovarioles (broad base and narrow end)
- The narrow end of all the 8 ovarioles unite to form a filament.
- The ovarioles have linear rows of ova at different stages of development
in the middle region.
- The basal part of the ovariole is tubular and allows passage of the ova; it is
called as the PEDICEL
- The pedicels of all the ovarioles unite to form OVIDUCT.
- The right and left oviduct join to form the VAGINA, which opens in the
genital chamber.
2. SPERMATHECAE : - Pair of unequal sized spermathecae in the 6th segment
- The left one stores sperms during copulation
The right one is non-functional .
- They open in the genital chamber by a common duct.
3.GONAPOPHYSES : - 3 pairs of chitinous plate like structures present around the
genital aperature.
- Posterior 2 chambers are as ovipositors,which carry the eggs to
the oothecal chamber.
dr. aarif

49. PROCESS OF REPRODUCTION:
- Sperms are transferred through spermatophores.
- Their fertilized eggs are encased in capsules called oothecae.
- Within the oothecae development takes a month to complete and after that the young
ones , the nymph emerges from the oothecae
- The cuticle is cast off periodically called as ECDYSIS or MOULTING.
- These oothecae are dropped or glued to a suitable surface, usually in a crack or crevice
of high relative humidity near a food source.
- On an average, females produce 9-10 oothecae, each containing 14-16 eggs.
- The development of P. Americana is paurometabolous, meaning there is development
through nymphal stage.
- The nymphs look very much like adults.
- The nymph grows by moulting about 13 times to reach adult form.
- The next to last stage has wing pads but only adults have wings.
dr. aarif

50. EXCRETORY SYSTEM
Excretion is carried out mainly by Malpighian tubules, body fat and nephrocytes
1. MALPIGHIAN TUBULES :
- Fine unbranched, blind tubules attatched at the
junction of midgut and hindgut.
- The blind end is freely floating in the haemolymph
The proximal end opens in the anterior end of
hindgut
- They absorb the N2 waste, which get converted to
uric acid
2. BODY FAT : - The fat cells extract the excretory products from the blood
3. NEPHROCYTES : - Large , bi nucleated cells found attached to the dorsal diaphragm
dr. aarif

51. dr. aarif
