AJAX allows web pages to be updated asynchronously by exchanging small amounts of data with the server behind the scenes without reloading the entire page. It uses JavaScript and XMLHttpRequest objects to make HTTP requests and update portions of the web page without interrupting user operations. This provides a more interactive and responsive web experience compared to traditional page refreshes.

1. ppt14

2. AJAX
(Asynchronous JavaScript and
XML)• The term Ajax was coined on 18 February 2005 by Jesse
James Garrett in an article entitled "Ajax: A New Approach to
Web Applications", based on techniques used on Google
pages.
• On 5 April 2006, the World Wide Web Consortium (W3C)
released the first draft specification for the XMLHttpRequest
object in an attempt to create an official web standard.
• With an HTTP request, a web page can make a request to,
and get a response from a web server - without reloading the
page.
• The user will stay on the same page, and he or she will not
notice that scripts request pages, or send data to a server in
the background.

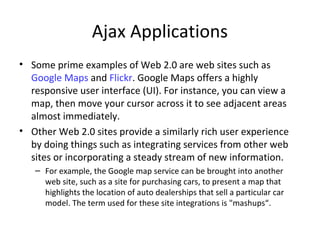

3. Ajax Applications
• Some prime examples of Web 2.0 are web sites such as
Google Maps and Flickr. Google Maps offers a highly
responsive user interface (UI). For instance, you can view a
map, then move your cursor across it to see adjacent areas
almost immediately.
• Other Web 2.0 sites provide a similarly rich user experience
by doing things such as integrating services from other web
sites or incorporating a steady stream of new information.
– For example, the Google map service can be brought into another
web site, such as a site for purchasing cars, to present a map that
highlights the location of auto dealerships that sell a particular car
model. The term used for these site integrations is "mashups“.

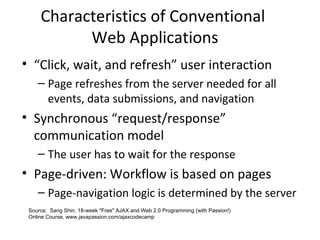

4. Characteristics of Conventional
Web Applications
• “Click, wait, and refresh” user interaction
– Page refreshes from the server needed for all
events, data submissions, and navigation
• Synchronous “request/response”
communication model
– The user has to wait for the response
• Page-driven: Workflow is based on pages
– Page-navigation logic is determined by the server
Source: Sang Shin, 18-week "Free" AJAX and Web 2.0 Programming (with Passion!)
Online Course, www.javapassion.com/ajaxcodecamp

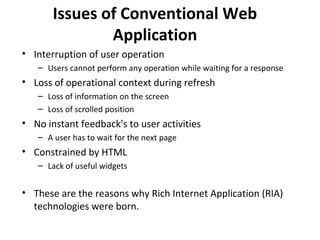

5. Issues of Conventional Web
Application
• Interruption of user operation
– Users cannot perform any operation while waiting for a response
• Loss of operational context during refresh
– Loss of information on the screen
– Loss of scrolled position
• No instant feedback's to user activities
– A user has to wait for the next page
• Constrained by HTML
– Lack of useful widgets
• These are the reasons why Rich Internet Application (RIA)
technologies were born.

6. What is Ajax?
• Ajax can help increase the speed and usability
of an application's web pages by updating
only part of the page at a time, rather than
requiring the entire page to be reloaded after
a user-initiated change.
• Using Ajax, the pages of your application can
exchange small amounts of data with the
server without going through a form submit.
Source: http://java.sun.com/javaee/javaserverfaces/ajax/tutorial.jsp

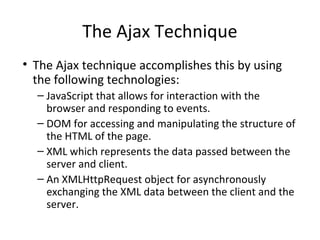

7. The Ajax Technique
• The Ajax technique accomplishes this by using
the following technologies:
– JavaScript that allows for interaction with the
browser and responding to events.
– DOM for accessing and manipulating the structure of
the HTML of the page.
– XML which represents the data passed between the
server and client.
– An XMLHttpRequest object for asynchronously
exchanging the XML data between the client and the
server.

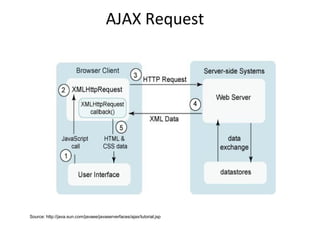

8. AJAX Request
Source: http://java.sun.com/javaee/javaserverfaces/ajax/tutorial.jsp

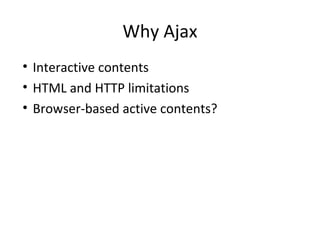

9. Why Ajax
• Interactive contents
• HTML and HTTP limitations
• Browser-based active contents?

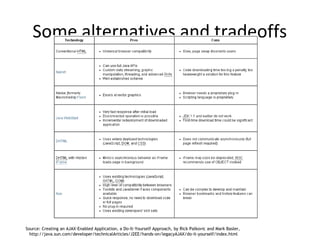

10. Some alternatives and tradeoffs
Source: Creating an AJAX-Enabled Application, a Do-It-Yourself Approach, by Rick Palkovic and Mark Basler,
http://java.sun.com/developer/technicalArticles/J2EE/hands-on/legacyAJAX/do-it-yourself/index.html

11. Defining a Request Object
var request;
function getRequestObject() {
if (window.ActiveXObject) {
return(new ActiveXObject("Microsoft.XMLHTTP"));
} else if (window.XMLHttpRequest) {
return(new XMLHttpRequest());
} else {
return(null);
}
}
Source: J2EE training: http://courses.coreservlets.com

12. Handle Response
function handleResponse() {
if (request.readyState == 4) {
alert(request.responseText);
}
}
Source: J2EE training: http://courses.coreservlets.com

13. The “readyState” Property
• 0: the request is not initialized
• 1: the request has been set up
• 2: the request has been sent
• 3: the request is in process
• 4: the request is complete
Source: J2EE training: http://courses.coreservlets.com

14. HTML Code
• Use xhtml, not HTML 4
– In order to manipulate it with DOM
– <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN“
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">...</html>
– Due to IE bug, do not use XML header before the DOCTYPE
• Load the JavaScript file
– <script src="relative-url-of-JavaScript-file"
type="text/javascript"></script>
– Use separate </script> end tag
• Designate control to initiate request
– <input type="button" value="button label"
onclick="mainFunction()"/>
Source: J2EE training: http://courses.coreservlets.com

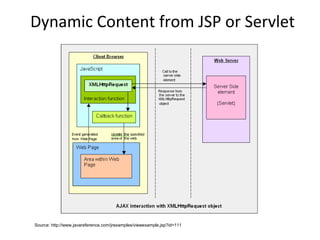

15. Dynamic Content from JSP or Servlet
Source: http://www.javareference.com/jrexamples/viewexample.jsp?id=111

16. Steps
• JavaScript
– Define an object for sending HTTP requests
– Initiate request
• Get request object
• Designate a request handler function
– Supply as onreadystatechange attribute of request
• Initiate a GET or POST request to a JSP page
• Send data
– Handle response
• Wait for readyState of 4 and HTTP status of 200
• Extract return text with responseText or responseXML
• Do something with result
• HTML
– Loads JavaScript from centralized directory
– Designates control that initiates request
– Gives ids to input elements that will be read by script

17. Initiate Request
function sendRequest(address) {
request = getRequestObject();
request.onreadystatechange =
showResponseAlert;
request.open("GET", address, true);
request.send(null);
}
Source: J2EE training: http://courses.coreservlets.com

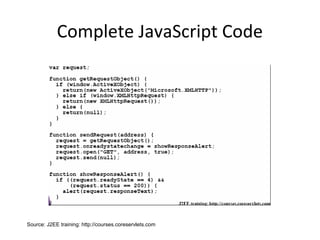

18. Complete JavaScript Code
Source: J2EE training: http://courses.coreservlets.com

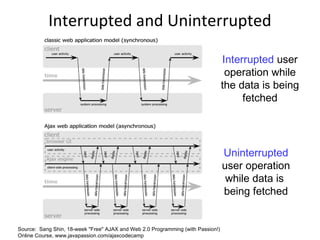

19. Interrupted and Uninterrupted
Operations
Interrupted user
operation while
the data is being
fetched
Uninterrupted
user operation
while data is
being fetched
Source: Sang Shin, 18-week "Free" AJAX and Web 2.0 Programming (with Passion!)
Online Course, www.javapassion.com/ajaxcodecamp

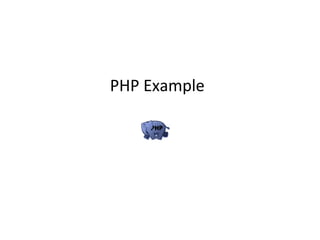

20. PHP Example

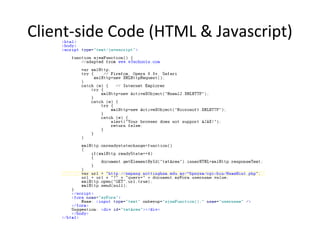

21. Client-side Code (HTML & Javascript)

22. Server-side Code

23. Ajax Example

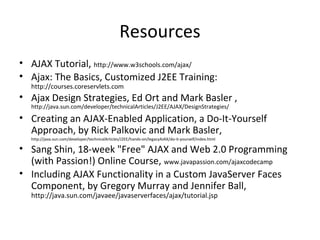

24. Resources
• AJAX Tutorial, http://www.w3schools.com/ajax/
• Ajax: The Basics, Customized J2EE Training:
http://courses.coreservlets.com
• Ajax Design Strategies, Ed Ort and Mark Basler ,
http://java.sun.com/developer/technicalArticles/J2EE/AJAX/DesignStrategies/
• Creating an AJAX-Enabled Application, a Do-It-Yourself
Approach, by Rick Palkovic and Mark Basler,
http://java.sun.com/developer/technicalArticles/J2EE/hands-on/legacyAJAX/do-it-yourself/index.html
• Sang Shin, 18-week "Free" AJAX and Web 2.0 Programming
(with Passion!) Online Course, www.javapassion.com/ajaxcodecamp
• Including AJAX Functionality in a Custom JavaServer Faces
Component, by Gregory Murray and Jennifer Ball,
http://java.sun.com/javaee/javaserverfaces/ajax/tutorial.jsp
