This document discusses hydraulic accumulator components. It describes different types of accumulators including spring loaded, gas charged, weight loaded, and hydraulically counter loaded. Spring loaded accumulators can use sealed pistons, compound springs, diaphragms, or springs with bellows. Gas charged accumulators commonly use nitrogen and can have bladder, diaphragm, sealed piston, or metal bellows designs. The accumulators store energy, stabilize pump pulsation and load shocks, and store volume under pressure for high demands.

1. HYDRAULIC COMPONENTS
Presented By :
Prof.S.Sathishkumar
Assistant Professor
Department of Mechanical Engineering
Vel Tech Engineering College
Avadi-Chennai
Email- sathishkumar@veltechengg.com

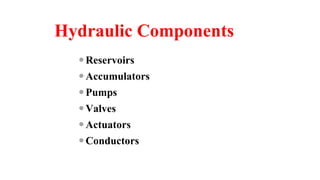

2. Hydraulic Components
Reservoirs
Accumulators
Pumps
Valves
Actuators
Conductors

3. Hydraulic Components
Accumulator Functions
Energy Storage
Stabilize Pump Pulsation
Stabilize Load Shocks
StoreVolumeUnderPressure For High Volume
Demands

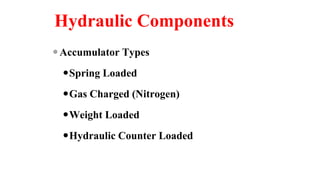

4. Hydraulic Components
Accumulator Types
Spring Loaded
Gas Charged (Nitrogen)
Weight Loaded
Hydraulic Counter Loaded

5. Accumulator Types
Spring Loaded Types
Sealed Piston
Piston may be sealed with an O-ring,
quad ring, or square ring and may even
be backed up with a Teflon cushion
washer depending on pressure
requirements of system and spring
strength

6. Accumulator Types
Spring Loaded Types
Sealed Piston
Compound Spring
This accumulator system is often used for
variable loads or independent pressure volumes
for light load extensions in sequential operation.

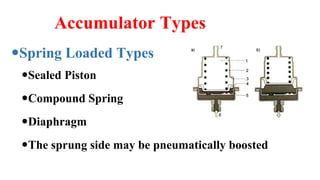

7. Accumulator Types
Spring Loaded Types
Sealed Piston
Compound Spring
Diaphragm
The sprung side may be pneumatically boosted

8. Accumulator Types
Spring Loaded Types
Sealed Piston
Compound Spring
Diaphragm
Hydraulic Counter Loaded
Notice: 2 different size pistons allowing for mechanical advantage boosting that are balanced by 2 springs
working against each other (learn the math!!)

9. Accumulator Types
Spring Loaded Types
Sealed Piston
Compound Spring
Diaphragm
Hydraulic Counter Loaded
Spring with Bellows

10. Review Spring Types
Spring Loaded Types
Sealed Piston
Compound Spring
Diaphragm
Hydraulic Counter Loaded
Spring with Bellows

11. Hydraulic Components
Accumulator Types
Spring Loaded
Gas Charged (Nitrogen)
Weight Loaded
Hydraulic Counter Loaded

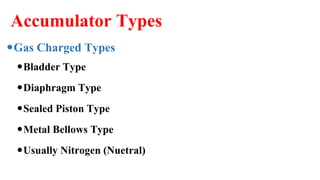

12. Accumulator Types
Gas Charged Types
Bladder Type
Diaphragm Type
Sealed Piston Type
Metal Bellows Type
Usually Nitrogen (Nuetral)

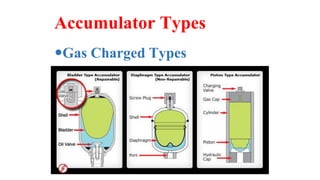

13. Accumulator Types
Gas Charged Types

14. Accumulator Types
Gas Charged Types

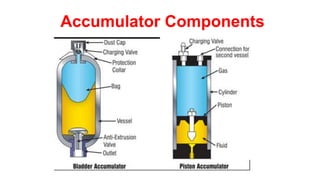

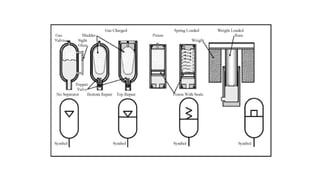

16. Accumulator Components
