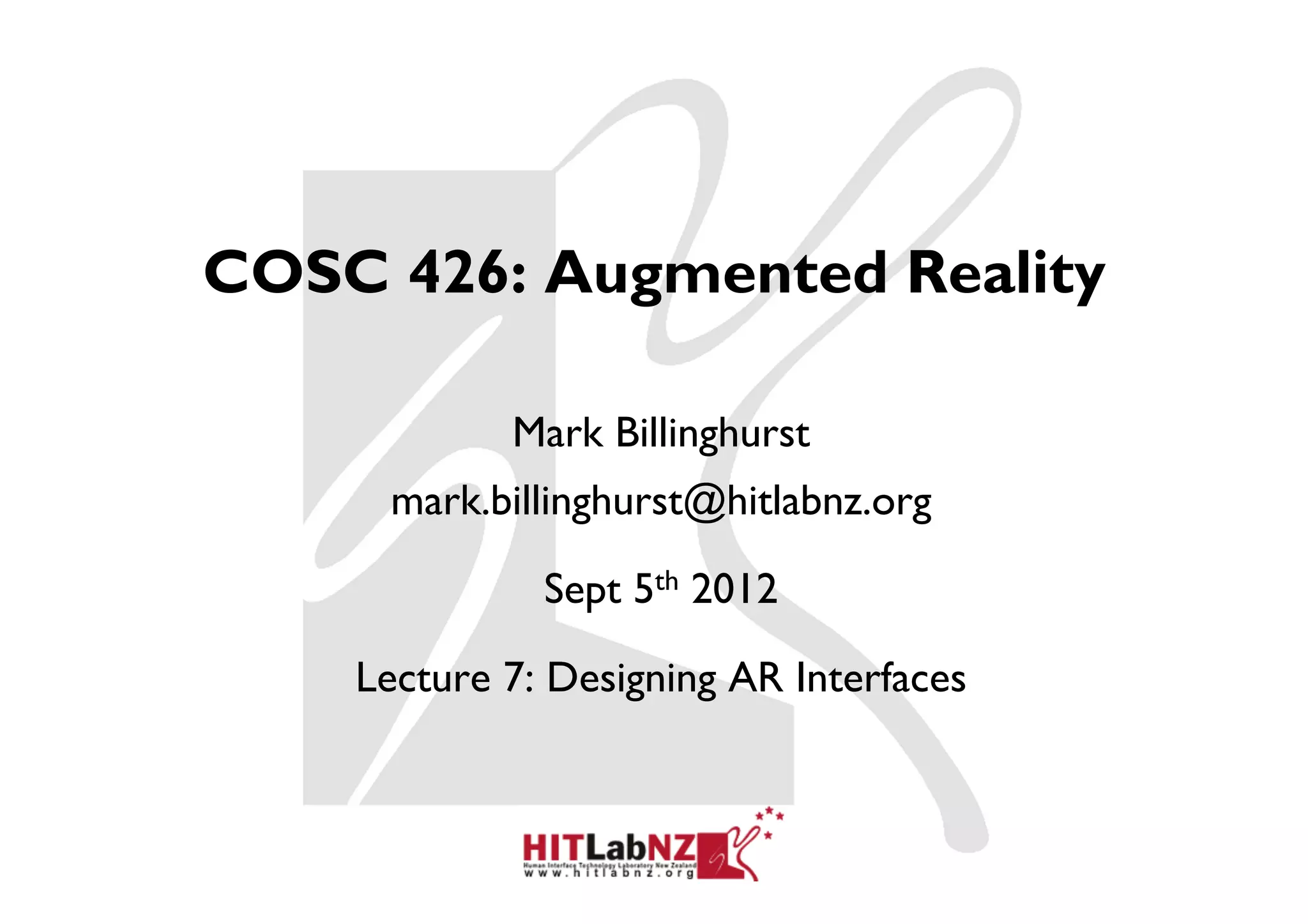

1. COSC 426: Augmented Reality
Mark Billinghurst
mark.billinghurst@hitlabnz.org
Sept 5th 2012
Lecture 7: Designing AR Interfaces

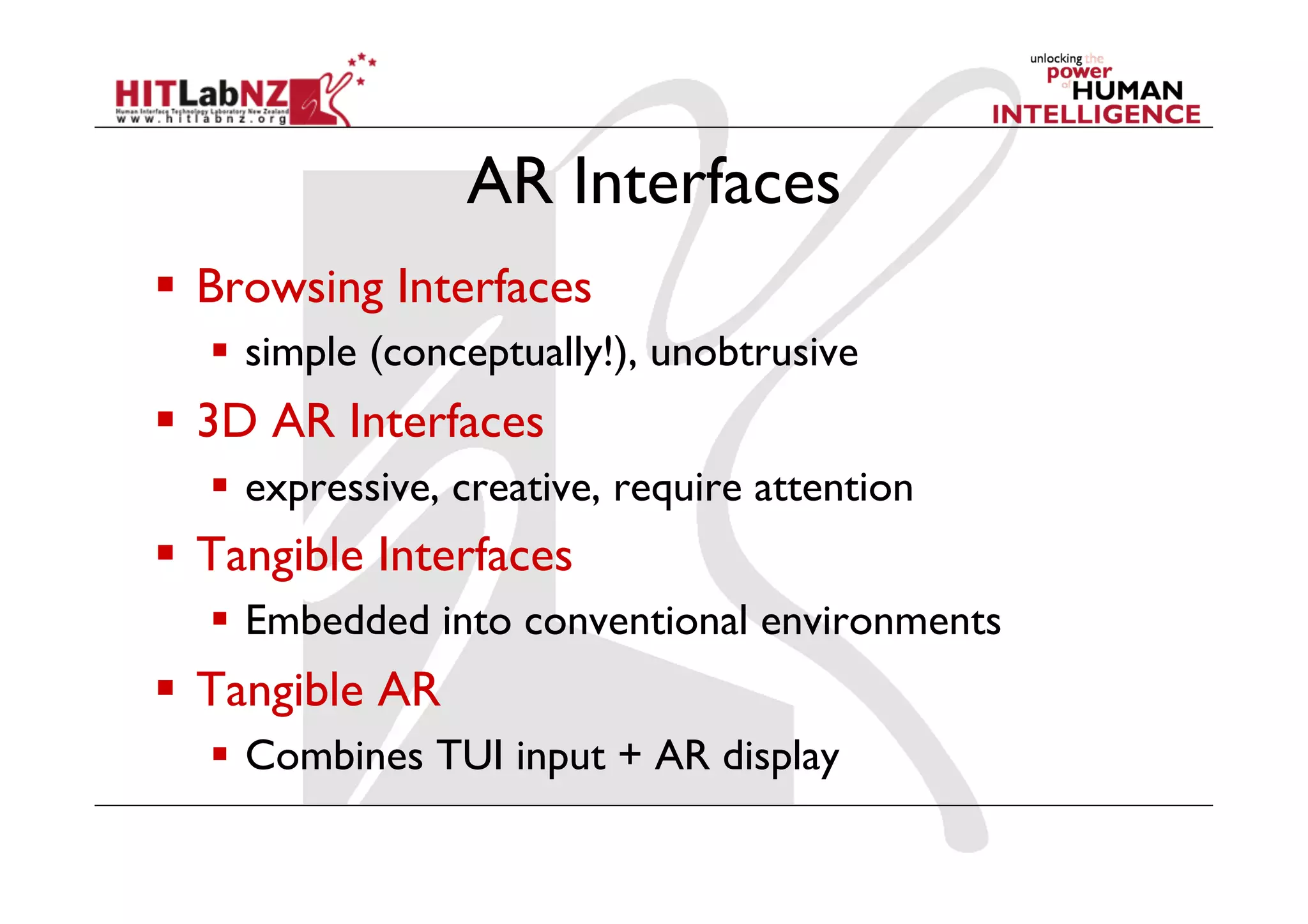

2. AR Interfaces
 Browsing Interfaces
 simple (conceptually!), unobtrusive
 3D AR Interfaces
 expressive, creative, require attention
 Tangible Interfaces
 Embedded into conventional environments
 Tangible AR
 Combines TUI input + AR display

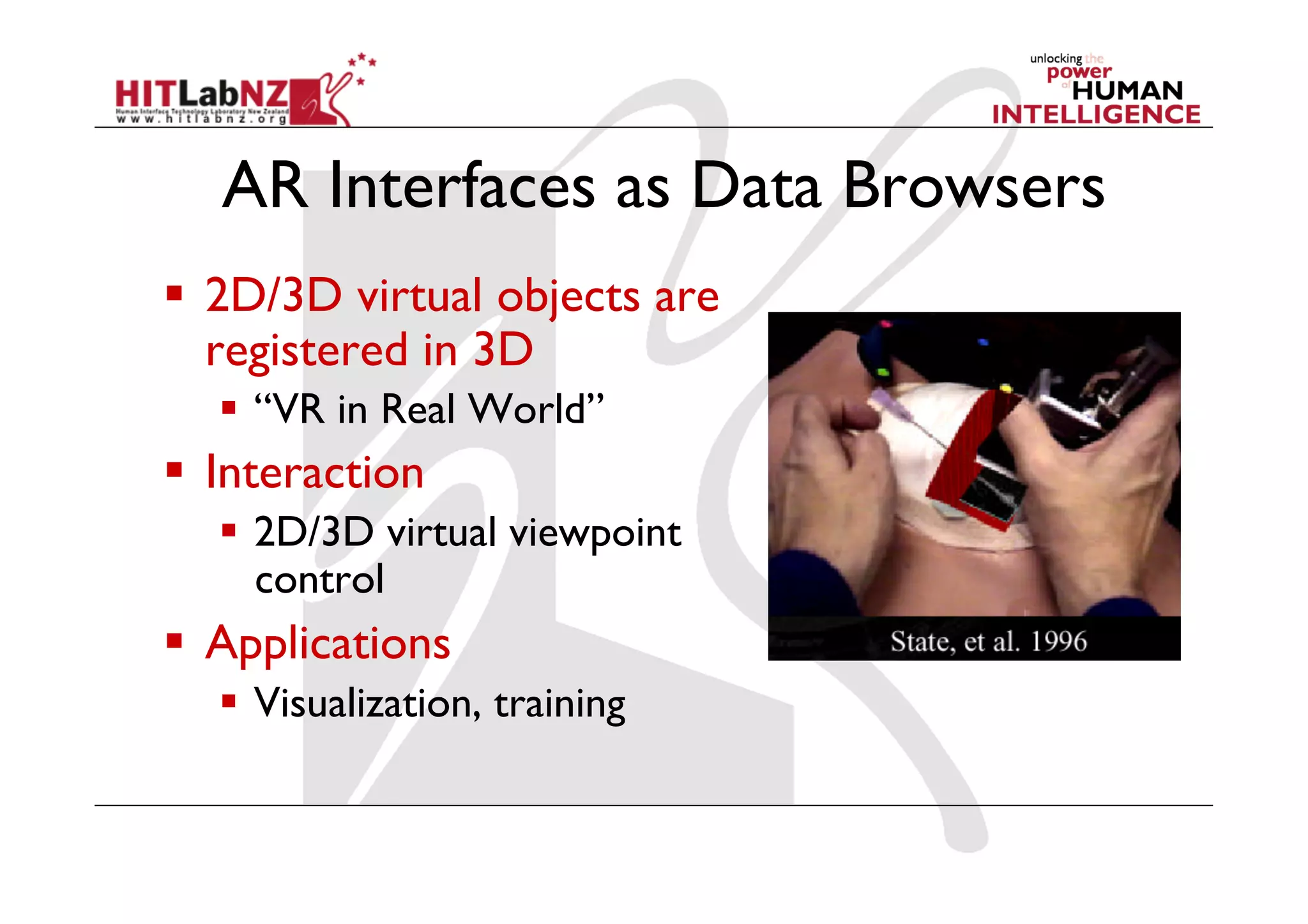

3. AR Interfaces as Data Browsers
 2D/3D virtual objects are
registered in 3D
 “VR in Real World”
 Interaction
 2D/3D virtual viewpoint
control
 Applications
 Visualization, training

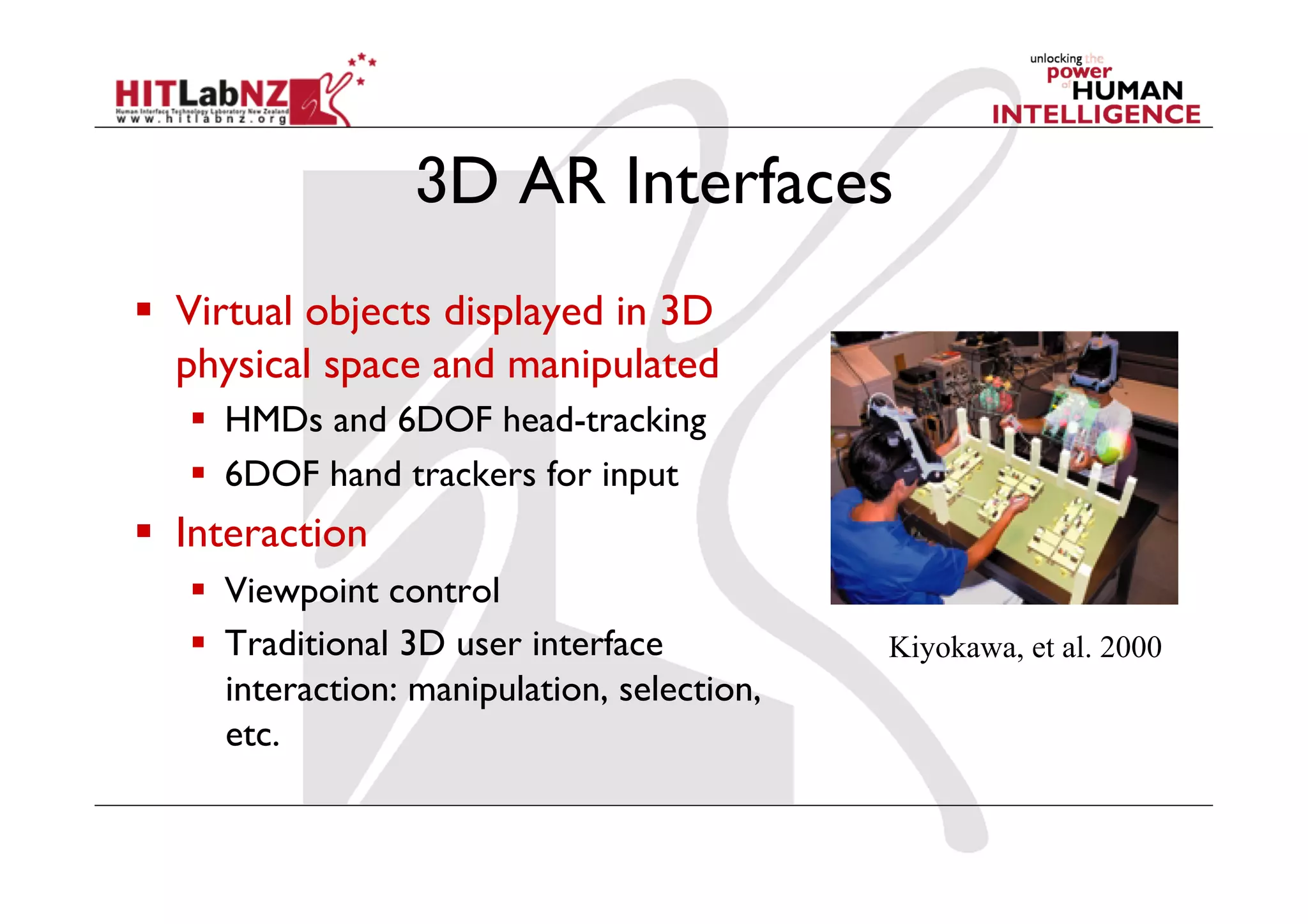

4. 3D AR Interfaces
 Virtual objects displayed in 3D
physical space and manipulated
 HMDs and 6DOF head-tracking
 6DOF hand trackers for input
 Interaction
 Viewpoint control
 Traditional 3D user interface Kiyokawa, et al. 2000
interaction: manipulation, selection,
etc.

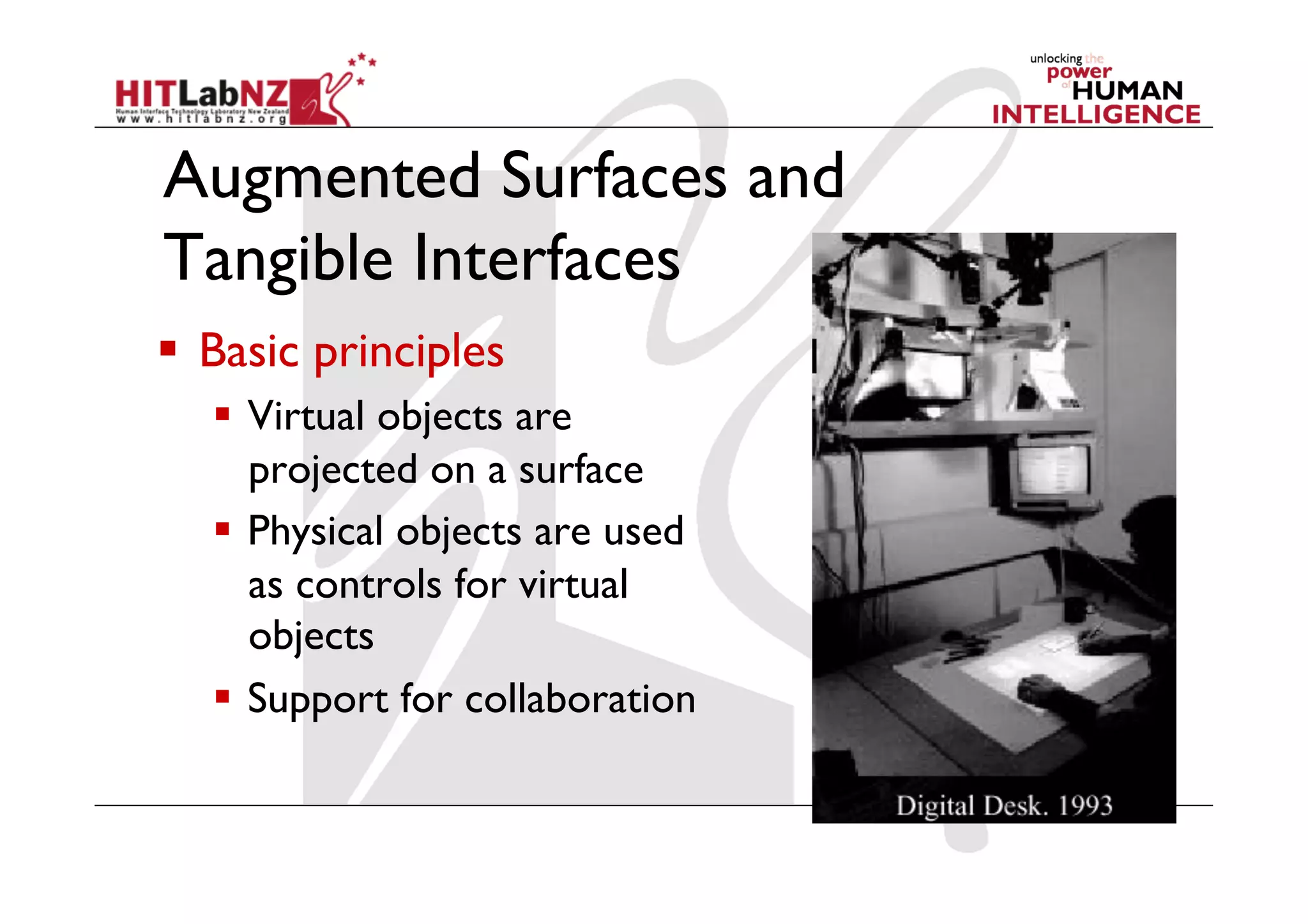

5. Augmented Surfaces and
Tangible Interfaces
 Basic principles
 Virtual objects are
projected on a surface
 Physical objects are used
as controls for virtual
objects
 Support for collaboration

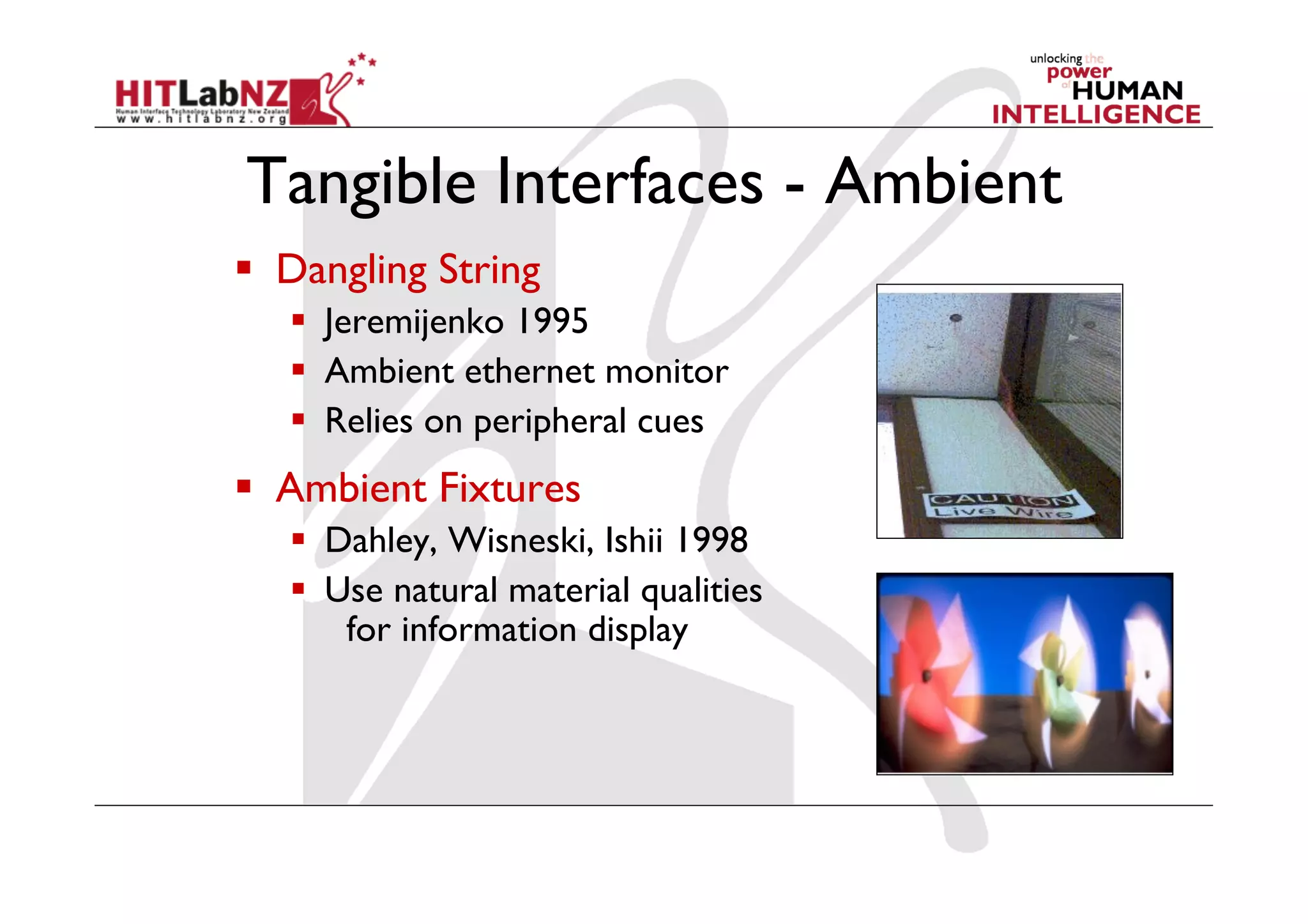

6. Tangible Interfaces - Ambient
 Dangling String
 Jeremijenko 1995
 Ambient ethernet monitor
 Relies on peripheral cues
 Ambient Fixtures
 Dahley, Wisneski, Ishii 1998
 Use natural material qualities
for information display

7. Back to the Real World
 AR overcomes limitation of TUIs
 enhance display possibilities
 merge task/display space
 provide public and private views
 TUI + AR = Tangible AR
 Apply TUI methods to AR interface design

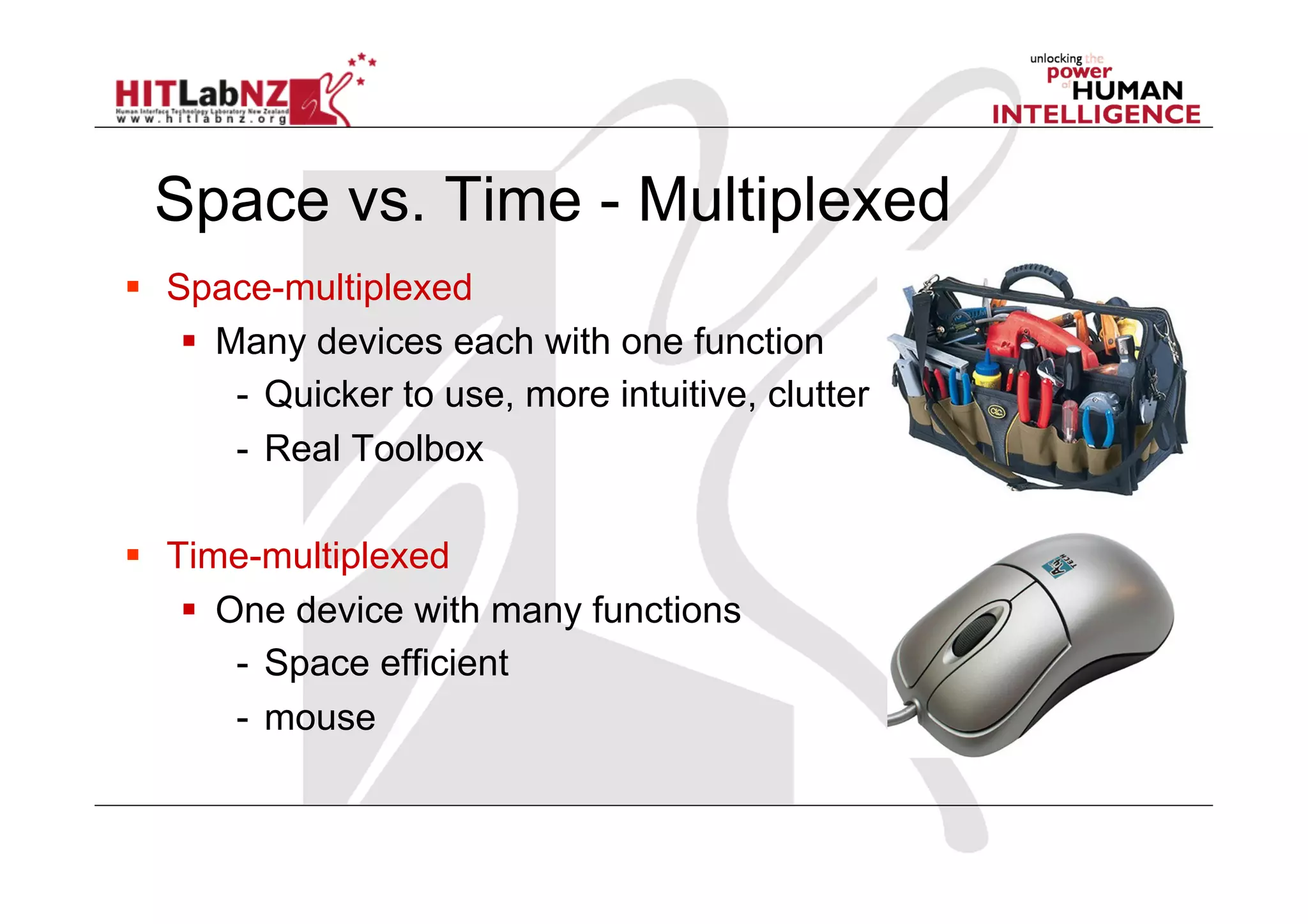

8.  Space-multiplexed
 Many devices each with one function
- Quicker to use, more intuitive, clutter
- Real Toolbox
 Time-multiplexed
 One device with many functions
- Space efficient
- mouse

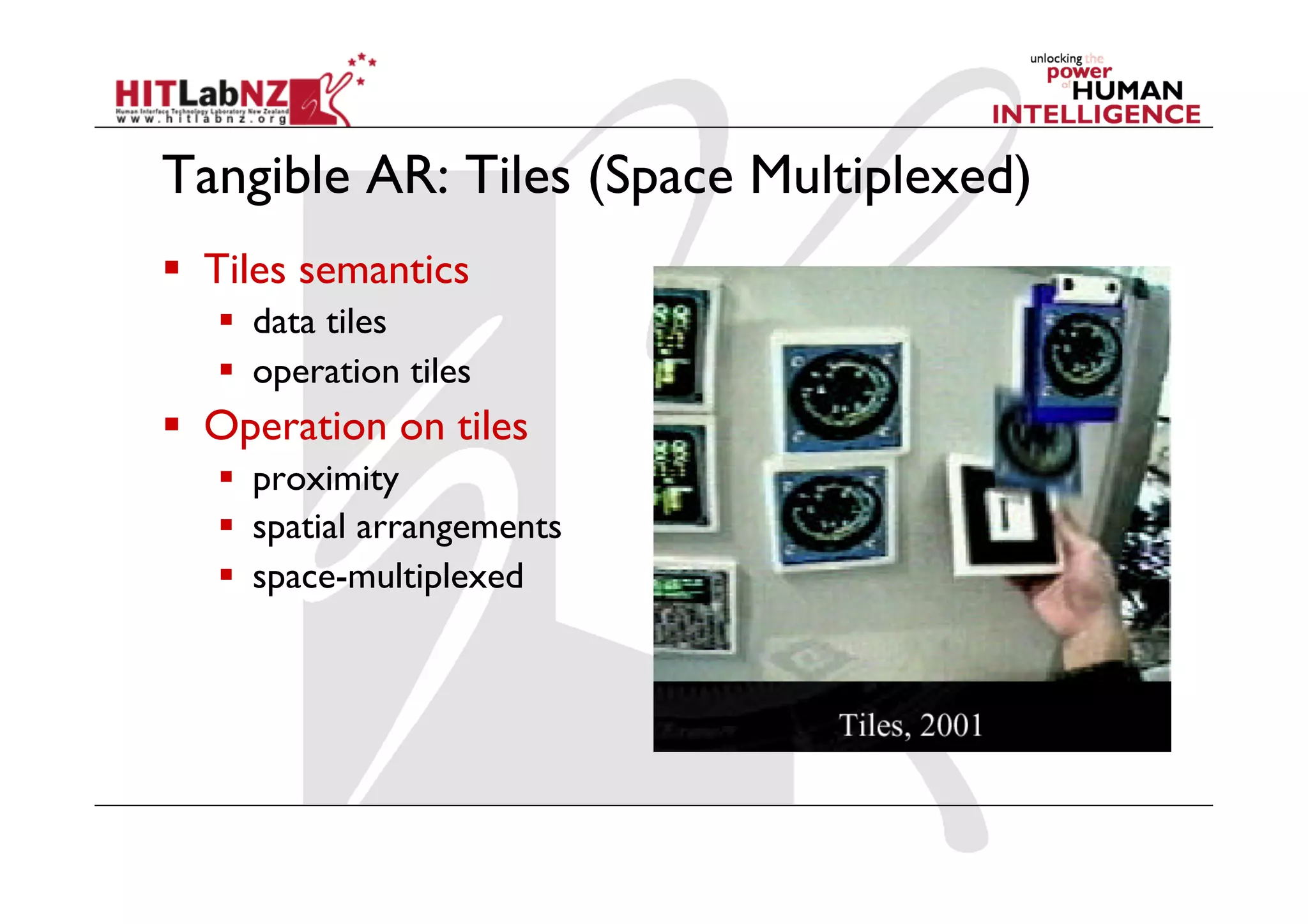

9. Tangible AR: Tiles (Space Multiplexed)
 Tiles semantics
 data tiles
 operation tiles
 Operation on tiles
 proximity
 spatial arrangements
 space-multiplexed

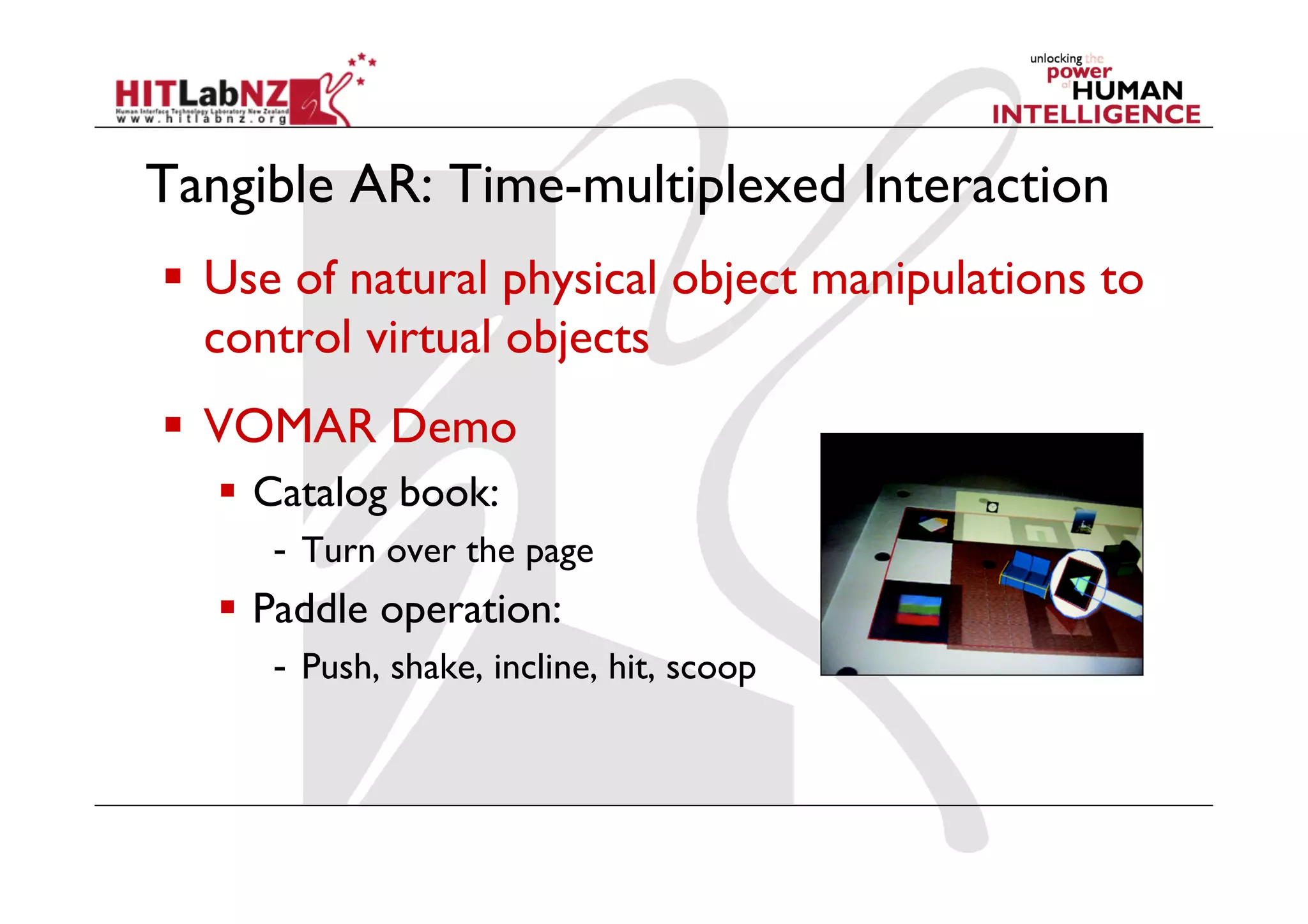

10. Tangible AR: Time-multiplexed Interaction
 Use of natural physical object manipulations to
control virtual objects
 VOMAR Demo
 Catalog book:
- Turn over the page

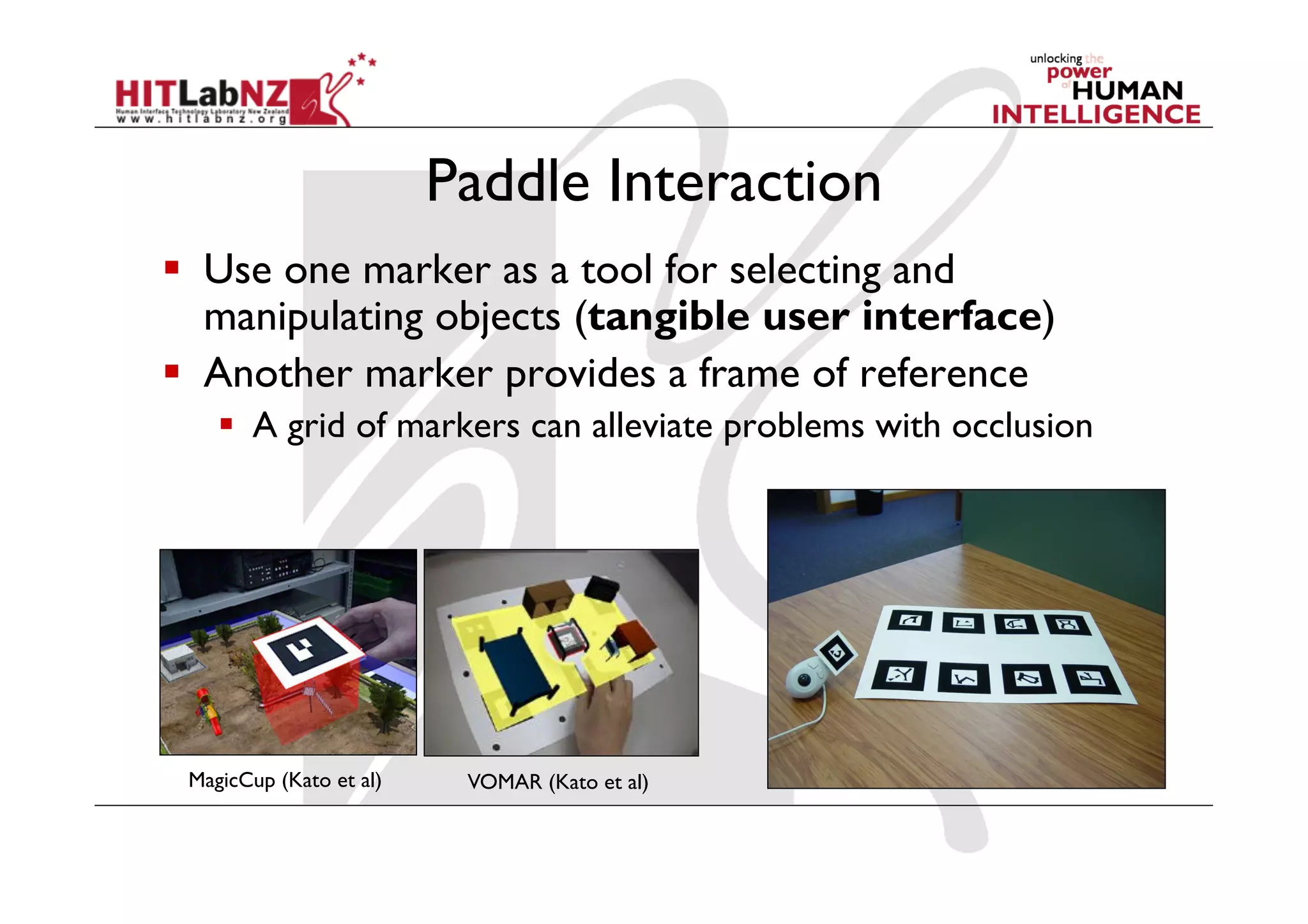

 Paddle operation:
- Push, shake, incline, hit, scoop

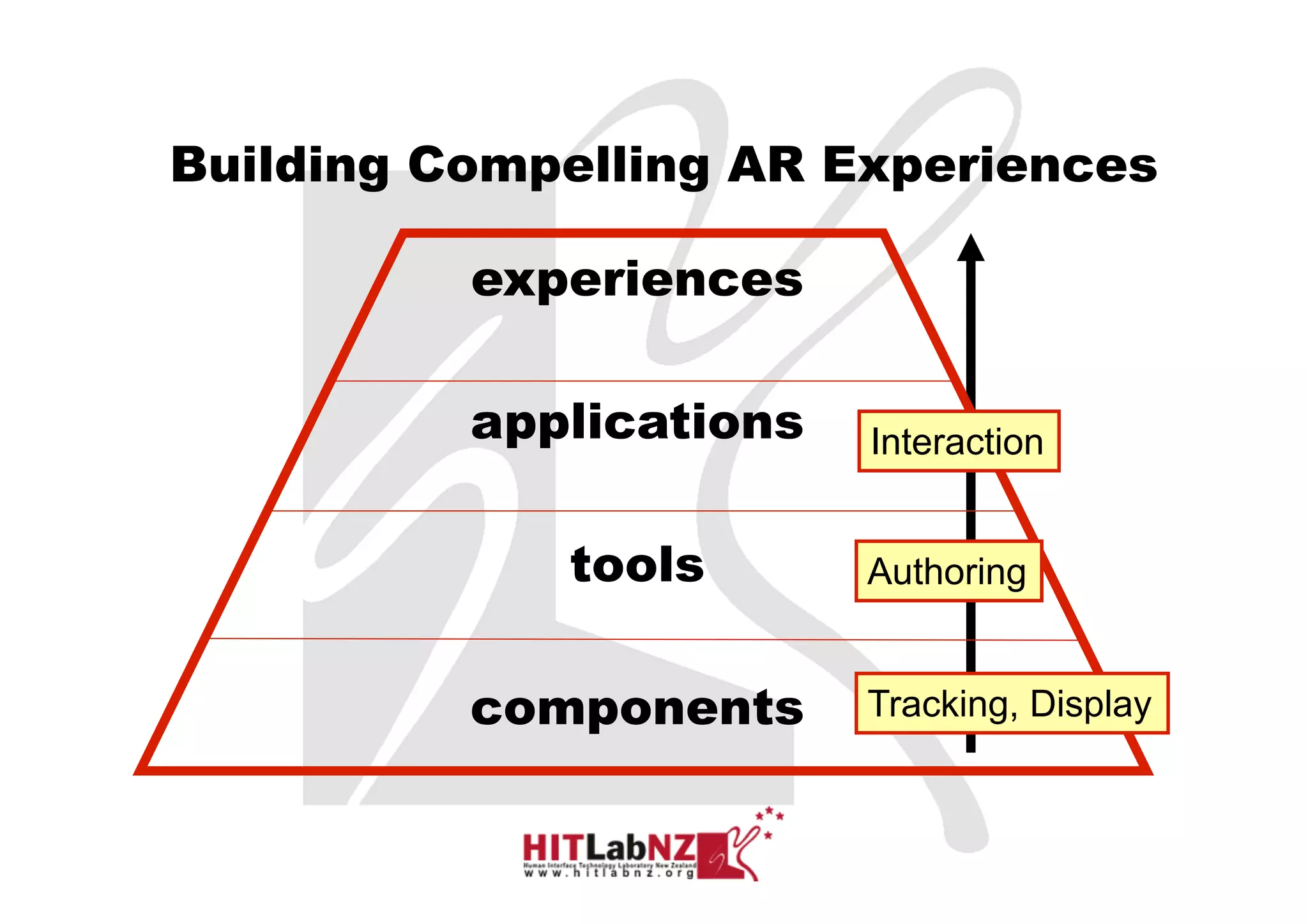

11. Building Compelling AR Experiences
experiences
applications Interaction
tools Authoring
components Tracking, Display
Sony CSL © 2004

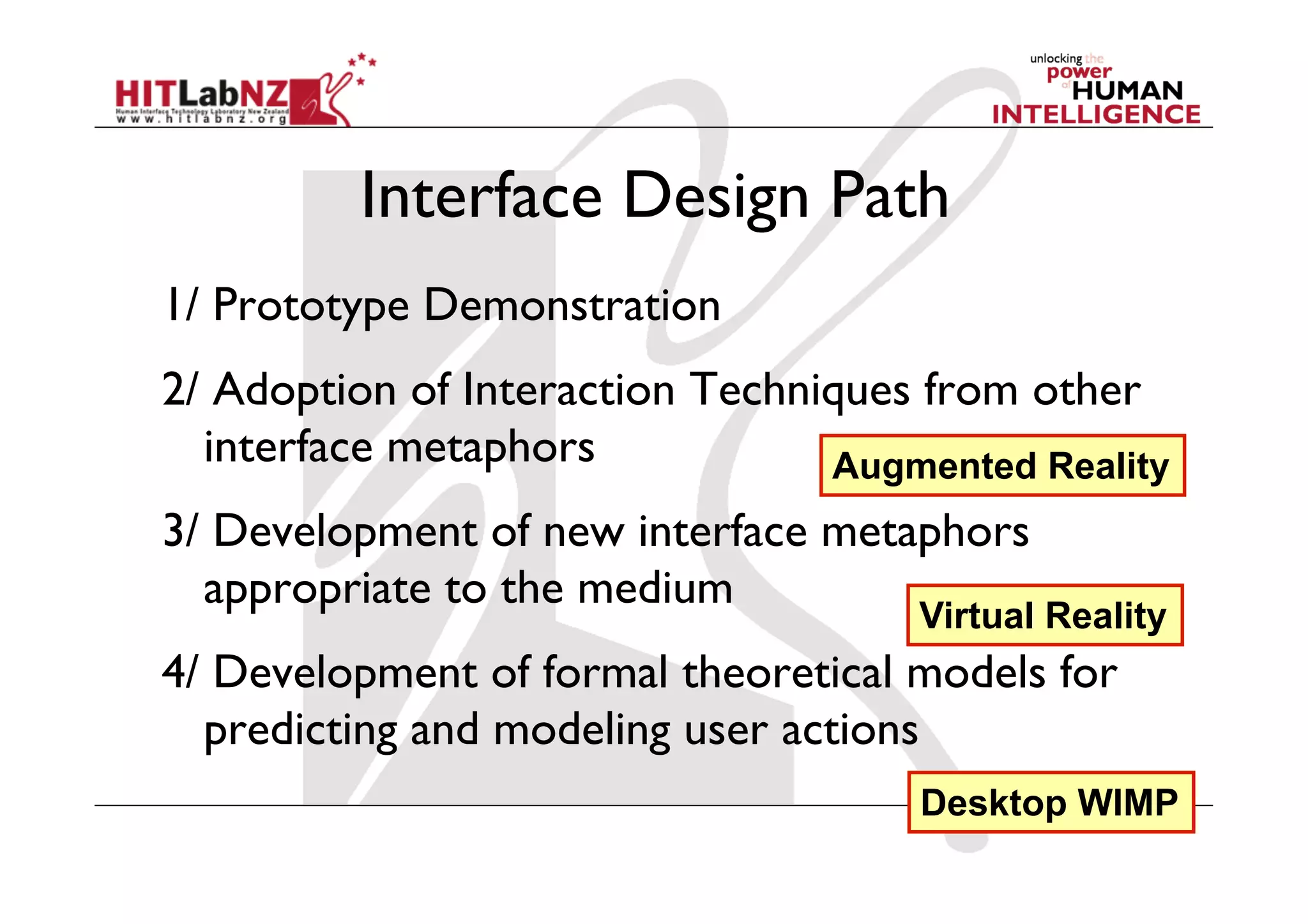

12. Interface Design Path
1/ Prototype Demonstration
2/ Adoption of Interaction Techniques from other
interface metaphors Augmented Reality
3/ Development of new interface metaphors
appropriate to the medium
Virtual Reality
4/ Development of formal theoretical models for
predicting and modeling user actions
Desktop WIMP

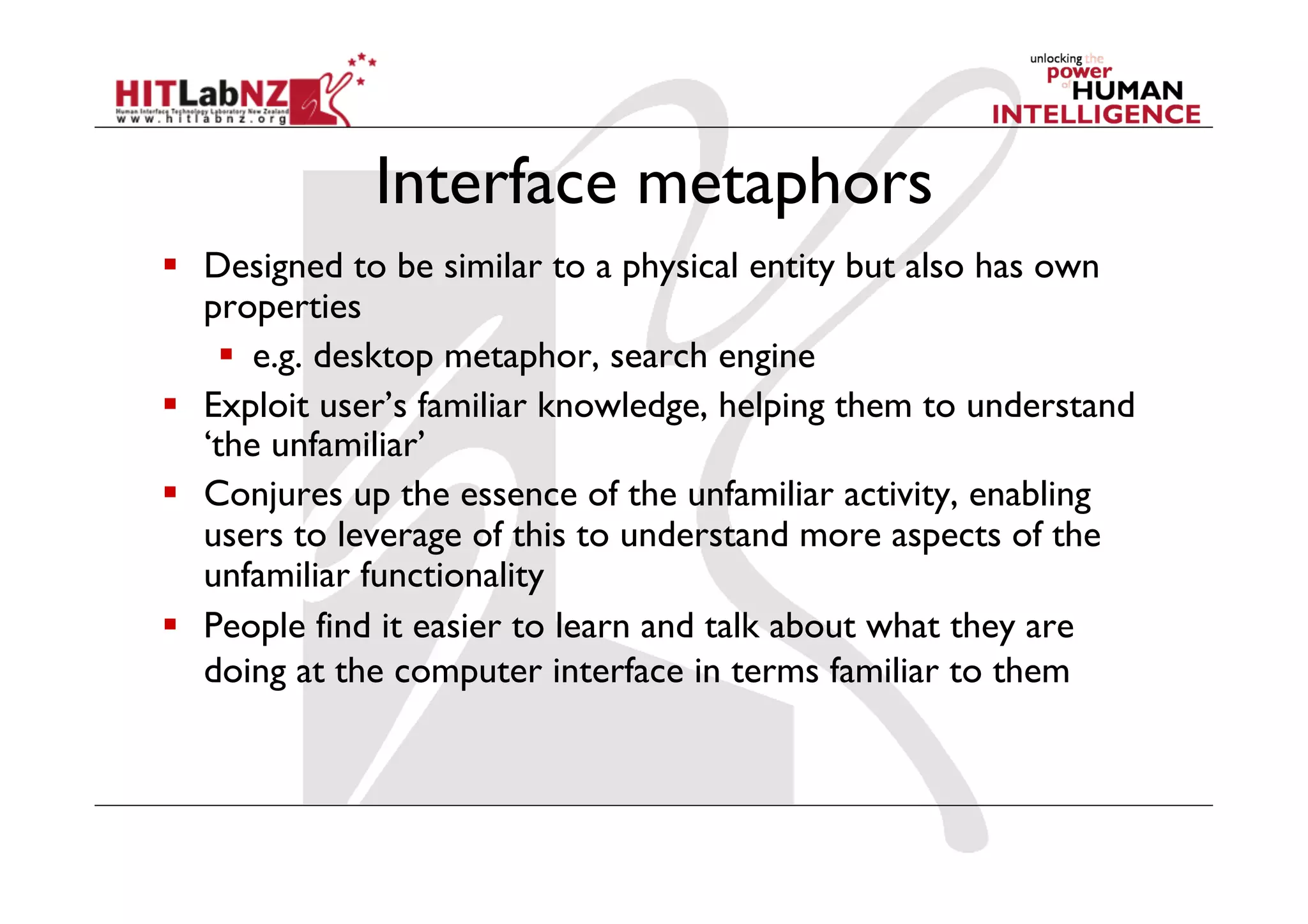

13. Interface metaphors
 Designed to be similar to a physical entity but also has own
properties
 e.g. desktop metaphor, search engine
 Exploit user’s familiar knowledge, helping them to understand
‘the unfamiliar’
 Conjures up the essence of the unfamiliar activity, enabling
users to leverage of this to understand more aspects of the
unfamiliar functionality
 People find it easier to learn and talk about what they are
doing at the computer interface in terms familiar to them

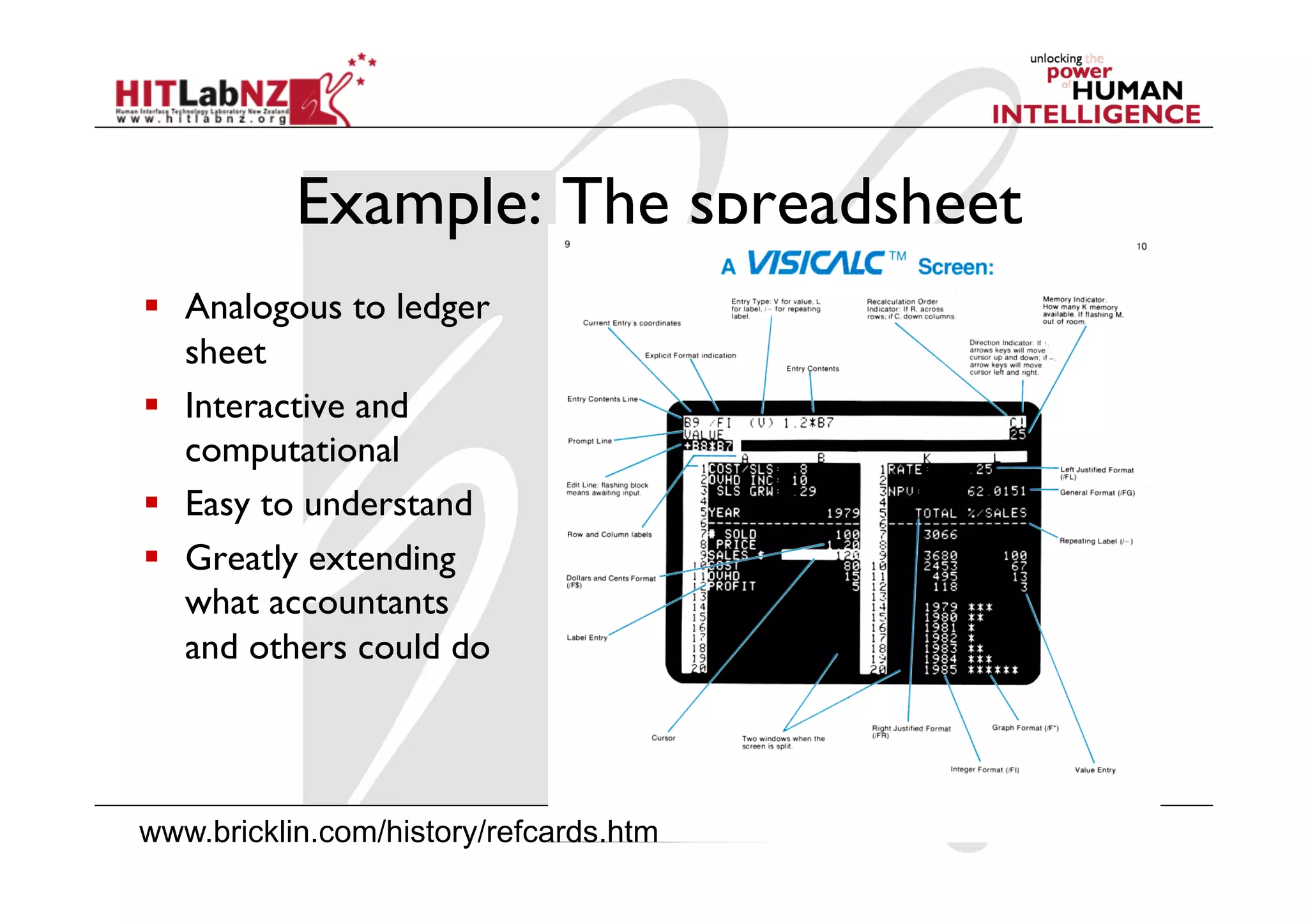

14. Example: The spreadsheet
 Analogous to ledger
sheet
 Interactive and
computational
 Easy to understand
 Greatly extending
what accountants
and others could do
www.bricklin.com/history/refcards.htm

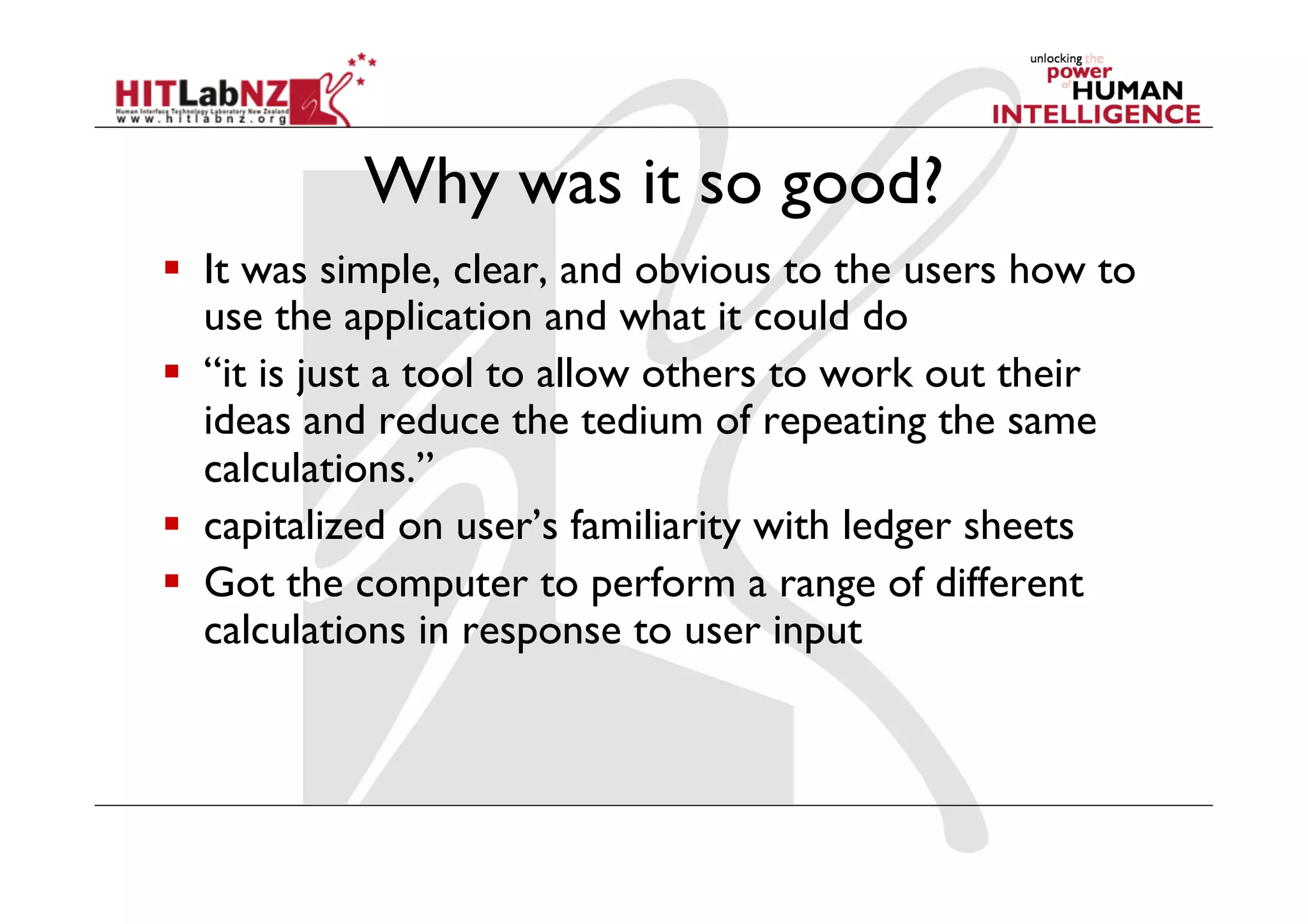

15. Why was it so good?
 It was simple, clear, and obvious to the users how to
use the application and what it could do
 “it is just a tool to allow others to work out their
ideas and reduce the tedium of repeating the same
calculations.”
 capitalized on user’s familiarity with ledger sheets
 Got the computer to perform a range of different
calculations in response to user input

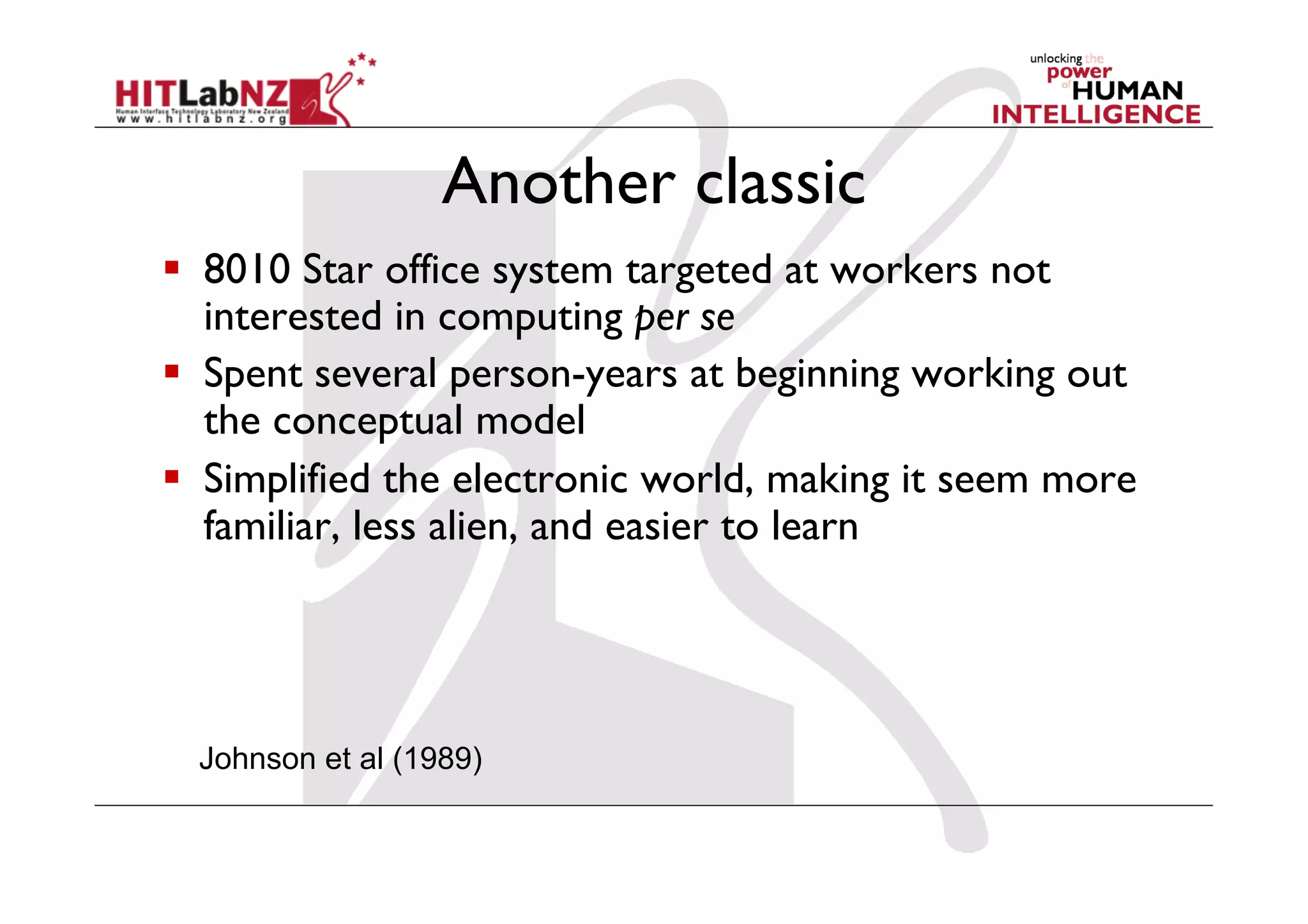

16. Another classic
 8010 Star office system targeted at workers not
interested in computing per se
 Spent several person-years at beginning working out
the conceptual model
 Simplified the electronic world, making it seem more
familiar, less alien, and easier to learn
Johnson et al (1989)

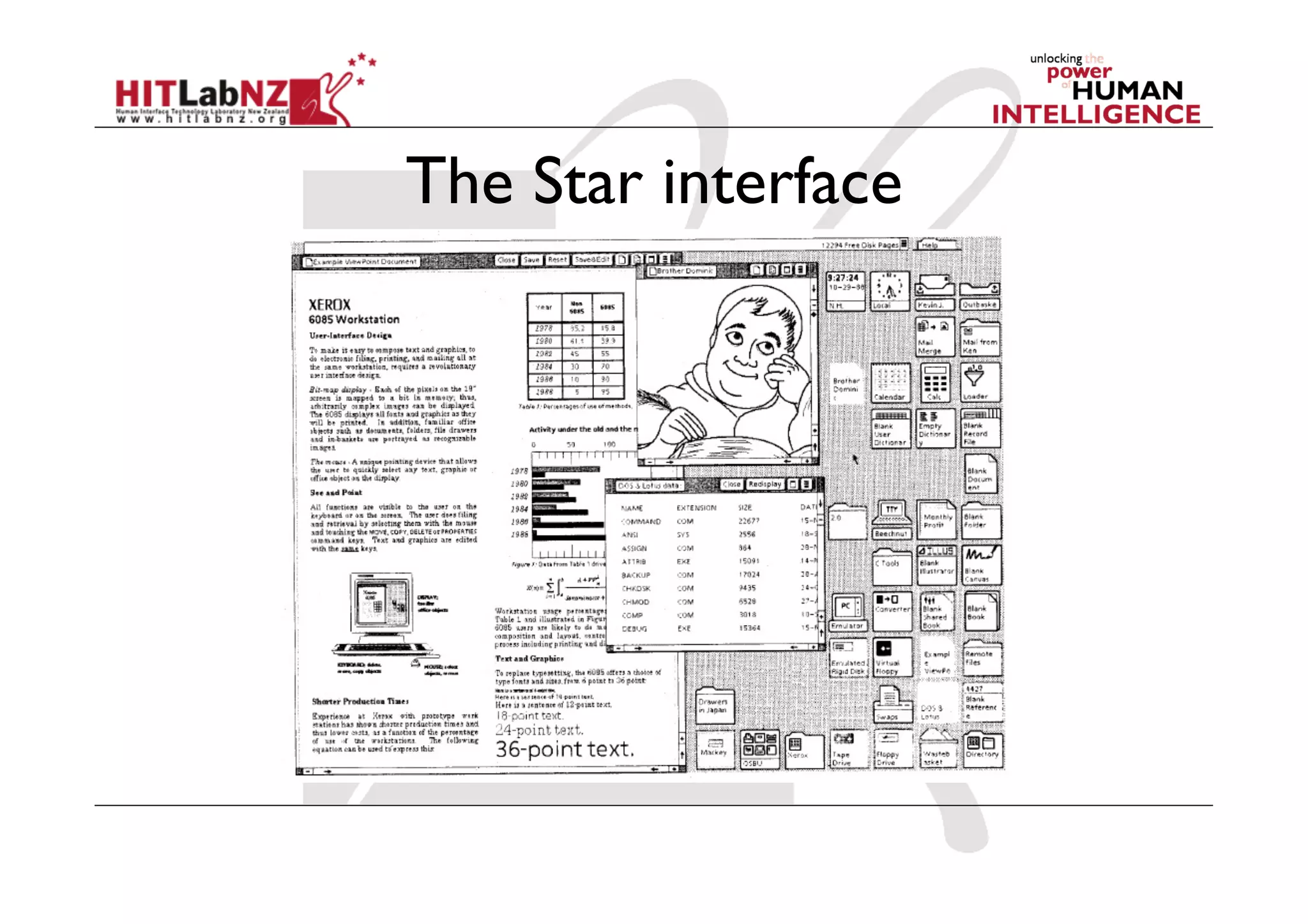

17. The Star interface

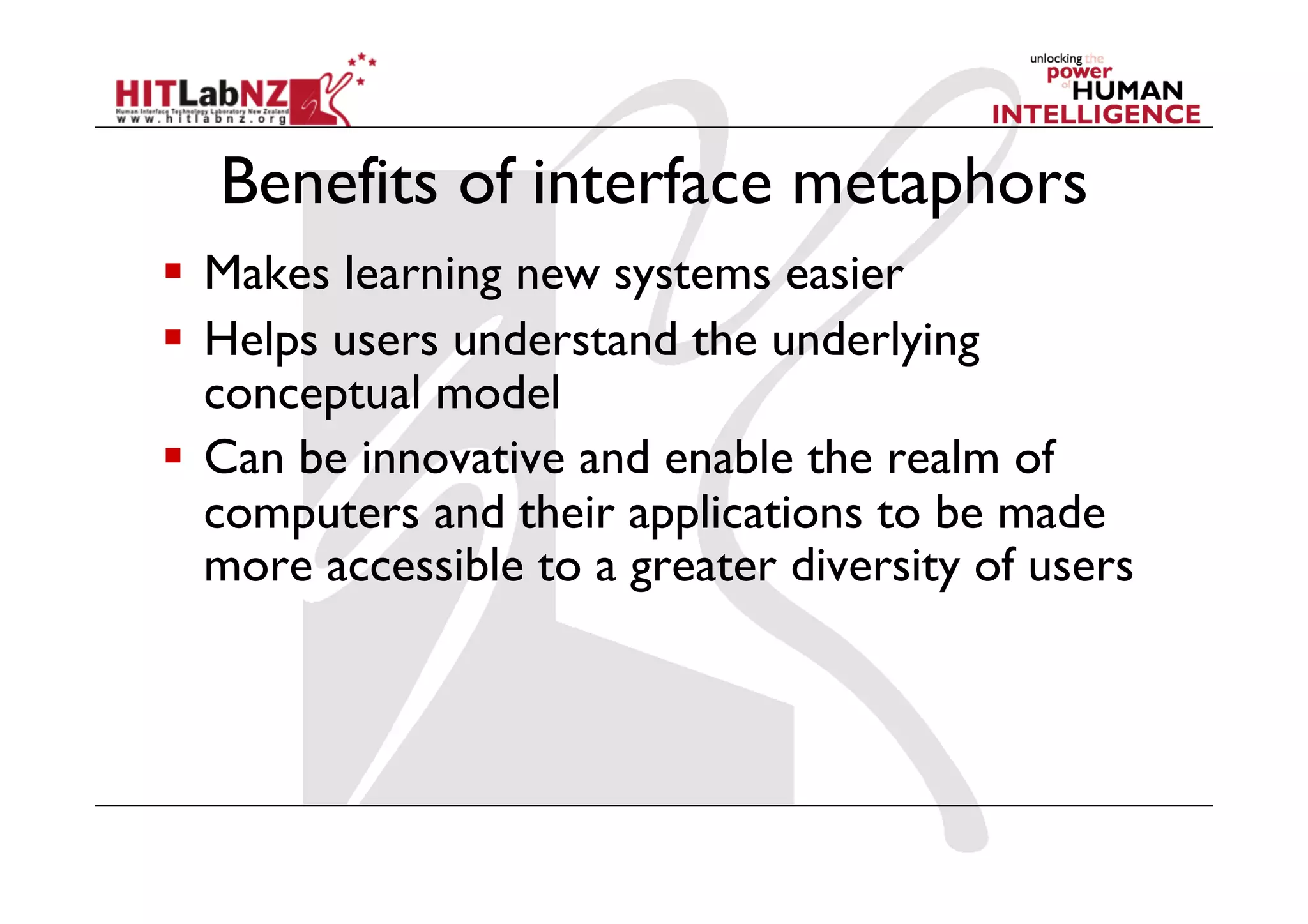

18. Benefits of interface metaphors
 Makes learning new systems easier
 Helps users understand the underlying
conceptual model
 Can be innovative and enable the realm of
computers and their applications to be made
more accessible to a greater diversity of users

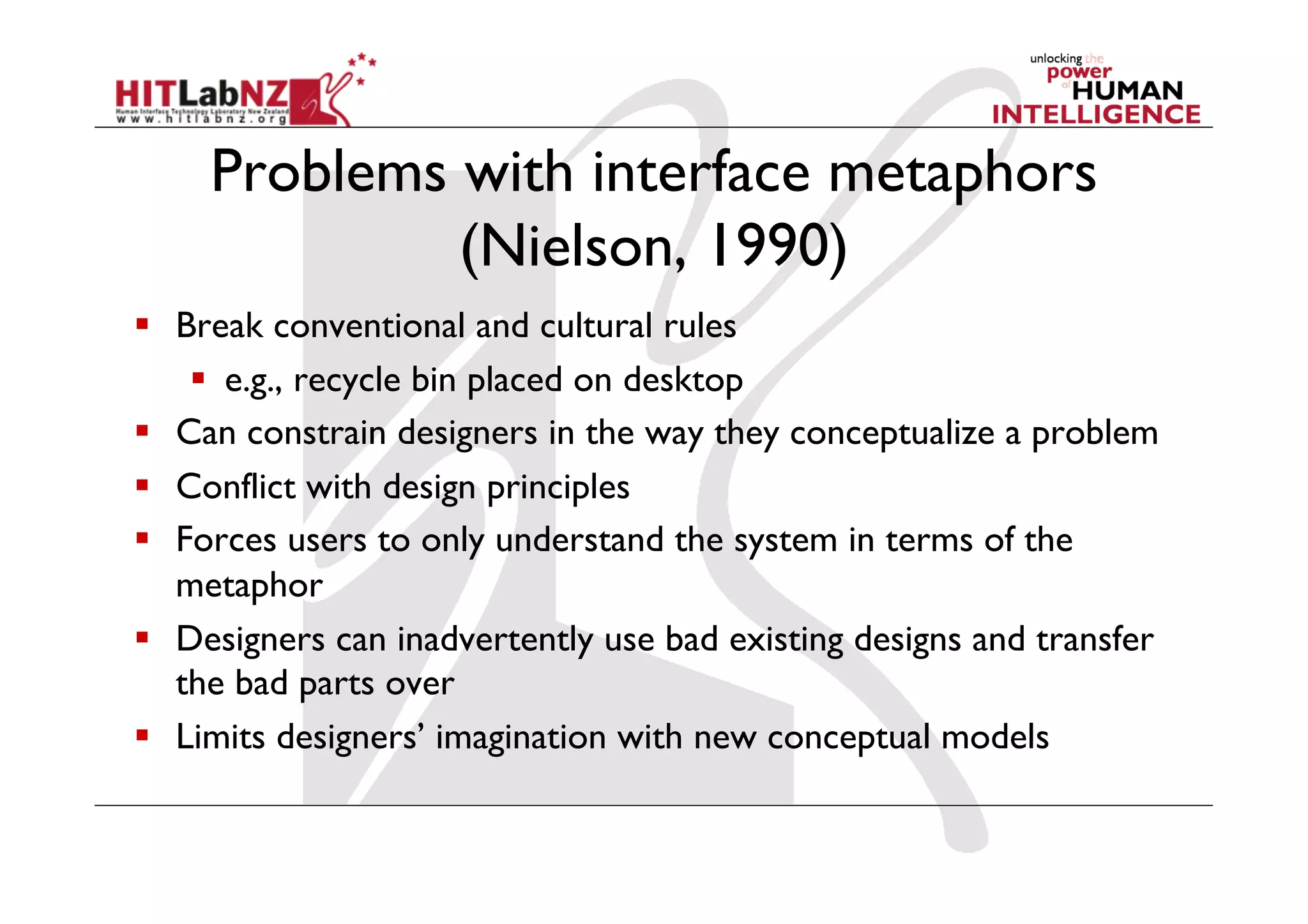

19. Problems with interface metaphors
(Nielson, 1990)
 Break conventional and cultural rules
 e.g., recycle bin placed on desktop
 Can constrain designers in the way they conceptualize a problem
 Conflict with design principles
 Forces users to only understand the system in terms of the
metaphor
 Designers can inadvertently use bad existing designs and transfer
the bad parts over
 Limits designers’ imagination with new conceptual models

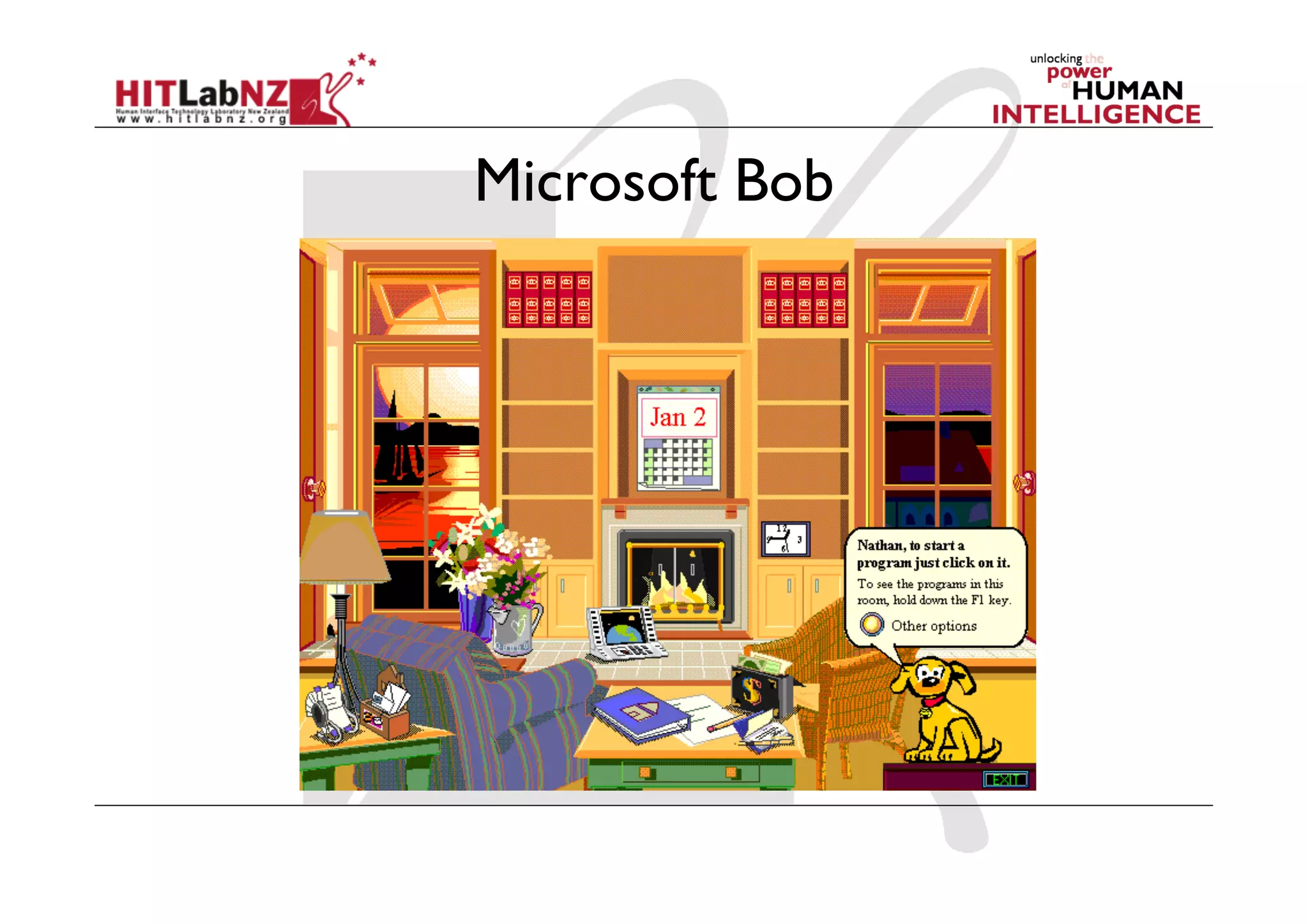

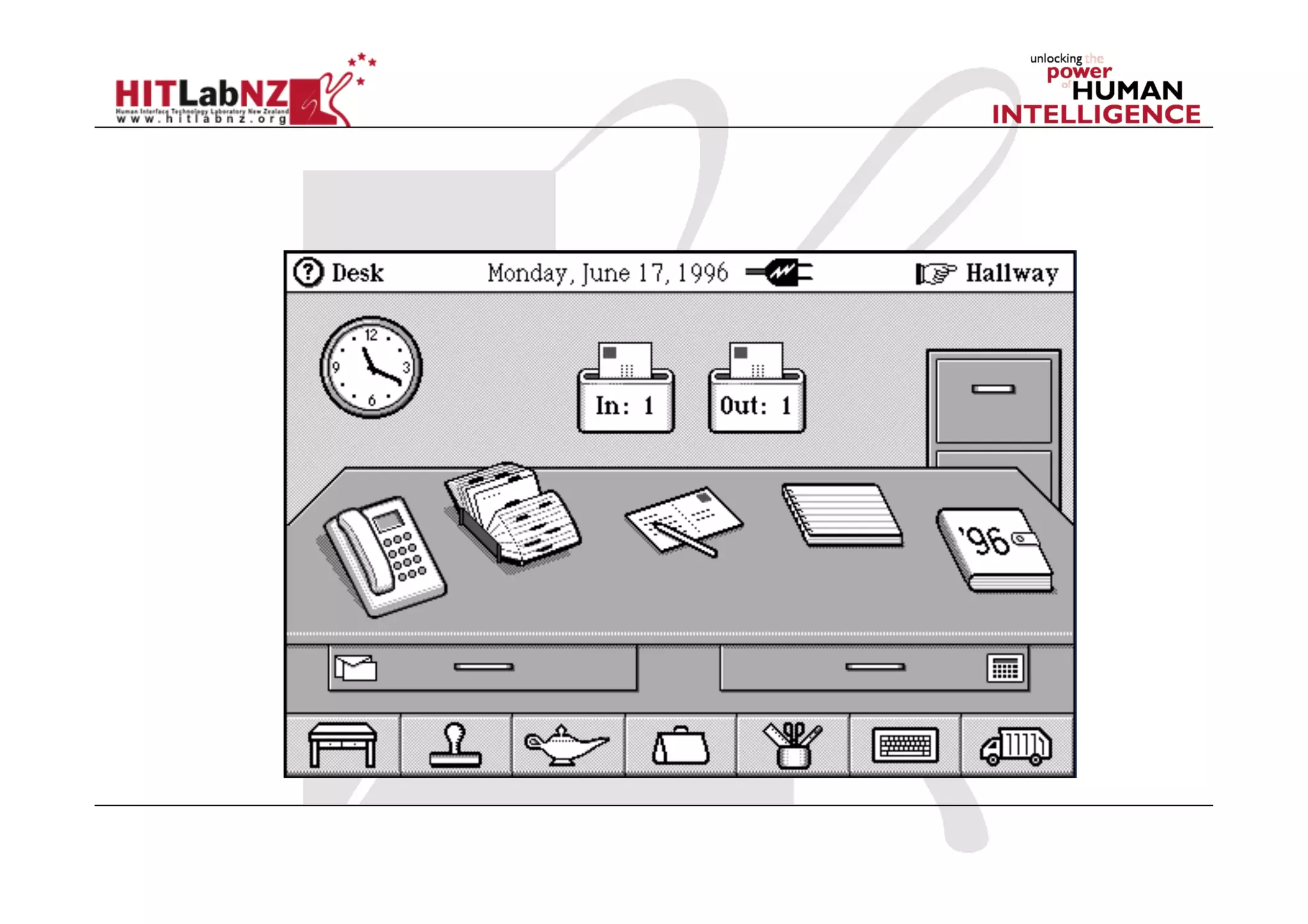

21. Microsoft Bob

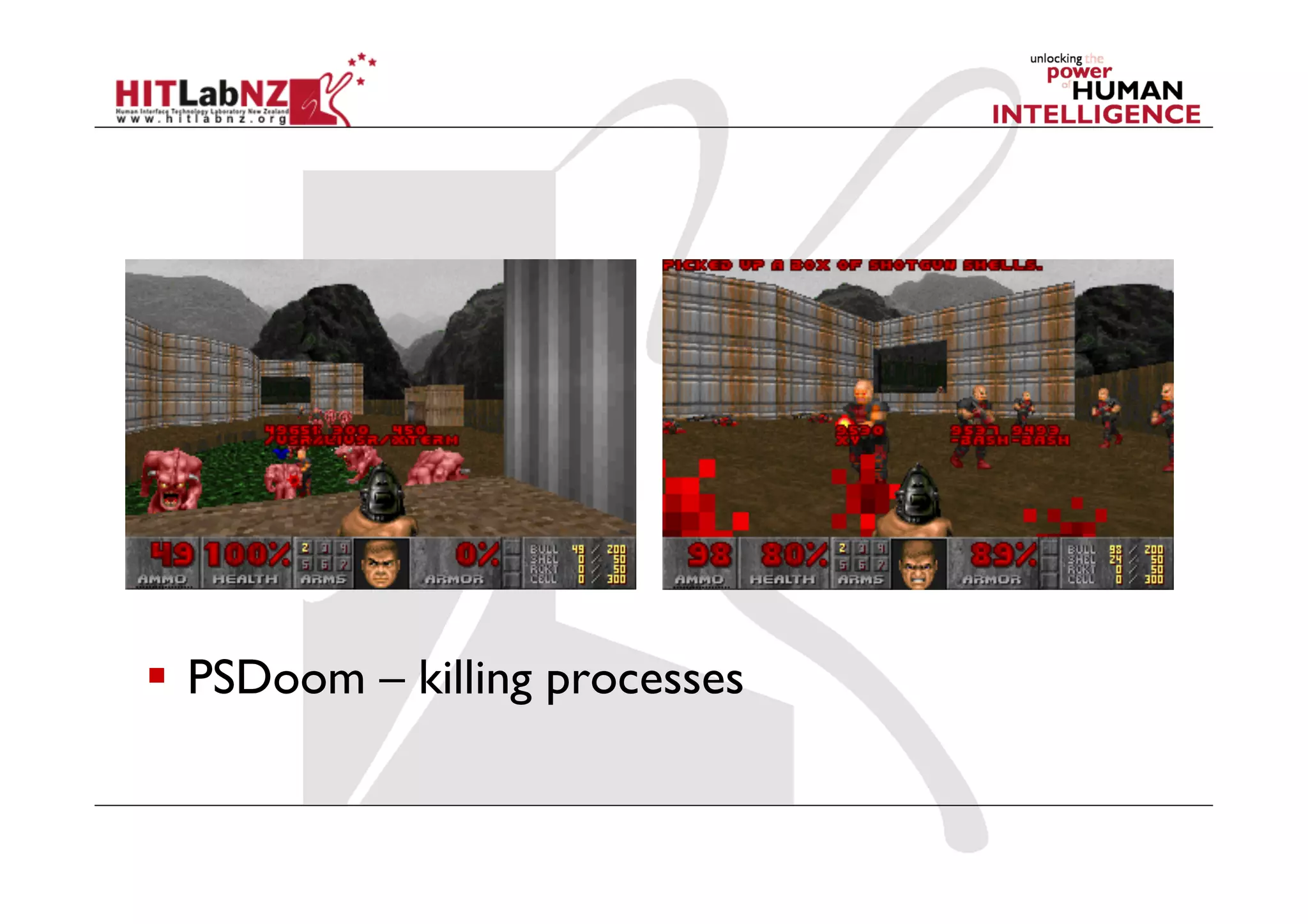

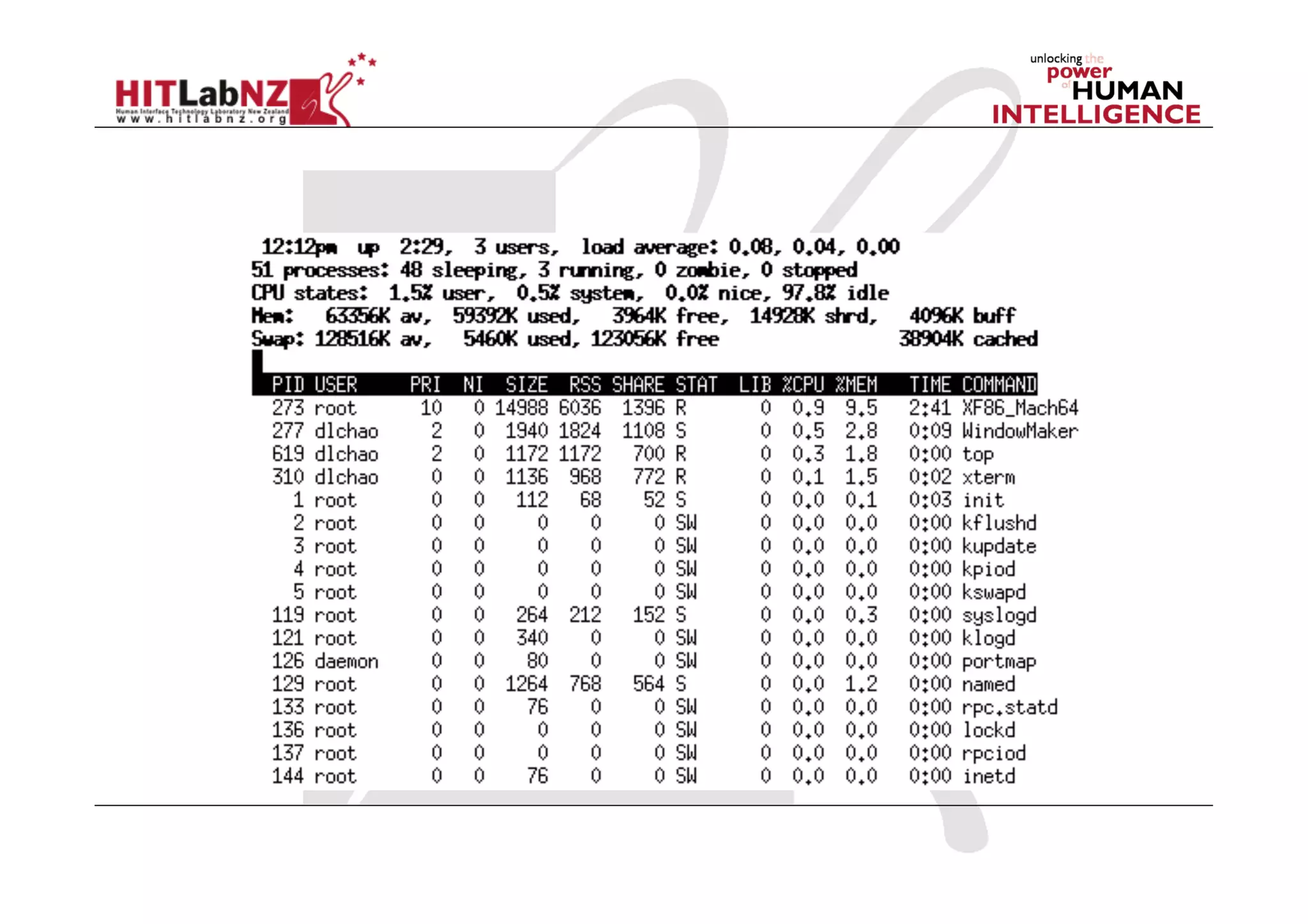

23.  PSDoom – killing processes

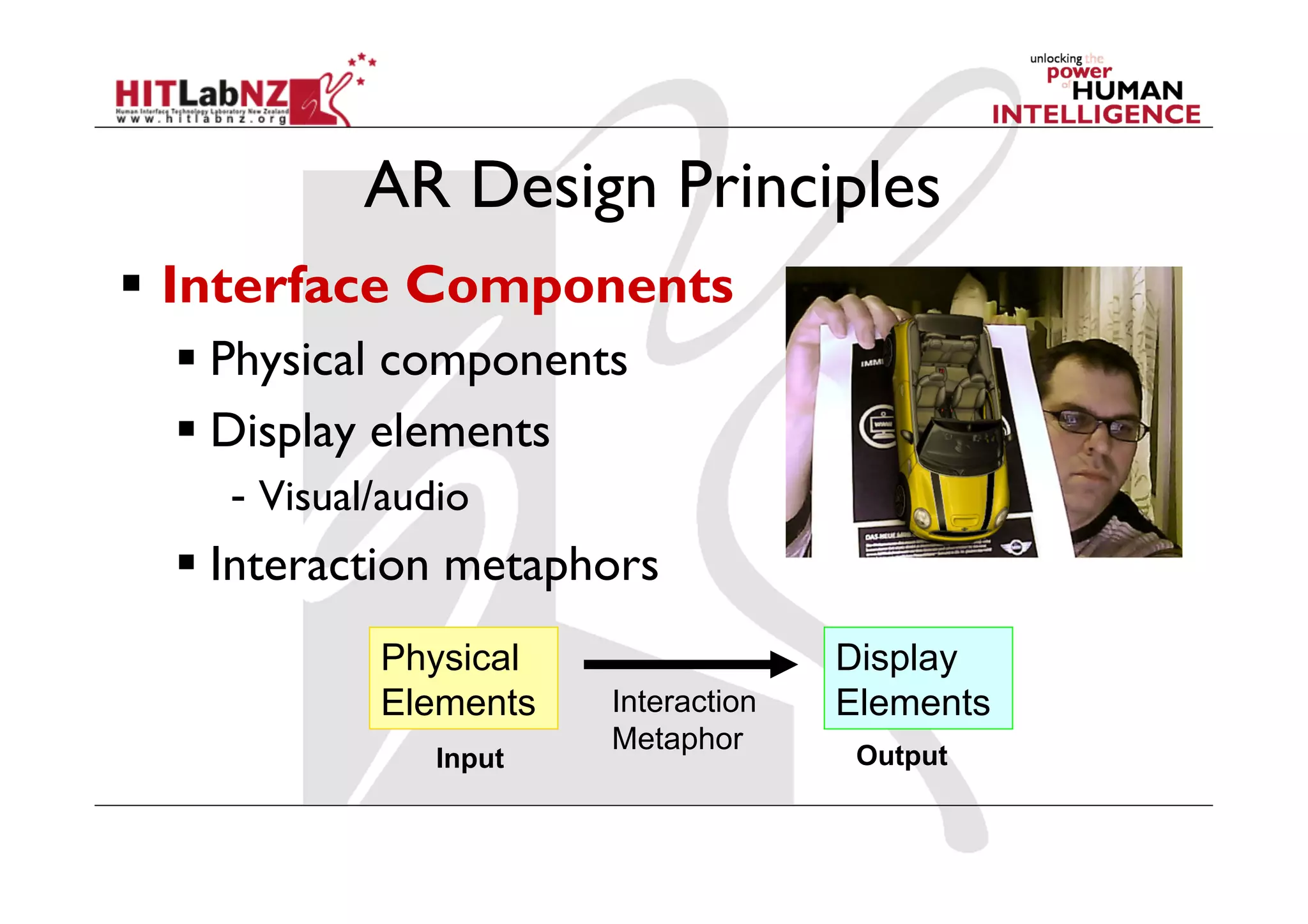

24. AR Design Principles
 Interface Components
 Physical components
 Display elements
- Visual/audio
 Interaction metaphors
Physical Display
Elements Interaction Elements
Metaphor
Input Output

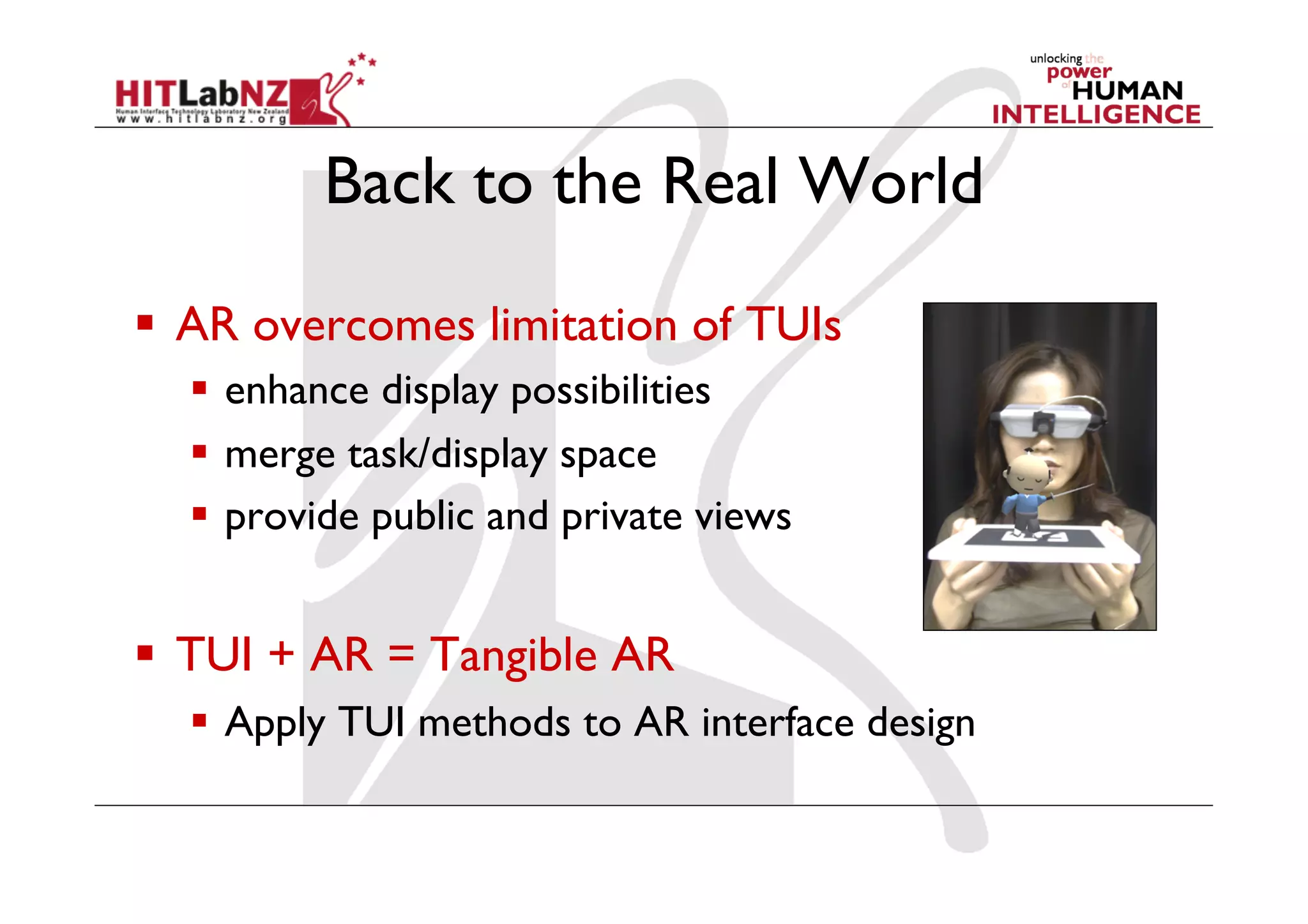

25. Back to the Real World
 AR overcomes limitation of TUIs
 enhance display possibilities
 merge task/display space
 provide public and private views
 TUI + AR = Tangible AR
 Apply TUI methods to AR interface design

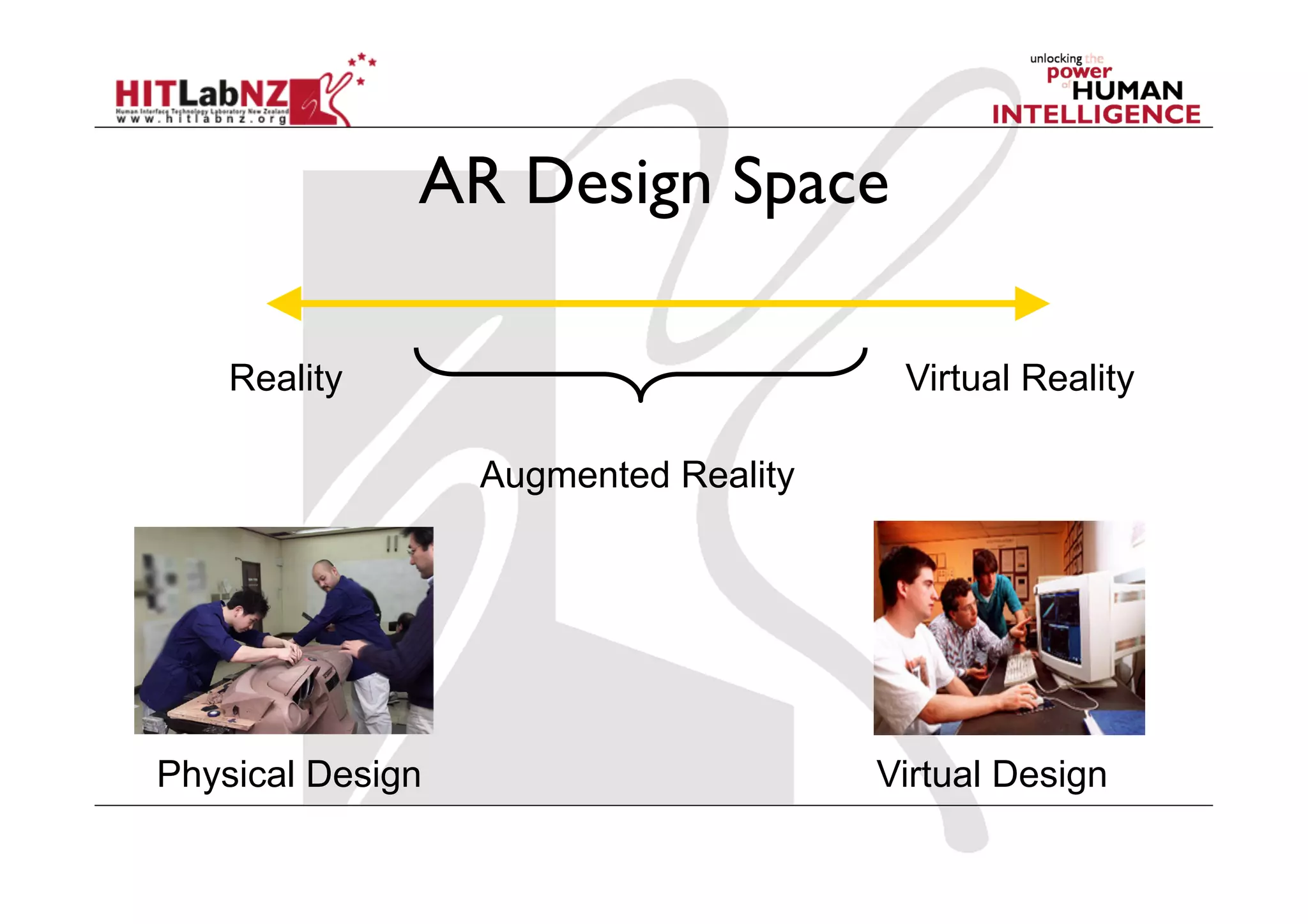

26. AR Design Space
Reality Virtual Reality
Augmented Reality
Physical Design Virtual Design

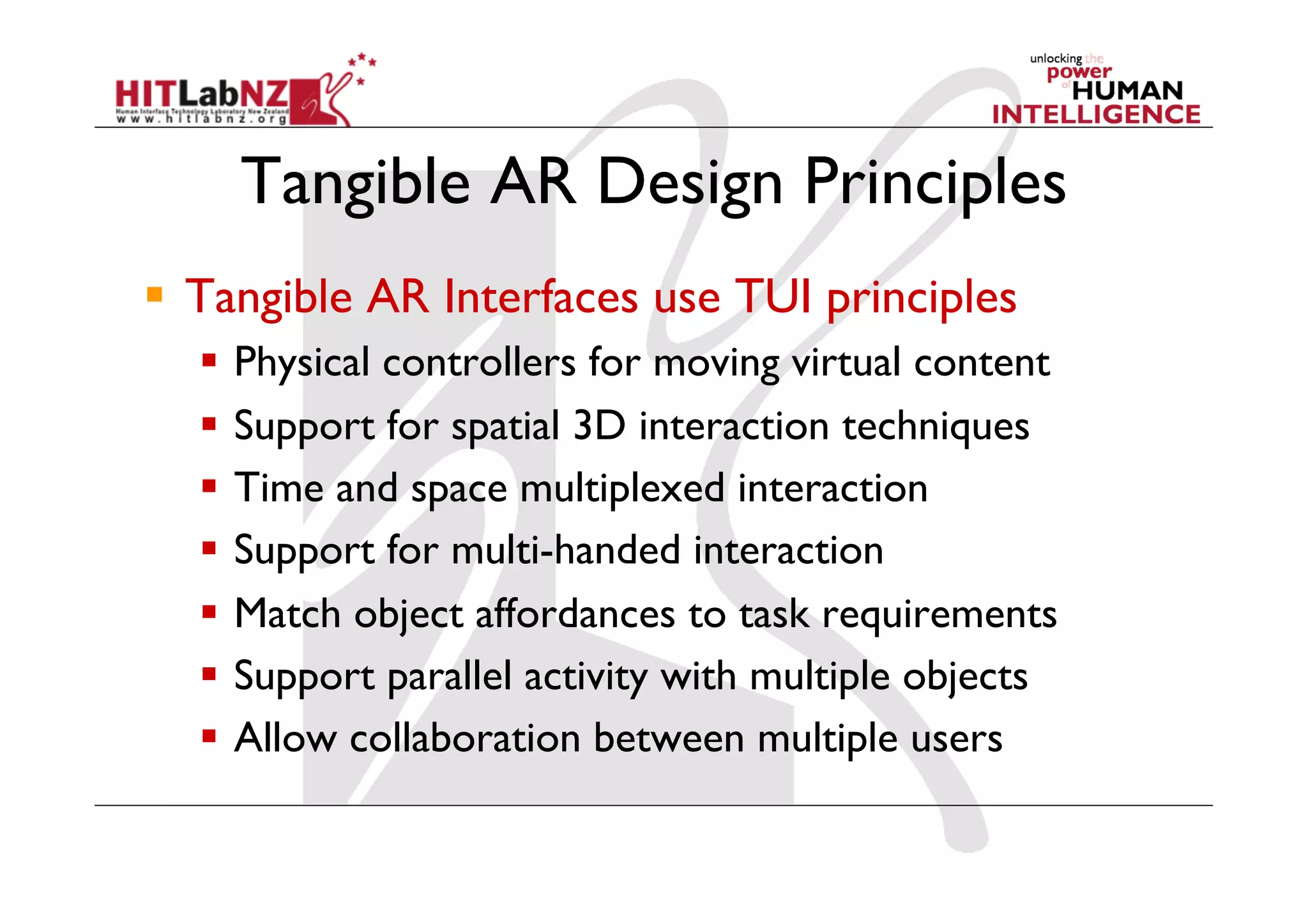

27. Tangible AR Design Principles
 Tangible AR Interfaces use TUI principles
 Physical controllers for moving virtual content
 Support for spatial 3D interaction techniques
 Time and space multiplexed interaction
 Support for multi-handed interaction
 Match object affordances to task requirements
 Support parallel activity with multiple objects
 Allow collaboration between multiple users

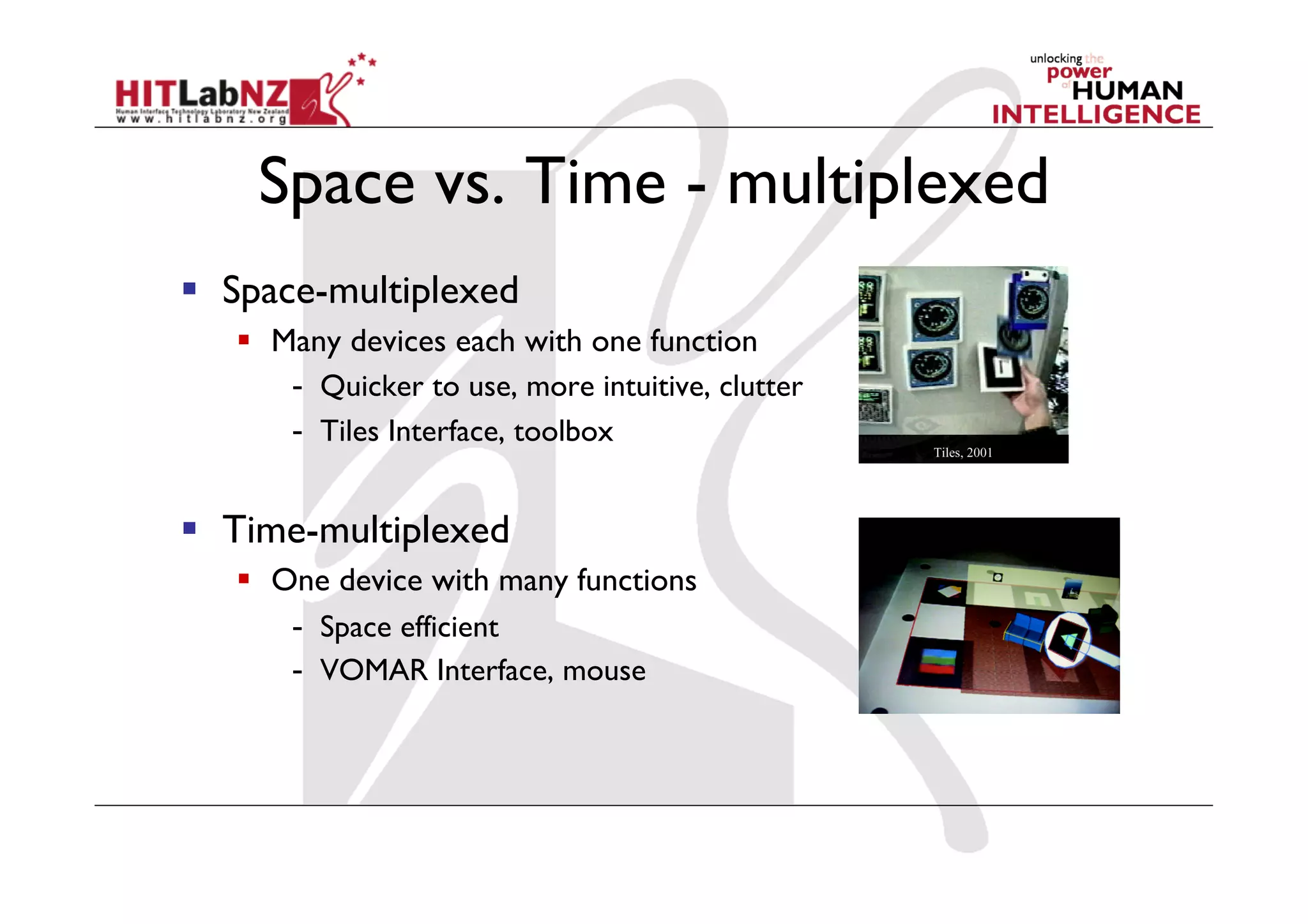

28.  Space-multiplexed
 Many devices each with one function
- Quicker to use, more intuitive, clutter
- Tiles Interface, toolbox
 Time-multiplexed
 One device with many functions
- Space efficient
- VOMAR Interface, mouse

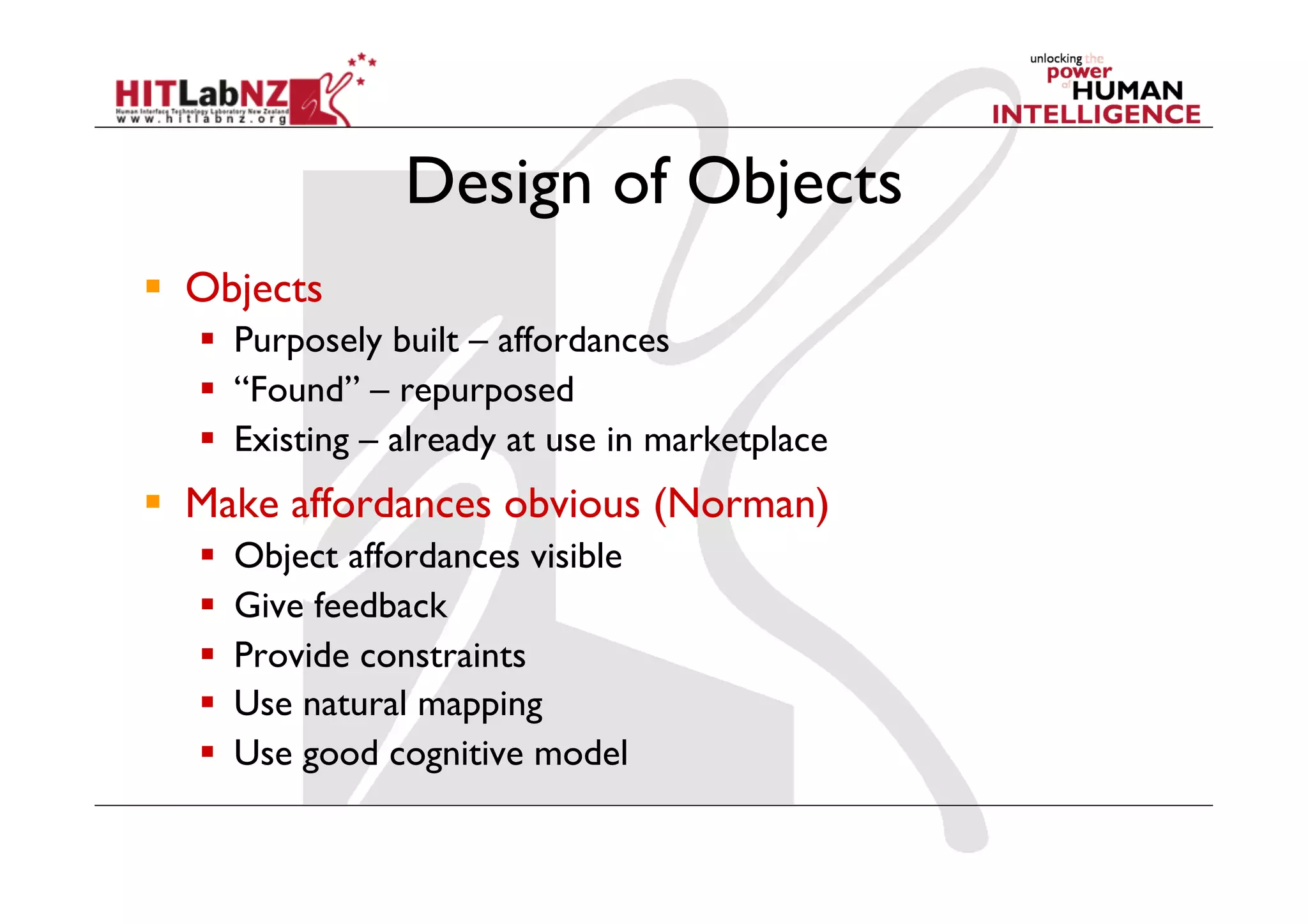

29. Design of Objects
 Objects
 Purposely built – affordances
 “Found” – repurposed
 Existing – already at use in marketplace
 Make affordances obvious (Norman)
 Object affordances visible
 Give feedback
 Provide constraints
 Use natural mapping
 Use good cognitive model

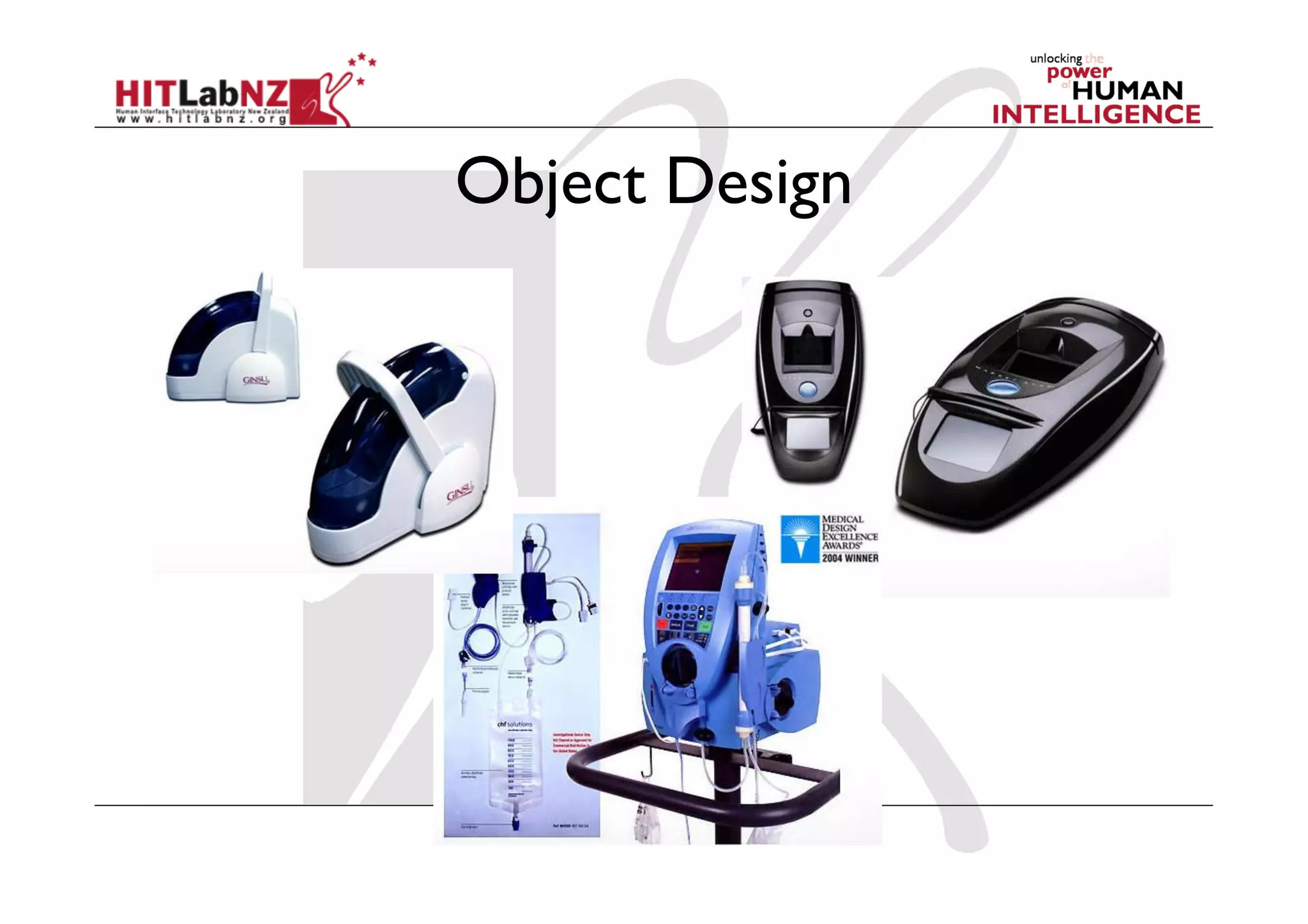

30. Object Design

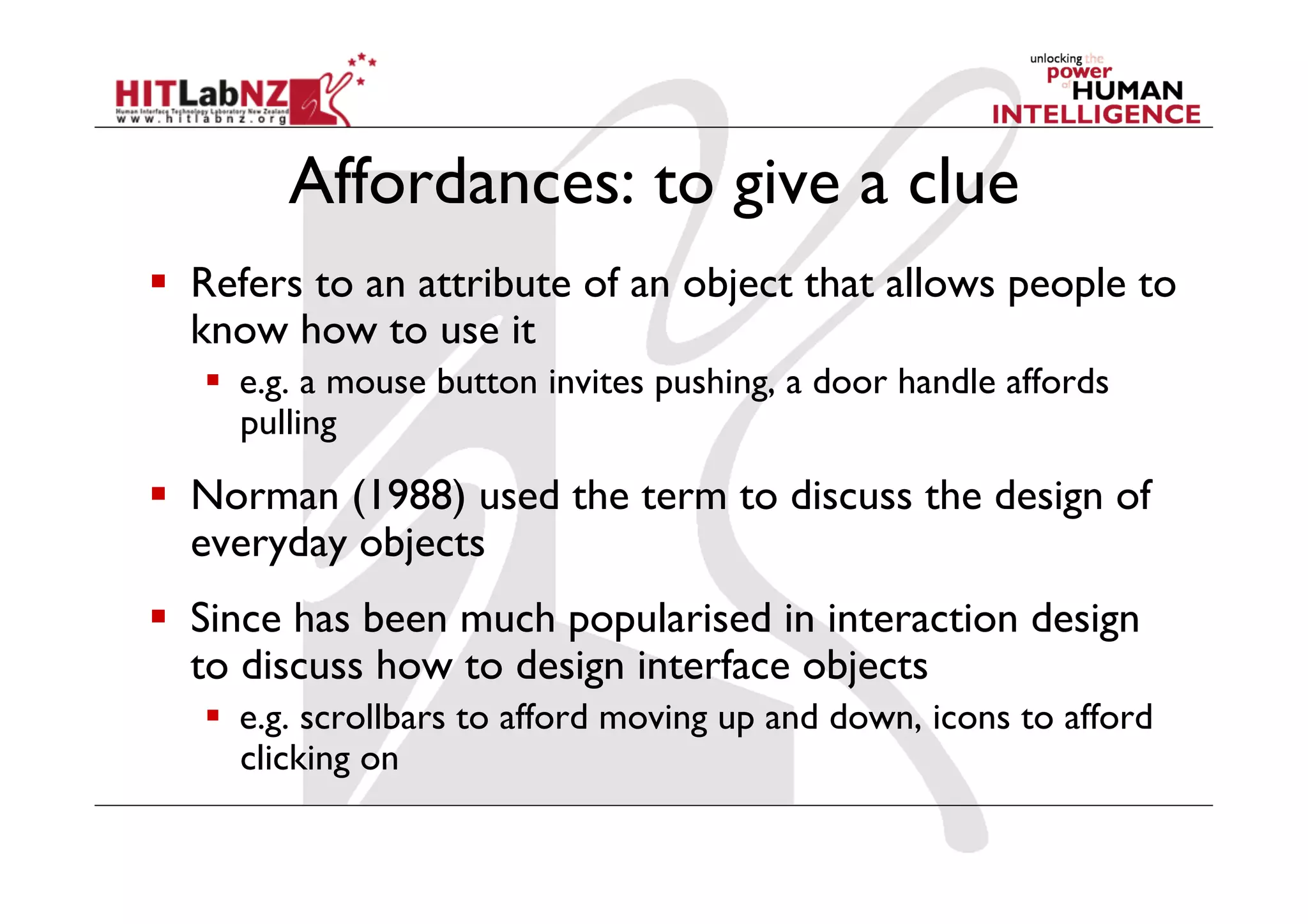

31. Affordances: to give a clue
 Refers to an attribute of an object that allows people to
know how to use it
 e.g. a mouse button invites pushing, a door handle affords
pulling
 Norman (1988) used the term to discuss the design of
everyday objects
 Since has been much popularised in interaction design
to discuss how to design interface objects
 e.g. scrollbars to afford moving up and down, icons to afford
clicking on

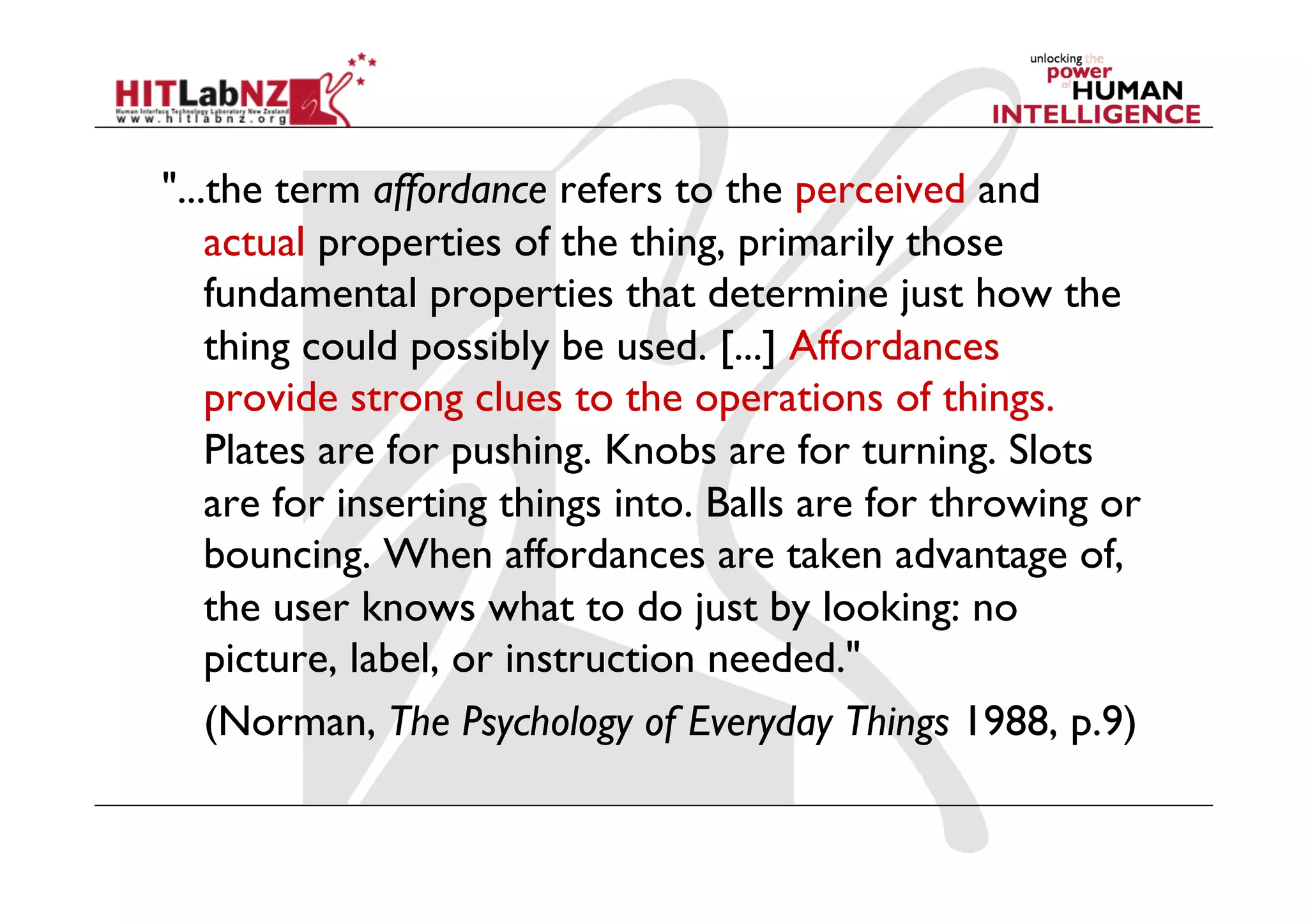

32. "...the term affordance refers to the perceived and
actual properties of the thing, primarily those
fundamental properties that determine just how the
thing could possibly be used. [...] Affordances
provide strong clues to the operations of things.
Plates are for pushing. Knobs are for turning. Slots
are for inserting things into. Balls are for throwing or
bouncing. When affordances are taken advantage of,
the user knows what to do just by looking: no
picture, label, or instruction needed."
(Norman, The Psychology of Everyday Things 1988, p.9)

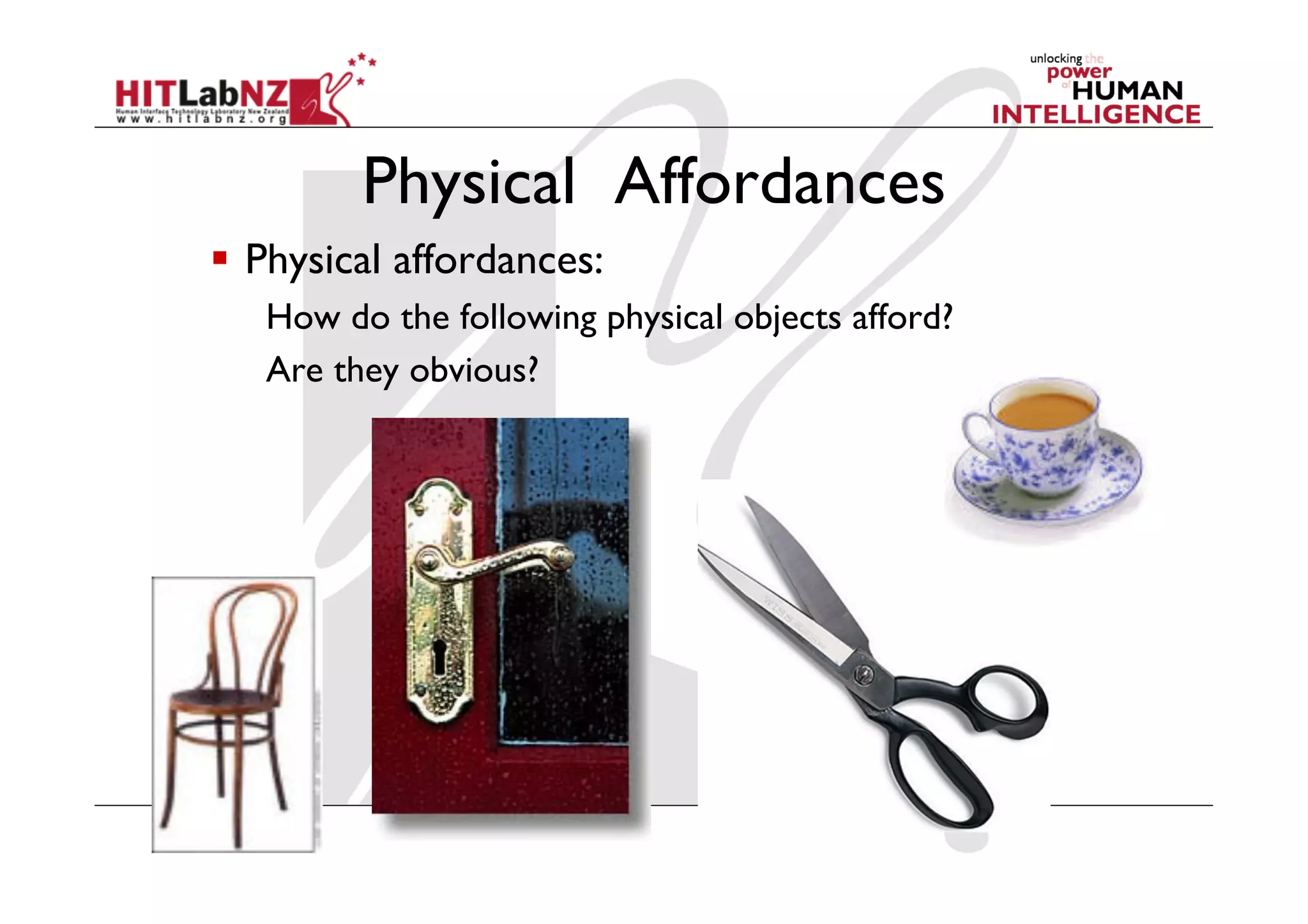

33. Physical Affordances
 Physical affordances:
How do the following physical objects afford?
Are they obvious?

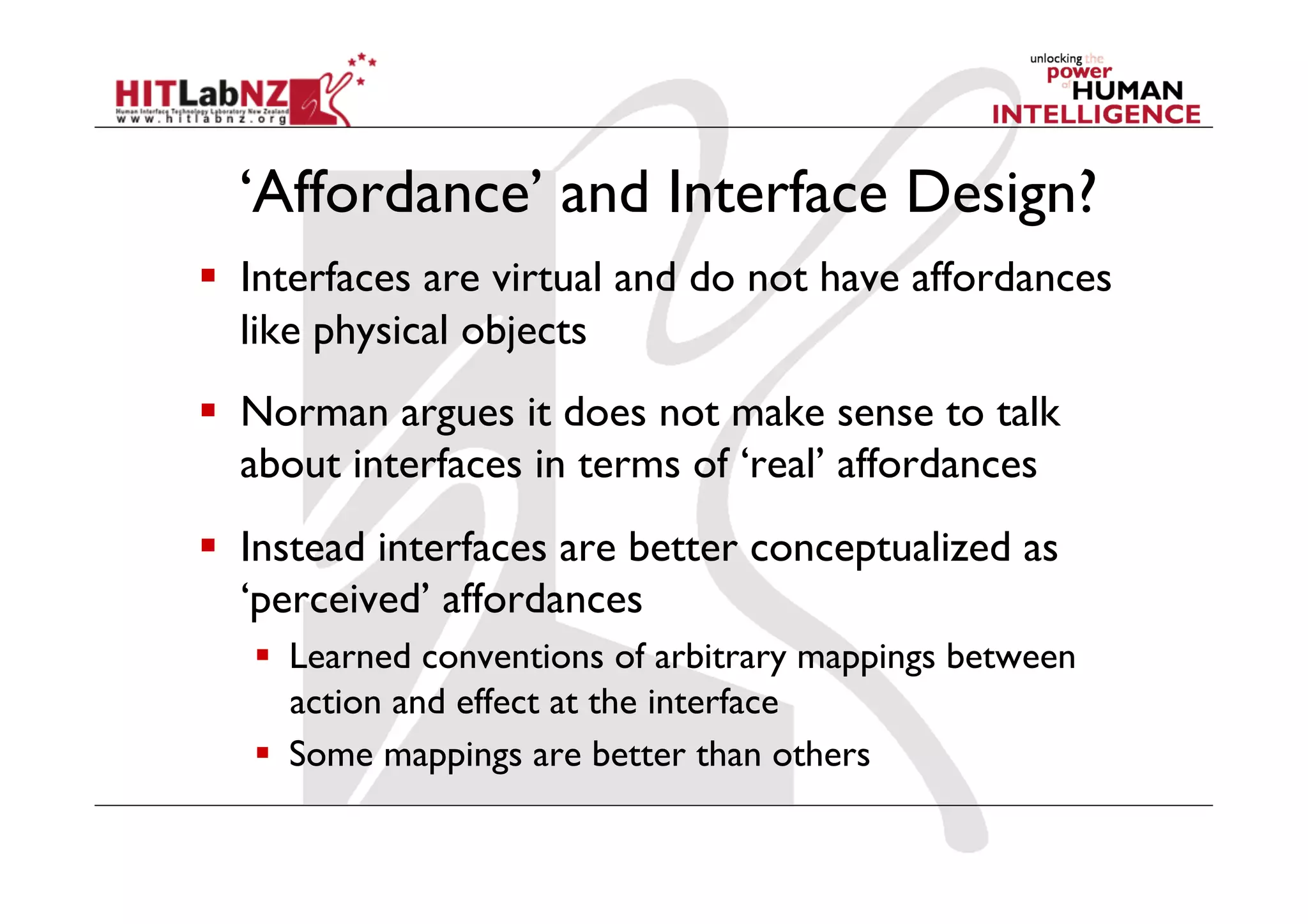

34. ‘Affordance’ and Interface Design?
 Interfaces are virtual and do not have affordances
like physical objects
 Norman argues it does not make sense to talk
about interfaces in terms of ‘real’ affordances
 Instead interfaces are better conceptualized as
‘perceived’ affordances
 Learned conventions of arbitrary mappings between
action and effect at the interface
 Some mappings are better than others

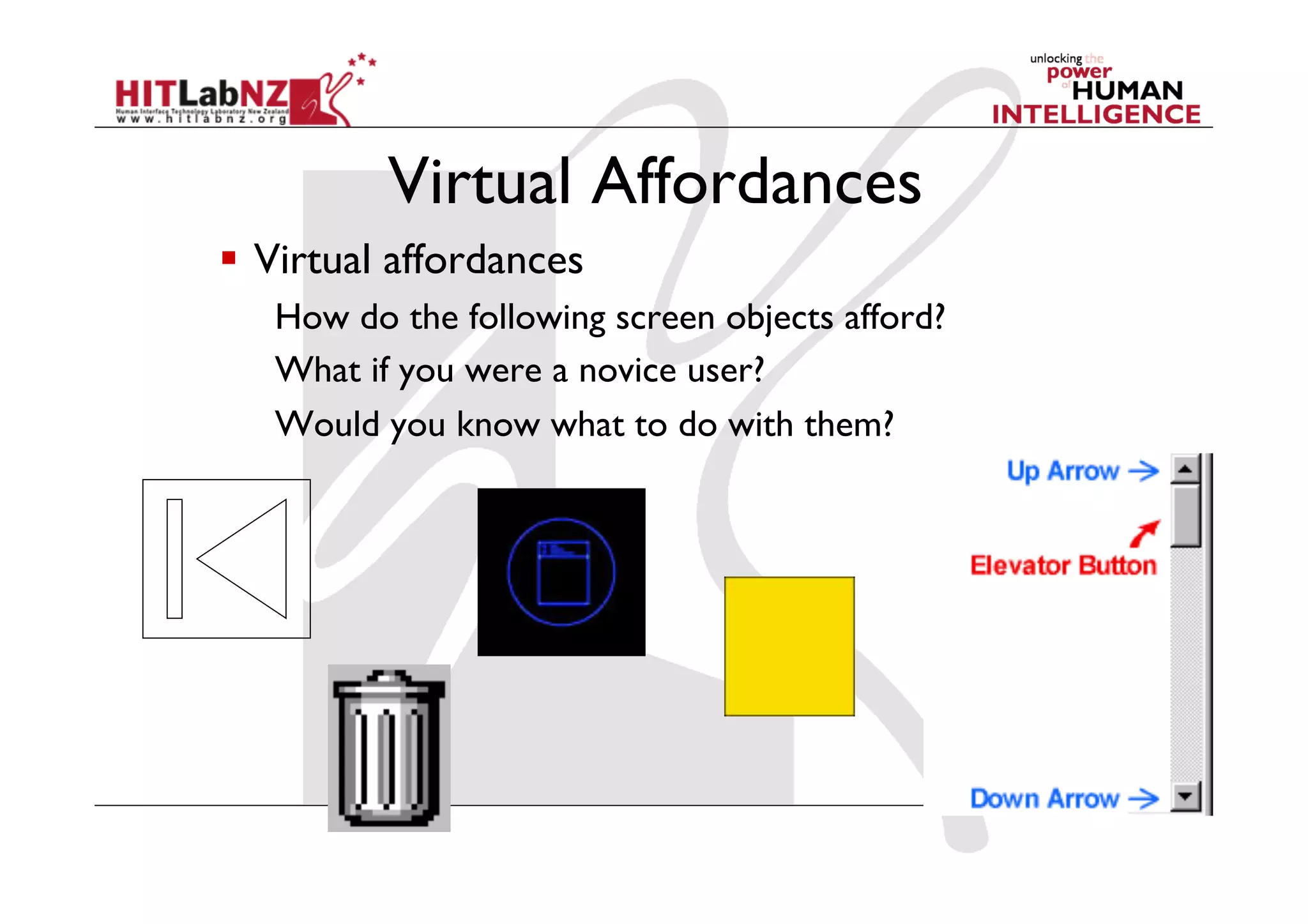

35. Virtual Affordances
 Virtual affordances
How do the following screen objects afford?
What if you were a novice user?
Would you know what to do with them?

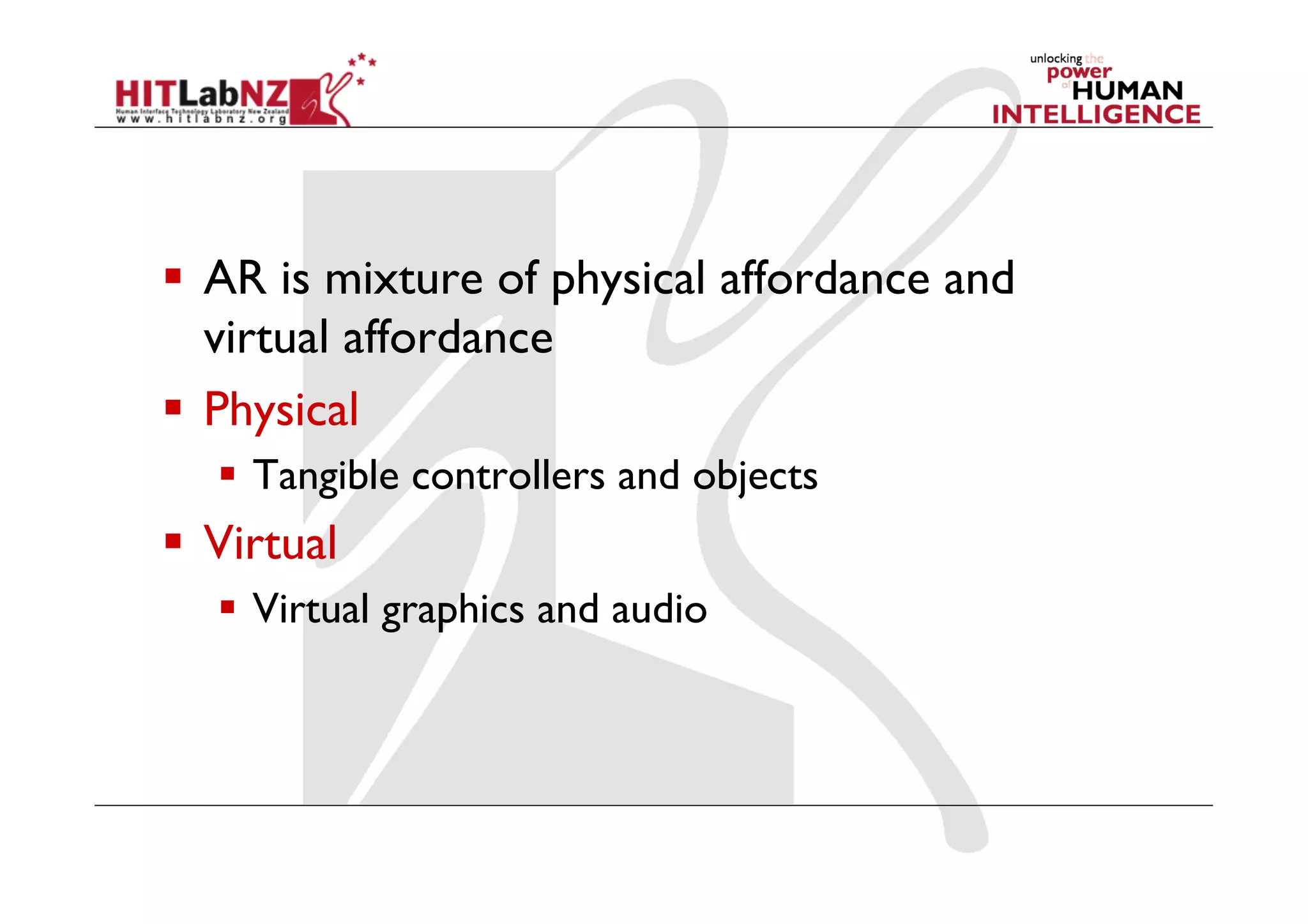

36.  AR is mixture of physical affordance and
virtual affordance
 Physical
 Tangible controllers and objects
 Virtual
 Virtual graphics and audio

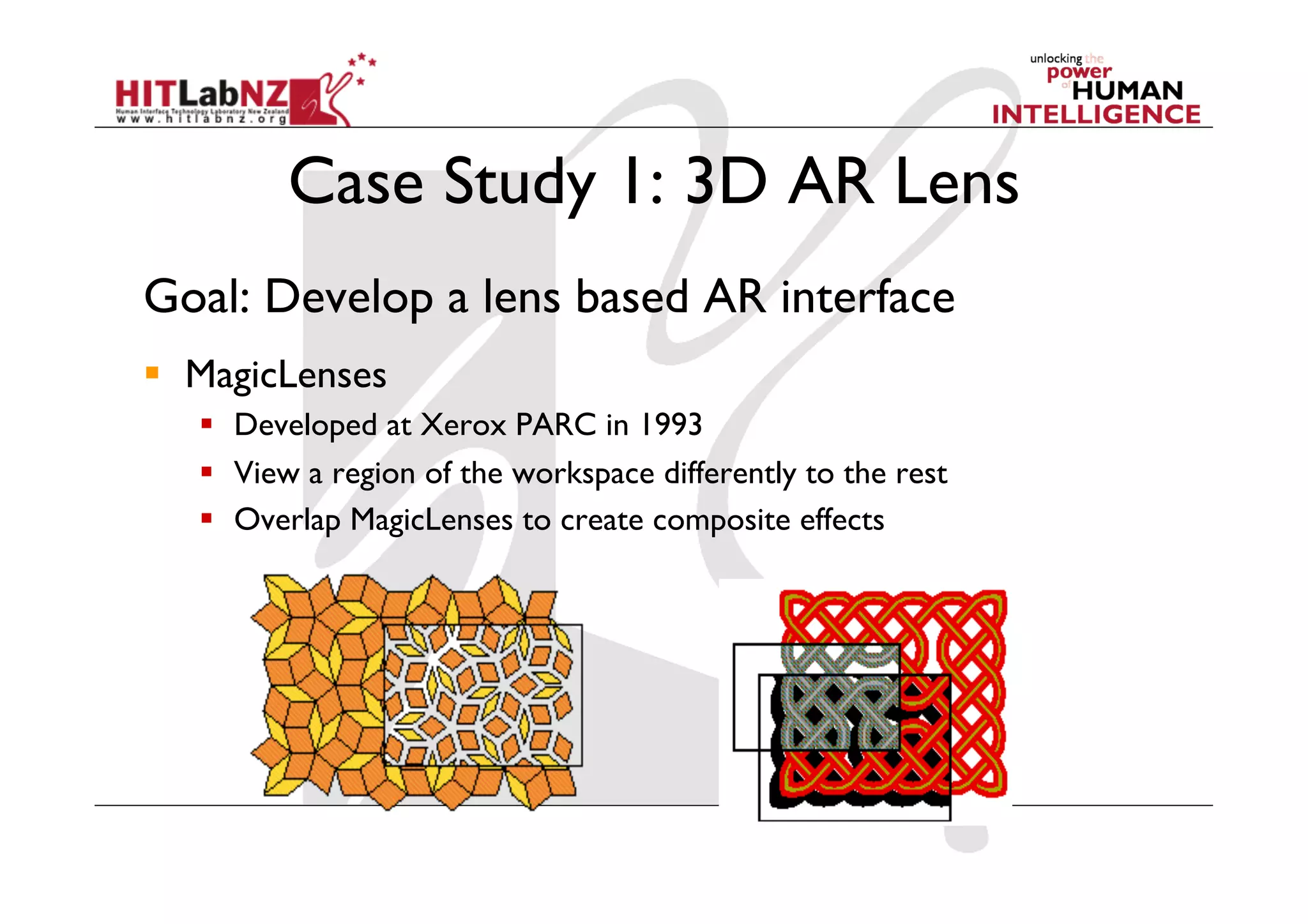

37. Case Study 1: 3D AR Lens
Goal: Develop a lens based AR interface
 MagicLenses
 Developed at Xerox PARC in 1993
 View a region of the workspace differently to the rest
 Overlap MagicLenses to create composite effects

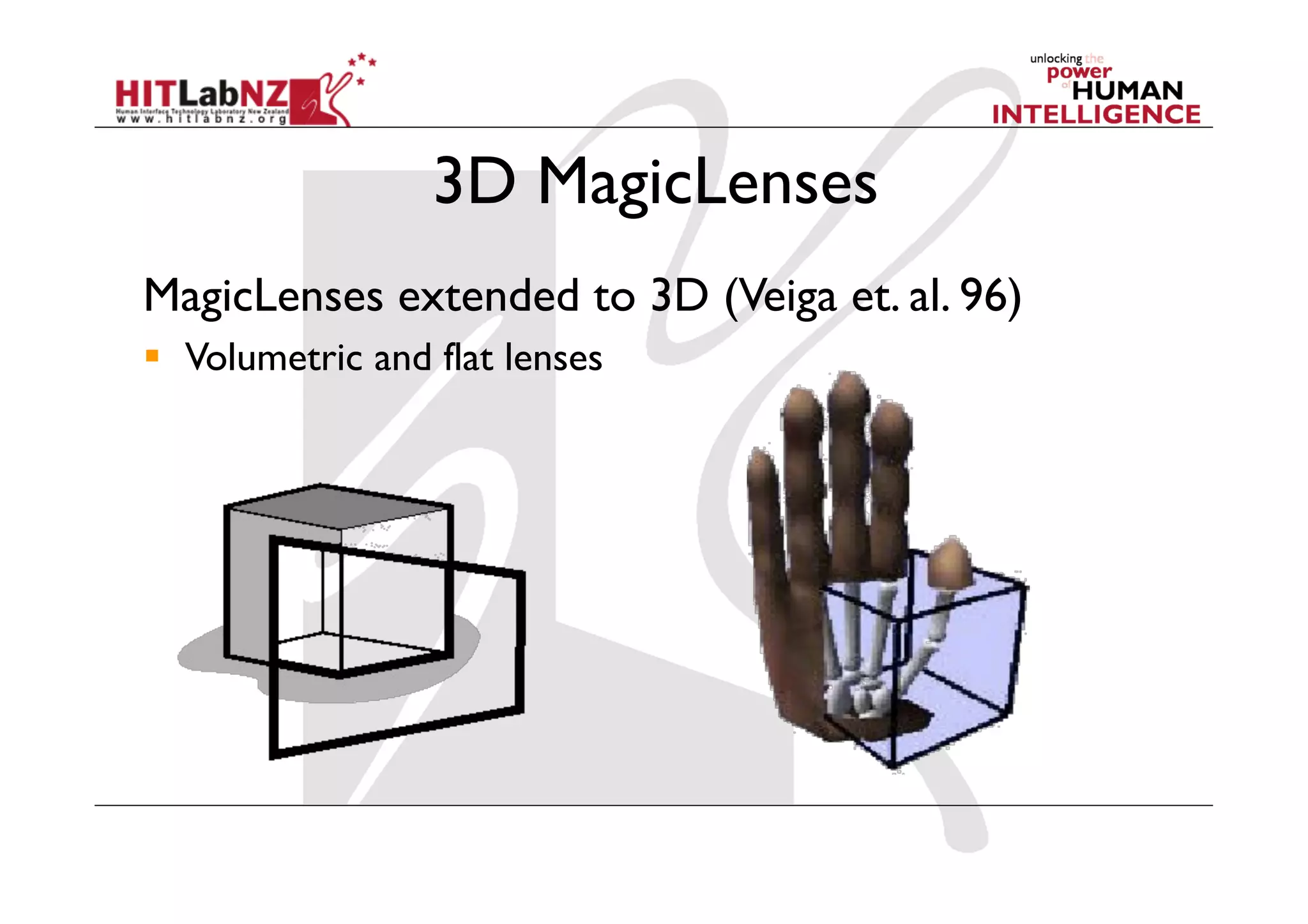

38. 3D MagicLenses
MagicLenses extended to 3D (Veiga et. al. 96)
 Volumetric and flat lenses

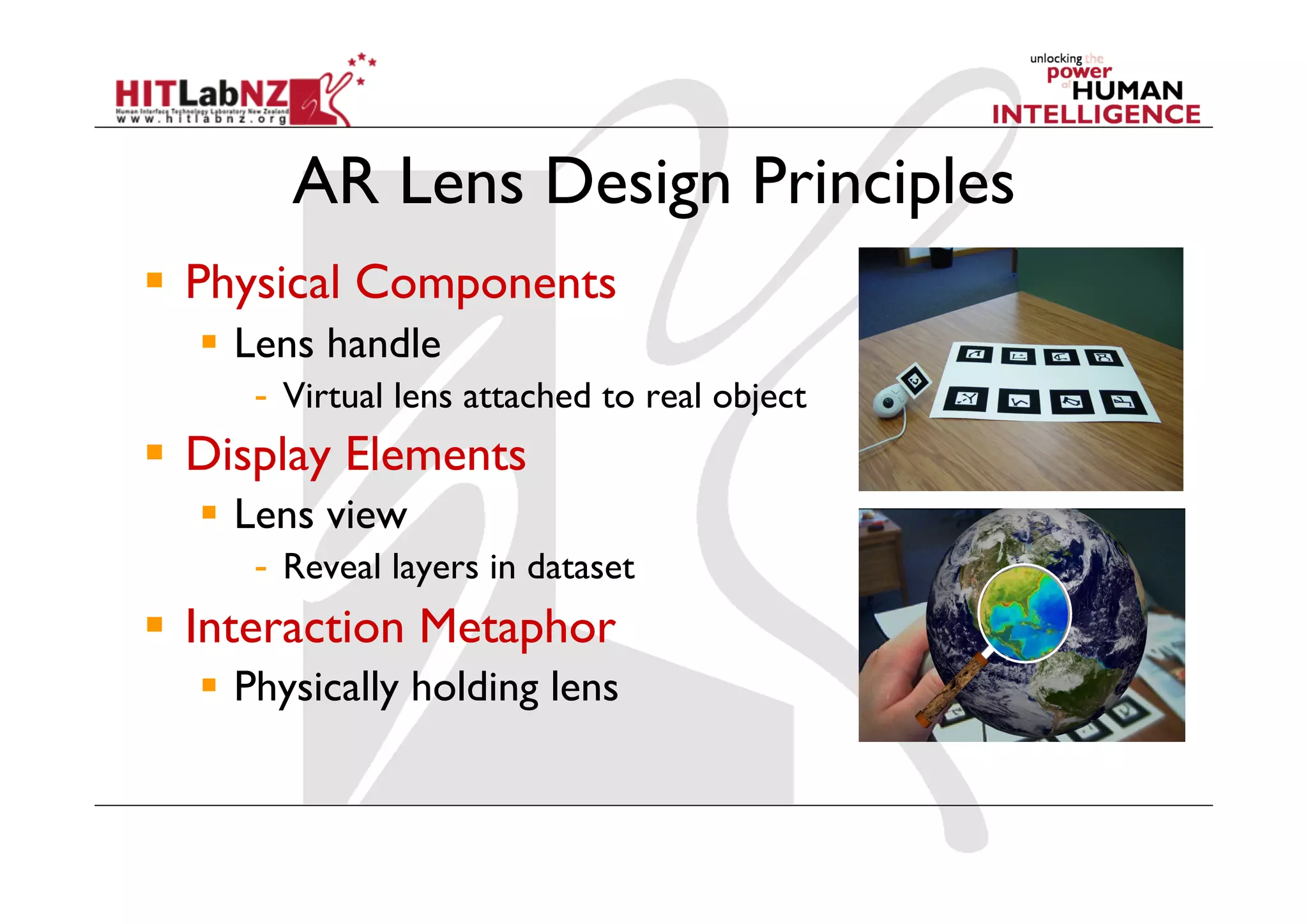

39. AR Lens Design Principles
 Physical Components
 Lens handle
- Virtual lens attached to real object
 Display Elements
 Lens view
- Reveal layers in dataset
 Interaction Metaphor
 Physically holding lens

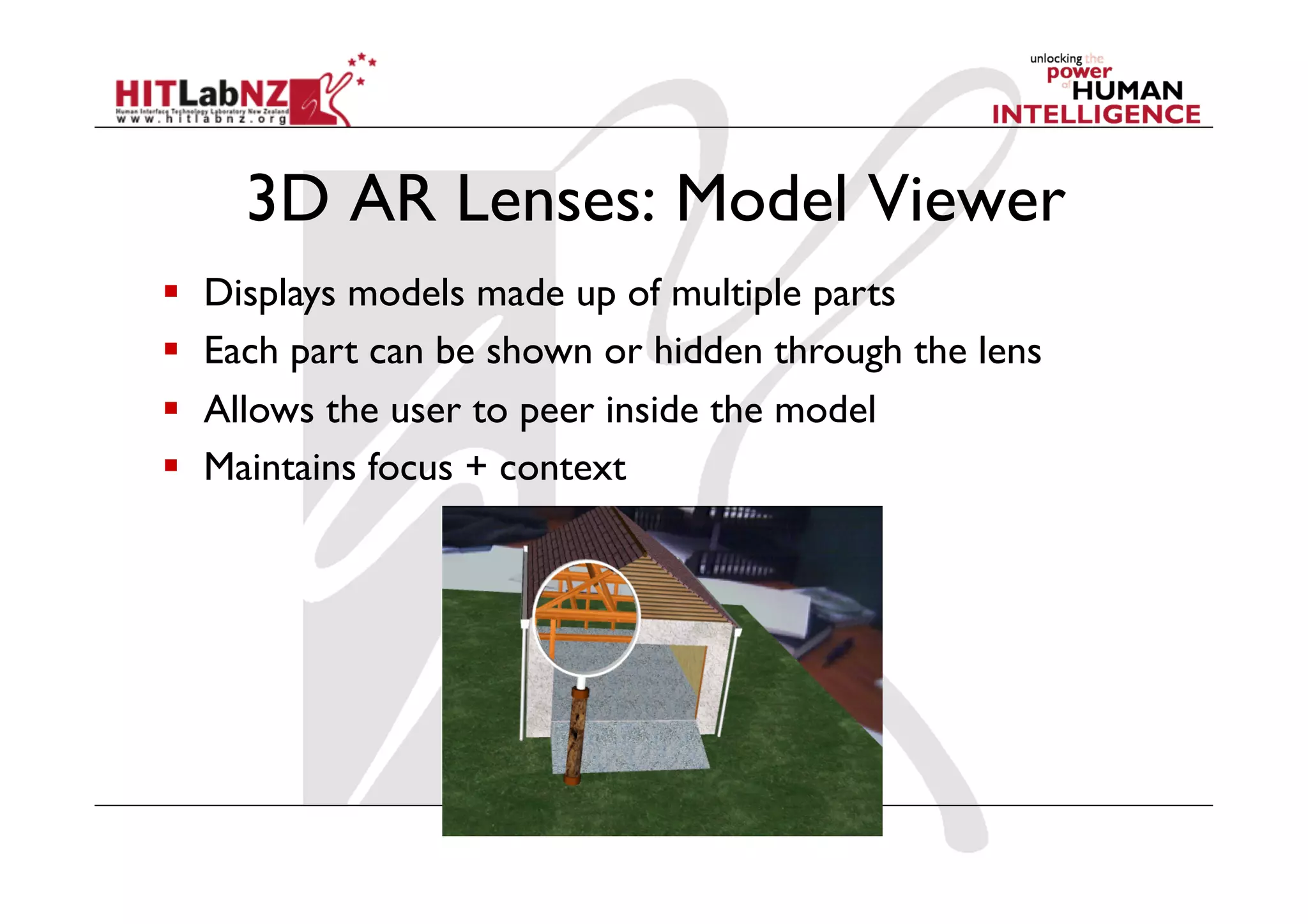

40. 3D AR Lenses: Model Viewer
 Displays models made up of multiple parts
 Each part can be shown or hidden through the lens
 Allows the user to peer inside the model
 Maintains focus + context

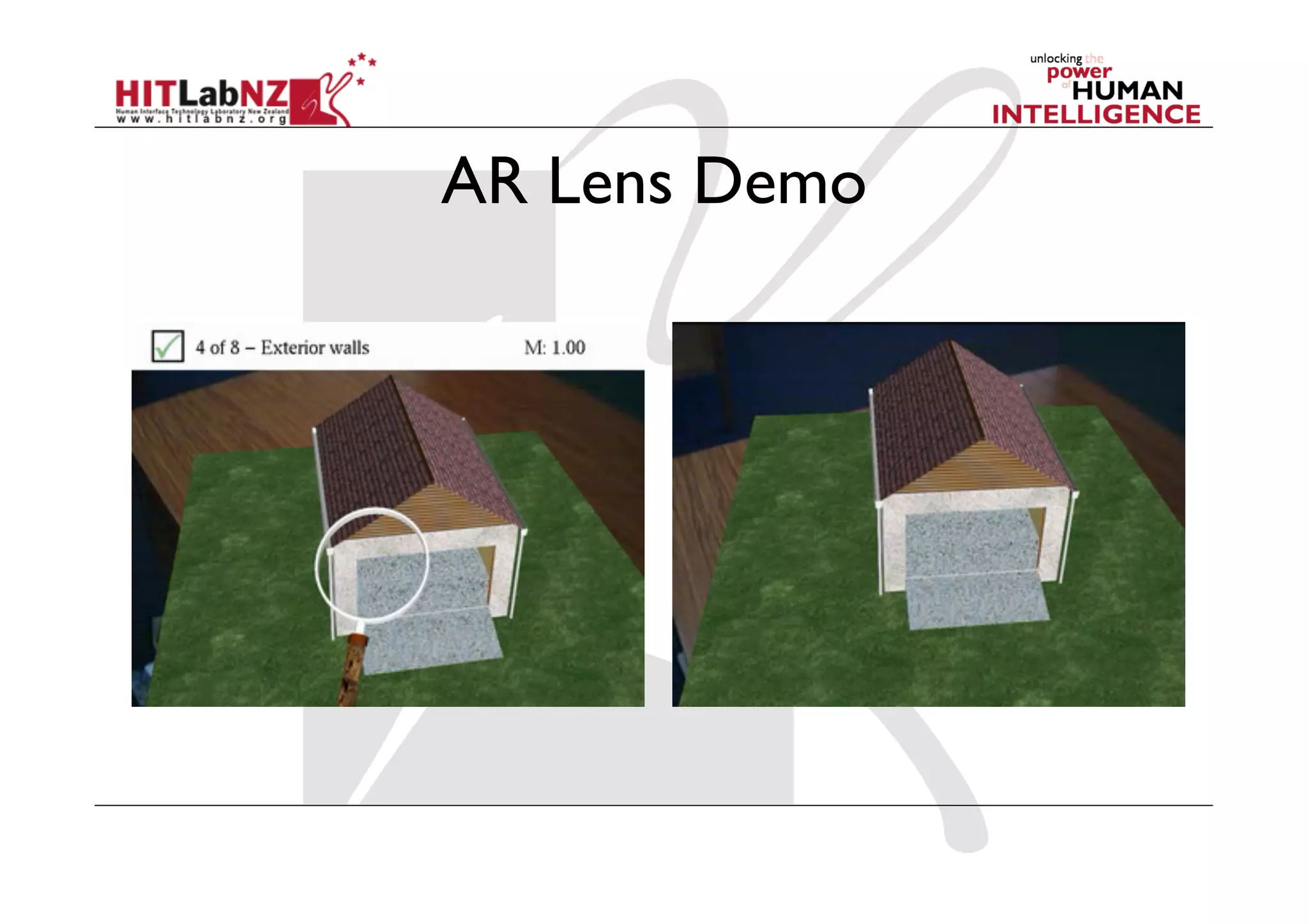

41. AR Lens Demo

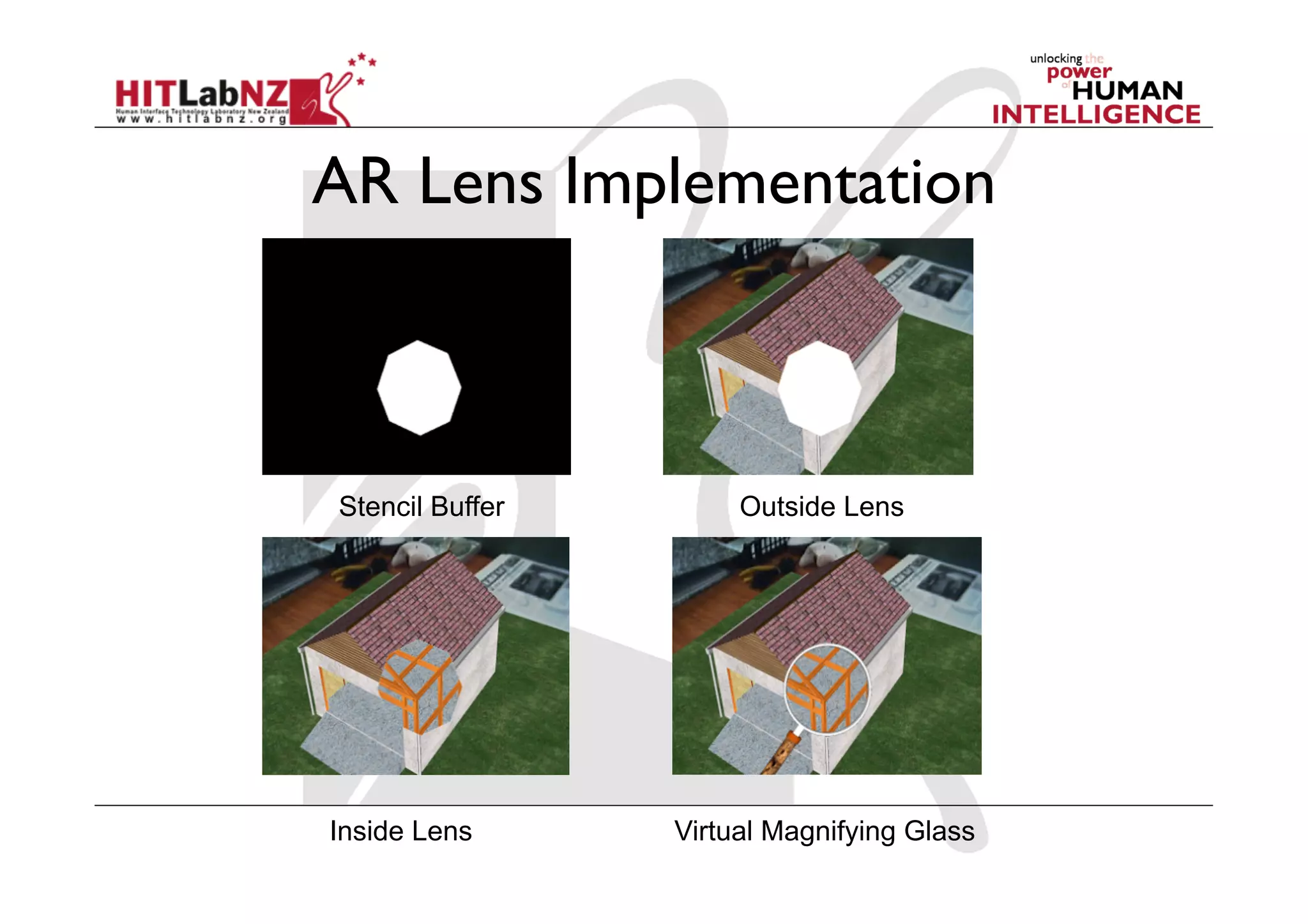

42. AR Lens Implementation
Stencil Buffer Outside Lens
Inside Lens Virtual Magnifying Glass

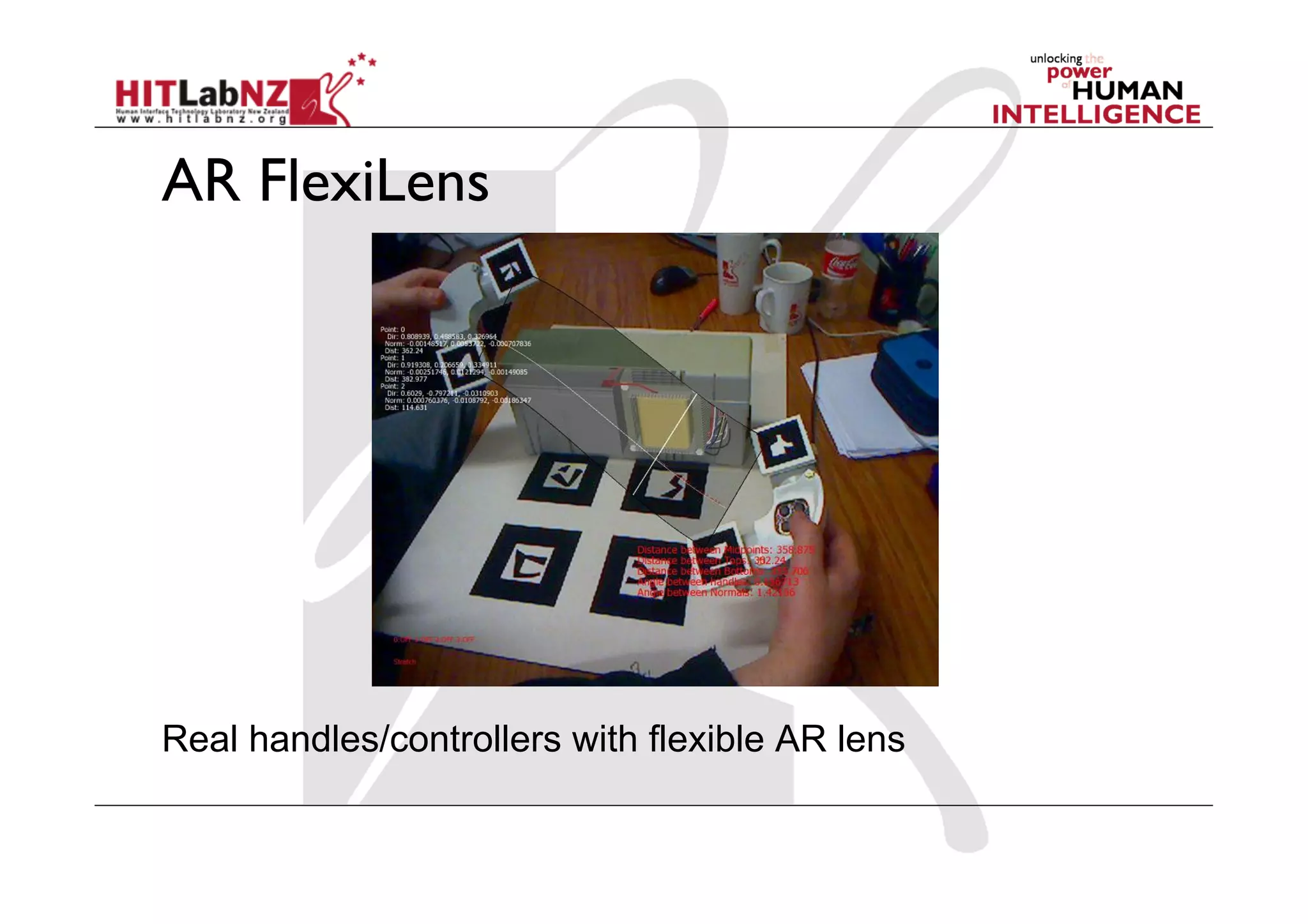

43. AR FlexiLens
Real handles/controllers with flexible AR lens

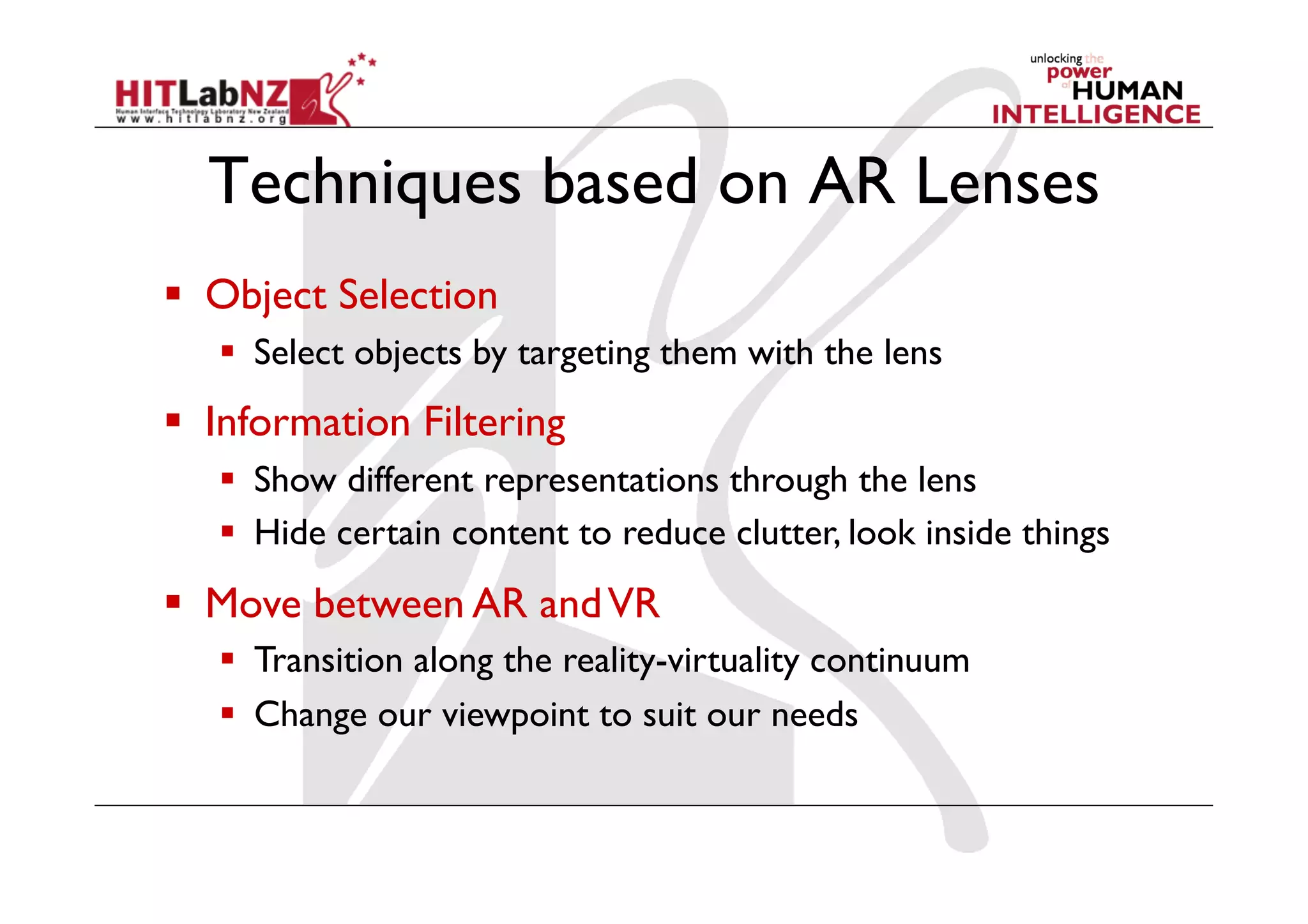

44. Techniques based on AR Lenses
 Object Selection
 Select objects by targeting them with the lens
 Information Filtering
 Show different representations through the lens
 Hide certain content to reduce clutter, look inside things
 Move between AR and VR
 Transition along the reality-virtuality continuum
 Change our viewpoint to suit our needs

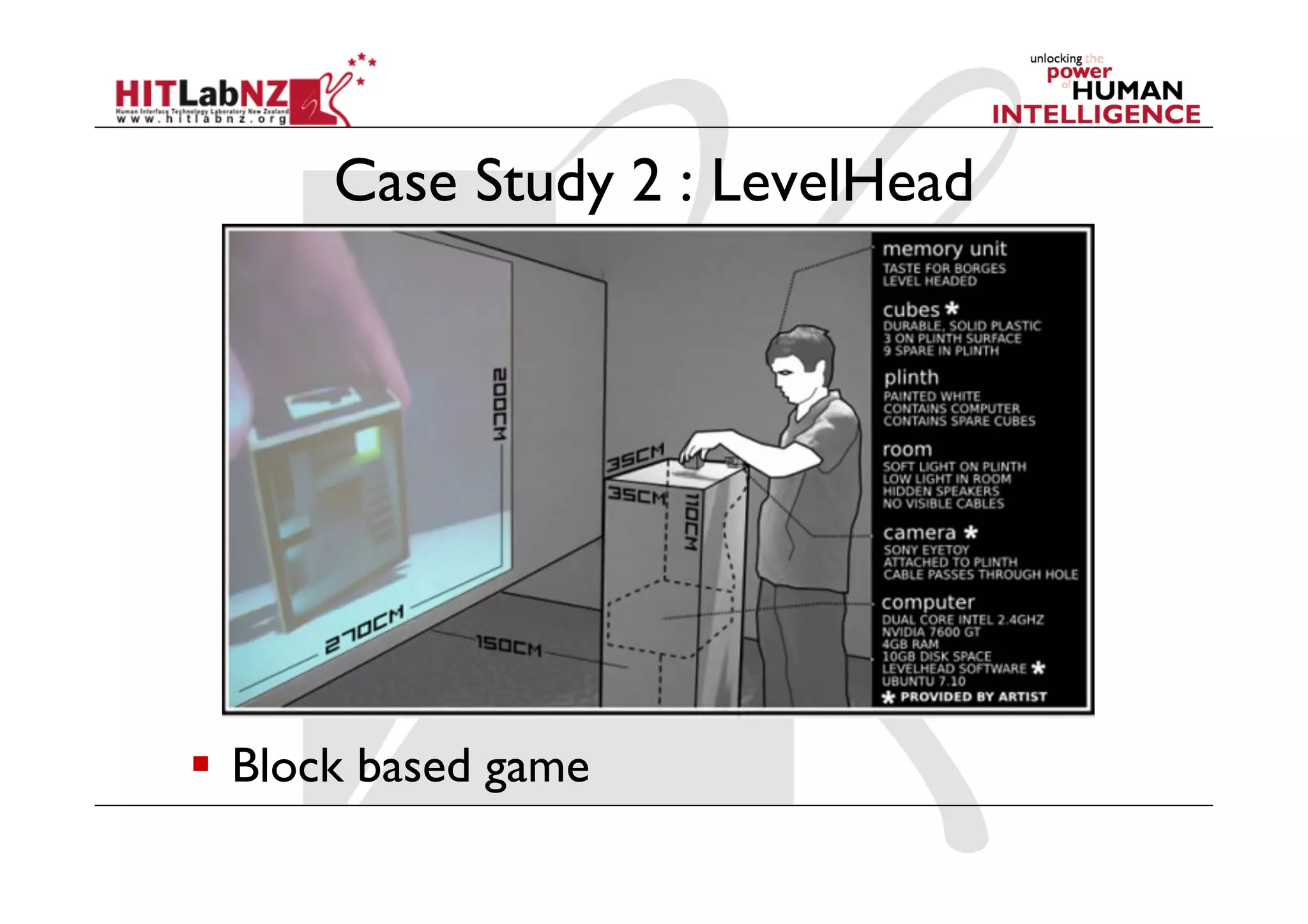

45. Case Study 2 : LevelHead
 Block based game

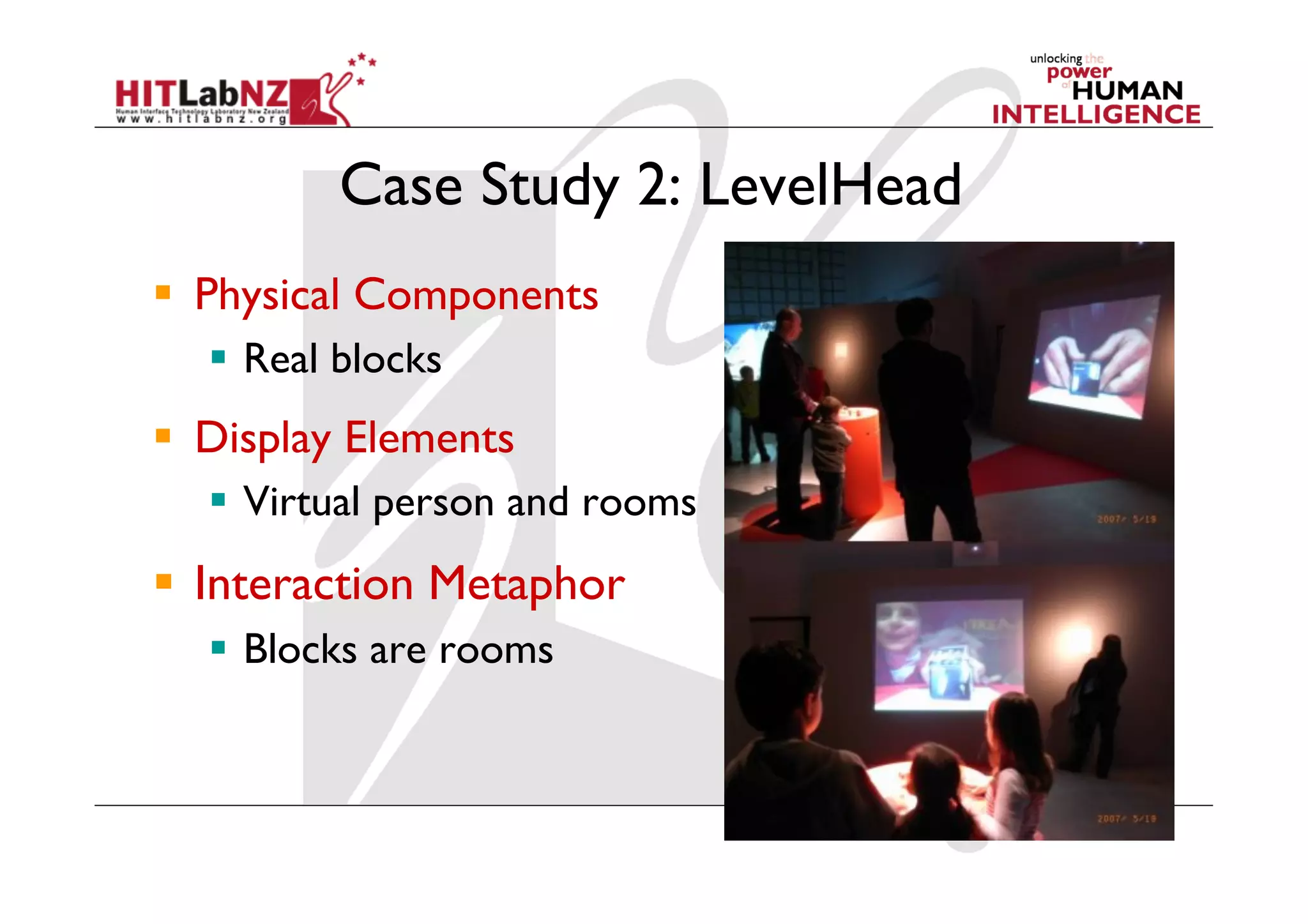

46. Case Study 2: LevelHead
 Physical Components
 Real blocks
 Display Elements
 Virtual person and rooms
 Interaction Metaphor
 Blocks are rooms

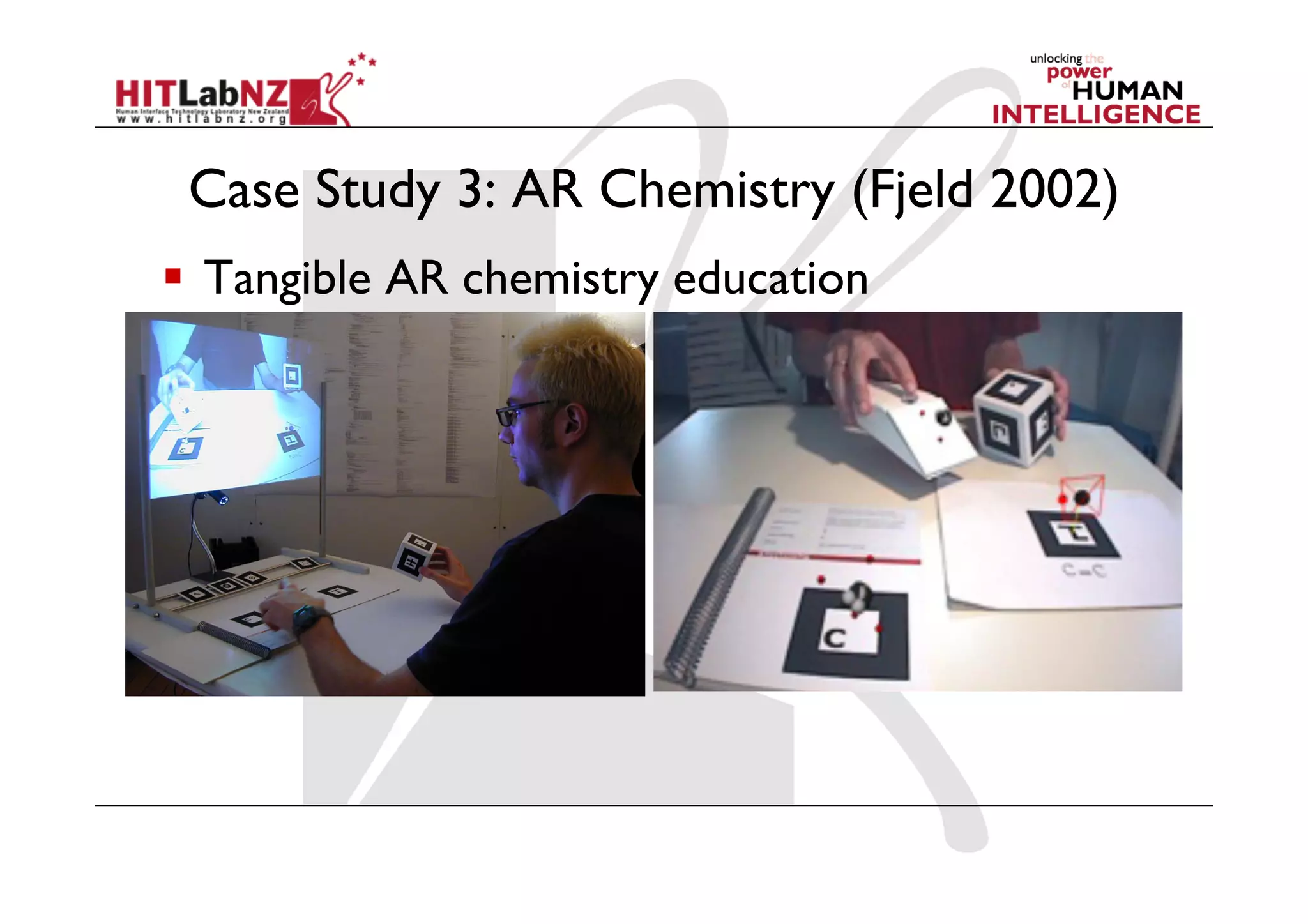

48. Case Study 3: AR Chemistry (Fjeld 2002)
 Tangible AR chemistry education

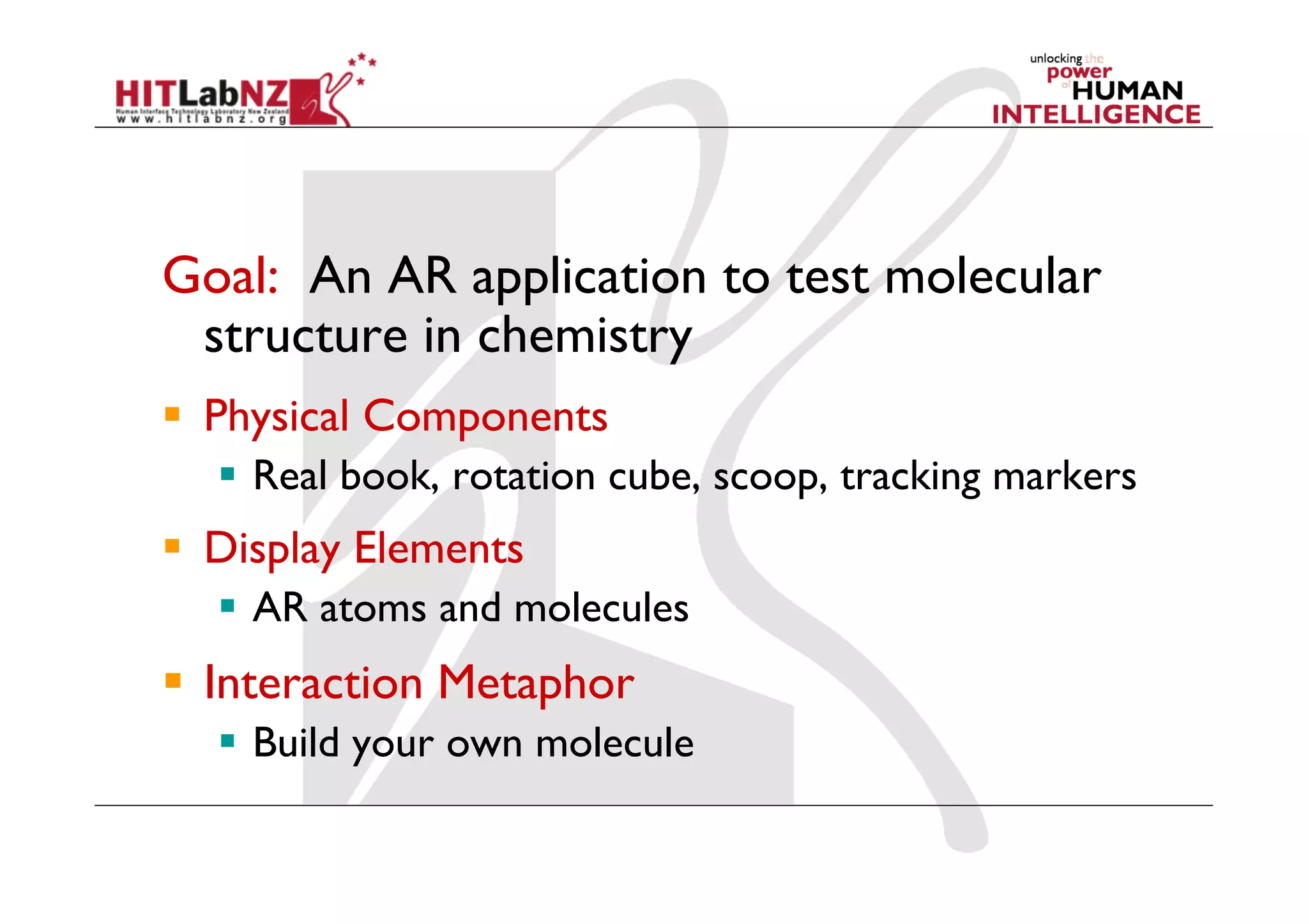

49. Goal: An AR application to test molecular
structure in chemistry
 Physical Components
 Real book, rotation cube, scoop, tracking markers
 Display Elements
 AR atoms and molecules
 Interaction Metaphor
 Build your own molecule

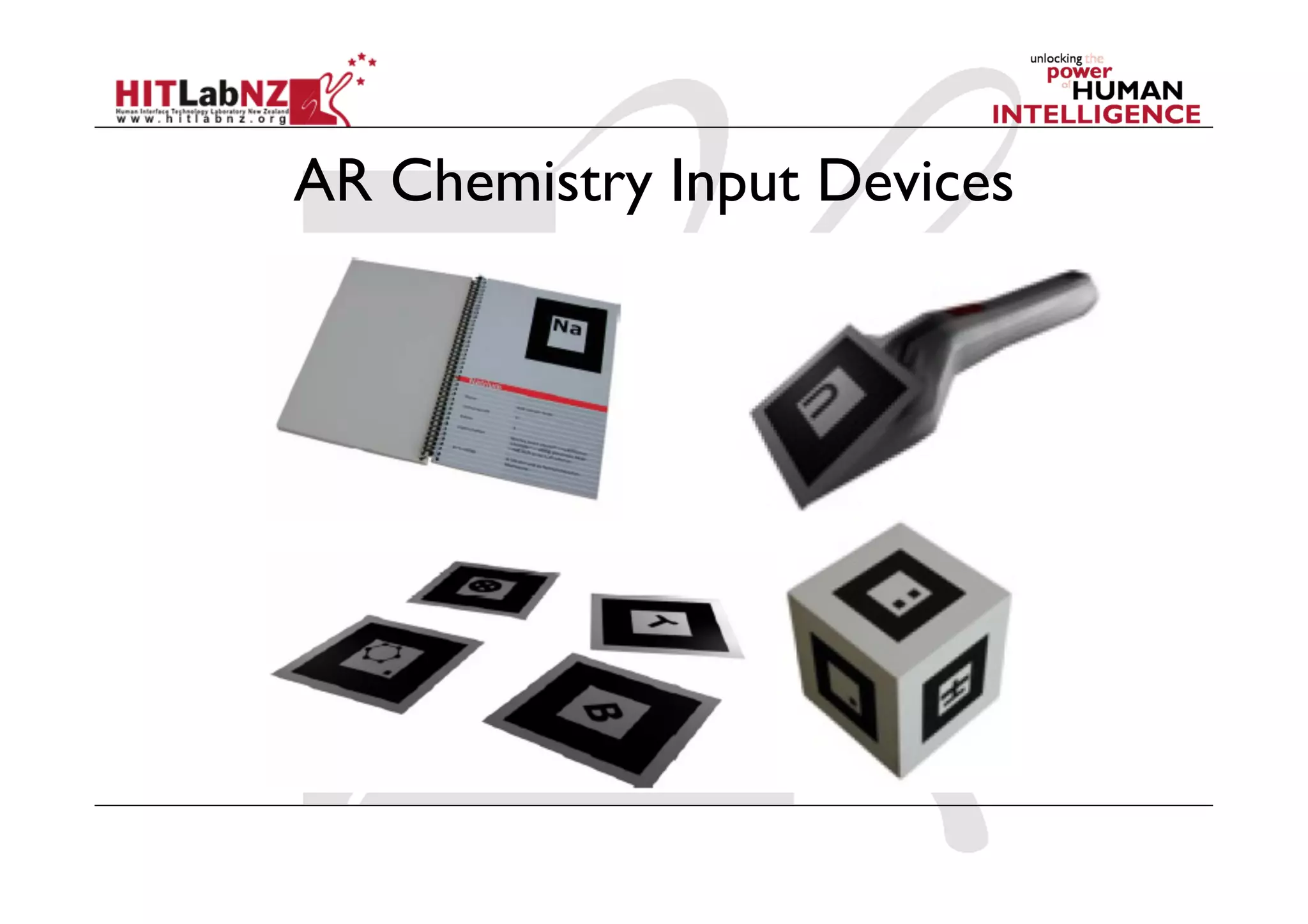

50. AR Chemistry Input Devices

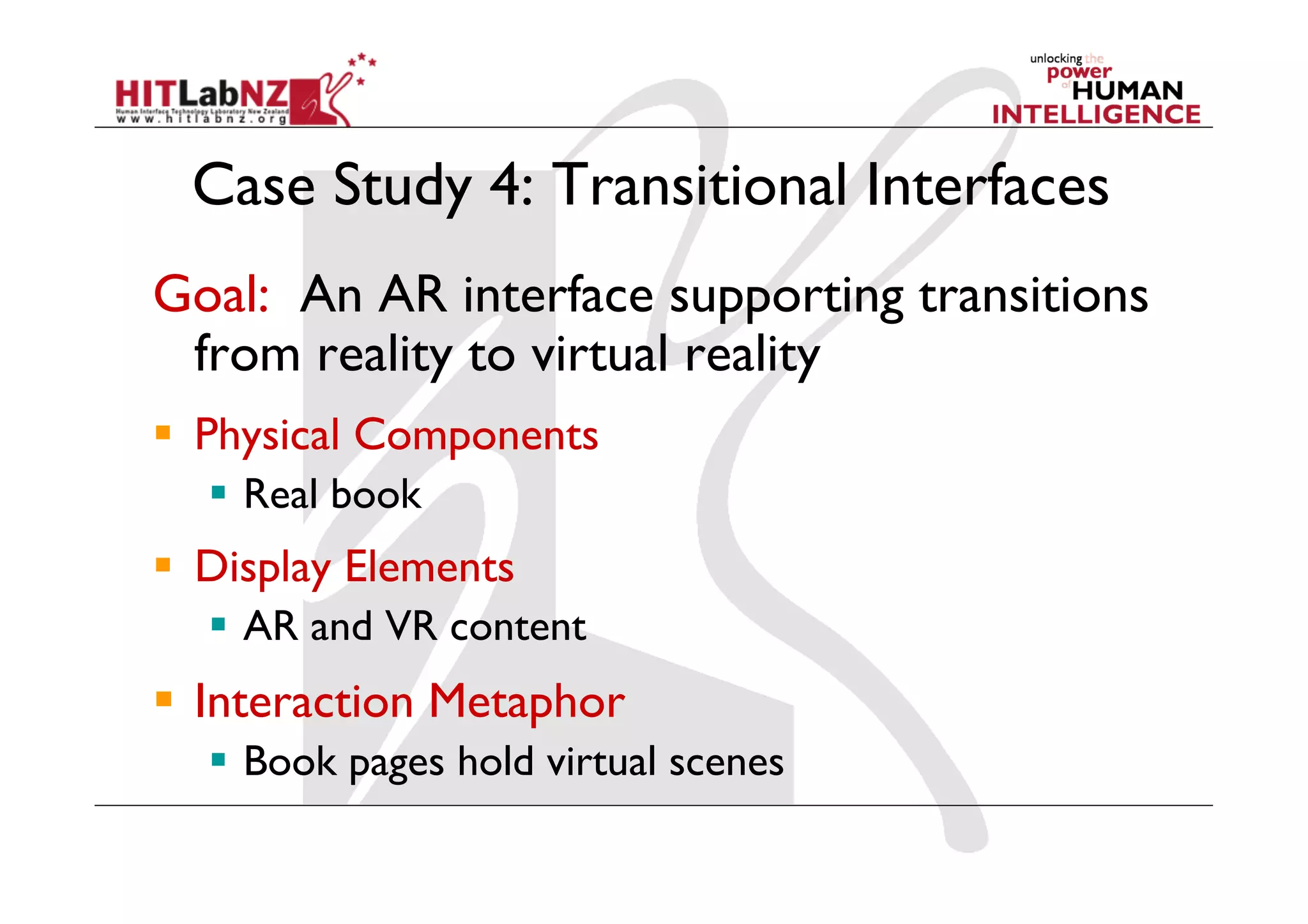

52. Case Study 4: Transitional Interfaces
Goal: An AR interface supporting transitions
from reality to virtual reality
 Physical Components
 Real book
 Display Elements
 AR and VR content
 Interaction Metaphor
 Book pages hold virtual scenes

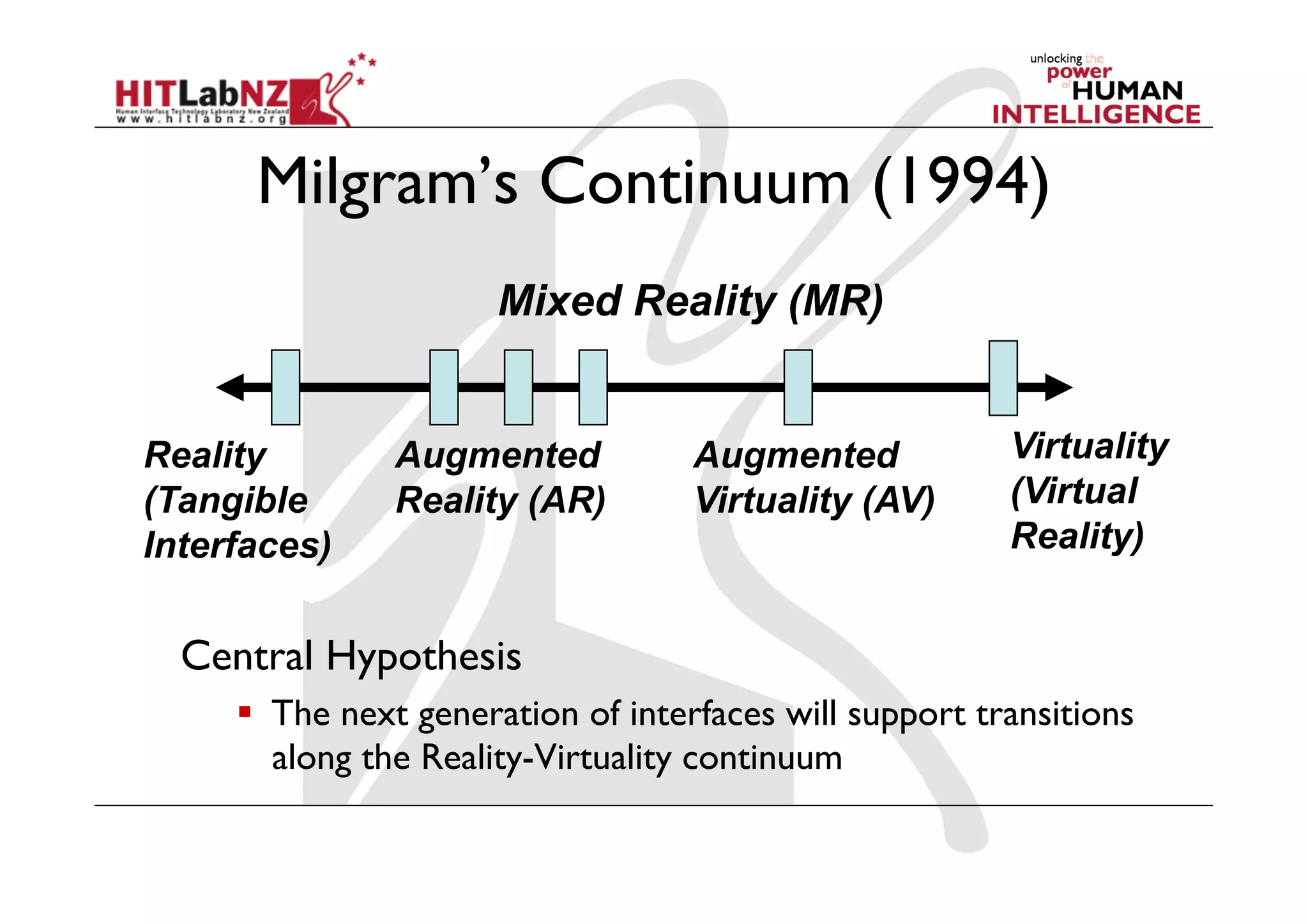

53. Milgram’s Continuum (1994)
Mixed Reality (MR)
Reality Augmented Augmented Virtuality
(Tangible Reality (AR) Virtuality (AV) (Virtual
Interfaces) Reality)
Central Hypothesis
 The next generation of interfaces will support transitions
along the Reality-Virtuality continuum

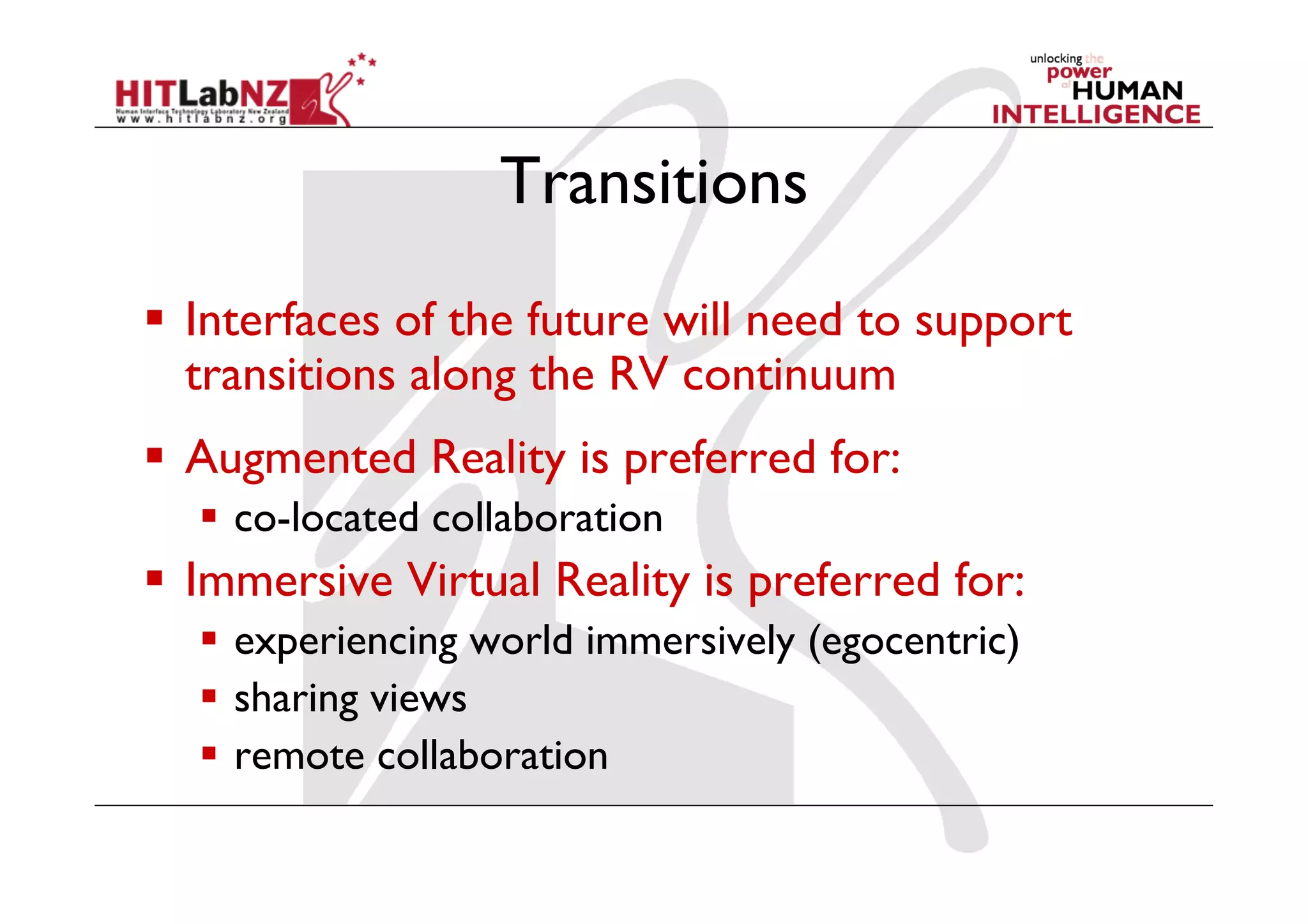

54. Transitions
 Interfaces of the future will need to support
transitions along the RV continuum
 Augmented Reality is preferred for:
 co-located collaboration
 Immersive Virtual Reality is preferred for:
 experiencing world immersively (egocentric)
 sharing views
 remote collaboration

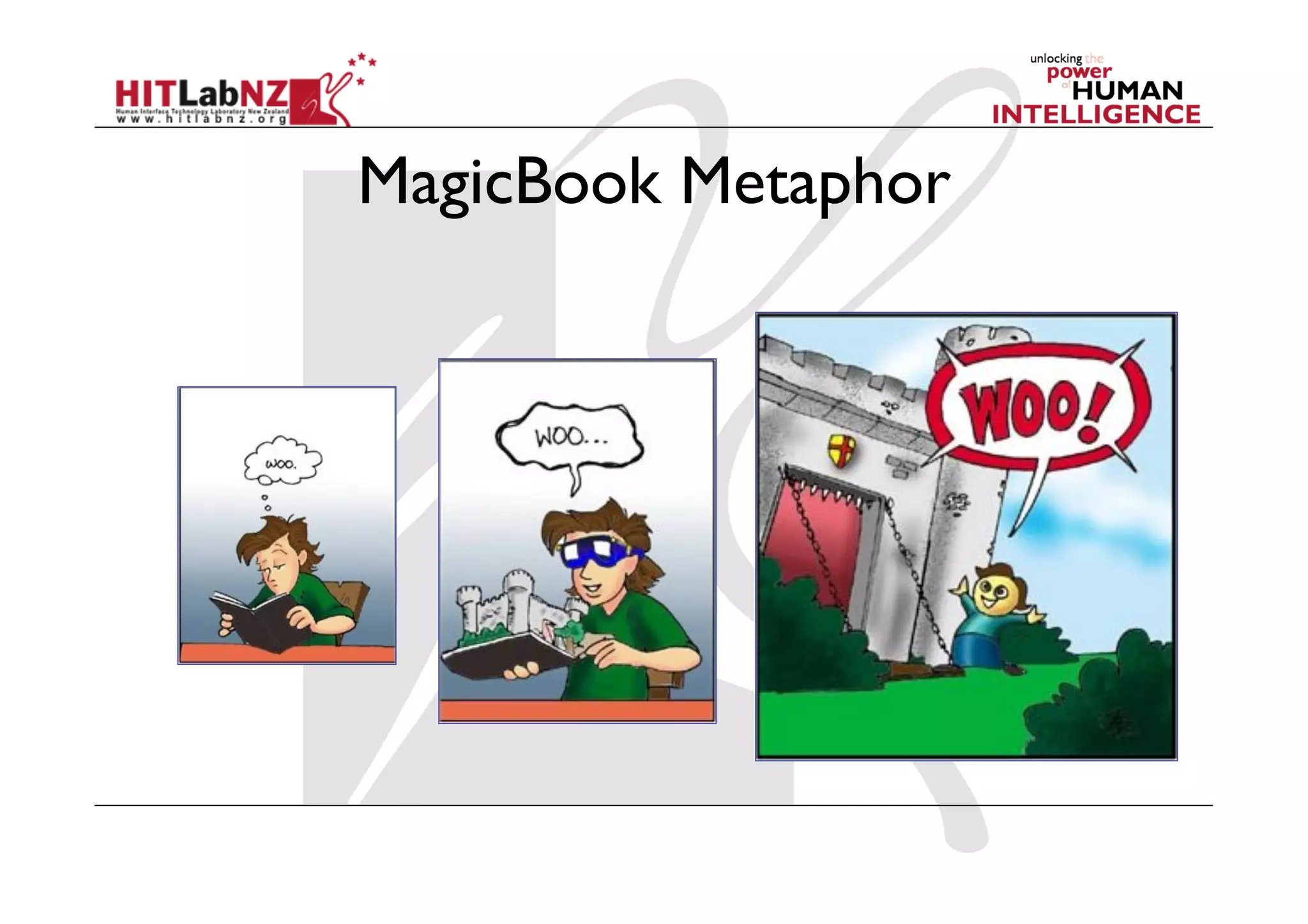

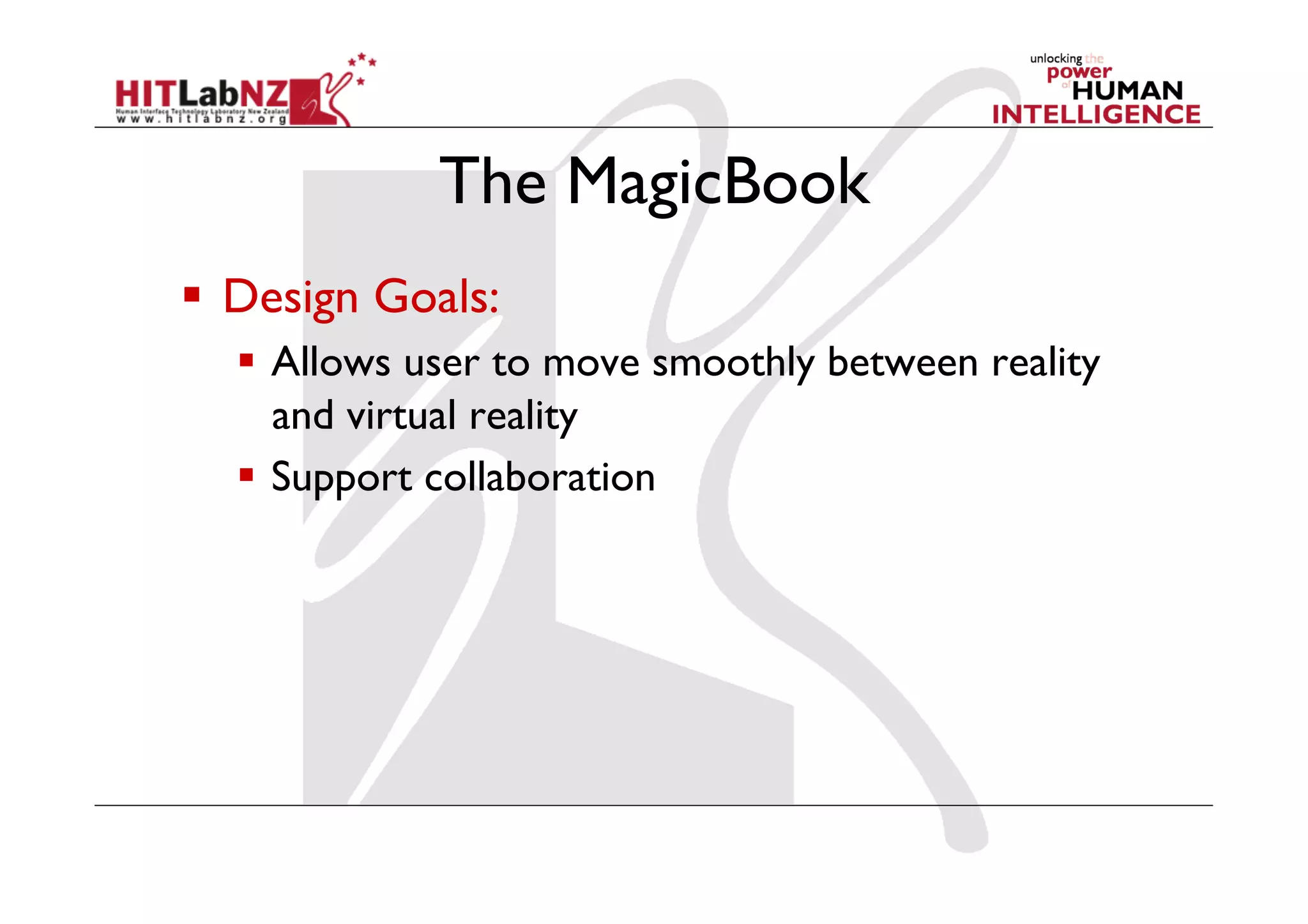

55. The MagicBook
 Design Goals:
 Allows user to move smoothly between reality
and virtual reality
 Support collaboration

56. MagicBook Metaphor

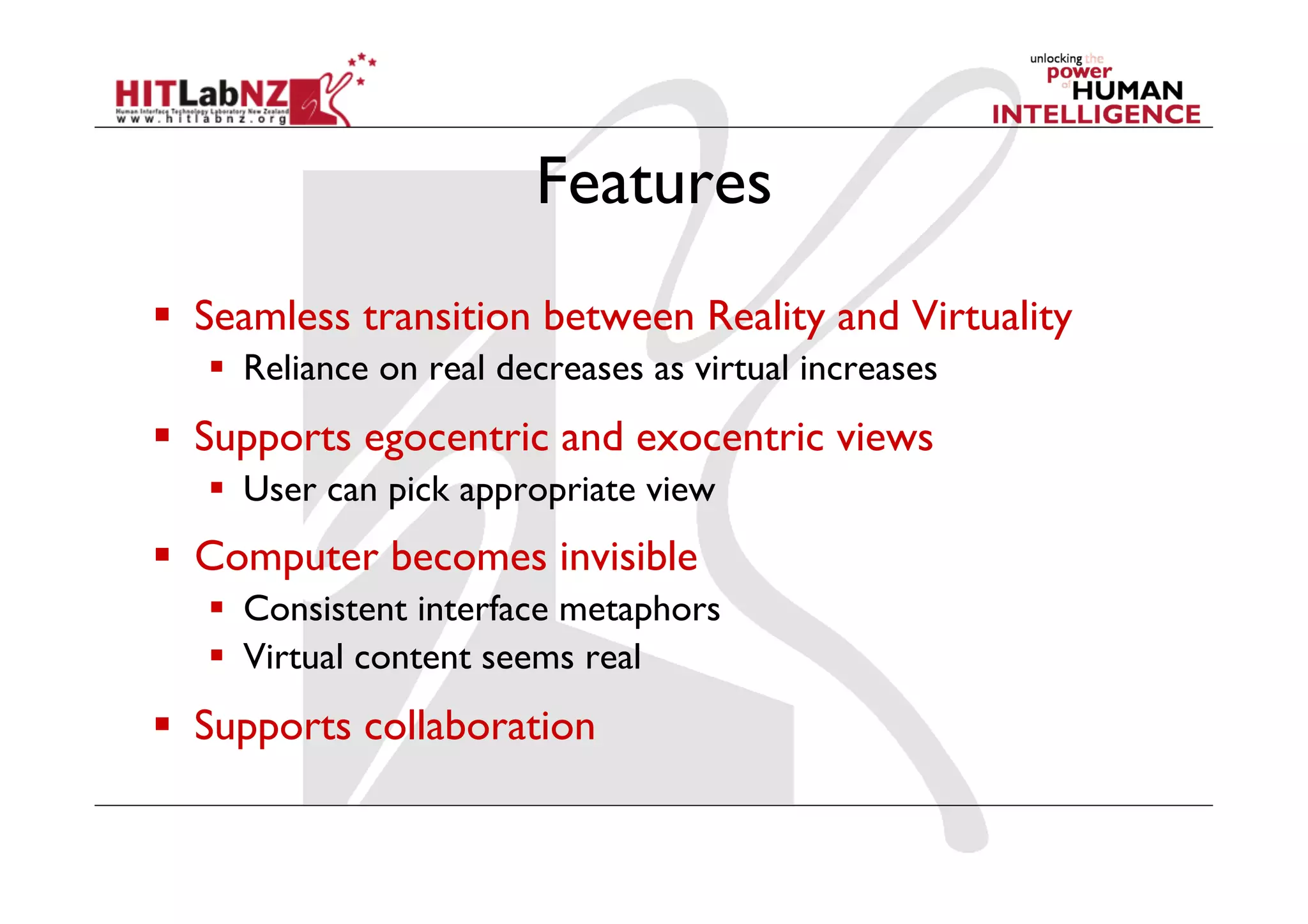

57. Features
 Seamless transition between Reality and Virtuality
 Reliance on real decreases as virtual increases
 Supports egocentric and exocentric views
 User can pick appropriate view
 Computer becomes invisible
 Consistent interface metaphors
 Virtual content seems real
 Supports collaboration

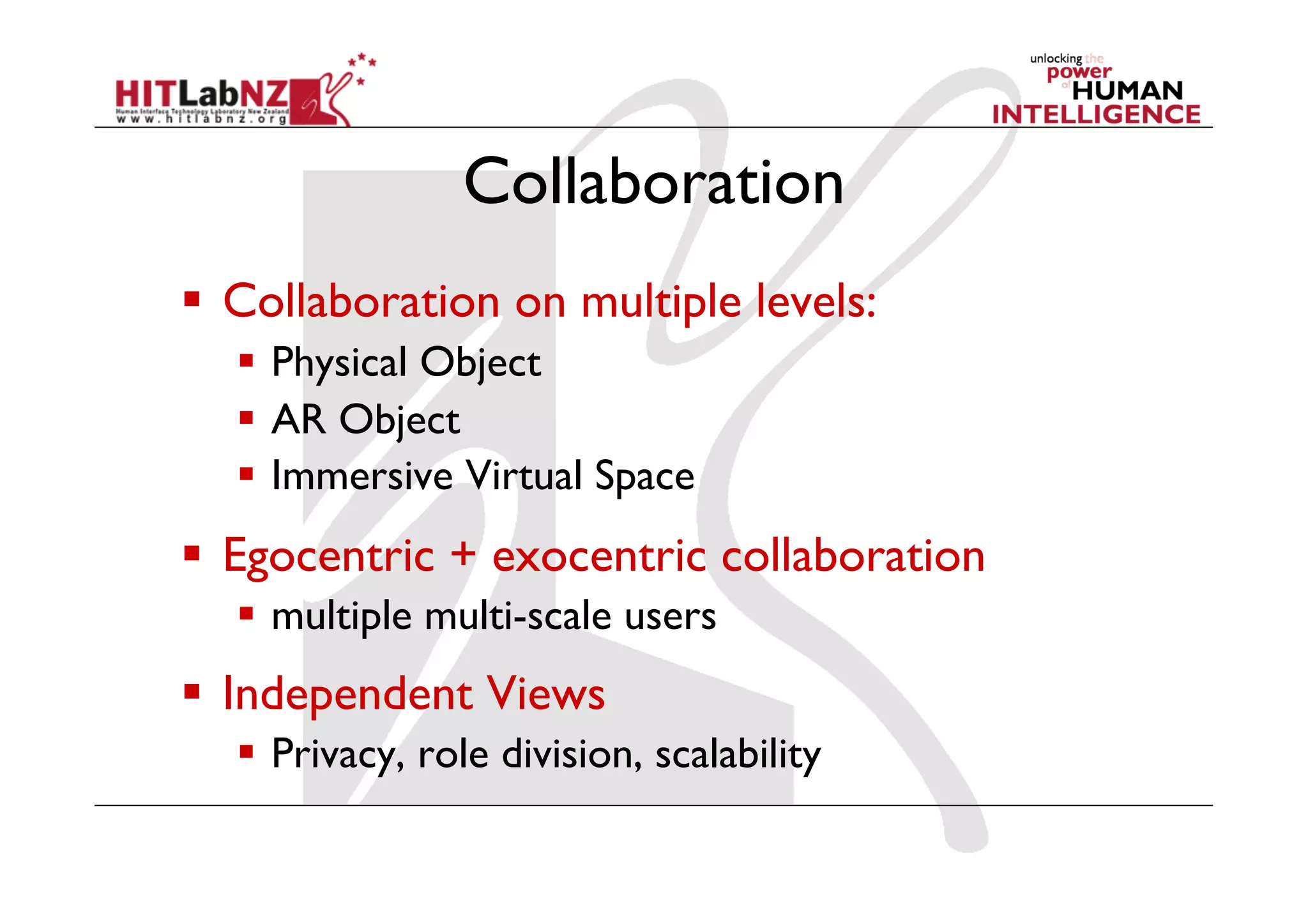

58. Collaboration
 Collaboration on multiple levels:
 Physical Object
 AR Object
 Immersive Virtual Space
 Egocentric + exocentric collaboration
 multiple multi-scale users
 Independent Views
 Privacy, role division, scalability

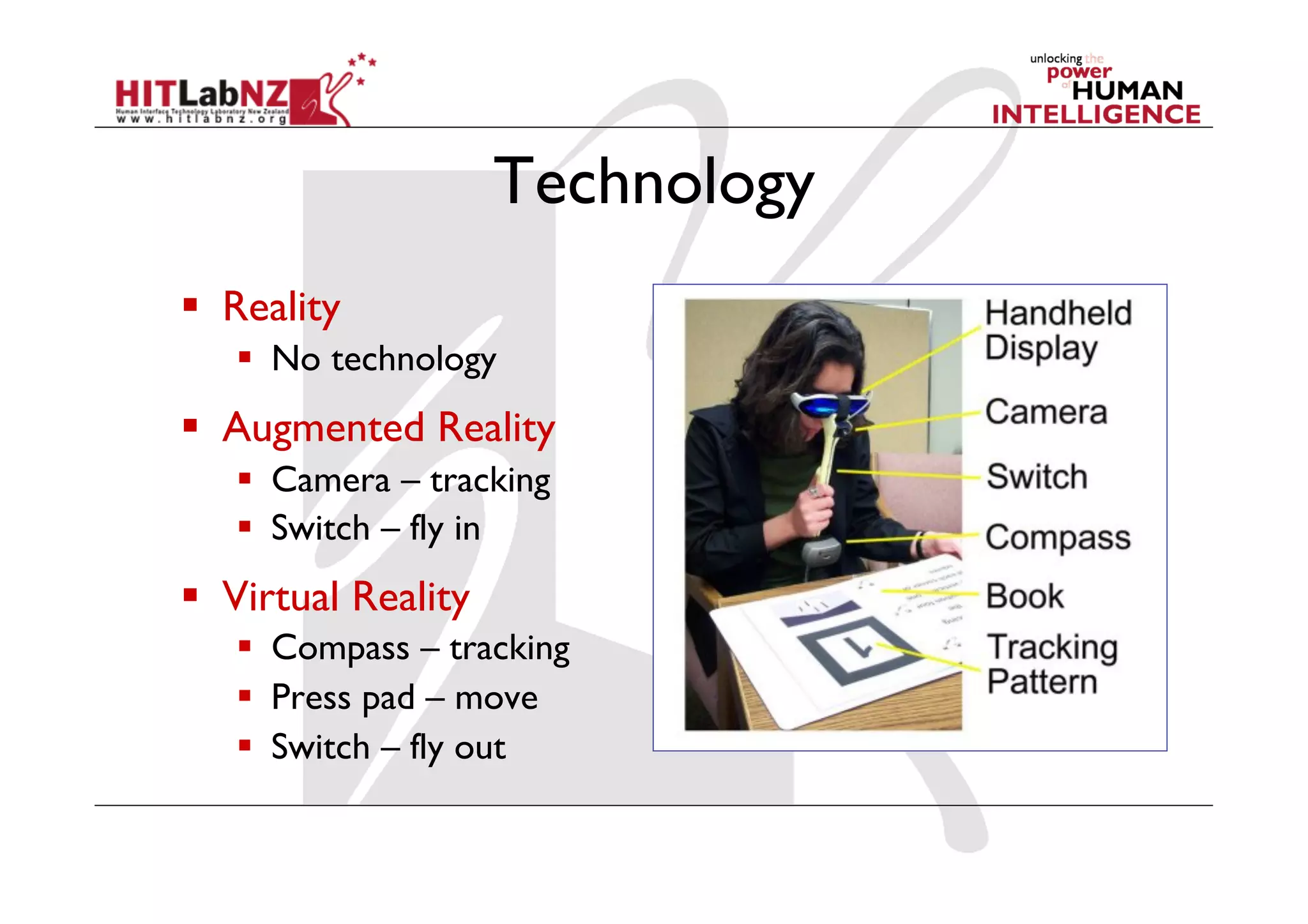

59. Technology
 Reality
 No technology
 Augmented Reality
 Camera – tracking
 Switch – fly in
 Virtual Reality
 Compass – tracking
 Press pad – move
 Switch – fly out

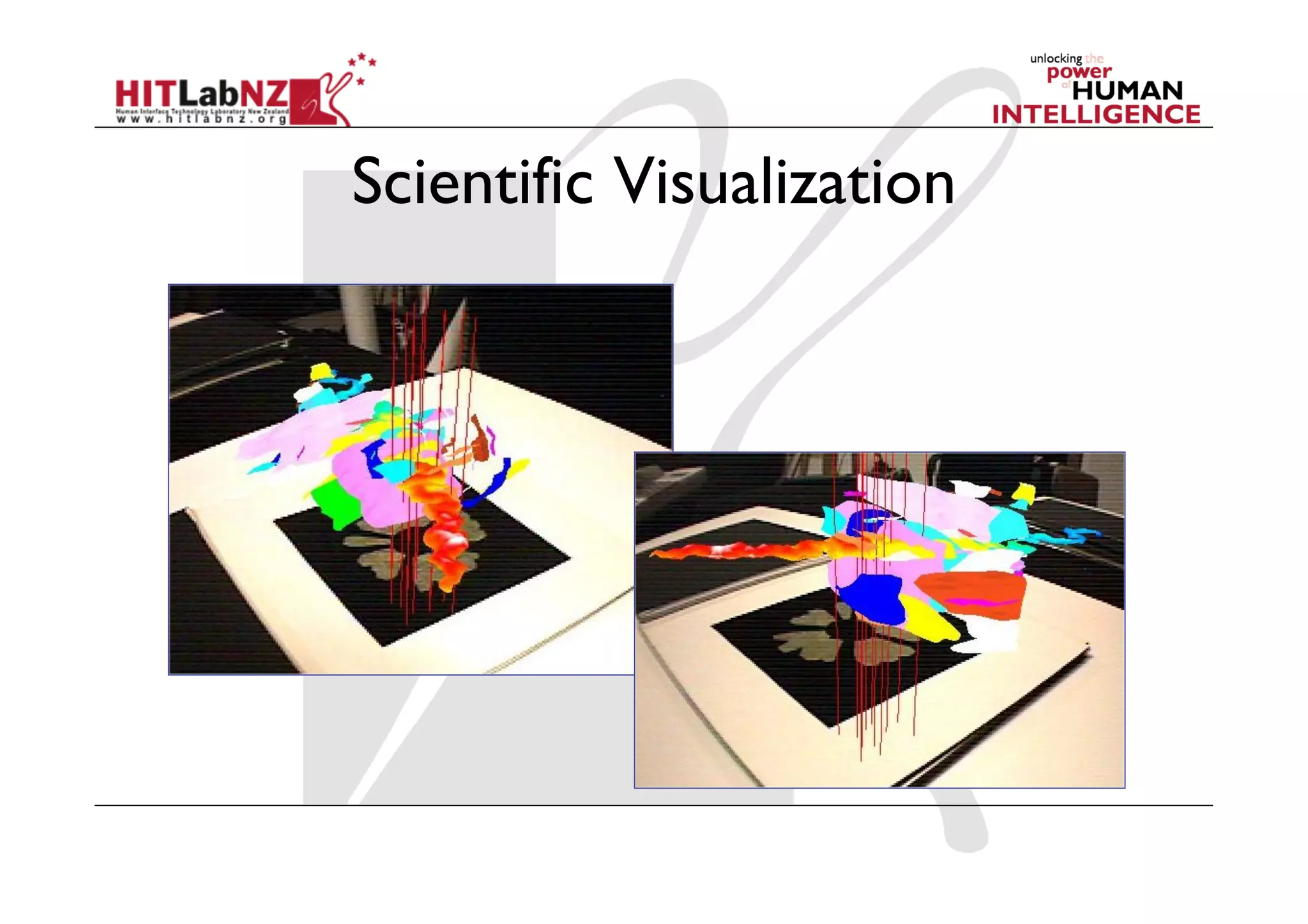

60. Scientific Visualization

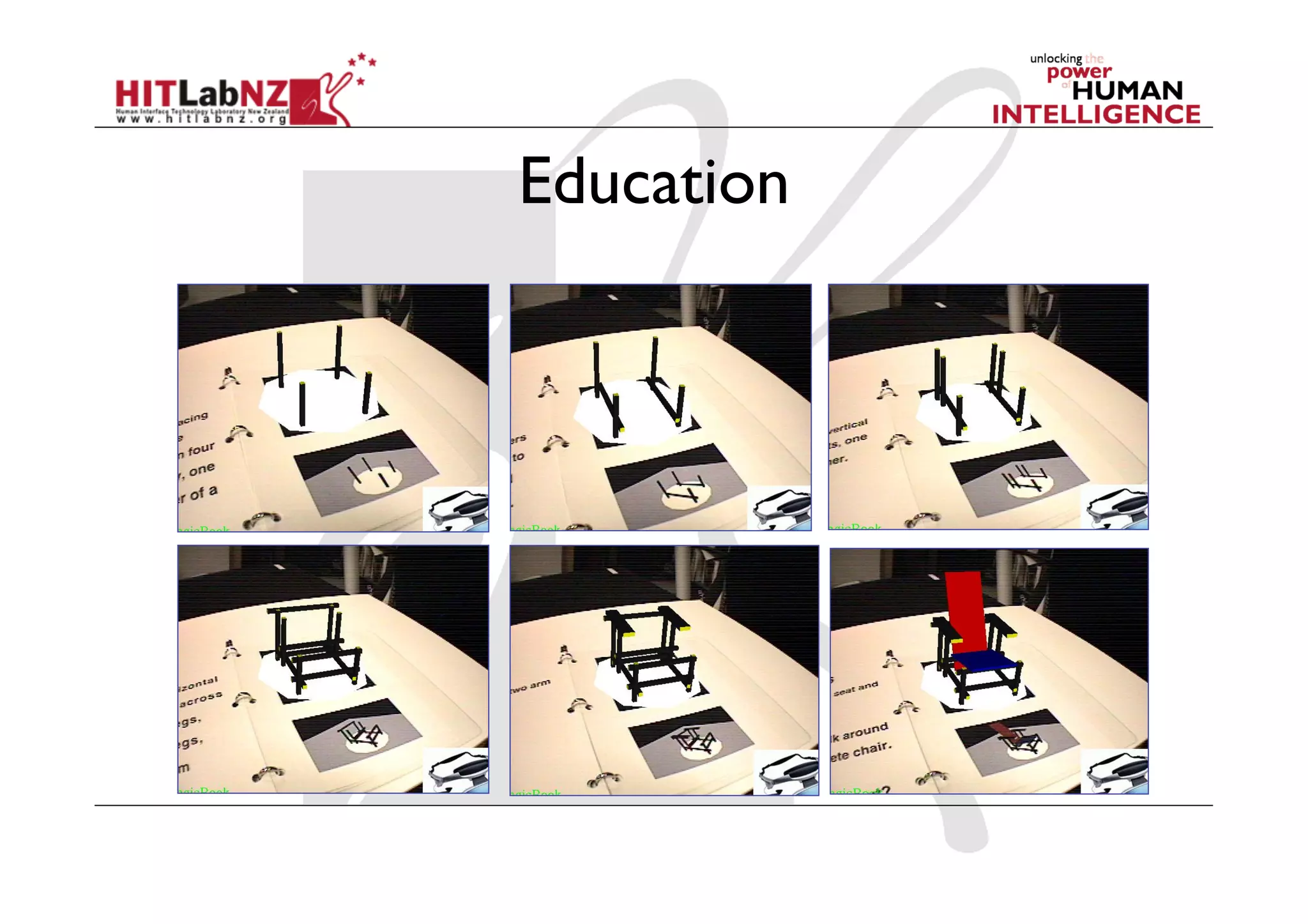

61. Education

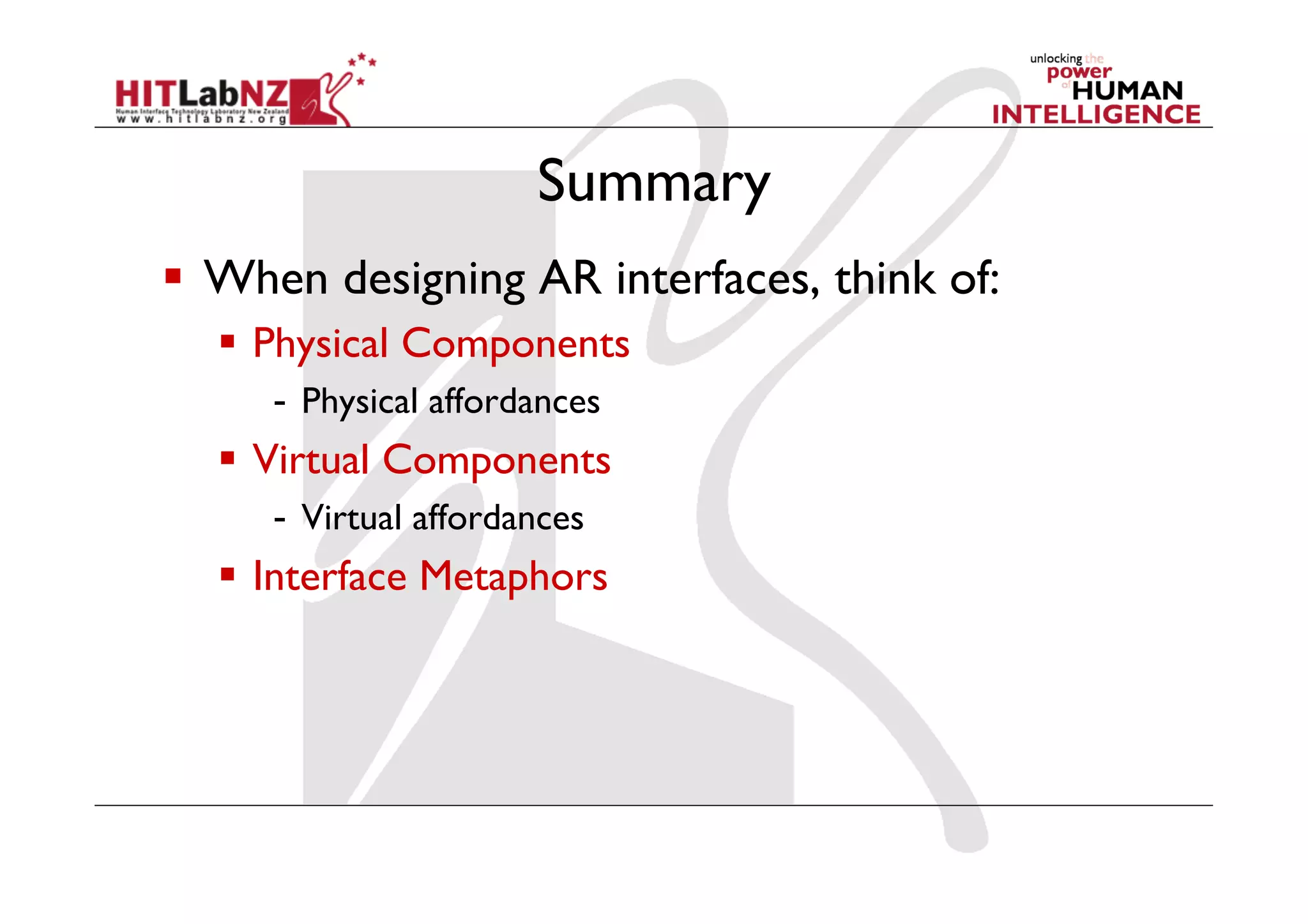

62. Summary
 When designing AR interfaces, think of:
 Physical Components
- Physical affordances
 Virtual Components
- Virtual affordances
 Interface Metaphors

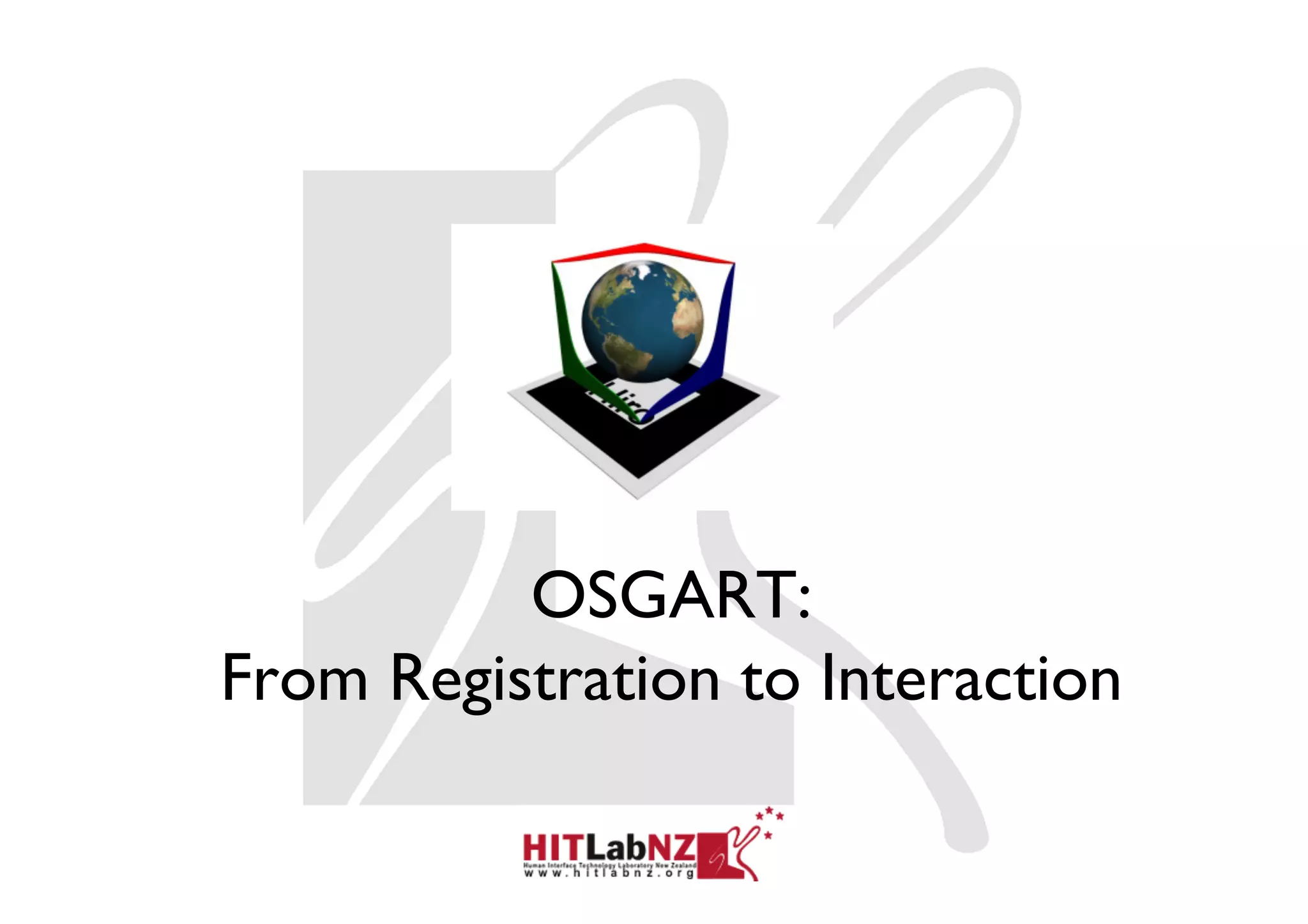

63. OSGART:
From Registration to Interaction

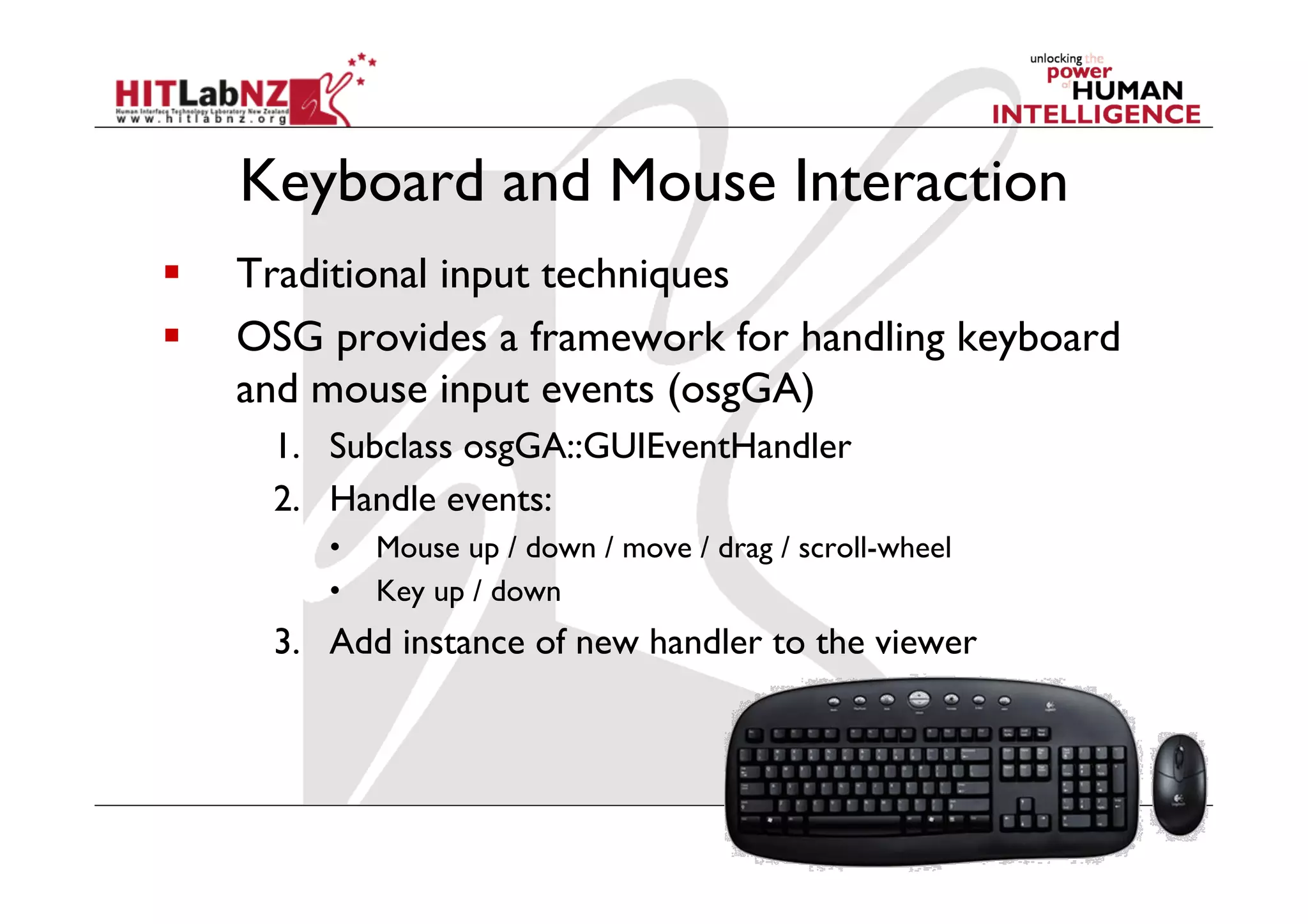

64. Keyboard and Mouse Interaction
 Traditional input techniques
 OSG provides a framework for handling keyboard
and mouse input events (osgGA)
1. Subclass osgGA::GUIEventHandler
2. Handle events:
• Mouse up / down / move / drag / scroll-wheel
• Key up / down
3. Add instance of new handler to the viewer

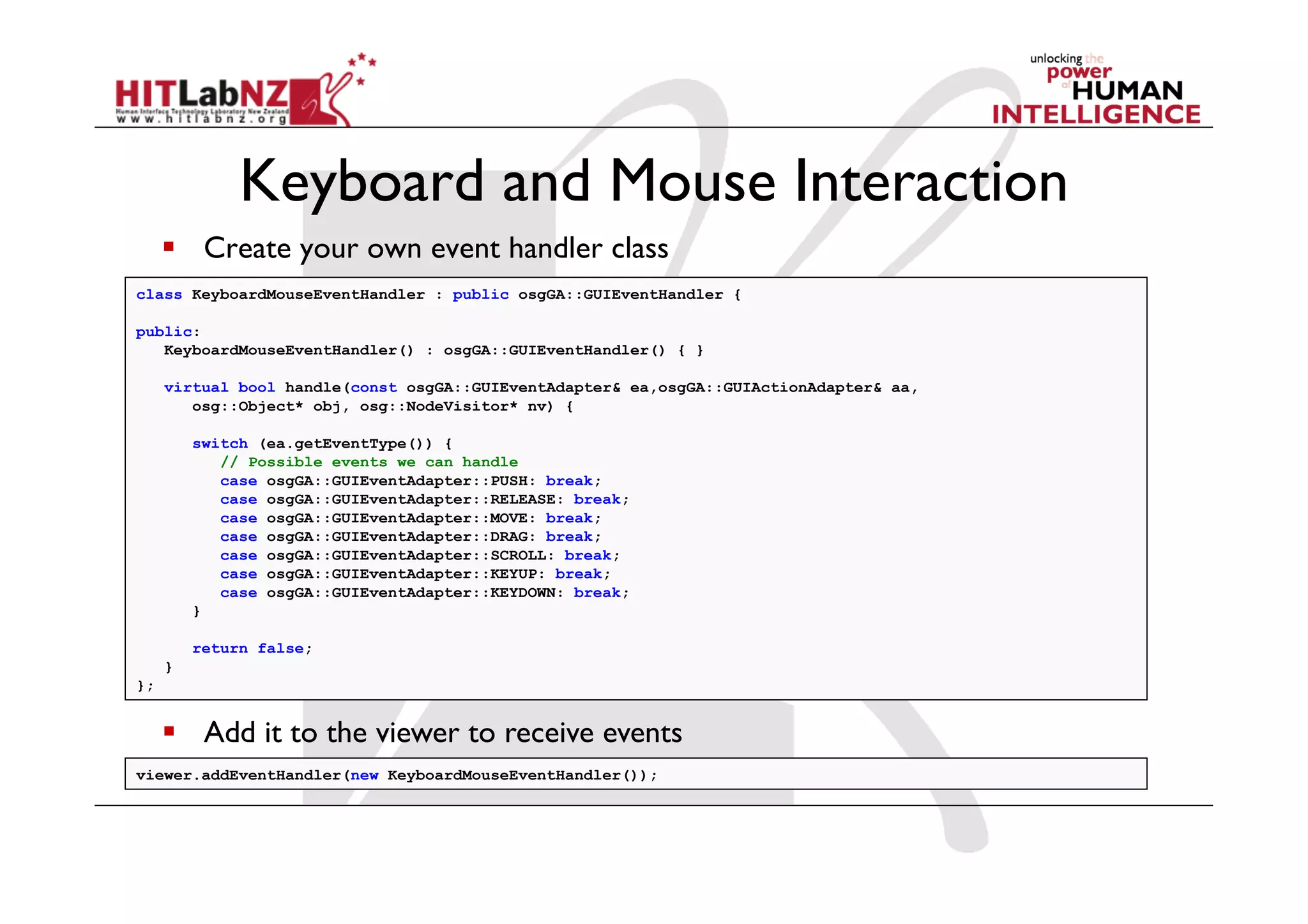

65. Keyboard and Mouse Interaction
 Create your own event handler class
class KeyboardMouseEventHandler : public osgGA::GUIEventHandler {
public:
KeyboardMouseEventHandler() : osgGA::GUIEventHandler() { }
virtual bool handle(const osgGA::GUIEventAdapter& ea,osgGA::GUIActionAdapter& aa,
osg::Object* obj, osg::NodeVisitor* nv) {
switch (ea.getEventType()) {
// Possible events we can handle
case osgGA::GUIEventAdapter::PUSH: break;
case osgGA::GUIEventAdapter::RELEASE: break;
case osgGA::GUIEventAdapter::MOVE: break;
case osgGA::GUIEventAdapter::DRAG: break;
case osgGA::GUIEventAdapter::SCROLL: break;
case osgGA::GUIEventAdapter::KEYUP: break;
case osgGA::GUIEventAdapter::KEYDOWN: break;
}
return false;
}
};
 Add it to the viewer to receive events
viewer.addEventHandler(new KeyboardMouseEventHandler());

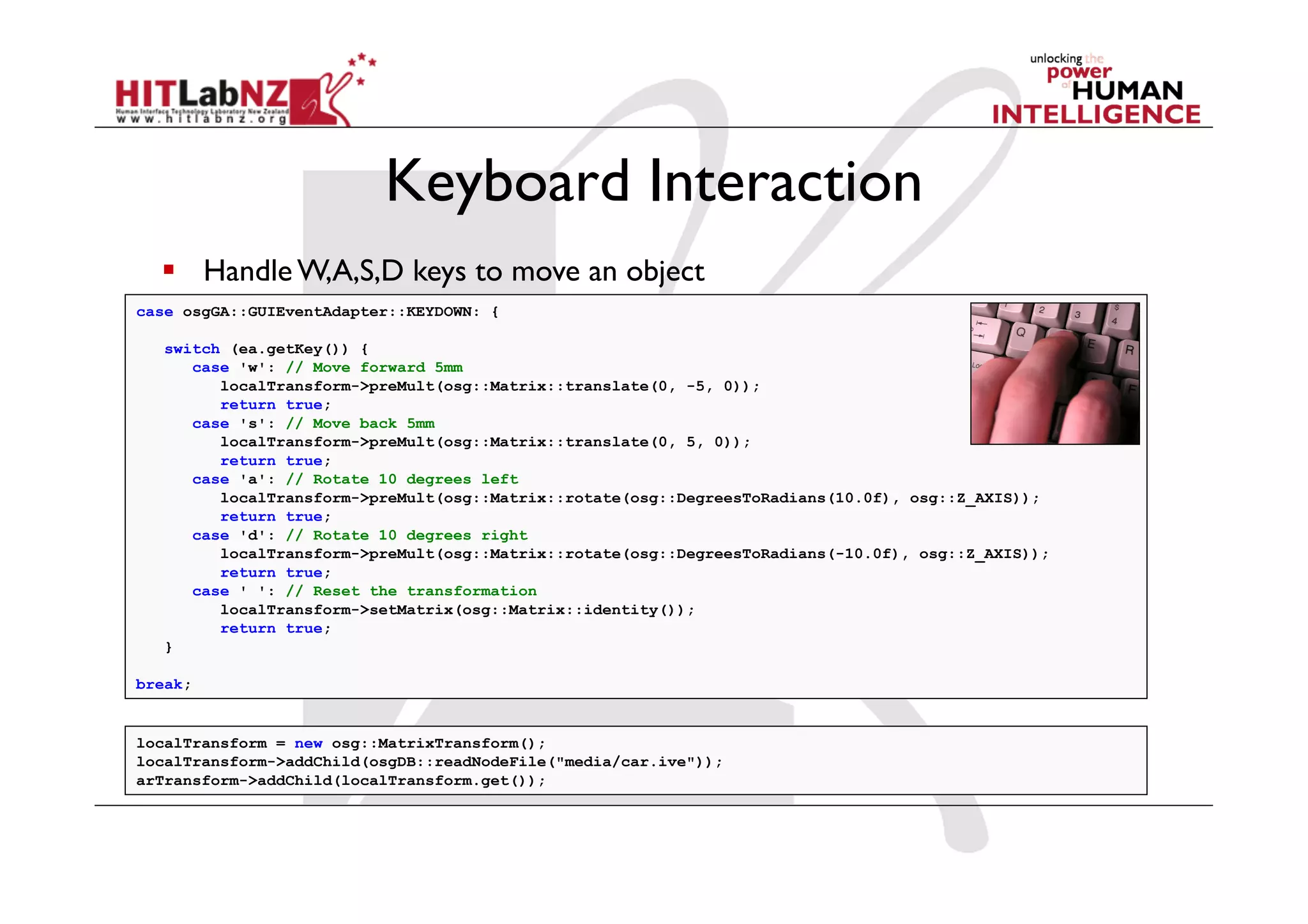

66. Keyboard Interaction
 Handle W,A,S,D keys to move an object
case osgGA::GUIEventAdapter::KEYDOWN: {
switch (ea.getKey()) {
case 'w': // Move forward 5mm
localTransform->preMult(osg::Matrix::translate(0, -5, 0));
return true;
case 's': // Move back 5mm
localTransform->preMult(osg::Matrix::translate(0, 5, 0));
return true;
case 'a': // Rotate 10 degrees left
localTransform->preMult(osg::Matrix::rotate(osg::DegreesToRadians(10.0f), osg::Z_AXIS));
return true;
case 'd': // Rotate 10 degrees right
localTransform->preMult(osg::Matrix::rotate(osg::DegreesToRadians(-10.0f), osg::Z_AXIS));
return true;
case ' ': // Reset the transformation
localTransform->setMatrix(osg::Matrix::identity());
return true;
}
break;
localTransform = new osg::MatrixTransform();
localTransform->addChild(osgDB::readNodeFile("media/car.ive"));
arTransform->addChild(localTransform.get());

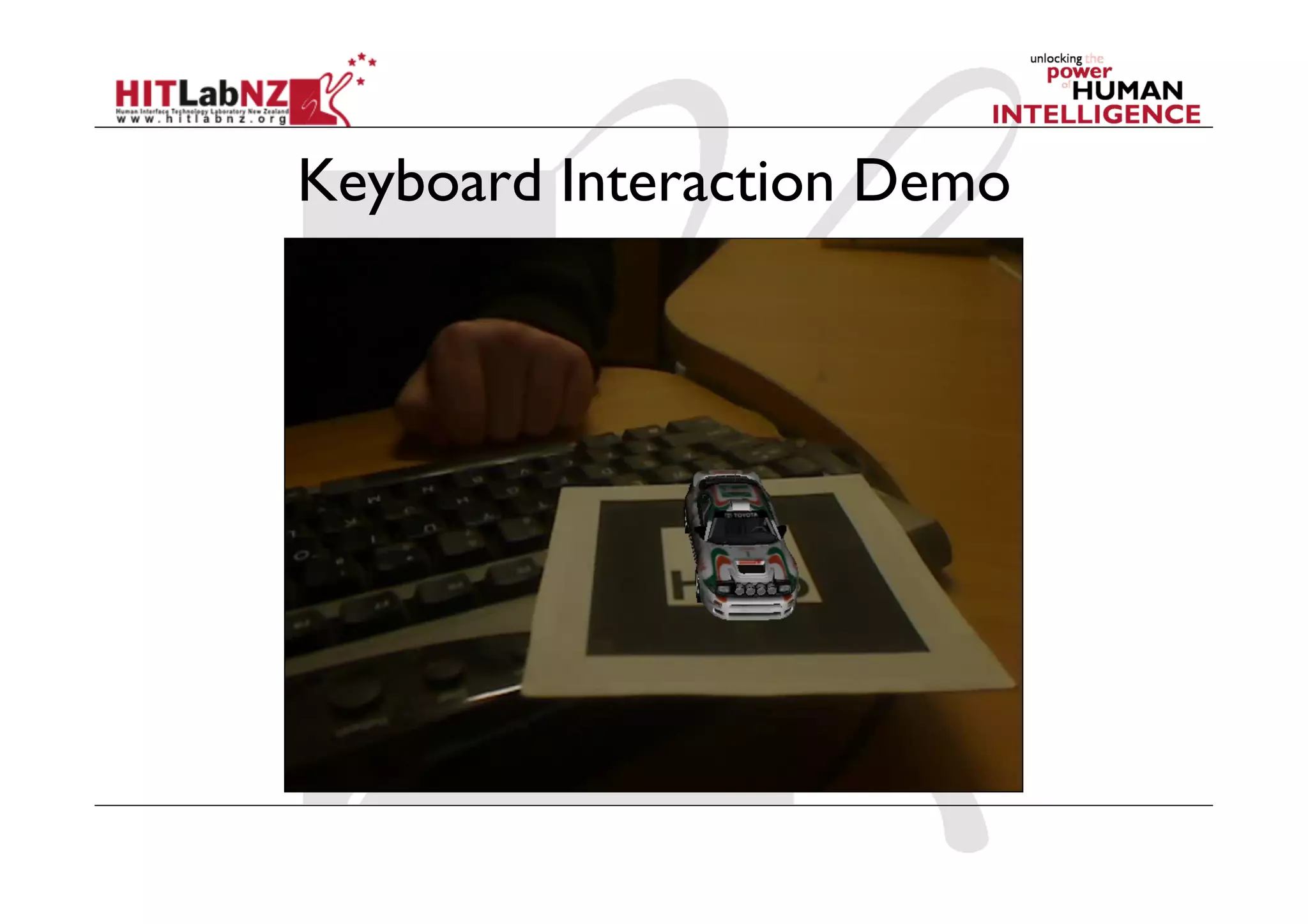

67. Keyboard Interaction Demo

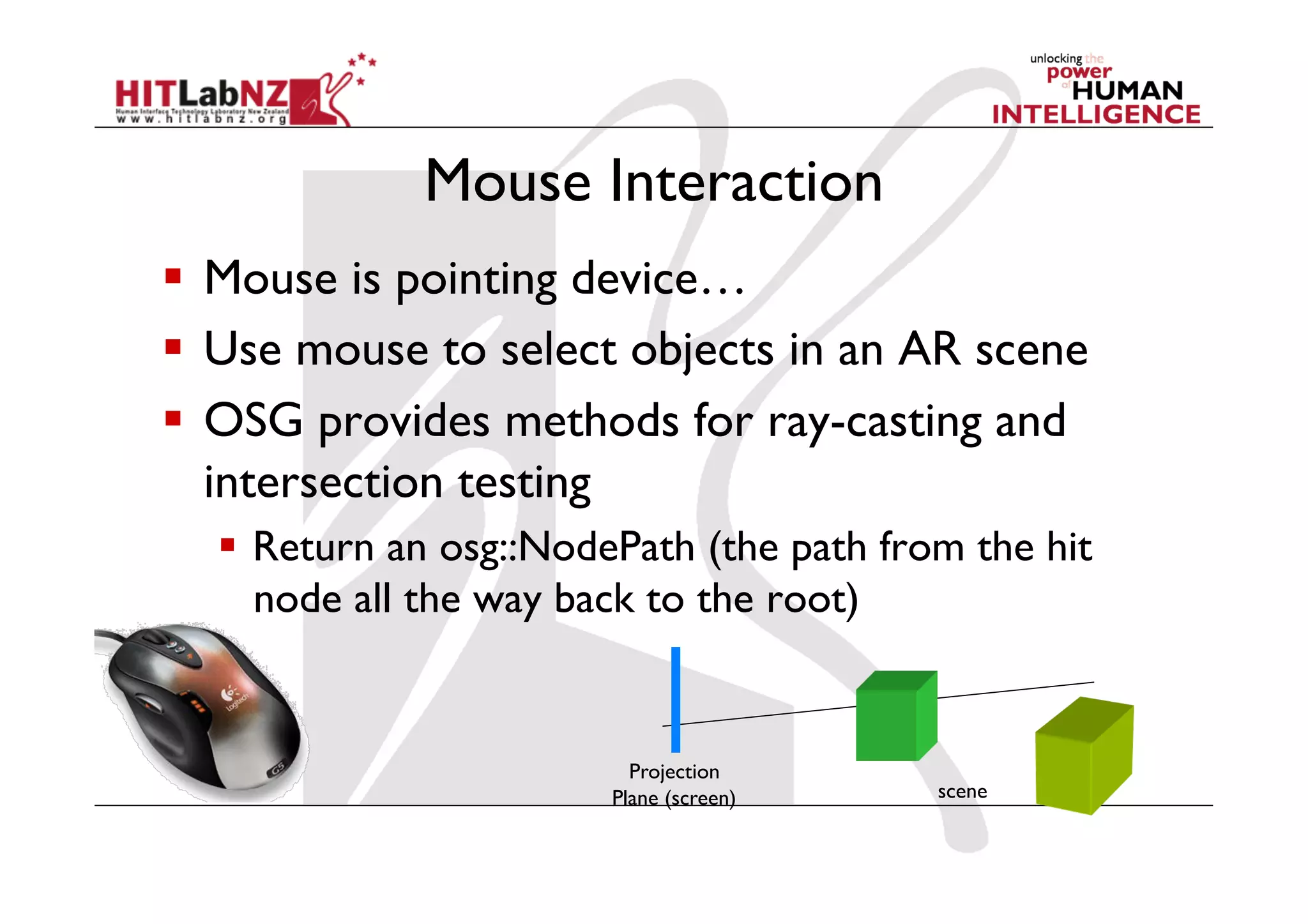

68. Mouse Interaction
 Mouse is pointing device…
 Use mouse to select objects in an AR scene
 OSG provides methods for ray-casting and
intersection testing
 Return an osg::NodePath (the path from the hit
node all the way back to the root)
Projection
Plane (screen) scene

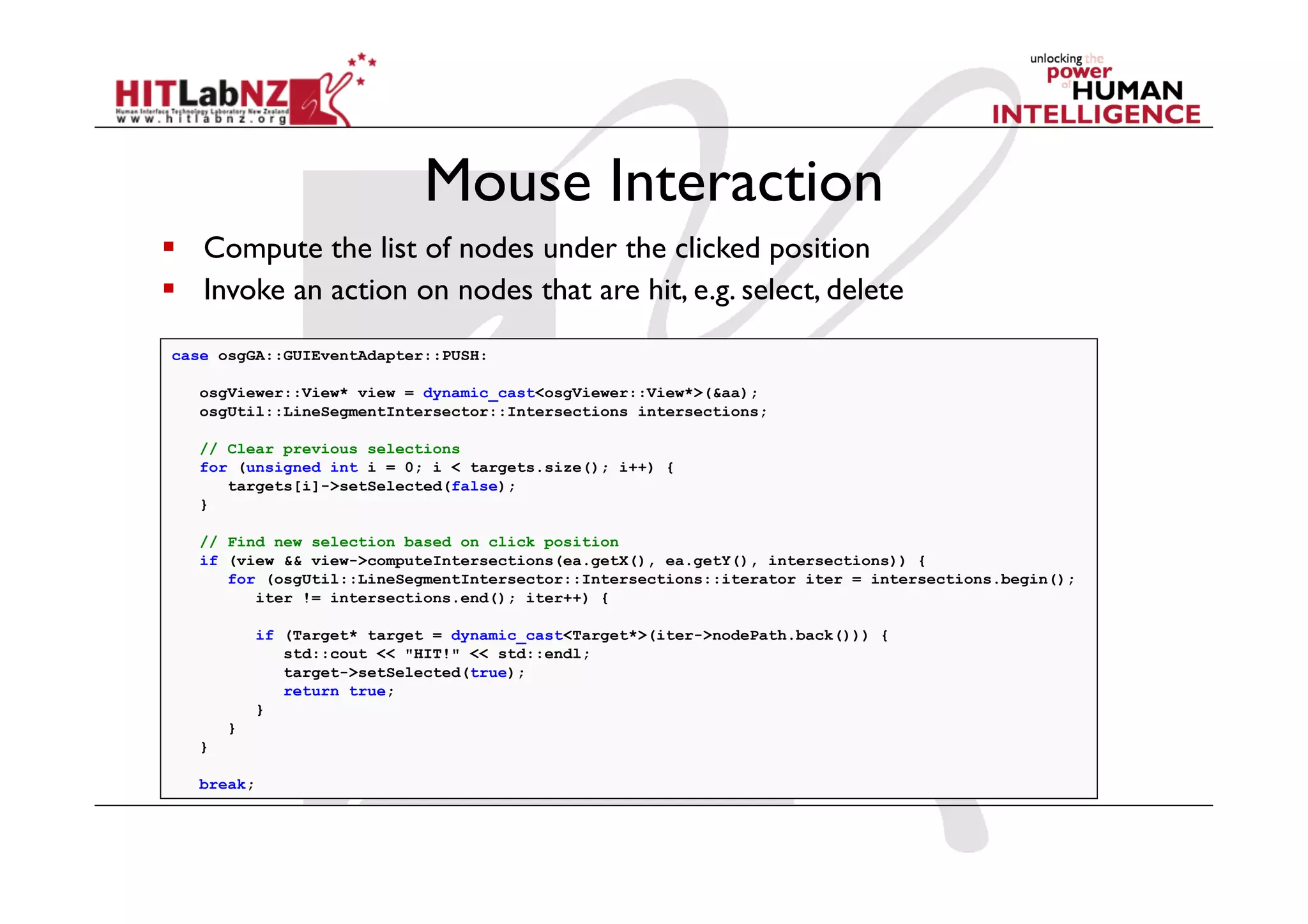

69. Mouse Interaction
 Compute the list of nodes under the clicked position
 Invoke an action on nodes that are hit, e.g. select, delete
case osgGA::GUIEventAdapter::PUSH:
osgViewer::View* view = dynamic_cast<osgViewer::View*>(&aa);
osgUtil::LineSegmentIntersector::Intersections intersections;
// Clear previous selections
for (unsigned int i = 0; i < targets.size(); i++) {
targets[i]->setSelected(false);
}
// Find new selection based on click position
if (view && view->computeIntersections(ea.getX(), ea.getY(), intersections)) {
for (osgUtil::LineSegmentIntersector::Intersections::iterator iter = intersections.begin();
iter != intersections.end(); iter++) {
if (Target* target = dynamic_cast<Target*>(iter->nodePath.back())) {
std::cout << "HIT!" << std::endl;
target->setSelected(true);
return true;
}
}
}
break;

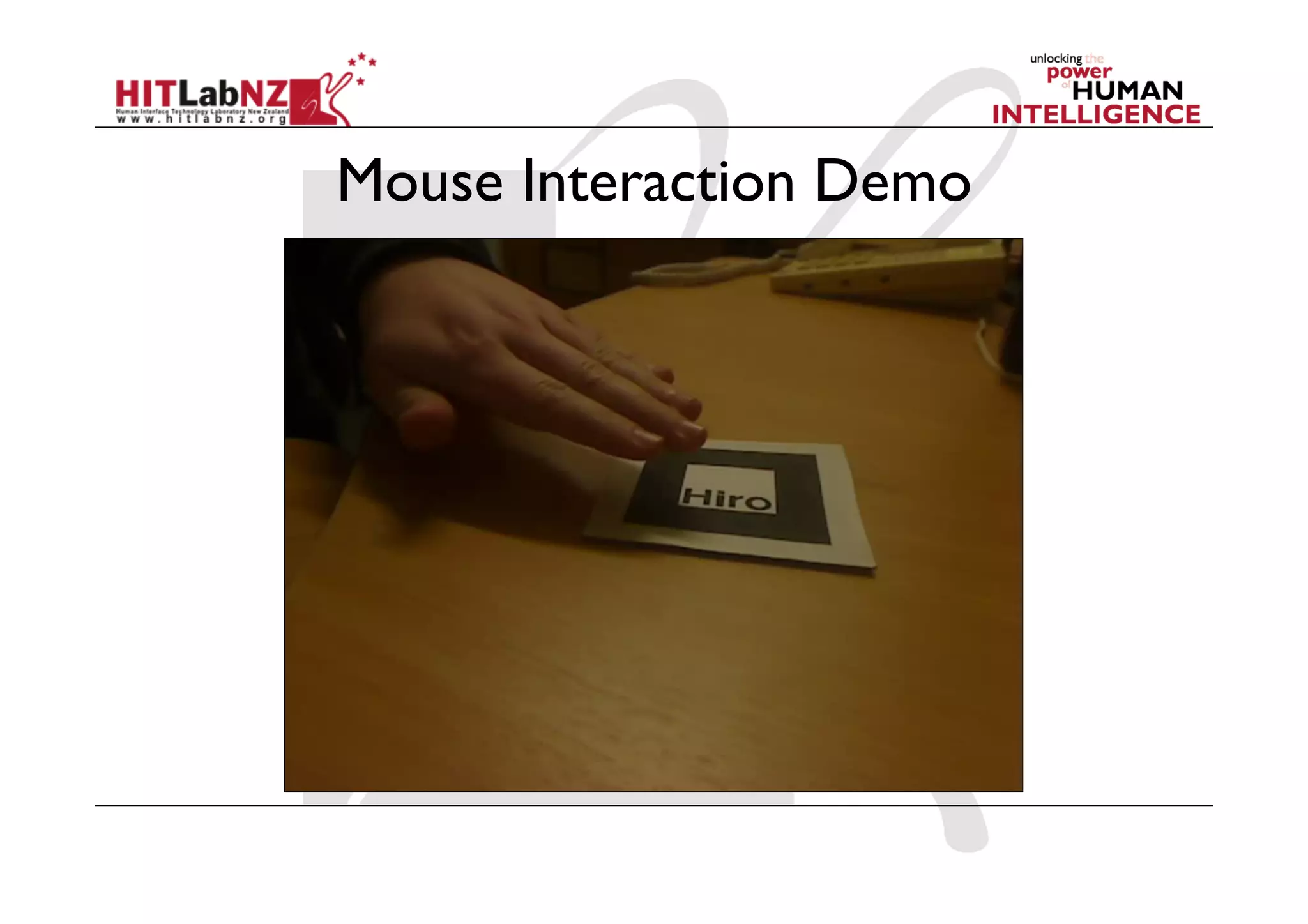

70. Mouse Interaction Demo

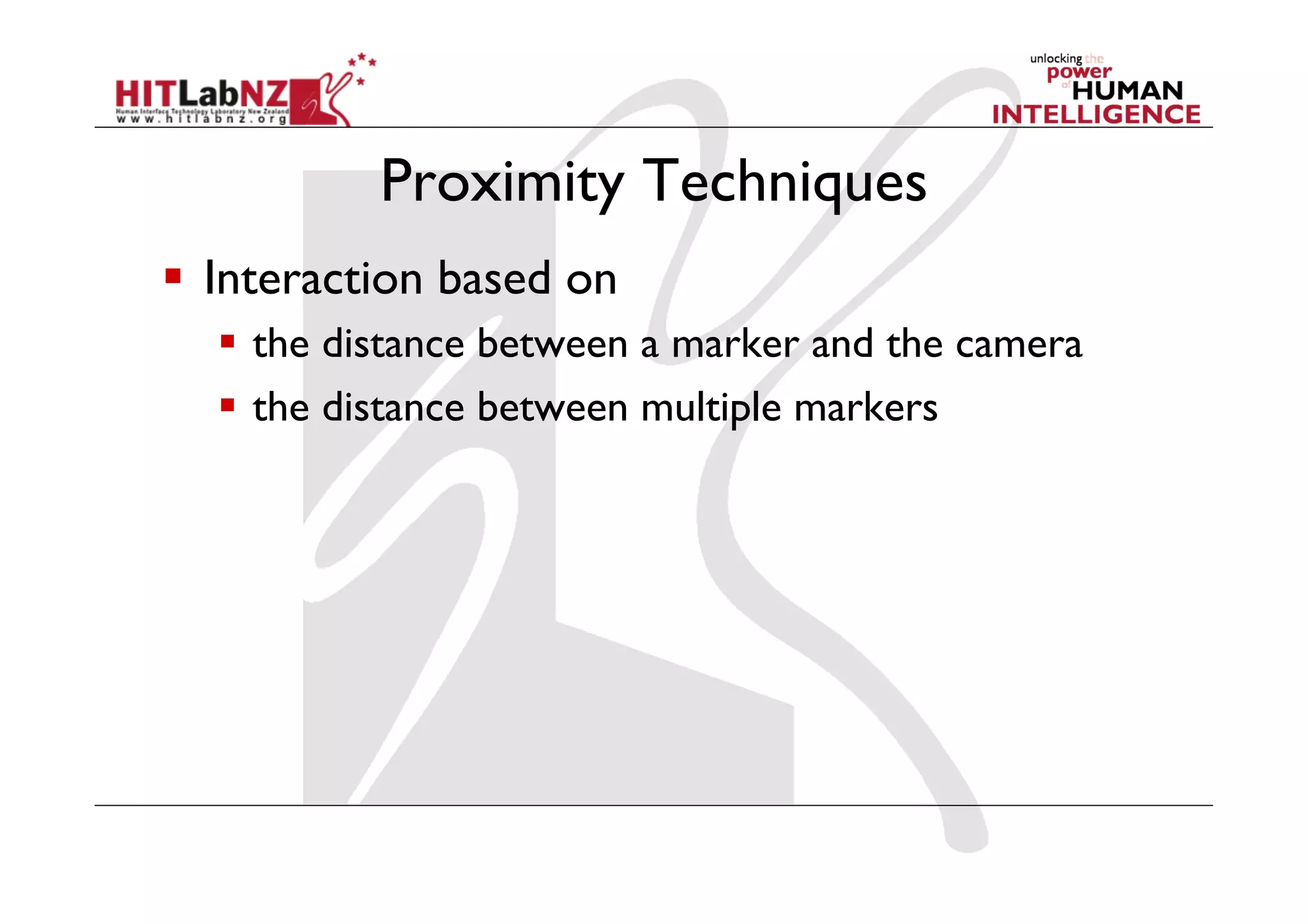

71. Proximity Techniques
 Interaction based on
 the distance between a marker and the camera
 the distance between multiple markers

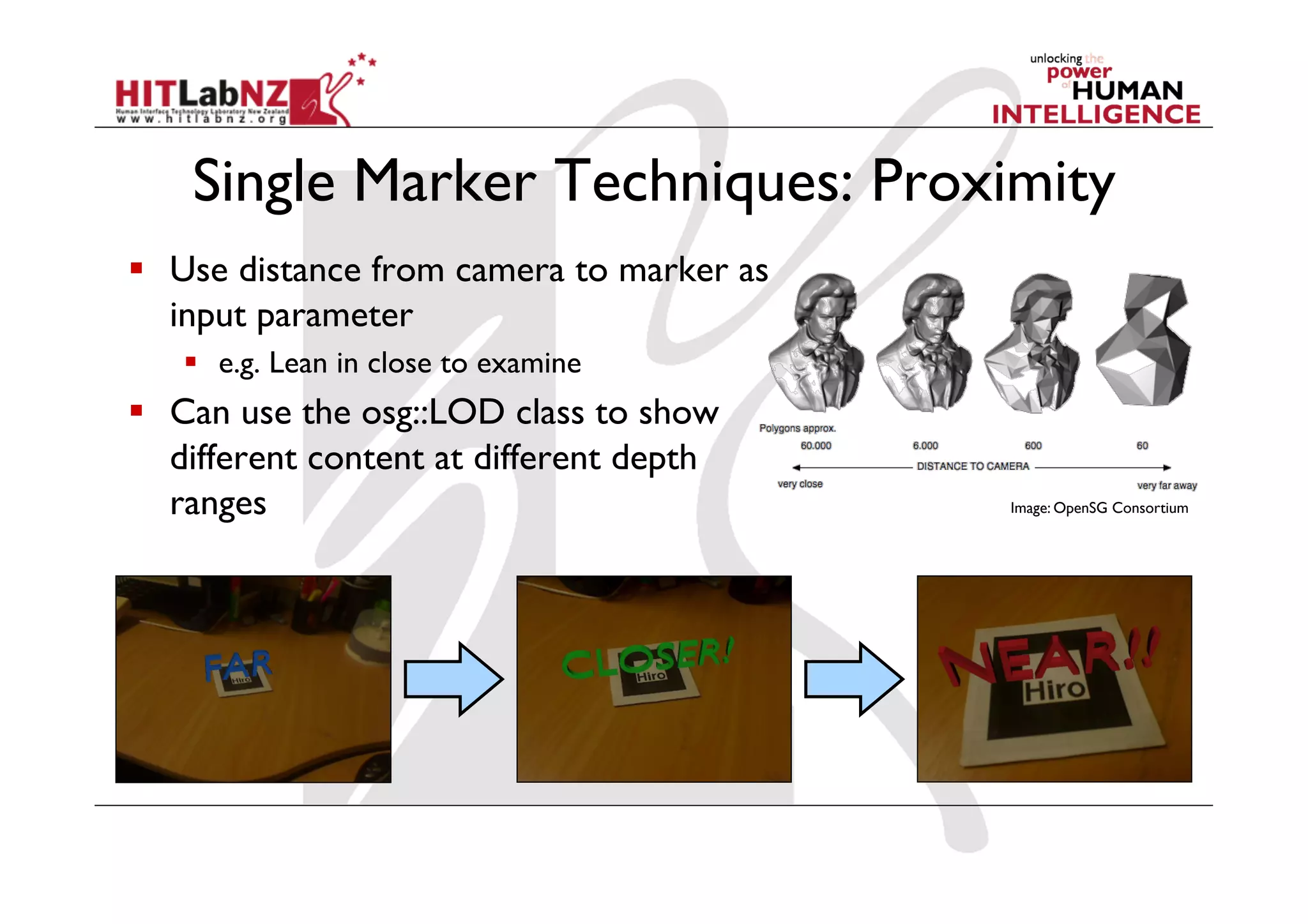

72. Single Marker Techniques: Proximity
 Use distance from camera to marker as
input parameter
 e.g. Lean in close to examine
 Can use the osg::LOD class to show
different content at different depth
ranges Image: OpenSG Consortium

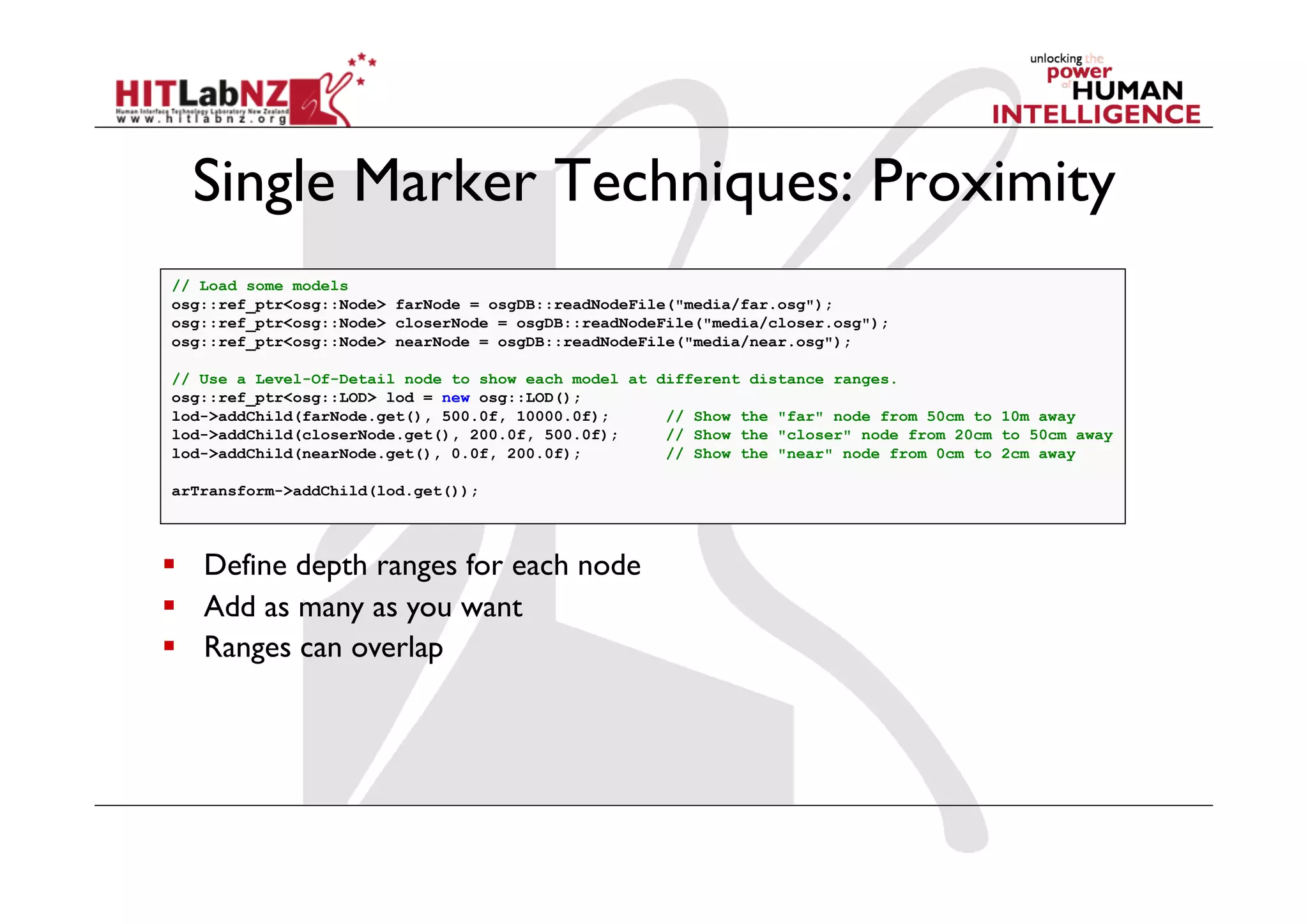

73. Single Marker Techniques: Proximity
// Load some models
osg::ref_ptr<osg::Node> farNode = osgDB::readNodeFile("media/far.osg");
osg::ref_ptr<osg::Node> closerNode = osgDB::readNodeFile("media/closer.osg");
osg::ref_ptr<osg::Node> nearNode = osgDB::readNodeFile("media/near.osg");
// Use a Level-Of-Detail node to show each model at different distance ranges.
osg::ref_ptr<osg::LOD> lod = new osg::LOD();
lod->addChild(farNode.get(), 500.0f, 10000.0f); // Show the "far" node from 50cm to 10m away
lod->addChild(closerNode.get(), 200.0f, 500.0f); // Show the "closer" node from 20cm to 50cm away
lod->addChild(nearNode.get(), 0.0f, 200.0f); // Show the "near" node from 0cm to 2cm away
arTransform->addChild(lod.get());
 Define depth ranges for each node
 Add as many as you want
 Ranges can overlap

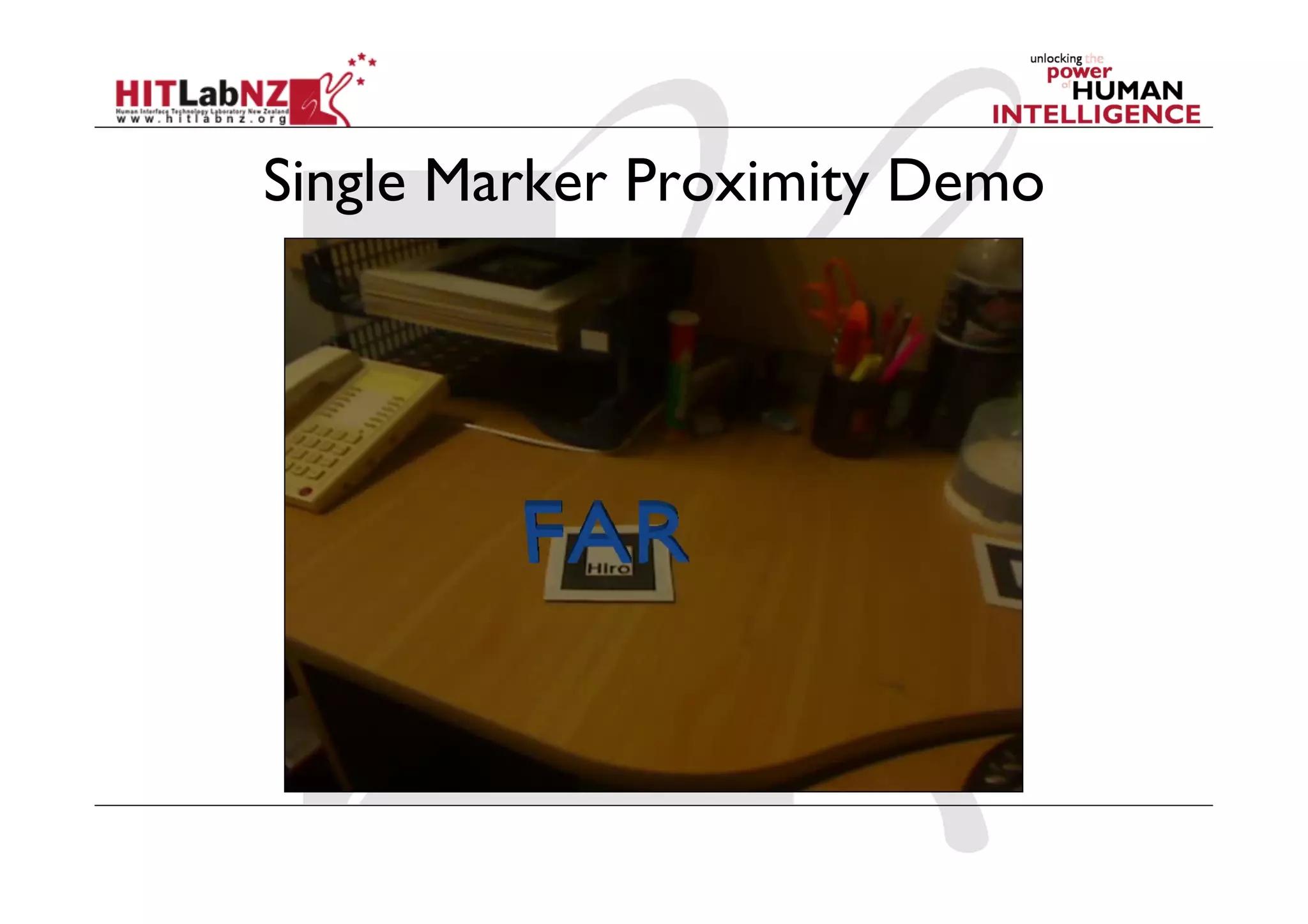

74. Single Marker Proximity Demo

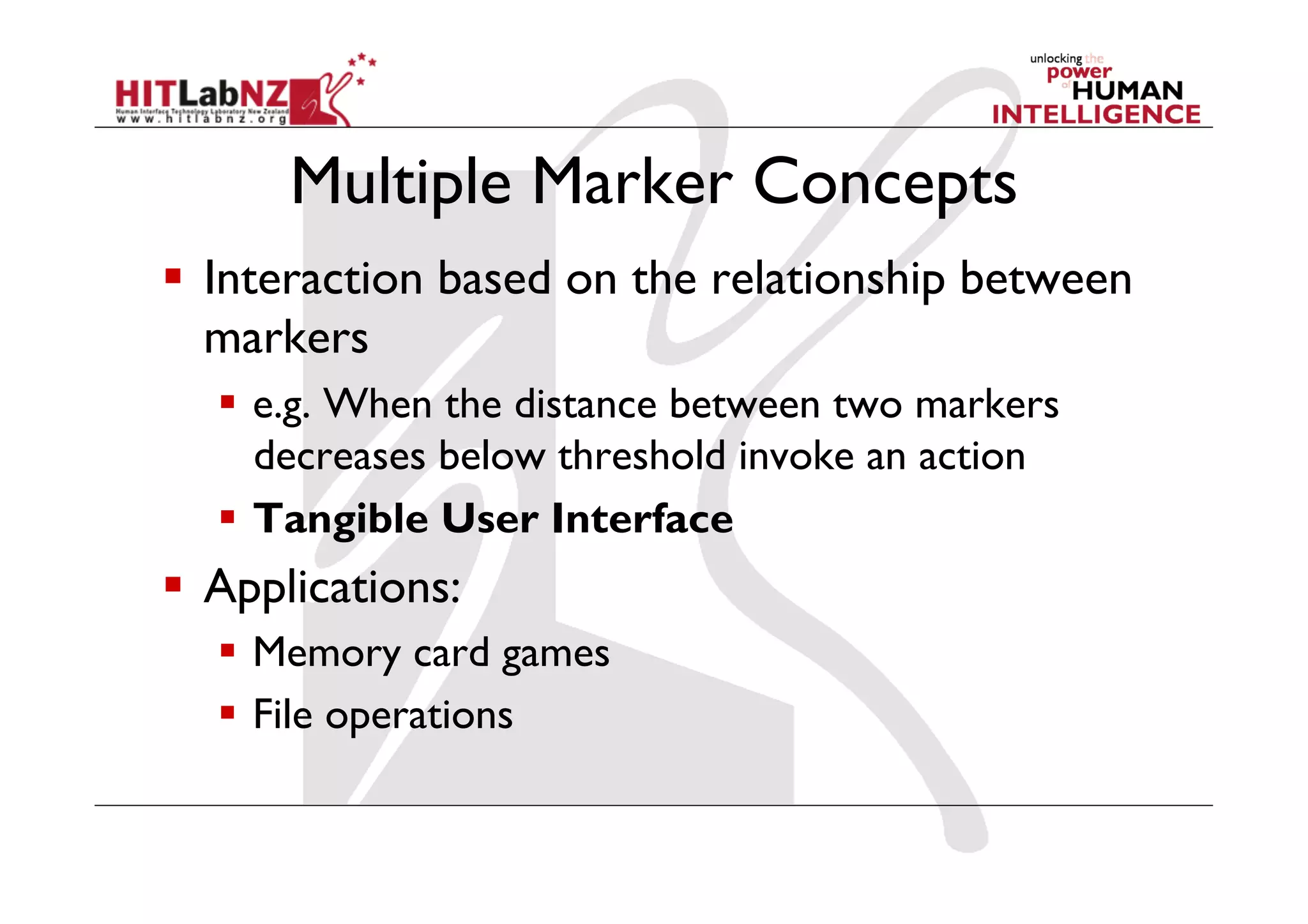

75. Multiple Marker Concepts
 Interaction based on the relationship between
markers
 e.g. When the distance between two markers
decreases below threshold invoke an action
 Tangible User Interface
 Applications:
 Memory card games
 File operations

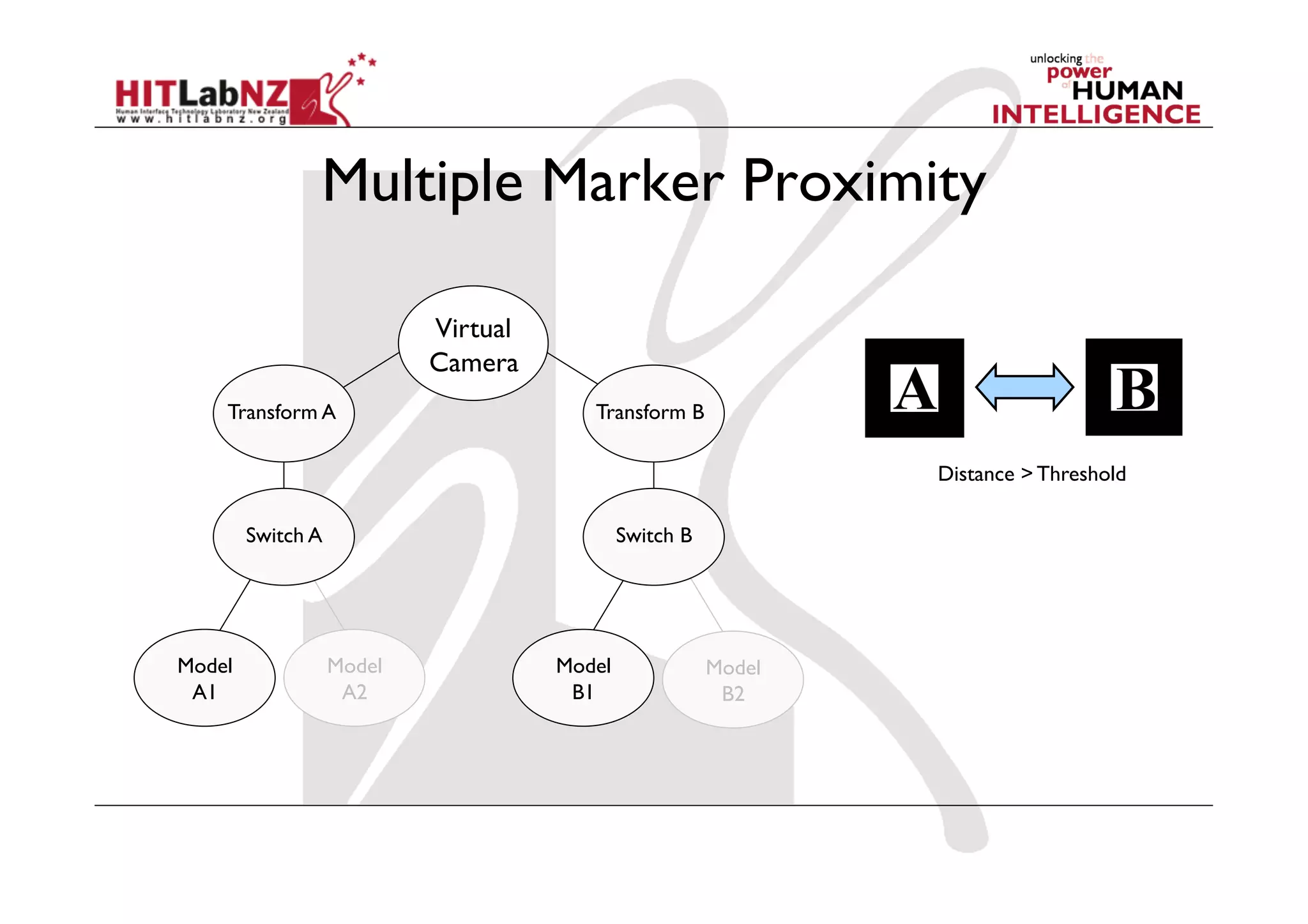

76. Multiple Marker Proximity
Virtual
Camera
Transform A Transform B
Distance > Threshold
Switch A Switch B
Model Model Model Model
A1 A2 B1 B2

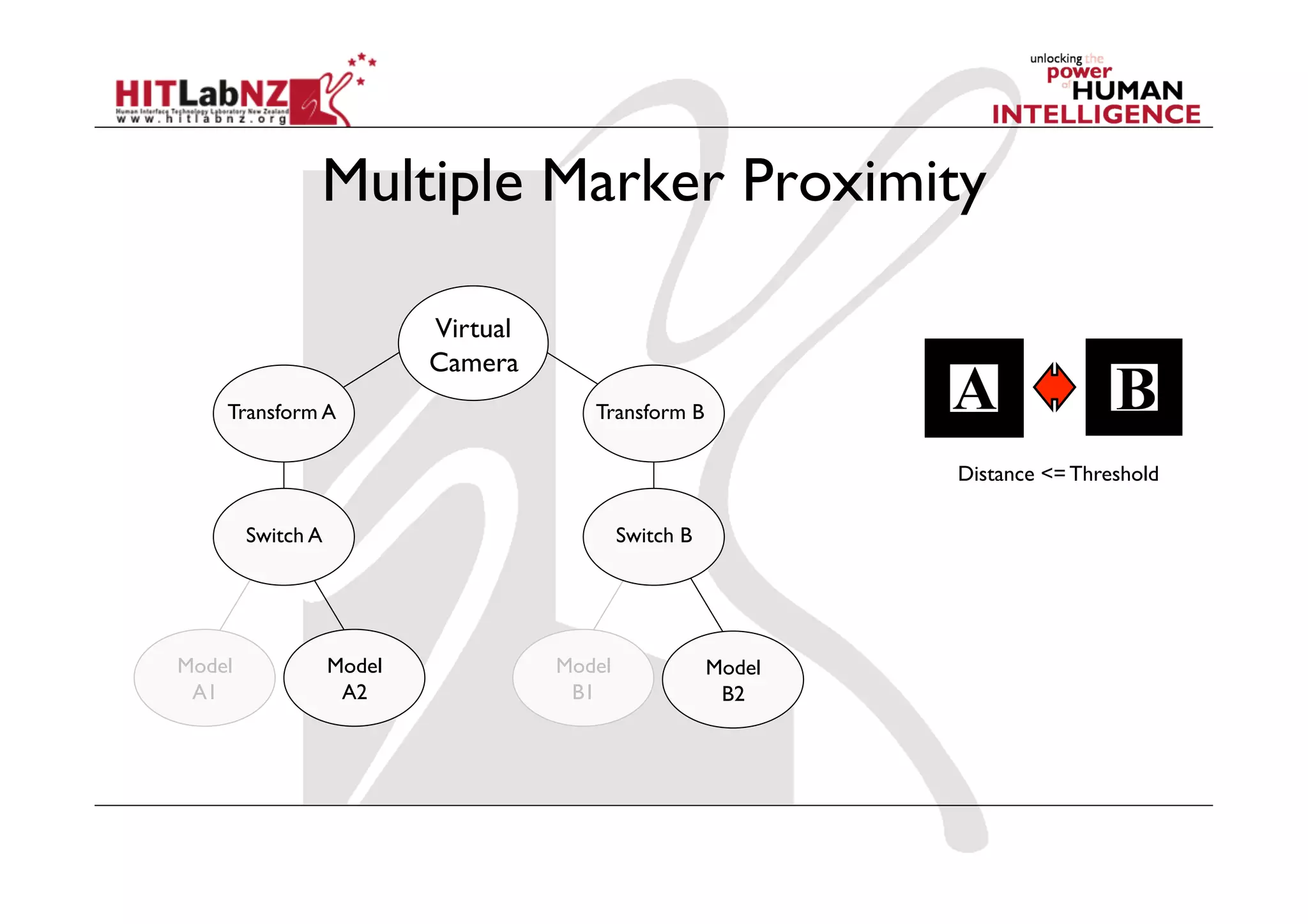

77. Multiple Marker Proximity
Virtual
Camera
Transform A Transform B
Distance <= Threshold
Switch A Switch B
Model Model Model Model
A1 A2 B1 B2

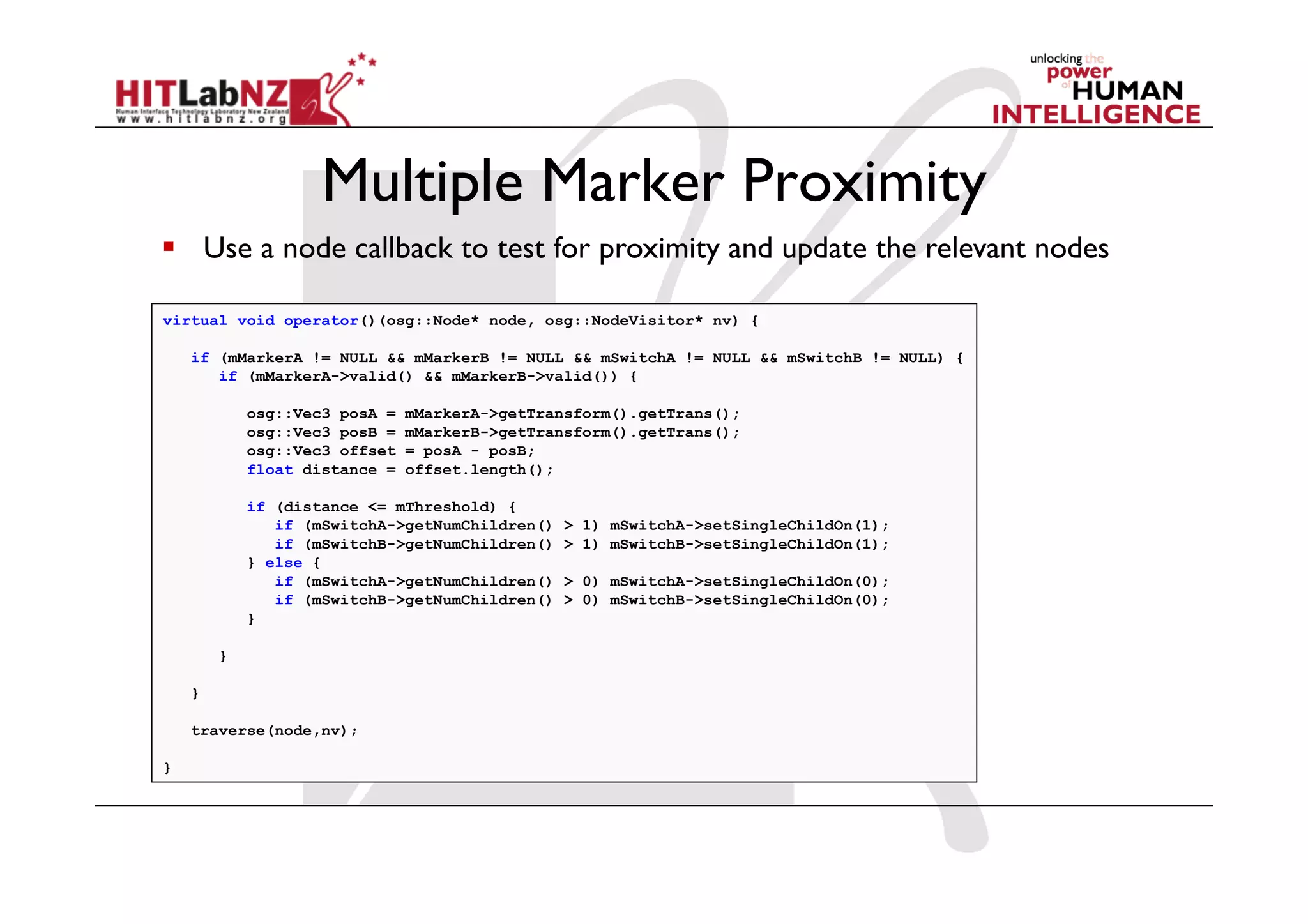

78. Multiple Marker Proximity
 Use a node callback to test for proximity and update the relevant nodes
virtual void operator()(osg::Node* node, osg::NodeVisitor* nv) {
if (mMarkerA != NULL && mMarkerB != NULL && mSwitchA != NULL && mSwitchB != NULL) {
if (mMarkerA->valid() && mMarkerB->valid()) {
osg::Vec3 posA = mMarkerA->getTransform().getTrans();
osg::Vec3 posB = mMarkerB->getTransform().getTrans();
osg::Vec3 offset = posA - posB;
float distance = offset.length();
if (distance <= mThreshold) {
if (mSwitchA->getNumChildren() > 1) mSwitchA->setSingleChildOn(1);
if (mSwitchB->getNumChildren() > 1) mSwitchB->setSingleChildOn(1);
} else {
if (mSwitchA->getNumChildren() > 0) mSwitchA->setSingleChildOn(0);
if (mSwitchB->getNumChildren() > 0) mSwitchB->setSingleChildOn(0);
}
}
}
traverse(node,nv);
}

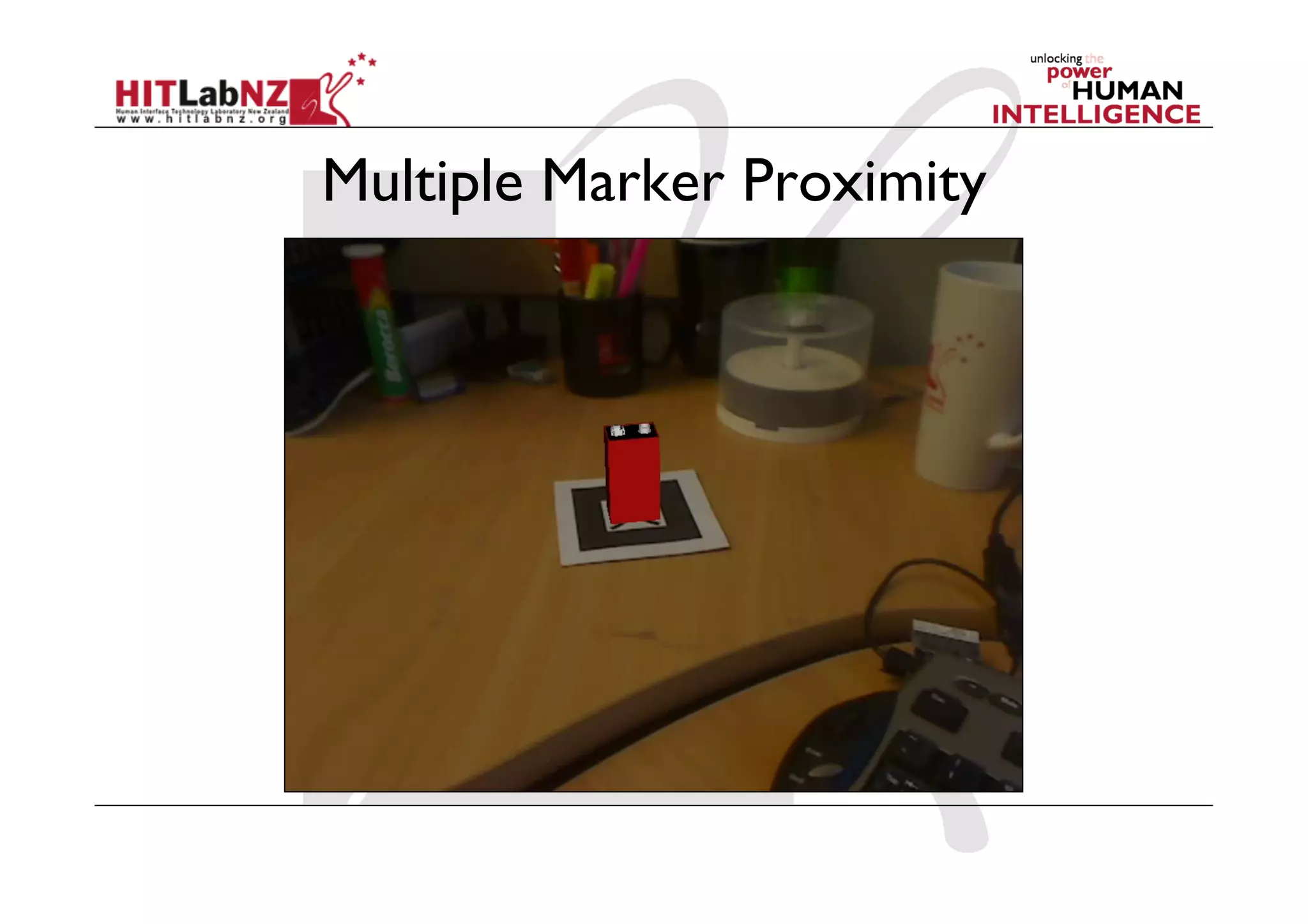

79. Multiple Marker Proximity

80. Paddle Interaction
 Use one marker as a tool for selecting and
manipulating objects (tangible user interface)
 Another marker provides a frame of reference
 A grid of markers can alleviate problems with occlusion
MagicCup (Kato et al) VOMAR (Kato et al)

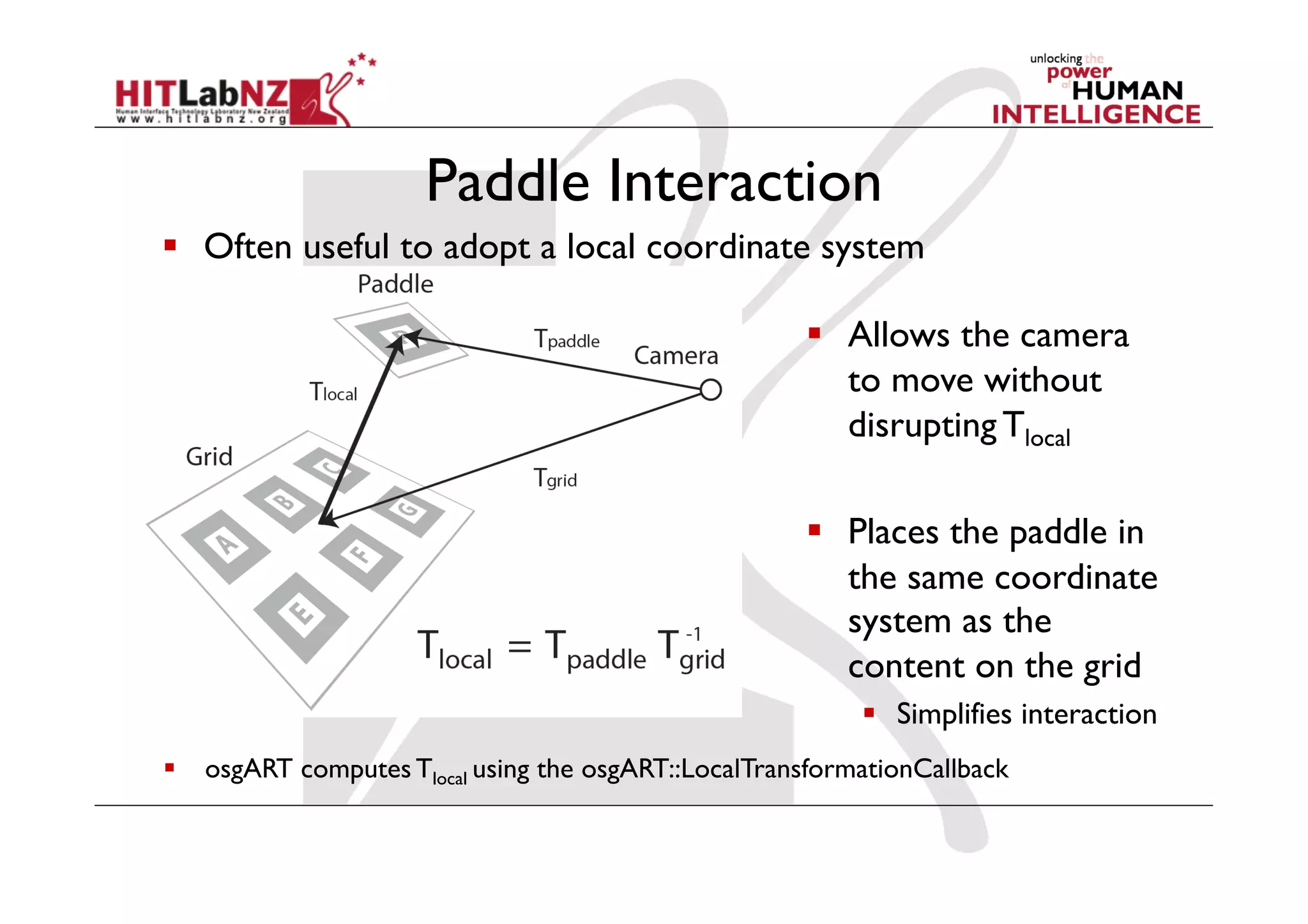

81. Paddle Interaction
 Often useful to adopt a local coordinate system
 Allows the camera
to move without
disrupting Tlocal
 Places the paddle in
the same coordinate
system as the
content on the grid
 Simplifies interaction
 osgART computes Tlocal using the osgART::LocalTransformationCallback

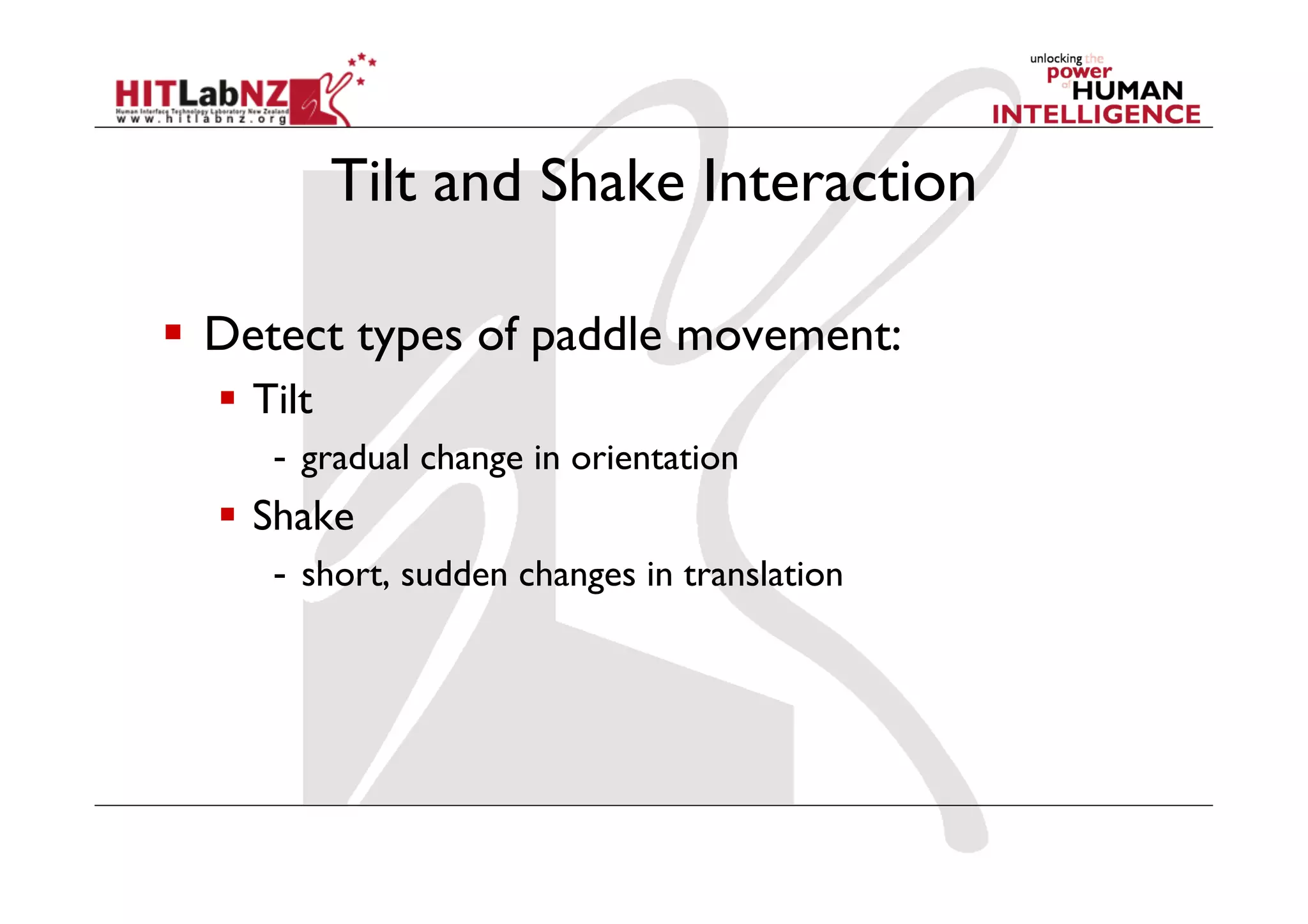

82. Tilt and Shake Interaction
 Detect types of paddle movement:
 Tilt
- gradual change in orientation
 Shake
- short, sudden changes in translation

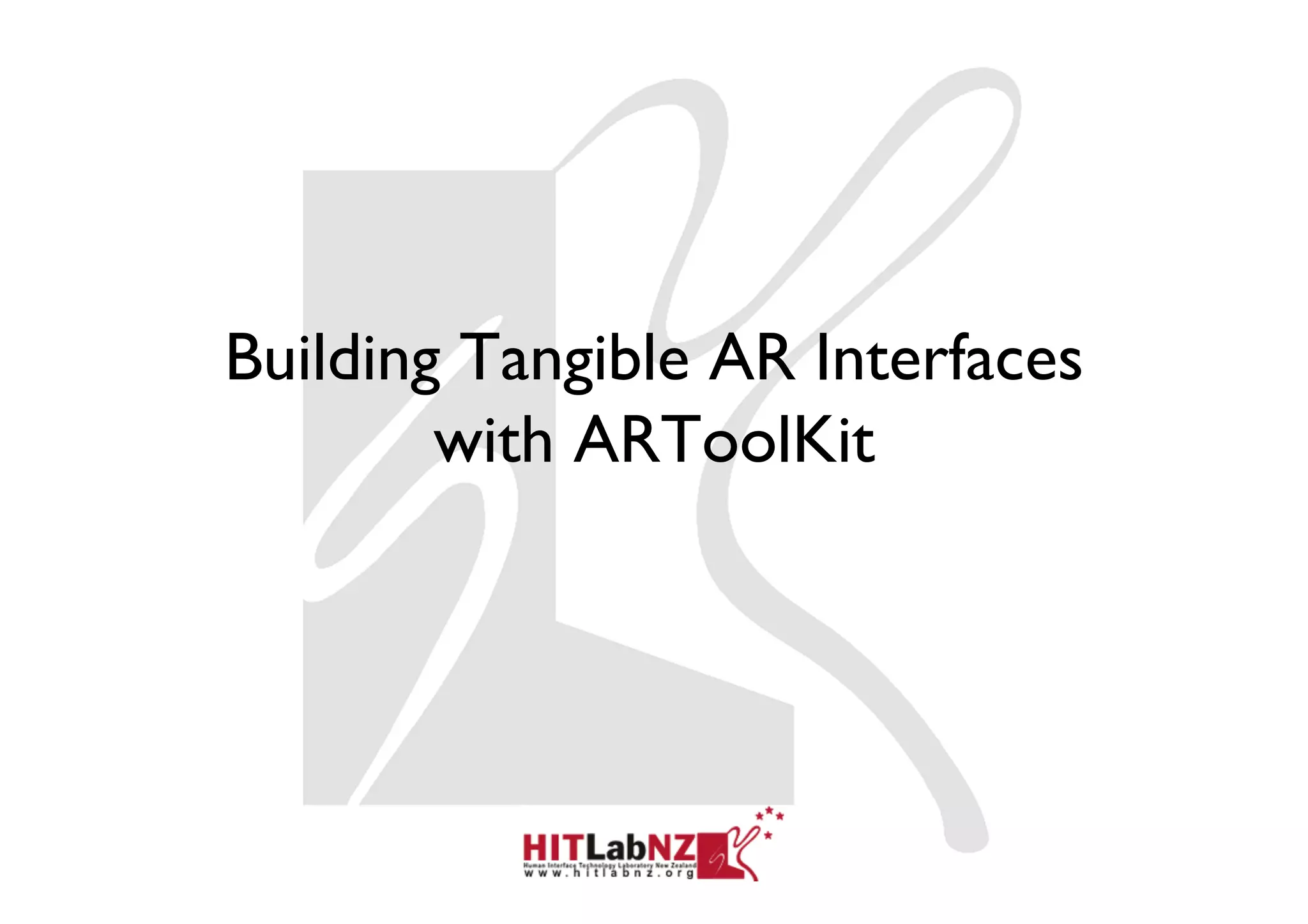

83. Building Tangible AR Interfaces
with ARToolKit

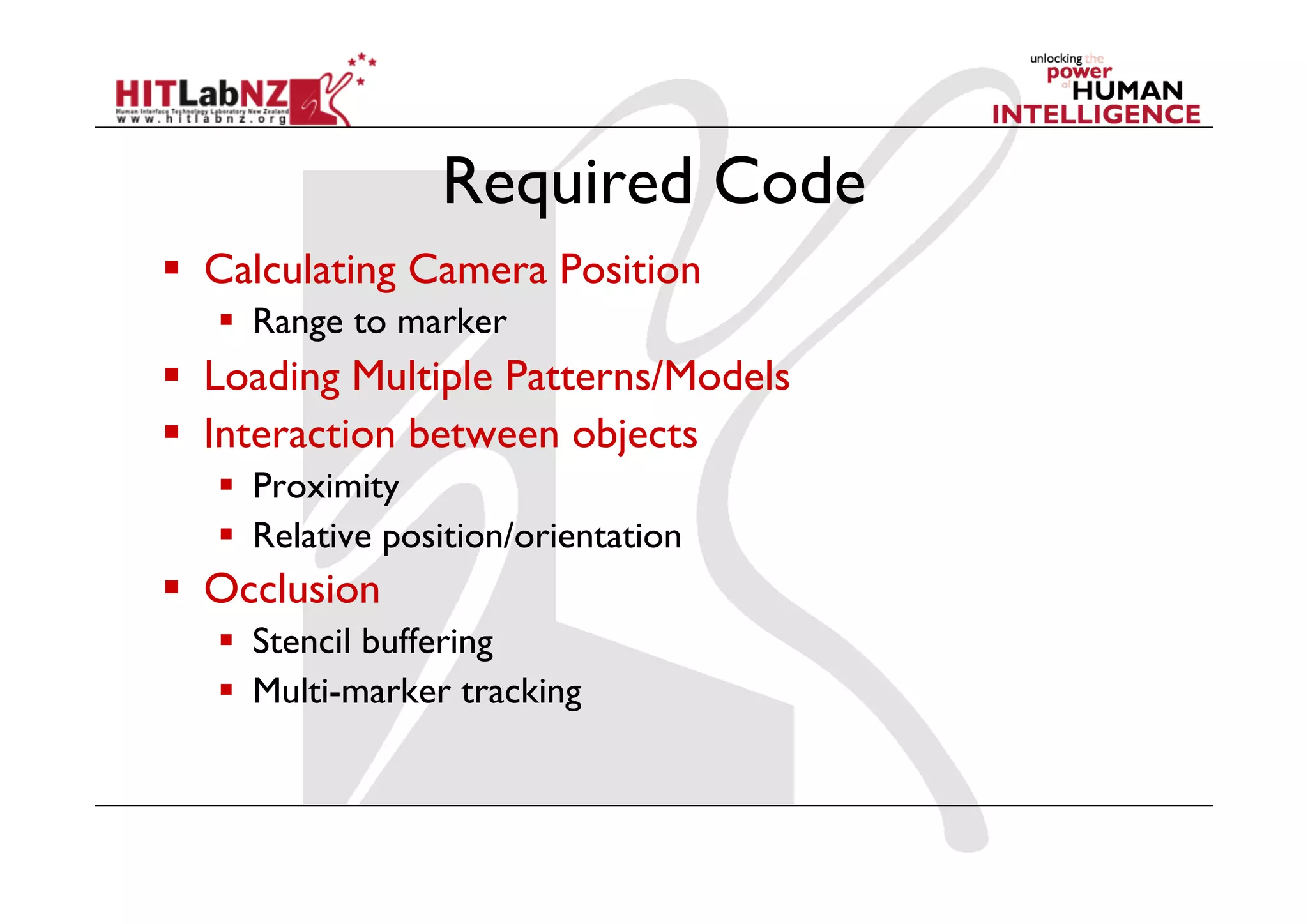

84. Required Code
 Calculating Camera Position
 Range to marker
 Loading Multiple Patterns/Models
 Interaction between objects
 Proximity
 Relative position/orientation
 Occlusion
 Stencil buffering
 Multi-marker tracking

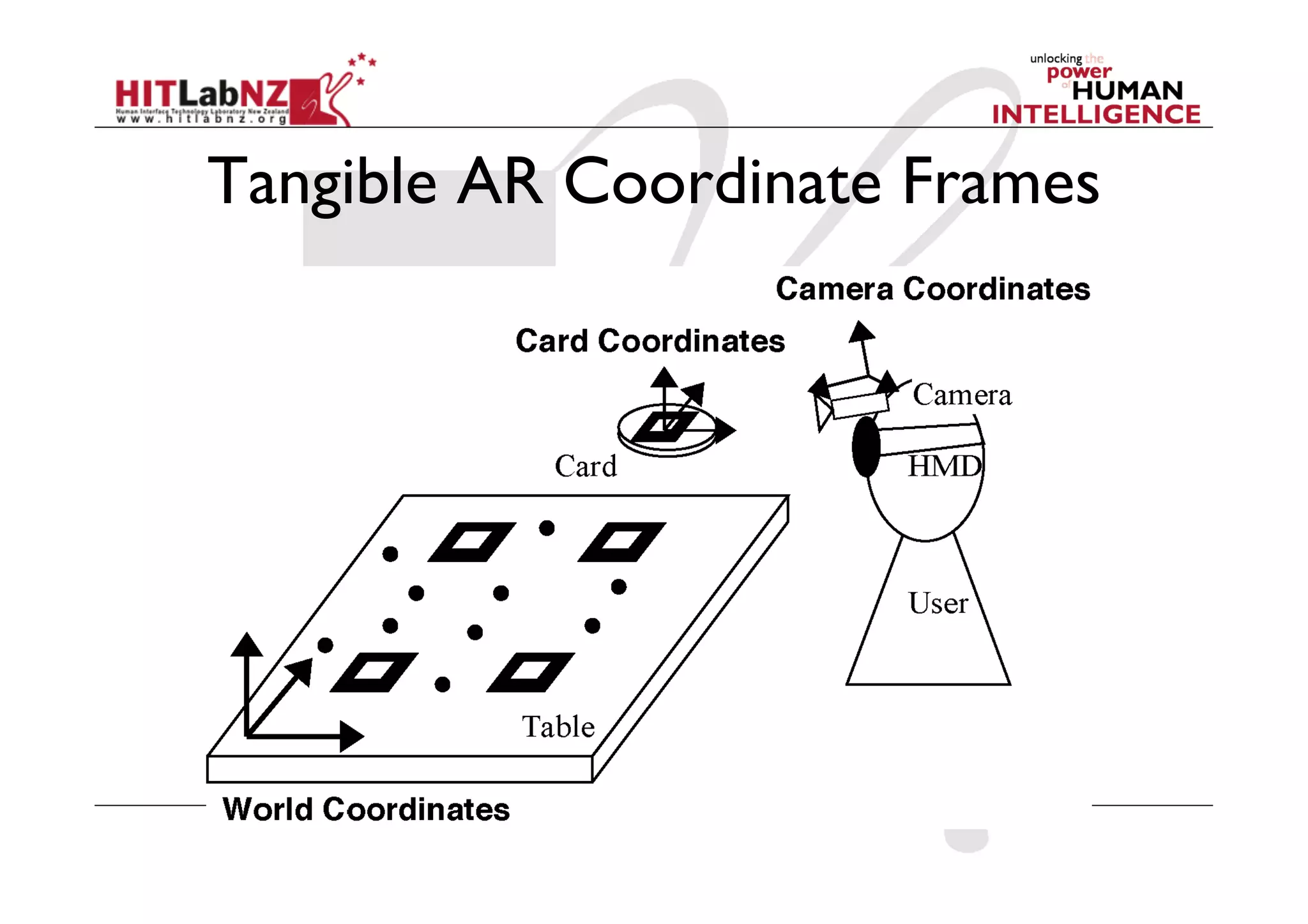

85. Tangible AR Coordinate Frames

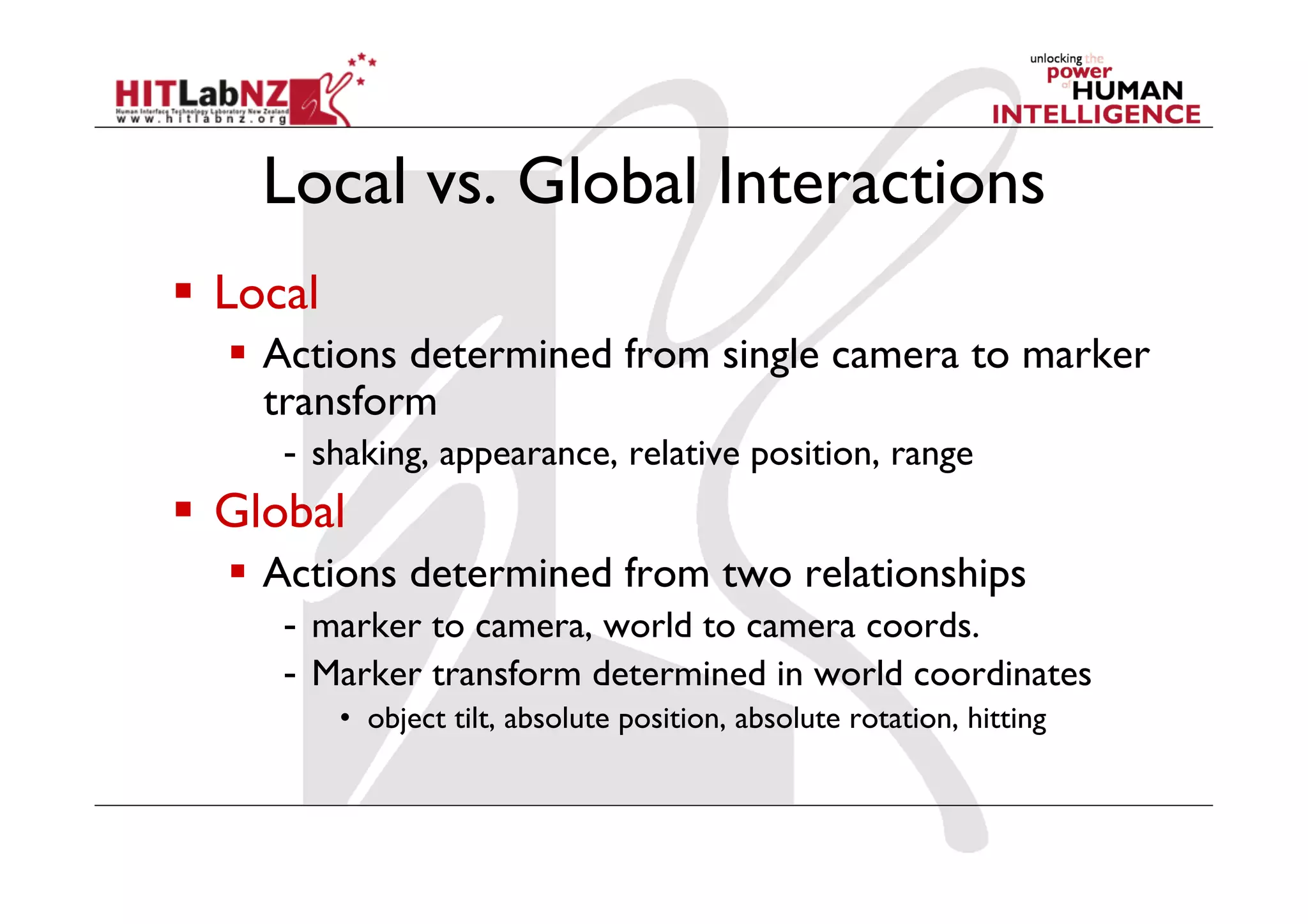

86. Local vs. Global Interactions
 Local
 Actions determined from single camera to marker
transform
- shaking, appearance, relative position, range
 Global
 Actions determined from two relationships
- marker to camera, world to camera coords.
- Marker transform determined in world coordinates
• object tilt, absolute position, absolute rotation, hitting

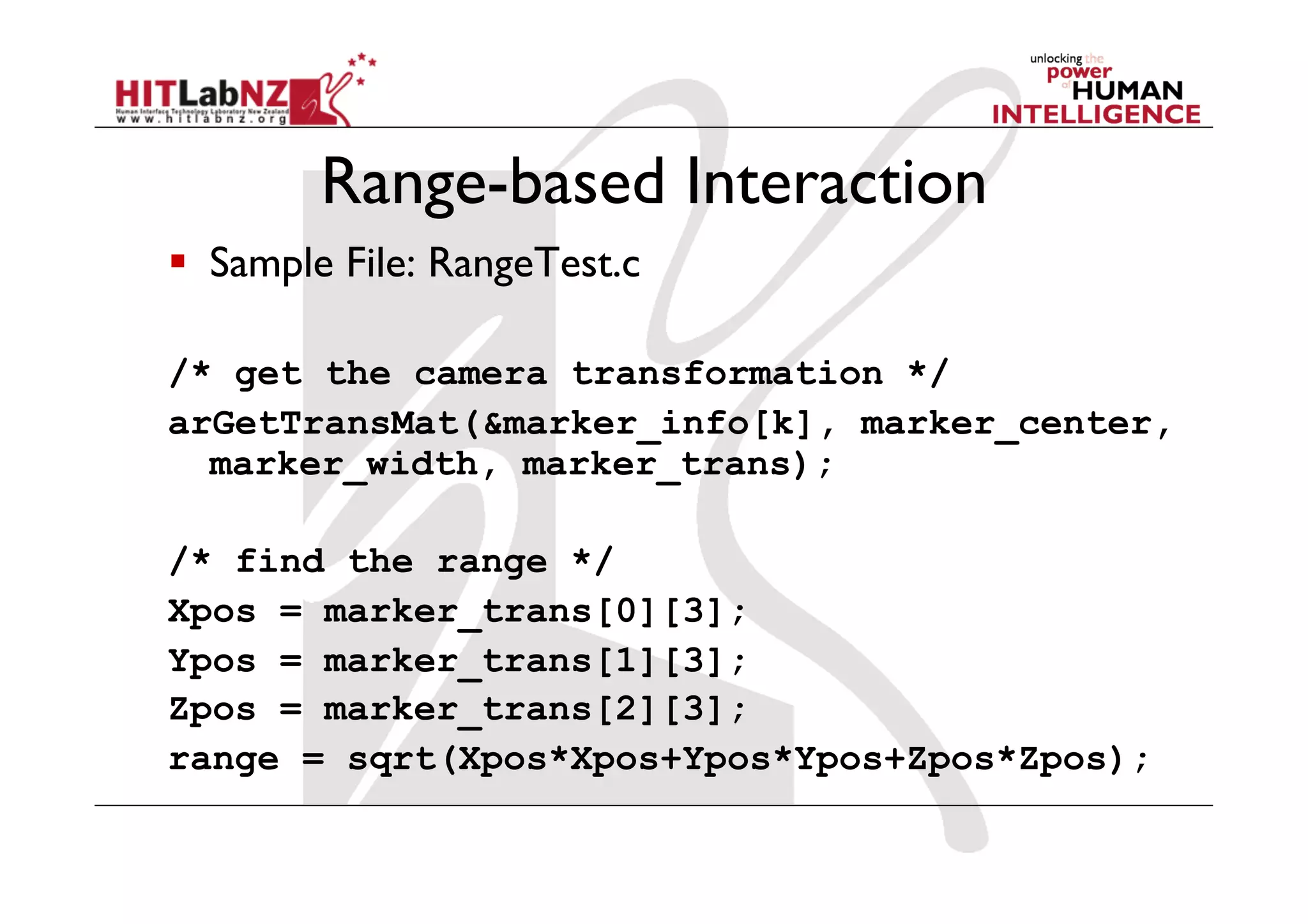

87. Range-based Interaction
 Sample File: RangeTest.c
/* get the camera transformation */
arGetTransMat(&marker_info[k], marker_center,
marker_width, marker_trans);
/* find the range */
Xpos = marker_trans[0][3];
Ypos = marker_trans[1][3];
Zpos = marker_trans[2][3];
range = sqrt(Xpos*Xpos+Ypos*Ypos+Zpos*Zpos);

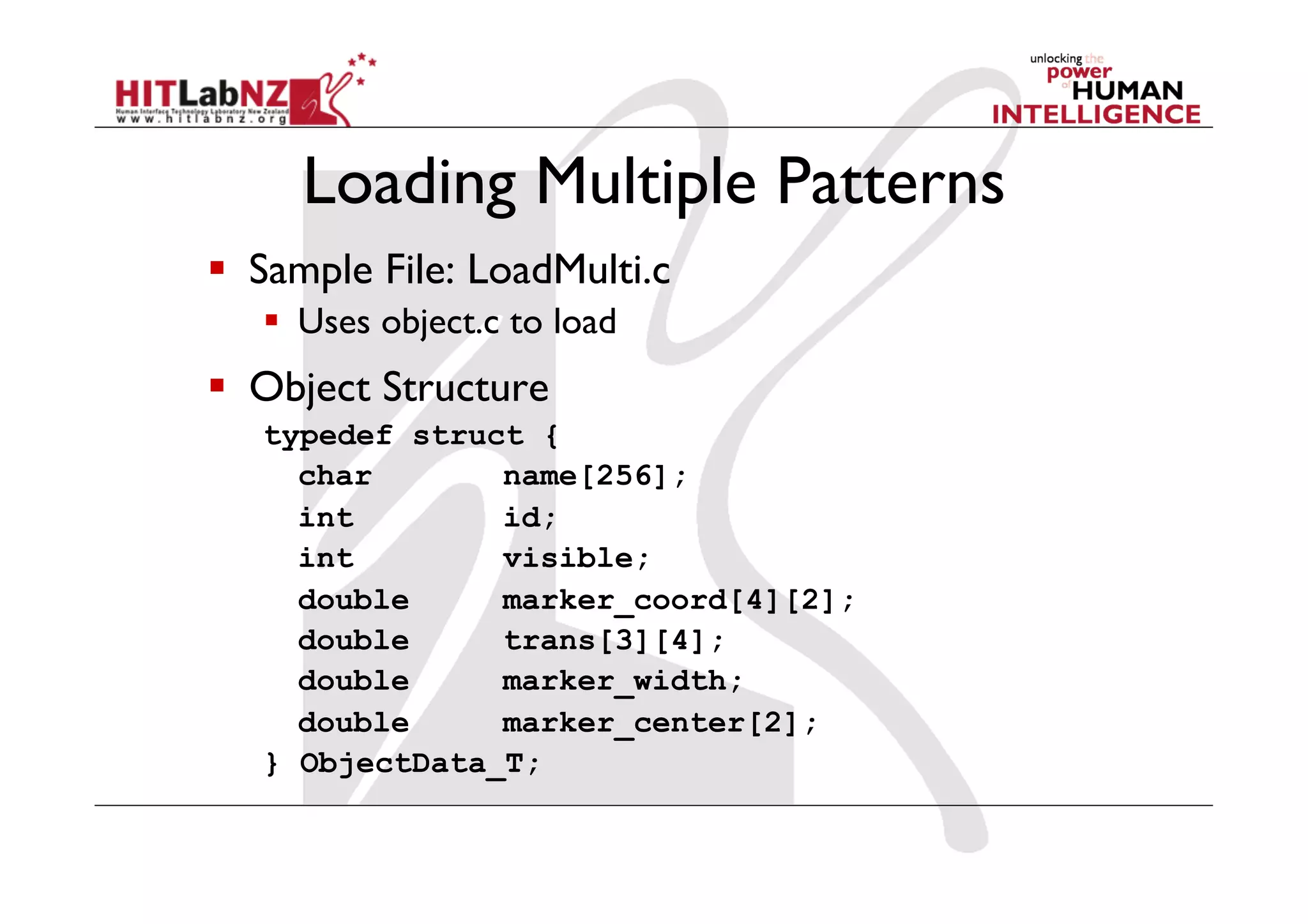

88. Loading Multiple Patterns
 Sample File: LoadMulti.c
 Uses object.c to load
 Object Structure
typedef struct {
char name[256];
int id;
int visible;
double marker_coord[4][2];
double trans[3][4];
double marker_width;
double marker_center[2];
} ObjectData_T;

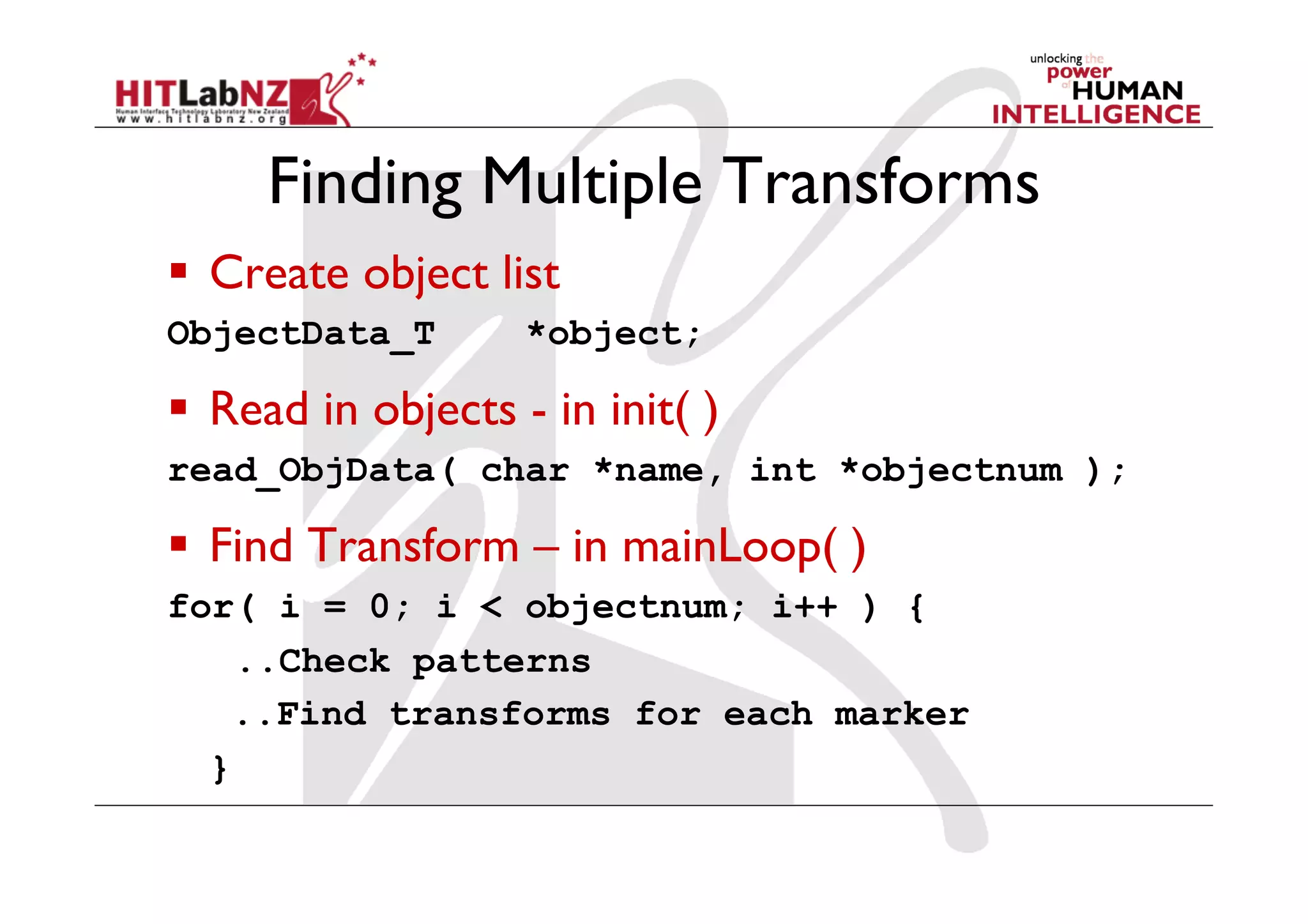

89. Finding Multiple Transforms
 Create object list
ObjectData_T *object;
 Read in objects - in init( )
read_ObjData( char *name, int *objectnum );
 Find Transform – in mainLoop( )
for( i = 0; i < objectnum; i++ ) {
..Check patterns
..Find transforms for each marker
}

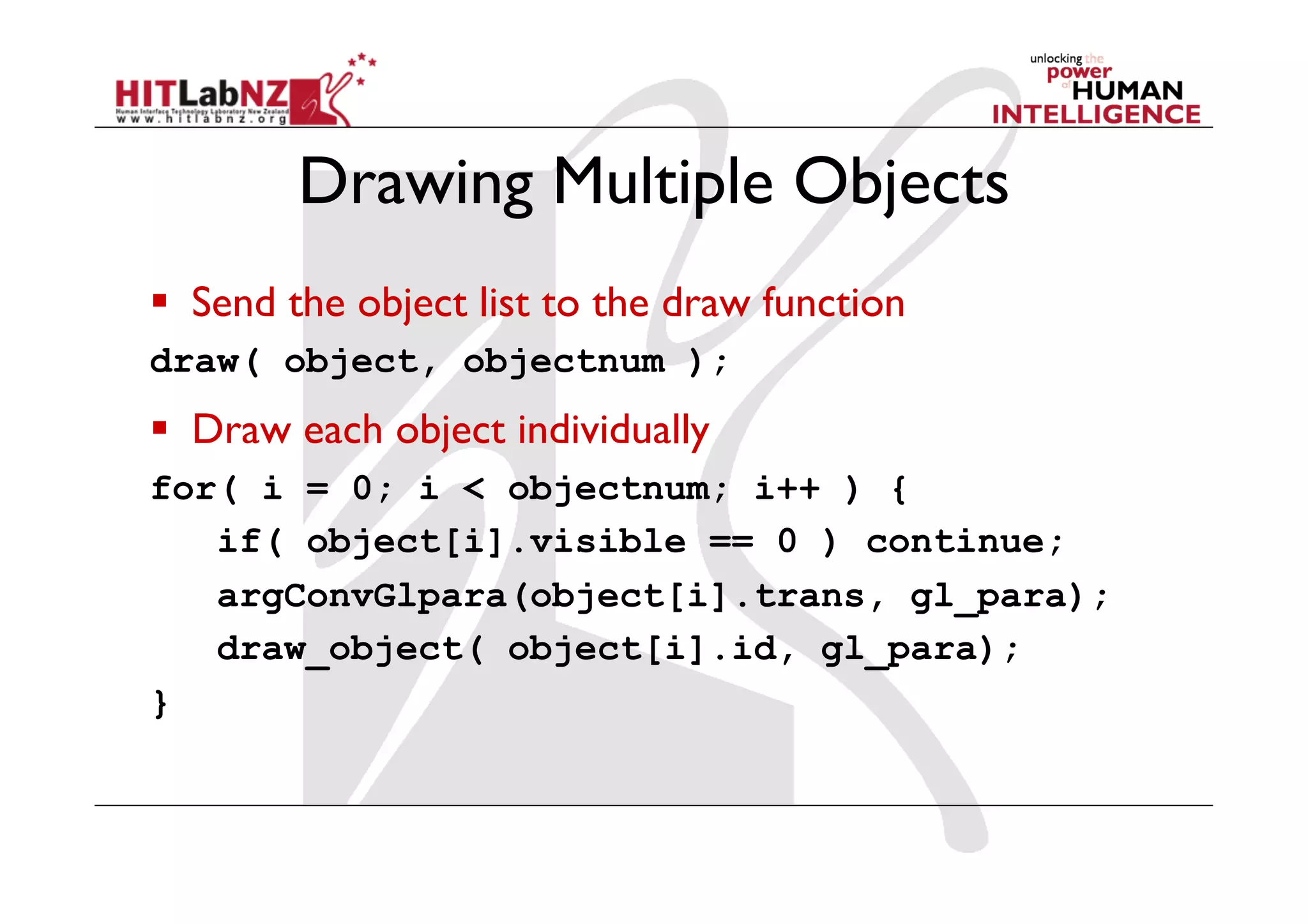

90. Drawing Multiple Objects
 Send the object list to the draw function
draw( object, objectnum );
 Draw each object individually
for( i = 0; i < objectnum; i++ ) {
if( object[i].visible == 0 ) continue;
argConvGlpara(object[i].trans, gl_para);
draw_object( object[i].id, gl_para);
}

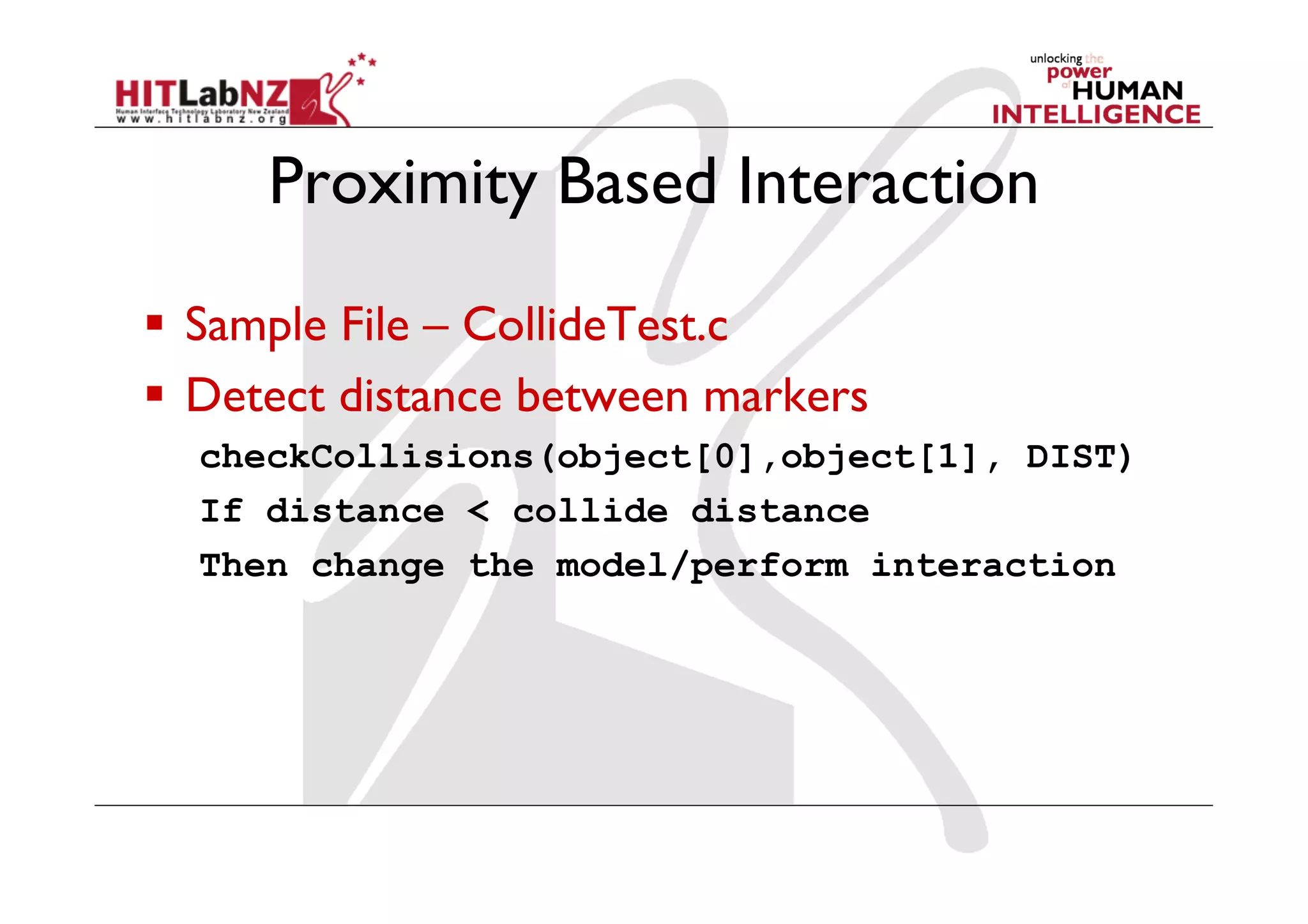

91. Proximity Based Interaction
 Sample File – CollideTest.c
 Detect distance between markers
checkCollisions(object[0],object[1], DIST)
If distance < collide distance
Then change the model/perform interaction

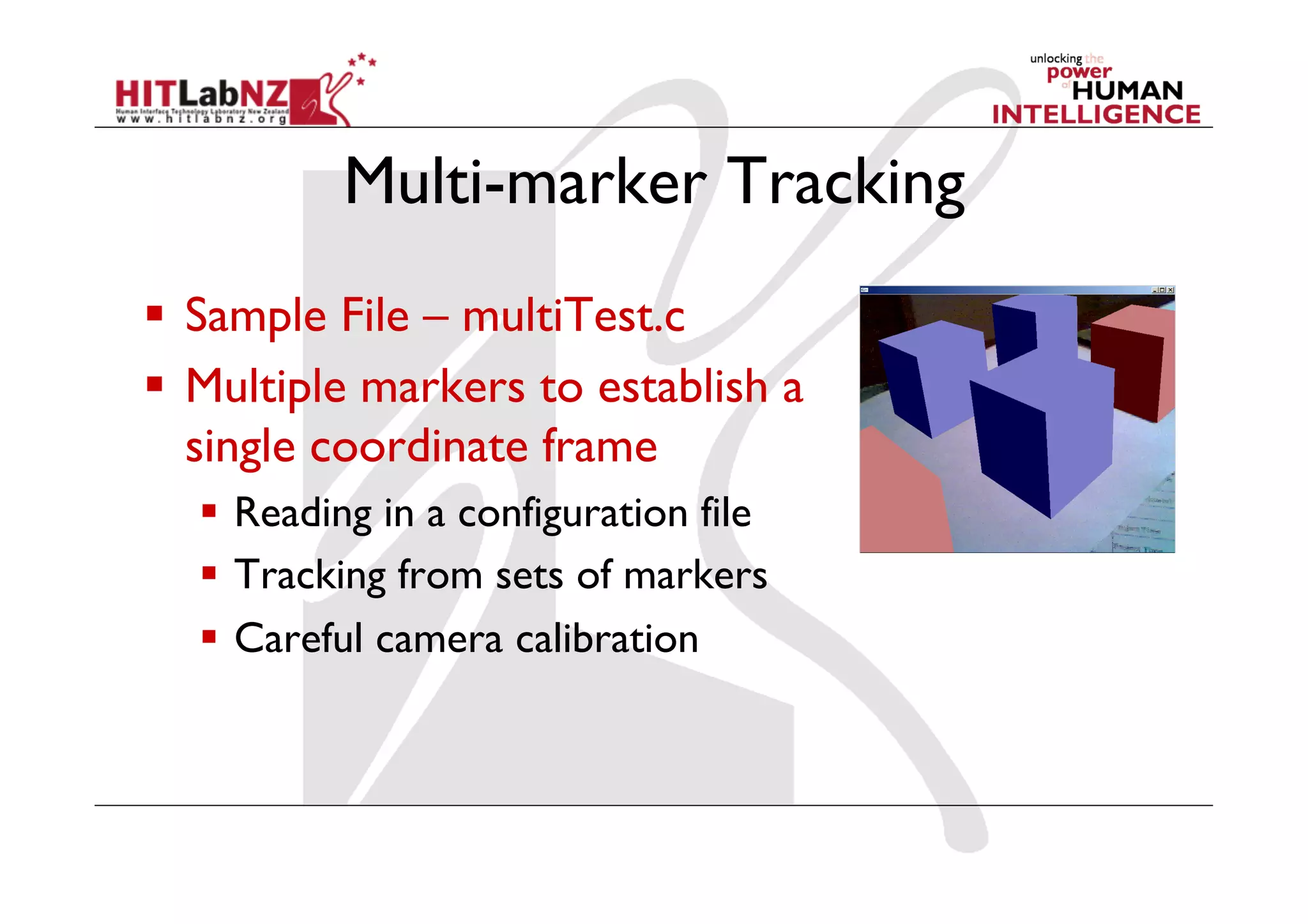

92. Multi-marker Tracking
 Sample File – multiTest.c
 Multiple markers to establish a
single coordinate frame
 Reading in a configuration file
 Tracking from sets of markers
 Careful camera calibration

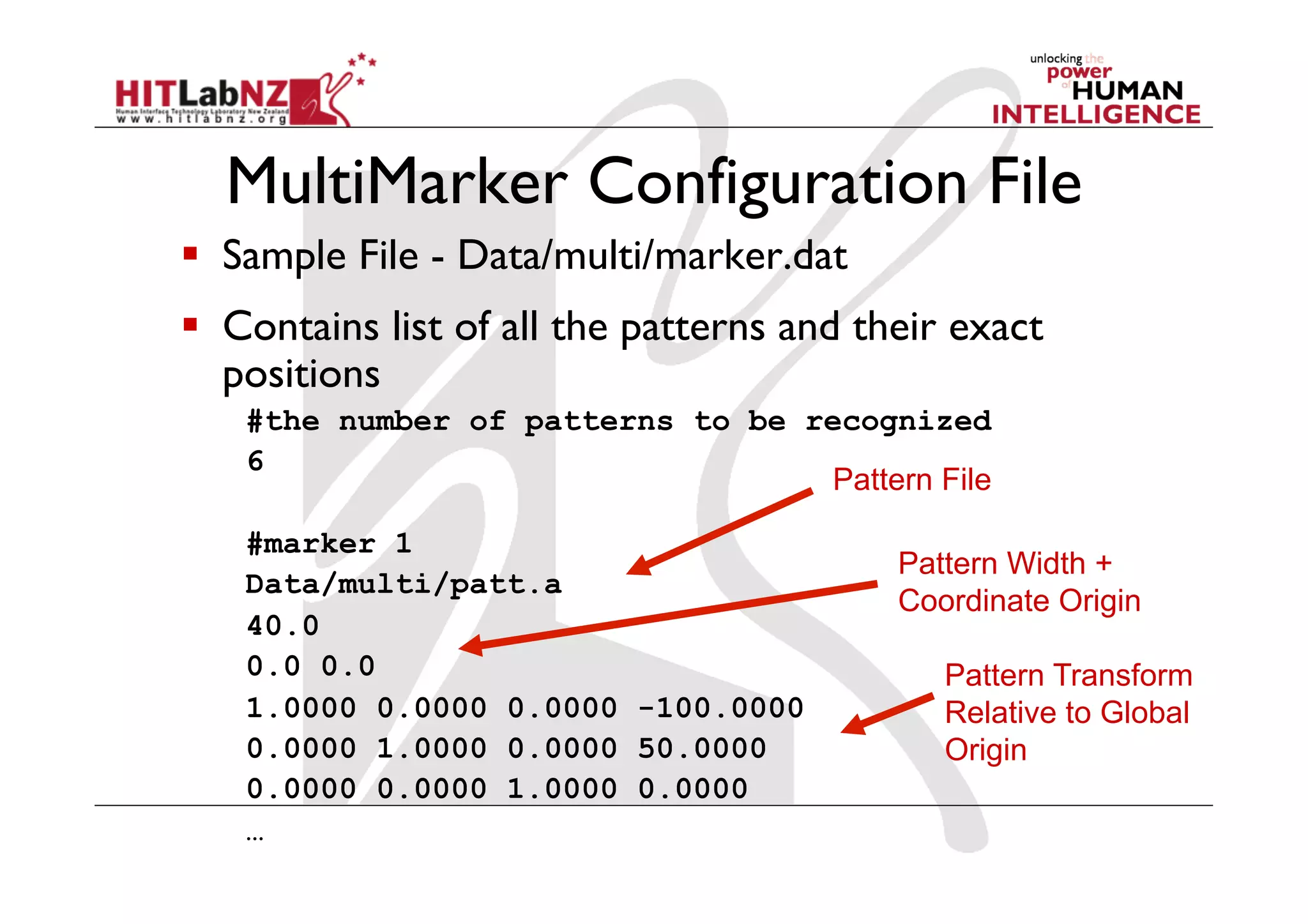

93. MultiMarker Configuration File
 Sample File - Data/multi/marker.dat
 Contains list of all the patterns and their exact
positions
#the number of patterns to be recognized
6
Pattern File
#marker 1
Pattern Width +
Data/multi/patt.a
Coordinate Origin
40.0
0.0 0.0 Pattern Transform
1.0000 0.0000 0.0000 -100.0000 Relative to Global
0.0000 1.0000 0.0000 50.0000 Origin
0.0000 0.0000 1.0000 0.0000
…

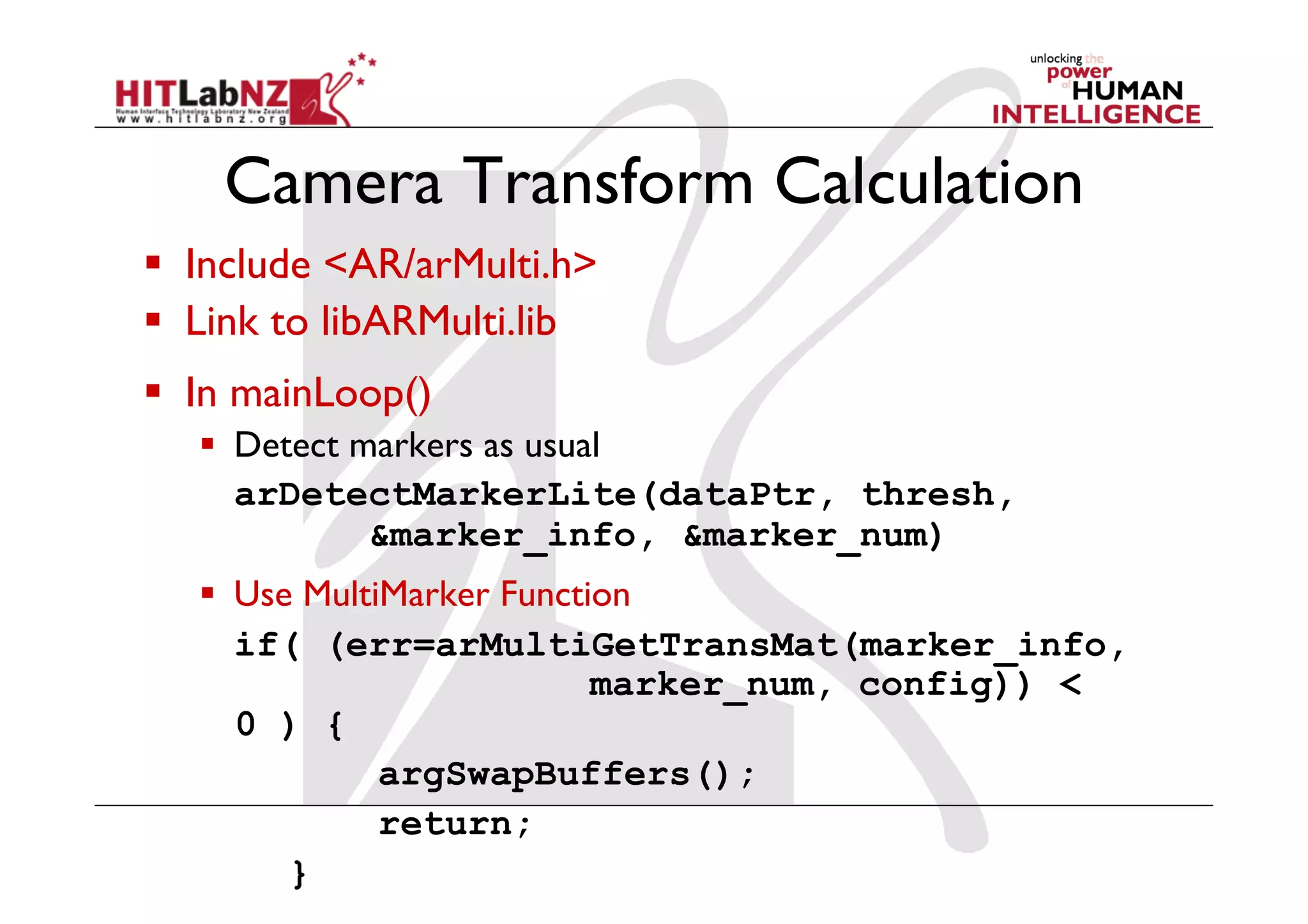

94. Camera Transform Calculation
 Include <AR/arMulti.h>
 Link to libARMulti.lib
 In mainLoop()
 Detect markers as usual
arDetectMarkerLite(dataPtr, thresh,
&marker_info, &marker_num)
 Use MultiMarker Function
if( (err=arMultiGetTransMat(marker_info,
marker_num, config)) <
0 ) {
argSwapBuffers();
return;
}

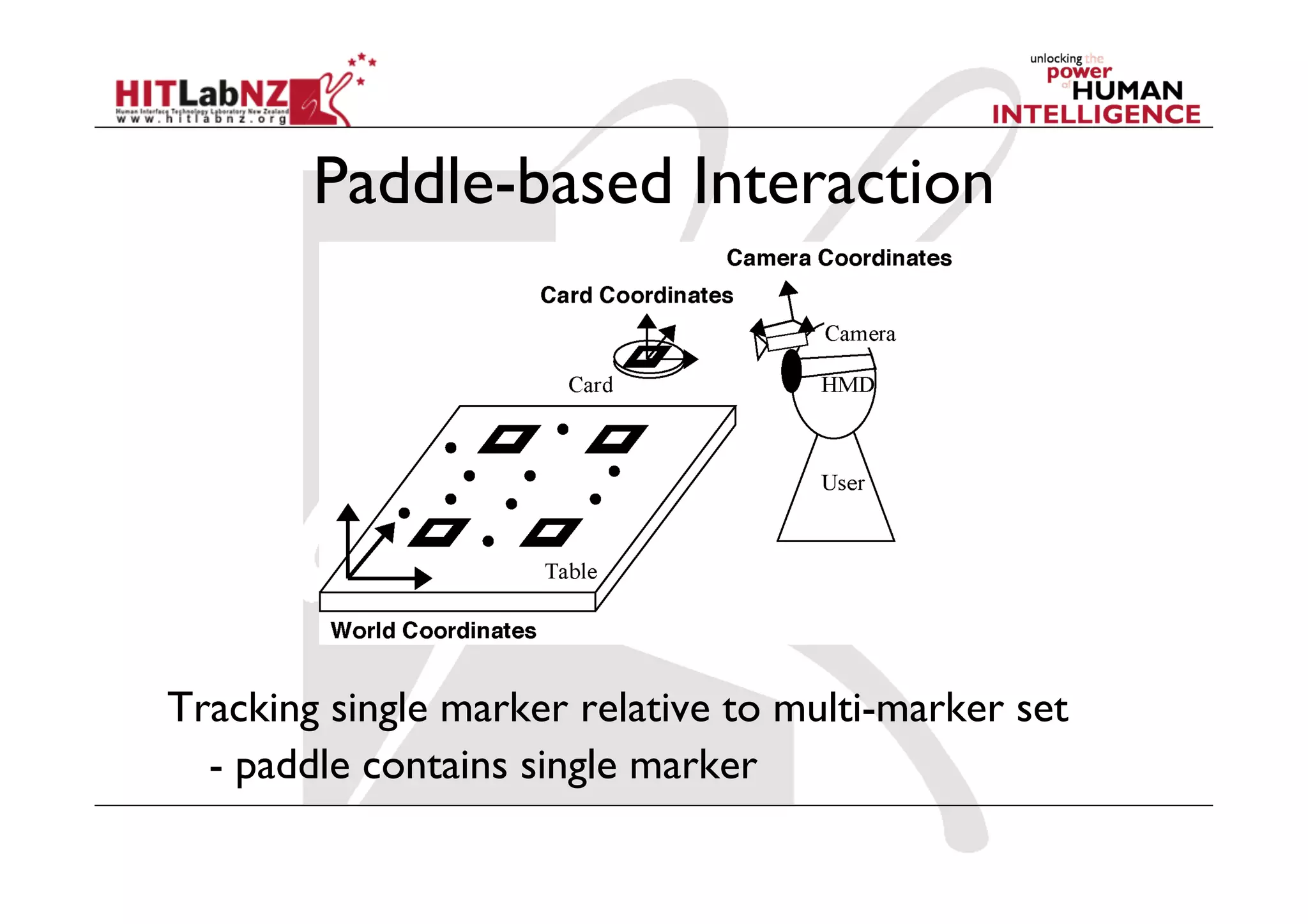

95. Paddle-based Interaction
Tracking single marker relative to multi-marker set
- paddle contains single marker

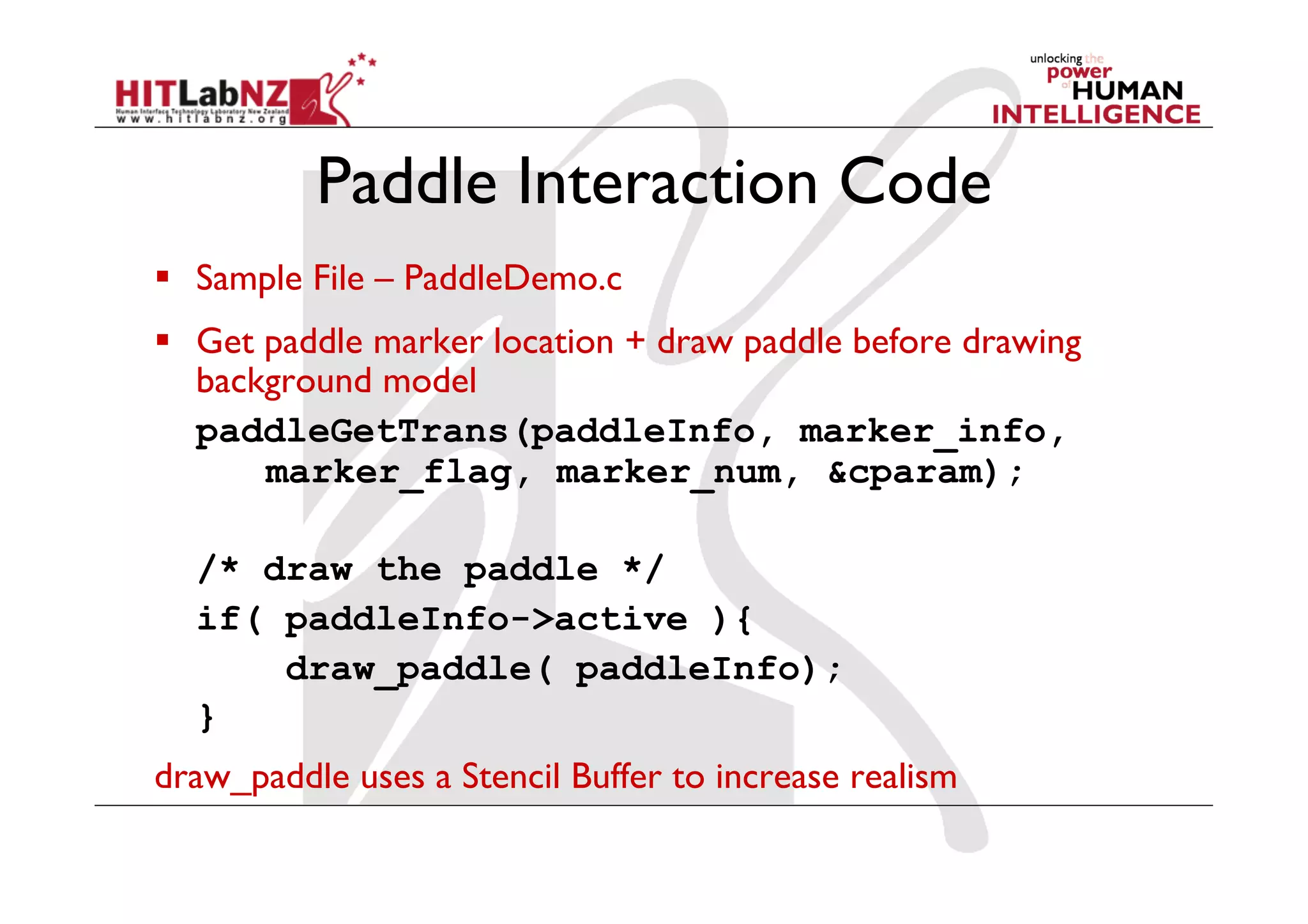

96. Paddle Interaction Code
 Sample File – PaddleDemo.c
 Get paddle marker location + draw paddle before drawing
background model
paddleGetTrans(paddleInfo, marker_info,
marker_flag, marker_num, &cparam);
/* draw the paddle */
if( paddleInfo->active ){
draw_paddle( paddleInfo);
}
draw_paddle uses a Stencil Buffer to increase realism

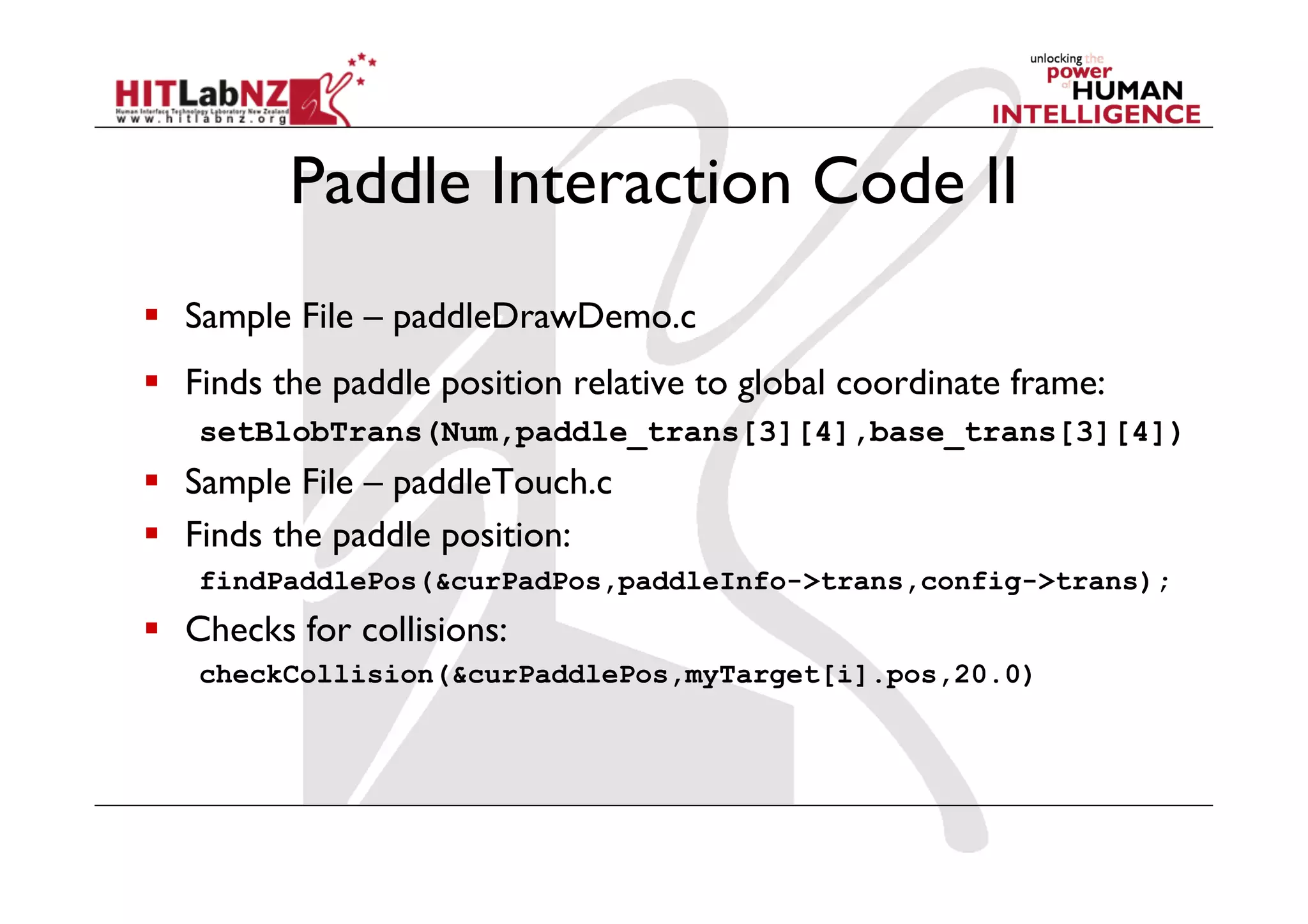

97. Paddle Interaction Code II
 Sample File – paddleDrawDemo.c
 Finds the paddle position relative to global coordinate frame:
setBlobTrans(Num,paddle_trans[3][4],base_trans[3][4])
 Sample File – paddleTouch.c
 Finds the paddle position:
findPaddlePos(&curPadPos,paddleInfo->trans,config->trans);
 Checks for collisions:
checkCollision(&curPaddlePos,myTarget[i].pos,20.0)

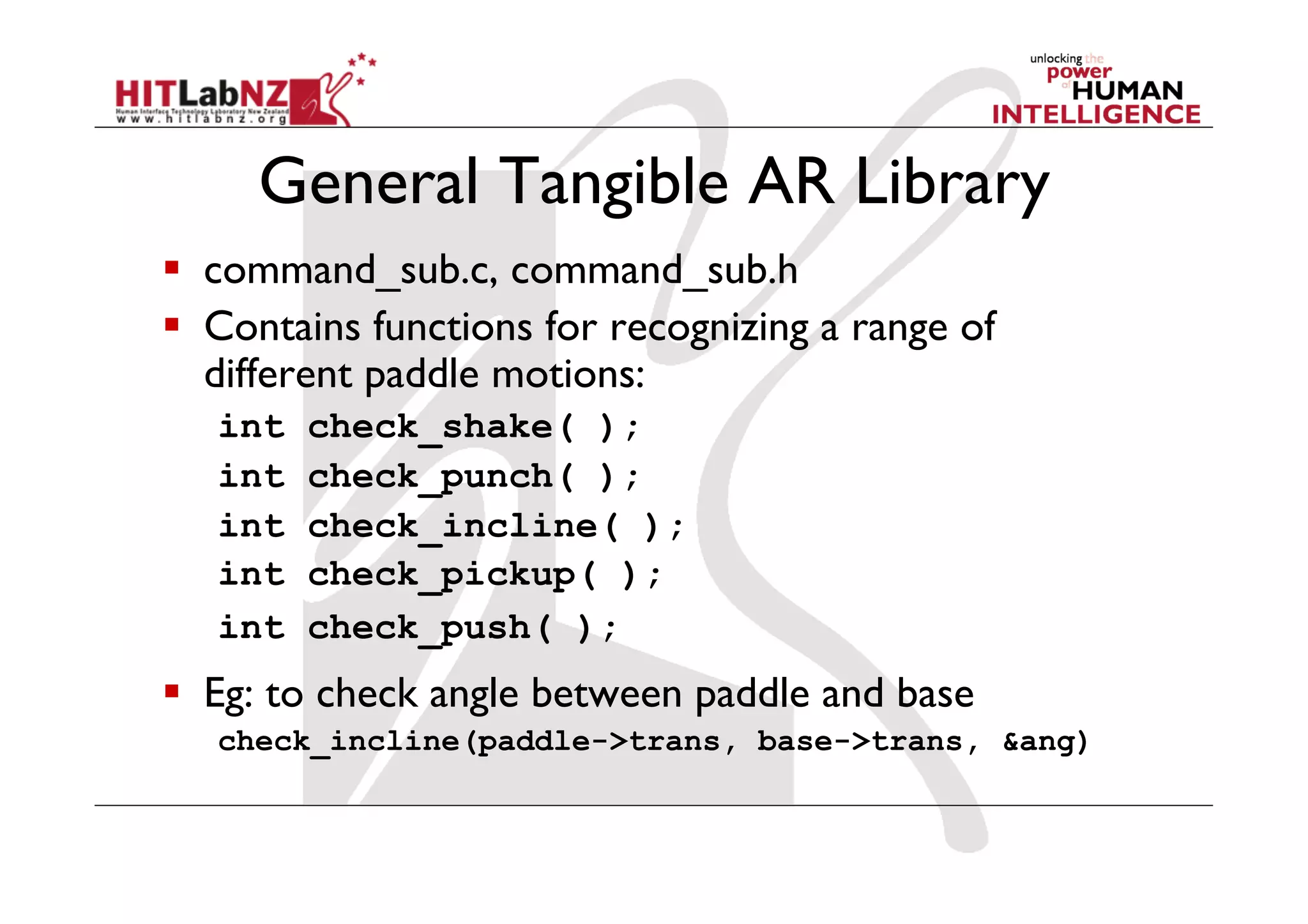

98. General Tangible AR Library
 command_sub.c, command_sub.h
 Contains functions for recognizing a range of
different paddle motions:
int check_shake( );
int check_punch( );
int check_incline( );
int check_pickup( );
int check_push( );
 Eg: to check angle between paddle and base
check_incline(paddle->trans, base->trans, &ang)
