Rapid Prototyping for XR: Lecture 5 - Cross Platform Development
This is lecture 5 in the course about Rapid Prototyping for XR, taught by Mark Billinghurst. This lecture is about Cross Platform Development.
More Related Content
Similar to Rapid Prototyping for XR: Lecture 5 - Cross Platform Development
Rapid Prototyping for XR: Lecture 5 - Cross Platform Development

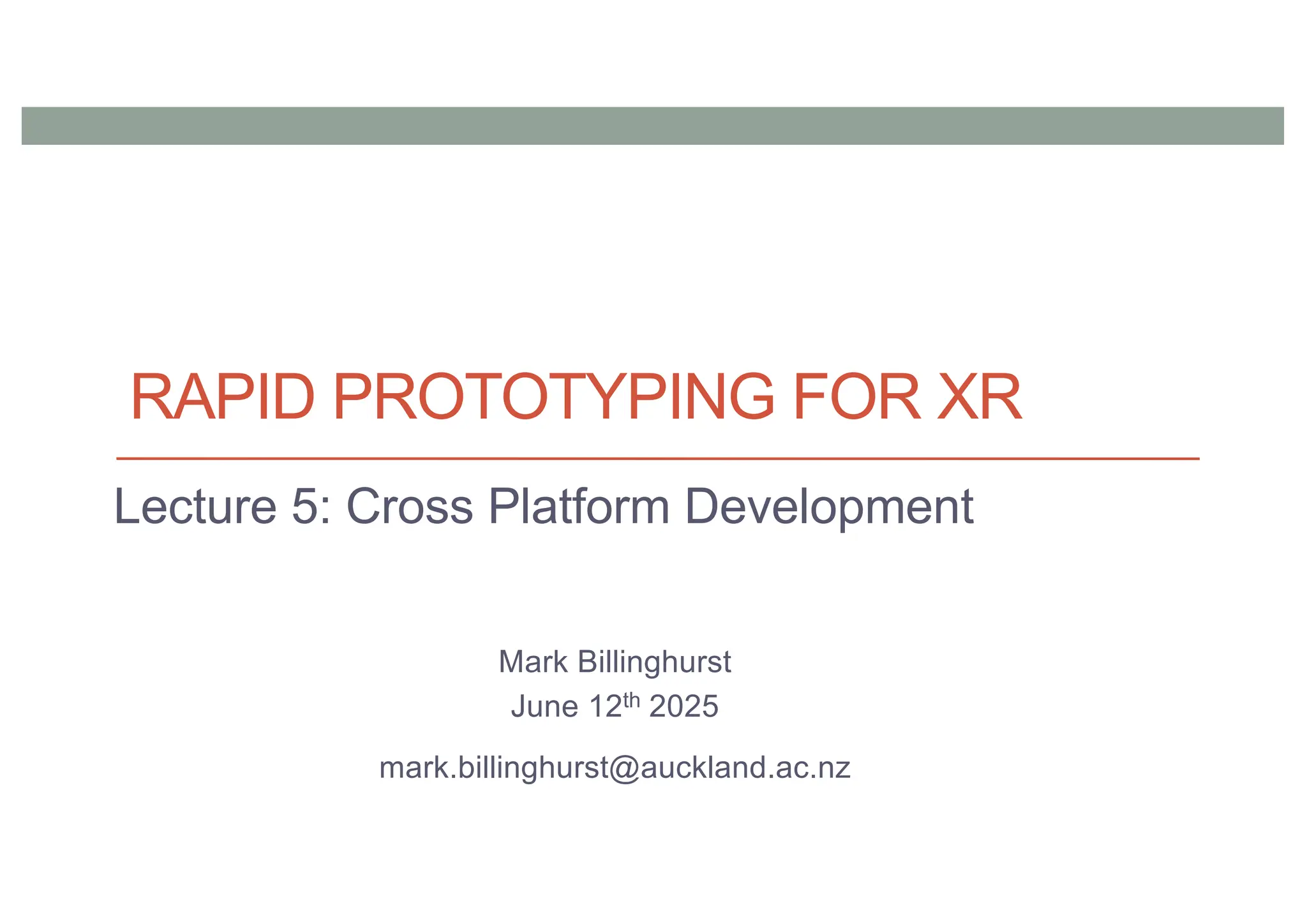

- 1. RAPID PROTOTYPING FORXR Lecture 5: Cross Platform Development Mark Billinghurst June 12th 2025 mark.billinghurst@auckland.ac.nz

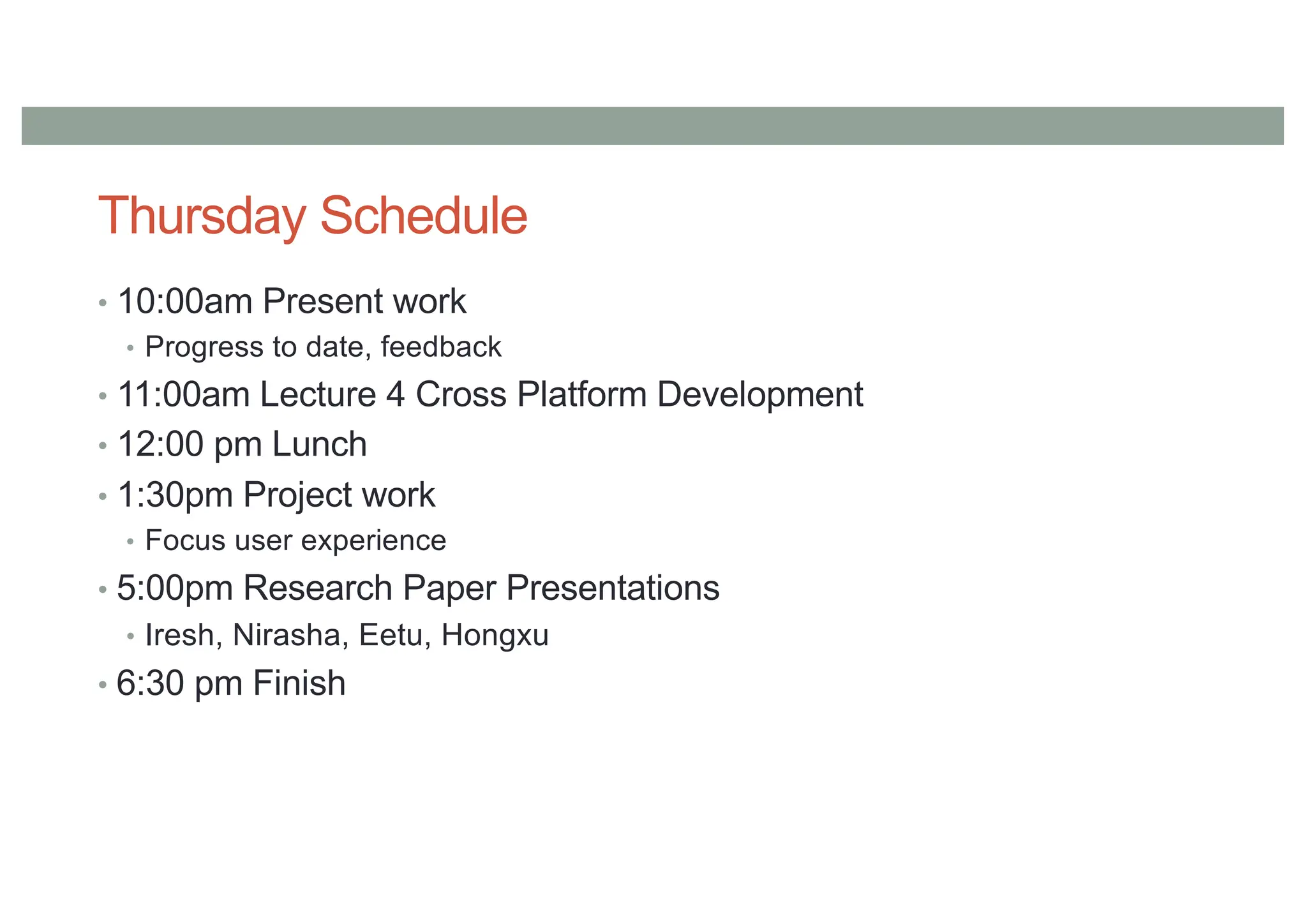

- 2. Thursday Schedule • 10:00amPresent work • Progress to date, feedback • 11:00am Lecture 4 Cross Platform Development • 12:00 pm Lunch • 1:30pm Project work • Focus user experience • 5:00pm Research Paper Presentations • Iresh, Nirasha, Eetu, Hongxu • 6:30 pm Finish
- 3.

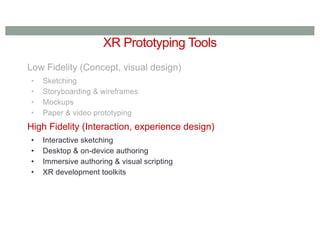

- 4. XR Prototyping Tools LowFidelity (Concept, visual design) • Sketching • Storyboarding & wireframes • Mockups • Paper & video prototyping High Fidelity (Interaction, experience design) • Interactive sketching • Desktop & on-device authoring • Immersive authoring & visual scripting • XR development toolkits

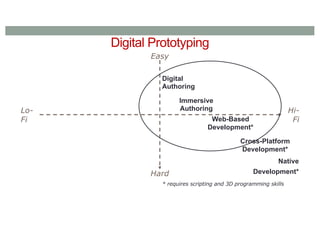

- 5.
- 6. XR Tools Landscape Digital& Immersive Authoring Proto.io, Figmin, Tour Creator, ... Open Brush, Blocks, ShapesXR, … Web-Based Development THREE.js, Babylon.js, … A-Frame, AR.js, … Cross-Platform Development Unity + SDKs Unreal + SDKs Native Development Cardboard/Meta/Vive/... SDK Vuforia/ARCore/ARKit/… SDK
- 7. XR Tools Landscape Digital& Immersive Authoring Good for storyboarding but limited support for interactions Web-Based Development Good for basic XR apps but often interactions feel unfinished Native Development Good for full-fledged XR apps but limited to a particular platform Cross-Platform Development Good for full-fledged XR apps but usually high learning curve

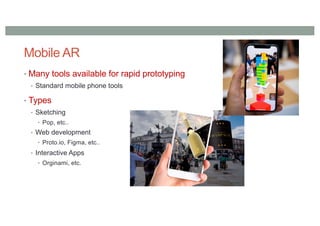

- 8. Mobile AR • Manytools available for rapid prototyping • Standard mobile phone tools • Types • Sketching • Pop, etc.. • Web development • Proto.io, Figma, etc.. • Interactive Apps • Orginami, etc.

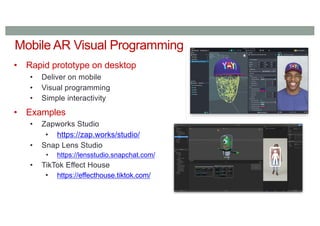

- 9. Mobile AR VisualProgramming • Rapid prototype on desktop • Deliver on mobile • Visual programming • Simple interactivity • Examples • Zapworks Studio • https://zap.works/studio/ • Snap Lens Studio • https://lensstudio.snapchat.com/ • TikTok Effect House • https://effecthouse.tiktok.com/

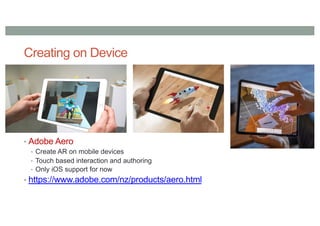

- 10. Creating on Device •Adobe Aero • Create AR on mobile devices • Touch based interaction and authoring • Only iOS support for now • https://www.adobe.com/nz/products/aero.html

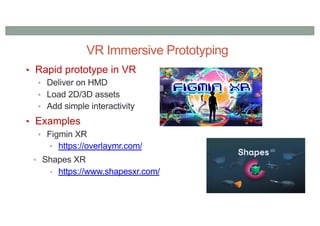

- 11. VR Immersive Prototyping •Rapid prototype in VR • Deliver on HMD • Load 2D/3D assets • Add simple interactivity • Examples • Figmin XR • https://overlaymr.com/ • Shapes XR • https://www.shapesxr.com/

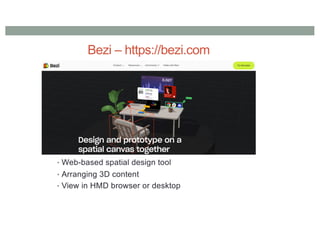

- 12. Bezi – https://bezi.com •Web-based spatial design tool • Arranging 3D content • View in HMD browser or desktop

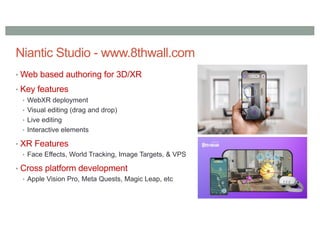

- 13. Niantic Studio -www.8thwall.com • Web based authoring for 3D/XR • Key features • WebXR deployment • Visual editing (drag and drop) • Live editing • Interactive elements • XR Features • Face Effects, World Tracking, Image Targets, & VPS • Cross platform development • Apple Vision Pro, Meta Quests, Magic Leap, etc
- 14. Piggyback Prototyping • Createprototype on top of existing application • Many applications have creator tools that are geared towards novices • Benefit from existing social platform and user base • Examples • Snapchat Lens Studio & Snapchat platform • Minecraft VR/AR & Minecraft platform • https://www.minecraft.net/en-us/vr • Roblox Creator Hub/Roblox Studio • https://create.roblox.com/landing • Rec Room Creator Kit & Rec Room platform • https://recroom.com/kit

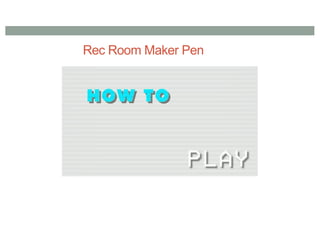

- 15. Rec Room -https://recroom.com/ • Online massively multiplayer game • Over 20 million monthly active users • Features • Customizable avatars • Desktop, VR HMD support • Cross platform support • User content creation • Rec Room Maker Pen (in-game) • Rec Room Studio
- 16.

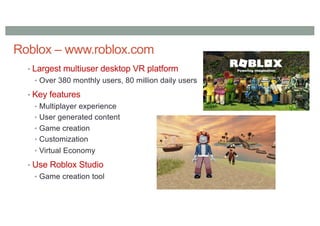

- 17. Roblox – www.roblox.com •Largest multiuser desktop VR platform • Over 380 monthly users, 80 million daily users • Key features • Multiplayer experience • User generated content • Game creation • Customization • Virtual Economy • Use Roblox Studio • Game creation tool
- 18.
- 19.
- 20.
- 21. XR Development with WebXR,Unity, Unreal

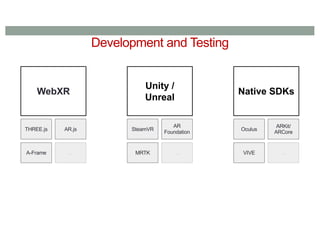

- 22. Development and Testing WebXR THREE.jsAR.js A-Frame ... Unity / Unreal SteamVR AR Foundation MRTK ... Native SDKs Oculus ARKit/ ARCore VIVE ...

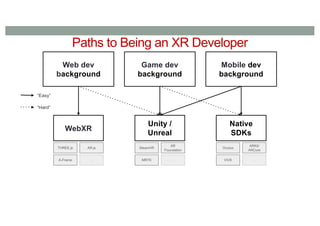

- 23. Paths to Beingan XR Developer Web dev background Game dev background Mobile dev background “Easy” “Hard” WebXR THREE.js AR.js A-Frame ... Unity / Unreal SteamVR AR Foundation MRTK ... Native SDKs Oculus ARKit/ ARCore VIVE ...

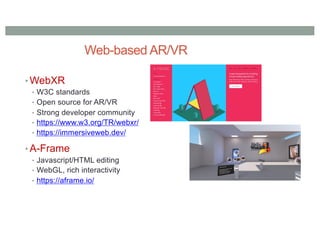

- 24. Web-based AR/VR • WebXR •W3C standards • Open source for AR/VR • Strong developer community • https://www.w3.org/TR/webxr/ • https://immersiveweb.dev/ • A-Frame • Javascript/HTML editing • WebGL, rich interactivity • https://aframe.io/
- 25.

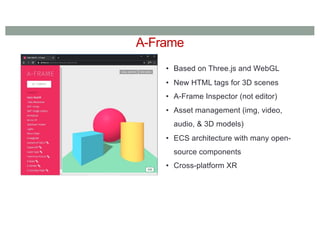

- 26. A-Frame • Based onThree.js and WebGL • New HTML tags for 3D scenes • A-Frame Inspector (not editor) • Asset management (img, video, audio, & 3D models) • ECS architecture with many open- source components • Cross-platform XR

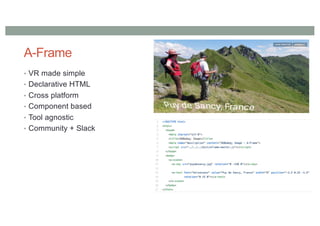

- 27. A-Frame • VR madesimple • Declarative HTML • Cross platform • Component based • Tool agnostic • Community + Slack

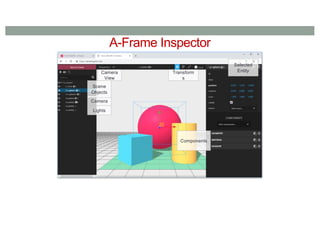

- 28.

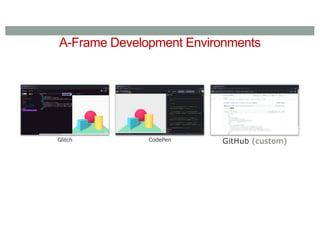

- 29. A-Frame Development Environments GlitchCodePen GitHub (custom)

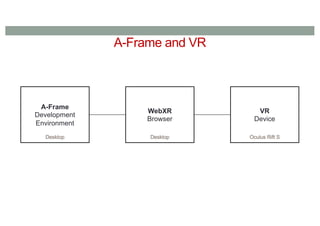

- 30. A-Frame and VR A-Frame Development Environment WebXR Browser VR Device DesktopDesktop Oculus Rift S

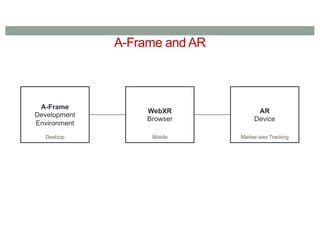

- 31. A-Frame and AR A-Frame Development Environment WebXR Browser AR Device DesktopMobile Marker-less Tracking
- 32. Hello World inA-Frame https://aframe.io/examples/showcase/helloworld/ https://aframe.io/docs/1.0.0/introduction/

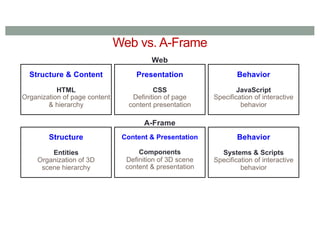

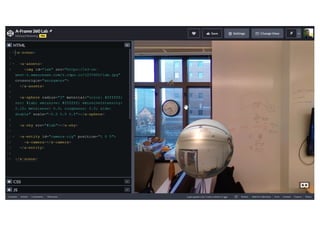

- 35. Web vs. A-Frame Structure& Content HTML Organization of page content & hierarchy Presentation CSS Definition of page content presentation Behavior JavaScript Specification of interactive behavior Web A-Frame Structure Entities Organization of 3D scene hierarchy Content & Presentation Components Definition of 3D scene content & presentation Behavior Systems & Scripts Specification of interactive behavior

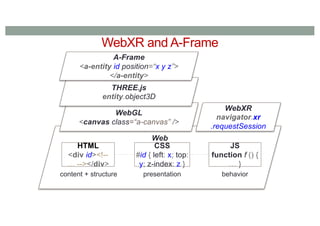

- 36. WebXR and A-Frame Web HTML <divid><!-- … --></div> CSS #id { left: x; top: y; z-index: z } JS function f () { … } content + structure presentation behavior WebXR navigator.xr .requestSession WebGL <canvas class=“a-canvas” /> THREE.js entity.object3D A-Frame <a-entity id position=“x y z”> </a-entity>
- 37. WebXR Enable XR applicationson the web by allowing pages to: • Detect XR capabilities • Query XR device capabilities • Poll XR device and associated input device state • Display imagery on XR device at the appropriate frame rate Is XR mode supported? Advertise XR mode to user AR VR Enter XR mode is triggered? Request XR session Render frame loop in session Exit XR mode is triggered? End XR session ↻

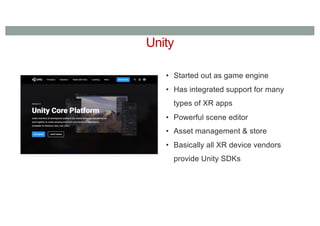

- 38. Unity • Started outas game engine • Has integrated support for many types of XR apps • Powerful scene editor • Asset management & store • Basically all XR device vendors provide Unity SDKs

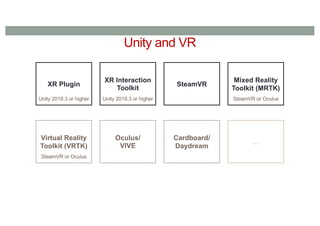

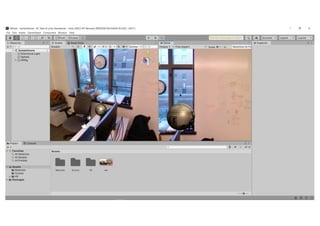

- 41. Unity and VR XRPlugin Unity 2019.3 or higher XR Interaction Toolkit Unity 2019.3 or higher SteamVR Mixed Reality Toolkit (MRTK) SteamVR or Oculus Virtual Reality Toolkit (VRTK) SteamVR or Oculus Oculus/ VIVE Cardboard/ Daydream ...

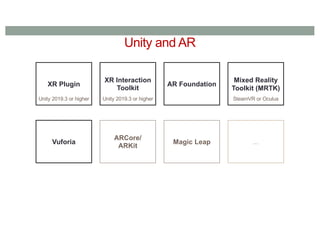

- 42. Unity and AR XRPlugin Unity 2019.3 or higher XR Interaction Toolkit Unity 2019.3 or higher AR Foundation Mixed Reality Toolkit (MRTK) SteamVR or Oculus Vuforia ARCore/ ARKit Magic Leap ...
- 43. Web vs. A-Frame Structure& Content HTML Organization of page content & hierarchy Presentation CSS Definition of page content presentation Behavior JavaScript Specification of interactive behavior Web A-Frame Structure Entities Organization of 3D scene hierarchy Content & Presentation Components Definition of 3D scene content & presentation Behavior Systems & Scripts Specification of interactive behavior

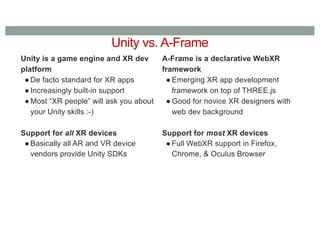

- 44. Unity vs. A-Frame Unityis a game engine and XR dev platform ● De facto standard for XR apps ● Increasingly built-in support ● Most “XR people” will ask you about your Unity skills :-) Support for all XR devices ● Basically all AR and VR device vendors provide Unity SDKs A-Frame is a declarative WebXR framework ● Emerging XR app development framework on top of THREE.js ● Good for novice XR designers with web dev background Support for most XR devices ● Full WebXR support in Firefox, Chrome, & Oculus Browser

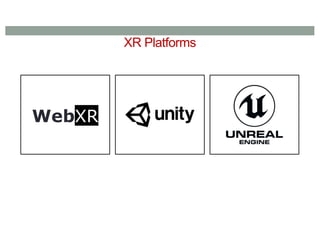

- 45. XR Platforms andToolkits

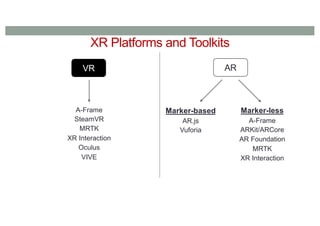

- 46. XR Platforms andToolkits AR VR A-Frame SteamVR MRTK XR Interaction Oculus VIVE Marker-based AR.js Vuforia Marker-less A-Frame ARKit/ARCore AR Foundation MRTK XR Interaction
- 47.

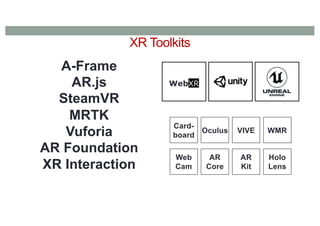

- 48. XR Toolkits Card- board AR Kit AR Core Oculus VIVE Holo Lens WMR Web Cam A-Frame AR.js SteamVR MRTK Vuforia ARFoundation XR Interaction WebXR

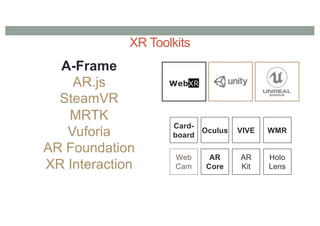

- 49. XR Toolkits Card- board AR Kit AR Core Oculus VIVE Holo Lens WMR Web Cam A-Frame AR.js SteamVR MRTK Vuforia ARFoundation XR Interaction WebXR

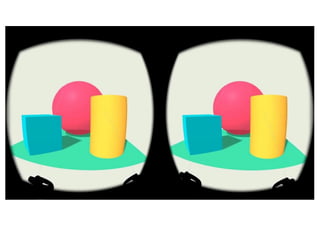

- 51. XR Toolkits Card- board AR Kit AR Core Oculus VIVE Holo Lens WMR Web Cam A-Frame AR.js SteamVR MRTK Vuforia ARFoundation XR Interaction WebXR

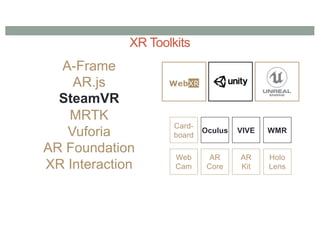

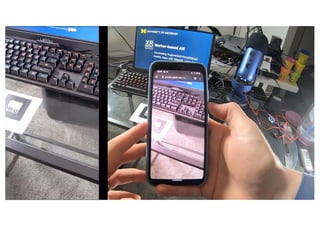

- 53. XR Toolkits Card- board AR Kit AR Core Oculus VIVE Holo Lens WMR Web Cam A-Frame AR.js SteamVR MRTK Vuforia ARFoundation XR Interaction WebXR

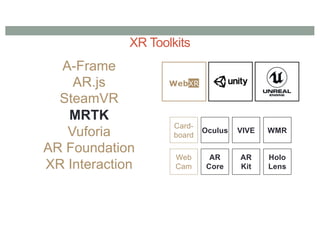

- 55. XR Toolkits Card- board AR Kit AR Core Oculus VIVE Holo Lens WMR Web Cam A-Frame AR.js SteamVR MRTK Vuforia ARFoundation XR Interaction WebXR

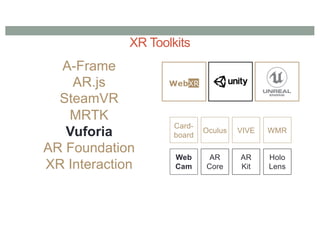

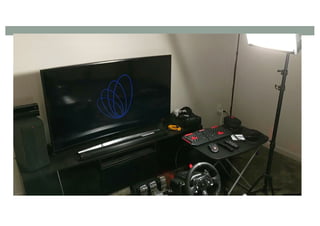

- 57. XR Toolkits Card- board AR Kit AR Core Oculus VIVE Holo Lens WMR Web Cam A-Frame AR.js SteamVR MRTK Vuforia ARFoundation XR Interaction WebXR

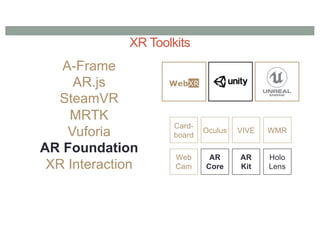

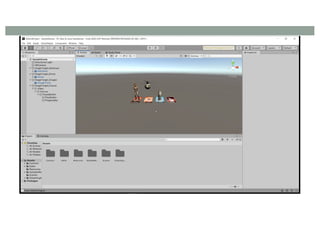

- 59. XR Toolkits Card- board AR Kit AR Core Oculus VIVE Holo Lens WMR Web Cam A-Frame AR.js SteamVR MRTK Vuforia ARFoundation XR Interaction WebXR

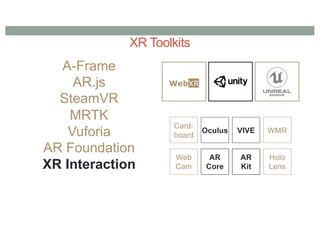

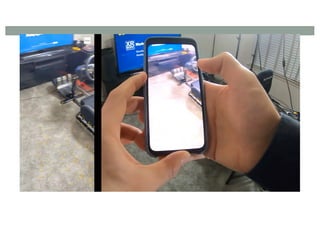

- 61. XR Toolkits Card- board AR Kit AR Core Oculus VIVE Holo Lens WMR Web Cam A-Frame AR.js SteamVR MRTK Vuforia ARFoundation XR Interaction WebXR

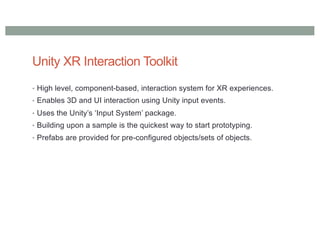

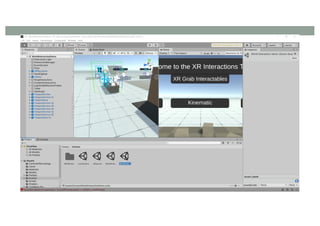

- 63. Unity XR InteractionToolkit • High level, component-based, interaction system for XR experiences. • Enables 3D and UI interaction using Unity input events. • Uses the Unity’s ‘Input System’ package. • Building upon a sample is the quickest way to start prototyping. • Prefabs are provided for pre-configured objects/sets of objects.

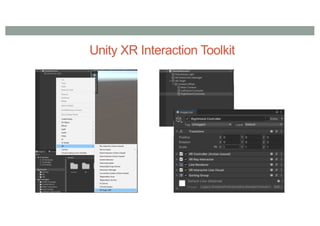

- 64. Unity XR InteractionToolkit

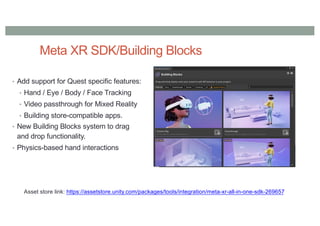

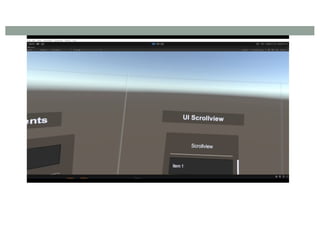

- 66. Meta XR SDK/BuildingBlocks • Add support for Quest specific features: • Hand / Eye / Body / Face Tracking • Video passthrough for Mixed Reality • Building store-compatible apps. • New Building Blocks system to drag and drop functionality. • Physics-based hand interactions Asset store link: https://assetstore.unity.com/packages/tools/integration/meta-xr-all-in-one-sdk-269657
- 67.

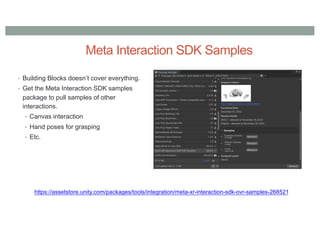

- 68. Meta Interaction SDKSamples • Building Blocks doesn’t cover everything. • Get the Meta Interaction SDK samples package to pull samples of other interactions. • Canvas interaction • Hand poses for grasping • Etc. https://assetstore.unity.com/packages/tools/integration/meta-xr-interaction-sdk-ovr-samples-268521

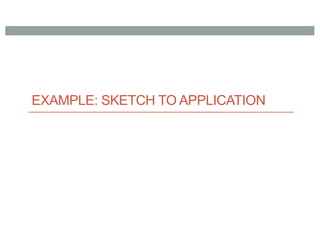

- 69. EXAMPLE: SKETCH TOAPPLICATION

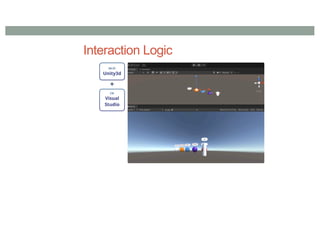

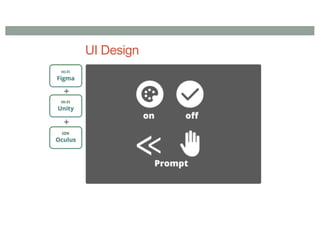

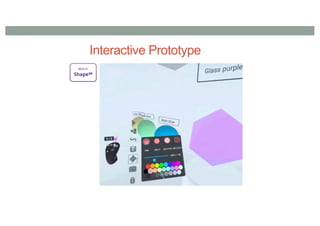

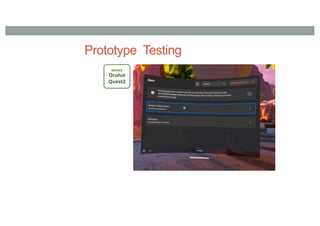

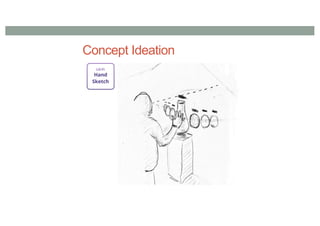

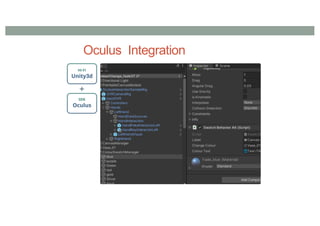

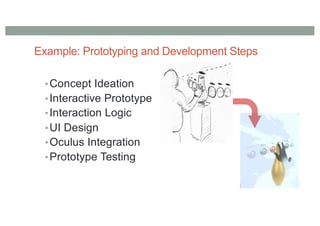

- 70. Example: Prototyping andDevelopment Steps •Concept Ideation •Interactive Prototype •Interaction Logic •UI Design •Oculus Integration •Prototype Testing
- 71.
- 72.
- 73.
- 74.
- 75.
- 76.
- 78.
- 79. Design Guidelines By Vendors Platformdriven By Designers User oriented By Practitioners Experience based By Researchers Empirically derived

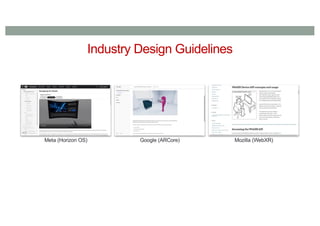

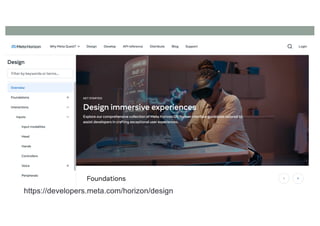

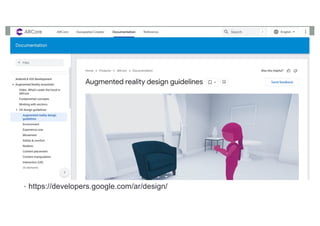

- 80. Industry Design Guidelines Meta(Horizon OS) Google (ARCore) Mozilla (WebXR)

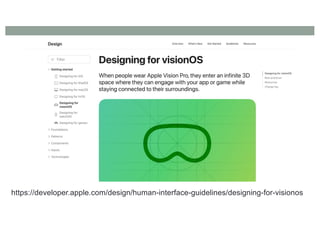

- 81.
- 82.
- 83.

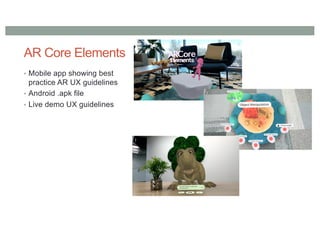

- 84. AR Core Elements •Mobile app showing best practice AR UX guidelines • Android .apk file • Live demo UX guidelines

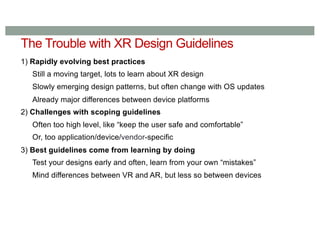

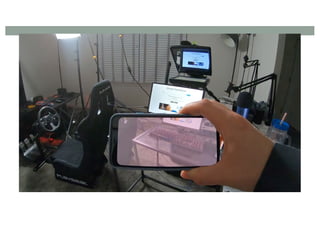

- 86. The Trouble withXR Design Guidelines 1) Rapidly evolving best practices Still a moving target, lots to learn about XR design Slowly emerging design patterns, but often change with OS updates Already major differences between device platforms 2) Challenges with scoping guidelines Often too high level, like “keep the user safe and comfortable” Or, too application/device/vendor-specific 3) Best guidelines come from learning by doing Test your designs early and often, learn from your own “mistakes” Mind differences between VR and AR, but less so between devices

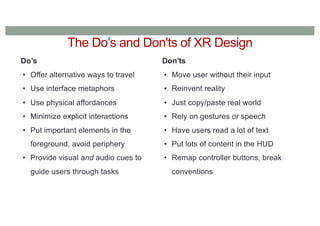

- 87. Do’s • Offer alternativeways to travel • Use interface metaphors • Use physical affordances • Minimize explicit interactions • Put important elements in the foreground, avoid periphery • Provide visual and audio cues to guide users through tasks Don'ts • Move user without their input • Reinvent reality • Just copy/paste real world • Rely on gestures or speech • Have users read a lot of text • Put lots of content in the HUD • Remap controller buttons, break conventions The Do’s and Don'ts of XR Design
- 88. XR Ergonomics XRgonomics: Facilitatingthe Creation of Ergonomic 3D Interfaces (CHI 2021 Best Paper) João Marcelo Evangelista Belo, Anna Maria Feit, Tiare Feuchtner, Kaj Grønbæk
- 89.
- 90.
- 91.
