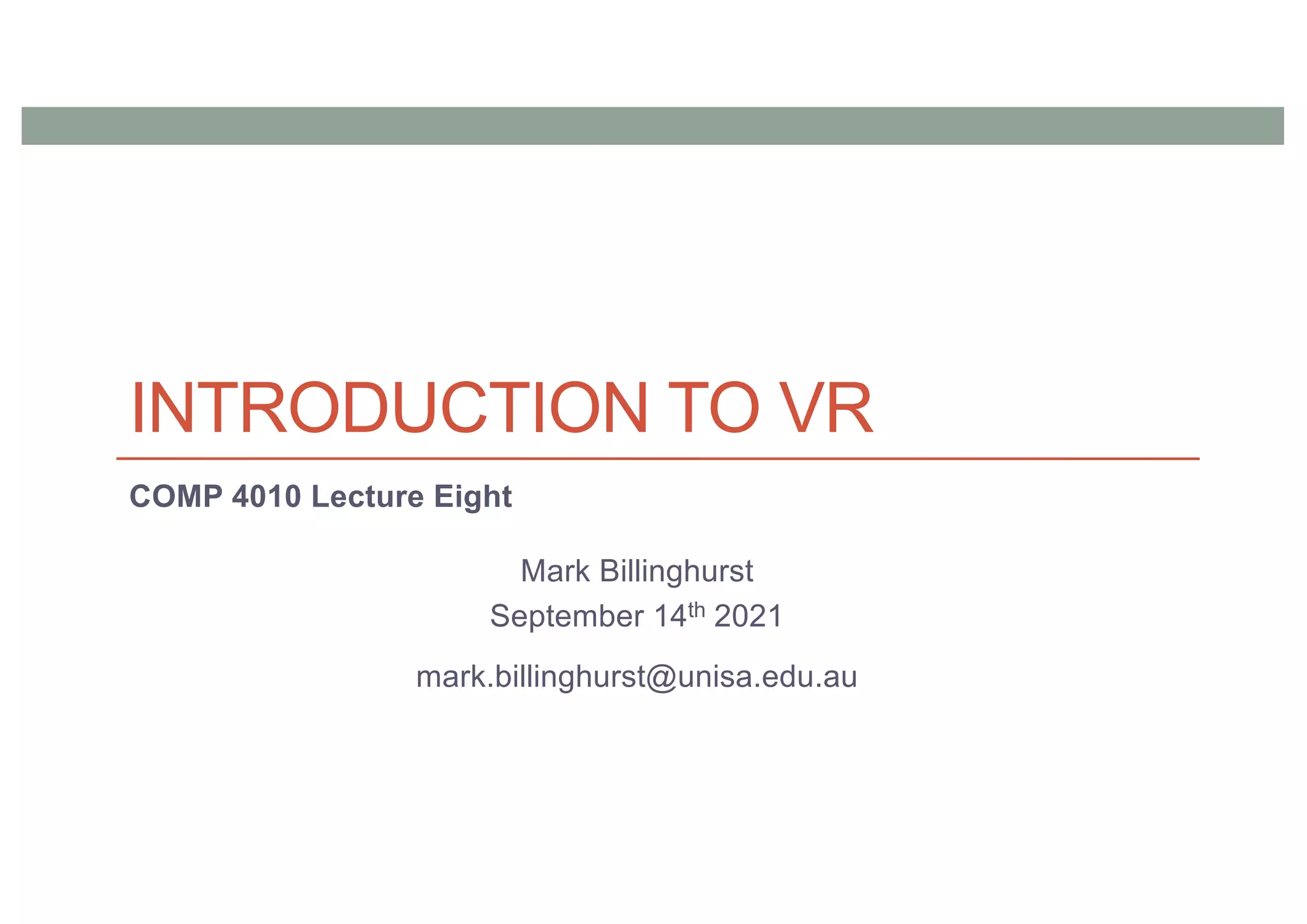

INTRODUCTION TO VR
COMP 4010 Lecture Eight
Mark Billinghurst
September 14th 2021
mark.billinghurst@unisa.edu.au

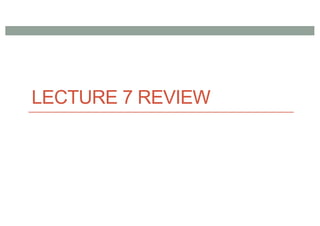

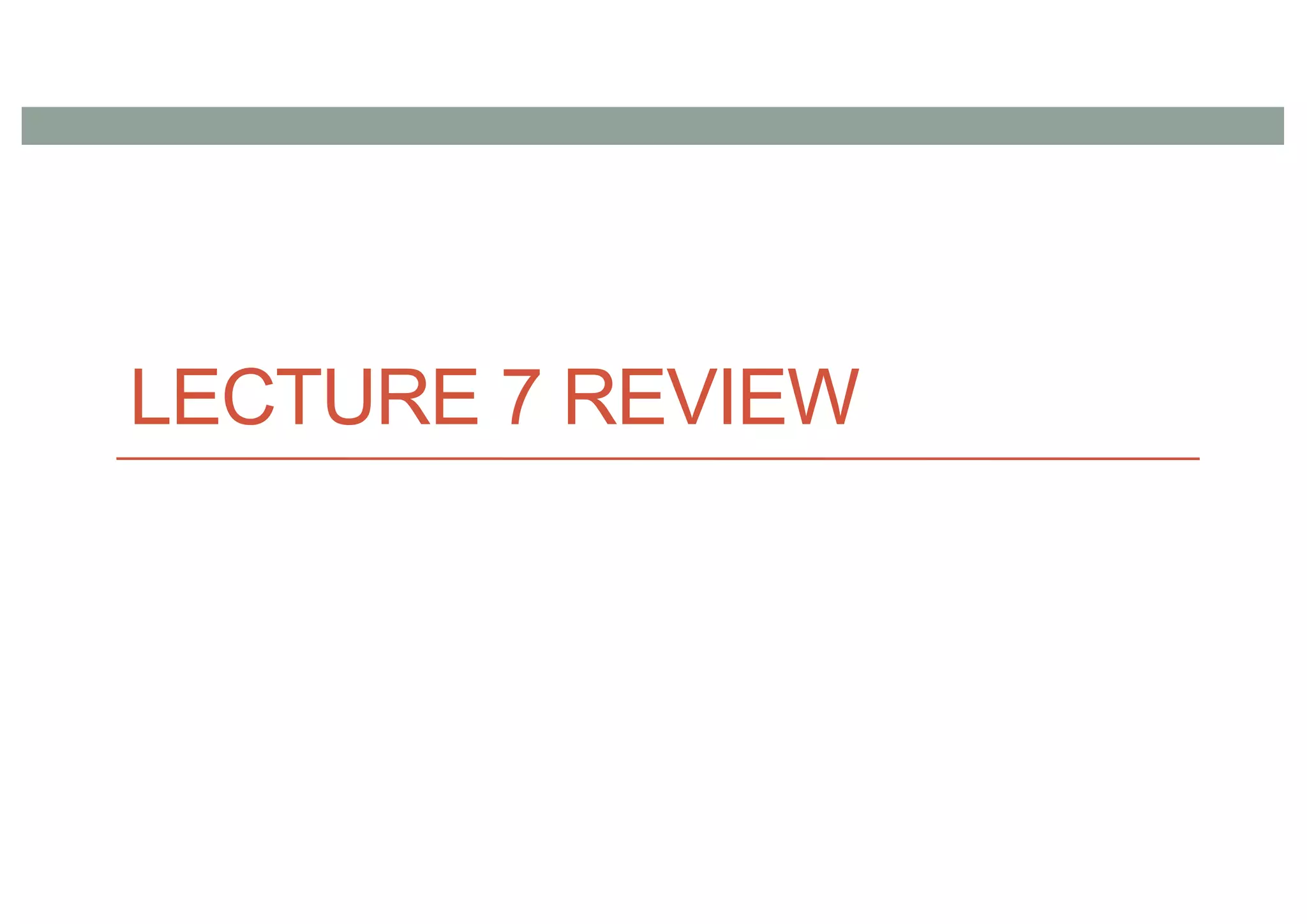

LECTURE 7 REVIEW

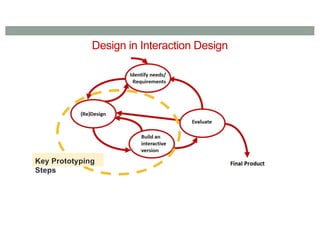

Design in Interaction Design
Key Prototyping
Steps

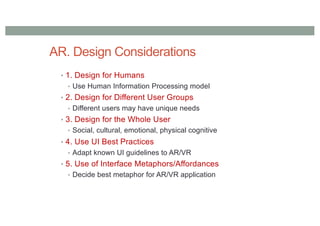

AR. Design Considerations
• 1. Design for Humans
• Use Human Information Processing model
• 2. Design for Different User Groups
• Different users may have unique needs
• 3. Design for the Whole User
• Social, cultural, emotional, physical cognitive
• 4. Use UI Best Practices
• Adapt known UI guidelines to AR/VR
• 5. Use of Interface Metaphors/Affordances
• Decide best metaphor for AR/VR application
1. Design for Human Information Processing
• High level staged model from Wickens and Carswell (1997)
• Relates perception, cognition, and physical ergonomics
Perception Cognition Ergonomics

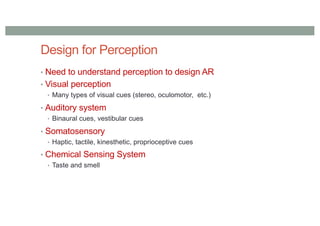

Design for Perception
• Need to understand perception to design AR
• Visual perception
• Many types of visual cues (stereo, oculomotor, etc.)
• Auditory system
• Binaural cues, vestibular cues
• Somatosensory
• Haptic, tactile, kinesthetic, proprioceptive cues
• Chemical Sensing System
• Taste and smell
Improving Depth Perception
Cutaways
Occlusion
Shadows

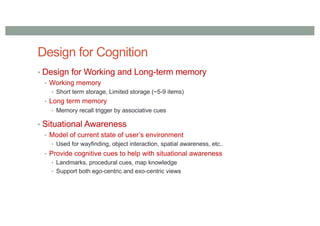

Design for Cognition
• Design for Working and Long-term memory
• Working memory
• Short term storage, Limited storage (~5-9 items)
• Long term memory
• Memory recall trigger by associative cues
• Situational Awareness
• Model of current state of user’s environment
• Used for wayfinding, object interaction, spatial awareness, etc..
• Provide cognitive cues to help with situational awareness
• Landmarks, procedural cues, map knowledge
• Support both ego-centric and exo-centric views

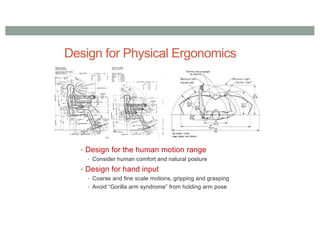

Design for Physical Ergonomics
• Design for the human motion range
• Consider human comfort and natural posture
• Design for hand input
• Coarse and fine scale motions, gripping and grasping
• Avoid “Gorilla arm syndrome” from holding arm pose

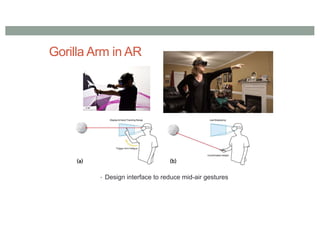

Gorilla Arm in AR
• Design interface to reduce mid-air gestures

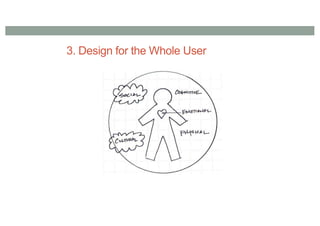

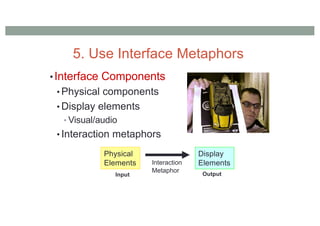

3. Design for the Whole User
•Interface Components
• Physical components
• Display elements
• Visual/audio
• Interaction metaphors
Physical
Elements
Display
Elements
Interaction
Metaphor
Input Output
5. Use Interface Metaphors
Information Layers
• Head-stabilized
• Heads-up display
• Body-stabilized
• E.g., virtual tool-belt
• World-stabilized
• E.g., billboard or signpost

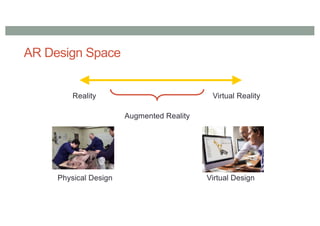

AR Design Space
Reality Virtual Reality
Augmented Reality
Physical Design Virtual Design

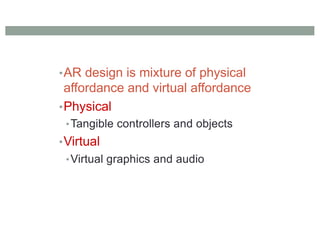

•AR design is mixture of physical
affordance and virtual affordance
•Physical
•Tangible controllers and objects
•Virtual
•Virtual graphics and audio

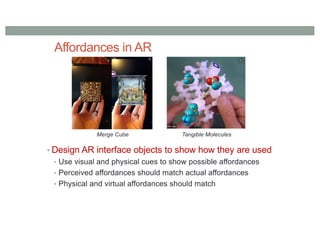

Affordances in AR
• Design AR interface objects to show how they are used
• Use visual and physical cues to show possible affordances
• Perceived affordances should match actual affordances
• Physical and virtual affordances should match
Merge Cube Tangible Molecules
AR Chemistry Input Devices

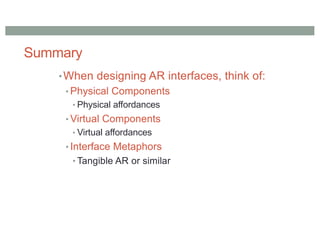

Summary
•When designing AR interfaces, think of:
• Physical Components
• Physical affordances
• Virtual Components
• Virtual affordances
• Interface Metaphors
• Tangible AR or similar

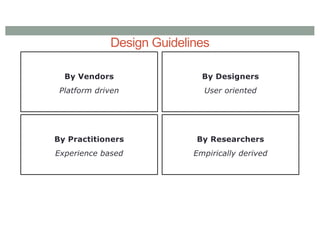

Design Guidelines
By Vendors
Platform driven
By Designers
User oriented
By Practitioners
Experience based
By Researchers
Empirically derived

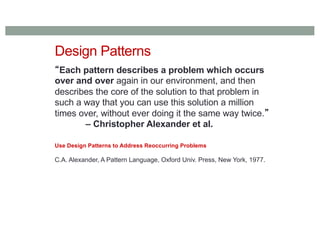

Design Patterns
“Each pattern describes a problem which occurs
over and over again in our environment, and then
describes the core of the solution to that problem in
such a way that you can use this solution a million
times over, without ever doing it the same way twice.”
– Christopher Alexander et al.
Use Design Patterns to Address Reoccurring Problems
C.A. Alexander, A Pattern Language, Oxford Univ. Press, New York, 1977.

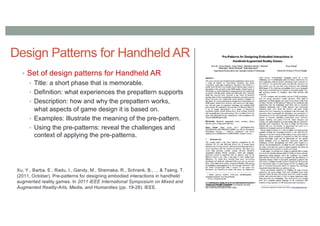

Design Patterns for Handheld AR
• Set of design patterns for Handheld AR
• Title: a short phase that is memorable.
• Definition: what experiences the prepattern supports
• Description: how and why the prepattern works,
what aspects of game design it is based on.
• Examples: Illustrate the meaning of the pre-pattern.
• Using the pre-patterns: reveal the challenges and
context of applying the pre-patterns.
Xu, Y., Barba, E., Radu, I., Gandy, M., Shemaka, R., Schrank, B., ... & Tseng, T.
(2011, October). Pre-patterns for designing embodied interactions in handheld
augmented reality games. In 2011 IEEE International Symposium on Mixed and
Augmented Reality-Arts, Media, and Humanities (pp. 19-28). IEEE.
Handheld AR Design Patterns
Title Meaning Embodied Skills
Device Metaphors Using metaphor to suggest available player
actions
Body A&S Naïve physics
Control Mapping Intuitive mapping between physical and digital
objects
Body A&S Naïve physics
Seamful Design Making sense of and integrating the
technological seams through game design
Body A&S
World Consistency Whether the laws and rules in
physical world hold in digital world
Naïve physics
Environmental A&S
Landmarks Reinforcing the connection between digital-
physical space through landmarks
Environmental A&S
Personal Presence The way that a player is represented in the
game decides how much they feel like living in
the digital game world
Environmental A&S
Naïve physics
Living Creatures Game characters that are responsive to
physical, social events that mimic behaviours
of living beings
Social A&S Body A&S
Body constraints Movement of one’s body position
constrains another player’s action
Body A&S Social A&S
Hidden information The information that can be hidden and
revealed can foster emergent social play
Social A&S Body A&S
*A&S = awareness and skills
Google ARCore Interface Guidelines
https://developers.google.com/ar/design

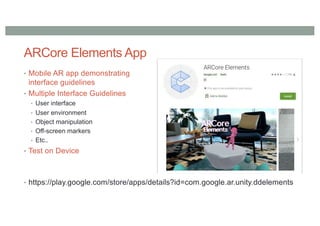

ARCore Elements App
• Mobile AR app demonstrating
interface guidelines
• Multiple Interface Guidelines
• User interface
• User environment
• Object manipulation
• Off-screen markers
• Etc..
• Test on Device
• https://play.google.com/store/apps/details?id=com.google.ar.unity.ddelements

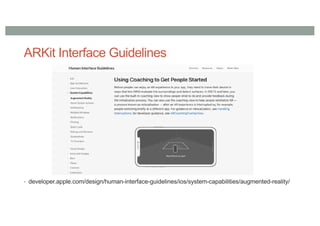

ARKit Interface Guidelines
• developer.apple.com/design/human-interface-guidelines/ios/system-capabilities/augmented-reality/

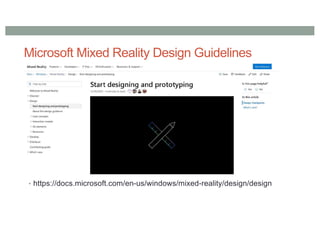

Microsoft Mixed Reality Design Guidelines
• https://docs.microsoft.com/en-us/windows/mixed-reality/design/design

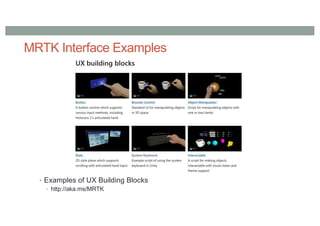

MRTK Interface Examples
• Examples of UX Building Blocks
• http://aka.ms/MRTK

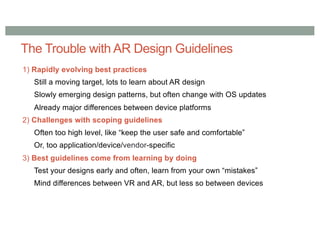

The Trouble with AR Design Guidelines
1) Rapidly evolving best practices
Still a moving target, lots to learn about AR design
Slowly emerging design patterns, but often change with OS updates
Already major differences between device platforms
2) Challenges with scoping guidelines
Often too high level, like “keep the user safe and comfortable”
Or, too application/device/vendor-specific
3) Best guidelines come from learning by doing
Test your designs early and often, learn from your own “mistakes”
Mind differences between VR and AR, but less so between devices
INTRODUCTION TO VR

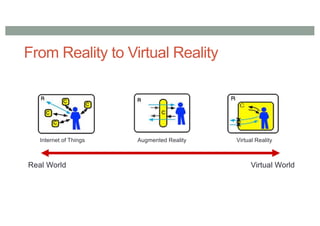

From Reality to Virtual Reality
Internet of Things Augmented Reality Virtual Reality
Real World Virtual World

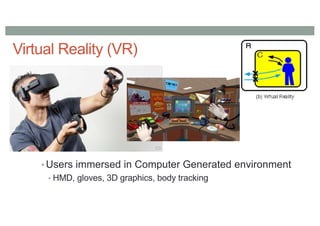

Virtual Reality (VR)
• Users immersed in Computer Generated environment
• HMD, gloves, 3D graphics, body tracking
Goal of Virtual Reality
“.. to make it feel like you’re actually in a place that
you are not.”
Palmer Luckey
Co-founder, Oculus

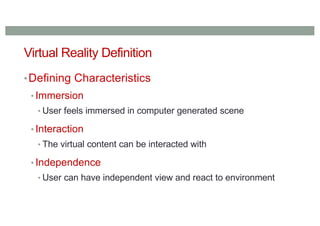

Virtual Reality Definition
•Defining Characteristics
• Immersion
• User feels immersed in computer generated scene
• Interaction
• The virtual content can be interacted with
• Independence
• User can have independent view and react to environment

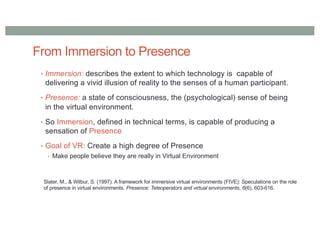

From Immersion to Presence
• Immersion: describes the extent to which technology is capable of
delivering a vivid illusion of reality to the senses of a human participant.
• Presence: a state of consciousness, the (psychological) sense of being
in the virtual environment.
• So Immersion, defined in technical terms, is capable of producing a
sensation of Presence
• Goal of VR: Create a high degree of Presence
• Make people believe they are really in Virtual Environment
Slater, M., & Wilbur, S. (1997). A framework for immersive virtual environments (FIVE): Speculations on the role
of presence in virtual environments. Presence: Teleoperators and virtual environments, 6(6), 603-616.

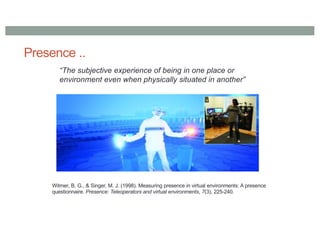

Presence ..
“The subjective experience of being in one place or
environment even when physically situated in another”
Witmer, B. G., & Singer, M. J. (1998). Measuring presence in virtual environments: A presence
questionnaire. Presence: Teleoperators and virtual environments, 7(3), 225-240.

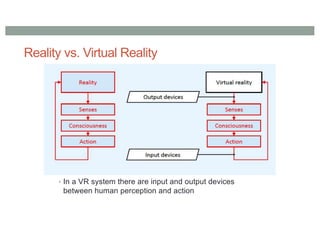

Reality vs. Virtual Reality
• In a VR system there are input and output devices
between human perception and action
Using Technology to Stimulate Senses
• Simulate output
• E.g. simulate real scene
• Map output to devices
• Graphics to HMD
• Use devices to
stimulate the senses
• HMD stimulates eyes
Visual
Simulation
3D Graphics HMD Vision
System
Brain
Example: Visual Simulation
Human-Machine Interface
Key Technologies for VR Systems
• Display (Immersion)
• Stimulate senses
• visual, auditory, tactile sense, etc..
• Tracking (Independence)
• Changing viewpoint
• independent movement
• Input Devices (Interaction)
• Supporting user interaction
• User input
DISPLAY TECHNOLOGY

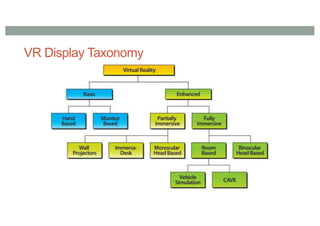

VR Display Taxonomy

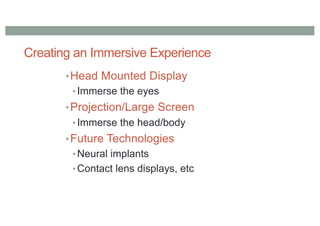

Creating an Immersive Experience
•Head Mounted Display
• Immerse the eyes
•Projection/Large Screen
• Immerse the head/body
•Future Technologies
• Neural implants
• Contact lens displays, etc

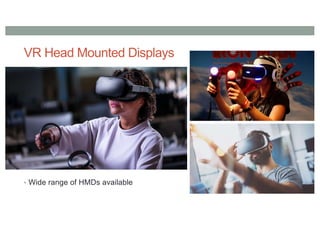

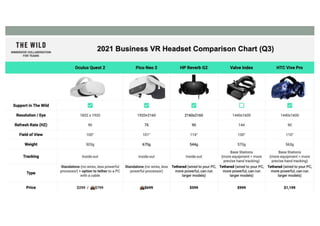

VR Head Mounted Displays
• Wide range of HMDs available

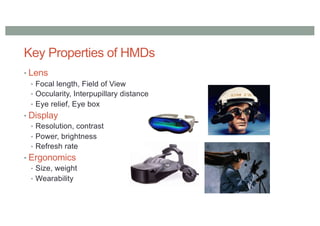

Key Properties of HMDs
• Lens
• Focal length, Field of View
• Occularity, Interpupillary distance
• Eye relief, Eye box
• Display
• Resolution, contrast
• Power, brightness
• Refresh rate
• Ergonomics
• Size, weight
• Wearability
Comp4010 Lecture8 Introduction to VR

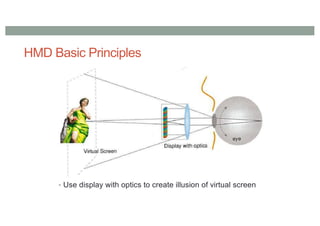

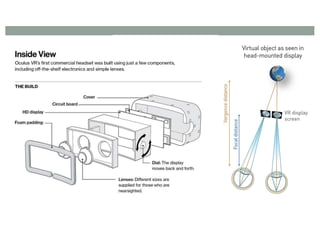

HMD Basic Principles
• Use display with optics to create illusion of virtual screen

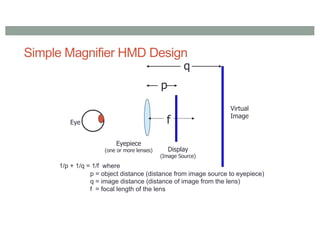

Simple Magnifier HMD Design
p
q
Eyepiece
(one or more lenses) Display
(Image Source)
Eye f
Virtual
1/p + 1/q = 1/f where
p = object distance (distance from image source to eyepiece)
q = image distance (distance of image from the lens)
f = focal length of the lens

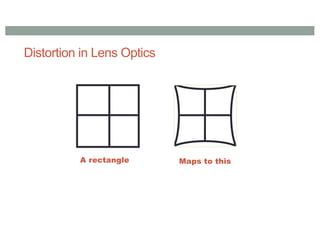

Distortion in Lens Optics
A rectangle Maps to this

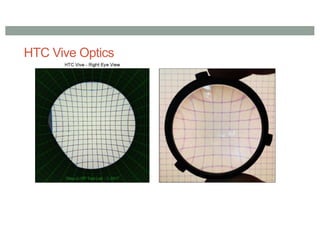

HTC Vive Optics

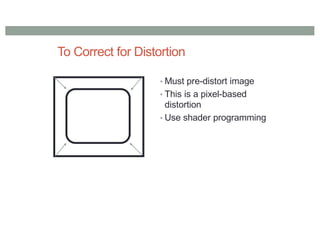

To Correct for Distortion
• Must pre-distort image
• This is a pixel-based
distortion
• Use shader programming

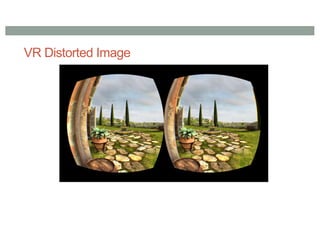

VR Distorted Image

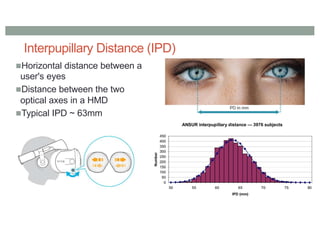

Interpupillary Distance (IPD)
nHorizontal distance between a
user's eyes
nDistance between the two
optical axes in a HMD
nTypical IPD ~ 63mm

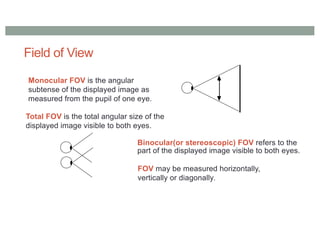

Field of View
Monocular FOV is the angular
subtense of the displayed image as
measured from the pupil of one eye.
Total FOV is the total angular size of the
displayed image visible to both eyes.
Binocular(or stereoscopic) FOV refers to the
part of the displayed image visible to both eyes.
FOV may be measured horizontally,
vertically or diagonally.

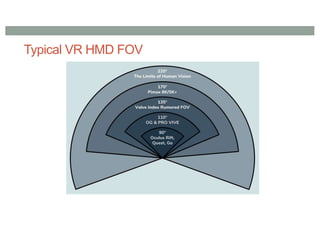

Typical VR HMD FOV

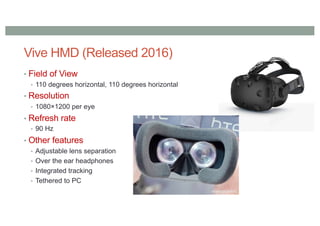

Vive HMD (Released 2016)
• Field of View
• 110 degrees horizontal, 110 degrees horizontal
• Resolution
• 1080×1200 per eye
• Refresh rate
• 90 Hz
• Other features
• Adjustable lens separation
• Over the ear headphones
• Integrated tracking
• Tethered to PC
Comp4010 Lecture8 Introduction to VR

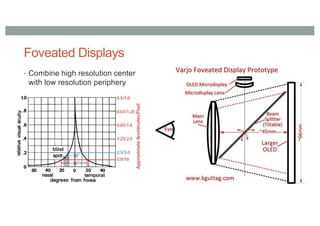

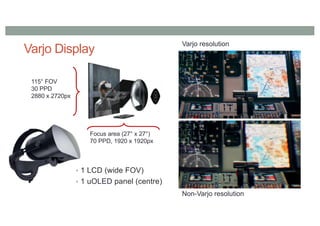

Foveated Displays
• Combine high resolution center
with low resolution periphery
Varjo Display
Varjo resolution
Non-Varjo resolution
Focus area (27° x 27°)
70 PPD, 1920 x 1920px
115° FOV
30 PPD
2880 x 2720px
• 1 LCD (wide FOV)
• 1 uOLED panel (centre)
Varjo XR-3 Demo – Threading a Needle
https://www.youtube.com/watch?v=5iEwlOEUQjI
Facebook Foveated HMD
• asdf

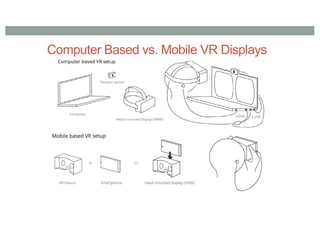

Computer Based vs. Mobile VR Displays

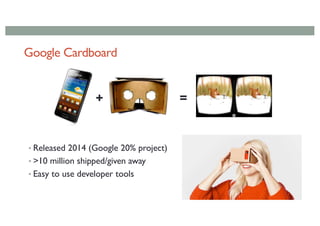

Google Cardboard
• Released 2014 (Google 20% project)
• >10 million shipped/given away
• Easy to use developer tools
+ =

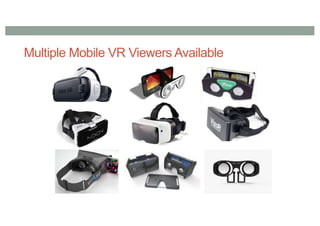

Multiple Mobile VR Viewers Available

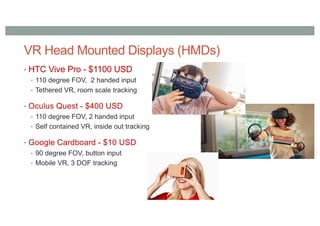

VR Head Mounted Displays (HMDs)
• HTC Vive Pro - $1100 USD
• 110 degree FOV, 2 handed input
• Tethered VR, room scale tracking
• Oculus Quest - $400 USD
• 110 degree FOV, 2 handed input
• Self contained VR, inside out tracking
• Google Cardboard - $10 USD
• 90 degree FOV, button input
• Mobile VR, 3 DOF tracking

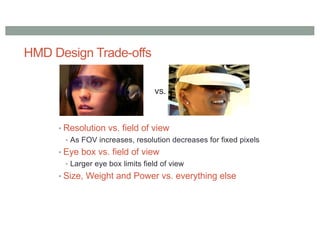

HMD Design Trade-offs
• Resolution vs. field of view
• As FOV increases, resolution decreases for fixed pixels
• Eye box vs. field of view
• Larger eye box limits field of view
• Size, Weight and Power vs. everything else
vs.

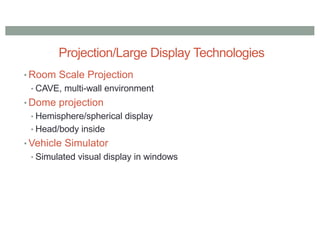

Projection/Large Display Technologies
• Room Scale Projection
• CAVE, multi-wall environment
• Dome projection
• Hemisphere/spherical display
• Head/body inside
• Vehicle Simulator
• Simulated visual display in windows

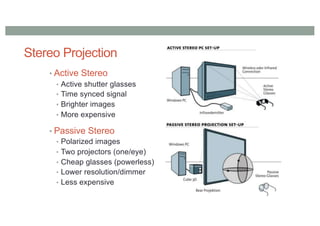

Stereo Projection
• Active Stereo
• Active shutter glasses
• Time synced signal
• Brighter images
• More expensive
• Passive Stereo
• Polarized images
• Two projectors (one/eye)
• Cheap glasses (powerless)
• Lower resolution/dimmer
• Less expensive

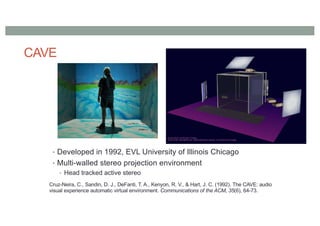

CAVE
• Developed in 1992, EVL University of Illinois Chicago
• Multi-walled stereo projection environment
• Head tracked active stereo
Cruz-Neira, C., Sandin, D. J., DeFanti, T. A., Kenyon, R. V., & Hart, J. C. (1992). The CAVE: audio
visual experience automatic virtual environment. Communications of the ACM, 35(6), 64-73.

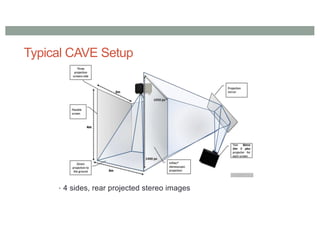

Typical CAVE Setup
• 4 sides, rear projected stereo images
Demo Video – Wisconsin CAVE
https://www.youtube.com/watch?v=mBs-OGDoPDY

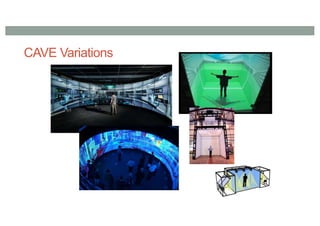

CAVE Variations

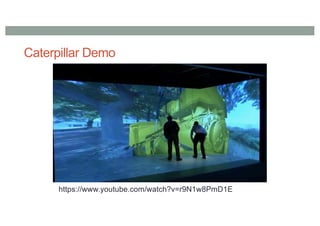

Caterpillar Demo
https://www.youtube.com/watch?v=r9N1w8PmD1E

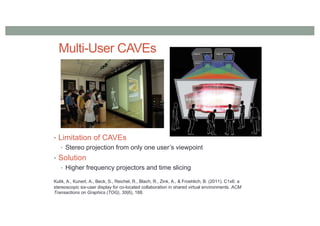

Multi-User CAVEs
• Limitation of CAVEs
• Stereo projection from only one user’s viewpoint
• Solution
• Higher frequency projectors and time slicing
Kulik, A., Kunert, A., Beck, S., Reichel, R., Blach, R., Zink, A., & Froehlich, B. (2011). C1x6: a
stereoscopic six-user display for co-located collaboration in shared virtual environments. ACM
Transactions on Graphics (TOG), 30(6), 188.

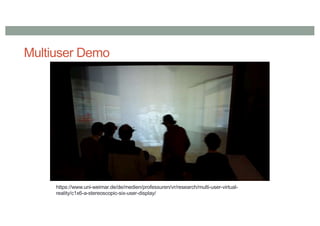

Multiuser Demo
https://www.uni-weimar.de/de/medien/professuren/vr/research/multi-user-virtual-
reality/c1x6-a-stereoscopic-six-user-display/

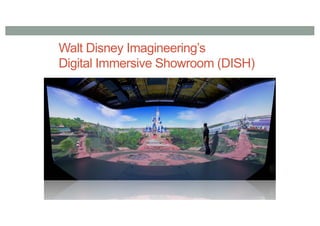

Walt Disney Imagineering’s
Digital Immersive Showroom (DISH)
Technology
Large working volume
10.5m x 7.5m x 4.0m
360 Surround Projection
Front projection
Five 4K @ 120 Hz 3D projectors
One 2K @ 120 Hz 3D projectors
Complex screen geometry
Rounded corners
Overhanging ceiling
Tech Viz, Unreal, Panda3D

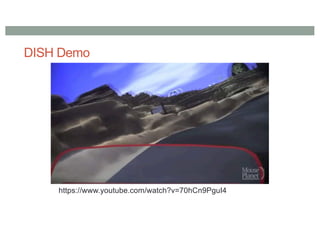

DISH Demo
https://www.youtube.com/watch?v=70hCn9PguI4

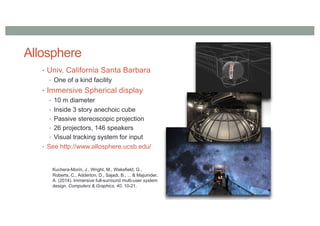

Allosphere
• Univ. California Santa Barbara
• One of a kind facility
• Immersive Spherical display
• 10 m diameter
• Inside 3 story anechoic cube
• Passive stereoscopic projection
• 26 projectors, 146 speakers
• Visual tracking system for input
• See http://www.allosphere.ucsb.edu/
Kuchera-Morin, J., Wright, M., Wakefield, G.,
Roberts, C., Adderton, D., Sajadi, B., ... & Majumder,
A. (2014). Immersive full-surround multi-user system
design. Computers & Graphics, 40, 10-21.
Allosphere Demo
https://www.youtube.com/watch?v=25Ch8eE0vJg

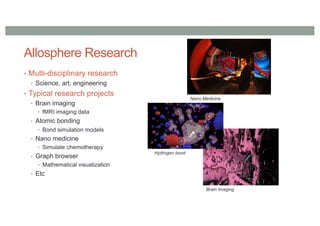

Allosphere Research
• Multi-disciplinary research
• Science, art, engineering
• Typical research projects
• Brain imaging
• fMRI imaging data
• Atomic bonding
• Bond simulation models
• Nano medicine
• Simulate chemotherapy
• Graph browser
• Mathematical visualization
• Etc
Brain Imaging
Hydrogen bond
Nano Medicine

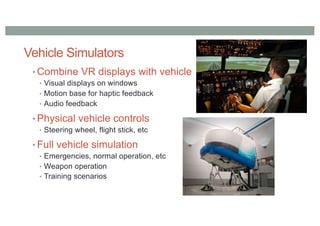

Vehicle Simulators
• Combine VR displays with vehicle
• Visual displays on windows
• Motion base for haptic feedback
• Audio feedback
• Physical vehicle controls
• Steering wheel, flight stick, etc
• Full vehicle simulation
• Emergencies, normal operation, etc
• Weapon operation
• Training scenarios

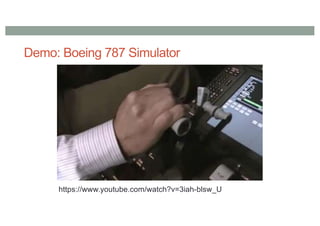

Demo: Boeing 787 Simulator
https://www.youtube.com/watch?v=3iah-blsw_U

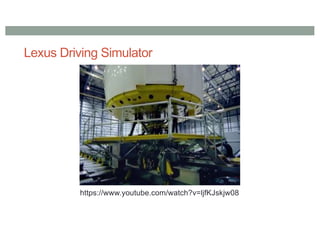

Lexus Driving Simulator
https://www.youtube.com/watch?v=ljfKJskjw08

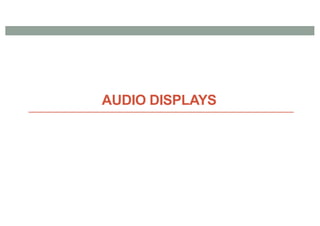

AUDIO DISPLAYS

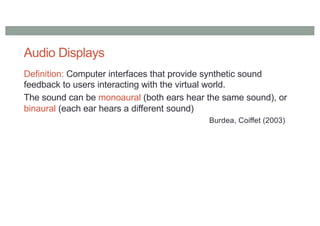

Audio Displays
Definition: Computer interfaces that provide synthetic sound
feedback to users interacting with the virtual world.
The sound can be monoaural (both ears hear the same sound), or
binaural (each ear hears a different sound)
Burdea, Coiffet (2003)

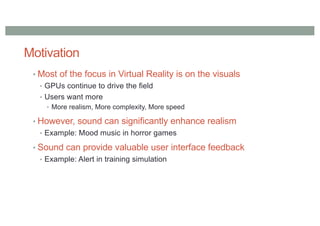

Motivation
• Most of the focus in Virtual Reality is on the visuals
• GPUs continue to drive the field
• Users want more
• More realism, More complexity, More speed
• However, sound can significantly enhance realism
• Example: Mood music in horror games
• Sound can provide valuable user interface feedback
• Example: Alert in training simulation

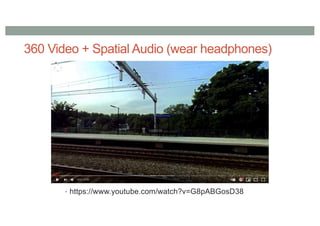

360 Video + Spatial Audio (wear headphones)
• https://www.youtube.com/watch?v=G8pABGosD38
Creating/Capturing Sounds
• Sounds can be captured from nature (sampled) or synthesized
computationally
• High-quality recorded sounds are
• Cheap to play
• Easy to create realism
• Expensive to store and load
• Difficult to manipulate for expressiveness
• Synthetic sounds are
• Cheap to store and load
• Easy to manipulate
• Expensive to compute before playing
• Difficult to create realism

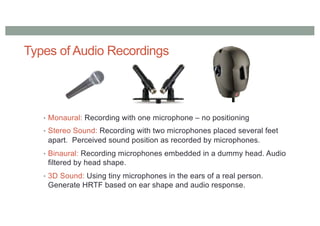

Types of Audio Recordings
• Monaural: Recording with one microphone – no positioning
• Stereo Sound: Recording with two microphones placed several feet
apart. Perceived sound position as recorded by microphones.
• Binaural: Recording microphones embedded in a dummy head. Audio
filtered by head shape.
• 3D Sound: Using tiny microphones in the ears of a real person.
Generate HRTF based on ear shape and audio response.

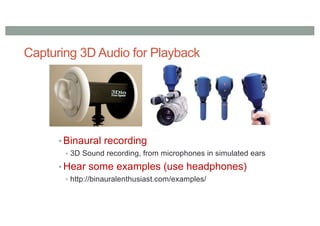

Capturing 3D Audio for Playback
• Binaural recording
• 3D Sound recording, from microphones in simulated ears
• Hear some examples (use headphones)
• http://binauralenthusiast.com/examples/

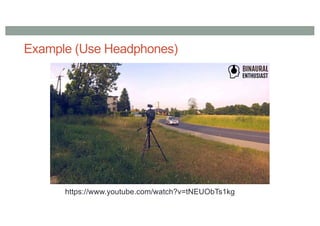

Example (Use Headphones)
https://www.youtube.com/watch?v=tNEUObTs1kg

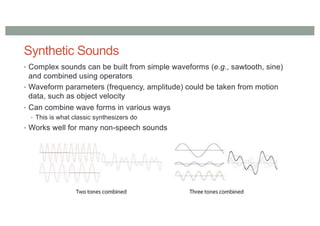

Synthetic Sounds
• Complex sounds can be built from simple waveforms (e.g., sawtooth, sine)
and combined using operators
• Waveform parameters (frequency, amplitude) could be taken from motion
data, such as object velocity
• Can combine wave forms in various ways
• This is what classic synthesizers do
• Works well for many non-speech sounds

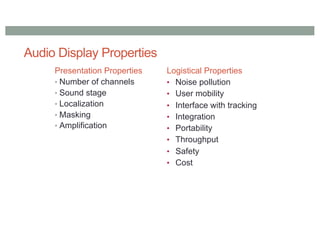

Audio Display Properties
Presentation Properties
• Number of channels
• Sound stage
• Localization
• Masking
• Amplification
Logistical Properties
• Noise pollution
• User mobility
• Interface with tracking
• Integration
• Portability
• Throughput
• Safety
• Cost

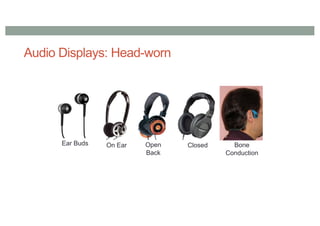

Audio Displays: Head-worn
Ear Buds On Ear Open
Back
Closed Bone
Conduction

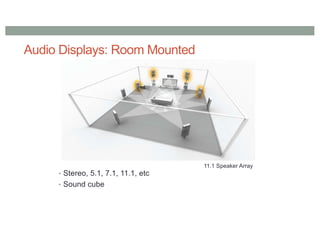

Audio Displays: Room Mounted
• Stereo, 5.1, 7.1, 11.1, etc
• Sound cube
11.1 Speaker Array

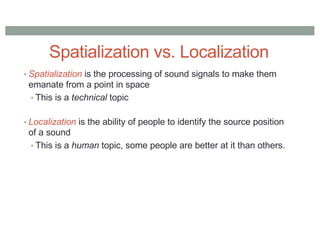

Spatialization vs. Localization
• Spatialization is the processing of sound signals to make them
emanate from a point in space
• This is a technical topic
• Localization is the ability of people to identify the source position
of a sound
• This is a human topic, some people are better at it than others.
Stereo Sound
• Seems to come from inside users head
• Follows head motion as user moves head

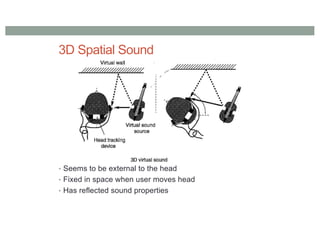

3D Spatial Sound
• Seems to be external to the head
• Fixed in space when user moves head
• Has reflected sound properties
Example: Sound Spatialisation (use headphones)
https://youtu.be/3mAXU1BH1Iw

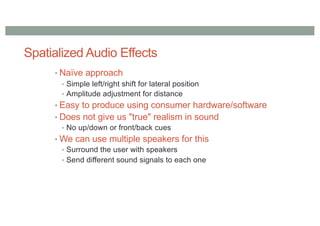

Spatialized Audio Effects
• Naïve approach
• Simple left/right shift for lateral position
• Amplitude adjustment for distance
• Easy to produce using consumer hardware/software
• Does not give us "true" realism in sound
• No up/down or front/back cues
• We can use multiple speakers for this
• Surround the user with speakers
• Send different sound signals to each one

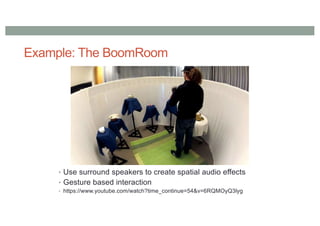

Example: The BoomRoom
• Use surround speakers to create spatial audio effects
• Gesture based interaction
• https://www.youtube.com/watch?time_continue=54&v=6RQMOyQ3lyg

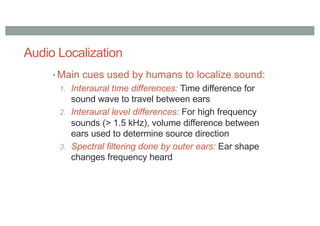

Audio Localization
• Main cues used by humans to localize sound:
1. Interaural time differences: Time difference for
sound wave to travel between ears
2. Interaural level differences: For high frequency
sounds (> 1.5 kHz), volume difference between
ears used to determine source direction
3. Spectral filtering done by outer ears: Ear shape
changes frequency heard

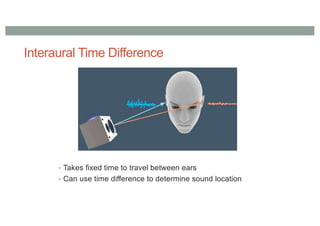

Interaural Time Difference
• Takes fixed time to travel between ears
• Can use time difference to determine sound location

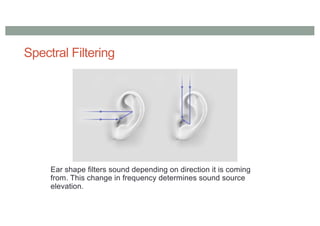

Spectral Filtering
Ear shape filters sound depending on direction it is coming
from. This change in frequency determines sound source
elevation.

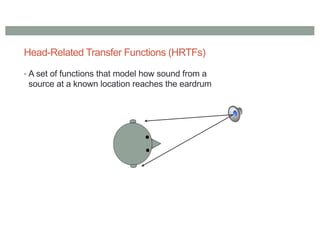

Head-Related Transfer Functions (HRTFs)
• A set of functions that model how sound from a
source at a known location reaches the eardrum

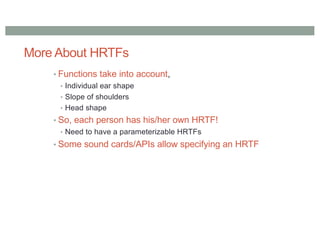

More About HRTFs
• Functions take into account,
• Individual ear shape
• Slope of shoulders
• Head shape
• So, each person has his/her own HRTF!
• Need to have a parameterizable HRTFs
• Some sound cards/APIs allow specifying an HRTF
• adsfa

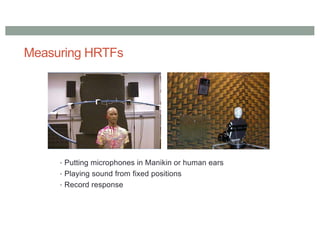

Measuring HRTFs
• Putting microphones in Manikin or human ears
• Playing sound from fixed positions
• Record response

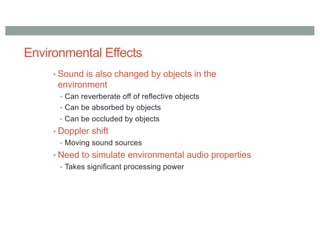

Environmental Effects
• Sound is also changed by objects in the
environment
• Can reverberate off of reflective objects
• Can be absorbed by objects
• Can be occluded by objects
• Doppler shift
• Moving sound sources
• Need to simulate environmental audio properties
• Takes significant processing power

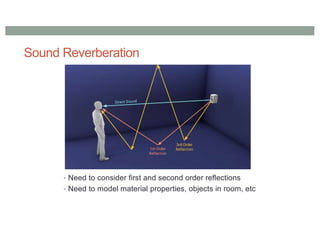

Sound Reverberation
• Need to consider first and second order reflections
• Need to model material properties, objects in room, etc

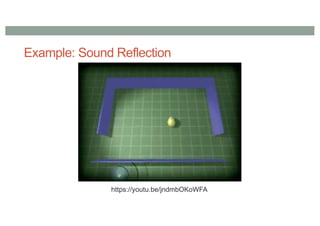

Example: Sound Reflection
https://youtu.be/jndmbOKoWFA

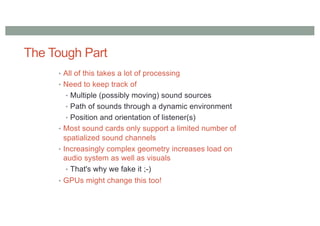

The Tough Part
• All of this takes a lot of processing
• Need to keep track of
• Multiple (possibly moving) sound sources
• Path of sounds through a dynamic environment
• Position and orientation of listener(s)
• Most sound cards only support a limited number of
spatialized sound channels
• Increasingly complex geometry increases load on
audio system as well as visuals
• That's why we fake it ;-)
• GPUs might change this too!

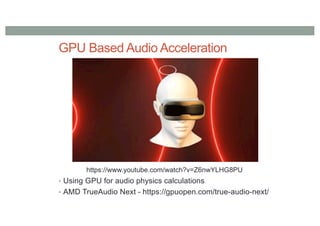

GPU Based Audio Acceleration
• Using GPU for audio physics calculations
• AMD TrueAudio Next - https://gpuopen.com/true-audio-next/
https://www.youtube.com/watch?v=Z6nwYLHG8PU

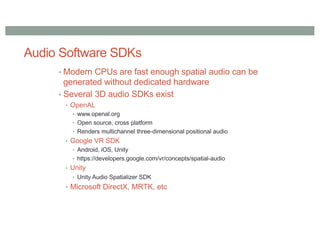

Audio Software SDKs
• Modern CPUs are fast enough spatial audio can be
generated without dedicated hardware
• Several 3D audio SDKs exist
• OpenAL
• www.openal.org
• Open source, cross platform
• Renders multichannel three-dimensional positional audio
• Google VR SDK
• Android, iOS, Unity
• https://developers.google.com/vr/concepts/spatial-audio
• Unity
• Unity Audio Spatializer SDK
• Microsoft DirectX, MRTK, etc

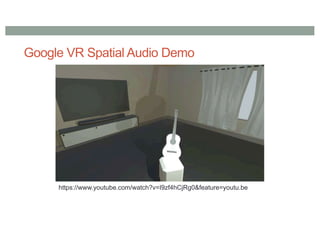

Google VR Spatial Audio Demo
https://www.youtube.com/watch?v=I9zf4hCjRg0&feature=youtu.be

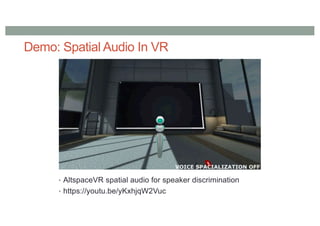

Demo: Spatial Audio In VR
• AltspaceVR spatial audio for speaker discrimination
• https://youtu.be/yKxhjqW2Vuc

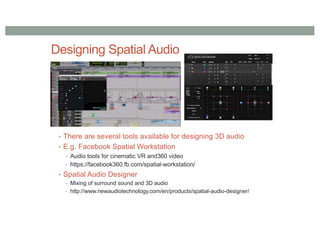

Designing Spatial Audio
• There are several tools available for designing 3D audio
• E.g. Facebook Spatial Workstation
• Audio tools for cinematic VR and360 video
• https://facebook360.fb.com/spatial-workstation/
• Spatial Audio Designer
• Mixing of surround sound and 3D audio
• http://www.newaudiotechnology.com/en/products/spatial-audio-designer/

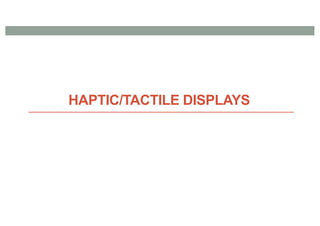

HAPTIC/TACTILE DISPLAYS

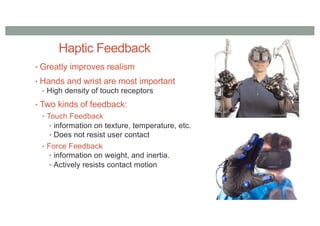

Haptic Feedback
• Greatly improves realism
• Hands and wrist are most important
• High density of touch receptors
• Two kinds of feedback:
• Touch Feedback
• information on texture, temperature, etc.
• Does not resist user contact
• Force Feedback
• information on weight, and inertia.
• Actively resists contact motion

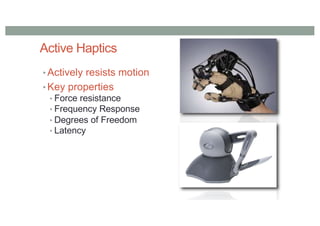

Active Haptics
• Actively resists motion
• Key properties
• Force resistance
• Frequency Response
• Degrees of Freedom
• Latency

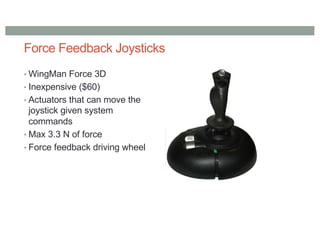

Force Feedback Joysticks
• WingMan Force 3D
• Inexpensive ($60)
• Actuators that can move the
joystick given system
commands
• Max 3.3 N of force
• Force feedback driving wheel

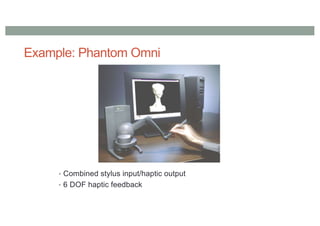

Example: Phantom Omni
• Combined stylus input/haptic output
• 6 DOF haptic feedback

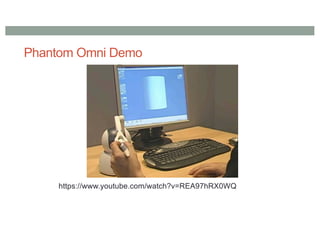

Phantom Omni Demo
https://www.youtube.com/watch?v=REA97hRX0WQ

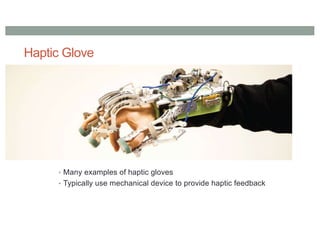

Haptic Glove
• Many examples of haptic gloves
• Typically use mechanical device to provide haptic feedback

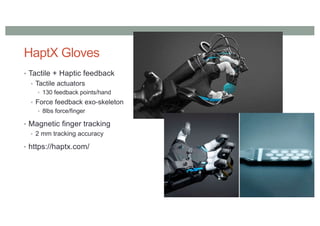

HaptX Gloves
• Tactile + Haptic feedback
• Tactile actuators
• 130 feedback points/hand
• Force feedback exo-skeleton
• 8lbs force/finger
• Magnetic finger tracking
• 2 mm tracking accuracy
• https://haptx.com/
• https://www.youtube.com/watch?v=4K-MLVqD1_A

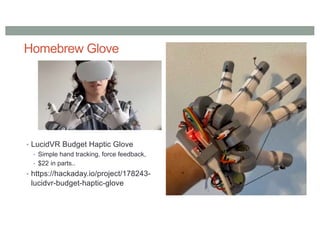

Homebrew Glove
• LucidVR Budget Haptic Glove
• Simple hand tracking, force feedback,
• $22 in parts..
• https://hackaday.io/project/178243-
lucidvr-budget-haptic-glove

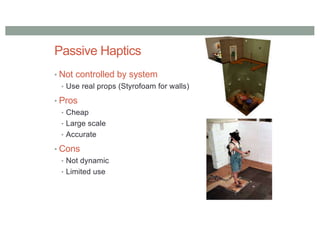

Passive Haptics
• Not controlled by system
• Use real props (Styrofoam for walls)
• Pros
• Cheap
• Large scale
• Accurate
• Cons
• Not dynamic
• Limited use

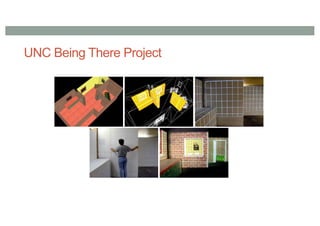

UNC Being There Project

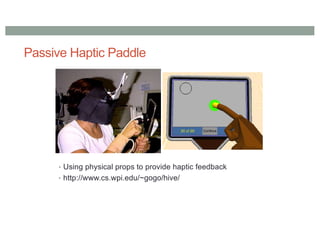

Passive Haptic Paddle
• Using physical props to provide haptic feedback
• http://www.cs.wpi.edu/~gogo/hive/
Tactile Feedback Interfaces
• Goal: Stimulate skin tactile receptors
• Using different technologies
• Air bellows
• Jets
• Actuators (commercial)
• Micropin arrays
• Electrical (research)
• Neuromuscular stimulations (research)

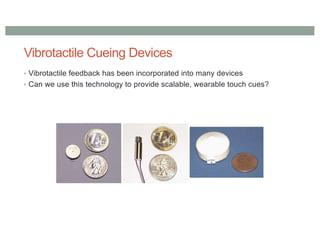

Vibrotactile Cueing Devices
• Vibrotactile feedback has been incorporated into many devices
• Can we use this technology to provide scalable, wearable touch cues?

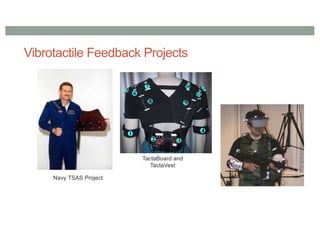

Vibrotactile Feedback Projects
Navy TSAS Project
TactaBoard and
TactaVest

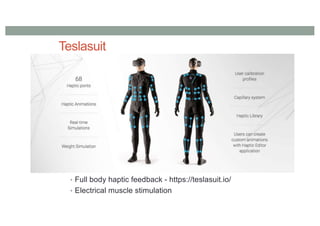

Teslasuit
• Full body haptic feedback - https://teslasuit.io/
• Electrical muscle stimulation
• https://www.youtube.com/watch?v=rFcbVrQWJSU
TRACKING TECHNOLOGY

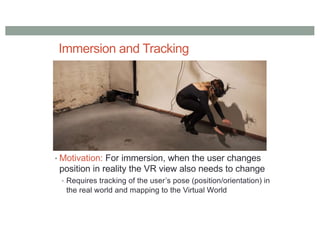

Immersion and Tracking
• Motivation: For immersion, when the user changes
position in reality the VR view also needs to change
• Requires tracking of the user’s pose (position/orientation) in
the real world and mapping to the Virtual World
Tracking in VR
• Need for Tracking
• User turns their head and the VR graphics scene changes
• User wants to walking through a virtual scene
• User reaches out and grab a virtual object
• The user wants to use a real prop in VR
• All of these require technology to track the user or object
• Continuously provide information about position and orientation
Head Tracking
Hand Tracking

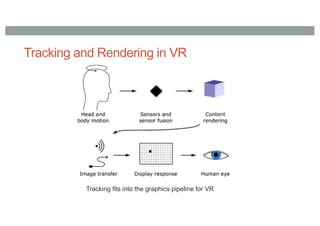

Tracking and Rendering in VR
Tracking fits into the graphics pipeline for VR

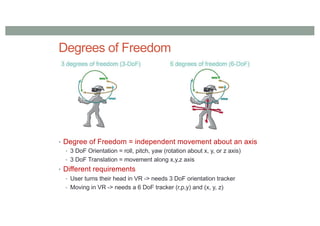

• Degree of Freedom = independent movement about an axis
• 3 DoF Orientation = roll, pitch, yaw (rotation about x, y, or z axis)
• 3 DoF Translation = movement along x,y,z axis
• Different requirements
• User turns their head in VR -> needs 3 DoF orientation tracker
• Moving in VR -> needs a 6 DoF tracker (r,p,y) and (x, y, z)
Degrees of Freedom

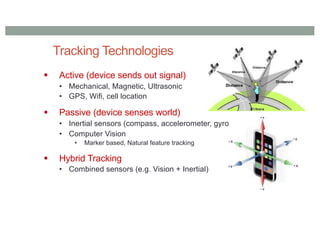

Tracking Technologies
§ Active (device sends out signal)
• Mechanical, Magnetic, Ultrasonic
• GPS, Wifi, cell location
§ Passive (device senses world)
• Inertial sensors (compass, accelerometer, gyro)
• Computer Vision
• Marker based, Natural feature tracking
§ Hybrid Tracking
• Combined sensors (e.g. Vision + Inertial)

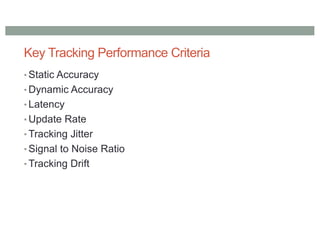

Key Tracking Performance Criteria
• Static Accuracy
• Dynamic Accuracy
• Latency
• Update Rate
• Tracking Jitter
• Signal to Noise Ratio
• Tracking Drift
Static vs. Dynamic Accuracy
• Static Accuracy
• Ability of tracker to determine
coordinates of a position in space
• Depends on sensor sensitivity, errors
(algorithm, operator), environment
• Dynamic Accuracy
• System accuracy as sensor moves
• Depends on static accuracy
• Resolution
• Minimum change sensor can detect
• Repeatability
• Same input giving same output

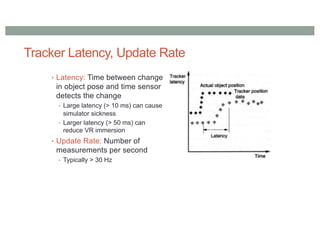

Tracker Latency, Update Rate
• Latency: Time between change
in object pose and time sensor
detects the change
• Large latency (> 10 ms) can cause
simulator sickness
• Larger latency (> 50 ms) can
reduce VR immersion
• Update Rate: Number of
measurements per second
• Typically > 30 Hz
Tracker Jitter, Signal to Noise Ratio
• Jitter: Change in tracker output
when tracked object is stationary
• Range of change is sensor noise
• Tracker with no jitter reports constant
value if tracked object stationary
• Makes tracker data changing
randomly about average value
• Signal to Noise Ratio: Signal in
data relative to noise
• Found from calculating mean of
samples in known positions

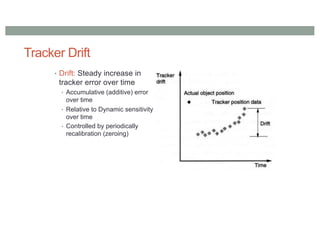

Tracker Drift
• Drift: Steady increase in
tracker error over time
• Accumulative (additive) error
over time
• Relative to Dynamic sensitivity
over time
• Controlled by periodically
recalibration (zeroing)

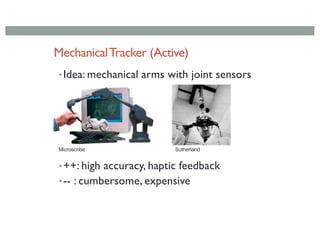

MechanicalTracker (Active)
•Idea: mechanical arms with joint sensors
•++: high accuracy, haptic feedback
•-- : cumbersome, expensive
Microscribe Sutherland

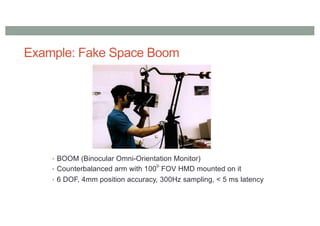

Example: Fake Space Boom
• BOOM (Binocular Omni-Orientation Monitor)
• Counterbalanced arm with 100
o
FOV HMD mounted on it
• 6 DOF, 4mm position accuracy, 300Hz sampling, < 5 ms latency

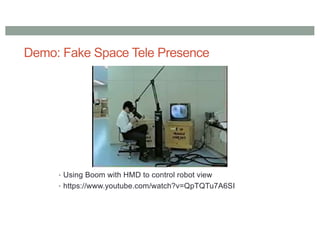

Demo: Fake Space Tele Presence
• Using Boom with HMD to control robot view
• https://www.youtube.com/watch?v=QpTQTu7A6SI

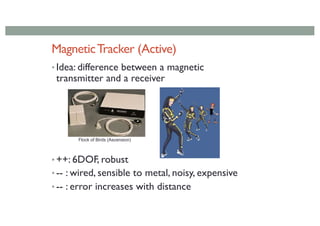

MagneticTracker (Active)
• Idea: difference between a magnetic
transmitter and a receiver
• ++: 6DOF, robust
• -- : wired, sensible to metal, noisy, expensive
• -- : error increases with distance
Flock of Birds (Ascension)

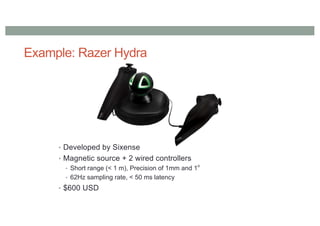

Example: Razer Hydra
• Developed by Sixense
• Magnetic source + 2 wired controllers
• Short range (< 1 m), Precision of 1mm and 1o
• 62Hz sampling rate, < 50 ms latency
• $600 USD

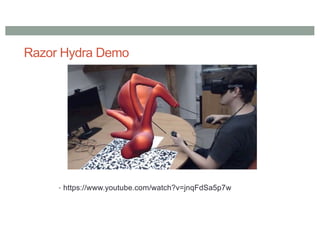

Razor Hydra Demo
• https://www.youtube.com/watch?v=jnqFdSa5p7w

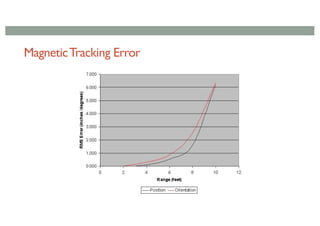

MagneticTracking Error

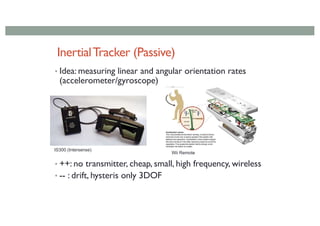

InertialTracker (Passive)
• Idea: measuring linear and angular orientation rates
(accelerometer/gyroscope)
• ++: no transmitter, cheap, small, high frequency, wireless
• -- : drift, hysteris only 3DOF
IS300 (Intersense)
Wii Remote

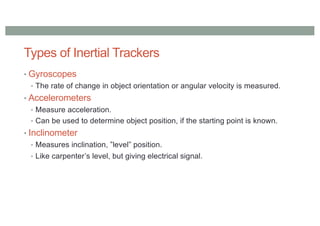

Types of Inertial Trackers
• Gyroscopes
• The rate of change in object orientation or angular velocity is measured.
• Accelerometers
• Measure acceleration.
• Can be used to determine object position, if the starting point is known.
• Inclinometer
• Measures inclination, ”level” position.
• Like carpenter’s level, but giving electrical signal.
Example: MEMS Sensor
• Uses spring-supported load
• Reacts to gravity and inertia
• Changes its electrical parameters
• < 5 ms latency, 0.01o
accuracy
• up to 1000Hz sampling
• Problems
• Rapidly accumulating errors.
• Error in position increases with the square of time.
• Cheap units can get position drift of 4 cm in 2 seconds.
• Expensive units have same error in 200 seconds.
• Not good for measuring location
• Need to periodically reset the output

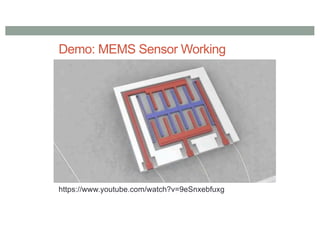

Demo: MEMS Sensor Working
https://www.youtube.com/watch?v=9eSnxebfuxg

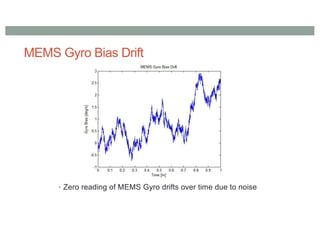

MEMS Gyro Bias Drift
• Zero reading of MEMS Gyro drifts over time due to noise

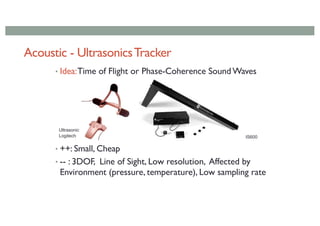

Acoustic - UltrasonicsTracker
• Idea:Time of Flight or Phase-Coherence SoundWaves
• ++: Small, Cheap
• -- : 3DOF, Line of Sight, Low resolution, Affected by
Environment (pressure, temperature), Low sampling rate
Ultrasonic
Logitech IS600

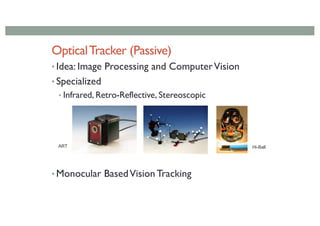

OpticalTracker (Passive)
• Idea: Image Processing and ComputerVision
• Specialized
• Infrared, Retro-Reflective, Stereoscopic
• Monocular BasedVision Tracking
ART Hi-Ball

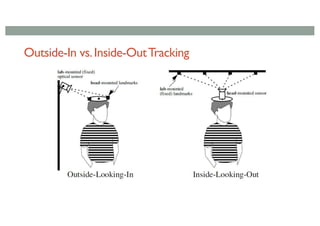

Outside-In vs.Inside-OutTracking

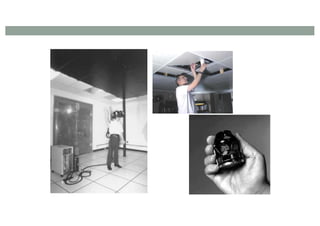

HiBallTracking System (3rd Tech)
• Inside-Out Tracker
• $50K USD
• Scalable over large area
• Fast update (2000Hz)
• Latency Less than 1 ms.
• Accurate
• Position 0.4mm RMS
• Orientation 0.02° RMS
Comp4010 Lecture8 Introduction to VR

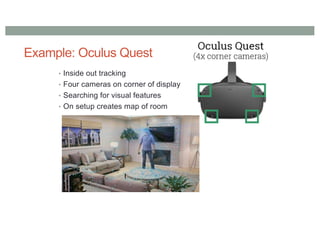

Example: Oculus Quest
• Inside out tracking
• Four cameras on corner of display
• Searching for visual features
• On setup creates map of room

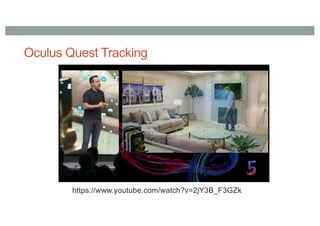

Oculus Quest Tracking
https://www.youtube.com/watch?v=2jY3B_F3GZk

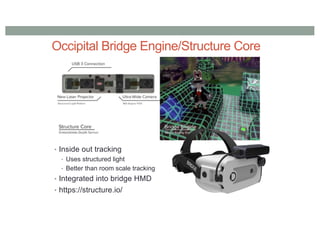

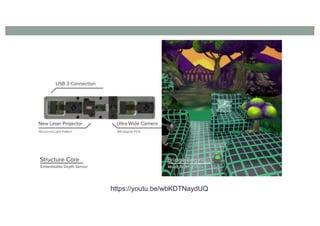

Occipital Bridge Engine/Structure Core
• Inside out tracking
• Uses structured light
• Better than room scale tracking
• Integrated into bridge HMD
• https://structure.io/
https://youtu.be/wbKDTNaydUQ

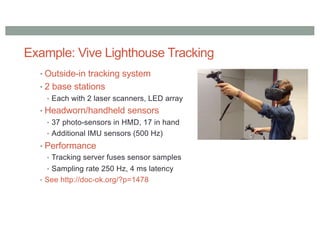

Example: Vive Lighthouse Tracking
• Outside-in tracking system
• 2 base stations
• Each with 2 laser scanners, LED array
• Headworn/handheld sensors
• 37 photo-sensors in HMD, 17 in hand
• Additional IMU sensors (500 Hz)
• Performance
• Tracking server fuses sensor samples
• Sampling rate 250 Hz, 4 ms latency
• See http://doc-ok.org/?p=1478

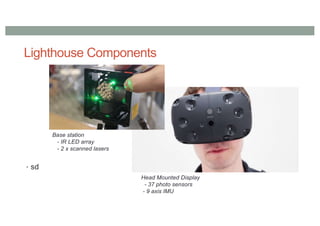

Lighthouse Components
• sd
Base station
- IR LED array
- 2 x scanned lasers
Head Mounted Display
- 37 photo sensors
- 9 axis IMU
Lighthouse Setup

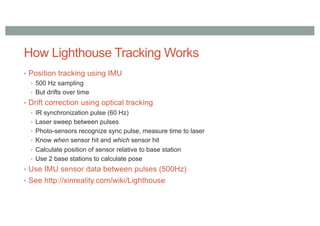

How Lighthouse Tracking Works
• Position tracking using IMU
• 500 Hz sampling
• But drifts over time
• Drift correction using optical tracking
• IR synchronization pulse (60 Hz)
• Laser sweep between pulses
• Photo-sensors recognize sync pulse, measure time to laser
• Know when sensor hit and which sensor hit
• Calculate position of sensor relative to base station
• Use 2 base stations to calculate pose
• Use IMU sensor data between pulses (500Hz)
• See http://xinreality.com/wiki/Lighthouse

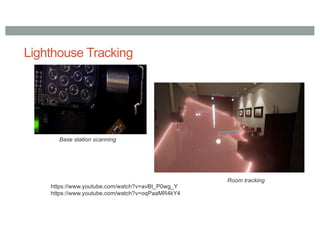

Lighthouse Tracking
Base station scanning
https://www.youtube.com/watch?v=avBt_P0wg_Y
https://www.youtube.com/watch?v=oqPaaMR4kY4
Room tracking

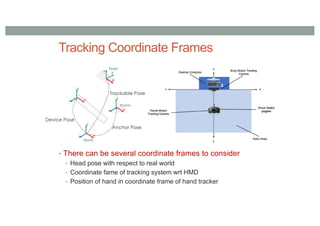

Tracking Coordinate Frames
• There can be several coordinate frames to consider
• Head pose with respect to real world
• Coordinate fame of tracking system wrt HMD
• Position of hand in coordinate frame of hand tracker
Example: Finding your hand in VR
• Using Lighthouse and LeapMotion
• Multiple Coordinate Frames
• LeapMotion tracks hand in LeapMotion coordinate frame (HLM)
• LeapMotion is fixed in HMD coordinate frame (LMHMD)
• HMD is tracked in VR coordinate frame (HMDVR) (using Lighthouse)
• Where is your hand in VR coordinate frame?
• Combine transformations in each coordinate frame
• HVR = HLM x LMHMD x HMDVR
www.empathiccomputing.org
@marknb00
mark.billinghurst@unisa.edu.au

More Related Content

What's hot

Advanced Methods for User Evaluation in AR/VR Studies
Advanced Methods for User Evaluation in AR/VR StudiesAdvanced Methods for User Evaluation in AR/VR Studies
Advanced Methods for User Evaluation in AR/VR Studies
Mark Billinghurst

Comp4010 Lecture7 Designing AR Systems
Comp4010 Lecture7 Designing AR SystemsComp4010 Lecture7 Designing AR Systems
Comp4010 Lecture7 Designing AR Systems
Mark Billinghurst

Comp4010 Lecture10 VR Interface Design
Comp4010 Lecture10 VR Interface DesignComp4010 Lecture10 VR Interface Design
Comp4010 Lecture10 VR Interface Design
Mark Billinghurst

Comp 4010 2021 Snap Tutorial 2
Comp 4010 2021 Snap Tutorial 2Comp 4010 2021 Snap Tutorial 2
Comp 4010 2021 Snap Tutorial 2
Mark Billinghurst

Comp4010 Lecture9 VR Input and Systems
Comp4010 Lecture9 VR Input and SystemsComp4010 Lecture9 VR Input and Systems
Comp4010 Lecture9 VR Input and Systems
Mark Billinghurst

Comp4010 lecture3-AR Technology
Comp4010 lecture3-AR TechnologyComp4010 lecture3-AR Technology
Comp4010 lecture3-AR Technology
Mark Billinghurst

Comp4010 lecture11 VR Applications
Comp4010 lecture11 VR ApplicationsComp4010 lecture11 VR Applications
Comp4010 lecture11 VR Applications
Mark Billinghurst

Comp 4010 2021 - Snap Tutorial-1
Comp 4010 2021 - Snap Tutorial-1Comp 4010 2021 - Snap Tutorial-1
Comp 4010 2021 - Snap Tutorial-1
Mark Billinghurst

2022 COMP4010 Lecture2: Perception
2022 COMP4010 Lecture2: Perception2022 COMP4010 Lecture2: Perception
2022 COMP4010 Lecture2: Perception
Mark Billinghurst

2022 COMP4010 Lecture4: AR Interaction
2022 COMP4010 Lecture4: AR Interaction2022 COMP4010 Lecture4: AR Interaction
2022 COMP4010 Lecture4: AR Interaction
Mark Billinghurst

2022 COMP4010 Lecture3: AR Technology
2022 COMP4010 Lecture3: AR Technology2022 COMP4010 Lecture3: AR Technology
2022 COMP4010 Lecture3: AR Technology
Mark Billinghurst

COMP 4010 - Lecture 3 VR Systems
COMP 4010 - Lecture 3 VR SystemsCOMP 4010 - Lecture 3 VR Systems
COMP 4010 - Lecture 3 VR Systems
Mark Billinghurst

Talk to Me: Using Virtual Avatars to Improve Remote Collaboration
Talk to Me: Using Virtual Avatars to Improve Remote CollaborationTalk to Me: Using Virtual Avatars to Improve Remote Collaboration
Talk to Me: Using Virtual Avatars to Improve Remote Collaboration
Mark Billinghurst

Lecture 4: VR Systems
Lecture 4: VR SystemsLecture 4: VR Systems
Lecture 4: VR Systems
Mark Billinghurst

Lecture 6 Interaction Design for VR
Lecture 6 Interaction Design for VRLecture 6 Interaction Design for VR
Lecture 6 Interaction Design for VR
Mark Billinghurst

Building VR Applications For Google Cardboard
Building VR Applications For Google CardboardBuilding VR Applications For Google Cardboard
Building VR Applications For Google Cardboard
Mark Billinghurst

Comp4010 2021 Lecture2-Perception
Comp4010 2021 Lecture2-PerceptionComp4010 2021 Lecture2-Perception
Comp4010 2021 Lecture2-Perception
Mark Billinghurst

Comp 4010 2021 Lecture1-Introduction to XR
Comp 4010 2021 Lecture1-Introduction to XRComp 4010 2021 Lecture1-Introduction to XR
Comp 4010 2021 Lecture1-Introduction to XR
Mark Billinghurst

Research Directions in Transitional Interfaces
Research Directions in Transitional InterfacesResearch Directions in Transitional Interfaces
Research Directions in Transitional Interfaces
Mark Billinghurst

COMP 4010 - Lecture4 VR Technology - Visual and Haptic Displays
COMP 4010 - Lecture4 VR Technology - Visual and Haptic DisplaysCOMP 4010 - Lecture4 VR Technology - Visual and Haptic Displays
COMP 4010 - Lecture4 VR Technology - Visual and Haptic Displays
Mark Billinghurst


What's hot (20)

Advanced Methods for User Evaluation in AR/VR Studies
Advanced Methods for User Evaluation in AR/VR StudiesAdvanced Methods for User Evaluation in AR/VR Studies
Advanced Methods for User Evaluation in AR/VR Studies

Comp4010 Lecture7 Designing AR Systems
Comp4010 Lecture7 Designing AR SystemsComp4010 Lecture7 Designing AR Systems
Comp4010 Lecture7 Designing AR Systems

Comp4010 Lecture10 VR Interface Design
Comp4010 Lecture10 VR Interface DesignComp4010 Lecture10 VR Interface Design
Comp4010 Lecture10 VR Interface Design

Comp 4010 2021 Snap Tutorial 2
Comp 4010 2021 Snap Tutorial 2Comp 4010 2021 Snap Tutorial 2
Comp 4010 2021 Snap Tutorial 2

Comp4010 Lecture9 VR Input and Systems
Comp4010 Lecture9 VR Input and SystemsComp4010 Lecture9 VR Input and Systems
Comp4010 Lecture9 VR Input and Systems

Comp4010 lecture3-AR Technology
Comp4010 lecture3-AR TechnologyComp4010 lecture3-AR Technology
Comp4010 lecture3-AR Technology

Comp4010 lecture11 VR Applications
Comp4010 lecture11 VR ApplicationsComp4010 lecture11 VR Applications
Comp4010 lecture11 VR Applications

Comp 4010 2021 - Snap Tutorial-1
Comp 4010 2021 - Snap Tutorial-1Comp 4010 2021 - Snap Tutorial-1
Comp 4010 2021 - Snap Tutorial-1

2022 COMP4010 Lecture2: Perception
2022 COMP4010 Lecture2: Perception2022 COMP4010 Lecture2: Perception
2022 COMP4010 Lecture2: Perception

2022 COMP4010 Lecture4: AR Interaction
2022 COMP4010 Lecture4: AR Interaction2022 COMP4010 Lecture4: AR Interaction
2022 COMP4010 Lecture4: AR Interaction

2022 COMP4010 Lecture3: AR Technology
2022 COMP4010 Lecture3: AR Technology2022 COMP4010 Lecture3: AR Technology
2022 COMP4010 Lecture3: AR Technology

COMP 4010 - Lecture 3 VR Systems
COMP 4010 - Lecture 3 VR SystemsCOMP 4010 - Lecture 3 VR Systems
COMP 4010 - Lecture 3 VR Systems

Talk to Me: Using Virtual Avatars to Improve Remote Collaboration
Talk to Me: Using Virtual Avatars to Improve Remote CollaborationTalk to Me: Using Virtual Avatars to Improve Remote Collaboration
Talk to Me: Using Virtual Avatars to Improve Remote Collaboration

Lecture 4: VR Systems
Lecture 4: VR SystemsLecture 4: VR Systems
Lecture 4: VR Systems

Lecture 6 Interaction Design for VR
Lecture 6 Interaction Design for VRLecture 6 Interaction Design for VR
Lecture 6 Interaction Design for VR

Building VR Applications For Google Cardboard
Building VR Applications For Google CardboardBuilding VR Applications For Google Cardboard
Building VR Applications For Google Cardboard

Comp4010 2021 Lecture2-Perception
Comp4010 2021 Lecture2-PerceptionComp4010 2021 Lecture2-Perception
Comp4010 2021 Lecture2-Perception

Comp 4010 2021 Lecture1-Introduction to XR
Comp 4010 2021 Lecture1-Introduction to XRComp 4010 2021 Lecture1-Introduction to XR
Comp 4010 2021 Lecture1-Introduction to XR

Research Directions in Transitional Interfaces
Research Directions in Transitional InterfacesResearch Directions in Transitional Interfaces
Research Directions in Transitional Interfaces

COMP 4010 - Lecture4 VR Technology - Visual and Haptic Displays
COMP 4010 - Lecture4 VR Technology - Visual and Haptic DisplaysCOMP 4010 - Lecture4 VR Technology - Visual and Haptic Displays
COMP 4010 - Lecture4 VR Technology - Visual and Haptic Displays


Similar to Comp4010 Lecture8 Introduction to VR

2022 COMP 4010 Lecture 7: Introduction to VR
2022 COMP 4010 Lecture 7: Introduction to VR2022 COMP 4010 Lecture 7: Introduction to VR
2022 COMP 4010 Lecture 7: Introduction to VR
Mark Billinghurst

Mobile AR lecture 9 - Mobile AR Interface Design
Mobile AR lecture 9 - Mobile AR Interface DesignMobile AR lecture 9 - Mobile AR Interface Design
Mobile AR lecture 9 - Mobile AR Interface Design
Mark Billinghurst

Designing Augmented Reality Experiences
Designing Augmented Reality ExperiencesDesigning Augmented Reality Experiences
Designing Augmented Reality Experiences
Mark Billinghurst

ICS2208 lecture7
ICS2208 lecture7ICS2208 lecture7
ICS2208 lecture7
Vanessa Camilleri

Designing Usable Interface
Designing Usable InterfaceDesigning Usable Interface
Designing Usable Interface
Mark Billinghurst

2013 Lecture 6: AR User Interface Design Guidelines
2013 Lecture 6: AR User Interface Design Guidelines2013 Lecture 6: AR User Interface Design Guidelines
2013 Lecture 6: AR User Interface Design Guidelines
Mark Billinghurst

ARI2132 lecture 8
ARI2132 lecture 8ARI2132 lecture 8
ARI2132 lecture 8
Vanessa Camilleri

2014 COSC 426 Lecture 2: Augmented Reality Technology
2014 COSC 426 Lecture 2: Augmented Reality Technology2014 COSC 426 Lecture 2: Augmented Reality Technology
2014 COSC 426 Lecture 2: Augmented Reality Technology
Mark Billinghurst

2022 COMP4010 Lecture5: AR Prototyping
2022 COMP4010 Lecture5: AR Prototyping2022 COMP4010 Lecture5: AR Prototyping
2022 COMP4010 Lecture5: AR Prototyping
Mark Billinghurst

AUGMENTED REALITY
AUGMENTED REALITY AUGMENTED REALITY
AUGMENTED REALITY
lavanyalavanya47180

AUGMENTED REALITY
AUGMENTED REALITY AUGMENTED REALITY
AUGMENTED REALITY
lavanyalavanya47180

Augmented Reality in Multi-Dimensionality: Design for Space, Motion, Multiple...
Augmented Reality in Multi-Dimensionality: Design for Space, Motion, Multiple...Augmented Reality in Multi-Dimensionality: Design for Space, Motion, Multiple...
Augmented Reality in Multi-Dimensionality: Design for Space, Motion, Multiple...
Shalin Hai-Jew

Human Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR SystemsHuman Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR Systems
Mark Billinghurst

426 lecture 7: Designing AR Interfaces
426 lecture 7: Designing AR Interfaces426 lecture 7: Designing AR Interfaces
426 lecture 7: Designing AR Interfaces
Mark Billinghurst

2013 426 Lecture 2: Augmented Reality Technology
2013 426 Lecture 2:  Augmented Reality Technology2013 426 Lecture 2:  Augmented Reality Technology
2013 426 Lecture 2: Augmented Reality Technology
Mark Billinghurst

ICS 2208 Lecture 8 Slides AI and VR_.pdf
ICS 2208 Lecture 8 Slides AI and VR_.pdfICS 2208 Lecture 8 Slides AI and VR_.pdf
ICS 2208 Lecture 8 Slides AI and VR_.pdf
Vanessa Camilleri

Research Directions for Cross Reality Interfaces
Research Directions for Cross Reality InterfacesResearch Directions for Cross Reality Interfaces
Research Directions for Cross Reality Interfaces
Mark Billinghurst

ICS2208 lecture6
ICS2208 lecture6ICS2208 lecture6
ICS2208 lecture6
Vanessa Camilleri

Mobile user experience conference 2009 - The rise of the mobile context
Mobile user experience conference 2009 - The rise of the mobile contextMobile user experience conference 2009 - The rise of the mobile context
Mobile user experience conference 2009 - The rise of the mobile context
Florent Stroppa

Tangible AR Interface
Tangible AR InterfaceTangible AR Interface
Tangible AR Interface
JongHyoun


Similar to Comp4010 Lecture8 Introduction to VR (20)

2022 COMP 4010 Lecture 7: Introduction to VR
2022 COMP 4010 Lecture 7: Introduction to VR2022 COMP 4010 Lecture 7: Introduction to VR
2022 COMP 4010 Lecture 7: Introduction to VR

Mobile AR lecture 9 - Mobile AR Interface Design
Mobile AR lecture 9 - Mobile AR Interface DesignMobile AR lecture 9 - Mobile AR Interface Design
Mobile AR lecture 9 - Mobile AR Interface Design

Designing Augmented Reality Experiences
Designing Augmented Reality ExperiencesDesigning Augmented Reality Experiences
Designing Augmented Reality Experiences

ICS2208 lecture7
ICS2208 lecture7ICS2208 lecture7
ICS2208 lecture7

Designing Usable Interface
Designing Usable InterfaceDesigning Usable Interface
Designing Usable Interface

2013 Lecture 6: AR User Interface Design Guidelines
2013 Lecture 6: AR User Interface Design Guidelines2013 Lecture 6: AR User Interface Design Guidelines
2013 Lecture 6: AR User Interface Design Guidelines

ARI2132 lecture 8
ARI2132 lecture 8ARI2132 lecture 8
ARI2132 lecture 8

2014 COSC 426 Lecture 2: Augmented Reality Technology
2014 COSC 426 Lecture 2: Augmented Reality Technology2014 COSC 426 Lecture 2: Augmented Reality Technology
2014 COSC 426 Lecture 2: Augmented Reality Technology

2022 COMP4010 Lecture5: AR Prototyping
2022 COMP4010 Lecture5: AR Prototyping2022 COMP4010 Lecture5: AR Prototyping
2022 COMP4010 Lecture5: AR Prototyping

AUGMENTED REALITY
AUGMENTED REALITY AUGMENTED REALITY
AUGMENTED REALITY

AUGMENTED REALITY
AUGMENTED REALITY AUGMENTED REALITY
AUGMENTED REALITY

Augmented Reality in Multi-Dimensionality: Design for Space, Motion, Multiple...
Augmented Reality in Multi-Dimensionality: Design for Space, Motion, Multiple...Augmented Reality in Multi-Dimensionality: Design for Space, Motion, Multiple...
Augmented Reality in Multi-Dimensionality: Design for Space, Motion, Multiple...

Human Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR SystemsHuman Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR Systems

426 lecture 7: Designing AR Interfaces
426 lecture 7: Designing AR Interfaces426 lecture 7: Designing AR Interfaces
426 lecture 7: Designing AR Interfaces

2013 426 Lecture 2: Augmented Reality Technology
2013 426 Lecture 2:  Augmented Reality Technology2013 426 Lecture 2:  Augmented Reality Technology
2013 426 Lecture 2: Augmented Reality Technology

ICS 2208 Lecture 8 Slides AI and VR_.pdf
ICS 2208 Lecture 8 Slides AI and VR_.pdfICS 2208 Lecture 8 Slides AI and VR_.pdf
ICS 2208 Lecture 8 Slides AI and VR_.pdf

Research Directions for Cross Reality Interfaces
Research Directions for Cross Reality InterfacesResearch Directions for Cross Reality Interfaces
Research Directions for Cross Reality Interfaces

ICS2208 lecture6
ICS2208 lecture6ICS2208 lecture6
ICS2208 lecture6

Mobile user experience conference 2009 - The rise of the mobile context
Mobile user experience conference 2009 - The rise of the mobile contextMobile user experience conference 2009 - The rise of the mobile context
Mobile user experience conference 2009 - The rise of the mobile context

Tangible AR Interface
Tangible AR InterfaceTangible AR Interface
Tangible AR Interface


More from Mark Billinghurst

The Metaverse: Are We There Yet?
The  Metaverse:    Are   We  There  Yet?The  Metaverse:    Are   We  There  Yet?
The Metaverse: Are We There Yet?
Mark Billinghurst

IVE Industry Focused Event - Defence Sector 2024
IVE Industry Focused Event - Defence Sector 2024IVE Industry Focused Event - Defence Sector 2024
IVE Industry Focused Event - Defence Sector 2024
Mark Billinghurst

Future Research Directions for Augmented Reality
Future Research Directions for Augmented RealityFuture Research Directions for Augmented Reality
Future Research Directions for Augmented Reality
Mark Billinghurst

Evaluation Methods for Social XR Experiences
Evaluation Methods for Social XR ExperiencesEvaluation Methods for Social XR Experiences
Evaluation Methods for Social XR Experiences
Mark Billinghurst

Empathic Computing: Delivering the Potential of the Metaverse
Empathic Computing: Delivering  the Potential of the MetaverseEmpathic Computing: Delivering  the Potential of the Metaverse
Empathic Computing: Delivering the Potential of the Metaverse
Mark Billinghurst

Empathic Computing: Capturing the Potential of the Metaverse
Empathic Computing: Capturing the Potential of the MetaverseEmpathic Computing: Capturing the Potential of the Metaverse
Empathic Computing: Capturing the Potential of the Metaverse
Mark Billinghurst

Empathic Computing: Designing for the Broader Metaverse
Empathic Computing: Designing for the Broader MetaverseEmpathic Computing: Designing for the Broader Metaverse
Empathic Computing: Designing for the Broader Metaverse
Mark Billinghurst

ISS2022 Keynote
ISS2022 KeynoteISS2022 Keynote
ISS2022 Keynote
Mark Billinghurst

Novel Interfaces for AR Systems
Novel Interfaces for AR SystemsNovel Interfaces for AR Systems
Novel Interfaces for AR Systems
Mark Billinghurst

Empathic Computing and Collaborative Immersive Analytics
Empathic Computing and Collaborative Immersive AnalyticsEmpathic Computing and Collaborative Immersive Analytics
Empathic Computing and Collaborative Immersive Analytics
Mark Billinghurst

Metaverse Learning
Metaverse LearningMetaverse Learning
Metaverse Learning
Mark Billinghurst

Empathic Computing: Developing for the Whole Metaverse
Empathic Computing: Developing for the Whole MetaverseEmpathic Computing: Developing for the Whole Metaverse
Empathic Computing: Developing for the Whole Metaverse
Mark Billinghurst


More from Mark Billinghurst (12)

The Metaverse: Are We There Yet?
The  Metaverse:    Are   We  There  Yet?The  Metaverse:    Are   We  There  Yet?
The Metaverse: Are We There Yet?

IVE Industry Focused Event - Defence Sector 2024
IVE Industry Focused Event - Defence Sector 2024IVE Industry Focused Event - Defence Sector 2024
IVE Industry Focused Event - Defence Sector 2024

Future Research Directions for Augmented Reality
Future Research Directions for Augmented RealityFuture Research Directions for Augmented Reality
Future Research Directions for Augmented Reality

Evaluation Methods for Social XR Experiences
Evaluation Methods for Social XR ExperiencesEvaluation Methods for Social XR Experiences
Evaluation Methods for Social XR Experiences

Empathic Computing: Delivering the Potential of the Metaverse
Empathic Computing: Delivering  the Potential of the MetaverseEmpathic Computing: Delivering  the Potential of the Metaverse
Empathic Computing: Delivering the Potential of the Metaverse

Empathic Computing: Capturing the Potential of the Metaverse
Empathic Computing: Capturing the Potential of the MetaverseEmpathic Computing: Capturing the Potential of the Metaverse
Empathic Computing: Capturing the Potential of the Metaverse

Empathic Computing: Designing for the Broader Metaverse
Empathic Computing: Designing for the Broader MetaverseEmpathic Computing: Designing for the Broader Metaverse
Empathic Computing: Designing for the Broader Metaverse

ISS2022 Keynote
ISS2022 KeynoteISS2022 Keynote
ISS2022 Keynote

Novel Interfaces for AR Systems
Novel Interfaces for AR SystemsNovel Interfaces for AR Systems
Novel Interfaces for AR Systems

Empathic Computing and Collaborative Immersive Analytics
Empathic Computing and Collaborative Immersive AnalyticsEmpathic Computing and Collaborative Immersive Analytics
Empathic Computing and Collaborative Immersive Analytics

Metaverse Learning
Metaverse LearningMetaverse Learning
Metaverse Learning

Empathic Computing: Developing for the Whole Metaverse
Empathic Computing: Developing for the Whole MetaverseEmpathic Computing: Developing for the Whole Metaverse
Empathic Computing: Developing for the Whole Metaverse


Recently uploaded

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data
Safe Software

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster
Matthias Neugebauer

leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
alexjohnson7307

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
maigasapphire

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
Neo4j

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide
Shiv Technolabs

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world
Emerging Tech

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
ArgaBisma

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges
huseindihon

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus
Zilliz

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt
moinahousna

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
Priyanka Aash

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
digitalxplive

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Mydbops

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
Priyanka Aash

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Torry Harris

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop
CEPTES Software Inc

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf
HackersList

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
aslasdfmkhan4750

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
SynapseIndia


Recently uploaded (20)

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster

leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx


Comp4010 Lecture8 Introduction to VR

  • 1. INTRODUCTION TO VR COMP 4010 Lecture Eight Mark Billinghurst September 14th 2021 mark.billinghurst@unisa.edu.au
  • 3. Design in Interaction Design Key Prototyping Steps
  • 4. AR. Design Considerations • 1. Design for Humans • Use Human Information Processing model • 2. Design for Different User Groups • Different users may have unique needs • 3. Design for the Whole User • Social, cultural, emotional, physical cognitive • 4. Use UI Best Practices • Adapt known UI guidelines to AR/VR • 5. Use of Interface Metaphors/Affordances • Decide best metaphor for AR/VR application
  • 5. 1. Design for Human Information Processing • High level staged model from Wickens and Carswell (1997) • Relates perception, cognition, and physical ergonomics Perception Cognition Ergonomics
  • 6. Design for Perception • Need to understand perception to design AR • Visual perception • Many types of visual cues (stereo, oculomotor, etc.) • Auditory system • Binaural cues, vestibular cues • Somatosensory • Haptic, tactile, kinesthetic, proprioceptive cues • Chemical Sensing System • Taste and smell
  • 8. Design for Cognition • Design for Working and Long-term memory • Working memory • Short term storage, Limited storage (~5-9 items) • Long term memory • Memory recall trigger by associative cues • Situational Awareness • Model of current state of user’s environment • Used for wayfinding, object interaction, spatial awareness, etc.. • Provide cognitive cues to help with situational awareness • Landmarks, procedural cues, map knowledge • Support both ego-centric and exo-centric views
  • 9. Design for Physical Ergonomics • Design for the human motion range • Consider human comfort and natural posture • Design for hand input • Coarse and fine scale motions, gripping and grasping • Avoid “Gorilla arm syndrome” from holding arm pose
  • 10. Gorilla Arm in AR • Design interface to reduce mid-air gestures
  • 11. 3. Design for the Whole User
  • 12. •Interface Components • Physical components • Display elements • Visual/audio • Interaction metaphors Physical Elements Display Elements Interaction Metaphor Input Output 5. Use Interface Metaphors
  • 13. Information Layers • Head-stabilized • Heads-up display • Body-stabilized • E.g., virtual tool-belt • World-stabilized • E.g., billboard or signpost
  • 14. AR Design Space Reality Virtual Reality Augmented Reality Physical Design Virtual Design
  • 15. •AR design is mixture of physical affordance and virtual affordance •Physical •Tangible controllers and objects •Virtual •Virtual graphics and audio
  • 16. Affordances in AR • Design AR interface objects to show how they are used • Use visual and physical cues to show possible affordances • Perceived affordances should match actual affordances • Physical and virtual affordances should match Merge Cube Tangible Molecules
  • 18. Summary •When designing AR interfaces, think of: • Physical Components • Physical affordances • Virtual Components • Virtual affordances • Interface Metaphors • Tangible AR or similar
  • 19. Design Guidelines By Vendors Platform driven By Designers User oriented By Practitioners Experience based By Researchers Empirically derived
  • 20. Design Patterns “Each pattern describes a problem which occurs over and over again in our environment, and then describes the core of the solution to that problem in such a way that you can use this solution a million times over, without ever doing it the same way twice.” – Christopher Alexander et al. Use Design Patterns to Address Reoccurring Problems C.A. Alexander, A Pattern Language, Oxford Univ. Press, New York, 1977.
  • 21. Design Patterns for Handheld AR • Set of design patterns for Handheld AR • Title: a short phase that is memorable. • Definition: what experiences the prepattern supports • Description: how and why the prepattern works, what aspects of game design it is based on. • Examples: Illustrate the meaning of the pre-pattern. • Using the pre-patterns: reveal the challenges and context of applying the pre-patterns. Xu, Y., Barba, E., Radu, I., Gandy, M., Shemaka, R., Schrank, B., ... & Tseng, T. (2011, October). Pre-patterns for designing embodied interactions in handheld augmented reality games. In 2011 IEEE International Symposium on Mixed and Augmented Reality-Arts, Media, and Humanities (pp. 19-28). IEEE.
  • 22. Handheld AR Design Patterns Title Meaning Embodied Skills Device Metaphors Using metaphor to suggest available player actions Body A&S Naïve physics Control Mapping Intuitive mapping between physical and digital objects Body A&S Naïve physics Seamful Design Making sense of and integrating the technological seams through game design Body A&S World Consistency Whether the laws and rules in physical world hold in digital world Naïve physics Environmental A&S Landmarks Reinforcing the connection between digital- physical space through landmarks Environmental A&S Personal Presence The way that a player is represented in the game decides how much they feel like living in the digital game world Environmental A&S Naïve physics Living Creatures Game characters that are responsive to physical, social events that mimic behaviours of living beings Social A&S Body A&S Body constraints Movement of one’s body position constrains another player’s action Body A&S Social A&S Hidden information The information that can be hidden and revealed can foster emergent social play Social A&S Body A&S *A&S = awareness and skills
  • 23. Google ARCore Interface Guidelines https://developers.google.com/ar/design
  • 24. ARCore Elements App • Mobile AR app demonstrating interface guidelines • Multiple Interface Guidelines • User interface • User environment • Object manipulation • Off-screen markers • Etc.. • Test on Device • https://play.google.com/store/apps/details?id=com.google.ar.unity.ddelements
  • 25. ARKit Interface Guidelines • developer.apple.com/design/human-interface-guidelines/ios/system-capabilities/augmented-reality/
  • 26. Microsoft Mixed Reality Design Guidelines • https://docs.microsoft.com/en-us/windows/mixed-reality/design/design
  • 27. MRTK Interface Examples • Examples of UX Building Blocks • http://aka.ms/MRTK
  • 28. The Trouble with AR Design Guidelines 1) Rapidly evolving best practices Still a moving target, lots to learn about AR design Slowly emerging design patterns, but often change with OS updates Already major differences between device platforms 2) Challenges with scoping guidelines Often too high level, like “keep the user safe and comfortable” Or, too application/device/vendor-specific 3) Best guidelines come from learning by doing Test your designs early and often, learn from your own “mistakes” Mind differences between VR and AR, but less so between devices
  • 30. From Reality to Virtual Reality Internet of Things Augmented Reality Virtual Reality Real World Virtual World
  • 31. Virtual Reality (VR) • Users immersed in Computer Generated environment • HMD, gloves, 3D graphics, body tracking
  • 32. Goal of Virtual Reality “.. to make it feel like you’re actually in a place that you are not.” Palmer Luckey Co-founder, Oculus
  • 33. Virtual Reality Definition •Defining Characteristics • Immersion • User feels immersed in computer generated scene • Interaction • The virtual content can be interacted with • Independence • User can have independent view and react to environment
  • 34. From Immersion to Presence • Immersion: describes the extent to which technology is capable of delivering a vivid illusion of reality to the senses of a human participant. • Presence: a state of consciousness, the (psychological) sense of being in the virtual environment. • So Immersion, defined in technical terms, is capable of producing a sensation of Presence • Goal of VR: Create a high degree of Presence • Make people believe they are really in Virtual Environment Slater, M., & Wilbur, S. (1997). A framework for immersive virtual environments (FIVE): Speculations on the role of presence in virtual environments. Presence: Teleoperators and virtual environments, 6(6), 603-616.
  • 35. Presence .. “The subjective experience of being in one place or environment even when physically situated in another” Witmer, B. G., & Singer, M. J. (1998). Measuring presence in virtual environments: A presence questionnaire. Presence: Teleoperators and virtual environments, 7(3), 225-240.
  • 36. Reality vs. Virtual Reality • In a VR system there are input and output devices between human perception and action
  • 37. Using Technology to Stimulate Senses • Simulate output • E.g. simulate real scene • Map output to devices • Graphics to HMD • Use devices to stimulate the senses • HMD stimulates eyes Visual Simulation 3D Graphics HMD Vision System Brain Example: Visual Simulation Human-Machine Interface
  • 38. Key Technologies for VR Systems • Display (Immersion) • Stimulate senses • visual, auditory, tactile sense, etc.. • Tracking (Independence) • Changing viewpoint • independent movement • Input Devices (Interaction) • Supporting user interaction • User input
  • 41. Creating an Immersive Experience •Head Mounted Display • Immerse the eyes •Projection/Large Screen • Immerse the head/body •Future Technologies • Neural implants • Contact lens displays, etc
  • 42. VR Head Mounted Displays • Wide range of HMDs available
  • 43. Key Properties of HMDs • Lens • Focal length, Field of View • Occularity, Interpupillary distance • Eye relief, Eye box • Display • Resolution, contrast • Power, brightness • Refresh rate • Ergonomics • Size, weight • Wearability
  • 45. HMD Basic Principles • Use display with optics to create illusion of virtual screen
  • 46. Simple Magnifier HMD Design p q Eyepiece (one or more lenses) Display (Image Source) Eye f Virtual Image 1/p + 1/q = 1/f where p = object distance (distance from image source to eyepiece) q = image distance (distance of image from the lens) f = focal length of the lens
  • 47. Distortion in Lens Optics A rectangle Maps to this
  • 49. To Correct for Distortion • Must pre-distort image • This is a pixel-based distortion • Use shader programming
  • 51. Interpupillary Distance (IPD) nHorizontal distance between a user's eyes nDistance between the two optical axes in a HMD nTypical IPD ~ 63mm
  • 52. Field of View Monocular FOV is the angular subtense of the displayed image as measured from the pupil of one eye. Total FOV is the total angular size of the displayed image visible to both eyes. Binocular(or stereoscopic) FOV refers to the part of the displayed image visible to both eyes. FOV may be measured horizontally, vertically or diagonally.
  • 54. Vive HMD (Released 2016) • Field of View • 110 degrees horizontal, 110 degrees horizontal • Resolution • 1080×1200 per eye • Refresh rate • 90 Hz • Other features • Adjustable lens separation • Over the ear headphones • Integrated tracking • Tethered to PC
  • 56. Foveated Displays • Combine high resolution center with low resolution periphery
  • 57. Varjo Display Varjo resolution Non-Varjo resolution Focus area (27° x 27°) 70 PPD, 1920 x 1920px 115° FOV 30 PPD 2880 x 2720px • 1 LCD (wide FOV) • 1 uOLED panel (centre)
  • 58. Varjo XR-3 Demo – Threading a Needle https://www.youtube.com/watch?v=5iEwlOEUQjI
  • 60. Computer Based vs. Mobile VR Displays
  • 61. Google Cardboard • Released 2014 (Google 20% project) • >10 million shipped/given away • Easy to use developer tools + =
  • 62. Multiple Mobile VR Viewers Available
  • 63. VR Head Mounted Displays (HMDs) • HTC Vive Pro - $1100 USD • 110 degree FOV, 2 handed input • Tethered VR, room scale tracking • Oculus Quest - $400 USD • 110 degree FOV, 2 handed input • Self contained VR, inside out tracking • Google Cardboard - $10 USD • 90 degree FOV, button input • Mobile VR, 3 DOF tracking
  • 64. HMD Design Trade-offs • Resolution vs. field of view • As FOV increases, resolution decreases for fixed pixels • Eye box vs. field of view • Larger eye box limits field of view • Size, Weight and Power vs. everything else vs.
  • 65. Projection/Large Display Technologies • Room Scale Projection • CAVE, multi-wall environment • Dome projection • Hemisphere/spherical display • Head/body inside • Vehicle Simulator • Simulated visual display in windows
  • 66. Stereo Projection • Active Stereo • Active shutter glasses • Time synced signal • Brighter images • More expensive • Passive Stereo • Polarized images • Two projectors (one/eye) • Cheap glasses (powerless) • Lower resolution/dimmer • Less expensive
  • 67. CAVE • Developed in 1992, EVL University of Illinois Chicago • Multi-walled stereo projection environment • Head tracked active stereo Cruz-Neira, C., Sandin, D. J., DeFanti, T. A., Kenyon, R. V., & Hart, J. C. (1992). The CAVE: audio visual experience automatic virtual environment. Communications of the ACM, 35(6), 64-73.
  • 68. Typical CAVE Setup • 4 sides, rear projected stereo images
  • 69. Demo Video – Wisconsin CAVE https://www.youtube.com/watch?v=mBs-OGDoPDY
  • 72. Multi-User CAVEs • Limitation of CAVEs • Stereo projection from only one user’s viewpoint • Solution • Higher frequency projectors and time slicing Kulik, A., Kunert, A., Beck, S., Reichel, R., Blach, R., Zink, A., & Froehlich, B. (2011). C1x6: a stereoscopic six-user display for co-located collaboration in shared virtual environments. ACM Transactions on Graphics (TOG), 30(6), 188.
  • 74. Walt Disney Imagineering’s Digital Immersive Showroom (DISH)
  • 75. Technology Large working volume 10.5m x 7.5m x 4.0m 360 Surround Projection Front projection Five 4K @ 120 Hz 3D projectors One 2K @ 120 Hz 3D projectors Complex screen geometry Rounded corners Overhanging ceiling Tech Viz, Unreal, Panda3D
  • 77. Allosphere • Univ. California Santa Barbara • One of a kind facility • Immersive Spherical display • 10 m diameter • Inside 3 story anechoic cube • Passive stereoscopic projection • 26 projectors, 146 speakers • Visual tracking system for input • See http://www.allosphere.ucsb.edu/ Kuchera-Morin, J., Wright, M., Wakefield, G., Roberts, C., Adderton, D., Sajadi, B., ... & Majumder, A. (2014). Immersive full-surround multi-user system design. Computers & Graphics, 40, 10-21.
  • 79. Allosphere Research • Multi-disciplinary research • Science, art, engineering • Typical research projects • Brain imaging • fMRI imaging data • Atomic bonding • Bond simulation models • Nano medicine • Simulate chemotherapy • Graph browser • Mathematical visualization • Etc Brain Imaging Hydrogen bond Nano Medicine
  • 80. Vehicle Simulators • Combine VR displays with vehicle • Visual displays on windows • Motion base for haptic feedback • Audio feedback • Physical vehicle controls • Steering wheel, flight stick, etc • Full vehicle simulation • Emergencies, normal operation, etc • Weapon operation • Training scenarios
  • 81. Demo: Boeing 787 Simulator https://www.youtube.com/watch?v=3iah-blsw_U
  • 84. Audio Displays Definition: Computer interfaces that provide synthetic sound feedback to users interacting with the virtual world. The sound can be monoaural (both ears hear the same sound), or binaural (each ear hears a different sound) Burdea, Coiffet (2003)
  • 85. Motivation • Most of the focus in Virtual Reality is on the visuals • GPUs continue to drive the field • Users want more • More realism, More complexity, More speed • However, sound can significantly enhance realism • Example: Mood music in horror games • Sound can provide valuable user interface feedback • Example: Alert in training simulation
  • 86. 360 Video + Spatial Audio (wear headphones) • https://www.youtube.com/watch?v=G8pABGosD38
  • 87. Creating/Capturing Sounds • Sounds can be captured from nature (sampled) or synthesized computationally • High-quality recorded sounds are • Cheap to play • Easy to create realism • Expensive to store and load • Difficult to manipulate for expressiveness • Synthetic sounds are • Cheap to store and load • Easy to manipulate • Expensive to compute before playing • Difficult to create realism
  • 88. Types of Audio Recordings • Monaural: Recording with one microphone – no positioning • Stereo Sound: Recording with two microphones placed several feet apart. Perceived sound position as recorded by microphones. • Binaural: Recording microphones embedded in a dummy head. Audio filtered by head shape. • 3D Sound: Using tiny microphones in the ears of a real person. Generate HRTF based on ear shape and audio response.
  • 89. Capturing 3D Audio for Playback • Binaural recording • 3D Sound recording, from microphones in simulated ears • Hear some examples (use headphones) • http://binauralenthusiast.com/examples/
  • 91. Synthetic Sounds • Complex sounds can be built from simple waveforms (e.g., sawtooth, sine) and combined using operators • Waveform parameters (frequency, amplitude) could be taken from motion data, such as object velocity • Can combine wave forms in various ways • This is what classic synthesizers do • Works well for many non-speech sounds
  • 92. Audio Display Properties Presentation Properties • Number of channels • Sound stage • Localization • Masking • Amplification Logistical Properties • Noise pollution • User mobility • Interface with tracking • Integration • Portability • Throughput • Safety • Cost
  • 93. Audio Displays: Head-worn Ear Buds On Ear Open Back Closed Bone Conduction
  • 94. Audio Displays: Room Mounted • Stereo, 5.1, 7.1, 11.1, etc • Sound cube 11.1 Speaker Array
  • 95. Spatialization vs. Localization • Spatialization is the processing of sound signals to make them emanate from a point in space • This is a technical topic • Localization is the ability of people to identify the source position of a sound • This is a human topic, some people are better at it than others.
  • 96. Stereo Sound • Seems to come from inside users head • Follows head motion as user moves head
  • 97. 3D Spatial Sound • Seems to be external to the head • Fixed in space when user moves head • Has reflected sound properties
  • 98. Example: Sound Spatialisation (use headphones) https://youtu.be/3mAXU1BH1Iw
  • 99. Spatialized Audio Effects • Naïve approach • Simple left/right shift for lateral position • Amplitude adjustment for distance • Easy to produce using consumer hardware/software • Does not give us "true" realism in sound • No up/down or front/back cues • We can use multiple speakers for this • Surround the user with speakers • Send different sound signals to each one
  • 100. Example: The BoomRoom • Use surround speakers to create spatial audio effects • Gesture based interaction • https://www.youtube.com/watch?time_continue=54&v=6RQMOyQ3lyg
  • 101. Audio Localization • Main cues used by humans to localize sound: 1. Interaural time differences: Time difference for sound wave to travel between ears 2. Interaural level differences: For high frequency sounds (> 1.5 kHz), volume difference between ears used to determine source direction 3. Spectral filtering done by outer ears: Ear shape changes frequency heard
  • 102. Interaural Time Difference • Takes fixed time to travel between ears • Can use time difference to determine sound location
  • 103. Spectral Filtering Ear shape filters sound depending on direction it is coming from. This change in frequency determines sound source elevation.
  • 104. Head-Related Transfer Functions (HRTFs) • A set of functions that model how sound from a source at a known location reaches the eardrum
  • 105. More About HRTFs • Functions take into account, • Individual ear shape • Slope of shoulders • Head shape • So, each person has his/her own HRTF! • Need to have a parameterizable HRTFs • Some sound cards/APIs allow specifying an HRTF
  • 107. Measuring HRTFs • Putting microphones in Manikin or human ears • Playing sound from fixed positions • Record response
  • 108. Environmental Effects • Sound is also changed by objects in the environment • Can reverberate off of reflective objects • Can be absorbed by objects • Can be occluded by objects • Doppler shift • Moving sound sources • Need to simulate environmental audio properties • Takes significant processing power
  • 109. Sound Reverberation • Need to consider first and second order reflections • Need to model material properties, objects in room, etc
  • 111. The Tough Part • All of this takes a lot of processing • Need to keep track of • Multiple (possibly moving) sound sources • Path of sounds through a dynamic environment • Position and orientation of listener(s) • Most sound cards only support a limited number of spatialized sound channels • Increasingly complex geometry increases load on audio system as well as visuals • That's why we fake it ;-) • GPUs might change this too!
  • 112. GPU Based Audio Acceleration • Using GPU for audio physics calculations • AMD TrueAudio Next - https://gpuopen.com/true-audio-next/ https://www.youtube.com/watch?v=Z6nwYLHG8PU
  • 113. Audio Software SDKs • Modern CPUs are fast enough spatial audio can be generated without dedicated hardware • Several 3D audio SDKs exist • OpenAL • www.openal.org • Open source, cross platform • Renders multichannel three-dimensional positional audio • Google VR SDK • Android, iOS, Unity • https://developers.google.com/vr/concepts/spatial-audio • Unity • Unity Audio Spatializer SDK • Microsoft DirectX, MRTK, etc
  • 114. Google VR Spatial Audio Demo https://www.youtube.com/watch?v=I9zf4hCjRg0&feature=youtu.be
  • 115. Demo: Spatial Audio In VR • AltspaceVR spatial audio for speaker discrimination • https://youtu.be/yKxhjqW2Vuc
  • 116. Designing Spatial Audio • There are several tools available for designing 3D audio • E.g. Facebook Spatial Workstation • Audio tools for cinematic VR and360 video • https://facebook360.fb.com/spatial-workstation/ • Spatial Audio Designer • Mixing of surround sound and 3D audio • http://www.newaudiotechnology.com/en/products/spatial-audio-designer/
  • 118. Haptic Feedback • Greatly improves realism • Hands and wrist are most important • High density of touch receptors • Two kinds of feedback: • Touch Feedback • information on texture, temperature, etc. • Does not resist user contact • Force Feedback • information on weight, and inertia. • Actively resists contact motion
  • 119. Active Haptics • Actively resists motion • Key properties • Force resistance • Frequency Response • Degrees of Freedom • Latency
  • 120. Force Feedback Joysticks • WingMan Force 3D • Inexpensive ($60) • Actuators that can move the joystick given system commands • Max 3.3 N of force • Force feedback driving wheel
  • 121. Example: Phantom Omni • Combined stylus input/haptic output • 6 DOF haptic feedback
  • 123. Haptic Glove • Many examples of haptic gloves • Typically use mechanical device to provide haptic feedback
  • 124. HaptX Gloves • Tactile + Haptic feedback • Tactile actuators • 130 feedback points/hand • Force feedback exo-skeleton • 8lbs force/finger • Magnetic finger tracking • 2 mm tracking accuracy • https://haptx.com/
  • 126. Homebrew Glove • LucidVR Budget Haptic Glove • Simple hand tracking, force feedback, • $22 in parts.. • https://hackaday.io/project/178243- lucidvr-budget-haptic-glove
  • 127. Passive Haptics • Not controlled by system • Use real props (Styrofoam for walls) • Pros • Cheap • Large scale • Accurate • Cons • Not dynamic • Limited use
  • 128. UNC Being There Project
  • 129. Passive Haptic Paddle • Using physical props to provide haptic feedback • http://www.cs.wpi.edu/~gogo/hive/
  • 130. Tactile Feedback Interfaces • Goal: Stimulate skin tactile receptors • Using different technologies • Air bellows • Jets • Actuators (commercial) • Micropin arrays • Electrical (research) • Neuromuscular stimulations (research)
  • 131. Vibrotactile Cueing Devices • Vibrotactile feedback has been incorporated into many devices • Can we use this technology to provide scalable, wearable touch cues?
  • 132. Vibrotactile Feedback Projects Navy TSAS Project TactaBoard and TactaVest
  • 133. Teslasuit • Full body haptic feedback - https://teslasuit.io/ • Electrical muscle stimulation
  • 136. Immersion and Tracking • Motivation: For immersion, when the user changes position in reality the VR view also needs to change • Requires tracking of the user’s pose (position/orientation) in the real world and mapping to the Virtual World
  • 137. Tracking in VR • Need for Tracking • User turns their head and the VR graphics scene changes • User wants to walking through a virtual scene • User reaches out and grab a virtual object • The user wants to use a real prop in VR • All of these require technology to track the user or object • Continuously provide information about position and orientation Head Tracking Hand Tracking
  • 138. Tracking and Rendering in VR Tracking fits into the graphics pipeline for VR
  • 139. • Degree of Freedom = independent movement about an axis • 3 DoF Orientation = roll, pitch, yaw (rotation about x, y, or z axis) • 3 DoF Translation = movement along x,y,z axis • Different requirements • User turns their head in VR -> needs 3 DoF orientation tracker • Moving in VR -> needs a 6 DoF tracker (r,p,y) and (x, y, z) Degrees of Freedom
  • 140. Tracking Technologies § Active (device sends out signal) • Mechanical, Magnetic, Ultrasonic • GPS, Wifi, cell location § Passive (device senses world) • Inertial sensors (compass, accelerometer, gyro) • Computer Vision • Marker based, Natural feature tracking § Hybrid Tracking • Combined sensors (e.g. Vision + Inertial)
  • 141. Key Tracking Performance Criteria • Static Accuracy • Dynamic Accuracy • Latency • Update Rate • Tracking Jitter • Signal to Noise Ratio • Tracking Drift
  • 142. Static vs. Dynamic Accuracy • Static Accuracy • Ability of tracker to determine coordinates of a position in space • Depends on sensor sensitivity, errors (algorithm, operator), environment • Dynamic Accuracy • System accuracy as sensor moves • Depends on static accuracy • Resolution • Minimum change sensor can detect • Repeatability • Same input giving same output
  • 143. Tracker Latency, Update Rate • Latency: Time between change in object pose and time sensor detects the change • Large latency (> 10 ms) can cause simulator sickness • Larger latency (> 50 ms) can reduce VR immersion • Update Rate: Number of measurements per second • Typically > 30 Hz
  • 144. Tracker Jitter, Signal to Noise Ratio • Jitter: Change in tracker output when tracked object is stationary • Range of change is sensor noise • Tracker with no jitter reports constant value if tracked object stationary • Makes tracker data changing randomly about average value • Signal to Noise Ratio: Signal in data relative to noise • Found from calculating mean of samples in known positions
  • 145. Tracker Drift • Drift: Steady increase in tracker error over time • Accumulative (additive) error over time • Relative to Dynamic sensitivity over time • Controlled by periodically recalibration (zeroing)
  • 146. MechanicalTracker (Active) •Idea: mechanical arms with joint sensors •++: high accuracy, haptic feedback •-- : cumbersome, expensive Microscribe Sutherland
  • 147. Example: Fake Space Boom • BOOM (Binocular Omni-Orientation Monitor) • Counterbalanced arm with 100 o FOV HMD mounted on it • 6 DOF, 4mm position accuracy, 300Hz sampling, < 5 ms latency
  • 148. Demo: Fake Space Tele Presence • Using Boom with HMD to control robot view • https://www.youtube.com/watch?v=QpTQTu7A6SI
  • 149. MagneticTracker (Active) • Idea: difference between a magnetic transmitter and a receiver • ++: 6DOF, robust • -- : wired, sensible to metal, noisy, expensive • -- : error increases with distance Flock of Birds (Ascension)
  • 150. Example: Razer Hydra • Developed by Sixense • Magnetic source + 2 wired controllers • Short range (< 1 m), Precision of 1mm and 1o • 62Hz sampling rate, < 50 ms latency • $600 USD
  • 151. Razor Hydra Demo • https://www.youtube.com/watch?v=jnqFdSa5p7w
  • 153. InertialTracker (Passive) • Idea: measuring linear and angular orientation rates (accelerometer/gyroscope) • ++: no transmitter, cheap, small, high frequency, wireless • -- : drift, hysteris only 3DOF IS300 (Intersense) Wii Remote
  • 154. Types of Inertial Trackers • Gyroscopes • The rate of change in object orientation or angular velocity is measured. • Accelerometers • Measure acceleration. • Can be used to determine object position, if the starting point is known. • Inclinometer • Measures inclination, ”level” position. • Like carpenter’s level, but giving electrical signal.
  • 155. Example: MEMS Sensor • Uses spring-supported load • Reacts to gravity and inertia • Changes its electrical parameters • < 5 ms latency, 0.01o accuracy • up to 1000Hz sampling • Problems • Rapidly accumulating errors. • Error in position increases with the square of time. • Cheap units can get position drift of 4 cm in 2 seconds. • Expensive units have same error in 200 seconds. • Not good for measuring location • Need to periodically reset the output
  • 156. Demo: MEMS Sensor Working https://www.youtube.com/watch?v=9eSnxebfuxg
  • 157. MEMS Gyro Bias Drift • Zero reading of MEMS Gyro drifts over time due to noise
  • 158. Acoustic - UltrasonicsTracker • Idea:Time of Flight or Phase-Coherence SoundWaves • ++: Small, Cheap • -- : 3DOF, Line of Sight, Low resolution, Affected by Environment (pressure, temperature), Low sampling rate Ultrasonic Logitech IS600
  • 159. OpticalTracker (Passive) • Idea: Image Processing and ComputerVision • Specialized • Infrared, Retro-Reflective, Stereoscopic • Monocular BasedVision Tracking ART Hi-Ball
  • 161. HiBallTracking System (3rd Tech) • Inside-Out Tracker • $50K USD • Scalable over large area • Fast update (2000Hz) • Latency Less than 1 ms. • Accurate • Position 0.4mm RMS • Orientation 0.02° RMS
  • 163. Example: Oculus Quest • Inside out tracking • Four cameras on corner of display • Searching for visual features • On setup creates map of room
  • 165. Occipital Bridge Engine/Structure Core • Inside out tracking • Uses structured light • Better than room scale tracking • Integrated into bridge HMD • https://structure.io/
  • 167. Example: Vive Lighthouse Tracking • Outside-in tracking system • 2 base stations • Each with 2 laser scanners, LED array • Headworn/handheld sensors • 37 photo-sensors in HMD, 17 in hand • Additional IMU sensors (500 Hz) • Performance • Tracking server fuses sensor samples • Sampling rate 250 Hz, 4 ms latency • See http://doc-ok.org/?p=1478
  • 168. Lighthouse Components • sd Base station - IR LED array - 2 x scanned lasers Head Mounted Display - 37 photo sensors - 9 axis IMU
  • 170. How Lighthouse Tracking Works • Position tracking using IMU • 500 Hz sampling • But drifts over time • Drift correction using optical tracking • IR synchronization pulse (60 Hz) • Laser sweep between pulses • Photo-sensors recognize sync pulse, measure time to laser • Know when sensor hit and which sensor hit • Calculate position of sensor relative to base station • Use 2 base stations to calculate pose • Use IMU sensor data between pulses (500Hz) • See http://xinreality.com/wiki/Lighthouse
  • 171. Lighthouse Tracking Base station scanning https://www.youtube.com/watch?v=avBt_P0wg_Y https://www.youtube.com/watch?v=oqPaaMR4kY4 Room tracking
  • 172. Tracking Coordinate Frames • There can be several coordinate frames to consider • Head pose with respect to real world • Coordinate fame of tracking system wrt HMD • Position of hand in coordinate frame of hand tracker
  • 173. Example: Finding your hand in VR • Using Lighthouse and LeapMotion • Multiple Coordinate Frames • LeapMotion tracks hand in LeapMotion coordinate frame (HLM) • LeapMotion is fixed in HMD coordinate frame (LMHMD) • HMD is tracked in VR coordinate frame (HMDVR) (using Lighthouse) • Where is your hand in VR coordinate frame? • Combine transformations in each coordinate frame • HVR = HLM x LMHMD x HMDVR
