4 Mapping the Application
The document discusses techniques for mapping web applications to identify security vulnerabilities and attack surfaces. It covers various methods such as automated and user-directed spidering, limitations of web spiders, and tools for discovering hidden content. The document also emphasizes the importance of analyzing the application's behavior, entry points for user input, and server-side functionality to uncover potential weaknesses.
In this document
Powered by AI
Introduction to the course on CNIT 129S: Securing Web Applications, covering Chapter 4 on mapping the application.
Discusses mapping web applications, identifying content, functionality, hidden aspects, attack surfaces, and vulnerabilities.
Techniques for enumerating content via web spiders that load pages and identify links within targeted domains.
Focuses on web application spiders, their ability to parse HTML forms, fill them, and extract URLs while mentioning tools like Zed Attack Proxy.
Explains the role of robots.txt in guiding web spiders and potential content discovery.
Outlines limitations of automated spidering such as missed navigation mechanisms, form validation, and issues with user authentication.
User-directed spidering allows manual interaction with applications for testing, providing advantages in navigation and data entry.
Discussion on utilizing browser tools like Chrome's Developer Tools for examining requests and responses without a proxy.
Methods for discovering hidden content in applications, including testing features, backup archives, and configuration files.
Introduction to brute-force techniques in mapping, using tools like Burp's brute-forcer and Dirb.
Analyzing patterns and clues from published content to find vulnerabilities.
Using Google's Skipfish, public information, and cached content from search engines to identify vulnerabilities.
Overview of tools like Nikto and Wikto for scanning servers and identifying known vulnerabilities.
Describes mapping functional paths in applications and key areas to focus on in security assessments.
Discusses identifying request parameters, RESTful URLs, HTTP headers, and the importance of analyzing user data channels.
Techniques for identifying server-side technologies using banner grabbing and other fingerprinting methods.
Specific steps for penetration testing, including identifying entry points and examining various inputs.
Understanding server-side functionality through modification and observation of application behavior.
Exploration of error handling processes in applications and how it may reveal vulnerabilities.
Techniques for isolating unique behaviors within applications that may expose security risks.Discussing various aspects of mapping the attack surface, including client-side validation and session handling.Practical examples of attack surface mapping, demonstrating potential vulnerabilities and testing areas in web applications.
More Related Content
Similar to 4 Mapping the Application
4 Mapping the Application
- 1. CNIT 129S: Securing WebApplications Ch 4: Mapping the Applicatio n Sl 56 Updated 2-9-2023
- 2. Mapping • Enumerate application'scontent and functionalit y • Some is hidden, requiring guesswork and luck to discove r • Examine every aspect of behavior, security mechanisms, and technologie s • Determine attack surface and vulnerabilities
- 3.
- 4. Web Spiders • Loadweb page, fi nd all links on i t • (into the targeted domain ) • Load those pages, fi nd more link s • Continue until no new content is discovered
- 5. Web Application Spiders •Also parse HTML form s • Fill in the forms with preset or random values and submit the m • Trying to walk through multistage functionalit y • Can also parse client-side JavaScript to extract URL s • Tool: Zed Attack Prox y • WebScarab & CAT seem old and abandoned
- 6. Robots.txt • Intended tostop search engine s • May guide spiders to interesting content
- 7. Limitations of Automatic Spidering •May fail to handle unusual navigation mechanisms, such as dynamically created JavaScript menu s • So it may miss whole areas of an applicatio n • Links buried in compiled client-side objects like ActiveX or Java may be missed
- 8. Limitations of Automatic Spidering •Forms may have validation checks, such as user registration form s • Email address, telephone number, address, zip cod e • Too complex for most spiders, which use a single text string for all form fi eld s • Spider cannot understand the "Invalid" error messages
- 9. Limitations of Automatic Spidering •Spiders only fetch each URL onc e • But applications use forms-based navigation, in which the same URL may return different content and function s • For example, a bank may implement every user action with a POST to /account.jsp with parameters determining the actio n • Spiders aren't smart enough to handle that

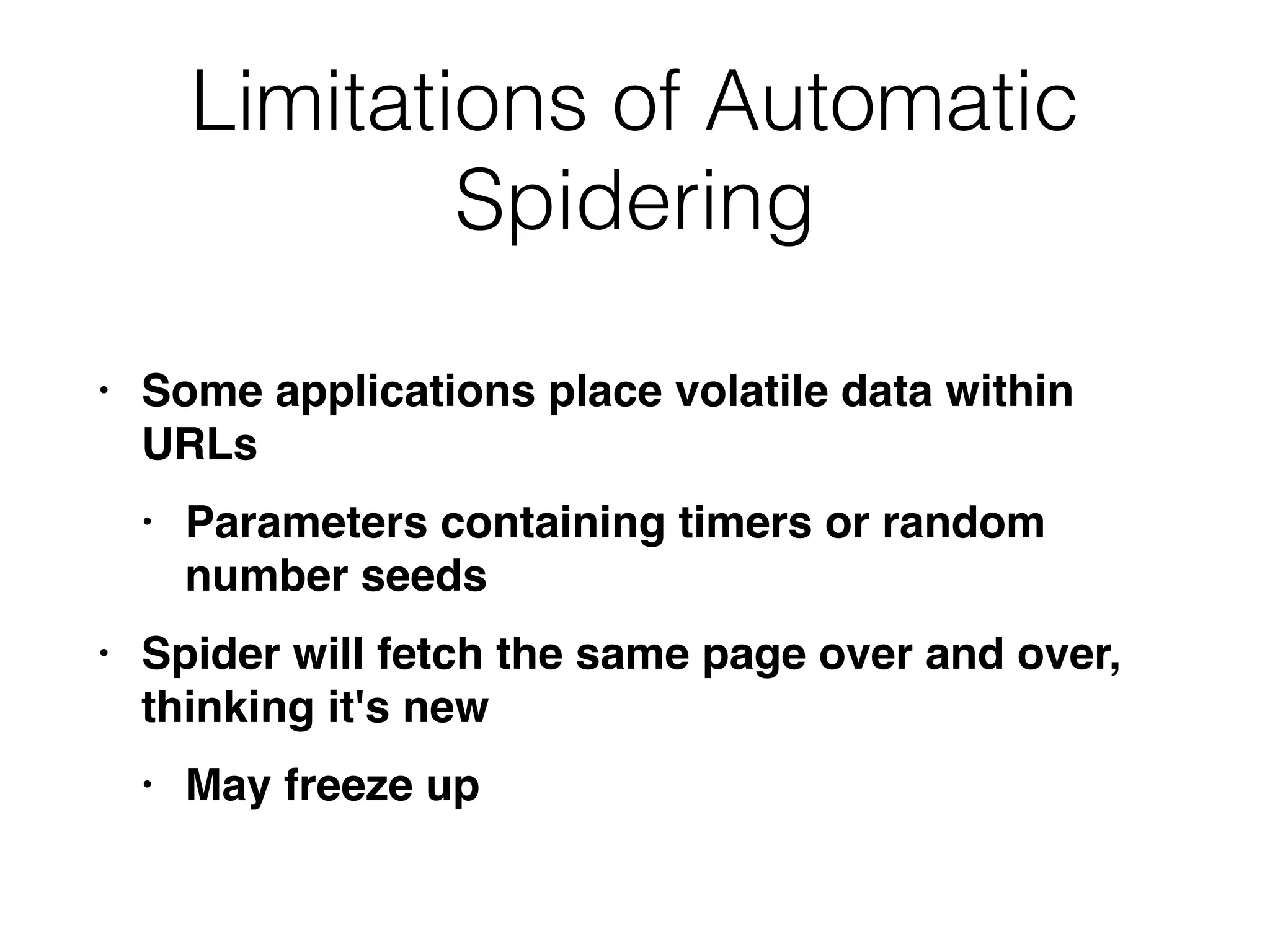

- 10. Limitations of Automatic Spidering •Some applications place volatile data within URL s • Parameters containing timers or random number seed s • Spider will fetch the same page over and over, thinking it's ne w • May freeze up

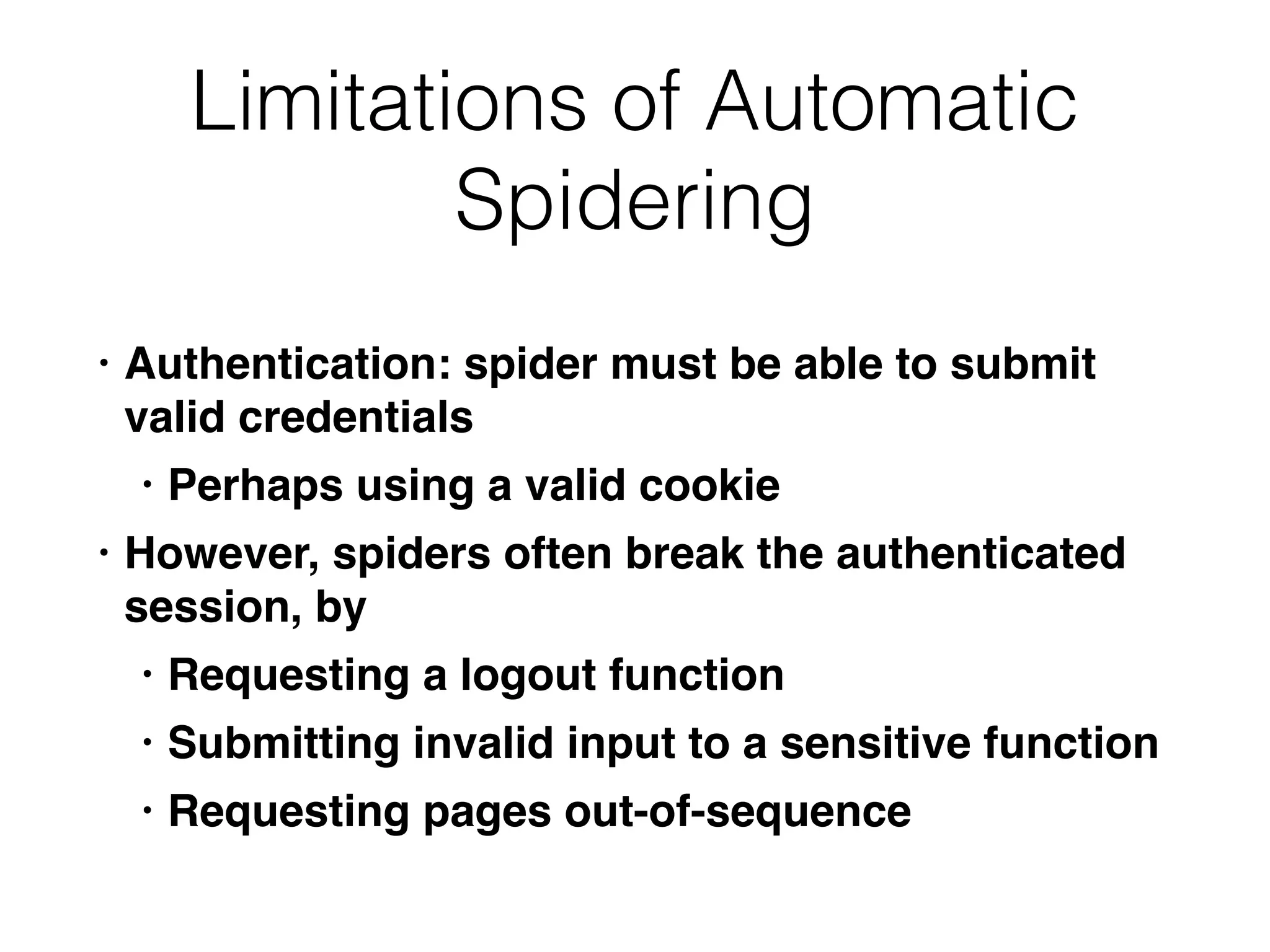

- 11. Limitations of Automatic Spidering •Authentication: spider must be able to submit valid credential s • Perhaps using a valid cooki e • However, spiders often break the authenticated session, b y • Requesting a logout functio n • Submitting invalid input to a sensitive functio n • Requesting pages out-of-sequence
- 12. Warning • Spiders may fi ndan administrative page and click every lin k • Delete User, Shut Down Database, Restart Server...
- 13. User-Directed Spidering • Moresophisticated and controlled technique than automated spidering, usually preferabl e • User walks through application using a browser connected to Burp (or another proxy ) • The proxy collects all requests and responses
- 14. Preparing Burp • LaunchBurp Suite • Click Next, Start Burp • On the Proxy Tab, turn off Intercept • Click Open Browser
- 15. Shopping • In Burp'sbrowser, go to http://hackazon.samsclass.inf o • Click an item, then click Add to car t • Repeat for a second item

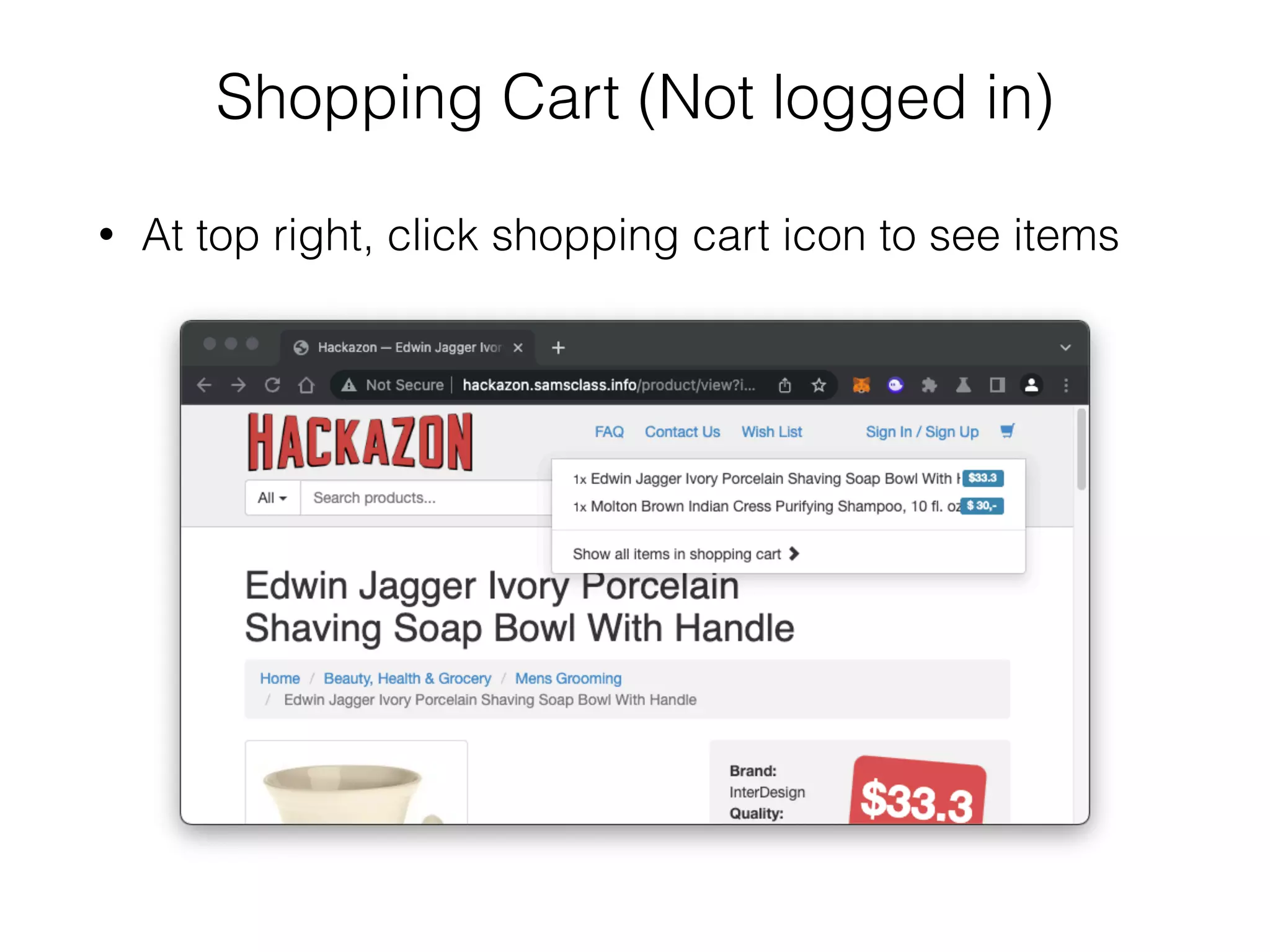

- 16. Shopping Cart (Notlogged in) • At top right, click shopping cart icon to see items
- 17. Shopping • In Burp,on the Target tab • On the Site map sub-tab • Expand http://hackazon.samsclass.info • Expand cart • Expand add • Expand user

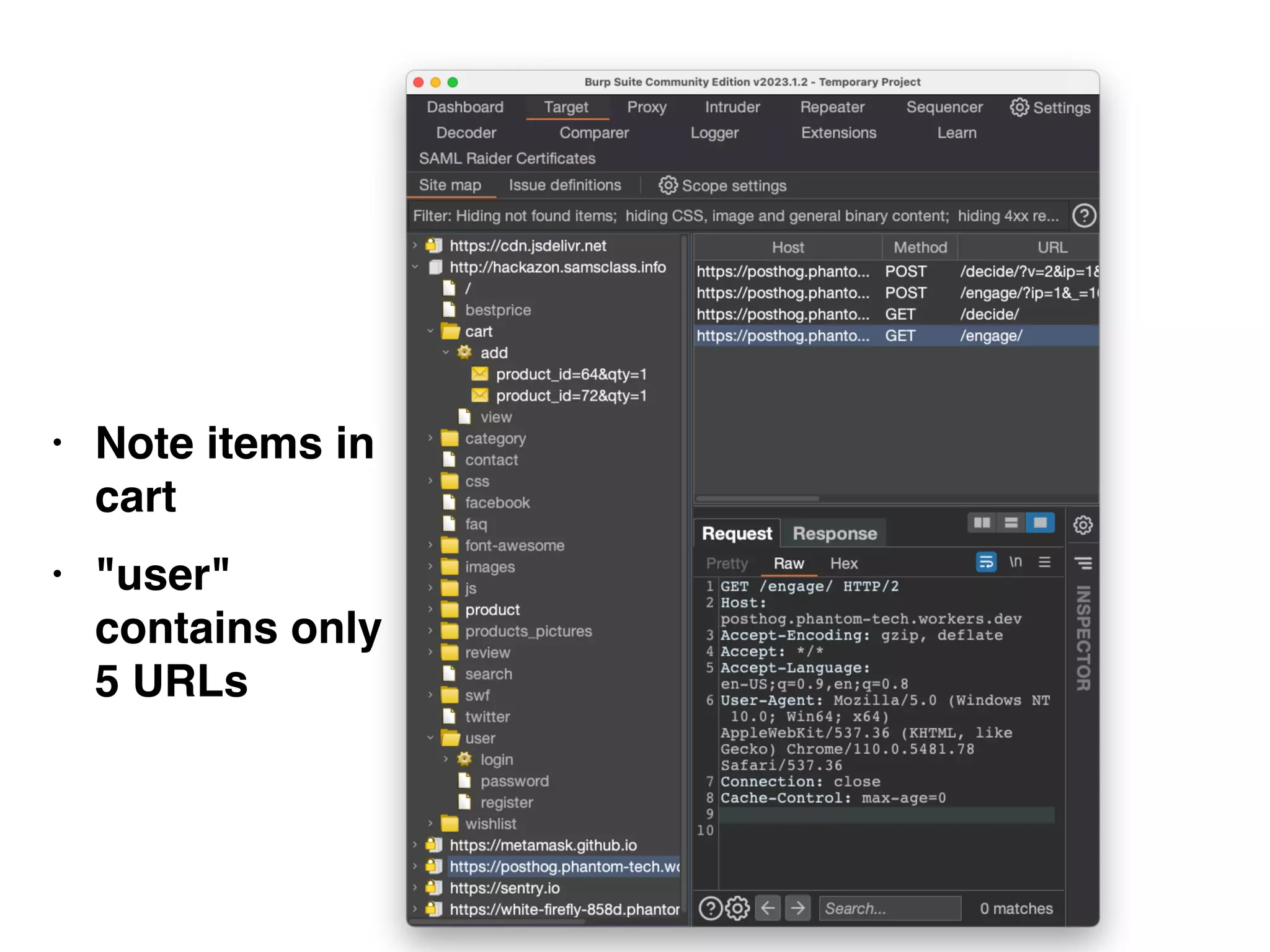

- 18. • Note itemsin car t • "user" contains only 5 URLs
- 19. Logging In • Inthe Hackazon page, at the top right, click Sign U p • Register a new user • Log out • Sign in
- 20.
- 21.
- 22. Advantages of User-Directed Spidering •User can follow unusual or complex navigation mechanism s • User can enter valid data where neede d • User can log in as neede d • User can avoid dangerous functionality, such as deleteUser.jsp

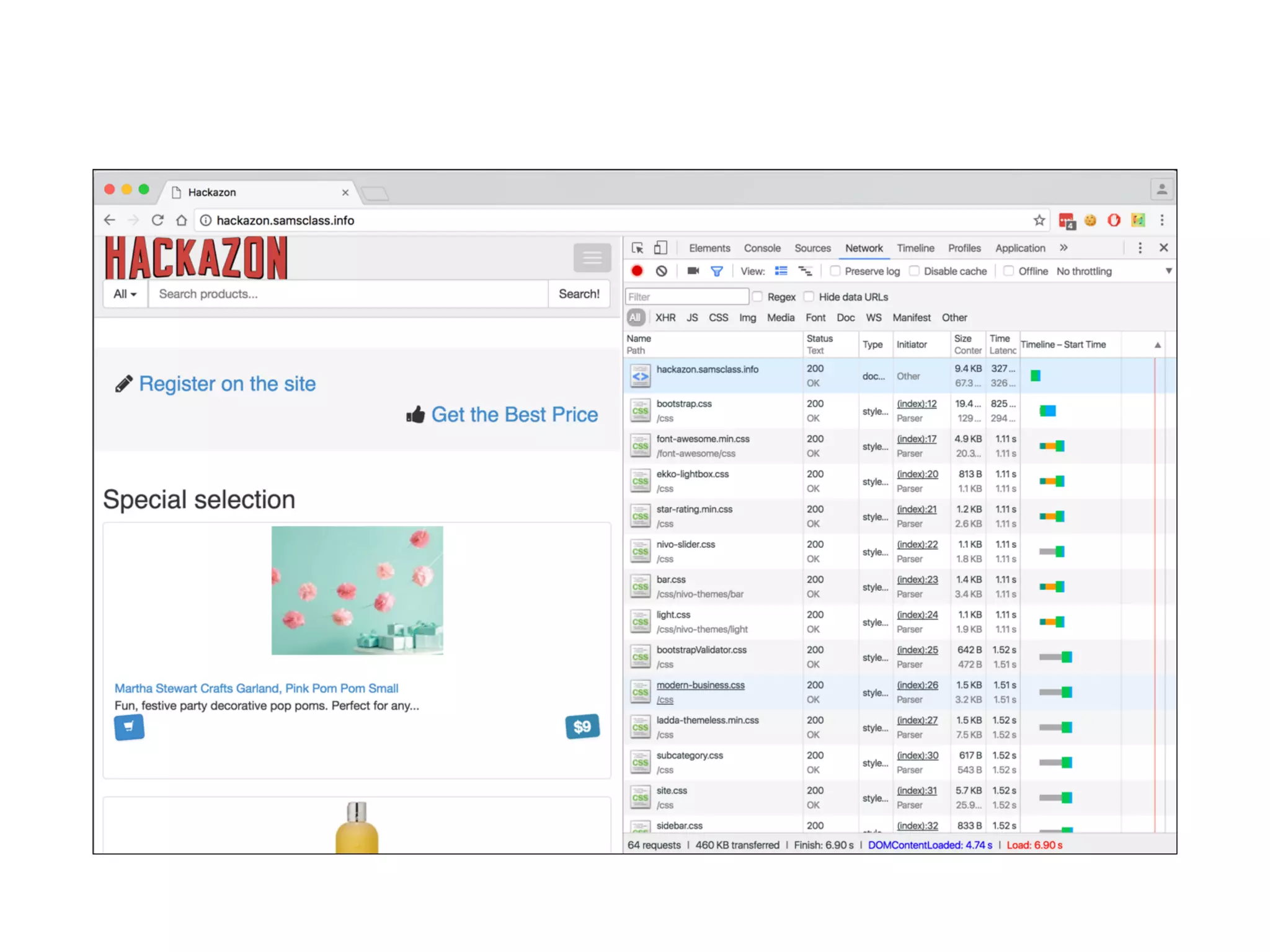

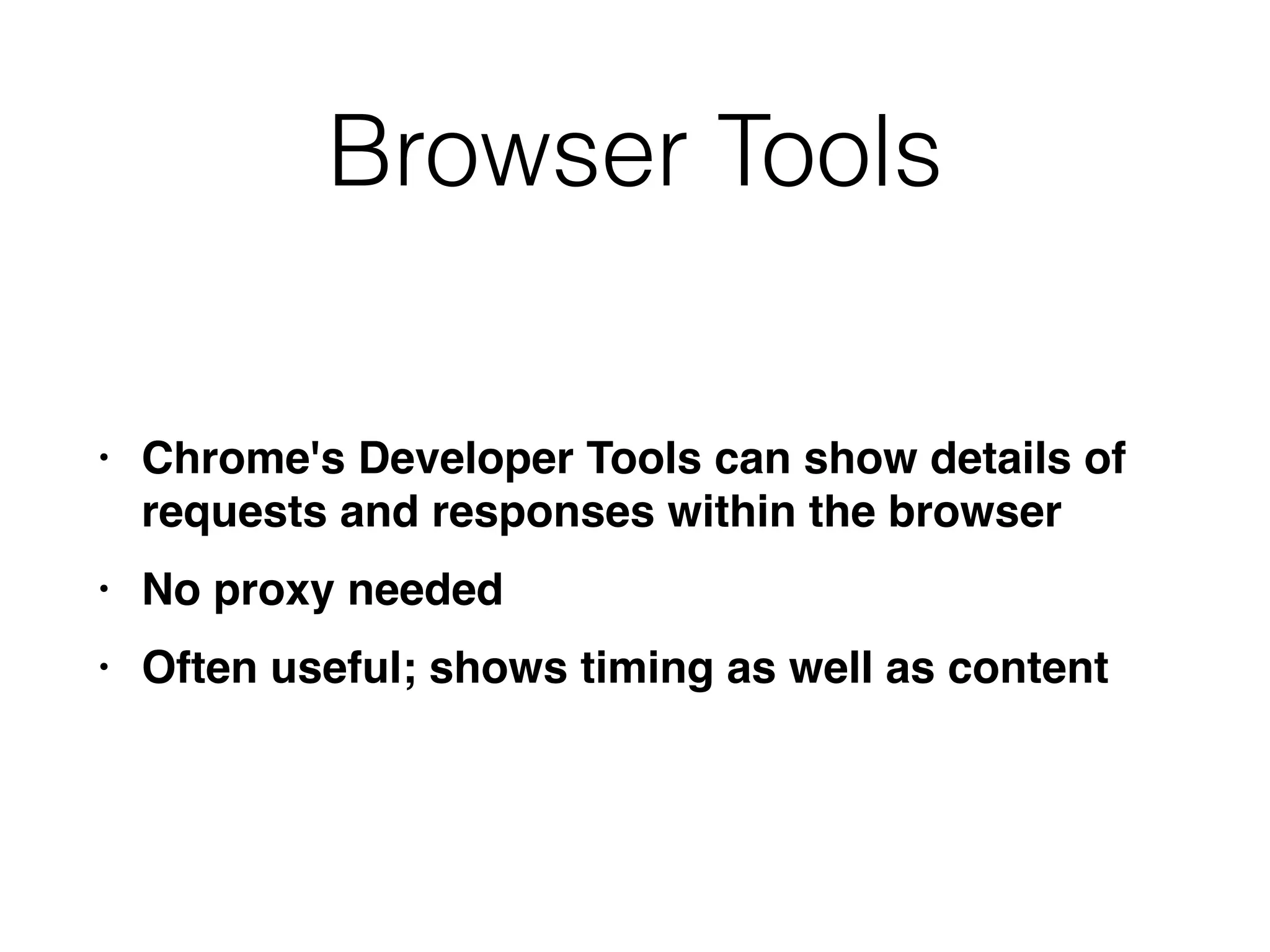

- 23. Browser Tools • Chrome'sDeveloper Tools can show details of requests and responses within the browse r • No proxy neede d • Often useful; shows timing as well as content
- 26. Discovering Hidden Content •Finding it requires automated testing, manual testing, and luc k • Testing or debugging features left in applicatio n • Different functionality for different categories of user s • Anonymous, authenticated, administrator s • Backup copies of live fi le s • May be non-executable and reveal source code
- 27. Discovering Hidden Content •Backup archives that contain snapshot of entire applicatio n • New functionality implemented for testing but not yet linked from main applicatio n • Default functionality in an off-the-shelf application that has been super fi cially hidden from the user but not remove d • Old versions of fi les--may still be exploitable

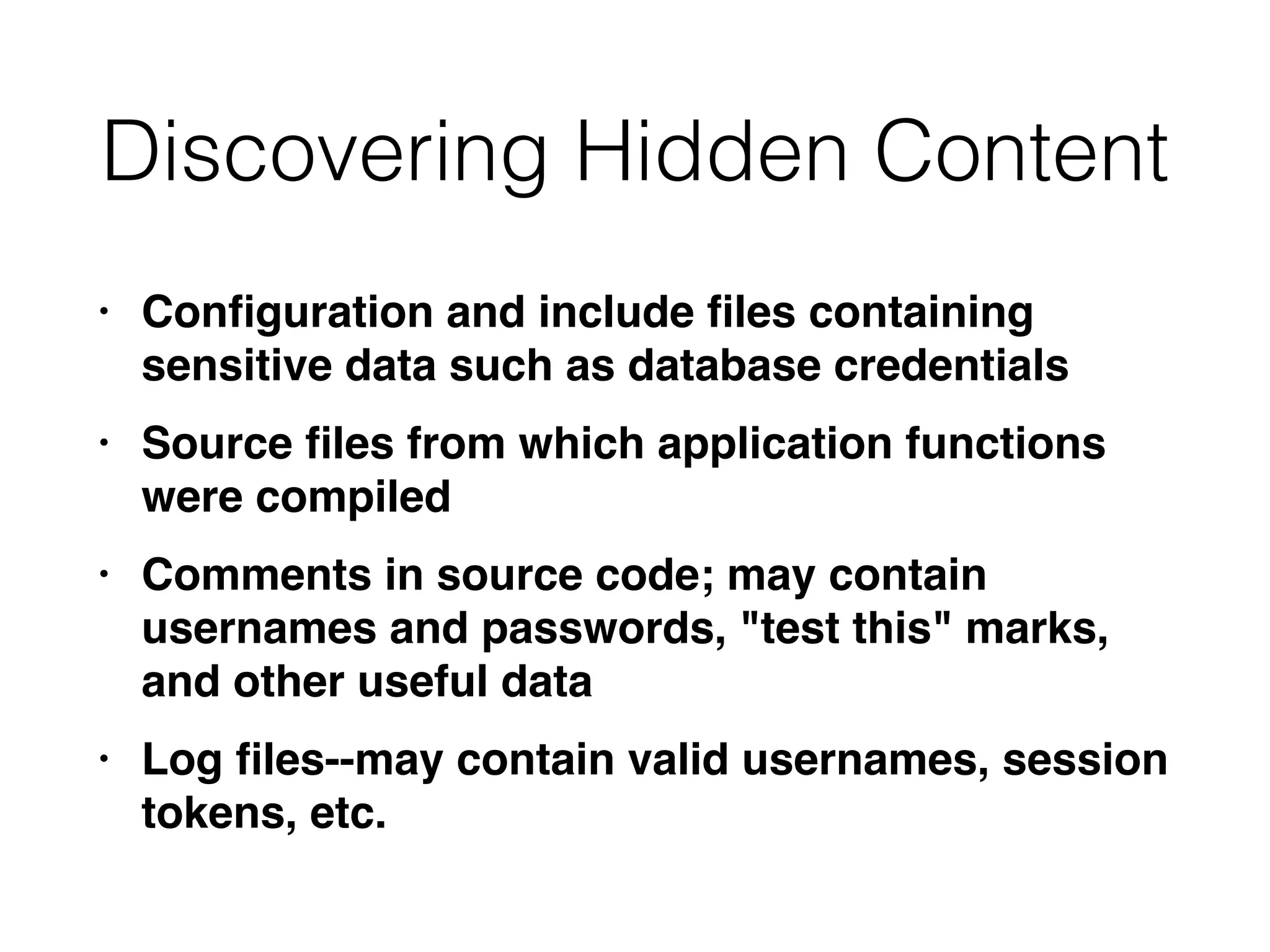

- 28. Discovering Hidden Content •Con fi guration and include fi les containing sensitive data such as database credential s • Source fi les from which application functions were compile d • Comments in source code; may contain usernames and passwords, "test this" marks, and other useful dat a • Log fi les--may contain valid usernames, session tokens, etc.
- 29. Brute-Force Techniques • Supposeuser-directed spidering fi nds the URLs on the lef t • A brute-forcer will try names as shown on the right
- 30. Burp's Brute-Forcer • Burp'sbrute- forcer is very slow in the free version

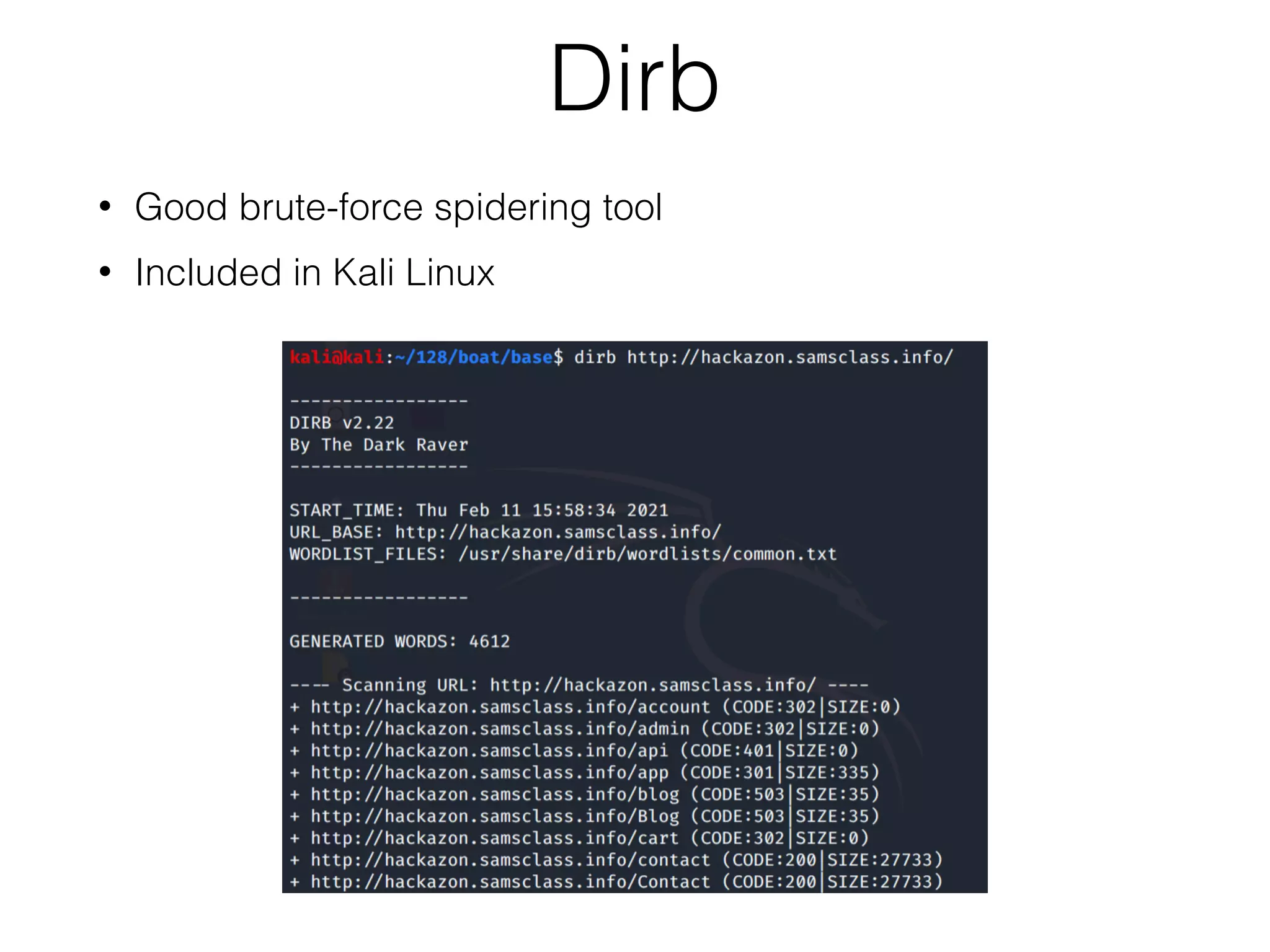

- 31. Dirb • Good brute-forcespidering tool • Included in Kali Linux
- 32.
- 33. Inference from Published Content •Look for pattern s • All subdirectories of "auth" start with a capital lette r • One is "ForgotPassword", so try these

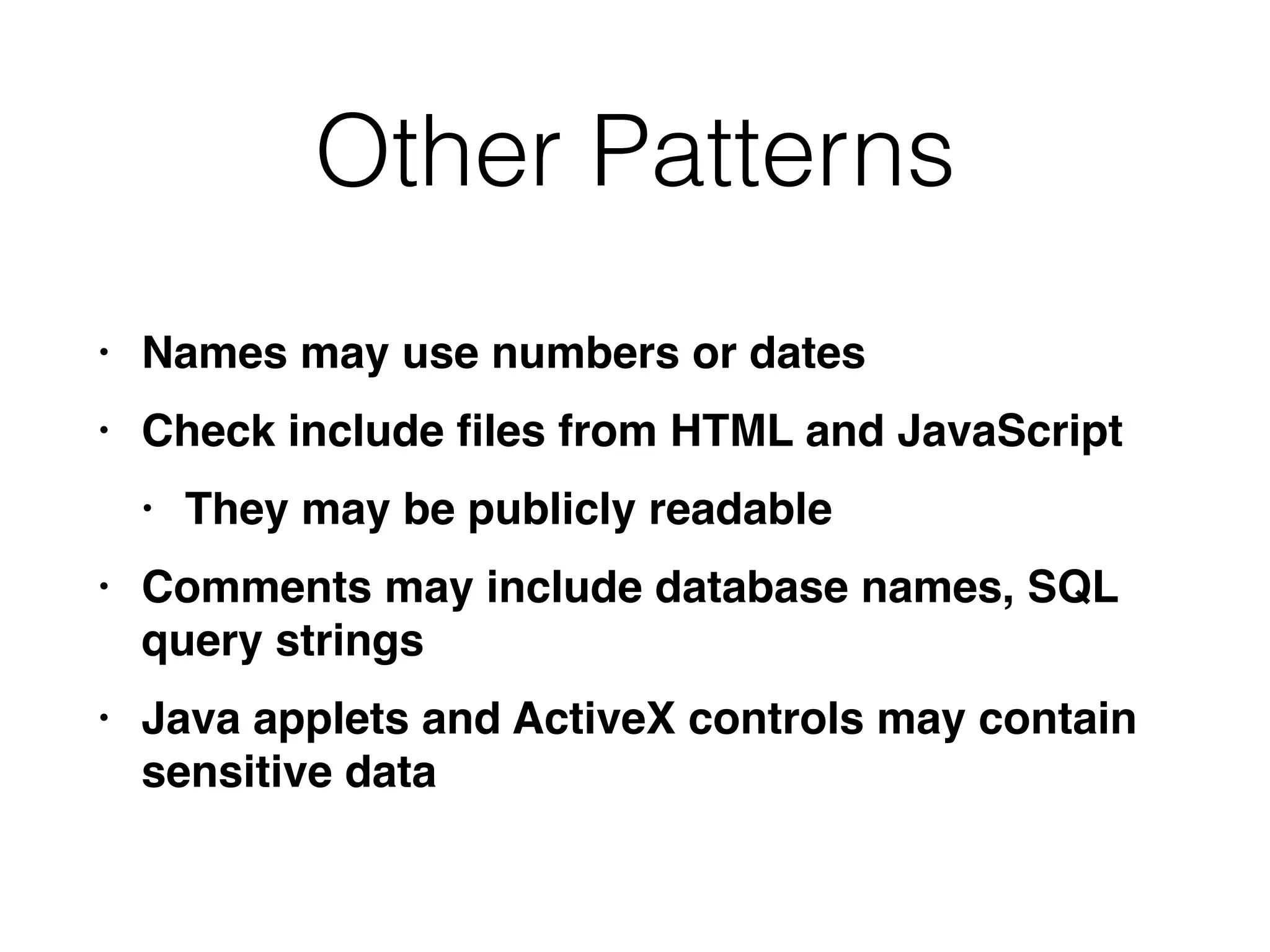

- 34. Other Patterns • Namesmay use numbers or date s • Check include fi les from HTML and JavaScrip t • They may be publicly readabl e • Comments may include database names, SQL query string s • Java applets and ActiveX controls may contain sensitive data
- 35. More Clues • Searchfor temporary fi les created by tools and fi le editor s • .DS_Store fi le (a directory index created by Mac OS X ) • fi le.php-1 created when fi le.php is edite d • .tmp fi les created by many tools
- 36.

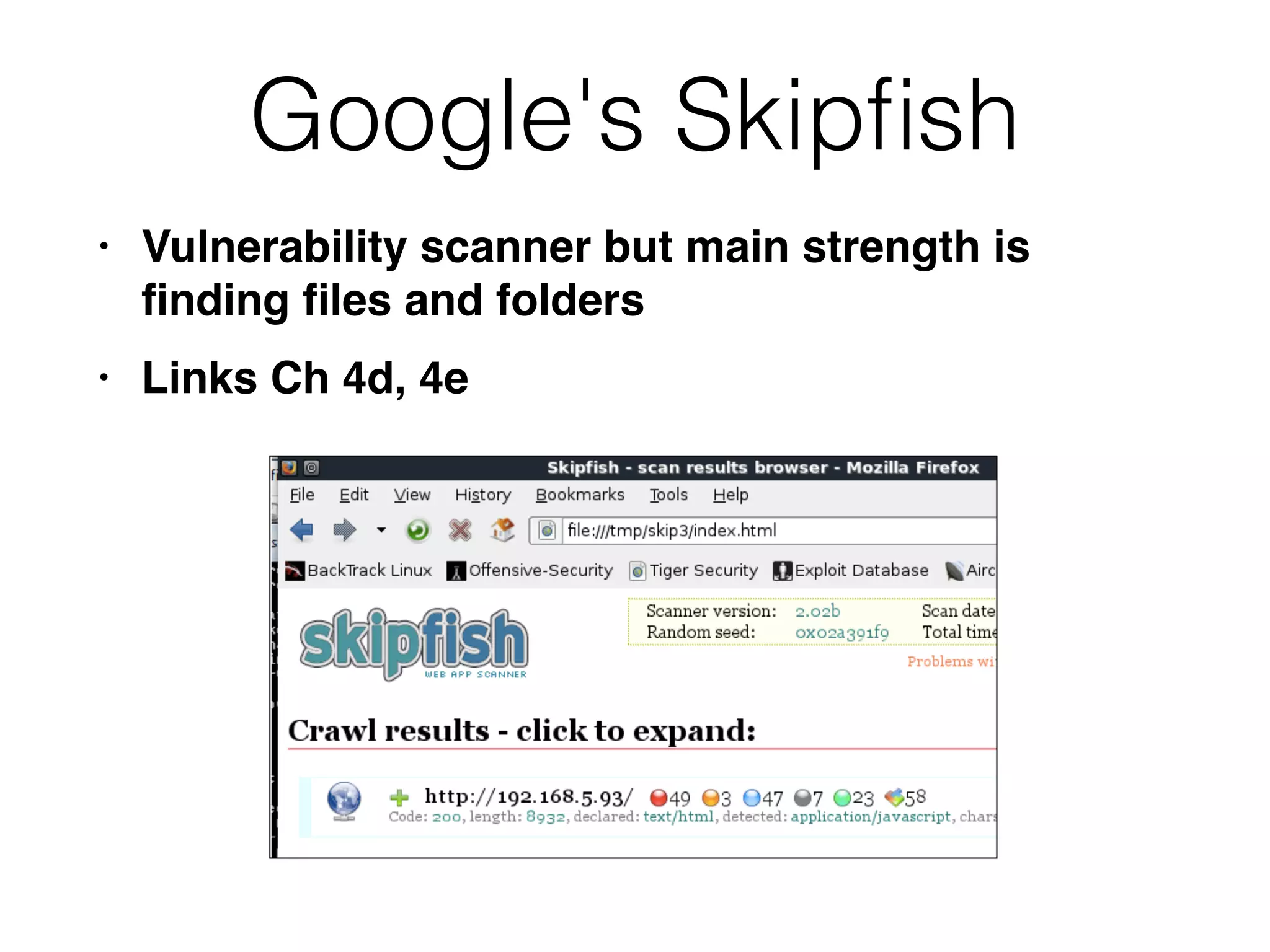

- 37. Google's Skip fi sh • Vulnerabilityscanner but main strength is fi nding fi les and folder s • Links Ch 4d, 4e

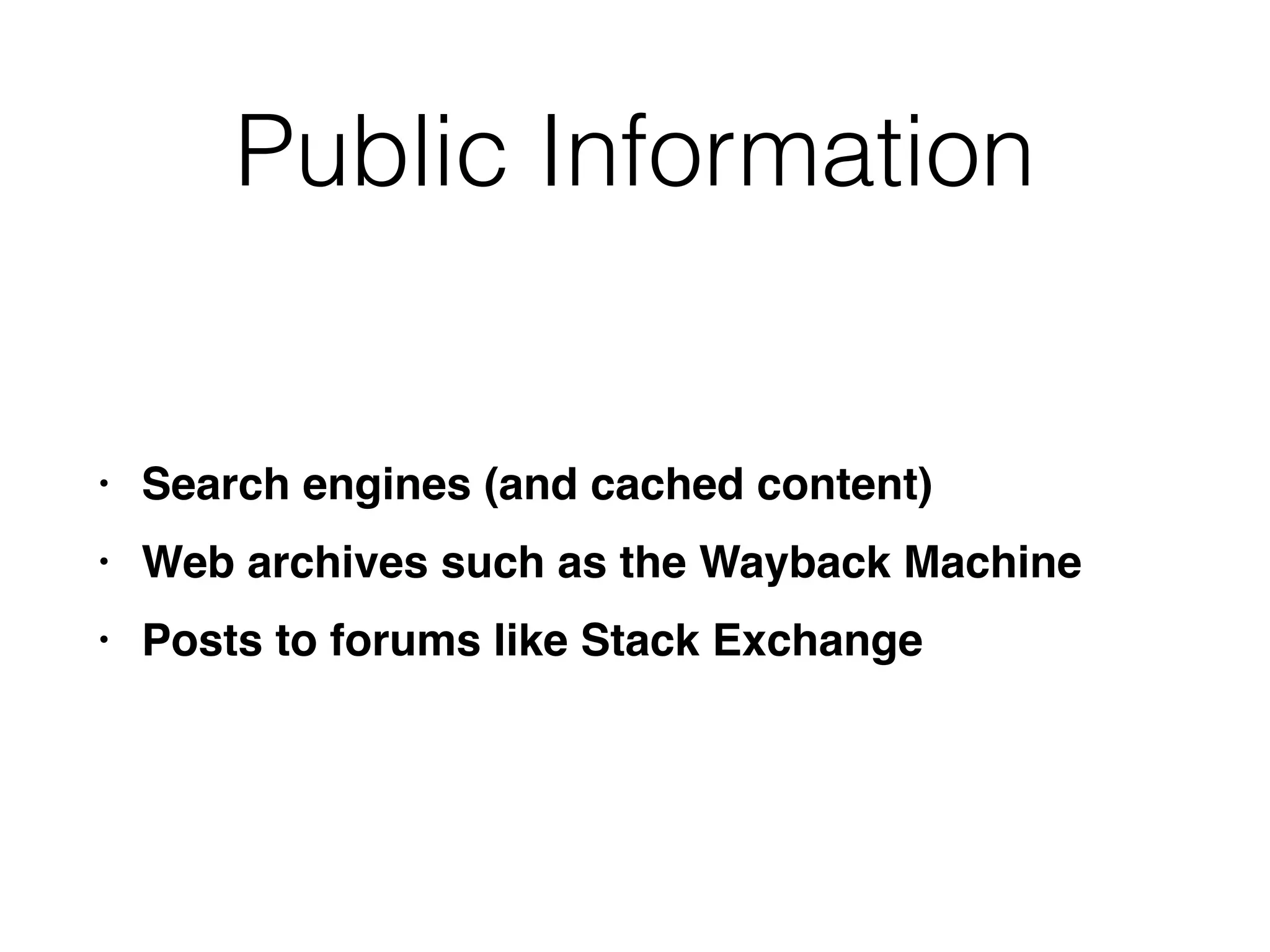

- 38. Public Information • Searchengines (and cached content ) • Web archives such as the Wayback Machin e • Posts to forums like Stack Exchange

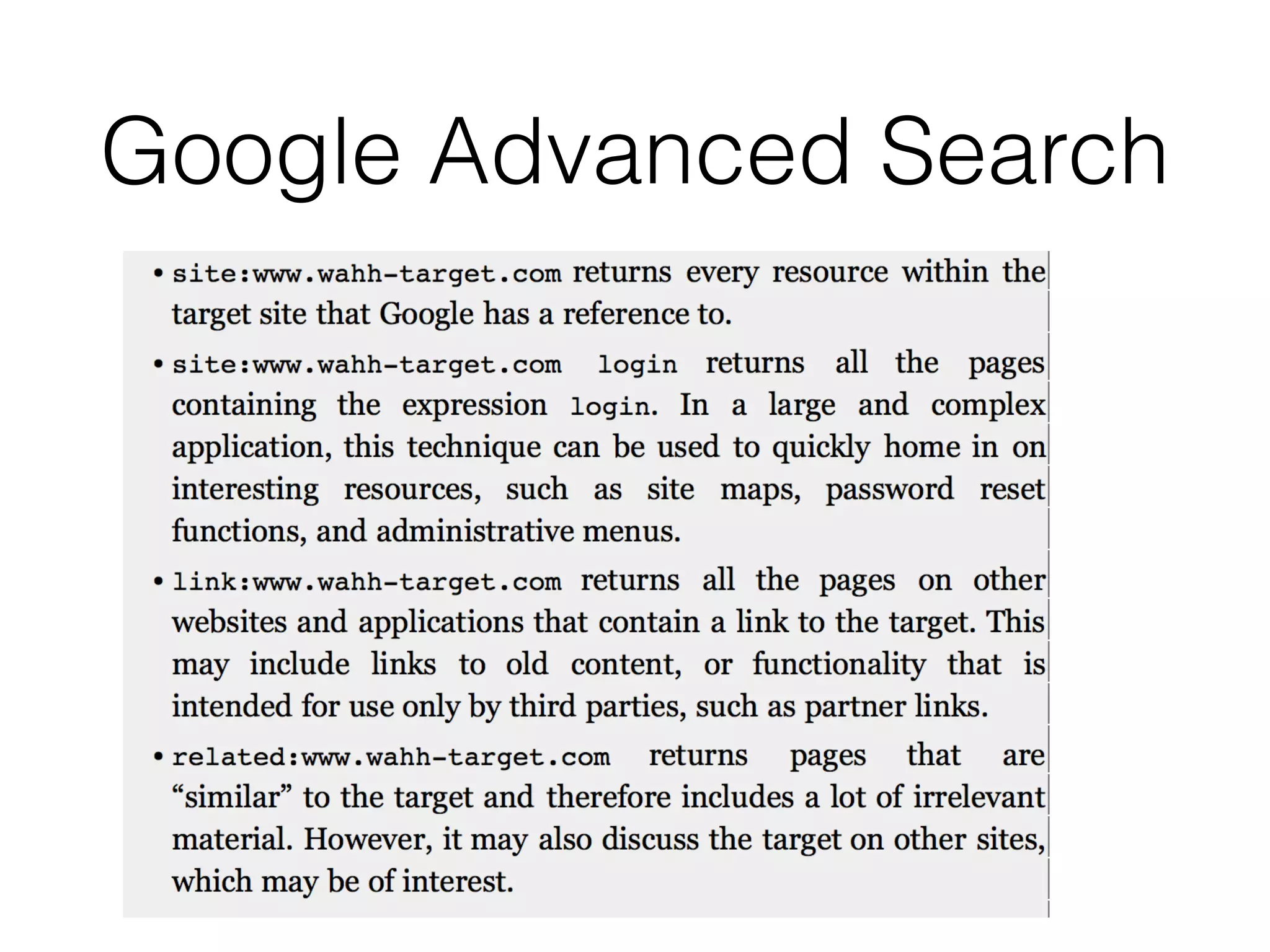

- 39.
- 40. Web Server Vulnerabilities •Some Web servers let you list directory contents or see raw source cod e • Sample and diagnostic scripts may contain vulnerabilities

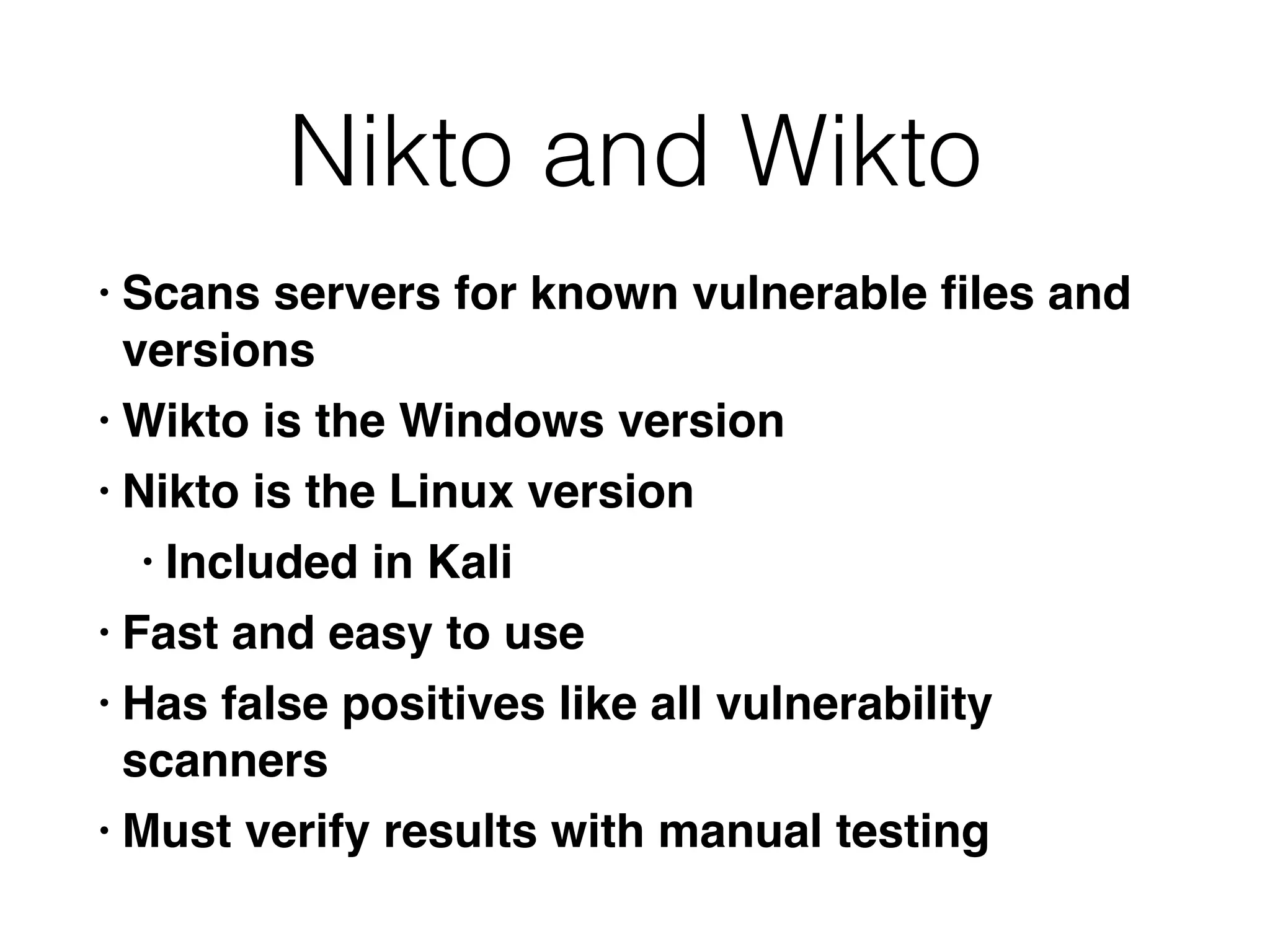

- 41. Nikto and Wikto •Scans servers for known vulnerable fi les and version s • Wikto is the Windows versio n • Nikto is the Linux versio n • Included in Kal i • Fast and easy to us e • Has false positives like all vulnerability scanner s • Must verify results with manual testing
- 42.
- 43. Functional Paths • Differentfrom old-fashioned tree- structured fi le syste m • Every request goes to the same UR L • Parameters specify functio n • Very different structure to explore
- 44. Map of FunctionalPaths
- 45. Discovering Hidden Parameters • Tryadding "debug=true" to request s • Or test, hide, source, etc . • Burp Intruder can do this (see Ch 14)
- 46. Analyzing the Application •Key area s • Core functionalit y • Peripheral behavior: off-site links, error messages, administrative and logging functions, and use of redirect s • Core security mechanisms: session state, access control, authenticatio n • User registration, password change, account recovery
- 47. Key Areas (continued) •Everywhere the application processes user- supplied inpu t • URL, query string, POST data, cookie s • Client-side technologie s • Forms, scripts, thick-client components (Java applets, ActiveX controls, and Flash), and cookies
- 48. Key Areas (continued) •Server-side technologie s • Static and dynamic pages, request parameters, SSL, Web server software, interaction with databases, email systems, and other back-end components
- 49. Entry Points forUser Input
- 50.

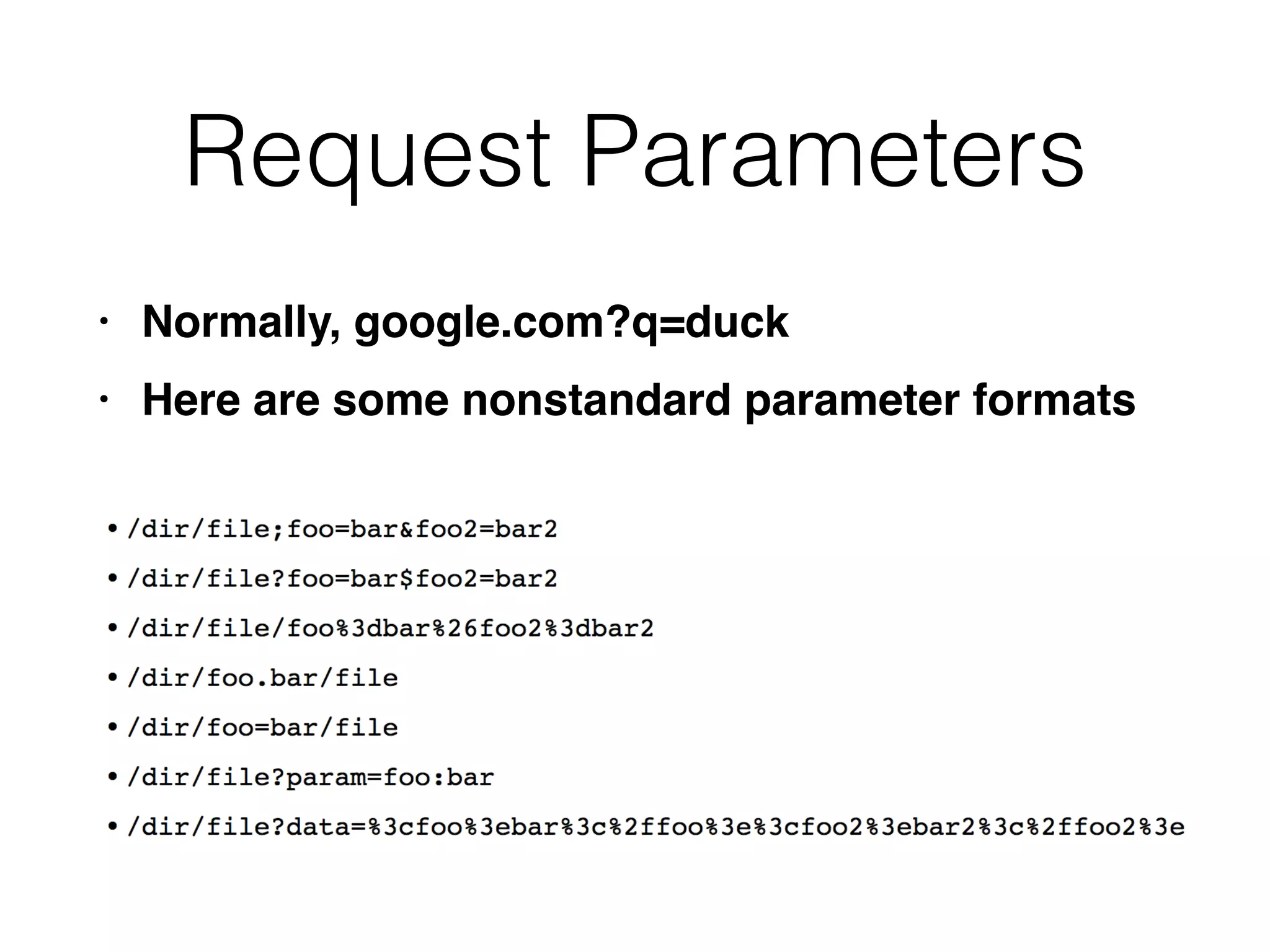

- 51. Request Parameters • Normally,google.com?q=duc k • Here are some nonstandard parameter formats
- 52. HTTP Headers • User-Agentis used to detect small screen s • Sometimes to modify content to boost search engine ranking s • May allow XSS and other injection attack s • Changing User-Agent may reveal a different user interface
- 53. HTTP Headers • Applicationsbehind a load balancer or proxy may use X-Forwarded-For header to identify sourc e • Can be manipulated by attacker to inject content
- 54. Out-of-Band Channels • Userdata may come in vi a • Emai l • Publishing content via HTTP from another server (e.g. WebDAV ) • IDS that sniffs traf fi c and puts it into a Web applicatio n • API interface for non-browser user agents, such as cell phone apps, and then shares data with the primary web application
- 55.
- 56.
- 57. Banner Grabbing • Bannersoften leak version informatio n • Also Web page template s • Custom HTTP header s • URL query string parameters

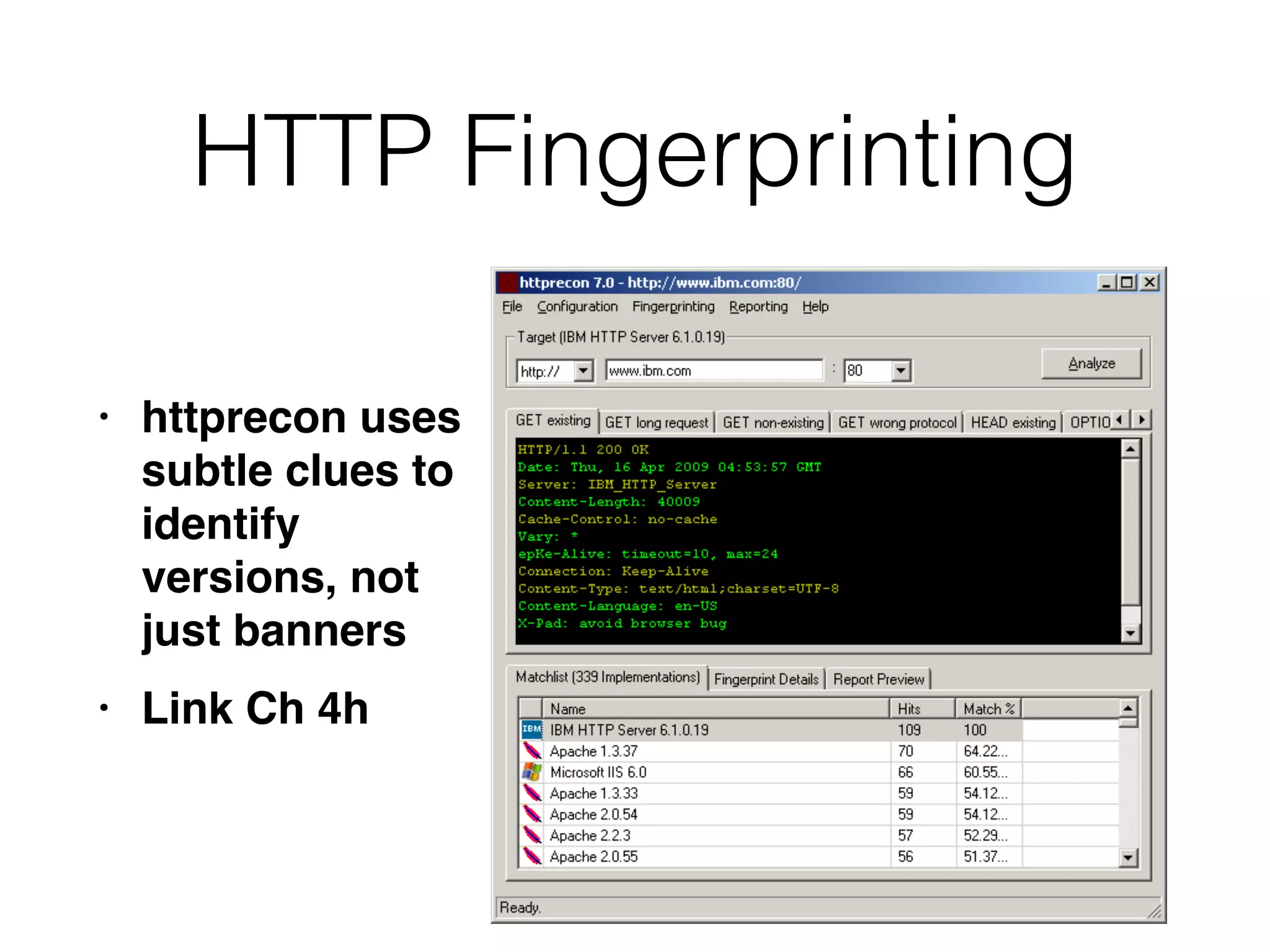

- 58. HTTP Fingerprinting • httpreconuses subtle clues to identify versions, not just banner s • Link Ch 4h
- 59.
- 60. File Extensions • Discloseplatform or language
- 61.
- 62.
- 63. File Extension Mappings •Different DLLs may lead to different error messages
- 64. OpenText • Vignette isnow rebranded as OpenTex t • Link Ch 4i
- 65. Directory Names • Indicatetechnology in use
- 66.
- 67. Third-Party Code Components • Addcommon functionality lik e • Shopping cart s • Login mechanism s • Message board s • Open-source or commercia l • May contain known vulnerabilities
- 68. Hack Steps 1. Identifyall entry points for user inpu t •URL, query string parameters, POST data, cookies, HTTP header s 2. Examine query string format; should be some variation on name/value pai r 3. Identify any other channels that allow user- controllable or third-party data into the app
- 69. Hack Steps 4. ViewHTTP server banner returned by the app; it may use several different server s 5. Check for other software identi fi ers in custom HTTP headers or HTML source code 6. Run httprint to fi ngerprint the web serve r 7. Research software versions for vulnerabilitie s 8. Review map of URLs to fi nd interesting fi le extensions, directories, etc. with clues about the technologies in use
- 70. httprint • Not updatedsince 2005 (link Ch 4j ) • Alternatives include nmap, Netcraft, and SHODAN (Link Ch 4k ) • Also the Wappalyzer Chrome extension
- 71. Hack Steps 9. Reviewnames of session tokens to identify technologies being use d 10. Use lists of common technologies, or Google, to identify technologies in use, or discover other websites that use the same technologie s 11. Google unusual cookie names, scripts, HTTP headers, etc. If possible, download and install the software to analyze it and fi nd vulnerabilities
- 72. Identifying Server-Side Functionality • .jsp- Java Server Page s • OrderBy parameter looks like SQ L • isExpired suggests that we could get expired content by changing this value
- 73. Identifying Server-Side Functionality • .aspx- Active Server Pages (Microsoft ) • template - seems to be a fi lename and loc - looks like a directory; may be vulnerable to path traversa l • edit - maybe we can change fi les if this is tru e • ver - perhaps changing this will reveal other functions to attack
- 74. Identifying Server-Side Functionality • .php- PH P • Connecting to an email server, with user-controllable content in all fi eld s • May be usable to send email s • Any fi elds may be vulnerable to email header injection

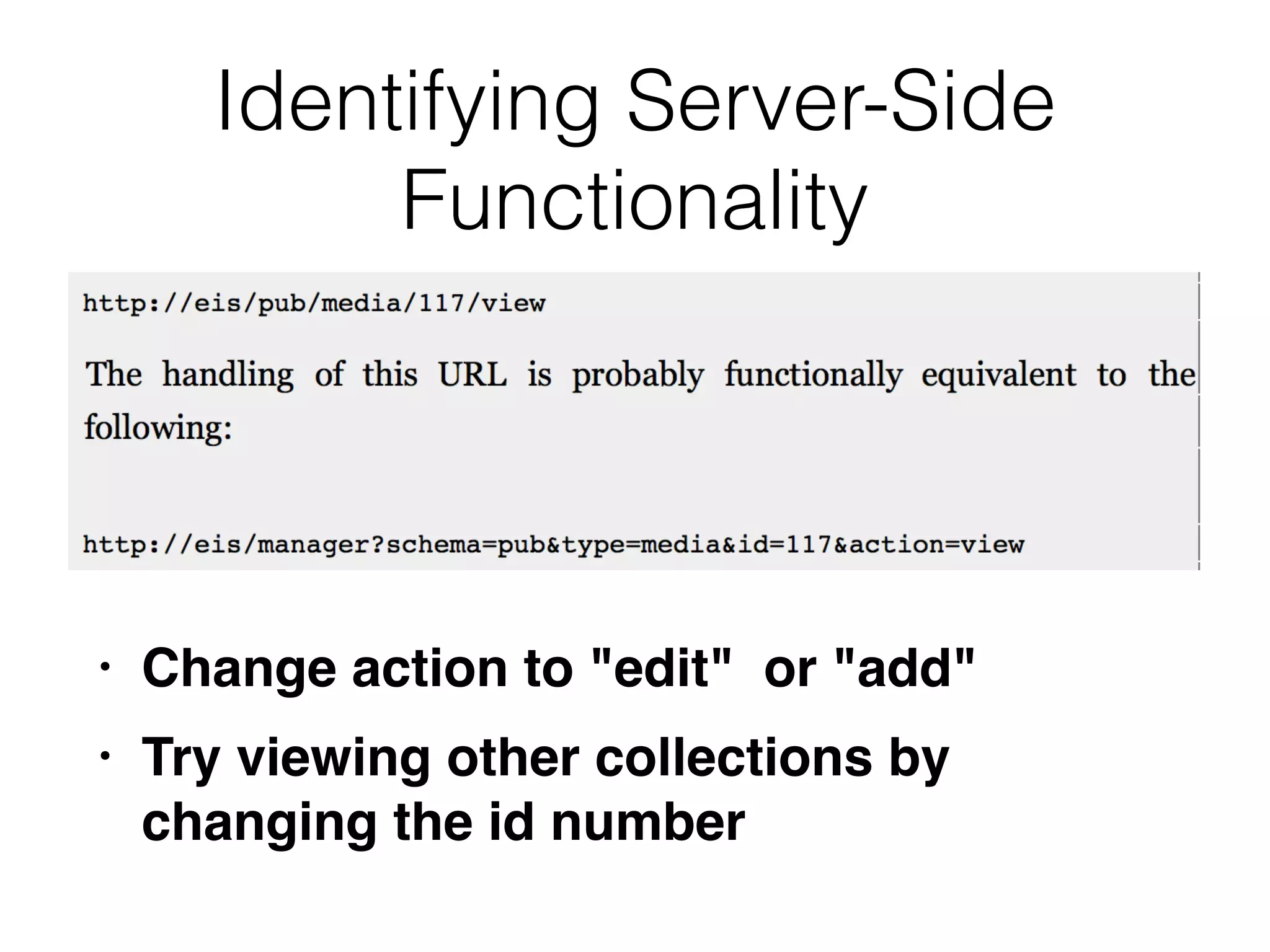

- 75. Identifying Server-Side Functionality • Changeaction to "edit" or "add " • Try viewing other collections by changing the id number
- 76. Extrapolating Application Behavior • Anapplication often behaves consistently across the range of its functionalit y • Because code is re-used or written by the same developer, or to the same speci fi cation s • So if your SQL injections are being fi ltered out, try injecting elsewhere to see what fi ltering is in effect
- 77. Extrapolating Application Behavior • Ifapp obfuscates data, try fi nding a place where a user can enter an obfuscated string and retrieve the original • Such as an error messag e • Or test systematically-varying values and deduce the obfuscation scheme

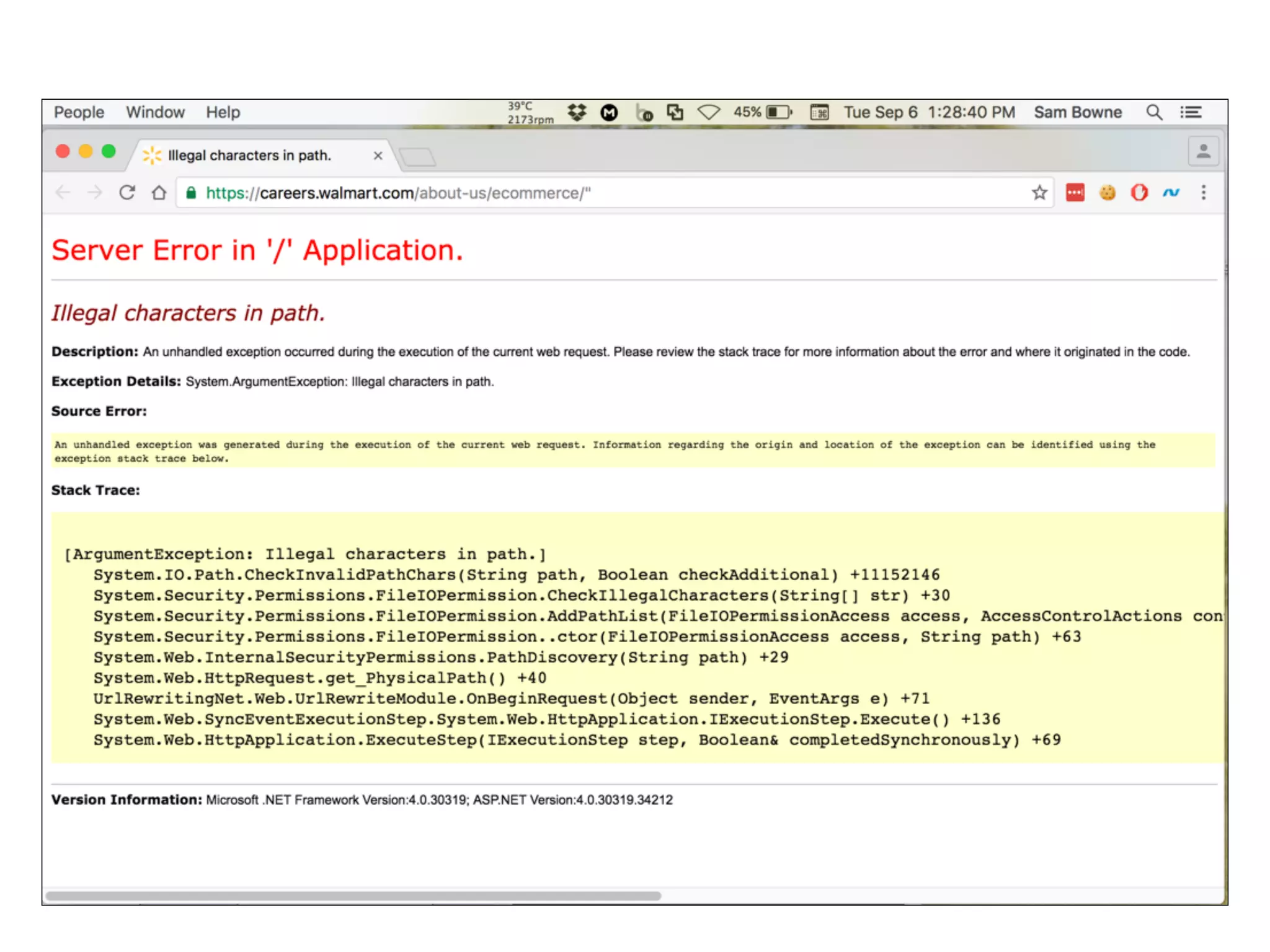

- 78. Error Handling • Someerrors may be properly handled and give little information Others may crash and return verbose error information

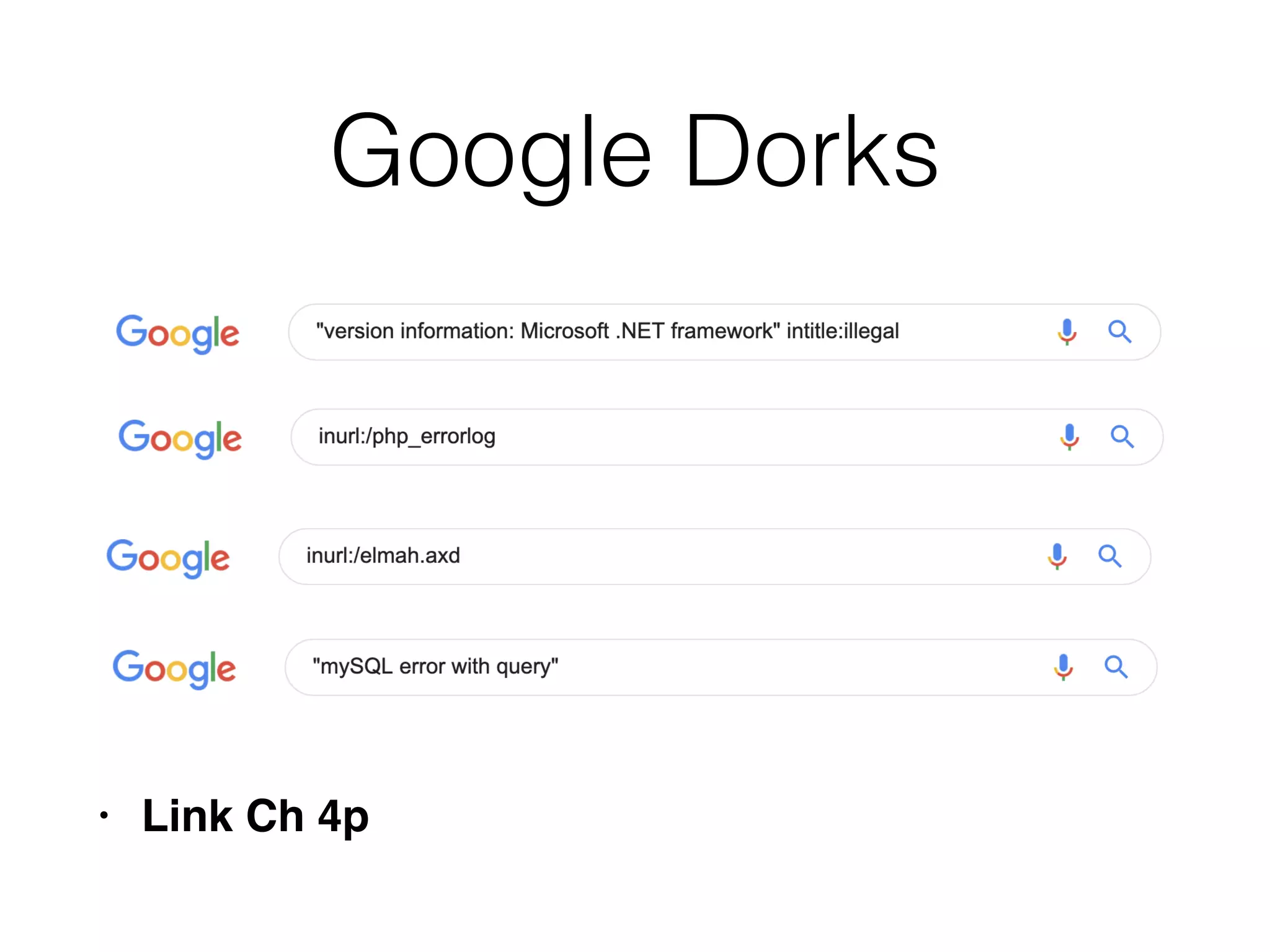

- 79. Google Dorks • LinkCh 4p

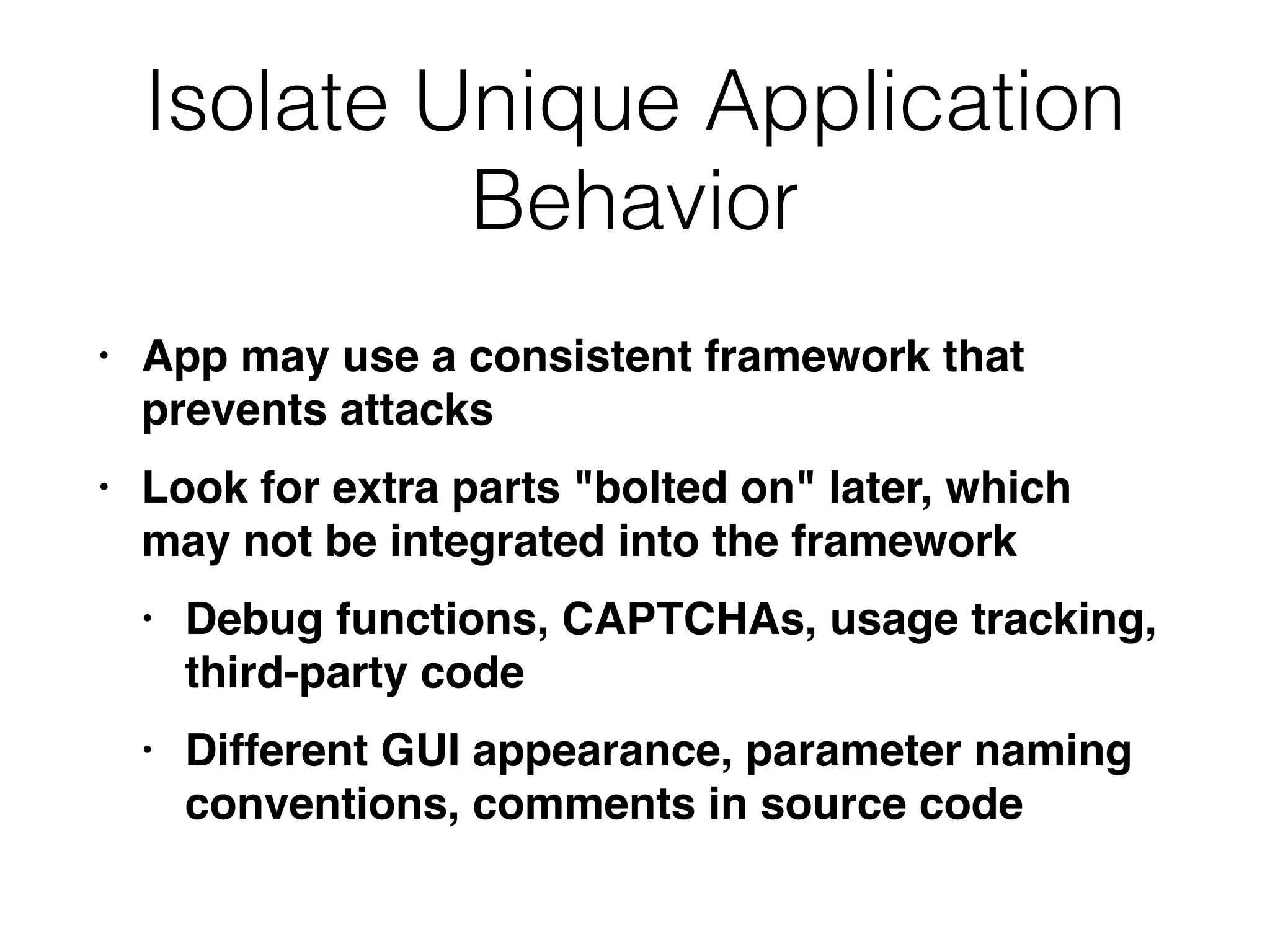

- 81. Isolate Unique Application Behavior •App may use a consistent framework that prevents attack s • Look for extra parts "bolted on" later, which may not be integrated into the framewor k • Debug functions, CAPTCHAs, usage tracking, third-party cod e • Different GUI appearance, parameter naming conventions, comments in source code
- 82. Mapping the AttackSurface • Client-side validatio n • Database interaction -- SQL injectio n • File uploading and downloading -- Path traversal, stored XS S • Display of user-supplied data - XS S • Dynamic redirects -- Redirection and header attacks
- 83. Mapping the AttackSurface • Social networking features -- username enumeration, stored XS S • Login -- Username enumeration, weak passwords, brute-force attack s • Multistage login -- Logic fl aw s • Session state -- Predictable tokens, insecure token handling
- 84. Mapping the AttackSurface • Access controls -- Horizontal and vertical privilege escalatio n • User impersonation functions -- Privilege escalatio n • Cleartext communications -- Session hijacking, credential thef t • Off-site links -- Leakage of query string parameters in the Referer heade r • Interfaces to external systems -- Shortcuts handling sessions or access controls

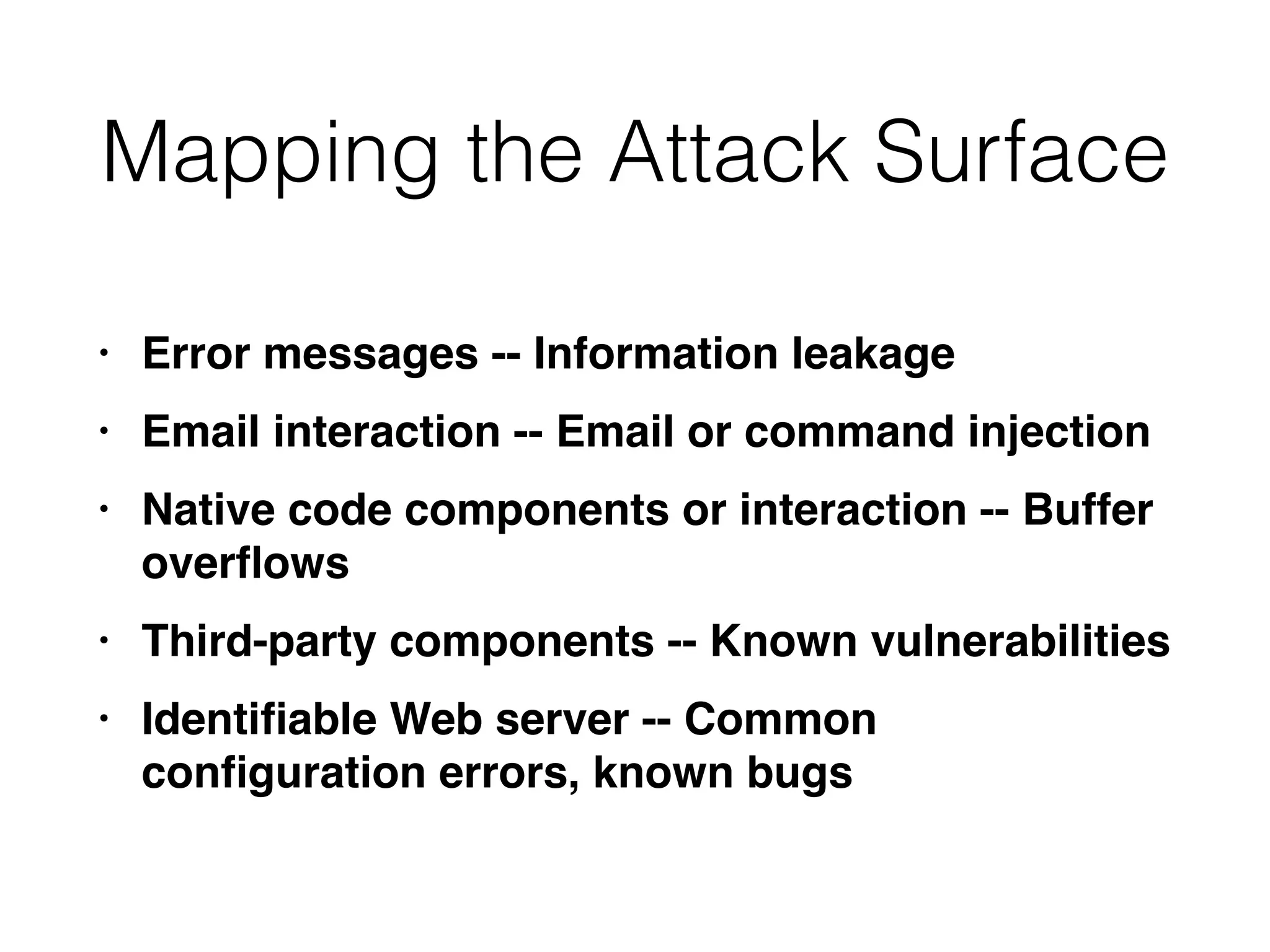

- 85. Mapping the AttackSurface • Error messages -- Information leakag e • Email interaction -- Email or command injectio n • Native code components or interaction -- Buffer over fl ow s • Third-party components -- Known vulnerabilitie s • Identi fi able Web server -- Common con fi guration errors, known bugs
- 86. Example • /auth containsauthentication functions -- test session handling and access contro l • /core/sitestats -- parameters; try varying them; try wildcards like all and * ; PageID contains a path, try traversa l • /home -- authenticated user content; try horizontal privilege escalation to see other user's info
- 87. Example • /icons and/images -- static content, might fi nd icons indicating third- party content, but probably nothing interesting her e • /pub -- RESTful resources under / pub/media and /pub/user; try changing the numerical value at the en d • /shop -- online shopping, all items handled similarly; check logic for possible exploits
