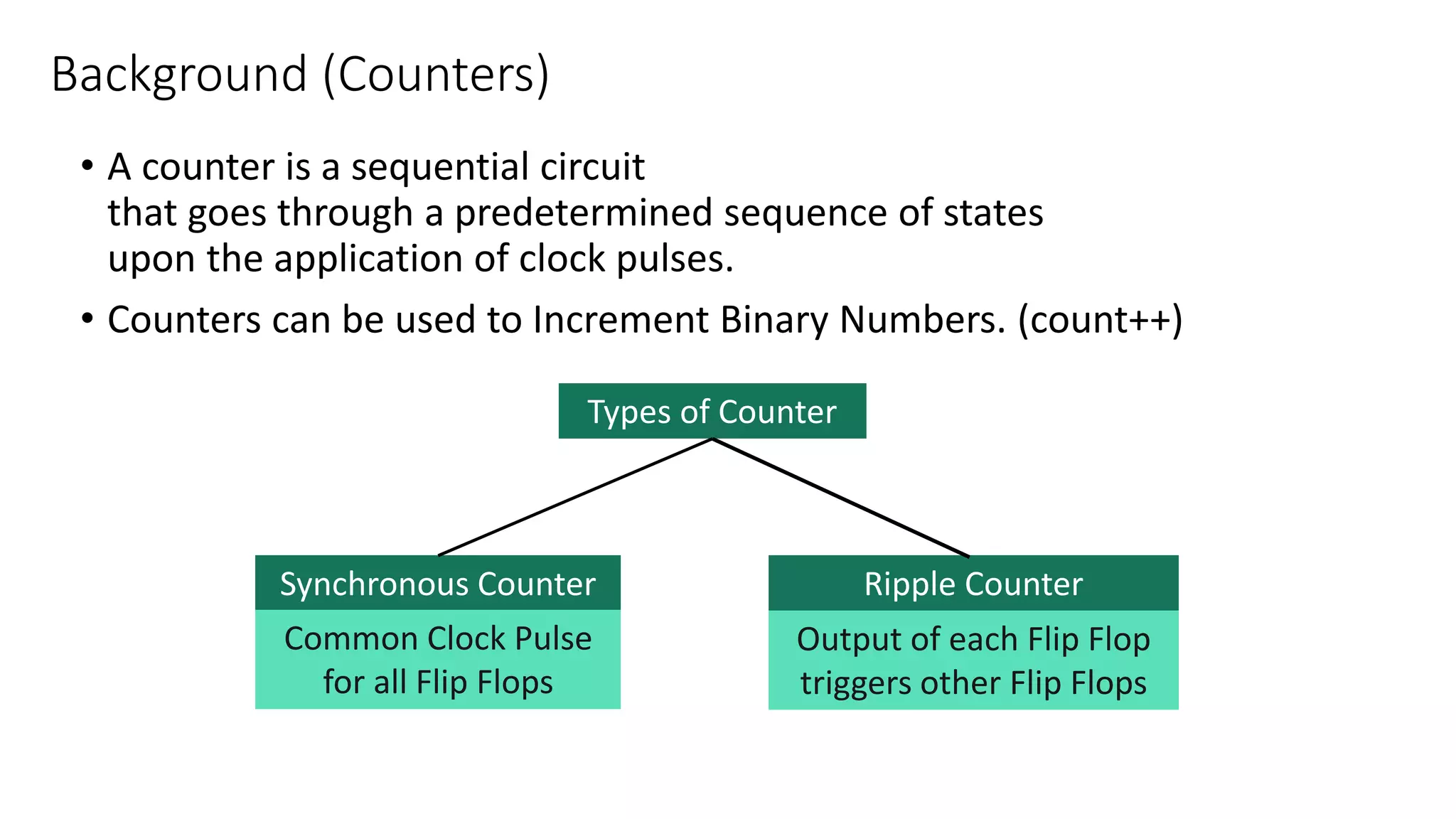

2. • A counter is a sequential circuit
that goes through a predetermined sequence of states
upon the application of clock pulses.
• Counters can be used to Increment Binary Numbers. (count++)
Background (Counters)
Types of Counter
Synchronous Counter Ripple Counter

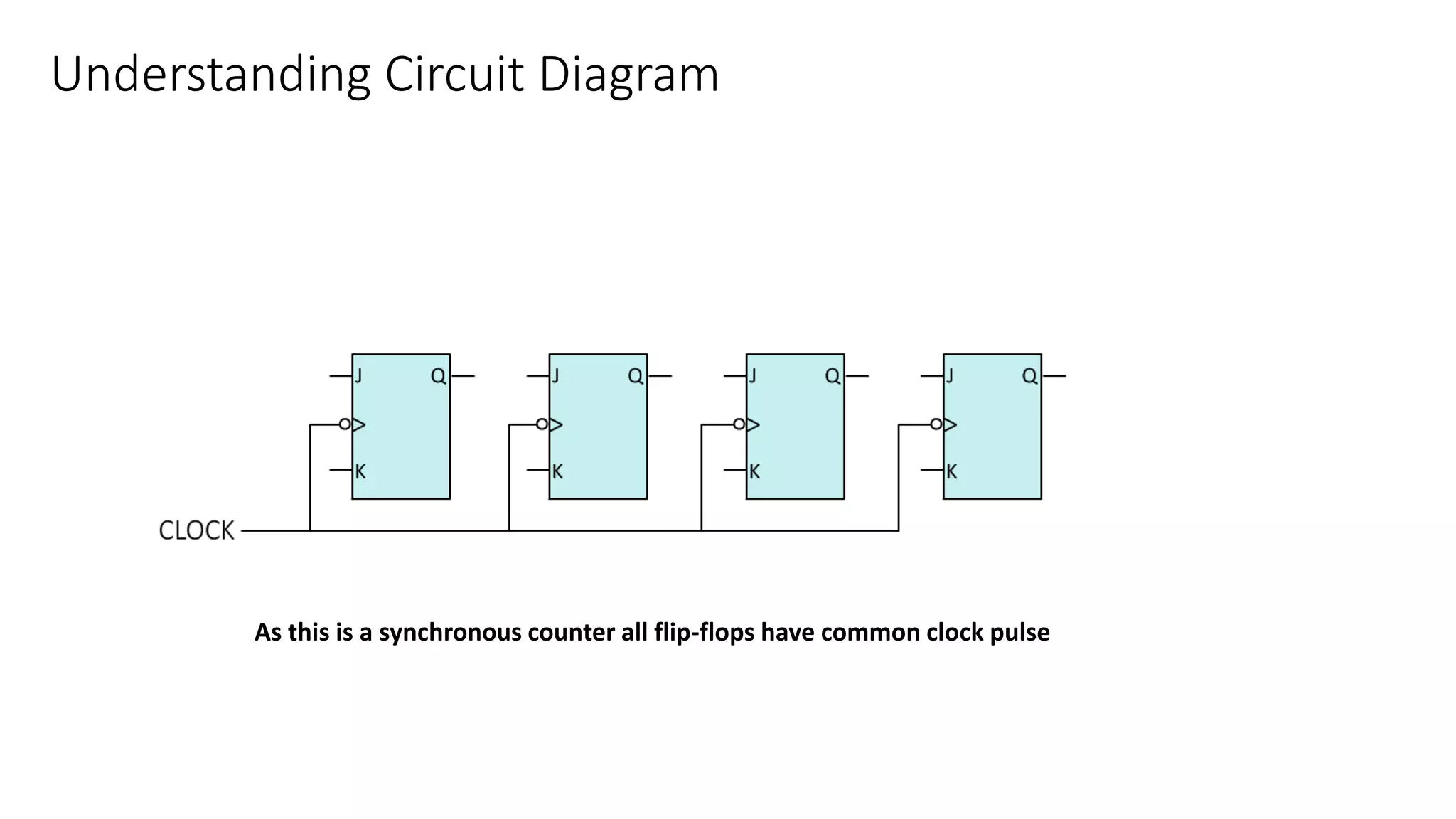

Common Clock Pulse
for all Flip Flops
Output of each Flip Flop
triggers other Flip Flops

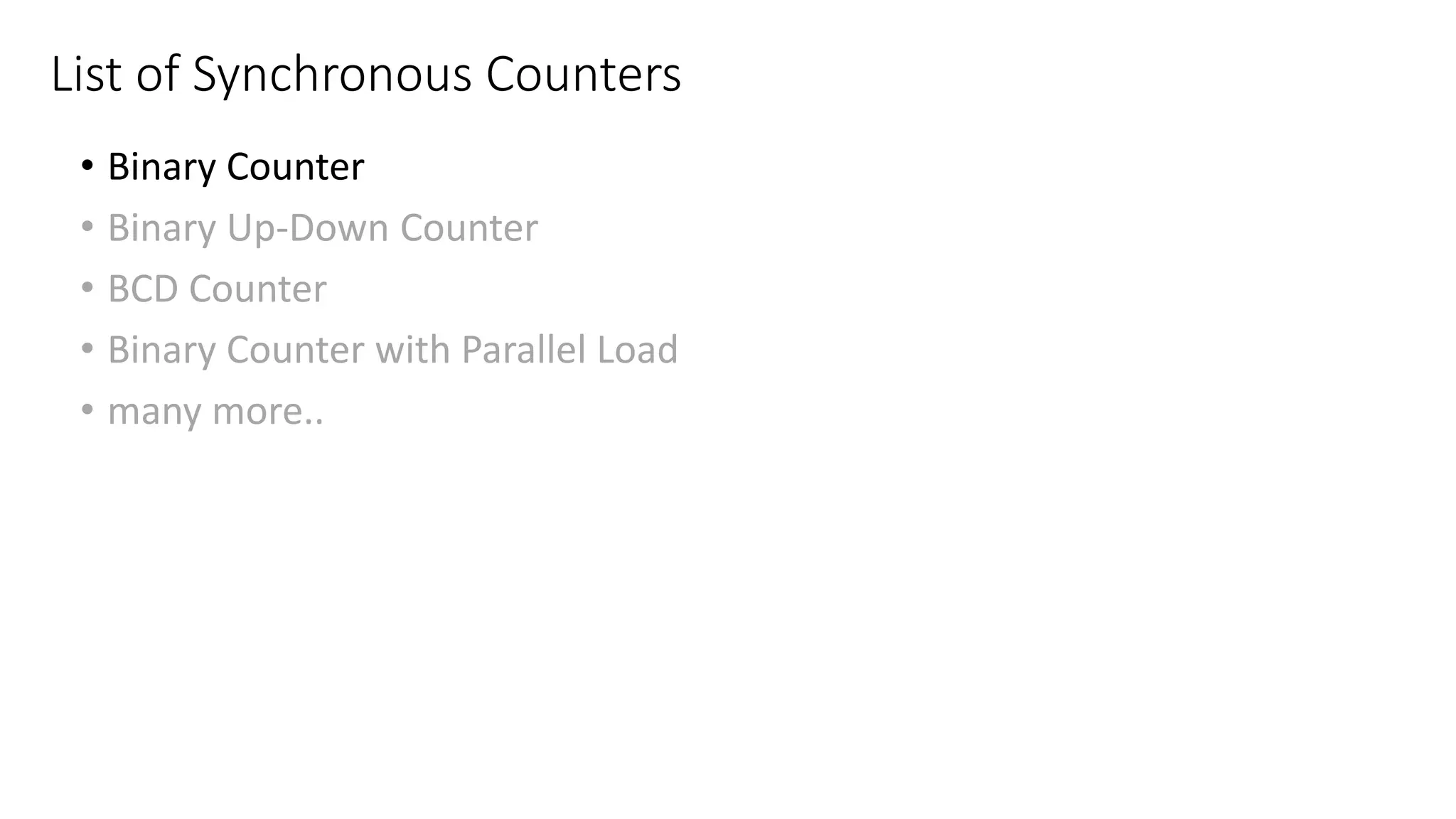

3. • Binary Counter
• Binary Up-Down Counter
• BCD Counter
• Binary Counter with Parallel Load
• many more..
List of Synchronous Counters

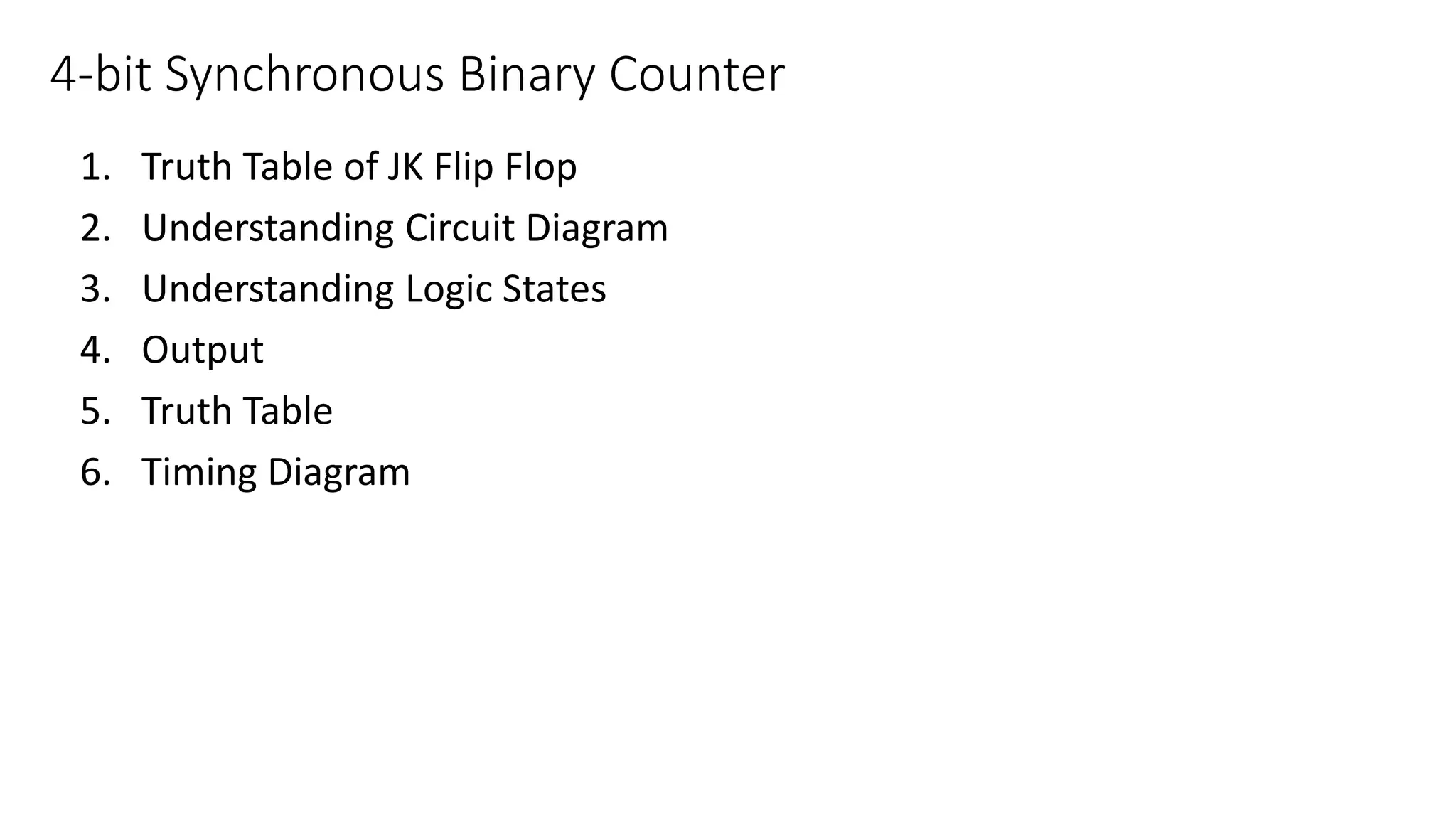

4. 1. Truth Table of JK Flip Flop

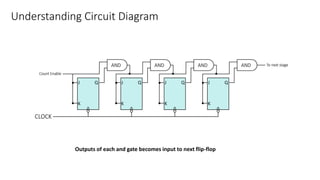

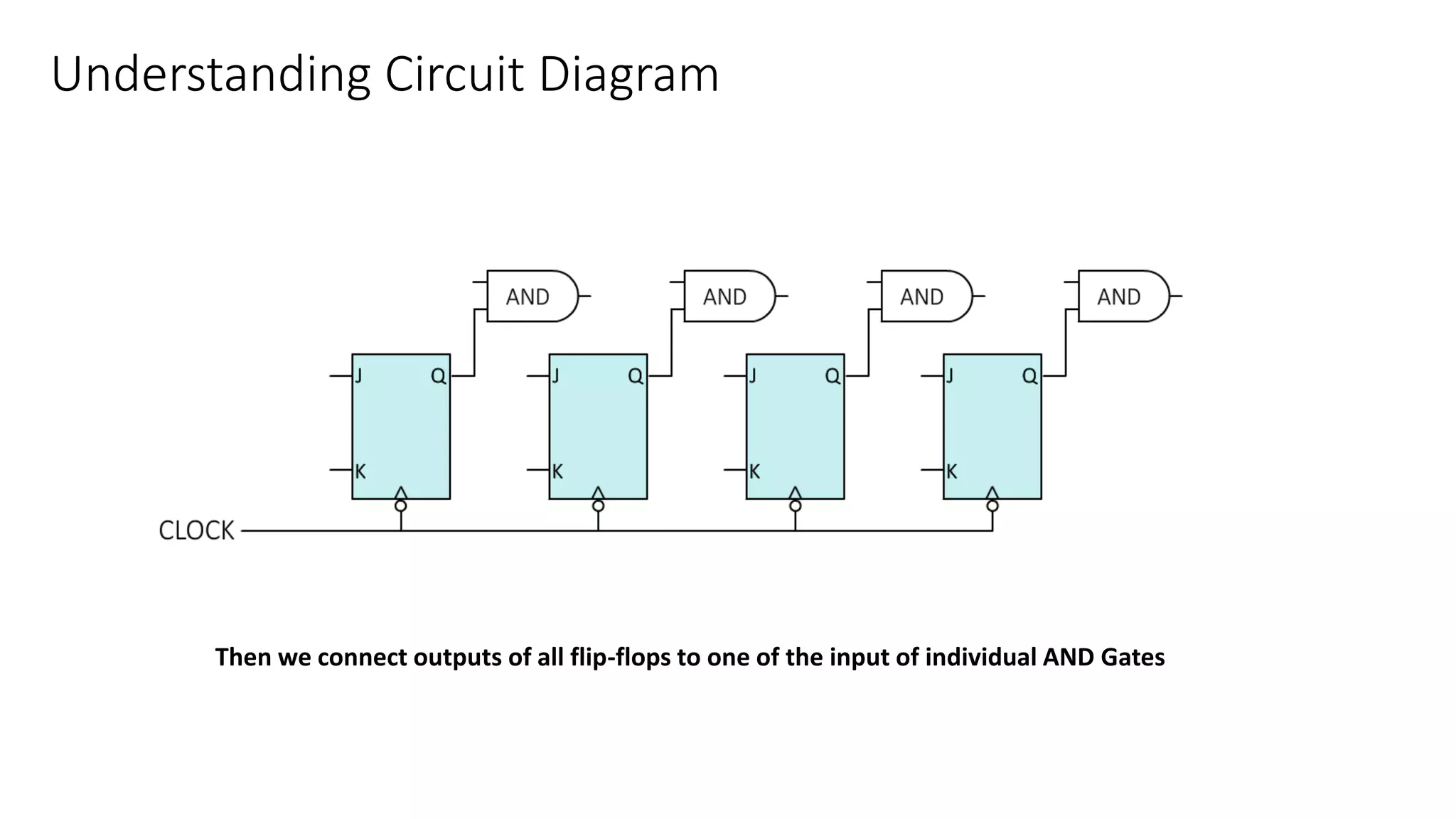

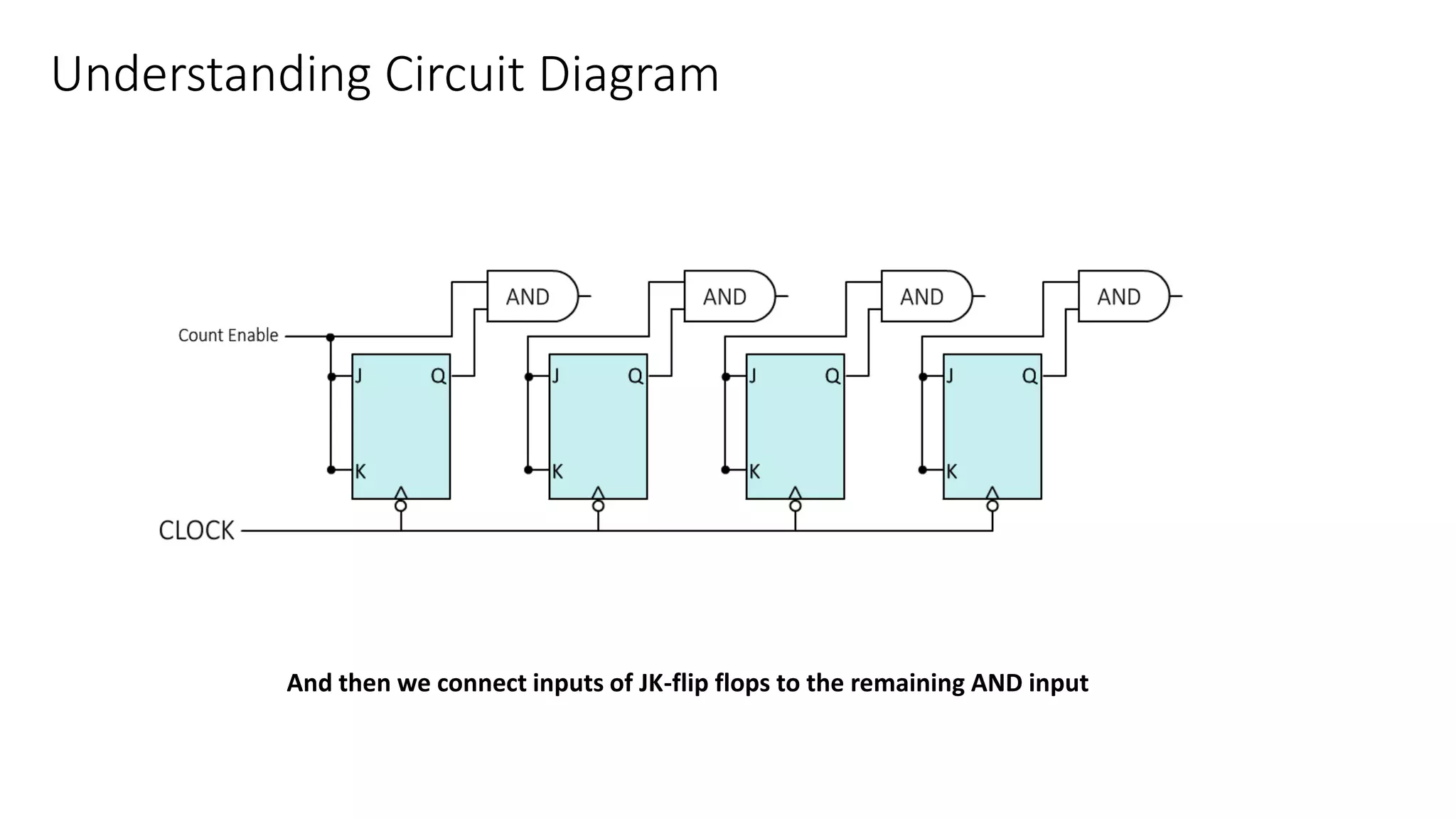

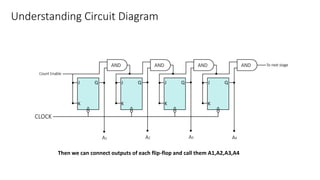

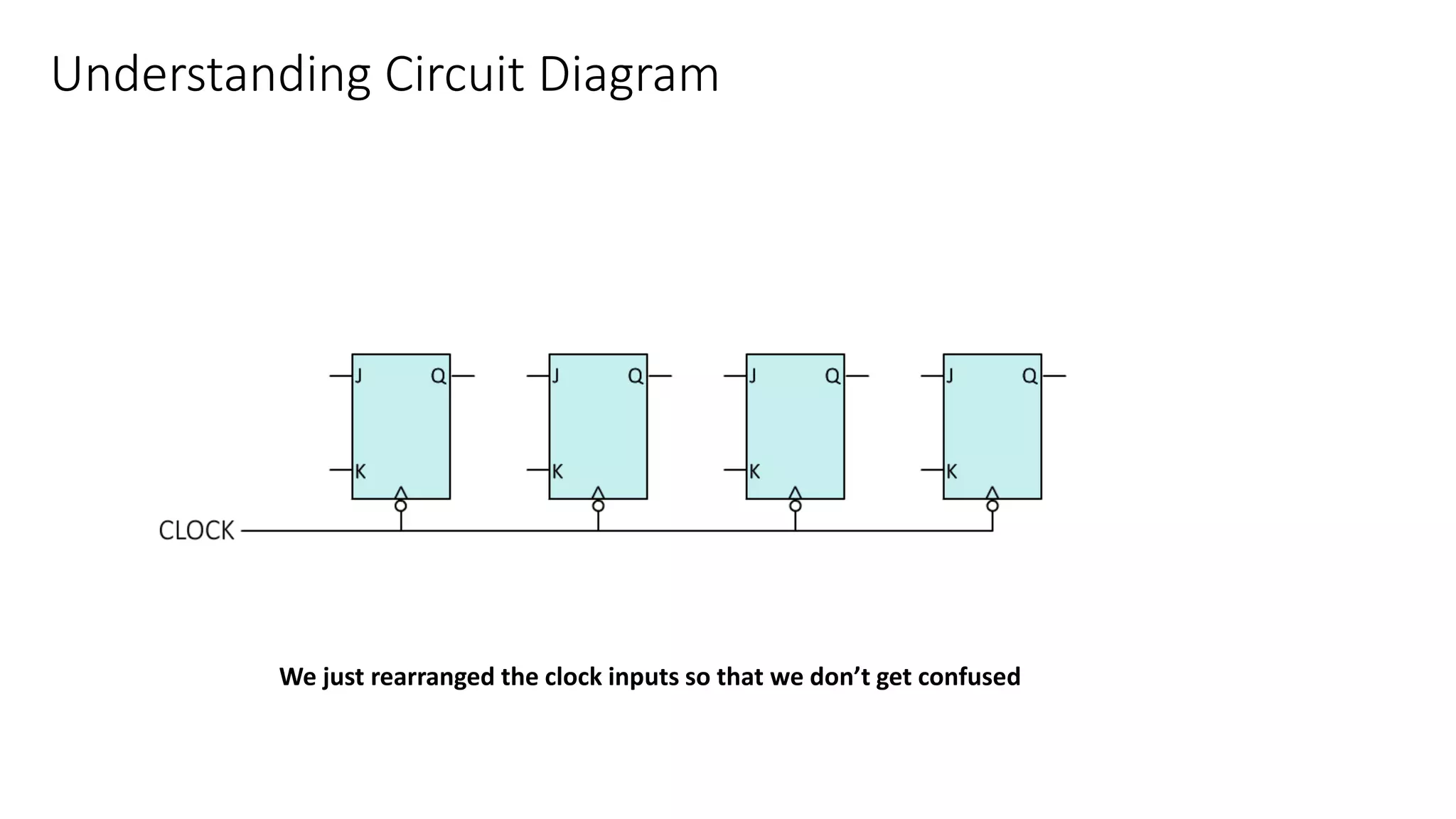

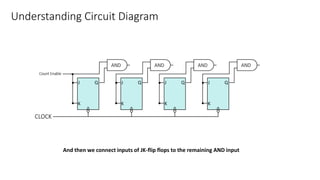

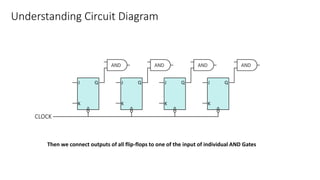

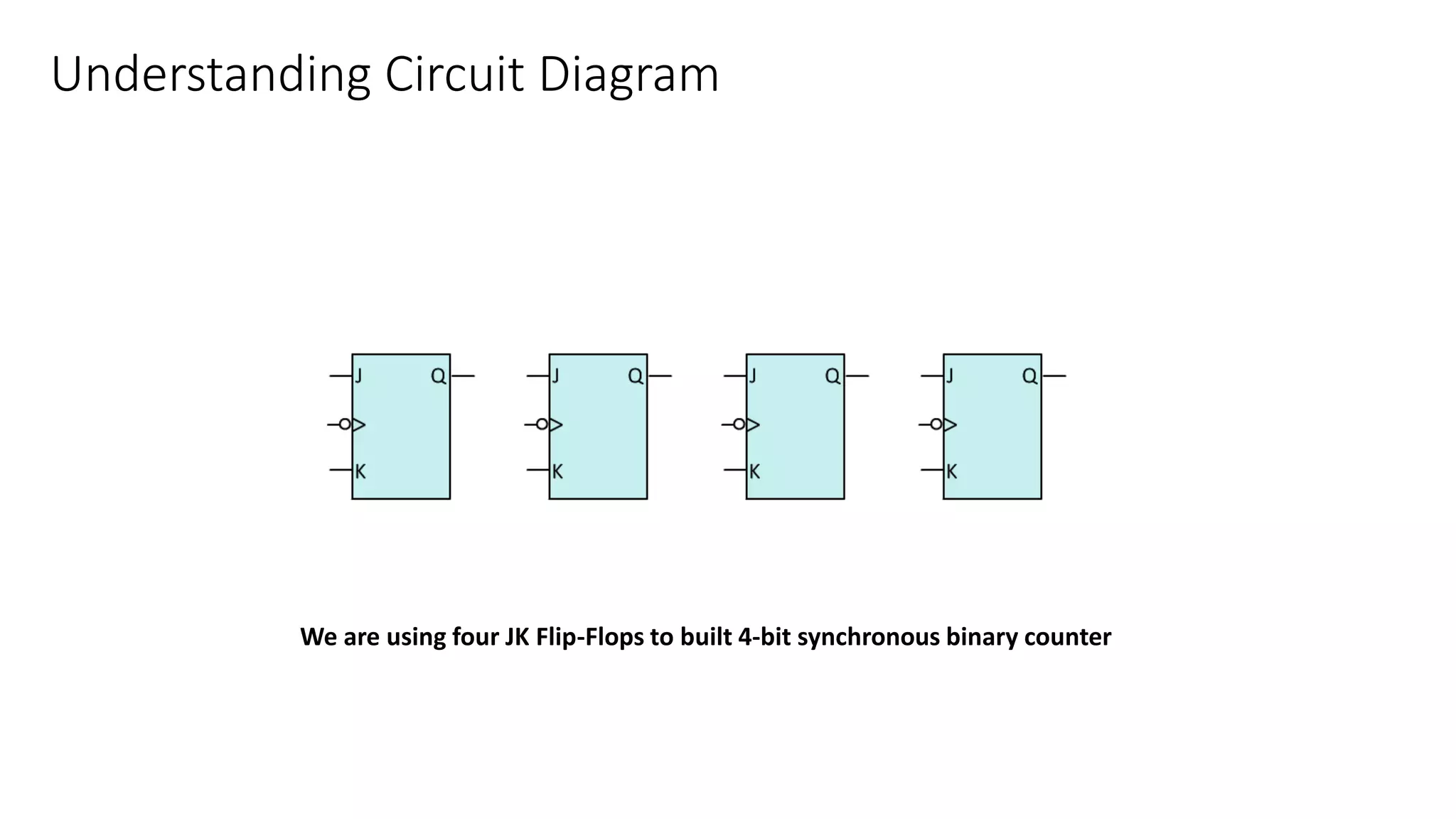

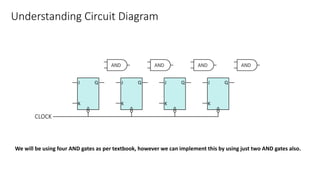

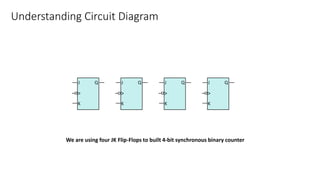

2. Understanding Circuit Diagram
3. Understanding Logic States
4. Output

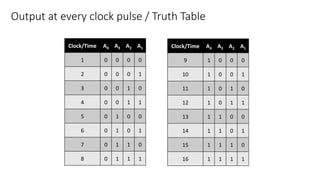

5. Truth Table

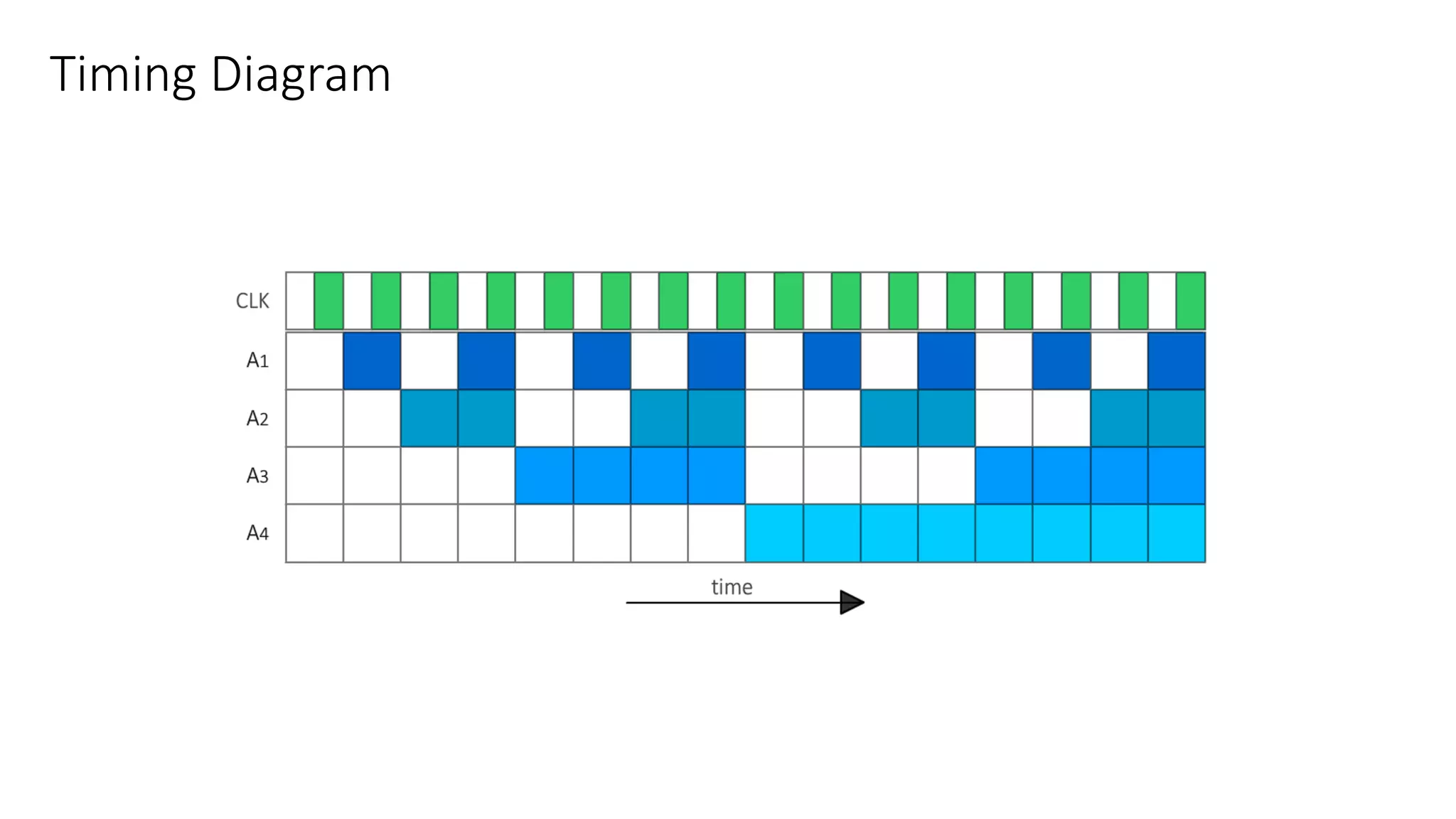

6. Timing Diagram
4-bit Synchronous Binary Counter

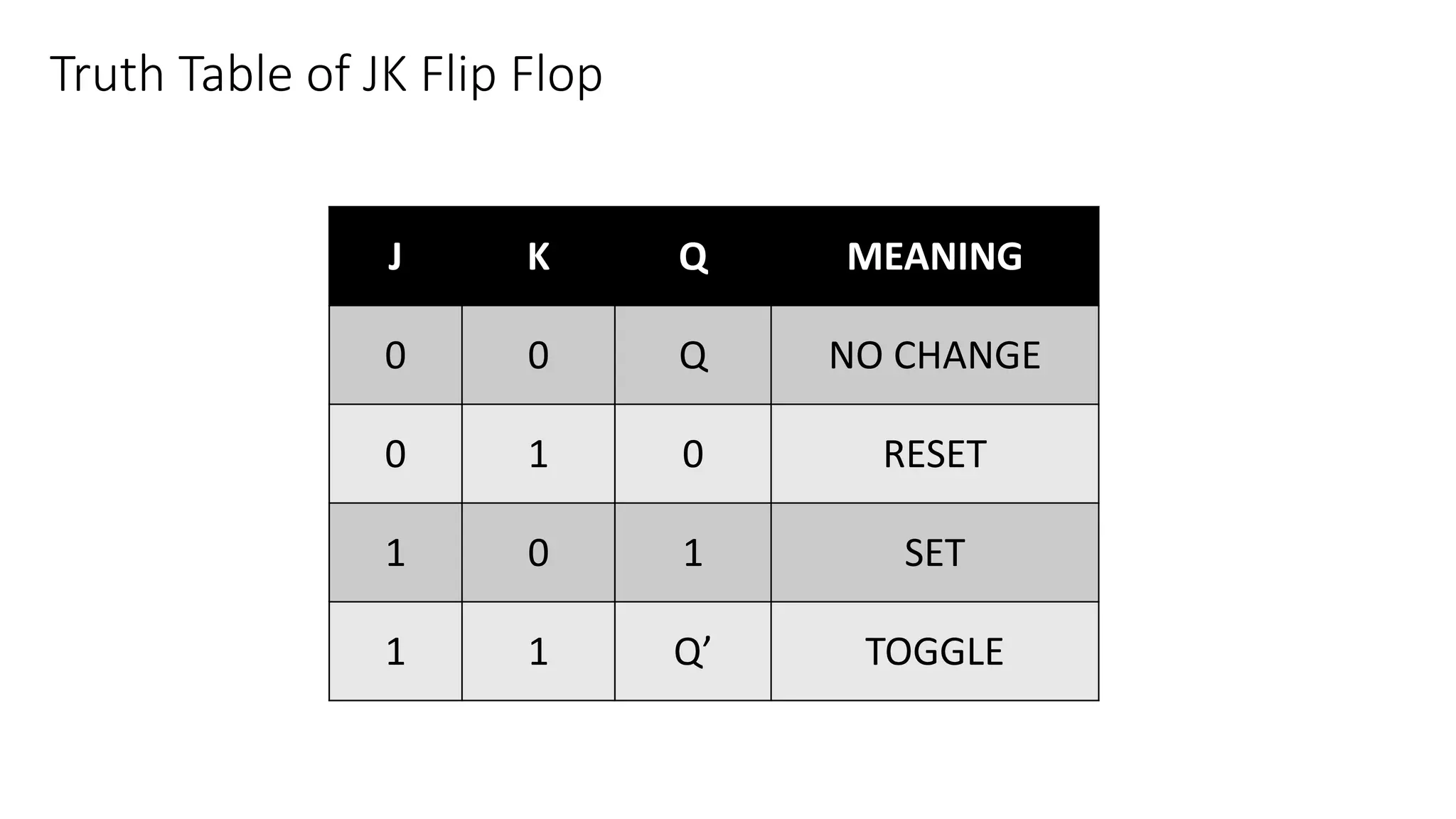

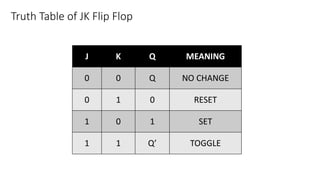

5. Truth Table of JK Flip Flop
J K Q MEANING
0 0 Q NO CHANGE
0 1 0 RESET
1 0 1 SET
1 1 Q’ TOGGLE

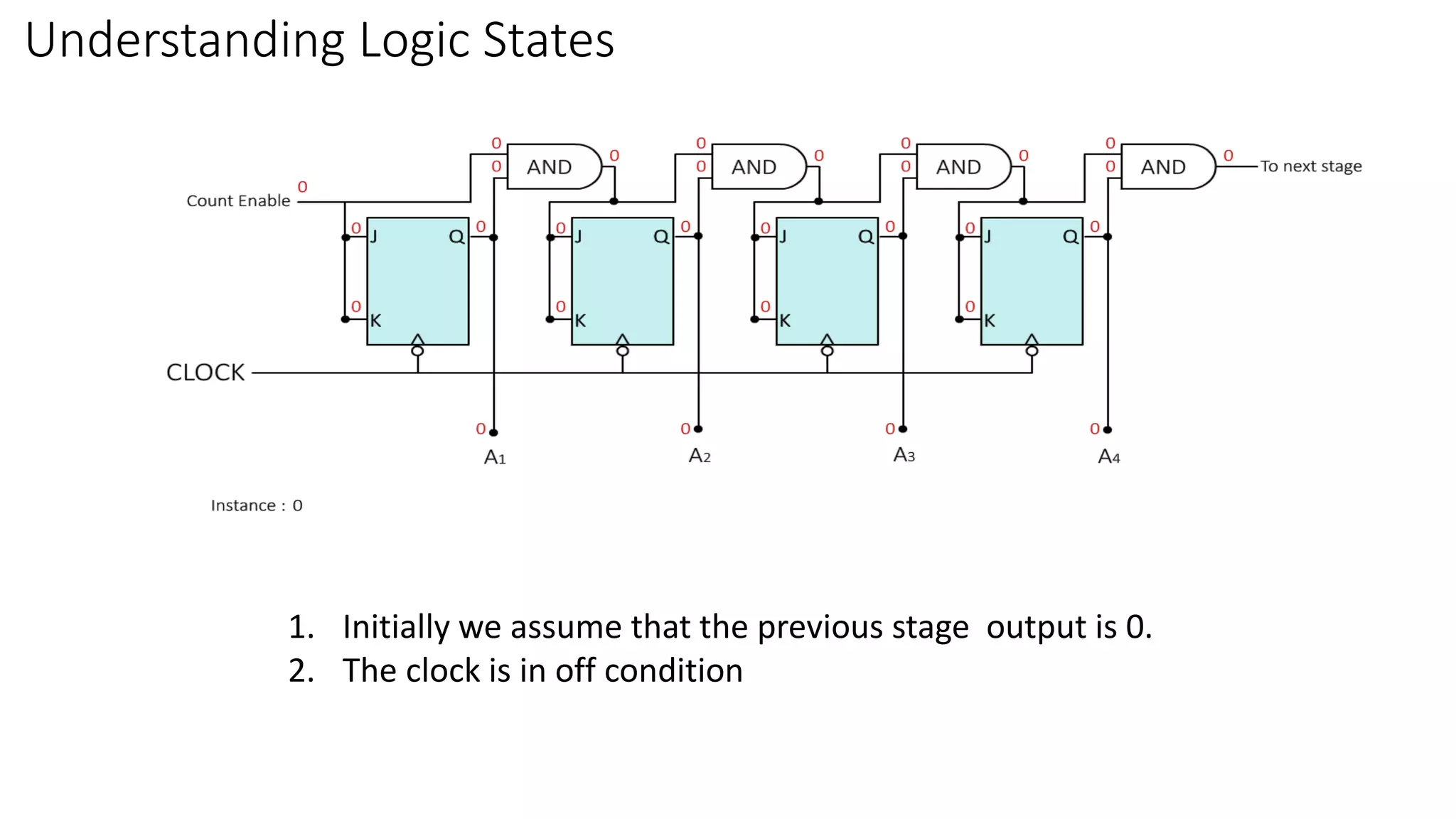

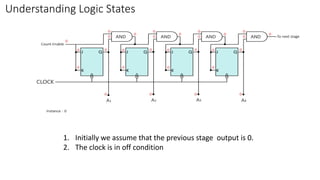

15. Understanding Logic States
1. Initially we assume that the previous stage output is 0.
2. The clock is in off condition

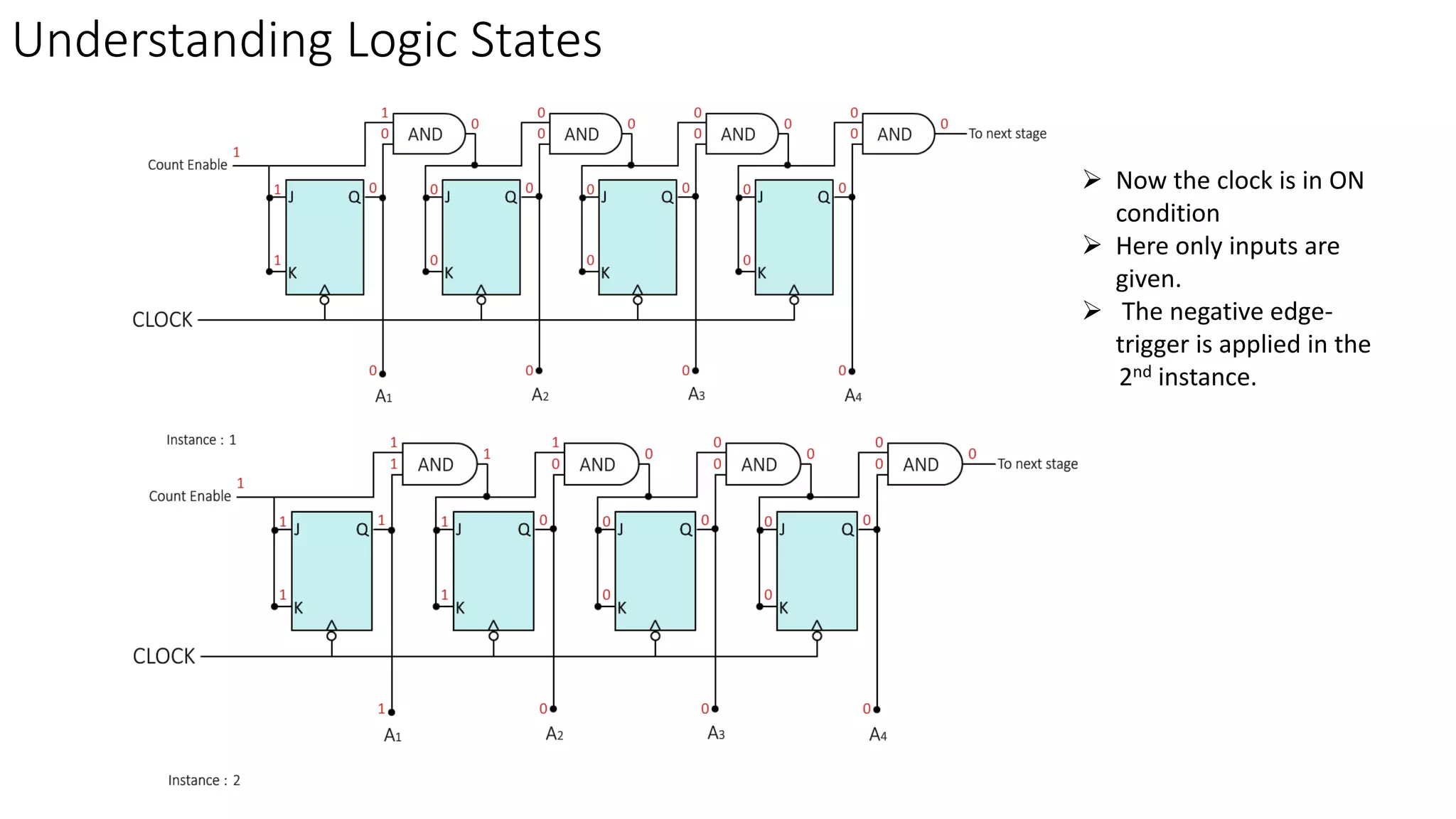

16. Understanding Logic States
Now the clock is in ON
condition
Here only inputs are
given.
The negative edge-
trigger is applied in the
2nd instance.

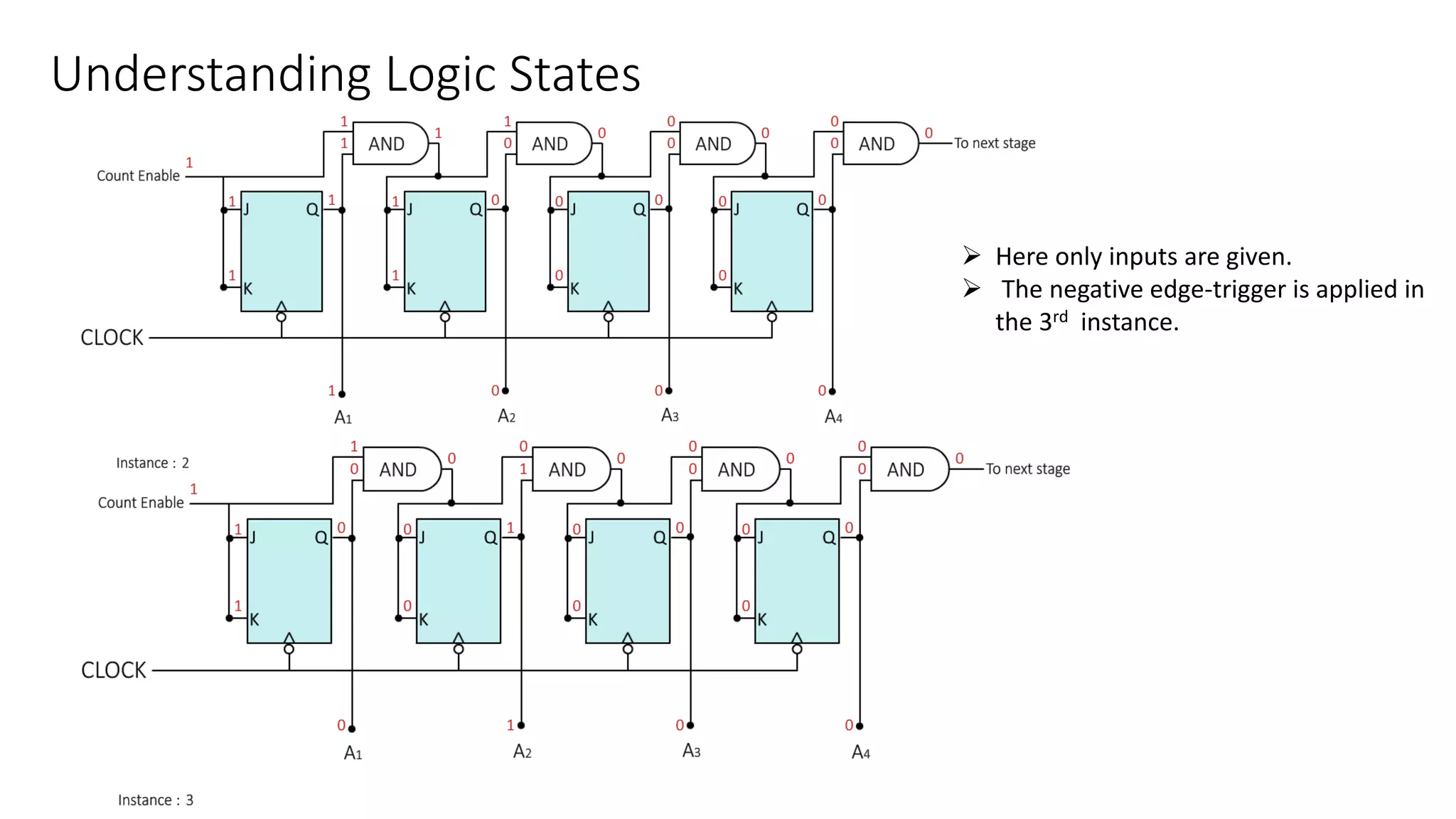

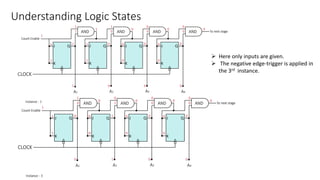

17. Understanding Logic States
Here only inputs are given.
The negative edge-trigger is applied in
the 3rd instance.

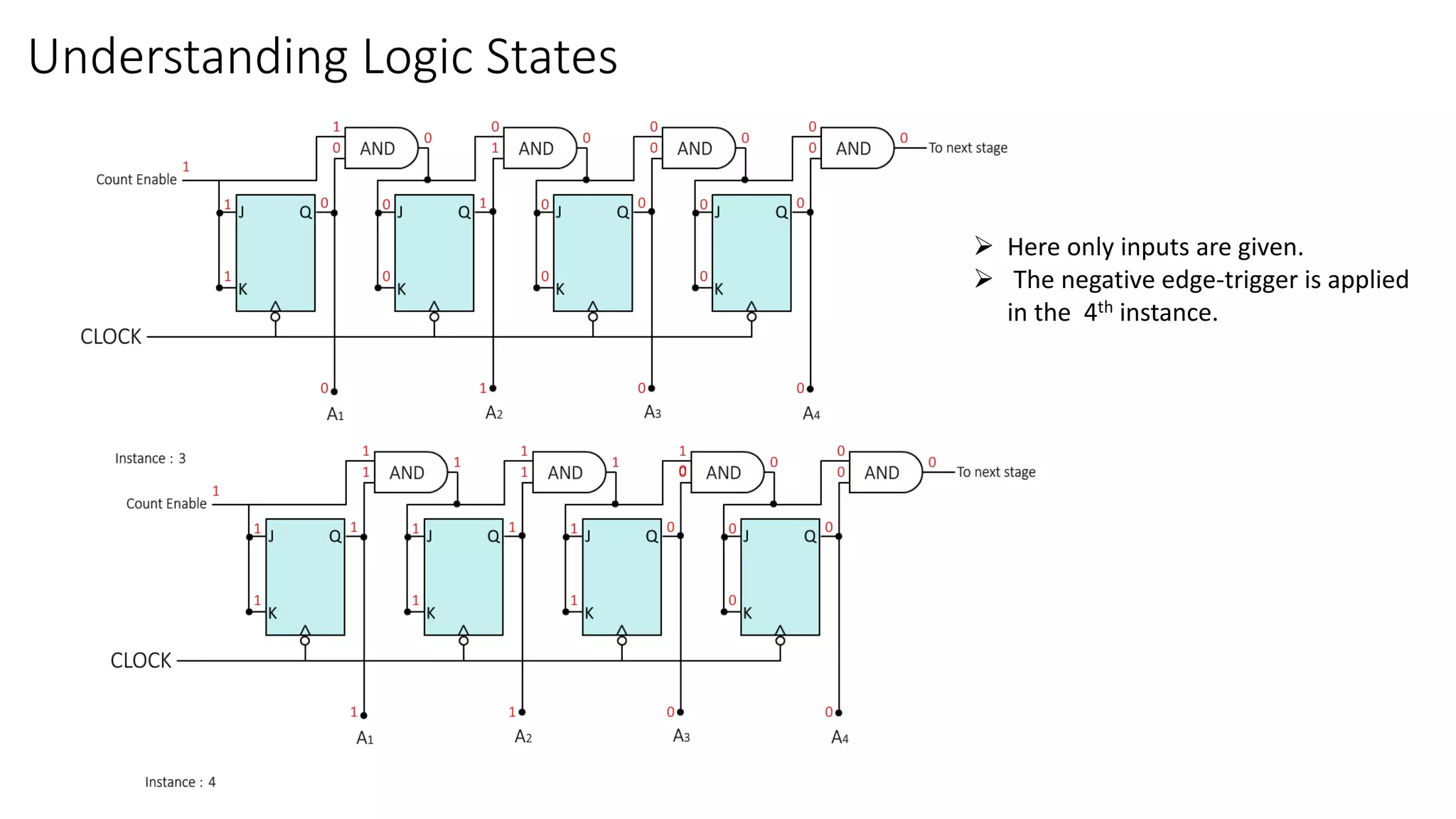

18. Understanding Logic States
Here only inputs are given.
The negative edge-trigger is applied
in the 4th instance.
19. Understanding Logic States
Here only inputs are given.
The negative edge-trigger is applied
in the 5th instance.
