This document discusses various 3D geometric transformations including translation, scaling, rotation, and coordinate transformations. It provides details on: 1) How translation, uniform scaling, and relative scaling transformations work in 3D space. 2) How rotations around the x, y, z axes as well as arbitrary axes are performed using transformation matrices. 3) How rotations can also be represented using quaternion algebra and how this relates to transformation matrices. 4) How objects can be transformed between different coordinate systems through sequences of translation, rotation, and scaling transformations.

1. 3D Geometric Transformation 고려대학교 컴퓨터 그래픽스 연구실

2. Contents Translation Scaling Rotation Rotations with Quaternions Other Transformations Coordinate Transformations

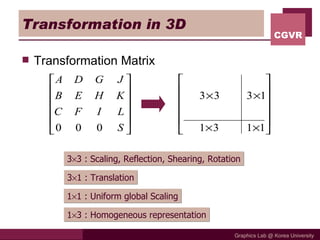

3. Transformation in 3D Transformation Matrix 3  3 : Scaling, Reflection, Shearing, Rotation 3  1 : Translation 1  3 : Homogeneous representation 1  1 : Uniform global Scaling

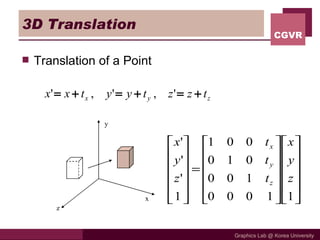

4. 3D Translation Translation of a Point x z y

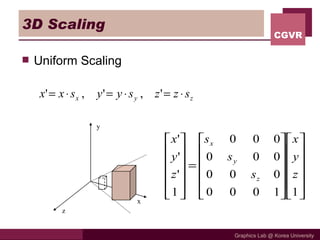

5. 3D Scaling Uniform Scaling x z y

6. Relative Scaling Scaling with a Selected Fixed Position x x x x z z z z y y y y Original position Translate Scaling Inverse Translate

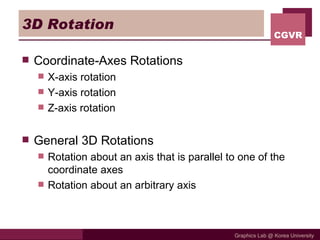

7. 3D Rotation Coordinate-Axes Rotations X-axis rotation Y-axis rotation Z-axis rotation General 3D Rotations Rotation about an axis that is parallel to one of the coordinate axes Rotation about an arbitrary axis

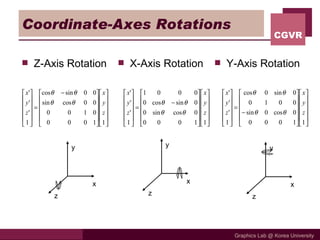

8. Coordinate-Axes Rotations Z-Axis Rotation X-Axis Rotation Y-Axis Rotation z y x z y x z y x

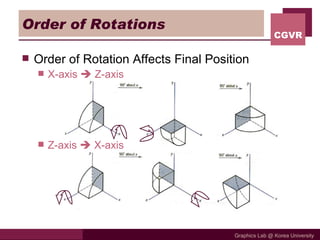

9. Order of Rotations Order of Rotation Affects Final Position X-axis  Z-axis Z-axis  X-axis

10. General 3D Rotations Rotation about an Axis that is Parallel to One of the Coordinate Axes Translate the object so that the rotation axis coincides with the parallel coordinate axis Perform the specified rotation about that axis Translate the object so that the rotation axis is moved back to its original position

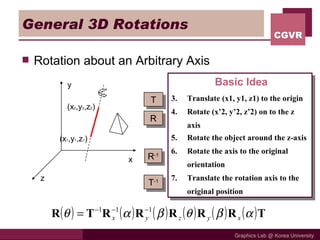

11. General 3D Rotations Rotation about an Arbitrary Axis Basic Idea Translate (x1, y1, z1) to the origin Rotate (x’2, y’2, z’2) on to the z axis Rotate the object around the z-axis Rotate the axis to the original orientation Translate the rotation axis to the original position (x 2 ,y 2 ,z 2 ) (x 1 ,y 1 ,z 1 ) x z y R -1 T -1 R T

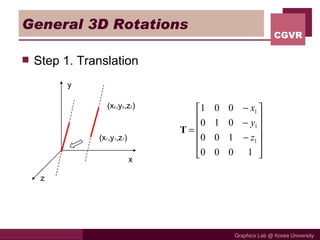

12. General 3D Rotations Step 1. Translation (x 2 ,y 2 ,z 2 ) (x 1 ,y 1 ,z 1 ) x z y

13. General 3D Rotations Step 2. Establish [ T R ]  x x axis (a,b,c) (0,b,c) Projected Point   Rotated Point x y z

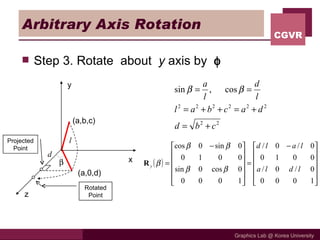

14. Arbitrary Axis Rotation Step 3. Rotate about y axis by  (a,b,c) (a,0,d)  l d x y Projected Point z Rotated Point

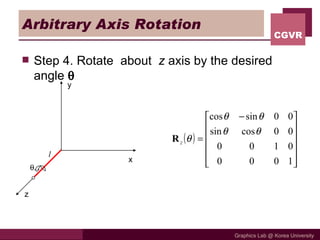

15. Arbitrary Axis Rotation Step 4. Rotate about z axis by the desired angle   l y x z

16. Arbitrary Axis Rotation Step 5. Apply the reverse transformation to place the axis back in its initial position x y l l z

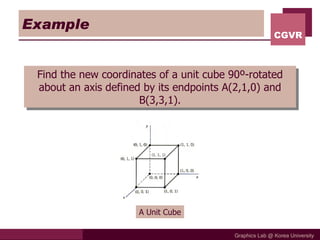

17. Example Find the new coordinates of a unit cube 90º-rotated about an axis defined by its endpoints A(2,1,0) and B(3,3,1). A Unit Cube

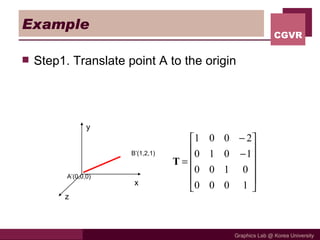

18. Example Step1. Translate point A to the origin A’(0,0,0) x z y B’(1,2,1)

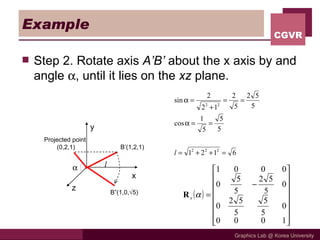

19. Example Step 2. Rotate axis A’B’ about the x axis by and angle  , until it lies on the xz plane. x z y l B’(1,2,1)  Projected point (0,2,1) B”(1,0,  5)

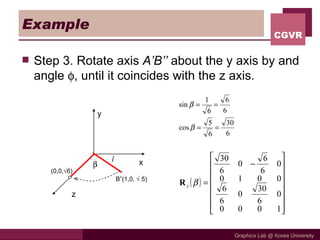

20. Example Step 3. Rotate axis A’B’’ about the y axis by and angle  , until it coincides with the z axis. x z y l  B”(1,0,  5) (0,0,  6)

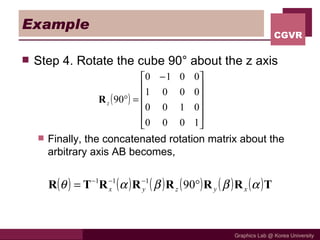

21. Example Step 4. Rotate the cube 90° about the z axis Finally, the concatenated rotation matrix about the arbitrary axis AB becomes,

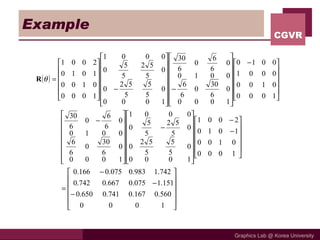

22. Example

23. Example Multiplying R ( θ ) by the point matrix of the original cube

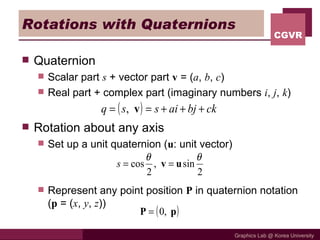

24. Rotations with Quaternions Quaternion Scalar part s + vector part v = ( a , b , c ) Real part + complex part (imaginary numbers i , j , k ) Rotation about any axis Set up a unit quaternion ( u : unit vector) Represent any point position P in quaternion notation ( p = ( x , y , z ))

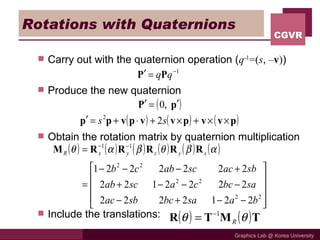

25. Rotations with Quaternions Carry out with the quaternion operation ( q -1 =( s , – v ) ) Produce the new quaternion Obtain the rotation matrix by quaternion multiplication Include the translations:

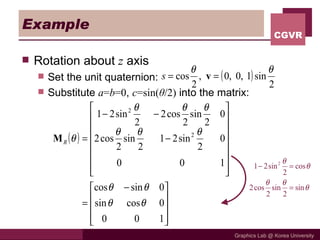

26. Example Rotation about z axis Set the unit quaternion: Substitute a = b =0 , c =sin( θ /2) into the matrix:

27. Other Transformations Reflection Relative to the xy Plane Z-axis Shear x z y x z y

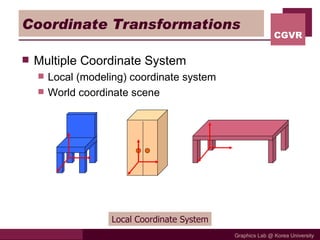

28. Coordinate Transformations Multiple Coordinate System Local (modeling) coordinate system World coordinate scene Local Coordinate System

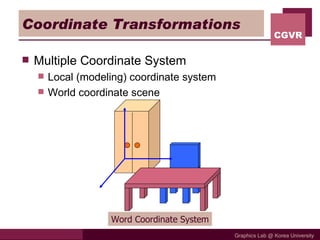

29. Coordinate Transformations Multiple Coordinate System Local (modeling) coordinate system World coordinate scene Word Coordinate System

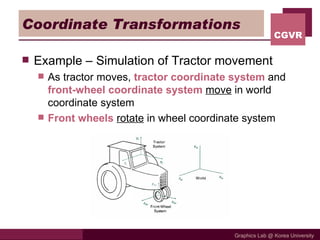

30. Coordinate Transformations Example – Simulation of Tractor movement As tractor moves, tractor coordinate system and front-wheel coordinate system move in world coordinate system Front wheels rotate in wheel coordinate system

31. Coordinate Transformations Transformation of an Object Description from One Coordinate System to Another Transformation Matrix Bring the two coordinates systems into alignment 1. Translation u ' y u ' z u ' x x y z (0,0,0) y’ z’ x’ u ' y u ' z u ' x ( x 0 , y 0 , z 0 ) x y z (0,0,0)

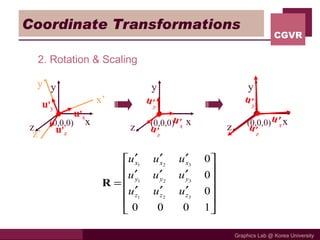

32. Coordinate Transformations 2. Rotation & Scaling y’ z’ x’ u ' y u ' z u ' x u ' y u ' z u ' x u ' y u ' z u ' x x y z (0,0,0) x y z (0,0,0) x y z (0,0,0)
