Projection is the transformation of a 3D object into a 2D plane by mapping points from the 3D object to the projection plane. There are two main types of projection: perspective projection and parallel projection. Perspective projection uses lines that converge to a single point, while parallel projection uses parallel lines. Perspective projection includes one-point, two-point, and three-point perspectives. Parallel projection includes orthographic projection, which projects lines perpendicular to the plane, and oblique projection, where lines are parallel but not perpendicular to the plane.

1. PROJECTION
B.Sc.IT
325
ANKIT SURATI

2. WHAT IS PROJECTION?
• Projection can be defined as a mapping of
point P(x,y,z) into its image P’(x’,y’,z’) in the
projection plane which constitute the display
surface.
• In short it is the transformation of a three-
dimensional (3D) object into a two-
dimensional (2D) plane.

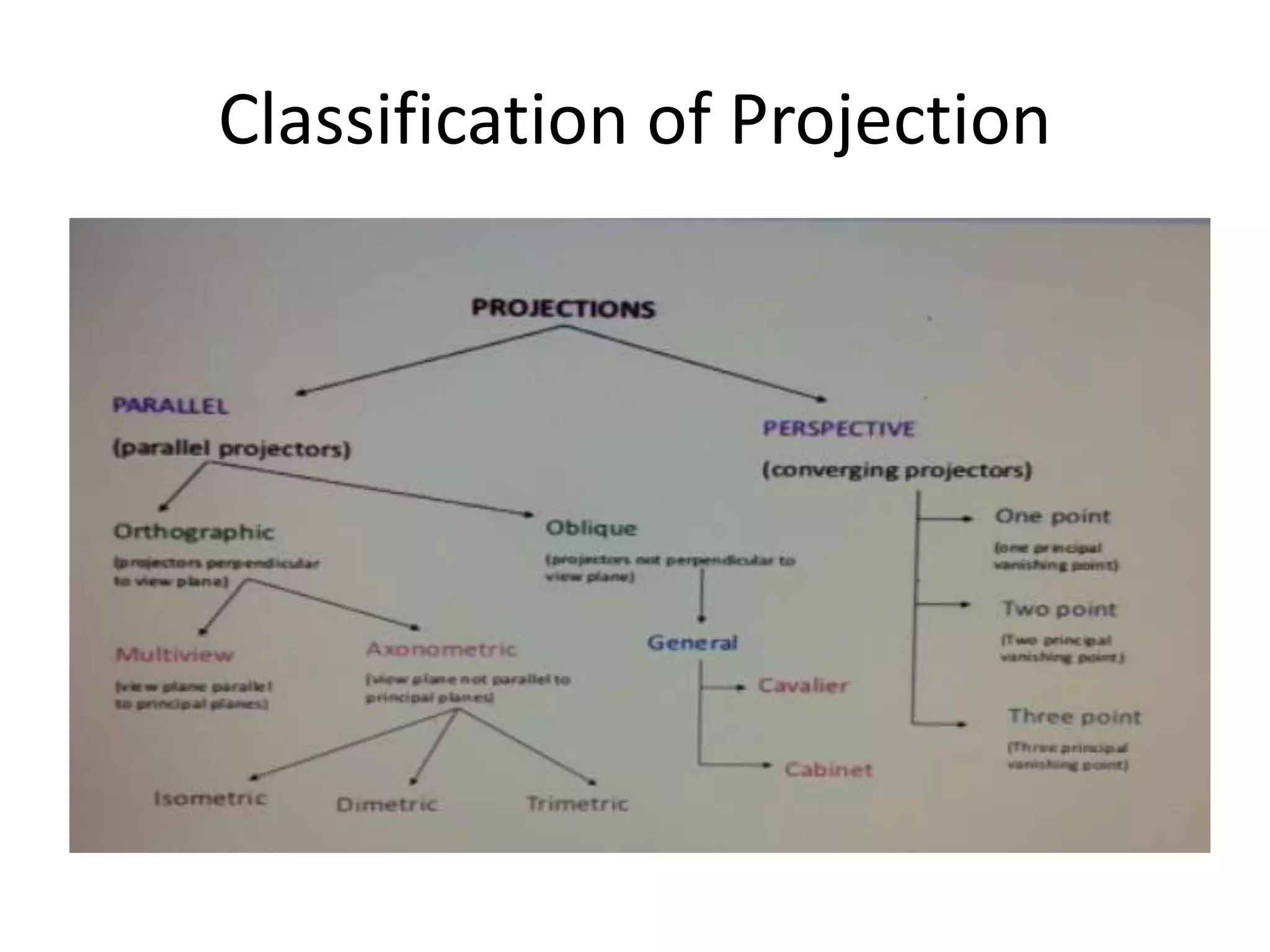

3. Classification of Projection

4. Perspective projection
• In this ,object position are transformed to the
view plane along lines that converge to a point
called center of projection.
• In this ,lines are not parallel to each other.

5. Types of Perspective Projection
• THERE ARE 3 TYPES OF PERSPECTIVE
PROJECTION:
1.ONE-POINT PERSPECTIVE PROJECTION

6. 2.TWO-POINT PERSPECTIVE PROJECTION
3.THREE-POINT PERSPECTIVE PROJECTION

7. PARALLEL PROJECTION
• In this,coordinate positions are transformed to
the view plane along parallel lines.
• Projection lines are parallel to each other.
• Projection lines are extended from the object
and intersect the view plane.

8. Types of Parallel Projection
There are two types of parallel projection:
1. ORTHOGRAPHIC:
 Projection lines are parallel to each other & also
perpendicular to the plane.
 It used to create different views of given object.
 There are 3 views:
i. Front view
ii. Side view
iii. Top view

9. 2.OBLIQUE:
Projection lines are parallel to each other but
not perpendicular to view plane.
In this there are 2 types:
i. CAVALIER:-In this,projection lines makes angle
of 30degree with the view plane & there is no
change in the length of projection.
ii. CABINET:-In this,projection lines makes angle
of 45degree with the view plane & length of
projected line vil reduce.
