1. 1

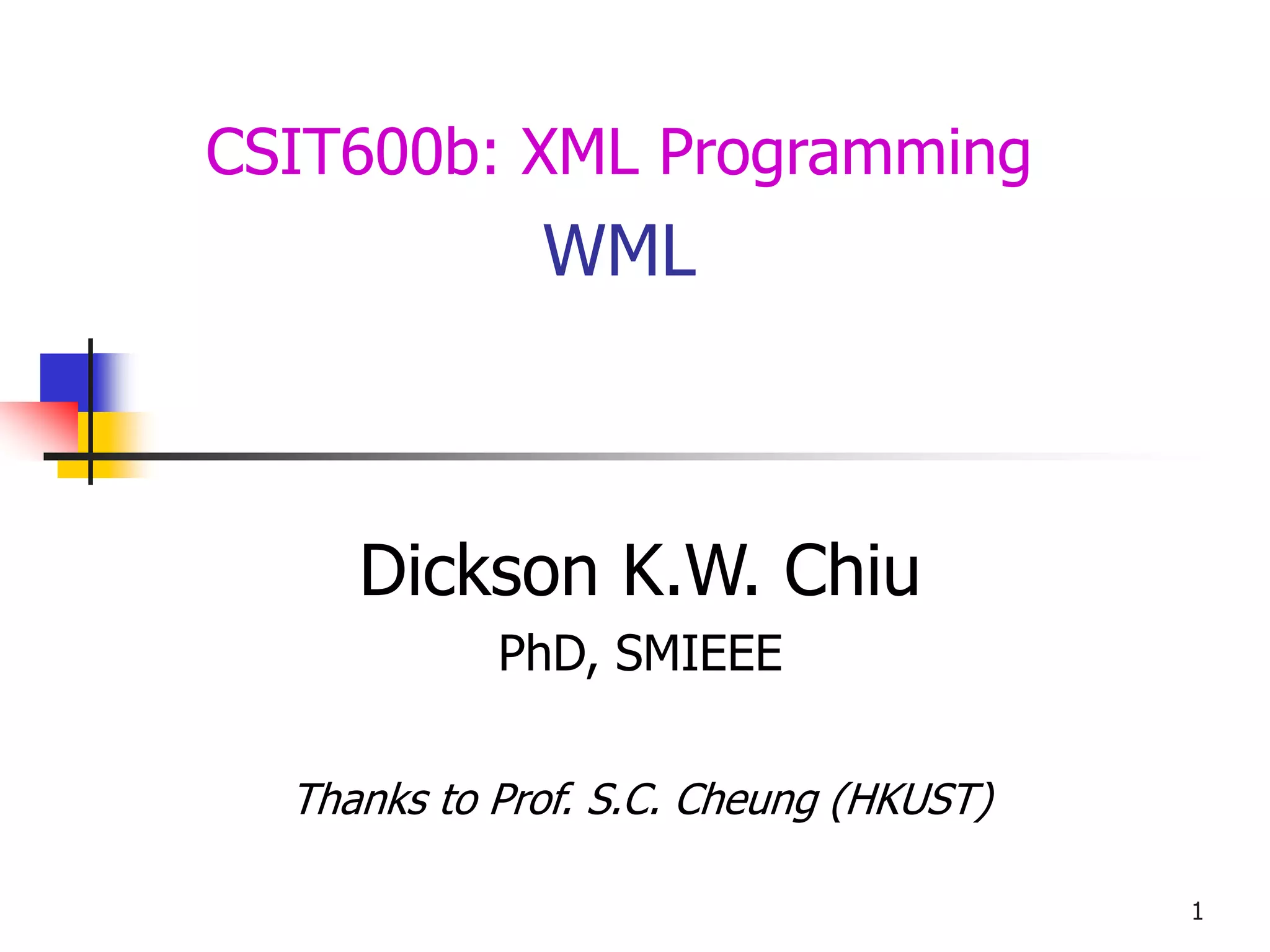

CSIT600b: XML Programming
WML
Dickson K.W. Chiu
PhD, SMIEEE
Thanks to Prof. S.C. Cheung (HKUST)

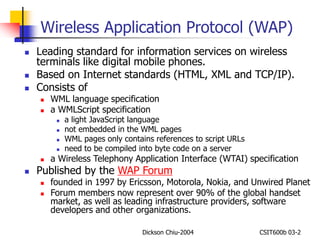

2. Wireless Application Protocol (WAP)
 Leading standard for information services on wireless
terminals like digital mobile phones.
 Based on Internet standards (HTML, XML and TCP/IP).
Dickson Chiu-2004 CSIT600b 03-2
 Consists of
 WML language specification
 a WMLScript specification
 a light JavaScript language
 not embedded in the WML pages
 WML pages only contains references to script URLs
 need to be compiled into byte code on a server
 a Wireless Telephony Application Interface (WTAI) specification
 Published by the WAP Forum
 founded in 1997 by Ericsson, Motorola, Nokia, and Unwired Planet
 Forum members now represent over 90% of the global handset
market, as well as leading infrastructure providers, software
developers and other organizations.

3. Wireless Markup Language (WML)
 WML based on XML and HTML.
 WML documents are divided into a set
of cards, each representing one unit of
interaction between the user and the
user agent.
 Instructions embedded within cards
may invoke services on origin servers.
 Several cards are grouped into a deck,
the basic WML unit, that origin server
can send to a user agent.
Dickson Chiu-2004 CSIT600b 03-3
 See:
http://www.w3schools.com/wap/default
.asp
Welcome
to
MTM515!!
Emulator - http://ttemulator.com/

4. WML – One Card
Text is specified inside p element.
A card can have none, one or several p elements.
Element br indicates start of a new line.
<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN"
"http://www.wapforum.org/DTD/wml_1.1.xml">
Dickson Chiu-2004 CSIT600b 03-4
<wml>
<!-- THIS IS THE FIRST CARD IN THE DECK -->
<card id="start" title=“S.C. Cheung WAPSITE">
<p>
Welcome to MTMI515!!
</p>
</card>
</wml>

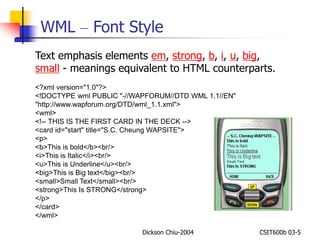

5. WML – Font Style
Text emphasis elements em, strong, b, i, u, big,
small - meanings equivalent to HTML counterparts.
<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN"
"http://www.wapforum.org/DTD/wml_1.1.xml">
<wml>
<!-- THIS IS THE FIRST CARD IN THE DECK -->
<card id="start" title="S.C. Cheung WAPSITE">
<p>
<b>This is bold</b><br/>
<i>This is Italic</i><br/>
<u>This is Underline</u><br/>
<big>This is Big text</big><br/>
<small>Small Text</small><br/>
<strong>This Is STRONG</strong>
</p>
</card>
</wml>
Dickson Chiu-2004 CSIT600b 03-5

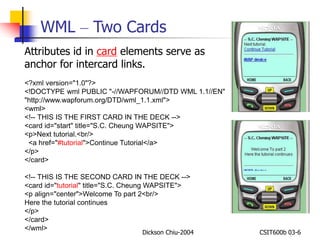

6. WML – Two Cards
Attributes id in card elements serve as
anchor for intercard links.
<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN"
"http://www.wapforum.org/DTD/wml_1.1.xml">
<wml>
<!-- THIS IS THE FIRST CARD IN THE DECK -->
<card id="start" title="S.C. Cheung WAPSITE">
<p>Next tutorial.<br/>
<a href="#tutorial">Continue Tutorial</a>
</p>
</card>
<!-- THIS IS THE SECOND CARD IN THE DECK -->
<card id="tutorial" title="S.C. Cheung WAPSITE">
<p align="center">Welcome To part 2<br/>
Here the tutorial continues
</p>
</card>
</wml>
Dickson Chiu-2004 CSIT600b 03-6

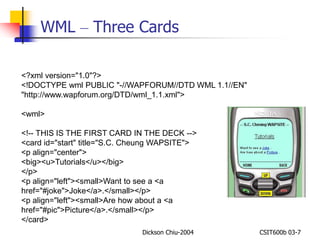

7. WML – Three Cards
<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN"
"http://www.wapforum.org/DTD/wml_1.1.xml">
Dickson Chiu-2004 CSIT600b 03-7
<wml>
<!-- THIS IS THE FIRST CARD IN THE DECK -->
<card id="start" title="S.C. Cheung WAPSITE">
<p align="center">
<big><u>Tutorials</u></big>
</p>
<p align="left"><small>Want to see a <a
href="#joke">Joke</a>.</small></p>
<p align="left"><small>Are how about a <a
href="#pic">Picture</a>.</small></p>
</card>

8. WML – Three Cards
<!-- THIS IS THE SECOND CARD IN THE DECK -->
<card id="joke" title="S.C. Cheung WAPSITE">
<p align="center">Joke's</p>
<p><small>1. What do you get if you cross an owl with a skunk?<br/>
A. bird that smells but doesn't give a hoot !!!!!!!!</small></p>
<p><small>2.Why did the rooster cross the road?<br/>
A. To prove he wasn't chicken !!</small></p>
</card>
<!-- THIS IS THE THIRD CARD IN THE DECK -->
<card id="pic" title="S.C. Cheung WAPSITE">
<p align="center"><b>Picture</b></p>
<p align="center"><img src="child3.wbmp" alt=" HI"/></p>
Dickson Chiu-2004 CSIT600b 03-8
</card>
</wml>

9. Dickson Chiu-2004 CSIT600b 03-9
WML - Table
<card title="Table">
<p>
<table columns="3">
<tr>
<td>Cell 1</td>
<td>Cell 2</td>
<td>Cell 3</td>
</tr>
</table>
</p>
</card>
</wml>

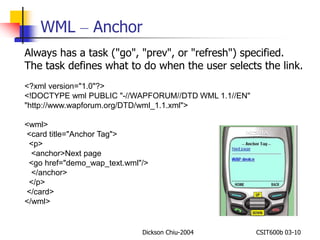

10. WML – Anchor
Always has a task ("go", "prev", or "refresh") specified.
The task defines what to do when the user selects the link.
<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN"
"http://www.wapforum.org/DTD/wml_1.1.xml">
<wml>
<card title="Anchor Tag">
<p>
<anchor>Next page
<go href="demo_wap_text.wml"/>
</anchor>
</p>
</card>
</wml>
Dickson Chiu-2004 CSIT600b 03-10

11. Dickson Chiu-2004 CSIT600b 03-11

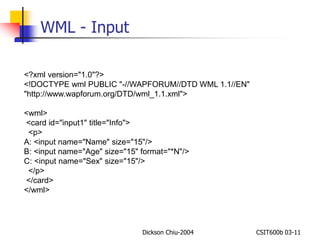

WML - Input
<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN"
"http://www.wapforum.org/DTD/wml_1.1.xml">
<wml>
<card id="input1" title="Info">
<p>
A: <input name="Name" size="15"/>
B: <input name="Age" size="15" format="*N"/>
C: <input name="Sex" size="15"/>
</p>
</card>
</wml>

12. Dickson Chiu-2004 CSIT600b 03-12

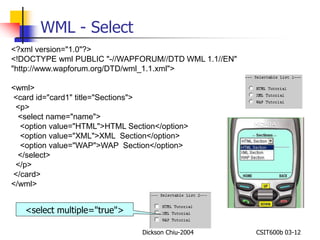

WML - Select
<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN"
"http://www.wapforum.org/DTD/wml_1.1.xml">
<wml>
<card id="card1" title="Sections">
<p>
<select name="name">
<option value="HTML">HTML Section</option>
<option value="XML">XML Section</option>
<option value="WAP">WAP Section</option>
</select>
</p>
</card>
</wml>
<select multiple="true">

13. WML - Refresh
<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN"
"http://www.wapforum.org/DTD/wml_1.1.xml">
Dickson Chiu-2004 CSIT600b 03-13
<wml>
<card>
<p>
<anchor>
Refresh This Page
<go href="#refresh"/>
</anchor>
</p>
</card>
</wml>
<card id="refresh" title="S.C. Cheung WAPSITE">
<refresh/>
</card>

14. Dickson Chiu-2004 CSIT600b 03-14
WML - Timer
<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN"
"http://www.wapforum.org/DTD/wml_1.1.xml">
<wml>
<card ontimer="2.wml">
<timer value="10"/>
<p>Some Message</p>
</card>
</wml>

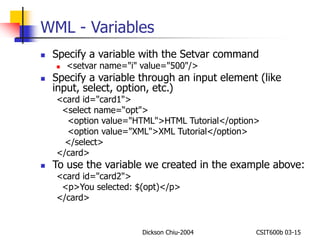

15. WML - Variables
 Specify a variable with the Setvar command
 <setvar name="i" value="500"/>
 Specify a variable through an input element (like
input, select, option, etc.)
<card id="card1">
<select name=“opt">
<option value="HTML">HTML Tutorial</option>
<option value="XML">XML Tutorial</option>
</select>
</card>
 To use the variable we created in the example above:
<card id="card2">
<p>You selected: $(opt)</p>
</card>
Dickson Chiu-2004 CSIT600b 03-15

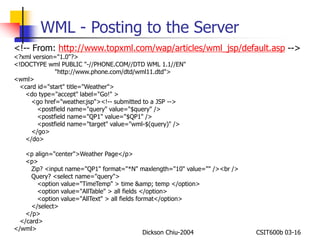

16. WML - Posting to the Server
<!-- From: http://www.topxml.com/wap/articles/wml_jsp/default.asp -->
<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//PHONE.COM//DTD WML 1.1//EN"
"http://www.phone.com/dtd/wml11.dtd">
Dickson Chiu-2004 CSIT600b 03-16
<wml>
<card id="start" title="Weather">
<do type="accept" label="Go!" >
<go href="weather.jsp"><!-- submitted to a JSP -->
<postfield name="query" value="$query" />
<postfield name="QP1" value="$QP1" />
<postfield name="target" value="wml-$(query)" />
</go>
</do>
<p align="center">Weather Page</p>
<p>
Zip? <input name="QP1" format="*N" maxlength="10" value="" /><br />
Query? <select name="query">
<option value="TimeTemp" > time &amp; temp </option>
<option value="AllTable" > all fields </option>
<option value="AllText" > all fields format</option>
</select>
</p>
</card>
</wml>

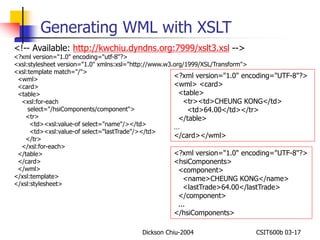

17. Generating WML with XSLT
<!-- Available: http://kwchiu.dyndns.org:7999/xslt3.xsl -->
<?xml version="1.0" encoding="utf-8"?>
<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">
<xsl:template match="/">
<wml>
<card>
<table>
<?xml version="1.0" encoding="UTF-8"?>
<wml> <card>
<table>
<tr><td>CHEUNG KONG</td>
<td>64.00</td></tr>
</table>
…
</card></wml>
Dickson Chiu-2004 CSIT600b 03-17
<xsl:for-each
select="/hsiComponents/component">
<tr>
<td><xsl:value-of select="name"/></td>
<td><xsl:value-of select="lastTrade"/></td>
</tr>
</xsl:for-each>
</table>
</card>
</wml>
</xsl:template>
</xsl:stylesheet>
<?xml version="1.0" encoding="UTF-8"?>
<hsiComponents>
<component>
<name>CHEUNG KONG</name>
<lastTrade>64.00</lastTrade>
</component>
...
</hsiComponents>

18. Dickson Chiu-2004 CSIT600b 03-18
WAP Emulator
 http://www.gelon.net/
 Paste URL to WAP emulator:
 http://kwchiu.dyndns.org:7999/html2dom/result?s
ourceURL=http%3A%2F%2Ffinance.yahoo.com%
2Fq%2Fcp%3Fs%3D%5EHSI&xslt1URL=http%3A
%2F%2Fkwchiu.dyndns.org%3A7999%2Fxslt1.xsl
&xslt2URL=http%3A%2F%2Fkwchiu.dyndns.org
%3A7999%2Fxslt3.xsl&submit=convert
 More sophisticated development:
 http://www.forum.nokia.com/main/0,6566,034-
521,00.html
