The document describes a Zigbee evaluation board that interfaces with an ARM7 microcontroller. It allows for low-power wireless communication using the IEEE 802.15.4 networking protocol at distances up to 1 mile line-of-sight. The board features an XBee or XBee Pro module, peripherals for analog input and output, and interfaces to connect to a host PC or embedded device via an RS232 connection. It can be used to transfer data and files wirelessly between nodes and interface with an ARM7 development board for wireless sensor and control applications.

1. Zigbee Evaluation Boardinterface with ARM 7www.pantechsolutions.net

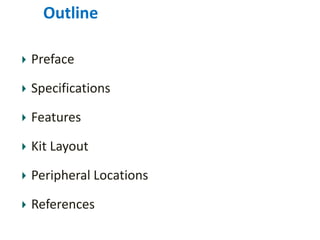

2. Outline PrefaceSpecificationsFeaturesKit LayoutPeripheral LocationsReferences

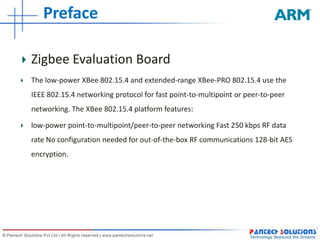

3. Preface Zigbee Evaluation BoardThe low-power XBee 802.15.4 and extended-range XBee-PRO 802.15.4 use the IEEE 802.15.4 networking protocol for fast point-to-multipoint or peer-to-peer networking. The XBee 802.15.4 platform features:low-power point-to-multipoint/peer-to-peer networking Fast 250 kbps RF data rate No configuration needed for out-of-the-box RF communications 128-bit AES encryption.

4. SpecificationsModule – Xbee | Xbee PROSpecificationsPower output:: 1mW (+0 dBm) International version Indoor/Urban range: Up to 100 ft (30 m) Up to 1 mile (1.6 km) RF LOS (Xbee PRO)Outdoor/RF line-of-sight range: Up to 300 ft (90 m) RF data rate: 250 Kbps Interface data rate: Up to 115.2 Kbps Operating frequency: 2.4 GHz Receiver sensitivity: -92 dBm

5. Features Spread Spectrum type: DSSS (Direct Sequence Spread Spectrum) Networking topology: Point-to-point, point-to-multipoint, & peer-to-peer Error handling: Retries & acknowledgements Filtration options: PAN ID, Channel, and 64-bit addresses Channel capacity: XBee: 16 Channels XBee-PRO: 12 Channels Addressing: 65,000 network addresses available for each channel

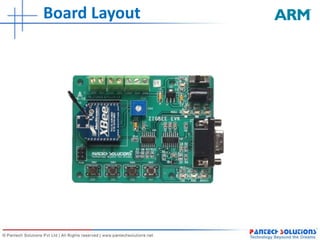

6. Board Layout

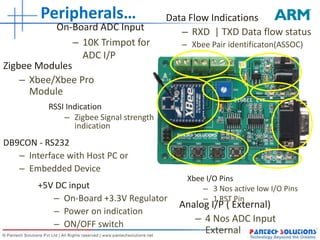

7. Peripherals…Data Flow IndicationsRXD | TXD Data flow status

8. Xbee Pair identificaton(ASSOC)On-Board ADC Input10K Trimpot for ADC I/PZigbee ModulesXbee/Xbee Pro ModuleRSSI IndicationZigbee Signal strength indicationDB9CON - RS232 Interface with Host PC or

9. Embedded DeviceXbee I/O Pins 3 Nos active low I/O Pins

10. 1 RST Pin+5V DC inputOn-Board +3.3V Regulator

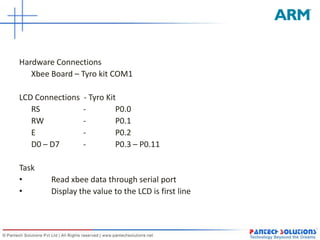

11. Power on indication

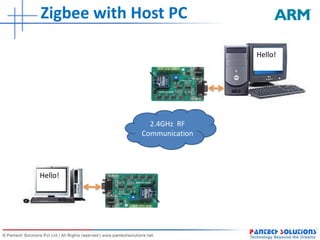

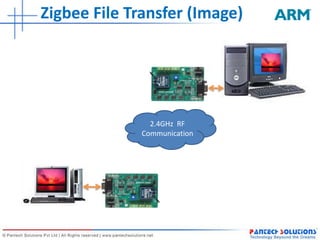

12. ON/OFF switchAnalog I/P ( External) 4 Nos ADC Input ExternalZigbee with Host PCHello!2.4GHz RF CommunicationHello!
