Microwave Huawei RTN Hardware Structure

HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential
Security Level:
www.huawei.com
OptiX RTN 900 V1R2
System Hardware

HUAWEI TECHNOLOGIES CO., LTD.
Page 2
Huawei Confidential
Preface
The OptiX RTN 900 is a new generation split
microwave transmission system developed by Huawei.
It can provide a solution that is integrated with the TDM
microwave, Hybrid microwave, and Packet microwave
based on the network requirements. RTN 900 V1R1
support pure packet microwave, and RTN 900 V1R2
support TDM microwave and Hybrid microwave.
This course describes the network position, system
architecture, and hardware structure of the OptiX RTN
900. 。

Page 3
Huawei Confidential
References
OptiX RTN 910 V100R002 hardware
description documentation
OptiX RTN 950 V100R002 hardware
description documentation

Page 4
Huawei Confidential
Target
After completing this course, you should be
familiar with the following information:
Network position and networking application of the
OptiX RTN 900 V1R2
System architecture of the OptiX RTN 900 V1R2
Hardware structure of the OptiX RTN 900 V1R2
Functions and applications of each board on the
OptiX RTN 900 V1R2

Page 5
Huawei Confidential

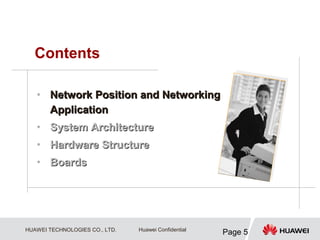

Contents
• Network Position and Networking
Network Position and Networking
Application
Application
• System Architecture
System Architecture
• Hardware Structure
Hardware Structure
• Boards
Boards

Page 6
Huawei Confidential

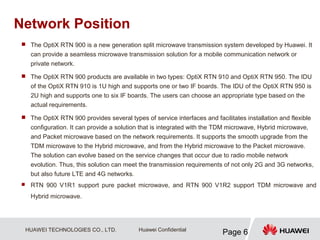

Network Position
 The OptiX RTN 900 is a new generation split microwave transmission system developed by Huawei. It
can provide a seamless microwave transmission solution for a mobile communication network or
private network.
 The OptiX RTN 900 products are available in two types: OptiX RTN 910 and OptiX RTN 950. The IDU
of the OptiX RTN 910 is 1U high and supports one or two IF boards. The IDU of the OptiX RTN 950 is
2U high and supports one to six IF boards. The users can choose an appropriate type based on the
actual requirements.
 The OptiX RTN 900 provides several types of service interfaces and facilitates installation and flexible
configuration. It can provide a solution that is integrated with the TDM microwave, Hybrid microwave,
and Packet microwave based on the network requirements. It supports the smooth upgrade from the
TDM microwave to the Hybrid microwave, and from the Hybrid microwave to the Packet microwave.
The solution can evolve based on the service changes that occur due to radio mobile network
evolution. Thus, this solution can meet the transmission requirements of not only 2G and 3G networks,
but also future LTE and 4G networks.
 RTN 900 V1R1 support pure packet microwave, and RTN 900 V1R2 support TDM microwave and
Hybrid microwave.

Page 7
Huawei Confidential
Network Application －
－ TDM microwave
transmission solution
 When the OptiX RTN 910 supports the microwave transmission in three directions or more, you can adopt
the NE cascading mode or use the OptiX RTN 950, which has more powerful functions.
OptiX RTN 900 BTS BSC
E1
E1
E1
STM-1/E1 E1
Regional Backhaul
Network
E1
E1
E1
E1
E1
E1

Page 8
Huawei Confidential

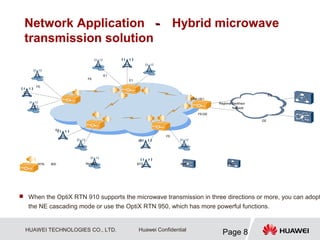

Network Application －
－ Hybrid microwave
transmission solution
Regional Backhaul
Network
OptiX RTN 900 BTS
NodeB BSC
RNC
FE
E1
FE
E1
E1
E1
FE
FE/GE
E1
GE
E1
E1
STM-1/E1
 When the OptiX RTN 910 supports the microwave transmission in three directions or more, you can adopt
the NE cascading mode or use the OptiX RTN 950, which has more powerful functions.

Page 9
Huawei Confidential
Contents
Application
Application
System Architecture
Hardware Structure
• Boards
Boards

Page 10
Huawei Confidential
System Architecture——TDM Microwave
 The SDH/PDH microwave equipment consists of a series of functional units, including the
service interface unit, timeslot cross-connect unit, IF unit, control unit, clock unit, auxiliary
interface unit, fan unit, power unit, and ODU.
Service
interface
unit
Accesses E1 signals.
Accesses STM-1 signals.
Service
switching
unit
Provides the cross-connect
function and grooms TDM
services.
IF unit Maps service signals to
microwave frame signals and
demaps microwave frame
signals to service signals.
Performs conversion between
IF analog signals.
…

Page 11
Huawei Confidential
System Architecture——Hybrid Microwave
 The Hybrid microwave equipment consists of a series of functional units, including the
service interface unit, timeslot cross-connect unit, packet switching unit, IF unit, control
unit, clock unit, auxiliary interface unit, fan unit, power unit, and ODU.
Service
interface
unit
Accesses E1 signals
Accesses STM-1 signals
Accesses Ethernet signals.
Timeslot
cross-
connect
unit
Provides the cross-connect
function and grooms TDM
services.
Packet
switching
unit
Processes Ethernet services
and forwards packets.
IF unit Maps service signals to
demaps microwave frame
signals to service signals
Performs conversion between
microwave frame signals and IF
analog signals.
…

Page 12
Huawei Confidential
RTN 910——Service Signal Processing Flow
 SDH/PDH Microwave
 Hybrid Microwave

Page 13
Huawei Confidential
RTN 950 ——Service Signal Processing Flow
 SDH/PDH Microwave
 Hybrid Microwave

Page 14
Huawei Confidential
Contents
Application
Application
System Architecture
Hardware Structure
• Boards
Boards

Page 15
Huawei Confidential

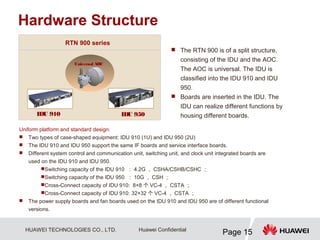

Uniform platform and standard design:
 Two types of case-shaped equipment: IDU 910 (1U) and IDU 950 (2U)
 The IDU 910 and IDU 950 support the same IF boards and service interface boards.
 Different system control and communication unit, switching unit, and clock unit integrated boards are
used on the IDU 910 and IDU 950.
Switching capacity of the IDU 910 ： 4.2G ， CSHA/CSHB/CSHC ；
Switching capacity of the IDU 950 ： 10G ， CSH ；
Cross-Connect capacity of IDU 910: 8×8 个 VC-4 ， CSTA ；
Cross-Connect capacity of IDU 910: 32×32 个 VC-4 ， CSTA ；
 The power supply boards and fan boards used on the IDU 910 and IDU 950 are of different functional
versions.
IDU 950
IDU 910
Universal AOC
Hardware Structure
RTN 900 series
 The RTN 900 is of a split structure,
consisting of the IDU and the AOC.
The AOC is universal. The IDU is
classified into the IDU 910 and IDU
950.
 Boards are inserted in the IDU. The
IDU can realize different functions by
housing different boards.

Page 16
Huawei Confidential

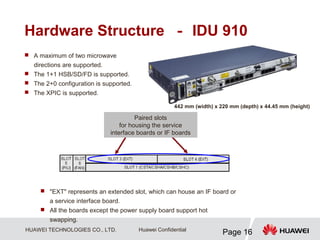

Hardware Structure － IDU 910
 A maximum of two microwave
directions are supported.
 The 1+1 HSB/SD/FD is supported.
 The 2+0 configuration is supported.
 The XPIC is supported.
442 mm (width) x 220 mm (depth) x 44.45 mm (height)
Paired slots
for housing the service
interface boards or IF boards
 "EXT" represents an extended slot, which can house an IF board or
a service interface board.
 All the boards except the power supply board support hot
swapping.

Page 17
Huawei Confidential
Hardware Structure － IDU 950
Power(1+1)
Integration card (1+1)
 2U high
 A maximum of six microwave directions
are supported.
 The 1+1 HSB/SD/FD is supported.
 The N+0 configuration (N≤5) is supported.
 The N+1 configuration (N≤5) is supported.
 The XPIC is supported.
442 mm (width) x 220 mm (depth) x 88.9 mm (height)
Paired slots
Paired slots
Paired slots
 "EXT" represents an extended slot, which can house an IF board or a service interface board.
 All the boards except the power supply board support hot swapping.

Page 18
Huawei Confidential
Contents
Application
Application
System Architecture
Hardware Structure
• Boards
Boards

Page 19
Huawei Confidential

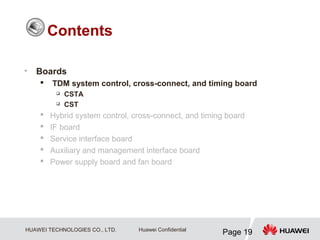

• Boards
 TDM system control, cross-connect, and timing board
 CSTA
 CST
 Hybrid system control, cross-connect, and timing board
 IF board
 Service interface board
 Auxiliary and management interface board
 Power supply board and fan board
Contents

Page 20
Huawei Confidential
CSTA— Functions and Features
 The CSTA provides the full time division cross-connection, system control and
communication, and clock processing functions. In addition, the CSTA provides
PDH/SDH service interfaces, auxiliary interfaces, and management interfaces.
Grooms service signals between boards. Supports full time division cross-connections at the VC-
12, VC-3, or VC-4 level, which are equivalent to 8x8 VC-4s.
Provide two STM-1 optical interfaces and sixteen E1 service interfaces.
Provides one Ethernet NM interface and NM serial interface.
Provides one NE cascade interface.
Supports one input and one output of the external clock. / Bypass E1 service interface.
Provides one asynchronous / synchronous data interface.
Provides one three-input and one-output external alarm interface.
Provides one Orderwire interface.

Page 21
Huawei Confidential

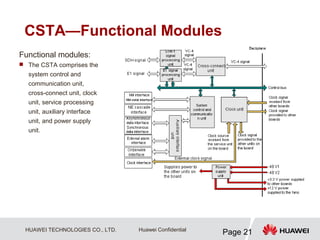

CSTA—Functional Modules
Functional modules:
 The CSTA comprises the
system control and
communication unit,
cross-connect unit, clock
unit, service processing
unit, auxiliary interface
unit, and power supply
unit.

Page 22
Huawei Confidential
CSTA — Slot allocation
CSTA boards are inserted in slots 1 and 2 in the IDU 910 chassis.
According to the functional units, the CSTA is mapped into the logical system control and
communication board (CSTA), logical auxiliary and management board (AUX), and
logical service boards (SL1D and SP3S) on the NMS.
 The CXPAR/CXPBR boards can be inserted only in slots 1 and 2 in the IDU 910 chassis.
 The CXPAR/CXPBR boards cannot be inserted in the IDU 950 chassis.

Page 23
Huawei Confidential

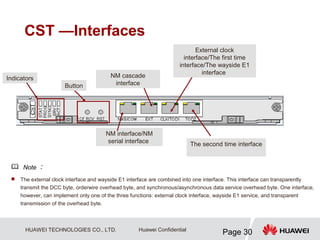

CSTA —Interfaces
E1 (1-16)
interface
STM-1 optical
interfaces
Alarm input/output
interface
external clock/ Bypass E1
service interface
NE cascade
interface
NM interface/NM
serial interface
Synchronous/A
synchronous
data interface
Indicators
Buttons
 The external clock interface and wayside E1 interface are combined into one interface. This interface can transparently transmit
the DCC byte, orderwire overhead byte, and synchronous/asynchronous data service overhead byte. One interface, however,
can implement only one of the three functions: external clock interface, wayside E1 service, and transparent transmission of the
overhead byte.
 The 64 kbit/s synchronous data interface can transparently transmit the orderwire byte. One interface, however, can implement
only one of the two functions: 64 kbit/s synchronous data interface and transparent transmission of the orderwire byte.
NOTE:
Orderwire phone
interface (RJ-45
connector)

Page 24
Huawei Confidential

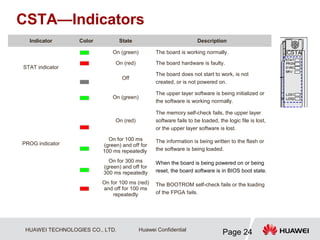

Indicator Color State Description
STAT indicator
On (green) The board is working normally.
On (red) The board hardware is faulty.
Off
The board does not start to work, is not
created, or is not powered on.
PROG indicator
On (green)
The upper layer software is being initialized or
the software is working normally.
On (red)
The memory self-check fails, the upper layer
software fails to be loaded, the logic file is lost,
or the upper layer software is lost.
On for 100 ms
(green) and off for
100 ms repeatedly
The information is being written to the flash or
the software is being loaded.
On for 300 ms
(green) and off for
300 ms repeatedly
When the board is being powered on or being
reset, the board software is in BIOS boot state.
On for 100 ms (red)
and off for 100 ms
repeatedly
The BOOTROM self-check fails or the loading
of the FPGA fails.
CSTA—Indicators

Page 25
Huawei Confidential
CSTA—Indicators
SYNC indicator
On (green) The clock is operating normally.
On (red) The clock source is lost or is switched.
SRV indicator
On (green)
The services are working normally and no
alarms occur in the services.
On (red)
A critical or major alarm occurs in the
services.
On (yellow)
A minor or remote alarm occurs in the
services.
Off There is no power supplied to the system.
LOS 1
On (red)
The first optical interface on the line reports
the R_LOS alarm.
Off
The first optical interface on the line does not
report the R_LOS alarm.
LOS 2
On (red)
The second optical interface on the line
reports the R_LOS alarm.
Off
The second optical interface on the line does
not report the R_LOS alarm.

Page 26
Huawei Confidential
CSTA—Buttons
Button Description
CF RCV button
Used to restore the configuration
data from the CF card.
RST button
Used to perform a warm reset on
the equipment.

Page 27
Huawei Confidential

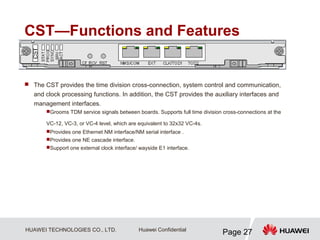

CST—Functions and Features
 The CST provides the time division cross-connection, system control and communication,
and clock processing functions. In addition, the CST provides the auxiliary interfaces and
management interfaces.
Grooms TDM service signals between boards. Supports full time division cross-connections at the
VC-12, VC-3, or VC-4 level, which are equivalent to 32x32 VC-4s.
Provides one Ethernet NM interface/NM serial interface .
Support one external clock interface/ wayside E1 interface.

Page 28
Huawei Confidential
CST— Functional Modules
Functional modules:
 The CST comprises the
system control and
communication unit,
unit, and power supply
unit.

Page 29
Huawei Confidential

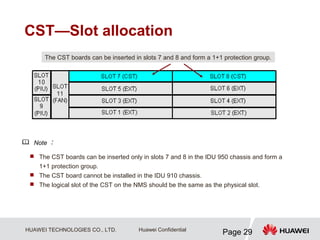

CST—Slot allocation
 The CST boards can be inserted only in slots 7 and 8 in the IDU 950 chassis and form a
1+1 protection group.
 The CST board cannot be installed in the IDU 910 chassis.
 The logical slot of the CST on the NMS should be the same as the physical slot.
The CST boards can be inserted in slots 7 and 8 and form a 1+1 protection group.
Note ：

Page 30
Huawei Confidential
CST —Interfaces
The second time interface
External clock
interface/The first time
interface/The wayside E1
interface
NM cascade
interface
NM interface/NM
serial interface
Indicators
Button
 The external clock interface and wayside E1 interface are combined into one interface. This interface can transparently
transmit the DCC byte, orderwire overhead byte, and synchronous/asynchronous data service overhead byte. One interface,
however, can implement only one of the three functions: external clock interface, wayside E1 service, and transparent
transmission of the overhead byte.
Note ：

Page 31
Huawei Confidential

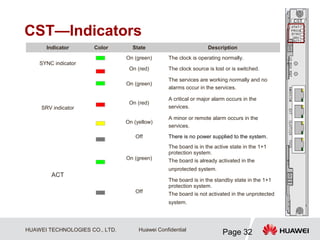

CST—Indicators
STAT indicator
Off
PROG indicator
On (green)
On (red)
On for 100 ms
(green) and off for
100 ms repeatedly
On for 300 ms
(green) and off for
300 ms repeatedly
On for 100 ms (red)
and off for 100 ms
repeatedly
of the FPGA fails.

Page 32
Huawei Confidential
CST—Indicators
SYNC indicator
SRV indicator
On (green)
On (red)
services.
On (yellow)
services.
ACT
On (green)
The board is in the active state in the 1+1
protection system.
The board is already activated in the
unprotected system.
Off
The board is in the standby state in the 1+1
protection system.
The board is not activated in the unprotected
system.

Page 33
Huawei Confidential

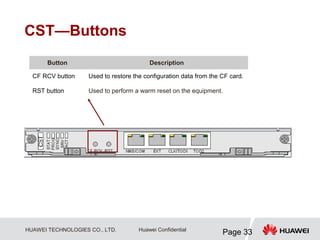

CST—Buttons
Button Description
CF RCV button Used to restore the configuration data from the CF card.
RST button Used to perform a warm reset on the equipment.

Page 34
Huawei Confidential
• Boards
 CSHA/CSHB/CSHC
 CSH
 IF board
Contents

Page 35
Huawei Confidential
CSHA/ CSHB/CSHC—Functions and Features
 The CSHA/CSHB/CSHC provides the 4.2 Gbit/s packet switching, full time division cross-connection, system control
and communication, and clock processing functions. In addition, the CSHA/CSHB/CSHC provides FE/GE interfaces,
PDH/SDH interfaces, auxiliary interfaces, and management interfaces.
 Support Packet Switch, Provides the 4.2 Gbit/s packet switching capability.
 Supports full time division cross-connections at the VC-12, VC-3, or VC-4 level, which are equivalent to 8x8 VC-
4s.
 Provides TDM service interfaces: The CSHA provides sixteen 75-ohm/120-ohm E1 data interfaces. The CSHB
provides thirty-two 75-ohm/120-ohm E1 data interfaces. The CSHC supports sixteen 75-ohm/120-ohm E1 data
interfaces and two STM-1 optical interfaces. The two STM-1 optical interfaces use the SFP optical modules.
 Provides Eth service interfaces: The CSHA provides two FE electrical interfaces and two GE electrical
interfaces. The two GE electrical interfaces can also transmit FE electrical signals. The CSHB provides two FE
electrical interfaces and two GE electrical interfaces. The two GE electrical interfaces can also transmit FE
electrical signals. The CSHC provides two FE electrical interfaces and two GE optical interfaces. The two GE
optical interfaces use the SFP optical modules.
 Provides one Ethernet NM interface/ NM serial interface.
 Provides one NE cascade interface.
 Provides one input and one output of the external clock. / Bypass E1 service interface.
 Provides one asynchronous data interface / synchronous data interface .
 Provides one three-input and one-output external alarm interface.
 Provides one Orderwire interface.

Page 36
Huawei Confidential
CSHA/ CSHB/CSHC—Functions and Features
 CSHA ： 2* FE(e) +2*GE(e)+16*E1
 CSHB:2* FE(e) +2*GE(e)+32*E1
 CSHC:2* FE(e) +2* GE(o)+16*E1+2*STM-1(o)
 The differences between the CSHA, CSHB, and CSHC are with regard to the types and number
of service interfaces.

Page 37
Huawei Confidential

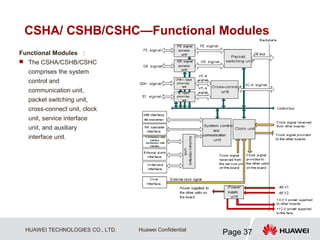

CSHA/ CSHB/CSHC—Functional Modules
Functional Modules ：
 The CSHA/CSHB/CSHC
comprises the system
control and
communication unit,
packet switching unit,
unit, service interface
unit, and auxiliary
interface unit.

Page 38
Huawei Confidential
CSHA/ CSHB/CSHC—Slot Allocation
 The CXPAR/CXPBR boards can be inserted only in slots 1 and 2 in the IDU 910 chassis.
 The CXPAR/CXPBR boards cannot be inserted in the IDU 950 chassis.
 Different logical boards are allocated for the CSHA, CSHB, and CSHC on the NMS.
CSHA/CSHB/CSHC boards are
inserted in slots 1 and 2 in the
IDU 910 chassis.
 Logical slots for the logical boards of the CSHA
 Logical slots for the logical boards of the CSHB
 Logical slots for the logical boards of the CSHC

Page 39
Huawei Confidential
CSHA/ CSHB/CSHC—Interfaces
E1 (1-16) interface
2*GE interfaces
Alarm
input/output
interface
Orderwire
interface
External clock/time interface /The wayside E1 interface
NE cascade interface
NM interface/NM
serial interface
Synchronous/
Asynchronous
data interface
Indicators
Button
2*FE
interfaces
Auxiliary interfaces and
management interfaces
GE service
interface
FE service
interfaces E1 （ 1 ～ 16,17~32 ）
Auxiliary interfaces and
management interfaces
GE service
interfaces
FE service
interfaces
E1 （ 1 ～ 16 ）
STM-1 service
interfaces
 CSHA
 CSHB
 CSHC

Page 40
Huawei Confidential
CSHA/ CSHB/CSHC—Indicators
STAT indicator
Off
PROG indicator
On (green)
On (red)
On for 100 ms
(green) and off for
100 ms repeatedly
On for 300 ms
(green) and off for
300 ms repeatedly
On for 100 ms (red)
and off for 100 ms
repeatedly
of the FPGA fails.

Page 41
Huawei Confidential
SYNC indicator
SRV indicator
On (green)
On (red)
services.
On (yellow)
services.

Page 42
Huawei Confidential
LINK 1 On (green) The port connection is normal.
Off The port connection is interrupted.
ACT 1 On or blinking
(yellow)
The data is being transmitted or received.
Off No data is being transmitted or received.
LINK 2 On (green) The port connection is normal.
Off The port connection is interrupted.
ACT 2 On or blinking
(yellow)
The data is being transmitted or received.
Off No data is being transmitted or received.
LOS 1 On (red) The first optical interface on the line reports the
R_LOS alarm.
Off The first optical interface on the line does not
LOS 2 On (red) The second optical interface on the line reports the
R_LOS alarm.
Off The second optical interface on the line does not

Page 43
Huawei Confidential

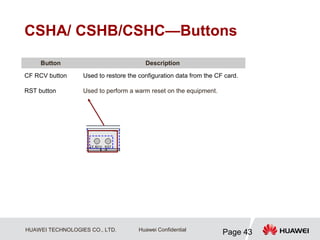

CSHA/ CSHB/CSHC—Buttons
Button Description
CF RCV button Used to restore the configuration data from the CF card.
RST button Used to perform a warm reset on the equipment.

Page 44
Huawei Confidential
CSH—Functions and Features
 The CSH provides the 10 Gbit/s packet switching, full time division cross-connection,
system control and communication, and clock processing functions. In addition, the CSH
provides auxiliary interfaces and management interfaces.
Support Packet Switch, Provides the 10 Gbit/s packet switching capability.
Supports full time division cross-connections at the VC-12, VC-3, or VC-4 level,
which are equivalent to 32x32 VC-4s.
Provides one Ethernet NM interface/ NM serial interface.
Provides one input and one output of the external clock. / Bypass E1 service
interface.

Page 45
Huawei Confidential
CSH—Functional Block Diagram
 The CSH comprises
the system control
and communication
unit, packet switching
unit, cross-connect
unit, clock unit, and
power supply unit.

Page 46
Huawei Confidential
CSH—Slot Allocation
 The CST boards can be inserted only in slots 7 and 8 in the IDU 950 chassis and form a
1+1 protection group.
 The CST board cannot be installed in the IDU 910 chassis.
 The logical slot of the CST on the NMS should be the same as the physical slot.
The CSH boards can be inserted in slots 7 and 8 and form a 1+1 protection group.

Page 47
Huawei Confidential

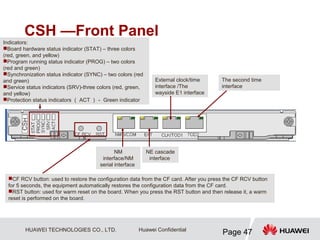

CSH —Front Panel
The second time
interface
External clock/time
interface /The
wayside E1 interface
NM
interface/NM
serial interface
CF RCV button: used to restore the configuration data from the CF card. After you press the CF RCV button
for 5 seconds, the equipment automatically restores the configuration data from the CF card.
RST button: used for warm reset on the board. When you press the RST button and then release it, a warm
reset is performed on the board.
Indicators:
Board hardware status indicator (STAT) – three colors
(red, green, and yellow)
Program running status indicator (PROG) – two colors
(red and green)
Synchronization status indicator (SYNC) – two colors (red
and green)
Service status indicators (SRV)-three colors (red, green,
and yellow)
Protection status indicators （ ACT ）－ Green indicator
NE cascade
interface

Page 48
Huawei Confidential
• Boards
 CSHA/CSHB/CSHC
 CSH
 IF board
 IF1
 IFU2
 IFX2
Contents

Page 49
Huawei Confidential
IF1 － Functions and Features
 The IF1 is a medium-capacity SDH IF board . The IF1 board has the following functions
 IF processing functions:
Maps SDH and PDH service signals into microwave frame signals.
Codes and decodes microwave frame signals.
Modulates and demodulates microwave frame signals
Modulates and demodulates ODU control signals
Combines and splits service signals, ODU control signals, and -48 V power
supplies.
Support ATPC （ Automatic Transmit Power Control ） function.
 Protection Processing functions:
Support 1+1 HSB/FD/SD protection.
Support 1+1 FD/SD hitless switching.
Support N+1 protection.

Page 50
Huawei Confidential

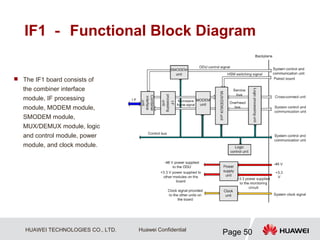

IF1 － Functional Block Diagram
 The IF1 board consists of
the combiner interface
module, IF processing
module, MODEM module,
SMODEM module,
MUX/DEMUX module, logic
and control module, power
module, and clock module.

Page 51
Huawei Confidential
IF1 － Slot Allocation
 The IF1 receives and transmits one IF signal and provides the management channel to
the ODU and supplies the required -48 V power to the ODU.
IDU 910
IDU 950
IDU 910:
 The IF1 board can be inserted in
slot 3 or slot 4.
IDU 950:
 The IF1 board can be inserted in
any of slots 1 to 6.
 To configure a 1+1 FD/SD
protection group, the IFE2
boards must be inserted in
paired slots.
 The paired slots supported by
the IDU 950 are as follows: (slot
1, slot 2), (slot 3, slot 5), and
(slot 4, slot 6).
 Slot allocation priority : Slots 3
and 5 > slots 4 and 6 > slots 1
and 2

Page 52
Huawei Confidential
IF1 － Front Panel ODU switch
When the switch is set to "O", it
indicates that the circuit is open.
When the switch is set to "I", it
indicates that the circuit is
closed.
IF interface (TNC)
Indicators:
 Working status indicator (STAT) – two colors (red and
green)
 Status indicator (SRV) – three colors (red, green, and
yellow)
 Radio link status indicator (LINK) – one color (green)
 ODU status indicator (ODU) – three colors (red, green, and
yellow)
 Remote end status indicator (RMT) – one color (yellow)
 Protection status indicator (ACT) – one color (green)

Page 53
Huawei Confidential
IF1——Indicators
STAT
indicator
Off
The board does not start to work, is not created, or is not
powered on.
SRV
indicator
On (green) The services are working normally and no service alarm occurs.
On (red) A critical or major alarm occurs in the services.
On (yellow) A minor or remote alarm occurs in the services.
ODU
indicator
On (green) The ODU is working normally.
On (red) The ODU has a critical or major alarm or has no power supply.
On (yellow) The ODU has a minor alarm.
On for 300 ms
(yellow) and off for
300 ms repeatedly
The receive power of the ODU is lower than the required value.
RMT
indicator
On (yellow)
The microwave defect indication alarm is received from the
opposite end.
ACT
indicator
On (green)
The board is in the active state in the 1+1 protection system.
The board is already activated in the unprotected system.
Off
The board is in the standby state in the 1+1 protection system.
The board is not activated in the unprotected system.

Page 54
Huawei Confidential

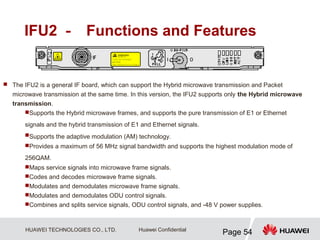

IFU2 － Functions and Features
 The IFU2 is a general IF board, which can support the Hybrid microwave transmission and Packet
microwave transmission at the same time. In this version, the IFU2 supports only the Hybrid microwave
transmission.
Supports the Hybrid microwave frames, and supports the pure transmission of E1 or Ethernet
signals and the hybrid transmission of E1 and Ethernet signals.
Supports the adaptive modulation (AM) technology.
Provides a maximum of 56 MHz signal bandwidth and supports the highest modulation mode of
256QAM.
Maps service signals into microwave frame signals.
Modulates and demodulates microwave frame signals.
Modulates and demodulates ODU control signals.
Combines and splits service signals, ODU control signals, and -48 V power supplies.

Page 55
Huawei Confidential
IFU2 － Functional Block Diagram
 The working principle and signal flow of
the Packet microwave IF signals are
similar to the working principle and signal
flow of the Hybrid microwave IF signals.
The only difference is with regard to the
frame structure. In the case of the Packet
microwave, the MUX/DEMUX unit only
multiplexes/demultiplexes the packet
services and does not transmit the TDM
services to the cross-connect unit or
receive the TDM services from the cross-
connect unit.

Page 56
Huawei Confidential
IFU2 － Slot Allocation
 The IFU2 receives and transmits one Hybrid/Packet IF signal, provides the management
channel to the ODU, and supplies the required -48 V power to the ODU.
IDU 910
IDU 950
IDU 910:
 The IFU2 board can be inserted
in slot 3 or slot 4.
IDU 950:
 The IFU2 board can be inserted
in any of slots 1 to 6.
paired slots.
(slot 4, slot 6).
and 2

Page 57
Huawei Confidential
IFU2 － Front Panel ODU switch
When the switch is set to "O", it
indicates that the circuit is open.
When the switch is set to "I", it
indicates that the circuit is closed.
IF interface (TNC) Indicators:
 Working status indicator (STAT) – two colors (red and
green)
 Status indicator (SRV) – three colors (red, green, and
yellow)
 Radio link status indicator (LINK) – one color (green)
 ODU status indicator (ODU) – three colors (red, green,
and yellow)
 Remote end status indicator (RMT) – one color (yellow)
 Protection status indicator (ACT) – one color (green)

Page 58
Huawei Confidential

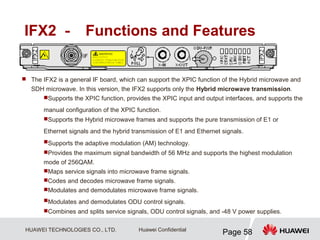

IFX2 － Functions and Features
 The IFX2 is a general IF board, which can support the XPIC function of the Hybrid microwave and
SDH microwave. In this version, the IFX2 supports only the Hybrid microwave transmission.
Supports the XPIC function, provides the XPIC input and output interfaces, and supports the
manual configuration of the XPIC function.
Supports the Hybrid microwave frames and supports the pure transmission of E1 or
Ethernet signals and the hybrid transmission of E1 and Ethernet signals.
Supports the adaptive modulation (AM) technology.
Provides the maximum signal bandwidth of 56 MHz and supports the highest modulation
mode of 256QAM.
Maps service signals into microwave frame signals.
Modulates and demodulates microwave frame signals.
Modulates and demodulates ODU control signals.
Combines and splits service signals, ODU control signals, and -48 V power supplies.

Page 59
Huawei Confidential

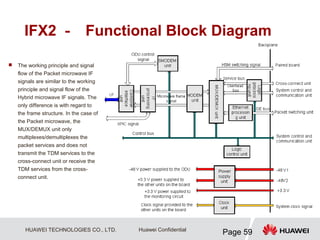

IFX2 － Functional Block Diagram
 The working principle and signal
flow of the Packet microwave IF
signals are similar to the working
principle and signal flow of the
Hybrid microwave IF signals. The
only difference is with regard to
the frame structure. In the case of
the Packet microwave, the
MUX/DEMUX unit only
multiplexes/demultiplexes the
packet services and does not
transmit the TDM services to the
cross-connect unit or receive the
TDM services from the cross-
connect unit.

Page 60
Huawei Confidential
IFX2 － Slot Allocation
IDU 910
IDU 950
IDU 910:
 The IFX2 board can be inserted
in slot 3 or slot 4.
IDU 950:
 The IFX2 board can be inserted
in any of slots 1 to 6.
paired slots.
(slot 4, slot 6).
and 2

Page 61
Huawei Confidential
IFX2 － Front Panel
Indicators:
XPIC input signal indicator （ XPIC ）— two colors (red
and green).
Working status indicator (STAT) – two colors (red and
green)
Status indicator (SRV) – three colors (red, green, and
yellow)
Radio link status indicator (LINK) – one color (green)
ODU status indicator (ODU) – three colors (red, green, and
yellow)
Remote end status indicator (RMT) – one color (yellow)
Protection status indicator (ACT) – one color (green)
ODU switch
When the switch is set
to "O", it indicates that the
circuit is open. When the
switch is set to "I", it
indicates that the circuit is
closed.
IF interface (TNC)
XPIC signal
interfaces

Page 62
Huawei Confidential

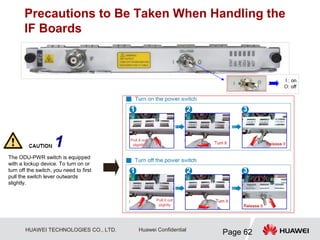

Precautions to Be Taken When Handling the
IF Boards
The ODU-PWR switch is equipped
with a lockup device. To turn on or
turn off the switch, you need to first
pull the switch lever outwards
slightly.
1

Page 63
Huawei Confidential
Precautions to Be Taken When Handling
the IF Boards
When the ODU switch is set to “I”, do
not insert or remove the IF cable.
2

Page 64
Huawei Confidential

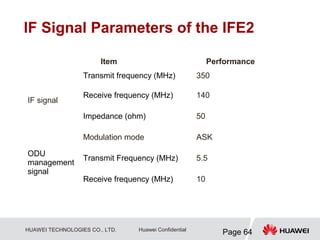

IF Signal Parameters of the IFE2
Item Performance
IF signal
Transmit frequency (MHz) 350
Receive frequency (MHz) 140
Impedance (ohm) 50
ODU
management
signal
Modulation mode ASK
Transmit Frequency (MHz) 5.5
Receive frequency (MHz) 10

Page 65
Huawei Confidential
• Boards
 CSHA/CSHB/CSHC
 CSH
 IF board
 IF1
 IFU2
 IFX2
 EM6T/EM6F
 SL1D
 SP3S/SP3D
 AUX
Contents

Page 66
Huawei Confidential
EM6T/EM6F － Functions and Features
 The EM6T/EM6F is an FE/GE interface board, which provides four FE electrical
interfaces and two GE interfaces. The EM6T has similar functions to the EM6F. The only
difference is as follows: the GE interfaces on the EM6T always function as electrical
interfaces whereas the GE interfaces on the EM6F use the SFP modules and therefore
can function as two optical or electrical interfaces. The GE electrical interfaces on the
EM6F and the EM6T are compatible with the FE electrical interfaces.
 The EM6T/EM6F accesses, processes, and aggregates four FE signals and two GE
signals. In R2 version, the backplane service bus is 1G.
 EM6T/EM6F support LAG function, support ERPS.
 EM6T/EM6F support E-Line and E-Lan.
 EM6T/EM6F supports synchronous Ethernet.
 EM6T/EM6F support ETH-OAM function.

Page 67
Huawei Confidential

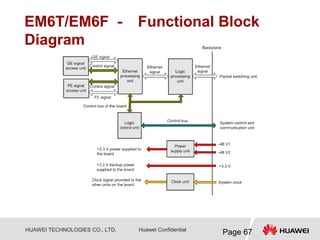

EM6T/EM6F － Functional Block
Diagram

Page 68
Huawei Confidential
EM6T/EM6F—Slot Allocation
IDU 910
IDU 950
IDU 910:
 The EM6T/EM6F board can
be inserted in slot 3 or slot 4.
IDU 950:
 The EM6T/EM6F board can be
inserted in any of slots 1 to 6.
 Slot allocation priority ： Slots 4
and 5

Page 69
Huawei Confidential

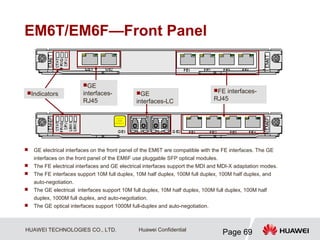

EM6T/EM6F—Front Panel
 GE electrical interfaces on the front panel of the EM6T are compatible with the FE interfaces. The GE
interfaces on the front panel of the EM6F use pluggable SFP optical modules.
 The FE electrical interfaces and GE electrical interfaces support the MDI and MDI-X adaptation modes.
 The FE interfaces support 10M full duplex, 10M half duplex, 100M full duplex, 100M half duplex, and
auto-negotiation.
 The GE electrical interfaces support 10M full duplex, 10M half duplex, 100M full duplex, 100M half
duplex, 1000M full duplex, and auto-negotiation.
 The GE optical interfaces support 1000M full-duplex and auto-negotiation.
Indicators
GE
interfaces-
RJ45
GE
interfaces-LC
FE interfaces-
RJ45

Page 70
Huawei Confidential

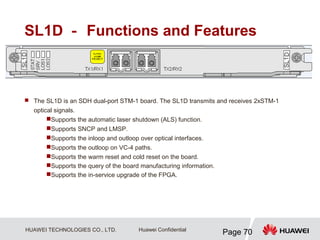

SL1D － Functions and Features
 The SL1D is an SDH dual-port STM-1 board. The SL1D transmits and receives 2xSTM-1
optical signals.
Supports the automatic laser shutdown (ALS) function.
Supports SNCP and LMSP.
Supports the inloop and outloop over optical interfaces.
Supports the outloop on VC-4 paths.
Supports the warm reset and cold reset on the board.
Supports the query of the board manufacturing information.
Supports the in-service upgrade of the FPGA.

Page 71
Huawei Confidential
SL1D － Functional Block Diagram

Page 72
Huawei Confidential
SL1D—Slot Allocation
IDU 910
IDU 950
IDU 910:
 The SL1D board can be
inserted in slot 3 or slot 4.
IDU 950:
 The SL1D board can be
and 5.

Page 73
Huawei Confidential
SL1D—Interfaces
 The type of the SFP optical module equipped on the SL1D, provides Ie-1 （ Multi-mode,
2km ）、 S-1.1 （ Single-mode, 15km ）、 L-1.1 （ Single-mode, 40km ）、 L-1.2
（ Single-mode, 80km ）。
Indicators:
Working status indicator (STAT) – two
colors (red and green)
Status indicator (SRV) – three colors
LOS1/LOS2: Whether the optical
interface have the R_LOS alarm.
STM-
1interface-LC

Page 74
Huawei Confidential

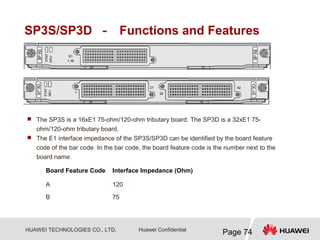

SP3S/SP3D － Functions and Features
 The SP3S is a 16xE1 75-ohm/120-ohm tributary board. The SP3D is a 32xE1 75-
ohm/120-ohm tributary board.
 The E1 interface impedance of the SP3S/SP3D can be identified by the board feature
code of the bar code. In the bar code, the board feature code is the number next to the
board name.
Board Feature Code Interface Impedance (Ohm)
A 120
B 75

Page 75
Huawei Confidential
SP3S/SP3D － Functional Block Diagram

Page 76
Huawei Confidential
SP3S/SP3D —Slot Allocation
IDU 910
IDU 950
IDU 910:
 The SP3S/SP3D board can
be inserted in slot 3 or slot 4.
IDU 950:
 The SP3S/SP3D board can be
and 5.

Page 77
Huawei Confidential
SP3S/SP3D —Interfaces
Indicators:
E1 interface
NOTE:
In the case of the OptiX RTN 900, only the ports 1-16 and 22-37 of the SP3D interface are
used. Ports 1-16 correspond to E1 signals 1-16 and ports 22-37 correspond to E1 signals 17-
32.

Page 78
Huawei Confidential

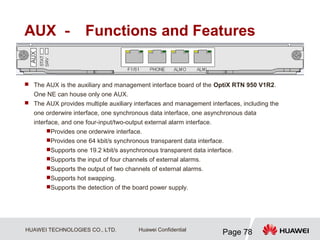

AUX － Functions and Features
 The AUX is the auxiliary and management interface board of the OptiX RTN 950 V1R2.
One NE can house only one AUX.
 The AUX provides multiple auxiliary interfaces and management interfaces, including the
one orderwire interface, one synchronous data interface, one asynchronous data
interface, and one four-input/two-output external alarm interface.
Provides one orderwire interface.
Provides one 64 kbit/s synchronous transparent data interface.
Supports one 19.2 kbit/s asynchronous transparent data interface.
Supports the input of four channels of external alarms.
Supports the output of two channels of external alarms.
Supports hot swapping.
Supports the detection of the board power supply.

Page 79
Huawei Confidential
AUX － Functional Block Diagram

Page 80
Huawei Confidential
AUX － Interfaces
Alarm input
Alarm
output
Orderwire
phone
Synchronous/
Asynchronous
data interface
The OptiX RTN equipment also supports the orderwire group call function. For example, when an OptiX RTN
equipment calls the number of 888, the orderwire group call number, all the OptiX RTN equipment orderwire phones
in the orderwire subnet ring until a phone is answered. Then, a point-to-point orderwire phone call is established.
说明：
Indicators:

Page 81
Huawei Confidential
AUX—Slot Allocation
IDU 950
 The AUX board can be inserted in any of slots 1 to 6.
 An NE can house only one AUX board.
 The AUX board cannot be installed in the IDU 910 chassis.

Page 82
Huawei Confidential
• Boards
 CSHA/CSHB/CSHC
 CSH
 IF board
 IF1
 IFU2
 IFX2
 PIU
 FAN
Contents

Page 83
Huawei Confidential
Types of the PIU
Board
Functional
Version
Description Valid Slot
PIU TNC1
Power access unit of the OptiX RTN
910
Slot 5 in the IDU 910
PIU TND1
Power access unit of the OptiX RTN
950
Slot 9 and slot 10 in the IDU 950
 The PIU board supports the functions and features such as power access, power
protection, lightning protection, and information reporting.
IDU 950:
 The PIU boards that have the
functional version of TND1 are
fixedly inserted in slot 9 and slot 10.
The two PIU boards function as a hot
backup for each other.
IDU 910:
 The PIU board whose functional
version is TNC1 is fixedly inserted
in slot 5. The two accessed power
supplies function as a hot backup
for each other.

Page 84
Huawei Confidential
Front Panel of the PIU
–48 V power
input interface
BGND power
input interface
One PIU board whose functional version is TNC1
accesses two –48 V DC (or -60 V DC) power
supplies for the equipment. The two power
supplies function as a hot backup for each other.
–48 V power
input interface
BGND power
input interface
When the
PWRA and
PWRB indicators
are on and
green, it
indicates that the
power is
accessed.
 One PIU board whose functional version is TND1 accesses one –48 V
DC (or –60 V DC) power supply for the equipment. The PIU boards
that have the functional version of TND1 are fixedly inserted in slot 9
and slot 10. The two PIU boards function as a hot backup for each
other.
TNC1 PIU TND1 PIU

Page 85
Huawei Confidential
Types of the FAN
 The FAN adjusts the fan rotating speed, and detects and reports the fan status.
Board
Functional
Version
Description Valid Slot
FAN TNC1 Fan of the OptiX RTN 910 Slot 5 in the IDU 910
FAN TND1 Fan of the OptiX RTN 950 Slot 9 and slot 10 in the IDU 950
IDU 950:
The FAN board whose functional version
is TND1 is fixedly inserted in slot 11.
Accesses two +12 V power supplies for
driving six fans, each of which consumes
6 W power.
IDU 910:
The FAN board whose functional
version is TNC1 is fixedly inserted in
slot 6.
Accesses one +12 V power supply for
driving three fans, each of which
consumes 6 W power.

Page 86
Huawei Confidential

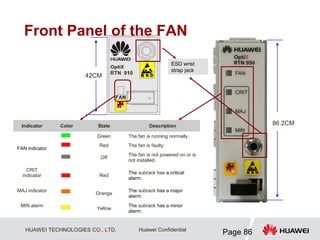

Front Panel of the FAN
FAN indicator
Green The fan is running normally.
Red The fan is faulty.
Off
The fan is not powered on or is
not installed.
CRIT
indicator Red
The subrack has a critical
alarm.
MAJ indicator
Orange
The subrack has a major
alarm.
MIN alarm
Yellow
The subrack has a minor
alarm.
ESD wrist
strap jack
42CM
86.2CM

Page 87
Huawei Confidential
 This course provides the following information:
 Network position of the RTN 900 V100R002
 System architecture and hardware structure of the RTN 900
V100R002
 Boards on the OptiX RTN 900 V100R002
 TDM system control, cross-connect, and timing board
:CSTA/CST

Hybrid system control, cross-connect, and timing board:
CSHA/CSHB/CSHC/CSH
 IF board: IF1 、 IFU2 、 IFX2
 Service interface board :
EM6T/EM6F 、 SL1D 、 SP3S/SP3D
 Auxiliary and management interface board : AUX
 Power supply board and fan board : PIU 、 FAN
Summary

Page 88
Huawei Confidential

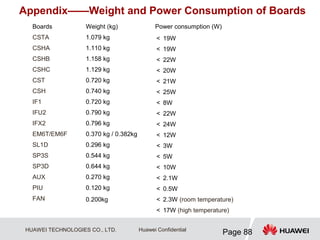

Appendix——Weight and Power Consumption of Boards
Boards Weight (kg) Power consumption (W)
CSTA 1.079 kg ＜ 19W
CSHA 1.110 kg ＜ 19W
CSHB 1.158 kg ＜ 22W
CSHC 1.129 kg ＜ 20W
CST 0.720 kg ＜ 21W
CSH 0.740 kg ＜ 25W
IF1 0.720 kg ＜ 8W
IFU2 0.790 kg ＜ 22W
IFX2 0.796 kg ＜ 24W
EM6T/EM6F 0.370 kg / 0.382kg ＜ 12W
SL1D 0.296 kg ＜ 3W
SP3S 0.544 kg ＜ 5W
SP3D 0.644 kg ＜ 10W
AUX 0.270 kg ＜ 2.1W
PIU 0.120 kg ＜ 0.5W
FAN 0.200kg ＜ 2.3W (room temperature)
＜ 17W (high temperature)

Microwave Huawei RTN Hardware Structure

More Related Content

What's hot

Similar to Microwave Huawei RTN Hardware Structure

More from ibrahimnabil17

Recently uploaded

Microwave Huawei RTN Hardware Structure
