This document provides information about Maxis Fibre internet installation processes for different property types, including: 1) Standard installation for single dwelling units includes 15m of fibre cable from the FTB to ONT. Non-standard installations may require additional cabling and charges. 2) Installations for high-rise properties involve routing fibre from the FDP to the riser room and individual units. 3) Installations for shops and commercial lots involve routing fibre from the FDP to individual units. Diagrams illustrate cable routing and equipment for different property types.

1. maxis fibre
internet
installation

2. Landed Property
Single Dwelling Unit (SDU)
Standard Installation

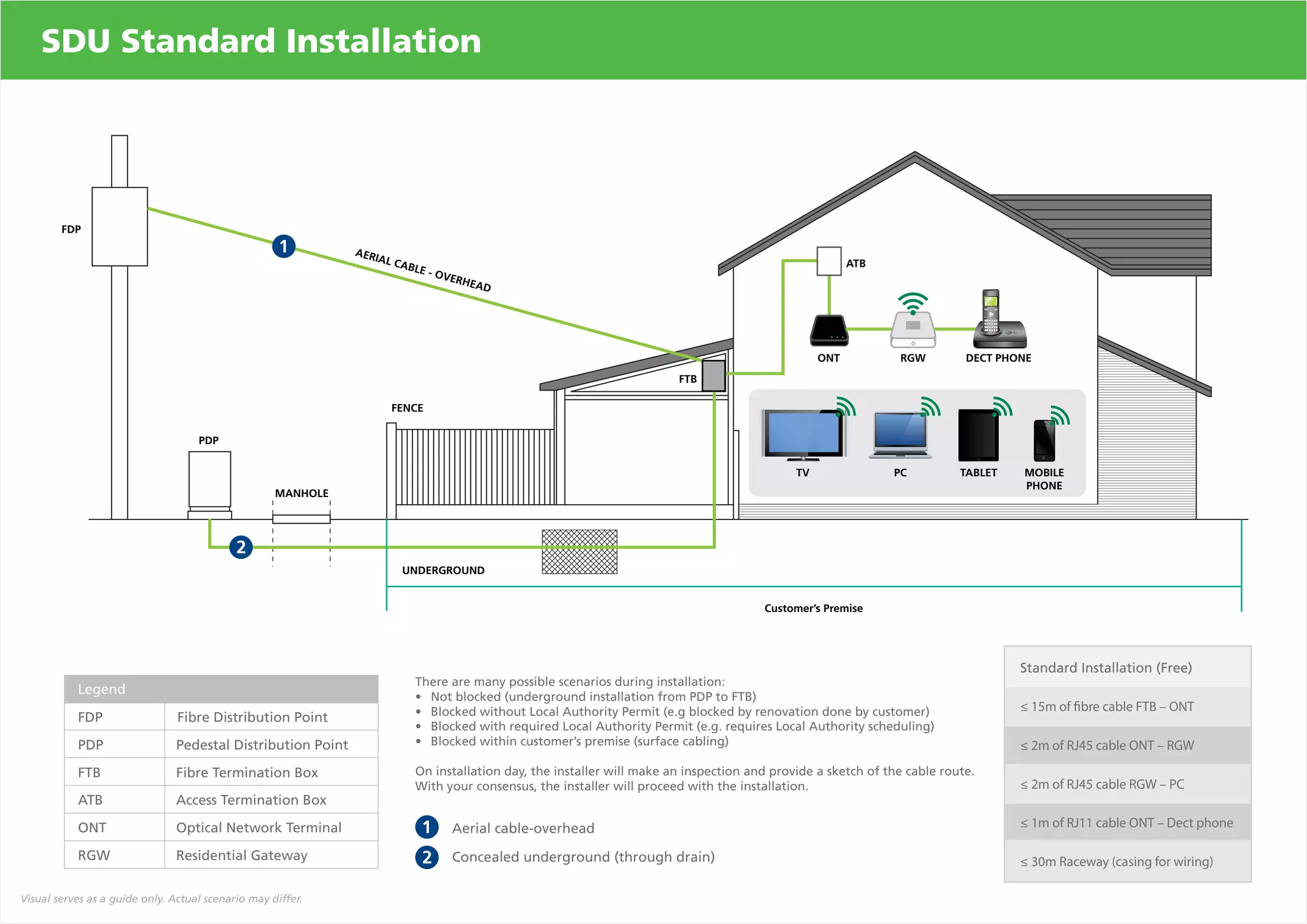

3. FDP
PDP
MANHOLE
AERIAL CABLE - OVERHEAD
FENCE
UNDERGROUND
FTB
ATB
ONT RGW DECT PHONE
SDU Standard Installation
1
2
Customer’s Premise
Legend
FDP Fibre Distribution Point
PDP Pedestal Distribution Point
FTB Fibre Termination Box
ATB Access Termination Box
ONT Optical Network Terminal
RGW Residential Gateway
There are many possible scenarios during installation:
• Not blocked (underground installation from PDP to FTB)
• Blocked without Local Authority Permit (e.g blocked by renovation done by customer)
• Blocked with required Local Authority Permit (e.g. requires Local Authority scheduling)
• Blocked within customer’s premise (surface cabling)
On installation day, the installer will make an inspection and provide a sketch of the cable route.
With your consensus, the installer will proceed with the installation.
1 Aerial cable-overhead
2 Concealed underground (through drain)
Visual serves as a guide only. Actual scenario may differ.
TV PC TABLET MOBILE
PHONE
Standard Installation (Free)
15m of fibre cable FTB – ONT
2m of RJ45 cable ONT – RGW
2m of RJ45 cable RGW – PC
1m of RJ11 cable ONT – Dect phone
30m Raceway (casing for wiring)

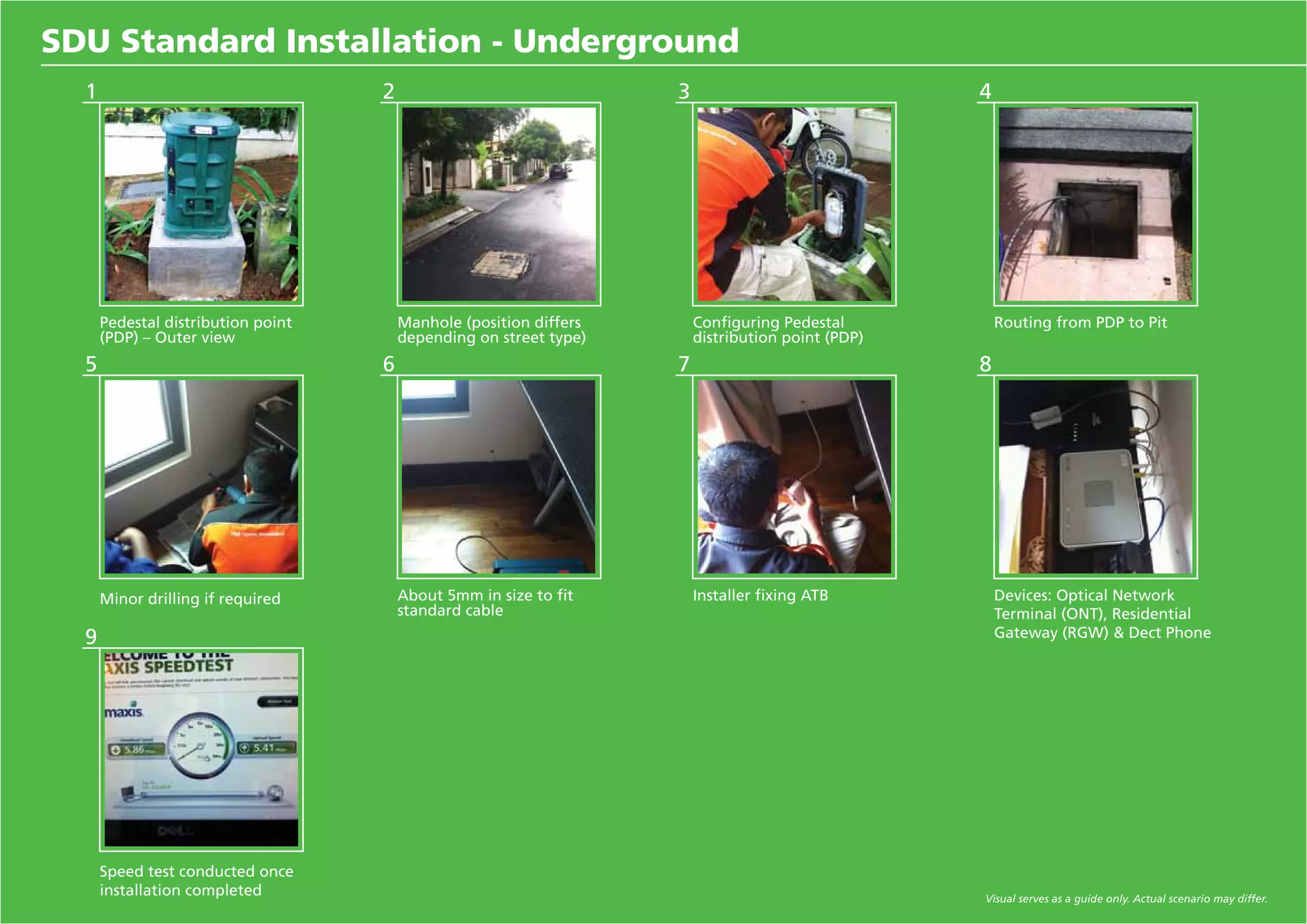

4. SDU Standard Installation - Underground
Pedestal distribution point
(PDP) – Outer view
Manhole (position differs
depending on street type)
1 2
Configuring Pedestal
distribution point (PDP)
3
Routing from PDP to Pit
4
Visual serves as a guide only. Actual scenario may differ.
Minor drilling if required About 5mm in size to fit
standard cable
5 6
Installer fixing ATB
7
Devices: Optical Network
Terminal (ONT), Residential
Gateway (RGW) Dect Phone
8
Speed test conducted once
installation completed
9

5. SDU Standard Installation - Aerial Overhead
1 2 3
FDP on pole. Installer fixing cable from pole Connecting cable from FDP to FTB Installer fixing mounting
4 5
Fibre coiling at FTB Minor drilling if required
Installer configuring your personal computer
6
Visual serves as a guide only. Actual scenario may differ.

6. Landed Property
Single Dwelling Unit (SDU)
Non-Standard Installation

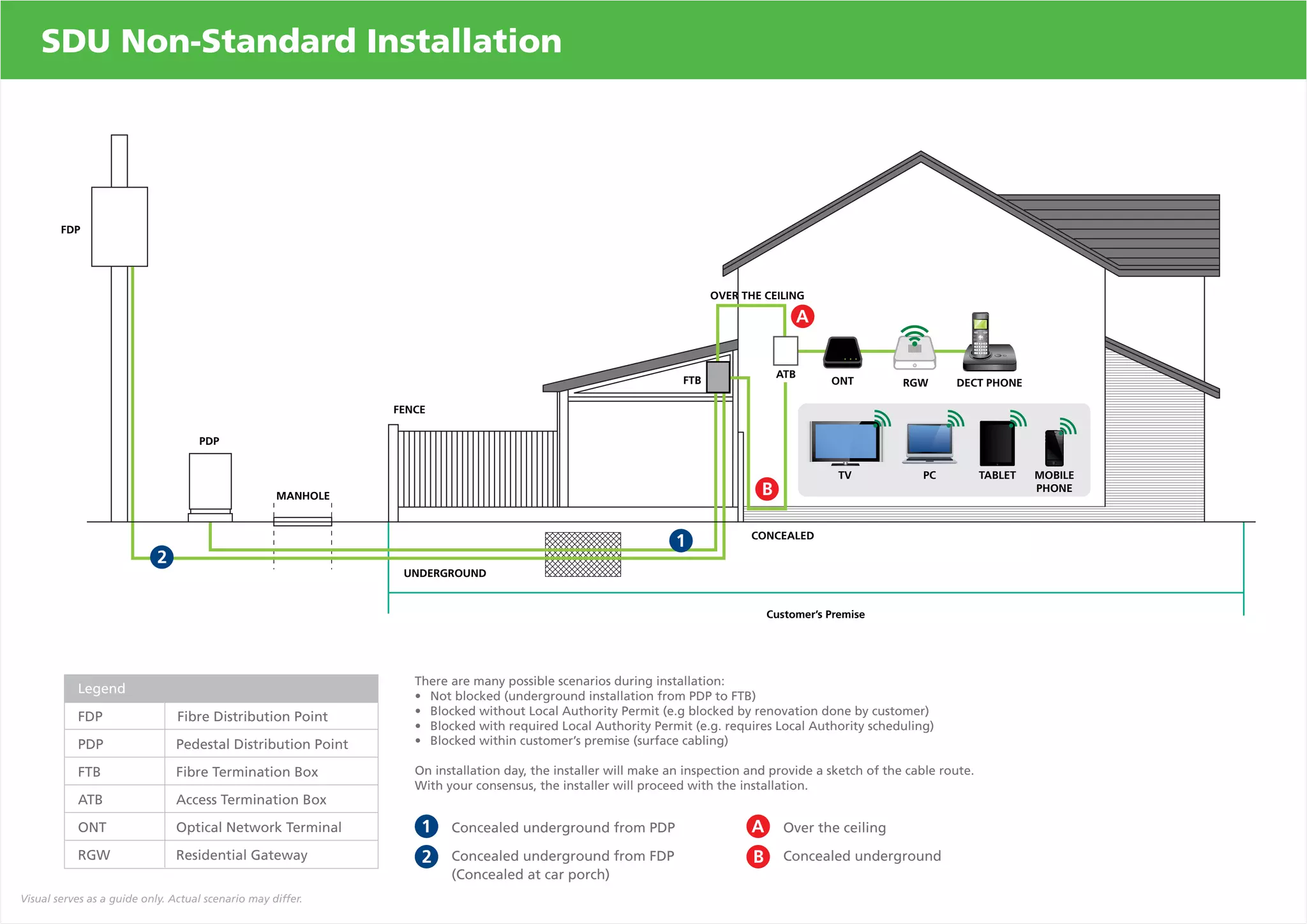

7. SDU Non-Standard Installation
Legend
FDP Fibre Distribution Point
PDP Pedestal Distribution Point
FTB Fibre Termination Box
ATB Access Termination Box
ONT Optical Network Terminal
RGW Residential Gateway
FENCE
1 Concealed underground from PDP
Concealed underground from FDP
(Concealed at car porch)
2
ATB
TV PC TABLET MOBILE
Customer’s Premise
A Over the ceiling
B Concealed underground
FDP
PDP
MANHOLE
UNDERGROUND
FTB
OVER THE CEILING
CONCEALED
ONT RGW DECT PHONE
1
2
A
B
There are many possible scenarios during installation:
• Not blocked (underground installation from PDP to FTB)
• Blocked without Local Authority Permit (e.g blocked by renovation done by customer)
• Blocked with required Local Authority Permit (e.g. requires Local Authority scheduling)
• Blocked within customer’s premise (surface cabling)
On installation day, the installer will make an inspection and provide a sketch of the cable route.
With your consensus, the installer will proceed with the installation.
PHONE
Visual serves as a guide only. Actual scenario may differ.

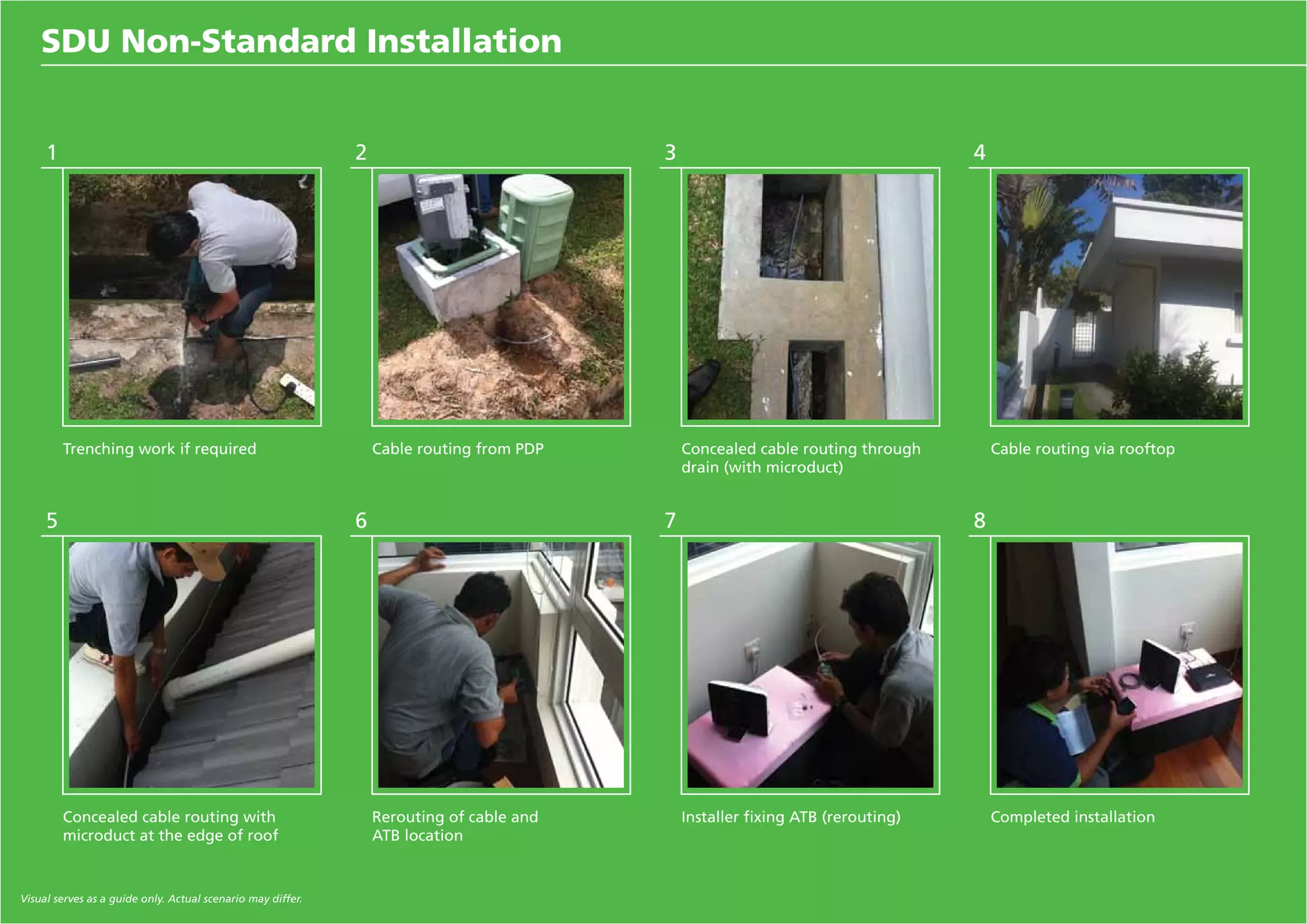

8. SDU Non-Standard Installation
Trenching work if required
1
Cable routing from PDP
2
Concealed cable routing through
drain (with microduct)
3
Cable routing via rooftop
4
Concealed cable routing with
microduct at the edge of roof
5
Rerouting of cable and
ATB location
6
Installer fixing ATB (rerouting)
7
Completed installation
8
Visual serves as a guide only. Actual scenario may differ.

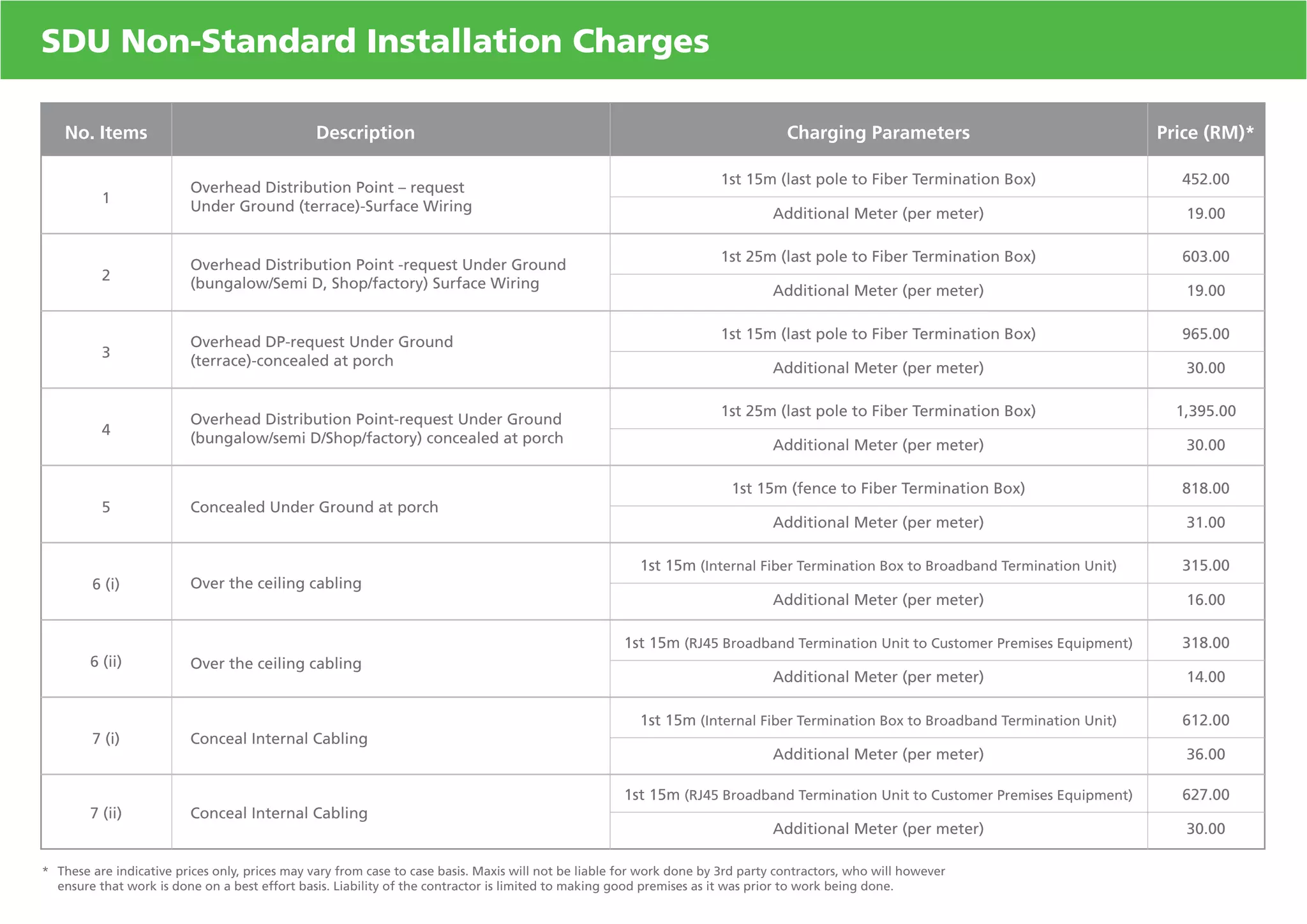

9. SDU Non-Standard Installation Charges
No. Items Description Charging Parameters Price (RM)*
Overhead Distribution Point – request
1 Under Ground (terrace)-Surface Wiring
1st 15m (last pole to Fiber Termination Box)
Additional Meter (per meter)
452.00
19.00
Overhead Distribution Point -request Under Ground
2 (bungalow/Semi D, Shop/factory) Surface Wiring
1st 25m (last pole to Fiber Termination Box)
Additional Meter (per meter)
* These are indicative prices only, prices may vary from case to case basis. Maxis will not be liable for work done by 3rd party contractors, who will however
ensure that work is done on a best effort basis. Liability of the contractor is limited to making good premises as it was prior to work being done.
603.00
19.00
Overhead DP-request Under Ground
3 (terrace)-concealed at porch
1st 15m (last pole to Fiber Termination Box)
Additional Meter (per meter)
965.00
30.00
Overhead Distribution Point-request Under Ground
4 (bungalow/semi D/Shop/factory) concealed at porch
1st 25m (last pole to Fiber Termination Box)
Additional Meter (per meter)
1,395.00
30.00
5 Concealed Under Ground at porch
1st 15m (fence to Fiber Termination Box)
Additional Meter (per meter)
818.00
31.00
6 (i) Over the ceiling cabling
1st 15m (Internal Fiber Termination Box to Broadband Termination Unit)
Additional Meter (per meter)
315.00
16.00
6 (ii) Over the ceiling cabling
1st 15m (RJ45 Broadband Termination Unit to Customer Premises Equipment)
Additional Meter (per meter)
318.00
14.00
7 (i) Conceal Internal Cabling
1st 15m (Internal Fiber Termination Box to Broadband Termination Unit)
Additional Meter (per meter)
612.00
36.00
7 (ii) Conceal Internal Cabling
1st 15m (RJ45 Broadband Termination Unit to Customer Premises Equipment)
Additional Meter (per meter)
627.00
30.00

10. High-Rise Property
Installation
Multiple Dwelling
Unit (MDU)

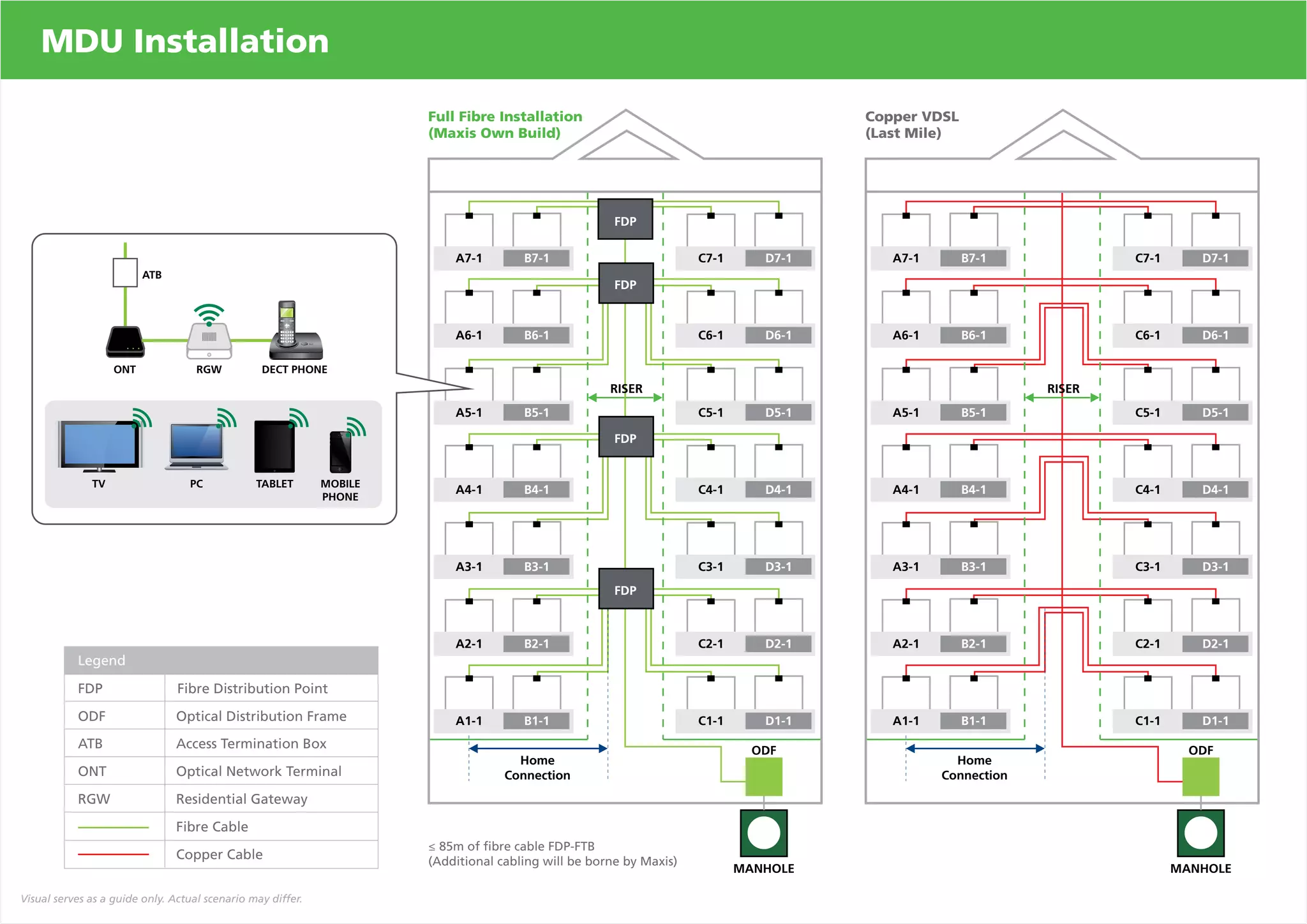

11. MDU Installation
ATB
FDP Fibre Distribution Point
ODF Optical Distribution Frame
ATB Access Termination Box
ONT Optical Network Terminal
RGW Residential Gateway
Fibre Cable
Copper Cable
Legend
A7-1 B7-1 C7-1 D7-1
A6-1 B6-1 C6-1 D6-1
RISER
A5-1 B5-1 C5-1 D5-1
A4-1 B4-1 C4-1 D4-1
A3-1 B3-1 C3-1 D3-1
ODF
MANHOLE
Full Fibre Installation
(Maxis Own Build)
Copper VDSL
(Last Mile)
Home
Connection
FDP
FDP
FDP
FDP
A2-1 B2-1 C2-1 D2-1
A1-1 B1-1 C1-1 D1-1
A7-1 B7-1 C7-1 D7-1
A6-1 B6-1 C6-1 D6-1
A5-1 B5-1 C5-1 D5-1
A4-1 B4-1 C4-1 D4-1
A3-1 B3-1 C3-1 D3-1
A2-1 B2-1 C2-1 D2-1
A1-1 B1-1 C1-1 D1-1
ODF
MANHOLE
Home
Connection
RISER
ONT RGW DECT PHONE
TV PC TABLET MOBILE
PHONE
85m of fibre cable FDP-FTB
(Additional cabling will be borne by Maxis)
Visual serves as a guide only. Actual scenario may differ.

12. MDU Installation
2 3
Routing from FDP Installer working on configurations at Riser
Completed installation
1
FDP at Riser
5 6
Installer working on configurations at
customer’s premise
Minor drilling for full fibre cabling
(Maxis Own Build)
4
Visual serves as a guide only. Actual scenario may differ.

13. Shops and
Commercial Lots
Installation

14. Shops and Commercial Lots Installation
Legend
ATB
FDP Fibre Distribution Point
ATB Access Termination Box
ONT Optical Network Terminal
RGW Residential Gateway
Home
Connection
C3-1
C2-1 D2-1
C1-1 D1-1
MANHOLE
OSP TO
FDC/CO
RISER
A3-1 B3-1
A2-1 B2-1
A1-1 B1-1
D3-1
FDP
ONT RGW DECT PHONE
TV PC TABLET MOBILE
PHONE
Visual serves as a guide only. Actual scenario may differ.

15. www.maxis.com.my/home
Maxis reserve the rights to make amendments to the content of this document.
