![Absorption Bands
MC (Ligand-Field) Bands
Consider a d1
octahedral complex such as
[Ti (H2O)6]2+
.
all the orbitals lying below the t2g(π*) orbitals t2g
orbital are filed
the t2g(π*) orbitals contain one electron, the
eg(σ*) orbitals are empty](https://image.slidesharecdn.com/whatisphotochemistryabout-150616121019-lva1-app6891/75/photo-chemistry-of-ligand-in-coordination-compound-15-2048.jpg)
![Cont………
the ground electronic configuration of a
d1
complex gives rise to only one state (2
T2g)
and the excited electronic configuration also
has one state (2
Eg)
only one d–d band may be present in the
spectrum of [Ti(H2O)6]3+
In a state diagram it Corresponds to the
2
T2g → 2
Egtransition](https://image.slidesharecdn.com/whatisphotochemistryabout-150616121019-lva1-app6891/75/photo-chemistry-of-ligand-in-coordination-compound-16-2048.jpg)
![Cont………..
Therefore, three transitions correspond to the
t2g
2
→ eg
2
promotion (Transitions from the
ground state 3
T1g to each one of the excited
states described above are symmetry
forbidden )
a d2
system, such as [V(H2O)6]3+
only two
transition are allowed
3
T1g (t2g
2
) → 3
T2g(t2geg) and 3
T1g(t2g
2
)
→ 3
T1g(t2geg) (give bands of sufficient intensity
)](https://image.slidesharecdn.com/whatisphotochemistryabout-150616121019-lva1-app6891/75/photo-chemistry-of-ligand-in-coordination-compound-19-2048.jpg)
![Cont………….
LMCT
observed in the visible region of the spectrum
when the metal is in a high oxidation state
and ligands contain nonbonding electrons.
In octahedral complex we may distinguish
four types of LMCT
πL → πM*(t2g), πL→σM*(eg) ,σL→ πM* t2g) and σL →
σM*(eg)
[IrCl6]2-](https://image.slidesharecdn.com/whatisphotochemistryabout-150616121019-lva1-app6891/75/photo-chemistry-of-ligand-in-coordination-compound-23-2048.jpg)
![Cont………..
MLCT transitions
likely to happen in complexes with central
atoms having small ionization potentials and
ligands with easily available empty π*
ligands such as CN–
, CO, SCN–
etc
MLCT transitions will be favored when the
metal has a low oxidation state
bands in the visible range of [Ru(bpy)3]2+
due to
MLCT while [Ru(bpy)3]3+
is due to LMCT](https://image.slidesharecdn.com/whatisphotochemistryabout-150616121019-lva1-app6891/75/photo-chemistry-of-ligand-in-coordination-compound-24-2048.jpg)
![Cont………..
The intensity of these bands depends on the
formation constant of the ion pair and on the
concentration of the two ions.
Intermolecular CT transitions of the inverse
type (i.e. from the complex to an outer
species) is called CTTS.
exhibited by some negative complex ions such
as [Fe(CN)6]4-
.](https://image.slidesharecdn.com/whatisphotochemistryabout-150616121019-lva1-app6891/75/photo-chemistry-of-ligand-in-coordination-compound-26-2048.jpg)
Uploaded byMasresha amare dz
photo chemistry of ligand in coordination compound
The document discusses the photochemistry of coordination compounds, focusing on electronic excitation and transitions in octahedral complexes. It details various phenomena such as charge transfer, ligand-field transitions, and the effect of solvent polarity on spectra. Ultimately, it emphasizes the importance of these excited state properties in research areas like nanotechnology and solar energy conversion.
More Related Content
Similar to photo chemistry of ligand in coordination compound
![final_ppt_of_chem-403[1] [Autosaved] [Autosaved].pptx](https://cdn.slidesharecdn.com/ss_thumbnails/finalpptofchem-4031autosavedautosaved-230820064613-b1c9c0cc-thumbnail.jpg?width=640&height=640&fit=bounds)
photo chemistry of ligand in coordination compound
- 1. Addis Ababa University Departmentof Chemistry PhD Program Photochemistry of Ligand Field Transition presenter: Masresha Amare Adviser: Prof V.J .T Raju Dr. Yonas Chebude
- 2. Introduction What is Photochemistryabout? concerned with the changes in chemical and physical behaviour of molecules following absorption of one (or more) photons Primarily consider absorption of visible/UV although IR absorption may also change chemical behaviour Mainly concerned with electronic excitation
- 3. Cont……… Electronic excitation change ofmolecular orbital occupancy increased energy change of bonding characteristics and possibly geometry change of charge distribution possible changes of resultant electron spin, orbital symmetry
- 4. Cont…………. AB* Fates of photoexcitedspecies Physical quenching AB BA Isomerization A + B Dissociation AB+ + e- Ionization Luminescence AB + hν AB + CD‡ Intermolecular energy transfer AB† Intramolecular energy transfer (radiationless transition) AB + E or ABE Direct reaction AB⋅ + + E⋅ - or AB⋅ - + E⋅ + Charge transfer + M + CD + E
- 5. Electronic Transitions Three typesof electronic transitions may be distinguished transitions between MOs mainly localized on the central metal. the metal d orbitals (e.g., the t2g(π) and eg MOs d–d transitions or ligand-field transitions
- 6. Cont………… Octahedral complexes Cr(III) groundstate of these complexes,4 A2g, belongs to the configuration t2g 3 . Spin allowed 4 A2g(t2g 3 ) → 4 T2g(t2g 2 eg1 ) and 4 A2g → 4 T1g correspond to the promotion of an electron from the t2g to eg orbitals.
- 7.
- 8.
- 9. Cont………. Effect of T2g→ eg (1) an increase in the metal–ligand repulsion some lengthening of metal-ligand distances breaking of a metal-ligand bond rearrangement of the molecule toward a more-stable structure (isomerization
- 10. Cont………….. (2) a decreaseof electron density in some directions between the ligands Facilitate a nucleophilic attack on the central metal by solvent molecules or other ligands present in the solution (substitution reaction)
- 11.

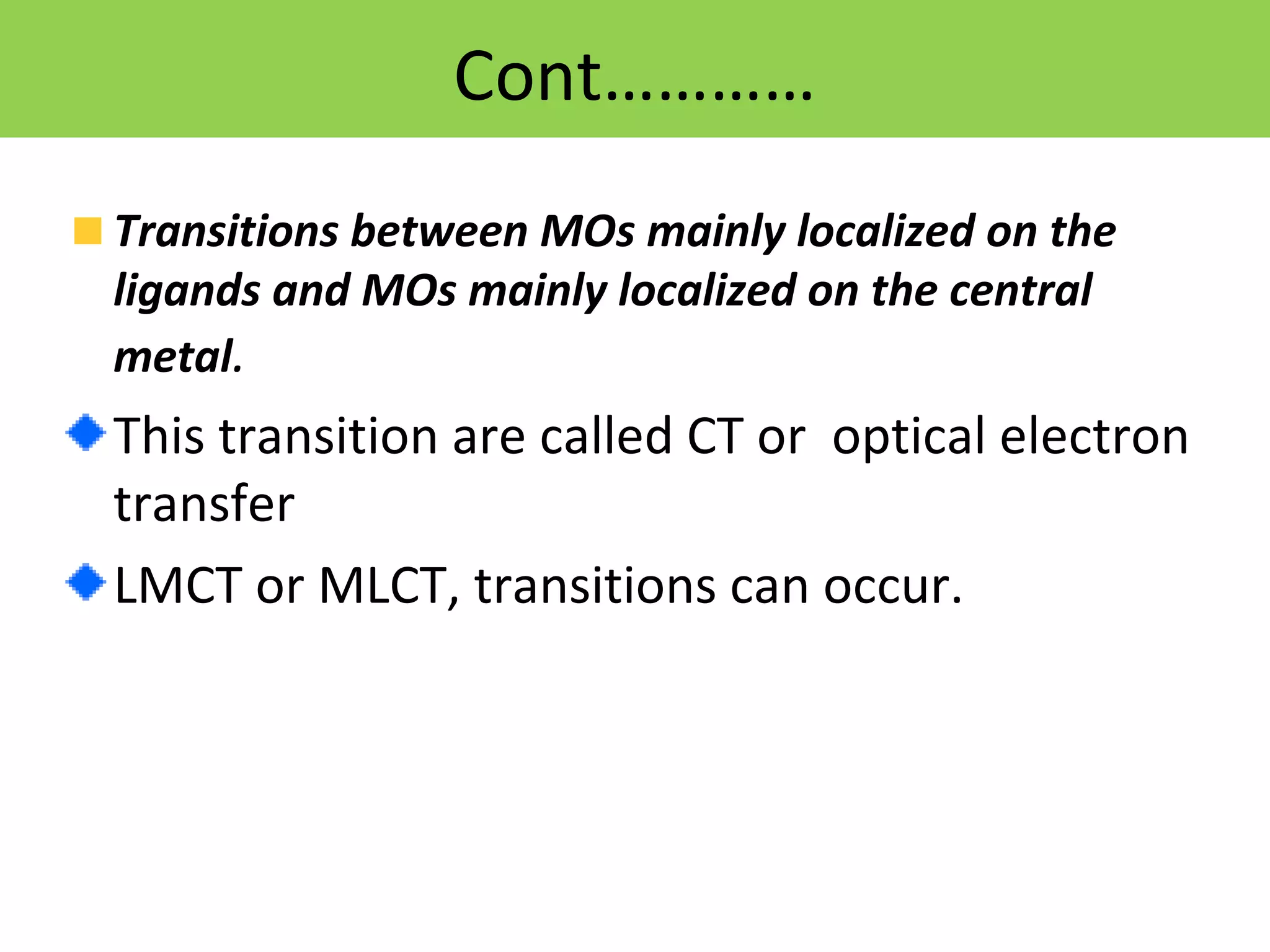

- 12. Cont………… Transitions between MOsmainly localized on the ligands and MOs mainly localized on the central metal. This transition are called CT or optical electron transfer LMCT or MLCT, transitions can occur.
- 13. Cont……….. Transitions between MOsmainly localized on the ligands. only involve ligand orbitals which are almost unaffected by coordination to the metal Transitions of such a type are called ‘ligand- centered’ (LC) or ‘intra-ligand transitions.’
- 14.
- 15. Absorption Bands MC (Ligand-Field)Bands Consider a d1 octahedral complex such as [Ti (H2O)6]2+ . all the orbitals lying below the t2g(π*) orbitals t2g orbital are filed the t2g(π*) orbitals contain one electron, the eg(σ*) orbitals are empty
- 16. Cont……… the ground electronicconfiguration of a d1 complex gives rise to only one state (2 T2g) and the excited electronic configuration also has one state (2 Eg) only one d–d band may be present in the spectrum of [Ti(H2O)6]3+ In a state diagram it Corresponds to the 2 T2g → 2 Egtransition
- 17.
- 18. Cont……….. complexes containing morethan one d- electron, the situation is complicated by the interelectronic repulsions the ground-electronic configuration of a d2 (3 F) octahedral complex give rises to the 3 T1g,3 T2g 3 A2g, state (field free ion) absorption bands could then arise from the transitions3 T1g → 3 T2g, 3 T1g → 3 A2g, and 3 T1g → 3 T1g(P)
- 19. Cont……….. Therefore, three transitionscorrespond to the t2g 2 → eg 2 promotion (Transitions from the ground state 3 T1g to each one of the excited states described above are symmetry forbidden ) a d2 system, such as [V(H2O)6]3+ only two transition are allowed 3 T1g (t2g 2 ) → 3 T2g(t2geg) and 3 T1g(t2g 2 ) → 3 T1g(t2geg) (give bands of sufficient intensity )
- 20.
- 21. Charge-transfer bands the movementof electrons between orbitals that are predominantly ligand in character and orbitals that are predominantly metal in character high intensity and the sensitivity of their energies to solvent polarity. electron migrates between orbitals that are predominantly ligand in character and orbitals that are predominantly metal in character
- 22.
- 23. Cont…………. LMCT observed in thevisible region of the spectrum when the metal is in a high oxidation state and ligands contain nonbonding electrons. In octahedral complex we may distinguish four types of LMCT πL → πM*(t2g), πL→σM*(eg) ,σL→ πM* t2g) and σL → σM*(eg) [IrCl6]2-
- 24. Cont……….. MLCT transitions likely tohappen in complexes with central atoms having small ionization potentials and ligands with easily available empty π* ligands such as CN– , CO, SCN– etc MLCT transitions will be favored when the metal has a low oxidation state bands in the visible range of [Ru(bpy)3]2+ due to MLCT while [Ru(bpy)3]3+ is due to LMCT
- 25. Cont……… ion-pair charge-transfer the ionpairs formed by a coordinatively saturated complex cation and a polarizable anion-like iodide . ion-pair charge-transfer bands are due to intermolecular CT transitions from the anion to the antibonding d- orbitals of the central metal.
- 26. Cont……….. The intensity ofthese bands depends on the formation constant of the ion pair and on the concentration of the two ions. Intermolecular CT transitions of the inverse type (i.e. from the complex to an outer species) is called CTTS. exhibited by some negative complex ions such as [Fe(CN)6]4- .
- 27. Cont………… LLCT Or (Intra-Ligand)Bands due to transitions between two MOs both of which are principally localized on the ligand system . such bands may be found at relatively low energy in complexes containing ligands which have π-systems of their own Aromatic Ligands such as bipyridine and phenanthroline belong to this group
- 28. Effect of SolventPolarity on CT Spectra • only occurs if the species being studied is an ion pair • The position of the CT band is reported as a transition energy and depends on the solvating ability of the solvent • Polar solvent molecules align their dipole moments maximally or perpendicularly with the ground state or excited state dipoles
- 29. Cont……………….. Both the groundstate and the excited state are neutral. When both the ground state and the excited state are neutral a shift in wavelength is not observed No change occurs. Like dissolves like and a polar solvent won’t be able to align its dipole with a neutral ground and excited state.
- 30. Cont………. The excited stateis polar, but the ground state is neutral It will align its dipole with the excited state and lower its energy by solvation. This will shift the wavelength to higher wavelength and lower frequency.
- 31.
- 32. Cont……….. The ground stateand excited state is polar the polar solvent will align its dipole moment with the ground state Maximum interaction will occur and the energy of the ground state will be lowered The dipole moment of the excited state would be perpendicular to the dipole moment of the ground state, since the polar solvent dipole moment is aligned with the ground state This interaction will raise the energy of the polar excited state
- 33.
- 34. Cont…….. The ground stateis polar and the excited state is neutral the ground state is polar the polar solvent will align its dipole moment with the ground state Maximum interaction will occur and the energy of the ground state will be lowered the excited state is neutral no change in energy will occur
- 35. Cont………… • Like dissolveslike and a polar solvent won't be able to align its dipole with a neutral excited state. • Overall you would expect an increase in energy because the ground state is lower in energy (decrease wavelength, increase frequency, increase energy).
- 36.
- 37. • Conclusion • theexcited state properties of coordination and organometallic compounds play important roles in many research fields, including nanotechnology, solar energy conversion, and environmental issues. • We hope that the present article can be useful as a source of information and a possible starting point for future developments. For a related chapter in this Comprehensive, we refer to
