The document summarizes the Vision Transformer (ViT) model, which applies a transformer architecture to image classification tasks. ViT splits images into patches, embeds the patches with learned projections, and feeds them into a transformer encoder. Unlike CNNs, ViT lacks strong inductive biases for 2D structure, so it requires large datasets to learn spatial relationships from scratch. However, with sufficient data ViT can outperform CNNs by leveraging its global self-attention.

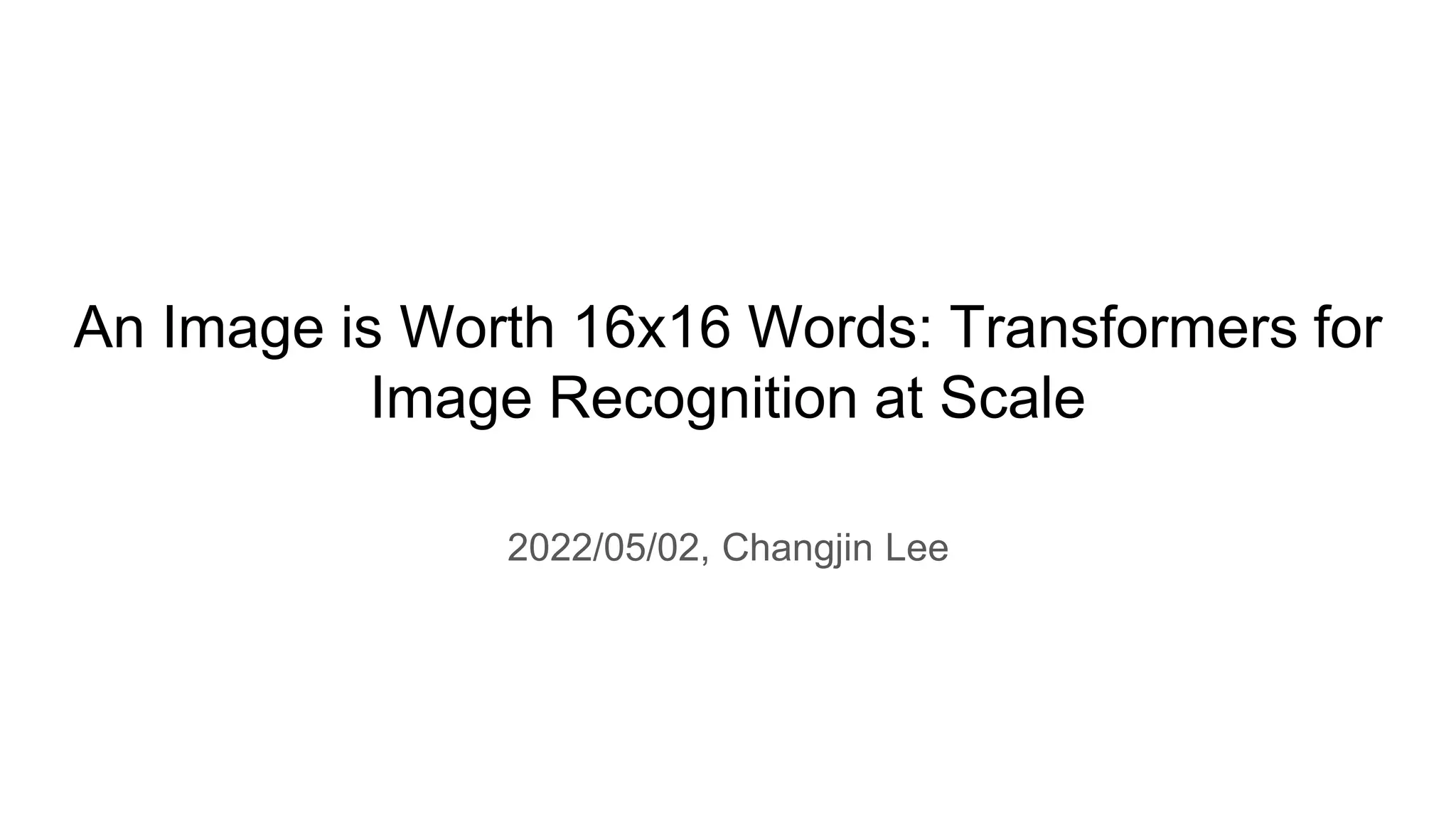

1. An Image is Worth 16x16 Words: Transformers for
Image Recognition at Scale
2022/05/02, Changjin Lee

2. Introduction
● Transformer has become the de-facto standard for NLP tasks but was not mature in
computer vision tasks (by the time ViT was published)
● Many proposed ways of integrating transformer into computer vision tasks
○ Partially replacing CNN layers with transformer blocks
○ Conjunction with CNN
● ViT suggests fully transformer-based architecture for image classification

3. Review: Transformer
embedding vectors

4. Self-Attention: Q, K, V Create query, key, value vector
from embedded vectors

5. Self-Attention: Score For each query, multiply it with
every other key vector to get
scores

6. Self-Attention: Normalize Normalize: Divide by the
embedding dimension

7. Self-Attention: Softmax Apply softmax to obtain attention
Attention !

8. Self-Attention: multiply with V Multiply attentions with value
vectors

9. Self-Attention: Weighted Sum Add value vectors to get the final
output of self-attention

10. All-in-one: Matrix Multiplication
0.88 0.12
x 0.88
x 0.12

11. Multi-head attention

12. Then how do we apply transformer to image classification?

13. ViT
W
H
P
P
N =
C
…
C
P
P
Flatten each patch
# of patches
Each patch is a token!!

14. ViT Architecture Overview
[1] Split into patches & flatten
[2] Linear Projection
[3] Class Tokens
[4] Position Embedding
[5] Encoder block 1 (MHA)
[6] Encoder block 2 (MLP)
x L
[7] Classification Head
Image: (B, C, H, W)
1. Patch Embedding
2. Transformer Encoder
3. Classification Head

15. Flatten & Linear Projection
1. Split into patches and flatten
2. Linear projection to get embedded vector
a. Trainable linear projection
…
C
P
P
Flatten [1] Split into patches & flatten
[2] Linear Projection
[3] Class Tokens
[4] Position Embedding
[5] Encoder block 1 (MHA)
[6] Encoder block 2 (MLP)
[7] Classification Head

16. Class Token
● Prepend a learnable embedding, class token, to the sequence of embedded patches
● The class token at the output of the encoder serves as the image representation
[1] Split into patches & flatten
[2] Linear Projection
[3] Class Tokens
[4] Position Embedding
[5] Encoder block 1 (MHA)
[6] Encoder block 2 (MLP)
[7] Classification Head

17. Position Embedding
● Plain transformer does not contain relative ordering information of the patches
● Learnable 1D position embedding
[1] Split into patches & flatten
[2] Linear Projection
[3] Class Tokens
[4] Position Embedding
[5] Encoder block 1 (MHA)
[6] Encoder block 2 (MLP)
[7] Classification Head

18. Transformer Encoder
● Encoder Block 1
○ Norm -> MHA -> Skip Connection
● Encoder Block 2
○ Norm -> MLP -> Skip Connection
[1] Split into patches & flatten
[2] Linear Projection
[3] Class Tokens
[4] Position Embedding
[5] Encoder block 1 (MHA)
[6] Encoder block 2 (MLP)
[7] Classification Head

19. Encoder Block 1: Multi-head Attention
● Vectorized Implementation
[1] Split into patches & flatten
[2] Linear Projection
[3] Class Tokens
[4] Position Embedding
[5] Encoder block 1 (MHA)
[6] Encoder block 2 (MLP)
[7] Classification Head

20. Encoder Block 2: MLP
● GELU non-linearity
● Dropout
● Expansion
[1] Split into patches & flatten
[2] Linear Projection
[3] Class Tokens
[4] Position Embedding
[5] Encoder block 1 (MHA)
[6] Encoder block 2 (MLP)
[7] Classification Head

21. Classification Head
● Classification head is attached for the final prediction
[1] Split into patches & flatten
[2] Linear Projection
[3] Class Tokens
[4] Position Embedding
[5] Encoder block 1 (MHA)
[6] Encoder block 2 (MLP)
[7] Classification Head

22. ViT: Putting all together [1] Split into patches & flatten
[2] Linear Projection
[3] Class Tokens
[4] Position Embedding
[5] Encoder block 1 (MHA)
[6] Encoder block 2 (MLP)
[7] Classification Head

23. Transformer(ViT) needs a lot of data!
● For smaller dataset, ViT performs worse than ResNet-based models!
larger dataset
larger dataset
But.. WHY?

24. Inductive Bias
● Inductive bias is any assumption we make about the unseen data
● House price prediction
○ Features: house size, # floors, # bedrooms
○ Model 1: Plain MLPs with billions of parameters (no assumption)
■ Needs TONS of data to figure out the underlying relationship from scratch
○ Model 2: Linear regression
■ We “assume” that the features are related to the house price linearly
■ If our assumption is correct -> more efficient!
● Relational Inductive Bias
○ Represents relationships between entities in the network (ex. entities=pixel)

25. CNN - Relational Inductive Bias
● Locality
○ Use kernels which capture local relationships between the entities in the kernel
● 2D Neighborhood Structure
● Translation Equivariance: input changes, output changes
● Translation Invariance: input changes, output doesn’t change
● Good for image-related tasks!
Translation Equivariance

26. Transformer - Inductive Bias
● Transformer has a weak image-specific inductive bias
● In ViT, only MLP are local and translation equivariance
● Self-attention is global!
● 2D neighborhood structure is only used when
○ Image is cut into patches
○ Position embeddings
● This weak inductive bias leads transformer to need extensive dataset to learn about the 2D
positions of patches and all spatial relations between the patches from scratch
● With small~medium datasets, ViT performs worse than CNNs but with large datasets, ViT
outperforms CNNs

27. References
[1] https://arxiv.org/abs/2010.11929
[2] https://arxiv.org/abs/1706.03762
[3] https://jalammar.github.io/illustrated-transformer/
[4] https://github.com/FrancescoSaverioZuppichini/ViT
