This document discusses power domain verification for the AeroFONE® chip. It describes the chip's multiple power domains, voltage regulators, and power control feedback loop. Static and dynamic verification methods are used, including specifying power domains, designing interface cells between domains, and modeling the effects of power states and regulator behavior. Dynamic verification exercises all possible power up sequences and mode transitions using assertions to check for valid system power states.

1. Verifying Power Domains in AeroFONE®
Subrata Roy
Senior Design Engr, Wireless
10/23/06
www.silabs.com

2. 2

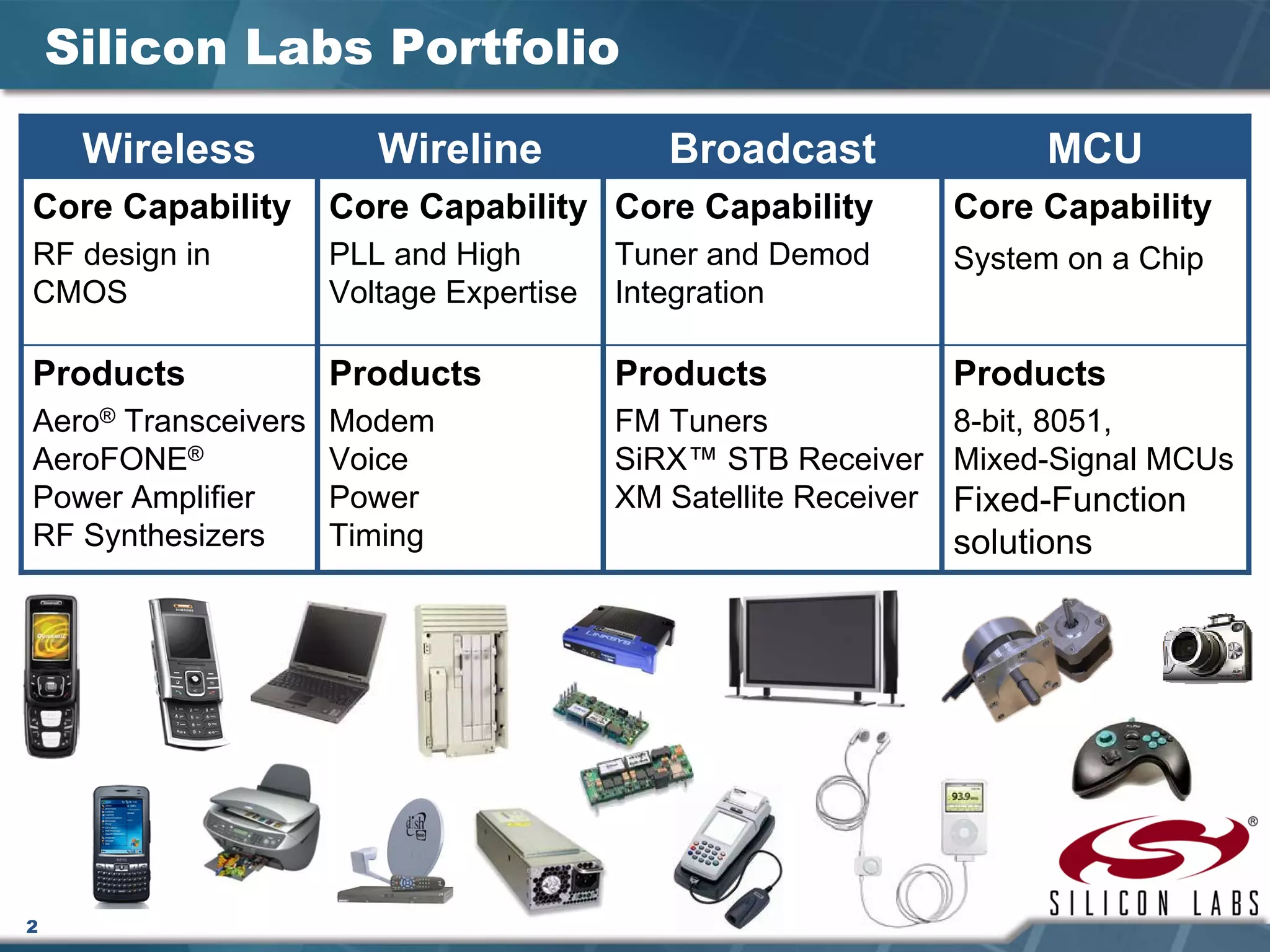

Silicon Labs Portfolio
Products
8-bit, 8051,
Mixed-Signal MCUs
Fixed-Function
solutions
Products
FM Tuners
SiRX™ STB Receiver
XM Satellite Receiver
Products
Modem
Voice
Power
Timing
Products
Aero® Transceivers
AeroFONE®
Power Amplifier
RF Synthesizers
Core Capability
System on a Chip
Core Capability
Tuner and Demod
Integration
Core Capability
PLL and High
Voltage Expertise
Core Capability
RF design in
CMOS
MCUBroadcastWirelineWireless

3. 3

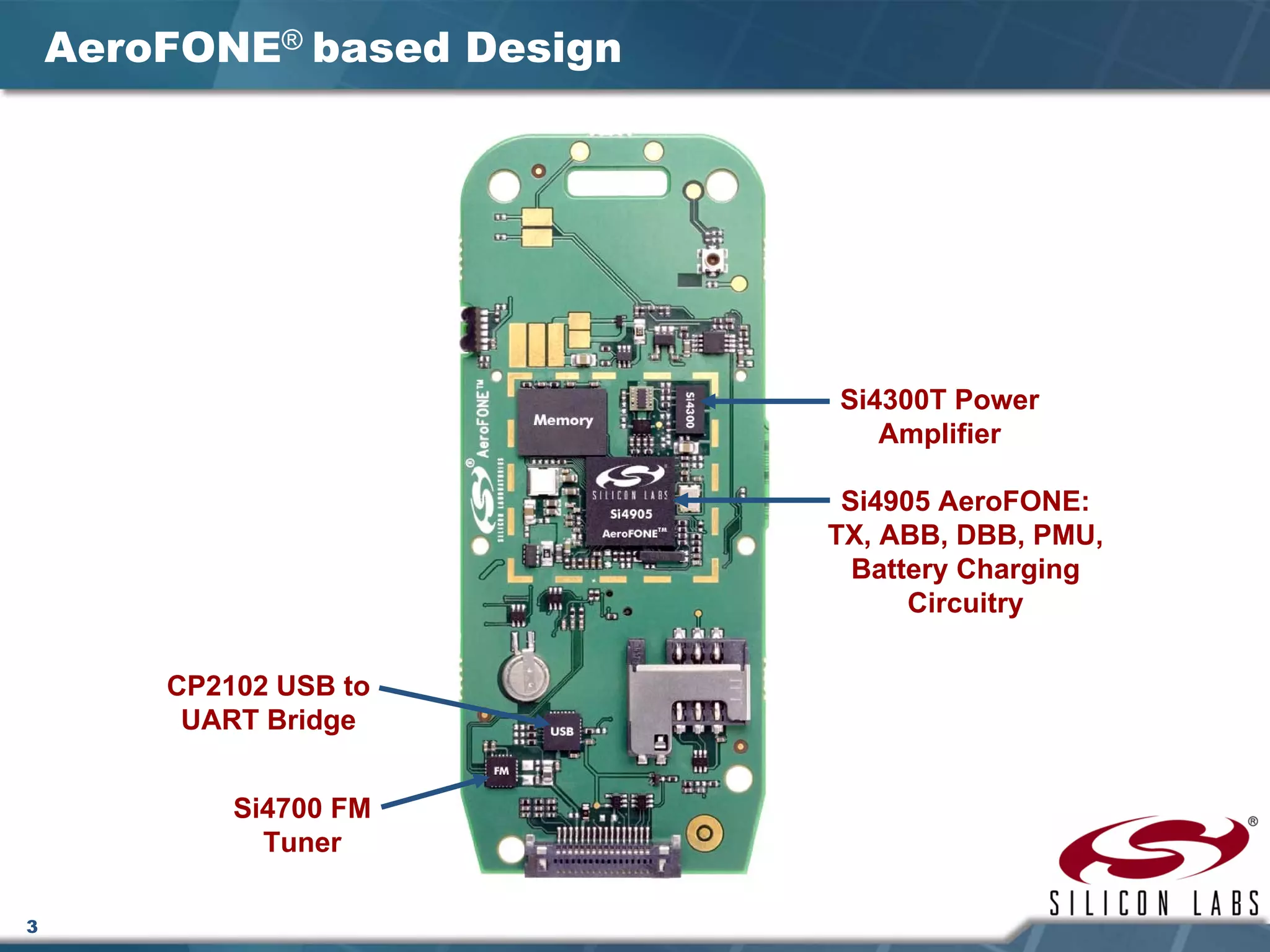

AeroFONE® based Design
Si4700 FM
Tuner
Si4300T Power
Amplifier
Si4905 AeroFONE:
TX, ABB, DBB, PMU,
Battery Charging
Circuitry
CP2102 USB to
UART Bridge

4. 4

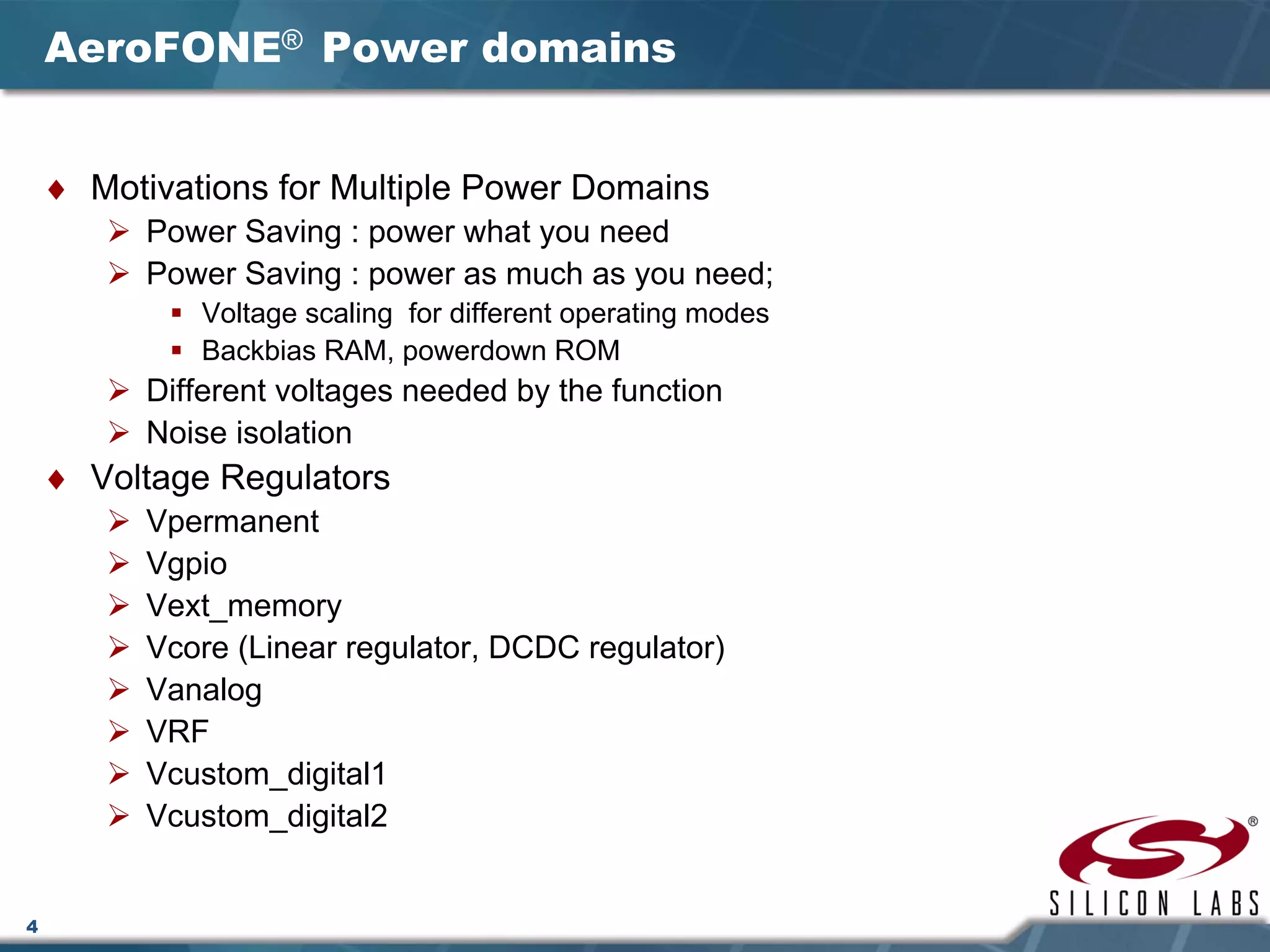

AeroFONE® Power domains
♦ Motivations for Multiple Power Domains
Power Saving : power what you need
Power Saving : power as much as you need;
Voltage scaling for different operating modes
Backbias RAM, powerdown ROM
Different voltages needed by the function
Noise isolation
♦ Voltage Regulators
Vpermanent
Vgpio
Vext_memory
Vcore (Linear regulator, DCDC regulator)
Vanalog
VRF
Vcustom_digital1
Vcustom_digital2

5. 5

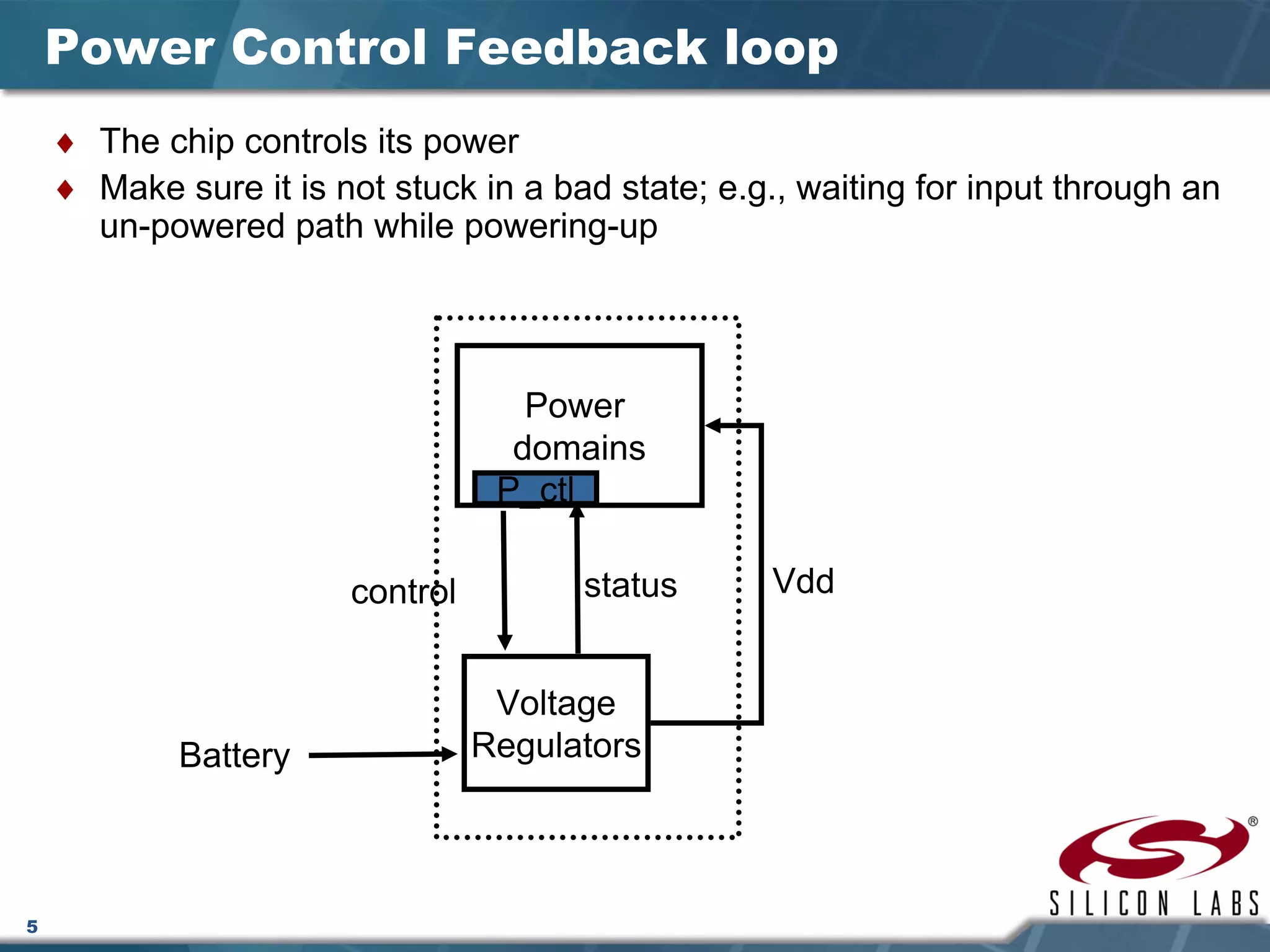

Power Control Feedback loop
Voltage
Regulators
Power
domains
Battery
♦ The chip controls its power
♦ Make sure it is not stuck in a bad state; e.g., waiting for input through an
un-powered path while powering-up
control status
P_ctl
Vdd

6. 6

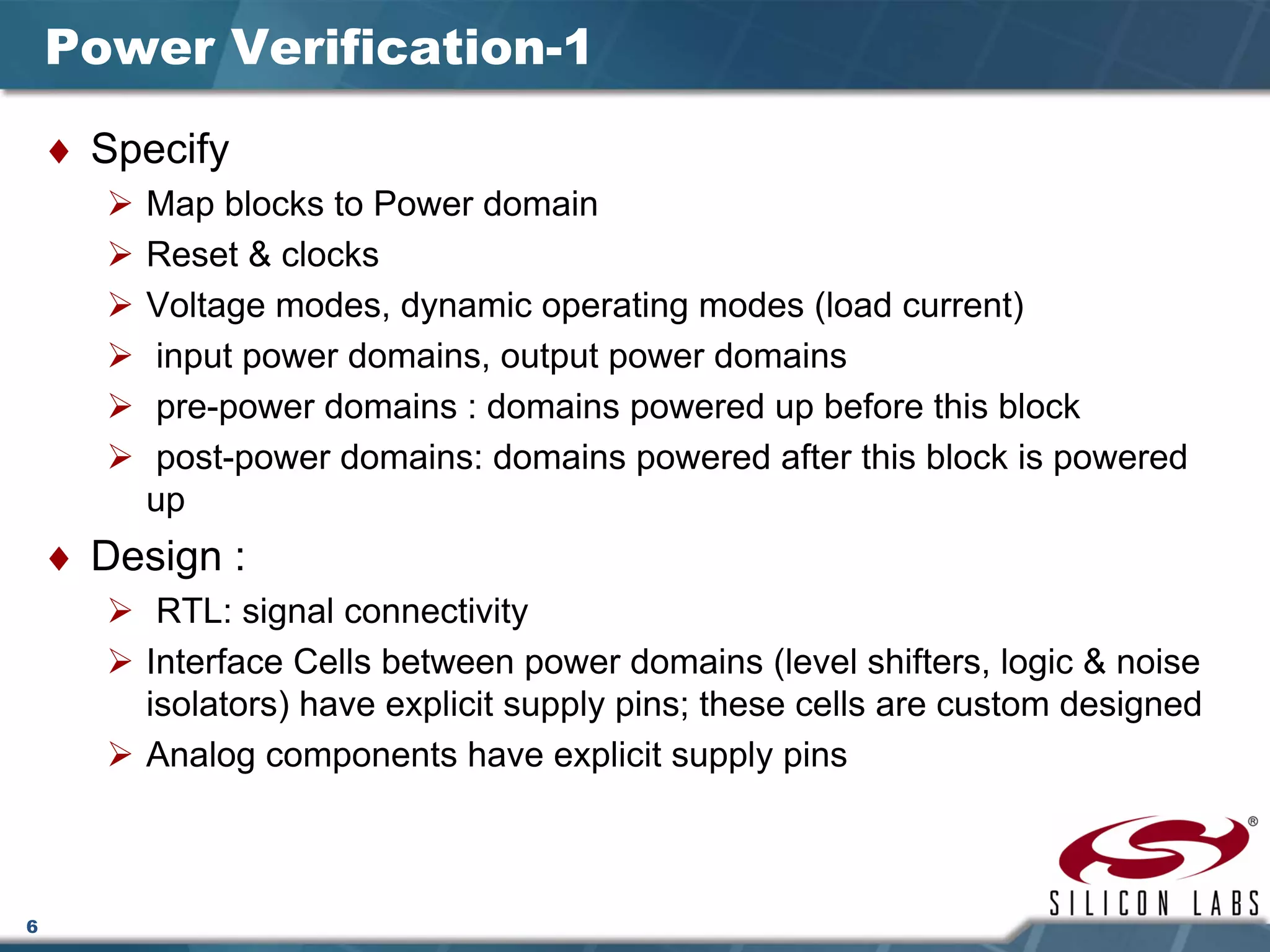

Power Verification-1
♦ Specify
Map blocks to Power domain
Reset & clocks
Voltage modes, dynamic operating modes (load current)
input power domains, output power domains
pre-power domains : domains powered up before this block
post-power domains: domains powered after this block is powered
up
♦ Design :
RTL: signal connectivity
Interface Cells between power domains (level shifters, logic & noise
isolators) have explicit supply pins; these cells are custom designed
Analog components have explicit supply pins

7. 7

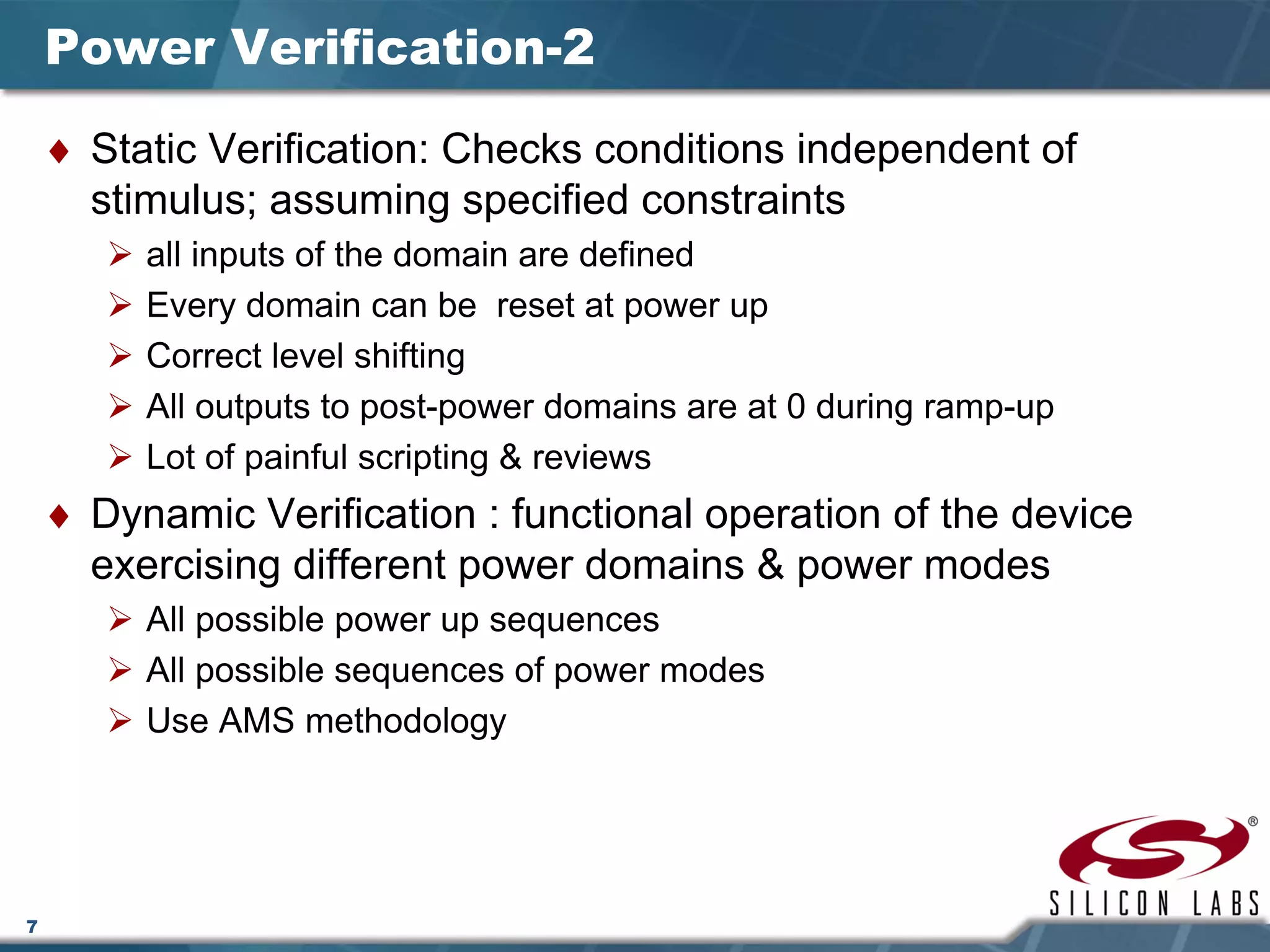

Power Verification-2
♦ Static Verification: Checks conditions independent of
stimulus; assuming specified constraints
all inputs of the domain are defined
Every domain can be reset at power up
Correct level shifting
All outputs to post-power domains are at 0 during ramp-up
Lot of painful scripting & reviews
♦ Dynamic Verification : functional operation of the device
exercising different power domains & power modes
All possible power up sequences
All possible sequences of power modes
Use AMS methodology

8. 8

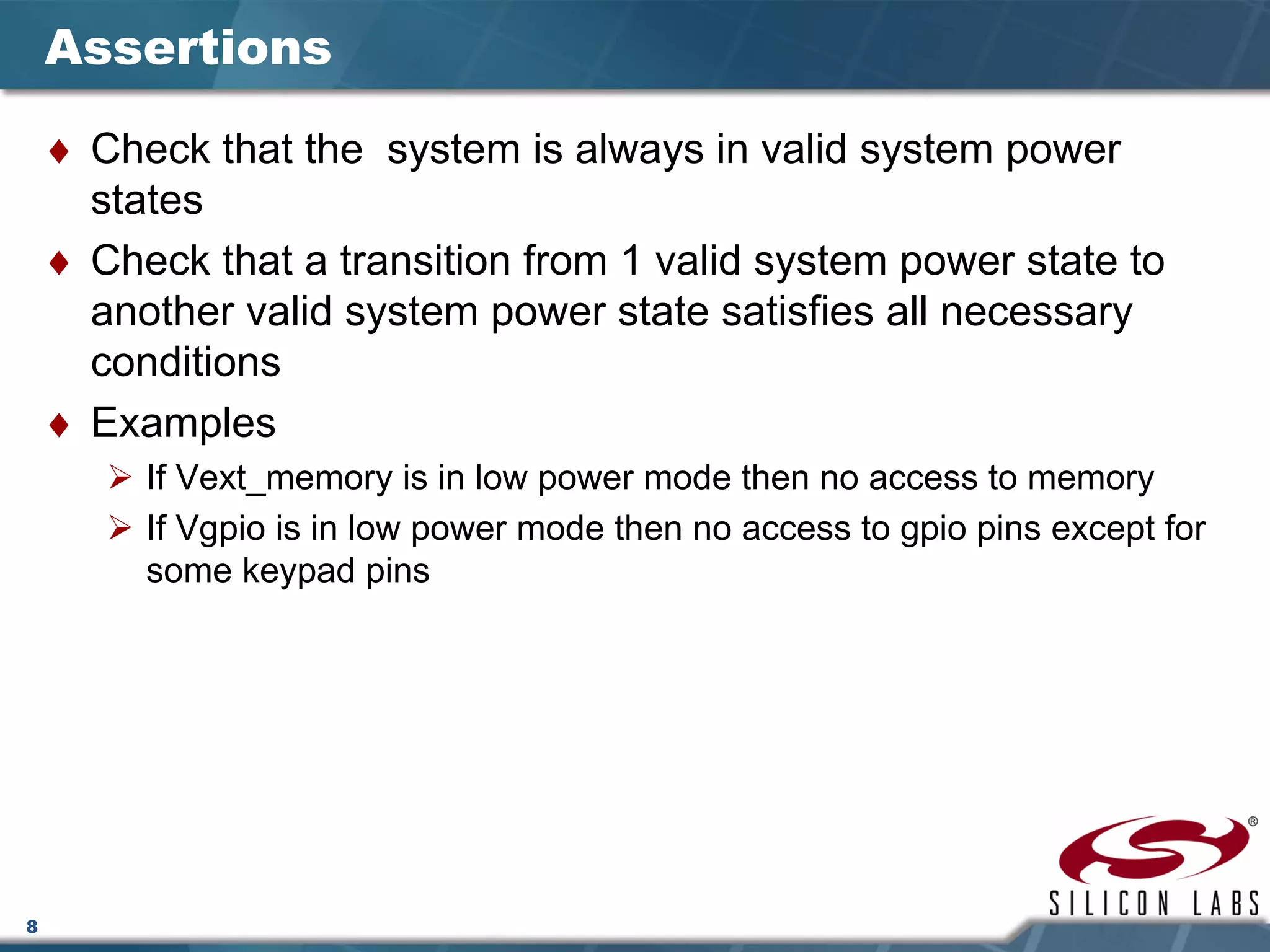

Assertions
♦ Check that the system is always in valid system power
states
♦ Check that a transition from 1 valid system power state to
another valid system power state satisfies all necessary
conditions
♦ Examples
If Vext_memory is in low power mode then no access to memory
If Vgpio is in low power mode then no access to gpio pins except for
some keypad pins

9. 9

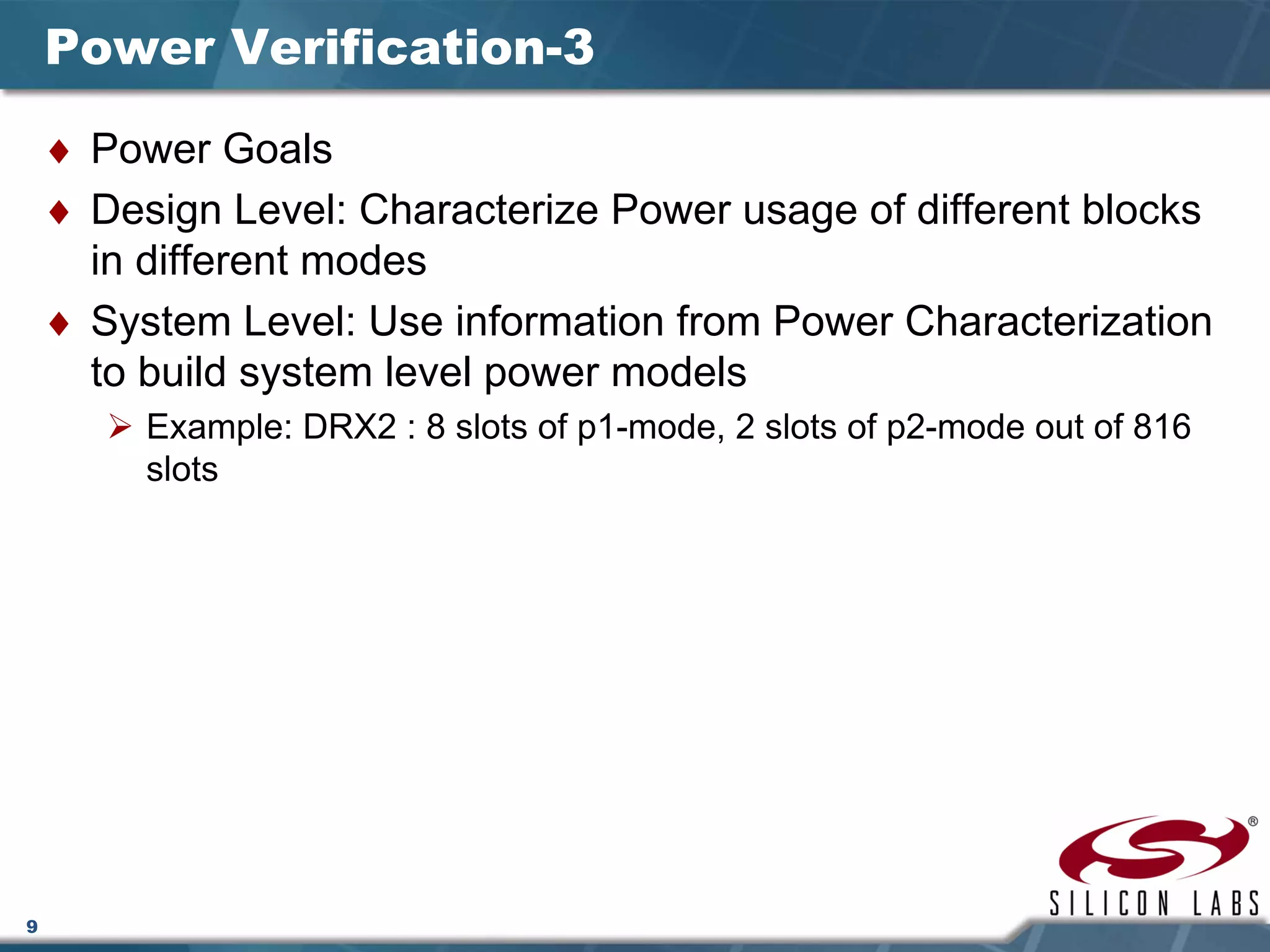

Power Verification-3
♦ Power Goals
♦ Design Level: Characterize Power usage of different blocks
in different modes
♦ System Level: Use information from Power Characterization
to build system level power models
Example: DRX2 : 8 slots of p1-mode, 2 slots of p2-mode out of 816
slots

10. 10

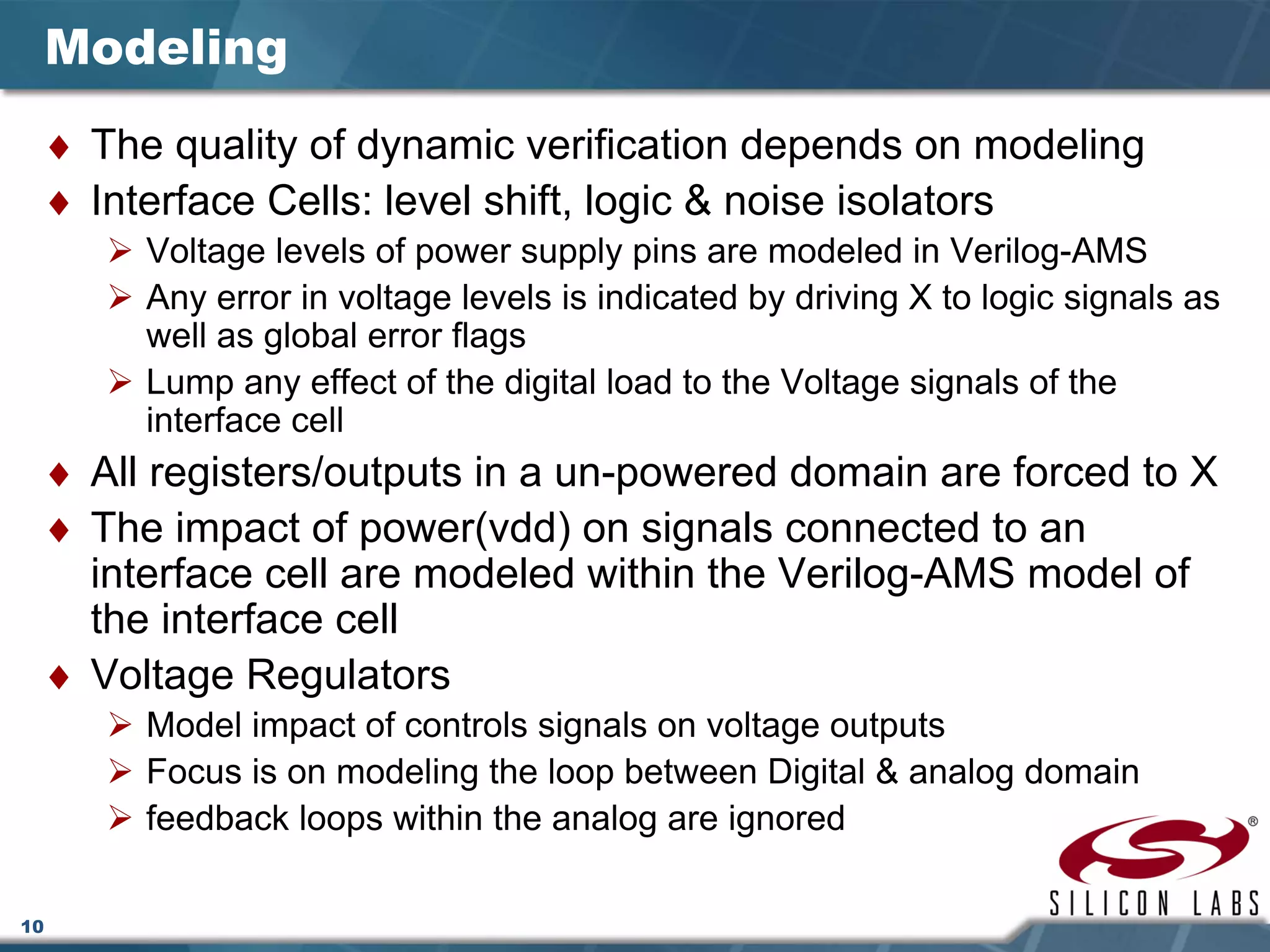

Modeling
♦ The quality of dynamic verification depends on modeling
♦ Interface Cells: level shift, logic & noise isolators
Voltage levels of power supply pins are modeled in Verilog-AMS
Any error in voltage levels is indicated by driving X to logic signals as
well as global error flags
Lump any effect of the digital load to the Voltage signals of the
interface cell
♦ All registers/outputs in a un-powered domain are forced to X
♦ The impact of power(vdd) on signals connected to an
interface cell are modeled within the Verilog-AMS model of
the interface cell
♦ Voltage Regulators
Model impact of controls signals on voltage outputs
Focus is on modeling the loop between Digital & analog domain
feedback loops within the analog are ignored

11. 11

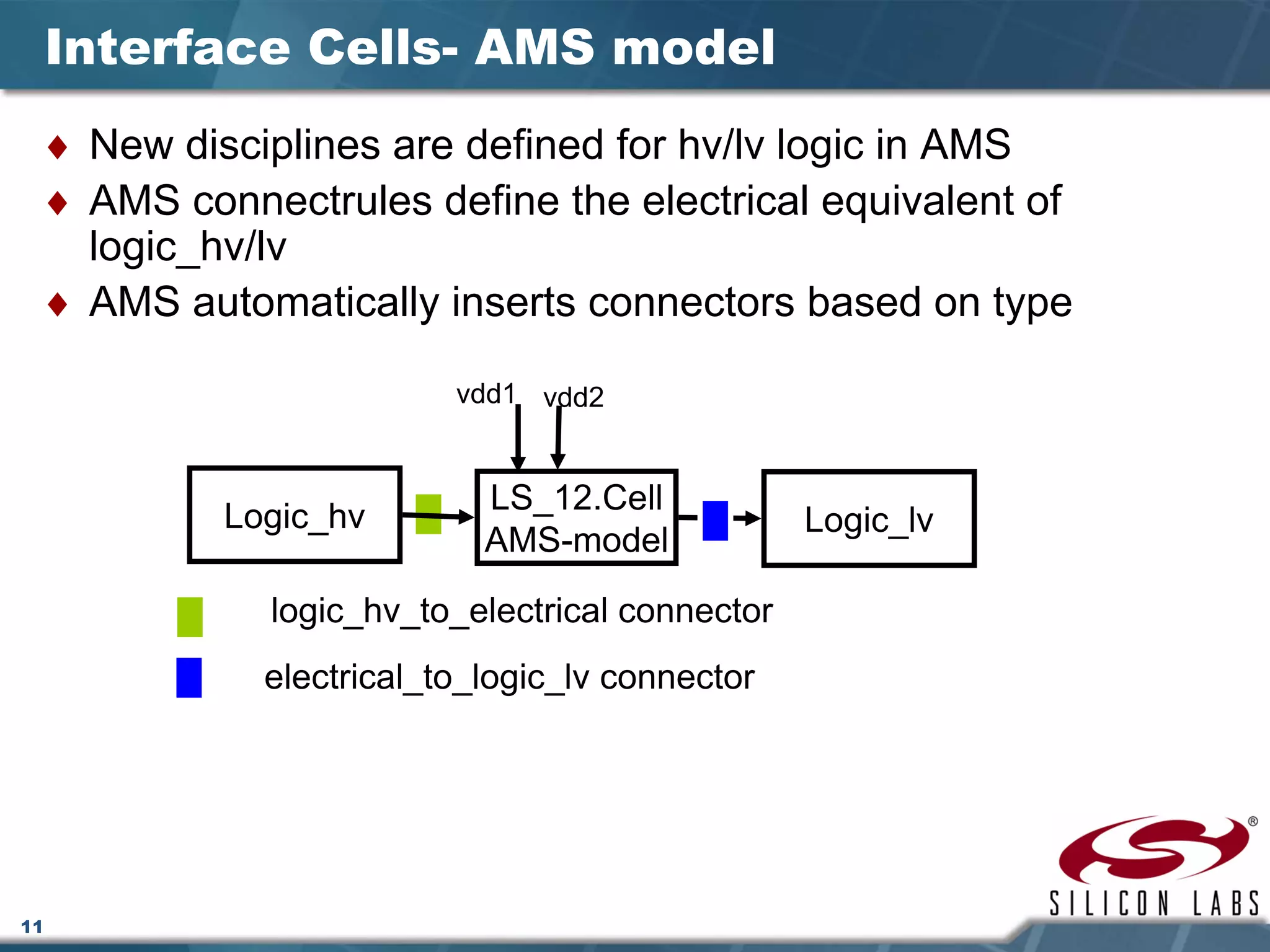

Interface Cells- AMS model
♦ New disciplines are defined for hv/lv logic in AMS
♦ AMS connectrules define the electrical equivalent of
logic_hv/lv
♦ AMS automatically inserts connectors based on type
Logic_hv Logic_lv
LS_12.Cell
AMS-model
vdd2vdd1
logic_hv_to_electrical connector
electrical_to_logic_lv connector

12. 12

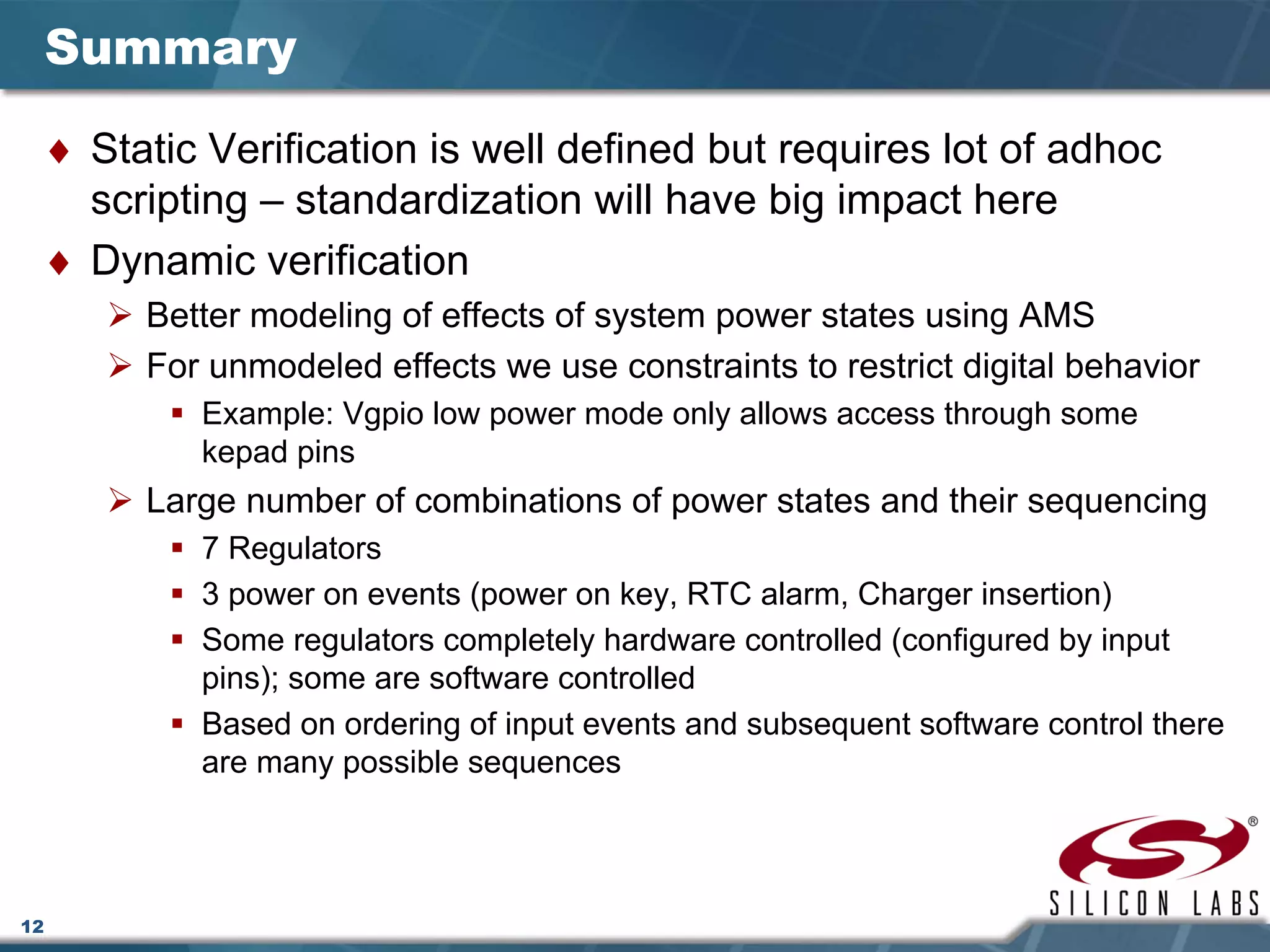

Summary
♦ Static Verification is well defined but requires lot of adhoc
scripting – standardization will have big impact here
♦ Dynamic verification
Better modeling of effects of system power states using AMS
For unmodeled effects we use constraints to restrict digital behavior
Example: Vgpio low power mode only allows access through some
kepad pins
Large number of combinations of power states and their sequencing
7 Regulators
3 power on events (power on key, RTC alarm, Charger insertion)
Some regulators completely hardware controlled (configured by input
pins); some are software controlled
Based on ordering of input events and subsequent software control there
are many possible sequences

13. 13

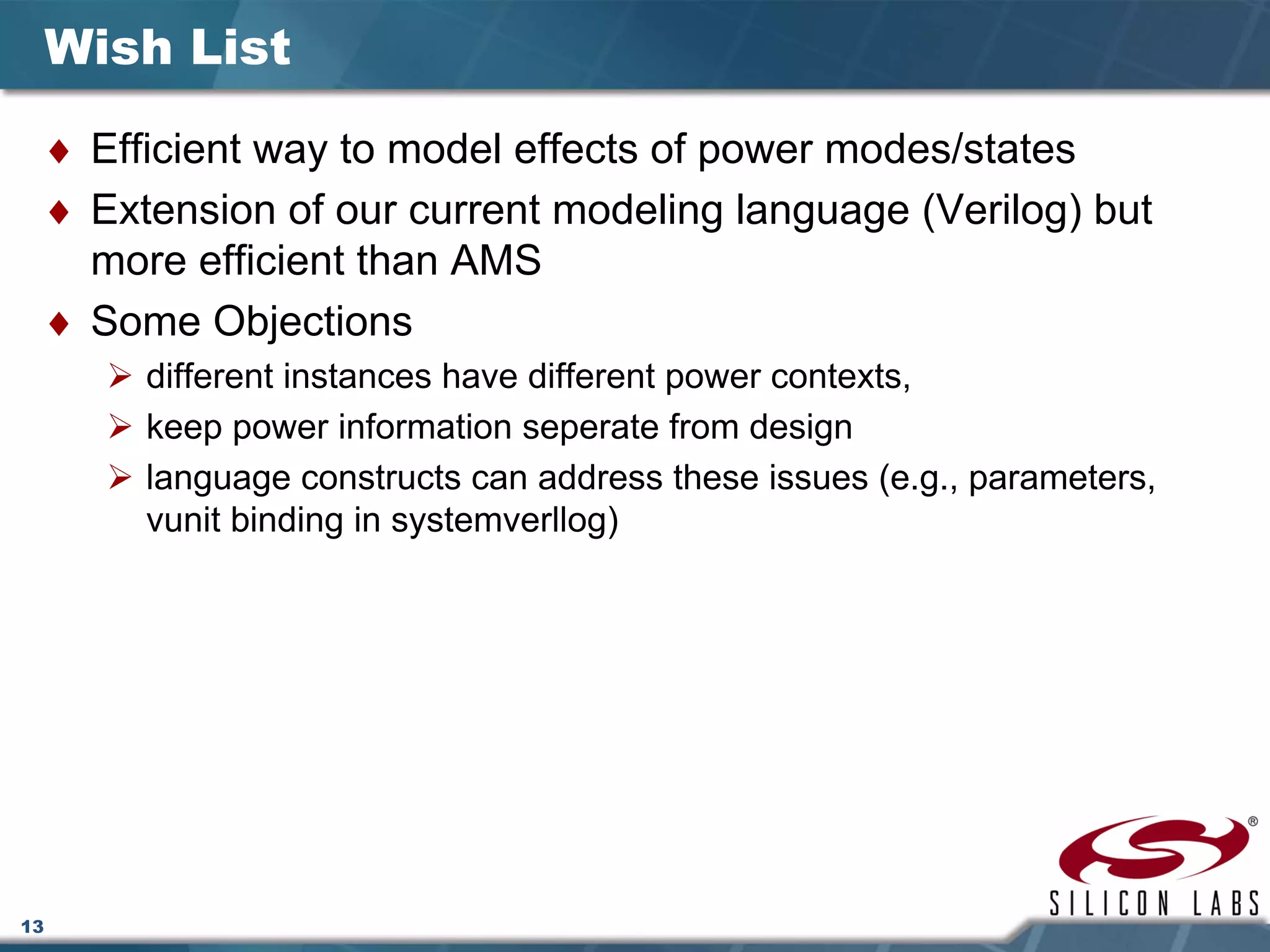

Wish List
♦ Efficient way to model effects of power modes/states
♦ Extension of our current modeling language (Verilog) but
more efficient than AMS
♦ Some Objections
different instances have different power contexts,
keep power information seperate from design
language constructs can address these issues (e.g., parameters,
vunit binding in systemverllog)
