Upstream processing

of 14
BTP 603: UNIT II | Upstream Processing

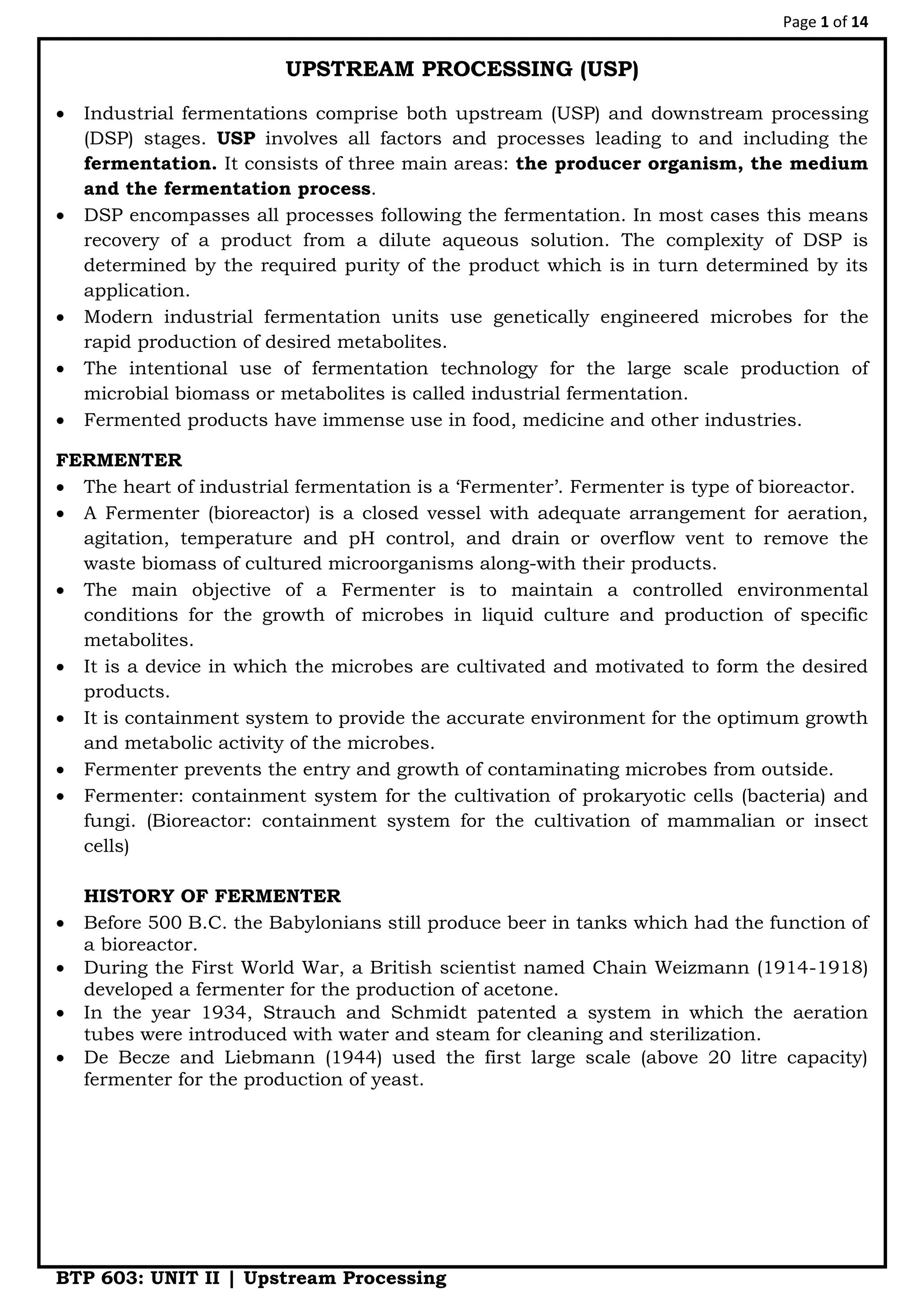

UPSTREAM PROCESSING (USP)
 Industrial fermentations comprise both upstream (USP) and downstream processing
(DSP) stages. USP involves all factors and processes leading to and including the
fermentation. It consists of three main areas: the producer organism, the medium
and the fermentation process.
 DSP encompasses all processes following the fermentation. In most cases this means
recovery of a product from a dilute aqueous solution. The complexity of DSP is
determined by the required purity of the product which is in turn determined by its
application.
 Modern industrial fermentation units use genetically engineered microbes for the
rapid production of desired metabolites.
 The intentional use of fermentation technology for the large scale production of
microbial biomass or metabolites is called industrial fermentation.
 Fermented products have immense use in food, medicine and other industries.
FERMENTER
 The heart of industrial fermentation is a „Fermenter‟. Fermenter is type of bioreactor.
 A Fermenter (bioreactor) is a closed vessel with adequate arrangement for aeration,
agitation, temperature and pH control, and drain or overflow vent to remove the
waste biomass of cultured microorganisms along-with their products.
 The main objective of a Fermenter is to maintain a controlled environmental
conditions for the growth of microbes in liquid culture and production of specific
metabolites.
 It is a device in which the microbes are cultivated and motivated to form the desired
products.
 It is containment system to provide the accurate environment for the optimum growth
and metabolic activity of the microbes.
 Fermenter prevents the entry and growth of contaminating microbes from outside.
 Fermenter: containment system for the cultivation of prokaryotic cells (bacteria) and
fungi. (Bioreactor: containment system for the cultivation of mammalian or insect
cells)
HISTORY OF FERMENTER
 Before 500 B.C. the Babylonians still produce beer in tanks which had the function of
a bioreactor.
 During the First World War, a British scientist named Chain Weizmann (1914-1918)
developed a fermenter for the production of acetone.
 In the year 1934, Strauch and Schmidt patented a system in which the aeration
tubes were introduced with water and steam for cleaning and sterilization.
 De Becze and Liebmann (1944) used the first large scale (above 20 litre capacity)
fermenter for the production of yeast.

of 14

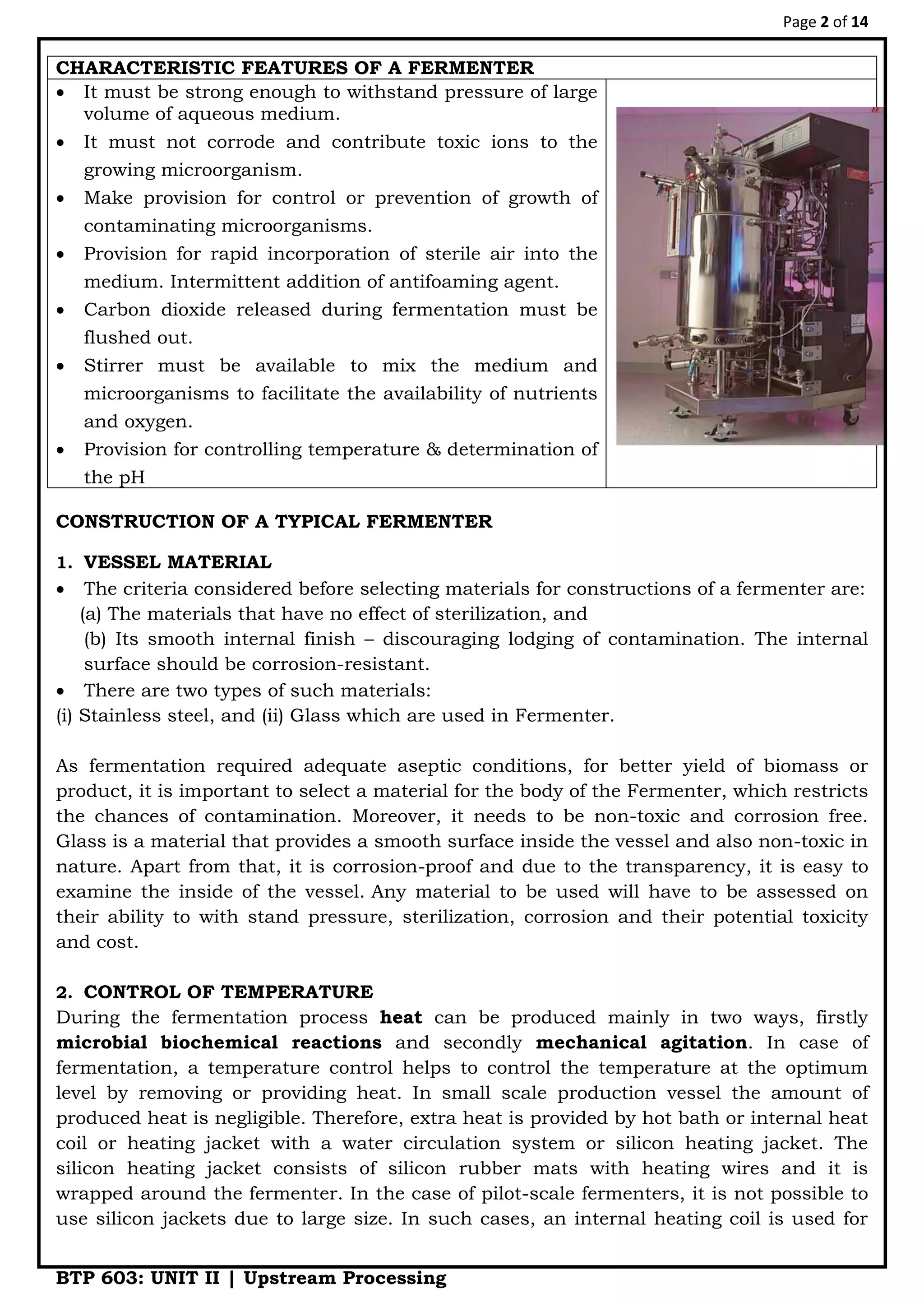

CHARACTERISTIC FEATURES OF A FERMENTER
 It must be strong enough to withstand pressure of large
volume of aqueous medium.
 It must not corrode and contribute toxic ions to the
growing microorganism.
 Make provision for control or prevention of growth of
contaminating microorganisms.
 Provision for rapid incorporation of sterile air into the
medium. Intermittent addition of antifoaming agent.
 Carbon dioxide released during fermentation must be
flushed out.
 Stirrer must be available to mix the medium and
microorganisms to facilitate the availability of nutrients
and oxygen.
 Provision for controlling temperature & determination of
the pH
CONSTRUCTION OF A TYPICAL FERMENTER
1. VESSEL MATERIAL
 The criteria considered before selecting materials for constructions of a fermenter are:
(a) The materials that have no effect of sterilization, and
(b) Its smooth internal finish – discouraging lodging of contamination. The internal
surface should be corrosion-resistant.
 There are two types of such materials:
(i) Stainless steel, and (ii) Glass which are used in Fermenter.
As fermentation required adequate aseptic conditions, for better yield of biomass or
product, it is important to select a material for the body of the Fermenter, which restricts
the chances of contamination. Moreover, it needs to be non-toxic and corrosion free.
Glass is a material that provides a smooth surface inside the vessel and also non-toxic in
nature. Apart from that, it is corrosion-proof and due to the transparency, it is easy to
examine the inside of the vessel. Any material to be used will have to be assessed on
their ability to with stand pressure, sterilization, corrosion and their potential toxicity
and cost.
2. CONTROL OF TEMPERATURE
During the fermentation process heat can be produced mainly in two ways, firstly
microbial biochemical reactions and secondly mechanical agitation. In case of
fermentation, a temperature control helps to control the temperature at the optimum
level by removing or providing heat. In small scale production vessel the amount of
produced heat is negligible. Therefore, extra heat is provided by hot bath or internal heat
coil or heating jacket with a water circulation system or silicon heating jacket. The
silicon heating jacket consists of silicon rubber mats with heating wires and it is
wrapped around the fermenter. In the case of pilot-scale fermenters, it is not possible to
use silicon jackets due to large size. In such cases, an internal heating coil is used for

of 14
providing extra heat while cold water circulation helps to remove excess heat. The
fermentor is fitted externally with a cooling jacket through which steam (for
sterilization) or cooling water (for cooling) is run.

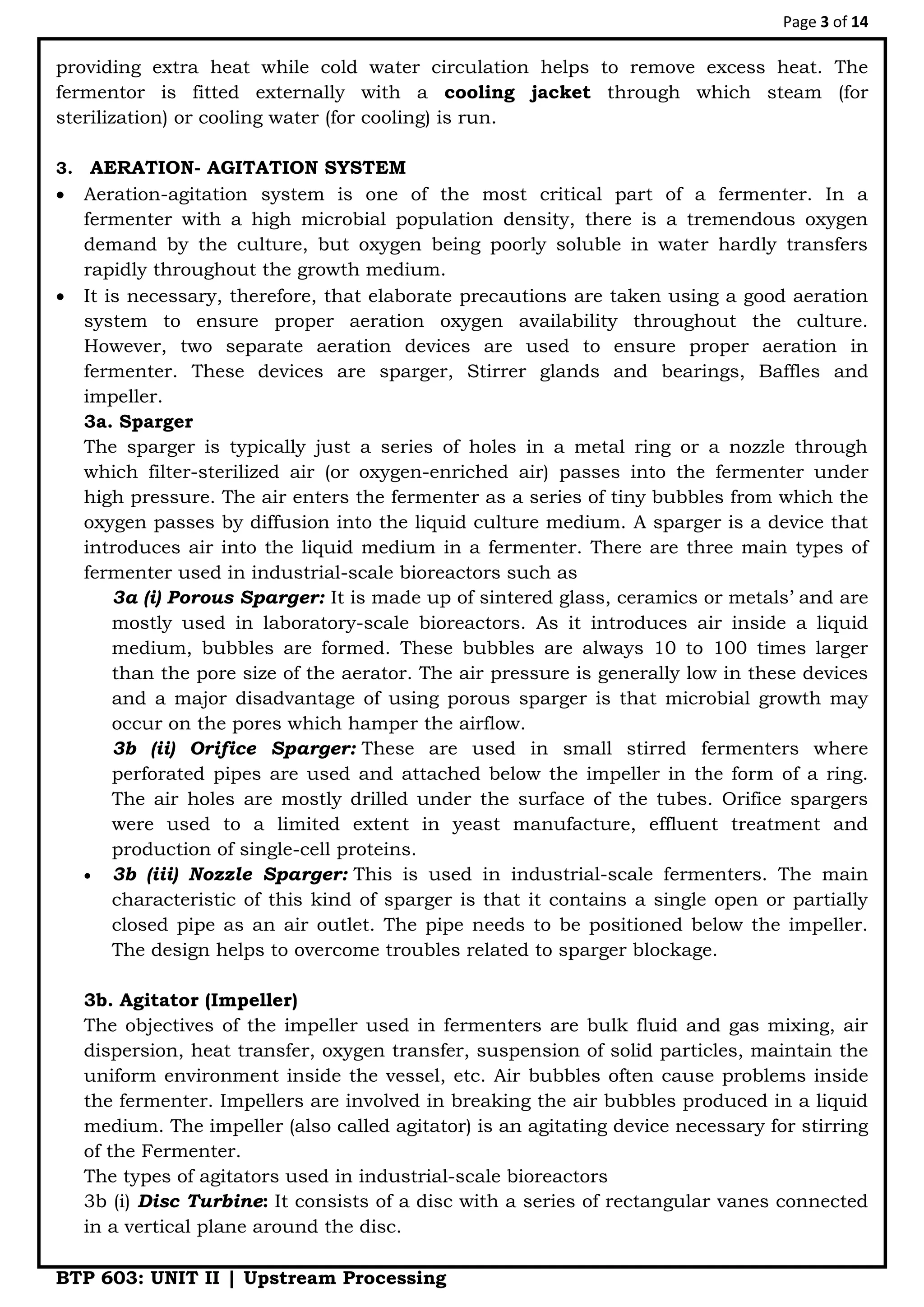

3. AERATION- AGITATION SYSTEM
 Aeration-agitation system is one of the most critical part of a fermenter. In a
fermenter with a high microbial population density, there is a tremendous oxygen
demand by the culture, but oxygen being poorly soluble in water hardly transfers
rapidly throughout the growth medium.
 It is necessary, therefore, that elaborate precautions are taken using a good aeration
system to ensure proper aeration oxygen availability throughout the culture.
However, two separate aeration devices are used to ensure proper aeration in
fermenter. These devices are sparger, Stirrer glands and bearings, Baffles and
impeller.
3a. Sparger
The sparger is typically just a series of holes in a metal ring or a nozzle through
which filter-sterilized air (or oxygen-enriched air) passes into the fermenter under
high pressure. The air enters the fermenter as a series of tiny bubbles from which the
oxygen passes by diffusion into the liquid culture medium. A sparger is a device that
introduces air into the liquid medium in a fermenter. There are three main types of
fermenter used in industrial-scale bioreactors such as
3a (i) Porous Sparger: It is made up of sintered glass, ceramics or metals‟ and are
mostly used in laboratory-scale bioreactors. As it introduces air inside a liquid
medium, bubbles are formed. These bubbles are always 10 to 100 times larger
than the pore size of the aerator. The air pressure is generally low in these devices
and a major disadvantage of using porous sparger is that microbial growth may
occur on the pores which hamper the airflow.
3b (ii) Orifice Sparger: These are used in small stirred fermenters where
perforated pipes are used and attached below the impeller in the form of a ring.
The air holes are mostly drilled under the surface of the tubes. Orifice spargers
were used to a limited extent in yeast manufacture, effluent treatment and
production of single-cell proteins.
 3b (iii) Nozzle Sparger: This is used in industrial-scale fermenters. The main
characteristic of this kind of sparger is that it contains a single open or partially
closed pipe as an air outlet. The pipe needs to be positioned below the impeller.
The design helps to overcome troubles related to sparger blockage.
3b. Agitator (Impeller)
The objectives of the impeller used in fermenters are bulk fluid and gas mixing, air
dispersion, heat transfer, oxygen transfer, suspension of solid particles, maintain the
uniform environment inside the vessel, etc. Air bubbles often cause problems inside
the fermenter. Impellers are involved in breaking the air bubbles produced in a liquid
medium. The impeller (also called agitator) is an agitating device necessary for stirring
of the Fermenter.
The types of agitators used in industrial-scale bioreactors
3b (i) Disc Turbine: It consists of a disc with a series of rectangular vanes connected
in a vertical plane around the disc.

of 14
3b (ii) Vaned disc: In this case, the rectangular vanes are attached vertically to the
underside of a disc.
3c. Stirrer Gland and Bearing
These stirrer gland with shafts play an important role to seal the openings of a
fermenter. As a result, it restricts the entry of air from outside. There are several
types of seals used for this purpose, which are
3c (i) The Stuffing Box: The shafted is sealed by several layers of packing rings of
asbestos or cotton yarn which is pressed against the shaft by gland follower.
3c (ii) The Mechanical Seal: stationary bearing housing and the rotates on the
shaft are pressed together by springs.
3c (iii) Magnetic Drives: The magnetic drive is made up of two magnets one is driving
and one driven. The driven magnet held in bearings in housing on the outside of the
head plate and connected to a drive shaft. The internal driven magnet is placed on
one end of the impeller shaft and held in bearings in a suitable housing on the inner
surface of the head plate.
3d. Baffles
There are four baffles that are present inside of an agitated vessel to prevent a vortex
and improve aeration efficiency. The agitation effect is slightly increased with wider
baffles but drops sharply with narrower baffles. Baffles are often attached to cooling
coils to increase the cooling capacity of the fermenter.
4. P
H
CONTROL SENSORS
All types of fermenters are attached with a pH control sensor which consists of a pH
sensor and a port to maintain the pH inside of the fermenter. pH alteration can lead
to death of the organism which leads to product loss. Therefore, it is a crucial
instrument for a fermenter and needs to be checked regularly.
5. MICROBIAL BIOSENSORS
A microbial sensor consists of a microorganism immobilized on a membrane and an
electrode. The principle of working of biosensor is the change in respiration or the
amount of metabolites produced as a result of the assimilation of substrate by the
microorganism. A wide range of thermophilic microbes have been used for the
manufacturing of microbial sensors.
6. REMOVAL OF CO2
During fermentation process carbon dioxide and hydrogen gases are liberated which
collect in the head space of the fermenter. The fermenter should be provided with a
device to release these gases outside aseptically.
7. INLET & OUTLET FOR INOCULUM
The fermenter should also be provided with a device to introduce inoculum at the
beginning of the fermentation, and its withdrawal aseptically during fermentation.

of 14

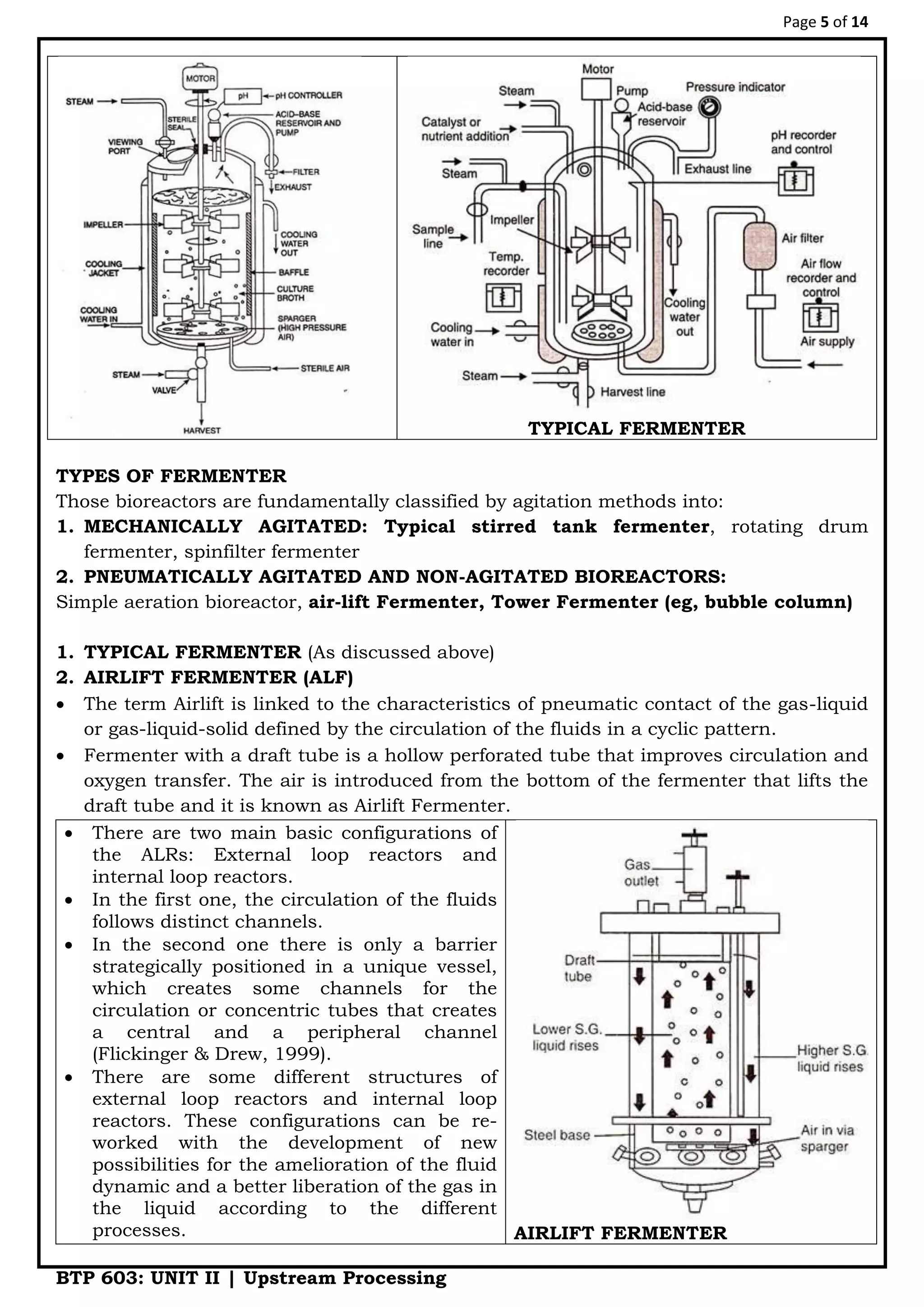

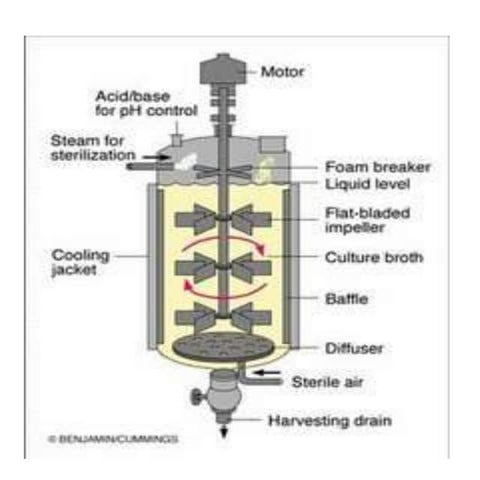

TYPICAL FERMENTER
TYPES OF FERMENTER
Those bioreactors are fundamentally classified by agitation methods into:
1. MECHANICALLY AGITATED: Typical stirred tank fermenter, rotating drum
fermenter, spinfilter fermenter
2. PNEUMATICALLY AGITATED AND NON-AGITATED BIOREACTORS:
Simple aeration bioreactor, air-lift Fermenter, Tower Fermenter (eg, bubble column)
1. TYPICAL FERMENTER (As discussed above)
2. AIRLIFT FERMENTER (ALF)
 The term Airlift is linked to the characteristics of pneumatic contact of the gas-liquid
or gas-liquid-solid defined by the circulation of the fluids in a cyclic pattern.
 Fermenter with a draft tube is a hollow perforated tube that improves circulation and
oxygen transfer. The air is introduced from the bottom of the fermenter that lifts the
draft tube and it is known as Airlift Fermenter.
 There are two main basic configurations of
the ALRs: External loop reactors and
internal loop reactors.
 In the first one, the circulation of the fluids
follows distinct channels.
 In the second one there is only a barrier
strategically positioned in a unique vessel,
which creates some channels for the
circulation or concentric tubes that creates
a central and a peripheral channel
(Flickinger & Drew, 1999).
 There are some different structures of
external loop reactors and internal loop
reactors. These configurations can be re-
worked with the development of new
possibilities for the amelioration of the fluid
dynamic and a better liberation of the gas in
the liquid according to the different
processes. AIRLIFT FERMENTER

of 14

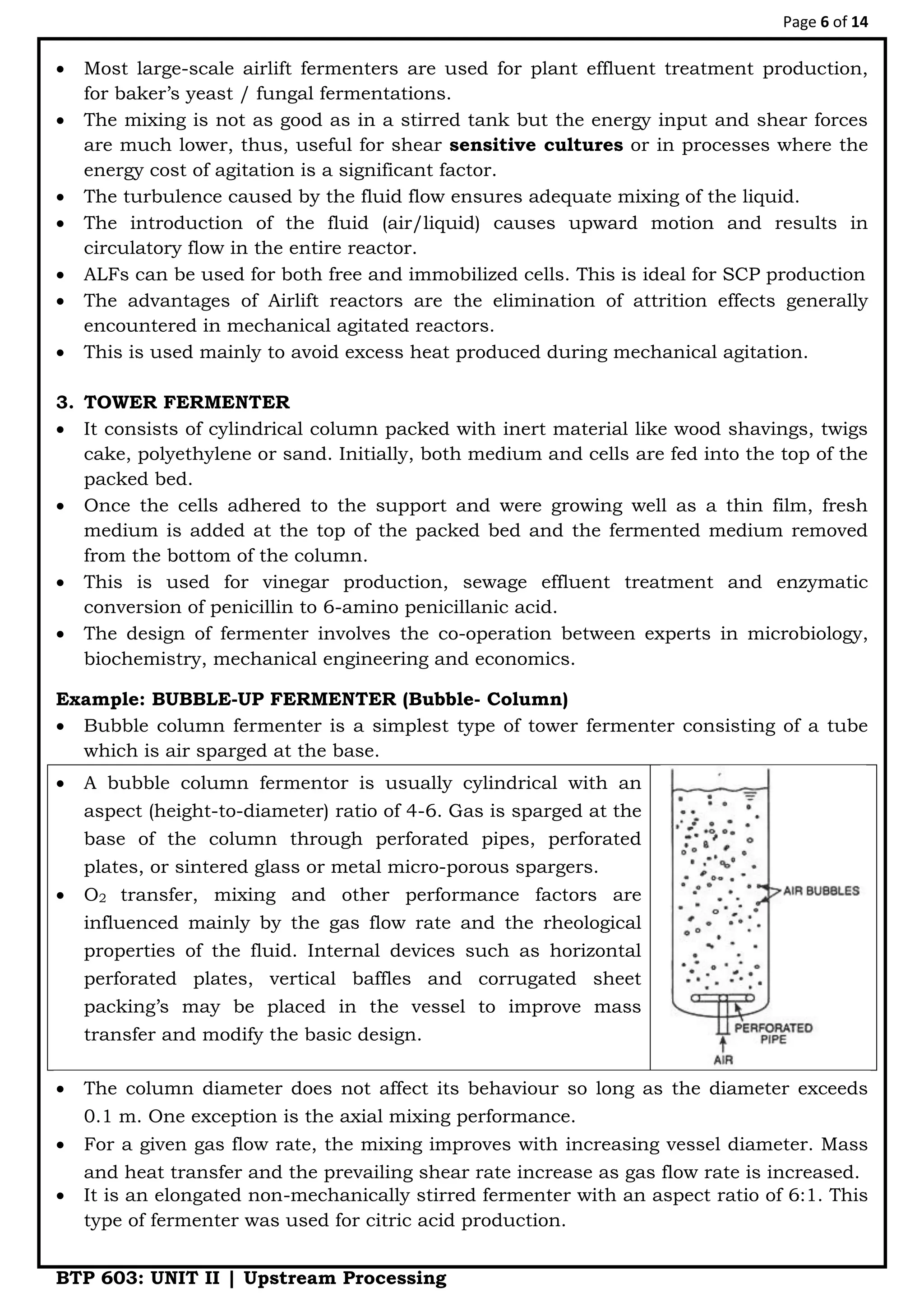

 Most large-scale airlift fermenters are used for plant effluent treatment production,
for baker‟s yeast / fungal fermentations.
 The mixing is not as good as in a stirred tank but the energy input and shear forces
are much lower, thus, useful for shear sensitive cultures or in processes where the
energy cost of agitation is a significant factor.
 The turbulence caused by the fluid flow ensures adequate mixing of the liquid.
 The introduction of the fluid (air/liquid) causes upward motion and results in
circulatory flow in the entire reactor.
 ALFs can be used for both free and immobilized cells. This is ideal for SCP production
 The advantages of Airlift reactors are the elimination of attrition effects generally
encountered in mechanical agitated reactors.
 This is used mainly to avoid excess heat produced during mechanical agitation.
3. TOWER FERMENTER
 It consists of cylindrical column packed with inert material like wood shavings, twigs
cake, polyethylene or sand. Initially, both medium and cells are fed into the top of the
packed bed.
 Once the cells adhered to the support and were growing well as a thin film, fresh
medium is added at the top of the packed bed and the fermented medium removed
from the bottom of the column.
 This is used for vinegar production, sewage effluent treatment and enzymatic
conversion of penicillin to 6-amino penicillanic acid.
 The design of fermenter involves the co-operation between experts in microbiology,
biochemistry, mechanical engineering and economics.
Example: BUBBLE-UP FERMENTER (Bubble- Column)
 Bubble column fermenter is a simplest type of tower fermenter consisting of a tube
which is air sparged at the base.
 A bubble column fermentor is usually cylindrical with an
aspect (height-to-diameter) ratio of 4-6. Gas is sparged at the
base of the column through perforated pipes, perforated
plates, or sintered glass or metal micro-porous spargers.
 O2 transfer, mixing and other performance factors are
influenced mainly by the gas flow rate and the rheological
properties of the fluid. Internal devices such as horizontal
perforated plates, vertical baffles and corrugated sheet
packing‟s may be placed in the vessel to improve mass
transfer and modify the basic design.
 The column diameter does not affect its behaviour so long as the diameter exceeds
0.1 m. One exception is the axial mixing performance.
 For a given gas flow rate, the mixing improves with increasing vessel diameter. Mass
and heat transfer and the prevailing shear rate increase as gas flow rate is increased.
 It is an elongated non-mechanically stirred fermenter with an aspect ratio of 6:1. This
type of fermenter was used for citric acid production.

of 14
FERMENTATION

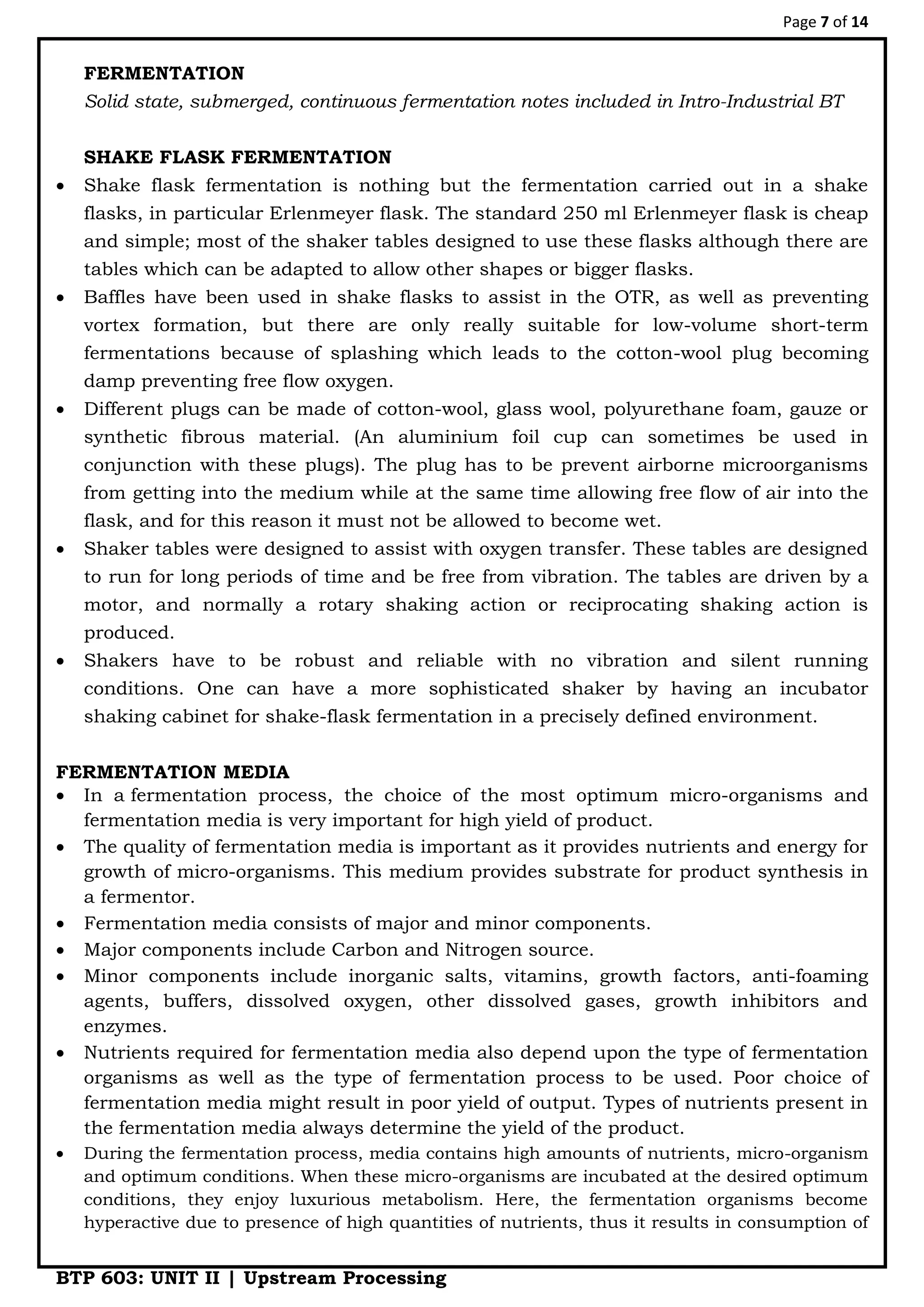

Solid state, submerged, continuous fermentation notes included in Intro-Industrial BT
SHAKE FLASK FERMENTATION
 Shake flask fermentation is nothing but the fermentation carried out in a shake
flasks, in particular Erlenmeyer flask. The standard 250 ml Erlenmeyer flask is cheap
and simple; most of the shaker tables designed to use these flasks although there are
tables which can be adapted to allow other shapes or bigger flasks.
 Baffles have been used in shake flasks to assist in the OTR, as well as preventing
vortex formation, but there are only really suitable for low-volume short-term
fermentations because of splashing which leads to the cotton-wool plug becoming
damp preventing free flow oxygen.
 Different plugs can be made of cotton-wool, glass wool, polyurethane foam, gauze or
synthetic fibrous material. (An aluminium foil cup can sometimes be used in
conjunction with these plugs). The plug has to be prevent airborne microorganisms
from getting into the medium while at the same time allowing free flow of air into the
flask, and for this reason it must not be allowed to become wet.
 Shaker tables were designed to assist with oxygen transfer. These tables are designed
to run for long periods of time and be free from vibration. The tables are driven by a
motor, and normally a rotary shaking action or reciprocating shaking action is
produced.
 Shakers have to be robust and reliable with no vibration and silent running
conditions. One can have a more sophisticated shaker by having an incubator
shaking cabinet for shake-flask fermentation in a precisely defined environment.
FERMENTATION MEDIA
 In a fermentation process, the choice of the most optimum micro-organisms and
fermentation media is very important for high yield of product.
 The quality of fermentation media is important as it provides nutrients and energy for
growth of micro-organisms. This medium provides substrate for product synthesis in
a fermentor.
 Fermentation media consists of major and minor components.
 Major components include Carbon and Nitrogen source.
 Minor components include inorganic salts, vitamins, growth factors, anti-foaming
agents, buffers, dissolved oxygen, other dissolved gases, growth inhibitors and
enzymes.
 Nutrients required for fermentation media also depend upon the type of fermentation
organisms as well as the type of fermentation process to be used. Poor choice of
fermentation media might result in poor yield of output. Types of nutrients present in
the fermentation media always determine the yield of the product.
 During the fermentation process, media contains high amounts of nutrients, micro-organism
and optimum conditions. When these micro-organisms are incubated at the desired optimum
conditions, they enjoy luxurious metabolism. Here, the fermentation organisms become
hyperactive due to presence of high quantities of nutrients, thus it results in consumption of

of 14

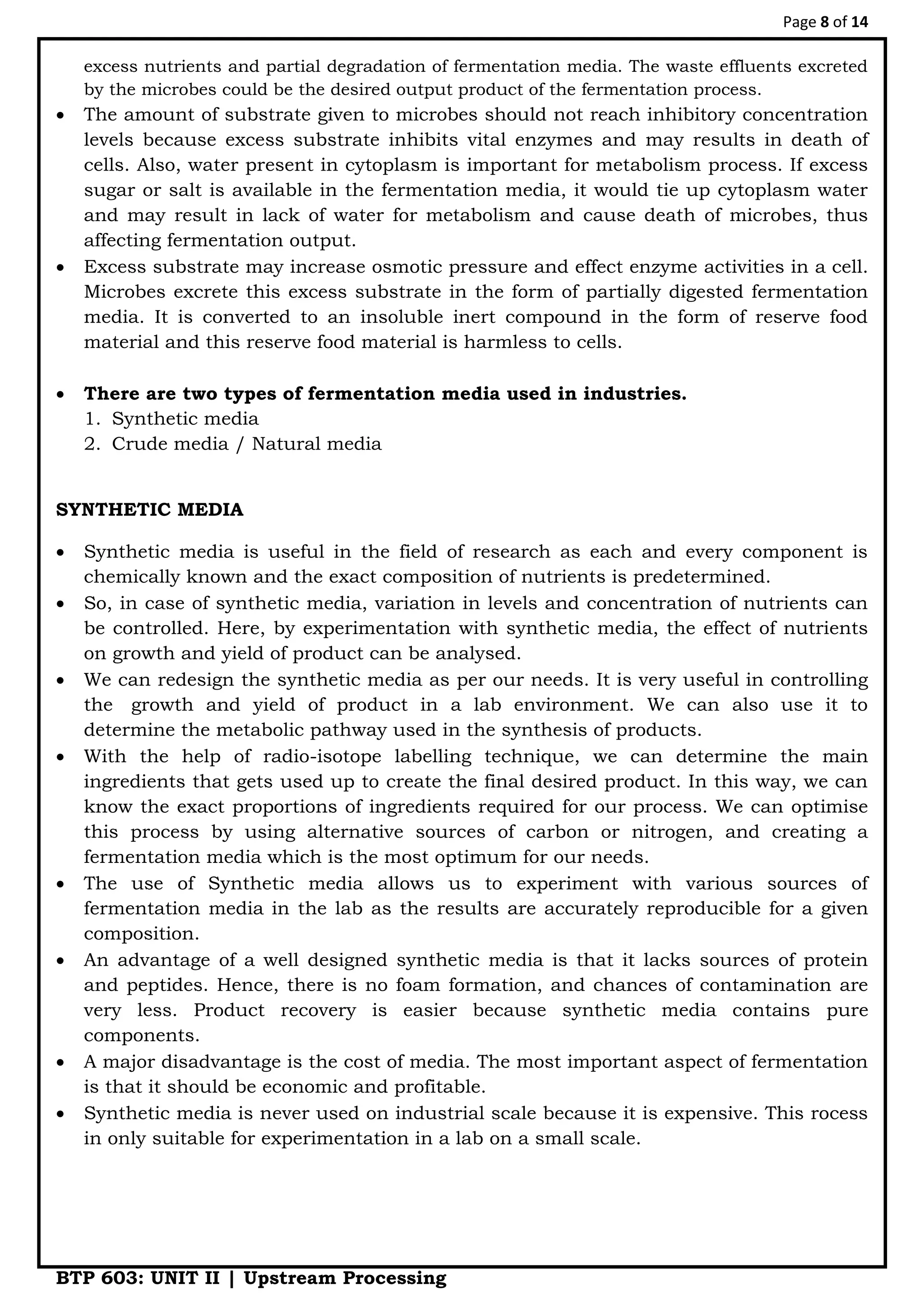

excess nutrients and partial degradation of fermentation media. The waste effluents excreted
by the microbes could be the desired output product of the fermentation process.
 The amount of substrate given to microbes should not reach inhibitory concentration
levels because excess substrate inhibits vital enzymes and may results in death of
cells. Also, water present in cytoplasm is important for metabolism process. If excess
sugar or salt is available in the fermentation media, it would tie up cytoplasm water
and may result in lack of water for metabolism and cause death of microbes, thus
affecting fermentation output.
 Excess substrate may increase osmotic pressure and effect enzyme activities in a cell.
Microbes excrete this excess substrate in the form of partially digested fermentation
media. It is converted to an insoluble inert compound in the form of reserve food
material and this reserve food material is harmless to cells.
 There are two types of fermentation media used in industries.
1. Synthetic media
2. Crude media / Natural media
SYNTHETIC MEDIA
 Synthetic media is useful in the field of research as each and every component is
chemically known and the exact composition of nutrients is predetermined.
 So, in case of synthetic media, variation in levels and concentration of nutrients can
be controlled. Here, by experimentation with synthetic media, the effect of nutrients
on growth and yield of product can be analysed.
 We can redesign the synthetic media as per our needs. It is very useful in controlling
the growth and yield of product in a lab environment. We can also use it to
determine the metabolic pathway used in the synthesis of products.
 With the help of radio-isotope labelling technique, we can determine the main
ingredients that gets used up to create the final desired product. In this way, we can
know the exact proportions of ingredients required for our process. We can optimise
this process by using alternative sources of carbon or nitrogen, and creating a
fermentation media which is the most optimum for our needs.
 The use of Synthetic media allows us to experiment with various sources of
fermentation media in the lab as the results are accurately reproducible for a given
composition.
 An advantage of a well designed synthetic media is that it lacks sources of protein
and peptides. Hence, there is no foam formation, and chances of contamination are
very less. Product recovery is easier because synthetic media contains pure
components.
 A major disadvantage is the cost of media. The most important aspect of fermentation
is that it should be economic and profitable.
 Synthetic media is never used on industrial scale because it is expensive. This rocess
in only suitable for experimentation in a lab on a small scale.

of 14

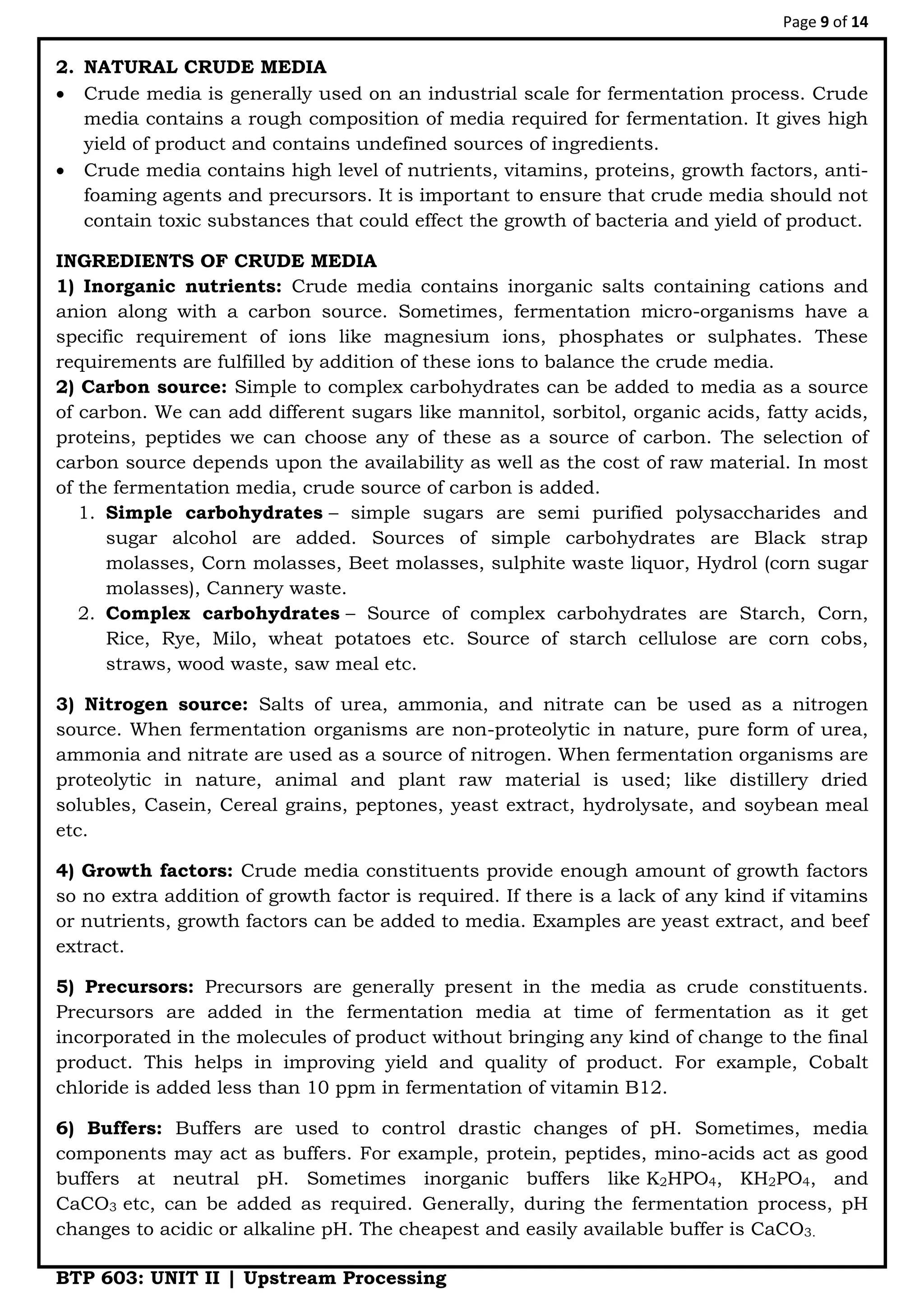

2. NATURAL CRUDE MEDIA
 Crude media is generally used on an industrial scale for fermentation process. Crude
media contains a rough composition of media required for fermentation. It gives high
yield of product and contains undefined sources of ingredients.
 Crude media contains high level of nutrients, vitamins, proteins, growth factors, anti-
foaming agents and precursors. It is important to ensure that crude media should not
contain toxic substances that could effect the growth of bacteria and yield of product.
INGREDIENTS OF CRUDE MEDIA
1) Inorganic nutrients: Crude media contains inorganic salts containing cations and
anion along with a carbon source. Sometimes, fermentation micro-organisms have a
specific requirement of ions like magnesium ions, phosphates or sulphates. These
requirements are fulfilled by addition of these ions to balance the crude media.
2) Carbon source: Simple to complex carbohydrates can be added to media as a source
of carbon. We can add different sugars like mannitol, sorbitol, organic acids, fatty acids,
proteins, peptides we can choose any of these as a source of carbon. The selection of
carbon source depends upon the availability as well as the cost of raw material. In most
of the fermentation media, crude source of carbon is added.
1. Simple carbohydrates – simple sugars are semi purified polysaccharides and
sugar alcohol are added. Sources of simple carbohydrates are Black strap
molasses, Corn molasses, Beet molasses, sulphite waste liquor, Hydrol (corn sugar
molasses), Cannery waste.
2. Complex carbohydrates – Source of complex carbohydrates are Starch, Corn,
Rice, Rye, Milo, wheat potatoes etc. Source of starch cellulose are corn cobs,
straws, wood waste, saw meal etc.
3) Nitrogen source: Salts of urea, ammonia, and nitrate can be used as a nitrogen
source. When fermentation organisms are non-proteolytic in nature, pure form of urea,
ammonia and nitrate are used as a source of nitrogen. When fermentation organisms are
proteolytic in nature, animal and plant raw material is used; like distillery dried
solubles, Casein, Cereal grains, peptones, yeast extract, hydrolysate, and soybean meal
etc.
4) Growth factors: Crude media constituents provide enough amount of growth factors
so no extra addition of growth factor is required. If there is a lack of any kind if vitamins
or nutrients, growth factors can be added to media. Examples are yeast extract, and beef
extract.
5) Precursors: Precursors are generally present in the media as crude constituents.
Precursors are added in the fermentation media at time of fermentation as it get
incorporated in the molecules of product without bringing any kind of change to the final
product. This helps in improving yield and quality of product. For example, Cobalt
chloride is added less than 10 ppm in fermentation of vitamin B12.
6) Buffers: Buffers are used to control drastic changes of pH. Sometimes, media
components may act as buffers. For example, protein, peptides, mino-acids act as good
buffers at neutral pH. Sometimes inorganic buffers like K2HPO4, KH2PO4, and
CaCO3 etc, can be added as required. Generally, during the fermentation process, pH
changes to acidic or alkaline pH. The cheapest and easily available buffer is CaCO3.

of 14

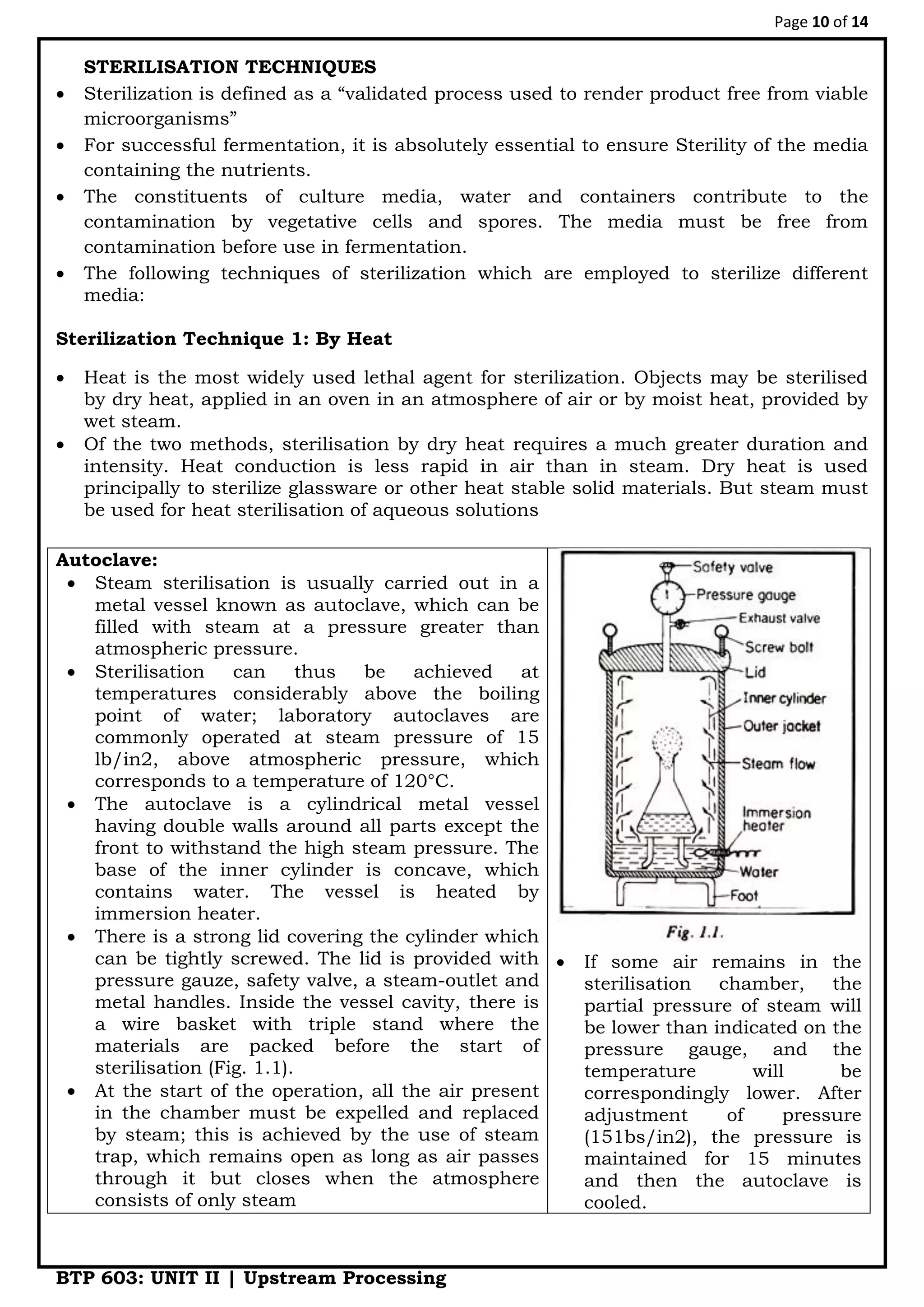

STERILISATION TECHNIQUES
 Sterilization is defined as a “validated process used to render product free from viable
microorganisms”
 For successful fermentation, it is absolutely essential to ensure Sterility of the media
containing the nutrients.
 The constituents of culture media, water and containers contribute to the
contamination by vegetative cells and spores. The media must be free from
contamination before use in fermentation.
 The following techniques of sterilization which are employed to sterilize different
media:
Sterilization Technique 1: By Heat
 Heat is the most widely used lethal agent for sterilization. Objects may be sterilised
by dry heat, applied in an oven in an atmosphere of air or by moist heat, provided by
wet steam.
 Of the two methods, sterilisation by dry heat requires a much greater duration and
intensity. Heat conduction is less rapid in air than in steam. Dry heat is used
principally to sterilize glassware or other heat stable solid materials. But steam must
be used for heat sterilisation of aqueous solutions
Autoclave:
 Steam sterilisation is usually carried out in a
metal vessel known as autoclave, which can be
filled with steam at a pressure greater than
atmospheric pressure.
 Sterilisation can thus be achieved at
temperatures considerably above the boiling
point of water; laboratory autoclaves are
commonly operated at steam pressure of 15
lb/in2, above atmospheric pressure, which
corresponds to a temperature of 120°C.
 The autoclave is a cylindrical metal vessel
having double walls around all parts except the
front to withstand the high steam pressure. The
base of the inner cylinder is concave, which
contains water. The vessel is heated by
immersion heater.
 There is a strong lid covering the cylinder which
can be tightly screwed. The lid is provided with
pressure gauze, safety valve, a steam-outlet and
metal handles. Inside the vessel cavity, there is
a wire basket with triple stand where the
materials are packed before the start of
sterilisation (Fig. 1.1).
 At the start of the operation, all the air present
in the chamber must be expelled and replaced
by steam; this is achieved by the use of steam
trap, which remains open as long as air passes
through it but closes when the atmosphere
consists of only steam
 If some air remains in the
sterilisation chamber, the
partial pressure of steam will
be lower than indicated on the
pressure gauge, and the
temperature will be
correspondingly lower. After
adjustment of pressure
(151bs/in2), the pressure is
maintained for 15 minutes
and then the autoclave is
cooled.

of 14

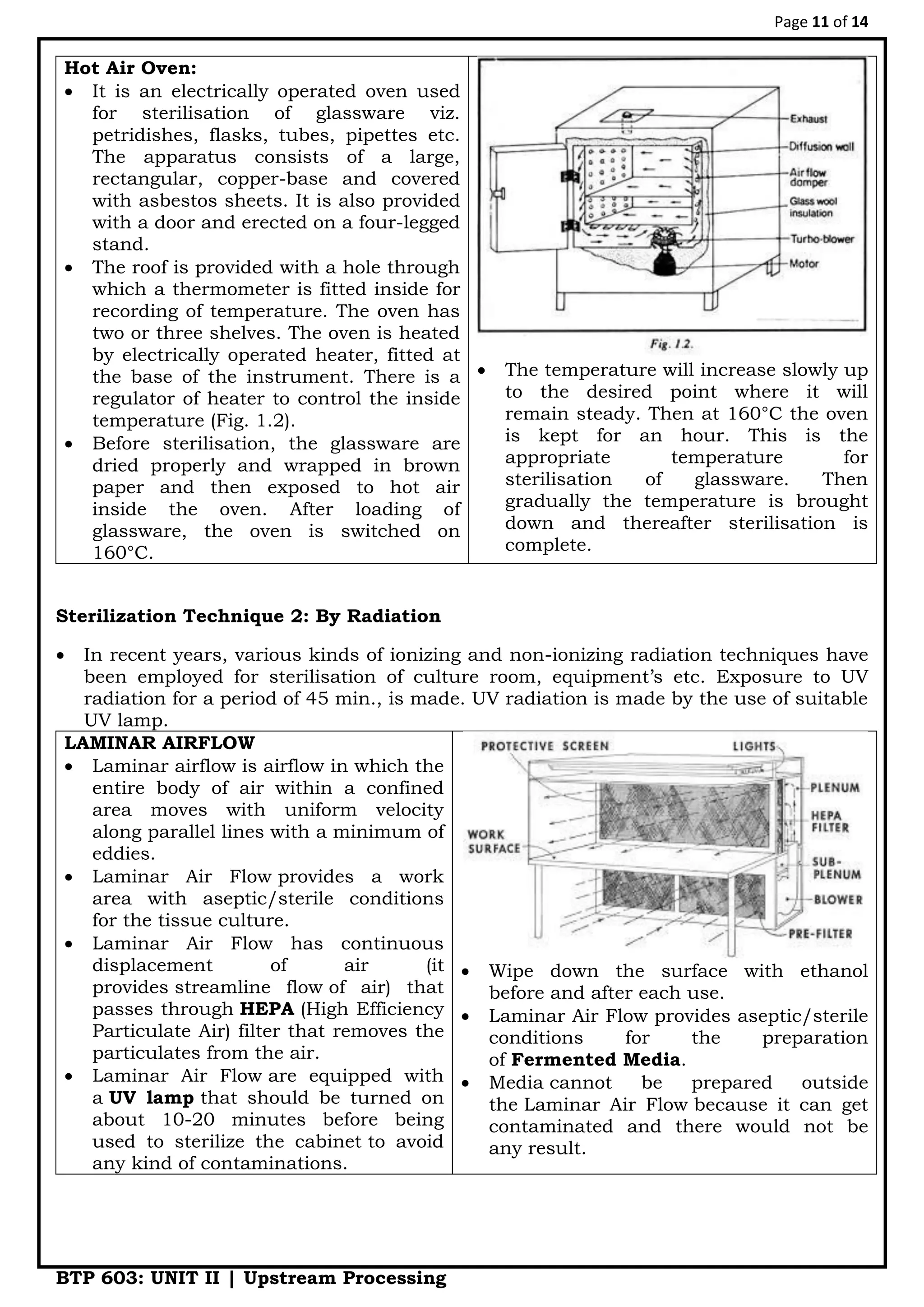

Hot Air Oven:
 It is an electrically operated oven used
for sterilisation of glassware viz.
petridishes, flasks, tubes, pipettes etc.
The apparatus consists of a large,
rectangular, copper-base and covered
with asbestos sheets. It is also provided
with a door and erected on a four-legged
stand.
 The roof is provided with a hole through
which a thermometer is fitted inside for
recording of temperature. The oven has
two or three shelves. The oven is heated
by electrically operated heater, fitted at
the base of the instrument. There is a
regulator of heater to control the inside
temperature (Fig. 1.2).
 Before sterilisation, the glassware are
dried properly and wrapped in brown
paper and then exposed to hot air
inside the oven. After loading of
glassware, the oven is switched on
160°C.
 The temperature will increase slowly up
to the desired point where it will
remain steady. Then at 160°C the oven
is kept for an hour. This is the
appropriate temperature for
sterilisation of glassware. Then
gradually the temperature is brought
down and thereafter sterilisation is
complete.
Sterilization Technique 2: By Radiation
 In recent years, various kinds of ionizing and non-ionizing radiation techniques have
been employed for sterilisation of culture room, equipment‟s etc. Exposure to UV
radiation for a period of 45 min., is made. UV radiation is made by the use of suitable
UV lamp.
LAMINAR AIRFLOW
 Laminar airflow is airflow in which the
entire body of air within a confined
area moves with uniform velocity
along parallel lines with a minimum of
eddies.
 Laminar Air Flow provides a work
area with aseptic/sterile conditions
for the tissue culture.
 Laminar Air Flow has continuous
displacement of air (it
provides streamline flow of air) that
passes through HEPA (High Efficiency
Particulate Air) filter that removes the
particulates from the air.
 Laminar Air Flow are equipped with
a UV lamp that should be turned on
about 10-20 minutes before being
used to sterilize the cabinet to avoid
any kind of contaminations.
 Wipe down the surface with ethanol
before and after each use.
 Laminar Air Flow provides aseptic/sterile
conditions for the preparation
of Fermented Media.
 Media cannot be prepared outside
the Laminar Air Flow because it can get
contaminated and there would not be
any result.

of 14
Sterilization Technique 3: By Filtration method
 The principal laboratory method used to sterilize solutions of heat liable materials is
filtration through filters capable of retaining microorganisms. The pore size of the
filters used for filtration is less than 0.75m, which can retain small microorganisms.
 Since the diameter of the pores is very small, a suction or a pressure is essential
during filtration. However, it is never possible to be certain that filtration procedures,
which render a solution bacterium free, will also free it of viruses.
 There are different types of bacteriological filters used in microbiology. A short
description of some of them is given below:
1. Pasteur Chamberland Candle Filter:
This type of filter is made of unglazed
porcelain. There are different types of this
filter depending on their pore size. The
grades are L1, L1a, L2, L3, L5, L7, L11,
and L13. L1 is the coarser and L13 is the
finest in the order. These filters are used
for removing organisms from fluid to
obtain bacterial toxin.
2. Berkefeld Filter:
This is made up of diatomaceous earth
pressed in the shape of a candle. On the
basis of porosity they are variously
classified into V (veal) N (normal), W
(dense) etc.
3. Seitz Filter:
It consists of a disc of asbestos material
through which the fluid is passed during
filtration. The disc is inserted into a metal
holder before use. After use, the disc is
discarded and a fresh one is fitted.
4. Sintered Glass Filter:
This is made up of finely ground glass
which is subsequently fused to make the
small particles adhere to each other. This
filter is sterilised after use, avoiding
temperature extremes.
5. Cellulose Membrane Filter:
There are two types of cellulose filters-
Ciradocol membranes (older type) are
made up of cellulose nitrate and the
modern type is composed of cellulose.
Process of aeration, Agitation, discussed as AERATION- AGITATION SYSTEM
temperature regulation discussed as CONTROL OF TEMPERATURE

of 14

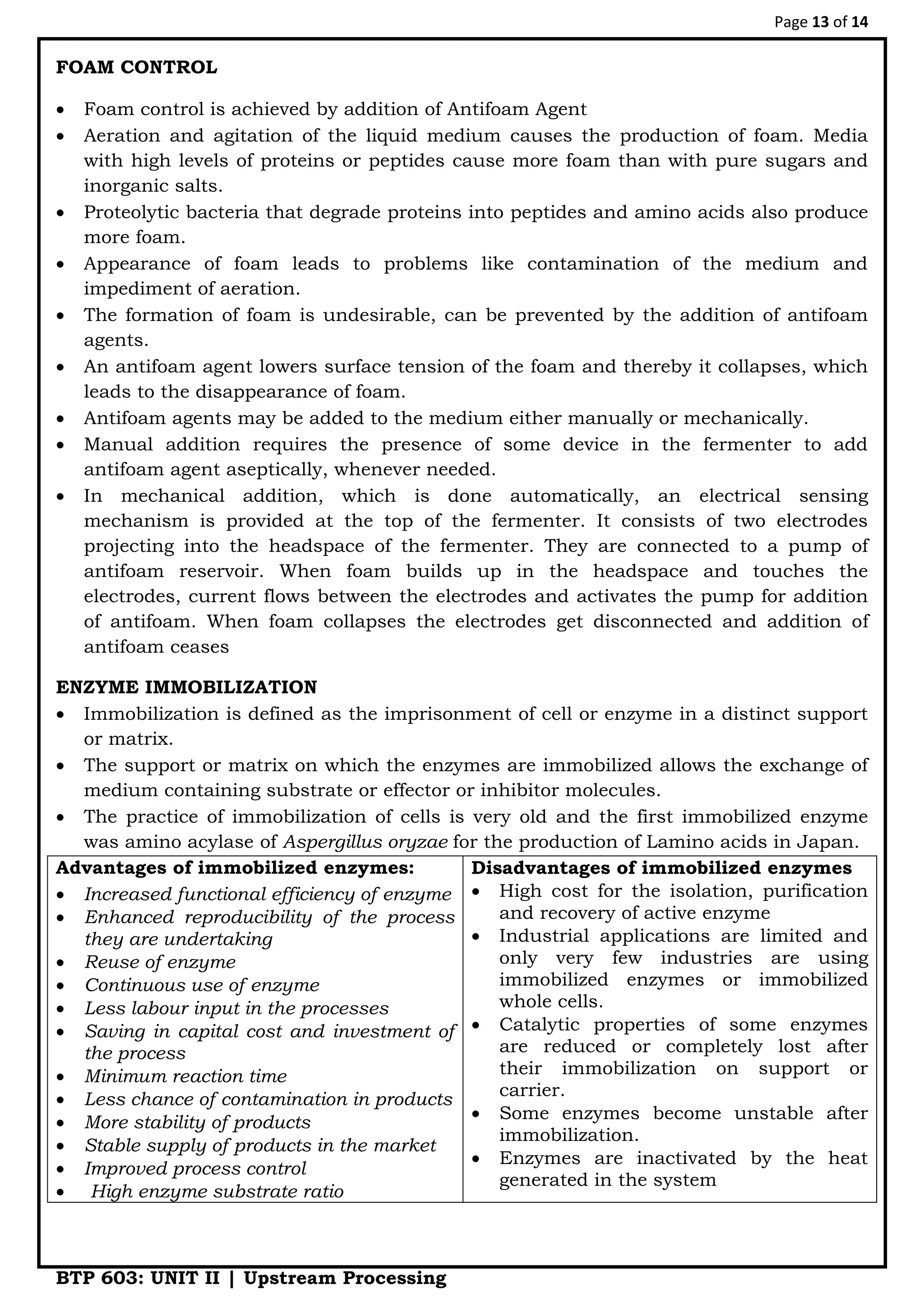

FOAM CONTROL
 Foam control is achieved by addition of Antifoam Agent
 Aeration and agitation of the liquid medium causes the production of foam. Media
with high levels of proteins or peptides cause more foam than with pure sugars and
inorganic salts.
 Proteolytic bacteria that degrade proteins into peptides and amino acids also produce
more foam.
 Appearance of foam leads to problems like contamination of the medium and
impediment of aeration.
 The formation of foam is undesirable, can be prevented by the addition of antifoam
agents.
 An antifoam agent lowers surface tension of the foam and thereby it collapses, which
leads to the disappearance of foam.
 Antifoam agents may be added to the medium either manually or mechanically.
 Manual addition requires the presence of some device in the fermenter to add
antifoam agent aseptically, whenever needed.
 In mechanical addition, which is done automatically, an electrical sensing
mechanism is provided at the top of the fermenter. It consists of two electrodes
projecting into the headspace of the fermenter. They are connected to a pump of
antifoam reservoir. When foam builds up in the headspace and touches the
electrodes, current flows between the electrodes and activates the pump for addition
of antifoam. When foam collapses the electrodes get disconnected and addition of
antifoam ceases
ENZYME IMMOBILIZATION
 Immobilization is defined as the imprisonment of cell or enzyme in a distinct support
or matrix.
 The support or matrix on which the enzymes are immobilized allows the exchange of
medium containing substrate or effector or inhibitor molecules.
 The practice of immobilization of cells is very old and the first immobilized enzyme
was amino acylase of Aspergillus oryzae for the production of Lamino acids in Japan.
Advantages of immobilized enzymes:
 Increased functional efficiency of enzyme
 Enhanced reproducibility of the process
they are undertaking
 Reuse of enzyme
 Continuous use of enzyme
 Less labour input in the processes
 Saving in capital cost and investment of
the process
 Minimum reaction time
 Less chance of contamination in products
 More stability of products
 Stable supply of products in the market
 Improved process control
 High enzyme substrate ratio
Disadvantages of immobilized enzymes
 High cost for the isolation, purification
and recovery of active enzyme
 Industrial applications are limited and
only very few industries are using
immobilized enzymes or immobilized
whole cells.
 Catalytic properties of some enzymes
are reduced or completely lost after
their immobilization on support or
carrier.
 Some enzymes become unstable after
immobilization.
 Enzymes are inactivated by the heat
generated in the system

of 14
APPLICATIONS OF ENZYME IMMOBILIZATION:
1. Industrial production: Industrial production of antibiotics, beverages, amino acids
etc. uses immobilized enzymes or whole cells.
2. Biomedical applications: Immobilized enzymes are widely used in the diagnosis and
treatment of many diseases. Immobilized enzymes can be used to overcome inborn
metabolic disorders by the supply of immobilized enzymes. Immobilization techniques
are effectively used in drug delivery systems especially to oncogenic sites.
3. Food industry: Enzymes like pectinases and cellulases immobilized on suitable
carriers are successfully used in the production of jams, jellies and syrups from fruits
and vegetables.
4. Research: A Research activity extensively uses many enzymes. The use of
immobilized enzyme allow researcher to increase the efficiency of different enzymes
such as Horse Radish Peroxidase (HRP) in blotting experiments and different
Proteases for cell or organelle lysis.
5. Production of bio-diesel from vegetable oils.
6. Waste water management: treatment of sewage and industrial effluents.
7. Textile industry: scouring, bio-polishing and desizing of fabrics

Upstream processing

More Related Content

What's hot

Similar to Upstream processing

More from Nethravathi Siri

Recently uploaded

In this document

Upstream processing
