Understanding das-nas-san

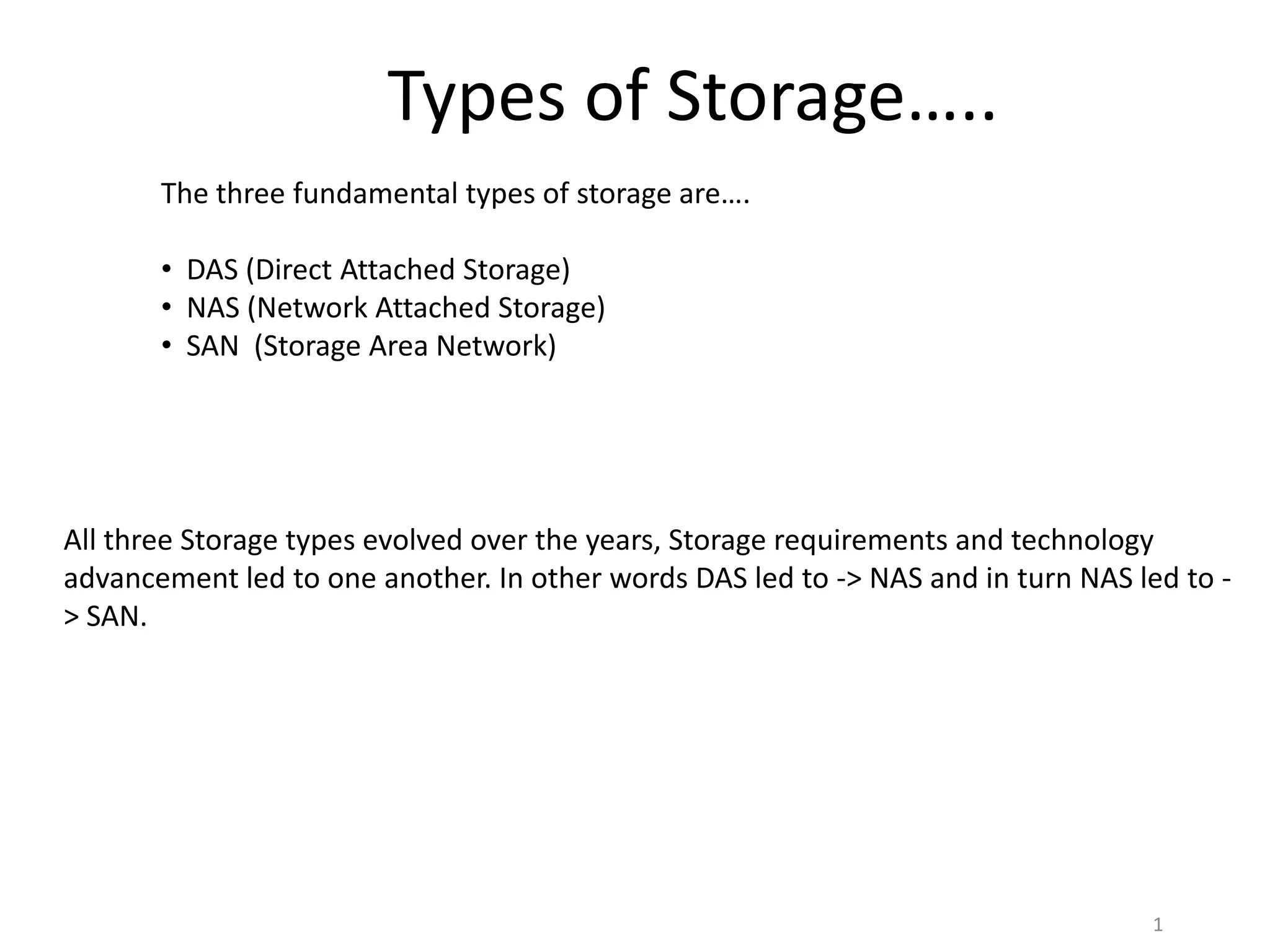

1. Types of Storage…..
The three fundamental types of storage are….
• DAS (Direct Attached Storage)
• NAS (Network Attached Storage)
• SAN (Storage Area Network)
All three Storage types evolved over the years, Storage requirements and technology
advancement led to one another. In other words DAS led to -> NAS and in turn NAS led to -
> SAN.
1

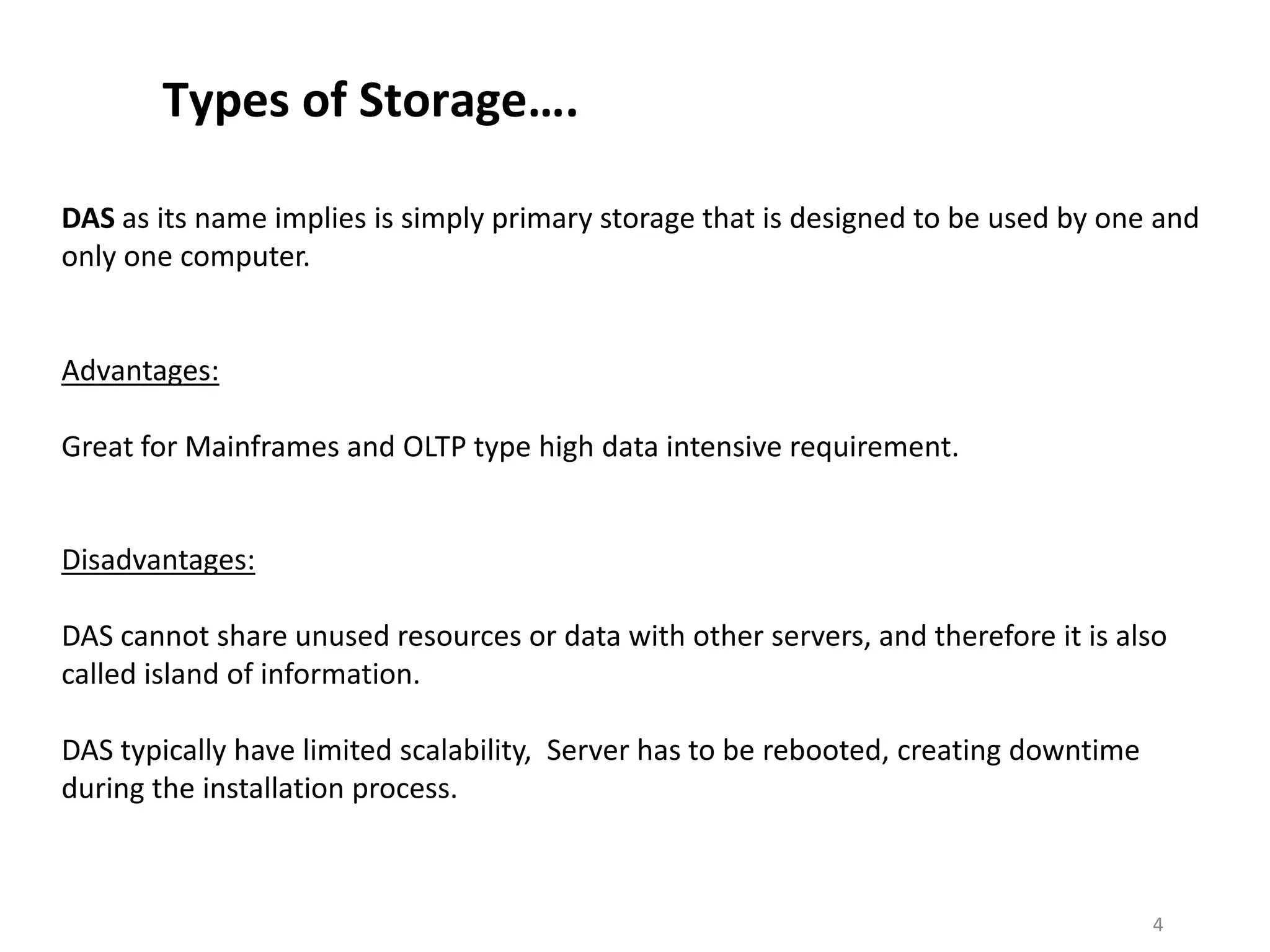

4. Types of Storage….
DAS as its name implies is simply primary storage that is designed to be used by one and
only one computer.
Advantages:
Great for Mainframes and OLTP type high data intensive requirement.
Disadvantages:
DAS cannot share unused resources or data with other servers, and therefore it is also
called island of information.
DAS typically have limited scalability, Server has to be rebooted, creating downtime
during the installation process.
4

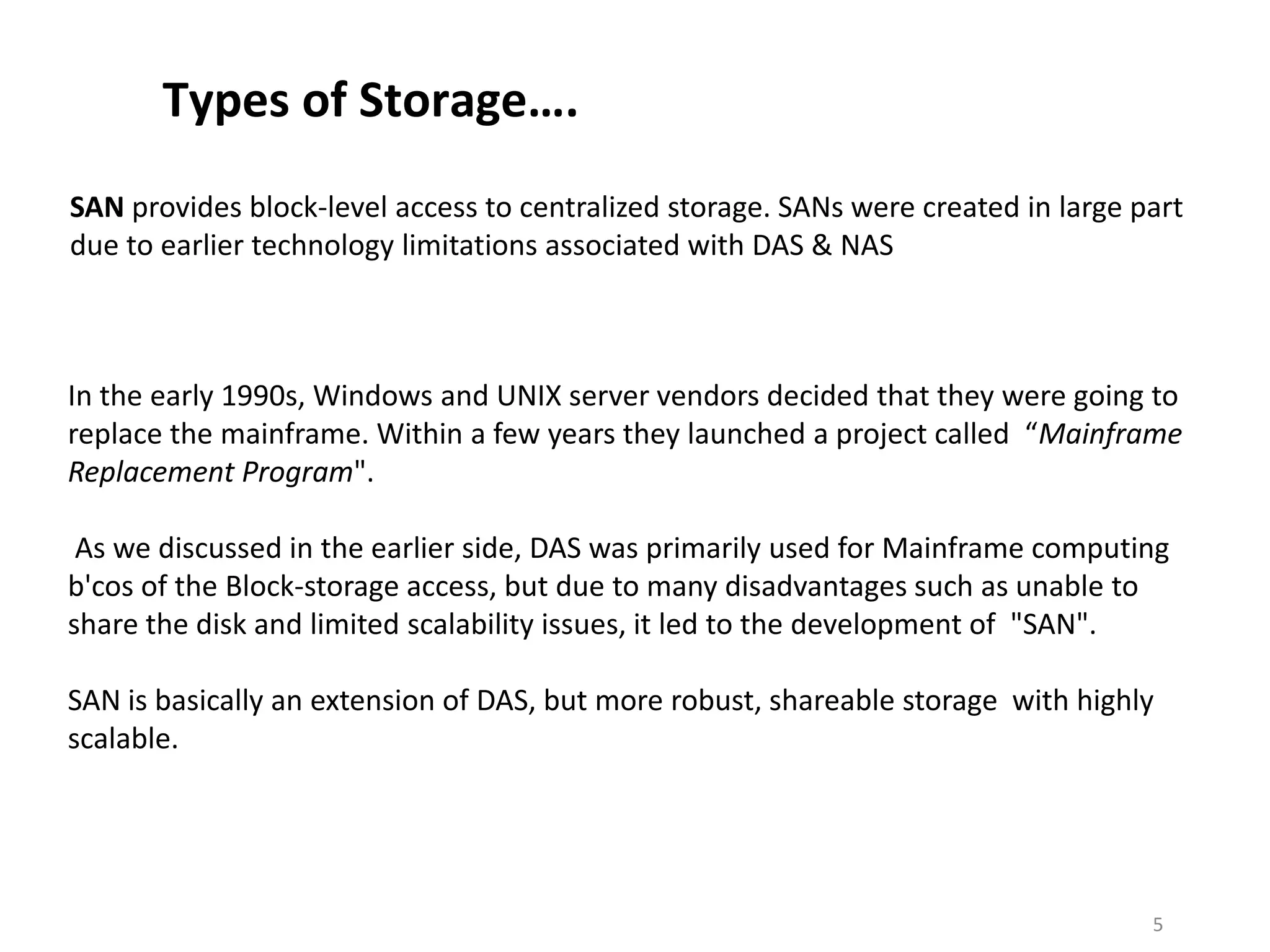

5. Types of Storage….
SAN provides block-level access to centralized storage. SANs were created in large part
due to earlier technology limitations associated with DAS & NAS
In the early 1990s, Windows and UNIX server vendors decided that they were going to
replace the mainframe. Within a few years they launched a project called “Mainframe
Replacement Program".
As we discussed in the earlier side, DAS was primarily used for Mainframe computing
b'cos of the Block-storage access, but due to many disadvantages such as unable to
share the disk and limited scalability issues, it led to the development of "SAN".
SAN is basically an extension of DAS, but more robust, shareable storage with highly
scalable.
5

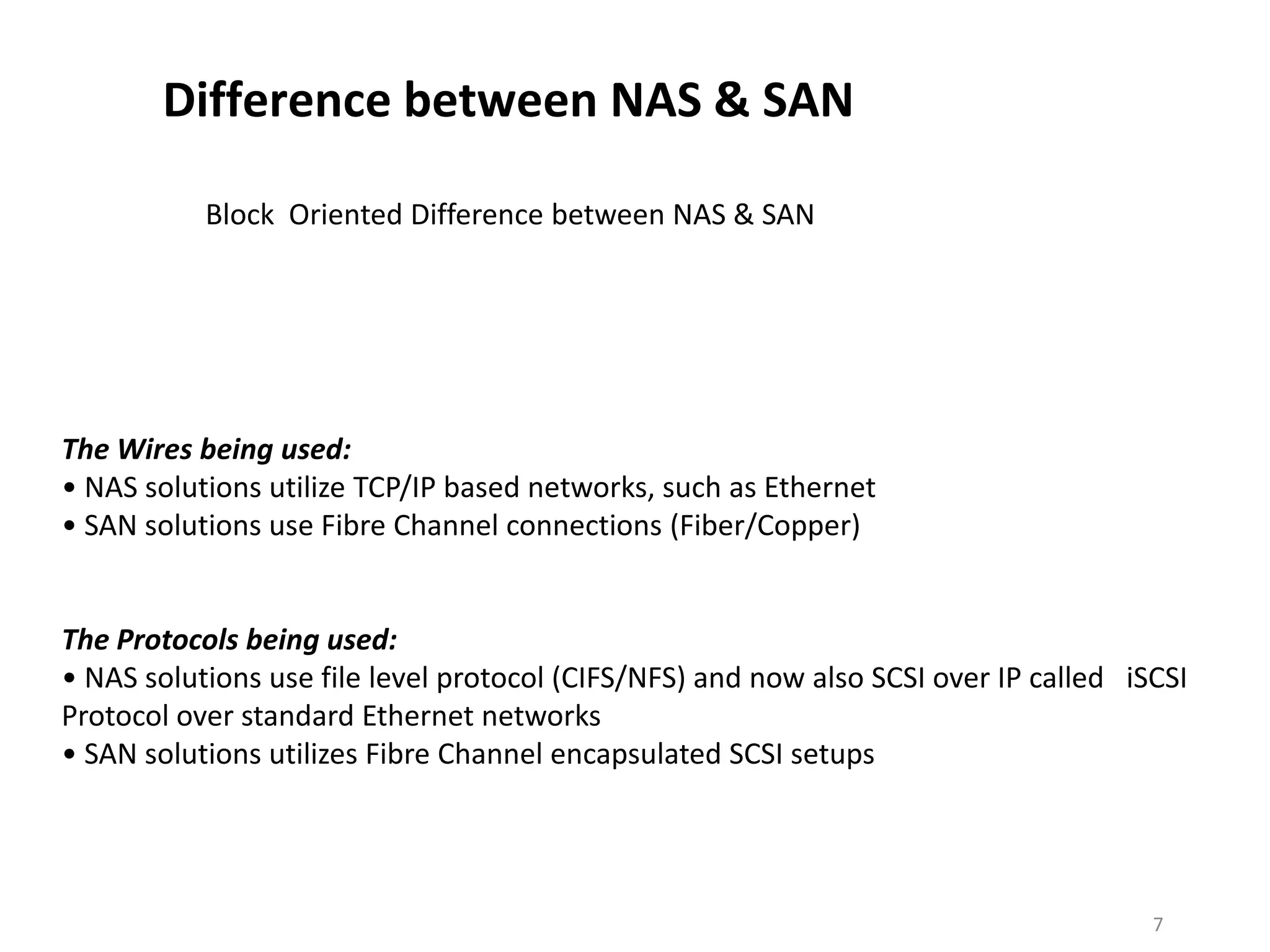

7. Difference between NAS & SAN
Block Oriented Difference between NAS & SAN
The Wires being used:
• NAS solutions utilize TCP/IP based networks, such as Ethernet
• SAN solutions use Fibre Channel connections (Fiber/Copper)
The Protocols being used:
• NAS solutions use file level protocol (CIFS/NFS) and now also SCSI over IP called iSCSI
Protocol over standard Ethernet networks
• SAN solutions utilizes Fibre Channel encapsulated SCSI setups
7

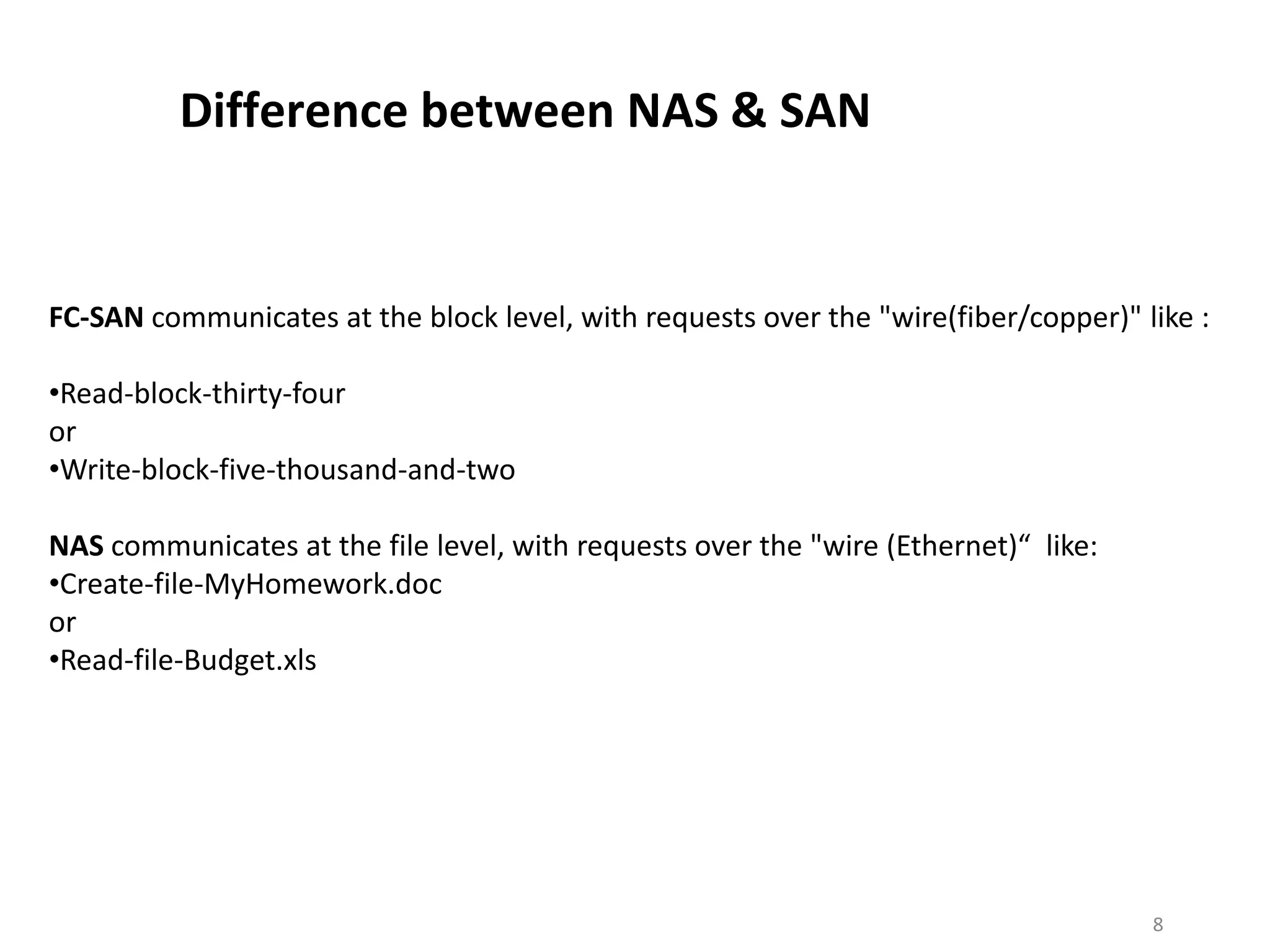

8. Difference between NAS & SAN
FC-SAN communicates at the block level, with requests over the "wire(fiber/copper)" like :
•Read-block-thirty-four
or
•Write-block-five-thousand-and-two
NAS communicates at the file level, with requests over the "wire (Ethernet)“ like:
•Create-file-MyHomework.doc
or
•Read-file-Budget.xls
8

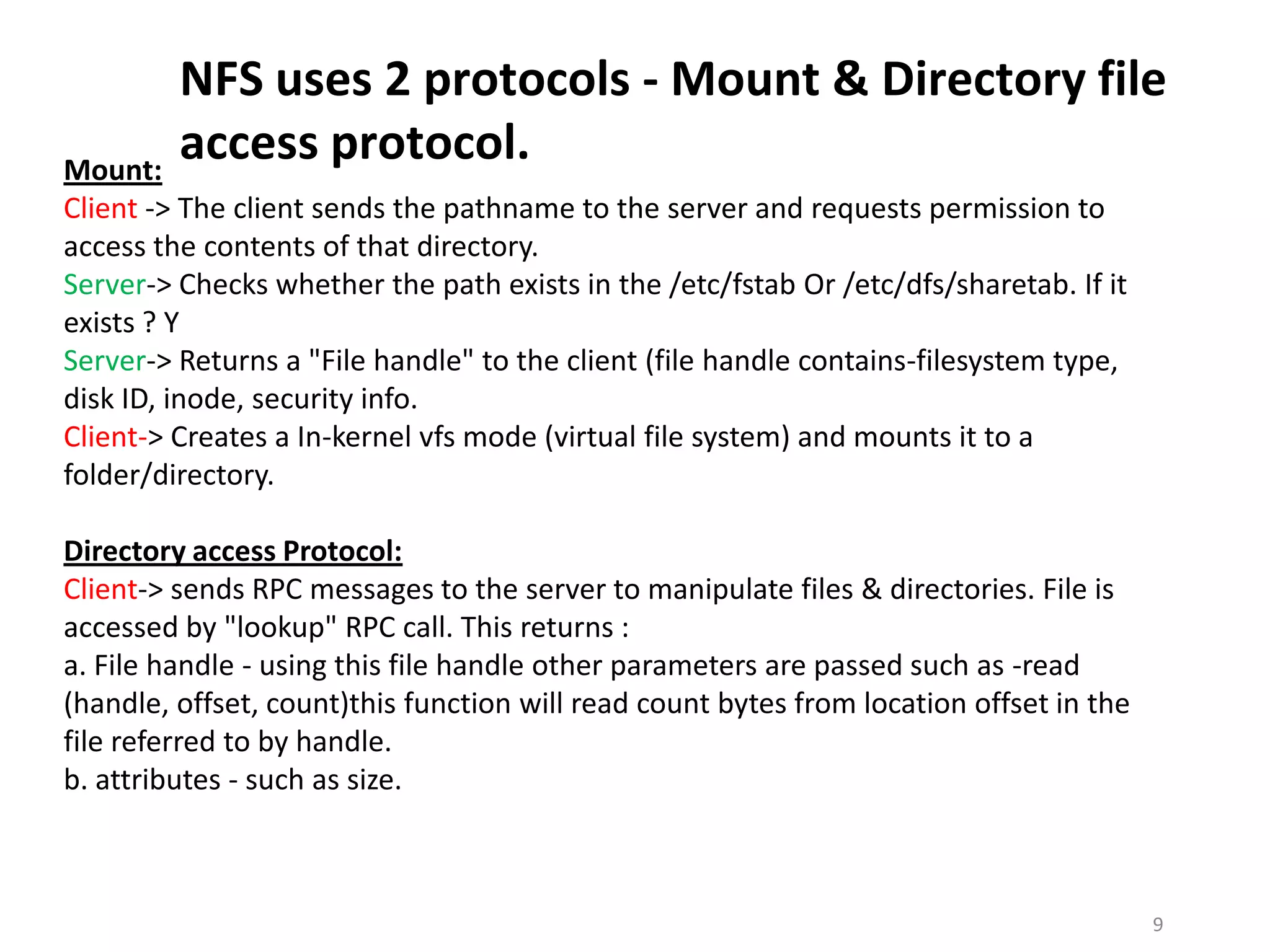

9. NFS uses 2 protocols - Mount & Directory file
Mount:
access protocol.
Client -> The client sends the pathname to the server and requests permission to
access the contents of that directory.
Server-> Checks whether the path exists in the /etc/fstab Or /etc/dfs/sharetab. If it
exists ? Y
Server-> Returns a "File handle" to the client (file handle contains-filesystem type,
disk ID, inode, security info.
Client-> Creates a In-kernel vfs mode (virtual file system) and mounts it to a
folder/directory.
Directory access Protocol:
Client-> sends RPC messages to the server to manipulate files & directories. File is
accessed by "lookup" RPC call. This returns :
a. File handle - using this file handle other parameters are passed such as -read
(handle, offset, count)this function will read count bytes from location offset in the
file referred to by handle.
b. attributes - such as size.
9
