This presentation covers the t-shirt folding machine, including its operation and benefits such as high productivity and cost-efficiency. It details various models, specifically the MDM 280 and K-950 automatic shirt folder, highlighting their features like speed, automation, and advanced technology. The session concludes with a video demonstration and a question-and-answer segment.

1. Welcome to My Presentation
TOPIC: T-Shirt Folding Machine
Course Code : TEX-309
COURSE TITLE: APPAREL MANUFACTURING II
Name & ID No:
MD.GOLAM SARWAR 120103019

2. PRESENTATION CONTENTS
What is T-Shirt Folding Machine ?
How Folding Machine Works
Different Types of Folding Machines
Vidoe. Question & Ans. session

3. T-Folding Machine: a T-Shirt folding Machine is a machine which
used for folding the garments quickly .
Folding speed : Very fast
Methods of folding:
Automatic
Feeding :
Automatic/Manual
Various Types of Clothing Folding M/c
Shirt or T-Shirt Folding m/c
Sleeve Folding m/c
Shirt Packaging Folding M/c

4. MDM 280- FOLDING MACHINE
 High productivity, efficiency, precision folds, economy and
excellent cost-benefit with fully automated operation.
 The MDM 280 folding machine requires only operator supplying
the machine, which means less demand for labor and more
flexibility in the process.
MDM 280- Folding Machine. High productivity,
efficiency, accurate folds, cost saving and
excellent cost benefit.

5. K-950 Automatic Shirt Folder
 Patented dual-belt transport system dramatically improves
folding performance
 Job Recall™ provides storage and retrieval of up to 99 fold
settings for quick changeover.
 Timing belt drive system for smooth, quiet operation

6. Air @ 5,5 bar (80 psi) 85 l/min (3 cfm)
Electrical Requirements 110 V, 1 ph, 9.8 A, 50/60 Hz, 1.1 kW
208/230 V, 1 ph, 4.9 A, 50/60 Hz, 1.2 kW
Shipping Weight 817 kg (1800 lb)
Size (L x W x H) 356 x 89 x 135 cm (140” x 35” x 53”)
Size with LS-350 (L x W x H) 478 x 89 x 135 cm (188" x 35" x 53")
Model Specification: K-950
K-950 Automatic Shirt Folder

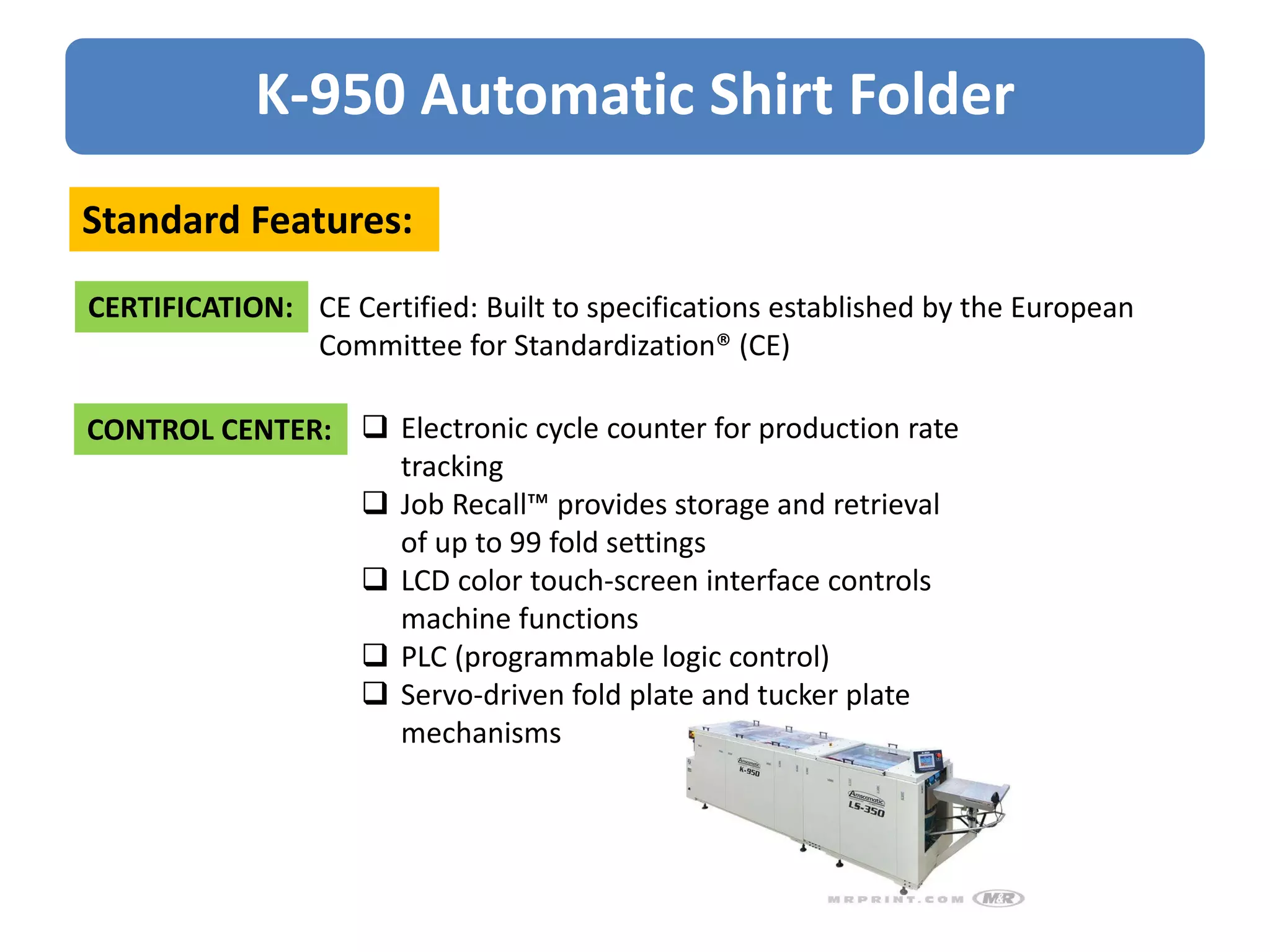

7. K-950 Automatic Shirt Folder
Standard Features:
CERTIFICATION: CE Certified: Built to specifications established by the European
Committee for Standardization® (CE)
CONTROL CENTER:  Electronic cycle counter for production rate
tracking
 Job Recall™ provides storage and retrieval
of up to 99 fold settings
 LCD color touch-screen interface controls
machine functions
 PLC (programmable logic control)
 Servo-driven fold plate and tucker plate
mechanisms

8. CYCLE SENSORS:  Choice of Shirt Sensor or Touch Sensor cycle-start switch
 The Shirt Sensor initiates the folding cycle as soon as it
sees a garment on the drape table (best for speed)
K-950 Automatic Shirt Folder
DESIGN & CONSTRUCTION:
 Bottom Pulling Belt (U.S. Patent No. 6,913,171) makes it possible to fold
garments printed with high density or gel inks
 Circuit breakers protect the electrical panel
 Interlocking system prevents machine operation when any cover has been
opened or removed
 Parallel fold plates offer the ultimate in folding performance

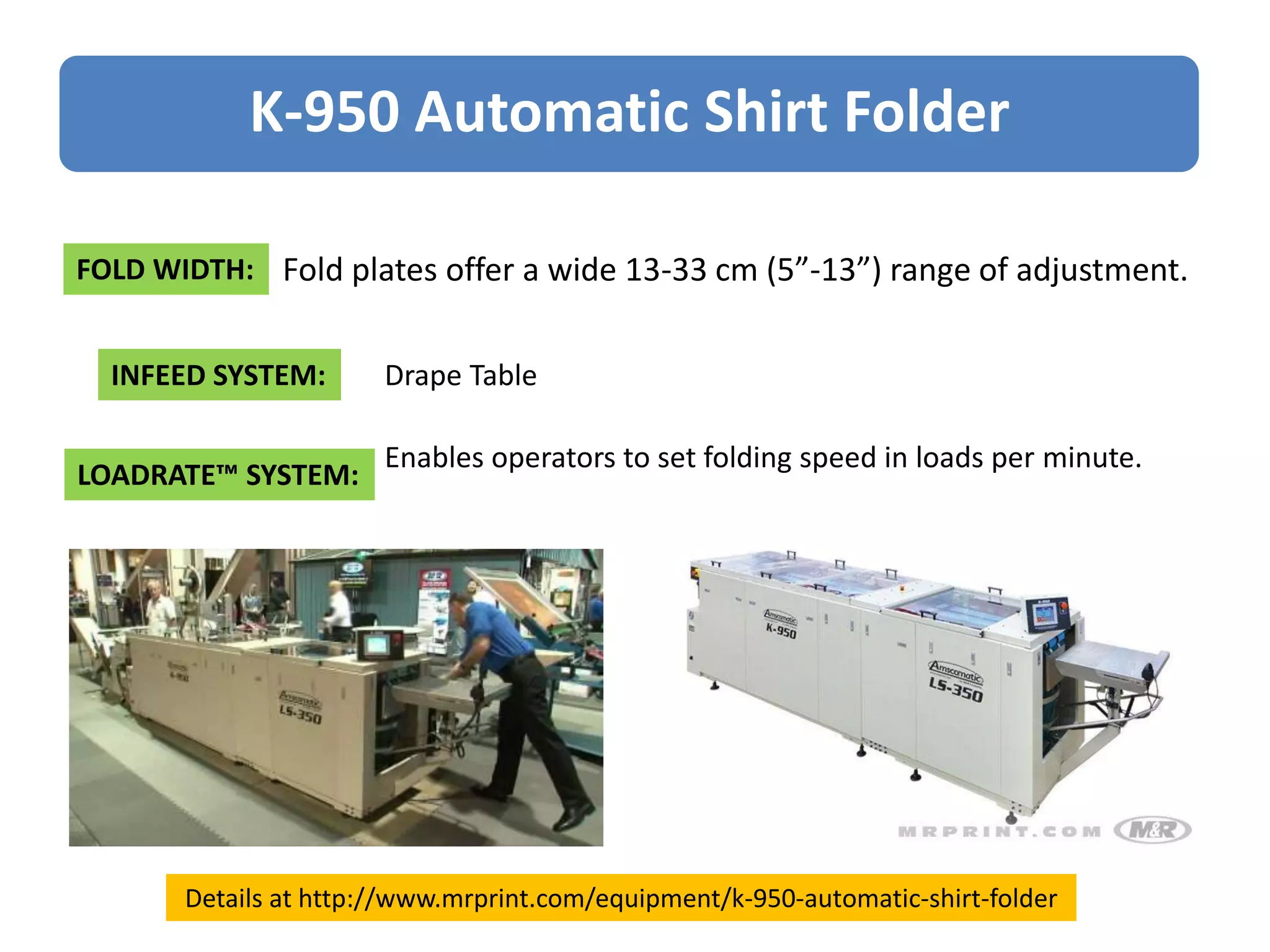

9. FOLD WIDTH: Fold plates offer a wide 13-33 cm (5”-13”) range of adjustment.
INFEED SYSTEM: Drape Table
LOADRATE™ SYSTEM:
Enables operators to set folding speed in loads per minute.
K-950 Automatic Shirt Folder
Details at http://www.mrprint.com/equipment/k-950-automatic-shirt-folder

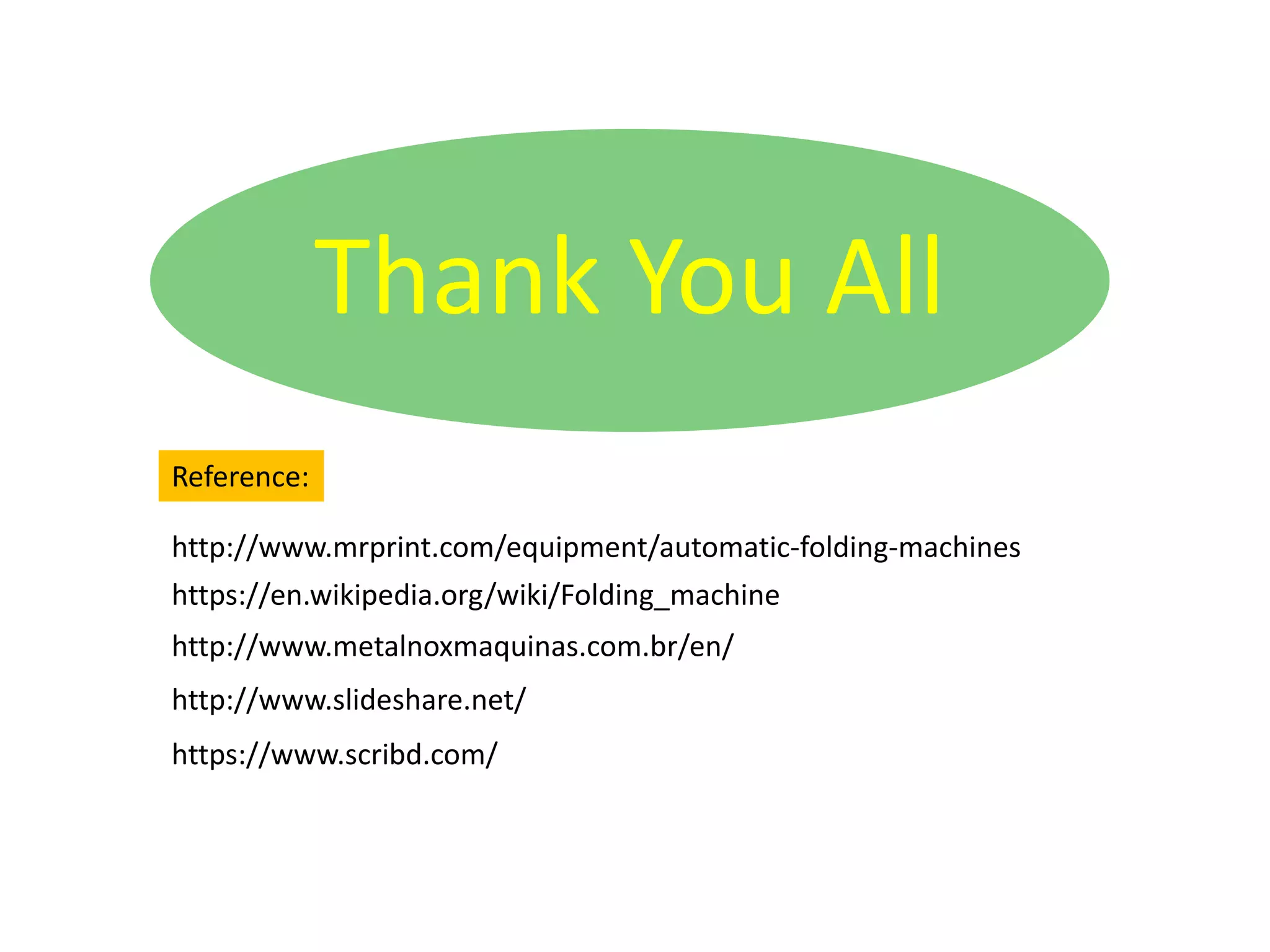

10. Thank You All
Reference:
http://www.mrprint.com/equipment/automatic-folding-machines
https://en.wikipedia.org/wiki/Folding_machine
http://www.metalnoxmaquinas.com.br/en/
http://www.slideshare.net/
https://www.scribd.com/

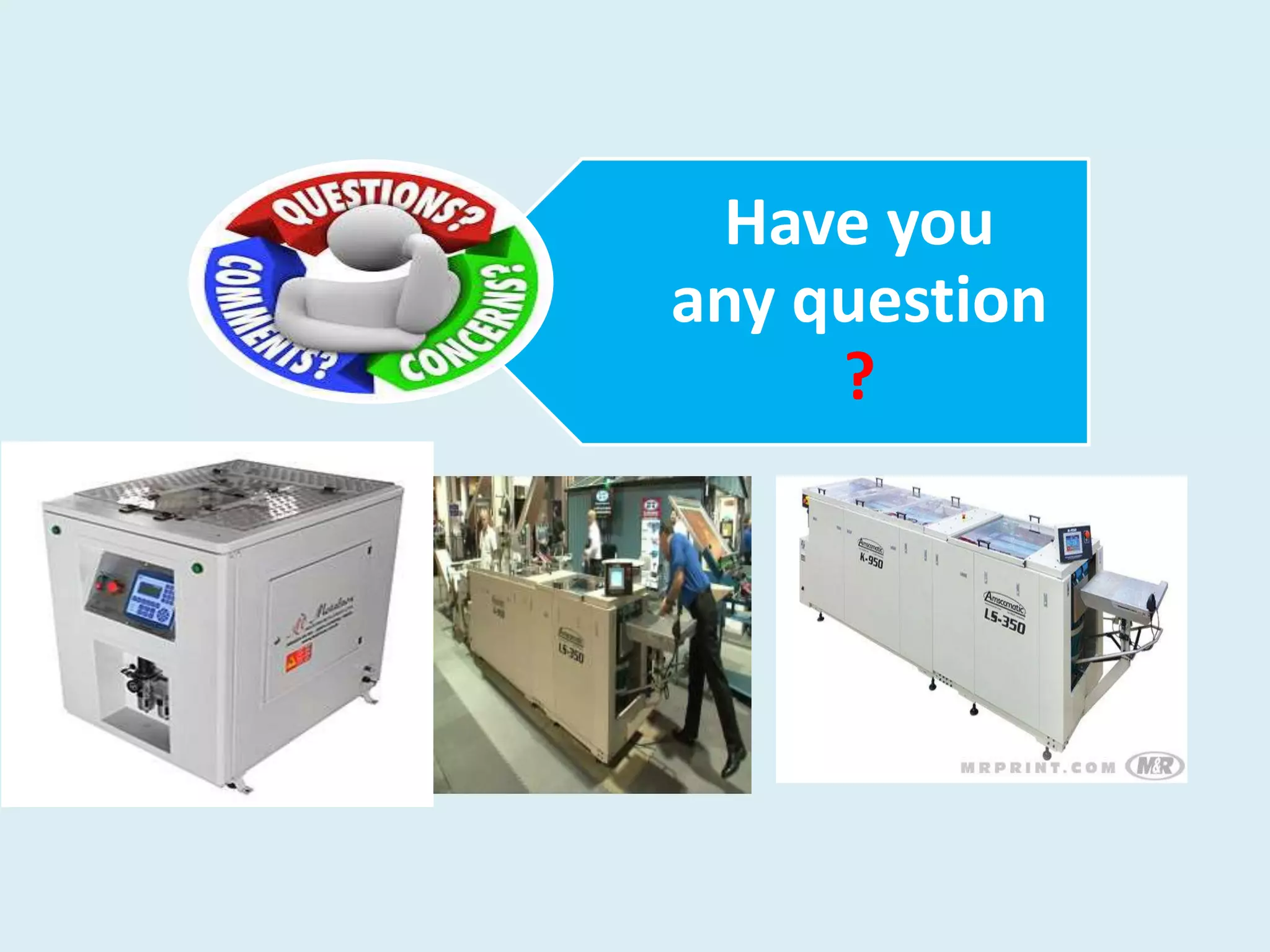

11. Have you
any question
?
