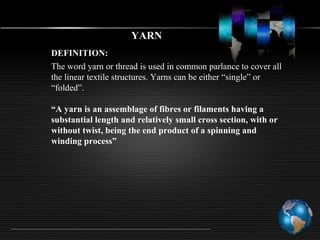

YARN
DEFINITION:
The word yarn or thread is used in common parlance to cover all
the linear textile structures. Yarns can be either “single” or
“folded”.
“A yarn is an assemblage of fibres or filaments having a
substantial length and relatively small cross section, with or
without twist, being the end product of a spinning and
winding process”

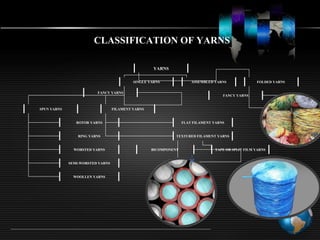

YARNS
SINGLE YARNS ASSEMBLED YARNS FOLDED YARNS
SPUN YARNS FILAMENT YARNS
FANCY YARNS
FANCY YARNS
ROTOR YARNS
RING YARNS
WORSTED YARNS
SEMI-WORSTED YARNS
WOOLLEN YARNS
FLAT FILAMENT YARNS
TEXTURED FILAMENT YARNS
BICOMPONENT TAPE OR SPLIT FILM YARNS
CLASSIFICATION OF YARNS
Yarn may be any of the following
 Number of fibers twisted together
 Number of filaments without twist
 Number of filaments twisted with more/less twist
 Single filament
 One or more strips cut by length of a sheet of
material of natural/ synthetic or any polymer
TERMS
SPUN YARNS are made by mechanical assembly and twisting together
(spinning) of Staple fibres such as cotton, flax,
wool, broken or cut man-made fibres.
FILAMENT YARNS are made by the assembly of continuous filaments,
made from silk or man-made fibres
A MULTI FILAMENT YARN is a filament yarn made from multiple
filaments, assembled with or without twist.
A MONO FILAMENT YARN consists of only a single continuous filament
from man-made source.
Two or more yarns which are wound side by side on to same package,
but without twisting around each other, are called ASSEMBLED
YARNS.
FOLDED OR PLIED YARNS are yarns made by twisting together
Two or more single (and/or folded) yarns of the same or different types.
Ex: 2 Ply (two singles)
CORDS OR CABLED YARNS are yarns made by twisting together
Two or more ply or folded yarns of the same or different types.
Ex: 2,3 Ply Cord

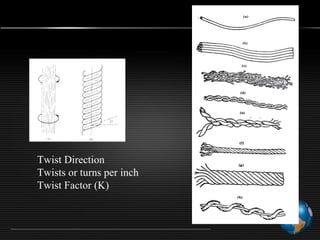

Twist Direction
Twists or turns per inch
Twist Factor (K)

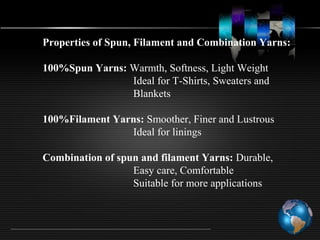

Properties of Spun, Filament and Combination Yarns:
100%Spun Yarns: Warmth, Softness, Light Weight
Ideal for T-Shirts, Sweaters and
Blankets
100%Filament Yarns: Smoother, Finer and Lustrous
Ideal for linings
Combination of spun and filament Yarns: Durable,
Easy care, Comfortable
Suitable for more applications

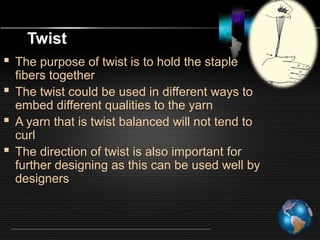

Twist
 The purpose of twist is to hold the staple
fibers together
 The twist could be used in different ways to
embed different qualities to the yarn
 A yarn that is twist balanced will not tend to
curl
 The direction of twist is also important for
further designing as this can be used well by
designers

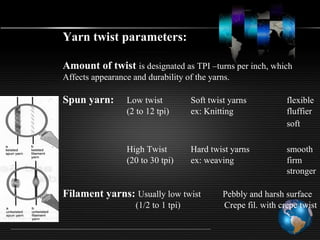

Yarn twist parameters:
Amount of twist is designated as TPI –turns per inch, which
Affects appearance and durability of the yarns.
Spun yarn: Low twist Soft twist yarns flexible
(2 to 12 tpi) ex: Knitting fluffier
soft
High Twist Hard twist yarns smooth
(20 to 30 tpi) ex: weaving firm
stronger
Filament yarns: Usually low twist Pebbly and harsh surface
(1/2 to 1 tpi) Crepe fil. with crepe twist

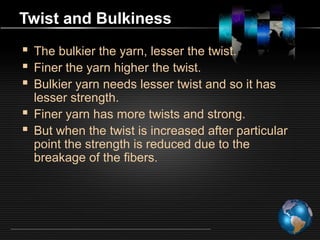

Twist and Bulkiness
 The bulkier the yarn, lesser the twist.
 Finer the yarn higher the twist.
 Bulkier yarn needs lesser twist and so it has
lesser strength.
 Finer yarn has more twists and strong.
 But when the twist is increased after particular
point the strength is reduced due to the
breakage of the fibers.

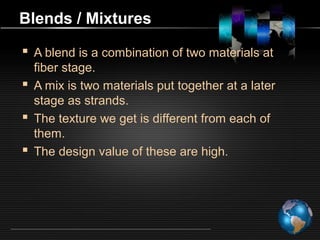

Blends / Mixtures
 A blend is a combination of two materials at
fiber stage.
 A mix is two materials put together at a later
stage as strands.
 The texture we get is different from each of
them.
 The design value of these are high.

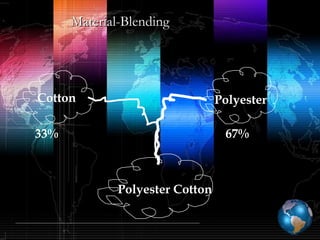

PolyesterCotton
Polyester Cotton
67%33%
Material-BlendingMaterial-Blending

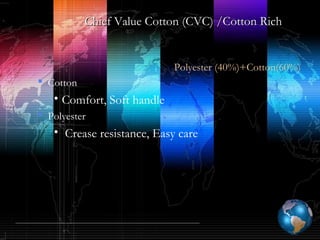

Chief Value Cotton (CVC) /Cotton RichChief Value Cotton (CVC) /Cotton Rich
Polyester (40%)+Cotton(60%)
 Cotton
• Comfort, Soft handle
 Polyester
• Crease resistance, Easy care

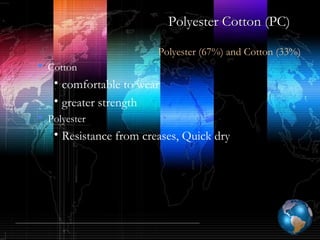

Polyester Cotton (PC)Polyester Cotton (PC)
Polyester (67%) and Cotton (33%)
 Cotton
• comfortable to wear
• greater strength
 Polyester
• Resistance from creases, Quick dry

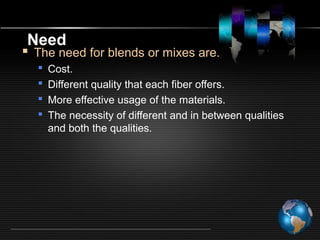

Need
 The need for blends or mixes are.
 Cost.
 Different quality that each fiber offers.
 More effective usage of the materials.
 The necessity of different and in between qualities
and both the qualities.

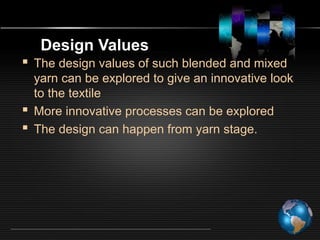

Design Values
 The design values of such blended and mixed
yarn can be explored to give an innovative look
to the textile
 More innovative processes can be explored
 The design can happen from yarn stage.

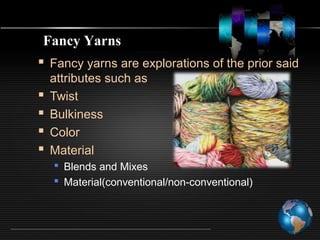

 Fancy yarns are explorations of the prior said
attributes such as
 Twist
 Bulkiness
 Color
 Material
 Blends and Mixes
 Material(conventional/non-conventional)
Fancy Yarns

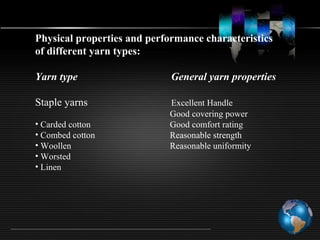

Physical properties and performance characteristics
of different yarn types:
Yarn type General yarn properties
Staple yarns Excellent Handle
Good covering power
• Carded cotton Good comfort rating
• Combed cotton Reasonable strength
• Woollen Reasonable uniformity
• Worsted
• Linen
Yarn type General yarn properties
Continuous filament yarns Excellent uniformity
Excellent strength
•Natural Can be very fine
•Non-synthetic Fair handle
•Synthetic Poor covering power
High bulk yarns
Light weight
• Staple Good covering power
• Continulous filament Good loftiness and fullness

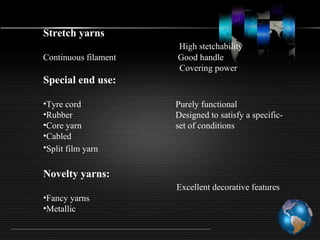

Stretch yarns
High stetchability
Continuous filament Good handle
Covering power
Special end use:
•Tyre cord Purely functional
•Rubber Designed to satisfy a specific-
•Core yarn set of conditions
•Cabled
•Split film yarn
Novelty yarns:
Excellent decorative features
•Fancy yarns
•Metallic

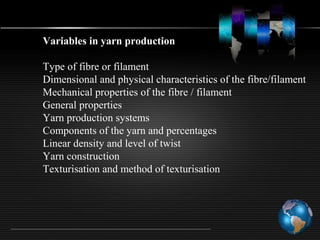

Variables in yarn production
Type of fibre or filament
Dimensional and physical characteristics of the fibre/filament
Mechanical properties of the fibre / filament
General properties
Yarn production systems
Components of the yarn and percentages
Linear density and level of twist
Yarn construction
Texturisation and method of texturisation

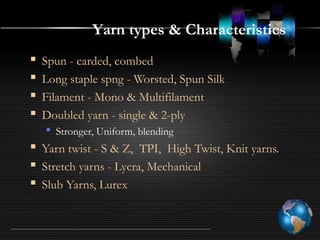

Yarn types & Characteristics
 Spun - carded, combed
 Long staple spng - Worsted, Spun Silk
 Filament - Mono & Multifilament
 Doubled yarn - single & 2-ply
 Stronger, Uniform, blending
 Yarn twist - S & Z, TPI, High Twist, Knit yarns.
 Stretch yarns - Lycra, Mechanical
 Slub Yarns, Lurex

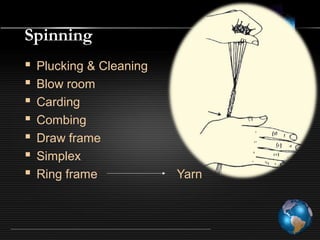

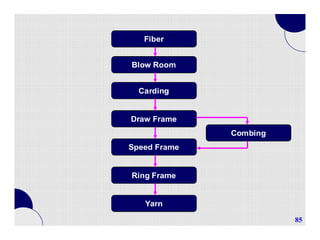

Spinning
 Plucking & Cleaning
 Blow room
 Carding
 Combing
 Draw frame
 Simplex
 Ring frame Yarn

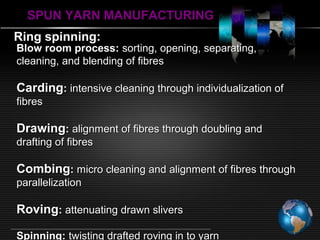

SPUN YARN MANUFACTURINGSPUN YARN MANUFACTURING
Ring spinning:Ring spinning:
Blow room process:Blow room process: sorting, opening, separating,sorting, opening, separating,
cleaning, and blending of fibrescleaning, and blending of fibres
CardingCarding:: intensive cleaning through individualization ofintensive cleaning through individualization of
fibresfibres
DrawingDrawing:: alignment of fibres through doubling andalignment of fibres through doubling and
drafting of fibresdrafting of fibres
CombingCombing:: micro cleaning and alignment of fibres throughmicro cleaning and alignment of fibres through
parallelizationparallelization
RovingRoving:: attenuating drawn sliversattenuating drawn slivers
Spinning:Spinning: twisting drafted roving in to yarntwisting drafted roving in to yarn

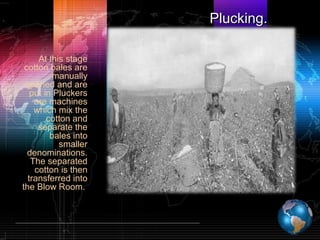

Plucking.Plucking.
At this stage
cotton bales are
manually
opened and are
put in Pluckers
are machines
which mix the
cotton and
separate the
bales into
smaller
denominations.
The separated
cotton is then
transferred into
the Blow Room.

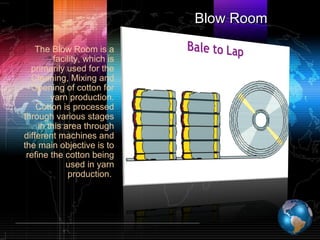

Blow RoomBlow Room
The Blow Room is a
facility, which is
primarily used for the
Cleaning, Mixing and
Opening of cotton for
yarn production.
Cotton is processed
through various stages
in this area through
different machines and
the main objective is to
refine the cotton being
used in yarn
production.

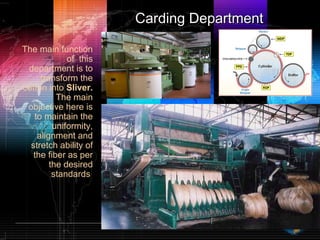

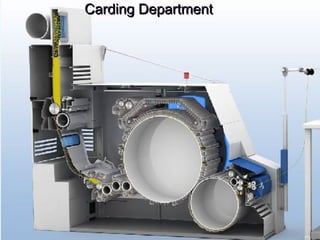

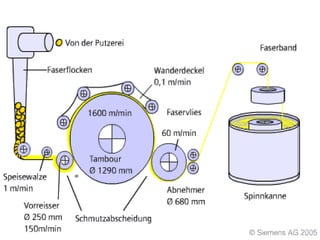

Carding DepartmentCarding Department
Carding DepartmentCarding Department
The main function
of this
department is to
transform the
cotton into Sliver.
The main
objective here is
to maintain the
uniformity,
alignment and
stretch ability of
the fiber as per
the desired
standards

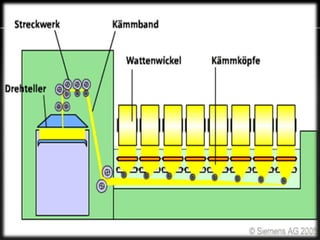

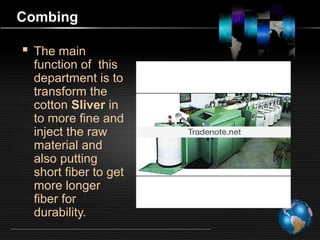

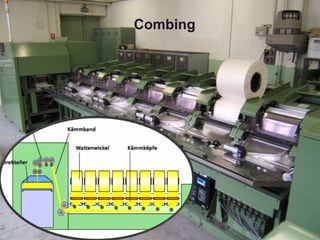

Combing
Combing
 The main
function of this
department is to
transform the
cotton Sliver in
to more fine and
inject the raw
material and
also putting
short fiber to get
more longer
fiber for
durability.

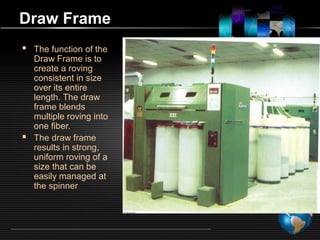

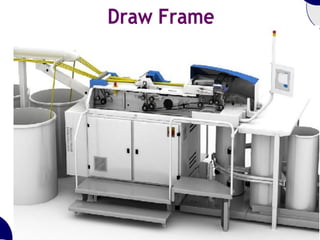

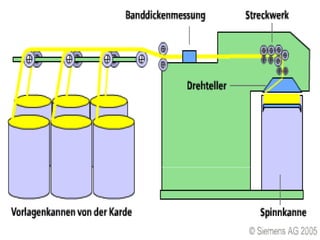

Draw Frame
 The function of the
Draw Frame is to
create a roving
consistent in size
over its entire
length. The draw
frame blends
multiple roving into
one fiber.
 The draw frame
results in strong,
uniform roving of a
size that can be
easily managed at
the spinner

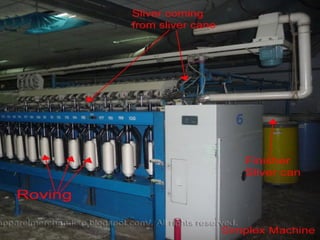

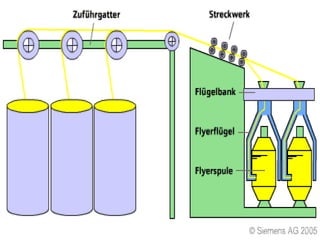

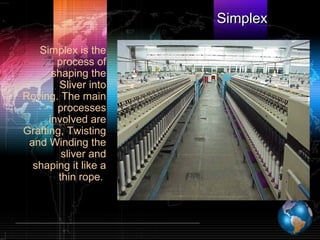

SimplexSimplex
Simplex is the
process of
shaping the
Sliver into
Roving. The main
processes
involved are
Grafting, Twisting
and Winding the
sliver and
shaping it like a
thin rope.

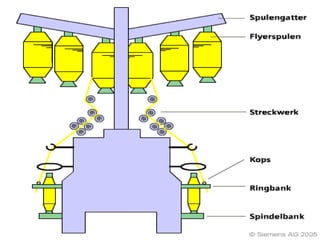

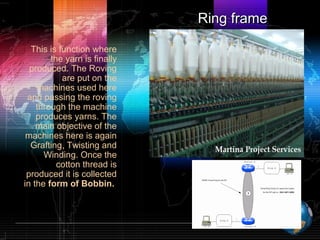

Ring frameRing frame
This is function where
the yarn is finally
produced. The Roving
are put on the
machines used here
and passing the roving
through the machine
produces yarns. The
main objective of the
machines here is again
Grafting, Twisting and
Winding. Once the
cotton thread is
produced it is collected
in the form of Bobbin.
yarns
yarns
yarns
yarns

More Related Content

What's hot

Fabric structure-and-design
Fabric structure-and-designFabric structure-and-design
Fabric structure-and-design
Mohammad furqan

Yarn Geometry
Yarn GeometryYarn Geometry
Yarn Geometry
Fazley Rabbi

FABRIC STRUCTURE & DESIGN
FABRIC STRUCTURE & DESIGNFABRIC STRUCTURE & DESIGN
FABRIC STRUCTURE & DESIGN
Kathiroli Raja

Twill weave fabric structre
Twill weave fabric structreTwill weave fabric structre
Twill weave fabric structre
Md Vaseem Chavhan

knitting
knitting knitting
knitting
nistha chandela

Single jersey
Single jerseySingle jersey
Warp knitting
Warp knittingWarp knitting
Warp knitting
RasminThahaniZ

Fabric manufacturing (Weaving preparation)
Fabric manufacturing (Weaving preparation)Fabric manufacturing (Weaving preparation)
Fabric manufacturing (Weaving preparation)
Azmir Latif Beg

Clothtech Technical Textile
Clothtech Technical TextileClothtech Technical Textile
Clothtech Technical Textile
kanhaiya kumawat

Satin Weave & it’s derivatives by: Khodadad Ibrahim Anik
Satin Weave  & it’s derivatives by:   Khodadad Ibrahim AnikSatin Weave  & it’s derivatives by:   Khodadad Ibrahim Anik
Satin Weave & it’s derivatives by: Khodadad Ibrahim Anik
fahim zauwad

Sewing thread
Sewing threadSewing thread
Sewing thread
Mahmud Hossain Sakib

Weft knitting
Weft knittingWeft knitting
Weft knitting
RasminThahaniZ

Knitted fabric types
Knitted fabric typesKnitted fabric types
Knitted fabric types
suniltalekar1

Knitting
KnittingKnitting
Mock leno weave
Mock leno weaveMock leno weave
Mock leno weave
Bhushan Kumar Yadav

High volume instrument
High volume instrumentHigh volume instrument
High volume instrument
Md Faisal Ahmed Biplob

Non woven fabrics - Non woven technology
Non woven fabrics - Non woven technologyNon woven fabrics - Non woven technology
Non woven fabrics - Non woven technology
Akansha Choudhary

Yarn lea strength tester.
Yarn lea strength tester.Yarn lea strength tester.
Yarn lea strength tester.
MD. SAJJADUL KARIM BHUIYAN

Yarn manufacturing process
Yarn manufacturing processYarn manufacturing process
Yarn manufacturing process
Amit Biswas

Yarn twist
Yarn twistYarn twist
Yarn twist
Fahim Ruffsun


What's hot (20)

Fabric structure-and-design
Fabric structure-and-designFabric structure-and-design
Fabric structure-and-design

Yarn Geometry
Yarn GeometryYarn Geometry
Yarn Geometry

FABRIC STRUCTURE & DESIGN
FABRIC STRUCTURE & DESIGNFABRIC STRUCTURE & DESIGN
FABRIC STRUCTURE & DESIGN

Twill weave fabric structre
Twill weave fabric structreTwill weave fabric structre
Twill weave fabric structre

knitting
knitting knitting
knitting

Single jersey
Single jerseySingle jersey
Single jersey

Warp knitting
Warp knittingWarp knitting
Warp knitting

Fabric manufacturing (Weaving preparation)
Fabric manufacturing (Weaving preparation)Fabric manufacturing (Weaving preparation)
Fabric manufacturing (Weaving preparation)

Clothtech Technical Textile
Clothtech Technical TextileClothtech Technical Textile
Clothtech Technical Textile

Satin Weave & it’s derivatives by: Khodadad Ibrahim Anik
Satin Weave  & it’s derivatives by:   Khodadad Ibrahim AnikSatin Weave  & it’s derivatives by:   Khodadad Ibrahim Anik
Satin Weave & it’s derivatives by: Khodadad Ibrahim Anik

Sewing thread
Sewing threadSewing thread
Sewing thread

Weft knitting
Weft knittingWeft knitting
Weft knitting

Knitted fabric types
Knitted fabric typesKnitted fabric types
Knitted fabric types

Knitting
KnittingKnitting
Knitting

Mock leno weave
Mock leno weaveMock leno weave
Mock leno weave

High volume instrument
High volume instrumentHigh volume instrument
High volume instrument

Non woven fabrics - Non woven technology
Non woven fabrics - Non woven technologyNon woven fabrics - Non woven technology
Non woven fabrics - Non woven technology

Yarn lea strength tester.
Yarn lea strength tester.Yarn lea strength tester.
Yarn lea strength tester.

Yarn manufacturing process
Yarn manufacturing processYarn manufacturing process
Yarn manufacturing process

Yarn twist
Yarn twistYarn twist
Yarn twist


Viewers also liked

TYPES OF YARNS & APPLICATION& PROPERTIES
TYPES OF YARNS & APPLICATION& PROPERTIESTYPES OF YARNS & APPLICATION& PROPERTIES
TYPES OF YARNS & APPLICATION& PROPERTIES
Tina Dhingra

Yarns ppt
Yarns   pptYarns   ppt
Yarns ppt
1990barkha

Textile fibre
Textile fibreTextile fibre
Textile fibre
Hadiul Islam

Classification of textiles
Classification of textilesClassification of textiles
Classification of textiles
tex_santhanam

Textile fibres
Textile fibresTextile fibres
Textile fibres
Rachel Collishaw

Chenille fancy yarns
Chenille fancy yarnsChenille fancy yarns
Chenille fancy yarns
Eng Mohamed Elsharkawy

Fundamentals of Textile & Man made fiber
Fundamentals of Textile & Man made fiberFundamentals of Textile & Man made fiber
Fundamentals of Textile & Man made fiber
Md. Mazadul Hasan Shishir

Properties of fibers
Properties of  fibersProperties of  fibers
Properties of fibers
Lily Bhagat

Classification of yarn yarn classification. Textile yarn. Yarn count.
Classification of yarn   yarn classification. Textile yarn. Yarn count. Classification of yarn   yarn classification. Textile yarn. Yarn count.
Classification of yarn yarn classification. Textile yarn. Yarn count.
Vaibhav Mathankar

Metallic yarn
Metallic yarnMetallic yarn
Metallic yarn
Fakhare

Aijrstem14 773
Aijrstem14 773Aijrstem14 773
Aijrstem14 773
murugesan venkateswaran

Fibre-based innovations for tomorrow's high-tech products
Fibre-based innovations for tomorrow's high-tech productsFibre-based innovations for tomorrow's high-tech products
Fibre-based innovations for tomorrow's high-tech products
EuropeanPaper

Bdft i, ftmu, unit-i, iii, textile fiber & yarn classification,
Bdft i, ftmu, unit-i, iii, textile fiber & yarn classification,Bdft i, ftmu, unit-i, iii, textile fiber & yarn classification,
Bdft i, ftmu, unit-i, iii, textile fiber & yarn classification,
Rai University

Textile conservation
Textile conservationTextile conservation
Textile conservation
mona verma

Usage of yarn,fabric,fiber
Usage of yarn,fabric,fiberUsage of yarn,fabric,fiber
Usage of yarn,fabric,fiber
Aniket Mondal

Special Yarns
Special YarnsSpecial Yarns
Special Yarns
Minhazul Hassan

Guidelines for selection of yarn part 2 12.02.14
Guidelines for selection of yarn part 2 12.02.14Guidelines for selection of yarn part 2 12.02.14
Guidelines for selection of yarn part 2 12.02.14
Ravikeerthi Rao

Guidelines for selection of yarn
Guidelines for selection of yarnGuidelines for selection of yarn
Guidelines for selection of yarn
Ravikeerthi Rao

Fibres for the next generation
Fibres for the next generationFibres for the next generation
Fibres for the next generation
Rajkumar Shinkar

Filament winding
Filament windingFilament winding
Filament winding
Neslihan Yagmur


Viewers also liked (20)

TYPES OF YARNS & APPLICATION& PROPERTIES
TYPES OF YARNS & APPLICATION& PROPERTIESTYPES OF YARNS & APPLICATION& PROPERTIES
TYPES OF YARNS & APPLICATION& PROPERTIES

Yarns ppt
Yarns   pptYarns   ppt
Yarns ppt

Textile fibre
Textile fibreTextile fibre
Textile fibre

Classification of textiles
Classification of textilesClassification of textiles
Classification of textiles

Textile fibres
Textile fibresTextile fibres
Textile fibres

Chenille fancy yarns
Chenille fancy yarnsChenille fancy yarns
Chenille fancy yarns

Fundamentals of Textile & Man made fiber
Fundamentals of Textile & Man made fiberFundamentals of Textile & Man made fiber
Fundamentals of Textile & Man made fiber

Properties of fibers
Properties of  fibersProperties of  fibers
Properties of fibers

Classification of yarn yarn classification. Textile yarn. Yarn count.
Classification of yarn   yarn classification. Textile yarn. Yarn count. Classification of yarn   yarn classification. Textile yarn. Yarn count.
Classification of yarn yarn classification. Textile yarn. Yarn count.

Metallic yarn
Metallic yarnMetallic yarn
Metallic yarn

Aijrstem14 773
Aijrstem14 773Aijrstem14 773
Aijrstem14 773

Fibre-based innovations for tomorrow's high-tech products
Fibre-based innovations for tomorrow's high-tech productsFibre-based innovations for tomorrow's high-tech products
Fibre-based innovations for tomorrow's high-tech products

Bdft i, ftmu, unit-i, iii, textile fiber & yarn classification,
Bdft i, ftmu, unit-i, iii, textile fiber & yarn classification,Bdft i, ftmu, unit-i, iii, textile fiber & yarn classification,
Bdft i, ftmu, unit-i, iii, textile fiber & yarn classification,

Textile conservation
Textile conservationTextile conservation
Textile conservation

Usage of yarn,fabric,fiber
Usage of yarn,fabric,fiberUsage of yarn,fabric,fiber
Usage of yarn,fabric,fiber

Special Yarns
Special YarnsSpecial Yarns
Special Yarns

Guidelines for selection of yarn part 2 12.02.14
Guidelines for selection of yarn part 2 12.02.14Guidelines for selection of yarn part 2 12.02.14
Guidelines for selection of yarn part 2 12.02.14

Guidelines for selection of yarn
Guidelines for selection of yarnGuidelines for selection of yarn
Guidelines for selection of yarn

Fibres for the next generation
Fibres for the next generationFibres for the next generation
Fibres for the next generation

Filament winding
Filament windingFilament winding
Filament winding


Similar to yarns

Class 3.pptx
Class 3.pptxClass 3.pptx
Class 3.pptx
dejene1234567

YARN CLASSIFFICATION
YARN CLASSIFFICATIONYARN CLASSIFFICATION
CLASSIFICATION OF YARN.pdf
CLASSIFICATION OF YARN.pdfCLASSIFICATION OF YARN.pdf
CLASSIFICATION OF YARN.pdf
madhur456

Yarns and Its Classification
Yarns and Its ClassificationYarns and Its Classification
Yarns and Its Classification
Hârshït Srîvãstàvá

Sewing threads
Sewing threadsSewing threads
Sewing threads
Rajat Vatsyayan

Class 5.ppt
Class 5.pptClass 5.ppt
Class 5.ppt
dejene1234567

SPINNING Avengers
SPINNING Avengers SPINNING Avengers
SPINNING Avengers
Vinay Kulkarni

Cotton spun-yarns-for-knit-and-woven-fabrics
Cotton spun-yarns-for-knit-and-woven-fabricsCotton spun-yarns-for-knit-and-woven-fabrics
Cotton spun-yarns-for-knit-and-woven-fabrics
Samrat Dewan

Yarn properties effecting comfort of the fabric
Yarn properties effecting comfort of the fabricYarn properties effecting comfort of the fabric
Yarn properties effecting comfort of the fabric
hema upadhayay

Yarn Manufacturing
Yarn ManufacturingYarn Manufacturing
Yarn Manufacturing
Nazrul

Introduction to Knit Fabrics
Introduction to Knit FabricsIntroduction to Knit Fabrics
Introduction to Knit Fabrics
Dr.Mahmoud Abbas

Yarn construction
Yarn constructionYarn construction
Yarn construction
CHRISTINE ASIGBE

Thread education Asanka.ppt
Thread education Asanka.pptThread education Asanka.ppt
Thread education Asanka.ppt
HiranPieris

yarn classification.ppt
yarn classification.pptyarn classification.ppt
yarn classification.ppt
POOJAKAUNDAL7

Class 4.ppt
Class 4.pptClass 4.ppt
Class 4.ppt
dejene1234567

Ring spun yarn
Ring spun yarnRing spun yarn
Ring spun yarn
Azmir Latif Beg

Novelty and Textured Yarn
Novelty and Textured YarnNovelty and Textured Yarn
Novelty and Textured Yarn
Anchal kumari

Yarn Dr.Ash
Yarn Dr.AshYarn Dr.Ash
Yarn Dr.Ash
Dr.S.Aishwariya

Sewing thread and use in Apparel Industry
Sewing thread and use in Apparel IndustrySewing thread and use in Apparel Industry
Sewing thread and use in Apparel Industry
Mashud Rana opurbo

Threads1
Threads1Threads1

Similar to yarns (20)

Class 3.pptx
Class 3.pptxClass 3.pptx
Class 3.pptx

YARN CLASSIFFICATION
YARN CLASSIFFICATIONYARN CLASSIFFICATION
YARN CLASSIFFICATION

CLASSIFICATION OF YARN.pdf
CLASSIFICATION OF YARN.pdfCLASSIFICATION OF YARN.pdf
CLASSIFICATION OF YARN.pdf

Yarns and Its Classification
Yarns and Its ClassificationYarns and Its Classification
Yarns and Its Classification

Sewing threads
Sewing threadsSewing threads
Sewing threads

Class 5.ppt
Class 5.pptClass 5.ppt
Class 5.ppt

SPINNING Avengers
SPINNING Avengers SPINNING Avengers
SPINNING Avengers

Cotton spun-yarns-for-knit-and-woven-fabrics
Cotton spun-yarns-for-knit-and-woven-fabricsCotton spun-yarns-for-knit-and-woven-fabrics
Cotton spun-yarns-for-knit-and-woven-fabrics

Yarn properties effecting comfort of the fabric
Yarn properties effecting comfort of the fabricYarn properties effecting comfort of the fabric
Yarn properties effecting comfort of the fabric

Yarn Manufacturing
Yarn ManufacturingYarn Manufacturing
Yarn Manufacturing

Introduction to Knit Fabrics
Introduction to Knit FabricsIntroduction to Knit Fabrics
Introduction to Knit Fabrics

Yarn construction
Yarn constructionYarn construction
Yarn construction

Thread education Asanka.ppt
Thread education Asanka.pptThread education Asanka.ppt
Thread education Asanka.ppt

yarn classification.ppt
yarn classification.pptyarn classification.ppt
yarn classification.ppt

Class 4.ppt
Class 4.pptClass 4.ppt
Class 4.ppt

Ring spun yarn
Ring spun yarnRing spun yarn
Ring spun yarn

Novelty and Textured Yarn
Novelty and Textured YarnNovelty and Textured Yarn
Novelty and Textured Yarn

Yarn Dr.Ash
Yarn Dr.AshYarn Dr.Ash
Yarn Dr.Ash

Sewing thread and use in Apparel Industry
Sewing thread and use in Apparel IndustrySewing thread and use in Apparel Industry
Sewing thread and use in Apparel Industry

Threads1
Threads1Threads1
Threads1


More from Today Fasion ware

39396725 man-made-fibre-ppt-final
39396725 man-made-fibre-ppt-final39396725 man-made-fibre-ppt-final
39396725 man-made-fibre-ppt-final
Today Fasion ware

29029075 cotton-what-is-cotton-do-u-know
29029075 cotton-what-is-cotton-do-u-know29029075 cotton-what-is-cotton-do-u-know
29029075 cotton-what-is-cotton-do-u-know
Today Fasion ware

21613078 textile-printing-kushal
21613078 textile-printing-kushal21613078 textile-printing-kushal
21613078 textile-printing-kushal
Today Fasion ware

15571089 yarns
15571089 yarns15571089 yarns
15571089 yarns
Today Fasion ware

Polyester fibre
Polyester fibrePolyester fibre
Polyester fibre
Today Fasion ware

81177264 textile-fibres
81177264 textile-fibres81177264 textile-fibres
81177264 textile-fibres
Today Fasion ware

50255181 count
50255181 count50255181 count
50255181 count
Today Fasion ware

textile fibres [compatibility mode]
 textile fibres [compatibility mode] textile fibres [compatibility mode]
textile fibres [compatibility mode]
Today Fasion ware

fabric and garment finishing methods
fabric and garment finishing methodsfabric and garment finishing methods
fabric and garment finishing methods
Today Fasion ware

Polyester fibre
Polyester fibrePolyester fibre
Polyester fibre
Today Fasion ware


More from Today Fasion ware (10)

39396725 man-made-fibre-ppt-final
39396725 man-made-fibre-ppt-final39396725 man-made-fibre-ppt-final
39396725 man-made-fibre-ppt-final

29029075 cotton-what-is-cotton-do-u-know
29029075 cotton-what-is-cotton-do-u-know29029075 cotton-what-is-cotton-do-u-know
29029075 cotton-what-is-cotton-do-u-know

21613078 textile-printing-kushal
21613078 textile-printing-kushal21613078 textile-printing-kushal
21613078 textile-printing-kushal

15571089 yarns
15571089 yarns15571089 yarns
15571089 yarns

Polyester fibre
Polyester fibrePolyester fibre
Polyester fibre

81177264 textile-fibres
81177264 textile-fibres81177264 textile-fibres
81177264 textile-fibres

50255181 count
50255181 count50255181 count
50255181 count

textile fibres [compatibility mode]
 textile fibres [compatibility mode] textile fibres [compatibility mode]
textile fibres [compatibility mode]

fabric and garment finishing methods
fabric and garment finishing methodsfabric and garment finishing methods
fabric and garment finishing methods

Polyester fibre
Polyester fibrePolyester fibre
Polyester fibre


Recently uploaded

欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】
欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】
欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】
valvereliz227

Satta Matka Dpboss Matka Guessing Kalyan Chart Indian Matka Kalyan panel Chart
Satta Matka Dpboss Matka Guessing Kalyan Chart Indian Matka Kalyan panel ChartSatta Matka Dpboss Matka Guessing Kalyan Chart Indian Matka Kalyan panel Chart
Satta Matka Dpboss Matka Guessing Kalyan Chart Indian Matka Kalyan panel Chart
➒➌➎➏➑➐➋➑➐➐Dpboss Matka Guessing Satta Matka Kalyan Chart Indian Matka

欧洲杯投注-欧洲杯投注外围盘口-欧洲杯投注盘口app|【​网址​🎉ac22.net🎉​】
欧洲杯投注-欧洲杯投注外围盘口-欧洲杯投注盘口app|【​网址​🎉ac22.net🎉​】欧洲杯投注-欧洲杯投注外围盘口-欧洲杯投注盘口app|【​网址​🎉ac22.net🎉​】
欧洲杯投注-欧洲杯投注外围盘口-欧洲杯投注盘口app|【​网址​🎉ac22.net🎉​】
concepsionchomo153

一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理
一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理
一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理
taqyea

AI Transformation Playbook: Thinking AI-First for Your Business
AI Transformation Playbook: Thinking AI-First for Your BusinessAI Transformation Playbook: Thinking AI-First for Your Business
AI Transformation Playbook: Thinking AI-First for Your Business
Arijit Dutta

Lundin Gold Corporate Presentation - June 2024
Lundin Gold Corporate Presentation - June 2024Lundin Gold Corporate Presentation - June 2024
Lundin Gold Corporate Presentation - June 2024
Adnet Communications

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results

Call8328958814 satta matka Kalyan result satta guessing
Call8328958814 satta matka Kalyan result satta guessingCall8328958814 satta matka Kalyan result satta guessing
Call8328958814 satta matka Kalyan result satta guessing
➑➌➋➑➒➎➑➑➊➍

Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Indian Matka
Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Indian MatkaDpboss Matka Guessing Satta Matta Matka Kalyan Chart Indian Matka
Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Indian Matka
➒➌➎➏➑➐➋➑➐➐Dpboss Matka Guessing Satta Matka Kalyan Chart Indian Matka

Digital Transformation Frameworks: Driving Digital Excellence
Digital Transformation Frameworks: Driving Digital ExcellenceDigital Transformation Frameworks: Driving Digital Excellence
Digital Transformation Frameworks: Driving Digital Excellence
Operational Excellence Consulting

Prescriptive analytics BA4206 Anna University PPT
Prescriptive analytics BA4206 Anna University PPTPrescriptive analytics BA4206 Anna University PPT
Prescriptive analytics BA4206 Anna University PPT
Freelance

Part 2 Deep Dive: Navigating the 2024 Slowdown
Part 2 Deep Dive: Navigating the 2024 SlowdownPart 2 Deep Dive: Navigating the 2024 Slowdown
Part 2 Deep Dive: Navigating the 2024 Slowdown
jeffkluth1

NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
BBPMedia1

Business storytelling: key ingredients to a story
Business storytelling: key ingredients to a storyBusiness storytelling: key ingredients to a story
Business storytelling: key ingredients to a story
Alexandra Fulford

Kirill Klip GEM Royalty TNR Gold Copper Presentation
Kirill Klip GEM Royalty TNR Gold Copper PresentationKirill Klip GEM Royalty TNR Gold Copper Presentation
Kirill Klip GEM Royalty TNR Gold Copper Presentation
Kirill Klip

Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta Matka
Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta MatkaDpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta Matka
Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta Matka
➒➌➎➏➑➐➋➑➐➐Dpboss Matka Guessing Satta Matka Kalyan Chart Indian Matka

The latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from NewentideThe latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from Newentide
JoeYangGreatMachiner

list of states and organizations .pdf
list of  states  and  organizations .pdflist of  states  and  organizations .pdf
list of states and organizations .pdf
Rbc Rbcua

DearbornMusic-KatherineJasperFullSailUni
DearbornMusic-KatherineJasperFullSailUniDearbornMusic-KatherineJasperFullSailUni
DearbornMusic-KatherineJasperFullSailUni
katiejasper96

Best Competitive Marble Pricing in Dubai - ☎ 9928909666
Best Competitive Marble Pricing in Dubai - ☎ 9928909666Best Competitive Marble Pricing in Dubai - ☎ 9928909666
Best Competitive Marble Pricing in Dubai - ☎ 9928909666
Stone Art Hub


Recently uploaded (20)

欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】
欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】
欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】

Satta Matka Dpboss Matka Guessing Kalyan Chart Indian Matka Kalyan panel Chart
Satta Matka Dpboss Matka Guessing Kalyan Chart Indian Matka Kalyan panel ChartSatta Matka Dpboss Matka Guessing Kalyan Chart Indian Matka Kalyan panel Chart
Satta Matka Dpboss Matka Guessing Kalyan Chart Indian Matka Kalyan panel Chart

欧洲杯投注-欧洲杯投注外围盘口-欧洲杯投注盘口app|【​网址​🎉ac22.net🎉​】
欧洲杯投注-欧洲杯投注外围盘口-欧洲杯投注盘口app|【​网址​🎉ac22.net🎉​】欧洲杯投注-欧洲杯投注外围盘口-欧洲杯投注盘口app|【​网址​🎉ac22.net🎉​】
欧洲杯投注-欧洲杯投注外围盘口-欧洲杯投注盘口app|【​网址​🎉ac22.net🎉​】

一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理
一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理
一比一原版(QMUE毕业证书)英国爱丁堡玛格丽特女王大学毕业证文凭如何办理

AI Transformation Playbook: Thinking AI-First for Your Business
AI Transformation Playbook: Thinking AI-First for Your BusinessAI Transformation Playbook: Thinking AI-First for Your Business
AI Transformation Playbook: Thinking AI-First for Your Business

Lundin Gold Corporate Presentation - June 2024
Lundin Gold Corporate Presentation - June 2024Lundin Gold Corporate Presentation - June 2024
Lundin Gold Corporate Presentation - June 2024

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart

Call8328958814 satta matka Kalyan result satta guessing
Call8328958814 satta matka Kalyan result satta guessingCall8328958814 satta matka Kalyan result satta guessing
Call8328958814 satta matka Kalyan result satta guessing

Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Indian Matka
Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Indian MatkaDpboss Matka Guessing Satta Matta Matka Kalyan Chart Indian Matka
Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Indian Matka

Digital Transformation Frameworks: Driving Digital Excellence
Digital Transformation Frameworks: Driving Digital ExcellenceDigital Transformation Frameworks: Driving Digital Excellence
Digital Transformation Frameworks: Driving Digital Excellence

Prescriptive analytics BA4206 Anna University PPT
Prescriptive analytics BA4206 Anna University PPTPrescriptive analytics BA4206 Anna University PPT
Prescriptive analytics BA4206 Anna University PPT

Part 2 Deep Dive: Navigating the 2024 Slowdown
Part 2 Deep Dive: Navigating the 2024 SlowdownPart 2 Deep Dive: Navigating the 2024 Slowdown
Part 2 Deep Dive: Navigating the 2024 Slowdown

NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...

Business storytelling: key ingredients to a story
Business storytelling: key ingredients to a storyBusiness storytelling: key ingredients to a story
Business storytelling: key ingredients to a story

Kirill Klip GEM Royalty TNR Gold Copper Presentation
Kirill Klip GEM Royalty TNR Gold Copper PresentationKirill Klip GEM Royalty TNR Gold Copper Presentation
Kirill Klip GEM Royalty TNR Gold Copper Presentation

Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta Matka
Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta MatkaDpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta Matka
Dpboss Matka Guessing Satta Matta Matka Kalyan Chart Satta Matka

The latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from NewentideThe latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from Newentide

list of states and organizations .pdf
list of  states  and  organizations .pdflist of  states  and  organizations .pdf
list of states and organizations .pdf

DearbornMusic-KatherineJasperFullSailUni
DearbornMusic-KatherineJasperFullSailUniDearbornMusic-KatherineJasperFullSailUni
DearbornMusic-KatherineJasperFullSailUni

Best Competitive Marble Pricing in Dubai - ☎ 9928909666
Best Competitive Marble Pricing in Dubai - ☎ 9928909666Best Competitive Marble Pricing in Dubai - ☎ 9928909666
Best Competitive Marble Pricing in Dubai - ☎ 9928909666


yarns

  • 1.
  • 2. YARN DEFINITION: The word yarn or thread is used in common parlance to cover all the linear textile structures. Yarns can be either “single” or “folded”. “A yarn is an assemblage of fibres or filaments having a substantial length and relatively small cross section, with or without twist, being the end product of a spinning and winding process”
  • 3. YARNS SINGLE YARNS ASSEMBLED YARNS FOLDED YARNS SPUN YARNS FILAMENT YARNS FANCY YARNS FANCY YARNS ROTOR YARNS RING YARNS WORSTED YARNS SEMI-WORSTED YARNS WOOLLEN YARNS FLAT FILAMENT YARNS TEXTURED FILAMENT YARNS BICOMPONENT TAPE OR SPLIT FILM YARNS CLASSIFICATION OF YARNS
  • 4. Yarn may be any of the following  Number of fibers twisted together  Number of filaments without twist  Number of filaments twisted with more/less twist  Single filament  One or more strips cut by length of a sheet of material of natural/ synthetic or any polymer
  • 5. TERMS SPUN YARNS are made by mechanical assembly and twisting together (spinning) of Staple fibres such as cotton, flax, wool, broken or cut man-made fibres. FILAMENT YARNS are made by the assembly of continuous filaments, made from silk or man-made fibres A MULTI FILAMENT YARN is a filament yarn made from multiple filaments, assembled with or without twist. A MONO FILAMENT YARN consists of only a single continuous filament from man-made source.
  • 6. Two or more yarns which are wound side by side on to same package, but without twisting around each other, are called ASSEMBLED YARNS. FOLDED OR PLIED YARNS are yarns made by twisting together Two or more single (and/or folded) yarns of the same or different types. Ex: 2 Ply (two singles) CORDS OR CABLED YARNS are yarns made by twisting together Two or more ply or folded yarns of the same or different types. Ex: 2,3 Ply Cord
  • 7. Twist Direction Twists or turns per inch Twist Factor (K)
  • 8. Properties of Spun, Filament and Combination Yarns: 100%Spun Yarns: Warmth, Softness, Light Weight Ideal for T-Shirts, Sweaters and Blankets 100%Filament Yarns: Smoother, Finer and Lustrous Ideal for linings Combination of spun and filament Yarns: Durable, Easy care, Comfortable Suitable for more applications
  • 9. Twist  The purpose of twist is to hold the staple fibers together  The twist could be used in different ways to embed different qualities to the yarn  A yarn that is twist balanced will not tend to curl  The direction of twist is also important for further designing as this can be used well by designers
  • 10. Yarn twist parameters: Amount of twist is designated as TPI –turns per inch, which Affects appearance and durability of the yarns. Spun yarn: Low twist Soft twist yarns flexible (2 to 12 tpi) ex: Knitting fluffier soft High Twist Hard twist yarns smooth (20 to 30 tpi) ex: weaving firm stronger Filament yarns: Usually low twist Pebbly and harsh surface (1/2 to 1 tpi) Crepe fil. with crepe twist
  • 11. Twist and Bulkiness  The bulkier the yarn, lesser the twist.  Finer the yarn higher the twist.  Bulkier yarn needs lesser twist and so it has lesser strength.  Finer yarn has more twists and strong.  But when the twist is increased after particular point the strength is reduced due to the breakage of the fibers.
  • 12. Blends / Mixtures  A blend is a combination of two materials at fiber stage.  A mix is two materials put together at a later stage as strands.  The texture we get is different from each of them.  The design value of these are high.
  • 14.
  • 15. Chief Value Cotton (CVC) /Cotton RichChief Value Cotton (CVC) /Cotton Rich Polyester (40%)+Cotton(60%)  Cotton • Comfort, Soft handle  Polyester • Crease resistance, Easy care
  • 16. Polyester Cotton (PC)Polyester Cotton (PC) Polyester (67%) and Cotton (33%)  Cotton • comfortable to wear • greater strength  Polyester • Resistance from creases, Quick dry
  • 17. Need  The need for blends or mixes are.  Cost.  Different quality that each fiber offers.  More effective usage of the materials.  The necessity of different and in between qualities and both the qualities.
  • 18. Design Values  The design values of such blended and mixed yarn can be explored to give an innovative look to the textile  More innovative processes can be explored  The design can happen from yarn stage.
  • 19.  Fancy yarns are explorations of the prior said attributes such as  Twist  Bulkiness  Color  Material  Blends and Mixes  Material(conventional/non-conventional) Fancy Yarns
  • 20. Physical properties and performance characteristics of different yarn types: Yarn type General yarn properties Staple yarns Excellent Handle Good covering power • Carded cotton Good comfort rating • Combed cotton Reasonable strength • Woollen Reasonable uniformity • Worsted • Linen
  • 21. Yarn type General yarn properties Continuous filament yarns Excellent uniformity Excellent strength •Natural Can be very fine •Non-synthetic Fair handle •Synthetic Poor covering power High bulk yarns Light weight • Staple Good covering power • Continulous filament Good loftiness and fullness
  • 22. Stretch yarns High stetchability Continuous filament Good handle Covering power Special end use: •Tyre cord Purely functional •Rubber Designed to satisfy a specific- •Core yarn set of conditions •Cabled •Split film yarn Novelty yarns: Excellent decorative features •Fancy yarns •Metallic
  • 23. Variables in yarn production Type of fibre or filament Dimensional and physical characteristics of the fibre/filament Mechanical properties of the fibre / filament General properties Yarn production systems Components of the yarn and percentages Linear density and level of twist Yarn construction Texturisation and method of texturisation
  • 24. Yarn types & Characteristics  Spun - carded, combed  Long staple spng - Worsted, Spun Silk  Filament - Mono & Multifilament  Doubled yarn - single & 2-ply  Stronger, Uniform, blending  Yarn twist - S & Z, TPI, High Twist, Knit yarns.  Stretch yarns - Lycra, Mechanical  Slub Yarns, Lurex
  • 25. Spinning  Plucking & Cleaning  Blow room  Carding  Combing  Draw frame  Simplex  Ring frame Yarn
  • 26.
  • 27. SPUN YARN MANUFACTURINGSPUN YARN MANUFACTURING Ring spinning:Ring spinning: Blow room process:Blow room process: sorting, opening, separating,sorting, opening, separating, cleaning, and blending of fibrescleaning, and blending of fibres CardingCarding:: intensive cleaning through individualization ofintensive cleaning through individualization of fibresfibres DrawingDrawing:: alignment of fibres through doubling andalignment of fibres through doubling and drafting of fibresdrafting of fibres CombingCombing:: micro cleaning and alignment of fibres throughmicro cleaning and alignment of fibres through parallelizationparallelization RovingRoving:: attenuating drawn sliversattenuating drawn slivers Spinning:Spinning: twisting drafted roving in to yarntwisting drafted roving in to yarn
  • 28. Plucking.Plucking. At this stage cotton bales are manually opened and are put in Pluckers are machines which mix the cotton and separate the bales into smaller denominations. The separated cotton is then transferred into the Blow Room.
  • 29. Blow RoomBlow Room The Blow Room is a facility, which is primarily used for the Cleaning, Mixing and Opening of cotton for yarn production. Cotton is processed through various stages in this area through different machines and the main objective is to refine the cotton being used in yarn production.
  • 30.
  • 31.
  • 33.
  • 34. Carding DepartmentCarding Department The main function of this department is to transform the cotton into Sliver. The main objective here is to maintain the uniformity, alignment and stretch ability of the fiber as per the desired standards
  • 36.
  • 37. Combing  The main function of this department is to transform the cotton Sliver in to more fine and inject the raw material and also putting short fiber to get more longer fiber for durability.
  • 38.
  • 39.
  • 40.

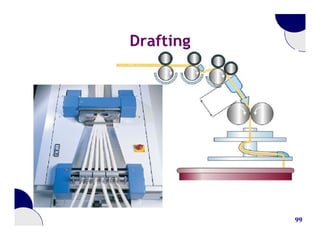

  • 41. Draw Frame  The function of the Draw Frame is to create a roving consistent in size over its entire length. The draw frame blends multiple roving into one fiber.  The draw frame results in strong, uniform roving of a size that can be easily managed at the spinner
  • 42. SimplexSimplex Simplex is the process of shaping the Sliver into Roving. The main processes involved are Grafting, Twisting and Winding the sliver and shaping it like a thin rope.
  • 43.
  • 44.
  • 45. Ring frameRing frame This is function where the yarn is finally produced. The Roving are put on the machines used here and passing the roving through the machine produces yarns. The main objective of the machines here is again Grafting, Twisting and Winding. Once the cotton thread is produced it is collected in the form of Bobbin.
