Intermediate Infrared Concepts and Best
Practices: Thermal Imaging in your
Maintenance Program
Sat Sandhu
Thermography Services Support Manager
Thermal / Infrared Thermography, Level III
Certified in compliance with (ASNT) SNT-TC-1A-2006
1

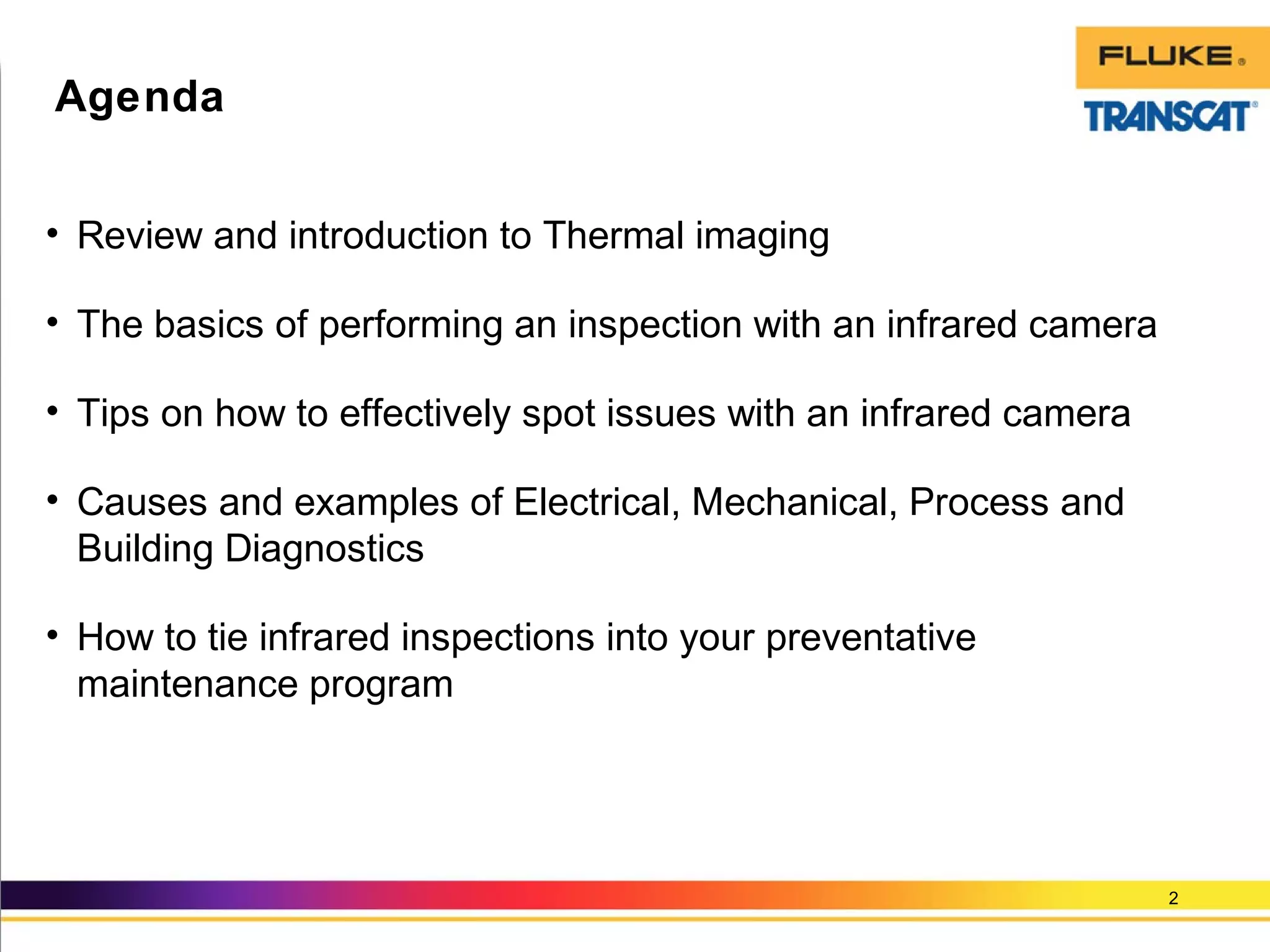

• Review and introduction to Thermal imaging
• The basics of performing an inspection with an infrared camera
• Tips on how to effectively spot issues with an infrared camera
• Causes and examples of Electrical, Mechanical, Process and
Building Diagnostics
• How to tie infrared inspections into your preventative
maintenance program
2
Agenda
My name is Sat Sandhu
Welcome!
Please note, this is a short class – you will not become a
thermography expert in the next hour
3
Introduction

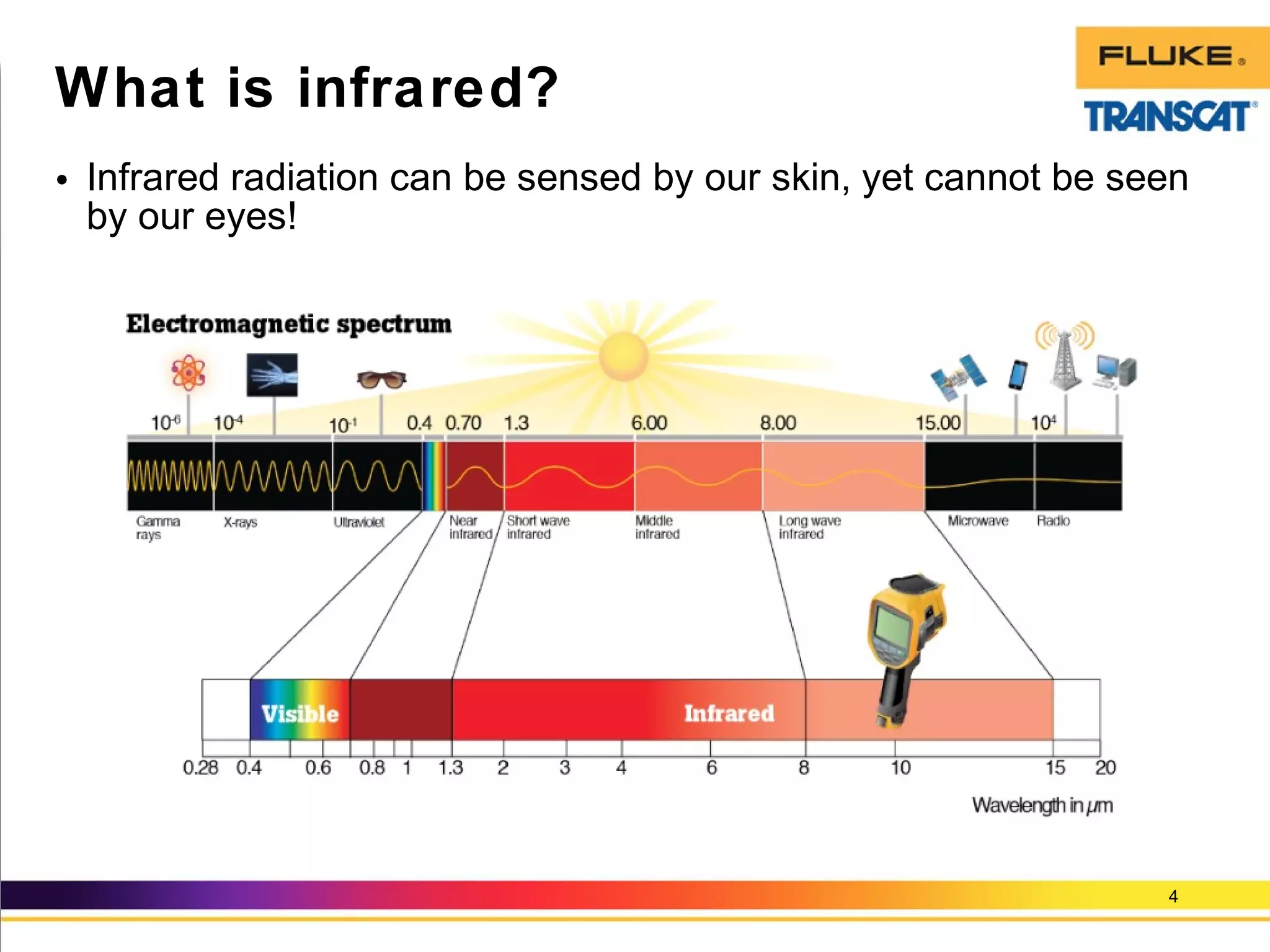

• Infrared radiation can be sensed by our skin, yet cannot be seen
by our eyes!
4
What is infrared?

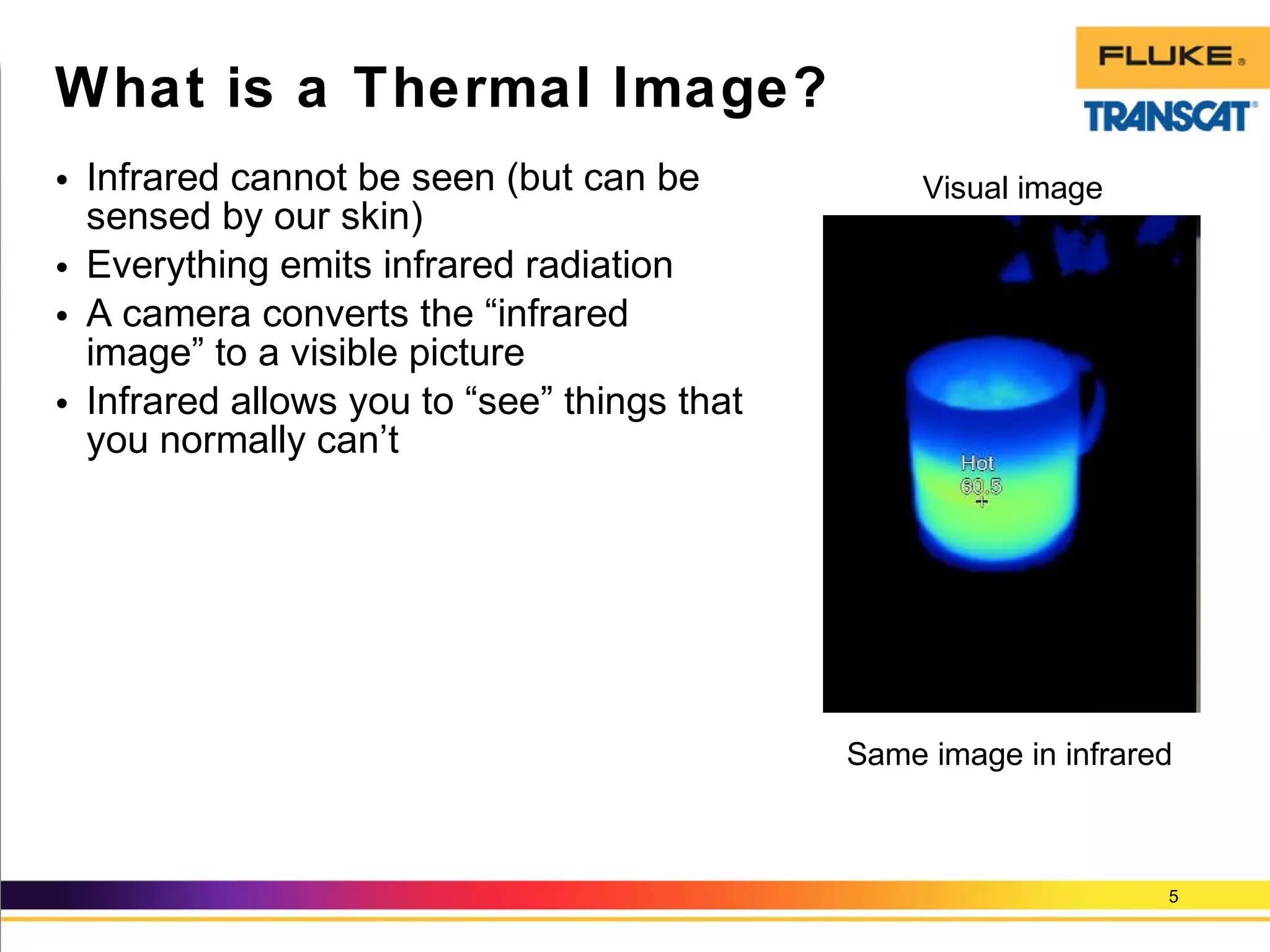

• Infrared cannot be seen (but can be
sensed by our skin)
• Everything emits infrared radiation
• A camera converts the “infrared
image” to a visible picture
• Infrared allows you to “see” things that
you normally can’t
5
What is a Thermal Image?
Visual image
Same image in infrared

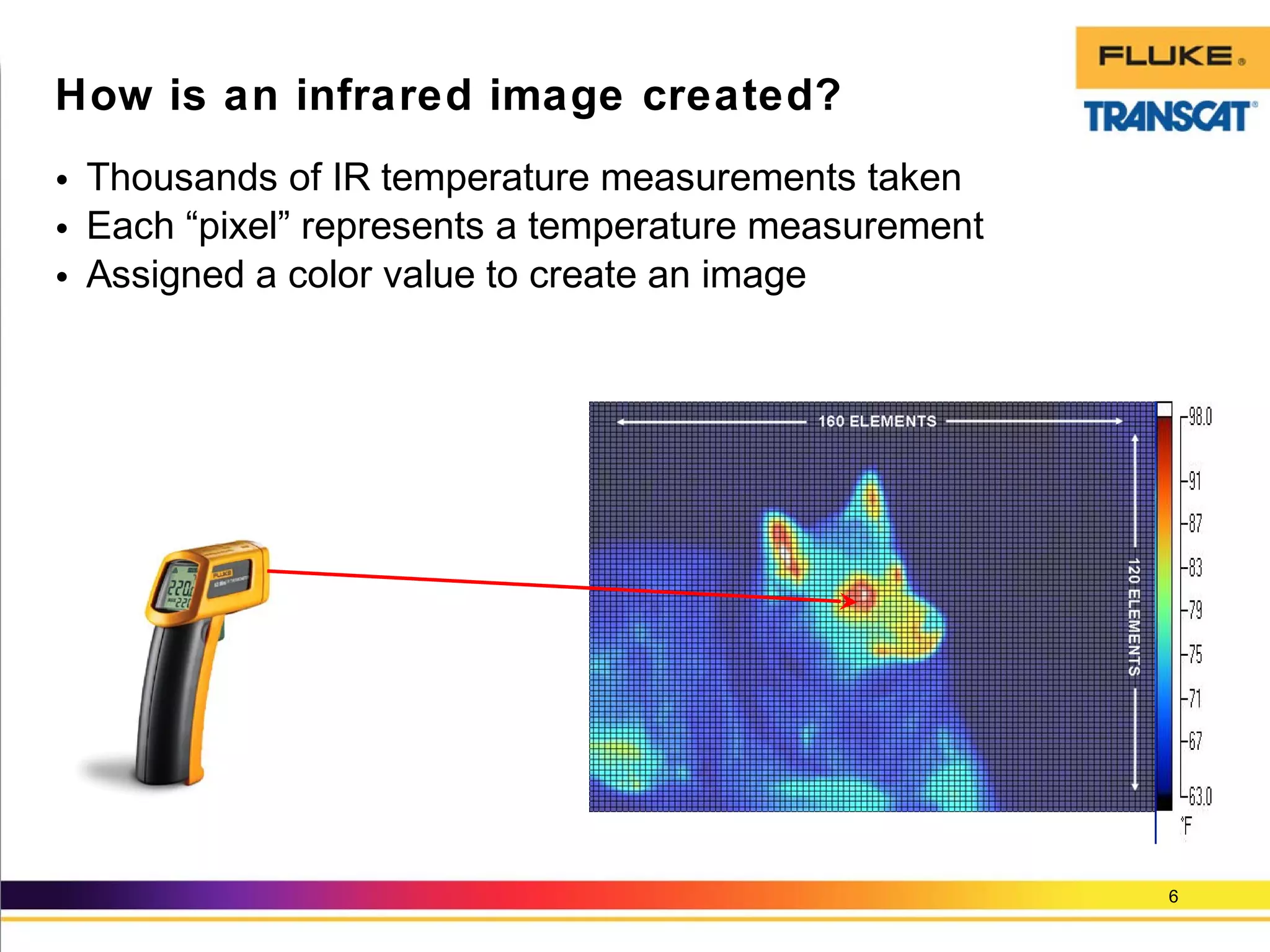

• Thousands of IR temperature measurements taken
• Each “pixel” represents a temperature measurement
• Assigned a color value to create an image
6
How is an infrared image created?

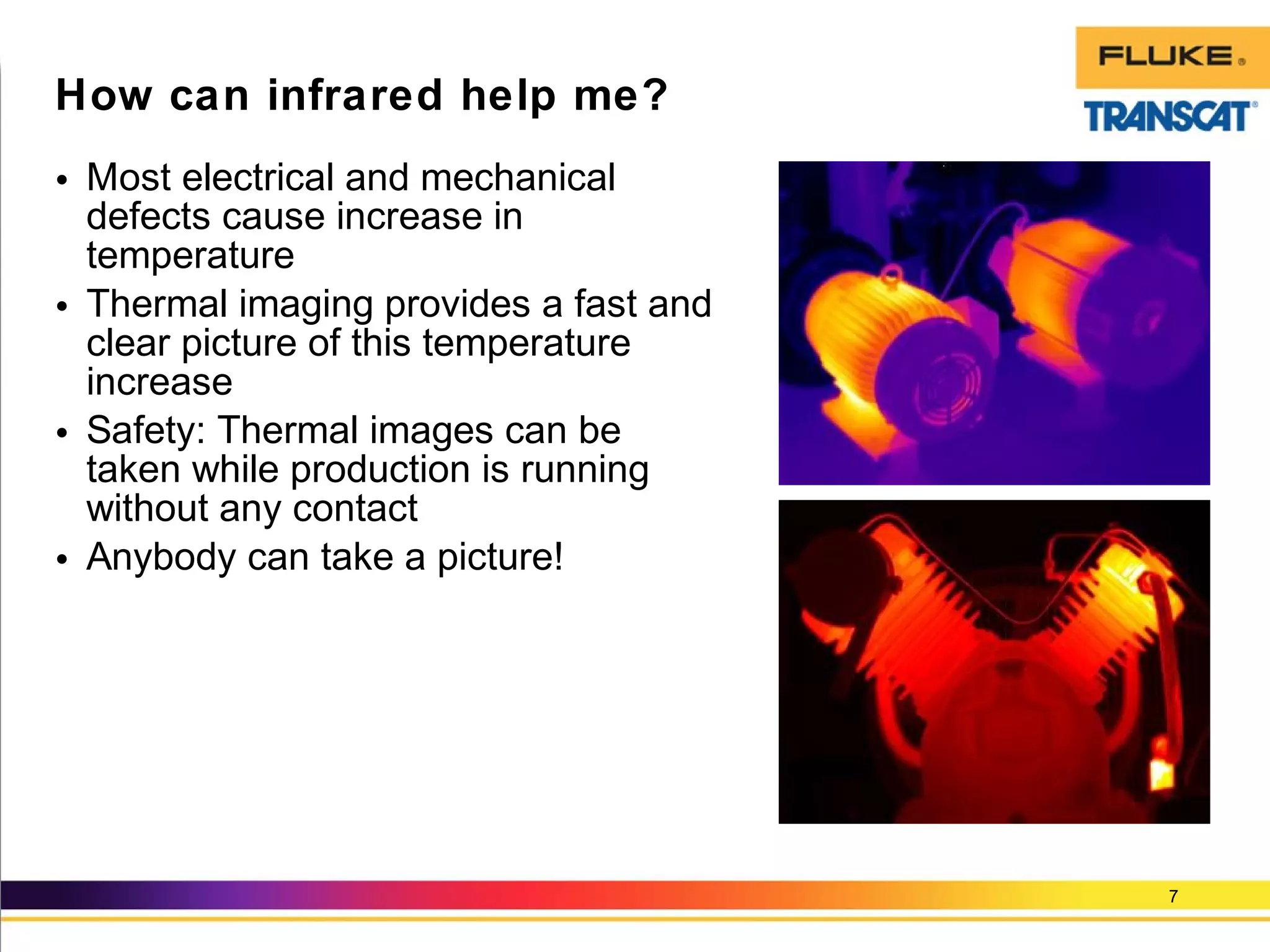

• Most electrical and mechanical
defects cause increase in
temperature
• Thermal imaging provides a fast and
clear picture of this temperature
increase
• Safety: Thermal images can be
taken while production is running
without any contact
• Anybody can take a picture!
7
How can infrared help me?

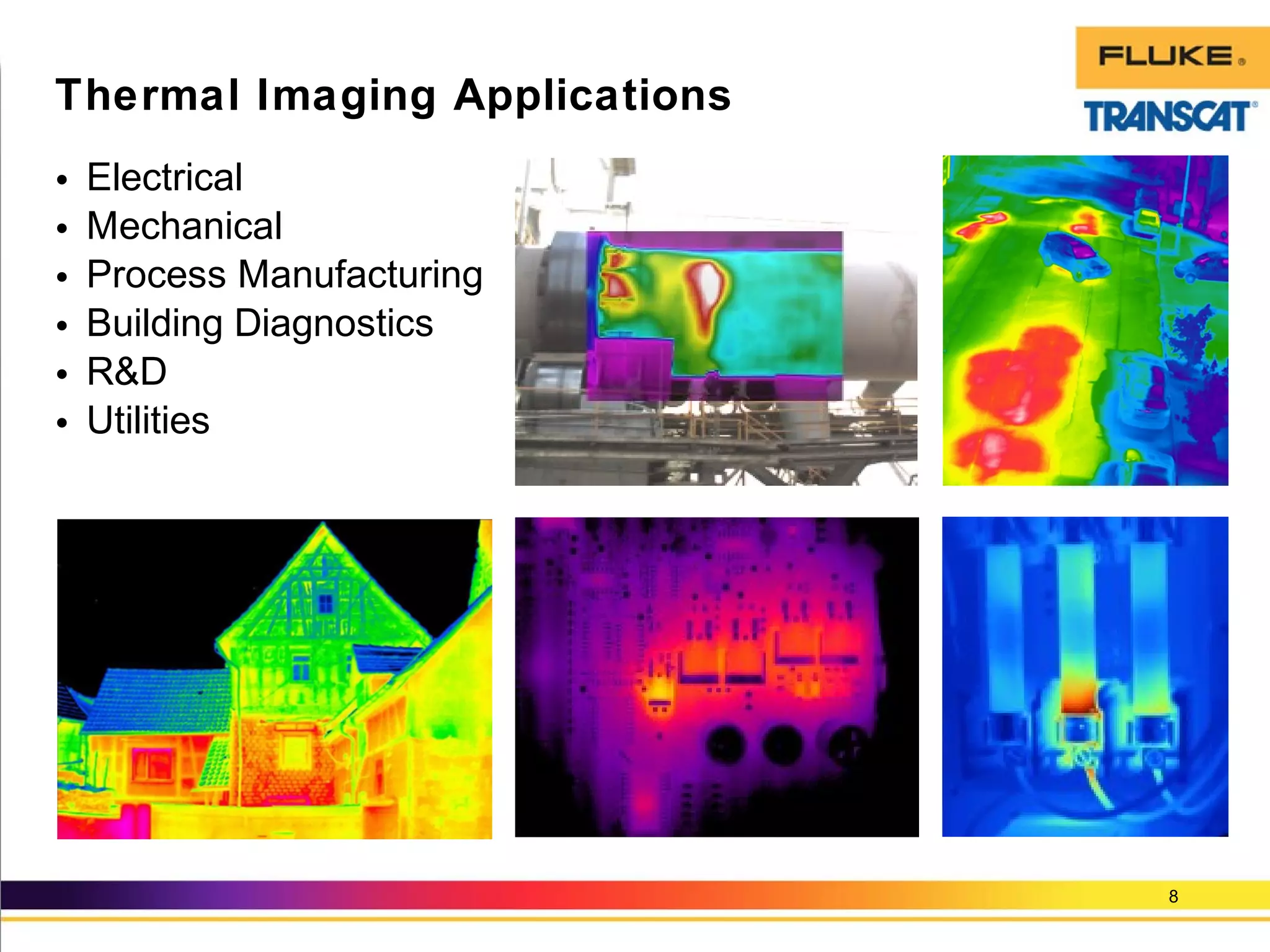

• Electrical
• Mechanical
• Process Manufacturing
• Building Diagnostics
• R&D
• Utilities
8
Thermal Imaging Applications

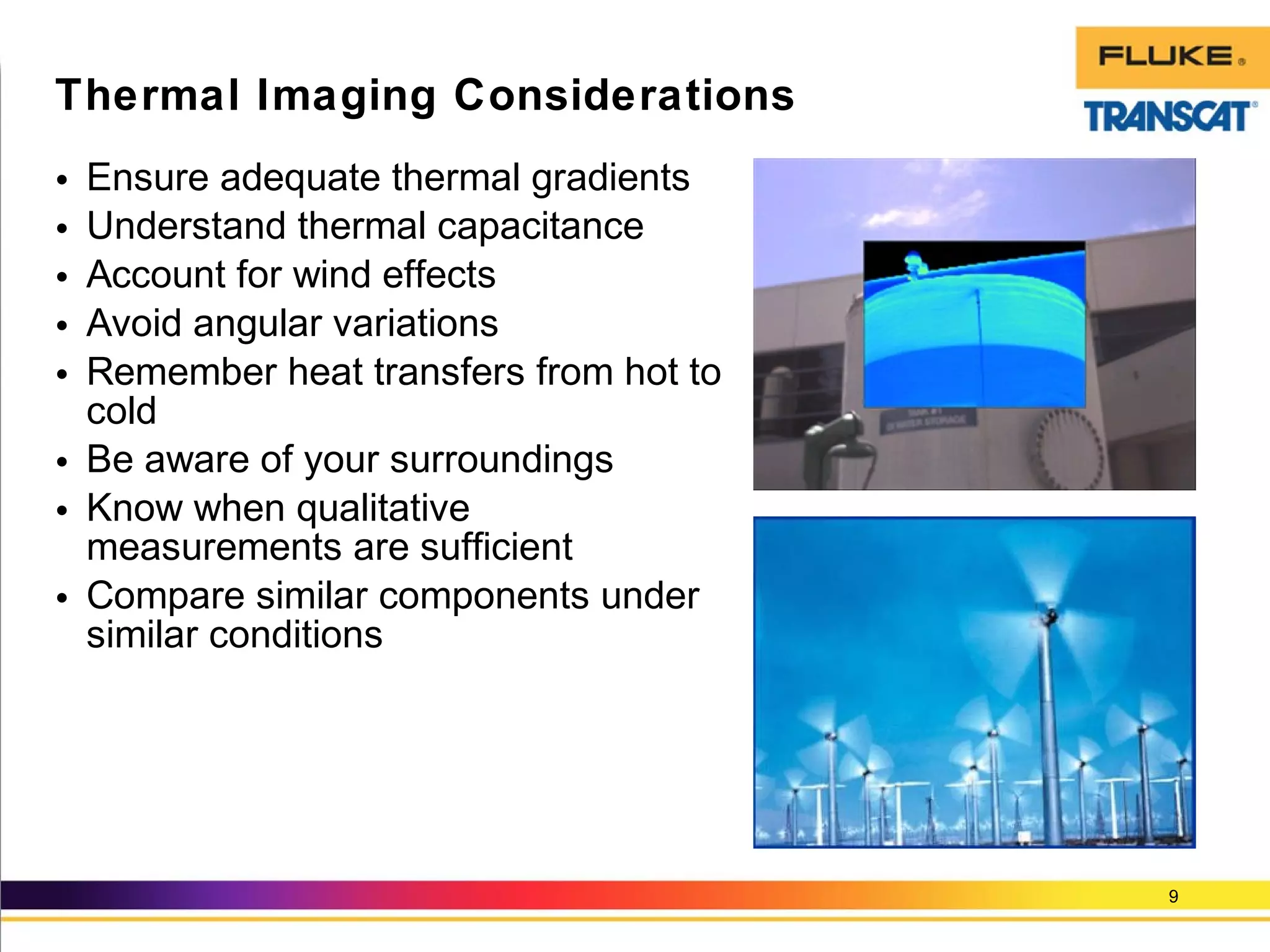

• Ensure adequate thermal gradients
• Understand thermal capacitance
• Account for wind effects
• Avoid angular variations
• Remember heat transfers from hot to
cold
• Be aware of your surroundings
• Know when qualitative
measurements are sufficient
• Compare similar components under
similar conditions
9
Thermal Imaging Considerations

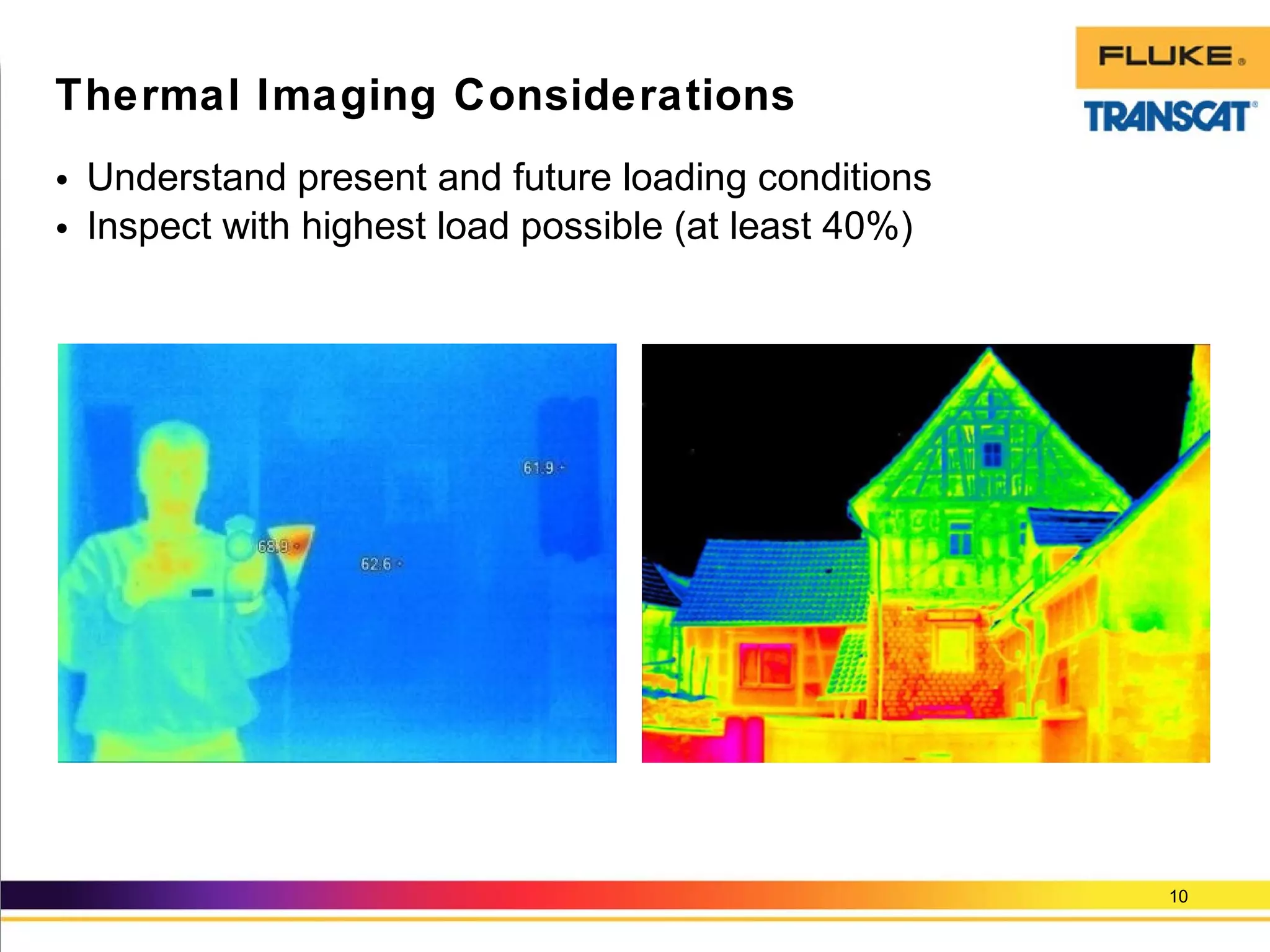

• Understand present and future loading conditions
• Inspect with highest load possible (at least 40%)
10
Thermal Imaging Considerations

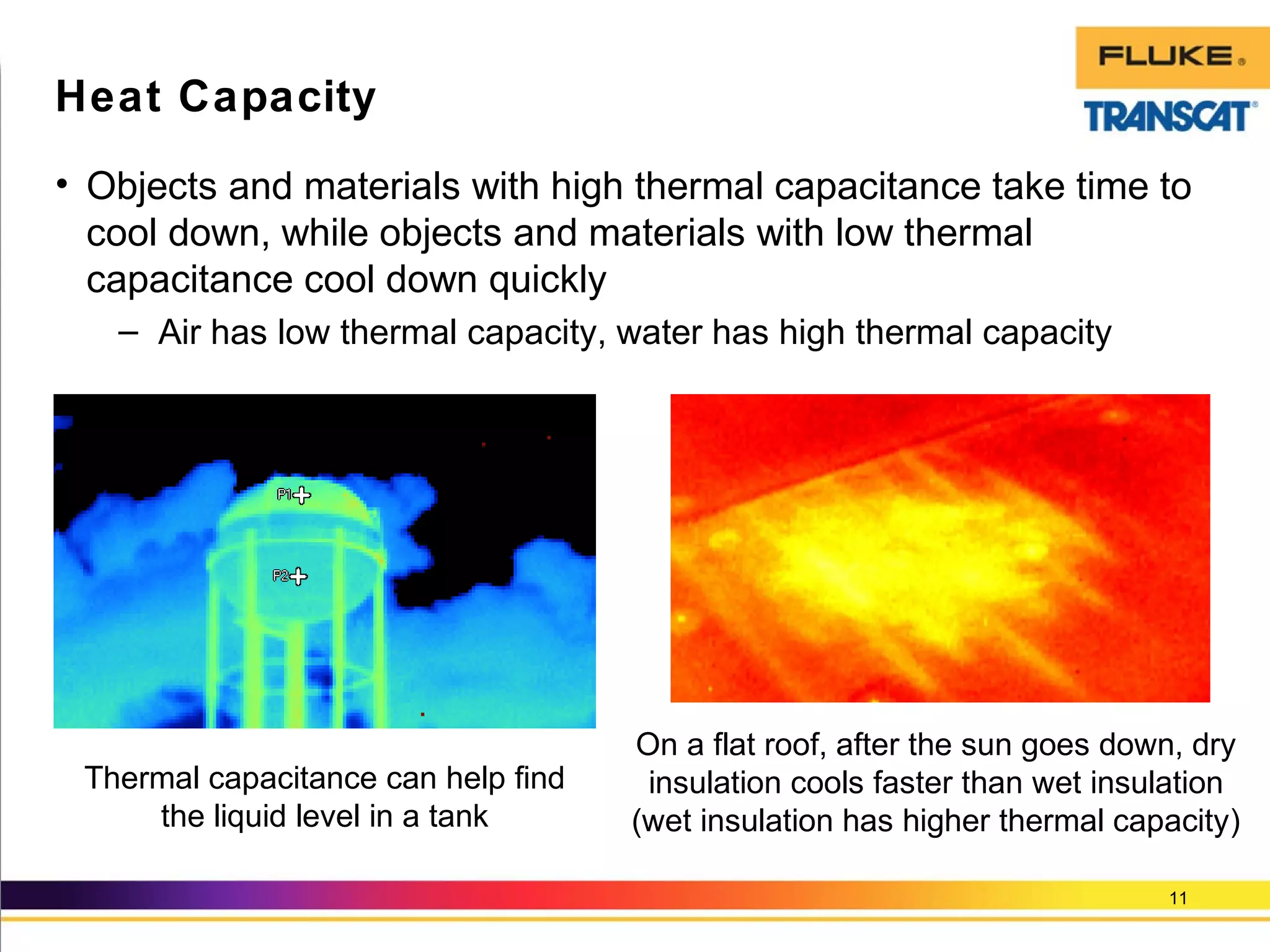

• Objects and materials with high thermal capacitance take time to
cool down, while objects and materials with low thermal
capacitance cool down quickly
– Air has low thermal capacity, water has high thermal capacity
11
Heat Capacity
On a flat roof, after the sun goes down, dry
insulation cools faster than wet insulation
(wet insulation has higher thermal capacity)
Thermal capacitance can help find
the liquid level in a tank

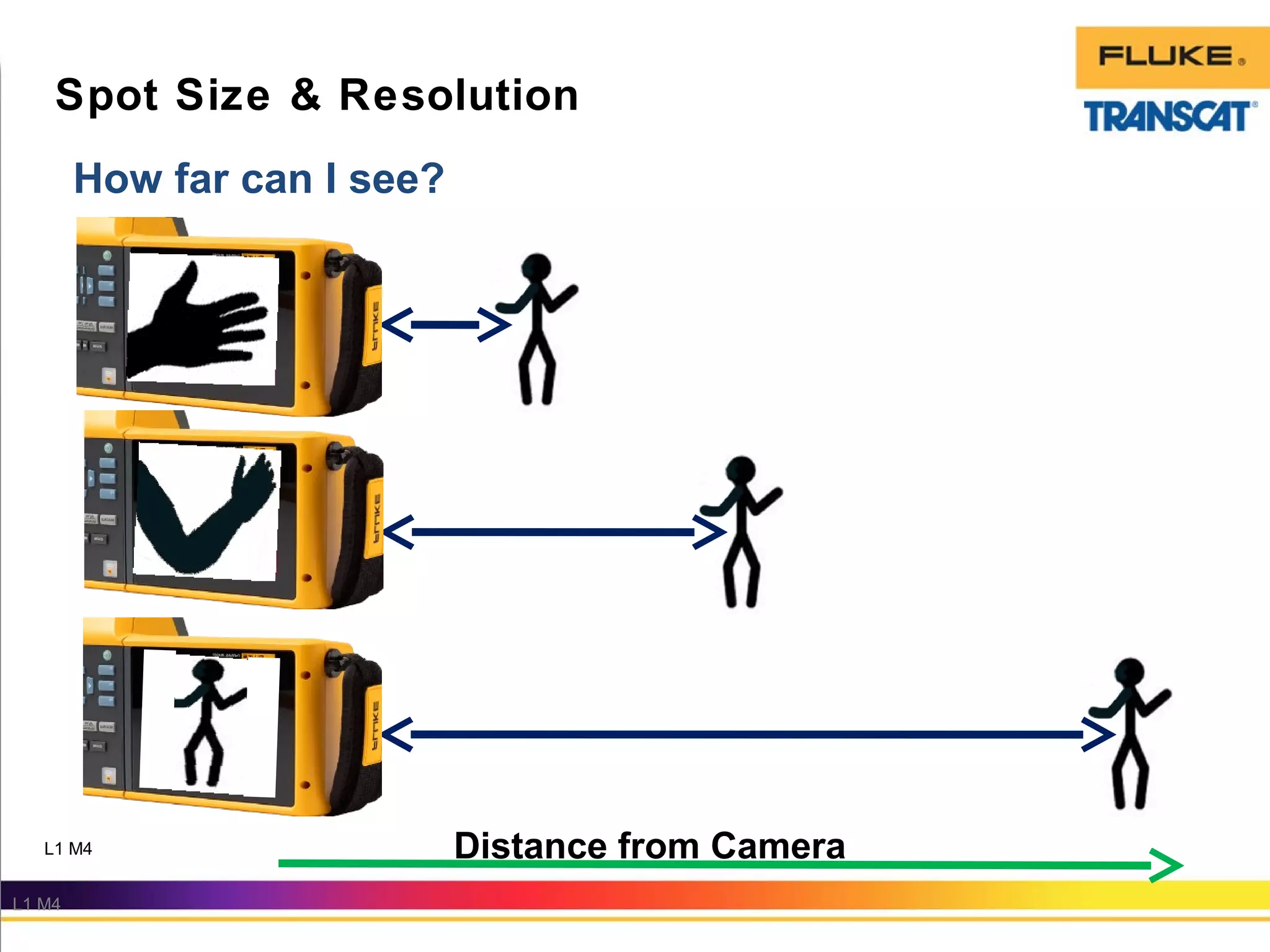

How far can I see?
Distance from CameraL1 M4
L1 M4

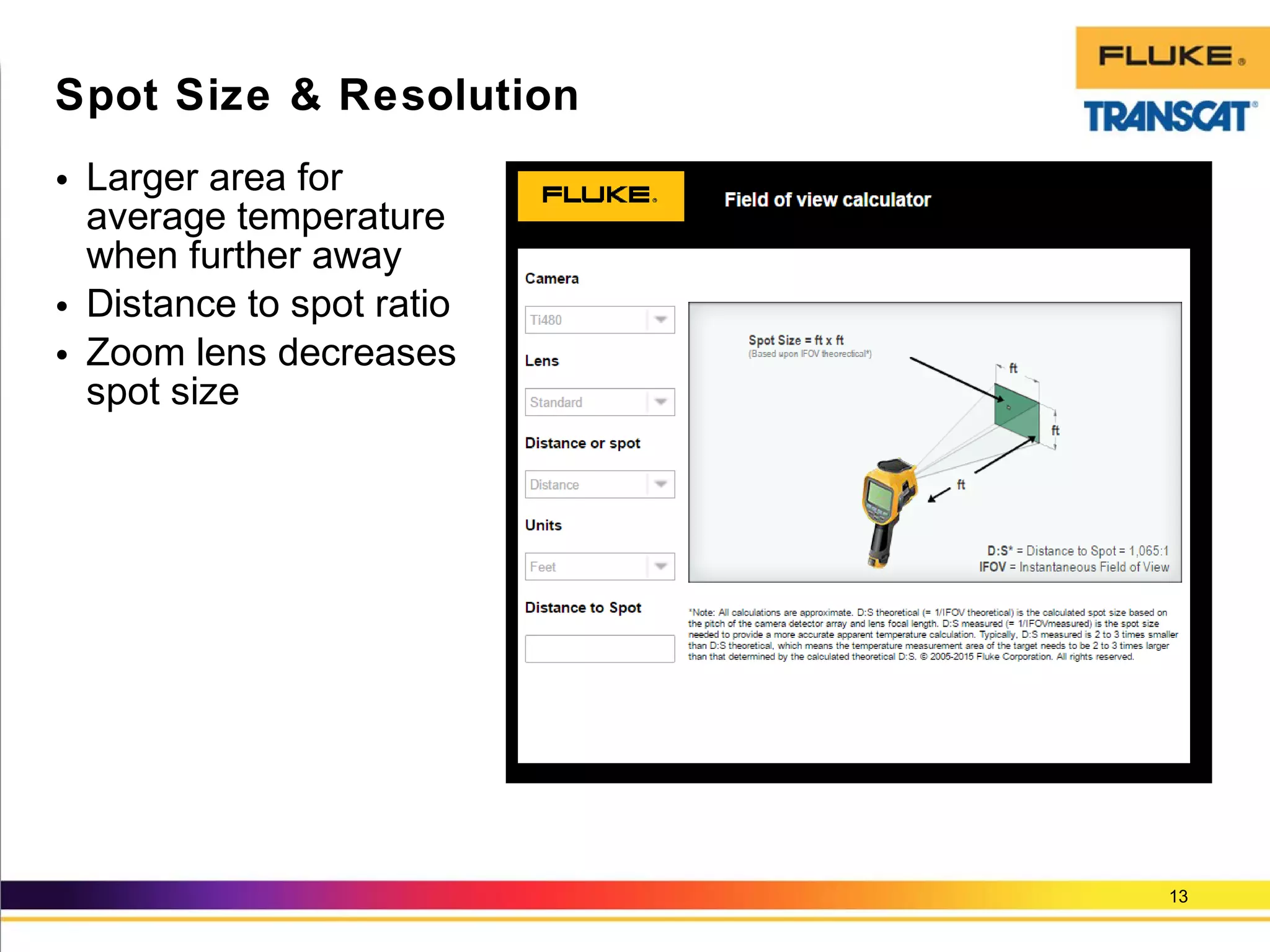

Spot Size & Resolution
• Larger area for
average temperature
when further away
• Distance to spot ratio
• Zoom lens decreases
spot size
13
Spot Size & Resolution

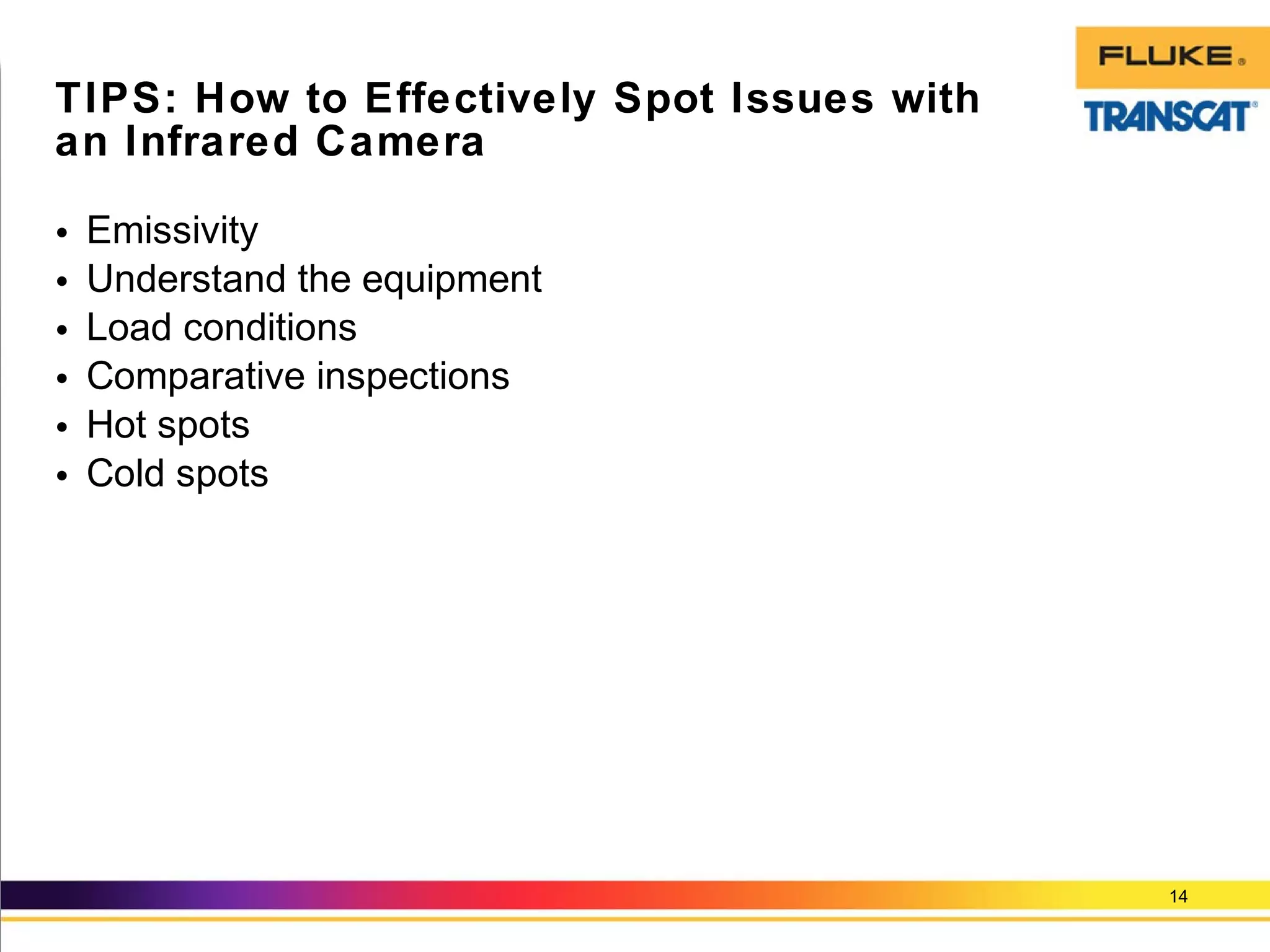

• Emissivity
• Understand the equipment
• Load conditions
• Comparative inspections
• Hot spots
• Cold spots
14
TIPS: How to Effectively Spot Issues with
an Infrared Camera

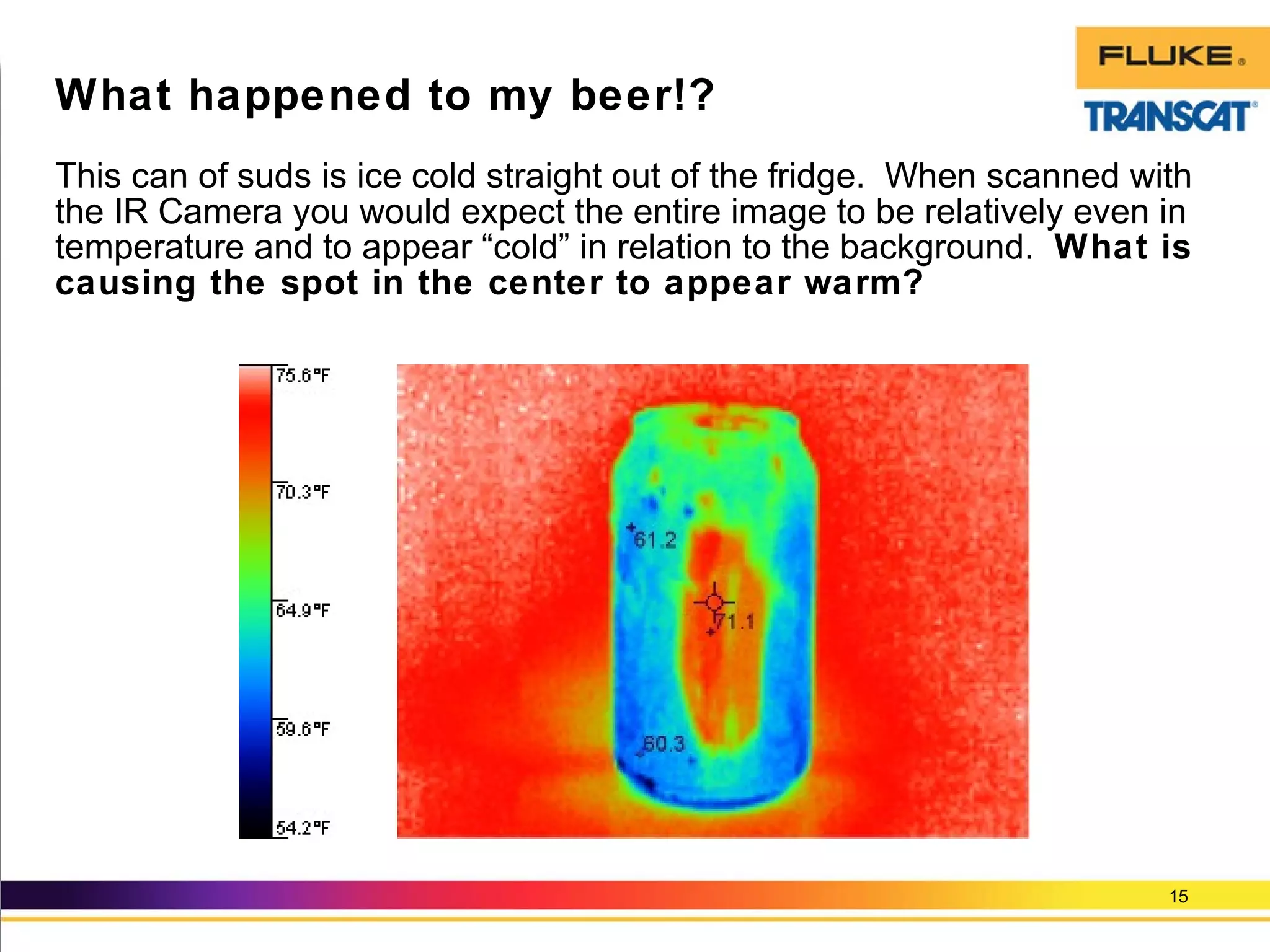

This can of suds is ice cold straight out of the fridge. When scanned with
the IR Camera you would expect the entire image to be relatively even in
temperature and to appear “cold” in relation to the background. What is
causing the spot in the center to appear warm?
15
What happened to my beer!?

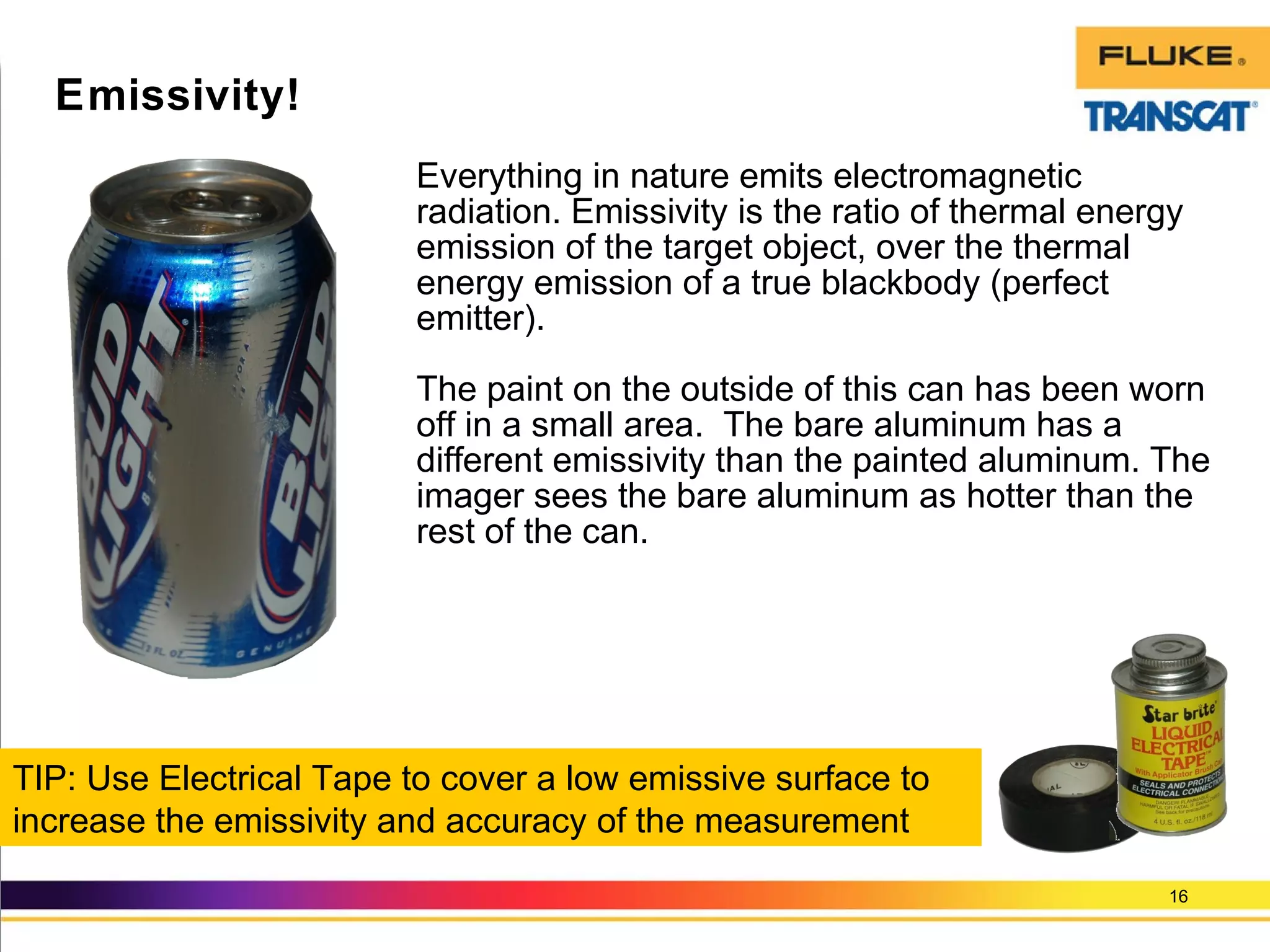

Everything in nature emits electromagnetic
radiation. Emissivity is the ratio of thermal energy
emission of the target object, over the thermal
energy emission of a true blackbody (perfect
emitter).
The paint on the outside of this can has been worn
off in a small area. The bare aluminum has a
different emissivity than the painted aluminum. The
imager sees the bare aluminum as hotter than the
rest of the can.
16
Emissivity!
TIP: Use Electrical Tape to cover a low emissive surface to
increase the emissivity and accuracy of the measurement

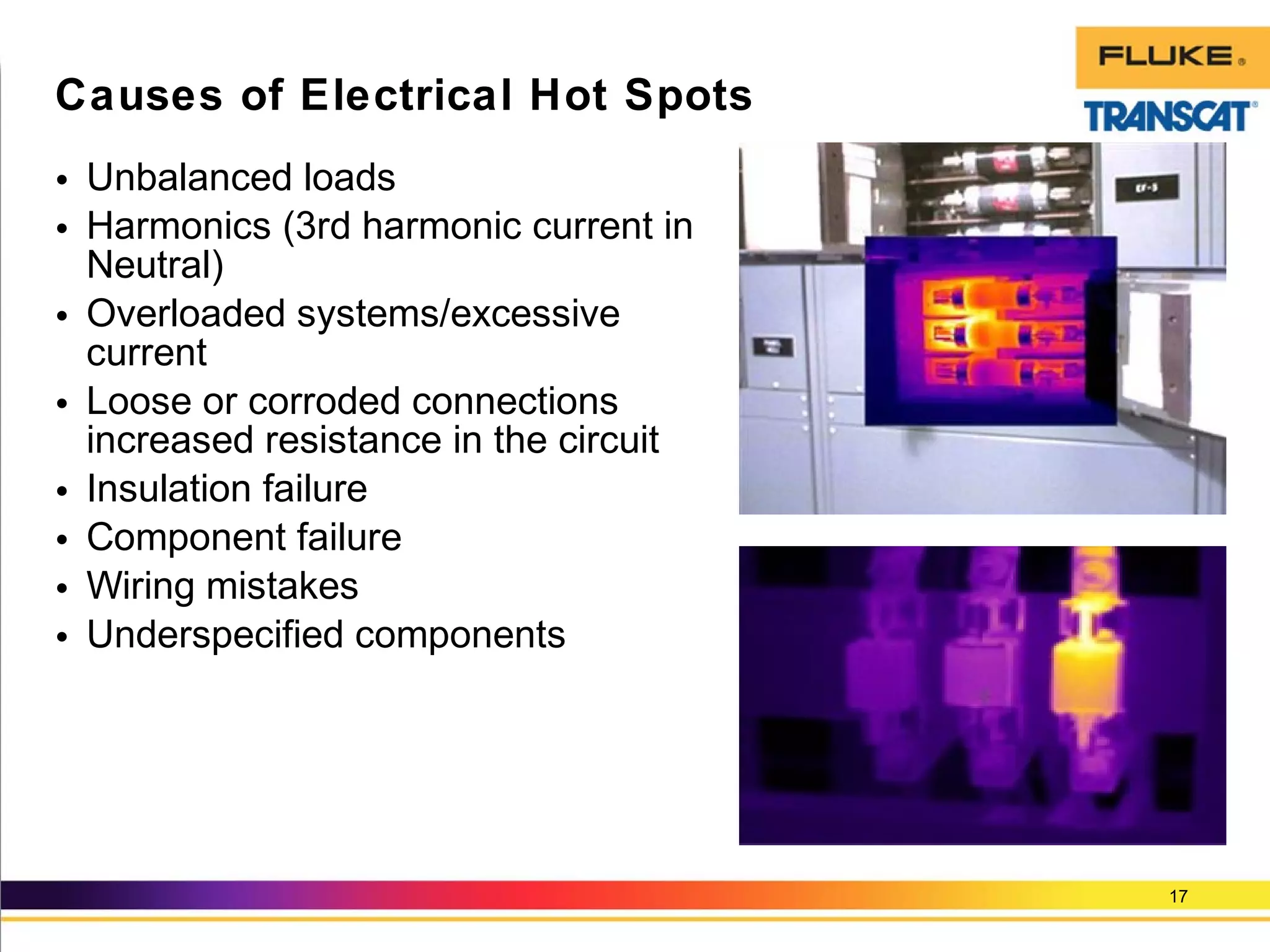

• Unbalanced loads
• Harmonics (3rd harmonic current in
Neutral)
• Overloaded systems/excessive
current
• Loose or corroded connections
increased resistance in the circuit
• Insulation failure
• Component failure
• Wiring mistakes
• Underspecified components
17
Causes of Electrical Hot Spots
18

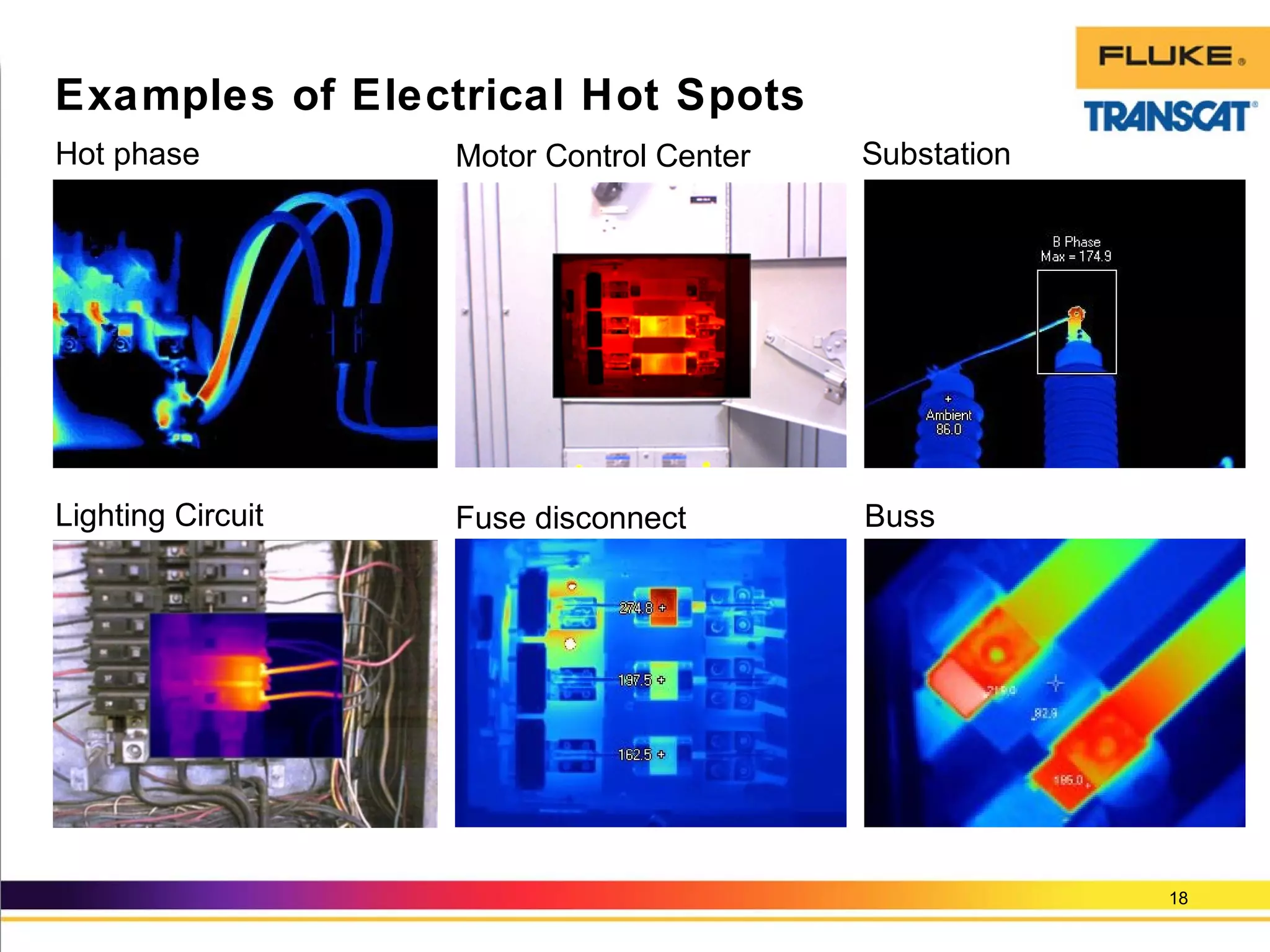

Examples of Electrical Hot Spots
Hot phase
Fuse disconnect
Substation
Lighting Circuit
Motor Control Center
Buss

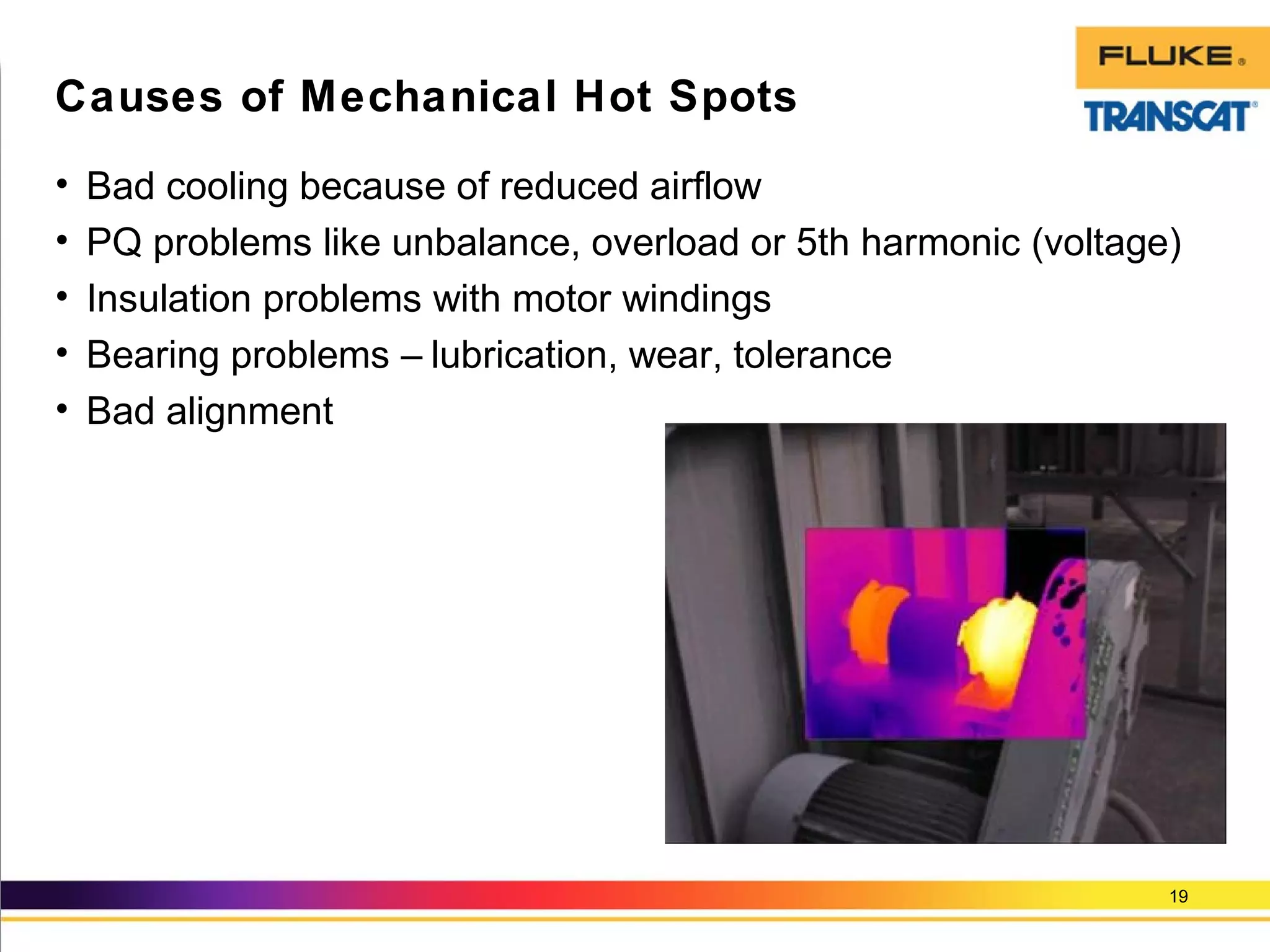

• Bad cooling because of reduced airflow
• PQ problems like unbalance, overload or 5th harmonic (voltage)
• Insulation problems with motor windings
• Bearing problems – lubrication, wear, tolerance
• Bad alignment
19
Causes of Mechanical Hot Spots
20

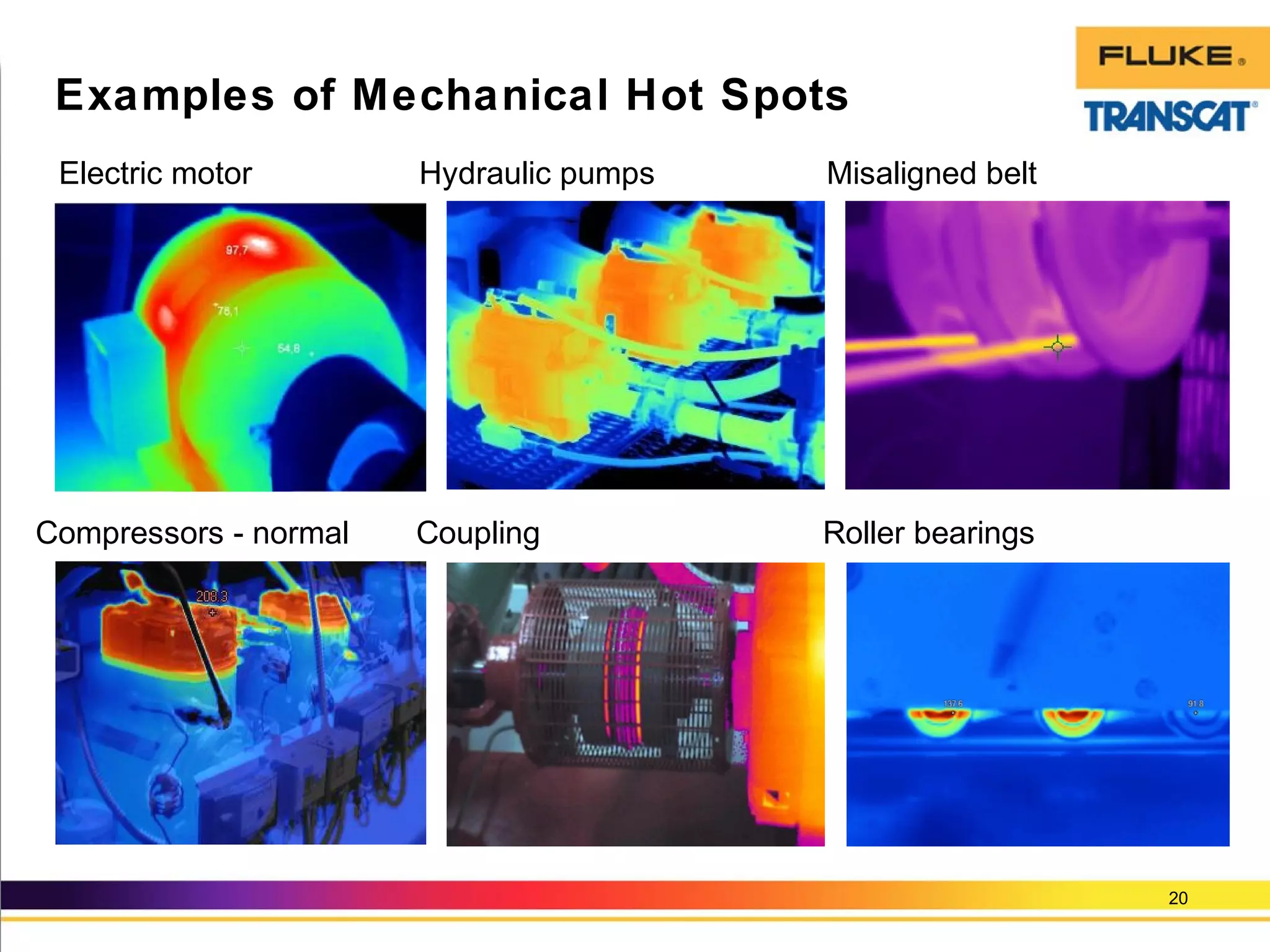

Examples of Mechanical Hot Spots
Compressors - normal
Hydraulic pumps Misaligned beltElectric motor
Roller bearingsCoupling

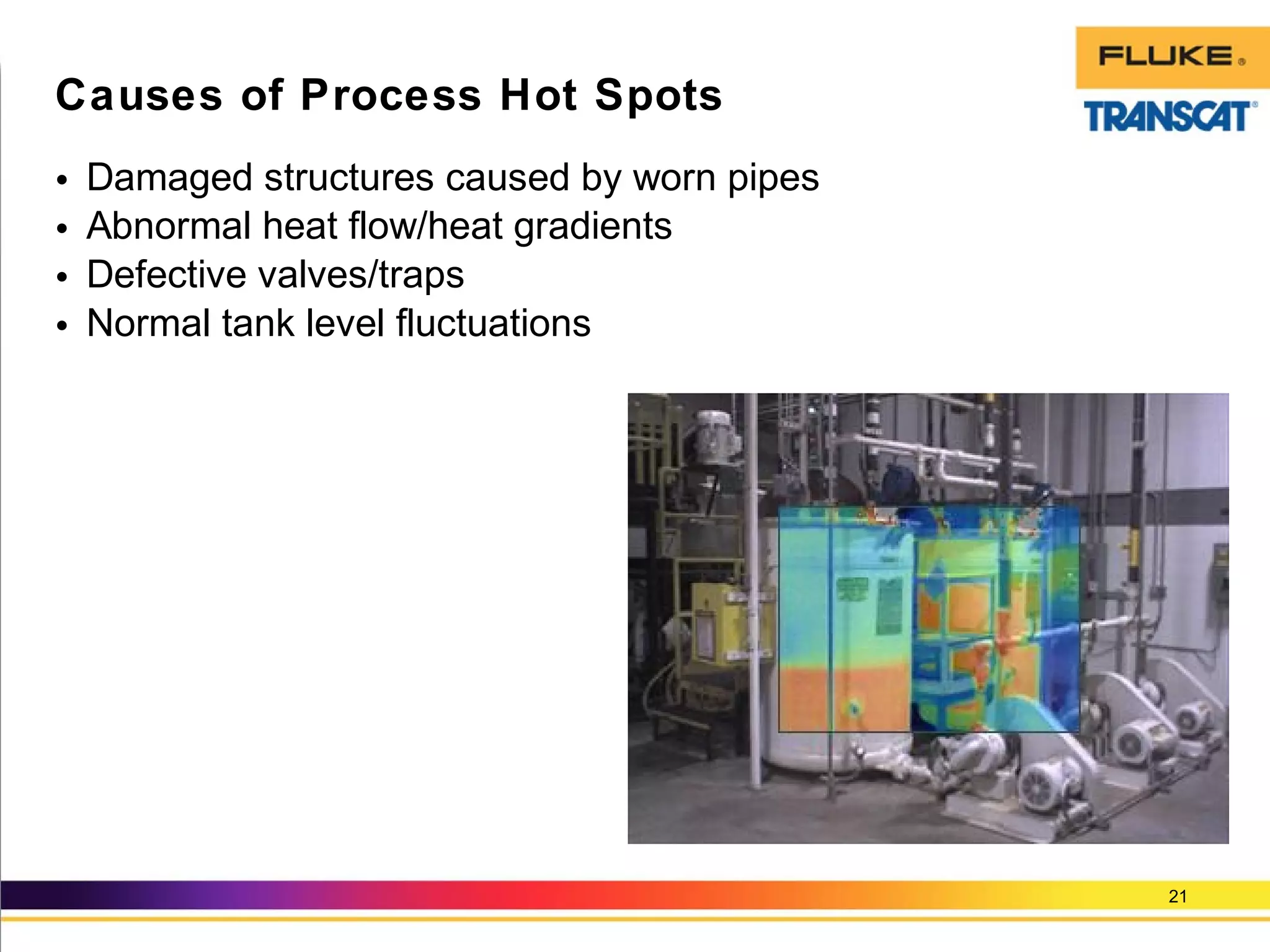

• Damaged structures caused by worn pipes
• Abnormal heat flow/heat gradients
• Defective valves/traps
• Normal tank level fluctuations
21
Causes of Process Hot Spots
22

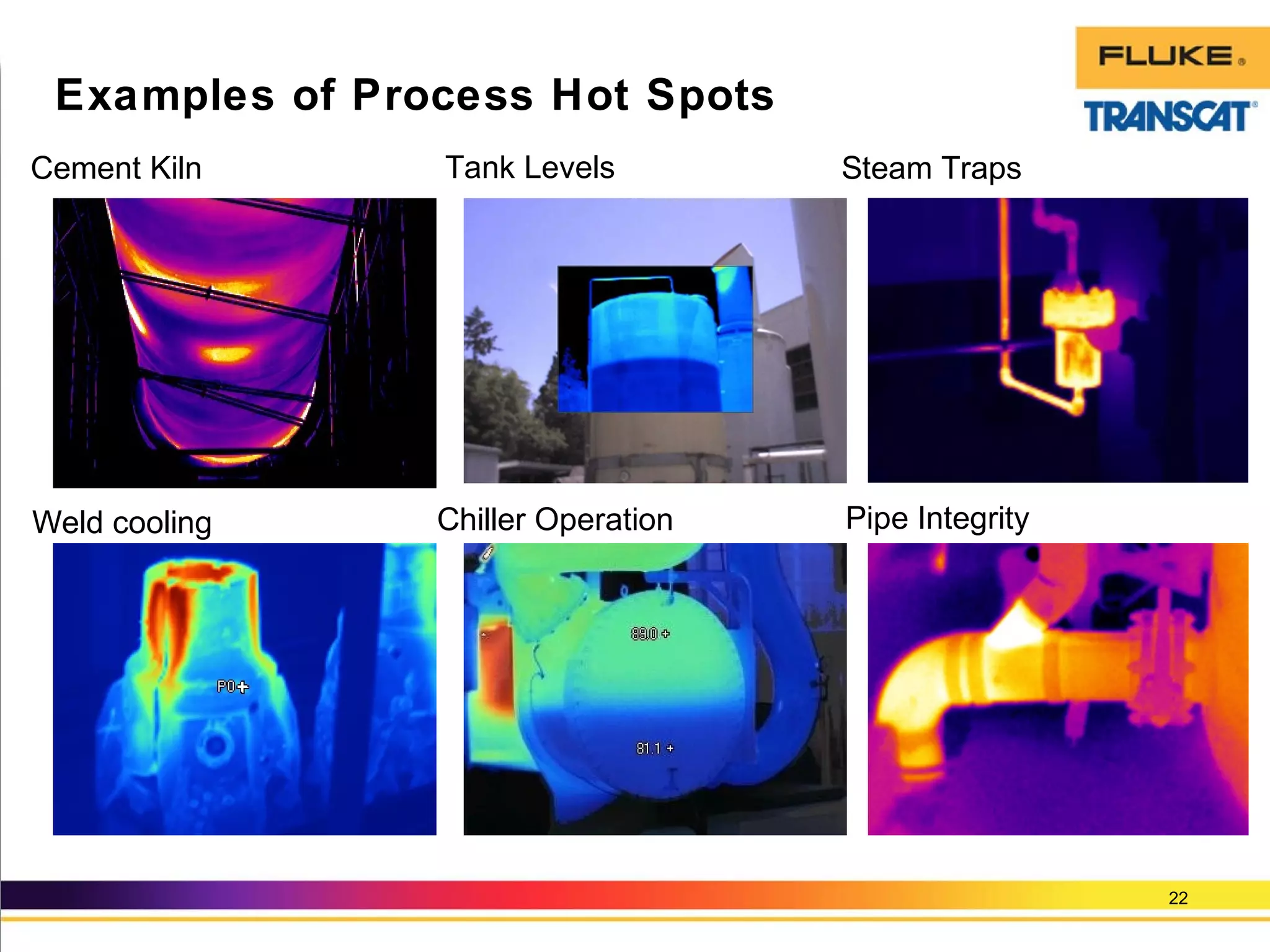

Examples of Process Hot Spots
Weld cooling
Tank Levels
119.7°C
302.2°C
150
200
250
300
Steam TrapsCement Kiln
Pipe IntegrityChiller Operation

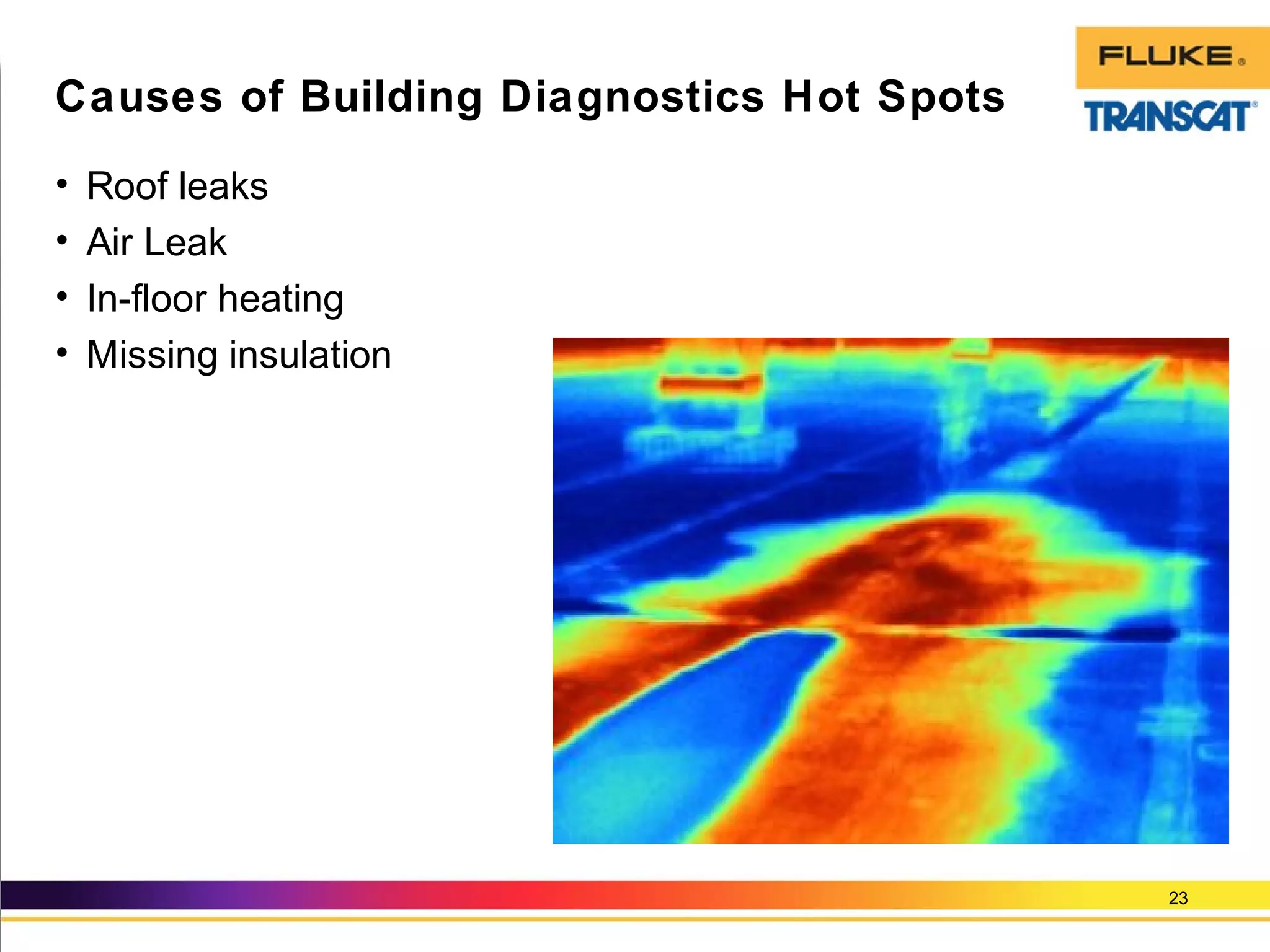

• Roof leaks
• Air Leak
• In-floor heating
• Missing insulation
23
Causes of Building Diagnostics Hot Spots
24

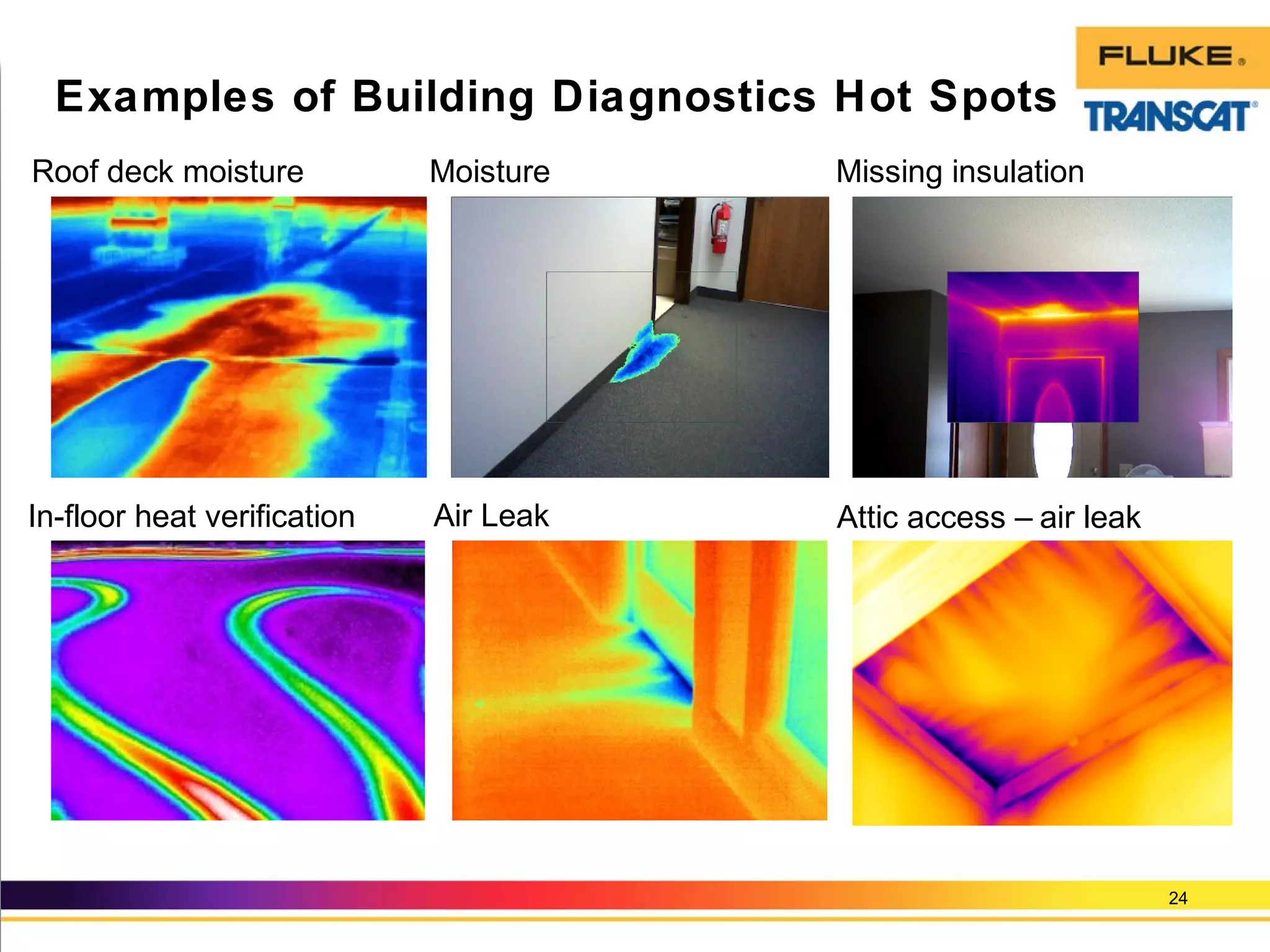

Examples of Building Diagnostics Hot Spots
Roof deck moisture
In-floor heat verification
Missing insulationMoisture
Air Leak Attic access – air leak

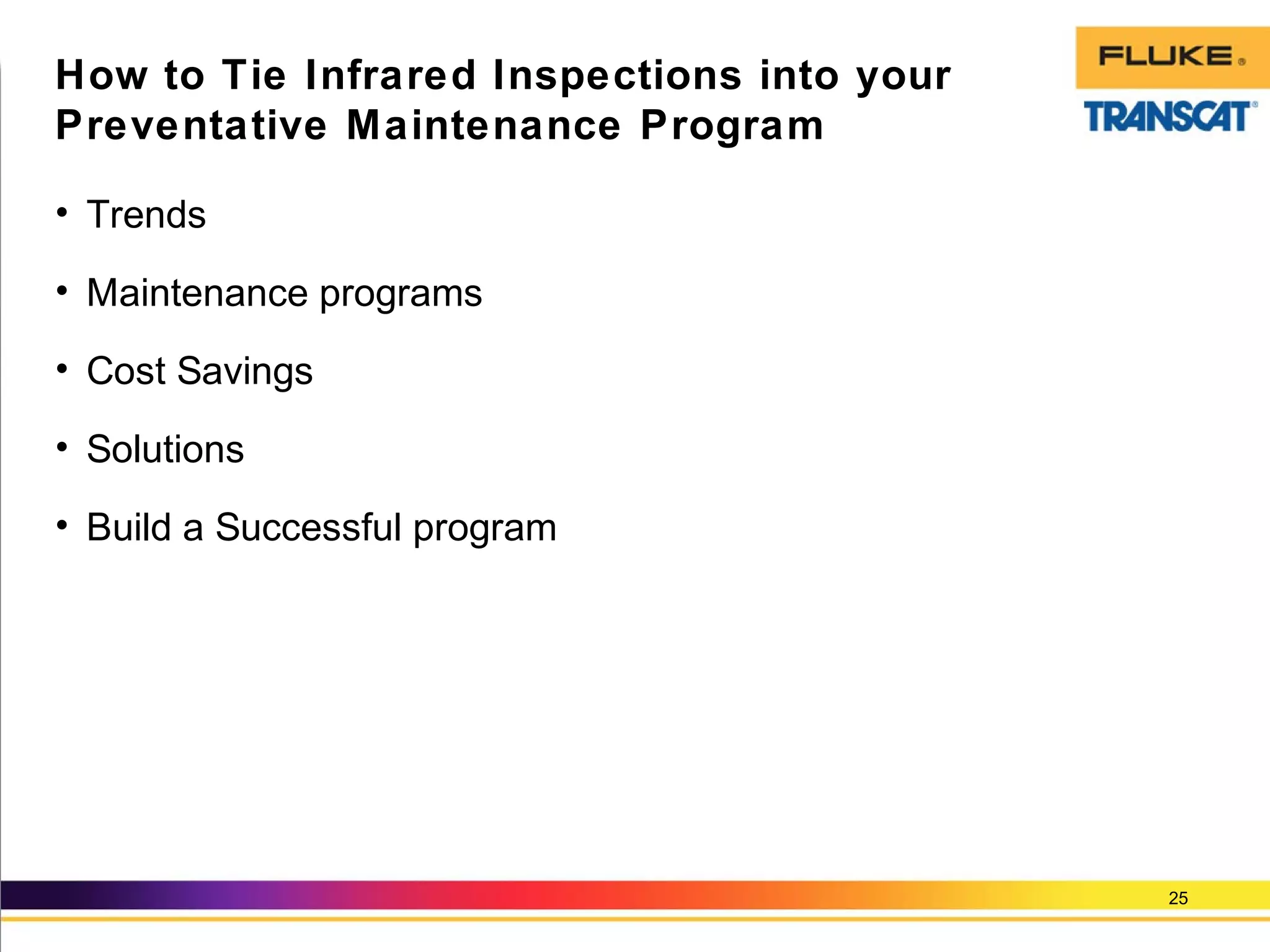

• Trends
• Maintenance programs
• Cost Savings
• Solutions
• Build a Successful program
25
How to Tie Infrared Inspections into your
Preventative Maintenance Program

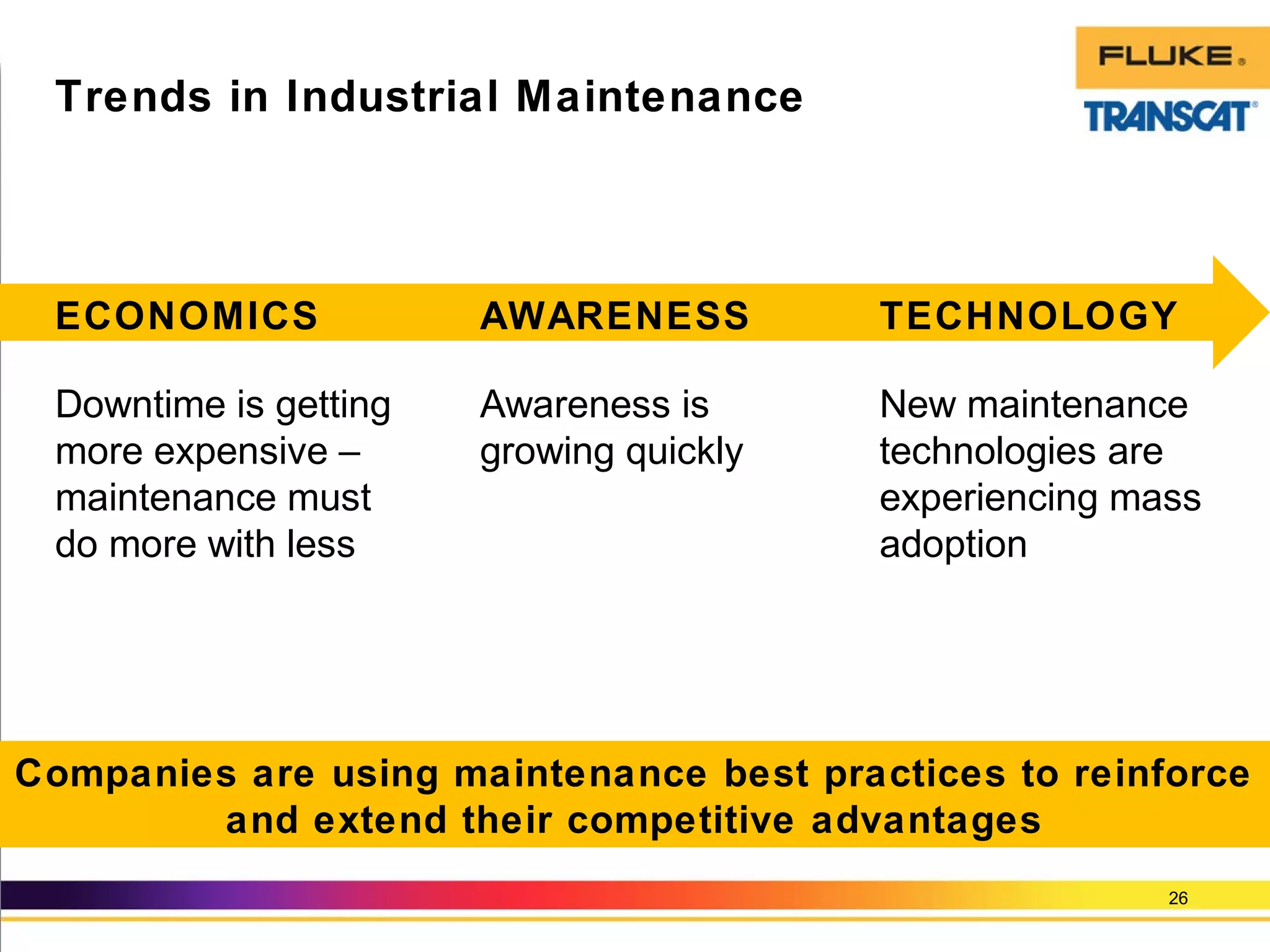

Downtime is getting
more expensive –
maintenance must
do more with less
26
Trends in Industrial Maintenance
Companies are using maintenance best practices to reinforce
and extend their competitive advantages
Awareness is
growing quickly
New maintenance
technologies are
experiencing mass
adoption
ECONOMICS AWARENESS TECHNOLOGY
27

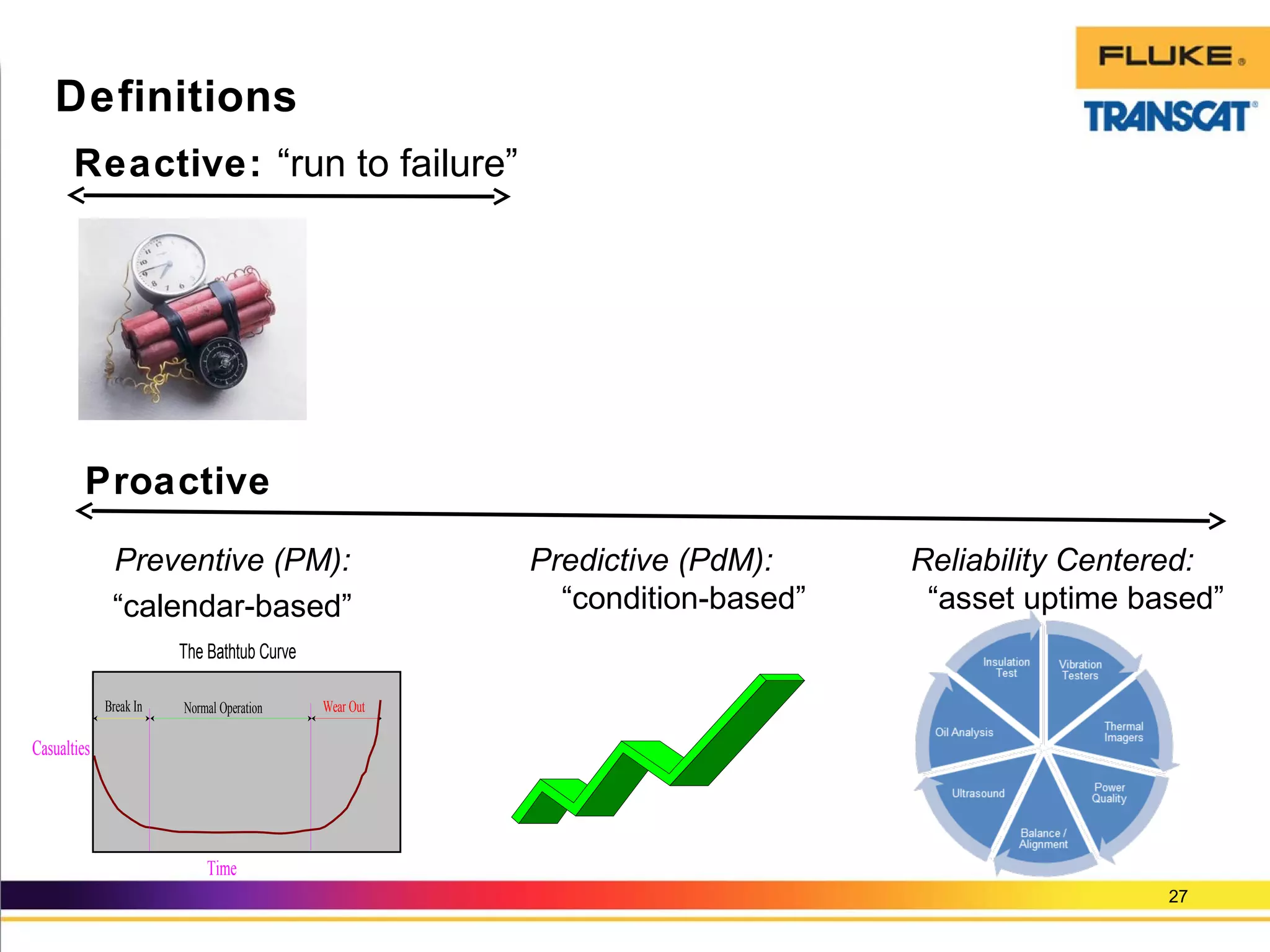

Definitions
Preventive (PM):
“calendar-based”
Predictive (PdM):
“condition-based”
Time
Normal Operation Wear OutBreak In
The Bathtub Curve
Casualties
Reactive: “run to failure”
Proactive
Reliability Centered:
“asset uptime based”

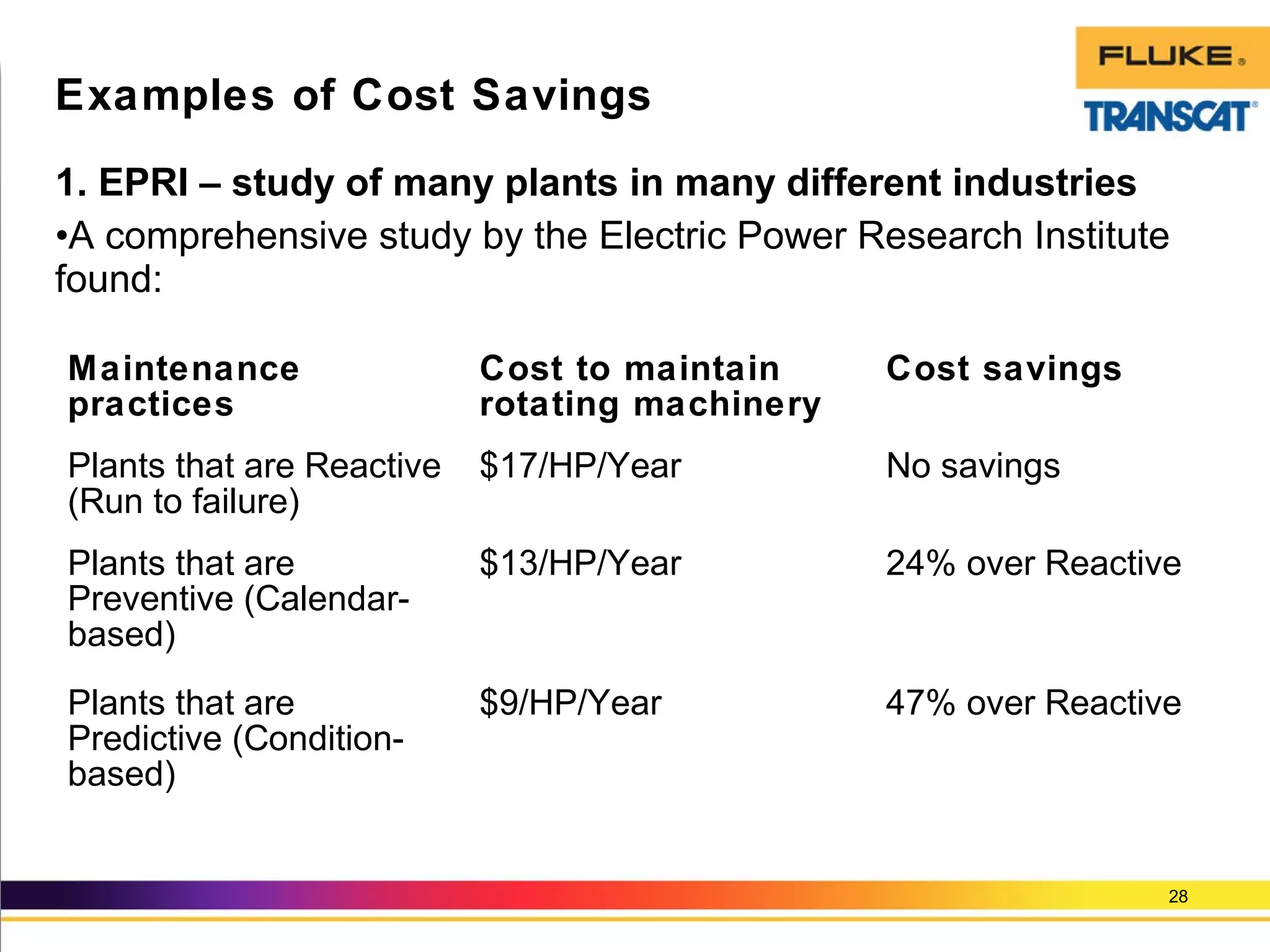

1. EPRI – study of many plants in many different industries
•A comprehensive study by the Electric Power Research Institute
found:
28
Examples of Cost Savings
Maintenance
practices
Cost to maintain
rotating machinery
Cost savings
Plants that are Reactive
(Run to failure)
$17/HP/Year No savings
Plants that are
Preventive (Calendar-
based)
$13/HP/Year 24% over Reactive
Plants that are
Predictive (Condition-
based)
$9/HP/Year 47% over Reactive

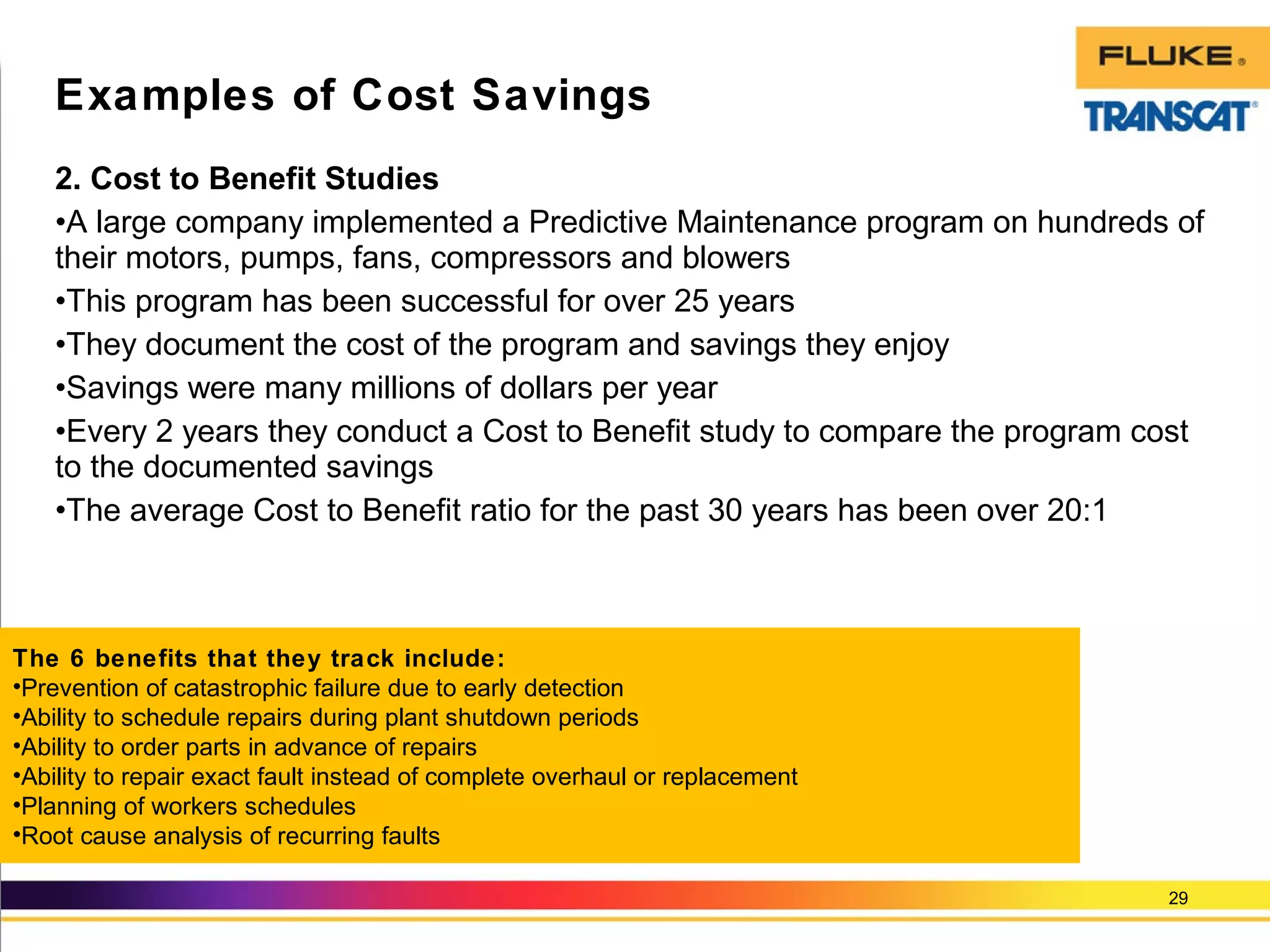

2. Cost to Benefit Studies
•A large company implemented a Predictive Maintenance program on hundreds of
their motors, pumps, fans, compressors and blowers
•This program has been successful for over 25 years
•They document the cost of the program and savings they enjoy
•Savings were many millions of dollars per year
•Every 2 years they conduct a Cost to Benefit study to compare the program cost
to the documented savings
•The average Cost to Benefit ratio for the past 30 years has been over 20:1
29
Examples of Cost Savings
The 6 benefits that they track include:
•Prevention of catastrophic failure due to early detection
•Ability to schedule repairs during plant shutdown periods
•Ability to order parts in advance of repairs
•Ability to repair exact fault instead of complete overhaul or replacement
•Planning of workers schedules
•Root cause analysis of recurring faults

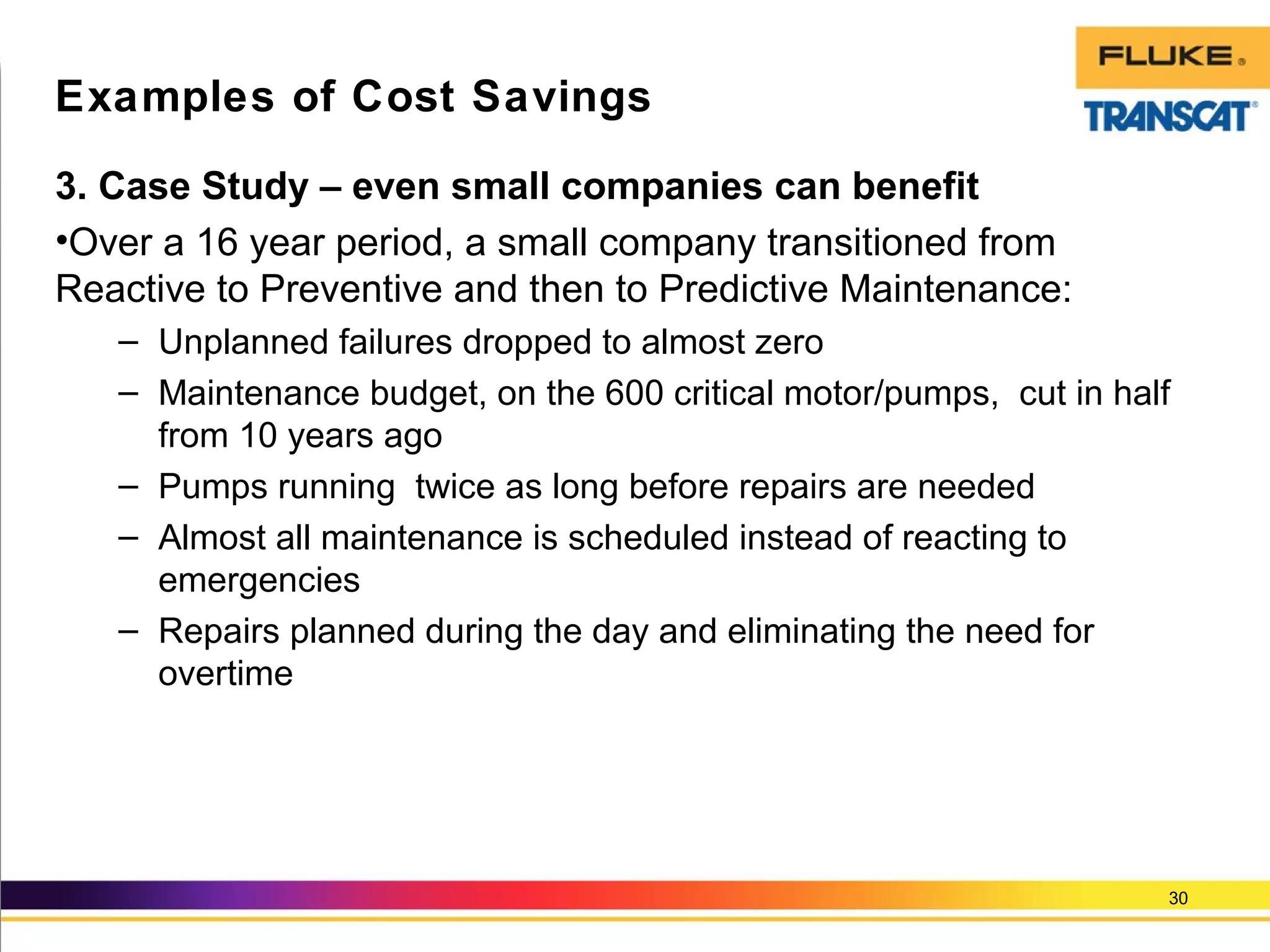

3. Case Study – even small companies can benefit
•Over a 16 year period, a small company transitioned from
Reactive to Preventive and then to Predictive Maintenance:
– Unplanned failures dropped to almost zero
– Maintenance budget, on the 600 critical motor/pumps, cut in half
from 10 years ago
– Pumps running twice as long before repairs are needed
– Almost all maintenance is scheduled instead of reacting to
emergencies
– Repairs planned during the day and eliminating the need for
overtime
30
Examples of Cost Savings

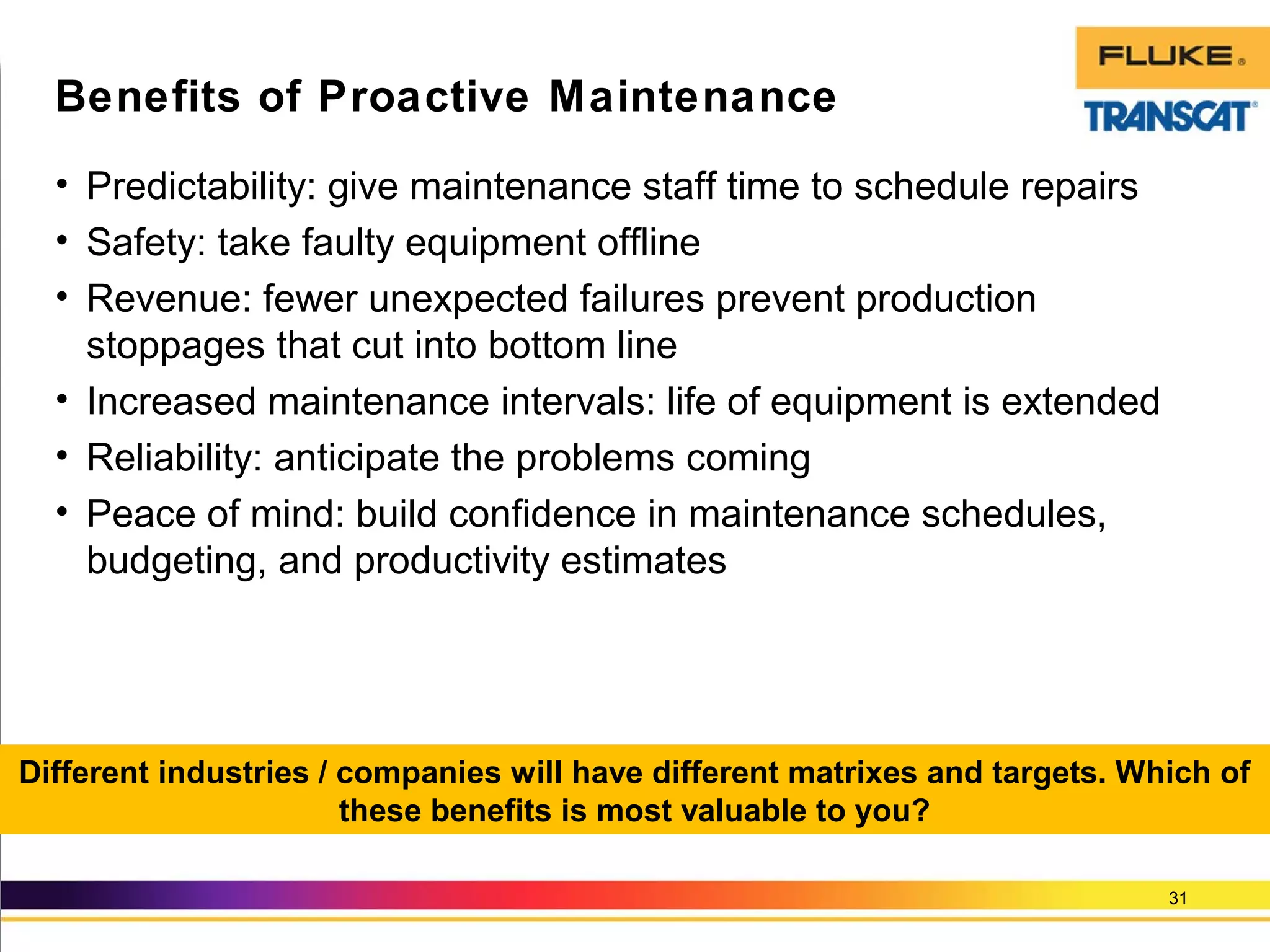

• Predictability: give maintenance staff time to schedule repairs
• Safety: take faulty equipment offline
• Revenue: fewer unexpected failures prevent production
stoppages that cut into bottom line
• Increased maintenance intervals: life of equipment is extended
• Reliability: anticipate the problems coming
• Peace of mind: build confidence in maintenance schedules,
budgeting, and productivity estimates
31
Benefits of Proactive Maintenance
Different industries / companies will have different matrixes and targets. Which of
these benefits is most valuable to you?

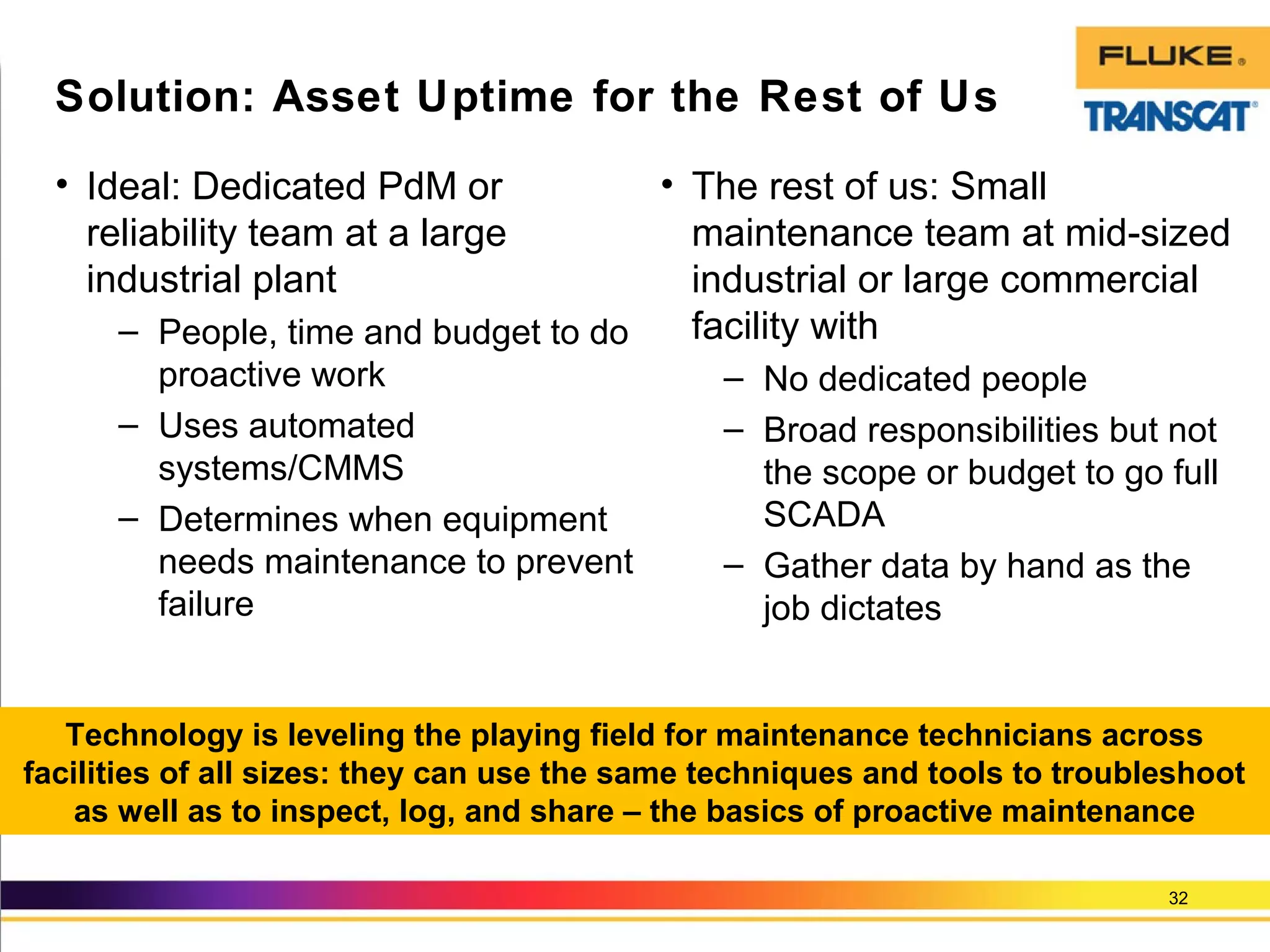

• Ideal: Dedicated PdM or
reliability team at a large
industrial plant
– People, time and budget to do
proactive work
– Uses automated
systems/CMMS
– Determines when equipment
needs maintenance to prevent
failure
32
Solution: Asset Uptime for the Rest of Us
Technology is leveling the playing field for maintenance technicians across
facilities of all sizes: they can use the same techniques and tools to troubleshoot
as well as to inspect, log, and share – the basics of proactive maintenance
• The rest of us: Small
maintenance team at mid-sized
industrial or large commercial
facility with
– No dedicated people
– Broad responsibilities but not
the scope or budget to go full
SCADA
– Gather data by hand as the
job dictates

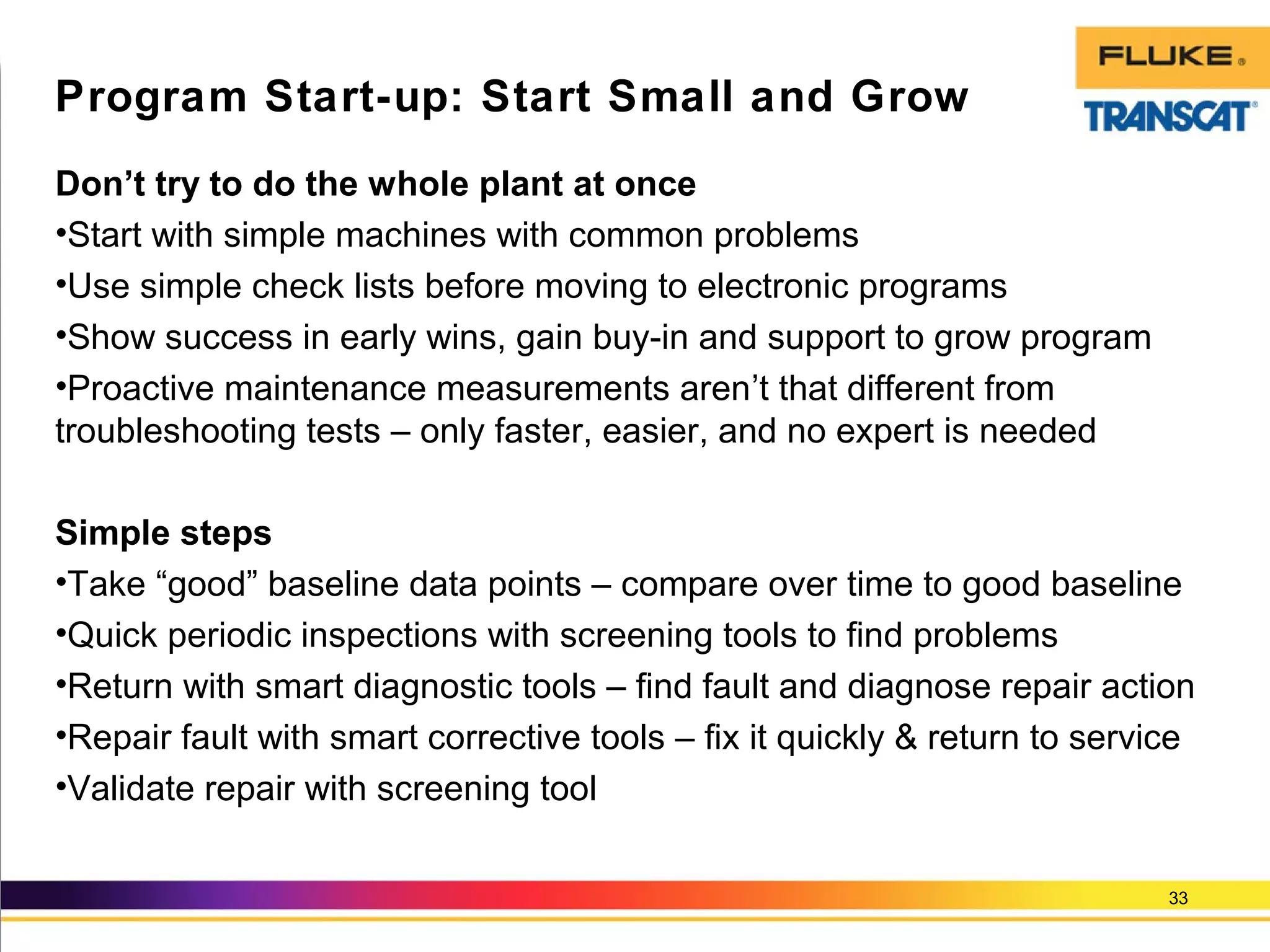

Don’t try to do the whole plant at once
•Start with simple machines with common problems
•Use simple check lists before moving to electronic programs
•Show success in early wins, gain buy-in and support to grow program
•Proactive maintenance measurements aren’t that different from
troubleshooting tests – only faster, easier, and no expert is needed
Simple steps
•Take “good” baseline data points – compare over time to good baseline
•Quick periodic inspections with screening tools to find problems
•Return with smart diagnostic tools – find fault and diagnose repair action
•Repair fault with smart corrective tools – fix it quickly & return to service
•Validate repair with screening tool
33
Program Start-up: Start Small and Grow
34

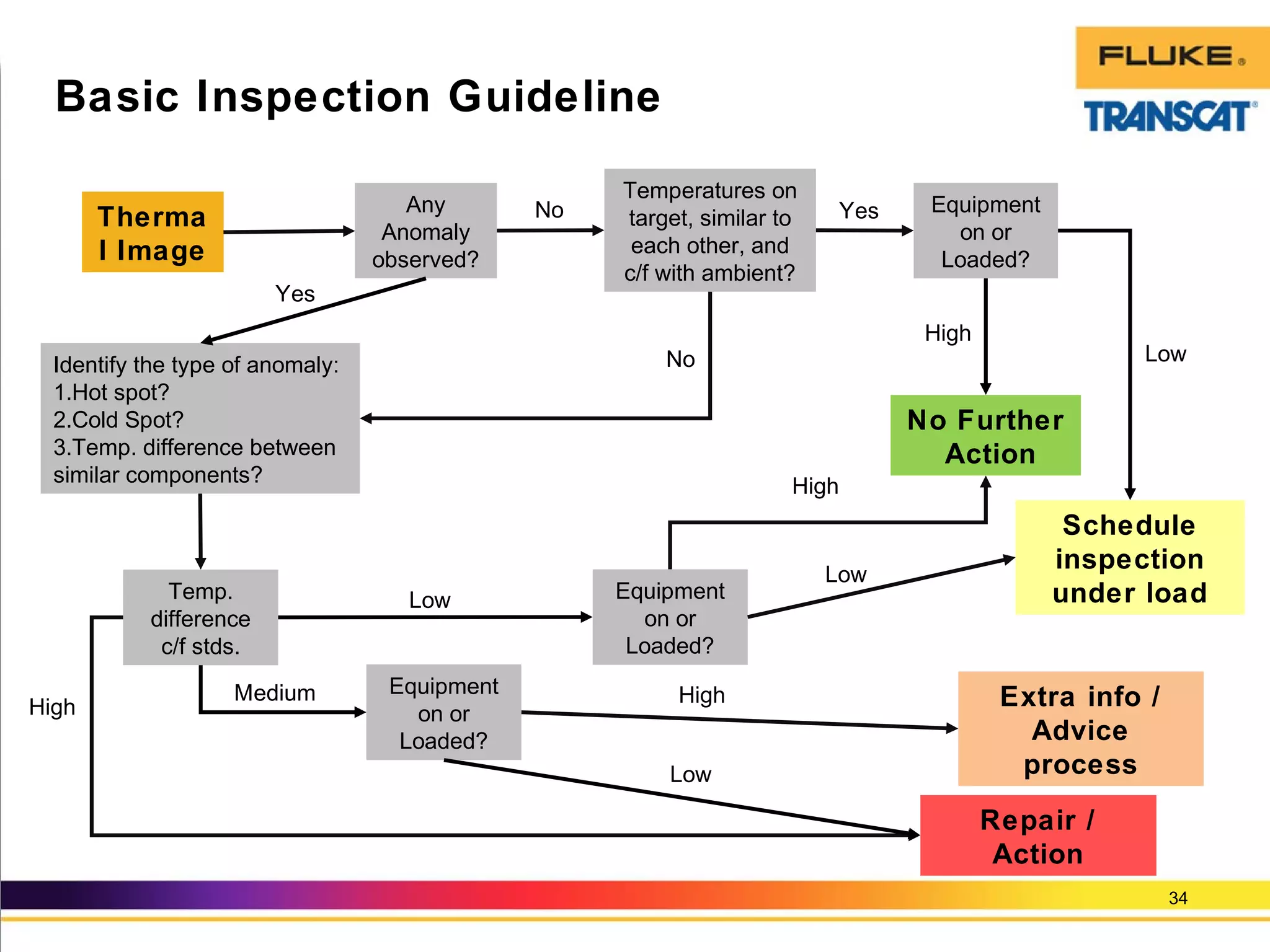

Basic Inspection Guideline
Schedule
inspection
under load
Therma
l Image
Any
Anomaly
observed?
Equipment
on or
Loaded?
Equipment
on or
Loaded?
Equipment
on or
Loaded?
Temperatures on
target, similar to
each other, and
c/f with ambient?
Temp.
difference
c/f stds.
Identify the type of anomaly:
1.Hot spot?
2.Cold Spot?
3.Temp. difference between
similar components?
No Further
Action
Extra info /
Advice
process
Repair /
Action
No
Yes
Yes
No Low
Low
Low
High
High
High
High
Low
Medium
35

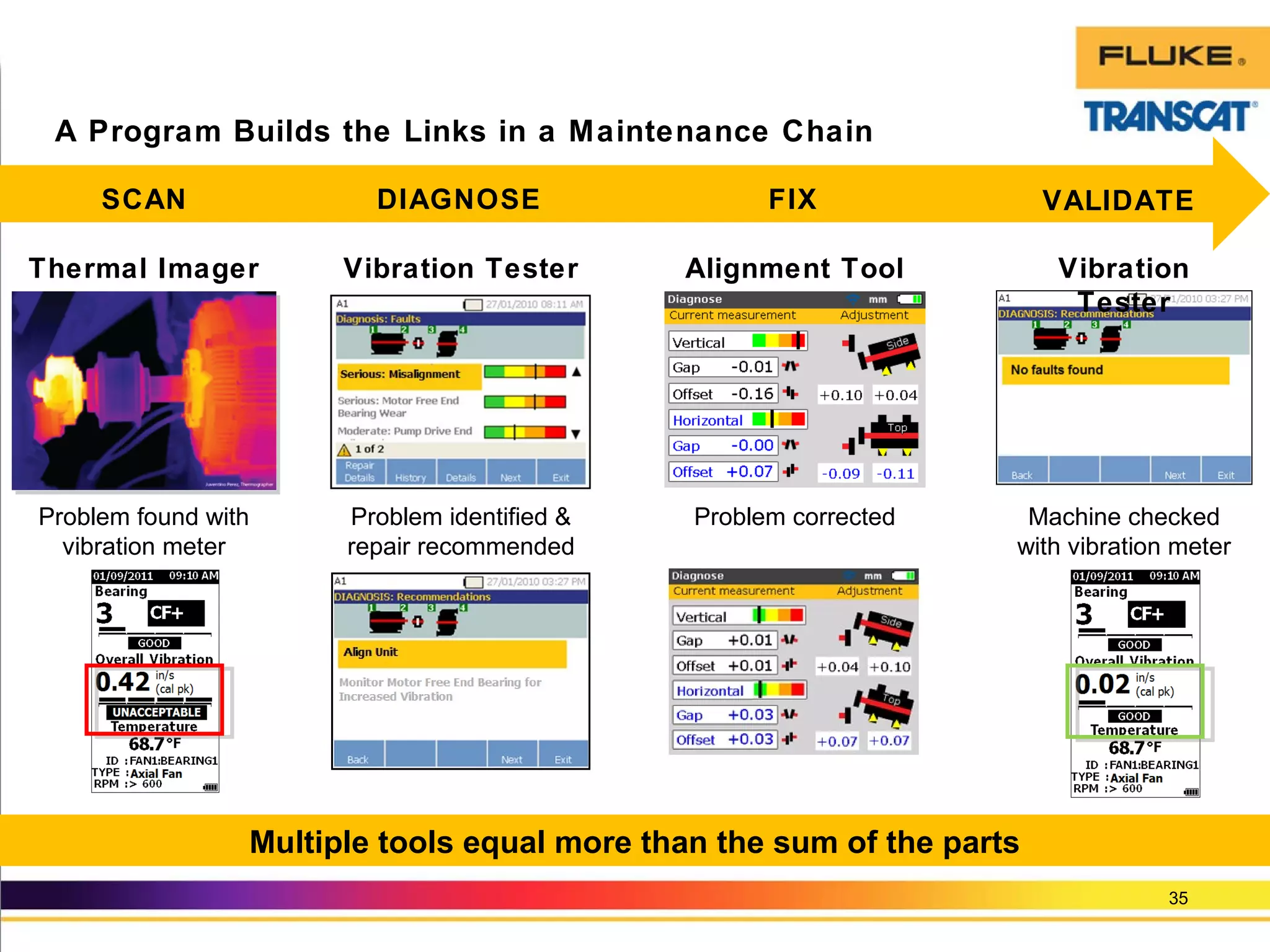

A Program Builds the Links in a Maintenance Chain
Multiple tools equal more than the sum of the parts
Alignment Tool
Problem corrected
Vibration Tester Vibration
Tester
Problem identified &
repair recommended
Machine checked
with vibration meter
Thermal Imager
Problem found with
vibration meter
SCAN DIAGNOSE FIX VALIDATE
36

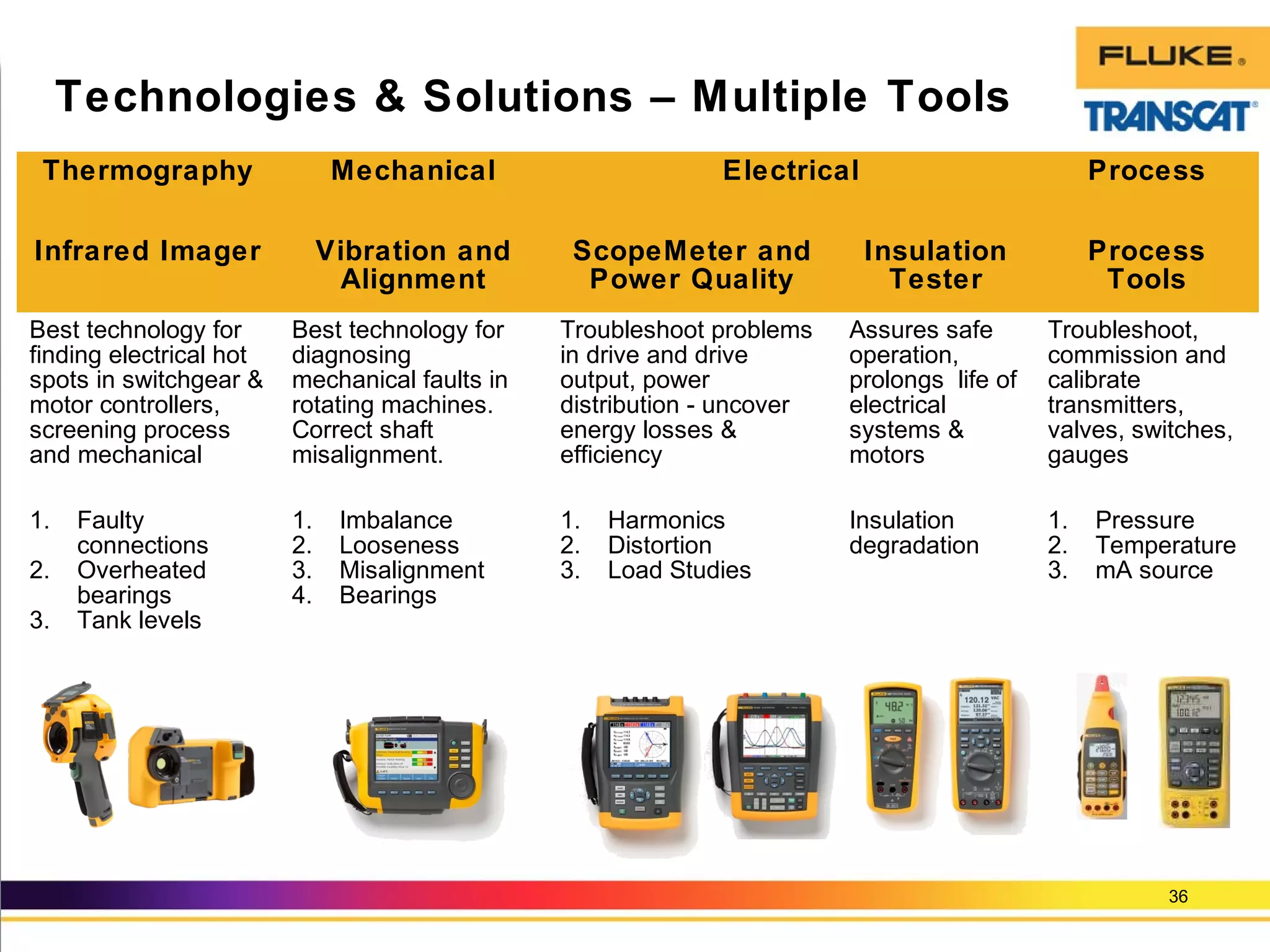

Technologies & Solutions – Multiple Tools
Thermography Mechanical Electrical Process
Infrared Imager Vibration and
Alignment
ScopeMeter and
Power Quality
Insulation
Tester
Process
Tools
Best technology for
finding electrical hot
spots in switchgear &
motor controllers,
screening process
and mechanical
Best technology for
diagnosing
mechanical faults in
rotating machines.
Correct shaft
misalignment.
Troubleshoot problems
in drive and drive
output, power
distribution - uncover
energy losses &
efficiency
Assures safe
operation,
prolongs life of
electrical
systems &
motors
Troubleshoot,
commission and
calibrate
transmitters,
valves, switches,
gauges
1. Faulty
connections
2. Overheated
bearings
3. Tank levels
1. Imbalance
2. Looseness
3. Misalignment
4. Bearings
1. Harmonics
2. Distortion
3. Load Studies
Insulation
degradation
1. Pressure
2. Temperature
3. mA source
• I want to see a camera?
• I want to learn more about thermal imaging?
• I want an IR camera?
• I want to talk about my specific application?
•  We have 2 certified Level I thermographers on staff
– Ben Goodhead
– Susan Garofalo
37
Before we dismiss…
Questions or Comments?
Email Nicole VanWert-Quinzi
nvanwert@Transcat.com
Transcat: 800-800-5001
www.Transcat.com
For related product information, go to:
www.Transcat.com/Fluke

More Related Content

What's hot

Thermal Imaging and its Applications
Thermal Imaging and its ApplicationsThermal Imaging and its Applications
Thermal Imaging and its ApplicationsPriyanka Goswami

Thermographic testing-presentation
Thermographic testing-presentationThermographic testing-presentation
Thermographic testing-presentationPradeep Mahil

How to Maintain Your Temperature Calibration Equipment Webinar
How to Maintain Your Temperature Calibration Equipment WebinarHow to Maintain Your Temperature Calibration Equipment Webinar
How to Maintain Your Temperature Calibration Equipment WebinarTranscat

Automatic mains failure panel 62.5 kva (2)
Automatic mains failure panel 62.5 kva (2)Automatic mains failure panel 62.5 kva (2)
Automatic mains failure panel 62.5 kva (2)latesh sharma

L23 thermography test
L23 thermography testL23 thermography test
L23 thermography testkarthi keyan

Electrical inspect ir sample report
Electrical inspect ir sample reportElectrical inspect ir sample report
Electrical inspect ir sample reportpropertyinspectir

Infrared & Thermal Testing
 Infrared & Thermal Testing Infrared & Thermal Testing
Infrared & Thermal TestingSirat Mahmood

Temperature measurement
Temperature measurementTemperature measurement
Temperature measurementAshvani Shukla

Temperature Sensor Thermocouple and RTD
Temperature Sensor Thermocouple and RTDTemperature Sensor Thermocouple and RTD
Temperature Sensor Thermocouple and RTDrashid09

ROLE OF CONTROL AND INSTRUMENTATION IN THERMAL POWER PLANT
ROLE OF CONTROL AND INSTRUMENTATION IN THERMAL POWER PLANTROLE OF CONTROL AND INSTRUMENTATION IN THERMAL POWER PLANT
ROLE OF CONTROL AND INSTRUMENTATION IN THERMAL POWER PLANTGaurav Rai

Maintenance of electrical machines
Maintenance of electrical machinesMaintenance of electrical machines
Maintenance of electrical machinesAnkit Basera

What is thermography?
What is thermography?What is thermography?
What is thermography?Testo Limited

Measurement & instrumentation ppt
Measurement & instrumentation pptMeasurement & instrumentation ppt
Measurement & instrumentation pptPrabhu R

Grounding,Earthing,Bonding
Grounding,Earthing,BondingGrounding,Earthing,Bonding
Grounding,Earthing,BondingKo Winnwe

Introduction to instrumentation system
Introduction to instrumentation systemIntroduction to instrumentation system
Introduction to instrumentation systemYogesh Kirange


What's hot (20)

Thermal Imaging and its Applications
Thermal Imaging and its ApplicationsThermal Imaging and its Applications
Thermal Imaging and its Applications

Ndtm 3-thermography
Ndtm 3-thermographyNdtm 3-thermography
Ndtm 3-thermography

Thermography services
Thermography services Thermography services
Thermography services

Thermographic testing-presentation
Thermographic testing-presentationThermographic testing-presentation
Thermographic testing-presentation

PYROMETER
PYROMETER PYROMETER
PYROMETER

How to Maintain Your Temperature Calibration Equipment Webinar
How to Maintain Your Temperature Calibration Equipment WebinarHow to Maintain Your Temperature Calibration Equipment Webinar
How to Maintain Your Temperature Calibration Equipment Webinar

Automatic mains failure panel 62.5 kva (2)
Automatic mains failure panel 62.5 kva (2)Automatic mains failure panel 62.5 kva (2)
Automatic mains failure panel 62.5 kva (2)

L23 thermography test
L23 thermography testL23 thermography test
L23 thermography test

Electrical inspect ir sample report
Electrical inspect ir sample reportElectrical inspect ir sample report
Electrical inspect ir sample report

Infrared & Thermal Testing
 Infrared & Thermal Testing Infrared & Thermal Testing
Infrared & Thermal Testing

Temperature measurement
Temperature measurementTemperature measurement
Temperature measurement

Temperature Sensor Thermocouple and RTD
Temperature Sensor Thermocouple and RTDTemperature Sensor Thermocouple and RTD
Temperature Sensor Thermocouple and RTD

ROLE OF CONTROL AND INSTRUMENTATION IN THERMAL POWER PLANT
ROLE OF CONTROL AND INSTRUMENTATION IN THERMAL POWER PLANTROLE OF CONTROL AND INSTRUMENTATION IN THERMAL POWER PLANT
ROLE OF CONTROL AND INSTRUMENTATION IN THERMAL POWER PLANT

Ir thermography
Ir thermographyIr thermography
Ir thermography

Oxygen Analyzer
Oxygen AnalyzerOxygen Analyzer
Oxygen Analyzer

Maintenance of electrical machines
Maintenance of electrical machinesMaintenance of electrical machines
Maintenance of electrical machines

What is thermography?
What is thermography?What is thermography?
What is thermography?

Measurement & instrumentation ppt
Measurement & instrumentation pptMeasurement & instrumentation ppt
Measurement & instrumentation ppt

Grounding,Earthing,Bonding
Grounding,Earthing,BondingGrounding,Earthing,Bonding
Grounding,Earthing,Bonding

Introduction to instrumentation system
Introduction to instrumentation systemIntroduction to instrumentation system
Introduction to instrumentation system


Similar to Thermal Imaging in your Maintenance Program: Intermediate Infrared Concepts and Best Practices

Predictive Maintenance Best Practices Presented by Fluke.pptx
Predictive Maintenance Best Practices Presented by Fluke.pptxPredictive Maintenance Best Practices Presented by Fluke.pptx
Predictive Maintenance Best Practices Presented by Fluke.pptxTranscat

esci-61-pv-system-design-and-sizing-slides.pdf
esci-61-pv-system-design-and-sizing-slides.pdfesci-61-pv-system-design-and-sizing-slides.pdf
esci-61-pv-system-design-and-sizing-slides.pdfRiazAhmad205274

Energy Systems & Maintenance - Class Presentation
Energy Systems & Maintenance - Class PresentationEnergy Systems & Maintenance - Class Presentation
Energy Systems & Maintenance - Class PresentationTahaUzair2

Air conditioning if its not clean - its not green - ACT smart 4th sept 2014
Air conditioning   if its not clean - its not green - ACT smart 4th sept 2014Air conditioning   if its not clean - its not green - ACT smart 4th sept 2014
Air conditioning if its not clean - its not green - ACT smart 4th sept 2014Phil Wilkinson F.AIRAH F.IEAust M.ASHRAE

2015 x472 class 10 - lcca
2015 x472 class 10 - lcca2015 x472 class 10 - lcca
2015 x472 class 10 - lccamichaeljmack

Systemcare in computer
Systemcare in computer Systemcare in computer
Systemcare in computer suraj pandey

Thermal imager fluke infrared camera Application
Thermal imager fluke infrared camera ApplicationThermal imager fluke infrared camera Application
Thermal imager fluke infrared camera Applicationchinni praveen kumar

Fluke and Transcat Webinar: Turning Power Quality Measurements Into Actionabl...
Fluke and Transcat Webinar: Turning Power Quality Measurements Into Actionabl...Fluke and Transcat Webinar: Turning Power Quality Measurements Into Actionabl...
Fluke and Transcat Webinar: Turning Power Quality Measurements Into Actionabl...Transcat Design

S lab 2014 eeco2 tel - presentation
S lab 2014 eeco2 tel - presentationS lab 2014 eeco2 tel - presentation
S lab 2014 eeco2 tel - presentationEECO2

Aged Data Center Infrastructure.pptx
Aged Data Center Infrastructure.pptxAged Data Center Infrastructure.pptx
Aged Data Center Infrastructure.pptxSchneider Electric

Whole Building Modeling Using OpenStudio
Whole Building Modeling Using OpenStudioWhole Building Modeling Using OpenStudio
Whole Building Modeling Using OpenStudioenergytrustor

Utilizing Analytics to Drive Change in Buildings - Apem Sept 18 2015
Utilizing Analytics to Drive Change in Buildings - Apem Sept 18 2015Utilizing Analytics to Drive Change in Buildings - Apem Sept 18 2015
Utilizing Analytics to Drive Change in Buildings - Apem Sept 18 2015buildpulse

Energy Efficient Server Rooms at the University of Cambridge
Energy Efficient Server Rooms at the University of CambridgeEnergy Efficient Server Rooms at the University of Cambridge
Energy Efficient Server Rooms at the University of CambridgeJISC's Green ICT Programme

business case in green computing
business case in green computingbusiness case in green computing
business case in green computingRAHUL SINHA

Clarifying ASHRAE's Recommended Vs. Allowable Temperature Envelopes and How t...
Clarifying ASHRAE's Recommended Vs. Allowable Temperature Envelopes and How t...Clarifying ASHRAE's Recommended Vs. Allowable Temperature Envelopes and How t...
Clarifying ASHRAE's Recommended Vs. Allowable Temperature Envelopes and How t...Upsite Technologies


Similar to Thermal Imaging in your Maintenance Program: Intermediate Infrared Concepts and Best Practices (20)

Predictive Maintenance Best Practices Presented by Fluke.pptx
Predictive Maintenance Best Practices Presented by Fluke.pptxPredictive Maintenance Best Practices Presented by Fluke.pptx
Predictive Maintenance Best Practices Presented by Fluke.pptx

esci-61-pv-system-design-and-sizing-slides.pdf
esci-61-pv-system-design-and-sizing-slides.pdfesci-61-pv-system-design-and-sizing-slides.pdf
esci-61-pv-system-design-and-sizing-slides.pdf

Energy Systems & Maintenance - Class Presentation
Energy Systems & Maintenance - Class PresentationEnergy Systems & Maintenance - Class Presentation
Energy Systems & Maintenance - Class Presentation

Air conditioning if its not clean - its not green - ACT smart 4th sept 2014
Air conditioning   if its not clean - its not green - ACT smart 4th sept 2014Air conditioning   if its not clean - its not green - ACT smart 4th sept 2014
Air conditioning if its not clean - its not green - ACT smart 4th sept 2014

2015 x472 class 10 - lcca
2015 x472 class 10 - lcca2015 x472 class 10 - lcca
2015 x472 class 10 - lcca

Meter Operations During and After AMI Deployment
Meter Operations During and After AMI DeploymentMeter Operations During and After AMI Deployment
Meter Operations During and After AMI Deployment

Systemcare in computer
Systemcare in computer Systemcare in computer
Systemcare in computer

Thermal imager fluke infrared camera Application
Thermal imager fluke infrared camera ApplicationThermal imager fluke infrared camera Application
Thermal imager fluke infrared camera Application

Final ABET Presentation
Final ABET PresentationFinal ABET Presentation
Final ABET Presentation

Fluke and Transcat Webinar: Turning Power Quality Measurements Into Actionabl...
Fluke and Transcat Webinar: Turning Power Quality Measurements Into Actionabl...Fluke and Transcat Webinar: Turning Power Quality Measurements Into Actionabl...
Fluke and Transcat Webinar: Turning Power Quality Measurements Into Actionabl...

S lab 2014 eeco2 tel - presentation
S lab 2014 eeco2 tel - presentationS lab 2014 eeco2 tel - presentation
S lab 2014 eeco2 tel - presentation

Aged Data Center Infrastructure.pptx
Aged Data Center Infrastructure.pptxAged Data Center Infrastructure.pptx
Aged Data Center Infrastructure.pptx

ECNC 2016 - Managing Meter Shops of the Future
ECNC 2016 - Managing Meter Shops of the FutureECNC 2016 - Managing Meter Shops of the Future
ECNC 2016 - Managing Meter Shops of the Future

Whole Building Modeling Using OpenStudio
Whole Building Modeling Using OpenStudioWhole Building Modeling Using OpenStudio
Whole Building Modeling Using OpenStudio

Utilizing Analytics to Drive Change in Buildings - Apem Sept 18 2015
Utilizing Analytics to Drive Change in Buildings - Apem Sept 18 2015Utilizing Analytics to Drive Change in Buildings - Apem Sept 18 2015
Utilizing Analytics to Drive Change in Buildings - Apem Sept 18 2015

Energy Efficient Server Rooms at the University of Cambridge
Energy Efficient Server Rooms at the University of CambridgeEnergy Efficient Server Rooms at the University of Cambridge
Energy Efficient Server Rooms at the University of Cambridge

2.1 cControl systems
2.1 cControl systems2.1 cControl systems
2.1 cControl systems

business case in green computing
business case in green computingbusiness case in green computing
business case in green computing

Cold-Climate Research Round-Up
Cold-Climate Research Round-UpCold-Climate Research Round-Up
Cold-Climate Research Round-Up

Clarifying ASHRAE's Recommended Vs. Allowable Temperature Envelopes and How t...
Clarifying ASHRAE's Recommended Vs. Allowable Temperature Envelopes and How t...Clarifying ASHRAE's Recommended Vs. Allowable Temperature Envelopes and How t...
Clarifying ASHRAE's Recommended Vs. Allowable Temperature Envelopes and How t...


More from Transcat

Managing Instrument Calibration and Maintenance Presented by Fluke.pptx
Managing Instrument Calibration and Maintenance Presented by Fluke.pptxManaging Instrument Calibration and Maintenance Presented by Fluke.pptx
Managing Instrument Calibration and Maintenance Presented by Fluke.pptxTranscat

Tools and Techniques for Commissioning and Maintaining PV Systems
Tools and Techniques for Commissioning and Maintaining PV SystemsTools and Techniques for Commissioning and Maintaining PV Systems
Tools and Techniques for Commissioning and Maintaining PV SystemsTranscat

Use of a Druck Pressure Calibrator as a Trouble Shooting Tool Presented by Druck
Use of a Druck Pressure Calibrator as a Trouble Shooting Tool Presented by DruckUse of a Druck Pressure Calibrator as a Trouble Shooting Tool Presented by Druck
Use of a Druck Pressure Calibrator as a Trouble Shooting Tool Presented by DruckTranscat

Electrical Measurement Safety and Best Practices Webinar Presented by Fluke
Electrical Measurement Safety and Best Practices Webinar Presented by FlukeElectrical Measurement Safety and Best Practices Webinar Presented by Fluke
Electrical Measurement Safety and Best Practices Webinar Presented by FlukeTranscat

Solar Market Opportunities & Solutions - Presented by Fluke
Solar Market Opportunities & Solutions - Presented by FlukeSolar Market Opportunities & Solutions - Presented by Fluke
Solar Market Opportunities & Solutions - Presented by FlukeTranscat

Pinpoint the leading causes of downtime with LinkIQ Cable and Network Tester
Pinpoint the leading causes of downtime with LinkIQ Cable and Network TesterPinpoint the leading causes of downtime with LinkIQ Cable and Network Tester
Pinpoint the leading causes of downtime with LinkIQ Cable and Network TesterTranscat

Identifying Energy Waste in your Plant/Facility Webinar with Fluke
Identifying Energy Waste in your Plant/Facility Webinar with FlukeIdentifying Energy Waste in your Plant/Facility Webinar with Fluke
Identifying Energy Waste in your Plant/Facility Webinar with FlukeTranscat

Principals of Low Resistance Testing Webinar with Megger
Principals of Low Resistance Testing Webinar with MeggerPrincipals of Low Resistance Testing Webinar with Megger
Principals of Low Resistance Testing Webinar with MeggerTranscat

Leak Detection & Predictive/Preventative Maintenance Solutions Presented by FLIR
Leak Detection & Predictive/Preventative Maintenance Solutions Presented by FLIRLeak Detection & Predictive/Preventative Maintenance Solutions Presented by FLIR
Leak Detection & Predictive/Preventative Maintenance Solutions Presented by FLIRTranscat

Elevated Body Temperature Measurement with IR Thermometers and TI Cameras Web...
Elevated Body Temperature Measurement with IR Thermometers and TI Cameras Web...Elevated Body Temperature Measurement with IR Thermometers and TI Cameras Web...
Elevated Body Temperature Measurement with IR Thermometers and TI Cameras Web...Transcat

Field Pressure Calibration Tips Webinar with Fluke Calibration
Field Pressure Calibration Tips Webinar with Fluke CalibrationField Pressure Calibration Tips Webinar with Fluke Calibration
Field Pressure Calibration Tips Webinar with Fluke CalibrationTranscat

Temperature Screening Solutions and Returning to Work Safely Webinar with Ame...
Temperature Screening Solutions and Returning to Work Safely Webinar with Ame...Temperature Screening Solutions and Returning to Work Safely Webinar with Ame...
Temperature Screening Solutions and Returning to Work Safely Webinar with Ame...Transcat

Using a Portable Bath to Improve Calibration of Sanitary RTD's and Transmitte...
Using a Portable Bath to Improve Calibration of Sanitary RTD's and Transmitte...Using a Portable Bath to Improve Calibration of Sanitary RTD's and Transmitte...
Using a Portable Bath to Improve Calibration of Sanitary RTD's and Transmitte...Transcat

Elevated Skin Temperature Screening Solutions – How to Get Back to Work Safel...
Elevated Skin Temperature Screening Solutions – How to Get Back to Work Safel...Elevated Skin Temperature Screening Solutions – How to Get Back to Work Safel...
Elevated Skin Temperature Screening Solutions – How to Get Back to Work Safel...Transcat

Elevated Skin Temperature Screening - How to Get Back to Work Safely with FLIR
Elevated Skin Temperature Screening - How to Get Back to Work Safely with FLIRElevated Skin Temperature Screening - How to Get Back to Work Safely with FLIR
Elevated Skin Temperature Screening - How to Get Back to Work Safely with FLIRTranscat

Overhead & Underground Electric Safety Webinar Presented by Amprobe
Overhead & Underground Electric Safety Webinar Presented by AmprobeOverhead & Underground Electric Safety Webinar Presented by Amprobe
Overhead & Underground Electric Safety Webinar Presented by AmprobeTranscat

Tips for Calibrating Analog Pressure Gauges Webinar Presented by Fluke Calibr...
Tips for Calibrating Analog Pressure Gauges Webinar Presented by Fluke Calibr...Tips for Calibrating Analog Pressure Gauges Webinar Presented by Fluke Calibr...
Tips for Calibrating Analog Pressure Gauges Webinar Presented by Fluke Calibr...Transcat

Blind Spots of Low Voltage Testing Webinar Presented by Megger Baker
Blind Spots of Low Voltage Testing Webinar Presented by Megger BakerBlind Spots of Low Voltage Testing Webinar Presented by Megger Baker
Blind Spots of Low Voltage Testing Webinar Presented by Megger BakerTranscat

Introduction to Temperature Measurement and Calibration Presented by Fluke Ca...
Introduction to Temperature Measurement and Calibration Presented by Fluke Ca...Introduction to Temperature Measurement and Calibration Presented by Fluke Ca...
Introduction to Temperature Measurement and Calibration Presented by Fluke Ca...Transcat

How to Calibrate an IR Thermometer Webinar Presented by Fluke Calibration
How to Calibrate an IR Thermometer Webinar Presented by Fluke CalibrationHow to Calibrate an IR Thermometer Webinar Presented by Fluke Calibration
How to Calibrate an IR Thermometer Webinar Presented by Fluke CalibrationTranscat


More from Transcat (20)

Managing Instrument Calibration and Maintenance Presented by Fluke.pptx
Managing Instrument Calibration and Maintenance Presented by Fluke.pptxManaging Instrument Calibration and Maintenance Presented by Fluke.pptx
Managing Instrument Calibration and Maintenance Presented by Fluke.pptx

Tools and Techniques for Commissioning and Maintaining PV Systems
Tools and Techniques for Commissioning and Maintaining PV SystemsTools and Techniques for Commissioning and Maintaining PV Systems
Tools and Techniques for Commissioning and Maintaining PV Systems

Use of a Druck Pressure Calibrator as a Trouble Shooting Tool Presented by Druck
Use of a Druck Pressure Calibrator as a Trouble Shooting Tool Presented by DruckUse of a Druck Pressure Calibrator as a Trouble Shooting Tool Presented by Druck
Use of a Druck Pressure Calibrator as a Trouble Shooting Tool Presented by Druck

Electrical Measurement Safety and Best Practices Webinar Presented by Fluke
Electrical Measurement Safety and Best Practices Webinar Presented by FlukeElectrical Measurement Safety and Best Practices Webinar Presented by Fluke
Electrical Measurement Safety and Best Practices Webinar Presented by Fluke

Solar Market Opportunities & Solutions - Presented by Fluke
Solar Market Opportunities & Solutions - Presented by FlukeSolar Market Opportunities & Solutions - Presented by Fluke
Solar Market Opportunities & Solutions - Presented by Fluke

Pinpoint the leading causes of downtime with LinkIQ Cable and Network Tester
Pinpoint the leading causes of downtime with LinkIQ Cable and Network TesterPinpoint the leading causes of downtime with LinkIQ Cable and Network Tester
Pinpoint the leading causes of downtime with LinkIQ Cable and Network Tester

Identifying Energy Waste in your Plant/Facility Webinar with Fluke
Identifying Energy Waste in your Plant/Facility Webinar with FlukeIdentifying Energy Waste in your Plant/Facility Webinar with Fluke
Identifying Energy Waste in your Plant/Facility Webinar with Fluke

Principals of Low Resistance Testing Webinar with Megger
Principals of Low Resistance Testing Webinar with MeggerPrincipals of Low Resistance Testing Webinar with Megger
Principals of Low Resistance Testing Webinar with Megger

Leak Detection & Predictive/Preventative Maintenance Solutions Presented by FLIR
Leak Detection & Predictive/Preventative Maintenance Solutions Presented by FLIRLeak Detection & Predictive/Preventative Maintenance Solutions Presented by FLIR
Leak Detection & Predictive/Preventative Maintenance Solutions Presented by FLIR

Elevated Body Temperature Measurement with IR Thermometers and TI Cameras Web...
Elevated Body Temperature Measurement with IR Thermometers and TI Cameras Web...Elevated Body Temperature Measurement with IR Thermometers and TI Cameras Web...
Elevated Body Temperature Measurement with IR Thermometers and TI Cameras Web...

Field Pressure Calibration Tips Webinar with Fluke Calibration
Field Pressure Calibration Tips Webinar with Fluke CalibrationField Pressure Calibration Tips Webinar with Fluke Calibration
Field Pressure Calibration Tips Webinar with Fluke Calibration

Temperature Screening Solutions and Returning to Work Safely Webinar with Ame...
Temperature Screening Solutions and Returning to Work Safely Webinar with Ame...Temperature Screening Solutions and Returning to Work Safely Webinar with Ame...
Temperature Screening Solutions and Returning to Work Safely Webinar with Ame...

Using a Portable Bath to Improve Calibration of Sanitary RTD's and Transmitte...
Using a Portable Bath to Improve Calibration of Sanitary RTD's and Transmitte...Using a Portable Bath to Improve Calibration of Sanitary RTD's and Transmitte...
Using a Portable Bath to Improve Calibration of Sanitary RTD's and Transmitte...

Elevated Skin Temperature Screening Solutions – How to Get Back to Work Safel...
Elevated Skin Temperature Screening Solutions – How to Get Back to Work Safel...Elevated Skin Temperature Screening Solutions – How to Get Back to Work Safel...
Elevated Skin Temperature Screening Solutions – How to Get Back to Work Safel...

Elevated Skin Temperature Screening - How to Get Back to Work Safely with FLIR
Elevated Skin Temperature Screening - How to Get Back to Work Safely with FLIRElevated Skin Temperature Screening - How to Get Back to Work Safely with FLIR
Elevated Skin Temperature Screening - How to Get Back to Work Safely with FLIR

Overhead & Underground Electric Safety Webinar Presented by Amprobe
Overhead & Underground Electric Safety Webinar Presented by AmprobeOverhead & Underground Electric Safety Webinar Presented by Amprobe
Overhead & Underground Electric Safety Webinar Presented by Amprobe

Tips for Calibrating Analog Pressure Gauges Webinar Presented by Fluke Calibr...
Tips for Calibrating Analog Pressure Gauges Webinar Presented by Fluke Calibr...Tips for Calibrating Analog Pressure Gauges Webinar Presented by Fluke Calibr...
Tips for Calibrating Analog Pressure Gauges Webinar Presented by Fluke Calibr...

Blind Spots of Low Voltage Testing Webinar Presented by Megger Baker
Blind Spots of Low Voltage Testing Webinar Presented by Megger BakerBlind Spots of Low Voltage Testing Webinar Presented by Megger Baker
Blind Spots of Low Voltage Testing Webinar Presented by Megger Baker

Introduction to Temperature Measurement and Calibration Presented by Fluke Ca...
Introduction to Temperature Measurement and Calibration Presented by Fluke Ca...Introduction to Temperature Measurement and Calibration Presented by Fluke Ca...
Introduction to Temperature Measurement and Calibration Presented by Fluke Ca...

How to Calibrate an IR Thermometer Webinar Presented by Fluke Calibration
How to Calibrate an IR Thermometer Webinar Presented by Fluke CalibrationHow to Calibrate an IR Thermometer Webinar Presented by Fluke Calibration
How to Calibrate an IR Thermometer Webinar Presented by Fluke Calibration


Recently uploaded

Secure Key Crypto - Tech Paper JET Tech Labs
Secure Key Crypto - Tech Paper JET Tech LabsSecure Key Crypto - Tech Paper JET Tech Labs
Secure Key Crypto - Tech Paper JET Tech Labsamber724300

Substation Automation SCADA and Gateway Solutions by BRH
Substation Automation SCADA and Gateway Solutions by BRHSubstation Automation SCADA and Gateway Solutions by BRH
Substation Automation SCADA and Gateway Solutions by BRHbirinder2

Road Development plans of India-Transportation Engineering
Road Development plans of India-Transportation EngineeringRoad Development plans of India-Transportation Engineering
Road Development plans of India-Transportation EngineeringSayli Madhale

Design and Analysis of Algorithms Lecture Notes
Design and Analysis of Algorithms Lecture NotesDesign and Analysis of Algorithms Lecture Notes
Design and Analysis of Algorithms Lecture NotesSreedhar Chowdam

Robotics Group 10 (Control Schemes) cse.pdf
Robotics Group 10  (Control Schemes) cse.pdfRobotics Group 10  (Control Schemes) cse.pdf
Robotics Group 10 (Control Schemes) cse.pdfsahilsajad201

Analysis and Evaluation of Dal Lake Biomass for Conversion to Fuel/Green fert...
Analysis and Evaluation of Dal Lake Biomass for Conversion to Fuel/Green fert...Analysis and Evaluation of Dal Lake Biomass for Conversion to Fuel/Green fert...
Analysis and Evaluation of Dal Lake Biomass for Conversion to Fuel/Green fert...arifengg7

Curve setting (Basic Mine Surveying)_MI10412MI.pptx
Curve setting (Basic Mine Surveying)_MI10412MI.pptxCurve setting (Basic Mine Surveying)_MI10412MI.pptx
Curve setting (Basic Mine Surveying)_MI10412MI.pptxRomil Mishra

Introduction of Object Oriented Programming Language using Java. .pptx
Introduction of Object Oriented Programming Language using Java. .pptxIntroduction of Object Oriented Programming Language using Java. .pptx
Introduction of Object Oriented Programming Language using Java. .pptxPoonam60376

Detection&Tracking - Thermal imaging object detection and tracking
Detection&Tracking - Thermal imaging object detection and trackingDetection&Tracking - Thermal imaging object detection and tracking
Detection&Tracking - Thermal imaging object detection and trackinghadarpinhas1

TEST CASE GENERATION GENERATION BLOCK BOX APPROACH
TEST CASE GENERATION GENERATION BLOCK BOX APPROACHTEST CASE GENERATION GENERATION BLOCK BOX APPROACH
TEST CASE GENERATION GENERATION BLOCK BOX APPROACHSneha Padhiar

Introduction to Artificial Intelligence: Intelligent Agents, State Space Sear...
Introduction to Artificial Intelligence: Intelligent Agents, State Space Sear...Introduction to Artificial Intelligence: Intelligent Agents, State Space Sear...
Introduction to Artificial Intelligence: Intelligent Agents, State Space Sear...shreenathji26

SOFTWARE ESTIMATION COCOMO AND FP CALCULATION
SOFTWARE ESTIMATION COCOMO AND FP CALCULATIONSOFTWARE ESTIMATION COCOMO AND FP CALCULATION
SOFTWARE ESTIMATION COCOMO AND FP CALCULATIONSneha Padhiar

AntColonyOptimizationManetNetworkAODV.pptx
AntColonyOptimizationManetNetworkAODV.pptxAntColonyOptimizationManetNetworkAODV.pptx
AntColonyOptimizationManetNetworkAODV.pptxLina Kadam

March 2024 - Top 10 Read Articles in Artificial Intelligence and Applications...
March 2024 - Top 10 Read Articles in Artificial Intelligence and Applications...March 2024 - Top 10 Read Articles in Artificial Intelligence and Applications...
March 2024 - Top 10 Read Articles in Artificial Intelligence and Applications...gerogepatton

Novel 3D-Printed Soft Linear and Bending Actuators
Novel 3D-Printed Soft Linear and Bending ActuatorsNovel 3D-Printed Soft Linear and Bending Actuators
Novel 3D-Printed Soft Linear and Bending ActuatorsResearcher Researcher

Defining the Clouds for entriprises.pptx
Defining the Clouds for entriprises.pptxDefining the Clouds for entriprises.pptx
Defining the Clouds for entriprises.pptxAshwiniTodkar4

70 POWER PLANT IAE V2500 technical training
70 POWER PLANT IAE V2500 technical training70 POWER PLANT IAE V2500 technical training
70 POWER PLANT IAE V2500 technical trainingGladiatorsKasper

Robotics-Asimov's Laws, Mechanical Subsystems, Robot Kinematics, Robot Dynami...
Robotics-Asimov's Laws, Mechanical Subsystems, Robot Kinematics, Robot Dynami...Robotics-Asimov's Laws, Mechanical Subsystems, Robot Kinematics, Robot Dynami...
Robotics-Asimov's Laws, Mechanical Subsystems, Robot Kinematics, Robot Dynami...Sumanth A

A brief look at visionOS - How to develop app on Apple's Vision Pro
A brief look at visionOS - How to develop app on Apple's Vision ProA brief look at visionOS - How to develop app on Apple's Vision Pro
A brief look at visionOS - How to develop app on Apple's Vision ProRay Yuan Liu


Recently uploaded (20)

Secure Key Crypto - Tech Paper JET Tech Labs
Secure Key Crypto - Tech Paper JET Tech LabsSecure Key Crypto - Tech Paper JET Tech Labs
Secure Key Crypto - Tech Paper JET Tech Labs

Substation Automation SCADA and Gateway Solutions by BRH
Substation Automation SCADA and Gateway Solutions by BRHSubstation Automation SCADA and Gateway Solutions by BRH
Substation Automation SCADA and Gateway Solutions by BRH

Versatile Engineering Construction Firms
Versatile Engineering Construction FirmsVersatile Engineering Construction Firms
Versatile Engineering Construction Firms

Road Development plans of India-Transportation Engineering
Road Development plans of India-Transportation EngineeringRoad Development plans of India-Transportation Engineering
Road Development plans of India-Transportation Engineering

Design and Analysis of Algorithms Lecture Notes
Design and Analysis of Algorithms Lecture NotesDesign and Analysis of Algorithms Lecture Notes
Design and Analysis of Algorithms Lecture Notes

Robotics Group 10 (Control Schemes) cse.pdf
Robotics Group 10  (Control Schemes) cse.pdfRobotics Group 10  (Control Schemes) cse.pdf
Robotics Group 10 (Control Schemes) cse.pdf

Analysis and Evaluation of Dal Lake Biomass for Conversion to Fuel/Green fert...
Analysis and Evaluation of Dal Lake Biomass for Conversion to Fuel/Green fert...Analysis and Evaluation of Dal Lake Biomass for Conversion to Fuel/Green fert...
Analysis and Evaluation of Dal Lake Biomass for Conversion to Fuel/Green fert...

Curve setting (Basic Mine Surveying)_MI10412MI.pptx
Curve setting (Basic Mine Surveying)_MI10412MI.pptxCurve setting (Basic Mine Surveying)_MI10412MI.pptx
Curve setting (Basic Mine Surveying)_MI10412MI.pptx

Introduction of Object Oriented Programming Language using Java. .pptx
Introduction of Object Oriented Programming Language using Java. .pptxIntroduction of Object Oriented Programming Language using Java. .pptx
Introduction of Object Oriented Programming Language using Java. .pptx

Detection&Tracking - Thermal imaging object detection and tracking
Detection&Tracking - Thermal imaging object detection and trackingDetection&Tracking - Thermal imaging object detection and tracking
Detection&Tracking - Thermal imaging object detection and tracking

TEST CASE GENERATION GENERATION BLOCK BOX APPROACH
TEST CASE GENERATION GENERATION BLOCK BOX APPROACHTEST CASE GENERATION GENERATION BLOCK BOX APPROACH
TEST CASE GENERATION GENERATION BLOCK BOX APPROACH

Introduction to Artificial Intelligence: Intelligent Agents, State Space Sear...
Introduction to Artificial Intelligence: Intelligent Agents, State Space Sear...Introduction to Artificial Intelligence: Intelligent Agents, State Space Sear...
Introduction to Artificial Intelligence: Intelligent Agents, State Space Sear...

SOFTWARE ESTIMATION COCOMO AND FP CALCULATION
SOFTWARE ESTIMATION COCOMO AND FP CALCULATIONSOFTWARE ESTIMATION COCOMO AND FP CALCULATION
SOFTWARE ESTIMATION COCOMO AND FP CALCULATION

AntColonyOptimizationManetNetworkAODV.pptx
AntColonyOptimizationManetNetworkAODV.pptxAntColonyOptimizationManetNetworkAODV.pptx
AntColonyOptimizationManetNetworkAODV.pptx

March 2024 - Top 10 Read Articles in Artificial Intelligence and Applications...
March 2024 - Top 10 Read Articles in Artificial Intelligence and Applications...March 2024 - Top 10 Read Articles in Artificial Intelligence and Applications...
March 2024 - Top 10 Read Articles in Artificial Intelligence and Applications...

Novel 3D-Printed Soft Linear and Bending Actuators
Novel 3D-Printed Soft Linear and Bending ActuatorsNovel 3D-Printed Soft Linear and Bending Actuators
Novel 3D-Printed Soft Linear and Bending Actuators

Defining the Clouds for entriprises.pptx
Defining the Clouds for entriprises.pptxDefining the Clouds for entriprises.pptx
Defining the Clouds for entriprises.pptx

70 POWER PLANT IAE V2500 technical training
70 POWER PLANT IAE V2500 technical training70 POWER PLANT IAE V2500 technical training
70 POWER PLANT IAE V2500 technical training

Robotics-Asimov's Laws, Mechanical Subsystems, Robot Kinematics, Robot Dynami...
Robotics-Asimov's Laws, Mechanical Subsystems, Robot Kinematics, Robot Dynami...Robotics-Asimov's Laws, Mechanical Subsystems, Robot Kinematics, Robot Dynami...
Robotics-Asimov's Laws, Mechanical Subsystems, Robot Kinematics, Robot Dynami...

A brief look at visionOS - How to develop app on Apple's Vision Pro
A brief look at visionOS - How to develop app on Apple's Vision ProA brief look at visionOS - How to develop app on Apple's Vision Pro
A brief look at visionOS - How to develop app on Apple's Vision Pro


Thermal Imaging in your Maintenance Program: Intermediate Infrared Concepts and Best Practices

  • 1. Intermediate Infrared Concepts and Best Practices: Thermal Imaging in your Maintenance Program Sat Sandhu Thermography Services Support Manager Thermal / Infrared Thermography, Level III Certified in compliance with (ASNT) SNT-TC-1A-2006 1
  • 2. • Review and introduction to Thermal imaging • The basics of performing an inspection with an infrared camera • Tips on how to effectively spot issues with an infrared camera • Causes and examples of Electrical, Mechanical, Process and Building Diagnostics • How to tie infrared inspections into your preventative maintenance program 2 Agenda
  • 3. My name is Sat Sandhu Welcome! Please note, this is a short class – you will not become a thermography expert in the next hour 3 Introduction
  • 4. • Infrared radiation can be sensed by our skin, yet cannot be seen by our eyes! 4 What is infrared?
  • 5. • Infrared cannot be seen (but can be sensed by our skin) • Everything emits infrared radiation • A camera converts the “infrared image” to a visible picture • Infrared allows you to “see” things that you normally can’t 5 What is a Thermal Image? Visual image Same image in infrared
  • 6. • Thousands of IR temperature measurements taken • Each “pixel” represents a temperature measurement • Assigned a color value to create an image 6 How is an infrared image created?
  • 7. • Most electrical and mechanical defects cause increase in temperature • Thermal imaging provides a fast and clear picture of this temperature increase • Safety: Thermal images can be taken while production is running without any contact • Anybody can take a picture! 7 How can infrared help me?
  • 8. • Electrical • Mechanical • Process Manufacturing • Building Diagnostics • R&D • Utilities 8 Thermal Imaging Applications
  • 9. • Ensure adequate thermal gradients • Understand thermal capacitance • Account for wind effects • Avoid angular variations • Remember heat transfers from hot to cold • Be aware of your surroundings • Know when qualitative measurements are sufficient • Compare similar components under similar conditions 9 Thermal Imaging Considerations
  • 10. • Understand present and future loading conditions • Inspect with highest load possible (at least 40%) 10 Thermal Imaging Considerations
  • 11. • Objects and materials with high thermal capacitance take time to cool down, while objects and materials with low thermal capacitance cool down quickly – Air has low thermal capacity, water has high thermal capacity 11 Heat Capacity On a flat roof, after the sun goes down, dry insulation cools faster than wet insulation (wet insulation has higher thermal capacity) Thermal capacitance can help find the liquid level in a tank
  • 12. How far can I see? Distance from CameraL1 M4 L1 M4 Spot Size & Resolution
  • 13. • Larger area for average temperature when further away • Distance to spot ratio • Zoom lens decreases spot size 13 Spot Size & Resolution
  • 14. • Emissivity • Understand the equipment • Load conditions • Comparative inspections • Hot spots • Cold spots 14 TIPS: How to Effectively Spot Issues with an Infrared Camera
  • 15. This can of suds is ice cold straight out of the fridge. When scanned with the IR Camera you would expect the entire image to be relatively even in temperature and to appear “cold” in relation to the background. What is causing the spot in the center to appear warm? 15 What happened to my beer!?
  • 16. Everything in nature emits electromagnetic radiation. Emissivity is the ratio of thermal energy emission of the target object, over the thermal energy emission of a true blackbody (perfect emitter). The paint on the outside of this can has been worn off in a small area. The bare aluminum has a different emissivity than the painted aluminum. The imager sees the bare aluminum as hotter than the rest of the can. 16 Emissivity! TIP: Use Electrical Tape to cover a low emissive surface to increase the emissivity and accuracy of the measurement
  • 17. • Unbalanced loads • Harmonics (3rd harmonic current in Neutral) • Overloaded systems/excessive current • Loose or corroded connections increased resistance in the circuit • Insulation failure • Component failure • Wiring mistakes • Underspecified components 17 Causes of Electrical Hot Spots
  • 18. 18 Examples of Electrical Hot Spots Hot phase Fuse disconnect Substation Lighting Circuit Motor Control Center Buss
  • 19. • Bad cooling because of reduced airflow • PQ problems like unbalance, overload or 5th harmonic (voltage) • Insulation problems with motor windings • Bearing problems – lubrication, wear, tolerance • Bad alignment 19 Causes of Mechanical Hot Spots
  • 20. 20 Examples of Mechanical Hot Spots Compressors - normal Hydraulic pumps Misaligned beltElectric motor Roller bearingsCoupling
  • 21. • Damaged structures caused by worn pipes • Abnormal heat flow/heat gradients • Defective valves/traps • Normal tank level fluctuations 21 Causes of Process Hot Spots
  • 22. 22 Examples of Process Hot Spots Weld cooling Tank Levels 119.7°C 302.2°C 150 200 250 300 Steam TrapsCement Kiln Pipe IntegrityChiller Operation
  • 23. • Roof leaks • Air Leak • In-floor heating • Missing insulation 23 Causes of Building Diagnostics Hot Spots
  • 24. 24 Examples of Building Diagnostics Hot Spots Roof deck moisture In-floor heat verification Missing insulationMoisture Air Leak Attic access – air leak
  • 25. • Trends • Maintenance programs • Cost Savings • Solutions • Build a Successful program 25 How to Tie Infrared Inspections into your Preventative Maintenance Program
  • 26. Downtime is getting more expensive – maintenance must do more with less 26 Trends in Industrial Maintenance Companies are using maintenance best practices to reinforce and extend their competitive advantages Awareness is growing quickly New maintenance technologies are experiencing mass adoption ECONOMICS AWARENESS TECHNOLOGY
  • 27. 27 Definitions Preventive (PM): “calendar-based” Predictive (PdM): “condition-based” Time Normal Operation Wear OutBreak In The Bathtub Curve Casualties Reactive: “run to failure” Proactive Reliability Centered: “asset uptime based”
  • 28. 1. EPRI – study of many plants in many different industries •A comprehensive study by the Electric Power Research Institute found: 28 Examples of Cost Savings Maintenance practices Cost to maintain rotating machinery Cost savings Plants that are Reactive (Run to failure) $17/HP/Year No savings Plants that are Preventive (Calendar- based) $13/HP/Year 24% over Reactive Plants that are Predictive (Condition- based) $9/HP/Year 47% over Reactive
  • 29. 2. Cost to Benefit Studies •A large company implemented a Predictive Maintenance program on hundreds of their motors, pumps, fans, compressors and blowers •This program has been successful for over 25 years •They document the cost of the program and savings they enjoy •Savings were many millions of dollars per year •Every 2 years they conduct a Cost to Benefit study to compare the program cost to the documented savings •The average Cost to Benefit ratio for the past 30 years has been over 20:1 29 Examples of Cost Savings The 6 benefits that they track include: •Prevention of catastrophic failure due to early detection •Ability to schedule repairs during plant shutdown periods •Ability to order parts in advance of repairs •Ability to repair exact fault instead of complete overhaul or replacement •Planning of workers schedules •Root cause analysis of recurring faults
  • 30. 3. Case Study – even small companies can benefit •Over a 16 year period, a small company transitioned from Reactive to Preventive and then to Predictive Maintenance: – Unplanned failures dropped to almost zero – Maintenance budget, on the 600 critical motor/pumps, cut in half from 10 years ago – Pumps running twice as long before repairs are needed – Almost all maintenance is scheduled instead of reacting to emergencies – Repairs planned during the day and eliminating the need for overtime 30 Examples of Cost Savings
  • 31. • Predictability: give maintenance staff time to schedule repairs • Safety: take faulty equipment offline • Revenue: fewer unexpected failures prevent production stoppages that cut into bottom line • Increased maintenance intervals: life of equipment is extended • Reliability: anticipate the problems coming • Peace of mind: build confidence in maintenance schedules, budgeting, and productivity estimates 31 Benefits of Proactive Maintenance Different industries / companies will have different matrixes and targets. Which of these benefits is most valuable to you?
  • 32. • Ideal: Dedicated PdM or reliability team at a large industrial plant – People, time and budget to do proactive work – Uses automated systems/CMMS – Determines when equipment needs maintenance to prevent failure 32 Solution: Asset Uptime for the Rest of Us Technology is leveling the playing field for maintenance technicians across facilities of all sizes: they can use the same techniques and tools to troubleshoot as well as to inspect, log, and share – the basics of proactive maintenance • The rest of us: Small maintenance team at mid-sized industrial or large commercial facility with – No dedicated people – Broad responsibilities but not the scope or budget to go full SCADA – Gather data by hand as the job dictates
  • 33. Don’t try to do the whole plant at once •Start with simple machines with common problems •Use simple check lists before moving to electronic programs •Show success in early wins, gain buy-in and support to grow program •Proactive maintenance measurements aren’t that different from troubleshooting tests – only faster, easier, and no expert is needed Simple steps •Take “good” baseline data points – compare over time to good baseline •Quick periodic inspections with screening tools to find problems •Return with smart diagnostic tools – find fault and diagnose repair action •Repair fault with smart corrective tools – fix it quickly & return to service •Validate repair with screening tool 33 Program Start-up: Start Small and Grow
  • 34. 34 Basic Inspection Guideline Schedule inspection under load Therma l Image Any Anomaly observed? Equipment on or Loaded? Equipment on or Loaded? Equipment on or Loaded? Temperatures on target, similar to each other, and c/f with ambient? Temp. difference c/f stds. Identify the type of anomaly: 1.Hot spot? 2.Cold Spot? 3.Temp. difference between similar components? No Further Action Extra info / Advice process Repair / Action No Yes Yes No Low Low Low High High High High Low Medium
  • 35. 35 A Program Builds the Links in a Maintenance Chain Multiple tools equal more than the sum of the parts Alignment Tool Problem corrected Vibration Tester Vibration Tester Problem identified & repair recommended Machine checked with vibration meter Thermal Imager Problem found with vibration meter SCAN DIAGNOSE FIX VALIDATE
  • 36. 36 Technologies & Solutions – Multiple Tools Thermography Mechanical Electrical Process Infrared Imager Vibration and Alignment ScopeMeter and Power Quality Insulation Tester Process Tools Best technology for finding electrical hot spots in switchgear & motor controllers, screening process and mechanical Best technology for diagnosing mechanical faults in rotating machines. Correct shaft misalignment. Troubleshoot problems in drive and drive output, power distribution - uncover energy losses & efficiency Assures safe operation, prolongs life of electrical systems & motors Troubleshoot, commission and calibrate transmitters, valves, switches, gauges 1. Faulty connections 2. Overheated bearings 3. Tank levels 1. Imbalance 2. Looseness 3. Misalignment 4. Bearings 1. Harmonics 2. Distortion 3. Load Studies Insulation degradation 1. Pressure 2. Temperature 3. mA source
  • 37. • I want to see a camera? • I want to learn more about thermal imaging? • I want an IR camera? • I want to talk about my specific application? •  We have 2 certified Level I thermographers on staff – Ben Goodhead – Susan Garofalo 37 Before we dismiss…
  • 38. Questions or Comments? Email Nicole VanWert-Quinzi nvanwert@Transcat.com Transcat: 800-800-5001 www.Transcat.com For related product information, go to: www.Transcat.com/Fluke

Editor's Notes

  1. MENTION HOW TO ASK QUESTIONS
  2. Infrared is just one form of electromagnetic radiation. The visible part of the spectrum is what we see with our eyes. Other parts of the EM spectrum include Gamma rays, X-rays, Radio waves, microwaves. The infrared part of the EM spectrum is not visible to our eyes. Just like radio waves, gamma etc. Therefore just like our eyes are sensitive to a specific portion of the EM spectrum, equally Thermal imagers are only sensitive to the IR part of the EM spectrum. So for e.g. it is not a X-Ray camera, and cannot view through solids. Despite what is shown in James Bond or other sc-fi films. The main point to note is that IR radiation is E.M. radiation.
  3. Infrared radiation is radiated heat that cannot be seen by our eyes - but can be sensed by our skin. All objects emit infrared radiation and the amount of radiation increases with the objects temperature. When you look at the visible image to the right you can see it with your eyes because the light in the room reflects on the wall and reaches your eyes. It is a Reflected image you see! The corresponding infrared image (click) is Emitted by the object itself! Therefore it contains information about the thermal condition of the object! Thermal Imaging is the science of “seeing” temperature by measuring the radiation emitted from an object and converting this data to a corresponding visual image. The colors that you see on the IR image are a measurement of the temperature of the object. Each color corresponds to a different temperature.
  4. Just like a visible camera the nearer you are, the more detail you can see. Whilst the scene size will be smaller. So the distance you need to be from the object you are trying to view will vary depending on the size and the part of the object you are interested in.
  5. Next, let’s look at industry trends DOWNTIME IS GETTING MORE EXPENSIVE Scale of facilities is increasing and commodity costs are increasing Facilities are becoming more specialized MAINTENANCE MUST DO MORE WITH LESS Workforce becoming leaner – experts are retiring but not being replaced Production demands are up while budgets are continually decreasing Just In Time processes reduces room for error AWARENESS IS GROWING QUICKLY The value of maintenance best practices is gaining significant attention from industry influencers and professional associations NEW MAINTENANCE TECHNOLOGIES ARE EXPERIENCING MASS ADOPTION Tool prices continue to fall while performance goes up Complex tools are becoming smarter and easier to use Maintenance practices are shifting from outsourced to in-sourced. Economics are making it harder and harder to make a profit using run to failure maintenance Maintenance staff must do more with less – experts are retiring, production demands increase while budgets decrease, margins are getting closer and closer Awareness is growing – value of best practices are being talked about everywhere New technologies are getting adopted – complex tools are becoming smarter and easier to use Companies are using their best practices to extend their competitive advantage
  6. Examples An individual bought an incandescent light bulb. The manufacturing company mentioned that the life span of the bulb is 3 years. Just before the 3 years, the individual decided to replace the bulb with a new one. This is called preventive maintenance. On the other hand, the individual has the opportunity to observe the bulb operation daily. After two years, the bulb starts flickering. The individual predicts at that time that the bulb is going to fail very soon and decides to change it for a new one. This is called predictive maintenance. The individual ignores the flickering bulb and only goes out to buy another replacement light bulb when the current one fails. This is called corrective maintenance.
  7. In order to keep the plant up and running, we need to look at the various tools that make up the maintenance chain First, we screen our machines to find out which ones are good or bad – a thermal imager or vibration meter can Second, we need to diagnose the machine faults and, more importantly, determine a repair recommendation Third, we need to correct the problem And last, we need to check the machine to make sure the repair is good and return the machine to service
