ENVIRONMENT, HEALTH, & SAFETY ELEVATED SKIN TEMPERATURE SCREENING SOLUTIONS
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. 2 AGENDA Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. FLIR Overview & History of EST Solutions Correlation Between Skin & Core Body Temperature Effective EST Screening System Setup FLIR EST Screening Technology FLIR EST Screening Solutions
FLIR OVERVIEW & HISTORY OF EST SOLUTIONS
Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. 5 WHO WE ARE Thermal Sensing Unmanned Solutions Machine Vision Integrated Systems Radar Lasers KEY TECHNOLOGIES $1.8B REVENUE LTM Q1'19 Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. THERMAL 59% NON-THERMAL 41% GLOBAL FOOTPRINT Americas 6% APAC 14% U.S. 51% Rest of World 49% EMEA 30% A C T I V E I N 173 Countries 4,200+ E M P L O Y E E S W O R L D W I D E 23% ADJ. OPERATING MARGIN LTM Q1'19 $2.28 ADJ. EPS LTM Q1'19 $389M OPERATING CASH FLOW LTM Q1'19 CBRNE Navigation Software and Analytics Artificial Intelligence
Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. THERMAL IR CAMERA INTRODUCTION 5 NOT ALL THERMAL IR CAMERAS ARE APPROPRIATE FOR EST SCREENING • Provide surface temperature at a standoff without the need for contact • Do not measure body core temperature • Can be used for elevated skin temperature (EST) screening • EST can indicate elevated body temperature (EBT) • Not a medical device – first line of defense Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited.
Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. HISTORY OF FLIR EST SCREENING AGEMA INFRARED SYSTEMS FLIRSYSTEMS H1N1 outbreak 510(k) Registration Coronavirus Pandemic Ebola outbreak 1998 Thermovision 680 Medical 1968 SARS outbreak 2003 2004 2009 2014 2020
Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. EST SCREENING SOLUTIONS JAN 2020 FEB MAR APR MAY JUN JUL AUG SEP Coronavirus Cases Spike in US Screening Mode Standard In Most Cameras Free Screening Mode Update New Handheld EST and Fixed Mount EST Models Coming Soon…. FLIR Screen-EST™ Desktop Software Released w/ Facial Recognition Upgrade On-Camera Screen EST Mode NEW PRODUCTS
Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. MARKETS & CUSTOMERS TYPES Manufacturing • Food & Beverage • Automotive • Warehouse / Logistics EntertainmentVenues • Theme parks • Sports events SecurityCheck In • Companies • Public Buildings • Government • Hospitals Travel/Transport • Airports • Train & Bus Depots • Cruise Ships
CORRELATION BETWEEN SKIN & CORE BODY TEMPERATURE

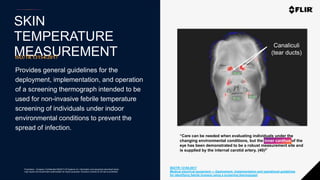

Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. SKIN TEMPERATURE MEASUREMENTISO/TR13154:2017 Provides general guidelines for the deployment, implementation, and operation of a screening thermograph intended to be used for non-invasive febrile temperature screening of individuals under indoor environmental conditions to prevent the spread of infection. ISO/TR 13154:2017 Medical electrical equipment — Deployment, implementation and operational guidelines for identifying febrile humans using a screening thermograph Canaliculi (tear ducts) “Care can be needed when evaluating individuals under the changing environmental conditions, but the inner canthus of the eye has been demonstrated to be a robust measurement site and is supplied by the internal carotid artery. (40)2” inner canthus
Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. SKIN TEMPERATURE IS NOT CORE TEMPERATURE • Skin temp will measure lower than core body temp • Forehead skin temp is not optimal for accessing core body temperature • Susceptible to influences such as: • Environmental conditions • Clothing (hats, head coverings) • Perspiration

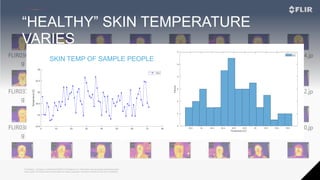

Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. “HEALTHY” SKIN TEMPERATURE VARIES SKIN TEMP OF SAMPLE PEOPLE
Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. BODY TEMPERATURE FLUCTUATES • Time of Day • Activity Level • Metabolic Rate • Diet HEALTHYCOREBODYTEMPERATURECAN RANGEBETWEEN36.5–37.5°C(97.7–99.5°F) • Gender • Ethnicity • Age • Emotion • State of Consciousness • Health Status CIRCADIAN CHANGE IN BODY TEMPERATURE Sleep 12:00am 4:00am 8:00am 12:00pm 4:00pm 8:00pm 12:00am 4:00am 97.2 97.5 97.8 98.3 98.6 99.0 99.3 Temperature(°F) Time (Source: Waterhouse et al., 2012)
EFFECTIVE EST SCREENING SYSTEM SETUP
Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. FDA ANNOUNCEMENT – APRIL 2020 • Laboratory temperature accuracy, including the measurement uncertainty, is less than or equal to +/- 0.50176C (+/- 0.9°F) over the temperature range of at least 34 – 39°C (93.2 – 102.2°F) • System includes an accurate blackbody temperature references source • Both stability and drift are less than 0.2°C (0.36°F) within a timeframe specified by the manufacturer • Device risk assessment addresses all potential safety issues • Technology should be used to measure only one subject’s temperature at a time • Appropriate imaging distance based on the spatial resolution and performance of the camera • https://www.fda.gov/media/137079/download

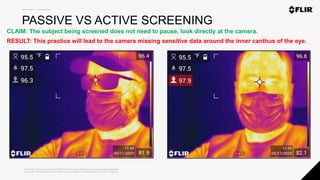

Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. PASSIVE VS ACTIVE SCREENING CLAIM: The subject being screened does not need to pause, look directly at the camera. RESULT: This practice will lead to the camera missing sensitive data around the inner canthus of the eye.

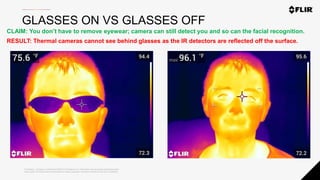

Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. GLASSES ON VS GLASSES OFF CLAIM: You don’t have to remove eyewear; camera can still detect you and so can the facial recognition. RESULT: Thermal cameras cannot see behind glasses as the IR detectors are reflected off the surface.

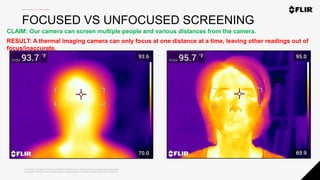

Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. FOCUSED VS UNFOCUSED SCREENING CLAIM: Our camera can screen multiple people and various distances from the camera. RESULT: A thermal imaging camera can only focus at one distance at a time, leaving other readings out of focus/inaccurate.

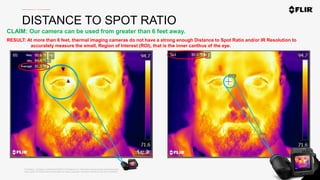

Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. DISTANCE TO SPOT RATIO CLAIM: Our camera can be used from greater than 6 feet away. RESULT: At more than 6 feet, thermal imaging cameras do not have a strong enough Distance to Spot Ratio and/or IR Resolution to accurately measure the small, Region of Interest (ROI), that is the inner canthus of the eye.

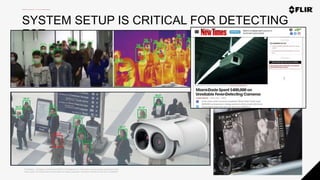

Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. SYSTEM SETUP IS CRITICAL FOR DETECTING EST
FLIR EST SCREENING TECHNOLOGY
Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. FLIR EST SCREENING MODE Reference Temperature is Average of last ten persons
Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. STABILITY  FLIR EST SCREENING MODE • Onboard highly-stable FLIR T-Series, Exx-Series, and A-Series cameras • Relative measurement compares Measured to Alarm Temperature • Alarm Temperature is set based on Sampled Average Temperature and updated dynamically WITH A DYNAMIC BASELINE, SCREENING MODE MINIMIZES PERSON-TO-PERSON VARIATION AND MAXIMIZES EST SCREENING ACCURACY 23 Sampled Average Temperature Alarm Temperature Measured Temperature

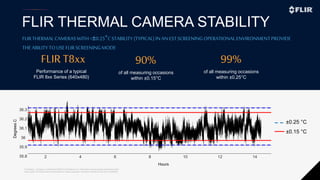

Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. FLIR THERMAL CAMERA STABILITY FLIRTHERMALCAMERASWITH<±0.25°CSTABILITY(TYPICAL) INAN ESTSCREENINGOPERATIONALENVIRONMENTPROVIDE THE ABILITYTOUSEFLIRSCREENINGMODE 90% of all measuring occasions within ±0.15°C 99% of all measuring occasions within ±0.25°C Hours 2 4 6 8 10 12 1435.8 35.9 36 36.1 36.2 36.3 DegreesC ±0.25 °C ±0.15 °C FLIR T8xx Performance of a typical FLIR 8xx Series (640x480)
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. 25 ASSESSING EST SCREENING ACCURACY Accuracy of EST screening is about how effective it is as a screening tool… not absolute temperature accuracy ACCURACYHIT MISS FALSE ALARM CORRECT REJECTION SIGNAL RESPONSE Present Not Present Yes No
FLIR EST SCREENING SOLUTIONS

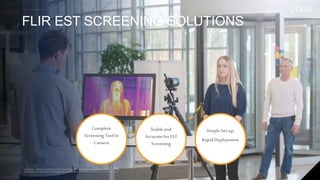

Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. FLIR EST SCREENING SOLUTIONS 27 Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Complete Screening Tool in Camera Stableand Accurate forEST Screening Simple Set up, RapidDeployment
Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. HANDHELDDUALPURPOSE HANDHELDEST 28 FIXEDMOUNTEST RECOMMENDED EST SOLUTIONS* • Full-featured predictive & preventative maintenance camera • Screening mode on board • Alarming (audible, visual) • Connects to monitor • Tripod mountable • Additional updates required for full EST Screening capabilities • EST specific cameras • Remove unnecessary features from PM cameras • Includes all screening features and functionality • Higher resolution • Lower cost • Mount on tripod or brackets • Screening mode on board • Automatic alarming (audible, visual) • Web browser enabled device for control/viewing *All cameras are compatible with FLIR Screen-EST™ Software

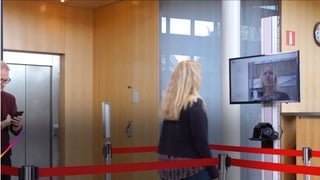

Proprietary - Company Confidential ©2018 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited.
Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. THE FLIR DIFFERENCE • >10 yrsofdelivering EBTSolutions • Turnkey,EBTsolutions(Handheld orFixed) • Easytouse,Rapidtodeploy • Abilitytointegrate intoexisting systems • Global service & training • Dualpurpose:screen people &machineswiththe same cameraallowing youtomaximizeyourinvestment • U.S. FDA 510(k) Cleared
Proprietary - Company Confidential ©2018 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Questions or Comments? Email Christina Spearman cspearman@transcat.com Transcat: 800-828-1470 www.transcat.com For related product information, go to: www.transcat.com/brand/flir-store
Proprietary - Company Confidential ©2020 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. VIDEOS & RESOURCES • Visit FLIR.com: https://www.flir.com/instruments/public-safety/environmental-health-and-safety/ • FLIR Screen-EST™ Video: https://youtu.be/ONRobWbE5o0 • Screening Mode Video: https://youtu.be/NH6mA2_Yujs • How To Configure Screening Mode on T-Series: https://youtu.be/pG4deOs-xOo • How To Configure Screening Mode on EXX Series: https://youtu.be/_3-lHVDgI1I • Training & Troubleshooting: https://www.flir.com/discover/public-safety/free-training-for-flir-elevated-skin- temperature-screening/ • Dual Purpose Cameras: https://www.flir.com/discover/public-safety/can-i-use-my-thermal-camera-for-est/ • FAQs: https://www.flir.com/discover/public-safety/faq-about-thermal-imaging-for-elevated-body-temperature- screening/
