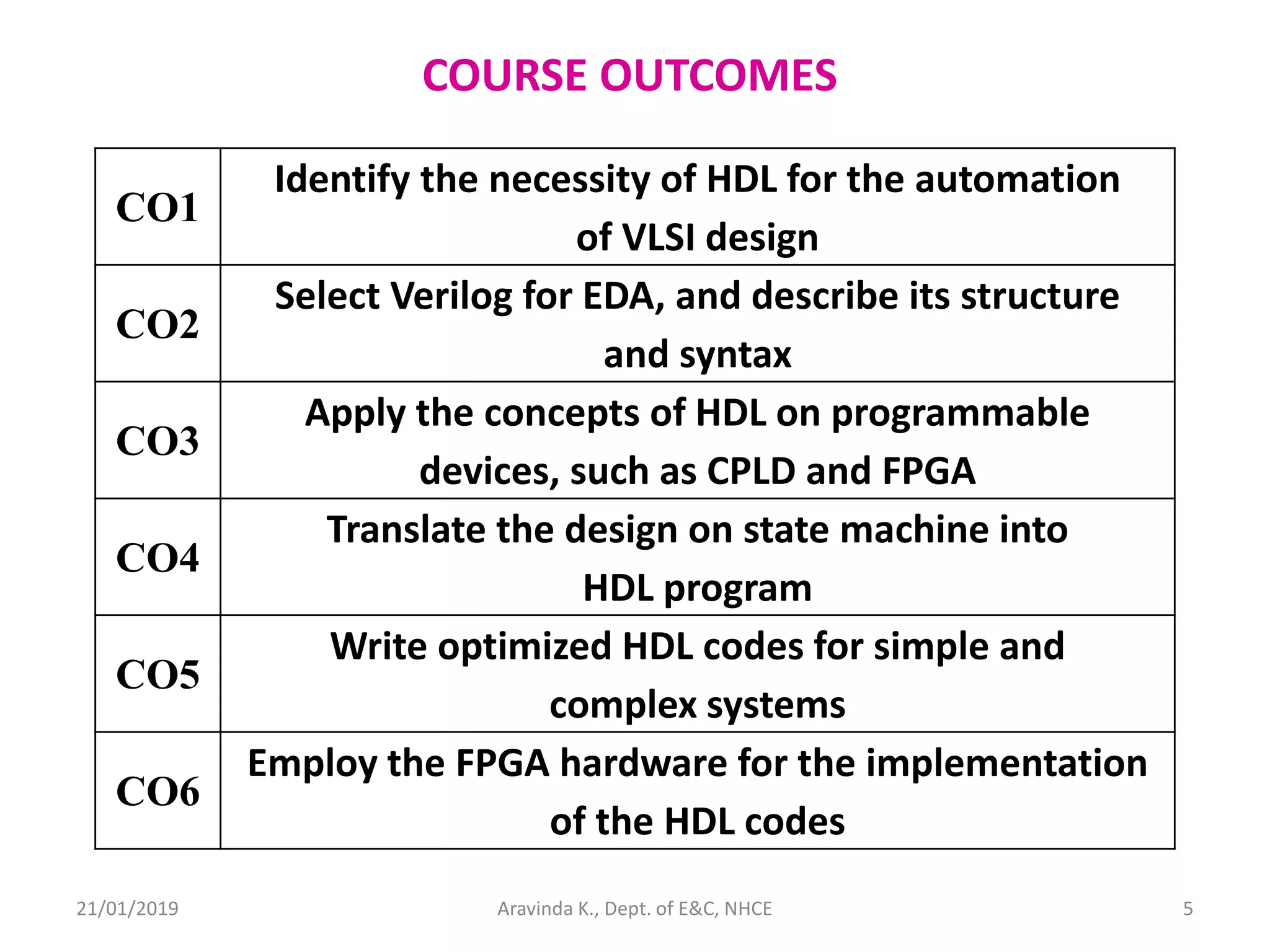

5. 21/01/2019 Aravinda K., Dept. of E&C, NHCE 5
CO1
Identify the necessity of HDL for the automation
of VLSI design
CO2
Select Verilog for EDA, and describe its structure
and syntax
CO3
Apply the concepts of HDL on programmable
devices, such as CPLD and FPGA
CO4
Translate the design on state machine into
HDL program
CO5
Write optimized HDL codes for simple and
complex systems
CO6
Employ the FPGA hardware for the implementation
of the HDL codes

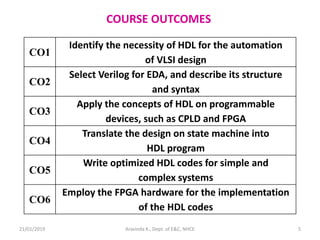

COURSE OUTCOMES

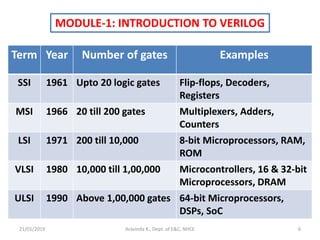

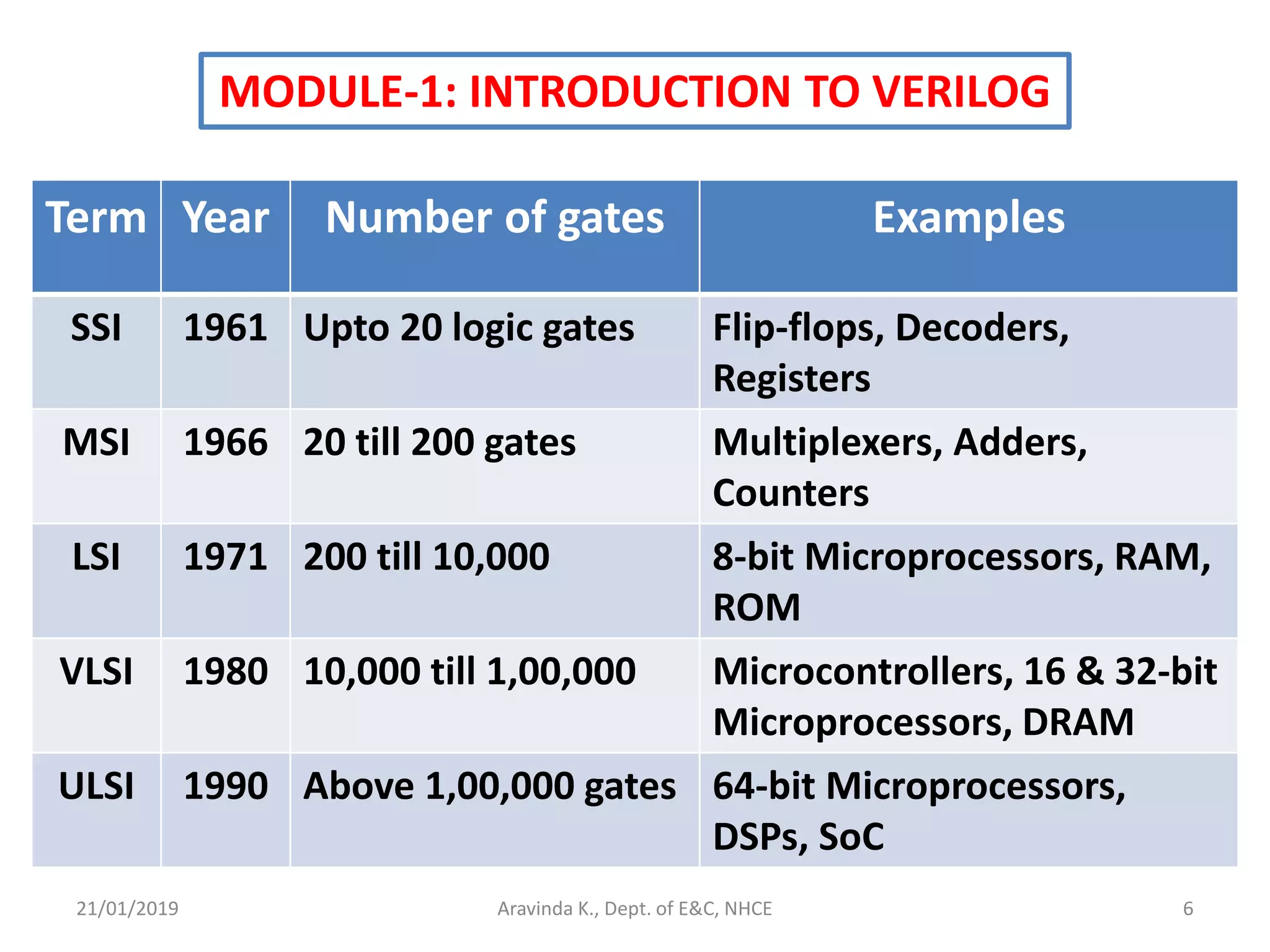

6. Term Year Number of gates Examples
SSI 1961 Upto 20 logic gates Flip-flops, Decoders,
Registers
MSI 1966 20 till 200 gates Multiplexers, Adders,
Counters
LSI 1971 200 till 10,000 8-bit Microprocessors, RAM,
ROM
VLSI 1980 10,000 till 1,00,000 Microcontrollers, 16 & 32-bit
Microprocessors, DRAM
ULSI 1990 Above 1,00,000 gates 64-bit Microprocessors,
DSPs, SoC
21/01/2019 6Aravinda K., Dept. of E&C, NHCE

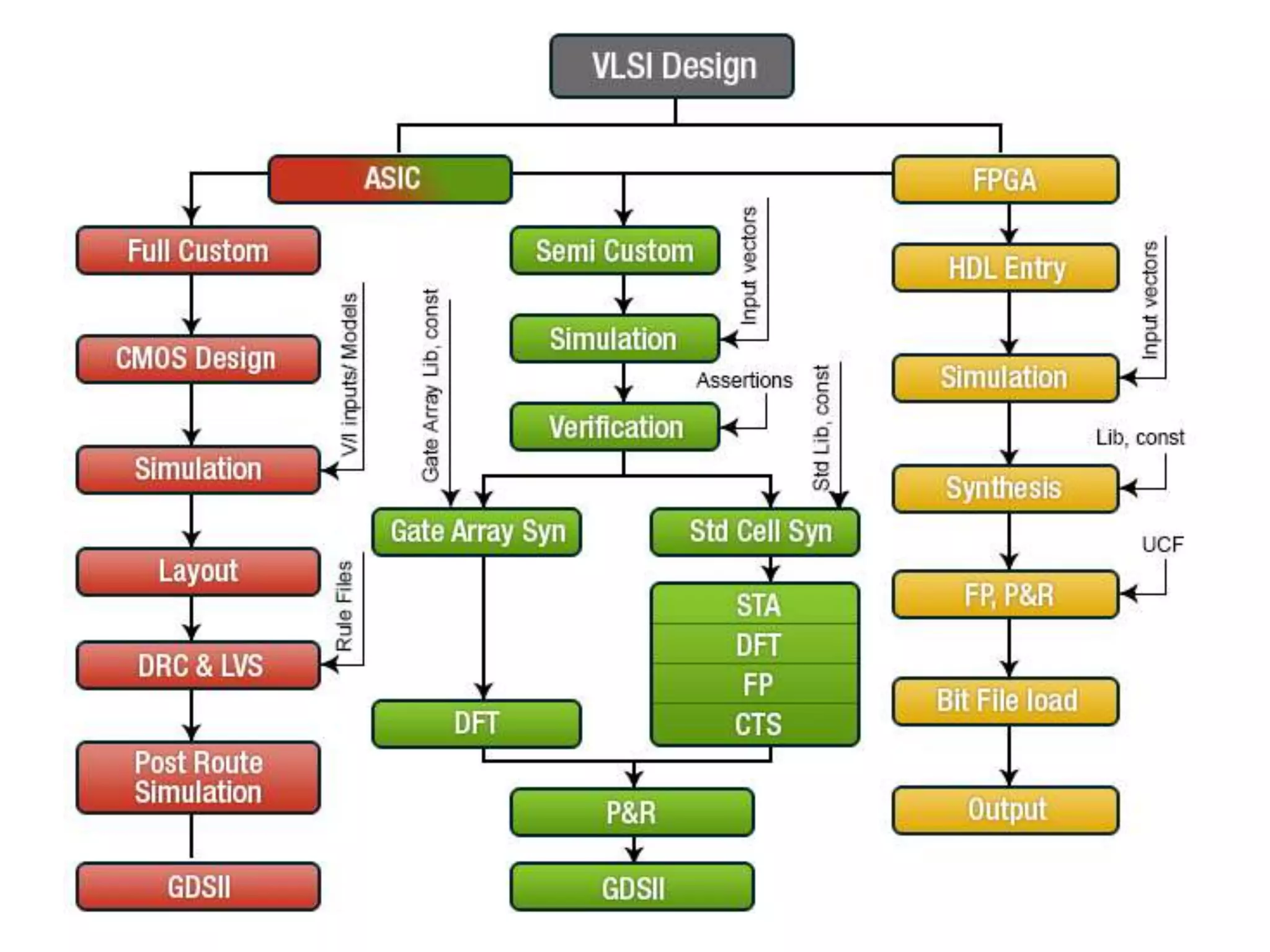

MODULE-1: INTRODUCTION TO VERILOG
7. 21/01/2019 Aravinda K., Dept. of E&C, NHCE 7

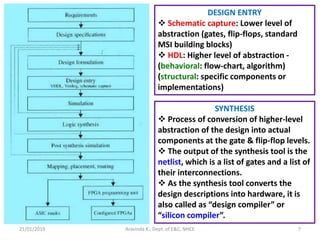

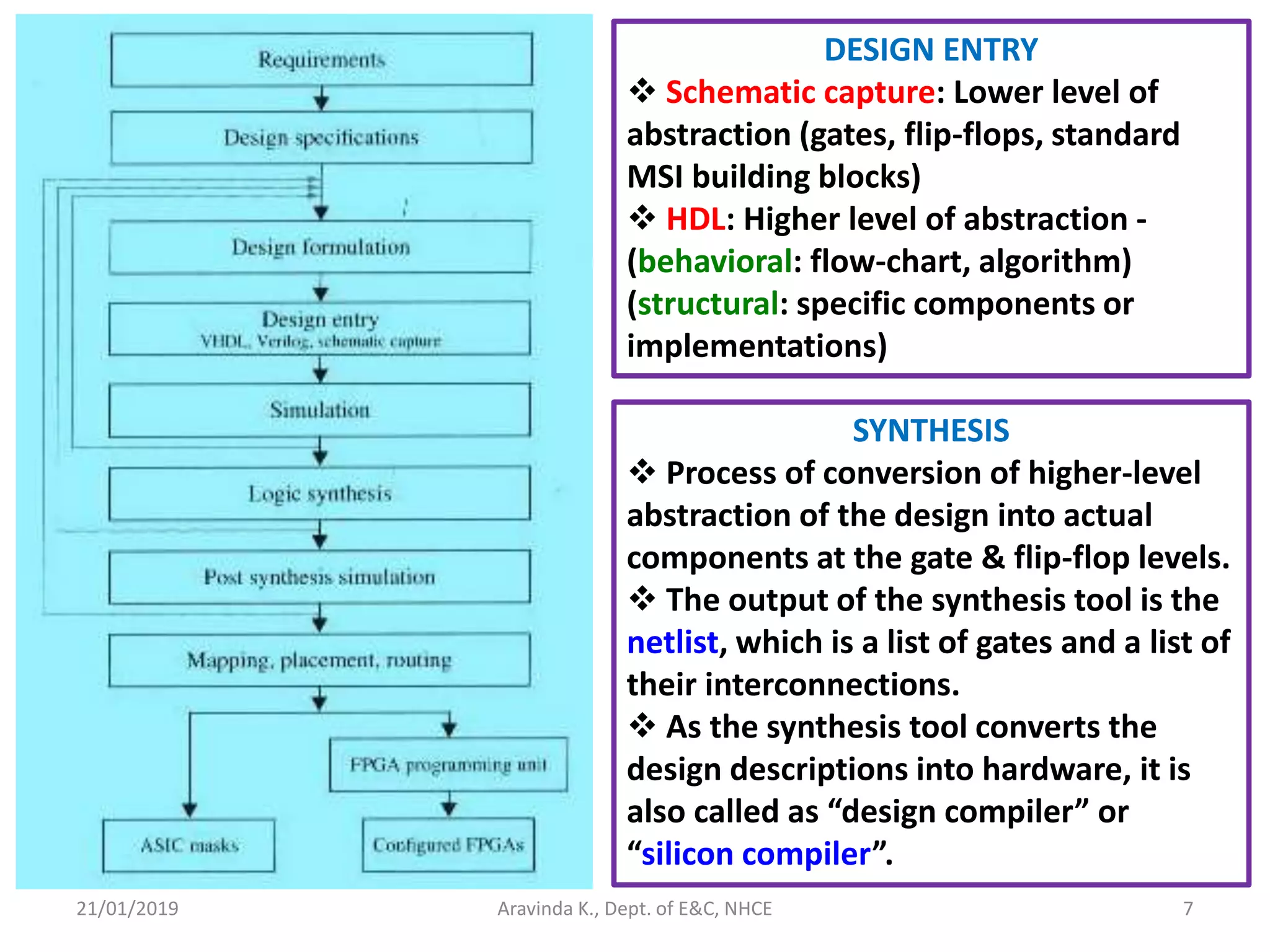

DESIGN ENTRY
Schematic capture: Lower level of
abstraction (gates, flip-flops, standard
MSI building blocks)
HDL: Higher level of abstraction -
(behavioral: flow-chart, algorithm)
(structural: specific components or
implementations)

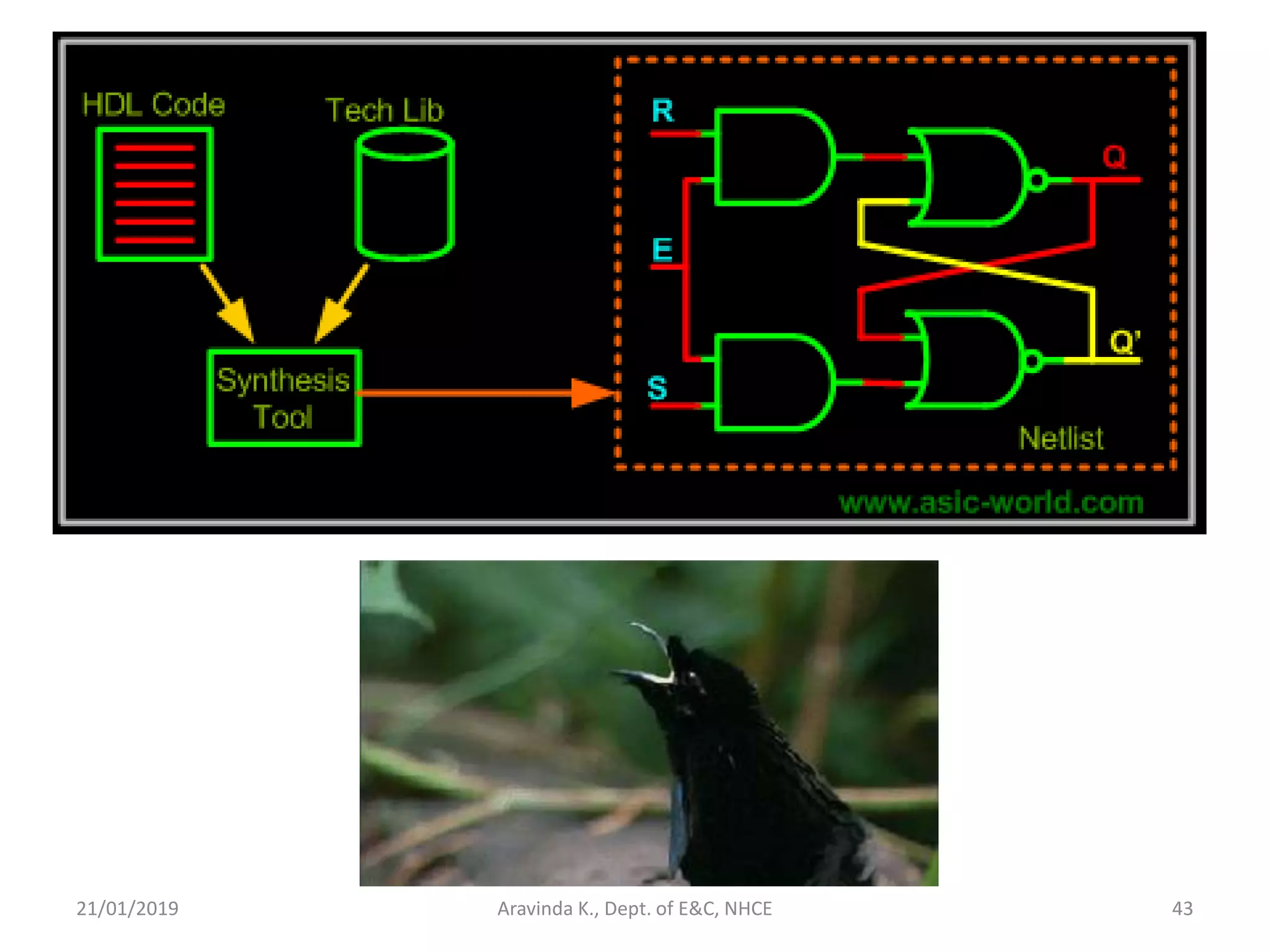

SYNTHESIS
Process of conversion of higher-level
abstraction of the design into actual
components at the gate & flip-flop levels.
The output of the synthesis tool is the
netlist, which is a list of gates and a list of
their interconnections.
As the synthesis tool converts the
design descriptions into hardware, it is
also called as “design compiler” or
“silicon compiler”.
11. 21/01/2019 11Aravinda K., Dept. of E&C, NHCE

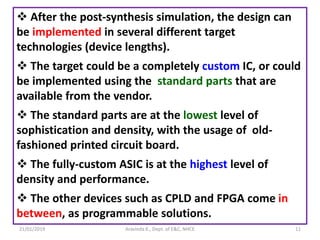

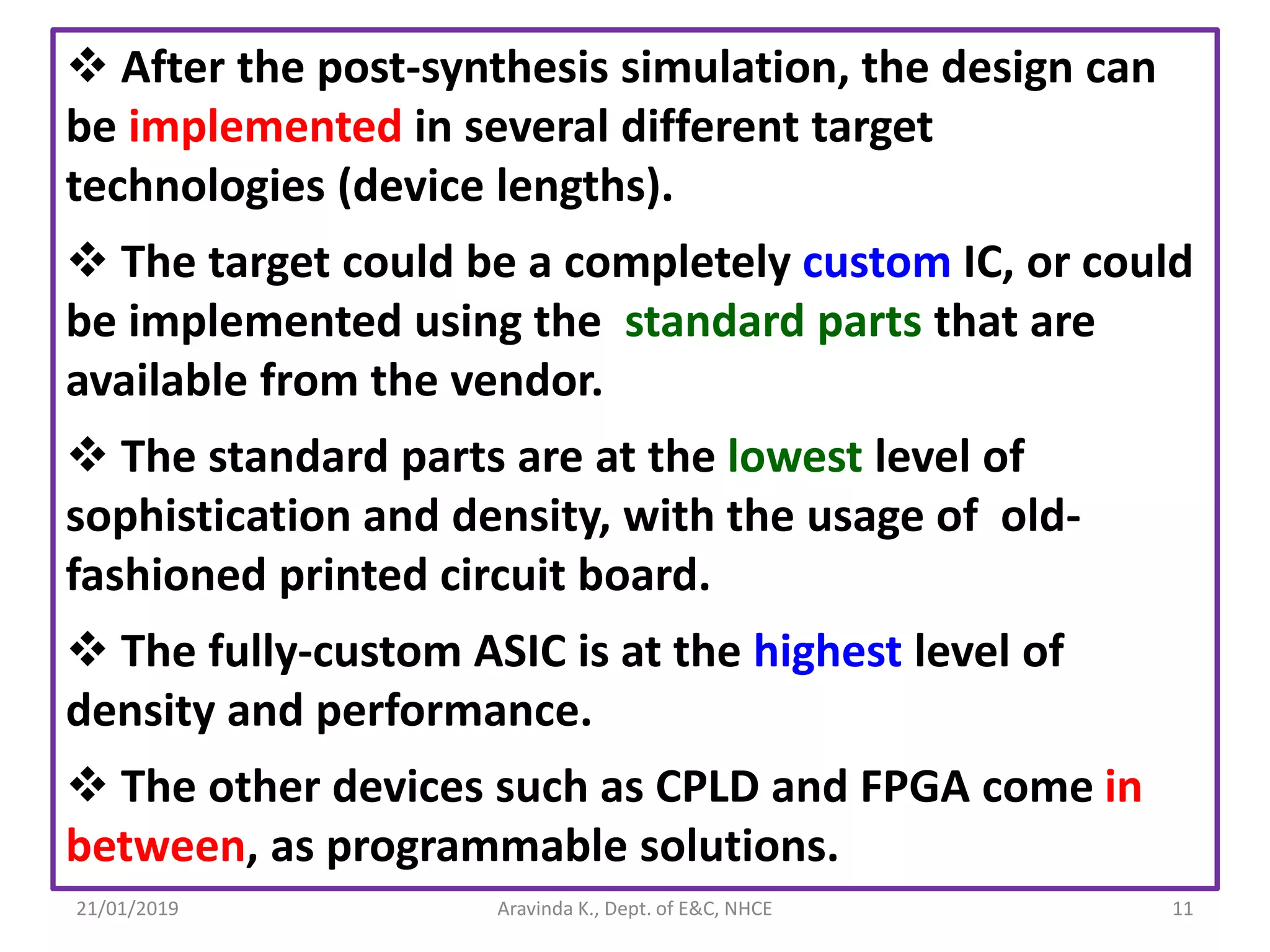

After the post-synthesis simulation, the design can
be implemented in several different target
technologies (device lengths).

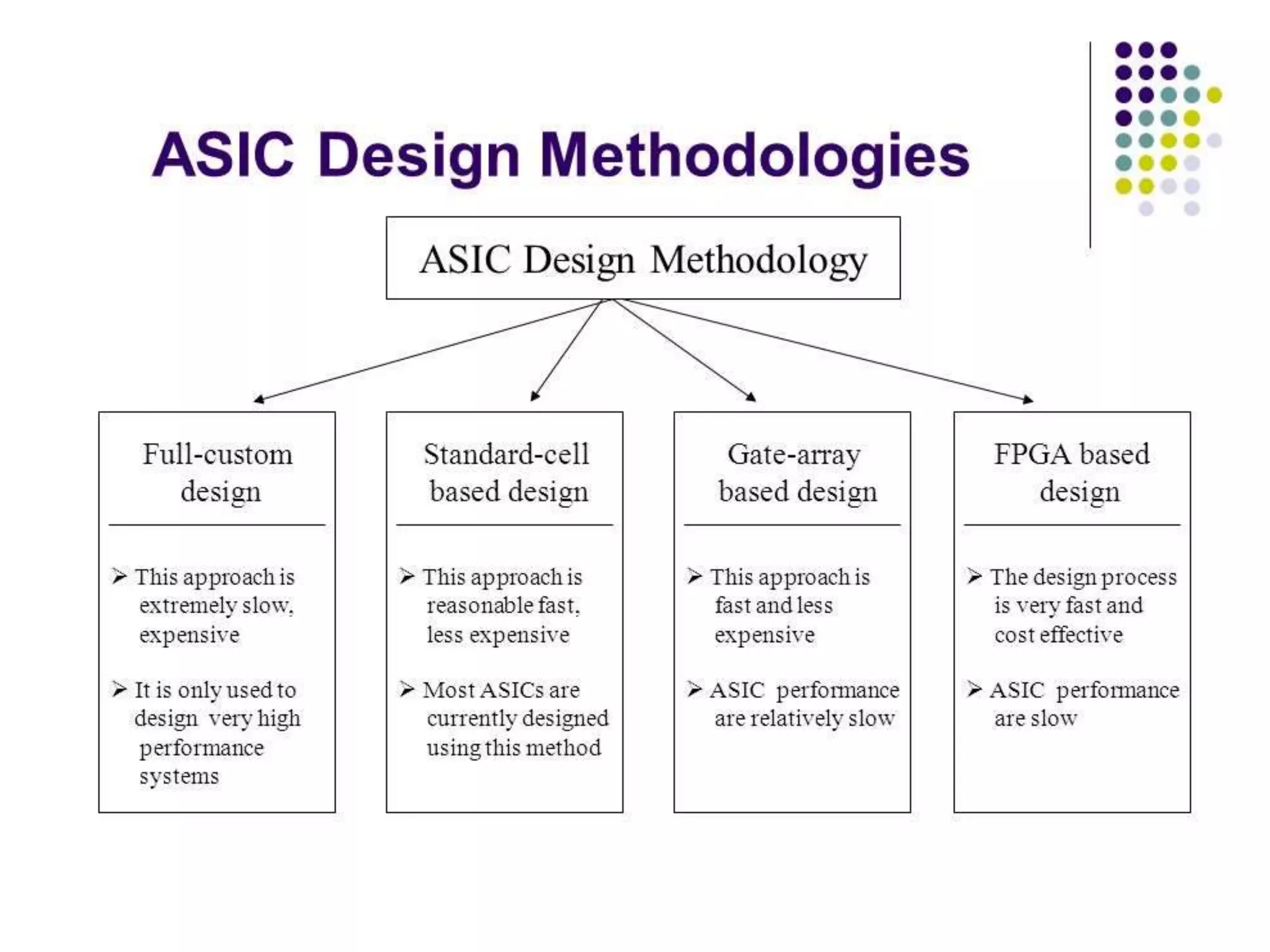

The target could be a completely custom IC, or could
be implemented using the standard parts that are
available from the vendor.
The standard parts are at the lowest level of
sophistication and density, with the usage of old-
fashioned printed circuit board.
The fully-custom ASIC is at the highest level of
density and performance.

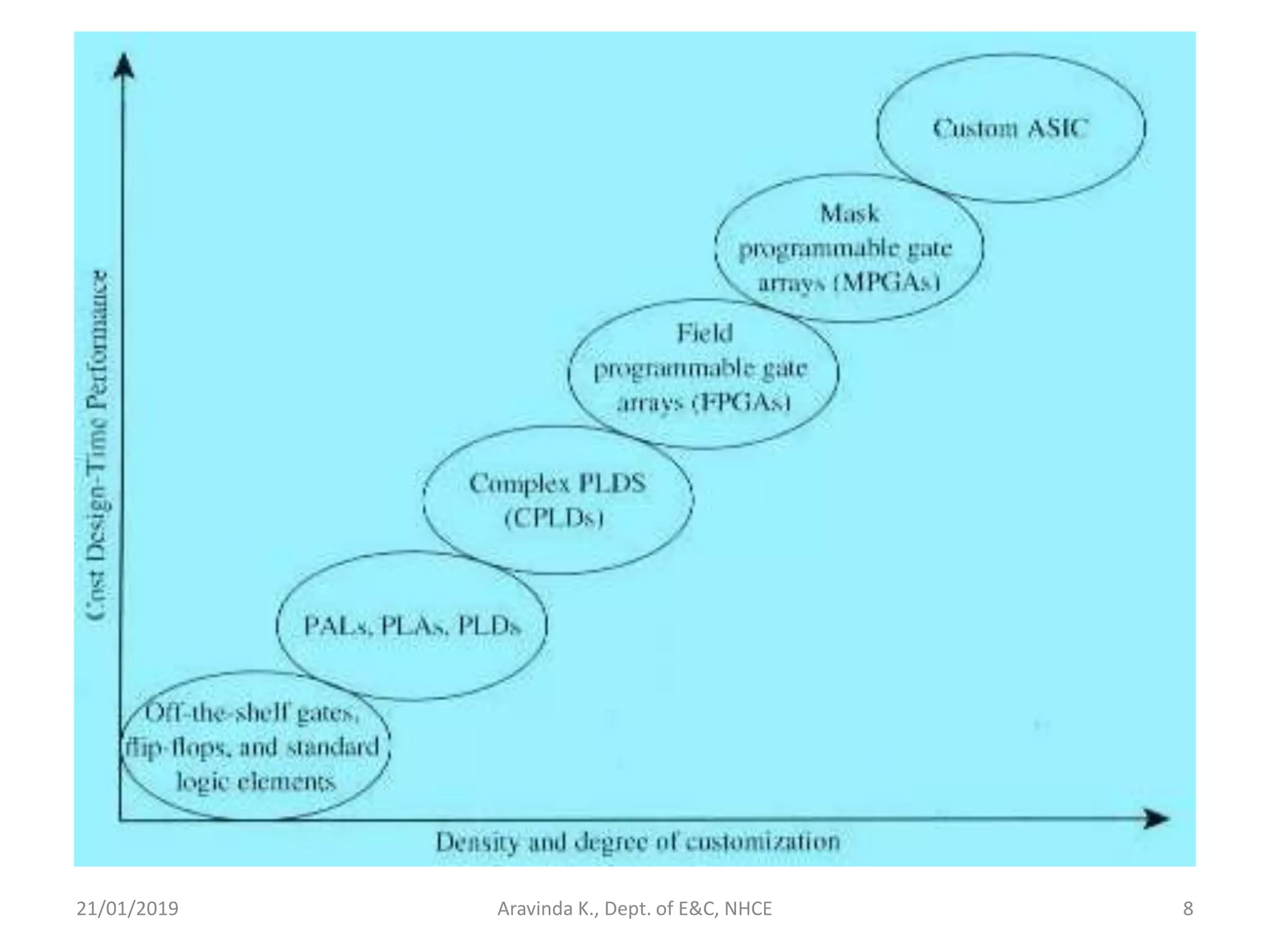

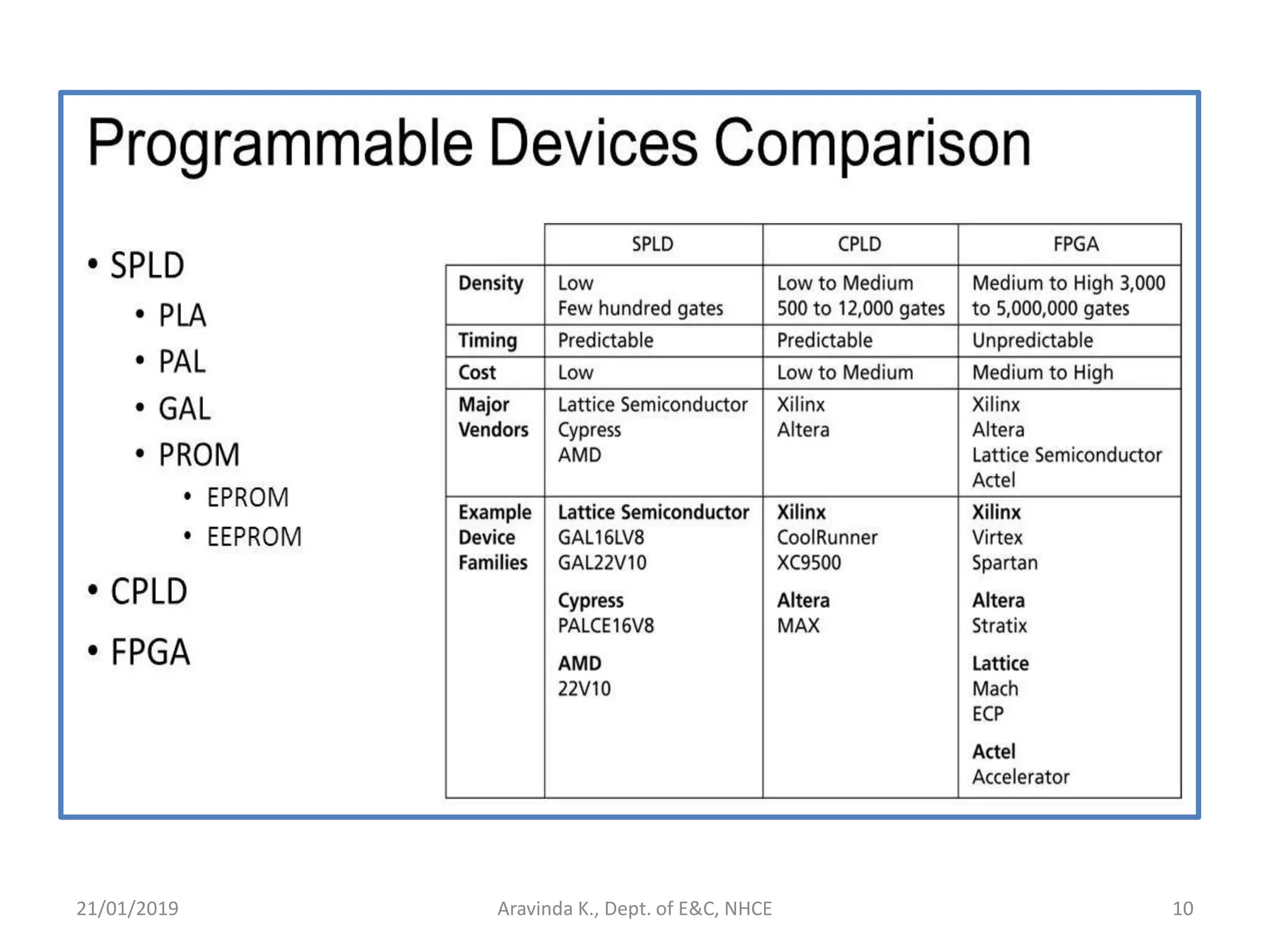

The other devices such as CPLD and FPGA come in
between, as programmable solutions.

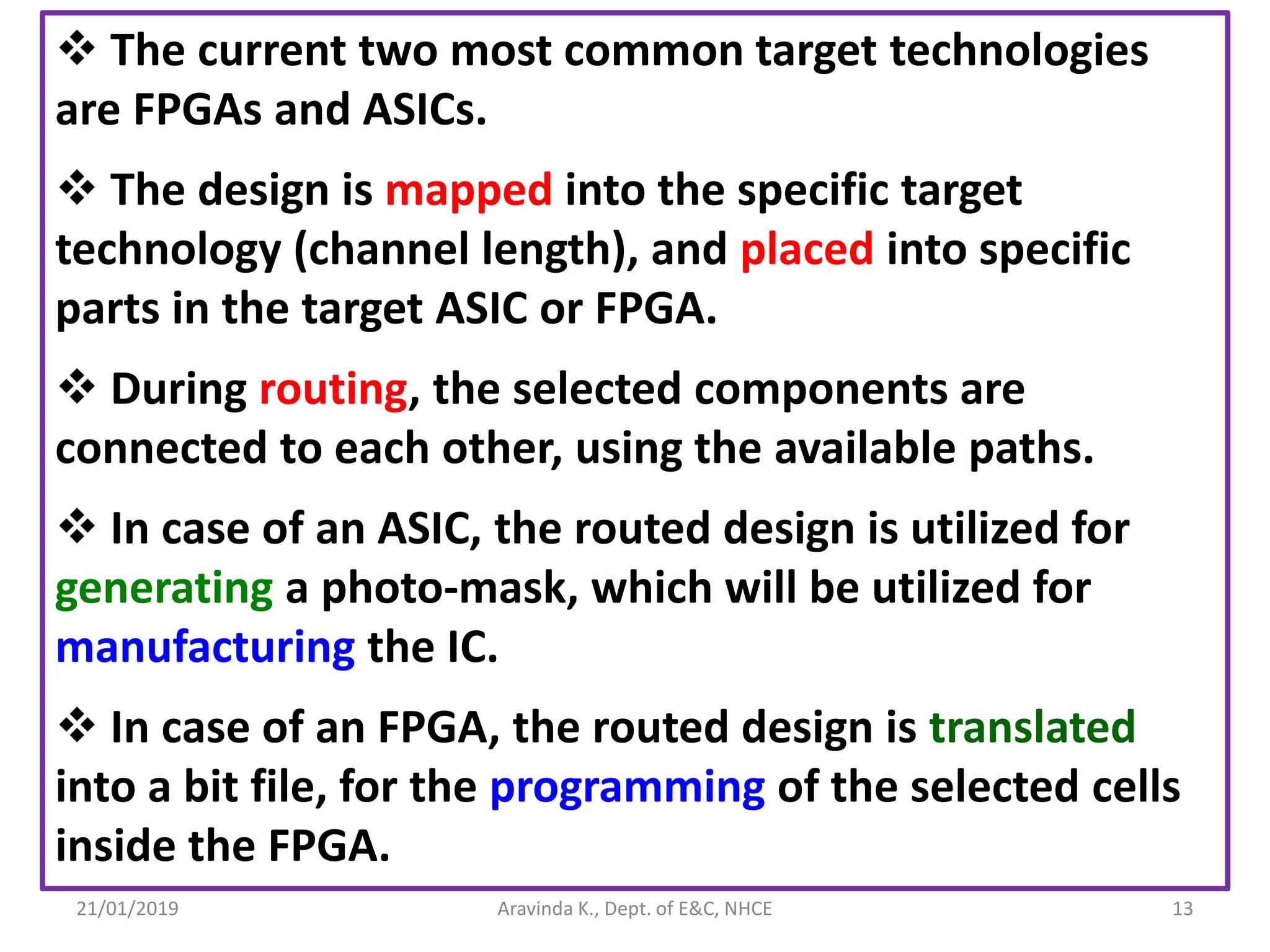

13. 21/01/2019 13Aravinda K., Dept. of E&C, NHCE

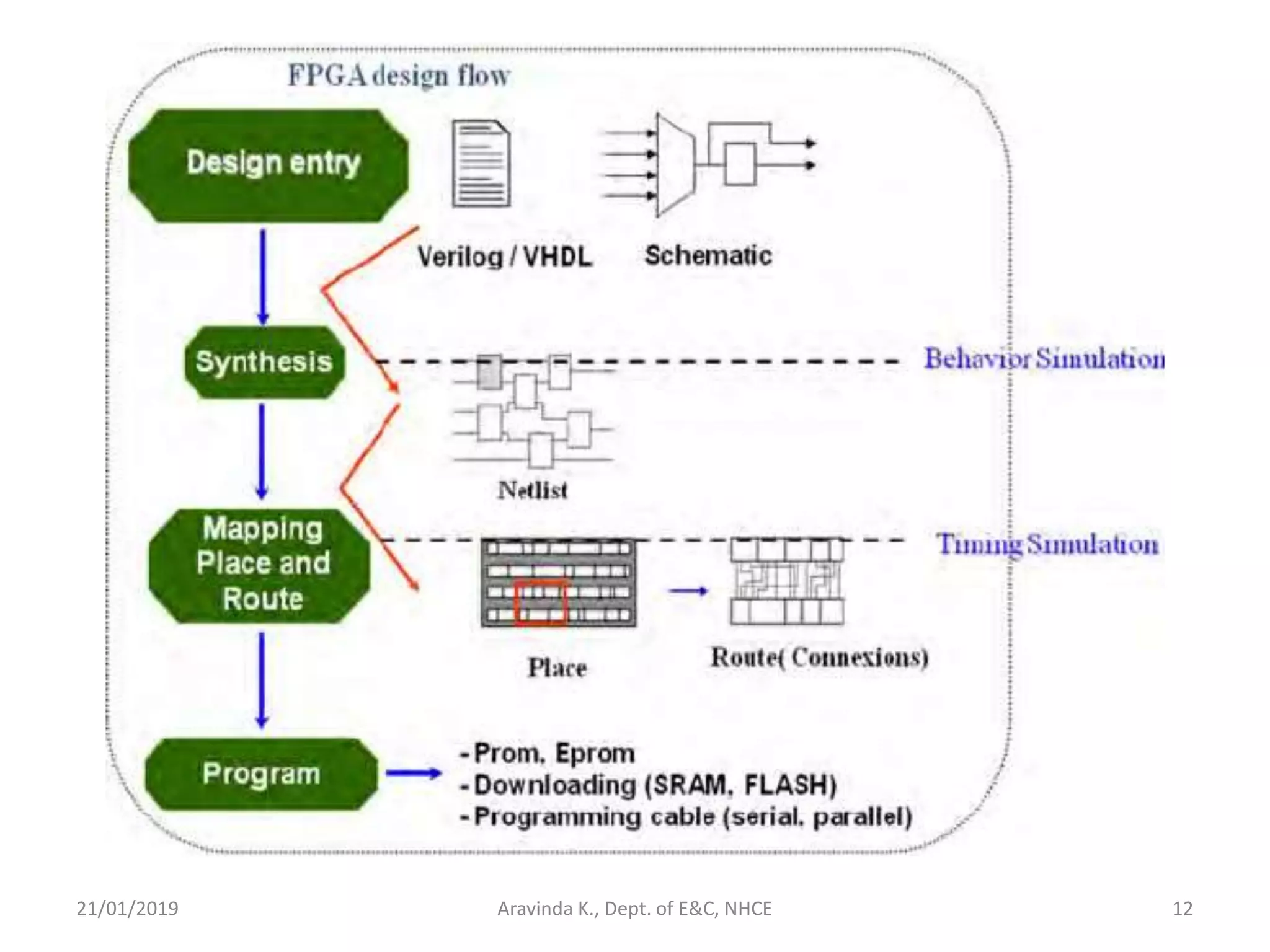

The current two most common target technologies
are FPGAs and ASICs.
The design is mapped into the specific target
technology (channel length), and placed into specific
parts in the target ASIC or FPGA.
During routing, the selected components are
connected to each other, using the available paths.
In case of an ASIC, the routed design is utilized for
generating a photo-mask, which will be utilized for
manufacturing the IC.
In case of an FPGA, the routed design is translated
into a bit file, for the programming of the selected cells
inside the FPGA.

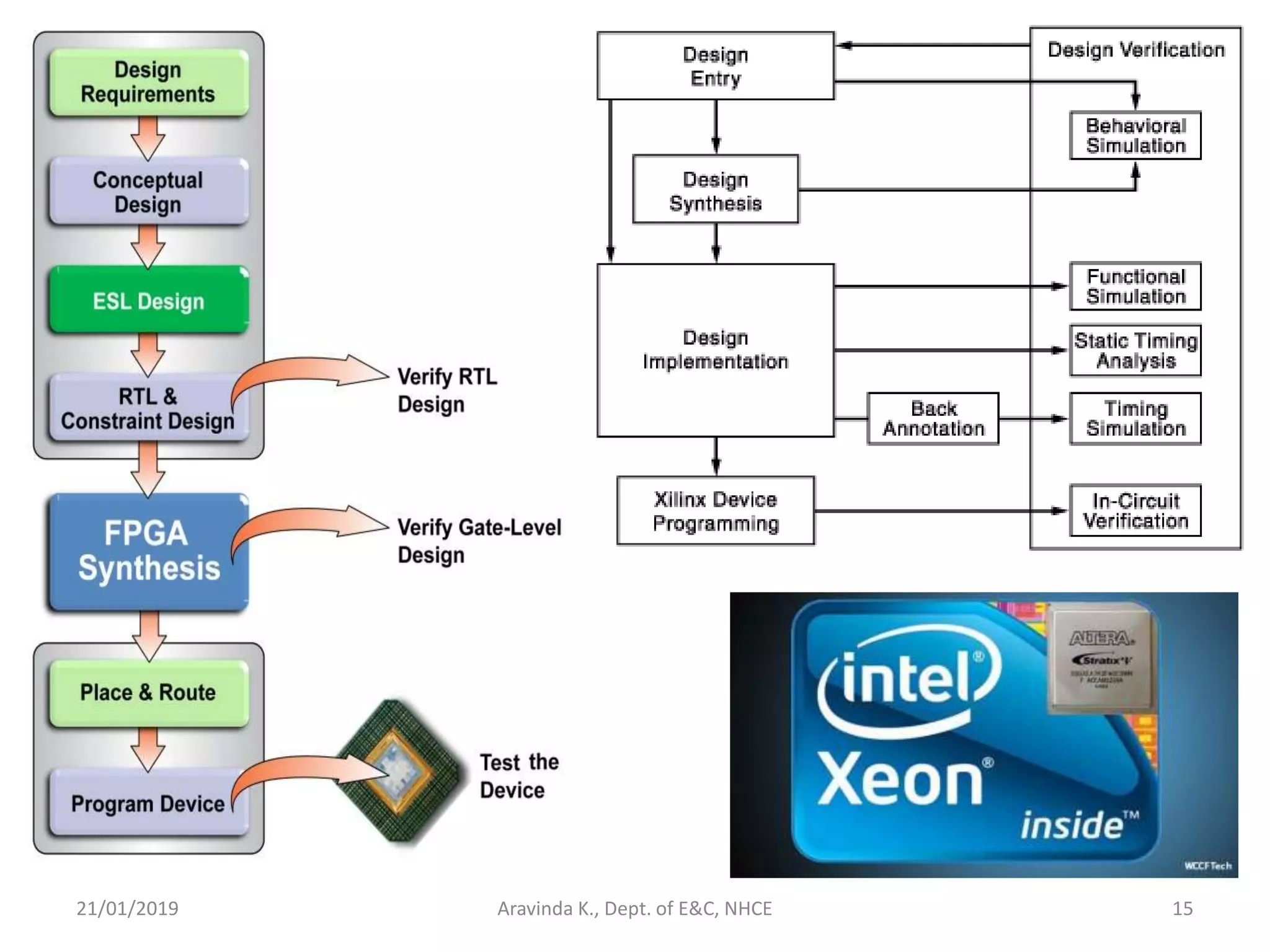

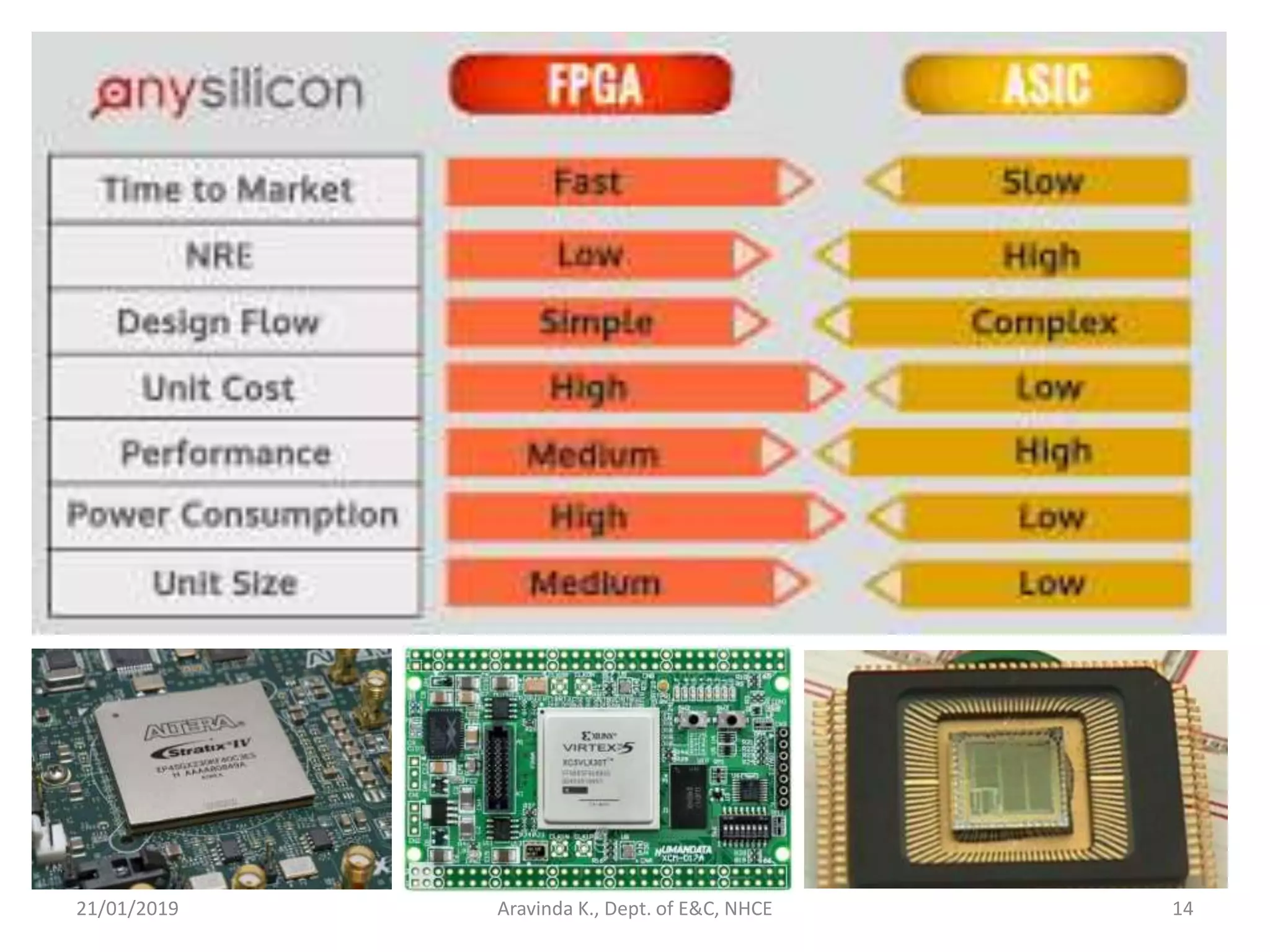

16. 21/01/2019 16Aravinda K., Dept. of E&C, NHCE

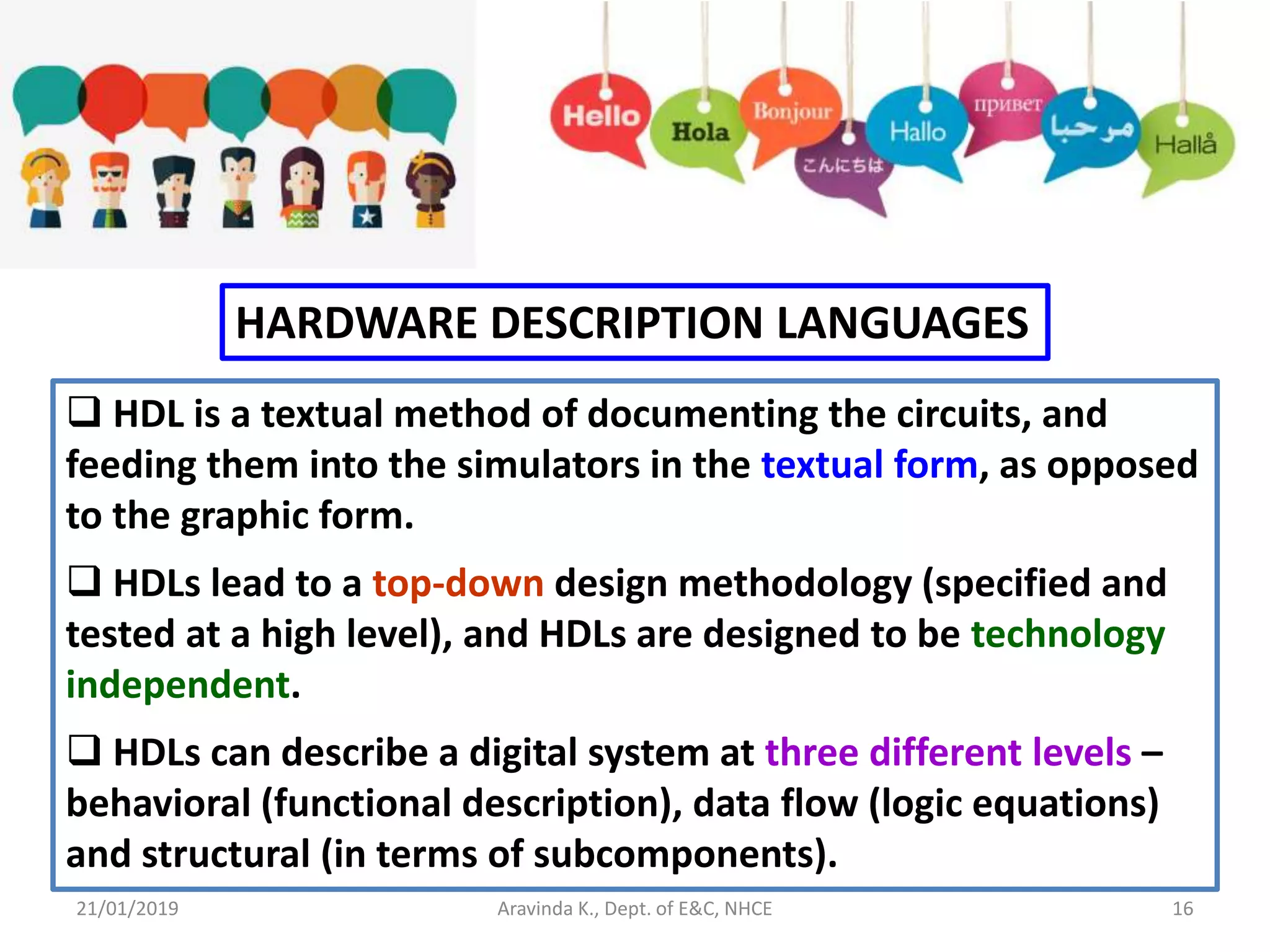

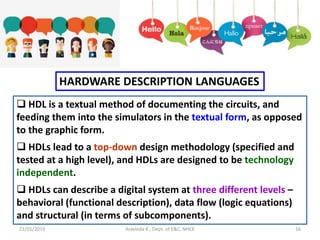

HARDWARE DESCRIPTION LANGUAGES
HDL is a textual method of documenting the circuits, and
feeding them into the simulators in the textual form, as opposed
to the graphic form.
HDLs lead to a top-down design methodology (specified and
tested at a high level), and HDLs are designed to be technology
independent.

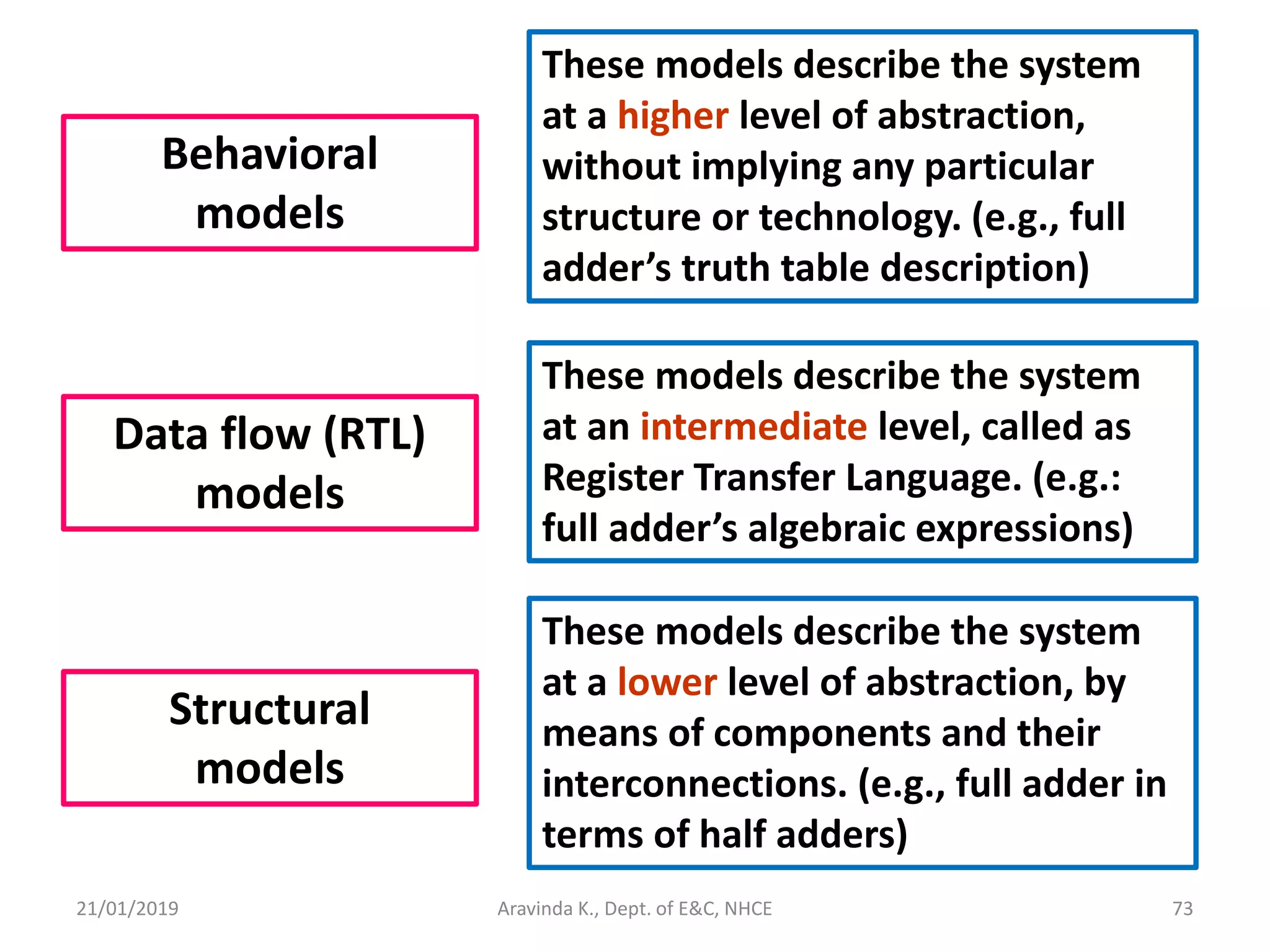

HDLs can describe a digital system at three different levels –
behavioral (functional description), data flow (logic equations)
and structural (in terms of subcomponents).
17. 21/01/2019 17Aravinda K., Dept. of E&C, NHCE

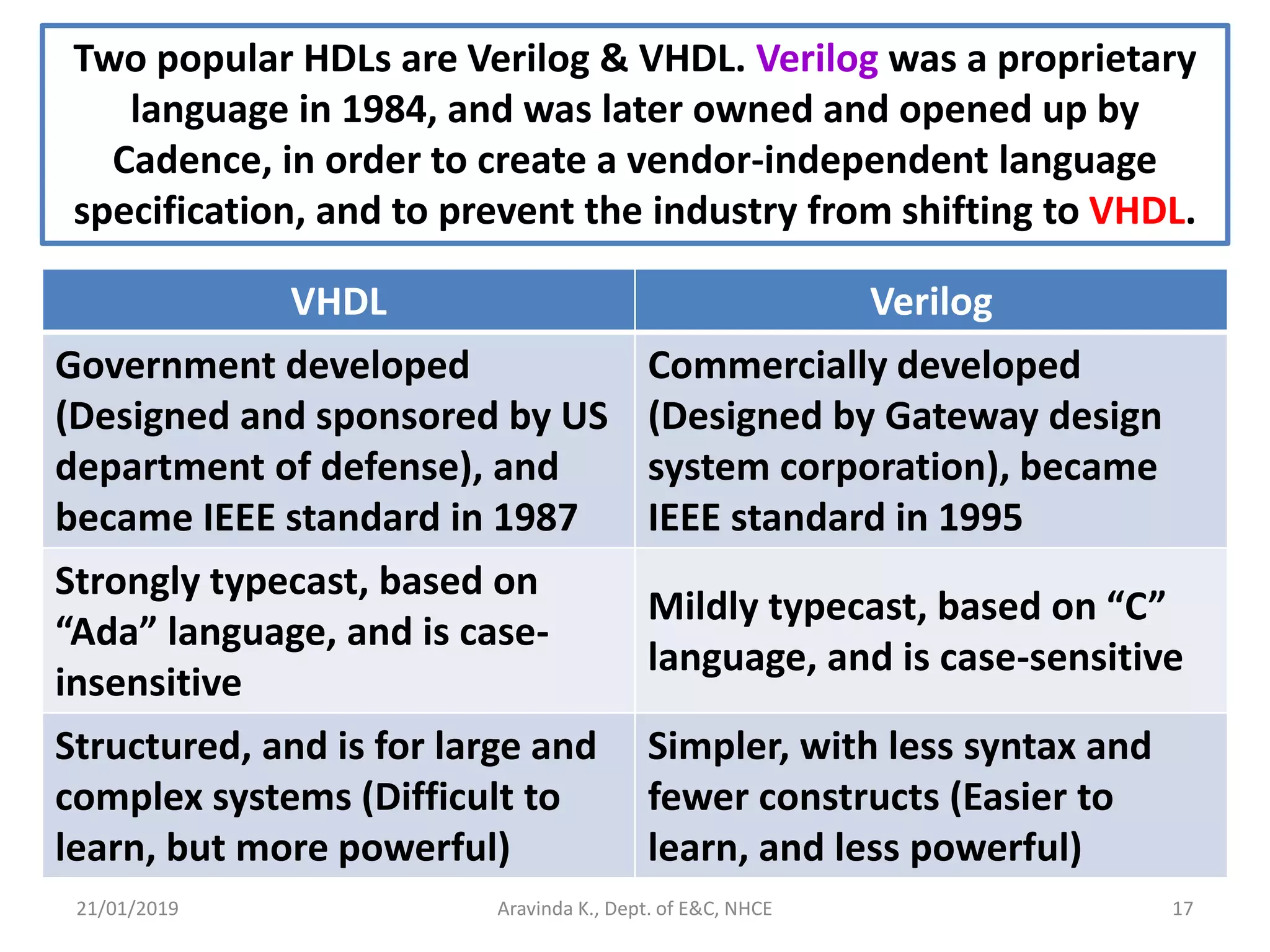

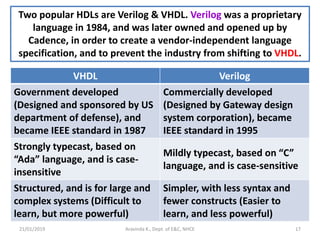

VHDL Verilog
Government developed
(Designed and sponsored by US
department of defense), and
became IEEE standard in 1987
Commercially developed
(Designed by Gateway design
system corporation), became
IEEE standard in 1995
Strongly typecast, based on
“Ada” language, and is case-
insensitive
Mildly typecast, based on “C”
language, and is case-sensitive
Structured, and is for large and
complex systems (Difficult to
learn, but more powerful)
Simpler, with less syntax and
fewer constructs (Easier to
learn, and less powerful)
Two popular HDLs are Verilog & VHDL. Verilog was a proprietary
language in 1984, and was later owned and opened up by
Cadence, in order to create a vendor-independent language
specification, and to prevent the industry from shifting to VHDL.
18. 21/01/2019 18Aravinda K., Dept. of E&C, NHCE

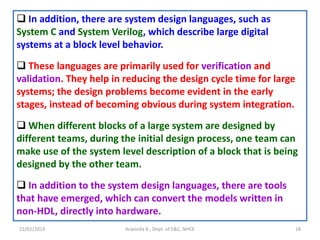

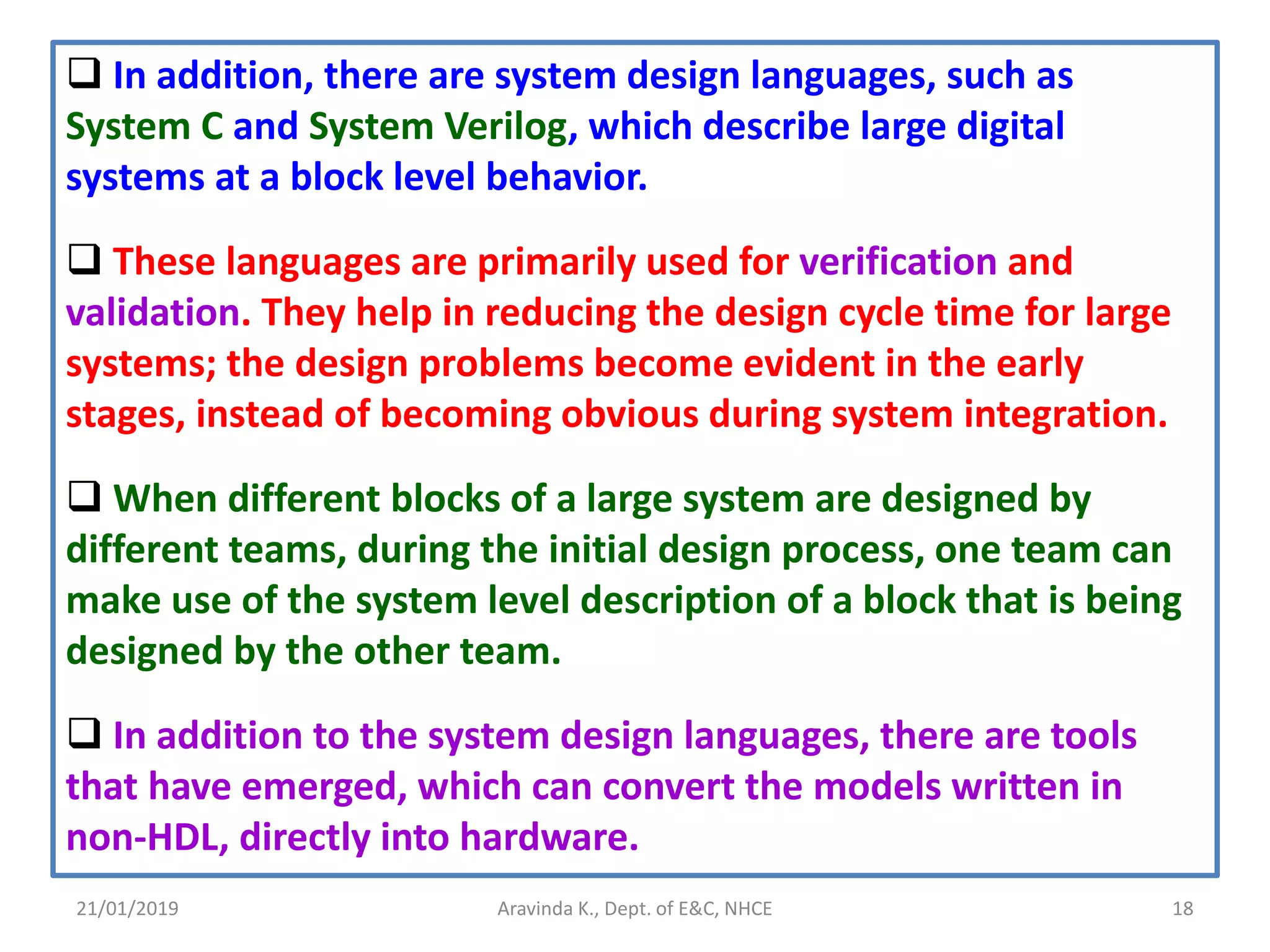

In addition, there are system design languages, such as
System C and System Verilog, which describe large digital
systems at a block level behavior.
These languages are primarily used for verification and
validation. They help in reducing the design cycle time for large
systems; the design problems become evident in the early
stages, instead of becoming obvious during system integration.
When different blocks of a large system are designed by
different teams, during the initial design process, one team can
make use of the system level description of a block that is being
designed by the other team.
In addition to the system design languages, there are tools
that have emerged, which can convert the models written in
non-HDL, directly into hardware.
19. 21/01/2019 19Aravinda K., Dept. of E&C, NHCE

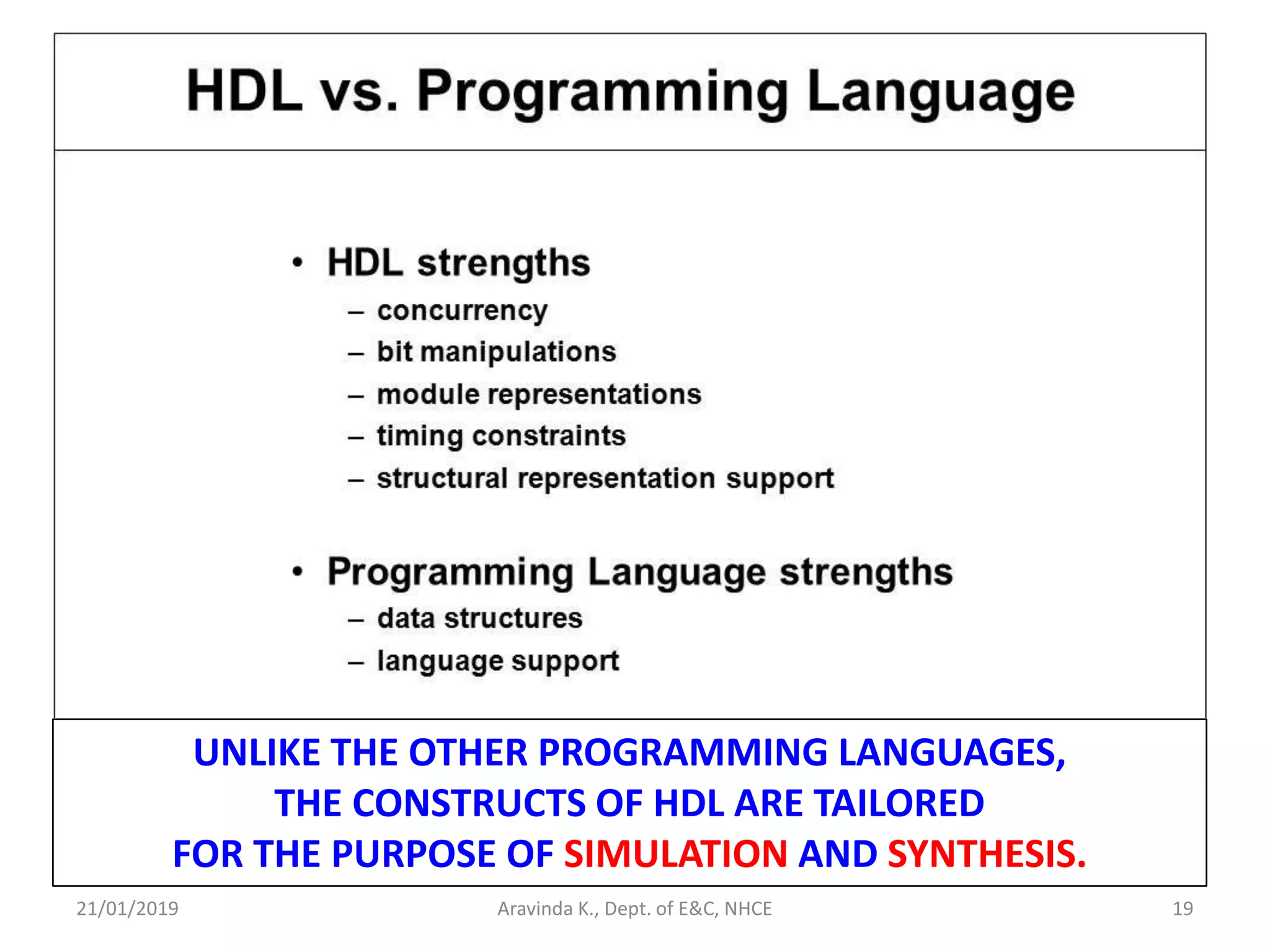

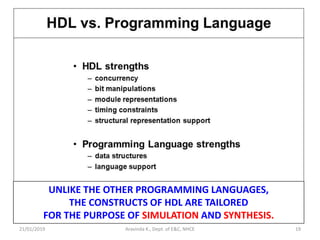

UNLIKE THE OTHER PROGRAMMING LANGUAGES,
THE CONSTRUCTS OF HDL ARE TAILORED
FOR THE PURPOSE OF SIMULATION AND SYNTHESIS.

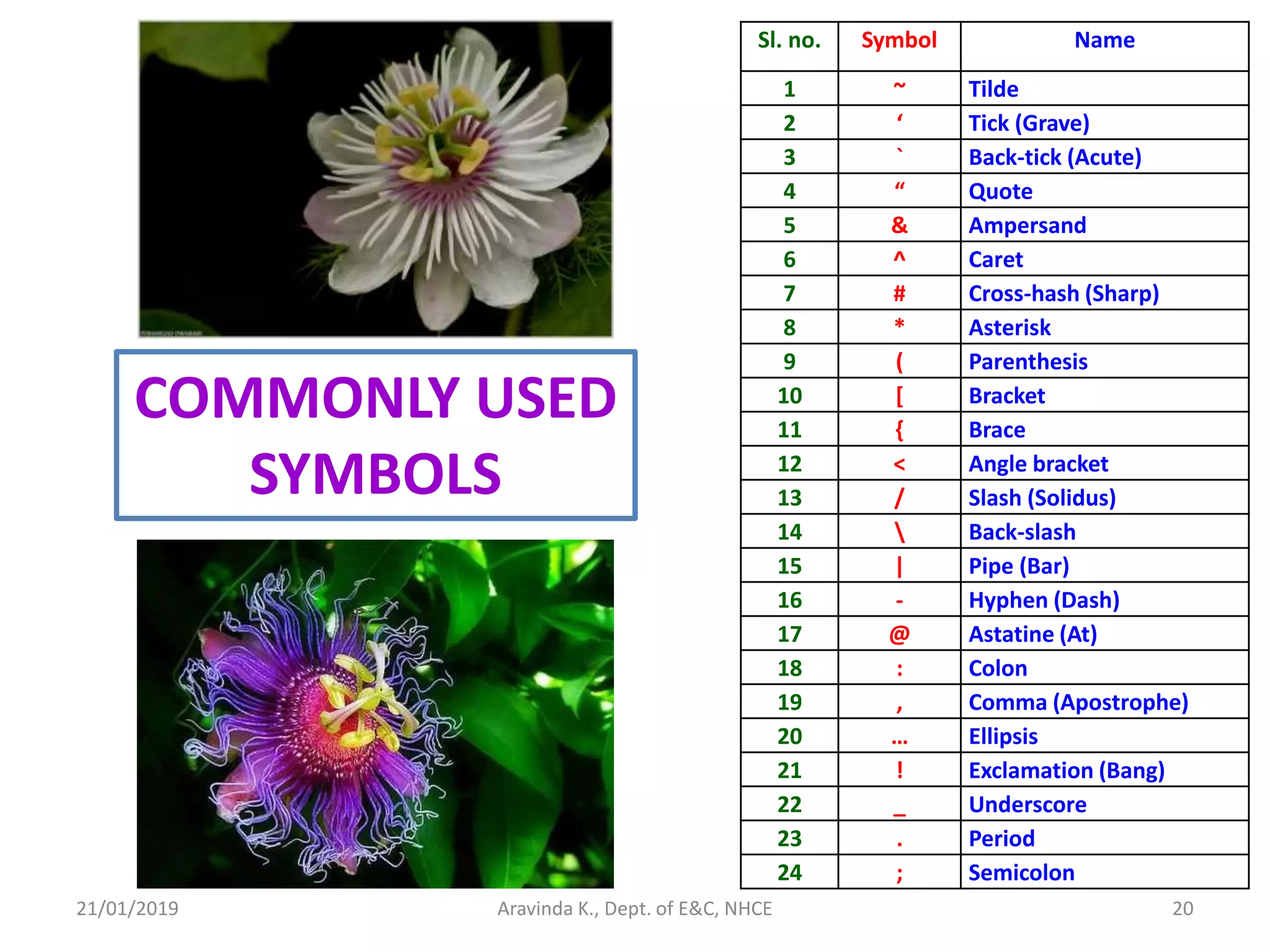

21. 21/01/2019 21Aravinda K., Dept. of E&C, NHCE

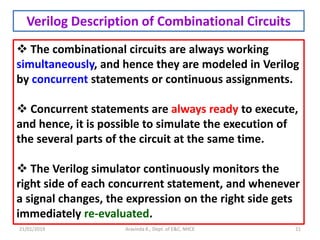

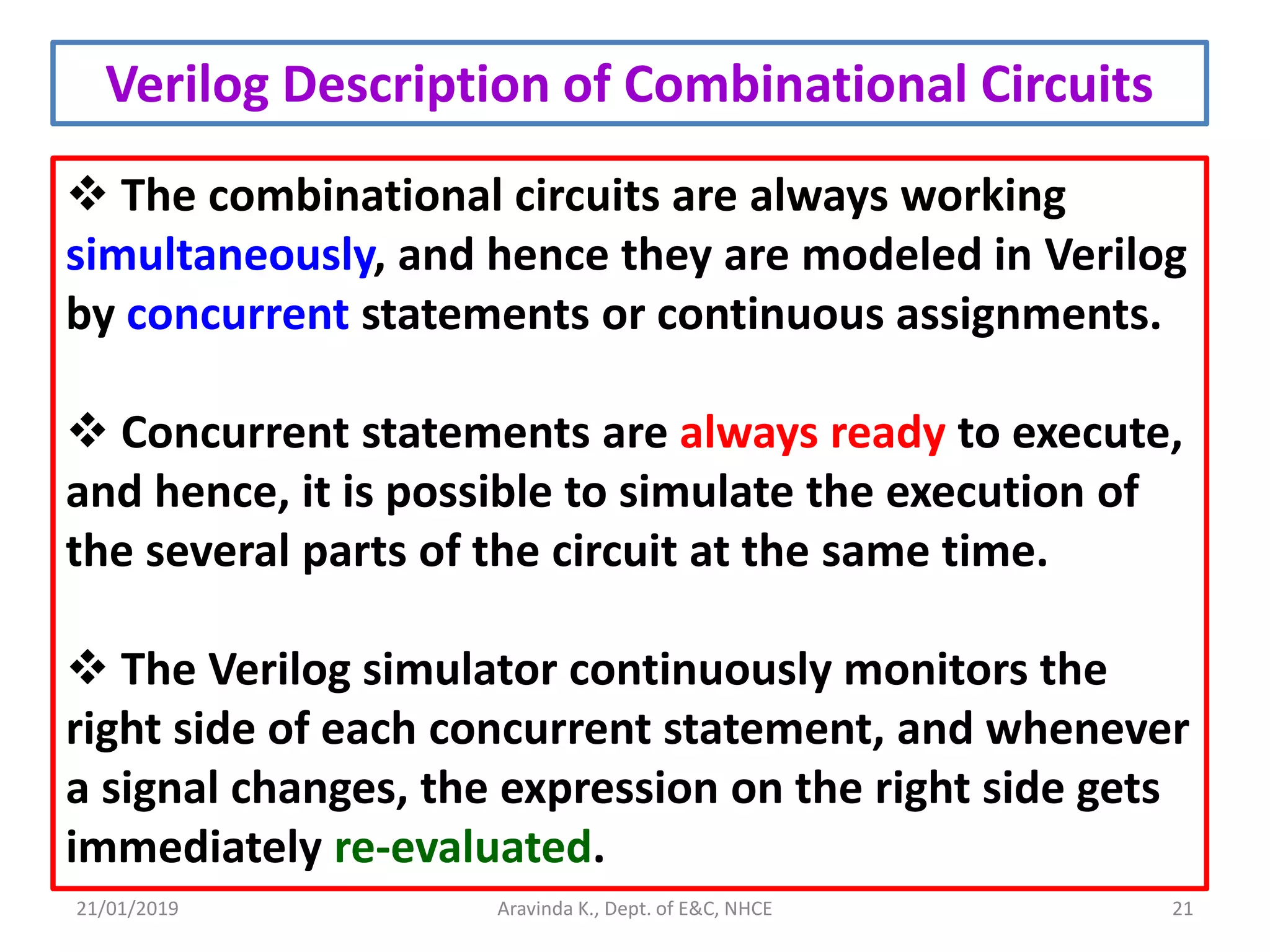

Verilog Description of Combinational Circuits
The combinational circuits are always working
simultaneously, and hence they are modeled in Verilog
by concurrent statements or continuous assignments.
Concurrent statements are always ready to execute,
and hence, it is possible to simulate the execution of
the several parts of the circuit at the same time.
The Verilog simulator continuously monitors the
right side of each concurrent statement, and whenever
a signal changes, the expression on the right side gets
immediately re-evaluated.
22. 21/01/2019 22Aravinda K., Dept. of E&C, NHCE

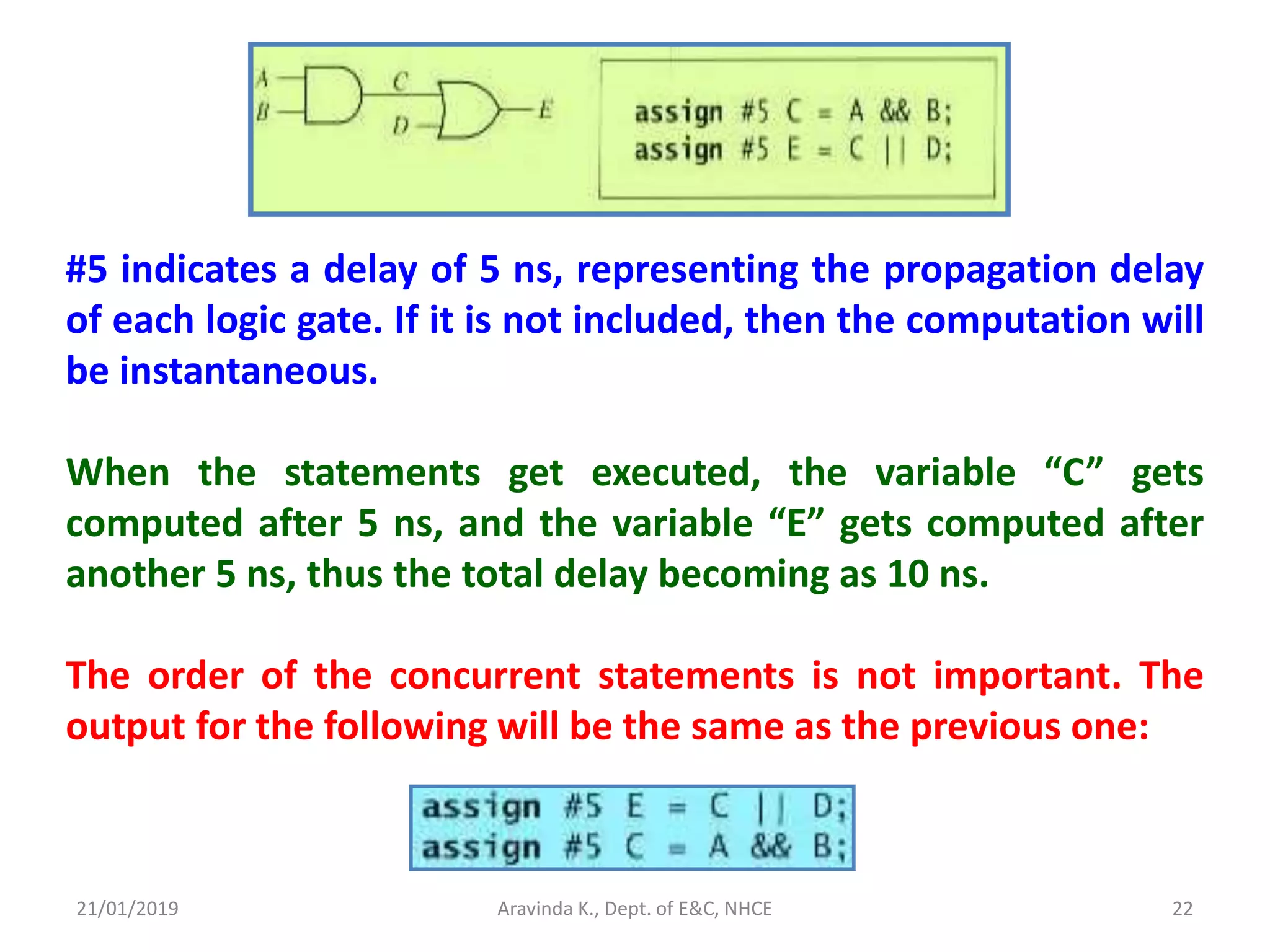

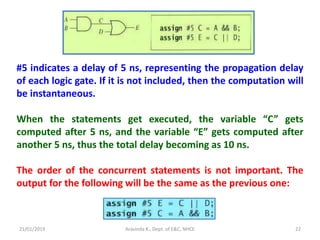

#5 indicates a delay of 5 ns, representing the propagation delay
of each logic gate. If it is not included, then the computation will
be instantaneous.
When the statements get executed, the variable “C” gets
computed after 5 ns, and the variable “E” gets computed after
another 5 ns, thus the total delay becoming as 10 ns.
The order of the concurrent statements is not important. The
output for the following will be the same as the previous one:
23. 21/01/2019 23Aravinda K., Dept. of E&C, NHCE

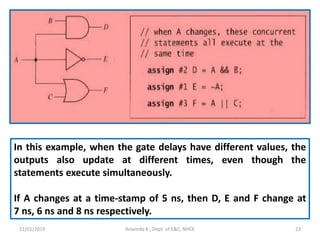

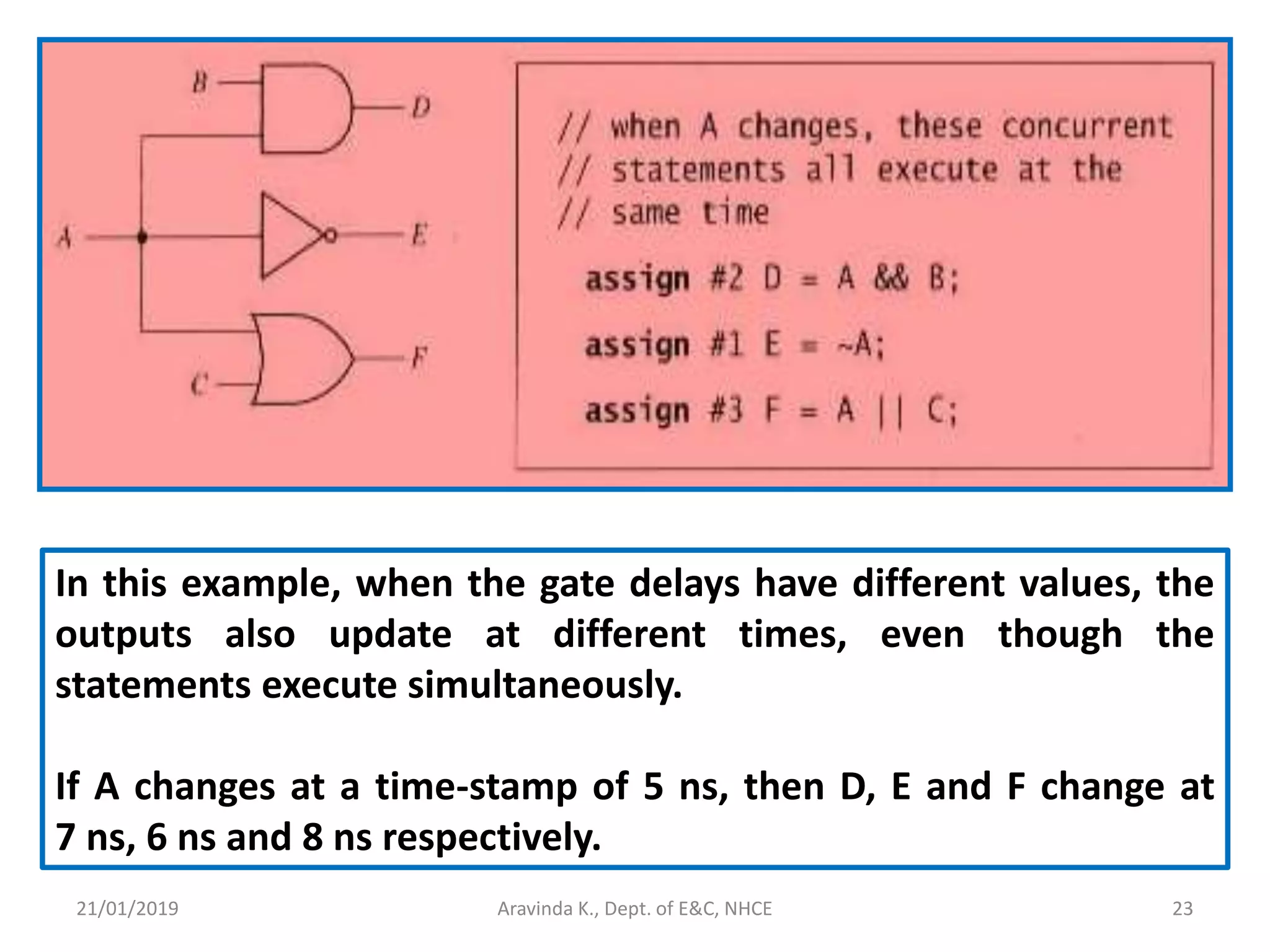

In this example, when the gate delays have different values, the
outputs also update at different times, even though the
statements execute simultaneously.
If A changes at a time-stamp of 5 ns, then D, E and F change at
7 ns, 6 ns and 8 ns respectively.
24. 21/01/2019 24Aravinda K., Dept. of E&C, NHCE

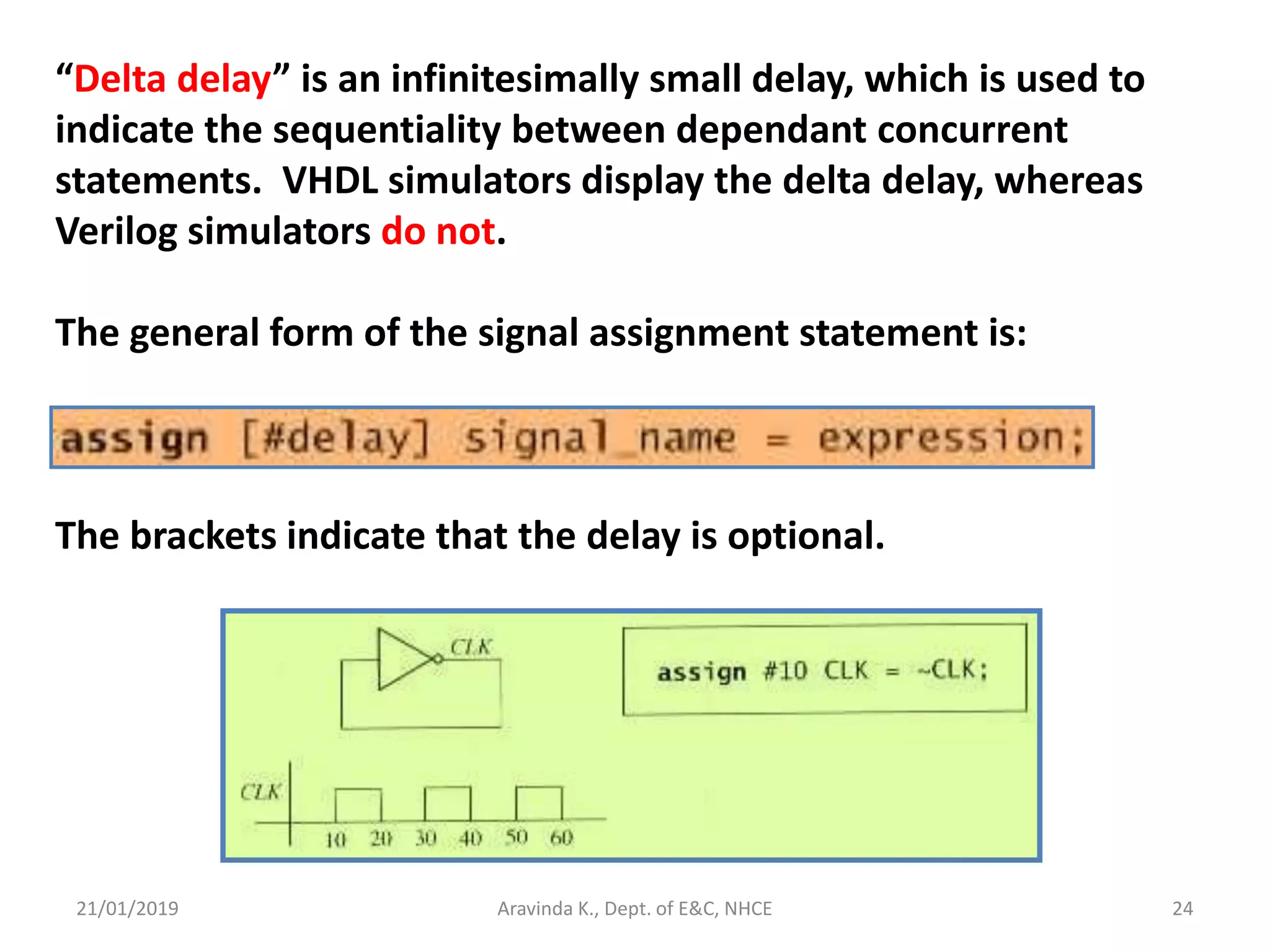

“Delta delay” is an infinitesimally small delay, which is used to
indicate the sequentiality between dependant concurrent
statements. VHDL simulators display the delta delay, whereas
Verilog simulators do not.
The general form of the signal assignment statement is:
The brackets indicate that the delay is optional.
25. 21/01/2019 25Aravinda K., Dept. of E&C, NHCE
Statement Result
assign #10 CLK= ~CLK; Waveform with name “CLK” is produced
assign #10 Clk= ~Clk; Waveform with name “Clk” is produced
assign CLK= ~CLK; The waveform will never advance

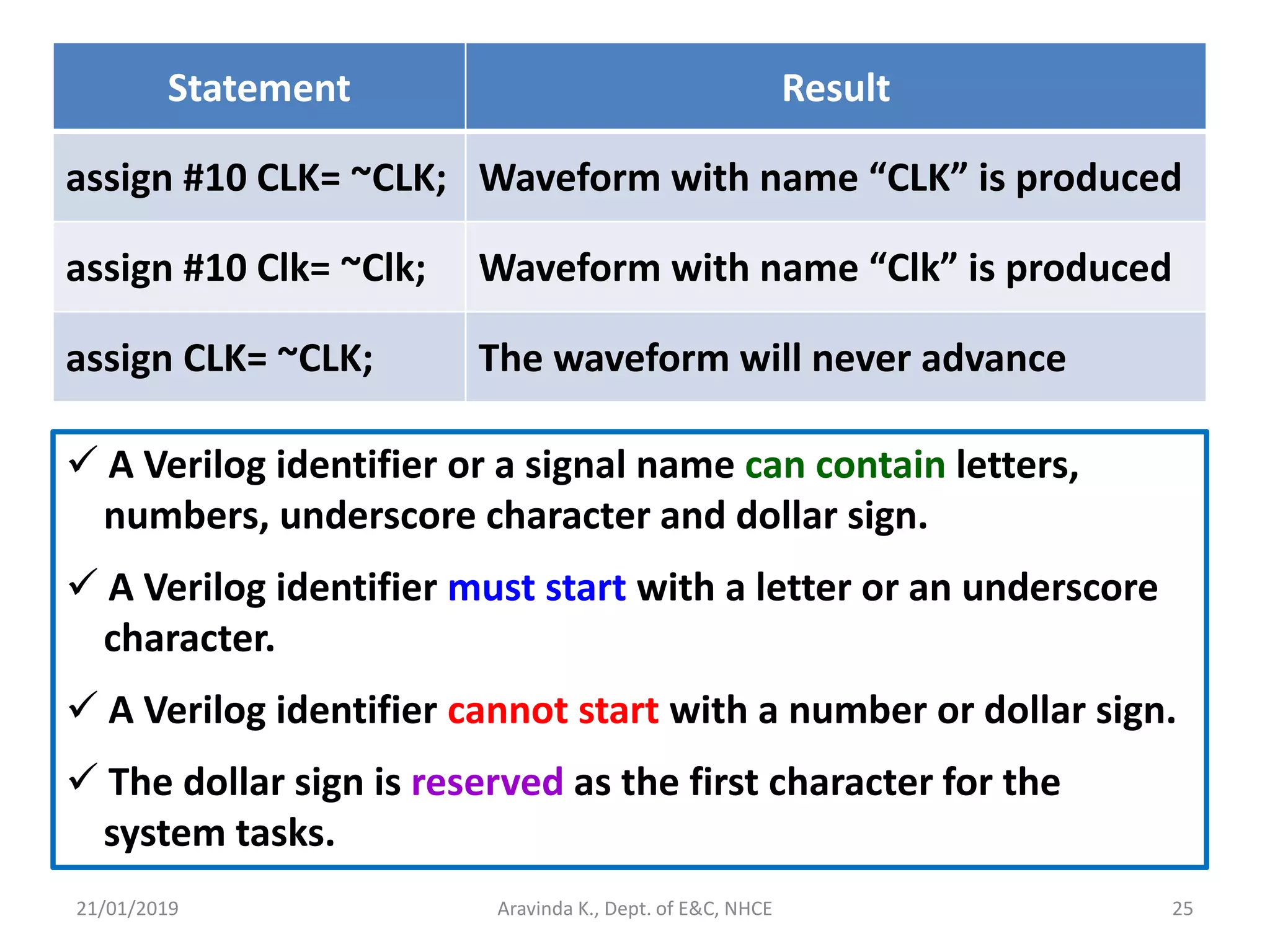

A Verilog identifier or a signal name can contain letters,
numbers, underscore character and dollar sign.
A Verilog identifier must start with a letter or an underscore
character.
A Verilog identifier cannot start with a number or dollar sign.
The dollar sign is reserved as the first character for the
system tasks.
26. 21/01/2019 26Aravinda K., Dept. of E&C, NHCE

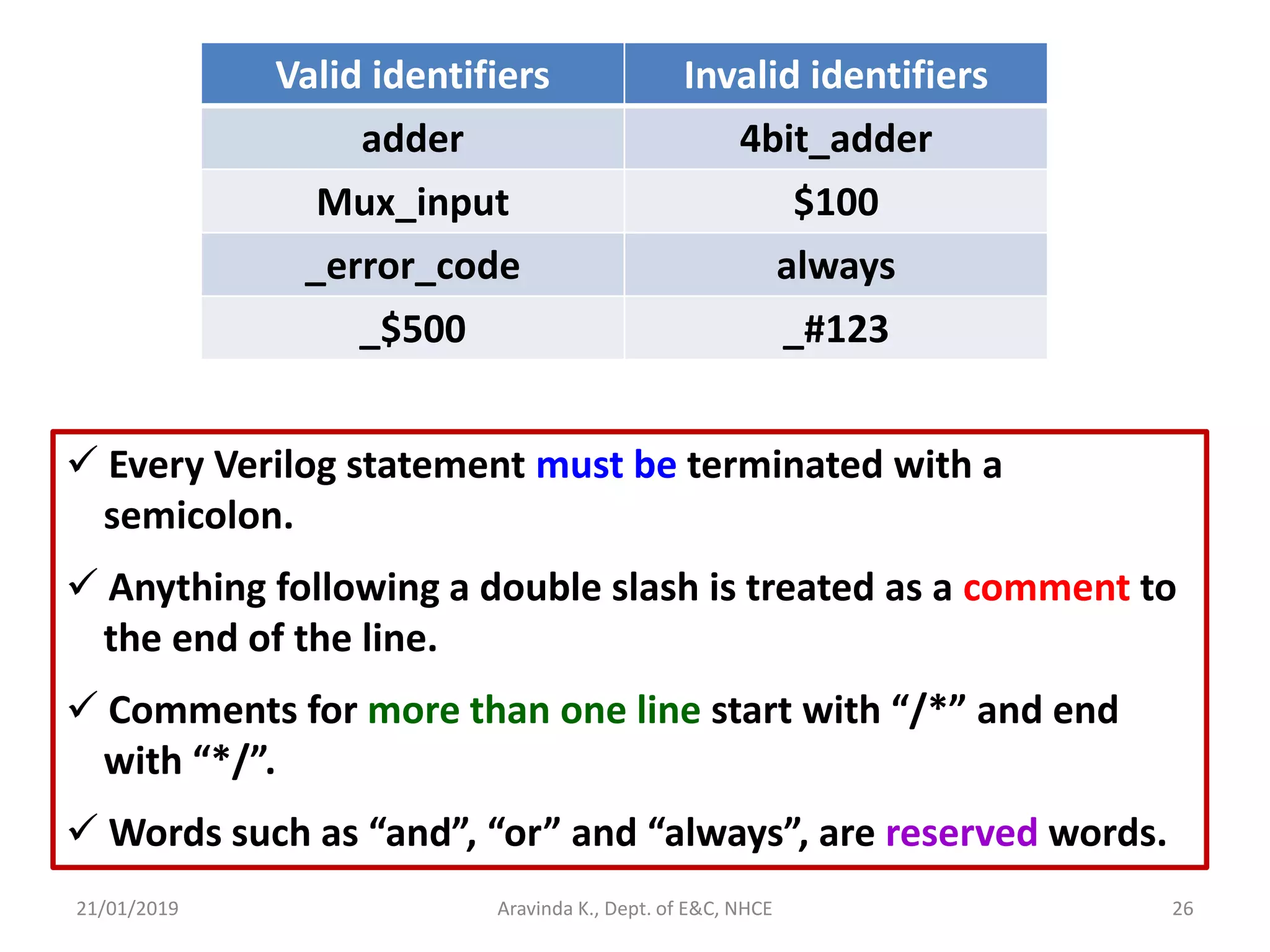

Valid identifiers Invalid identifiers
adder 4bit_adder
Mux_input $100
_error_code always
_$500 _#123
Every Verilog statement must be terminated with a
semicolon.
Anything following a double slash is treated as a comment to
the end of the line.
Comments for more than one line start with “/*” and end
with “*/”.
Words such as “and”, “or” and “always”, are reserved words.
27. 21/01/2019 27Aravinda K., Dept. of E&C, NHCE

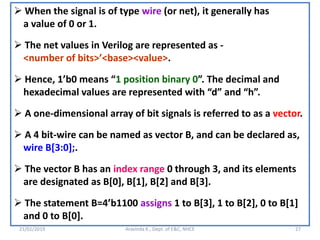

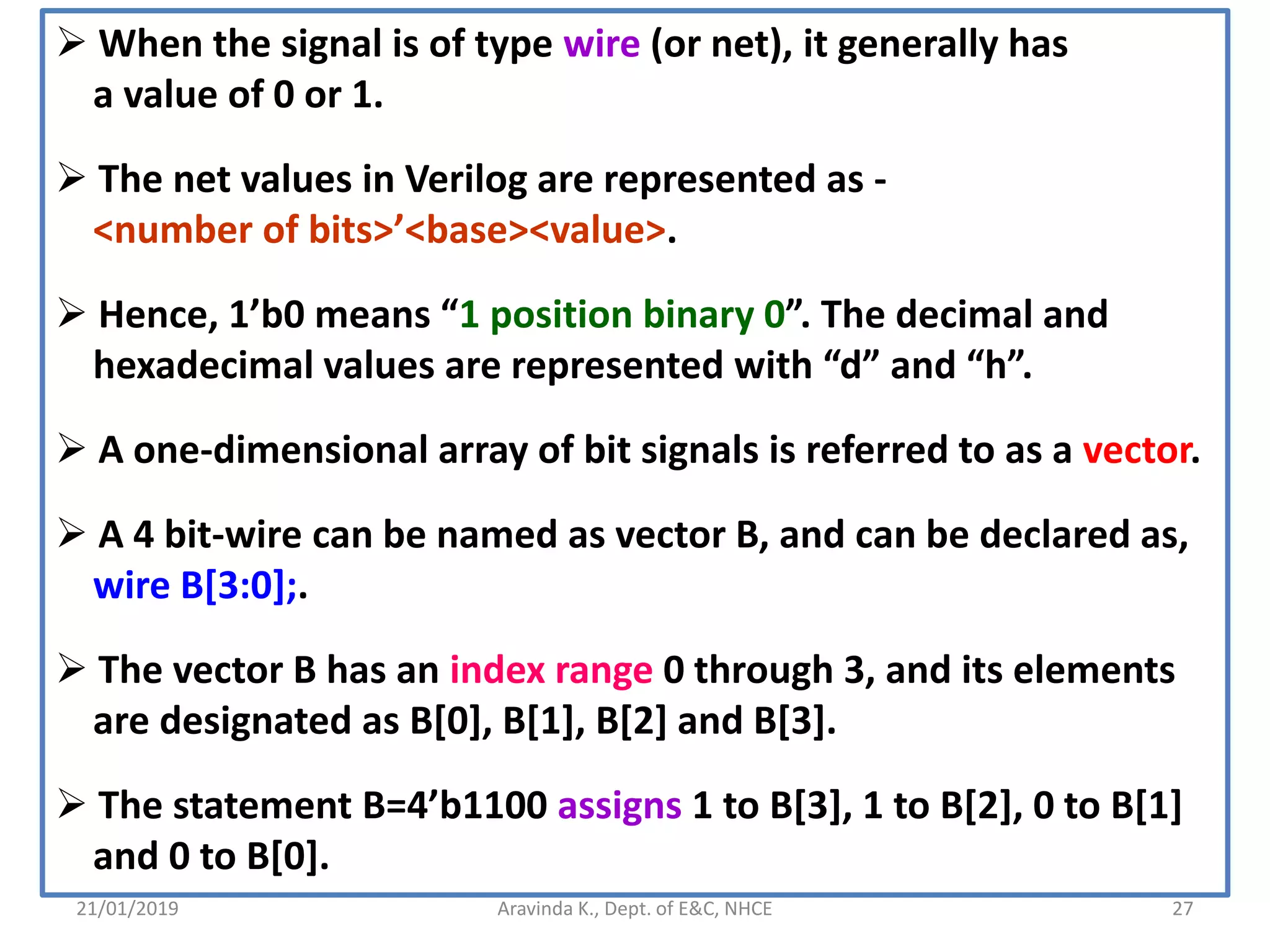

When the signal is of type wire (or net), it generally has
a value of 0 or 1.
The net values in Verilog are represented as -
<number of bits>’<base><value>.
Hence, 1’b0 means “1 position binary 0”. The decimal and
hexadecimal values are represented with “d” and “h”.
A one-dimensional array of bit signals is referred to as a vector.
A 4 bit-wire can be named as vector B, and can be declared as,
wire B[3:0];.
The vector B has an index range 0 through 3, and its elements
are designated as B[0], B[1], B[2] and B[3].
The statement B=4’b1100 assigns 1 to B[3], 1 to B[2], 0 to B[1]
and 0 to B[0].
28. 21/01/2019 28Aravinda K., Dept. of E&C, NHCE

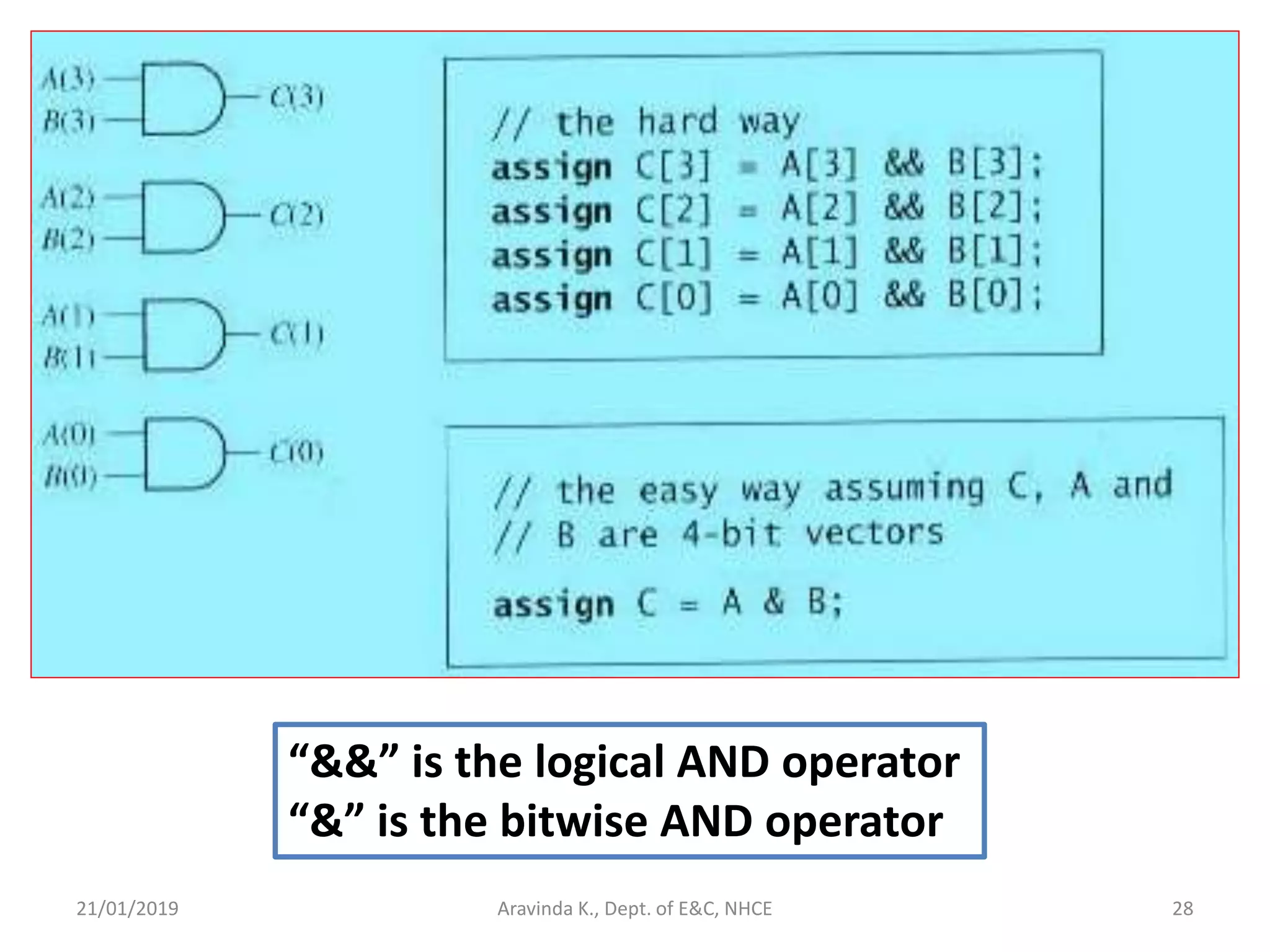

“&&” is the logical AND operator
“&” is the bitwise AND operator
29. 21/01/2019 29Aravinda K., Dept. of E&C, NHCE

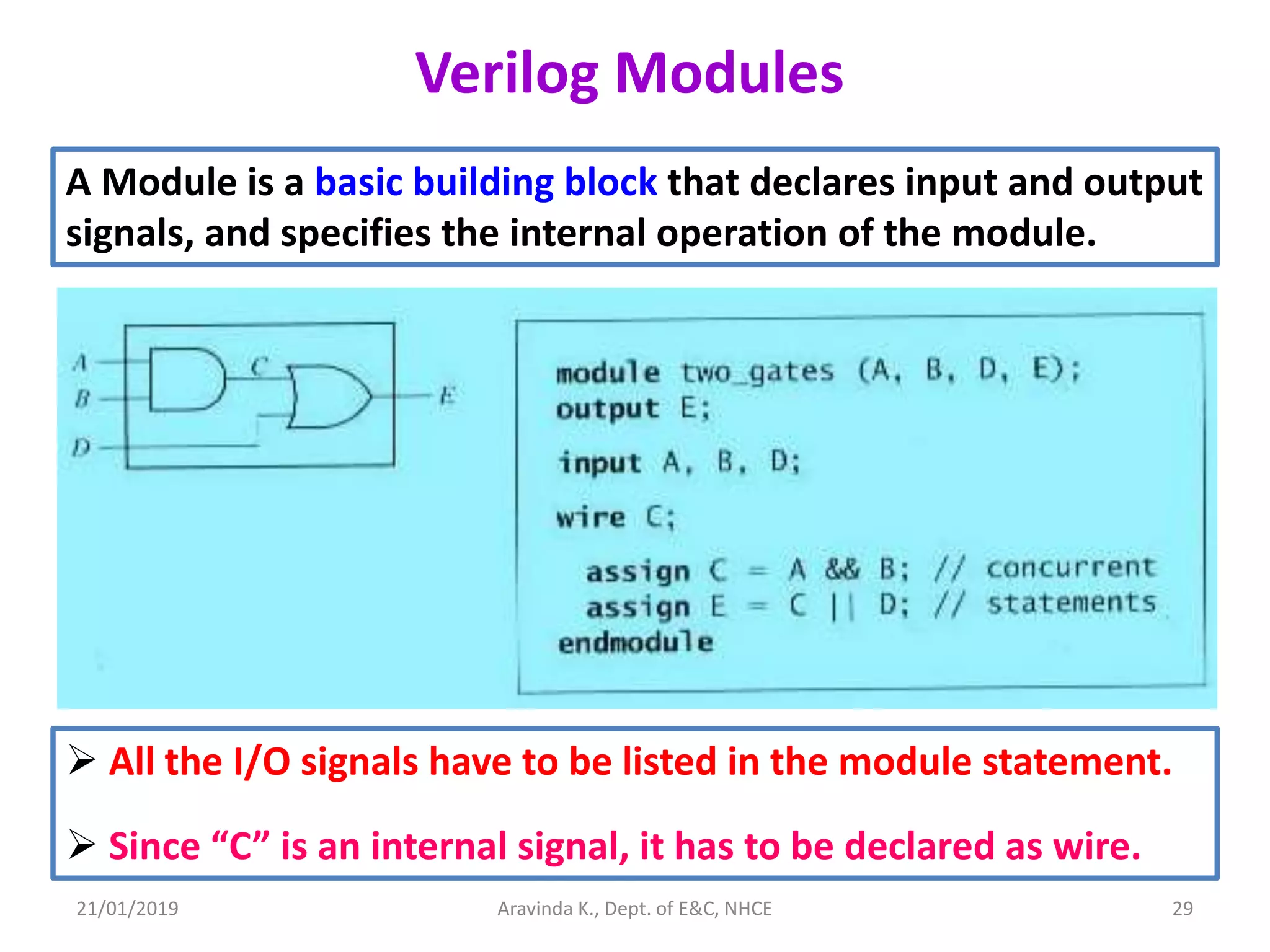

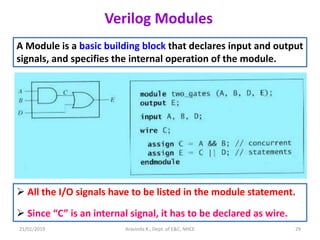

Verilog Modules
A Module is a basic building block that declares input and output
signals, and specifies the internal operation of the module.
All the I/O signals have to be listed in the module statement.
Since “C” is an internal signal, it has to be declared as wire.

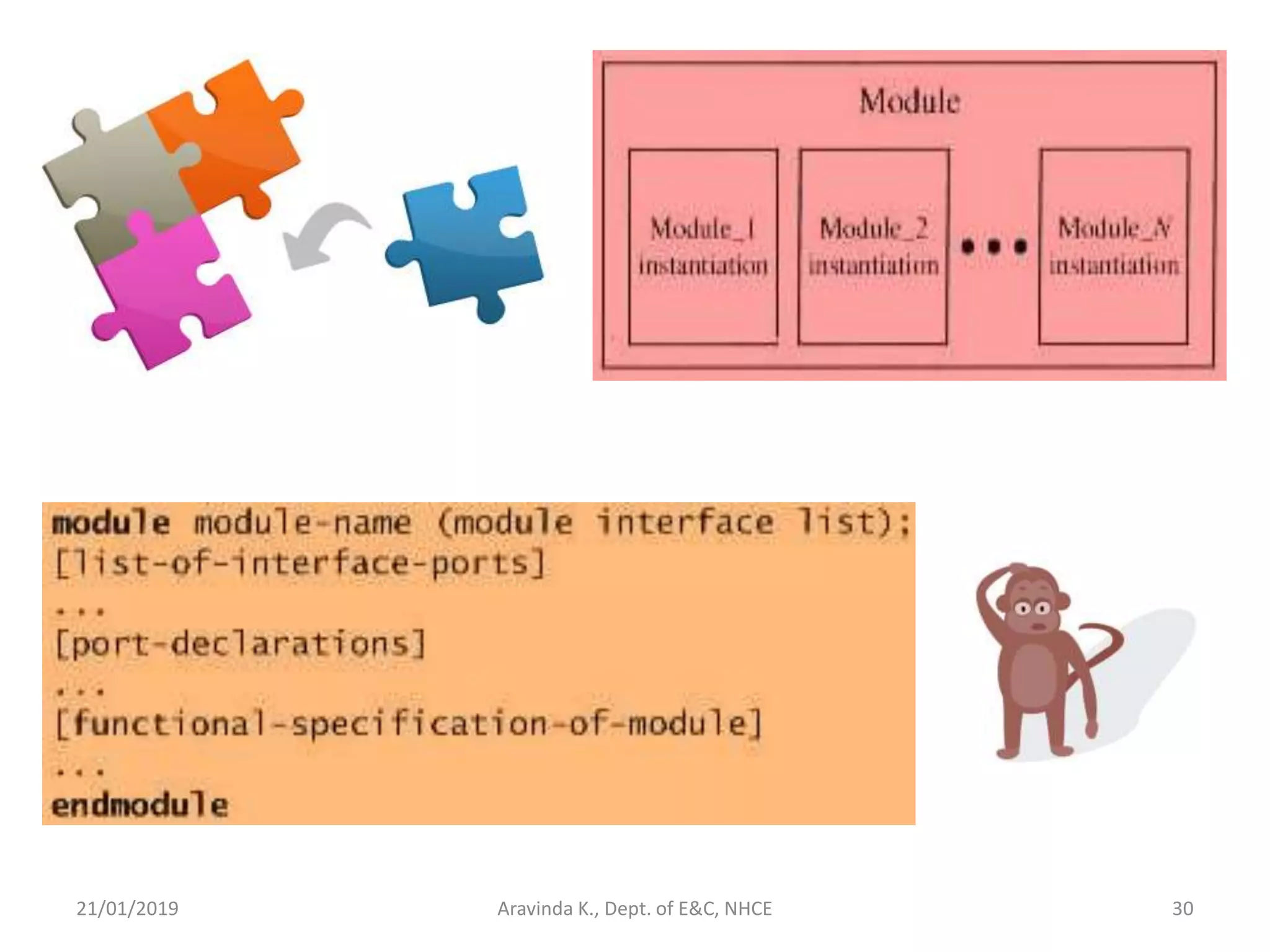

31. 21/01/2019 31Aravinda K., Dept. of E&C, NHCE

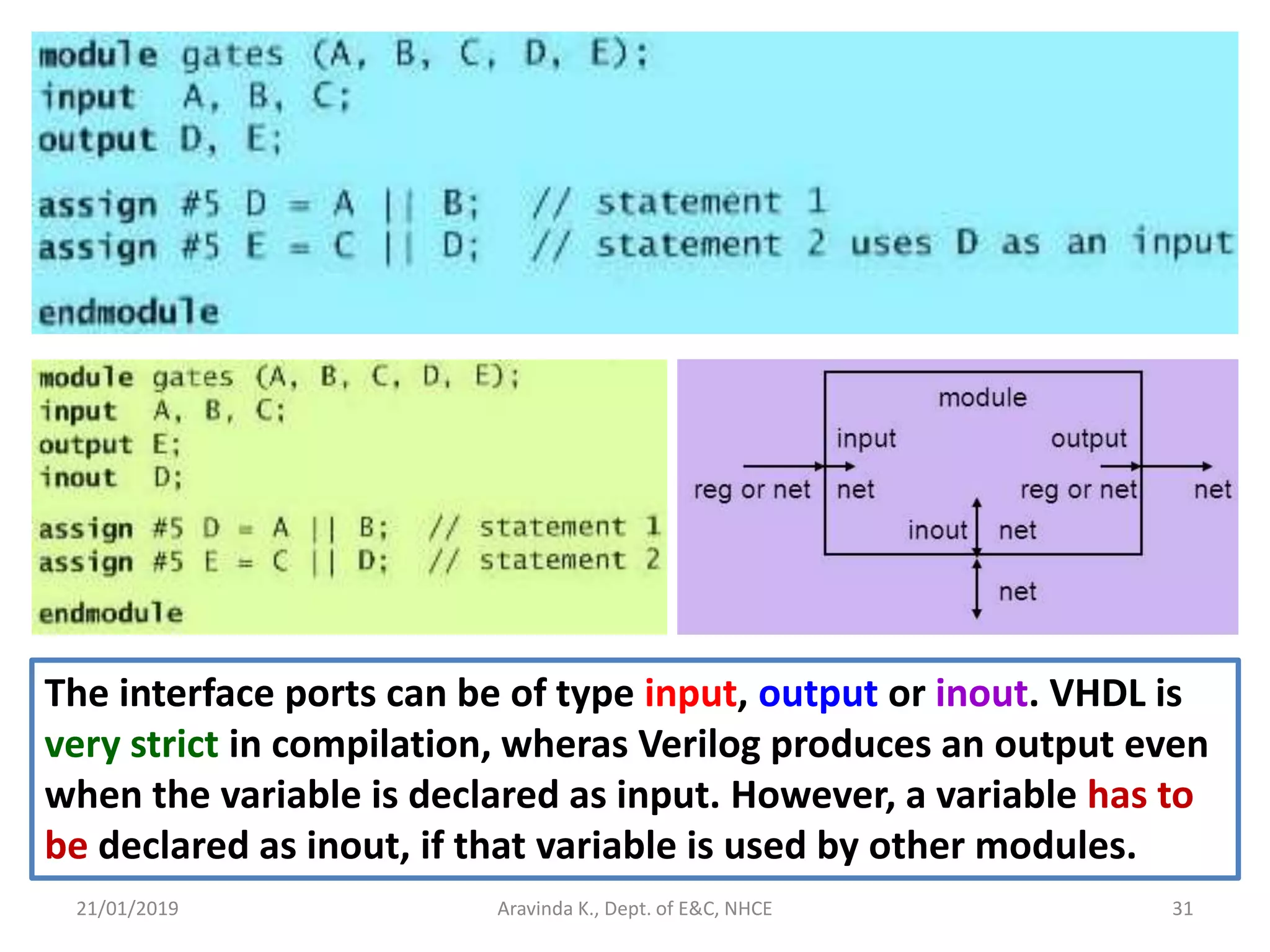

The interface ports can be of type input, output or inout. VHDL is
very strict in compilation, wheras Verilog produces an output even
when the variable is declared as input. However, a variable has to
be declared as inout, if that variable is used by other modules.
32. 21/01/2019 32Aravinda K., Dept. of E&C, NHCE

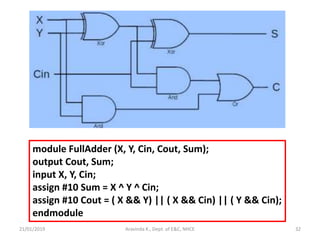

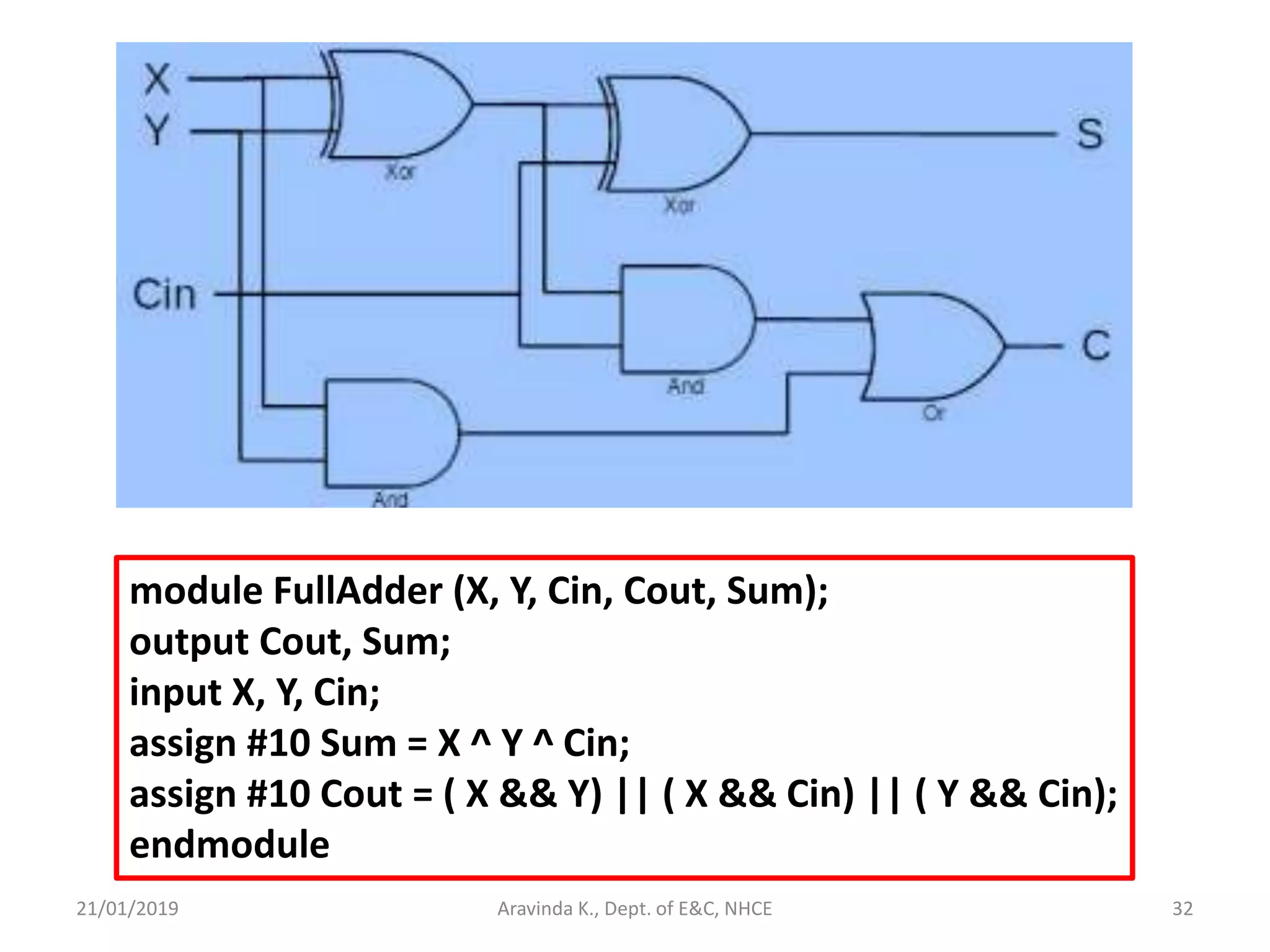

module FullAdder (X, Y, Cin, Cout, Sum);
output Cout, Sum;
input X, Y, Cin;
assign #10 Sum = X ^ Y ^ Cin;
assign #10 Cout = ( X && Y) || ( X && Cin) || ( Y && Cin);
endmodule
33. 21/01/2019 33Aravinda K., Dept. of E&C, NHCE

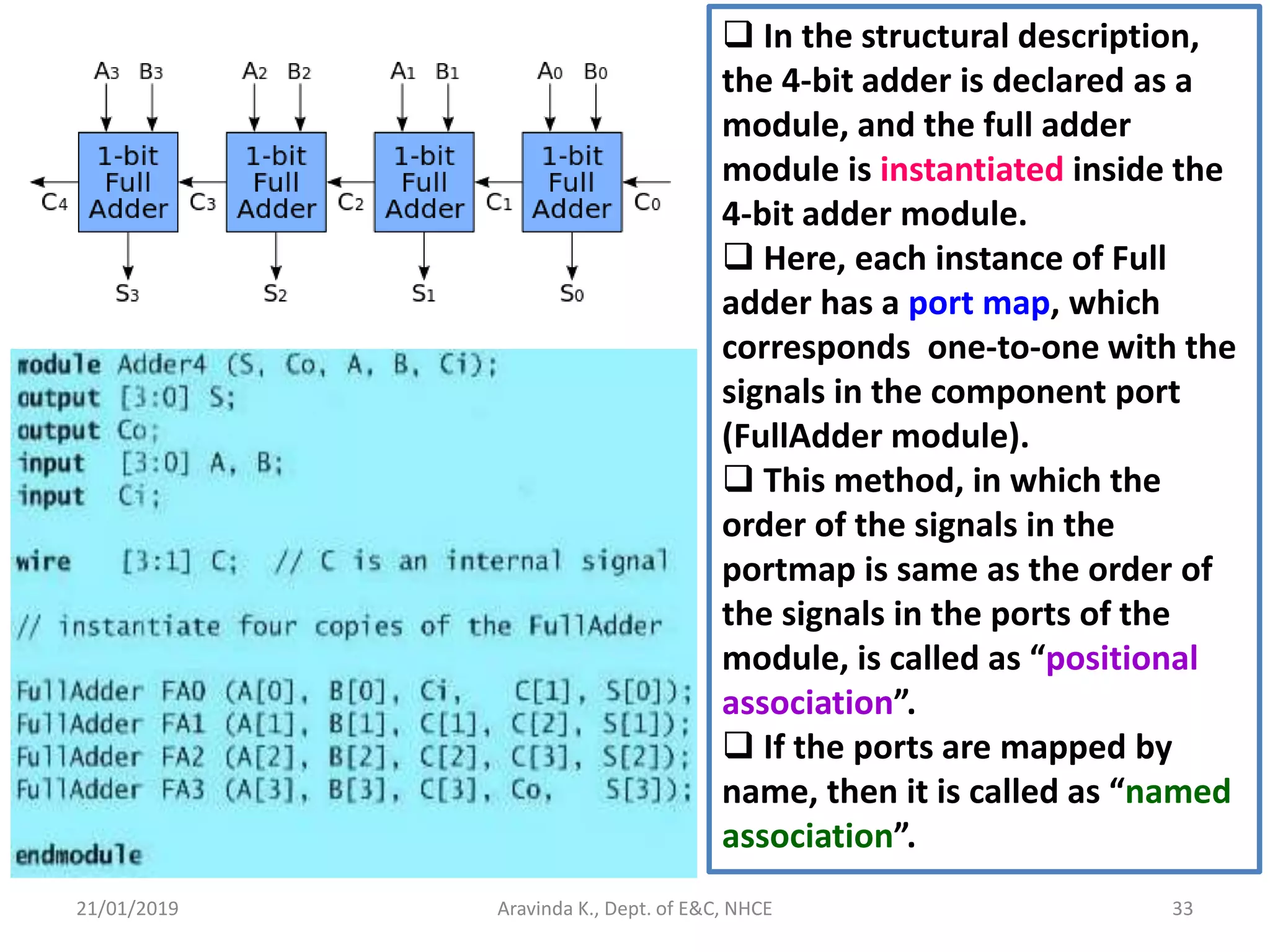

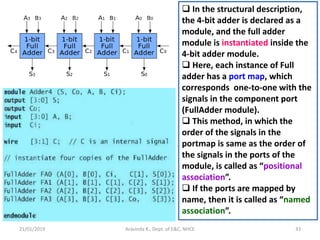

In the structural description,
the 4-bit adder is declared as a
module, and the full adder
module is instantiated inside the
4-bit adder module.
Here, each instance of Full
adder has a port map, which
corresponds one-to-one with the
signals in the component port
(FullAdder module).
This method, in which the
order of the signals in the
portmap is same as the order of
the signals in the ports of the
module, is called as “positional
association”.
If the ports are mapped by
name, then it is called as “named
association”.
34. 21/01/2019 34Aravinda K., Dept. of E&C, NHCE

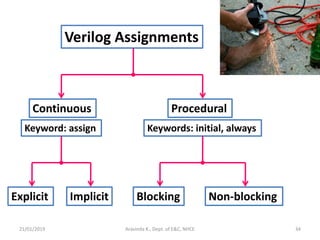

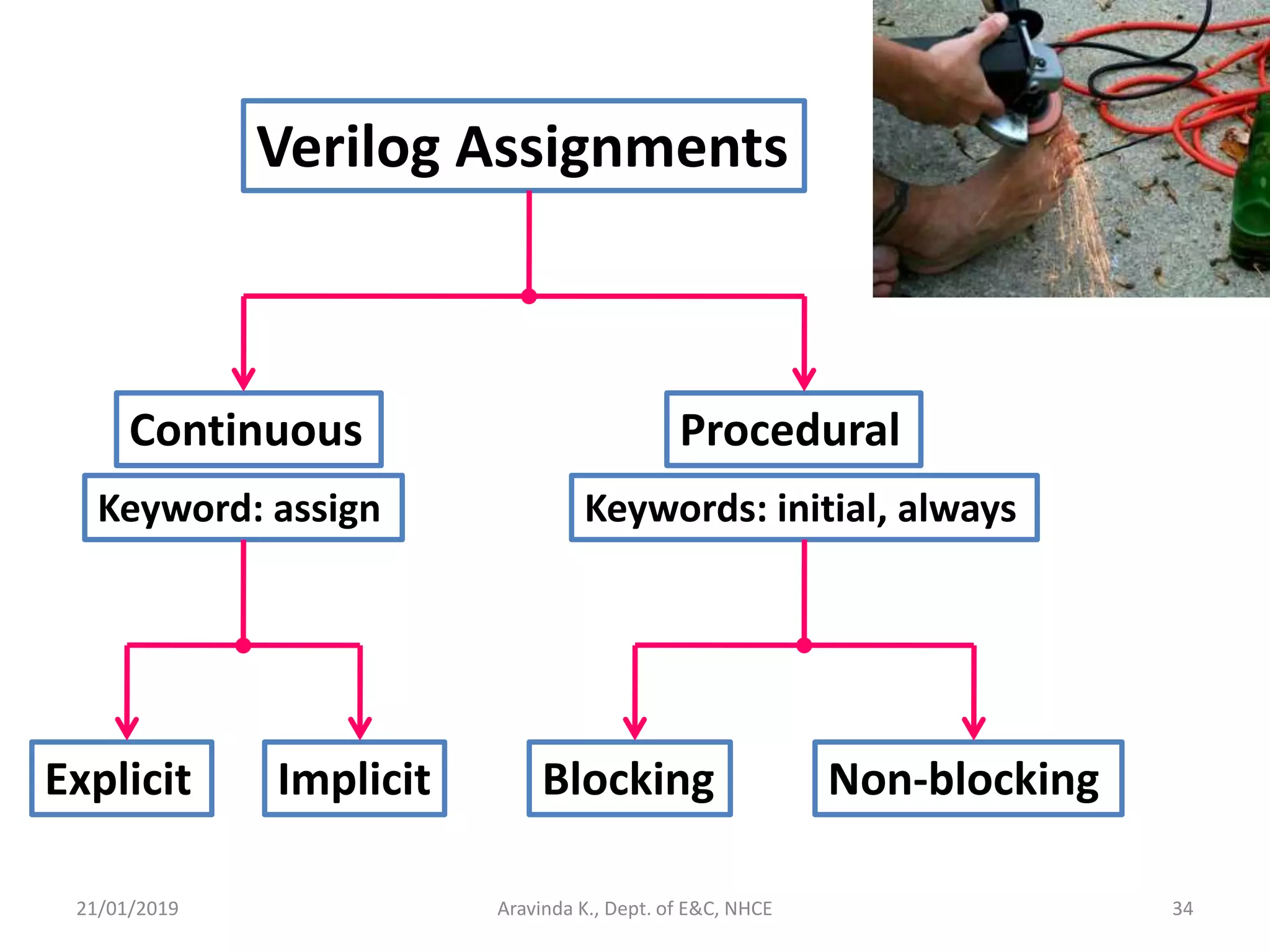

Verilog Assignments
Continuous Procedural
Blocking Non-blockingExplicit Implicit
Keyword: assign Keywords: initial, always

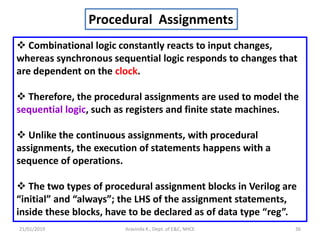

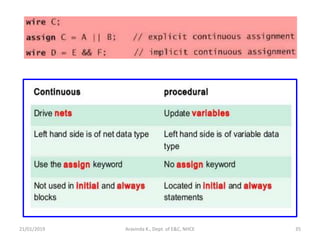

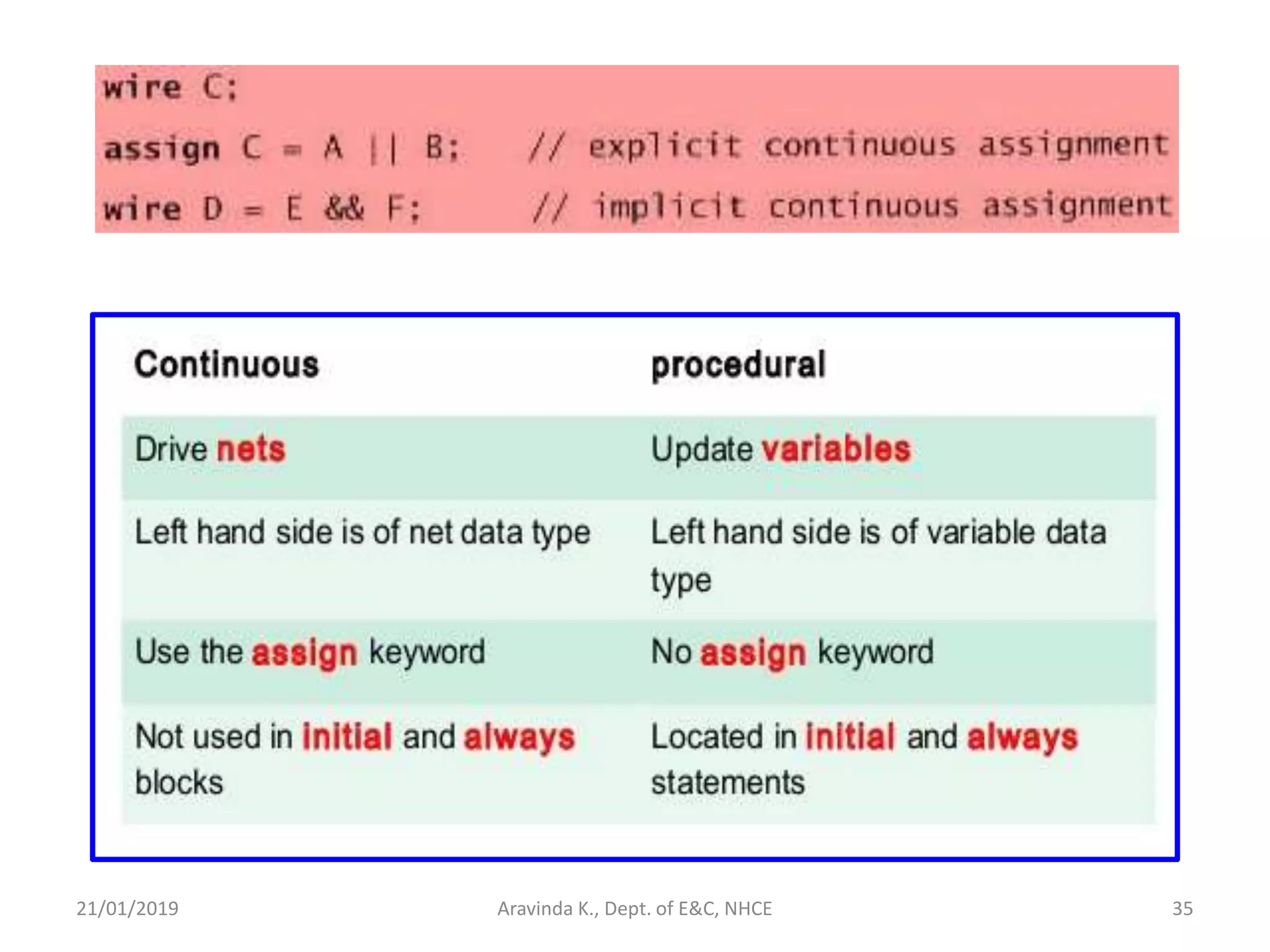

36. 21/01/2019 36Aravinda K., Dept. of E&C, NHCE
Procedural Assignments
Combinational logic constantly reacts to input changes,
whereas synchronous sequential logic responds to changes that
are dependent on the clock.
Therefore, the procedural assignments are used to model the
sequential logic, such as registers and finite state machines.
Unlike the continuous assignments, with procedural
assignments, the execution of statements happens with a
sequence of operations.
The two types of procedural assignment blocks in Verilog are
“initial” and “always”; the LHS of the assignment statements,
inside these blocks, have to be declared as of data type “reg”.

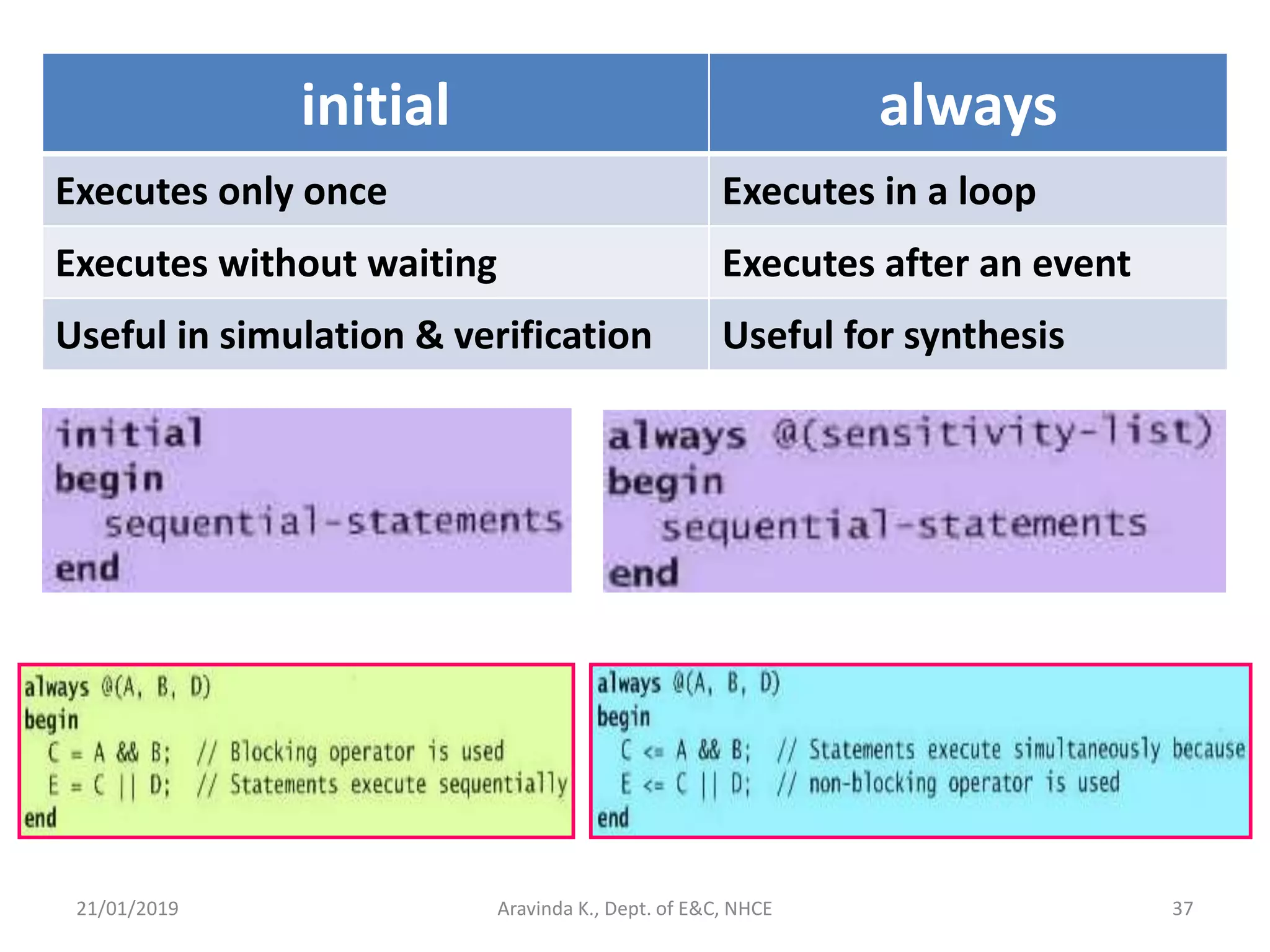

37. 21/01/2019 37Aravinda K., Dept. of E&C, NHCE
initial always
Executes only once Executes in a loop
Executes without waiting Executes after an event
Useful in simulation & verification Useful for synthesis
39. 21/01/2019 39Aravinda K., Dept. of E&C, NHCE

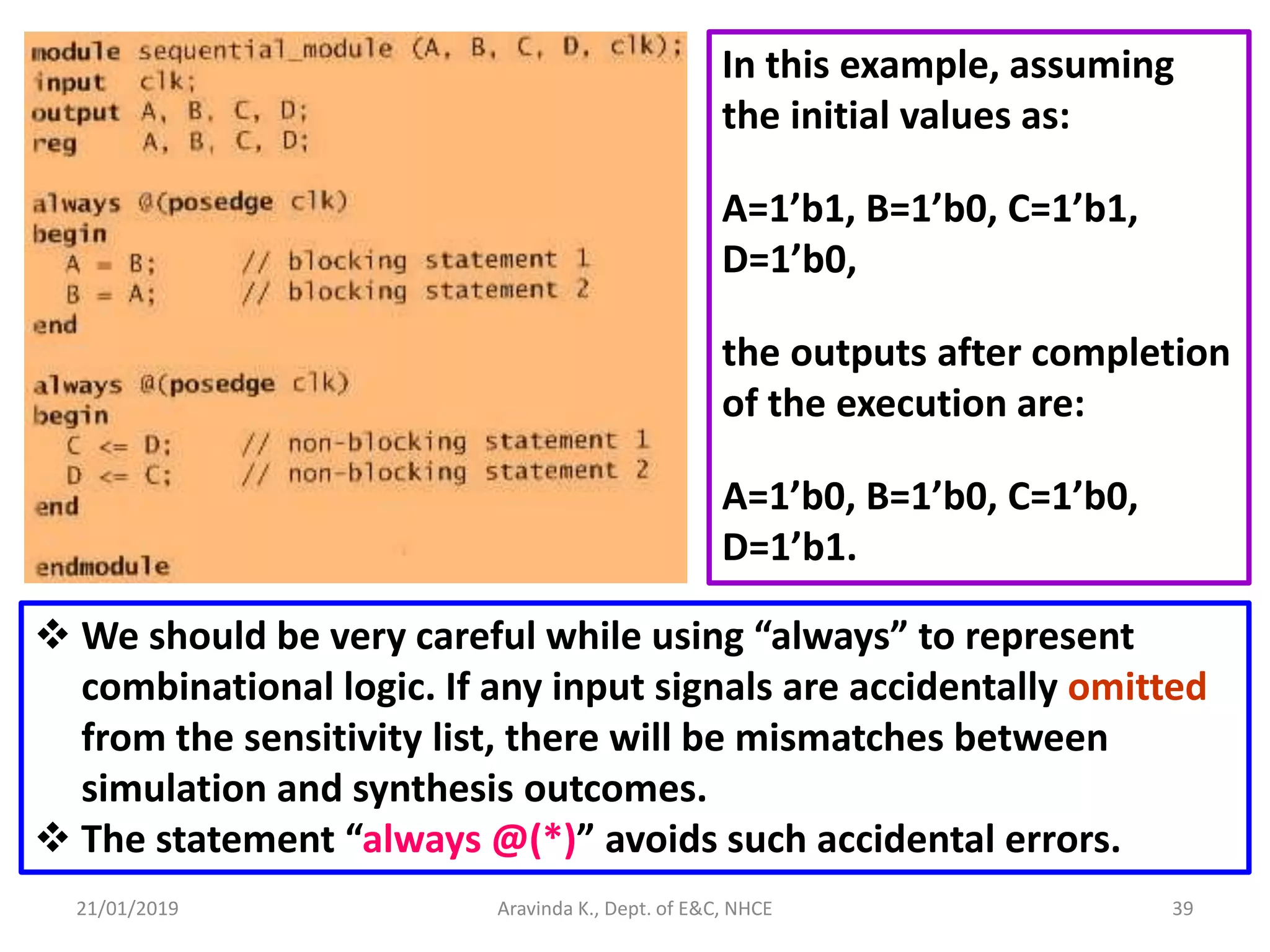

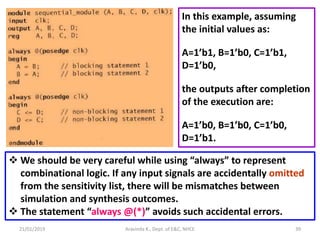

In this example, assuming
the initial values as:
A=1’b1, B=1’b0, C=1’b1,
D=1’b0,
the outputs after completion
of the execution are:
A=1’b0, B=1’b0, C=1’b0,
D=1’b1.
We should be very careful while using “always” to represent
combinational logic. If any input signals are accidentally omitted
from the sensitivity list, there will be mismatches between
simulation and synthesis outcomes.
The statement “always @(*)” avoids such accidental errors.

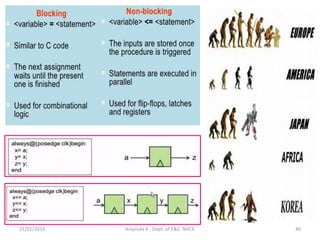

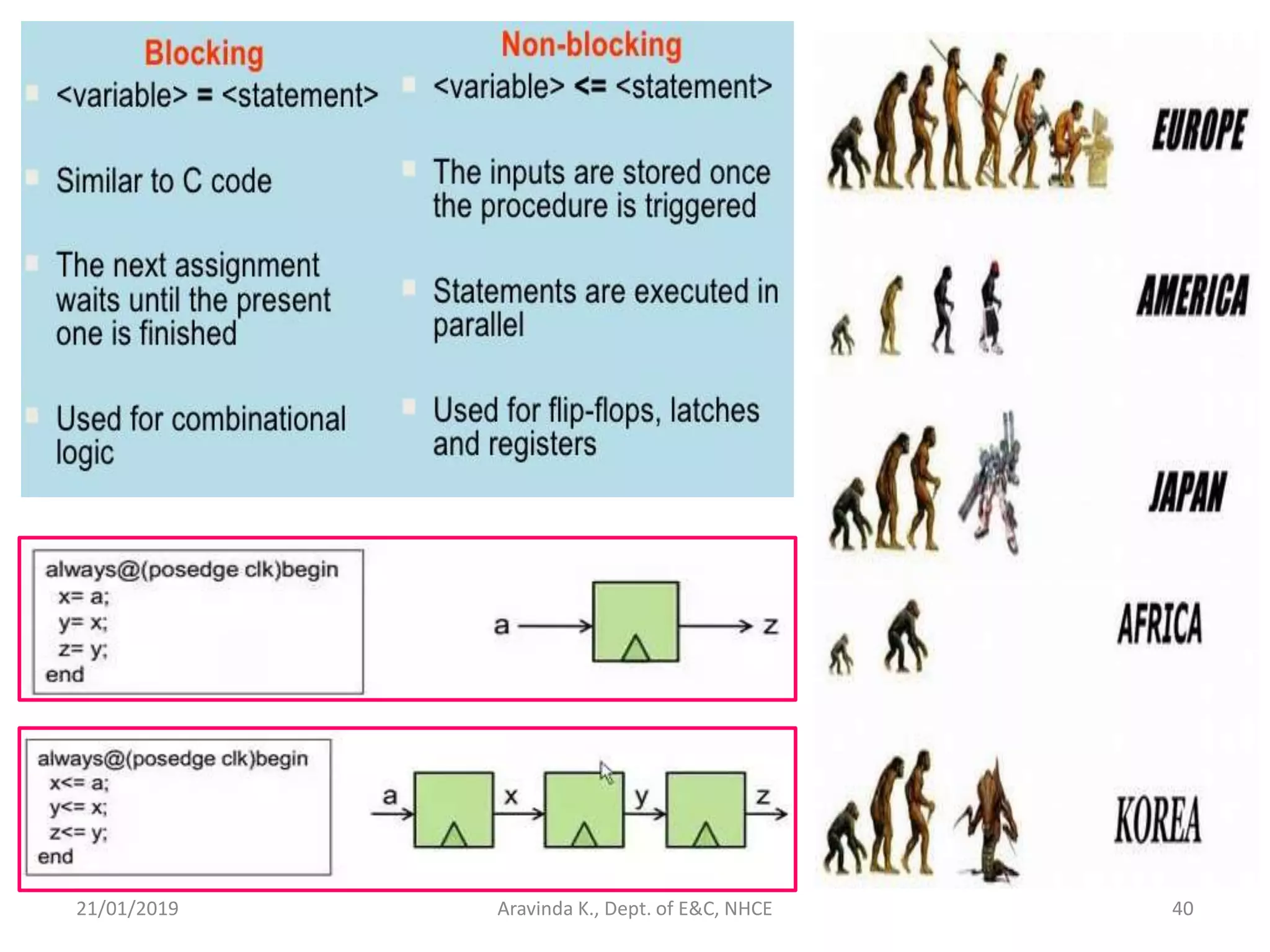

41. 21/01/2019 41Aravinda K., Dept. of E&C, NHCE

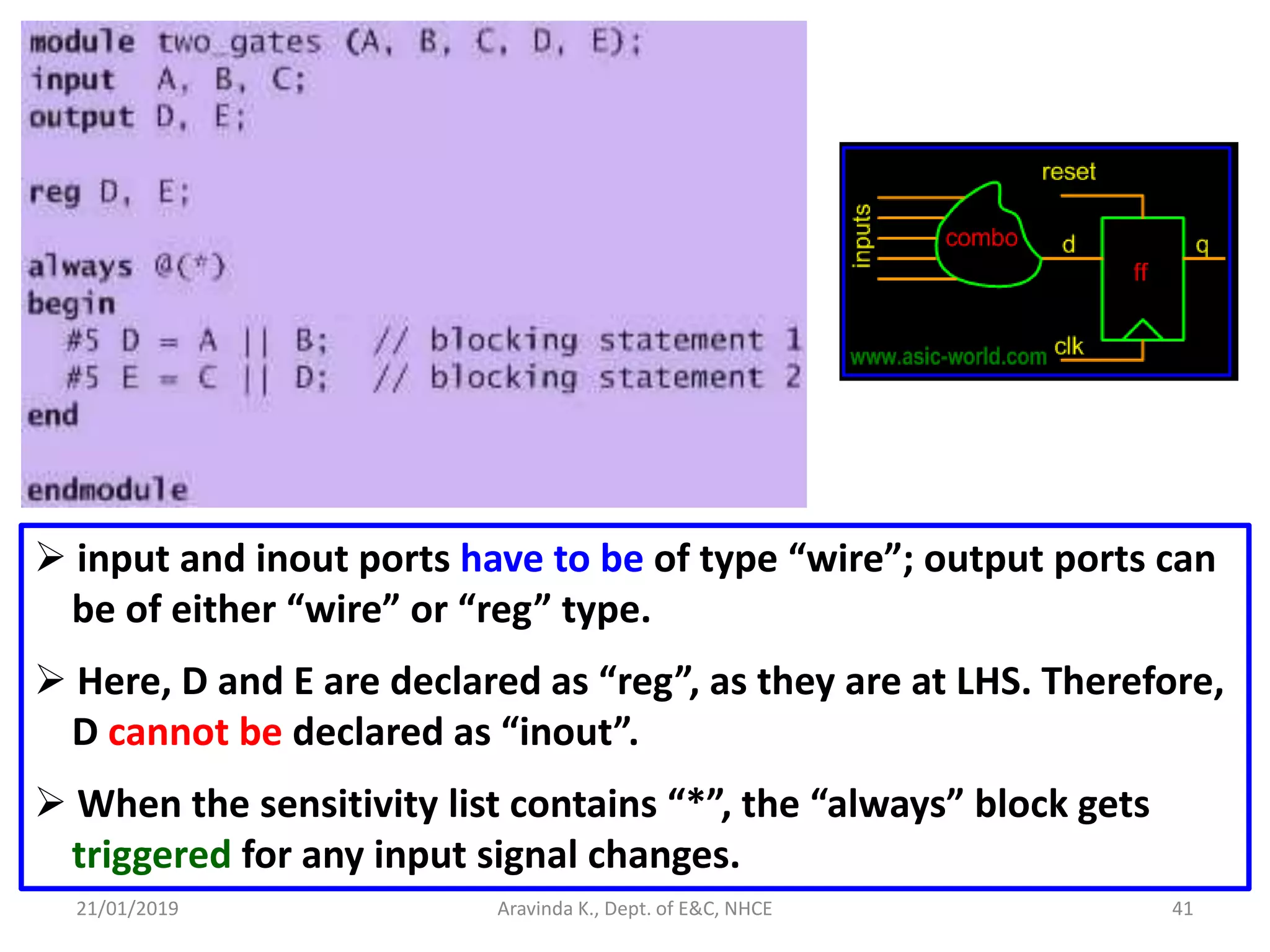

input and inout ports have to be of type “wire”; output ports can
be of either “wire” or “reg” type.
Here, D and E are declared as “reg”, as they are at LHS. Therefore,
D cannot be declared as “inout”.
When the sensitivity list contains “*”, the “always” block gets
triggered for any input signal changes.
42. 21/01/2019 42Aravinda K., Dept. of E&C, NHCE

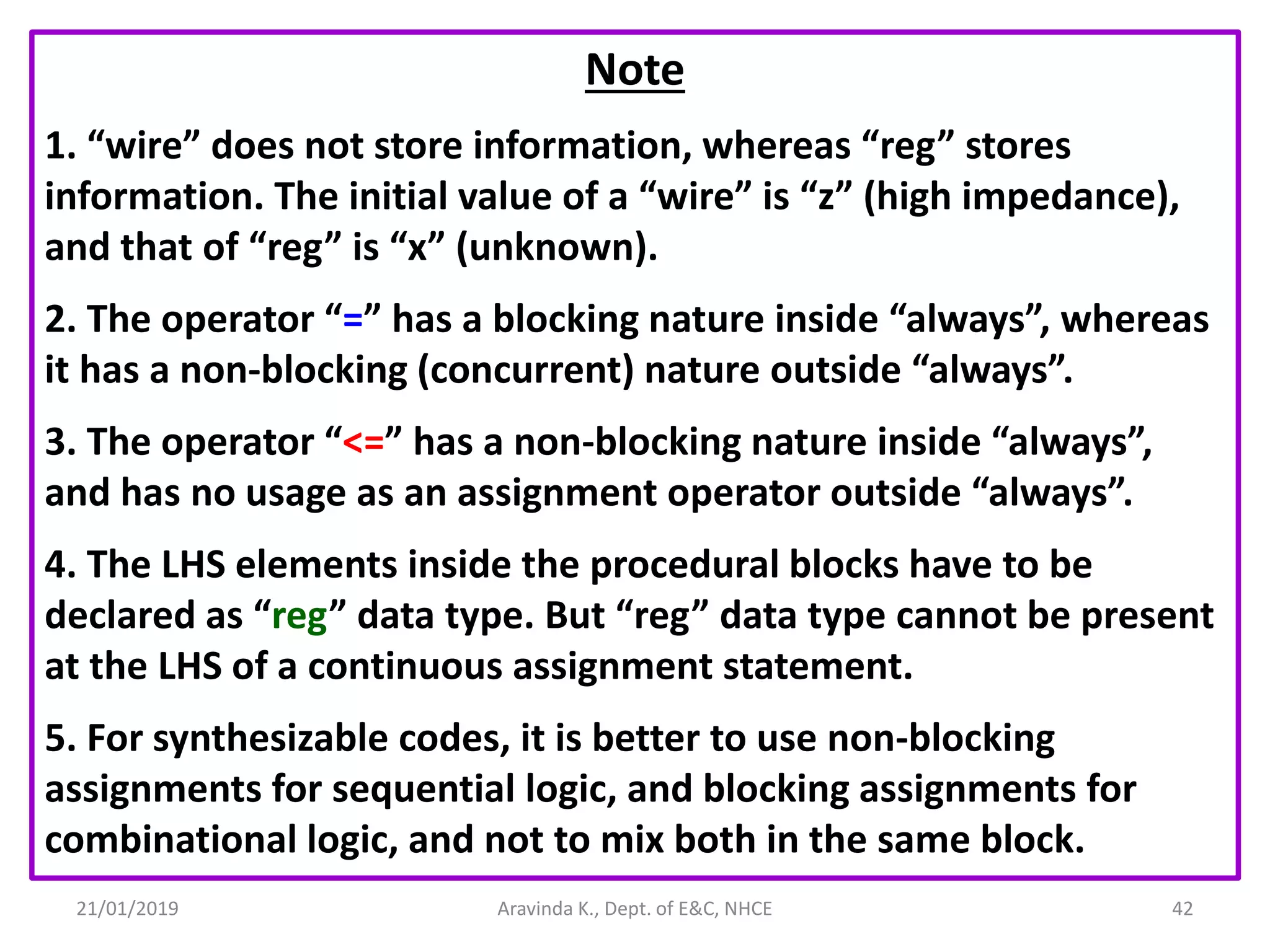

Note
1. “wire” does not store information, whereas “reg” stores
information. The initial value of a “wire” is “z” (high impedance),
and that of “reg” is “x” (unknown).
2. The operator “=” has a blocking nature inside “always”, whereas
it has a non-blocking (concurrent) nature outside “always”.
3. The operator “<=” has a non-blocking nature inside “always”,
and has no usage as an assignment operator outside “always”.
4. The LHS elements inside the procedural blocks have to be
declared as “reg” data type. But “reg” data type cannot be present
at the LHS of a continuous assignment statement.
5. For synthesizable codes, it is better to use non-blocking
assignments for sequential logic, and blocking assignments for
combinational logic, and not to mix both in the same block.
44. 21/01/2019 44Aravinda K., Dept. of E&C, NHCE

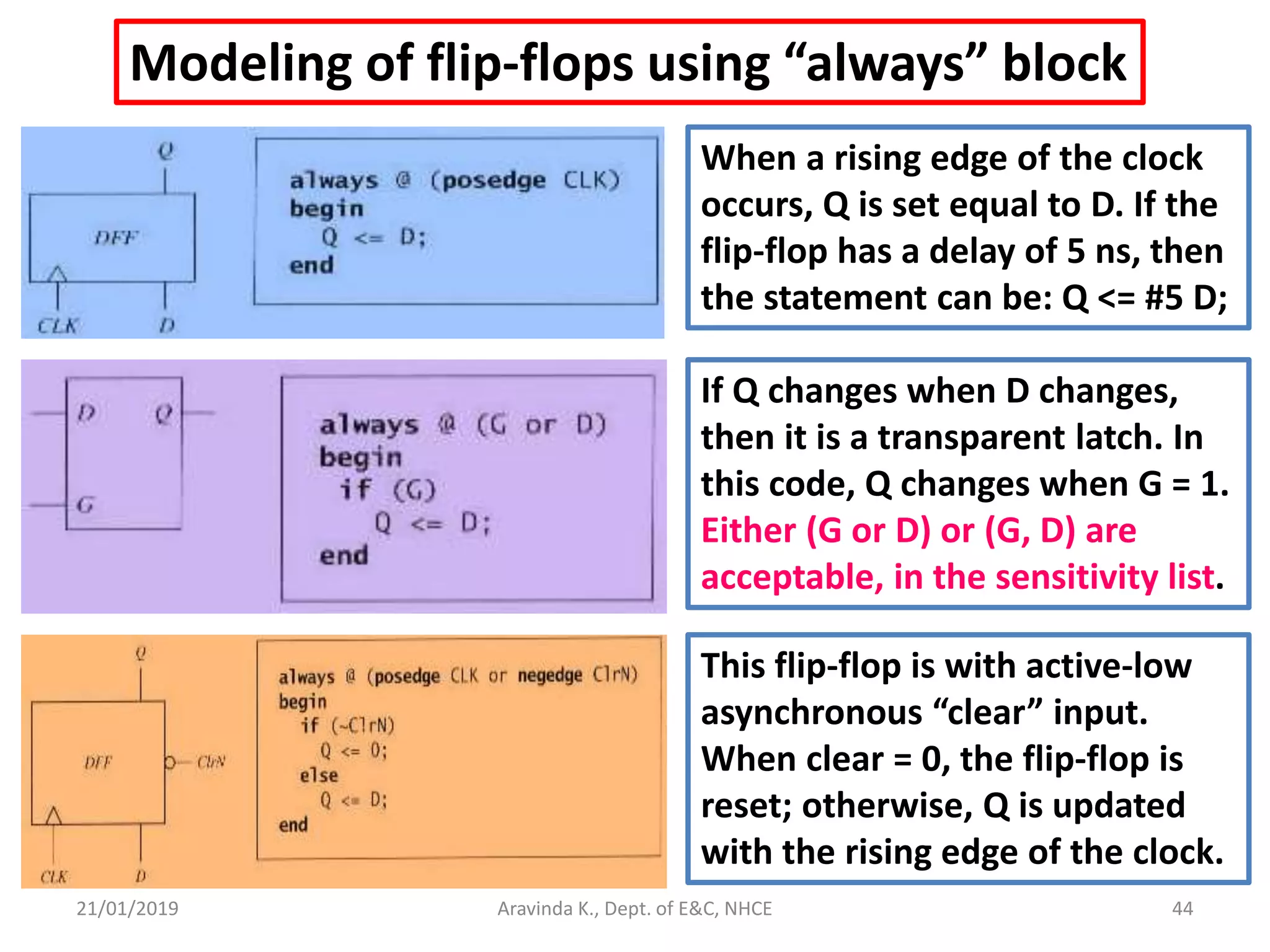

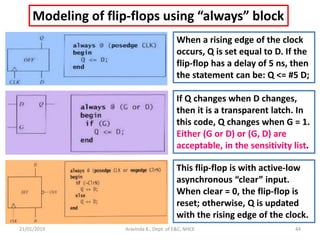

Modeling of flip-flops using “always” block
When a rising edge of the clock
occurs, Q is set equal to D. If the
flip-flop has a delay of 5 ns, then
the statement can be: Q <= #5 D;
If Q changes when D changes,
then it is a transparent latch. In
this code, Q changes when G = 1.
Either (G or D) or (G, D) are
acceptable, in the sensitivity list.
This flip-flop is with active-low
asynchronous “clear” input.
When clear = 0, the flip-flop is
reset; otherwise, Q is updated
with the rising edge of the clock.
45. 21/01/2019 45Aravinda K., Dept. of E&C, NHCE

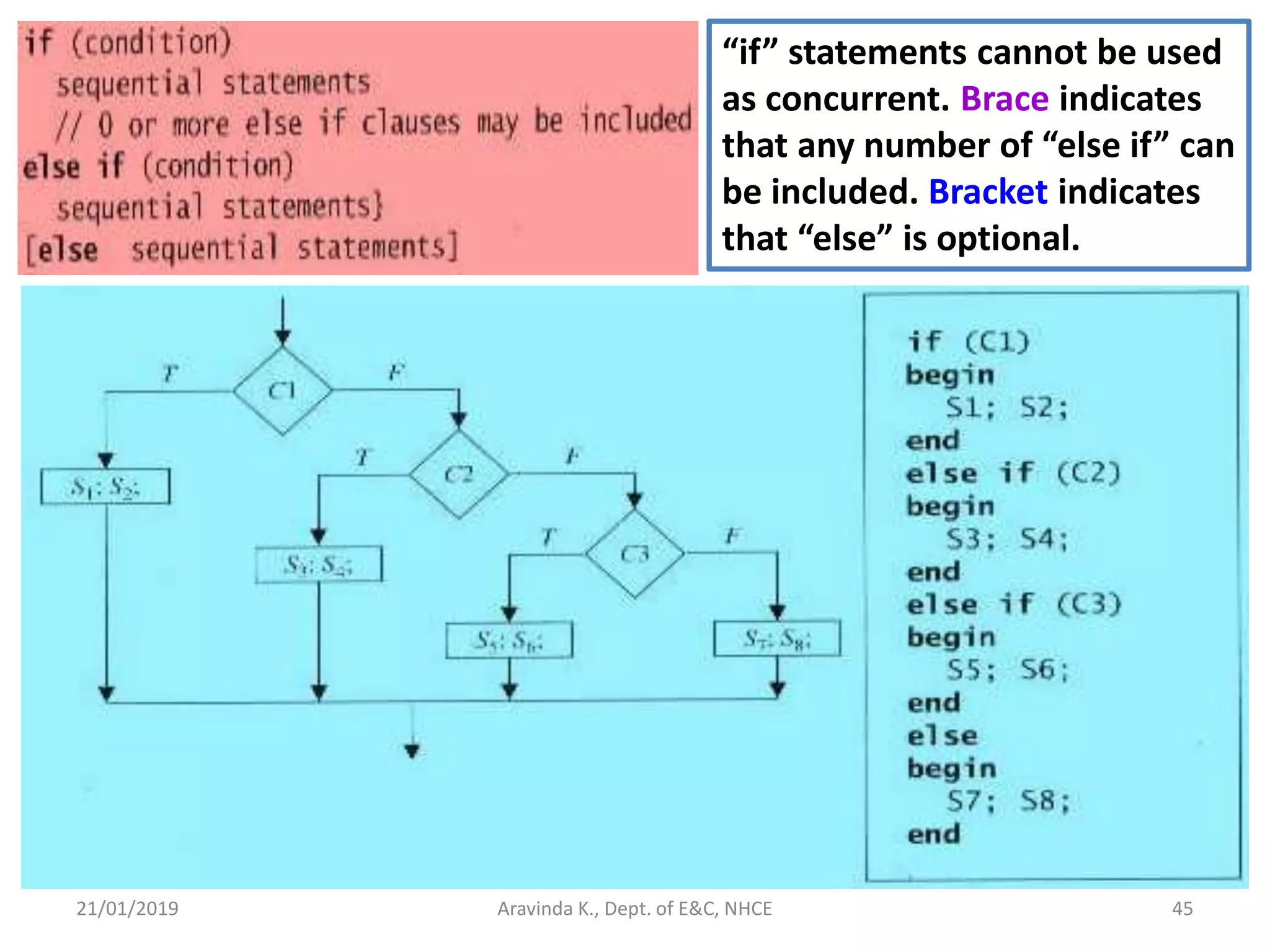

“if” statements cannot be used
as concurrent. Brace indicates
that any number of “else if” can
be included. Bracket indicates
that “else” is optional.
46. 21/01/2019 46Aravinda K., Dept. of E&C, NHCE

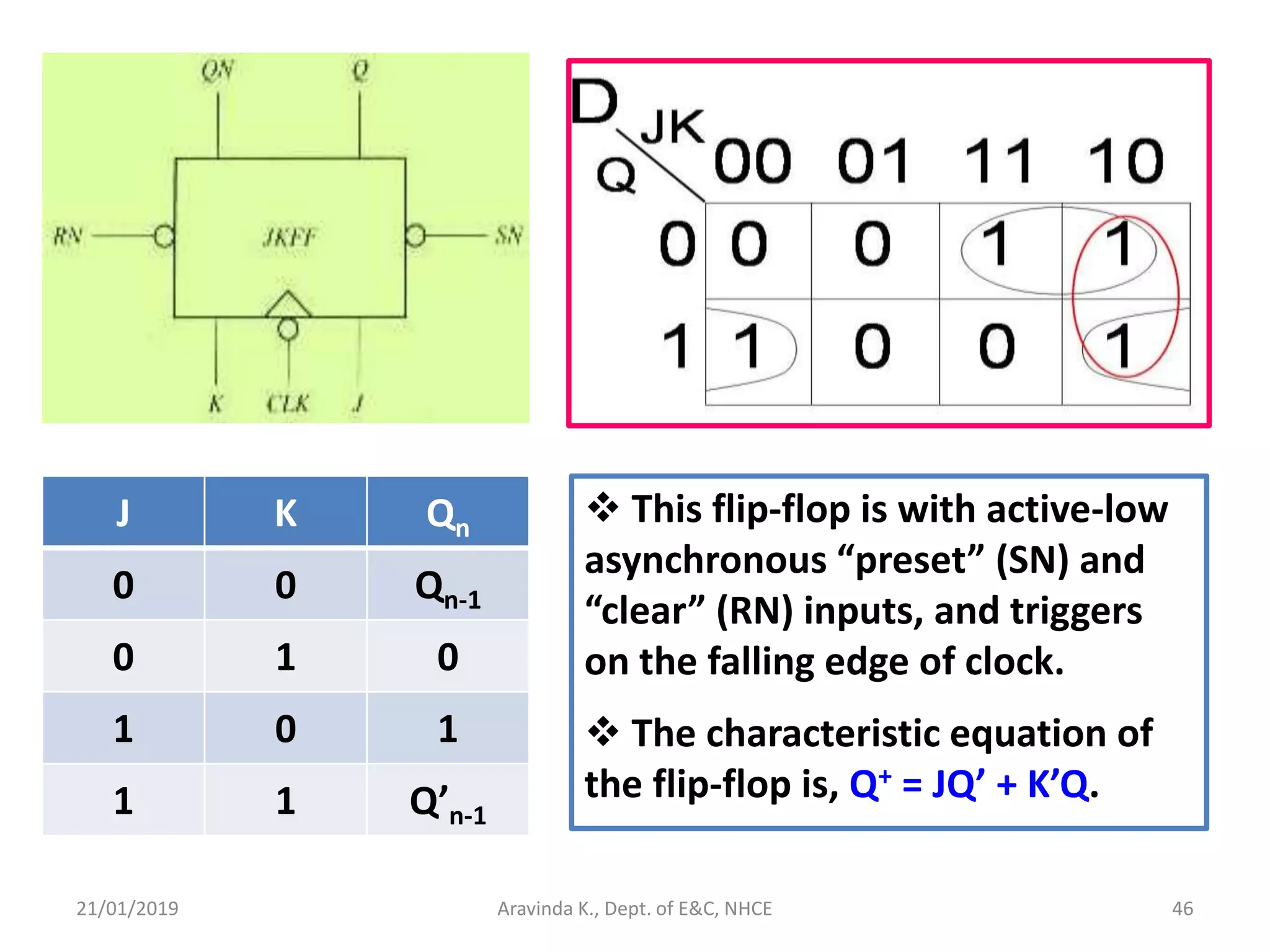

J K Qn
0 0 Qn-1
0 1 0
1 0 1
1 1 Q’n-1
This flip-flop is with active-low
asynchronous “preset” (SN) and
“clear” (RN) inputs, and triggers
on the falling edge of clock.
The characteristic equation of
the flip-flop is, Q+ = JQ’ + K’Q.
47. 21/01/2019 47Aravinda K., Dept. of E&C, NHCE

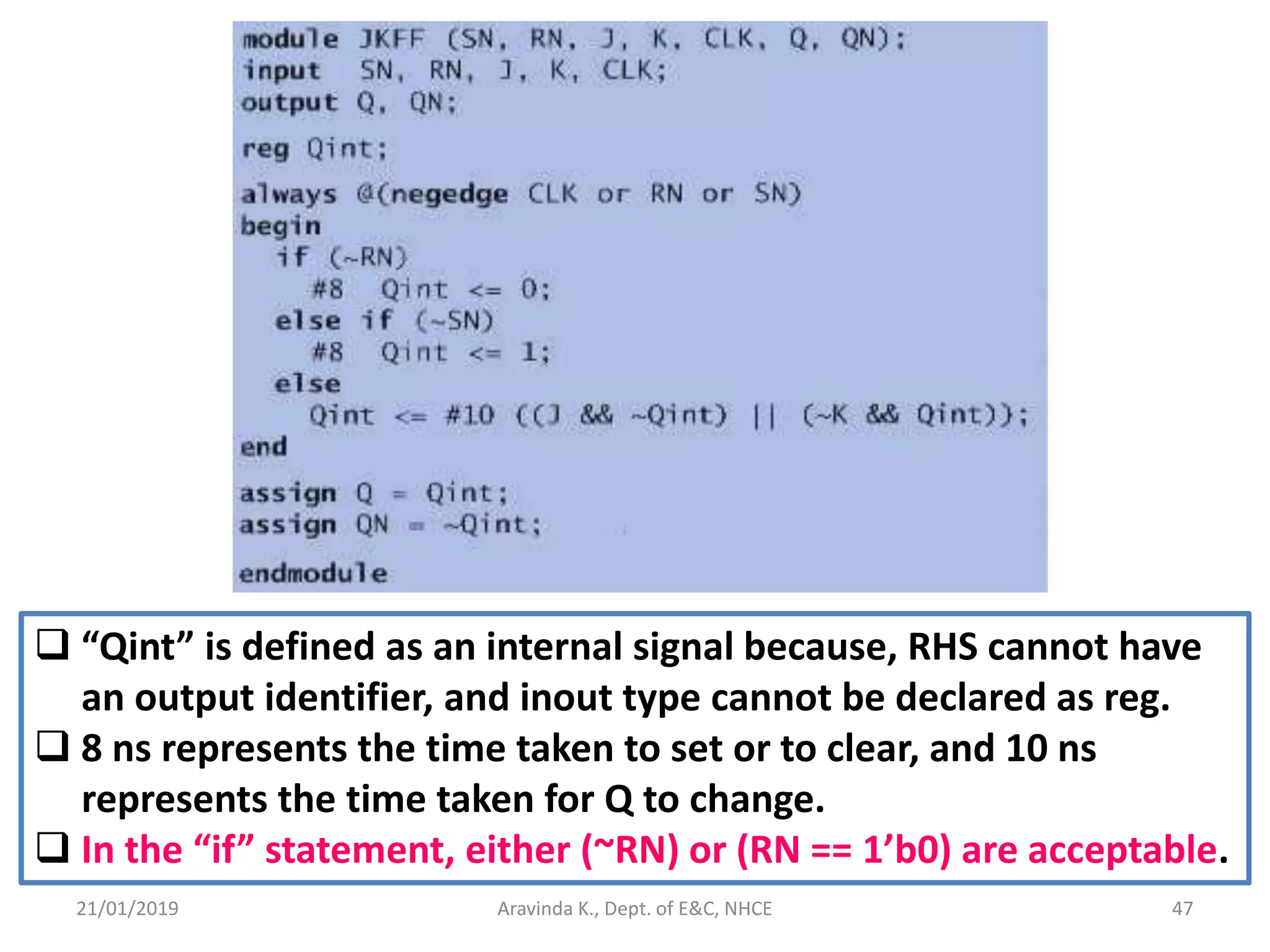

“Qint” is defined as an internal signal because, RHS cannot have
an output identifier, and inout type cannot be declared as reg.
8 ns represents the time taken to set or to clear, and 10 ns
represents the time taken for Q to change.
In the “if” statement, either (~RN) or (RN == 1’b0) are acceptable.
48. 21/01/2019 48Aravinda K., Dept. of E&C, NHCE

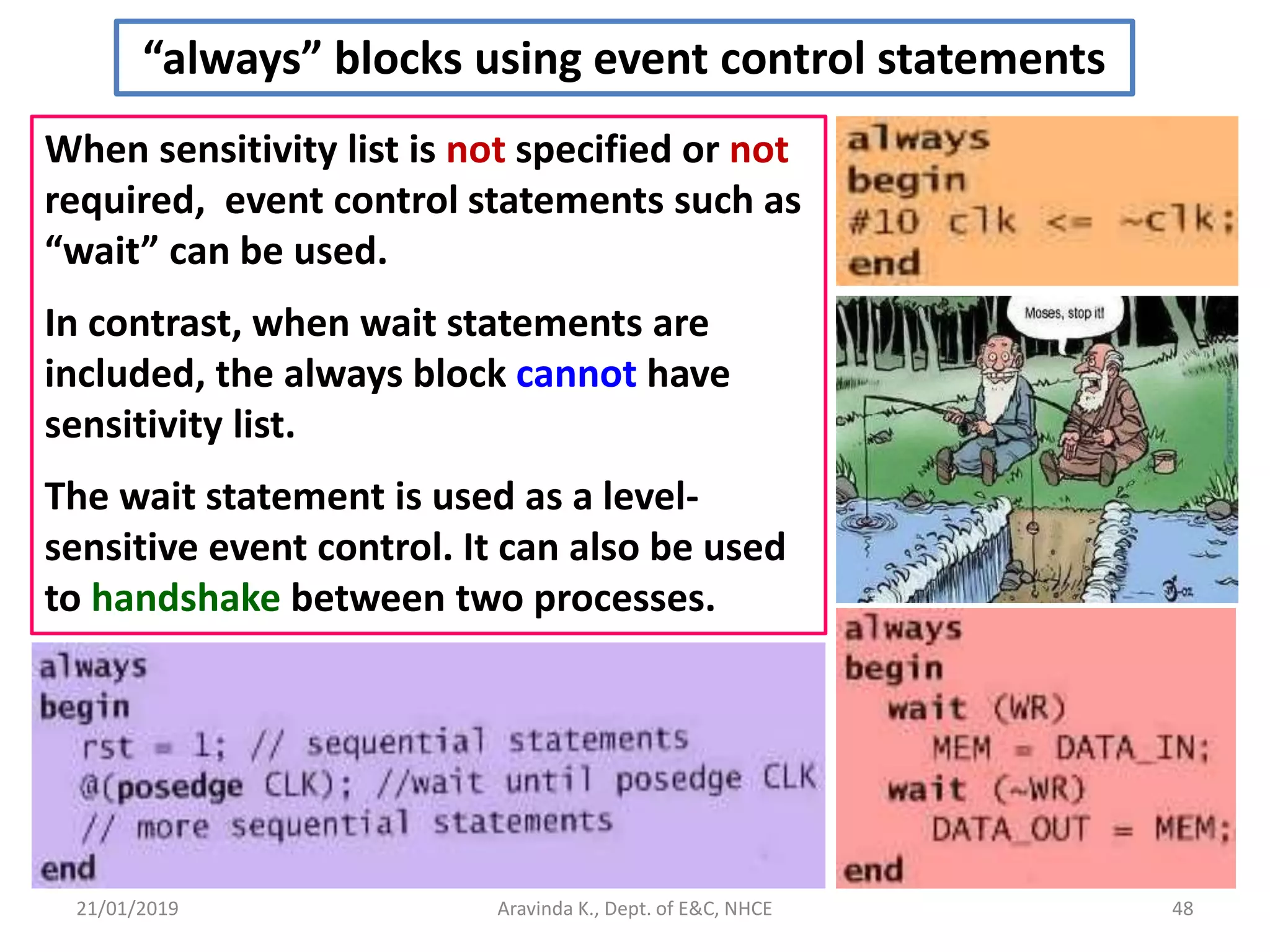

“always” blocks using event control statements
When sensitivity list is not specified or not
required, event control statements such as
“wait” can be used.
In contrast, when wait statements are
included, the always block cannot have
sensitivity list.
The wait statement is used as a level-
sensitive event control. It can also be used
to handshake between two processes.
49. 21/01/2019 49Aravinda K., Dept. of E&C, NHCE

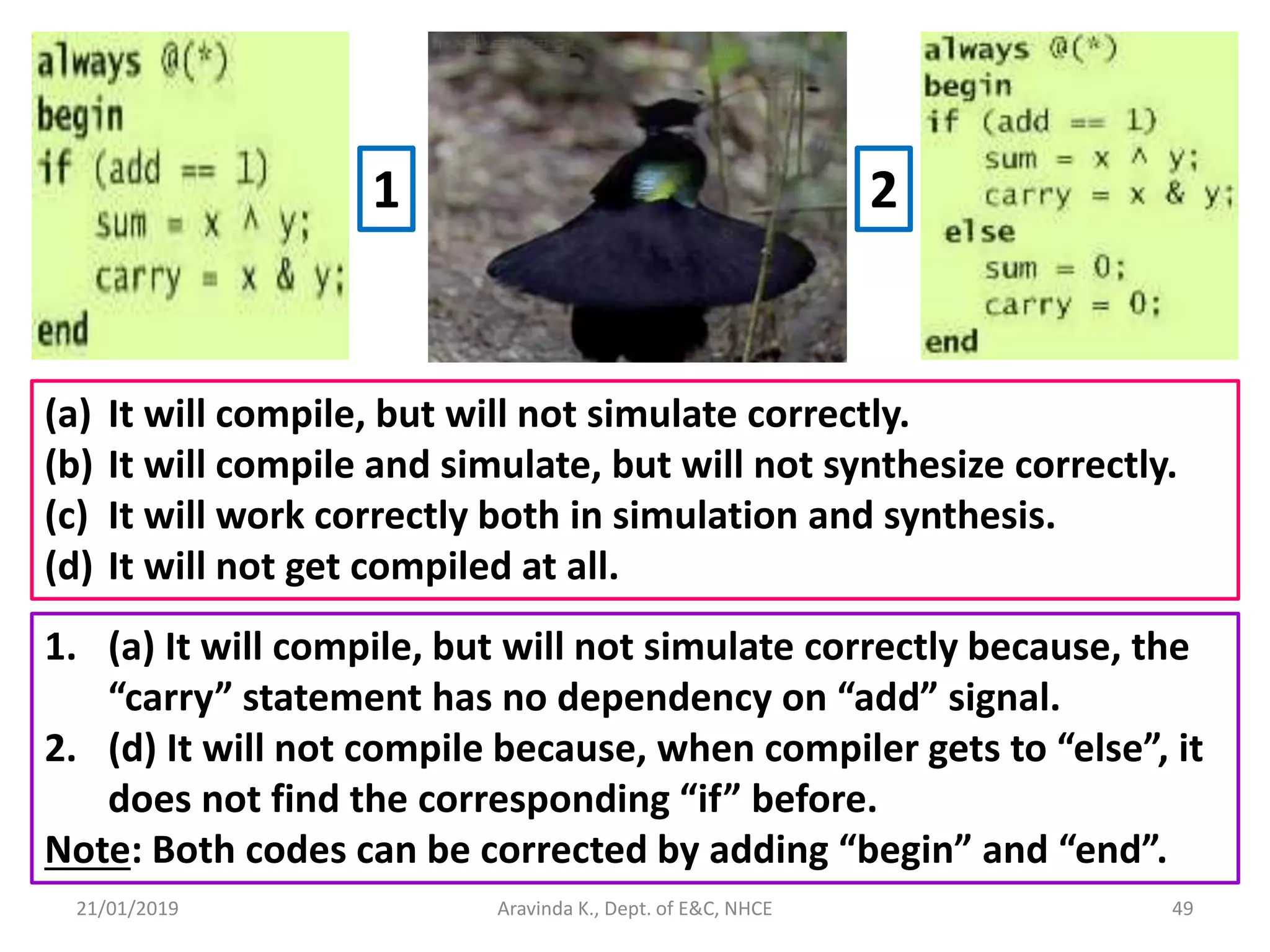

1. (a) It will compile, but will not simulate correctly because, the
“carry” statement has no dependency on “add” signal.
2. (d) It will not compile because, when compiler gets to “else”, it
does not find the corresponding “if” before.
Note: Both codes can be corrected by adding “begin” and “end”.
1 2
(a) It will compile, but will not simulate correctly.
(b) It will compile and simulate, but will not synthesize correctly.
(c) It will work correctly both in simulation and synthesis.
(d) It will not get compiled at all.
50. 21/01/2019 50Aravinda K., Dept. of E&C, NHCE

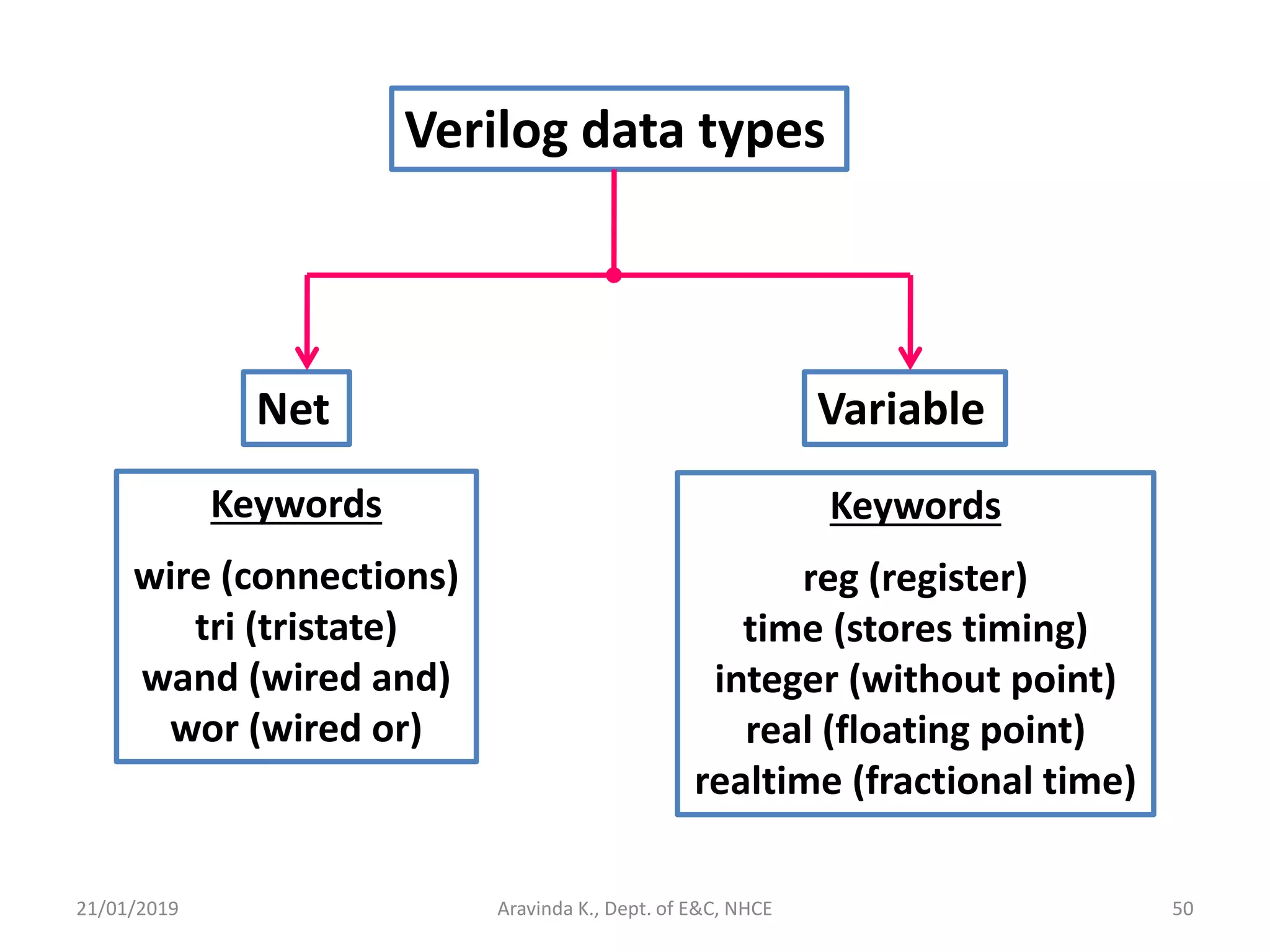

Verilog data types
Net Variable
Keywords
wire (connections)
tri (tristate)
wand (wired and)
wor (wired or)
Keywords
reg (register)
time (stores timing)
integer (without point)
real (floating point)
realtime (fractional time)
51. 21/01/2019 Aravinda K., Dept. of E&C, NHCE 51

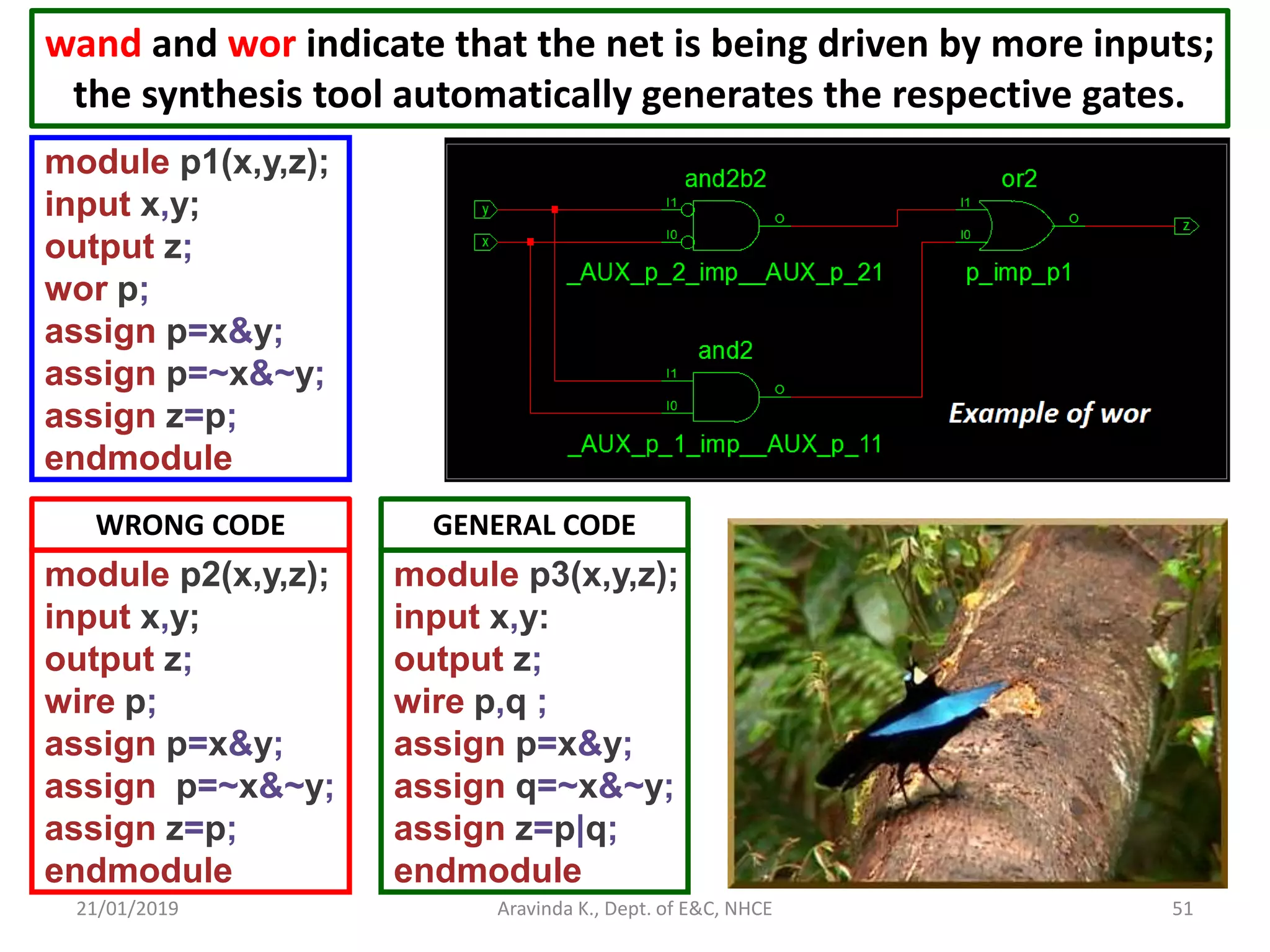

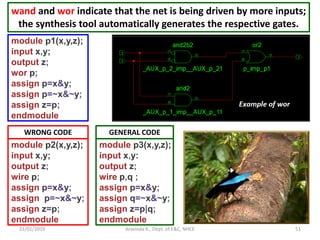

wand and wor indicate that the net is being driven by more inputs;
the synthesis tool automatically generates the respective gates.
module p1(x,y,z);
input x,y;
output z;
wor p;
assign p=x&y;
assign p=~x&~y;
assign z=p;
endmodule
module p2(x,y,z);
input x,y;
output z;
wire p;
assign p=x&y;
assign p=~x&~y;
assign z=p;
endmodule
module p3(x,y,z);
input x,y:
output z;
wire p,q ;
assign p=x&y;
assign q=~x&~y;
assign z=p|q;
endmodule
WRONG CODE GENERAL CODE
52. 21/01/2019 52Aravinda K., Dept. of E&C, NHCE

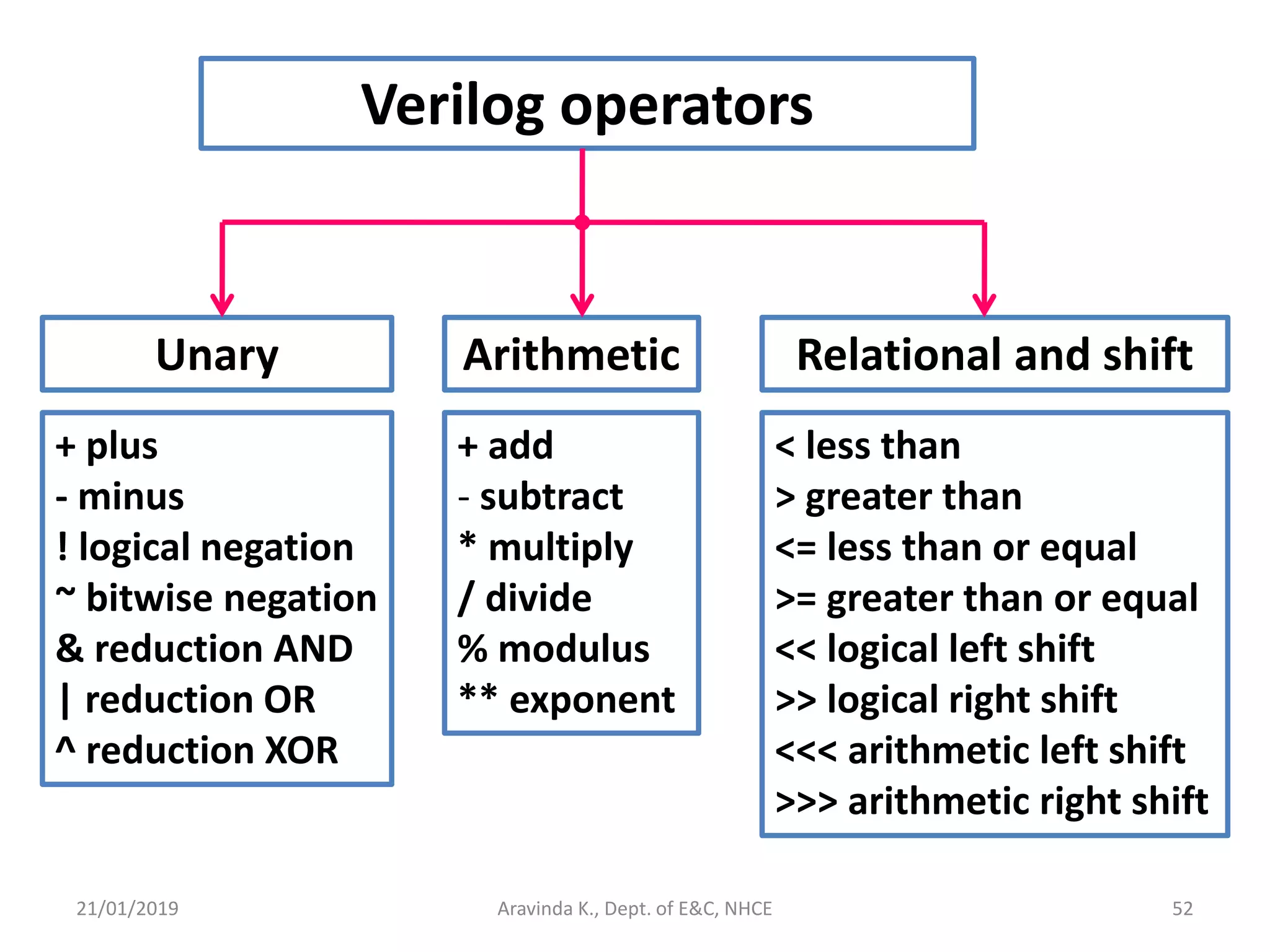

Verilog operators
Unary Arithmetic
+ plus
- minus
! logical negation
~ bitwise negation
& reduction AND
| reduction OR
^ reduction XOR
Relational and shift
+ add
- subtract
* multiply
/ divide
% modulus
** exponent
< less than
> greater than
<= less than or equal
>= greater than or equal
<< logical left shift
>> logical right shift
<<< arithmetic left shift
>>> arithmetic right shift
53. 21/01/2019 53Aravinda K., Dept. of E&C, NHCE

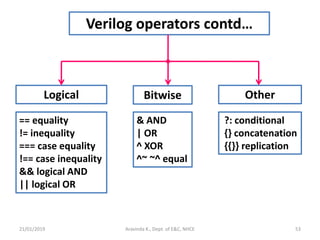

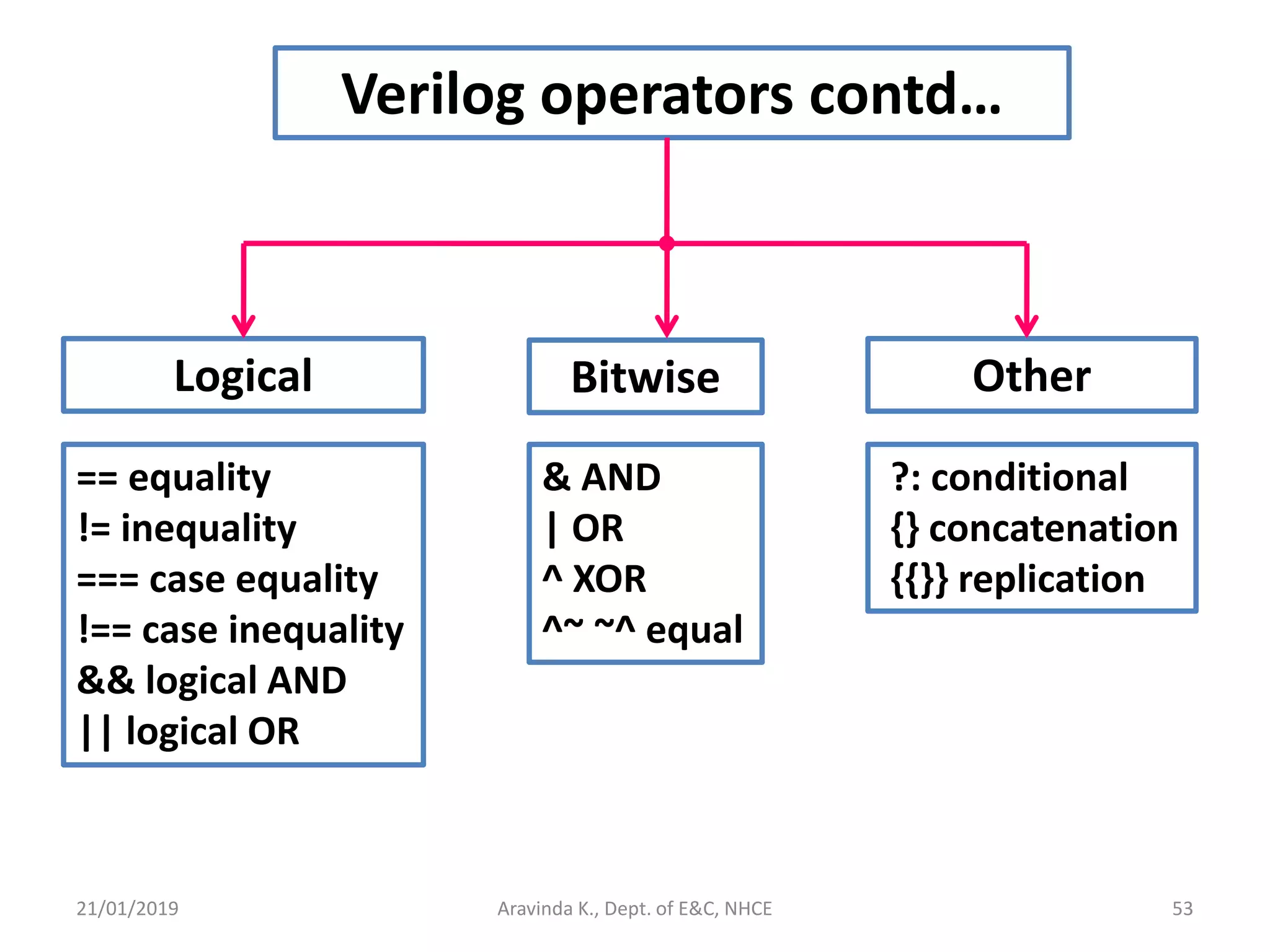

Verilog operators contd…
Logical Bitwise
== equality
!= inequality
=== case equality
!== case inequality
&& logical AND
|| logical OR
Other
& AND
| OR
^ XOR
^~ ~^ equal
?: conditional
{} concatenation
{{}} replication

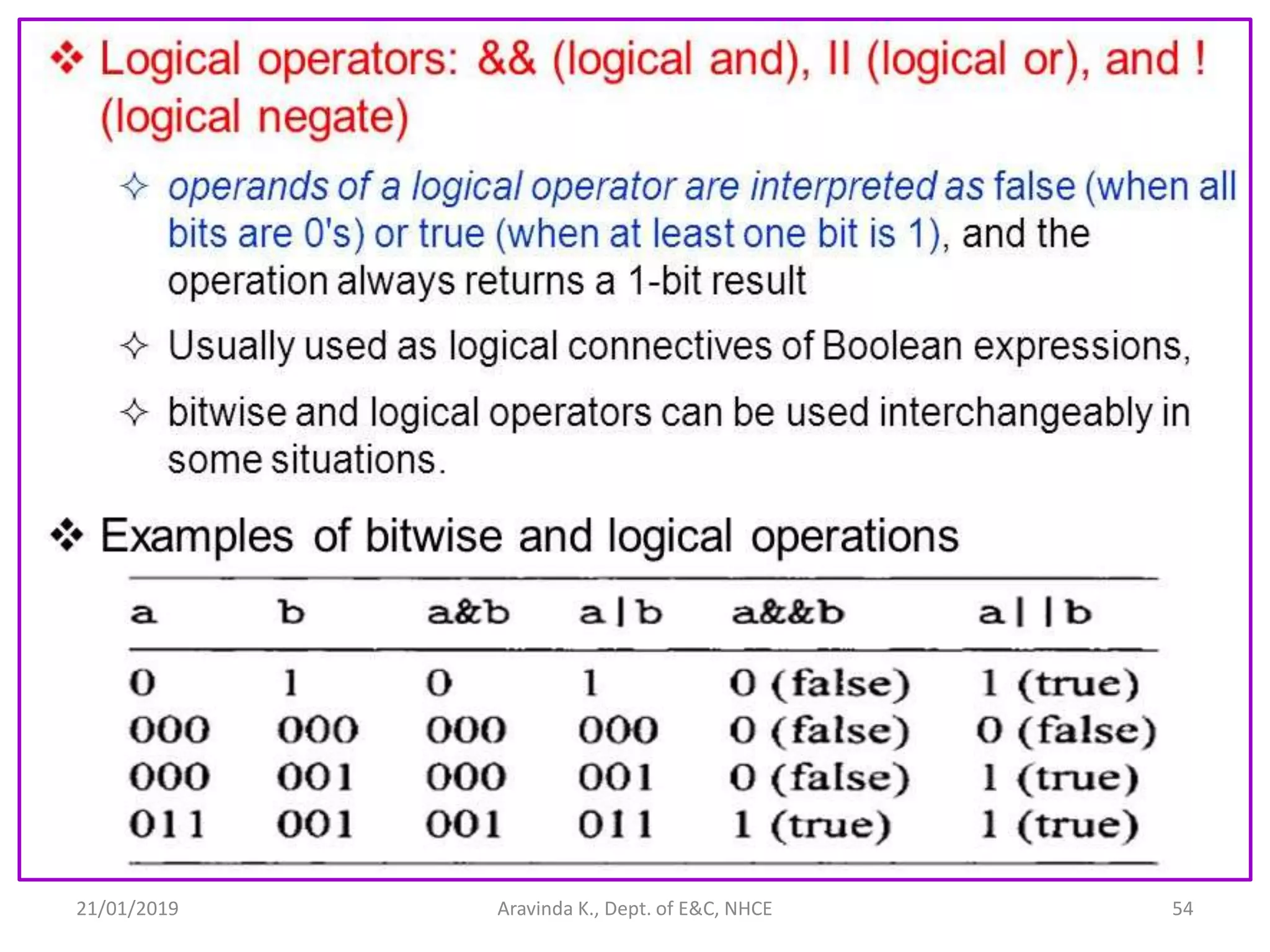

55. 21/01/2019 55Aravinda K., Dept. of E&C, NHCE

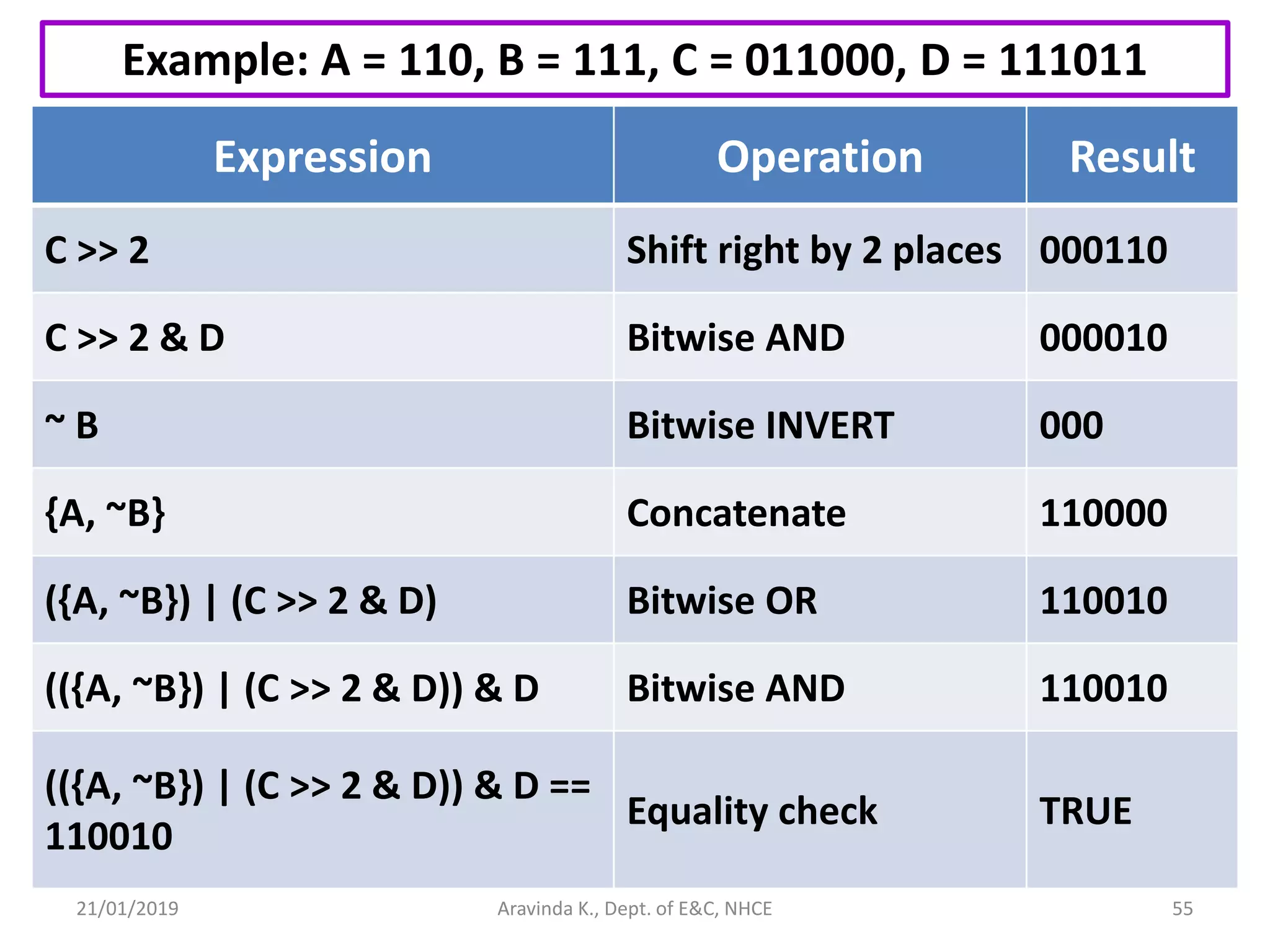

Expression Operation Result
C >> 2 Shift right by 2 places 000110
C >> 2 & D Bitwise AND 000010
~ B Bitwise INVERT 000
{A, ~B} Concatenate 110000
({A, ~B}) | (C >> 2 & D) Bitwise OR 110010
(({A, ~B}) | (C >> 2 & D)) & D Bitwise AND 110010
(({A, ~B}) | (C >> 2 & D)) & D ==
110010
Equality check TRUE
Example: A = 110, B = 111, C = 011000, D = 111011

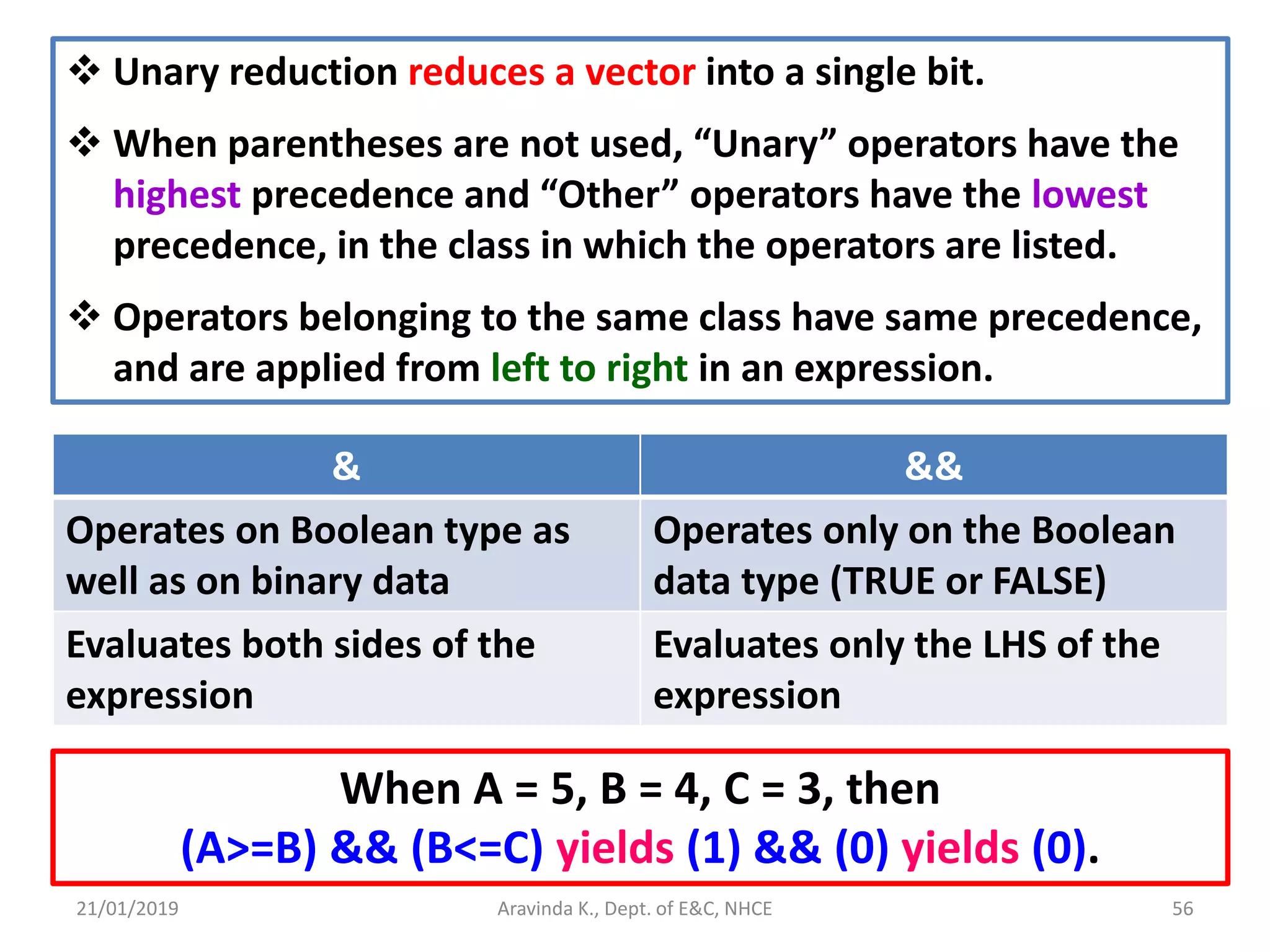

56. 21/01/2019 56Aravinda K., Dept. of E&C, NHCE

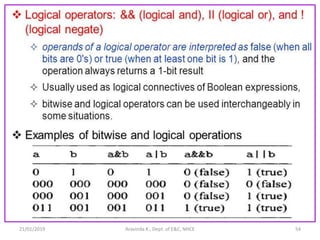

Unary reduction reduces a vector into a single bit.
When parentheses are not used, “Unary” operators have the
highest precedence and “Other” operators have the lowest
precedence, in the class in which the operators are listed.
Operators belonging to the same class have same precedence,
and are applied from left to right in an expression.
& &&
Operates on Boolean type as
well as on binary data
Operates only on the Boolean
data type (TRUE or FALSE)
Evaluates both sides of the
expression
Evaluates only the LHS of the
expression
When A = 5, B = 4, C = 3, then
(A>=B) && (B<=C) yields (1) && (0) yields (0).
57. 21/01/2019 57Aravinda K., Dept. of E&C, NHCE

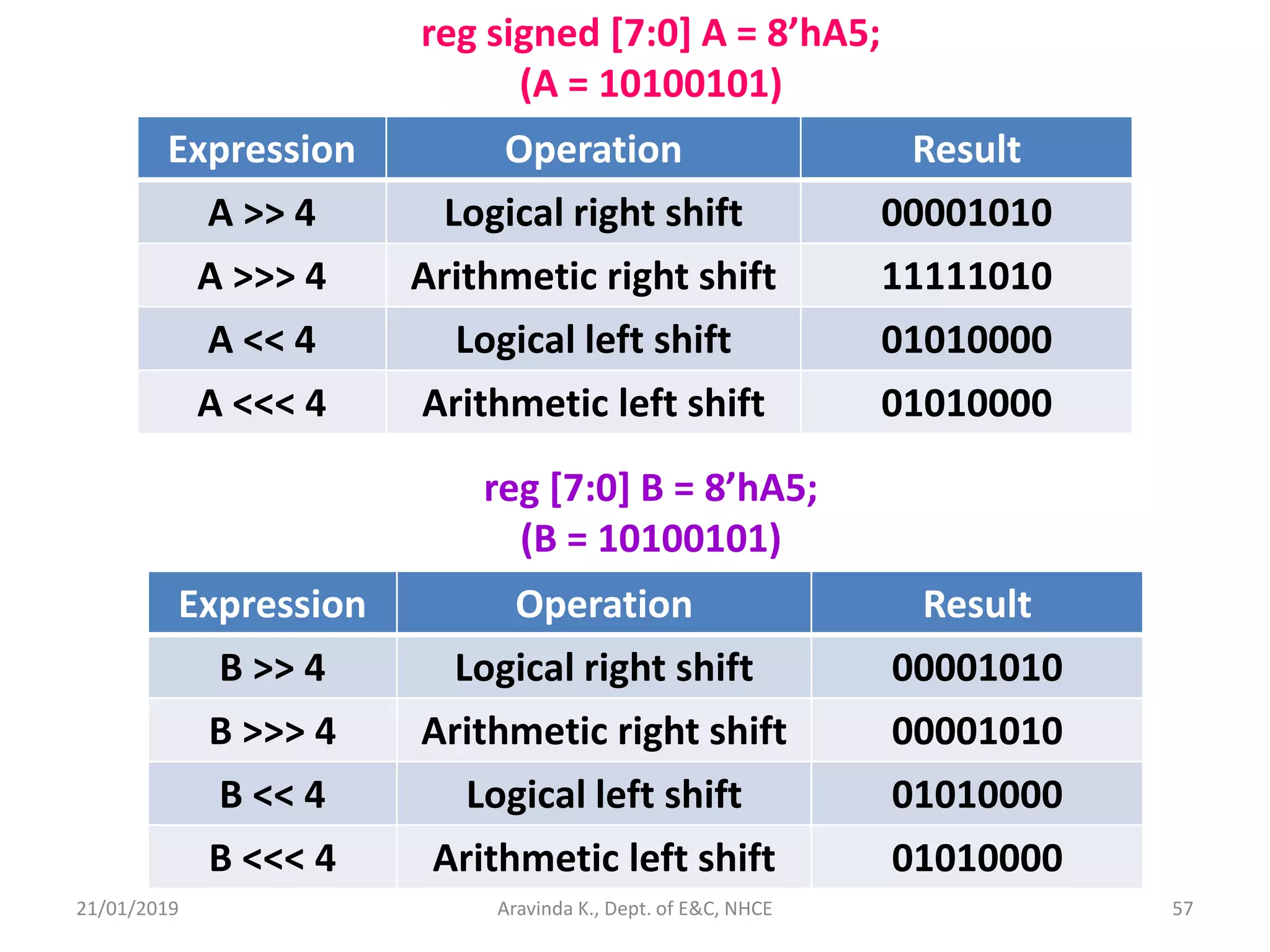

Expression Operation Result

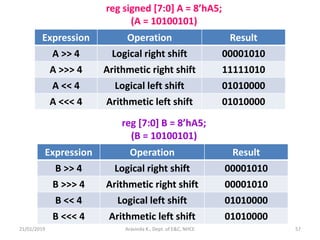

A >> 4 Logical right shift 00001010
A >>> 4 Arithmetic right shift 11111010
A << 4 Logical left shift 01010000
A <<< 4 Arithmetic left shift 01010000
reg signed [7:0] A = 8’hA5;
(A = 10100101)
Expression Operation Result
B >> 4 Logical right shift 00001010
B >>> 4 Arithmetic right shift 00001010
B << 4 Logical left shift 01010000
B <<< 4 Arithmetic left shift 01010000
reg [7:0] B = 8’hA5;
(B = 10100101)

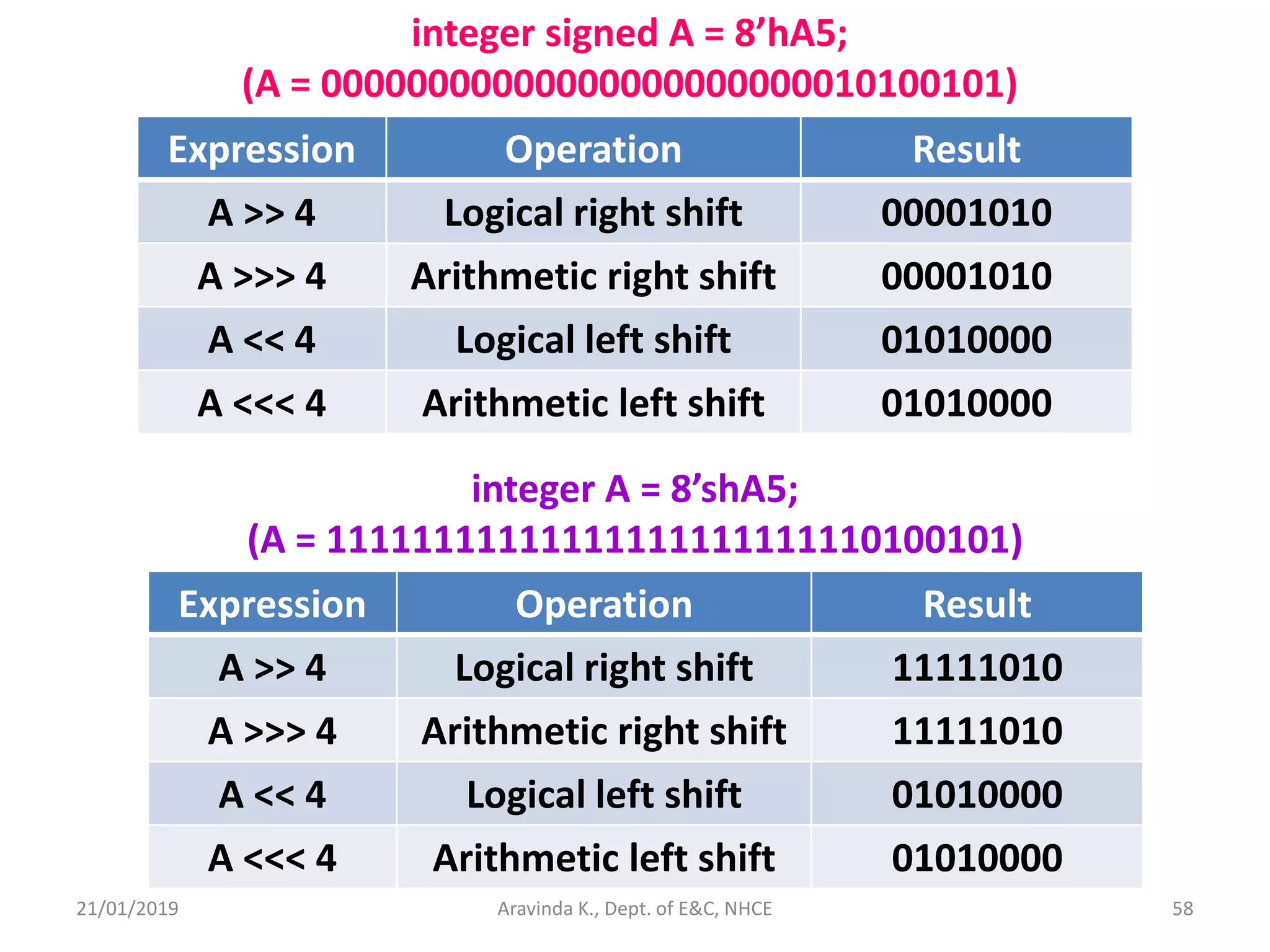

58. 21/01/2019 58Aravinda K., Dept. of E&C, NHCE
Expression Operation Result
A >> 4 Logical right shift 00001010
A >>> 4 Arithmetic right shift 00001010
A << 4 Logical left shift 01010000
A <<< 4 Arithmetic left shift 01010000
integer signed A = 8’hA5;
(A = 00000000000000000000000010100101)
integer A = 8’shA5;
(A = 11111111111111111111111110100101)
Expression Operation Result
A >> 4 Logical right shift 11111010
A >>> 4 Arithmetic right shift 11111010
A << 4 Logical left shift 01010000
A <<< 4 Arithmetic left shift 01010000
59. 21/01/2019 59Aravinda K., Dept. of E&C, NHCE

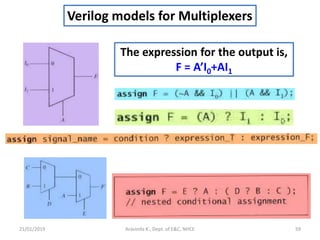

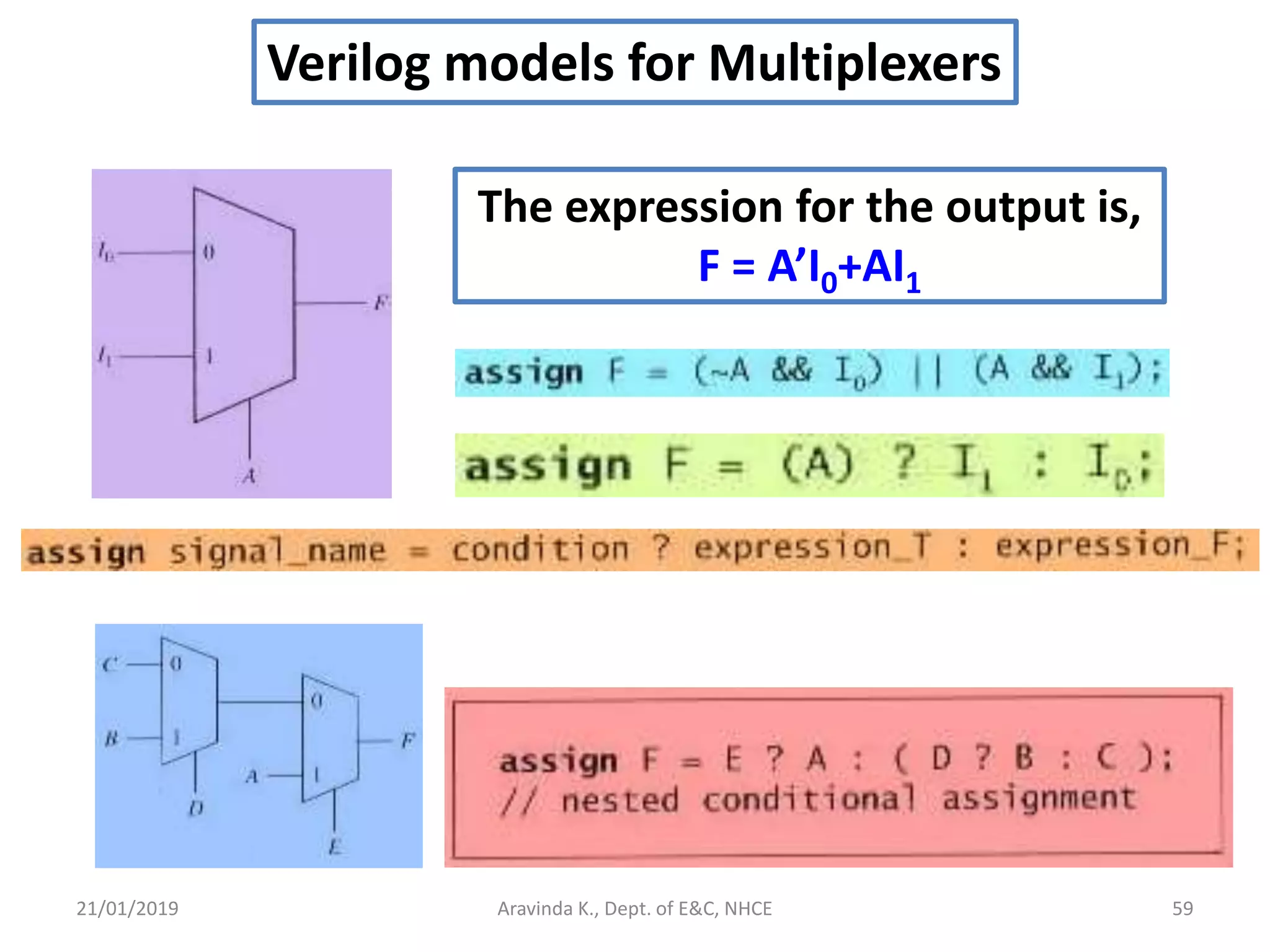

Verilog models for Multiplexers
The expression for the output is,
F = A’I0+AI1
60. 21/01/2019 60Aravinda K., Dept. of E&C, NHCE

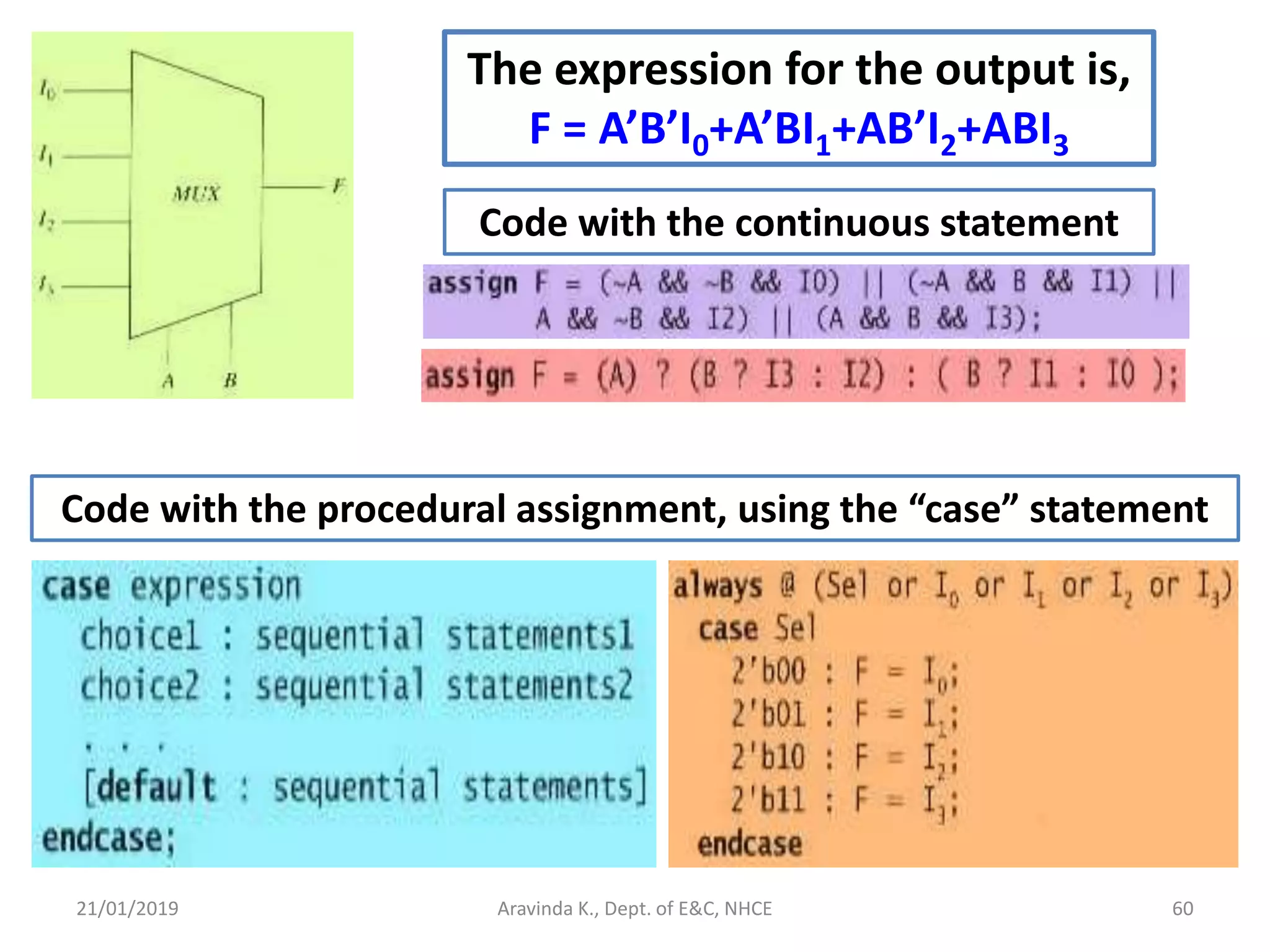

The expression for the output is,
F = A’B’I0+A’BI1+AB’I2+ABI3
Code with the procedural assignment, using the “case” statement
Code with the continuous statement
61. 21/01/2019 61Aravinda K., Dept. of E&C, NHCE

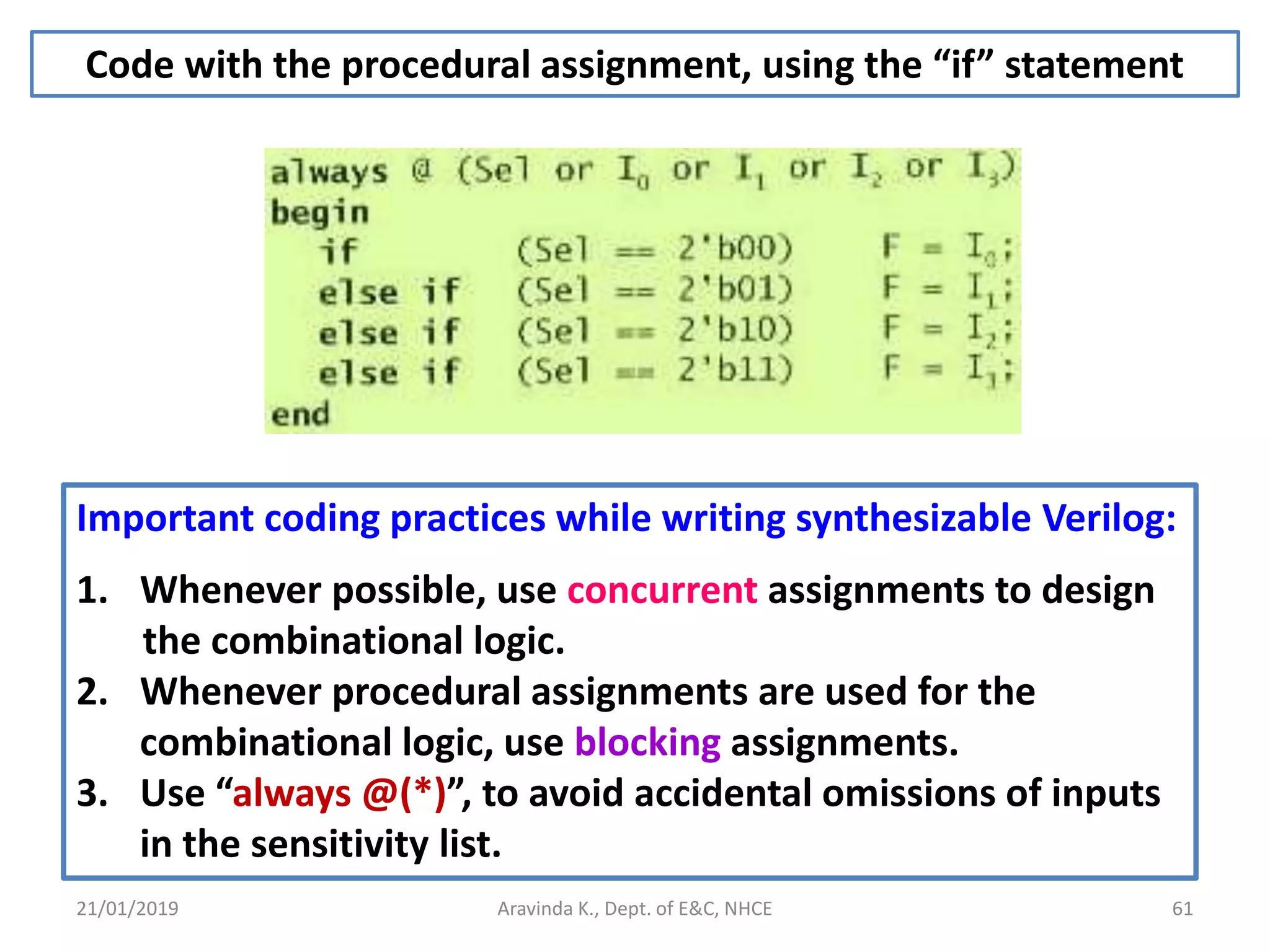

Code with the procedural assignment, using the “if” statement
Important coding practices while writing synthesizable Verilog:
1. Whenever possible, use concurrent assignments to design
the combinational logic.
2. Whenever procedural assignments are used for the
combinational logic, use blocking assignments.
3. Use “always @(*)”, to avoid accidental omissions of inputs
in the sensitivity list.

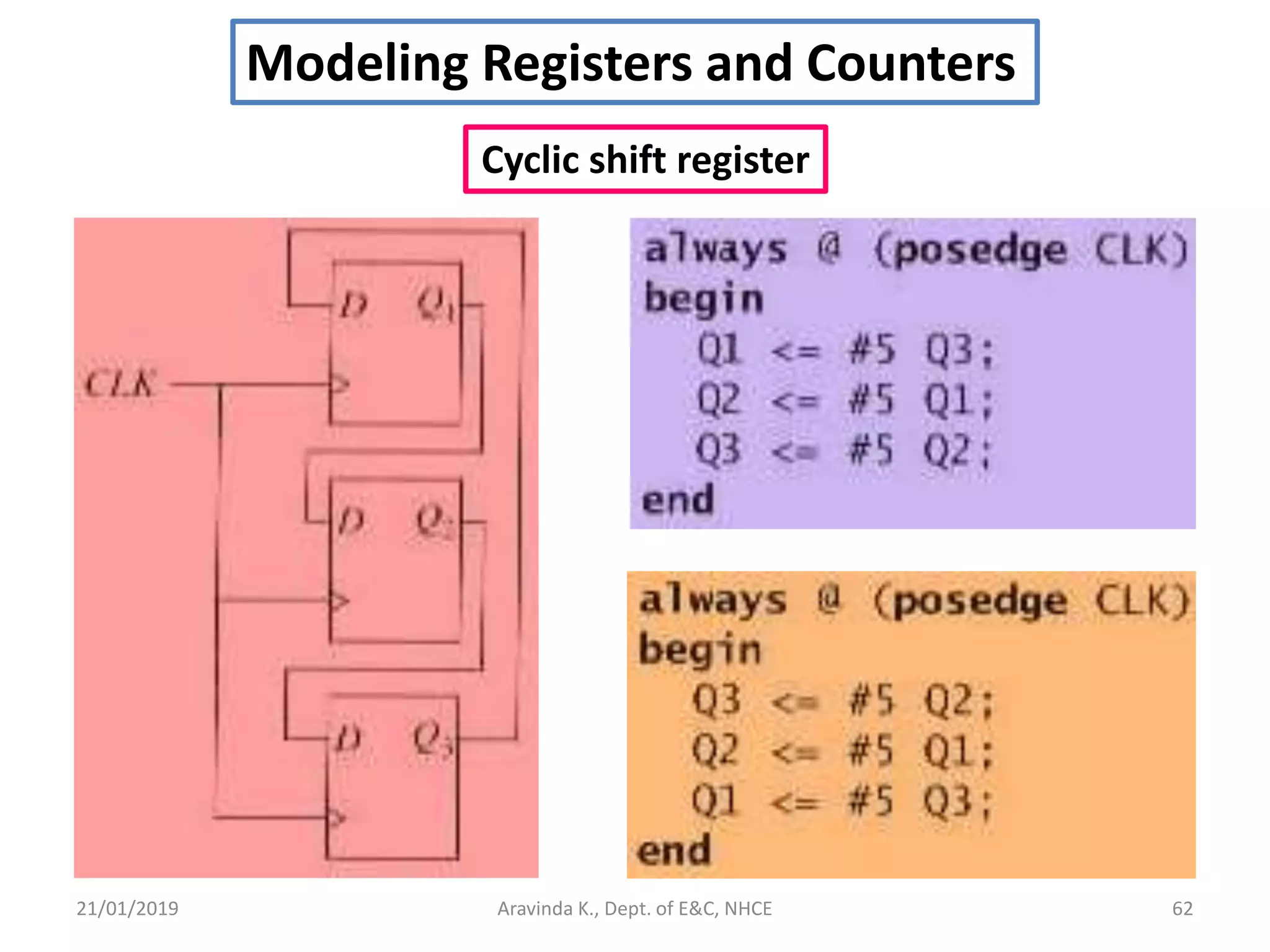

63. 21/01/2019 63Aravinda K., Dept. of E&C, NHCE

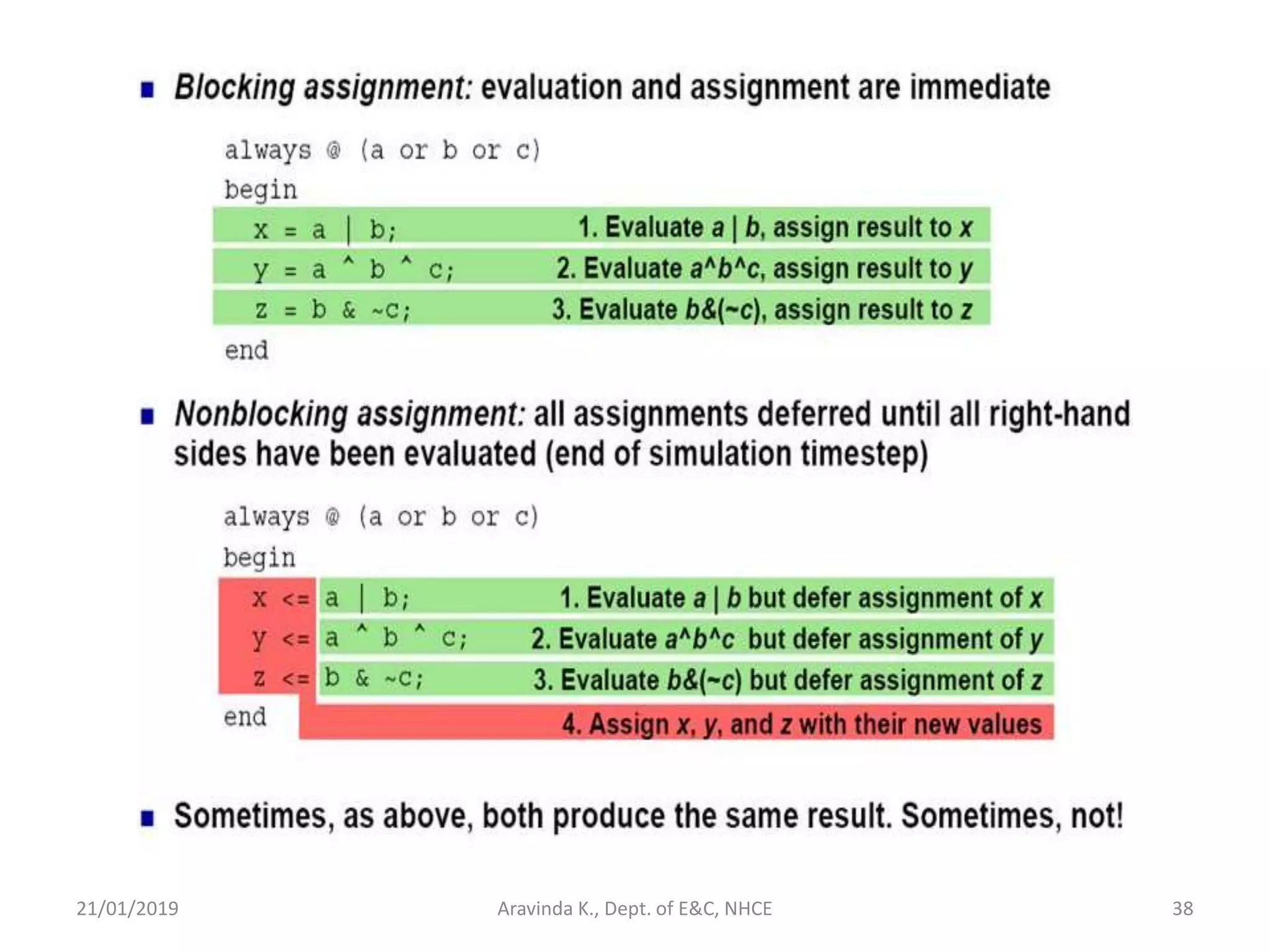

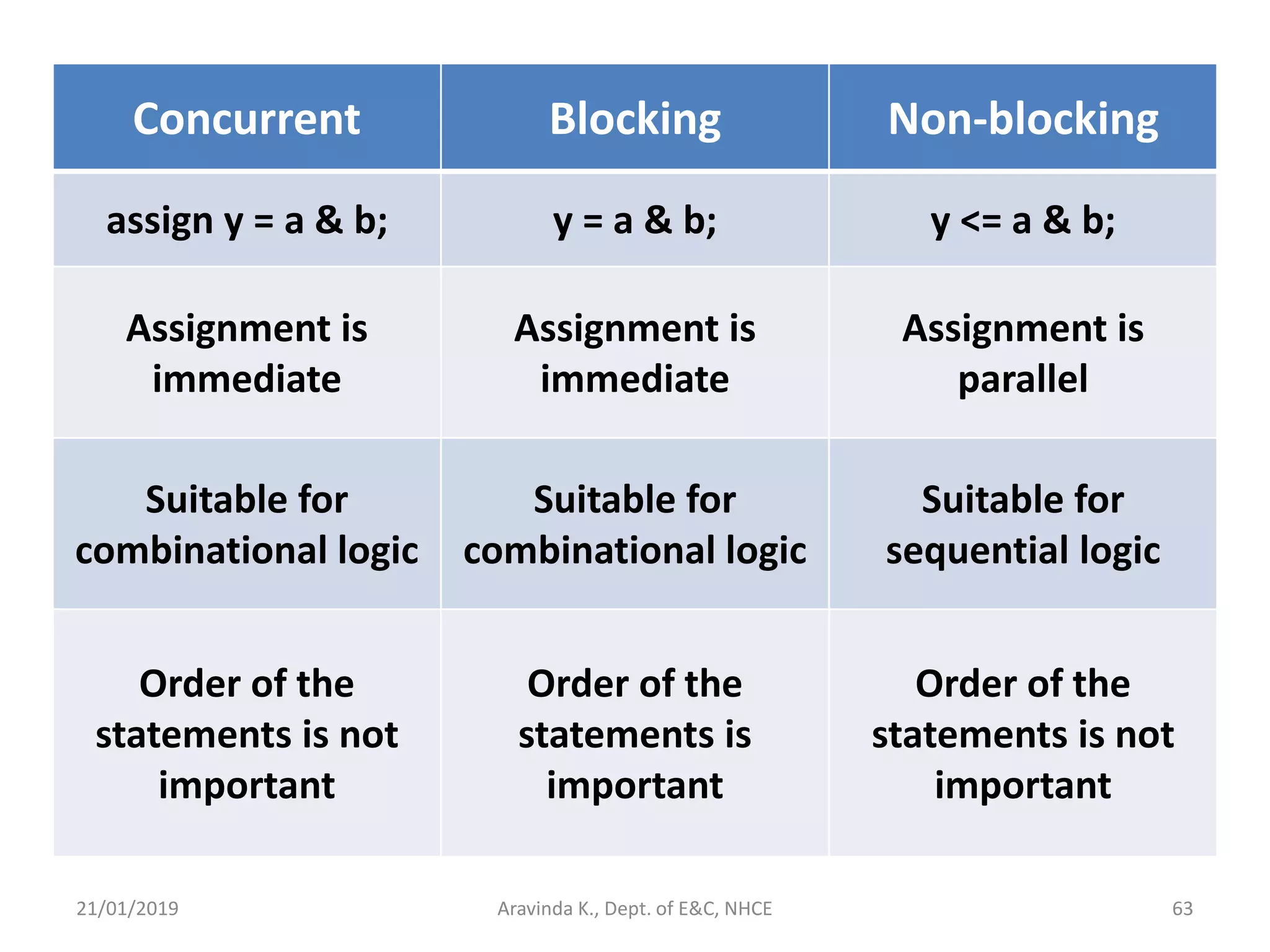

Concurrent Blocking Non-blocking
assign y = a & b; y = a & b; y <= a & b;
Assignment is
immediate
Assignment is
immediate
Assignment is
parallel
Suitable for
combinational logic
Suitable for
combinational logic
Suitable for
sequential logic
Order of the
statements is not
important
Order of the
statements is
important
Order of the
statements is not
important
64. 21/01/2019 64Aravinda K., Dept. of E&C, NHCE

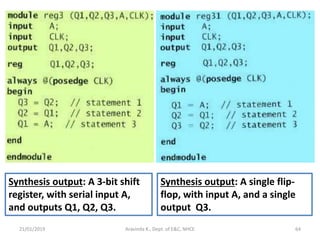

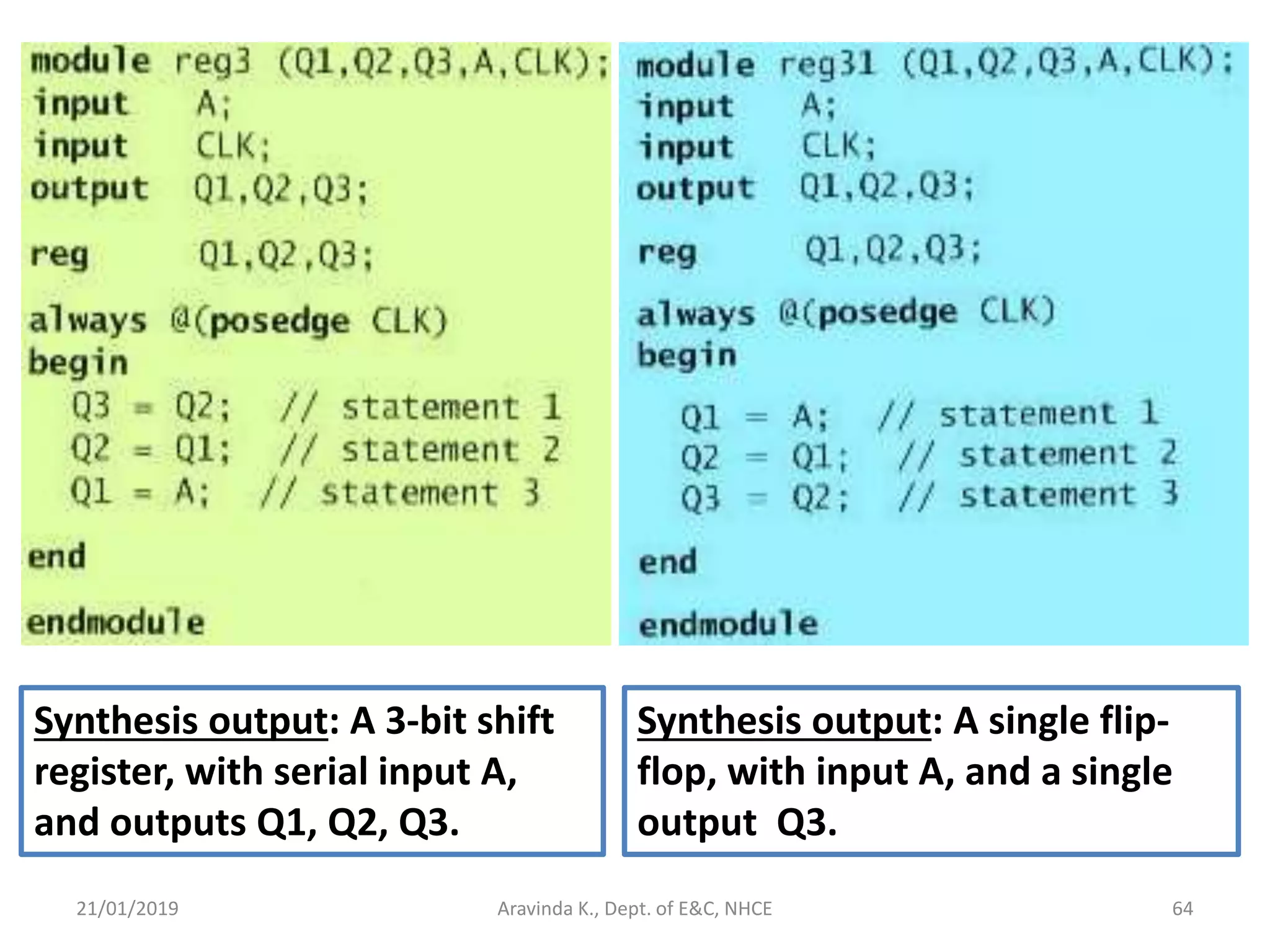

Synthesis output: A 3-bit shift
register, with serial input A,
and outputs Q1, Q2, Q3.
Synthesis output: A single flip-
flop, with input A, and a single
output Q3.

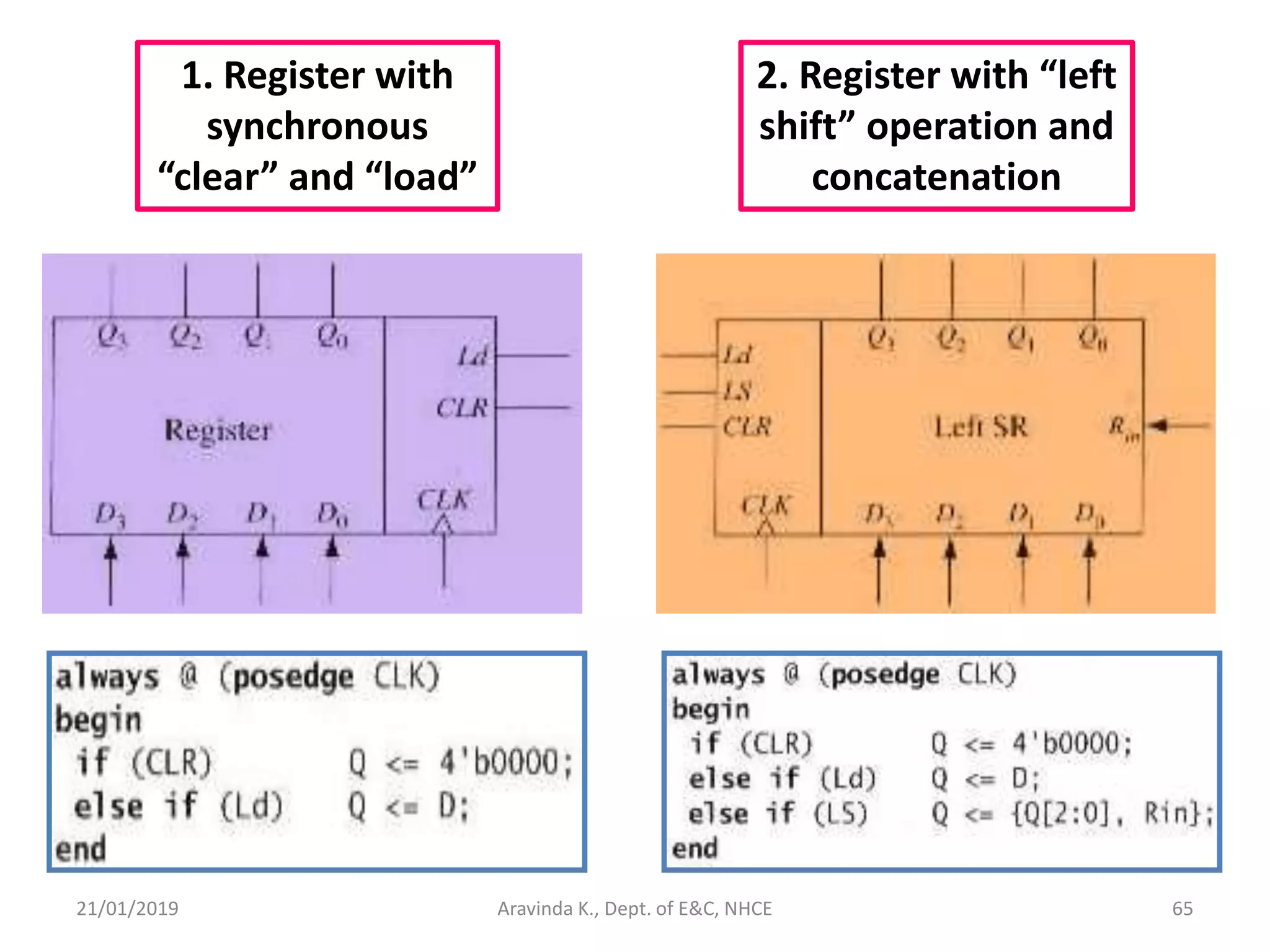

65. 21/01/2019 65Aravinda K., Dept. of E&C, NHCE
1. Register with
synchronous
“clear” and “load”
2. Register with “left
shift” operation and
concatenation
66. 21/01/2019 66Aravinda K., Dept. of E&C, NHCE

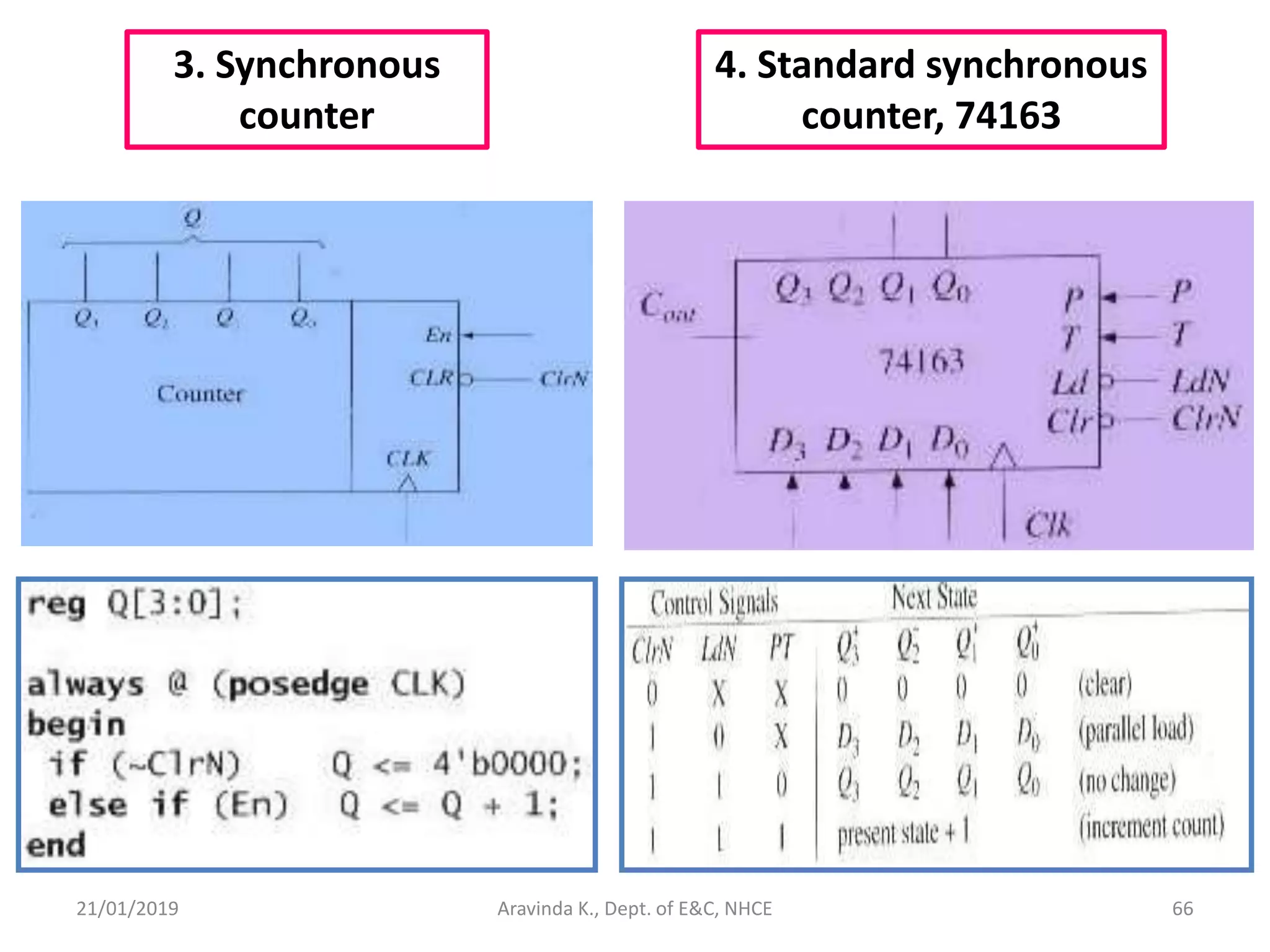

3. Synchronous
counter
4. Standard synchronous
counter, 74163
67. 21/01/2019 67Aravinda K., Dept. of E&C, NHCE

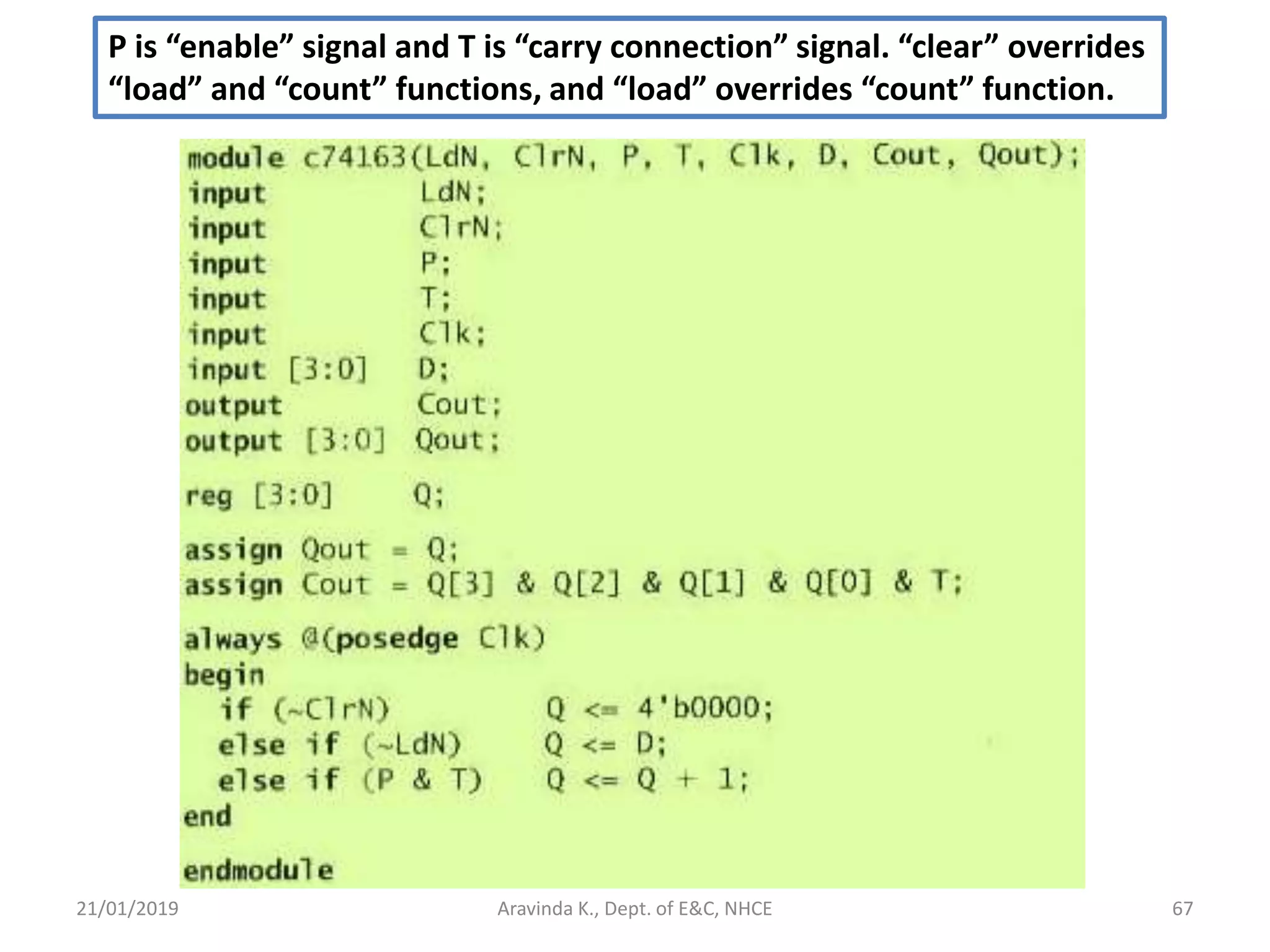

P is “enable” signal and T is “carry connection” signal. “clear” overrides
“load” and “count” functions, and “load” overrides “count” function.
68. 21/01/2019 68Aravinda K., Dept. of E&C, NHCE
This is a structural
modeling, which
interconnects the
previous defined
modules. c74163
is component’s
name; ct1, ct2 are
instance names.

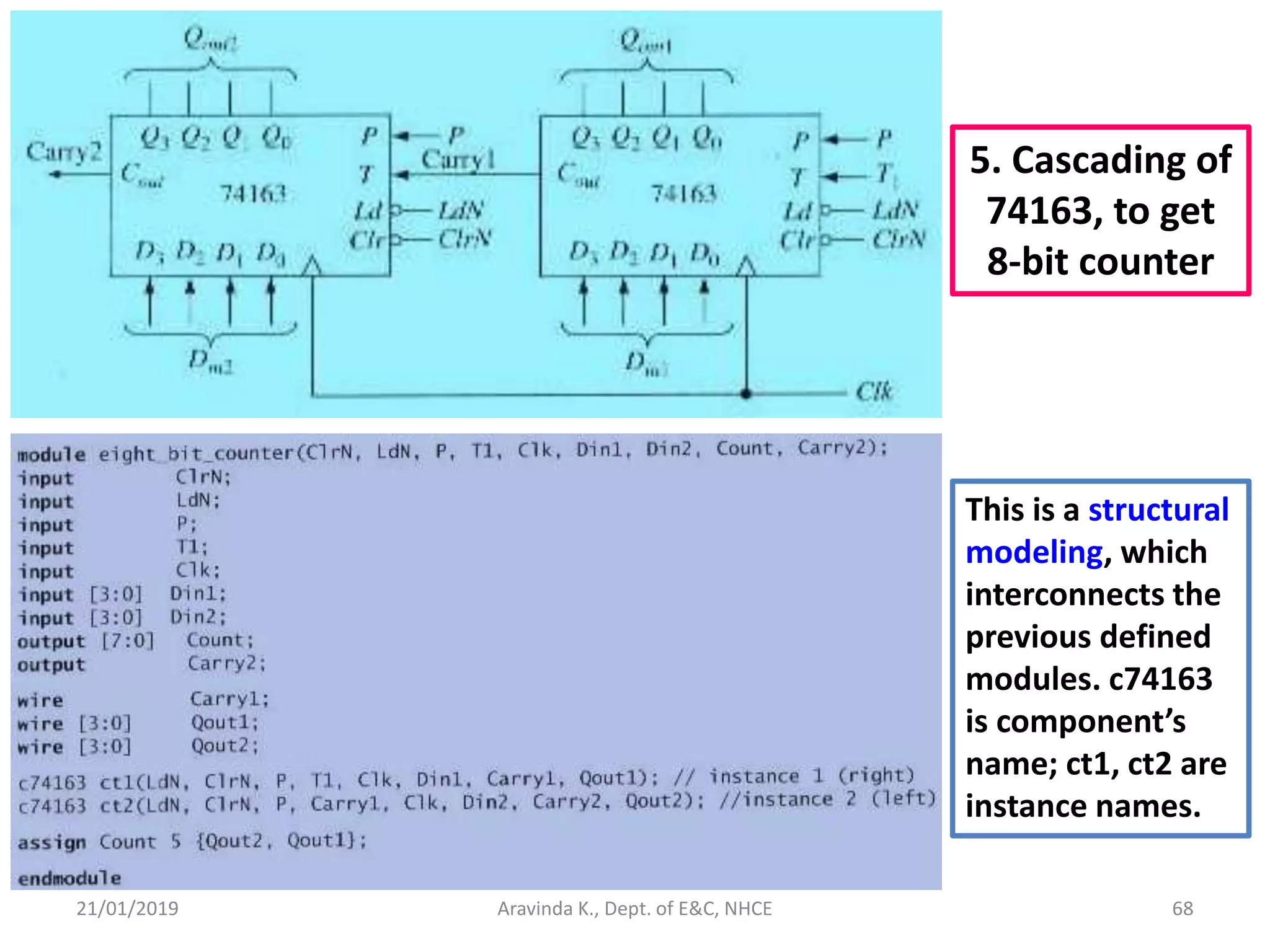

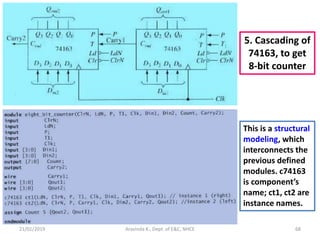

5. Cascading of
74163, to get
8-bit counter
69. 21/01/2019 69Aravinda K., Dept. of E&C, NHCE

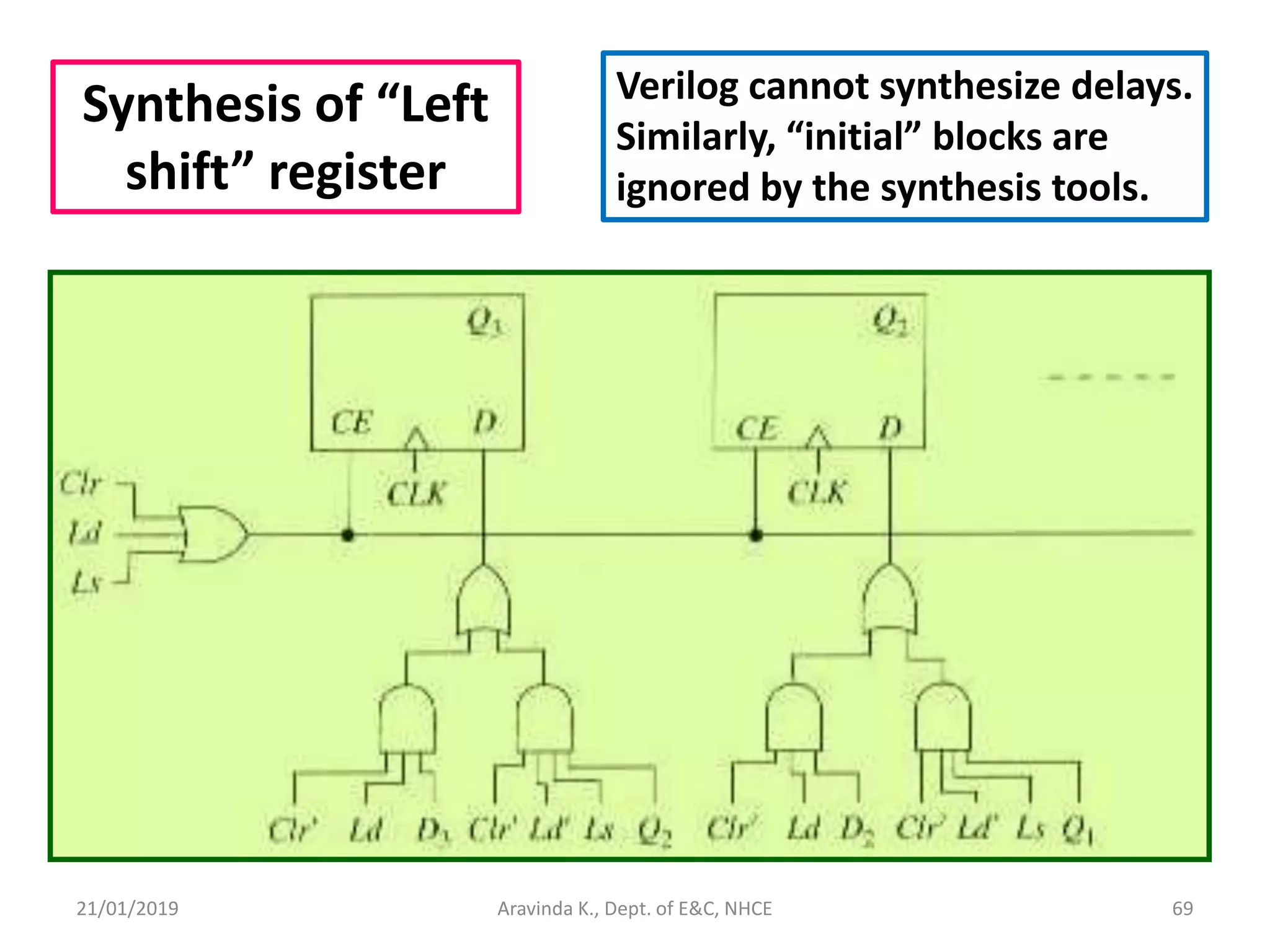

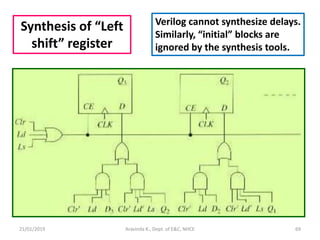

Synthesis of “Left
shift” register
Verilog cannot synthesize delays.
Similarly, “initial” blocks are
ignored by the synthesis tools.

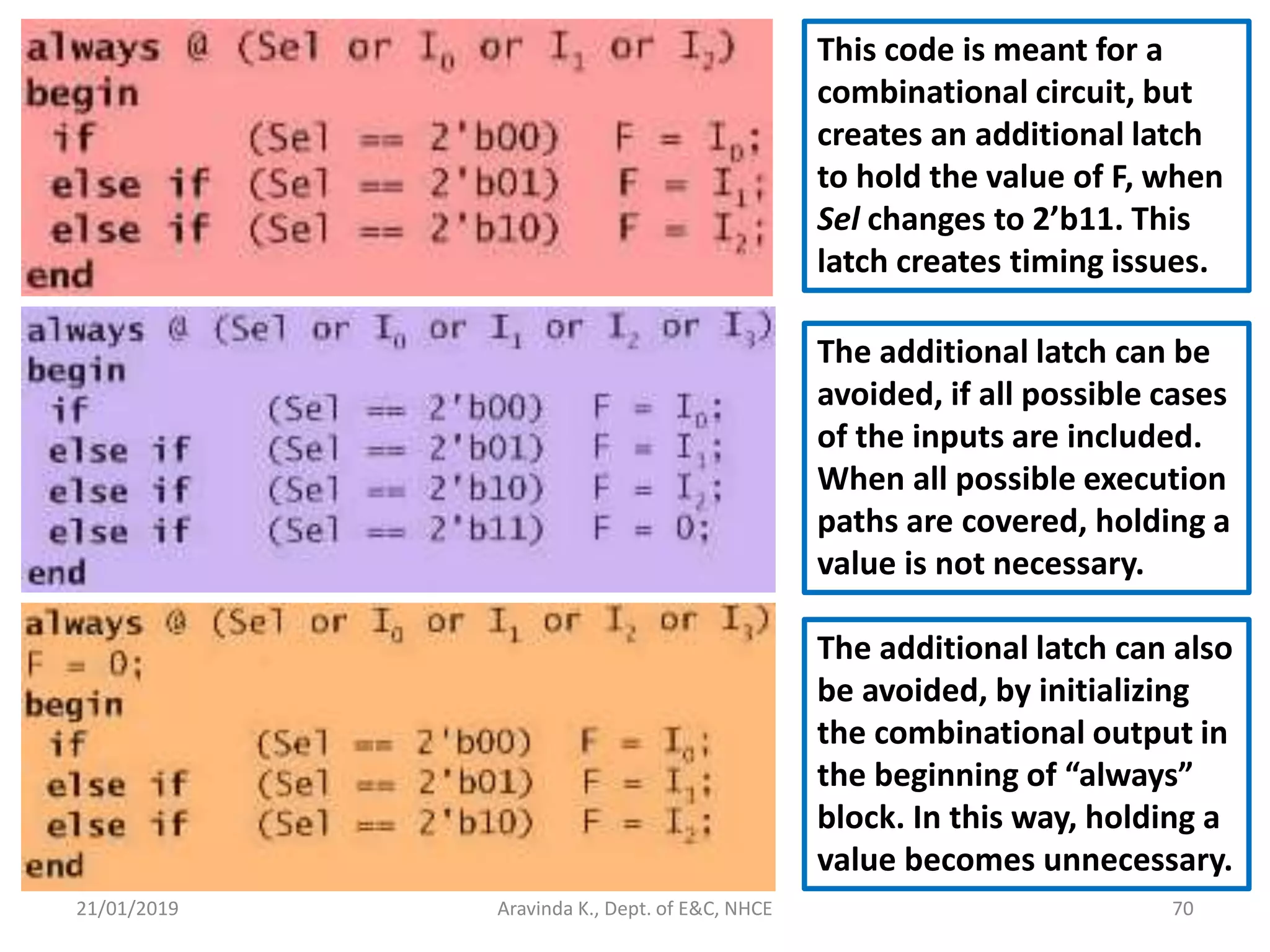

70. 21/01/2019 70Aravinda K., Dept. of E&C, NHCE
This code is meant for a
combinational circuit, but
creates an additional latch
to hold the value of F, when
Sel changes to 2’b11. This
latch creates timing issues.
The additional latch can be
avoided, if all possible cases
of the inputs are included.
When all possible execution
paths are covered, holding a
value is not necessary.
The additional latch can also
be avoided, by initializing
the combinational output in
the beginning of “always”
block. In this way, holding a
value becomes unnecessary.
71. 21/01/2019 71Aravinda K., Dept. of E&C, NHCE

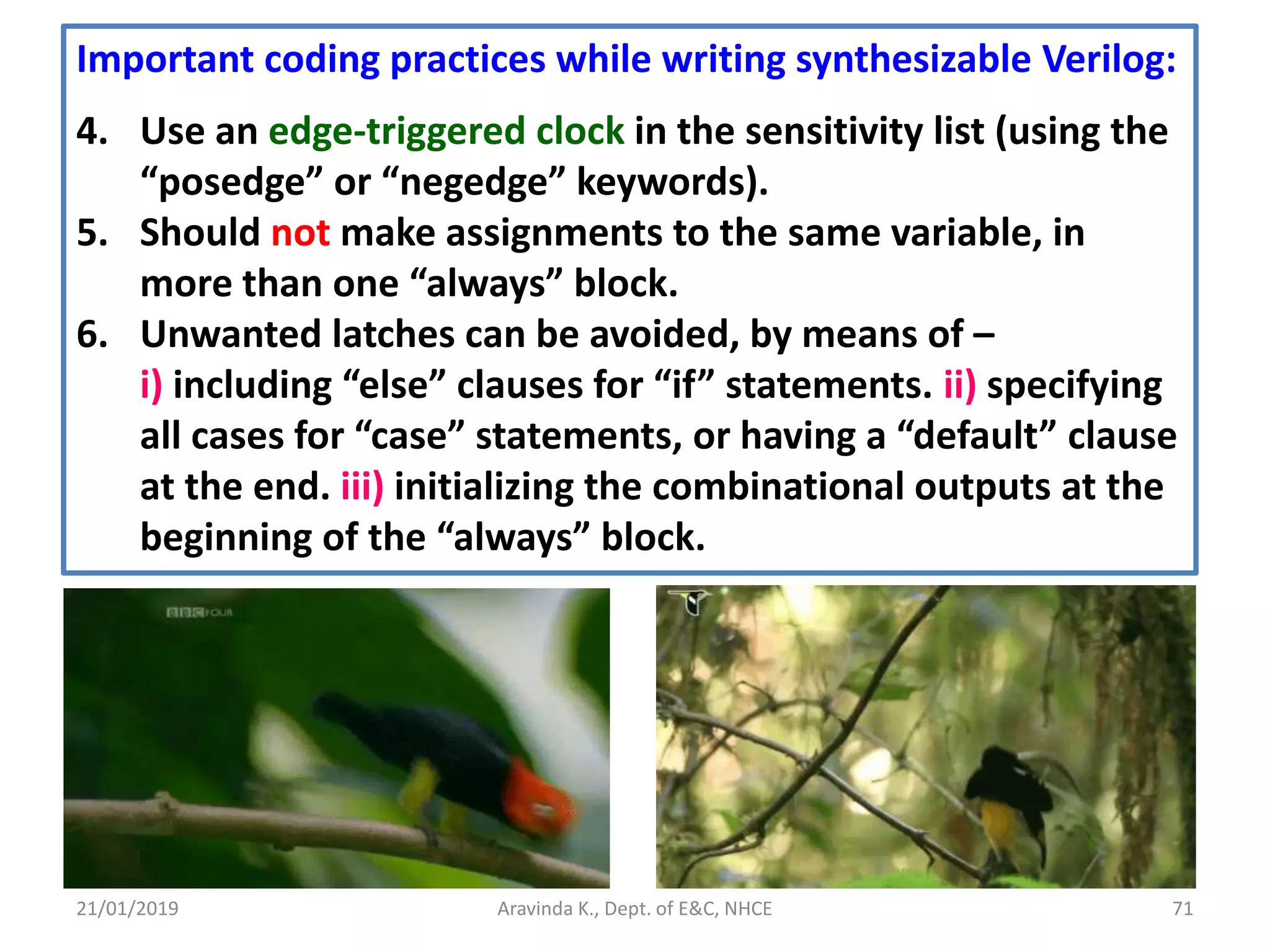

Important coding practices while writing synthesizable Verilog:
4. Use an edge-triggered clock in the sensitivity list (using the
“posedge” or “negedge” keywords).
5. Should not make assignments to the same variable, in
more than one “always” block.
6. Unwanted latches can be avoided, by means of –
i) including “else” clauses for “if” statements. ii) specifying
all cases for “case” statements, or having a “default” clause
at the end. iii) initializing the combinational outputs at the
beginning of the “always” block.
72. 21/01/2019 72Aravinda K., Dept. of E&C, NHCE

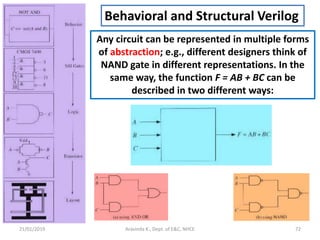

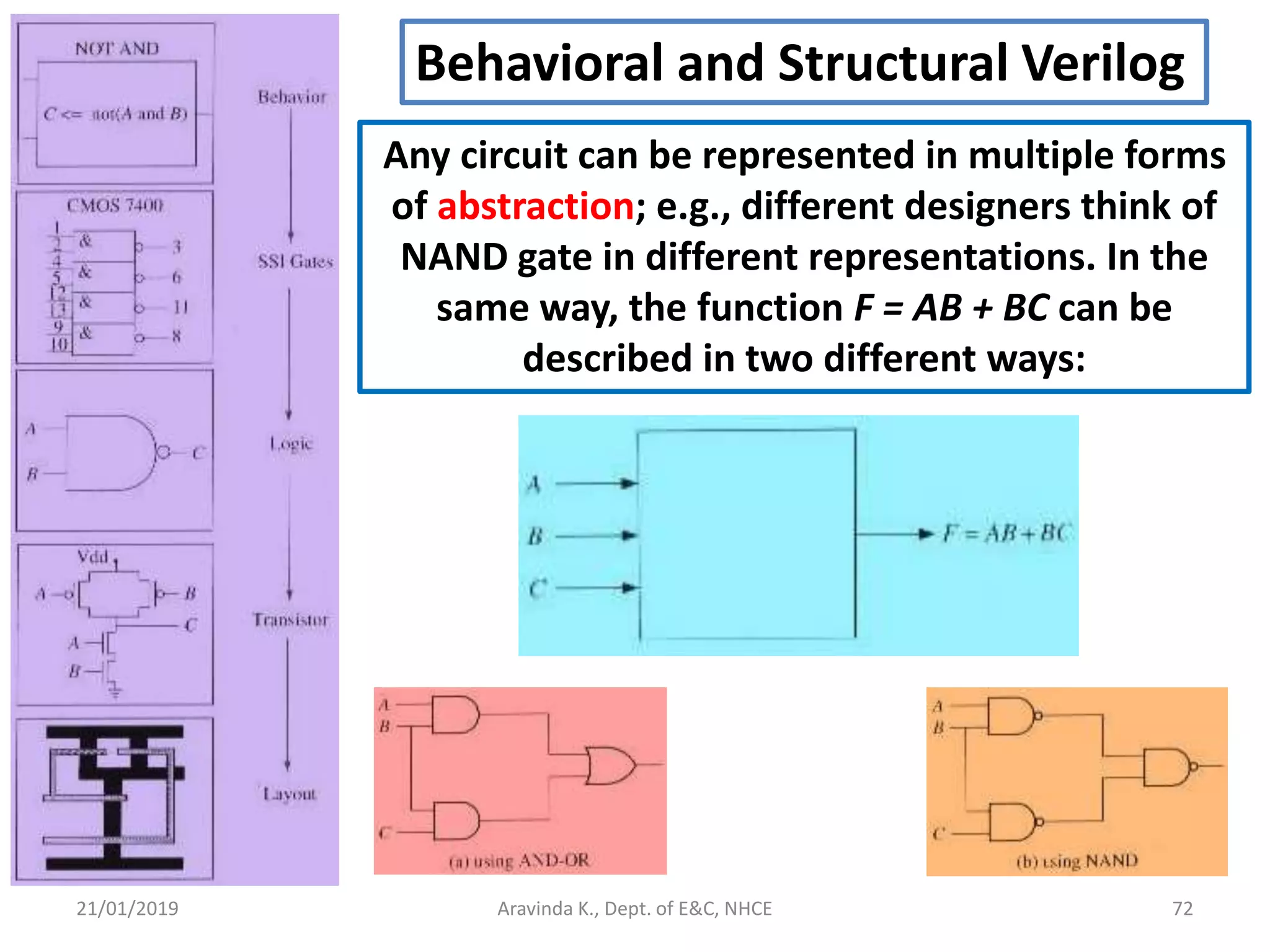

Behavioral and Structural Verilog
Any circuit can be represented in multiple forms
of abstraction; e.g., different designers think of
NAND gate in different representations. In the
same way, the function F = AB + BC can be
described in two different ways:
73. 21/01/2019 73Aravinda K., Dept. of E&C, NHCE
Behavioral
models
Data flow (RTL)
models
Structural
models
These models describe the system
at a higher level of abstraction,
without implying any particular
structure or technology. (e.g., full
adder’s truth table description)
These models describe the system
at a lower level of abstraction, by
means of components and their
interconnections. (e.g., full adder in
terms of half adders)
These models describe the system
at an intermediate level, called as
Register Transfer Language. (e.g.:
full adder’s algebraic expressions)

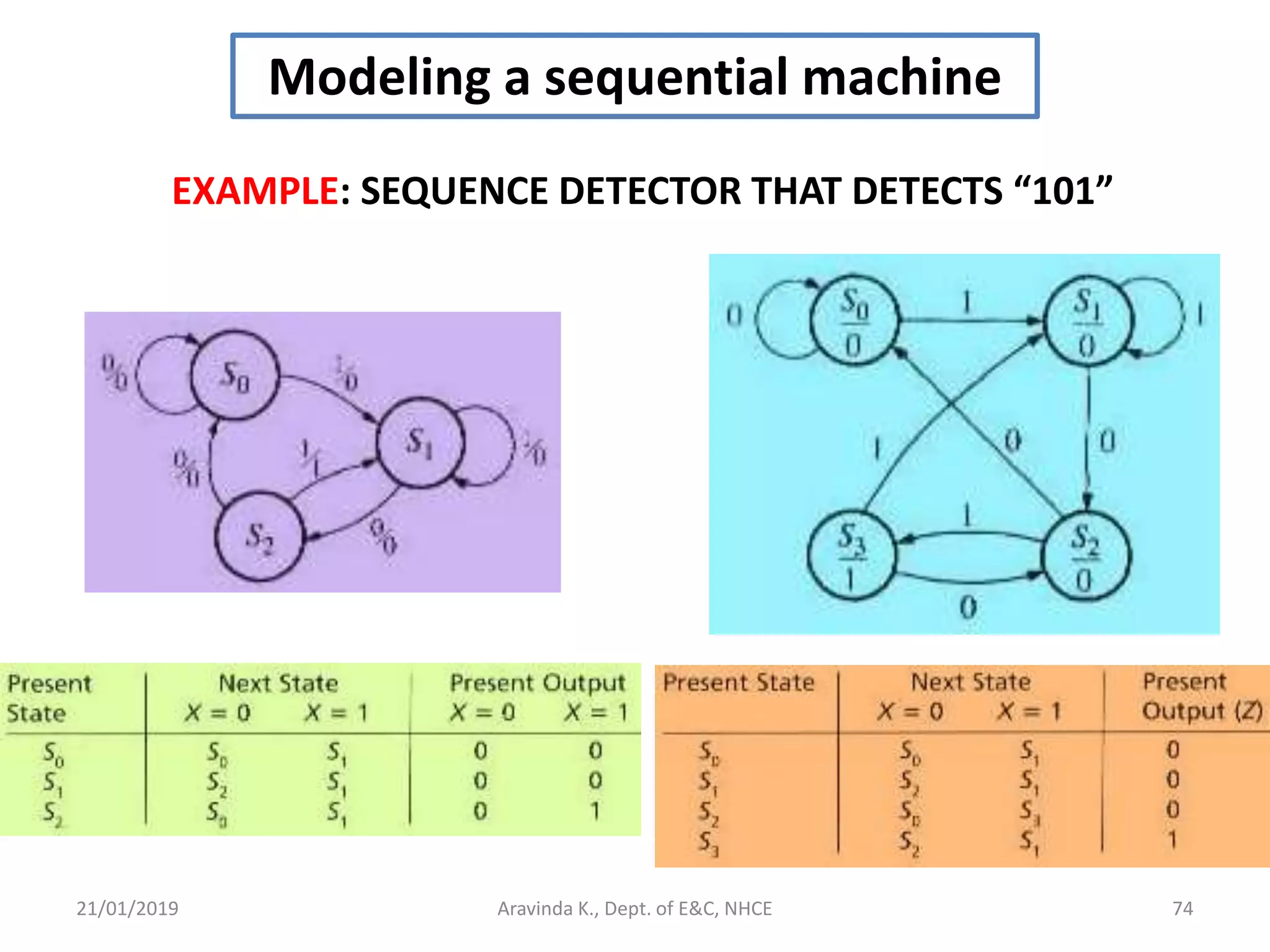

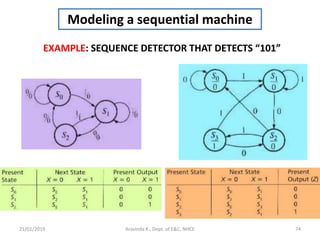

74. EXAMPLE: SEQUENCE DETECTOR THAT DETECTS “101”
Modeling a sequential machine
21/01/2019 Aravinda K., Dept. of E&C, NHCE 74

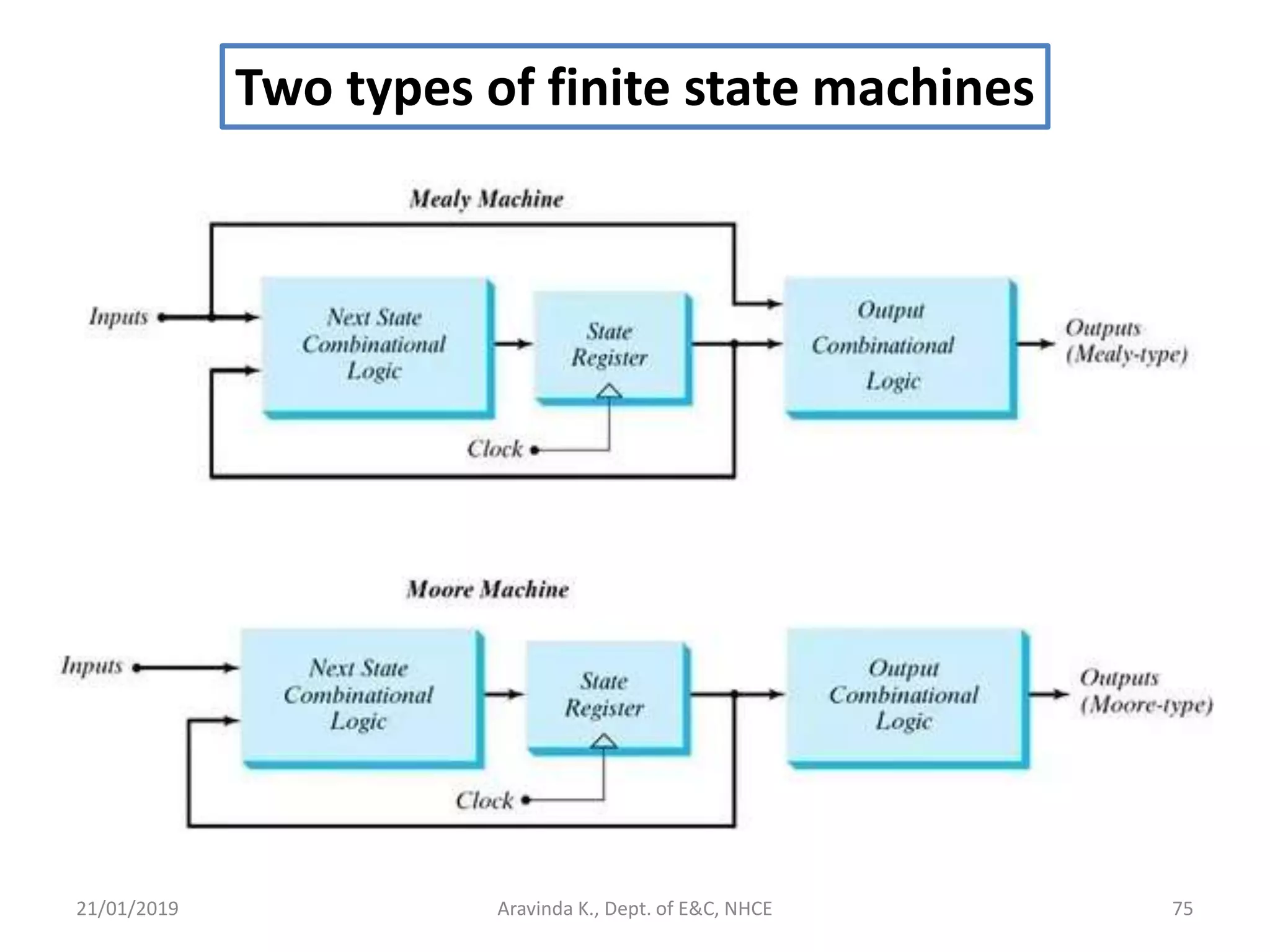

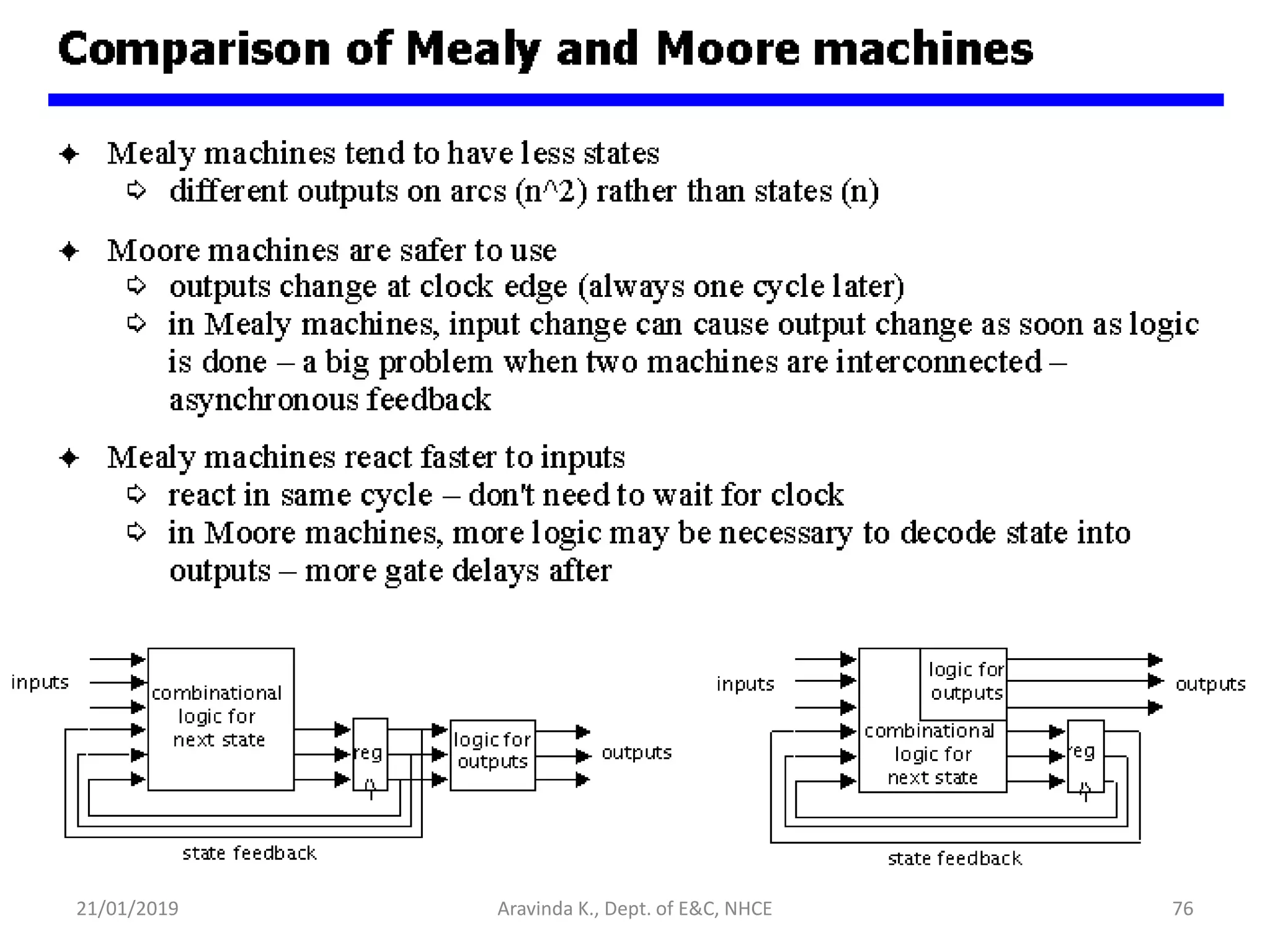

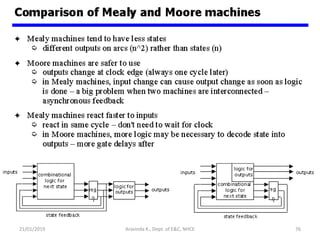

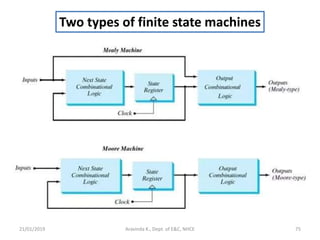

77. 21/01/2019 77Aravinda K., Dept. of E&C, NHCE

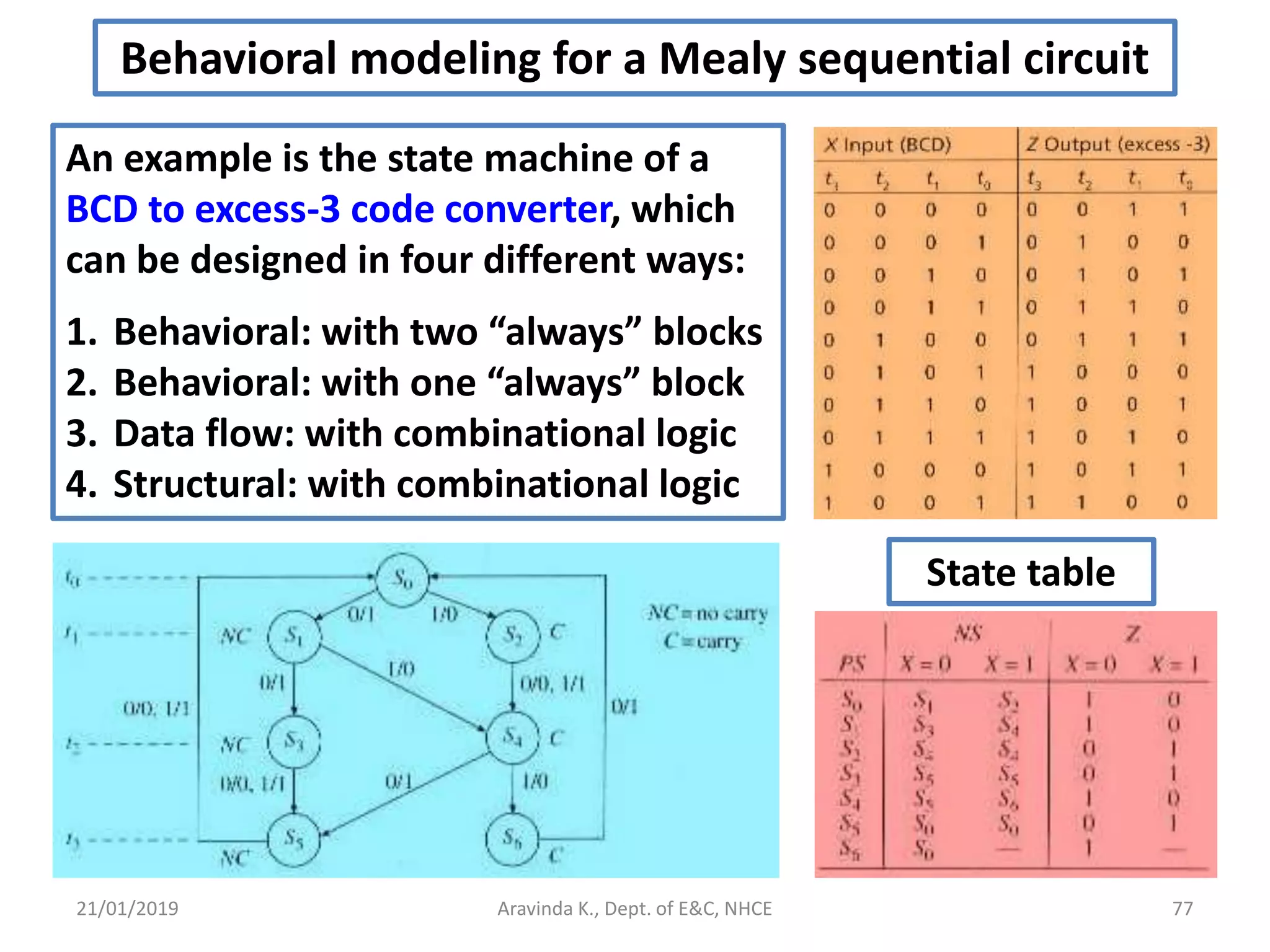

Behavioral modeling for a Mealy sequential circuit
State table
An example is the state machine of a
BCD to excess-3 code converter, which
can be designed in four different ways:
1. Behavioral: with two “always” blocks
2. Behavioral: with one “always” block
3. Data flow: with combinational logic
4. Structural: with combinational logic
78. 21/01/2019 78Aravinda K., Dept. of E&C, NHCE

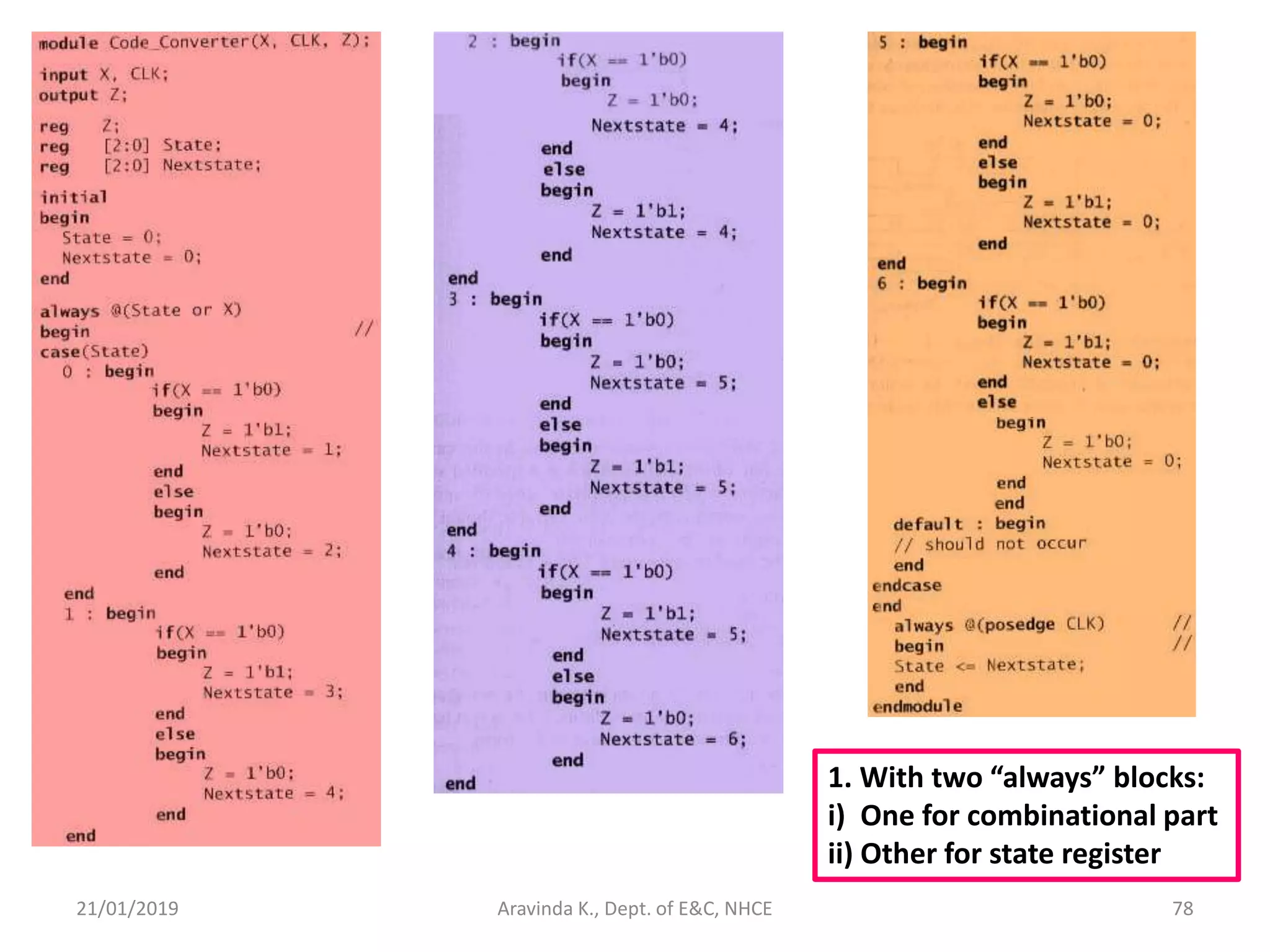

1. With two “always” blocks:
i) One for combinational part
ii) Other for state register
79. 21/01/2019 79Aravinda K., Dept. of E&C, NHCE

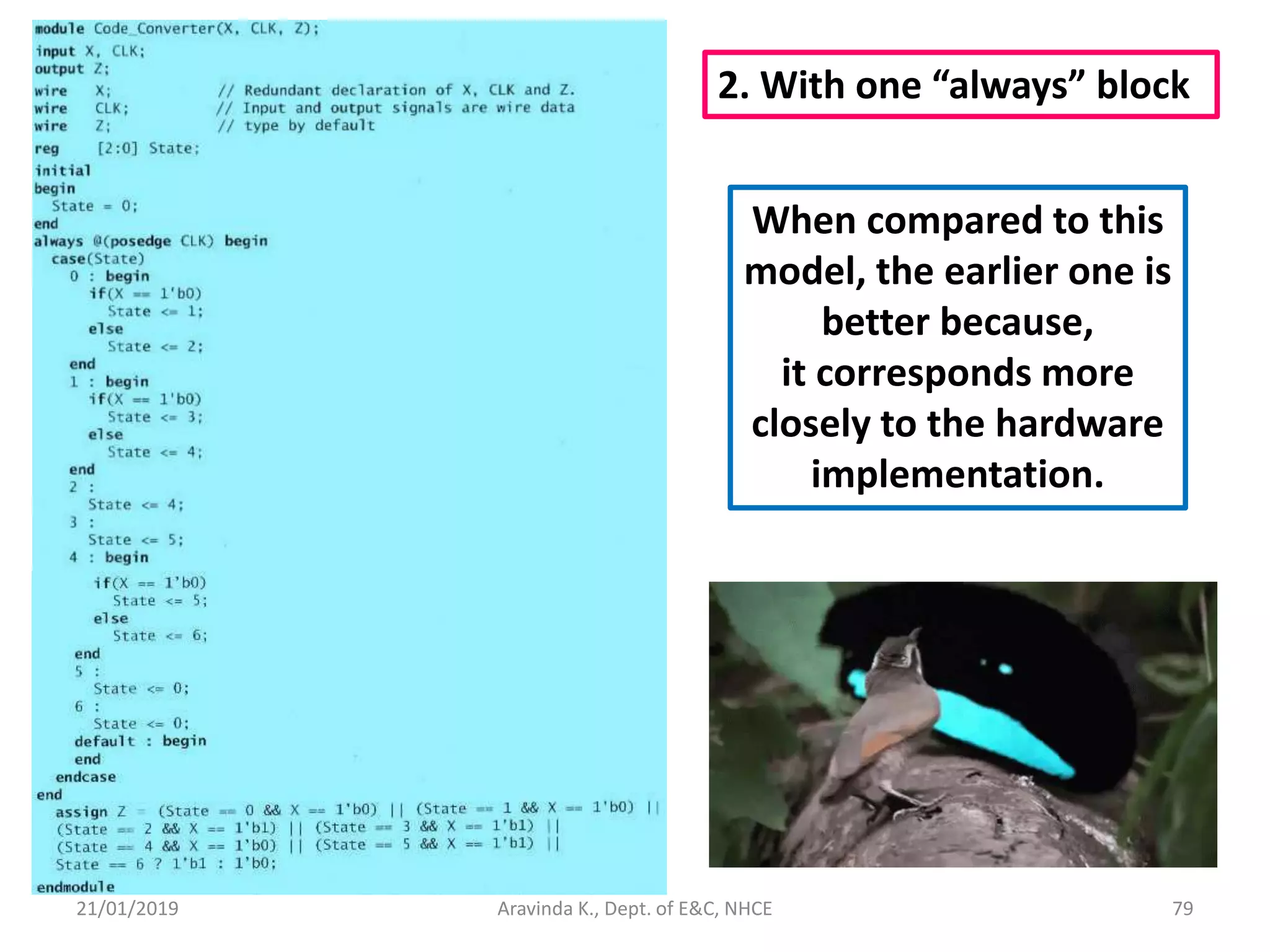

2. With one “always” block
When compared to this
model, the earlier one is
better because,
it corresponds more
closely to the hardware
implementation.

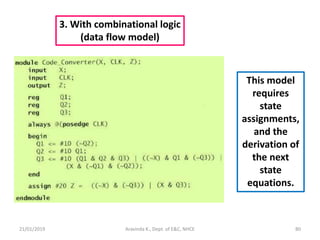

80. 21/01/2019 80Aravinda K., Dept. of E&C, NHCE

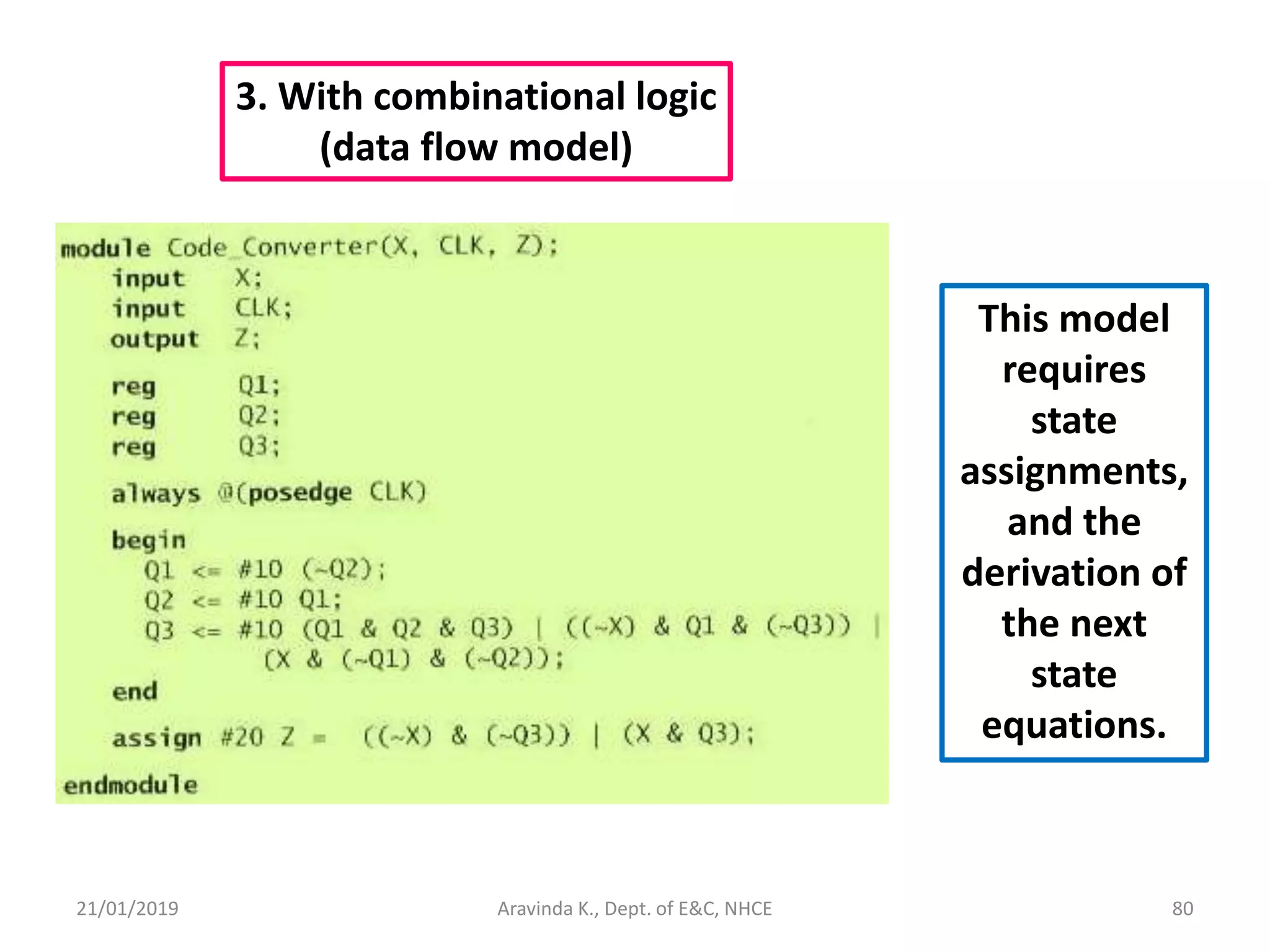

3. With combinational logic
(data flow model)
This model
requires
state
assignments,
and the
derivation of
the next
state
equations.
81. 21/01/2019 81Aravinda K., Dept. of E&C, NHCE

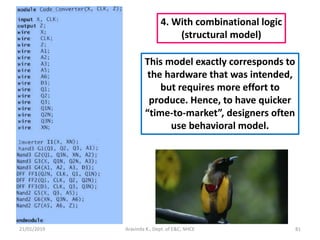

4. With combinational logic
(structural model)
This model exactly corresponds to
the hardware that was intended,
but requires more effort to
produce. Hence, to have quicker
“time-to-market”, designers often
use behavioral model.
