1. SURGICAL INSTRUMENTS
Dr. Hadi Munib
Oral and Maxillofacial Surgery Resident

2. INTRODUCTION
• The purpose is to introduce the instrumentation commonly
required to perform routine dental extractions and other basic
oral surgical operations.
• These instruments are used for a wide variety of purposes,
including soft and hard tissue procedures.

3. INCISING TISSUES
The most commonly used handle for oral
surgery is the No. 3 handle. The tip of a
scalpel handle is prepared to receive a
variety of differently shaped scalpel blades
to be inserted onto the slotted portion of
the handle
Scalpel Blades: Left to right: #10 , #11, #12 and #15

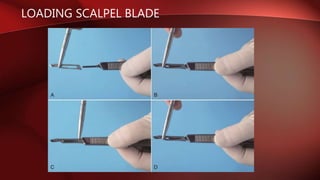

4. LOADING SCALPEL BLADE

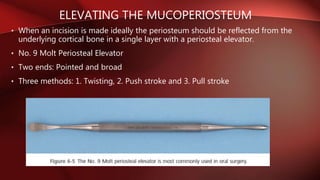

5. ELEVATING THE MUCOPERIOSTEUM
• When an incision is made ideally the periosteum should be reflected from the
underlying cortical bone in a single layer with a periosteal elevator.
• No. 9 Molt Periosteal Elevator
• Two ends: Pointed and broad
• Three methods: 1. Twisting, 2. Push stroke and 3. Pull stroke

6. RETRACTING SOFT TISSUE
• Good access and vision are essential to performing excellent surgery.
• Retractors can also help protect soft tissue from sharp cutting instruments.

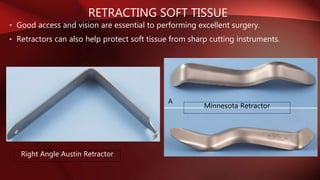

Right Angle Austin Retractor
Minnesota Retractor

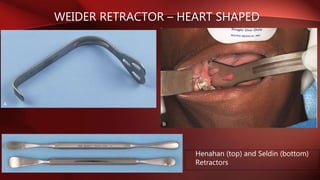

7. WEIDER RETRACTOR – HEART SHAPED
Henahan (top) and Seldin (bottom)
Retractors

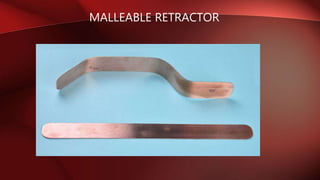

8. MALLEABLE RETRACTOR

9. GRASPING SOFT TISSUE

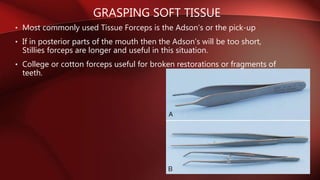

• Most commonly used Tissue Forceps is the Adson’s or the pick-up
• If in posterior parts of the mouth then the Adson’s will be too short,
Stillies forceps are longer and useful in this situation.
• College or cotton forceps useful for broken restorations or fragments of
teeth.

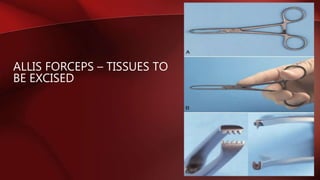

10. ALLIS FORCEPS – TISSUES TO
BE EXCISED

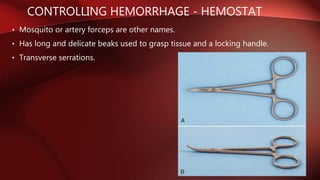

11. CONTROLLING HEMORRHAGE - HEMOSTAT
• Mosquito or artery forceps are other names.
• Has long and delicate beaks used to grasp tissue and a locking handle.
• Transverse serrations.

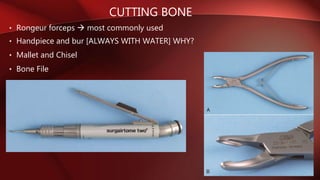

12. CUTTING BONE
• Rongeur forceps  most commonly used
• Handpiece and bur [ALWAYS WITH WATER] WHY?
• Mallet and Chisel
• Bone File

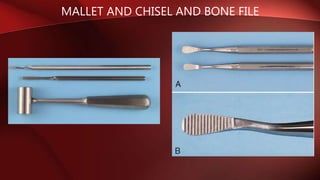

13. MALLET AND CHISEL AND BONE FILE

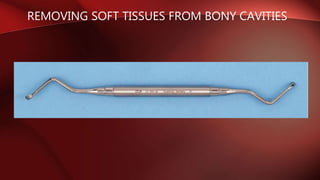

14. REMOVING SOFT TISSUES FROM BONY CAVITIES

15. SUTURING SOFT TISSUE

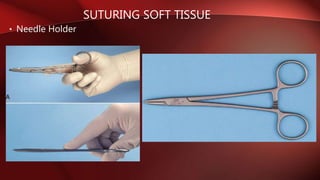

• Needle Holder

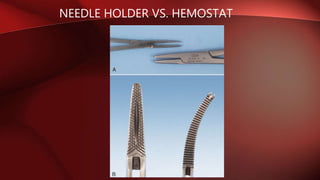

16. NEEDLE HOLDER VS. HEMOSTAT

17. SUTURE
NEEDLE
• Three-Eights circle or half-circle needle
• Cutting vs. Non-cutting
• Triangular vs. Round cross section.

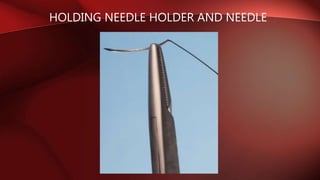

18. HOLDING NEEDLE HOLDER AND NEEDLE

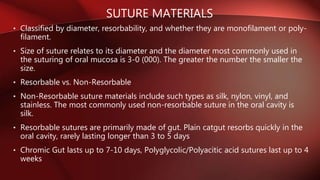

19. SUTURE MATERIALS
• Classified by diameter, resorbability, and whether they are monofilament or poly-
filament.
• Size of suture relates to its diameter and the diameter most commonly used in
the suturing of oral mucosa is 3-0 (000). The greater the number the smaller the
size.
• Resorbable vs. Non-Resorbable
• Non-Resorbable suture materials include such types as silk, nylon, vinyl, and
stainless. The most commonly used non-resorbable suture in the oral cavity is
silk.
• Resorbable sutures are primarily made of gut. Plain catgut resorbs quickly in the
oral cavity, rarely lasting longer than 3 to 5 days
• Chromic Gut lasts up to 7-10 days, Polyglycolic/Polyacitic acid sutures last up to 4
weeks

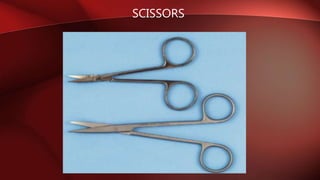

20. SCISSORS

21. HOW TO KEEP THE MOUTH OPEN?
• Bite Block
• Side-Action or Molt Mouth prop
• Sutures?

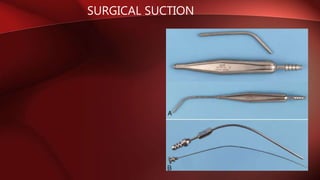

22. SURGICAL SUCTION

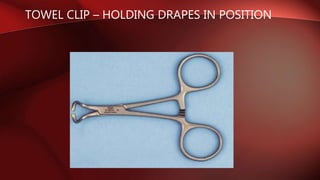

23. TOWEL CLIP – HOLDING DRAPES IN POSITION

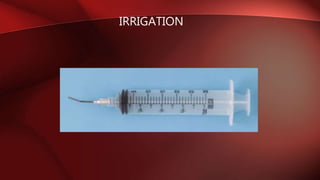

24. IRRIGATION

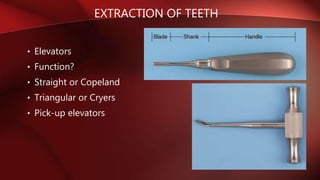

25. EXTRACTION OF TEETH
• Elevators
• Function?
• Straight or Copeland
• Triangular or Cryers
• Pick-up elevators

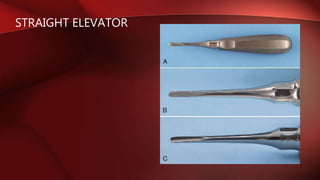

26. STRAIGHT ELEVATOR

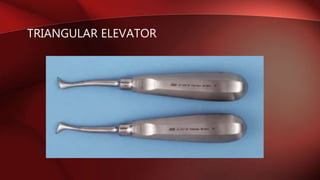

27. TRIANGULAR ELEVATOR

28. APEXO ELEVATORS

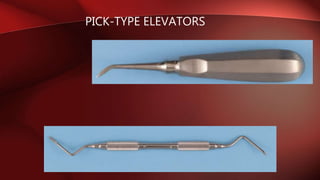

29. PICK-TYPE ELEVATORS

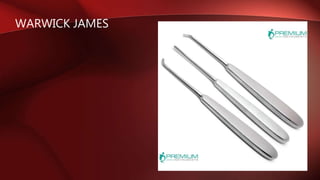

30. WARWICK JAMES

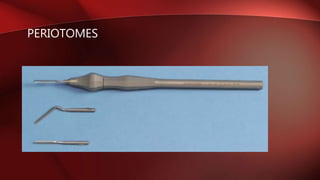

31. PERIOTOMES

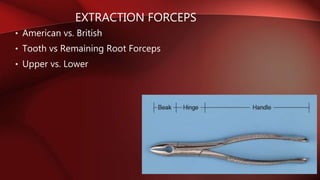

32. EXTRACTION FORCEPS
• American vs. British
• Tooth vs Remaining Root Forceps
• Upper vs. Lower

33. AMERICAN VS. BRITISH

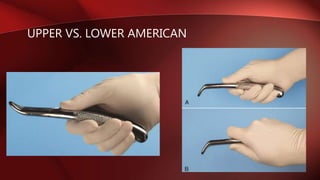

34. UPPER VS. LOWER AMERICAN

35. UPPER ANTERIOR FORCEPS

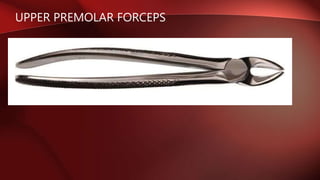

36. UPPER PREMOLAR FORCEPS

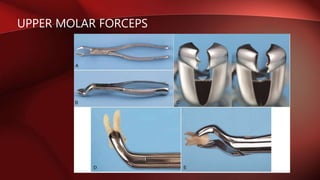

37. UPPER MOLAR FORCEPS

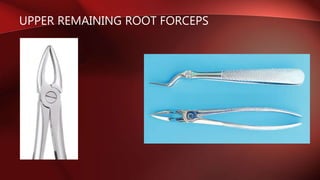

38. UPPER REMAINING ROOT FORCEPS

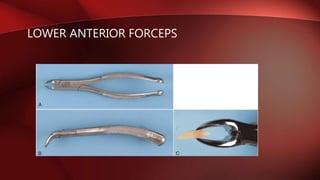

39. LOWER ANTERIOR FORCEPS

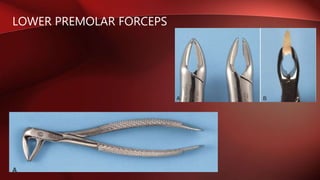

40. LOWER PREMOLAR FORCEPS

41. LOWER MOLAR FORCEPS

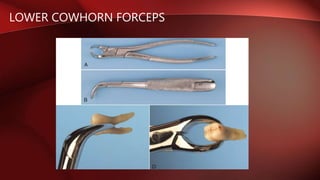

42. LOWER COWHORN FORCEPS

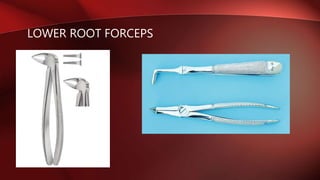

43. LOWER ROOT FORCEPS

44. BASIC EXTRACTION TRAY

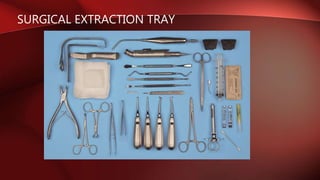

45. SURGICAL EXTRACTION TRAY

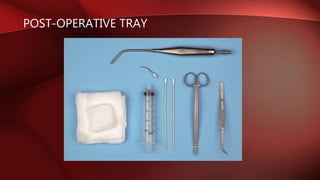

46. POST-OPERATIVE TRAY

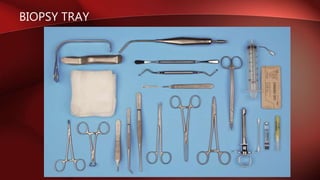

47. BIOPSY TRAY
