This document provides an overview of spectrophotometry and related analytical techniques. It defines colorimetry and spectrophotometry, describing spectrophotometry as a colorimetric method that uses an instrument to determine analyte concentration based on light absorption. Components of a spectrophotometer are described, including the light source, monochromator, cuvettes, detector, and components. Various types of spectrophotometers are discussed, as well as applications such as enzyme kinetics, organic stereochemistry studies, and more. Related techniques like fluorimetry, phosphorimetry, and circular dichroism are also summarized.

1. BY,
NEETHU ASOKAN
Neethu Asokan

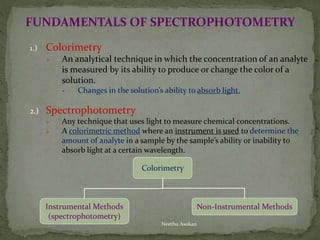

2. FUNDAMENTALS OF SPECTROPHOTOMETRY
1.) Colorimetry
 An analytical technique in which the concentration of an analyte
is measured by its ability to produce or change the color of a
solution.
- Changes in the solution’s ability to absorb light.
2.) Spectrophotometry
 Any technique that uses light to measure chemical concentrations.
 A colorimetric method where an instrument is used to determine the
amount of analyte in a sample by the sample’s ability or inability to
absorb light at a certain wavelength.
Colorimetry
Instrumental Methods
(spectrophotometry)
Non-Instrumental Methods
Neethu Asokan

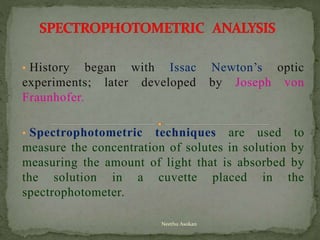

3. • History began with Issac Newton’s optic
experiments; later developed by Joseph von
Fraunhofer.
• Spectrophotometric techniques are used to
measure the concentration of solutes in solution by
measuring the amount of light that is absorbed by
the solution in a cuvette placed in the
spectrophotometer.
Neethu Asokan

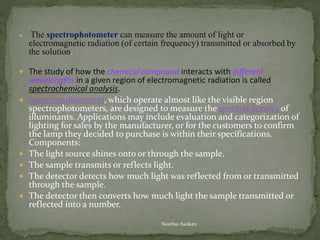

4.  The spectrophotometer can measure the amount of light or
electromagnetic radiation (of certain frequency) transmitted or absorbed by
the solution.
 The study of how the chemical compound interacts with different
wavelengths in a given region of electromagnetic radiation is called
spectrochemical analysis.
 Spectroradiometers, which operate almost like the visible region
spectrophotometers, are designed to measure the spectral density of
illuminants. Applications may include evaluation and categorization of
lighting for sales by the manufacturer, or for the customers to confirm
the lamp they decided to purchase is within their specifications.
Components:
 The light source shines onto or through the sample.
 The sample transmits or reflects light.
 The detector detects how much light was reflected from or transmitted
through the sample.
 The detector then converts how much light the sample transmitted or
reflected into a number.
Neethu Asokan

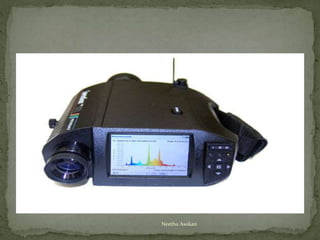

5. Neethu Asokan

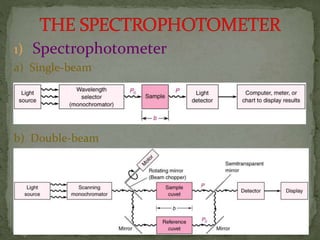

6. 1) Spectrophotometer
a) Single-beam
b) Double-beam

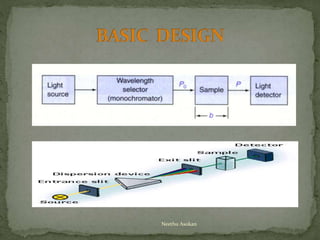

7. Neethu Asokan

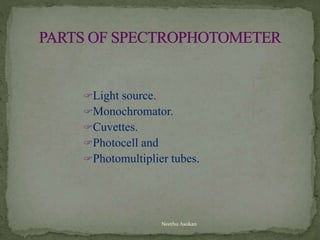

8. Light source.
Monochromator.
Cuvettes.
Photocell and
Photomultiplier tubes.
Neethu Asokan

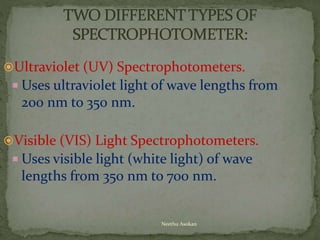

9. Ultraviolet (UV) Spectrophotometers.
 Uses ultraviolet light of wave lengths from
200 nm to 350 nm.
Visible (VIS) Light Spectrophotometers.
 Uses visible light (white light) of wave
lengths from 350 nm to 700 nm.
Neethu Asokan

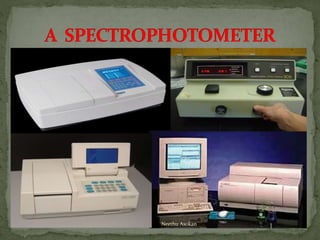

10. Neethu Asokan

11. Neethu Asokan

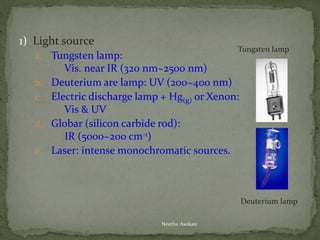

12. 1) Light source
a. Tungsten lamp:
Vis. near IR (320 nm~2500 nm)
b. Deuterium are lamp: UV (200~400 nm)
c. Electric discharge lamp + Hg(g) or Xenon:
Vis & UV
d. Globar (silicon carbide rod):
IR (5000~200 cm-1)
e. Laser: intense monochromatic sources.
Tungsten lamp
Deuterium lamp
Neethu Asokan

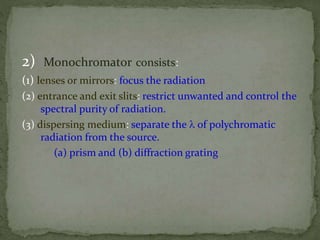

13. 2) Monochromator consists:
(1) lenses or mirrors: focus the radiation
(2) entrance and exit slits: restrict unwanted and control the
spectral purity of radiation.
(3) dispersing medium: separate the l of polychromatic
radiation from the source.
(a) prism and (b) diffraction grating

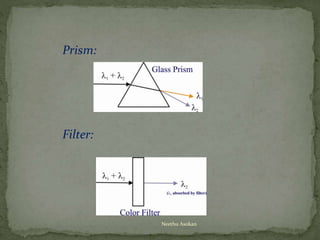

14. Prism:
Filter:
Neethu Asokan

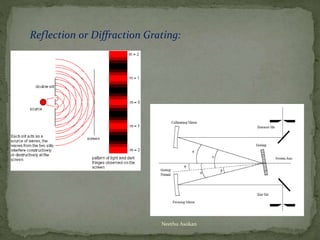

15. Reflection or Diffraction Grating:
Neethu Asokan

16. 3) Detector
Convert radiant energy (photons) into an
electrical signal
Ideal detector :
high sensitivity,
high signal/noise,
constant response for λs,
and fast response time.
Neethu Asokan

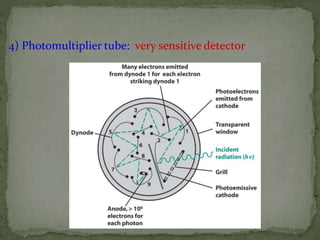

17. 4) Photomultiplier tube: very sensitive detector

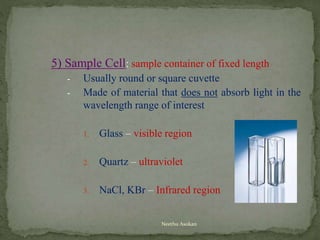

18. 5) Sample Cell: sample container of fixed length
- Usually round or square cuvette
- Made of material that does not absorb light in the
wavelength range of interest
1. Glass – visible region
2. Quartz – ultraviolet
3. NaCl, KBr – Infrared region
Neethu Asokan

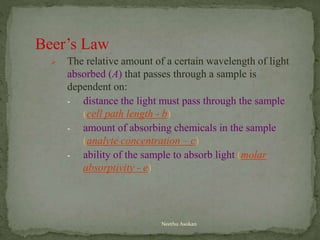

19. Beer’s Law
 The relative amount of a certain wavelength of light
absorbed (A) that passes through a sample is
dependent on:
- distance the light must pass through the sample
(cell path length - b)
- amount of absorbing chemicals in the sample
(analyte concentration – c)
- ability of the sample to absorb light (molar
absorptivity - e)
Neethu Asokan

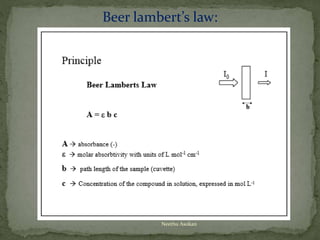

20. Beer lambert’s law:
Neethu Asokan

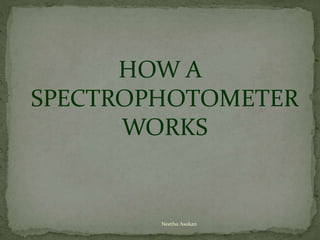

21. HOW A
SPECTROPHOTOMETER
WORKS
Neethu Asokan

22. Neethu Asokan

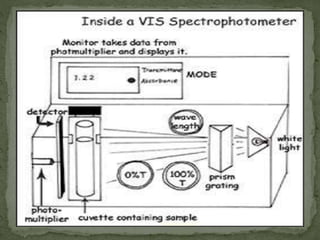

23. Visible Spectrophotometer
 White light hits the prism or grating, it is split
into the colors of the rainbow (Visible
Spectrum).
 The wavelength knob rotates the
prism/grating, directing different color of
light toward the sample.
Neethu Asokan

24.  The wavelength of light produced by the
tungsten lamp range from about 350 nm
(Violet light) to 700 nm (red light).
 The molecules in the sample either
absorb or Transmit the light energy of
one wavelength or another.
Neethu Asokan

25.  The detector measures the amount of
light being transmitted by the sample
and reports that value directly (%
transmittance) or converts it to the
amount of light absorbed in absorbance
units (au) using Beers Law.
Neethu Asokan

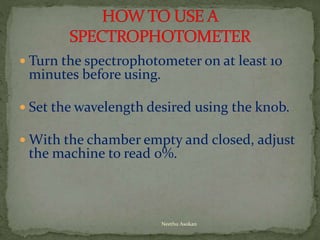

26.  Turn the spectrophotometer on at least 10
minutes before using.
 Set the wavelength desired using the knob.
 With the chamber empty and closed, adjust
the machine to read 0%.
Neethu Asokan

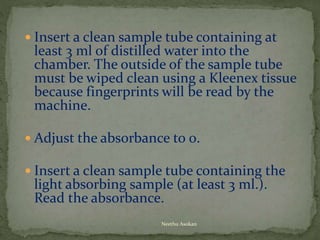

27.  Insert a clean sample tube containing at
least 3 ml of distilled water into the
chamber. The outside of the sample tube
must be wiped clean using a Kleenex tissue
because fingerprints will be read by the
machine.
 Adjust the absorbance to 0.
 Insert a clean sample tube containing the
light absorbing sample (at least 3 ml.).
Read the absorbance.
Neethu Asokan

28.  Flame photometry is based on the
measurement of intensity of light emitted
when a metal is introduced into a flame.
 The wavelength of the colour indicates
the quantity of the element present.
 Also called as Atomic emission
spectrophotometry.
Neethu Asokan

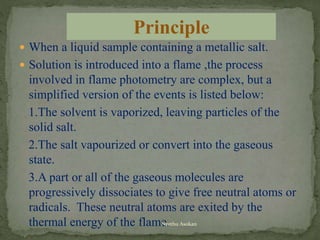

29.  When a liquid sample containing a metallic salt.
 Solution is introduced into a flame ,the process
involved in flame photometry are complex, but a
simplified version of the events is listed below:
1.The solvent is vaporized, leaving particles of the
solid salt.
2.The salt vapourized or convert into the gaseous
state.
3.A part or all of the gaseous molecules are
progressively dissociates to give free neutral atoms or
radicals. These neutral atoms are exited by the
thermal energy of the flame.
Principle
Neethu Asokan

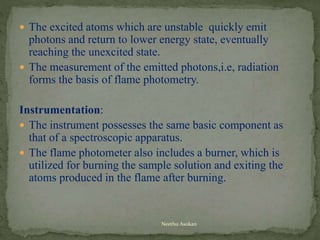

30.  The excited atoms which are unstable quickly emit
photons and return to lower energy state, eventually
reaching the unexcited state.
 The measurement of the emitted photons,i.e, radiation
forms the basis of flame photometry.
Instrumentation:
 The instrument possesses the same basic component as
that of a spectroscopic apparatus.
 The flame photometer also includes a burner, which is
utilized for burning the sample solution and exiting the
atoms produced in the flame after burning.
Neethu Asokan

31. Neethu Asokan

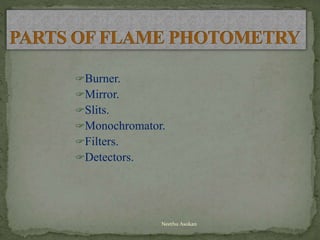

32. Burner.
Mirror.
Slits.
Monochromator.
Filters.
Detectors.
Neethu Asokan

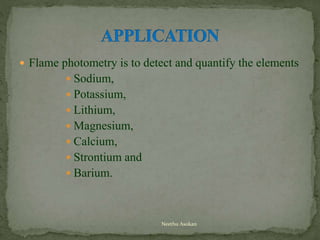

33.  Flame photometry is to detect and quantify the elements
 Sodium,
 Potassium,
 Lithium,
 Magnesium,
 Calcium,
 Strontium and
 Barium.
Neethu Asokan

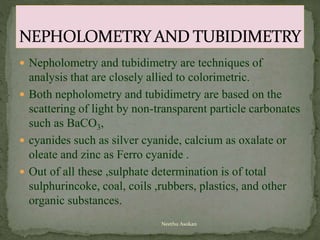

34.  Nepholometry and tubidimetry are techniques of
analysis that are closely allied to colorimetric.
 Both nepholometry and tubidimetry are based on the
scattering of light by non-transparent particle carbonates
such as BaCO3,
 cyanides such as silver cyanide, calcium as oxalate or
oleate and zinc as Ferro cyanide .
 Out of all these ,sulphate determination is of total
sulphurincoke, coal, coils ,rubbers, plastics, and other
organic substances.
Neethu Asokan

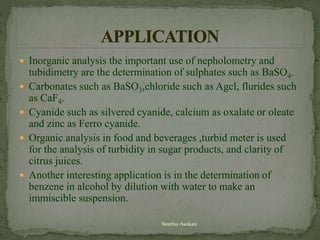

35.  Inorganic analysis the important use of nepholometry and
tubidimetry are the determination of sulphates such as BaSO4.
 Carbonates such as BaSO3,chloride such as Agcl, flurides such
as CaF4.
 Cyanide such as silvered cyanide, calcium as oxalate or oleate
and zinc as Ferro cyanide.
 Organic analysis in food and beverages ,turbid meter is used
for the analysis of turbidity in sugar products, and clarity of
citrus juices.
 Another interesting application is in the determination of
benzene in alcohol by dilution with water to make an
immiscible suspension.
Neethu Asokan

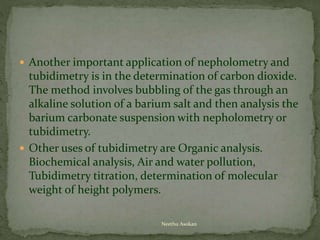

36.  Another important application of nepholometry and
tubidimetry is in the determination of carbon dioxide.
The method involves bubbling of the gas through an
alkaline solution of a barium salt and then analysis the
barium carbonate suspension with nepholometry or
tubidimetry.
 Other uses of tubidimetry are Organic analysis.
Biochemical analysis, Air and water pollution,
Tubidimetry titration, determination of molecular
weight of height polymers.
Neethu Asokan

37.  A large number of substances are known which can
absorb ultraviolet or visible light energy.
 But these substances lose excess energy as heat and
emit the remaining energy electromagnetic radiation of
a wavelength longer than that absorbed.
 This process of emitting radiation is collectively known
as luminescence.
Neethu Asokan

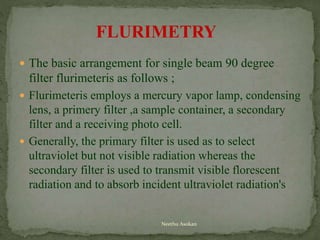

38.  The basic arrangement for single beam 90 degree
filter flurimeteris as follows ;
 Flurimeteris employs a mercury vapor lamp, condensing
lens, a primery filter ,a sample container, a secondary
filter and a receiving photo cell.
 Generally, the primary filter is used as to select
ultraviolet but not visible radiation whereas the
secondary filter is used to transmit visible florescent
radiation and to absorb incident ultraviolet radiation's
FLURIMETRY
Neethu Asokan

39.  Compounds with phosphorescence are likely to fluoresce
as well.
 Therefore ,a phosphorimetry must be capable of making
the distinction between the two.
 This has been achieved by means of a rotating shutter,
which introduced a delay between the times during which
the sample gets irritated and observed .
 Spectrophosphorimeter are three types:
1.Rotating shutter in single beam phosphorimetry.
2.Rotating –scan phosphor scope.
3.Rotating disc phosphor scope.Neethu Asokan

40.  The optical rotatory dispersion(ORD)and the circular
dichroic(CD)are special variation of absorption
spectroscopy in the UV and visible region of the spectrum.
 The basic principle of the two methods is the interaction
of polarized light with optically active substances.
 If a linearly polarized light wave passes through an
optically active substances, the direction of polarization
will change. This change is wavelength-dependent.
 This phenomenon is called optical rotatory
dispersion(ORD).
 Linearly polarized light waves can be described as a
superposition of two circularly polarized
Neethu Asokan

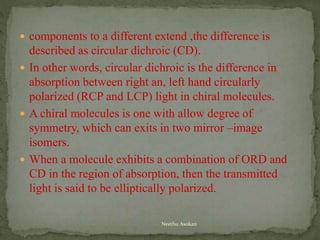

41.  components to a different extend ,the difference is
described as circular dichroic (CD).
 In other words, circular dichroic is the difference in
absorption between right an, left hand circularly
polarized (RCP and LCP) light in chiral molecules.
 A chiral molecules is one with allow degree of
symmetry, which can exits in two mirror –image
isomers.
 When a molecule exhibits a combination of ORD and
CD in the region of absorption, then the transmitted
light is said to be elliptically polarized.
Neethu Asokan

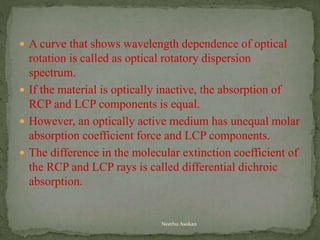

42.  A curve that shows wavelength dependence of optical
rotation is called as optical rotatory dispersion
spectrum.
 If the material is optically inactive, the absorption of
RCP and LCP components is equal.
 However, an optically active medium has unequal molar
absorption coefficient force and LCP components.
 The difference in the molecular extinction coefficient of
the RCP and LCP rays is called differential dichroic
absorption.
Neethu Asokan

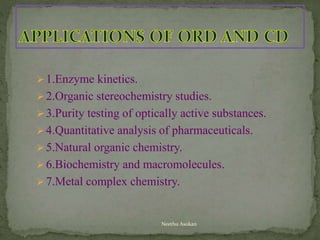

43. 1.Enzyme kinetics.
2.Organic stereochemistry studies.
3.Purity testing of optically active substances.
4.Quantitative analysis of pharmaceuticals.
5.Natural organic chemistry.
6.Biochemistry and macromolecules.
7.Metal complex chemistry.
Neethu Asokan

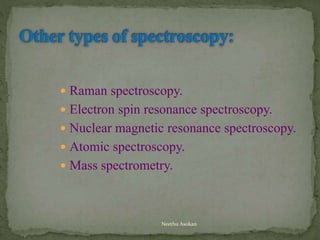

44.  Raman spectroscopy.
 Electron spin resonance spectroscopy.
 Nuclear magnetic resonance spectroscopy.
 Atomic spectroscopy.
 Mass spectrometry.
Neethu Asokan

45.  RAMAN SPECTROPHOTOMETRY
 Work on the principle of light scattering effect of
particles.
 It is a visible light spectroscopy; similar to IR
spectroscopy
 For identification of funcional groups,
molecules,quantification of molecules, testing of
molecules and conformational study.
 NUCLEAR MAGNETIC RESONANCE
SPECTROSCOPY
 Exploits the magnetic moments of atomic nuclei when
molecules are exposed to magnetic field
 A tool for studying the molecular structures and
processes.
Neethu Asokan

46.  ELECTRON SPIN RESONANCE SPECTROSCOPY
 Based on the electron movements of the atom of
molecules when they are placedd in a magnetic field.
 Similar to NMR spectroscopy but measure resonance of
electrons.
 A tool for studying the chemical reactions, free radicals
and their reactions.
 MASS SPECTROSCOPY
 The molecular weight and chemical nature of molecules
are when exploited it is mass spectrometry
 With help of a mass spectrometer, help determine
molecular formula of compounds and to identify
compounds unknown
 Gas chromatography- MS is used for detecting iny
amount of biological samples.
Neethu Asokan

47.  Liquid chromatography-MS is used to separate volatile
substances in a mixtures and to detect biomolecules.
 ATOMIC ABSORPTON SPECTROSCOPY
 Determines the atoms of metallic elements in samples
by measuring their specific absorbance
 Used for quantitative and qualitative determination of
metallic elements in aqueous and non aqueous
solutions.
Neethu Asokan

48. Neethu Asokan

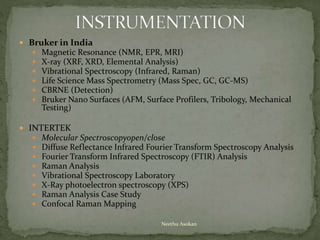

49.  Bruker in India
 Magnetic Resonance (NMR, EPR, MRI)
 X-ray (XRF, XRD, Elemental Analysis)
 Vibrational Spectroscopy (Infrared, Raman)
 Life Science Mass Spectrometry (Mass Spec, GC, GC-MS)
 CBRNE (Detection)
 Bruker Nano Surfaces (AFM, Surface Profilers, Tribology, Mechanical
Testing)
 INTERTEK
 Molecular Spectroscopyopen/close
 Diffuse Reflectance Infrared Fourier Transform Spectroscopy Analysis
 Fourier Transform Infrared Spectroscopy (FTIR) Analysis
 Raman Analysis
 Vibrational Spectroscopy Laboratory
 X-Ray photoelectron spectroscopy (XPS)
 Raman Analysis Case Study
 Confocal Raman Mapping
Neethu Asokan

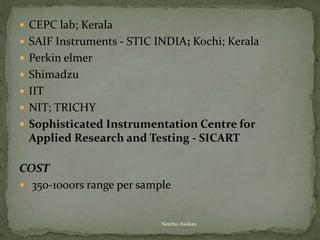

50.  CEPC lab; Kerala
 SAIF Instruments - STIC INDIA; Kochi; Kerala
 Perkin elmer
 Shimadzu
 IIT
 NIT; TRICHY
 Sophisticated Instrumentation Centre for
Applied Research and Testing - SICART
COST
 350-1000rs range per sample
Neethu Asokan

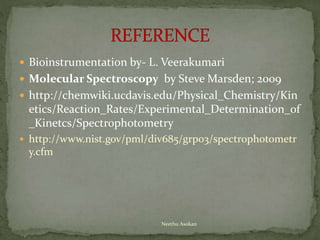

51.  Bioinstrumentation by- L. Veerakumari
 Molecular Spectroscopy by Steve Marsden; 2009
 http://chemwiki.ucdavis.edu/Physical_Chemistry/Kin
etics/Reaction_Rates/Experimental_Determination_of
_Kinetcs/Spectrophotometry
 http://www.nist.gov/pml/div685/grp03/spectrophotometr
y.cfm
Neethu Asokan

52. Neethu Asokan
