At its heart, Spark Streaming is a scheduling framework, able to efficiently collect and deliver data to Spark for further processing. While the DStream abstraction provides high-level functions to process streams, several operations also grant us access to deeper levels of the API, where we can directly operate on RDDs, transform them to Datasets to make use of that abstraction or store the data for later processing. Between these API layers lie many hooks that we can manipulate to enrich our Spark Streaming jobs. In this presentation we will demonstrate how to tap into the Spark Streaming scheduler to run arbitrary data workloads, we will show practical uses of the forgotten ‘ConstantInputDStream’ and will explain how to combine Spark Streaming with probabilistic data structures to optimize the use of memory in order to improve the resource usage of long-running streaming jobs. Attendees of this session will come out with a richer toolbox of techniques to widen the use of Spark Streaming and improve the robustness of new or existing jobs.

1. SPARK STREAMING
PROGRAMMING
TECHNIQUES YOU
SHOULD KNOW
Gerard Maas
#EUstr2

2. Gerard Maas
Sr SW Engineer
Computer Engineer
Scala Programmer
Early Spark Adopter (v0.9)
Spark Notebook Contributor
Cassandra MVP (2015, 2016)
Stack Overflow Top Contributor
(Spark, Spark Streaming, Scala)
Wannabe {
IoT Maker
Drone crasher/tinkerer
}
@maasg
https://github.com/maasg
https://www.linkedin.com/
in/gerardmaas/
https://stackoverflow.com
/users/764040/maasg

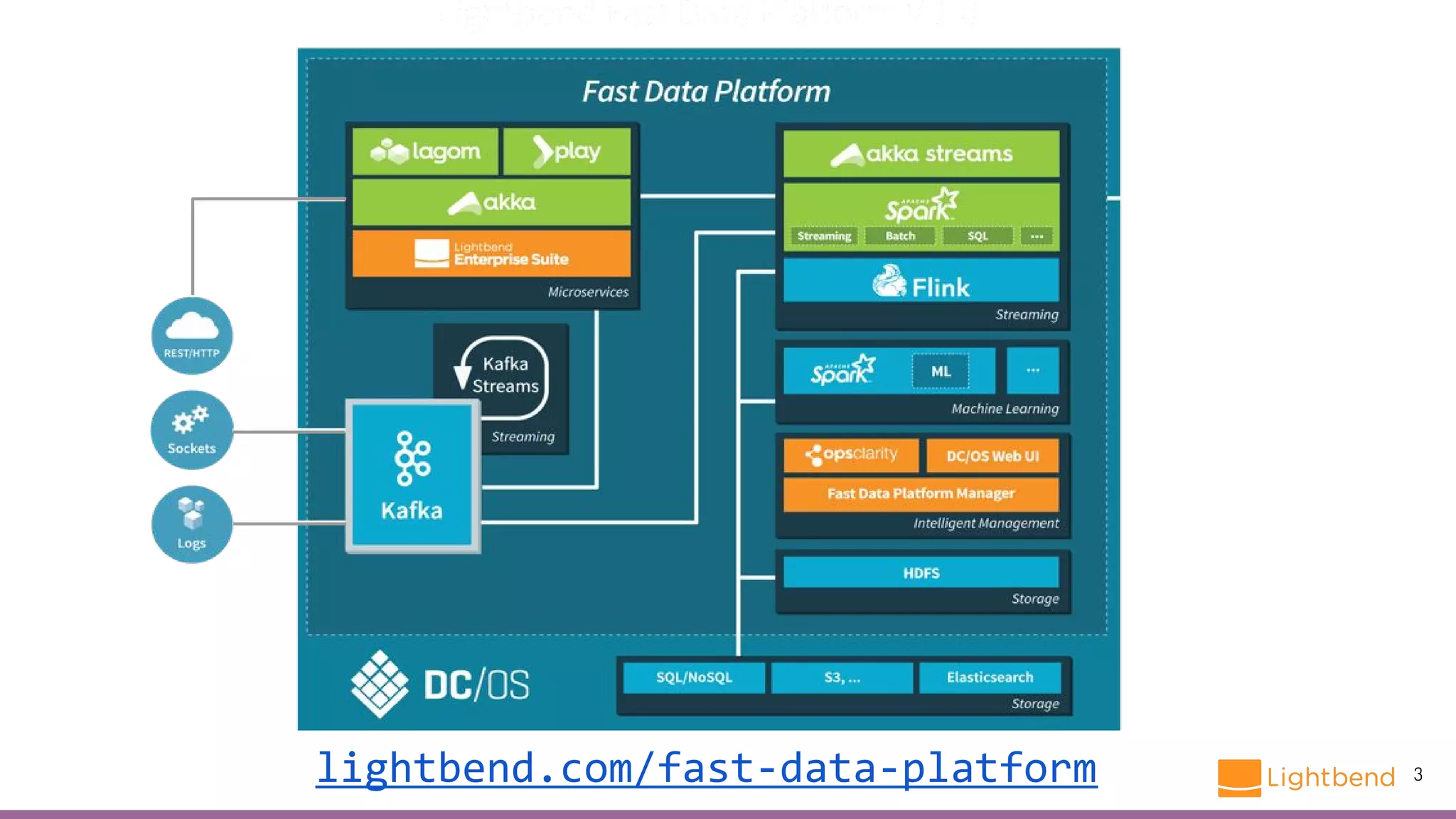

3. 3lightbend.com/fast-data-platform

4. @maasg #EUstr2

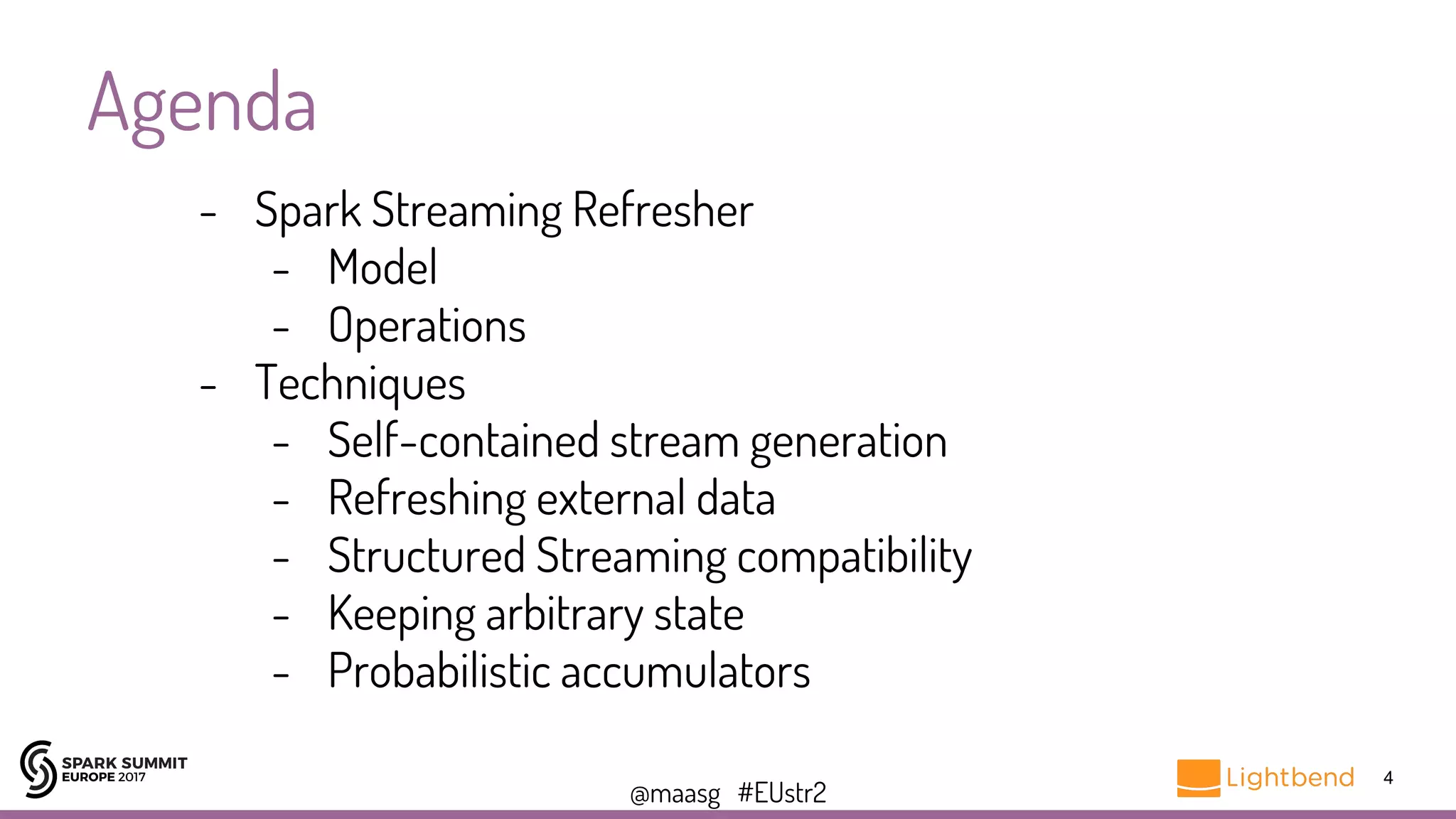

Agenda
4
- Spark Streaming Refresher
- Model
- Operations
- Techniques
- Self-contained stream generation
- Refreshing external data
- Structured Streaming compatibility
- Keeping arbitrary state
- Probabilistic accumulators

5. Spark Streaming Refresher
5

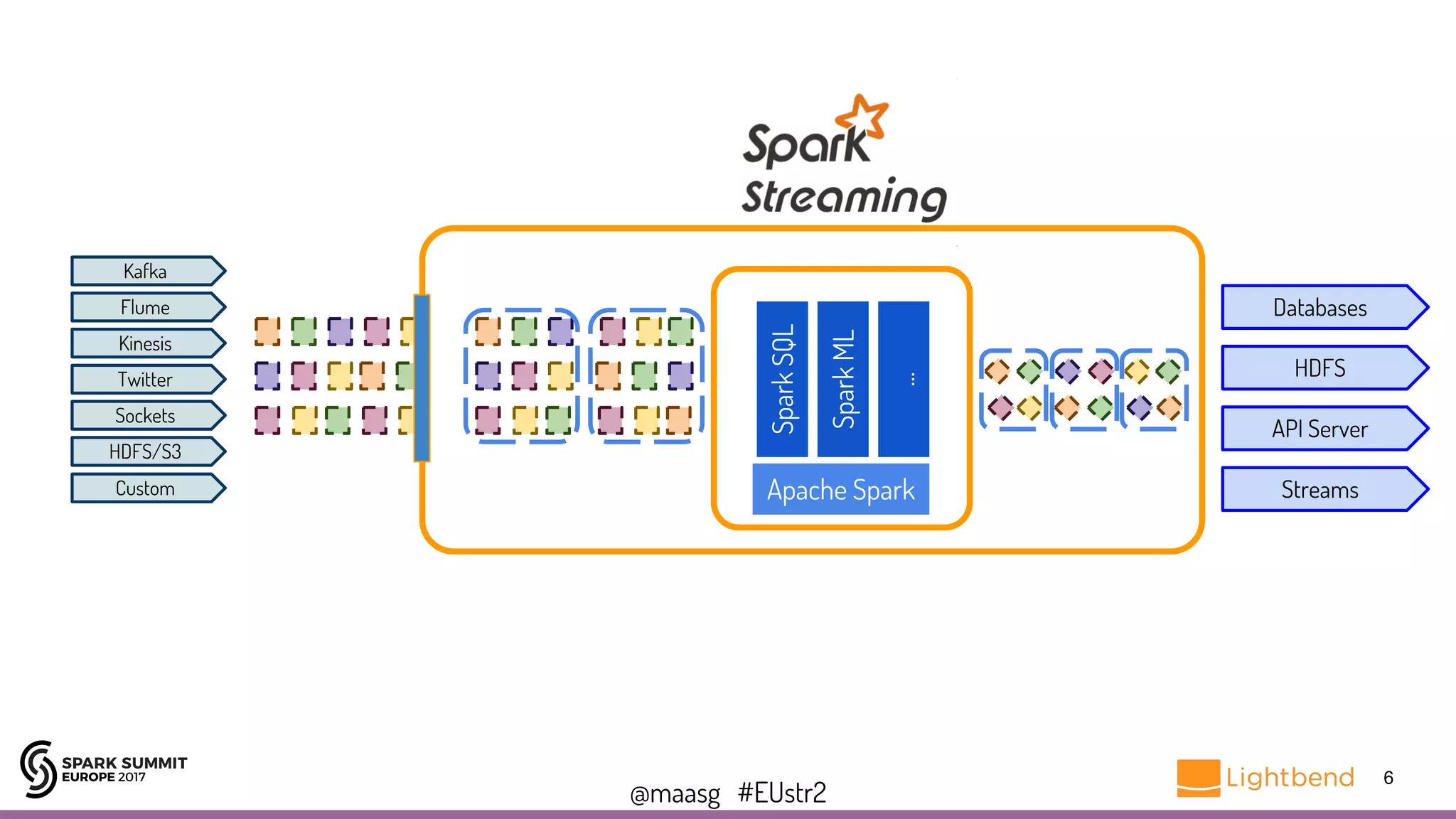

6. @maasg #EUstr2
6
Kafka
Flume
Kinesis
Twitter
Sockets
HDFS/S3
Custom Apache Spark
SparkSQL
SparkML
...
Databases
HDFS
API Server
Streams

7. @maasg #EUstr2

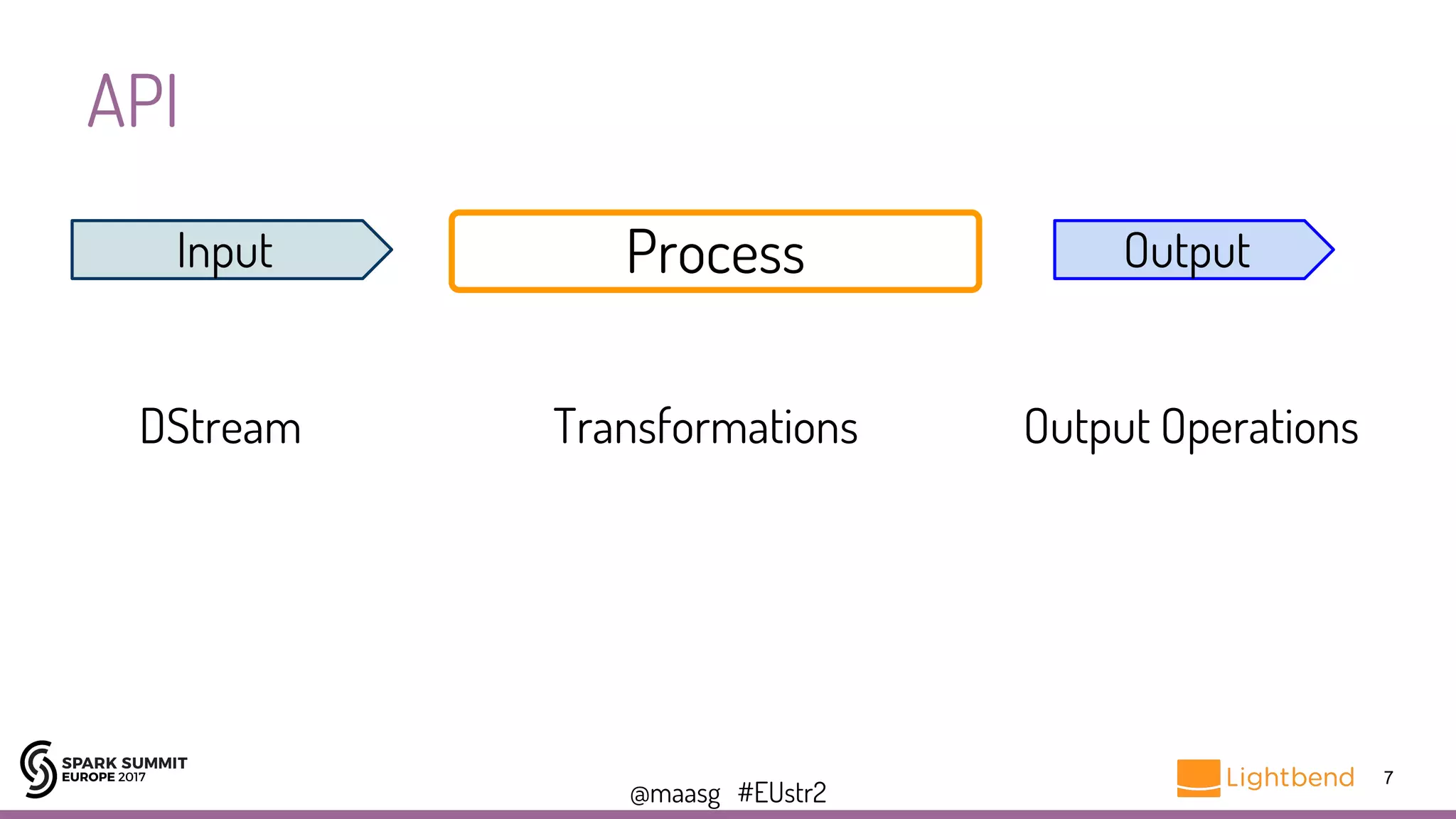

API
7
Input Process Output
DStream Transformations Output Operations

8. @maasg #EUstr2

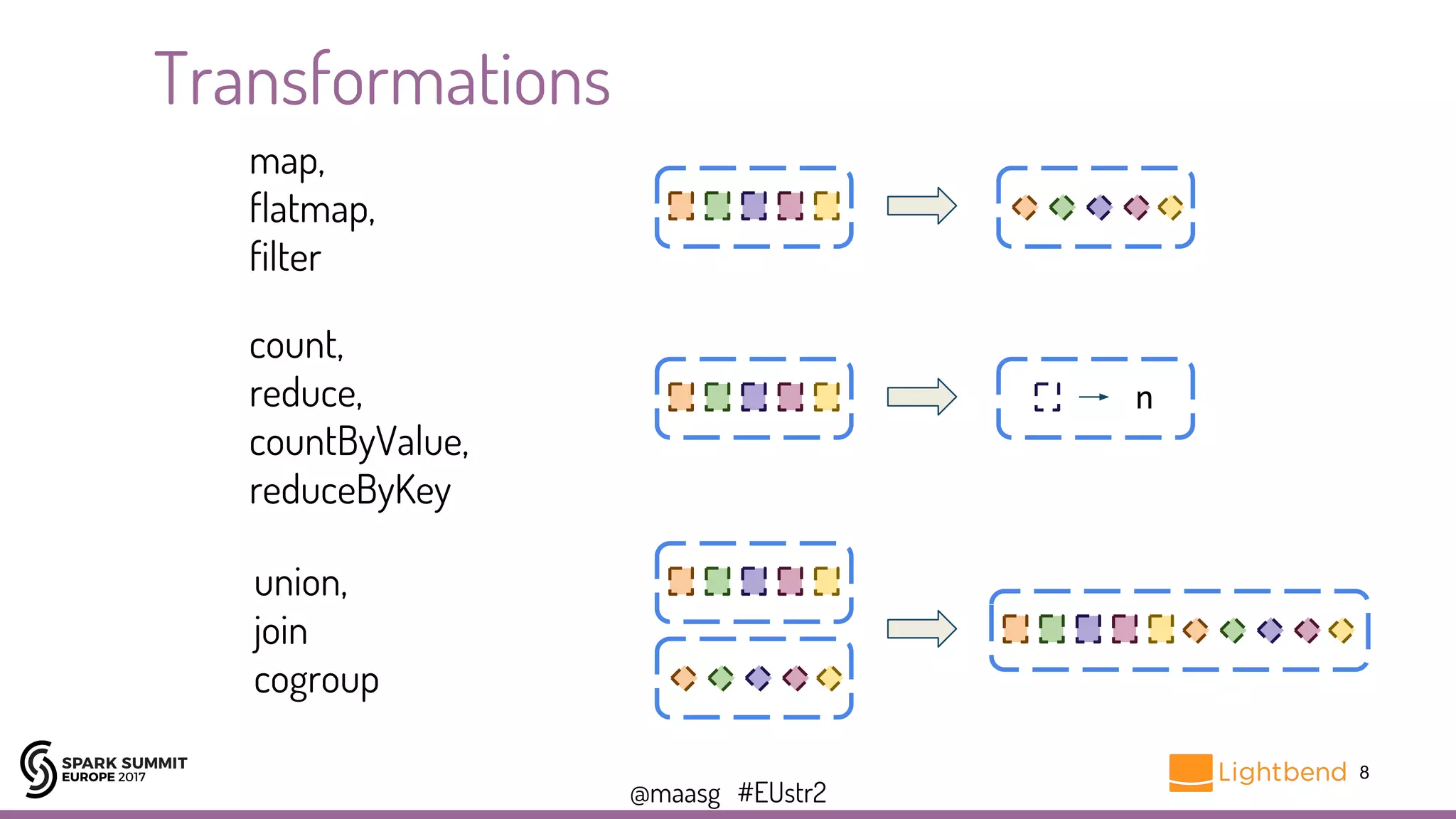

Transformations
map,
flatmap,
filter
count,
reduce,
countByValue,
reduceByKey
n
union,
join
cogroup
8

9. @maasg #EUstr2

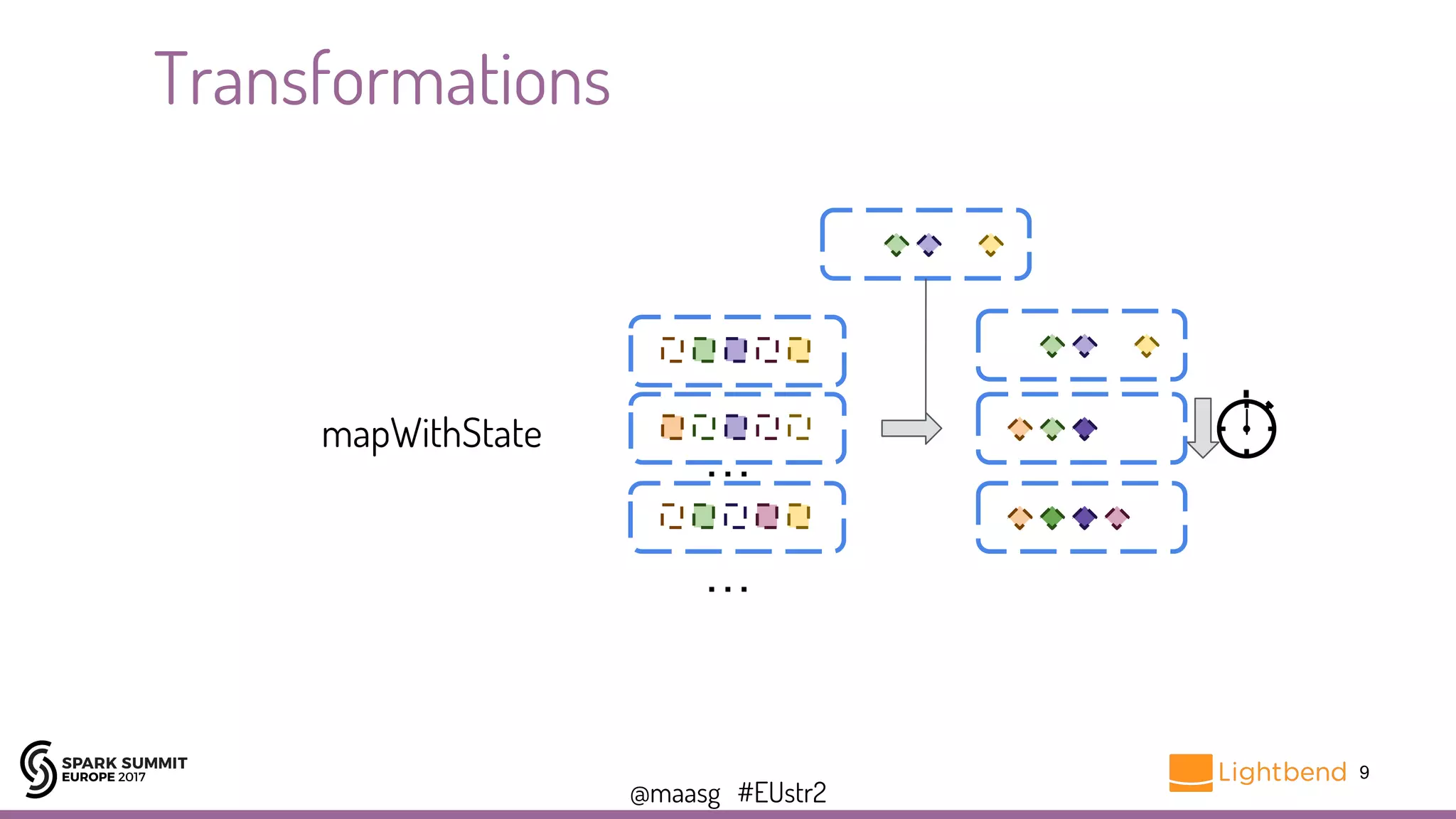

Transformations
mapWithState
…
…
9

10. @maasg #EUstr2

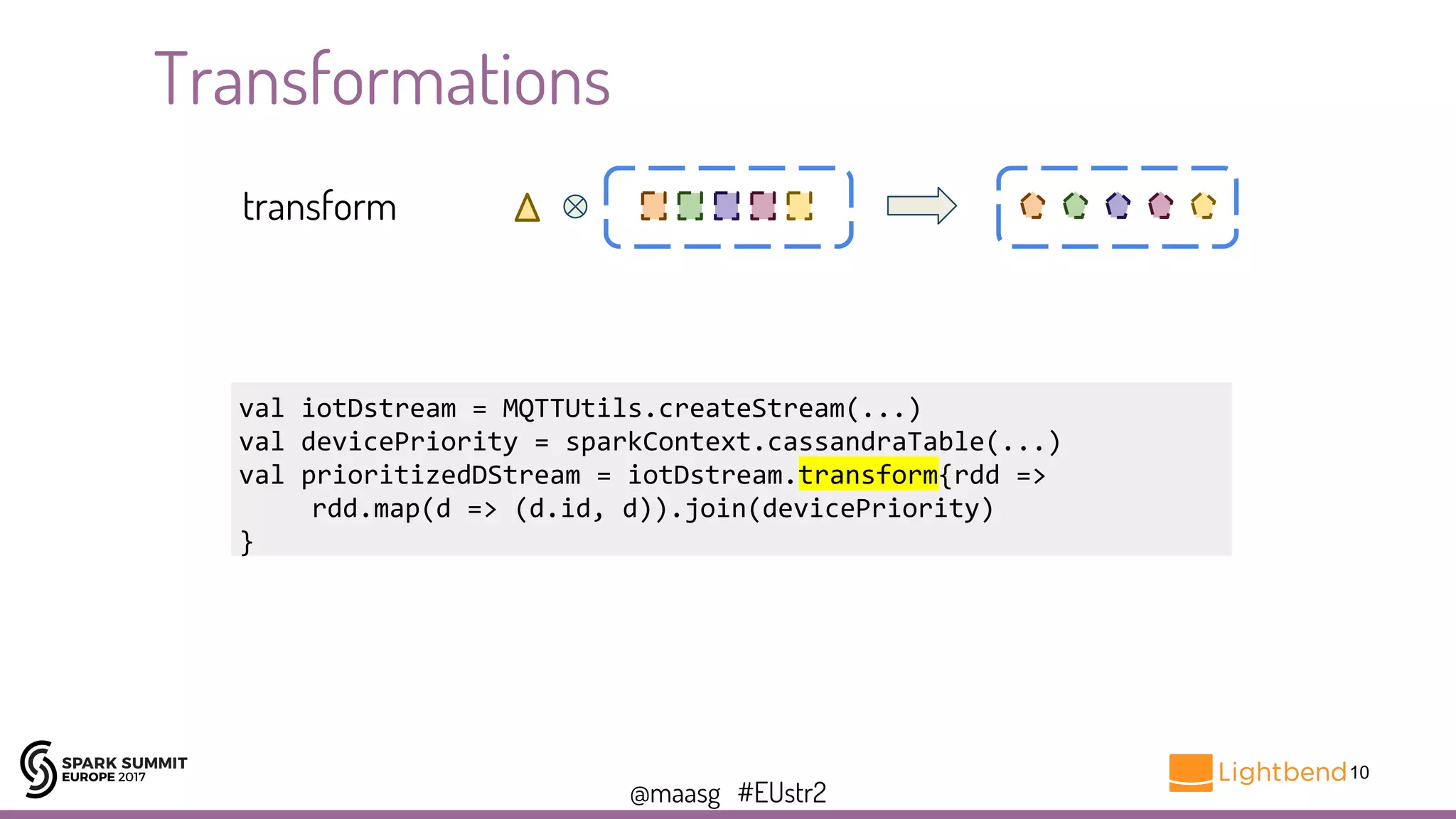

Transformations
transform
val iotDstream = MQTTUtils.createStream(...)
val devicePriority = sparkContext.cassandraTable(...)
val prioritizedDStream = iotDstream.transform{rdd =>
rdd.map(d => (d.id, d)).join(devicePriority)
}
10

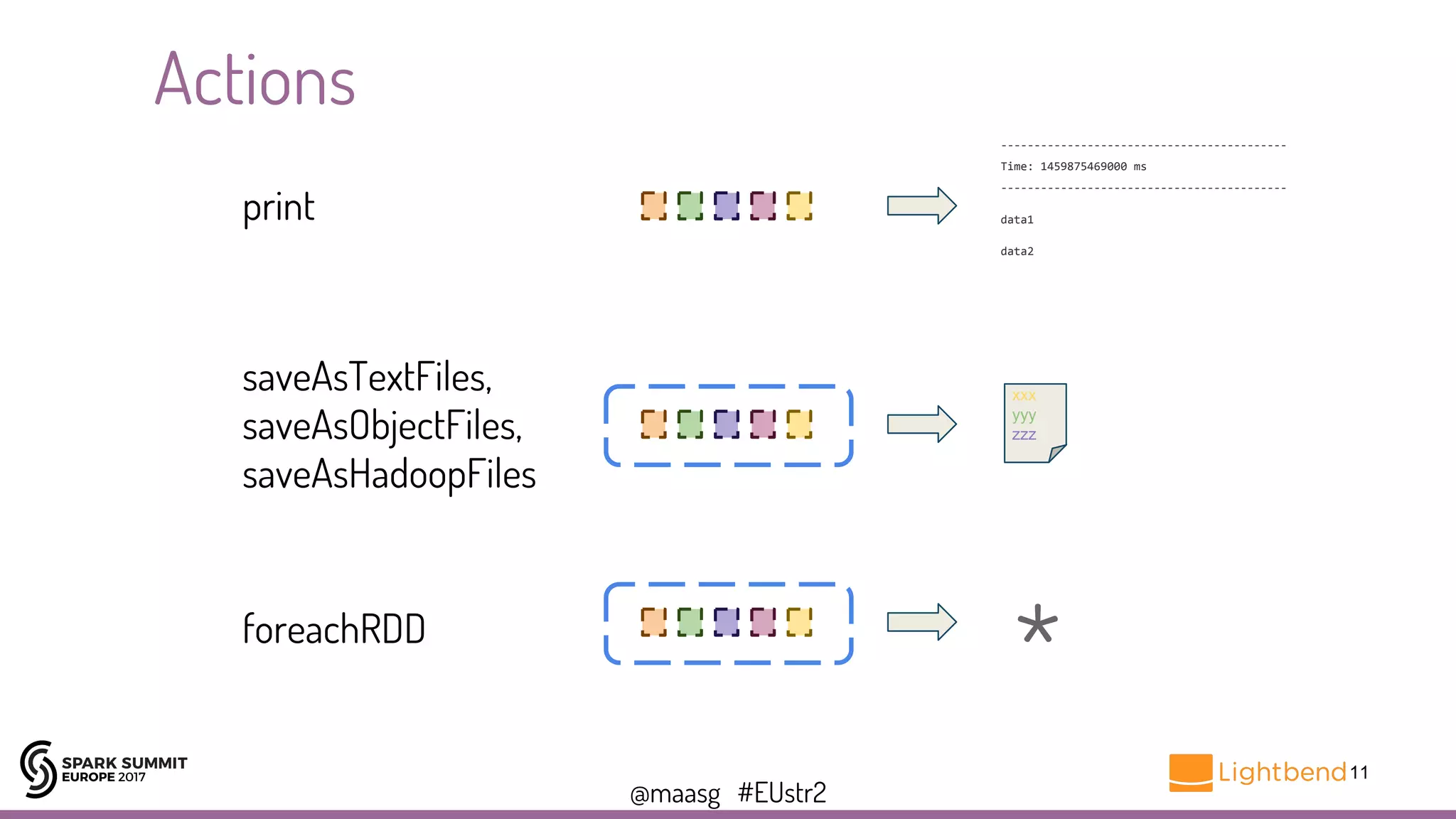

11. @maasg #EUstr2
Actions
print
-------------------------------------------
Time: 1459875469000 ms
-------------------------------------------
data1
data2
saveAsTextFiles,
saveAsObjectFiles,
saveAsHadoopFiles
xxx
yyy
zzz
foreachRDD
*
11

12. @maasg #EUstr2
12
def print(num: Int): Unit = ssc.withScope {
def foreachFunc: (RDD[T], Time) => Unit = {
(rdd: RDD[T], time: Time) => {
val firstNum = rdd.take(num + 1)
// scalastyle:off println
println("-------------------------------------------")
println(s"Time: $time")
println("-------------------------------------------")
firstNum.take(num).foreach(println)
if (firstNum.length > num) println("...")
println()
// scalastyle:on println
}
}
foreachRDD(context.sparkContext.clean(foreachFunc), displayInnerRDDOps = false)
}
Actions

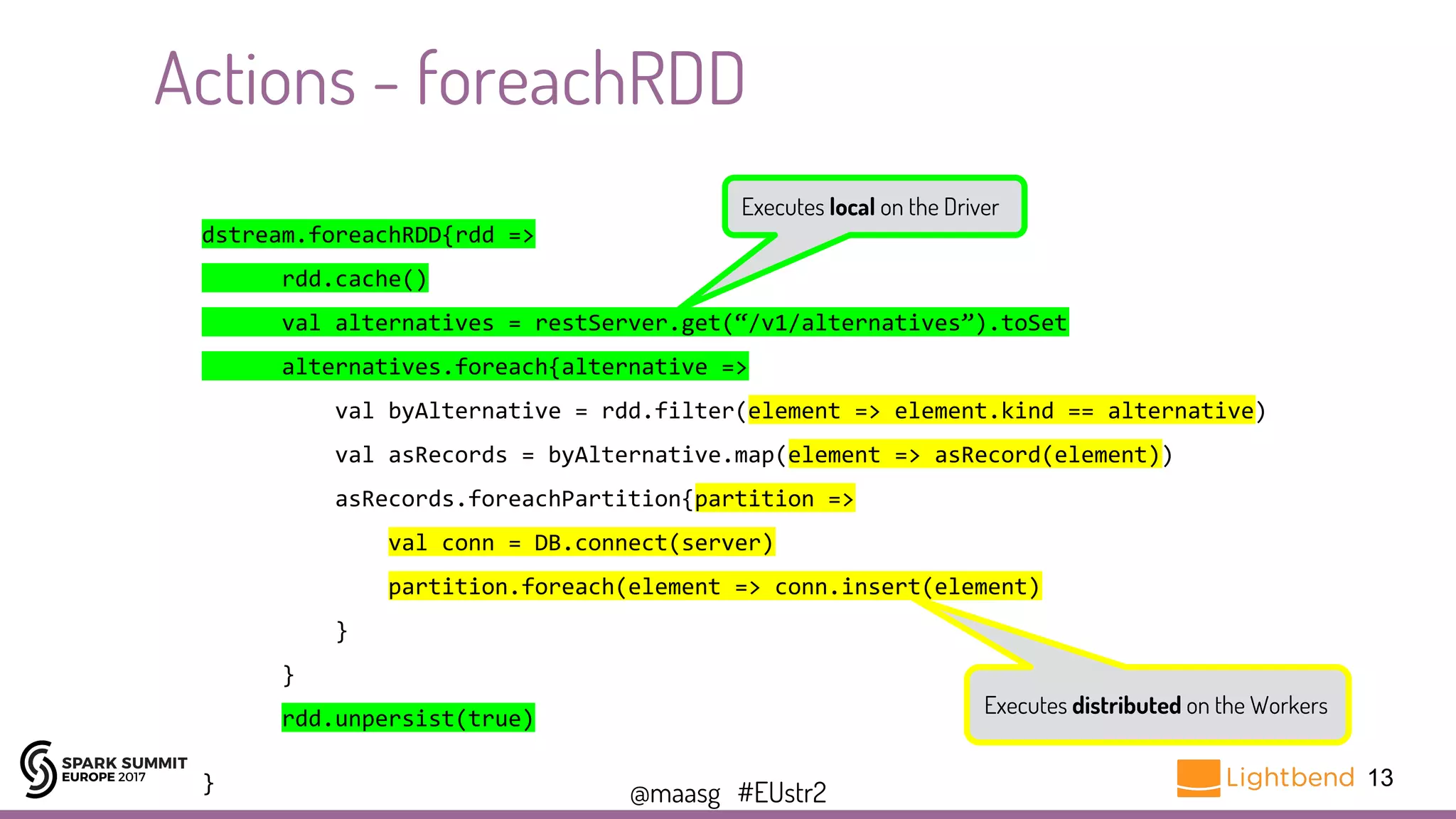

13. @maasg #EUstr2
13
Actions - foreachRDD
dstream.foreachRDD{rdd =>
rdd.cache()
val alternatives = restServer.get(“/v1/alternatives”).toSet
alternatives.foreach{alternative =>
val byAlternative = rdd.filter(element => element.kind == alternative)
val asRecords = byAlternative.map(element => asRecord(element))
asRecords.foreachPartition{partition =>
val conn = DB.connect(server)
partition.foreach(element => conn.insert(element)
}
}
rdd.unpersist(true)
}
Executes local on the Driver
Executes distributed on the Workers

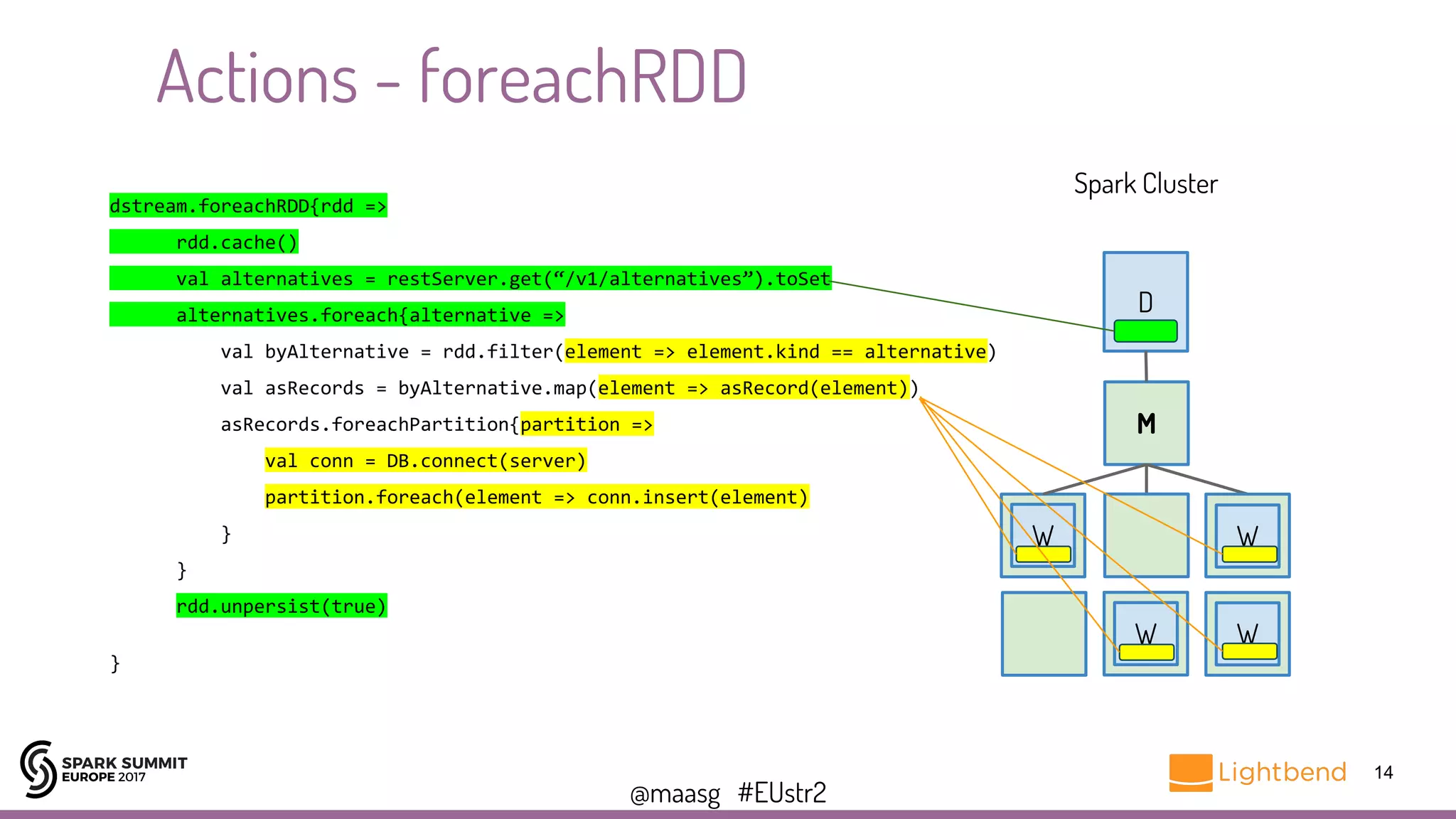

14. @maasg #EUstr2
14
Actions - foreachRDD
Spark Cluster
W
M
D
W
W
W
dstream.foreachRDD{rdd =>
rdd.cache()
val alternatives = restServer.get(“/v1/alternatives”).toSet
alternatives.foreach{alternative =>
val byAlternative = rdd.filter(element => element.kind == alternative)
val asRecords = byAlternative.map(element => asRecord(element))
asRecords.foreachPartition{partition =>
val conn = DB.connect(server)
partition.foreach(element => conn.insert(element)
}
}
rdd.unpersist(true)
}

15. @maasg #EUstr2
15
Ready to Dive in?

16. @maasg #EUstr2
16
Apache Spark
SparkSQL
SparkML
...

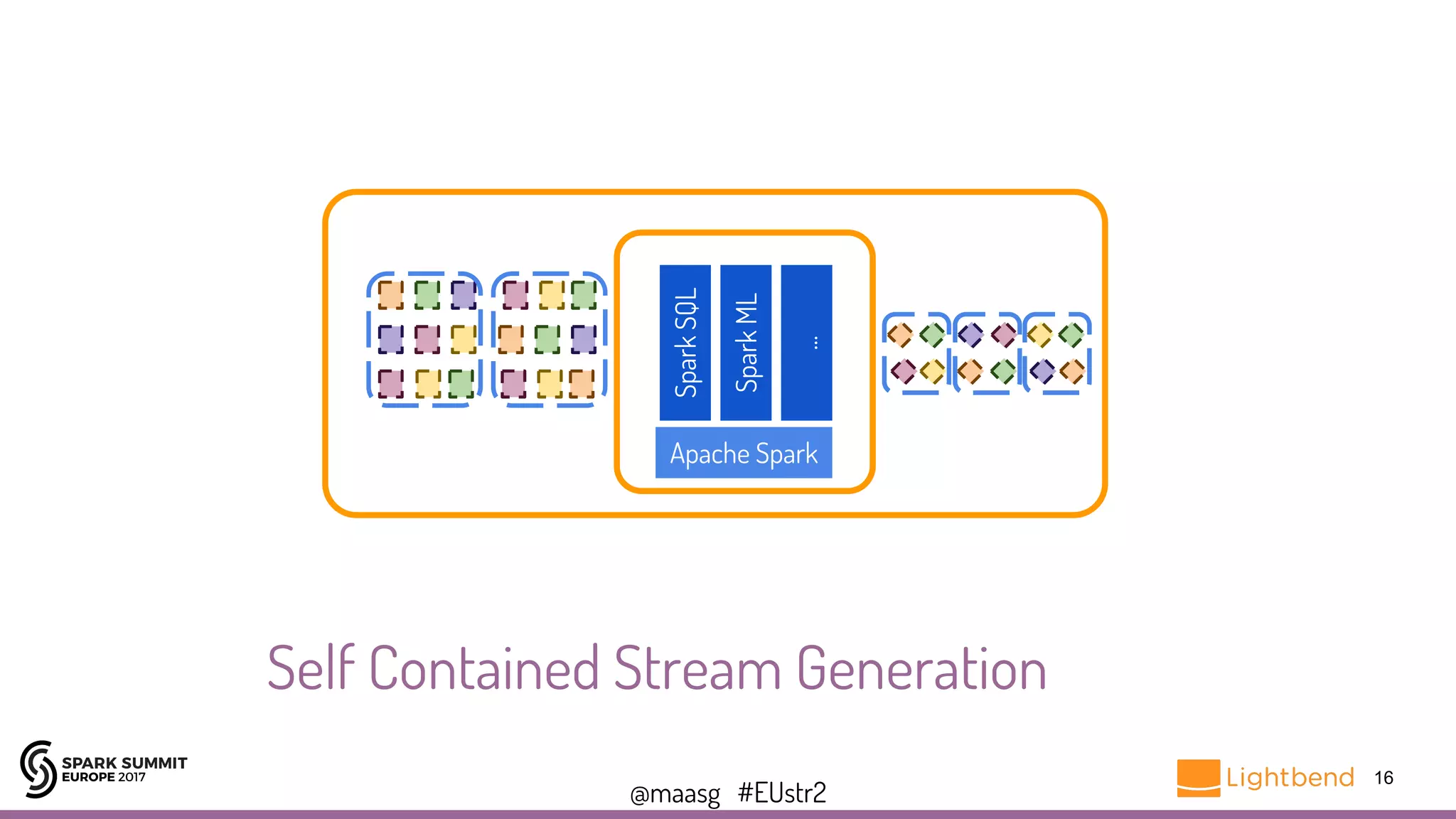

Self Contained Stream Generation

17. @maasg #EUstr2

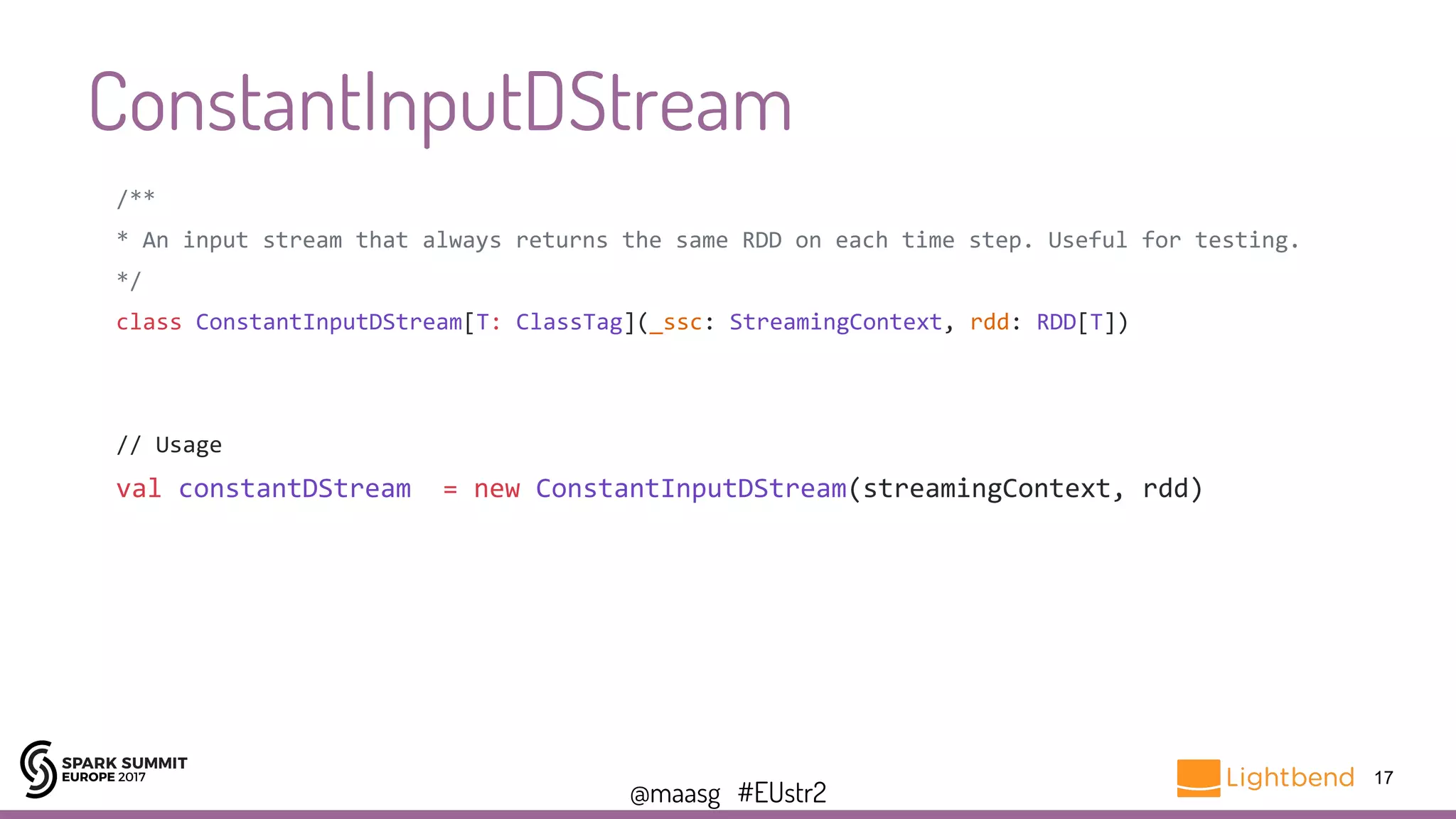

ConstantInputDStream
17
/**
* An input stream that always returns the same RDD on each time step. Useful for testing.
*/
class ConstantInputDStream[T: ClassTag](_ssc: StreamingContext, rdd: RDD[T])
// Usage
val constantDStream = new ConstantInputDStream(streamingContext, rdd)

18. @maasg #EUstr2

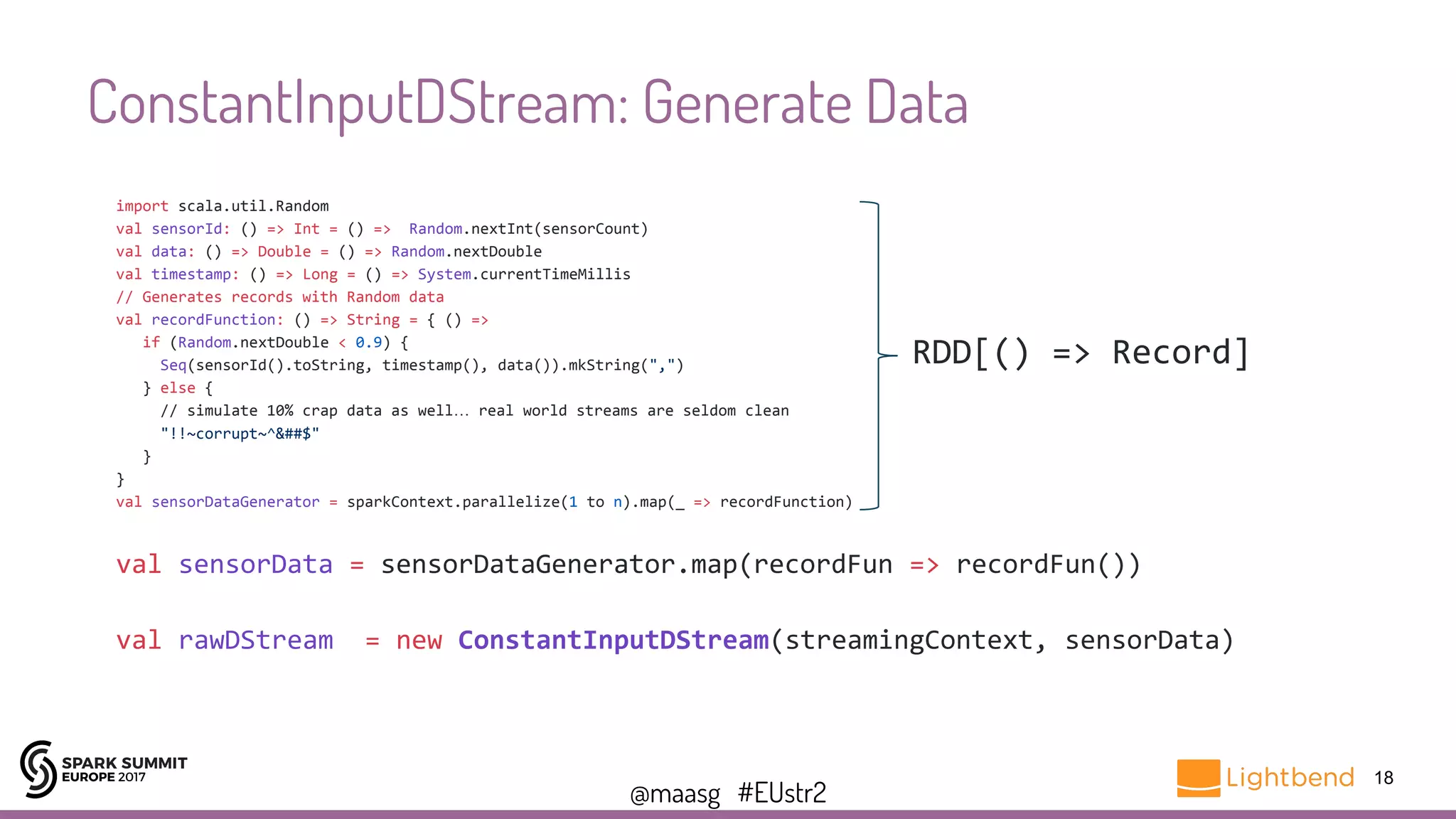

ConstantInputDStream: Generate Data
18
import scala.util.Random
val sensorId: () => Int = () => Random.nextInt(sensorCount)
val data: () => Double = () => Random.nextDouble
val timestamp: () => Long = () => System.currentTimeMillis
// Generates records with Random data
val recordFunction: () => String = { () =>
if (Random.nextDouble < 0.9) {
Seq(sensorId().toString, timestamp(), data()).mkString(",")
} else {
// simulate 10% crap data as well… real world streams are seldom clean
"!!~corrupt~^&##$"
}
}
val sensorDataGenerator = sparkContext.parallelize(1 to n).map(_ => recordFunction)
val sensorData = sensorDataGenerator.map(recordFun => recordFun())
val rawDStream = new ConstantInputDStream(streamingContext, sensorData)
RDD[() => Record]

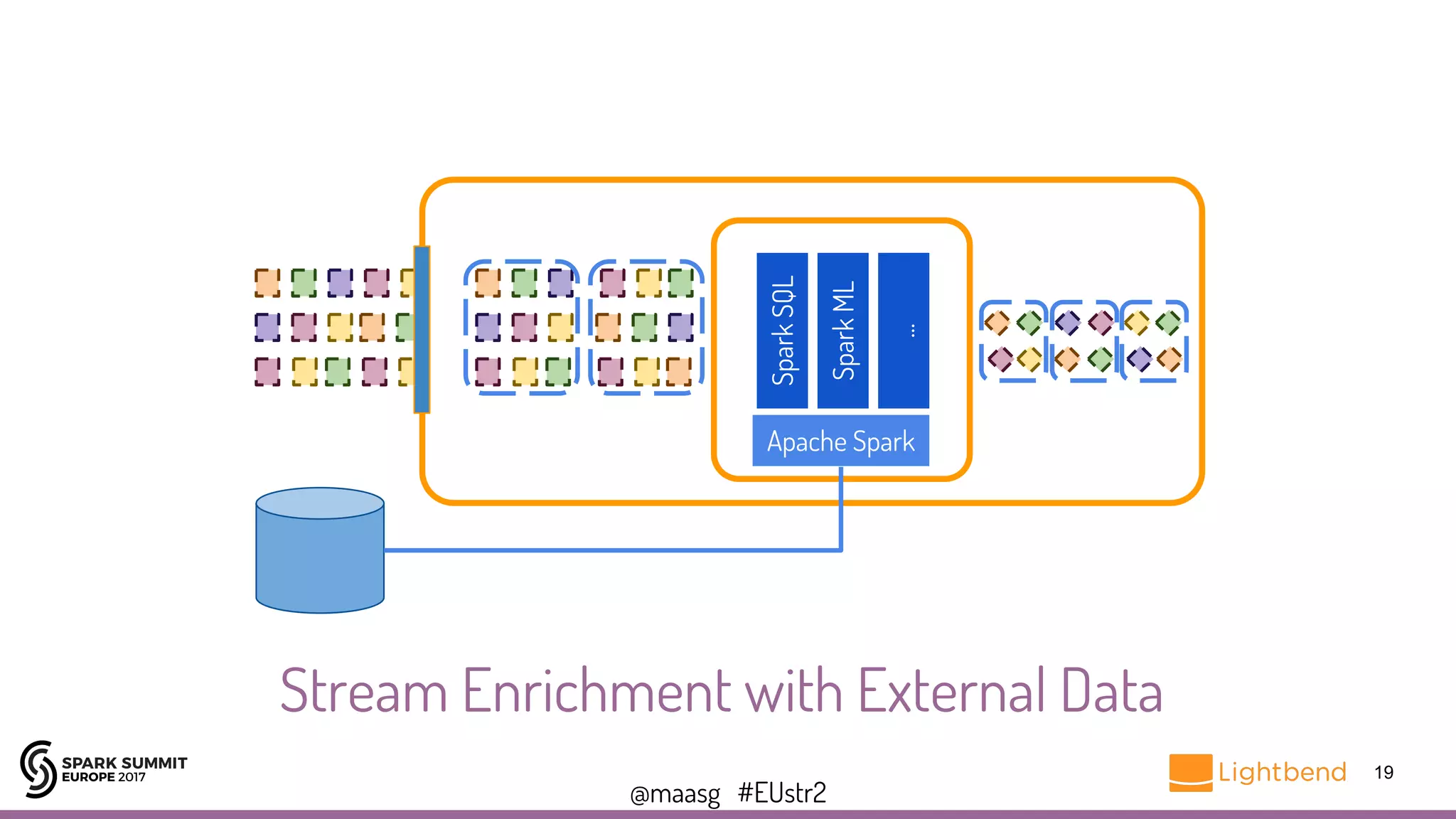

19. @maasg #EUstr2
19
Apache Spark
SparkSQL
SparkML
...
Stream Enrichment with External Data

20. @maasg #EUstr2

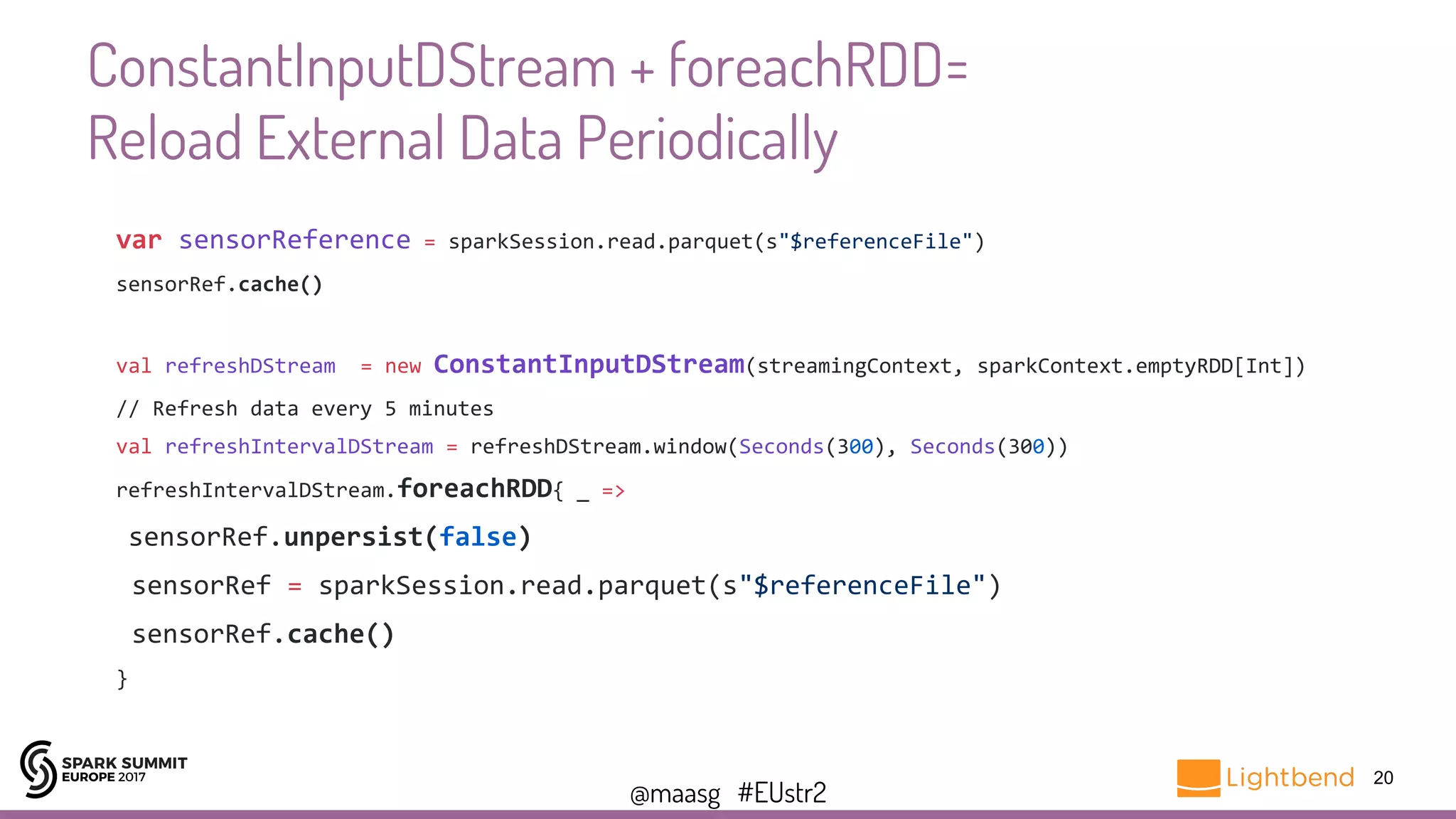

ConstantInputDStream + foreachRDD=
Reload External Data Periodically
20
var sensorReference = sparkSession.read.parquet(s"$referenceFile")
sensorRef.cache()
val refreshDStream = new ConstantInputDStream(streamingContext, sparkContext.emptyRDD[Int])
// Refresh data every 5 minutes
val refreshIntervalDStream = refreshDStream.window(Seconds(300), Seconds(300))
refreshIntervalDStream.foreachRDD{ _ =>
sensorRef.unpersist(false)
sensorRef = sparkSession.read.parquet(s"$referenceFile")
sensorRef.cache()
}

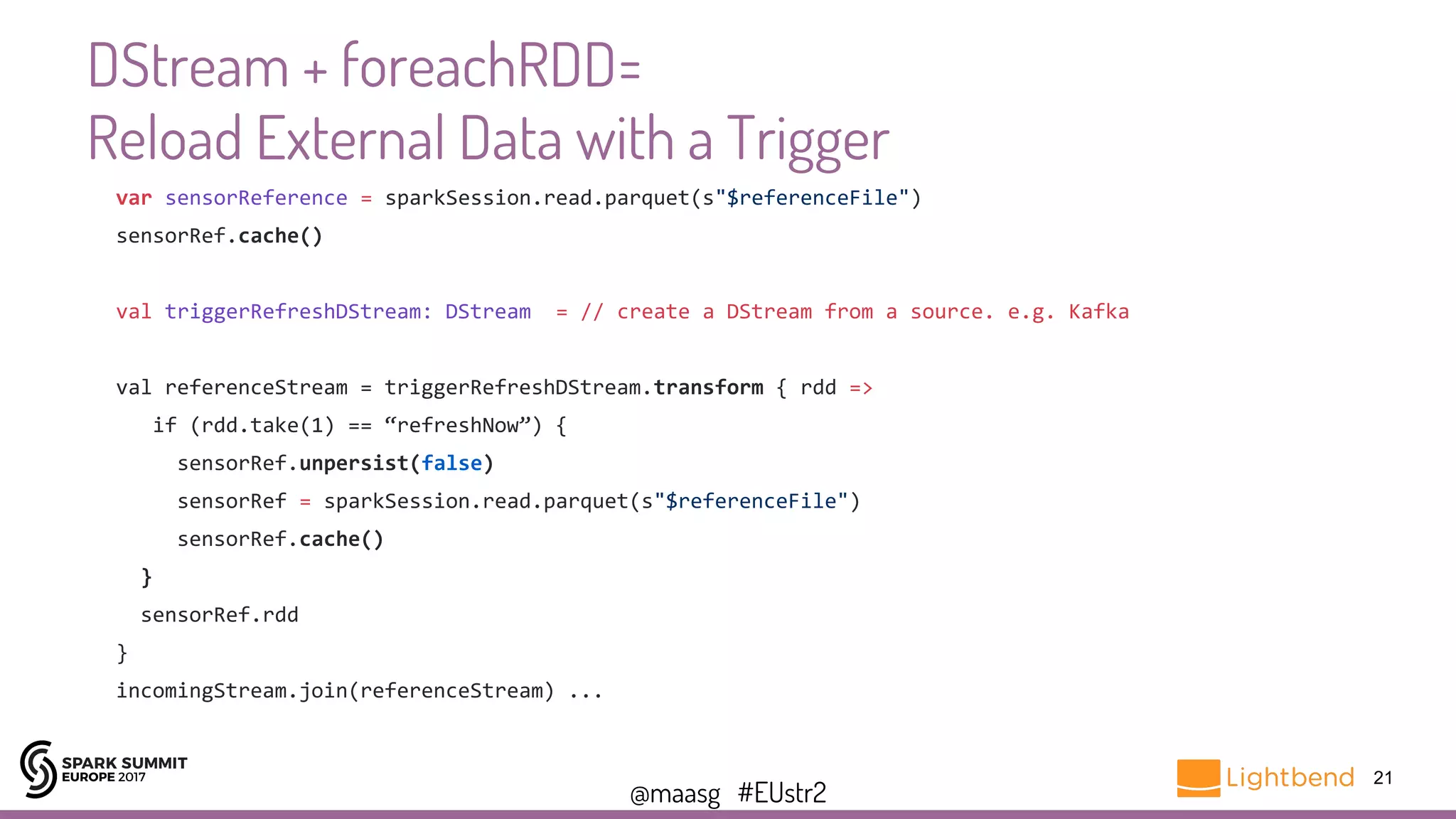

21. @maasg #EUstr2
DStream + foreachRDD=
Reload External Data with a Trigger
21
var sensorReference = sparkSession.read.parquet(s"$referenceFile")
sensorRef.cache()
val triggerRefreshDStream: DStream = // create a DStream from a source. e.g. Kafka
val referenceStream = triggerRefreshDStream.transform { rdd =>
if (rdd.take(1) == “refreshNow”) {
sensorRef.unpersist(false)
sensorRef = sparkSession.read.parquet(s"$referenceFile")
sensorRef.cache()
}
sensorRef.rdd
}
incomingStream.join(referenceStream) ...

22. @maasg #EUstr2
22
Structured Streaming

23. @maasg #EUstr2

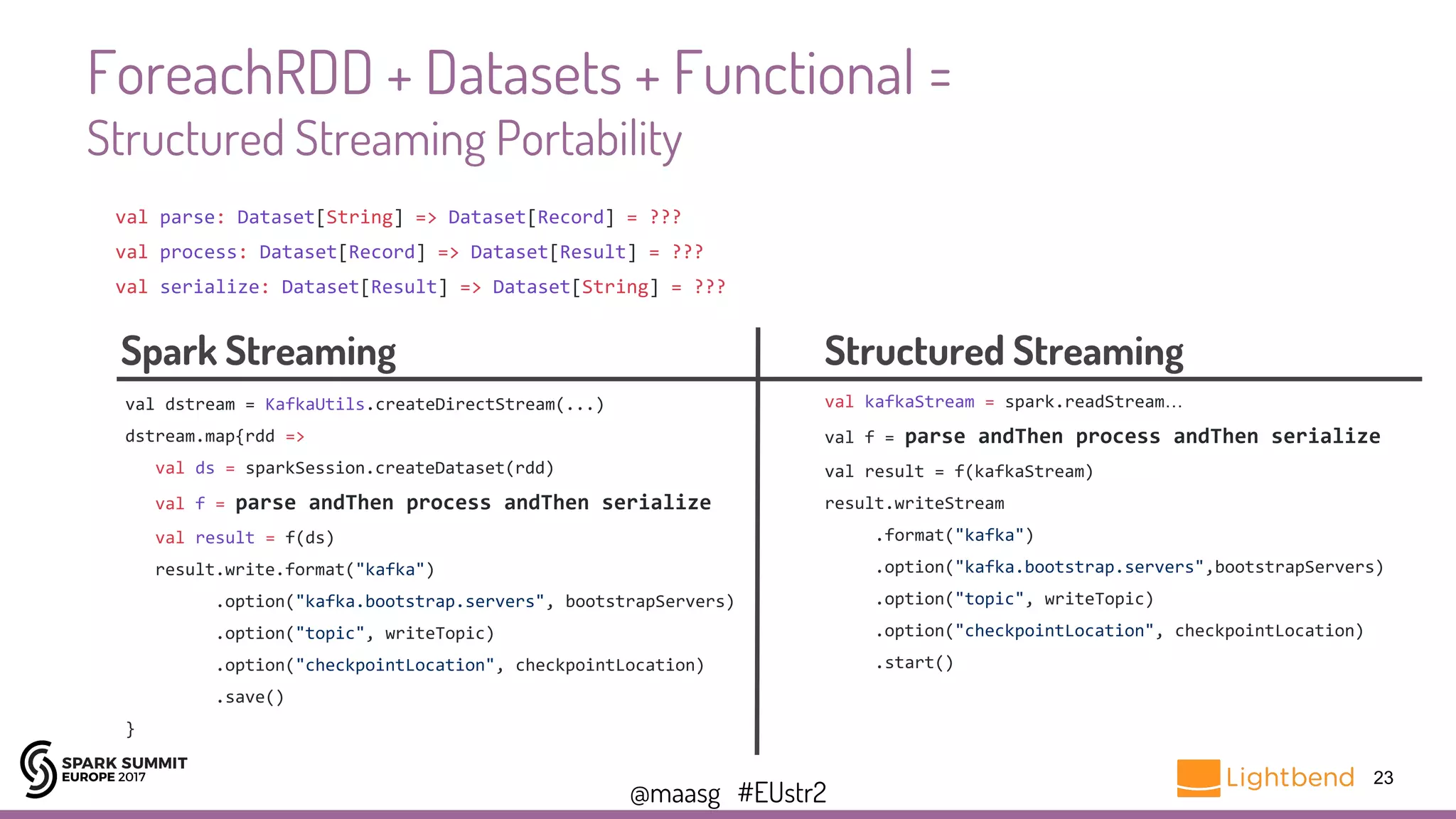

ForeachRDD + Datasets + Functional =
Structured Streaming Portability
23
val parse: Dataset[String] => Dataset[Record] = ???
val process: Dataset[Record] => Dataset[Result] = ???
val serialize: Dataset[Result] => Dataset[String] = ???
val kafkaStream = spark.readStream…
val f = parse andThen process andThen serialize
val result = f(kafkaStream)
result.writeStream
.format("kafka")
.option("kafka.bootstrap.servers",bootstrapServers)
.option("topic", writeTopic)
.option("checkpointLocation", checkpointLocation)
.start()
val dstream = KafkaUtils.createDirectStream(...)
dstream.map{rdd =>
val ds = sparkSession.createDataset(rdd)
val f = parse andThen process andThen serialize
val result = f(ds)
result.write.format("kafka")
.option("kafka.bootstrap.servers", bootstrapServers)
.option("topic", writeTopic)
.option("checkpointLocation", checkpointLocation)
.save()
}
Structured StreamingSpark Streaming

24. @maasg #EUstr2
24

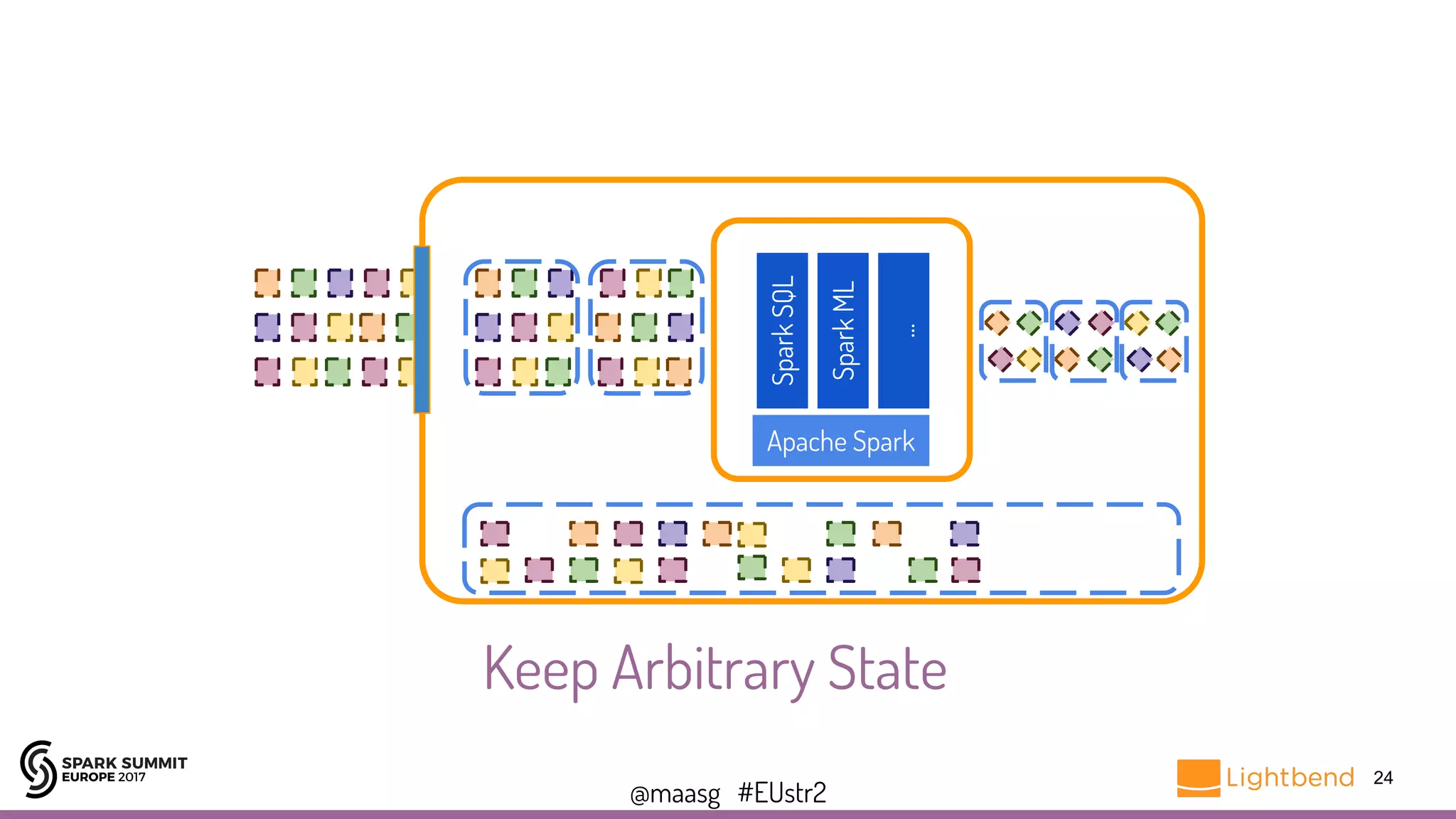

Keep Arbitrary State
Apache Spark
SparkSQL
SparkML
...

25. @maasg #EUstr2

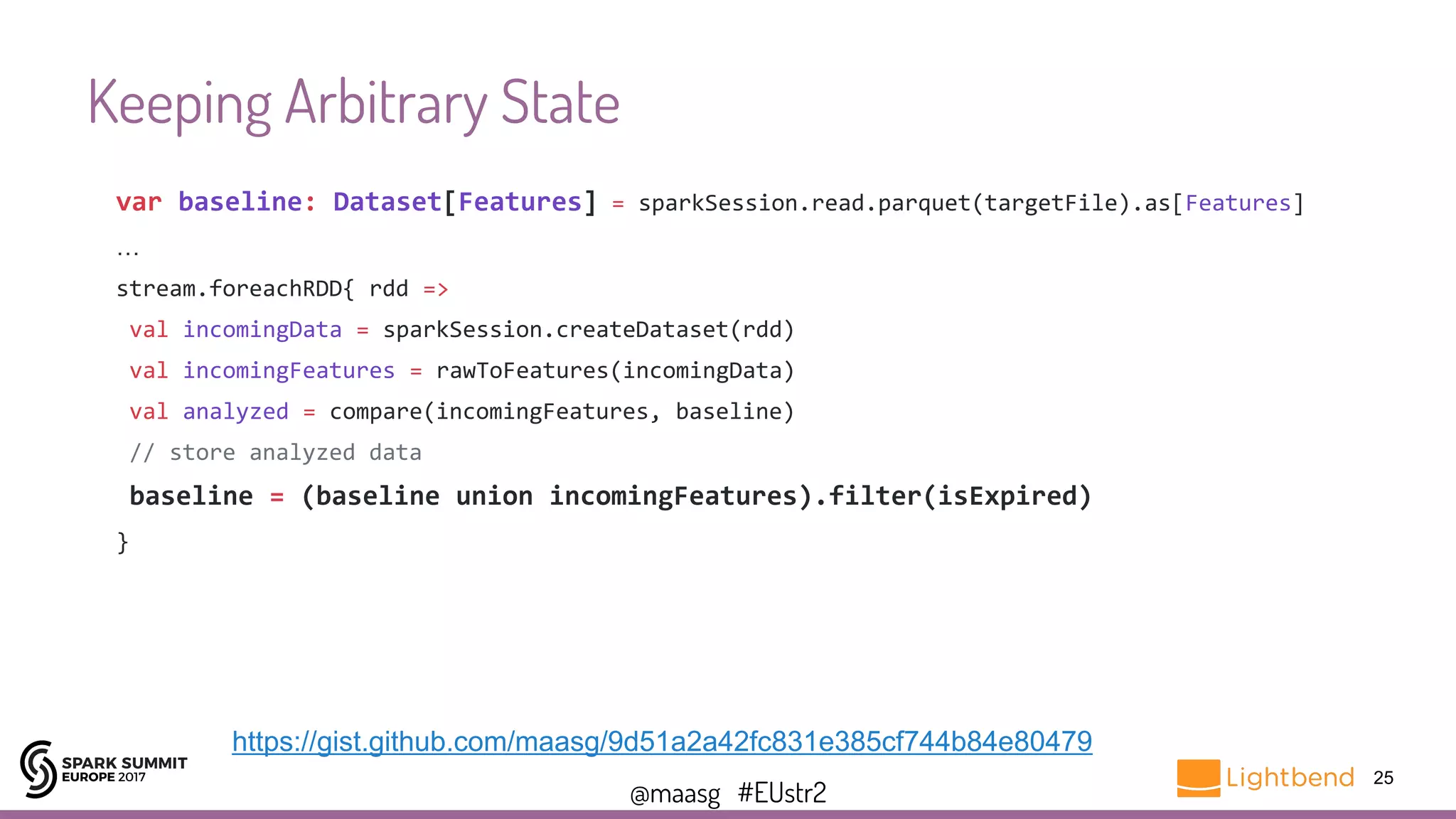

Keeping Arbitrary State
25
var baseline: Dataset[Features] = sparkSession.read.parquet(targetFile).as[Features]
…
stream.foreachRDD{ rdd =>
val incomingData = sparkSession.createDataset(rdd)
val incomingFeatures = rawToFeatures(incomingData)
val analyzed = compare(incomingFeatures, baseline)
// store analyzed data
baseline = (baseline union incomingFeatures).filter(isExpired)
}
https://gist.github.com/maasg/9d51a2a42fc831e385cf744b84e80479

26. @maasg #EUstr2

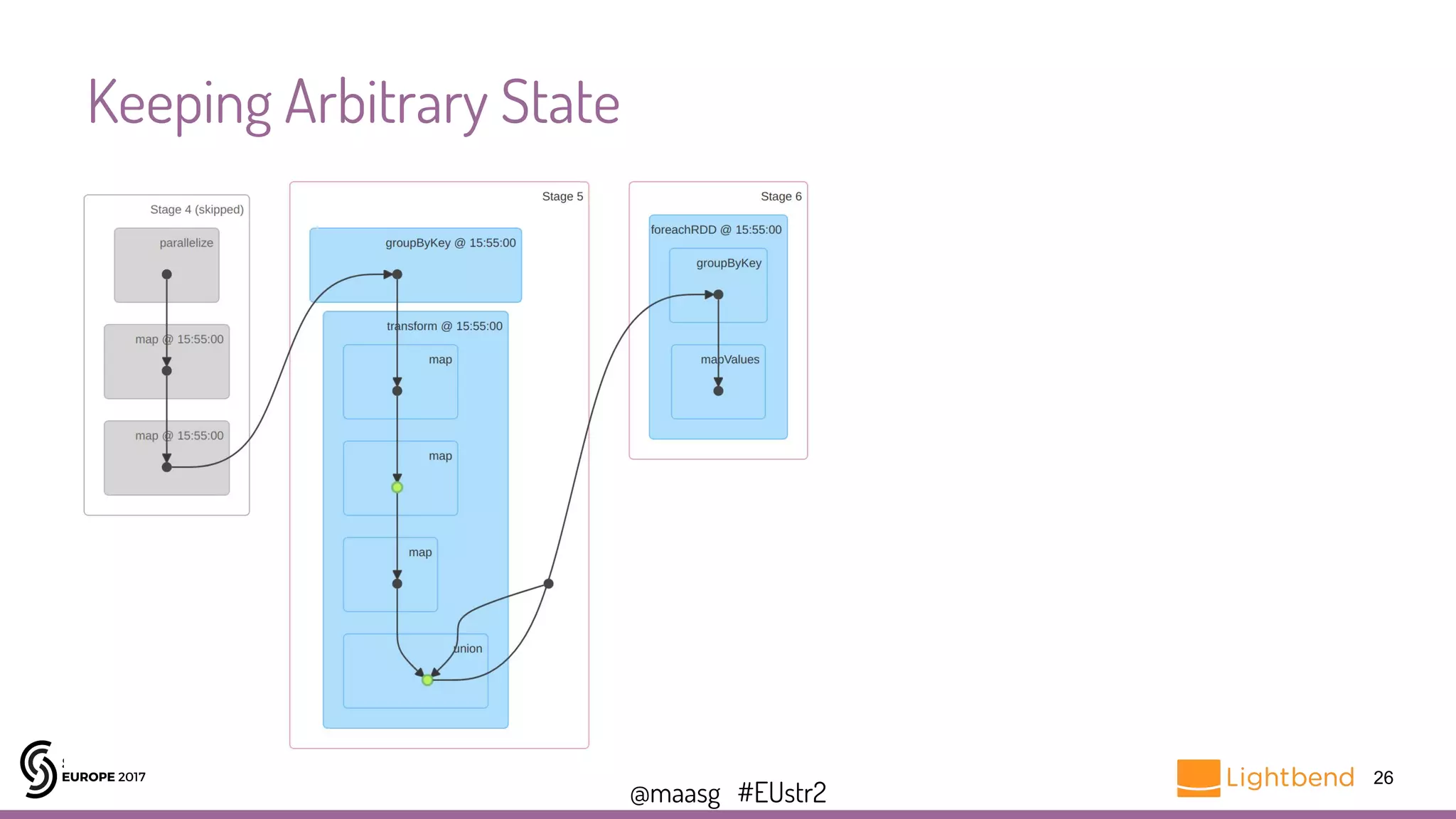

Keeping Arbitrary State
26

27. @maasg #EUstr2

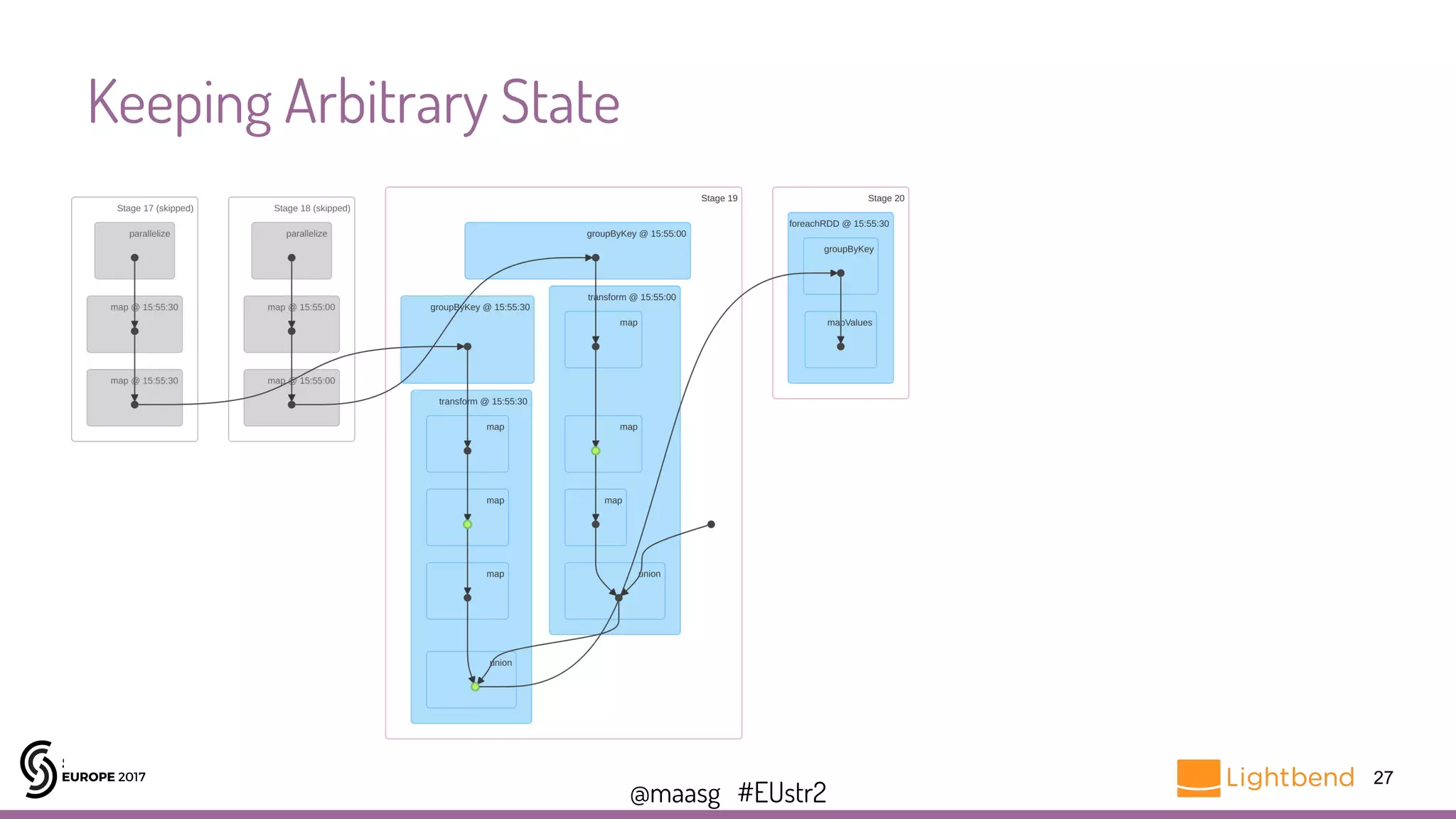

Keeping Arbitrary State
27

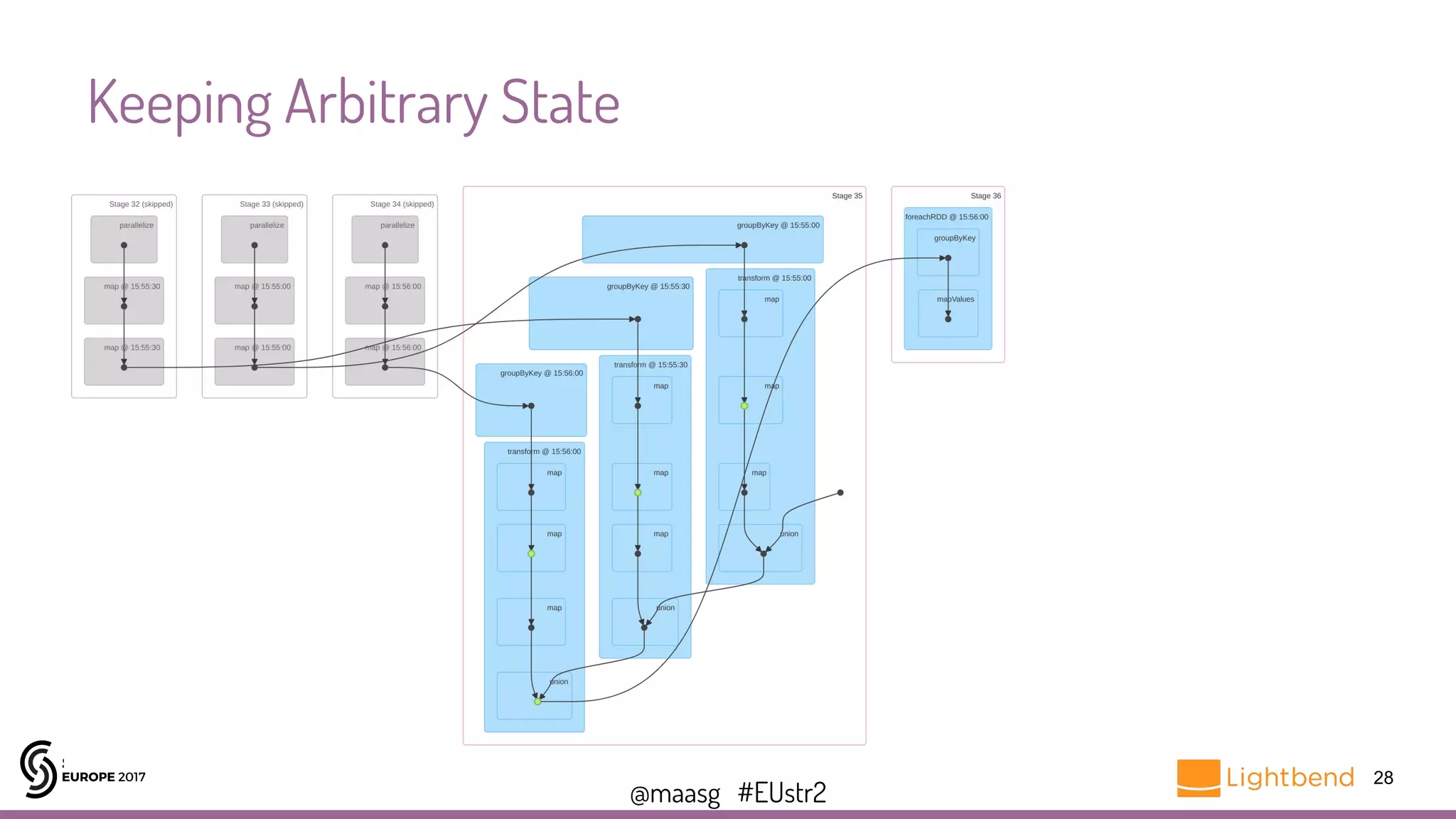

28. @maasg #EUstr2
Keeping Arbitrary State
28

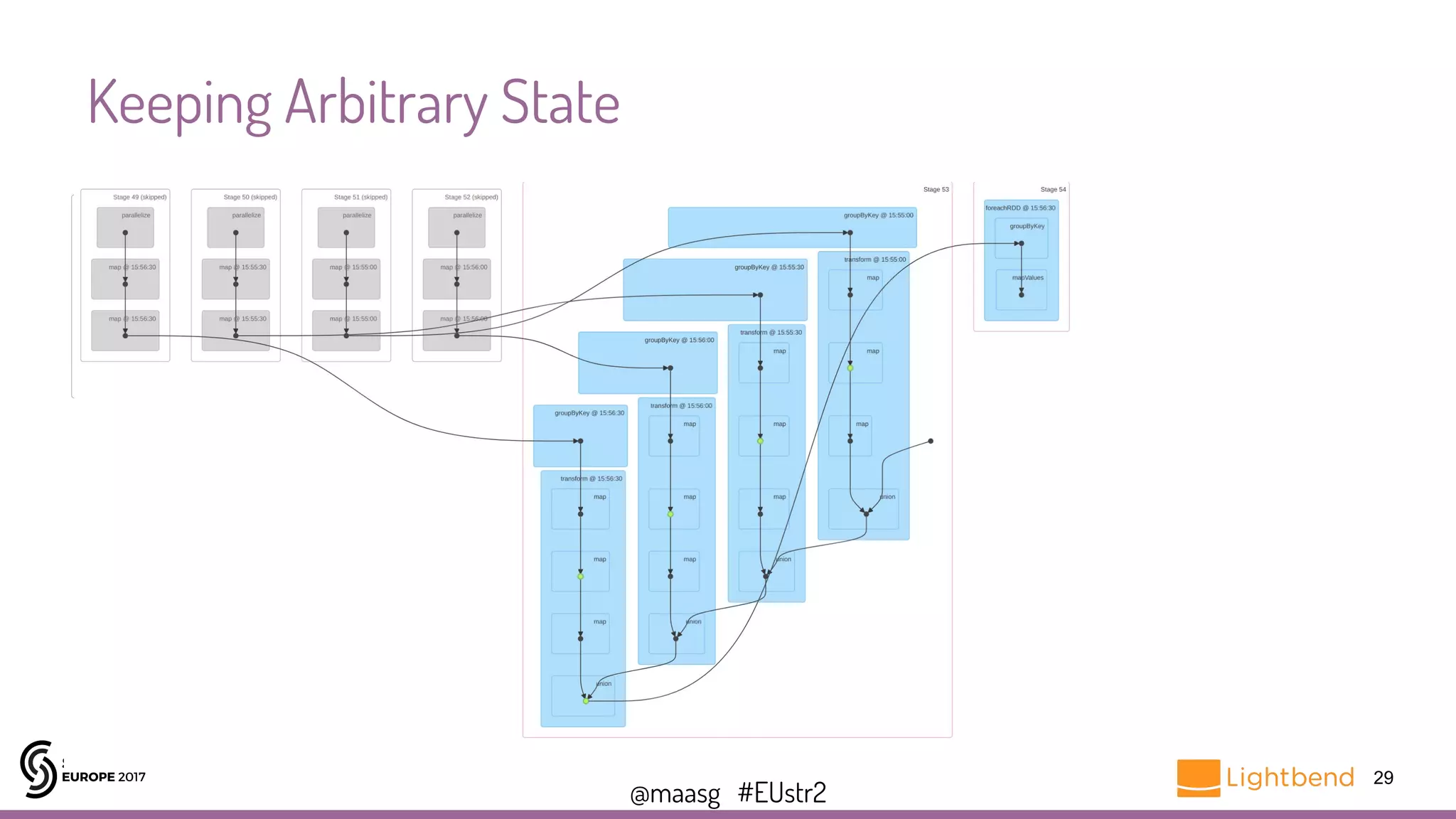

29. @maasg #EUstr2
Keeping Arbitrary State
29

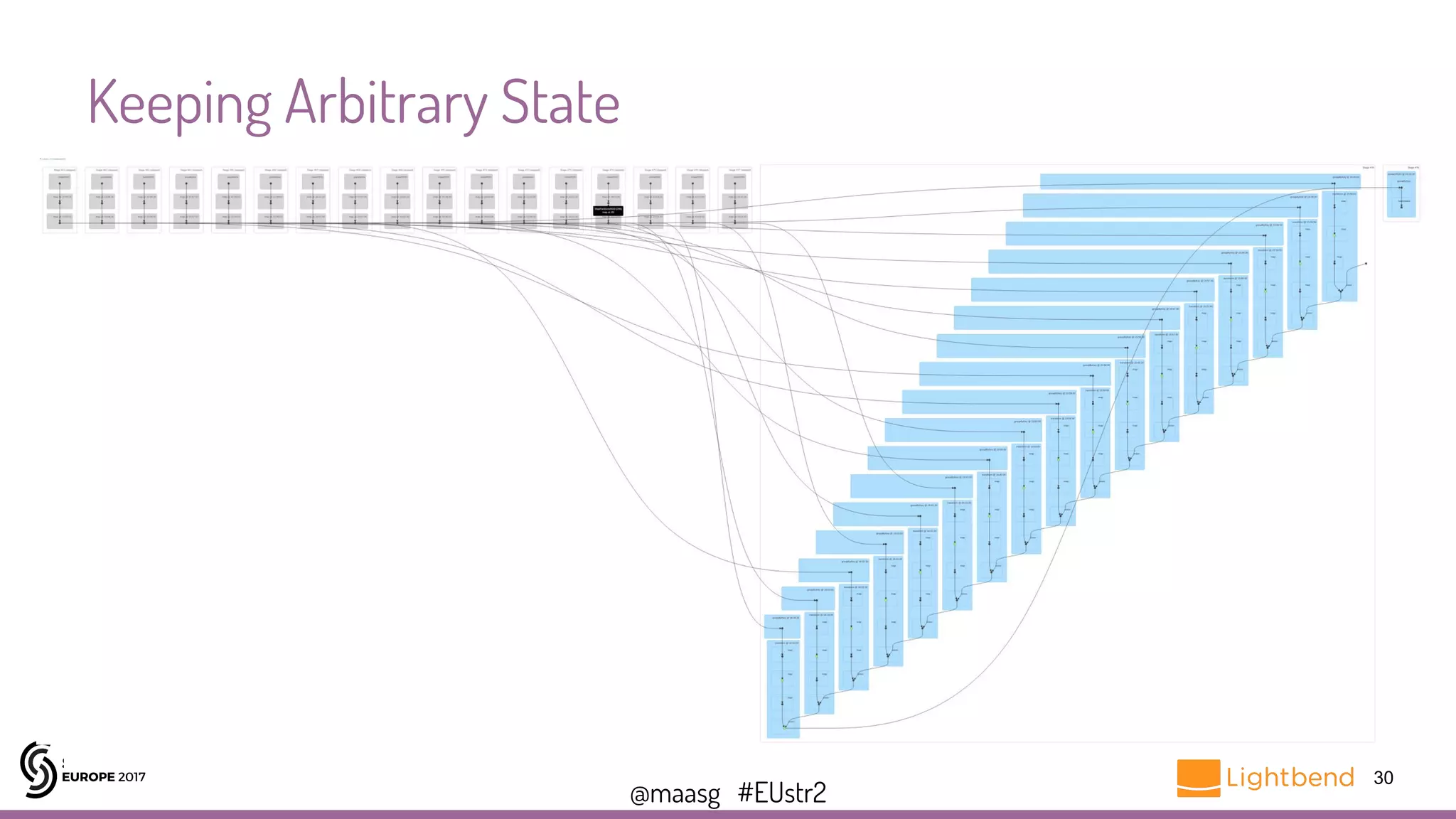

30. @maasg #EUstr2
Keeping Arbitrary State
30

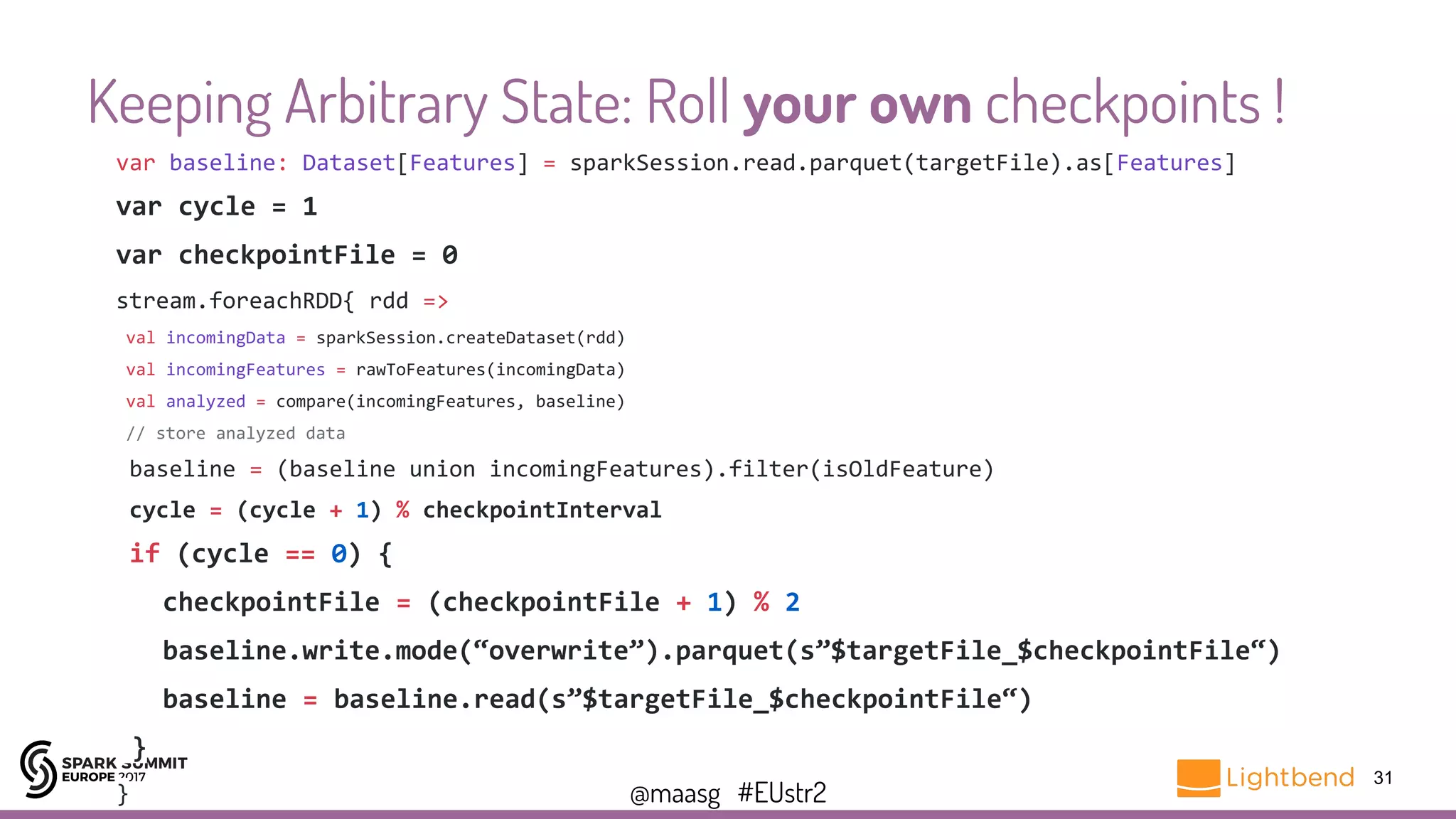

31. @maasg #EUstr2
Keeping Arbitrary State: Roll your own checkpoints !
31
var baseline: Dataset[Features] = sparkSession.read.parquet(targetFile).as[Features]
var cycle = 1
var checkpointFile = 0
stream.foreachRDD{ rdd =>
val incomingData = sparkSession.createDataset(rdd)
val incomingFeatures = rawToFeatures(incomingData)
val analyzed = compare(incomingFeatures, baseline)
// store analyzed data
baseline = (baseline union incomingFeatures).filter(isOldFeature)
cycle = (cycle + 1) % checkpointInterval
if (cycle == 0) {
checkpointFile = (checkpointFile + 1) % 2
baseline.write.mode(“overwrite”).parquet(s”$targetFile_$checkpointFile“)
baseline = baseline.read(s”$targetFile_$checkpointFile“)
}
}

32. @maasg #EUstr2
32
Apache Spark
SparkSQL
SparkML
...

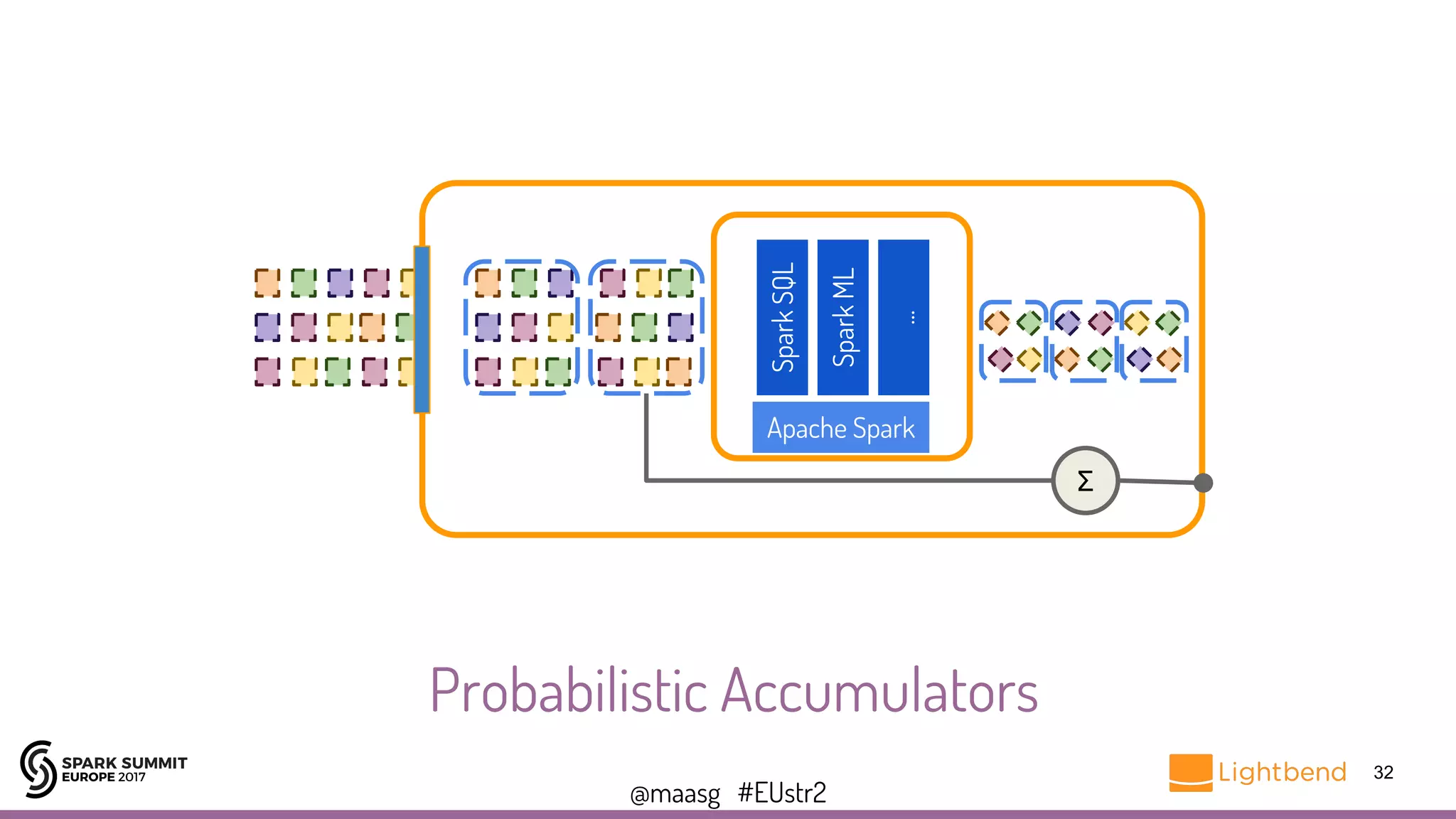

Probabilistic Accumulators
Σ

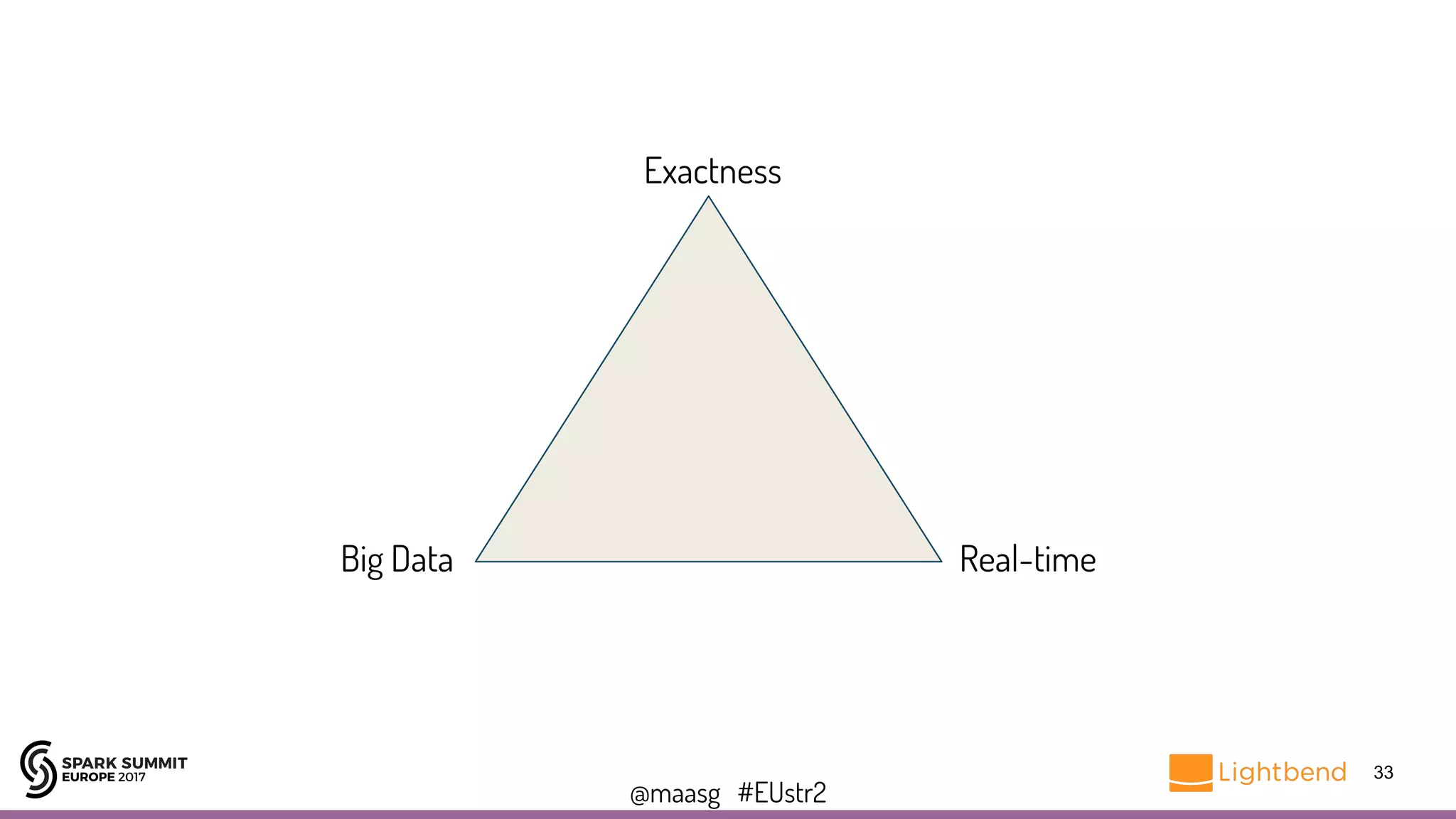

33. @maasg #EUstr2
33
Exactness
Big Data Real-time

34. @maasg #EUstr2

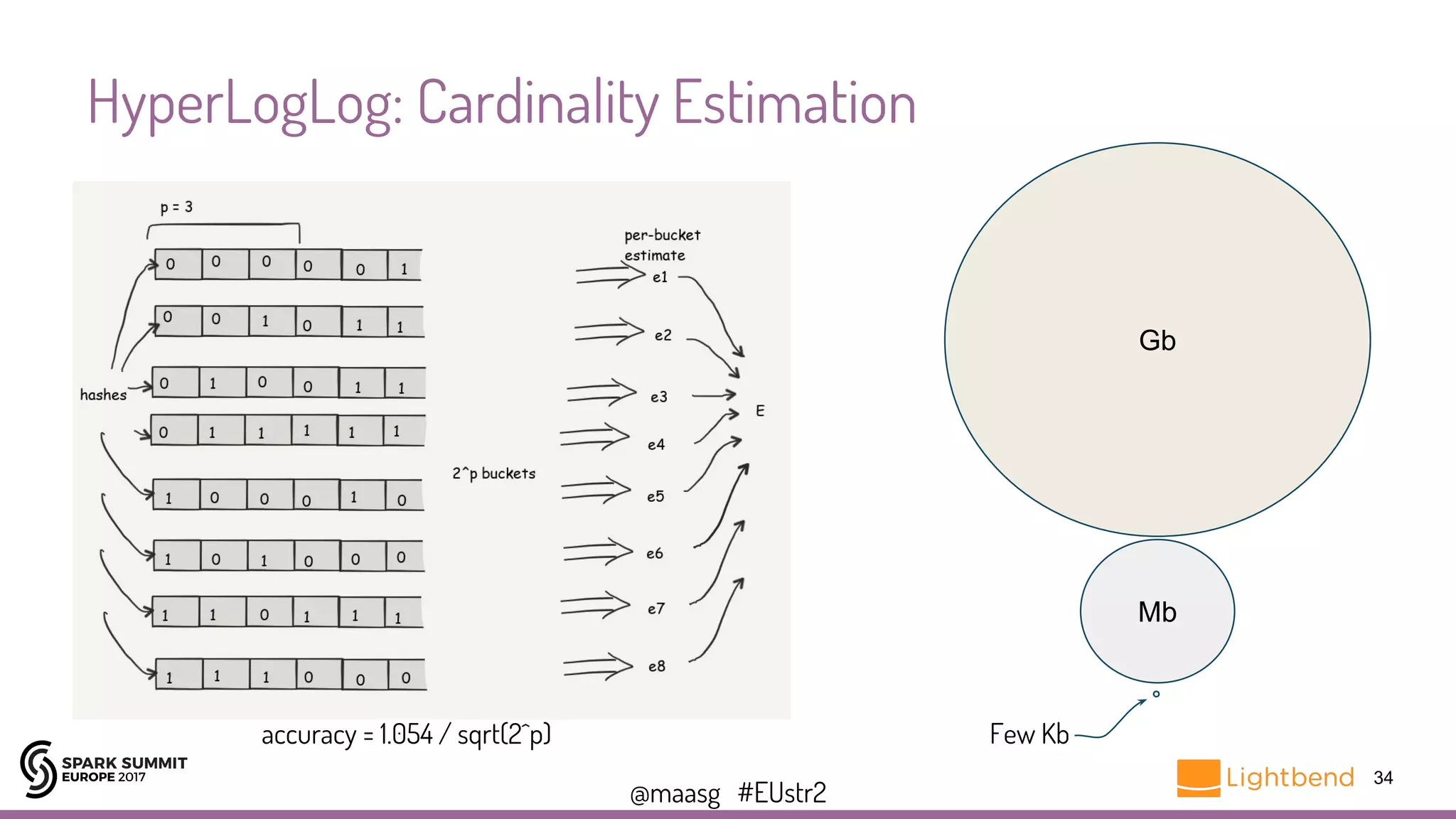

HyperLogLog: Cardinality Estimation
34
accuracy = 1.054 / sqrt(2^p)
Gb
Mb
Few Kb

35. @maasg #EUstr2

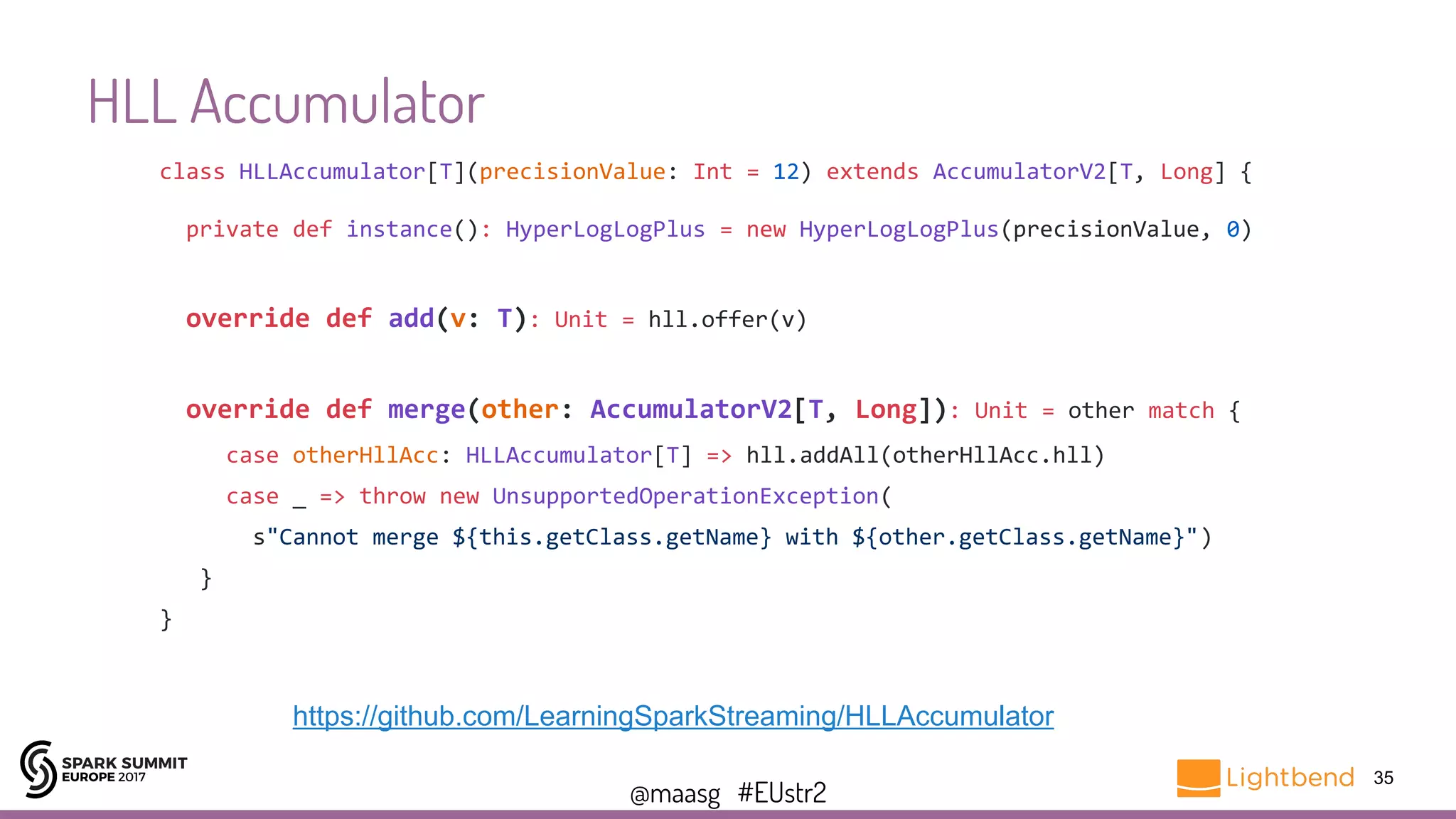

HLL Accumulator
35
https://github.com/LearningSparkStreaming/HLLAccumulator
class HLLAccumulator[T](precisionValue: Int = 12) extends AccumulatorV2[T, Long] {
private def instance(): HyperLogLogPlus = new HyperLogLogPlus(precisionValue, 0)
override def add(v: T): Unit = hll.offer(v)
override def merge(other: AccumulatorV2[T, Long]): Unit = other match {
case otherHllAcc: HLLAccumulator[T] => hll.addAll(otherHllAcc.hll)
case _ => throw new UnsupportedOperationException(
s"Cannot merge ${this.getClass.getName} with ${other.getClass.getName}")
}
}

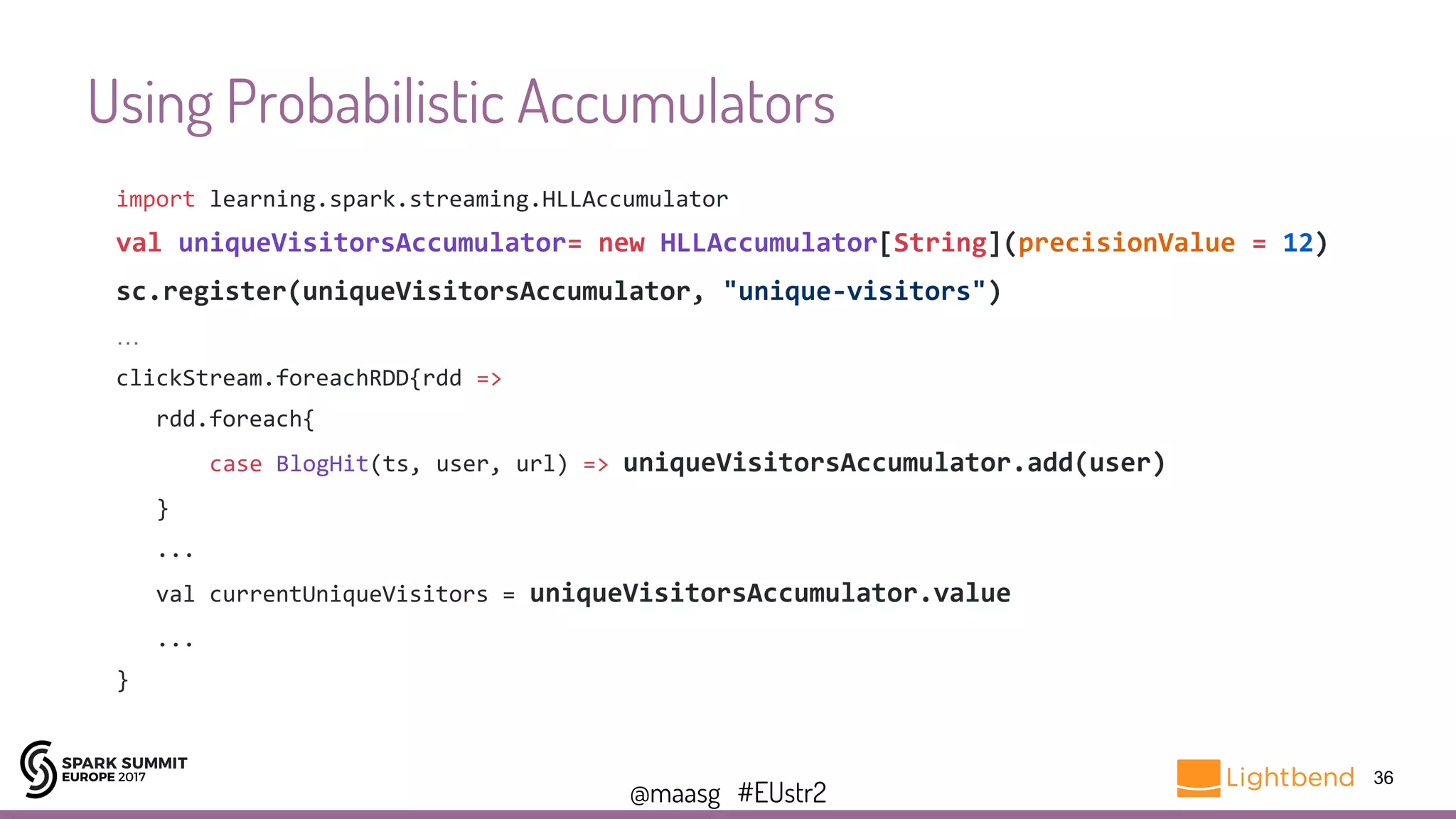

36. @maasg #EUstr2
Using Probabilistic Accumulators
36
import learning.spark.streaming.HLLAccumulator
val uniqueVisitorsAccumulator= new HLLAccumulator[String](precisionValue = 12)
sc.register(uniqueVisitorsAccumulator, "unique-visitors")
…
clickStream.foreachRDD{rdd =>
rdd.foreach{
case BlogHit(ts, user, url) => uniqueVisitorsAccumulator.add(user)
}
...
val currentUniqueVisitors = uniqueVisitorsAccumulator.value
...
}

37. @maasg #EUstr2
37
Apache Spark
SparkSQL
SparkML
...
Σ

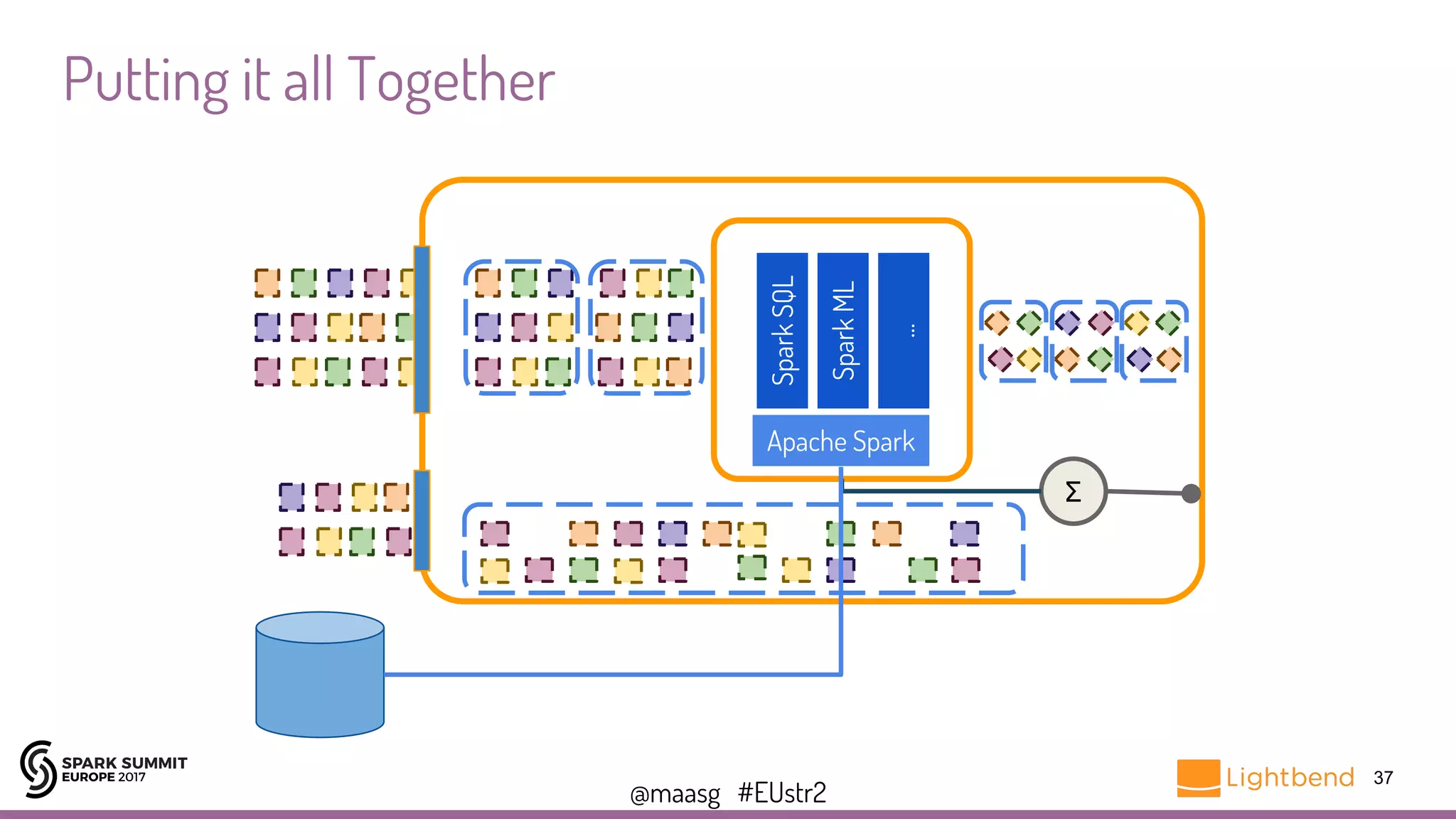

Putting it all Together

38. @maasg #EUstr2
38
Questions?

39. @maasg #EUstr2
39
Thank You
