Brief introduction in Spark data processing ideology, comparison Java 7 and Java 8 usage with Spark. Examples of loading and processing data with Spark Cassandra Loader.

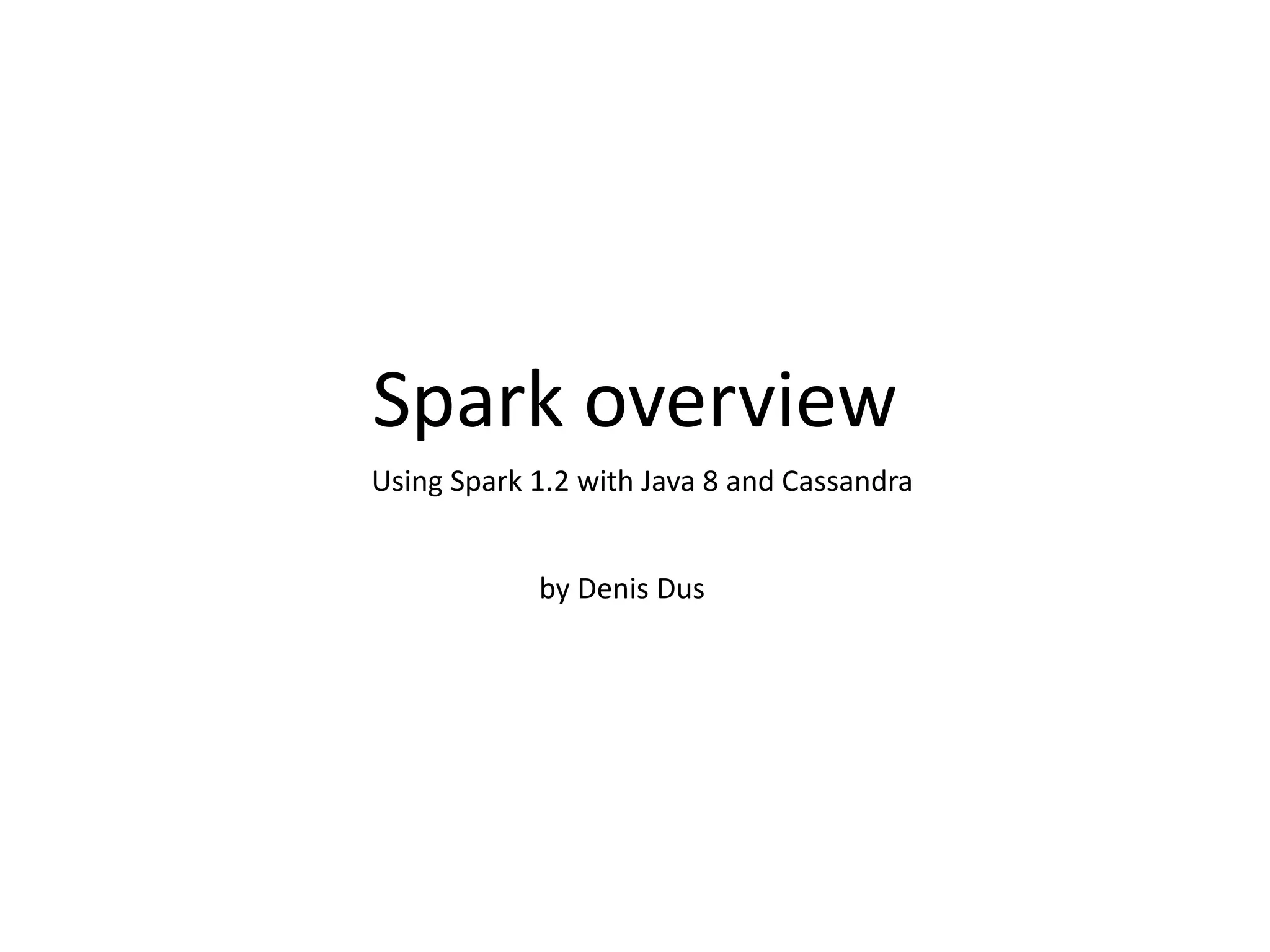

1. Spark overview
Using Spark 1.2 with Java 8 and Cassandra
by Denis Dus

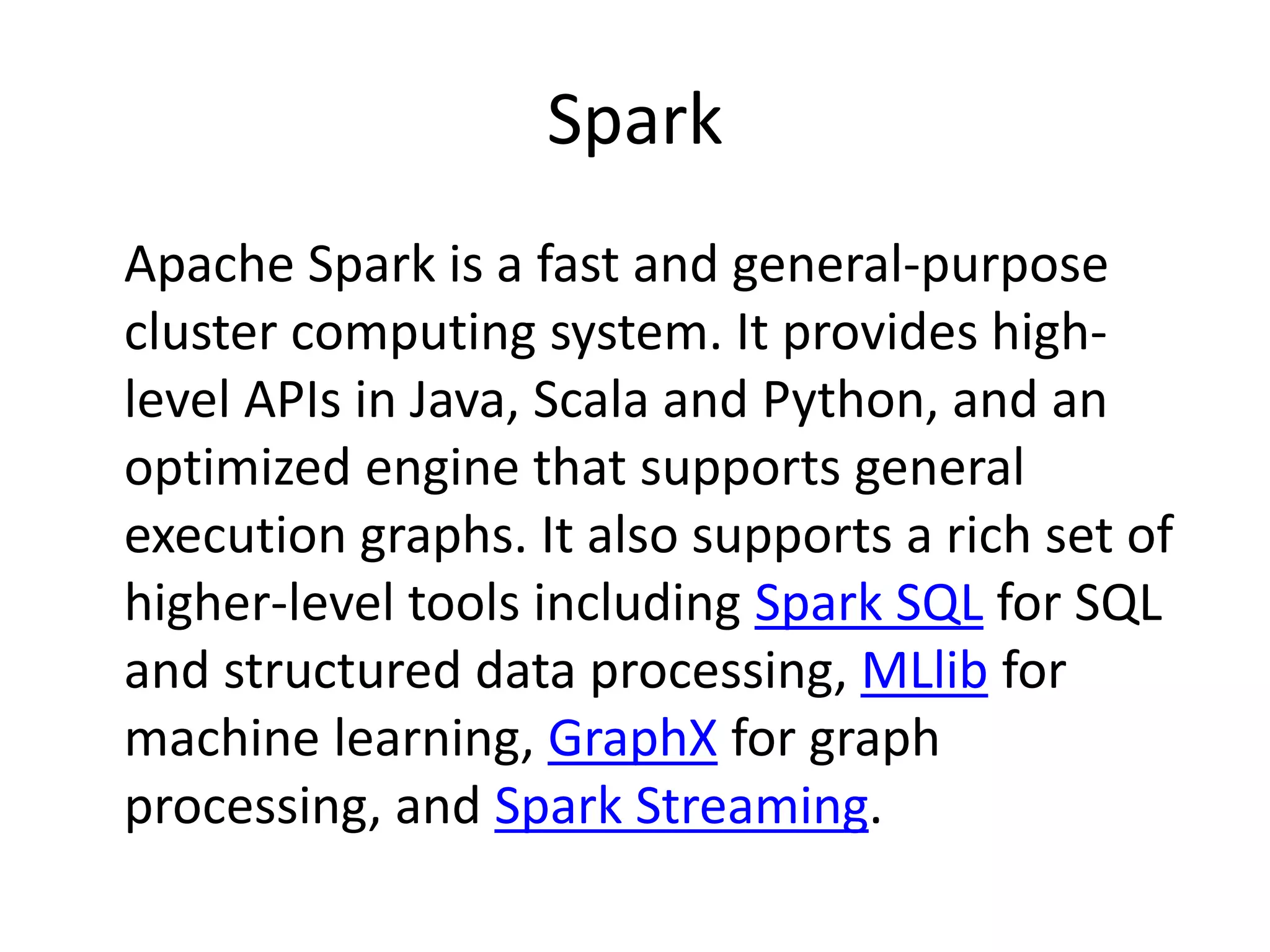

2. Spark
Apache Spark is a fast and general-purpose
cluster computing system. It provides high-
level APIs in Java, Scala and Python, and an
optimized engine that supports general
execution graphs. It also supports a rich set of
higher-level tools including Spark SQL for SQL
and structured data processing, MLlib for
machine learning, GraphX for graph
processing, and Spark Streaming.

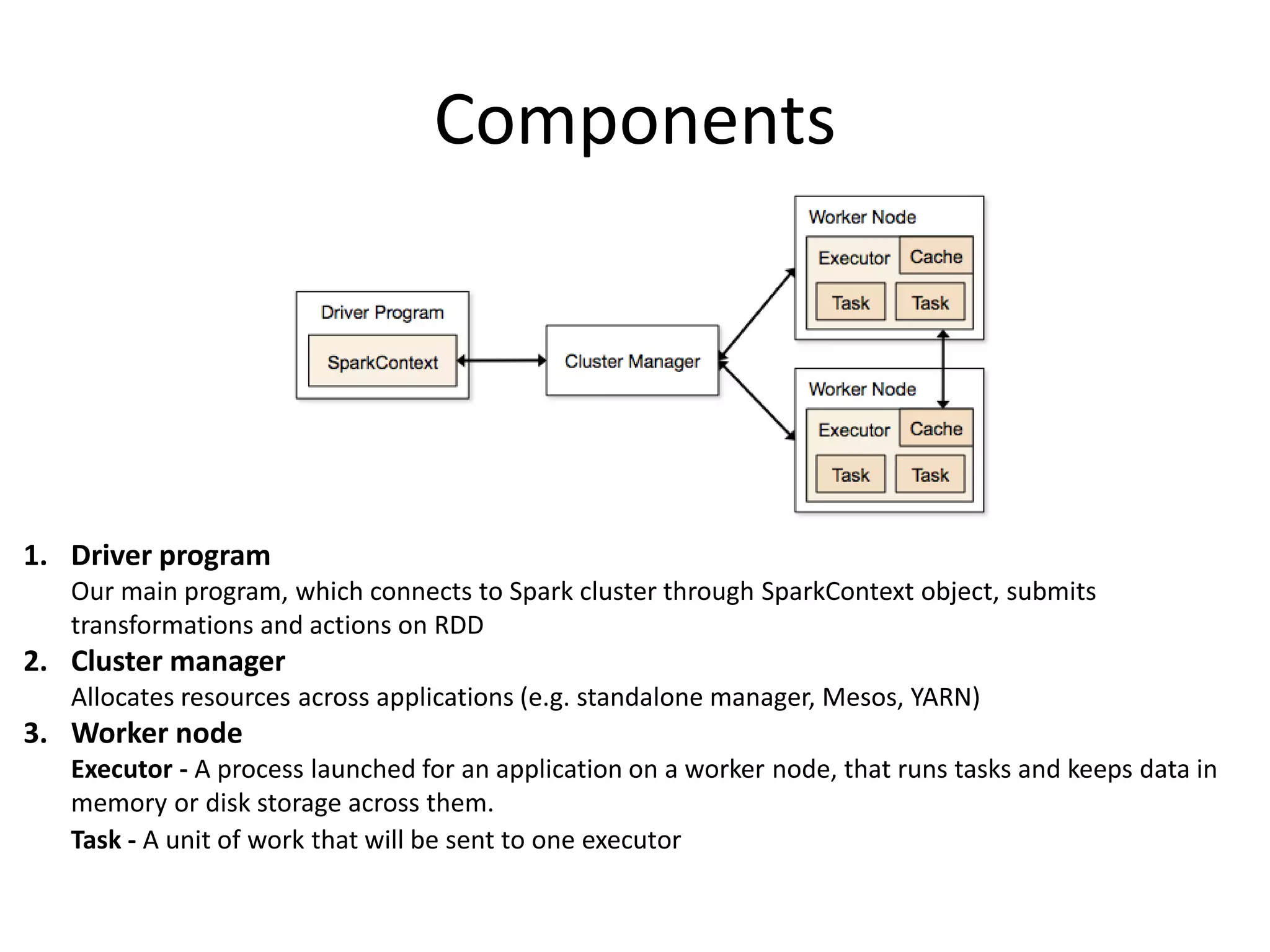

3. Components
1. Driver program
Our main program, which connects to Spark cluster through SparkContext object, submits
transformations and actions on RDD
2. Cluster manager
Allocates resources across applications (e.g. standalone manager, Mesos, YARN)
3. Worker node
Executor - A process launched for an application on a worker node, that runs tasks and keeps data in
memory or disk storage across them.
Task - A unit of work that will be sent to one executor

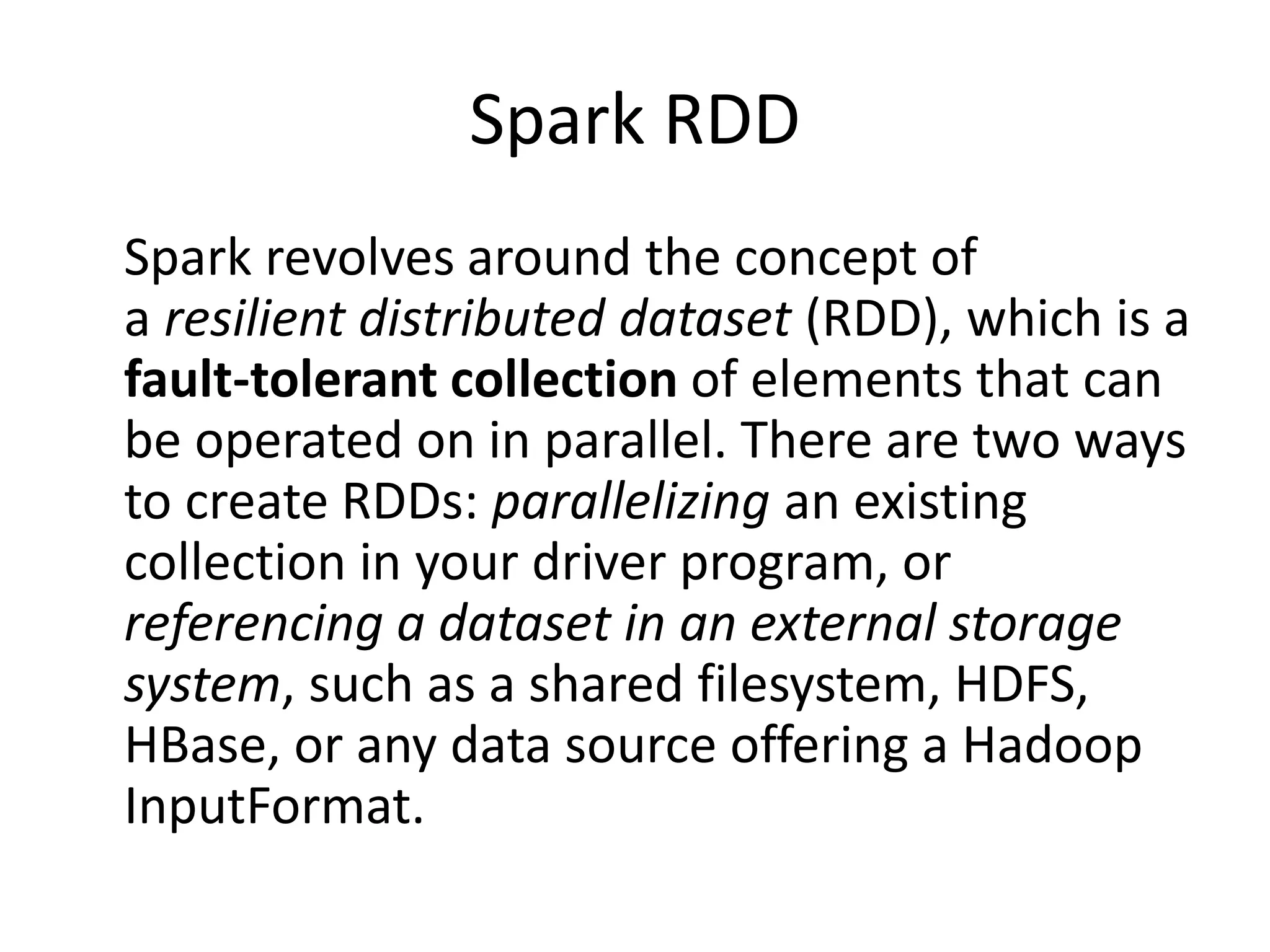

4. Spark RDD
Spark revolves around the concept of
a resilient distributed dataset (RDD), which is a
fault-tolerant collection of elements that can
be operated on in parallel. There are two ways
to create RDDs: parallelizing an existing
collection in your driver program, or
referencing a dataset in an external storage
system, such as a shared filesystem, HDFS,
HBase, or any data source offering a Hadoop
InputFormat.

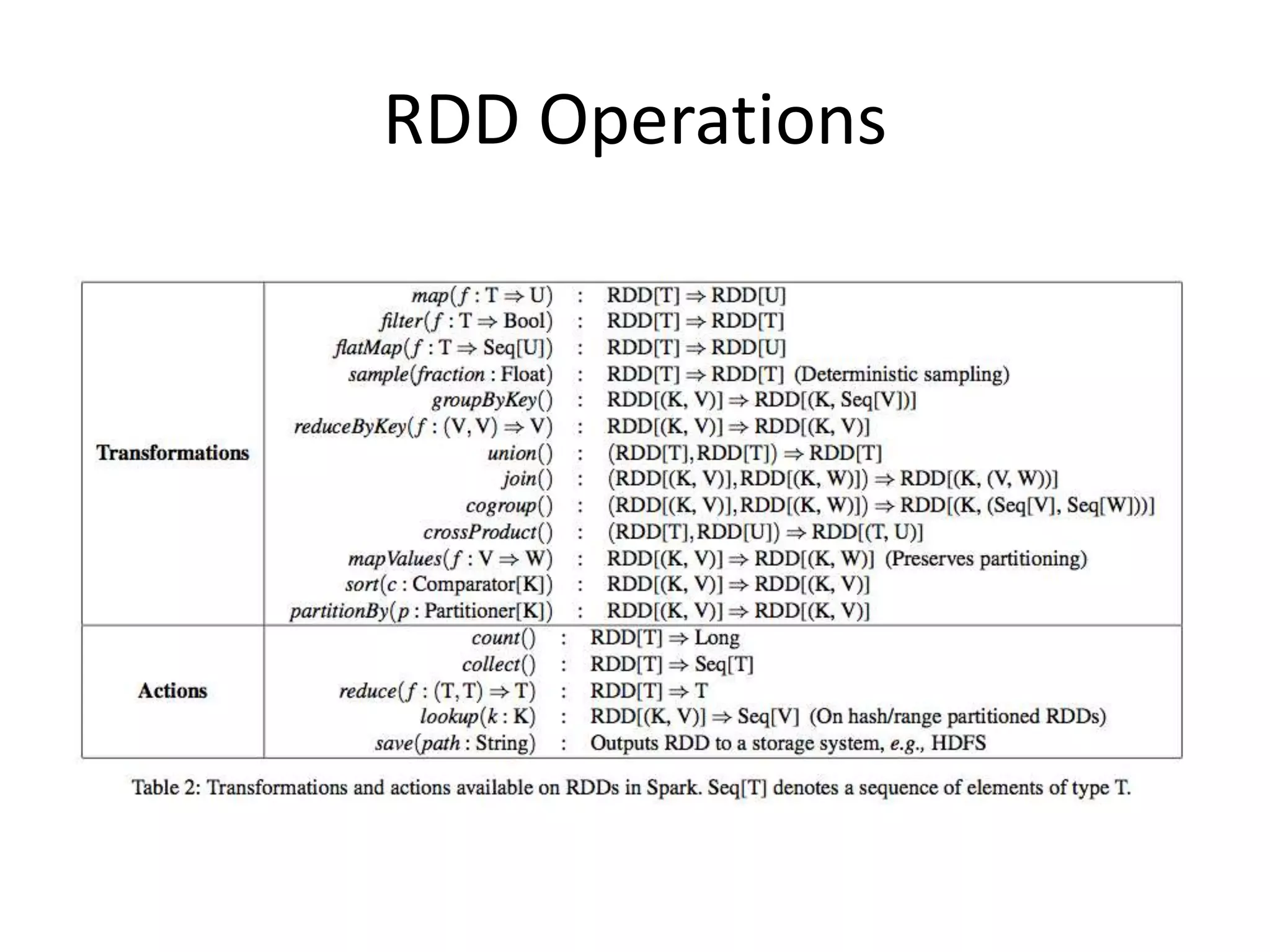

5. RDD Operations

6. Spark Stages

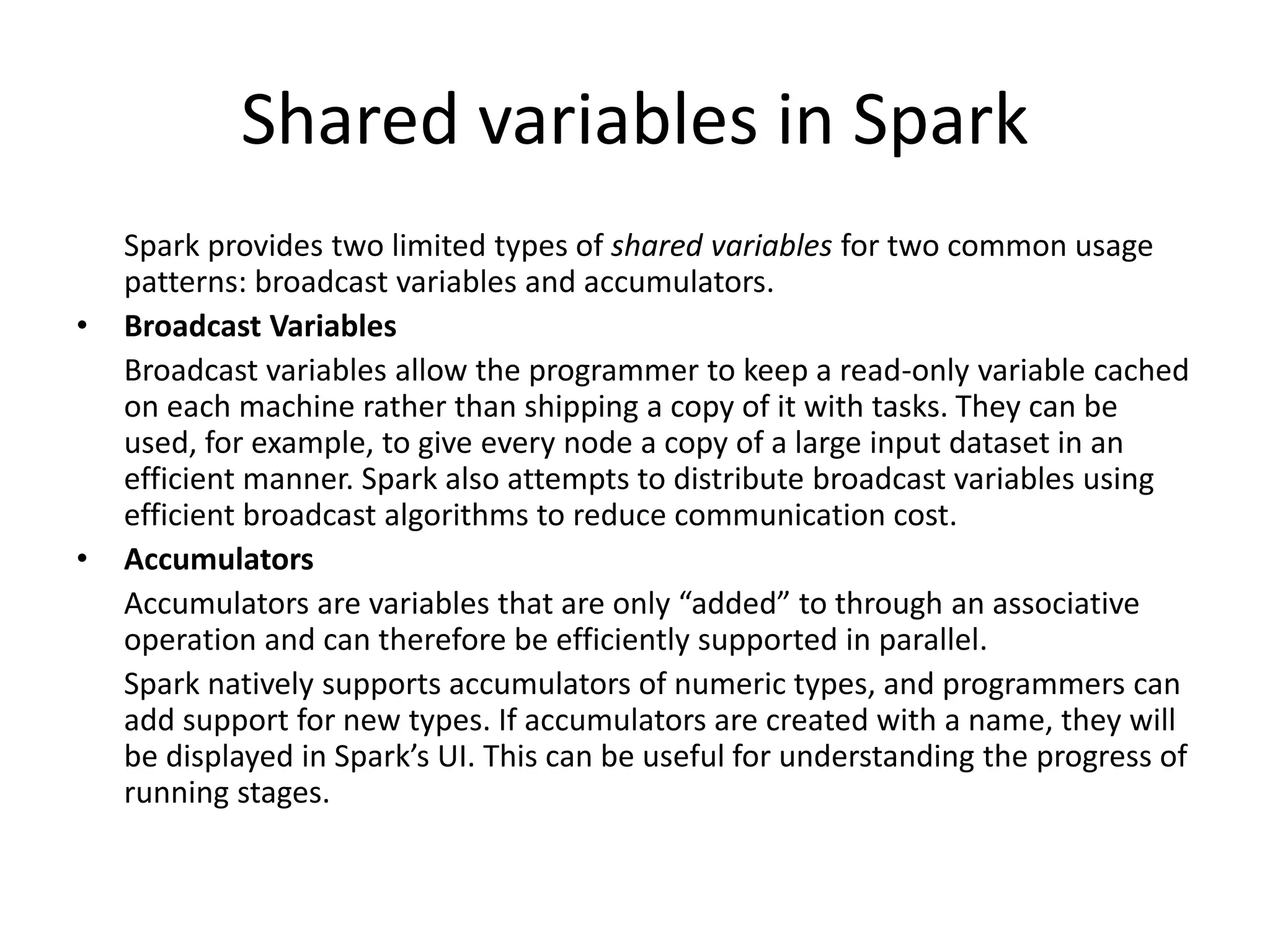

7. Shared variables in Spark
Spark provides two limited types of shared variables for two common usage
patterns: broadcast variables and accumulators.
• Broadcast Variables
Broadcast variables allow the programmer to keep a read-only variable cached
on each machine rather than shipping a copy of it with tasks. They can be
used, for example, to give every node a copy of a large input dataset in an
efficient manner. Spark also attempts to distribute broadcast variables using
efficient broadcast algorithms to reduce communication cost.
• Accumulators
Accumulators are variables that are only “added” to through an associative
operation and can therefore be efficiently supported in parallel.
Spark natively supports accumulators of numeric types, and programmers can
add support for new types. If accumulators are created with a name, they will
be displayed in Spark’s UI. This can be useful for understanding the progress of
running stages.

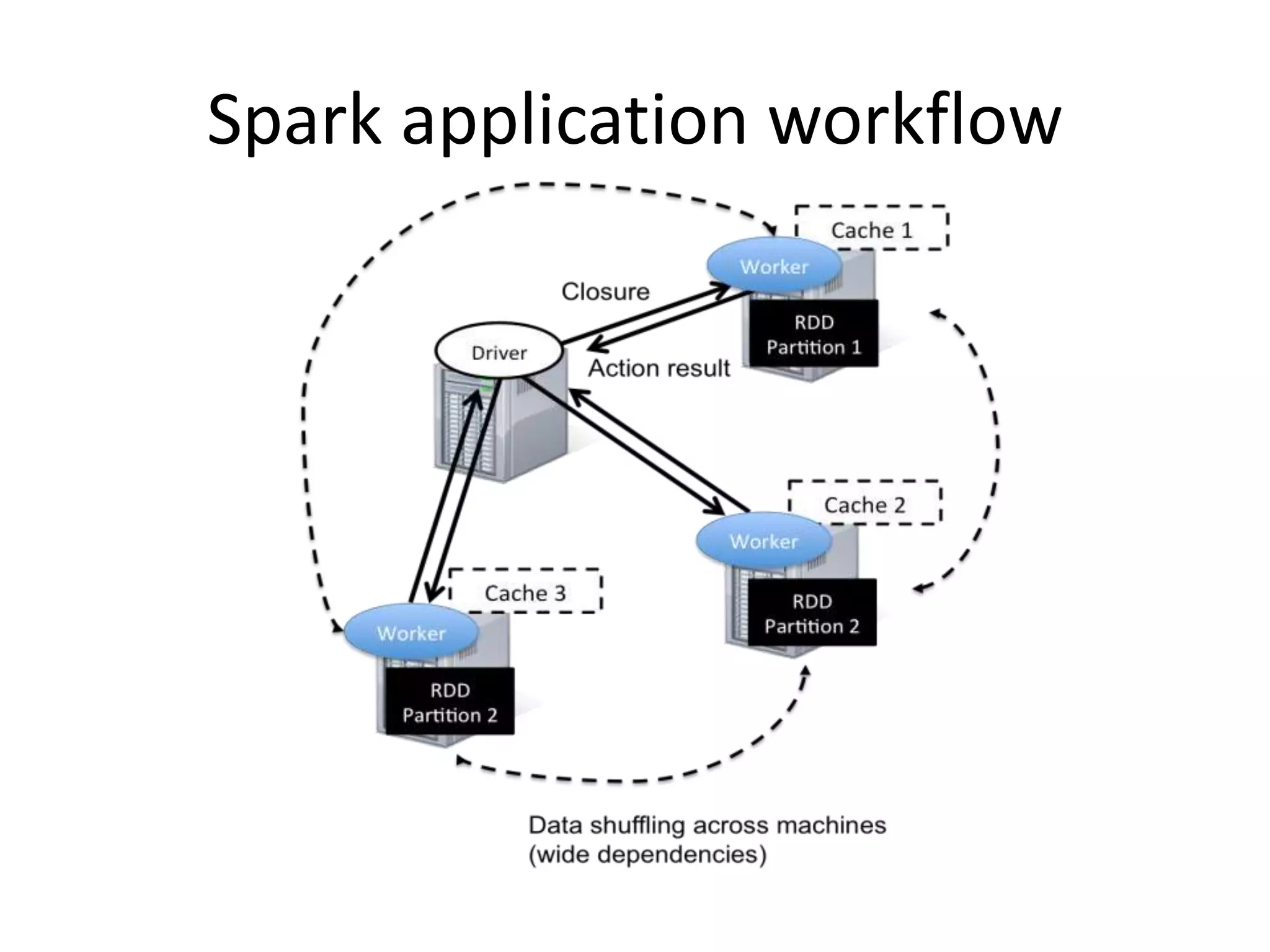

8. Spark application workflow

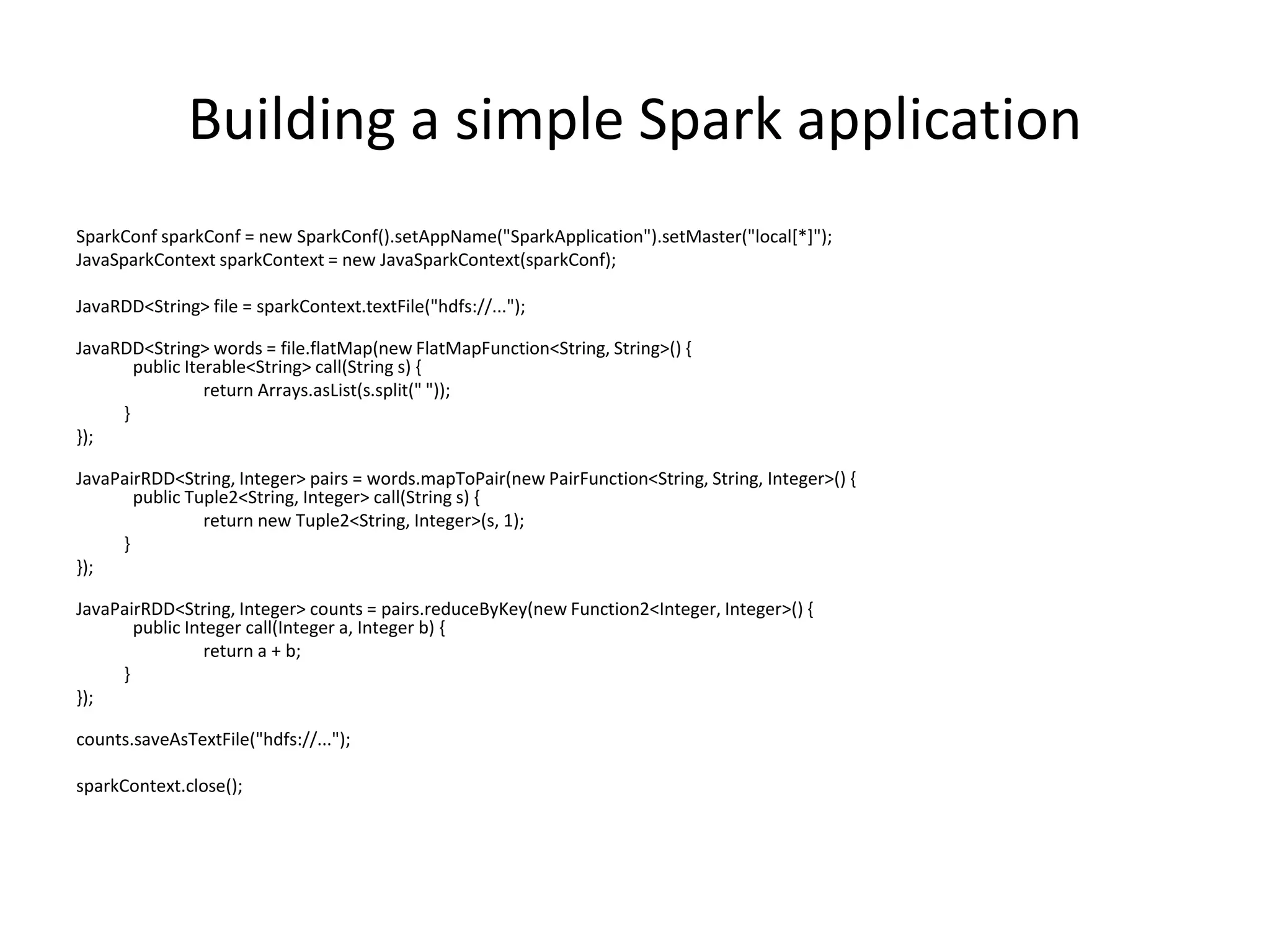

9. Building a simple Spark application
SparkConf sparkConf = new SparkConf().setAppName("SparkApplication").setMaster("local[*]");
JavaSparkContext sparkContext = new JavaSparkContext(sparkConf);
JavaRDD<String> file = sparkContext.textFile("hdfs://...");
JavaRDD<String> words = file.flatMap(new FlatMapFunction<String, String>() {
public Iterable<String> call(String s) {
return Arrays.asList(s.split(" "));
}
});
JavaPairRDD<String, Integer> pairs = words.mapToPair(new PairFunction<String, String, Integer>() {
public Tuple2<String, Integer> call(String s) {
return new Tuple2<String, Integer>(s, 1);
}
});
JavaPairRDD<String, Integer> counts = pairs.reduceByKey(new Function2<Integer, Integer>() {
public Integer call(Integer a, Integer b) {
return a + b;
}
});
counts.saveAsTextFile("hdfs://...");
sparkContext.close();

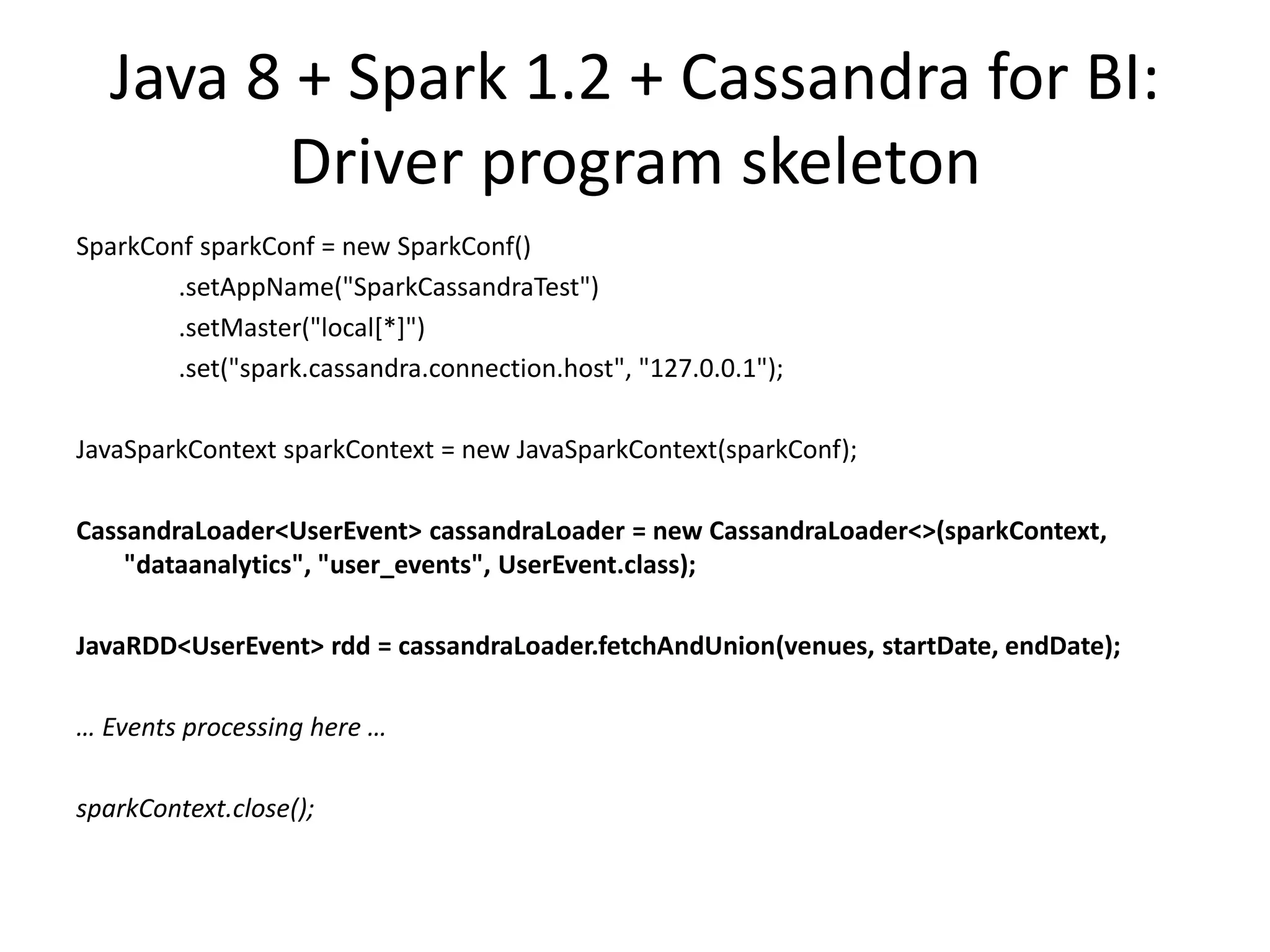

10. Java 8 + Spark 1.2 + Cassandra for BI:
Driver program skeleton
SparkConf sparkConf = new SparkConf()
.setAppName("SparkCassandraTest")
.setMaster("local[*]")
.set("spark.cassandra.connection.host", "127.0.0.1");
JavaSparkContext sparkContext = new JavaSparkContext(sparkConf);
CassandraLoader<UserEvent> cassandraLoader = new CassandraLoader<>(sparkContext,
"dataanalytics", "user_events", UserEvent.class);
JavaRDD<UserEvent> rdd = cassandraLoader.fetchAndUnion(venues, startDate, endDate);
… Events processing here …
sparkContext.close();

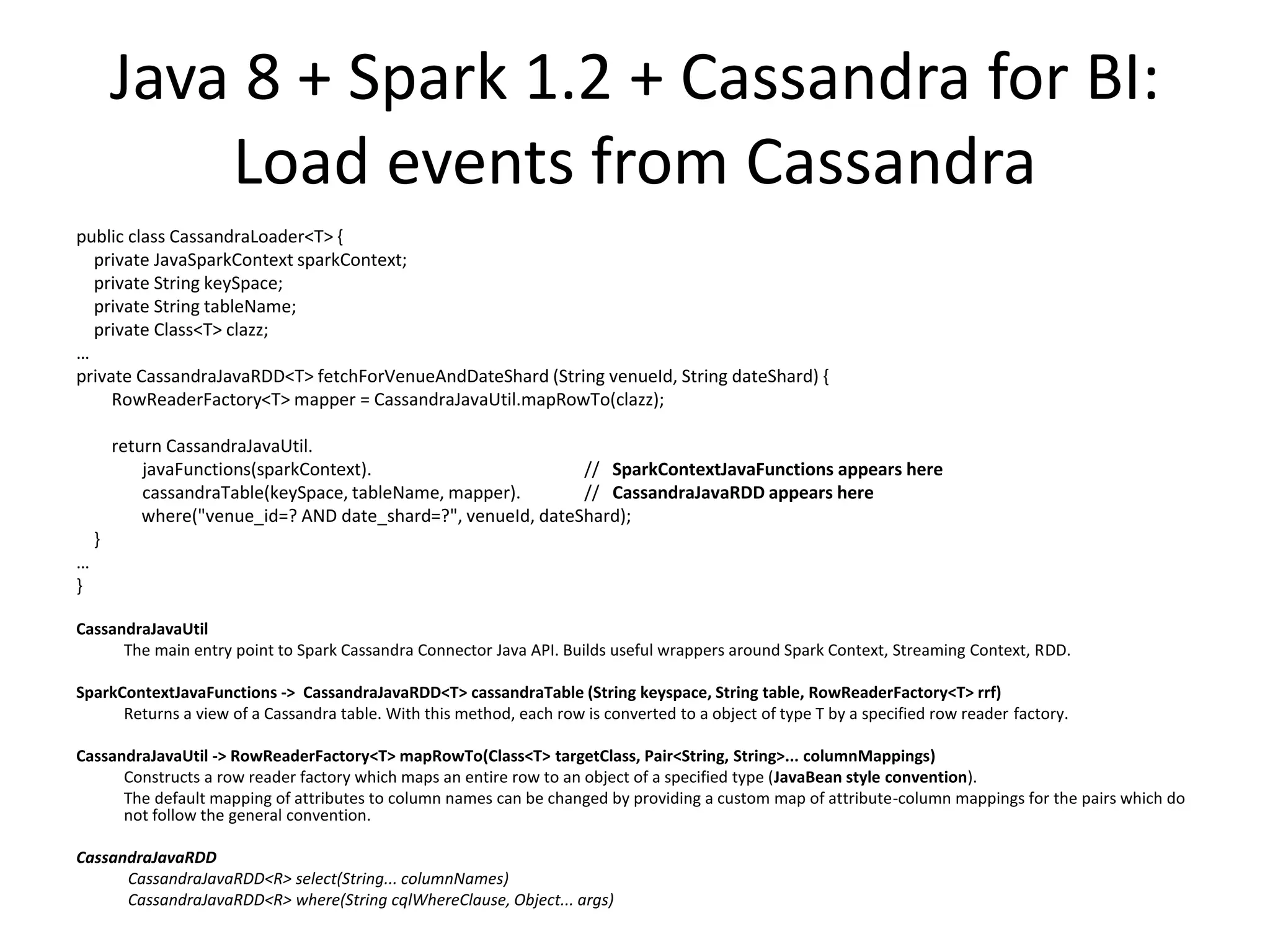

11. Java 8 + Spark 1.2 + Cassandra for BI:
Load events from Cassandra
public class CassandraLoader<T> {
private JavaSparkContext sparkContext;
private String keySpace;
private String tableName;
private Class<T> clazz;
…
private CassandraJavaRDD<T> fetchForVenueAndDateShard (String venueId, String dateShard) {
RowReaderFactory<T> mapper = CassandraJavaUtil.mapRowTo(clazz);
return CassandraJavaUtil.
javaFunctions(sparkContext). // SparkContextJavaFunctions appears here
cassandraTable(keySpace, tableName, mapper). // CassandraJavaRDD appears here
where("venue_id=? AND date_shard=?", venueId, dateShard);
}
…
}
CassandraJavaUtil
The main entry point to Spark Cassandra Connector Java API. Builds useful wrappers around Spark Context, Streaming Context, RDD.
SparkContextJavaFunctions -> CassandraJavaRDD<T> cassandraTable (String keyspace, String table, RowReaderFactory<T> rrf)
Returns a view of a Cassandra table. With this method, each row is converted to a object of type T by a specified row reader factory.
CassandraJavaUtil -> RowReaderFactory<T> mapRowTo(Class<T> targetClass, Pair<String, String>... columnMappings)
Constructs a row reader factory which maps an entire row to an object of a specified type (JavaBean style convention).
The default mapping of attributes to column names can be changed by providing a custom map of attribute-column mappings for the pairs which do
not follow the general convention.
CassandraJavaRDD
CassandraJavaRDD<R> select(String... columnNames)
CassandraJavaRDD<R> where(String cqlWhereClause, Object... args)

12. Java 8 + Spark 1.2 + Cassandra for BI:
Load events from Cassandra
public Map<String, JavaRDD<T>> fetchByVenue(List<String> venueIds, Date startDate, Date endDate) {
Map<String, JavaRDD<T>> result = new HashMap<>();
List<String> dateShards = ShardingUtils.generateDailyShards(startDate, endDate);
List<CassandraJavaRDD<T>> dailyRddList = new LinkedList<>();
venueIds.stream().forEach(venueId -> {
dailyRddList.clear();
dateShards.stream().forEach(dateShard -> {
CassandraJavaRDD<T> rdd = fetchForVenueAndDateShard(venueId, dateShard);
dailyRddList.add(rdd);
});
result.put(venueId, unionRddCollection(dailyRddList));
});
return result;
}
private JavaRDD<T> unionRddCollection(Collection<? extends JavaRDD<T>> rddCollection) {
JavaRDD<T> result = null;
for (JavaRDD<T> rdd : rddCollection) {
result = (result == null) ? rdd : result.union(rdd);
}
return result;
}
public JavaRDD<T> fetchAndUnion(List<String> venueIds, Date startDate, Date endDate) {
Map<String, JavaRDD<T>> data = fetchByVenue(venueIds, startDate, endDate);
return unionRddCollection(data.values());
}

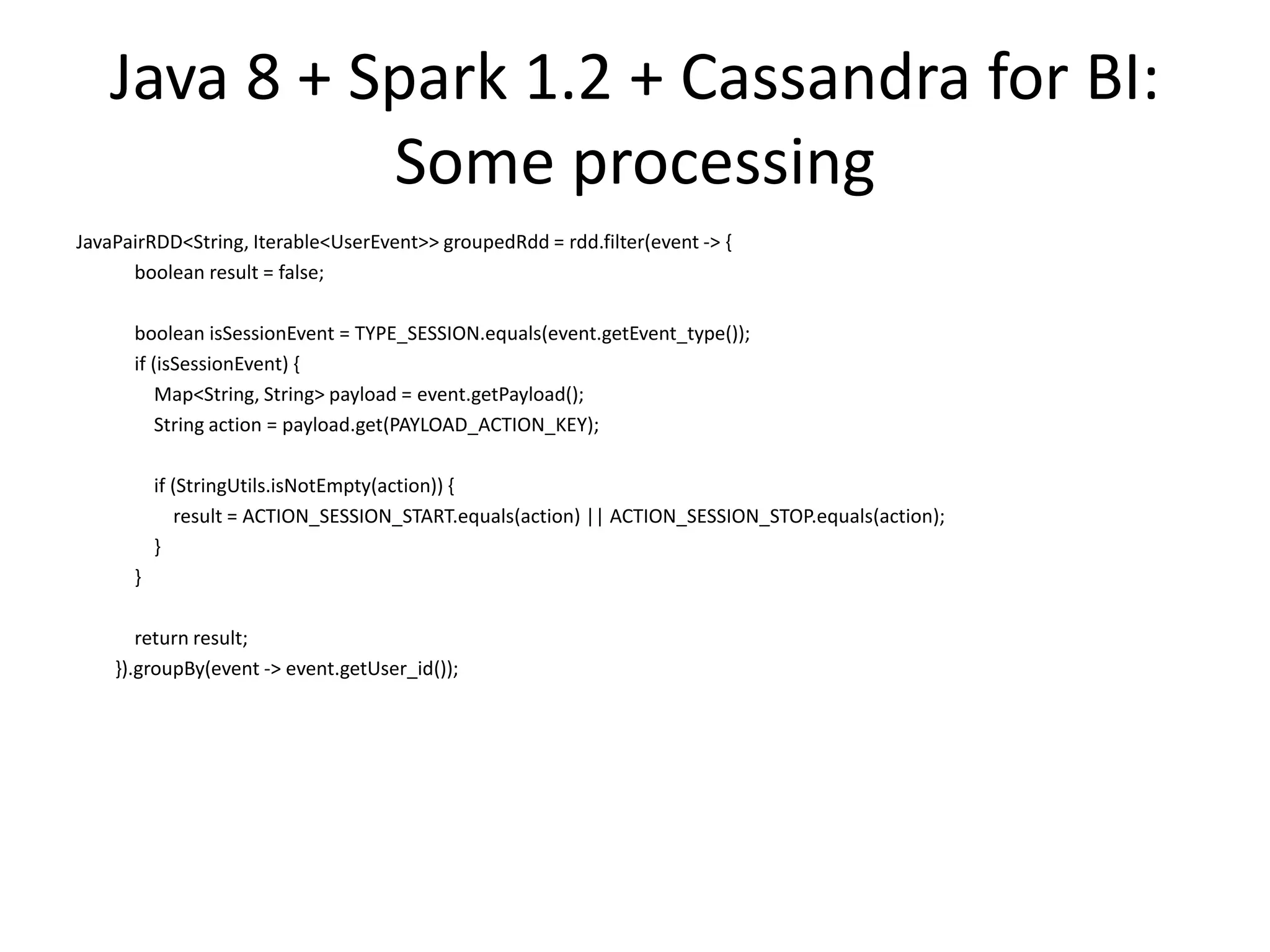

13. Java 8 + Spark 1.2 + Cassandra for BI:
Some processing
JavaPairRDD<String, Iterable<UserEvent>> groupedRdd = rdd.filter(event -> {
boolean result = false;
boolean isSessionEvent = TYPE_SESSION.equals(event.getEvent_type());
if (isSessionEvent) {
Map<String, String> payload = event.getPayload();
String action = payload.get(PAYLOAD_ACTION_KEY);
if (StringUtils.isNotEmpty(action)) {
result = ACTION_SESSION_START.equals(action) || ACTION_SESSION_STOP.equals(action);
}
}
return result;
}).groupBy(event -> event.getUser_id());

14. Java 8 + Spark 1.2 + Cassandra for BI:
Some processing
JavaRDD<SessionReport> reportsRdd = groupedRdd.map(pair -> {
String sessionId = pair._1();
Iterable<UserEvent> events = pair._2();
Date sessionStart = null;
Date sessionEnd = null;
for (UserEvent event : events) {
Date eventDate = event.getDate();
if (eventDate != null) {
String action = event.getPayload().get(PAYLOAD_ACTION_KEY);
if (ACTION_SESSION_START.equals(action)) {
if (sessionStart == null || eventDate.before(sessionStart))
sessionStart = eventDate;
}
if (ACTION_SESSION_STOP.equals(action)) {
if (sessionEnd == null || endDate.after(sessionEnd))
sessionEnd = eventDate;
}
}
}
String sessionType = ((sessionStart != null) && (sessionEnd != null)) ? SessionReport.TYPE_CLOSED : SessionReport.TYPE_ACTIVE;
return new SessionReport(sessionId, sessionType, sessionStart, sessionEnd);
});

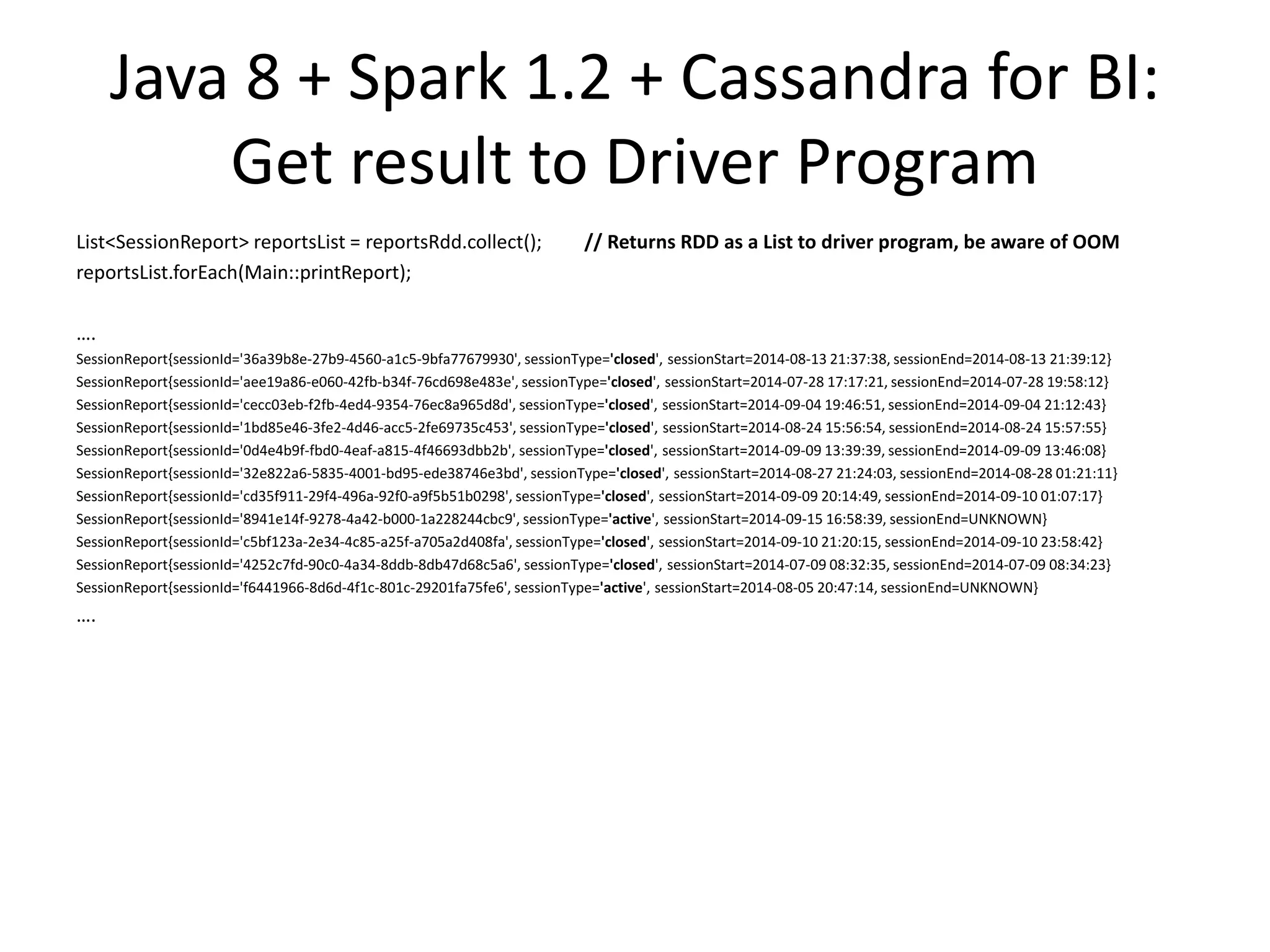

15. Java 8 + Spark 1.2 + Cassandra for BI:
Get result to Driver Program
List<SessionReport> reportsList = reportsRdd.collect(); // Returns RDD as a List to driver program, be aware of OOM
reportsList.forEach(Main::printReport);
….
SessionReport{sessionId='36a39b8e-27b9-4560-a1c5-9bfa77679930', sessionType='closed', sessionStart=2014-08-13 21:37:38, sessionEnd=2014-08-13 21:39:12}
SessionReport{sessionId='aee19a86-e060-42fb-b34f-76cd698e483e', sessionType='closed', sessionStart=2014-07-28 17:17:21, sessionEnd=2014-07-28 19:58:12}
SessionReport{sessionId='cecc03eb-f2fb-4ed4-9354-76ec8a965d8d', sessionType='closed', sessionStart=2014-09-04 19:46:51, sessionEnd=2014-09-04 21:12:43}
SessionReport{sessionId='1bd85e46-3fe2-4d46-acc5-2fe69735c453', sessionType='closed', sessionStart=2014-08-24 15:56:54, sessionEnd=2014-08-24 15:57:55}
SessionReport{sessionId='0d4e4b9f-fbd0-4eaf-a815-4f46693dbb2b', sessionType='closed', sessionStart=2014-09-09 13:39:39, sessionEnd=2014-09-09 13:46:08}
SessionReport{sessionId='32e822a6-5835-4001-bd95-ede38746e3bd', sessionType='closed', sessionStart=2014-08-27 21:24:03, sessionEnd=2014-08-28 01:21:11}
SessionReport{sessionId='cd35f911-29f4-496a-92f0-a9f5b51b0298', sessionType='closed', sessionStart=2014-09-09 20:14:49, sessionEnd=2014-09-10 01:07:17}
SessionReport{sessionId='8941e14f-9278-4a42-b000-1a228244cbc9', sessionType='active', sessionStart=2014-09-15 16:58:39, sessionEnd=UNKNOWN}
SessionReport{sessionId='c5bf123a-2e34-4c85-a25f-a705a2d408fa', sessionType='closed', sessionStart=2014-09-10 21:20:15, sessionEnd=2014-09-10 23:58:42}
SessionReport{sessionId='4252c7fd-90c0-4a34-8ddb-8db47d68c5a6', sessionType='closed', sessionStart=2014-07-09 08:32:35, sessionEnd=2014-07-09 08:34:23}
SessionReport{sessionId='f6441966-8d6d-4f1c-801c-29201fa75fe6', sessionType='active', sessionStart=2014-08-05 20:47:14, sessionEnd=UNKNOWN}
….

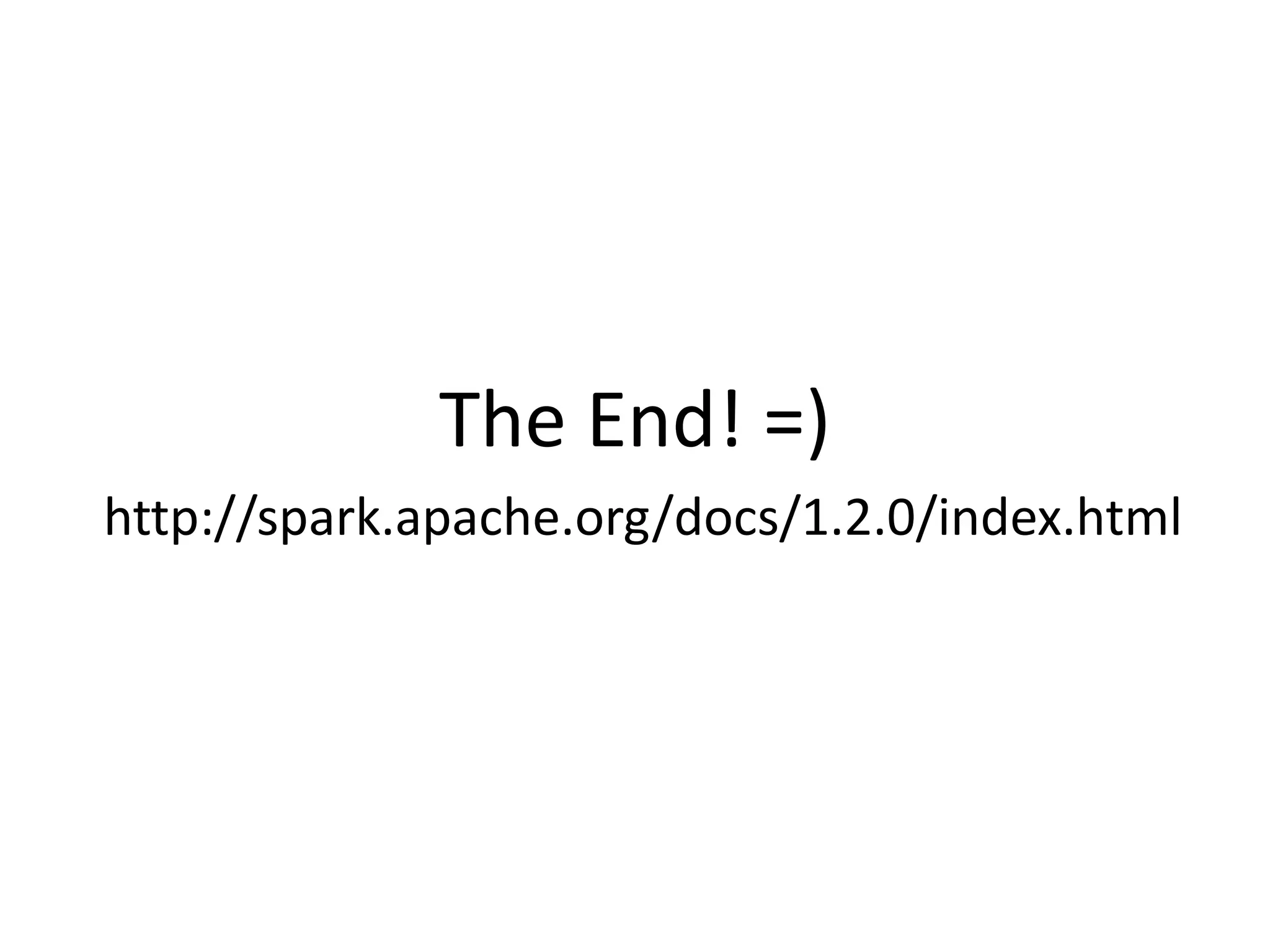

16. The End! =)
http://spark.apache.org/docs/1.2.0/index.html
