1. Apache Spark
The next Generation Cluster Computing
Ivan Lozić, 04/25/2017

2. Ivan Lozić, software engineer & entrepreneur
Scala & Spark, C#, Node.js, Swift
Web page: www.deegloo.com
E-Mail: ilozic@gmail.com
LinkedIn: https://www.linkedin.com/in/ilozic/
Zagreb, Croatia

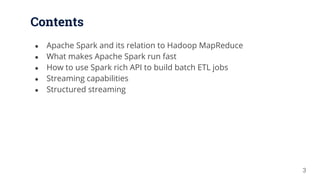

3. Contents
● Apache Spark and its relation to Hadoop MapReduce
● What makes Apache Spark run fast
● How to use Spark rich API to build batch ETL jobs
● Streaming capabilities
● Structured streaming
3

4. Apache Hadoop
44

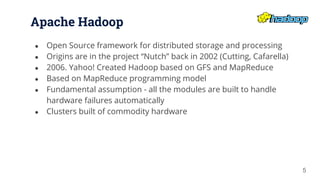

5. Apache Hadoop
● Open Source framework for distributed storage and processing
● Origins are in the project “Nutch” back in 2002 (Cutting, Cafarella)
● 2006. Yahoo! Created Hadoop based on GFS and MapReduce
● Based on MapReduce programming model
● Fundamental assumption - all the modules are built to handle
hardware failures automatically
● Clusters built of commodity hardware
5

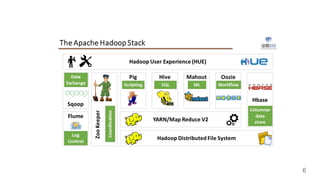

6. 6

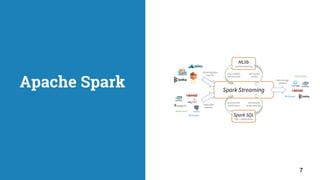

7. Apache Spark
77

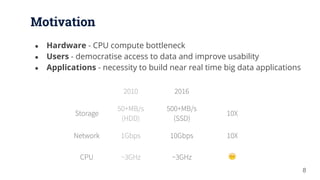

8. Motivation
● Hardware - CPU compute bottleneck
● Users - democratise access to data and improve usability
● Applications - necessity to build near real time big data applications
8

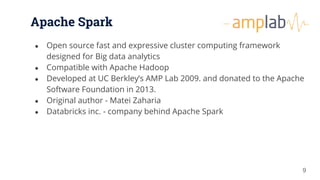

9. Apache Spark
● Open source fast and expressive cluster computing framework
designed for Big data analytics
● Compatible with Apache Hadoop
● Developed at UC Berkley’s AMP Lab 2009. and donated to the Apache
Software Foundation in 2013.
● Original author - Matei Zaharia
● Databricks inc. - company behind Apache Spark
9

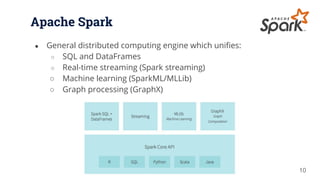

10. Apache Spark
● General distributed computing engine which unifies:
○ SQL and DataFrames
○ Real-time streaming (Spark streaming)
○ Machine learning (SparkML/MLLib)
○ Graph processing (GraphX)
10

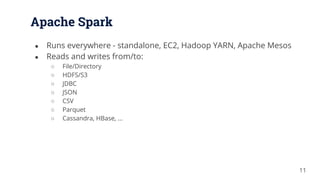

11. Apache Spark
● Runs everywhere - standalone, EC2, Hadoop YARN, Apache Mesos
● Reads and writes from/to:
○ File/Directory
○ HDFS/S3
○ JDBC
○ JSON
○ CSV
○ Parquet
○ Cassandra, HBase, ...
11

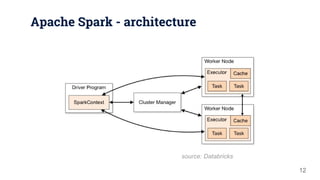

12. Apache Spark - architecture
12
source: Databricks

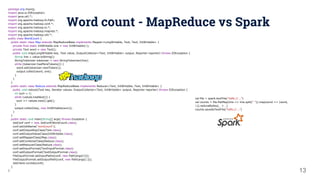

13. Word count - MapReduce vs Spark
13
package org.myorg;
import java.io.IOException;
import java.util.*;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.conf.*;
import org.apache.hadoop.io.*;
import org.apache.hadoop.mapred.*;
import org.apache.hadoop.util.*;
public class WordCount {
public static class Map extends MapReduceBase implements Mapper<LongWritable, Text, Text, IntWritable> {
private final static IntWritable one = new IntWritable(1);
private Text word = new Text();
public void map(LongWritable key, Text value, OutputCollector<Text, IntWritable> output, Reporter reporter) throws IOException {
String line = value.toString();
StringTokenizer tokenizer = new StringTokenizer(line);
while (tokenizer.hasMoreTokens()) {
word.set(tokenizer.nextToken());
output.collect(word, one);
}
}
}
public static class Reduce extends MapReduceBase implements Reducer<Text, IntWritable, Text, IntWritable> {
public void reduce(Text key, Iterator values, OutputCollector<Text, IntWritable> output, Reporter reporter) throws IOException {
int sum = 0;
while (values.hasNext()) {
sum += values.next().get();
}
output.collect(key, new IntWritable(sum));
}
}
public static void main(String[] args) throws Exception {
JobConf conf = new JobConf(WordCount.class);
conf.setJobName("wordcount");
conf.setOutputKeyClass(Text.class);
conf.setOutputValueClass(IntWritable.class);
conf.setMapperClass(Map.class);
conf.setCombinerClass(Reduce.class);
conf.setReducerClass(Reduce.class);
conf.setInputFormat(TextInputFormat.class);
conf.setOutputFormat(TextOutputFormat.class);
FileInputFormat.setInputPaths(conf, new Path(args[0]));
FileOutputFormat.setOutputPath(conf, new Path(args[1]));
JobClient.runJob(conf);
}
}
val file = spark.textFile("hdfs://...")
val counts = file.flatMap(line => line.split(" ")).map(word => (word,
1)).reduceByKey(_ + _)
counts.saveAsTextFile("hdfs://...")

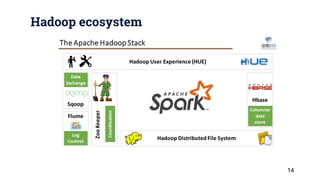

14. Hadoop ecosystem
14

15. Who uses Apache Spark?
15

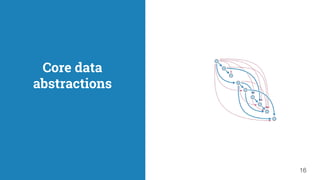

16. Core data
abstractions
1616

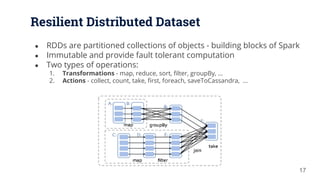

17. Resilient Distributed Dataset
● RDDs are partitioned collections of objects - building blocks of Spark
● Immutable and provide fault tolerant computation
● Two types of operations:
1. Transformations - map, reduce, sort, filter, groupBy, ...
2. Actions - collect, count, take, first, foreach, saveToCassandra, ...
17

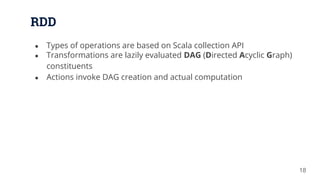

18. RDD
● Types of operations are based on Scala collection API
● Transformations are lazily evaluated DAG (Directed Acyclic Graph)
constituents
● Actions invoke DAG creation and actual computation
18

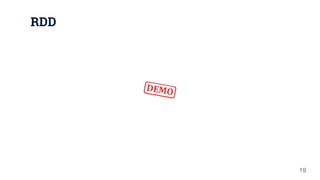

19. RDD
19

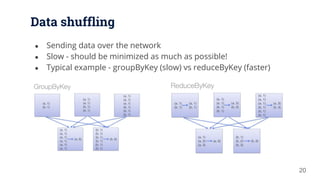

20. Data shuffling
● Sending data over the network
● Slow - should be minimized as much as possible!
● Typical example - groupByKey (slow) vs reduceByKey (faster)
20

21. RDD - the problems
● They express the how better than what
● Operations and data type in clojure are black box for Spark - Spark
cannot make optimizations
21
val category = spark.sparkContext.textFile("/data/SFPD_Incidents_2003.csv")
.map(line => line.split(byCommaButNotUnderQuotes)(1))
.filter(cat => cat != "Category")

22. Structure
(Structured APIs)
22

23. SparkSQL
23
● Originally named “Shark” - to enable HiveQL queries
● As of Spark 2.0 - SQL 2003 support
category.toDF("categoryName").createOrReplaceTempView("category")
spark.sql("""
SELECT categoryName, count(*) AS Count
FROM category
GROUP BY categoryName
ORDER BY 2 DESC
""").show(5)

24. DataFrame
● Higher level abstraction (DSL) to manipulate with data
● Distributed collection of rows organized into named columns
● Modeled after Pandas DataFrame
● DataFrame has schema (something RDD is missing)
24
val categoryDF = category.toDF("categoryName")
categoryDF
.groupBy("categoryName")
.count()
.orderBy($"Count".desc)
.show(5)

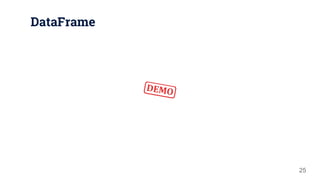

25. DataFrame
25

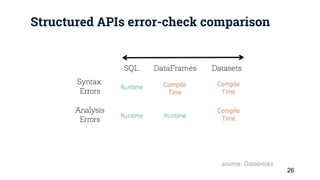

26. Structured APIs error-check comparison
26
source: Databricks

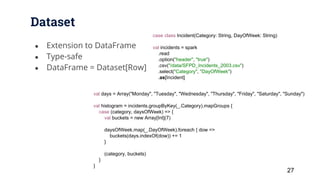

27. Dataset
● Extension to DataFrame
● Type-safe
● DataFrame = Dataset[Row]
27
case class Incident(Category: String, DayOfWeek: String)
val incidents = spark
.read
.option("header", "true")
.csv("/data/SFPD_Incidents_2003.csv")
.select("Category", "DayOfWeek")
.as[Incident]
val days = Array("Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday", "Sunday")
val histogram = incidents.groupByKey(_.Category).mapGroups {
case (category, daysOfWeek) => {
val buckets = new Array[Int](7)
daysOfWeek.map(_.DayOfWeek).foreach { dow =>
buckets(days.indexOf(dow)) += 1
}
(category, buckets)
}
}

28. What makes
Spark fast?
2828

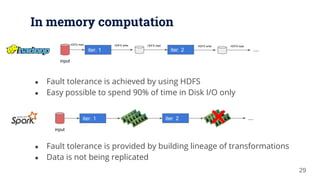

29. In memory computation
● Fault tolerance is achieved by using HDFS
● Easy possible to spend 90% of time in Disk I/O only
29
iter. 1
input
iter. 2 ...
HDFS read HDFS write HDFS read HDFS write HDFS read
● Fault tolerance is provided by building lineage of transformations
● Data is not being replicated
iter. 1
input
iter. 2 ...

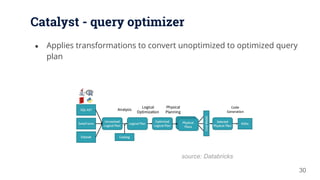

30. Catalyst - query optimizer
30
source: Databricks
● Applies transformations to convert unoptimized to optimized query
plan

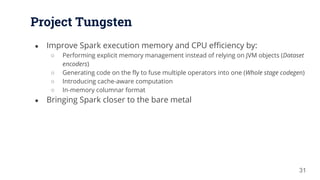

31. Project Tungsten
● Improve Spark execution memory and CPU efficiency by:
○ Performing explicit memory management instead of relying on JVM objects (Dataset
encoders)
○ Generating code on the fly to fuse multiple operators into one (Whole stage codegen)
○ Introducing cache-aware computation
○ In-memory columnar format
● Bringing Spark closer to the bare metal
31

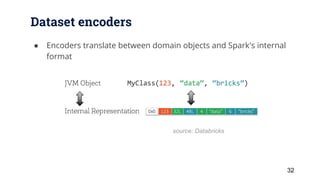

32. Dataset encoders
● Encoders translate between domain objects and Spark's internal
format
32
source: Databricks

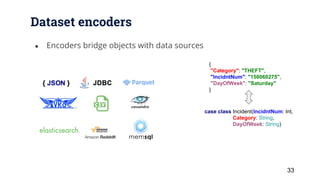

33. Dataset encoders
● Encoders bridge objects with data sources
33
{
"Category": "THEFT",
"IncidntNum": "150060275",
"DayOfWeek": "Saturday"
}
case class Incident(IncidntNum: Int,
Category: String,
DayOfWeek: String)

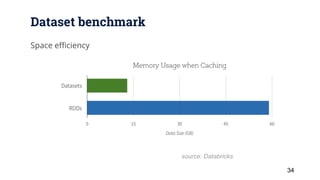

34. Dataset benchmark
Space efficiency
34
source: Databricks

35. Dataset benchmark
Serialization/deserialization performance
35
source: Databricks

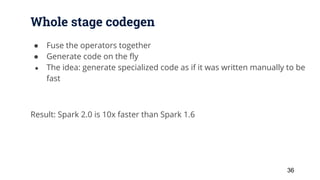

36. Whole stage codegen
● Fuse the operators together
● Generate code on the fly
● The idea: generate specialized code as if it was written manually to be
fast
Result: Spark 2.0 is 10x faster than Spark 1.6
36

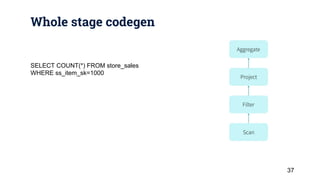

37. Whole stage codegen
37
SELECT COUNT(*) FROM store_sales
WHERE ss_item_sk=1000

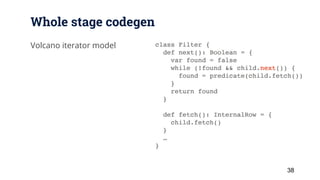

38. Whole stage codegen
Volcano iterator model
38

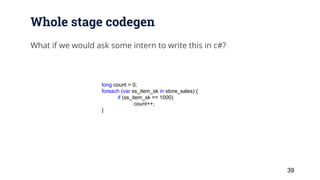

39. Whole stage codegen
What if we would ask some intern to write this in c#?
39
long count = 0;
foreach (var ss_item_sk in store_sales) {
if (ss_item_sk == 1000)
count++;
}

40. Volcano vs Intern
40
Volcano
Intern
source: Databricks

41. Volcano vs Intern
41

42. Developing ETL
with Spark
4242

43. Choose your favorite IDE
43

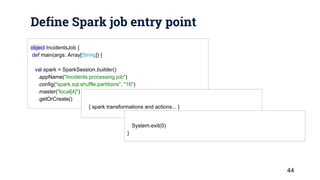

44. Define Spark job entry point
44
object IncidentsJob {
def main(args: Array[String]) {
val spark = SparkSession.builder()
.appName("Incidents processing job")
.config("spark.sql.shuffle.partitions", "16")
.master("local[4]")
.getOrCreate()
{ spark transformations and actions... }
System.exit(0)
}

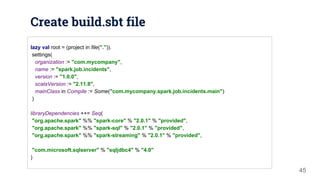

45. Create build.sbt file
45
lazy val root = (project in file(".")).
settings(
organization := "com.mycompany",
name := "spark.job.incidents",
version := "1.0.0",
scalaVersion := "2.11.8",
mainClass in Compile := Some("com.mycompany.spark.job.incidents.main")
)
libraryDependencies ++= Seq(
"org.apache.spark" %% "spark-core" % "2.0.1" % "provided",
"org.apache.spark" %% "spark-sql" % "2.0.1" % "provided",
"org.apache.spark" %% "spark-streaming" % "2.0.1" % "provided",
"com.microsoft.sqlserver" % "sqljdbc4" % "4.0"
)

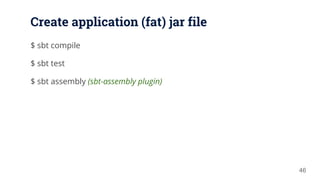

46. Create application (fat) jar file
$ sbt compile
$ sbt test
$ sbt assembly (sbt-assembly plugin)
46

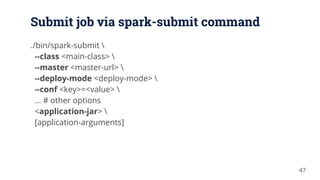

47. Submit job via spark-submit command
./bin/spark-submit
--class <main-class>
--master <master-url>
--deploy-mode <deploy-mode>
--conf <key>=<value>
... # other options
<application-jar>
[application-arguments]
47

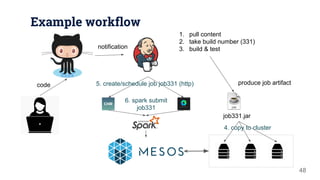

48. Example workflow
48
code
1. pull content
2. take build number (331)
3. build & test
4. copy to cluster
job331.jar
produce job artifact
notification
5. create/schedule job job331 (http)
6. spark submit
job331

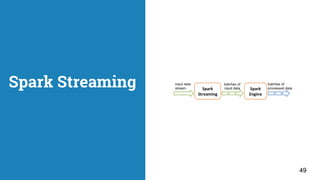

49. Spark Streaming
4949

50. Apache Spark streaming
● Scalable fault tolerant streaming system
● Receivers receive data streams and chop them into batches
● Spark processes batches and pushes out the result
50
● Input: Files, Socket, Kafka, Flume, Kinesis...

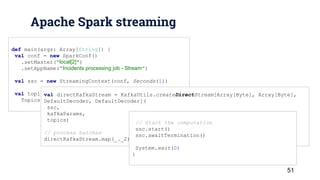

51. Apache Spark streaming
51
def main(args: Array[String]) {
val conf = new SparkConf()
.setMaster("local[2]")
.setAppName("Incidents processing job - Stream")
val ssc = new StreamingContext(conf, Seconds(1))
val topics = Set(
Topics.Incident,
val directKafkaStream = KafkaUtils.createDirectStream[Array[Byte], Array[Byte],
DefaultDecoder, DefaultDecoder](
ssc,
kafkaParams,
topics)
// process batches
directKafkaStream.map(_._2).flatMap(_.split(“ “))...
// Start the computation
ssc.start()
ssc.awaitTermination()
System.exit(0)
}

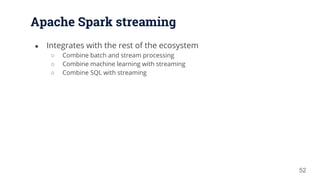

52. Apache Spark streaming
● Integrates with the rest of the ecosystem
○ Combine batch and stream processing
○ Combine machine learning with streaming
○ Combine SQL with streaming
52

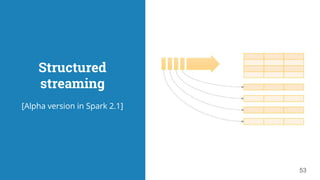

53. Structured
streaming
53
[Alpha version in Spark 2.1]
53

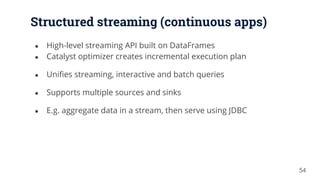

54. Structured streaming (continuous apps)
● High-level streaming API built on DataFrames
● Catalyst optimizer creates incremental execution plan
● Unifies streaming, interactive and batch queries
● Supports multiple sources and sinks
● E.g. aggregate data in a stream, then serve using JDBC
54

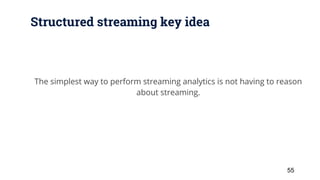

55. Structured streaming key idea
The simplest way to perform streaming analytics is not having to reason
about streaming.
55

56. Structured streaming
56

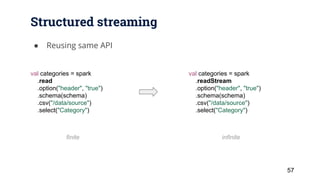

57. Structured streaming
● Reusing same API
57
val categories = spark
.read
.option("header", "true")
.schema(schema)
.csv("/data/source")
.select("Category")
val categories = spark
.readStream
.option("header", "true")
.schema(schema)
.csv("/data/source")
.select("Category")
finite infinite

58. Structured streaming
● Reusing same API
58
categories
.write
.format("parquet")
.save("/data/warehouse/categories.parquet")
categories
.writeStream
.format("parquet")
.start("/data/warehouse/categories.parquet")
finite infinite

59. Structured streaming
59

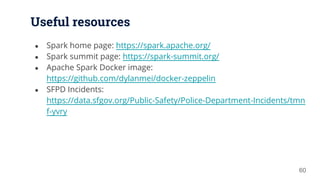

60. Useful resources
● Spark home page: https://spark.apache.org/
● Spark summit page: https://spark-summit.org/
● Apache Spark Docker image:
https://github.com/dylanmei/docker-zeppelin
● SFPD Incidents:
https://data.sfgov.org/Public-Safety/Police-Department-Incidents/tmn
f-yvry
60

61. Thank you for the attention!
61

62. References
62
● Michael Armbrust - STRUCTURING SPARK: DATAFRAMES, DATASETS AND STREAMING -
https://spark-summit.org/2016/events/structuring-spark-dataframes-datasets-and-streaming/
● Apache Parquet - https://parquet.apache.org/
● Spark Performance: What's Next -
https://spark-summit.org/east-2016/events/spark-performance-whats-next/
● Avoid groupByKey -
https://databricks.gitbooks.io/databricks-spark-knowledge-base/content/best_practices/prefer_reduceby
key_over_groupbykey.html
