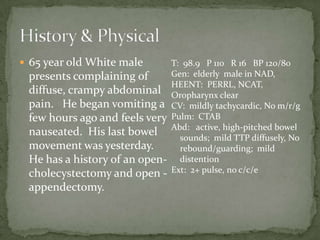

2.  65 year old White male
presents complaining of
diffuse, crampy abdominal
pain. He began vomiting a
few hours ago and feels very
nauseated. His last bowel
movement was yesterday.
He has a history of an open-
cholecystectomy and open -
appendectomy.
T: 98.9 P 110 R 16 BP 120/80
Gen: elderly male in NAD,
HEENT: PERRL, NCAT,
Oropharynx clear
CV: mildly tachycardic, No m/r/g
Pulm: CTAB
Abd: active, high-pitched bowel
sounds; mild TTP diffusely, No
rebound/guarding; mild
distention
Ext: 2+ pulse, no c/c/e

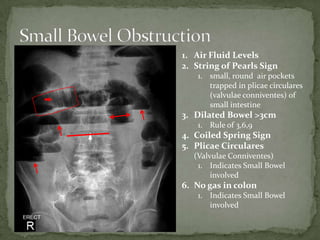

4. 1. Air Fluid Levels
2. String of Pearls Sign
1. small, round air pockets
trapped in plicae circulares
(valvulae conniventes) of
small intestine
3. Dilated Bowel >3cm
1. Rule of 3,6,9
4. Coiled Spring Sign
5. Plicae Circulares
(Valvulae Conniventes)
1. Indicates Small Bowel
involved
6. No gas in colon
1. Indicates Small Bowel
involved

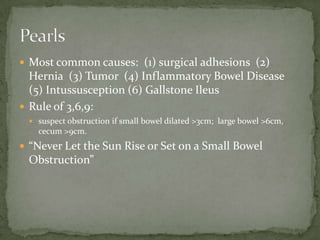

5.  Most common causes: (1) surgical adhesions (2)
Hernia (3) Tumor (4) Inflammatory Bowel Disease
(5) Intussusception (6) Gallstone Ileus
 Rule of 3,6,9:
 suspect obstruction if small bowel dilated >3cm; large bowel >6cm,
cecum >9cm.
 “Never Let the Sun Rise or Set on a Small Bowel
Obstruction”

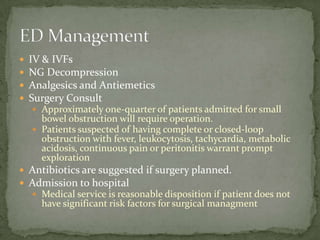

6.  IV & IVFs
 NG Decompression
 Analgesics and Antiemetics
 Surgery Consult
 Approximately one-quarter of patients admitted for small
bowel obstruction will require operation.
 Patients suspected of having complete or closed-loop
obstruction with fever, leukocytosis, tachycardia, metabolic
acidosis, continuous pain or peritonitis warrant prompt
exploration
 Antibiotics are suggested if surgery planned.
 Admission to hospital
 Medical service is reasonable disposition if patient does not
have significant risk factors for surgical managment

7.  String of Pearls Sign = obstruction
 Small Bowel: air pockets trapped in valvulae of small intestine, smaller,
rounder
 Large Bowel: air pockets trapped in haustra; larger, and have flat
underside
Large
Bowel
Small
Bowel

8. • Coiled Spring Sign:
•Dilated coils of small bowel
that appear stacked
•Indicates SBO
• Slit sign:
• Caused by small amounts
of air caught in the valvulae
of fluid-filled bowel that
appear as “slits of air”
• Similar to string of pearls
sign
• Indicates SBO

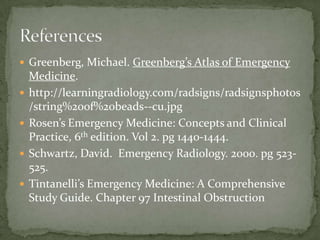

9.  Greenberg, Michael. Greenberg’s Atlas of Emergency
Medicine.
 http://learningradiology.com/radsigns/radsignsphotos
/string%20of%20beads--cu.jpg
 Rosen’s Emergency Medicine: Concepts and Clinical
Practice, 6th edition. Vol 2. pg 1440-1444.
 Schwartz, David. Emergency Radiology. 2000. pg 523-
525.
 Tintanelli’s Emergency Medicine: A Comprehensive
Study Guide. Chapter 97 Intestinal Obstruction
