This document discusses sample-and-hold (S/H) circuits. It explains that S/H circuits sample an analog input signal and hold its value for subsequent processing. The simplest S/H circuit uses an MOS transistor switch and hold capacitor. Switched op-amp based S/H circuits are also discussed. S/H circuits are used in applications like analog-to-digital converters and switched capacitor filters to accurately hold input values during conversion. The document covers the working, purpose, implementation and advantages/disadvantages of S/H circuits.

1. SAMPLE AND HOLD
CIRCUIT
By-
Prathamesh Kolekar

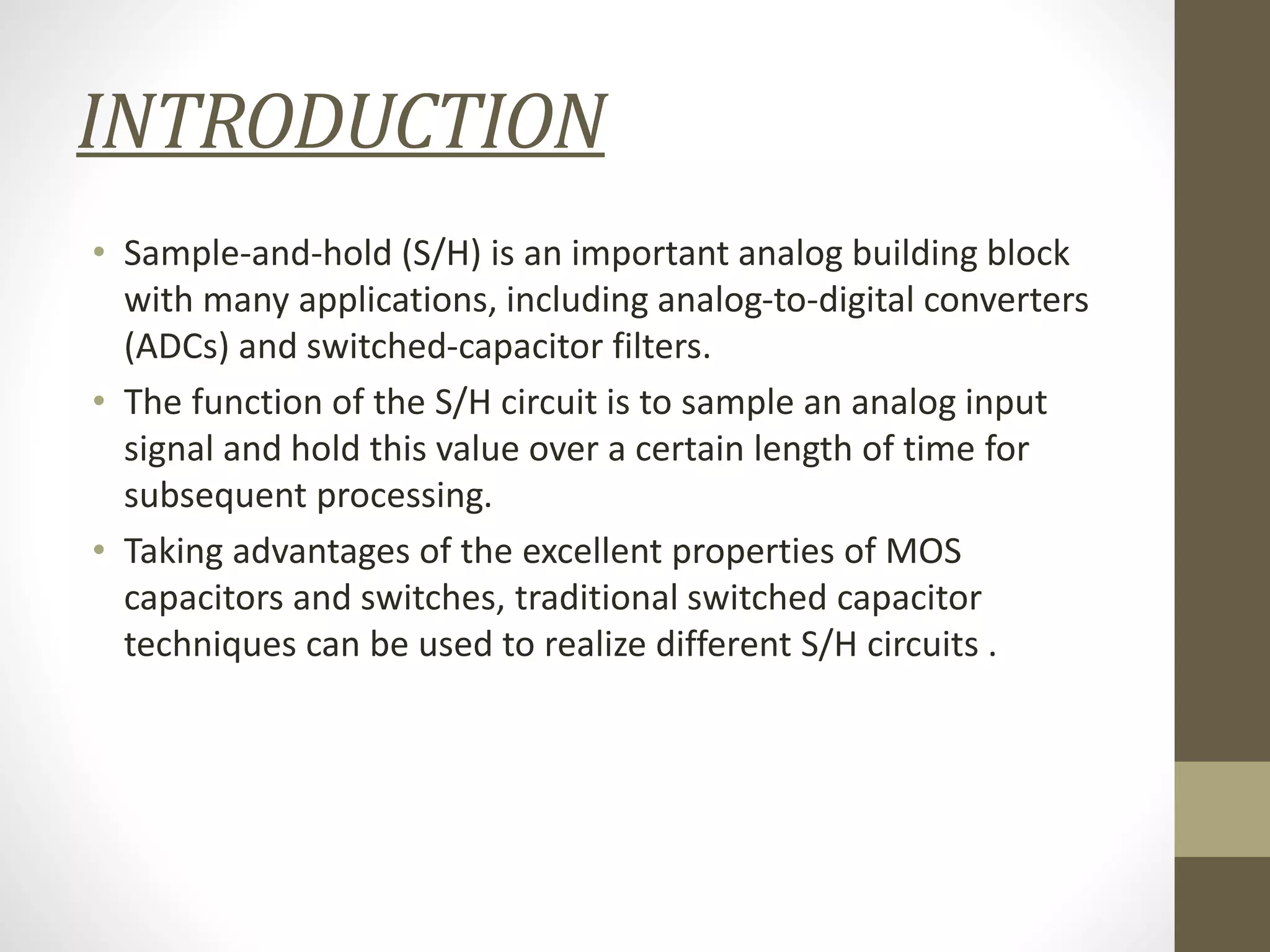

2. INTRODUCTION
• Sample-and-hold (S/H) is an important analog building block
with many applications, including analog-to-digital converters
(ADCs) and switched-capacitor filters.
• The function of the S/H circuit is to sample an analog input
signal and hold this value over a certain length of time for
subsequent processing.
• Taking advantages of the excellent properties of MOS
capacitors and switches, traditional switched capacitor
techniques can be used to realize different S/H circuits .

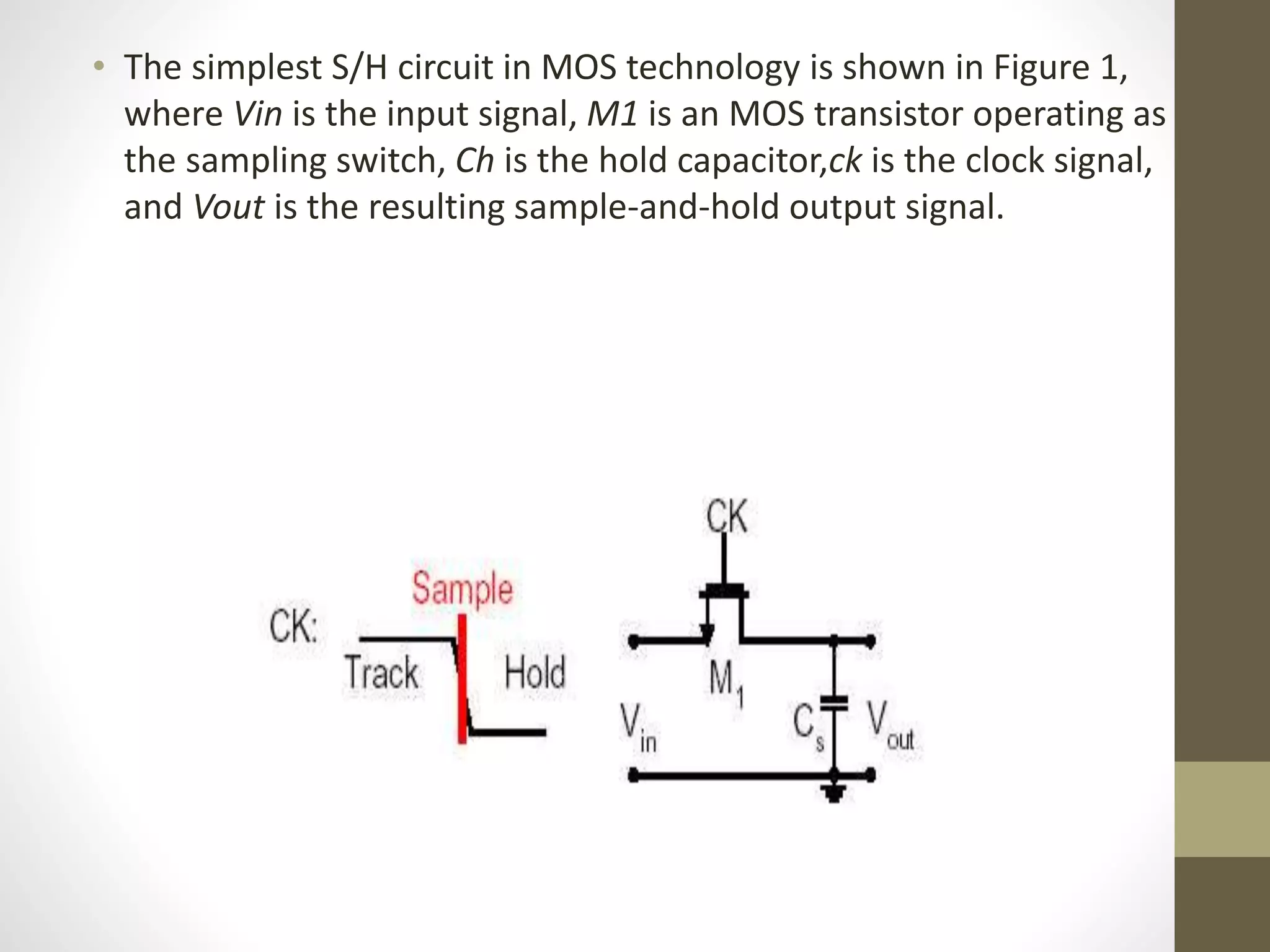

3. • The simplest S/H circuit in MOS technology is shown in Figure 1,
where Vin is the input signal, M1 is an MOS transistor operating as
the sampling switch, Ch is the hold capacitor,ck is the clock signal,
and Vout is the resulting sample-and-hold output signal.

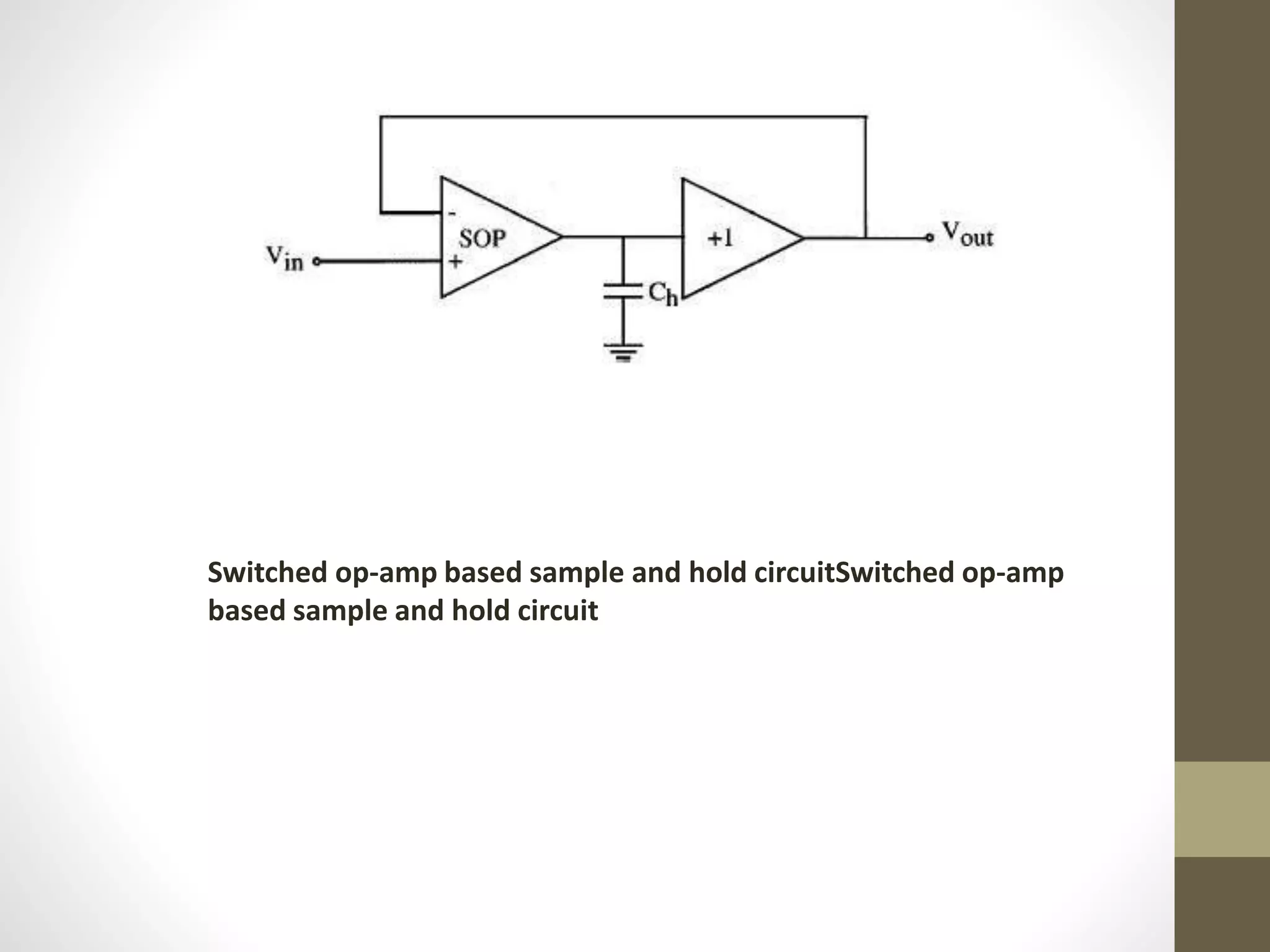

4. Switched op-amp based sample and hold circuitSwitched op-amp
based sample and hold circuit

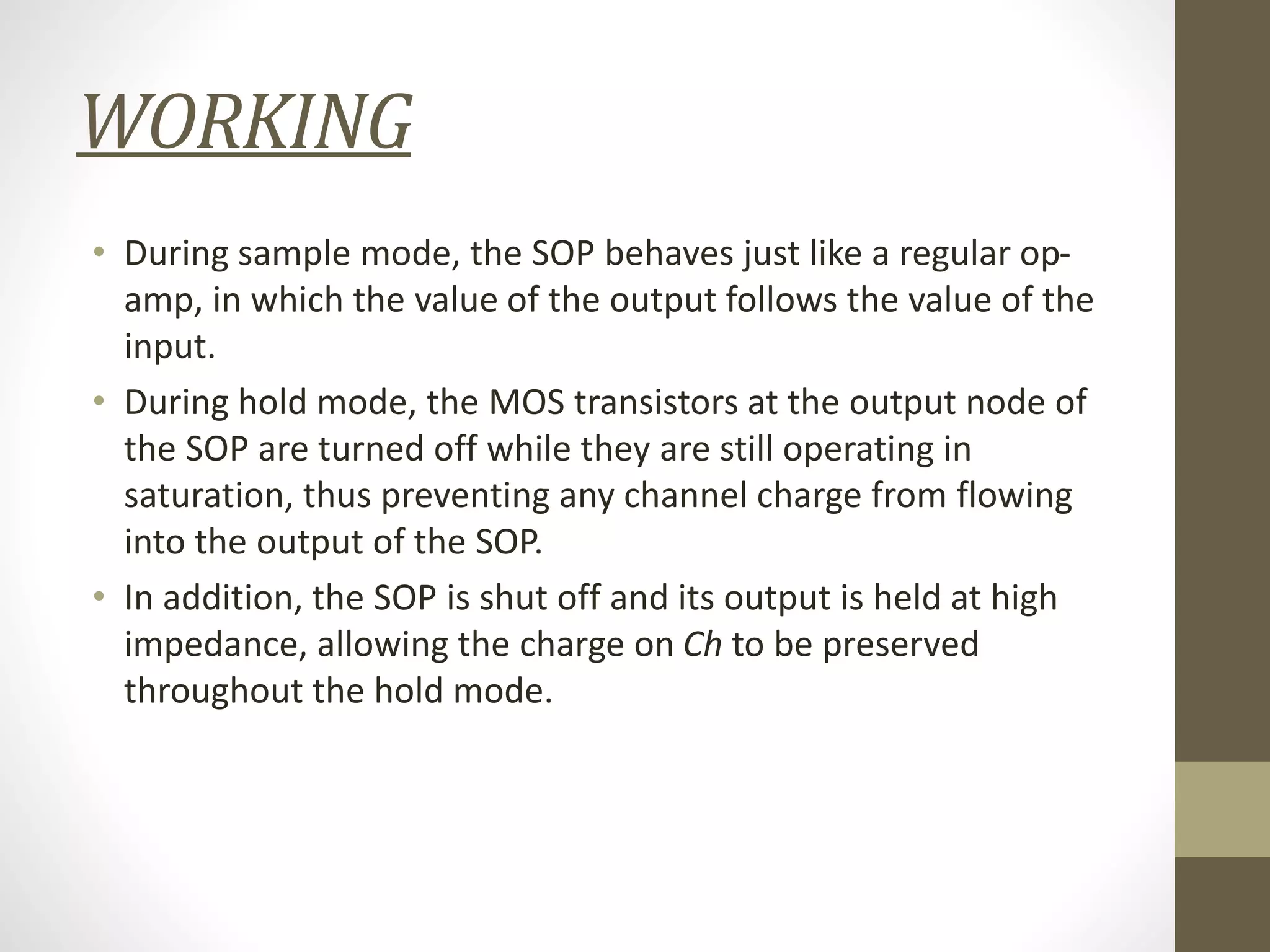

5. WORKING
• During sample mode, the SOP behaves just like a regular op-
amp, in which the value of the output follows the value of the
input.
• During hold mode, the MOS transistors at the output node of
the SOP are turned off while they are still operating in
saturation, thus preventing any channel charge from flowing
into the output of the SOP.
• In addition, the SOP is shut off and its output is held at high
impedance, allowing the charge on Ch to be preserved
throughout the hold mode.

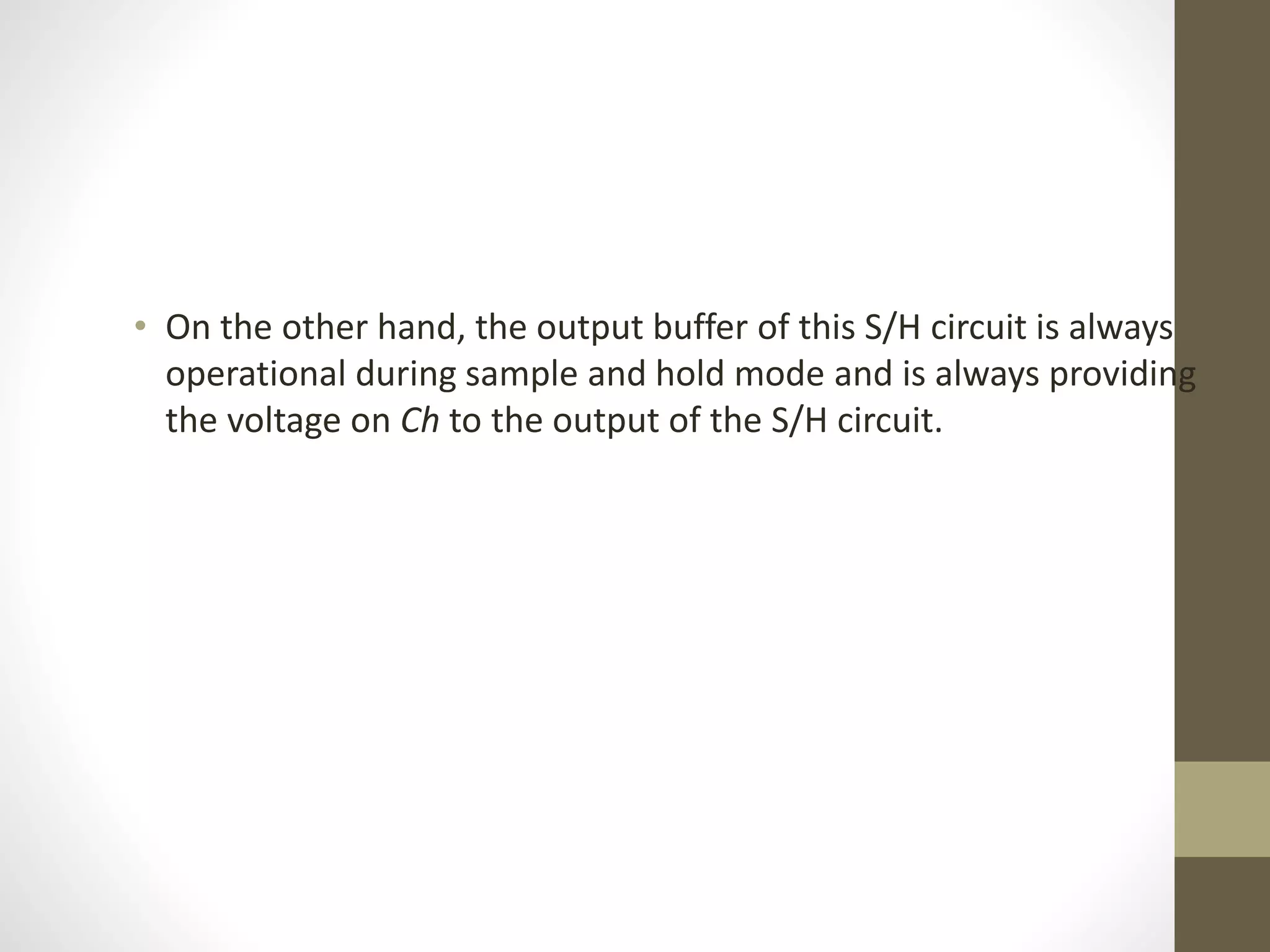

6. • On the other hand, the output buffer of this S/H circuit is always
operational during sample and hold mode and is always providing
the voltage on Ch to the output of the S/H circuit.

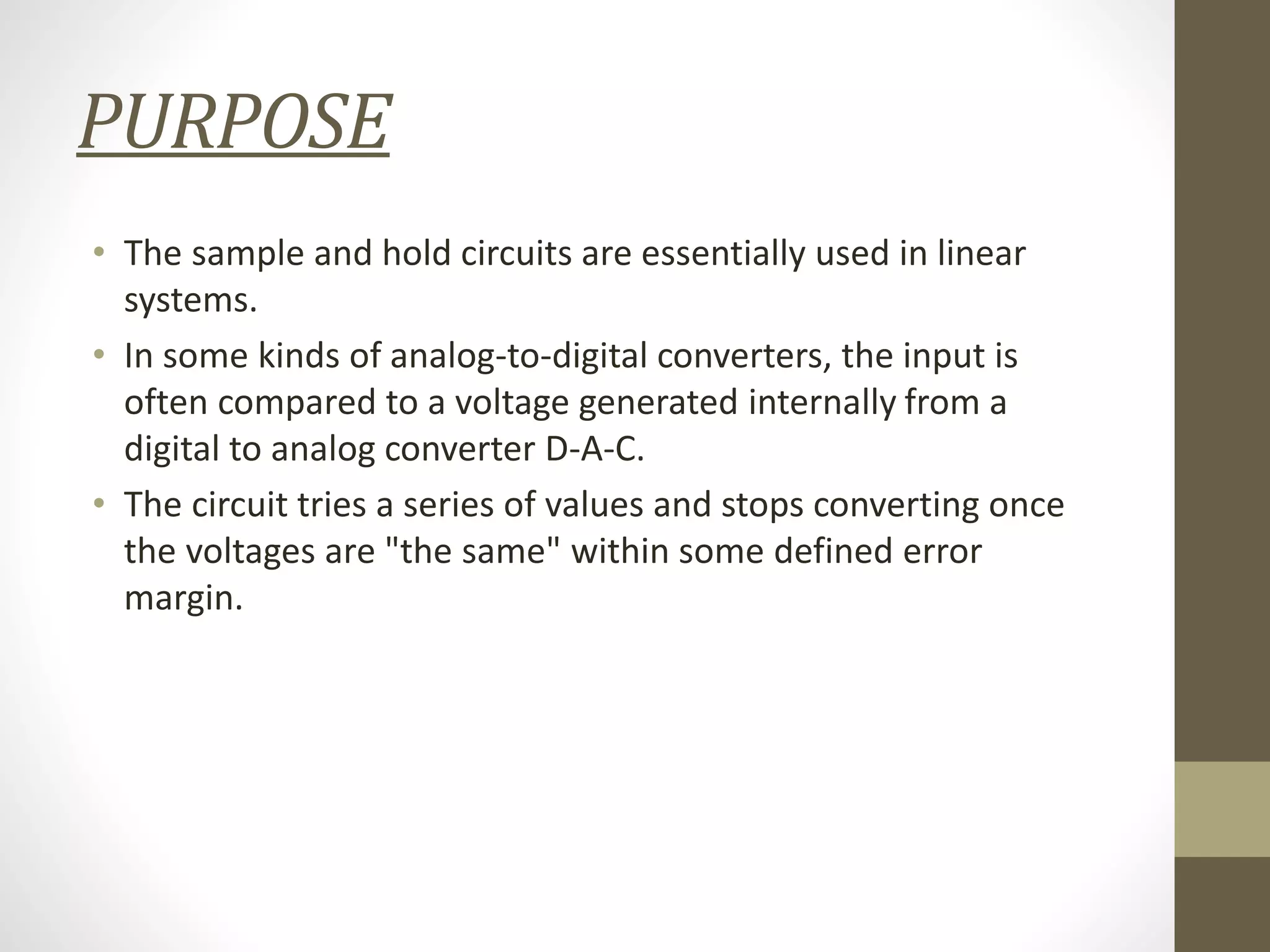

7. PURPOSE
• The sample and hold circuits are essentially used in linear
systems.
• In some kinds of analog-to-digital converters, the input is
often compared to a voltage generated internally from a
digital to analog converter D-A-C.
• The circuit tries a series of values and stops converting once
the voltages are "the same" within some defined error
margin.

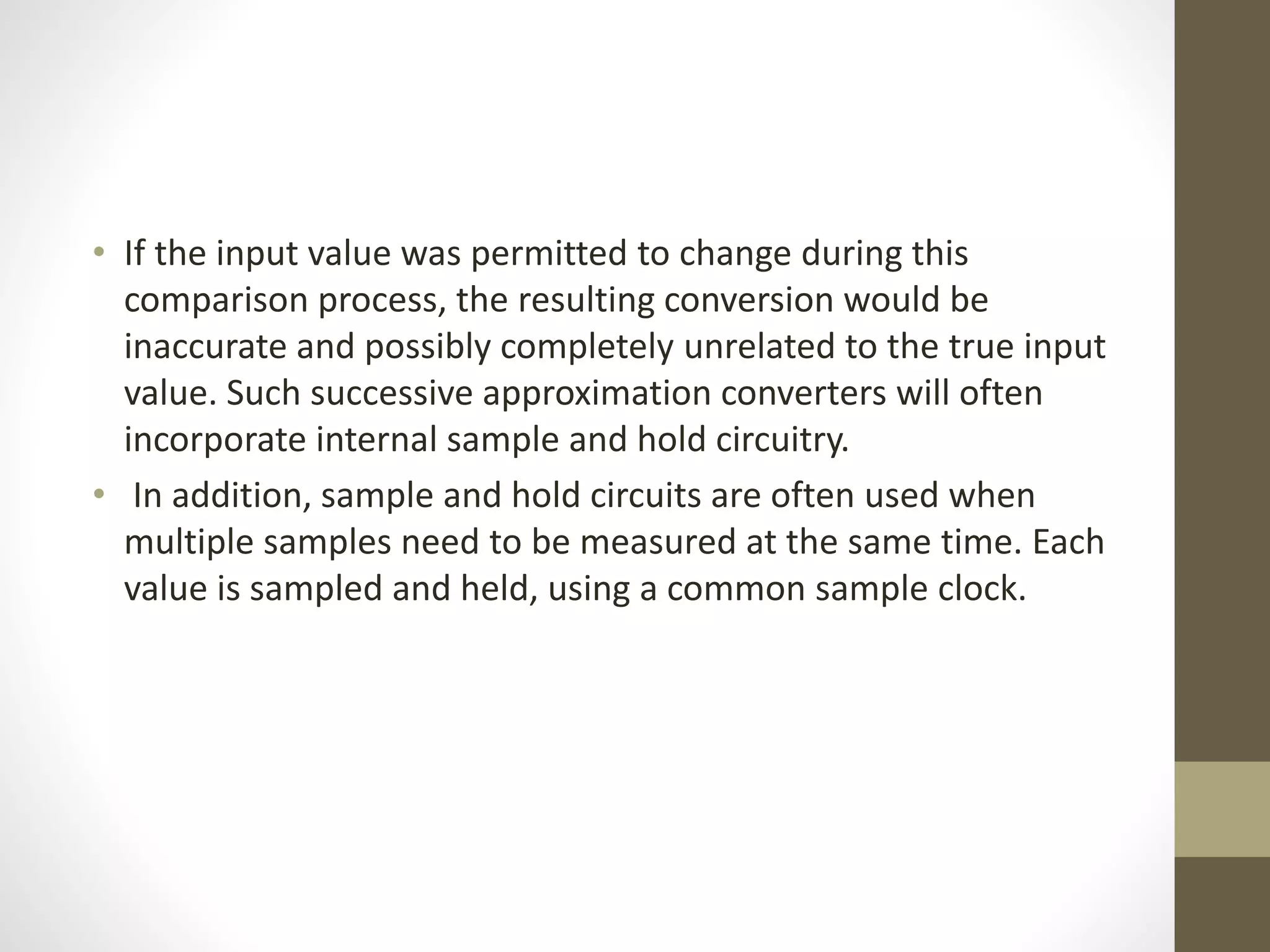

8. • If the input value was permitted to change during this
comparison process, the resulting conversion would be
inaccurate and possibly completely unrelated to the true input
value. Such successive approximation converters will often
incorporate internal sample and hold circuitry.
• In addition, sample and hold circuits are often used when
multiple samples need to be measured at the same time. Each
value is sampled and held, using a common sample clock.

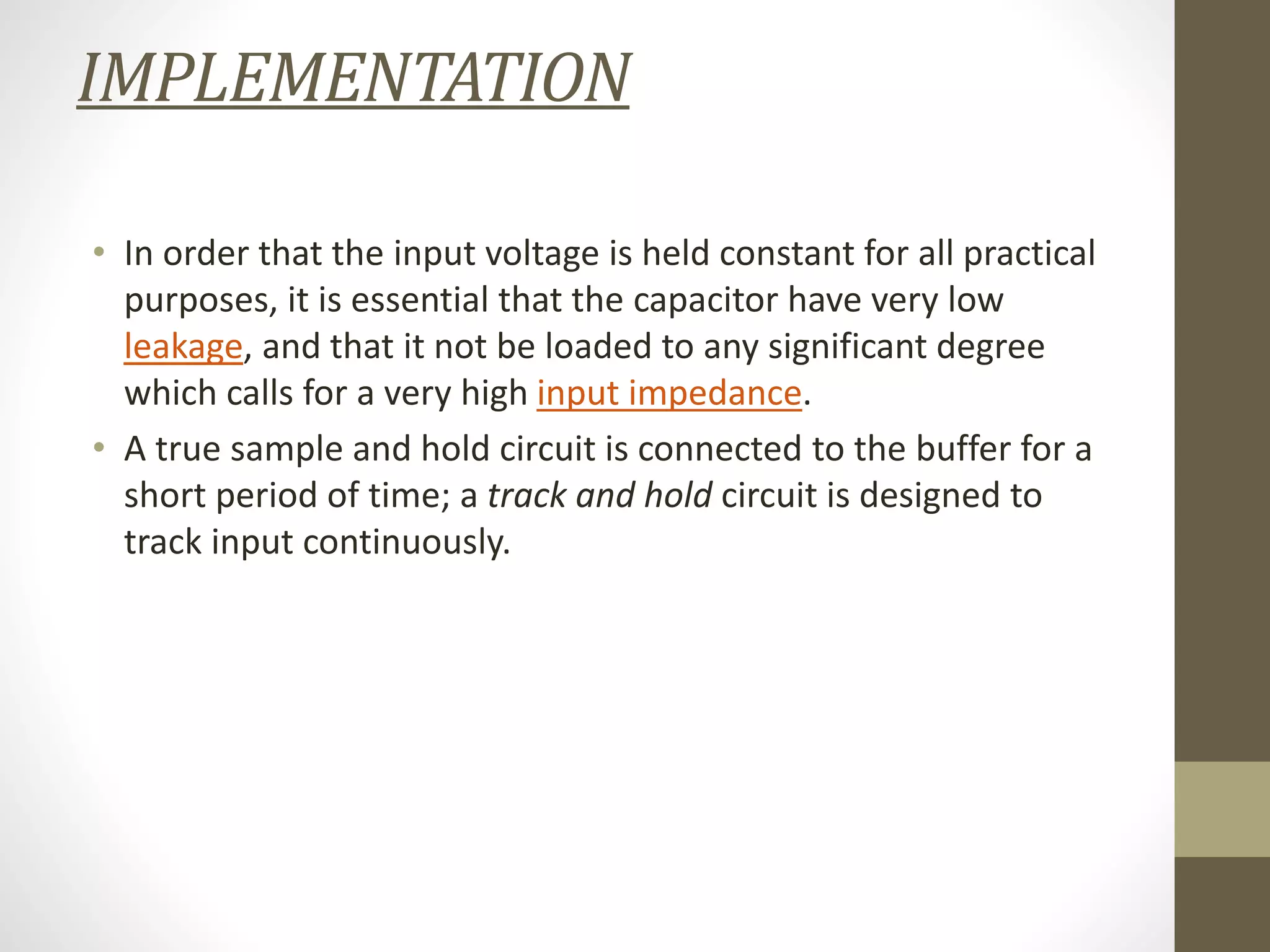

9. IMPLEMENTATION
• In order that the input voltage is held constant for all practical
purposes, it is essential that the capacitor have very low
leakage, and that it not be loaded to any significant degree
which calls for a very high input impedance.
• A true sample and hold circuit is connected to the buffer for a
short period of time; a track and hold circuit is designed to
track input continuously.

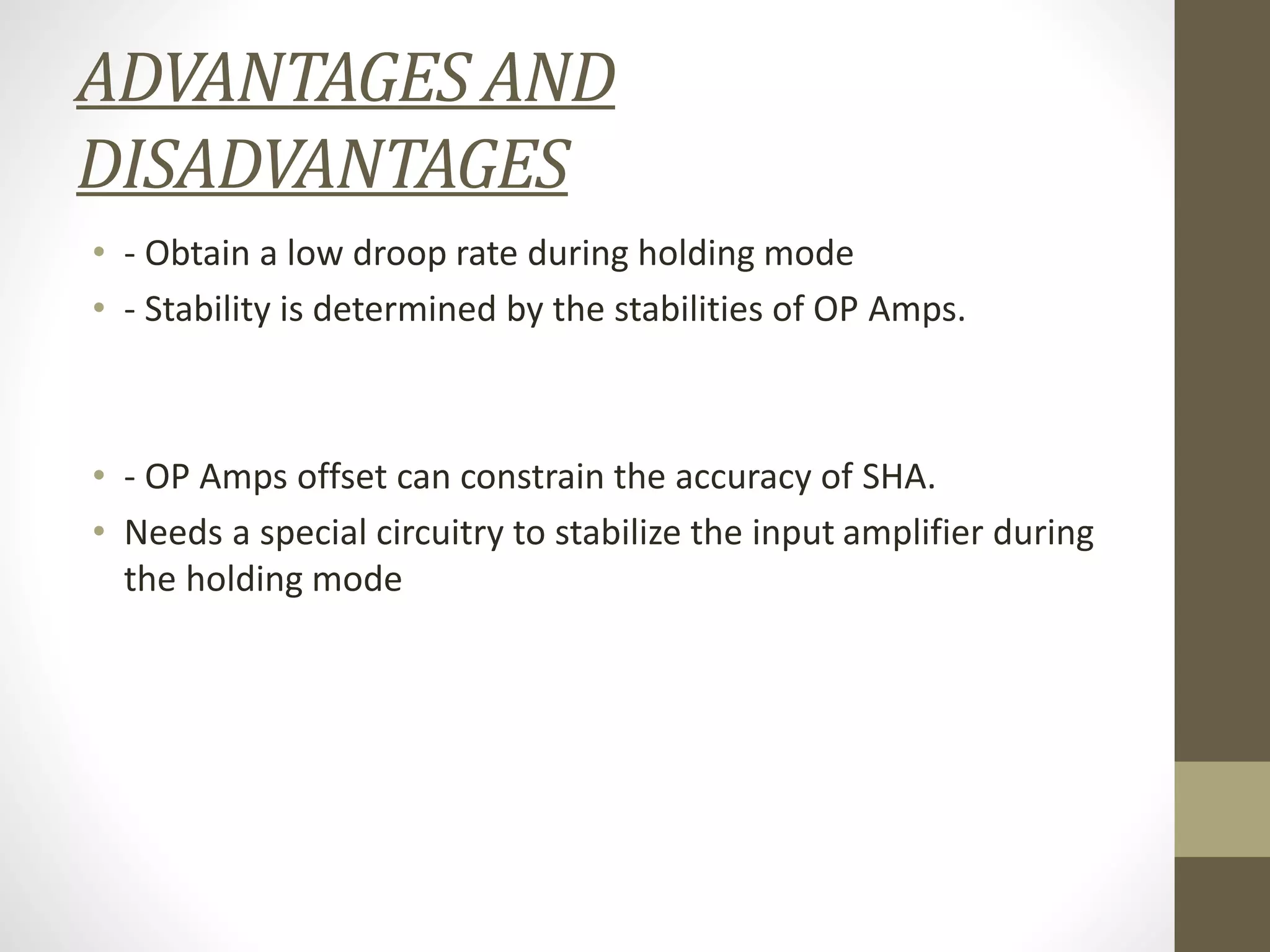

10. ADVANTAGES AND
DISADVANTAGES
• - Obtain a low droop rate during holding mode
• - Stability is determined by the stabilities of OP Amps.
• - OP Amps offset can constrain the accuracy of SHA.
• Needs a special circuitry to stabilize the input amplifier during
the holding mode

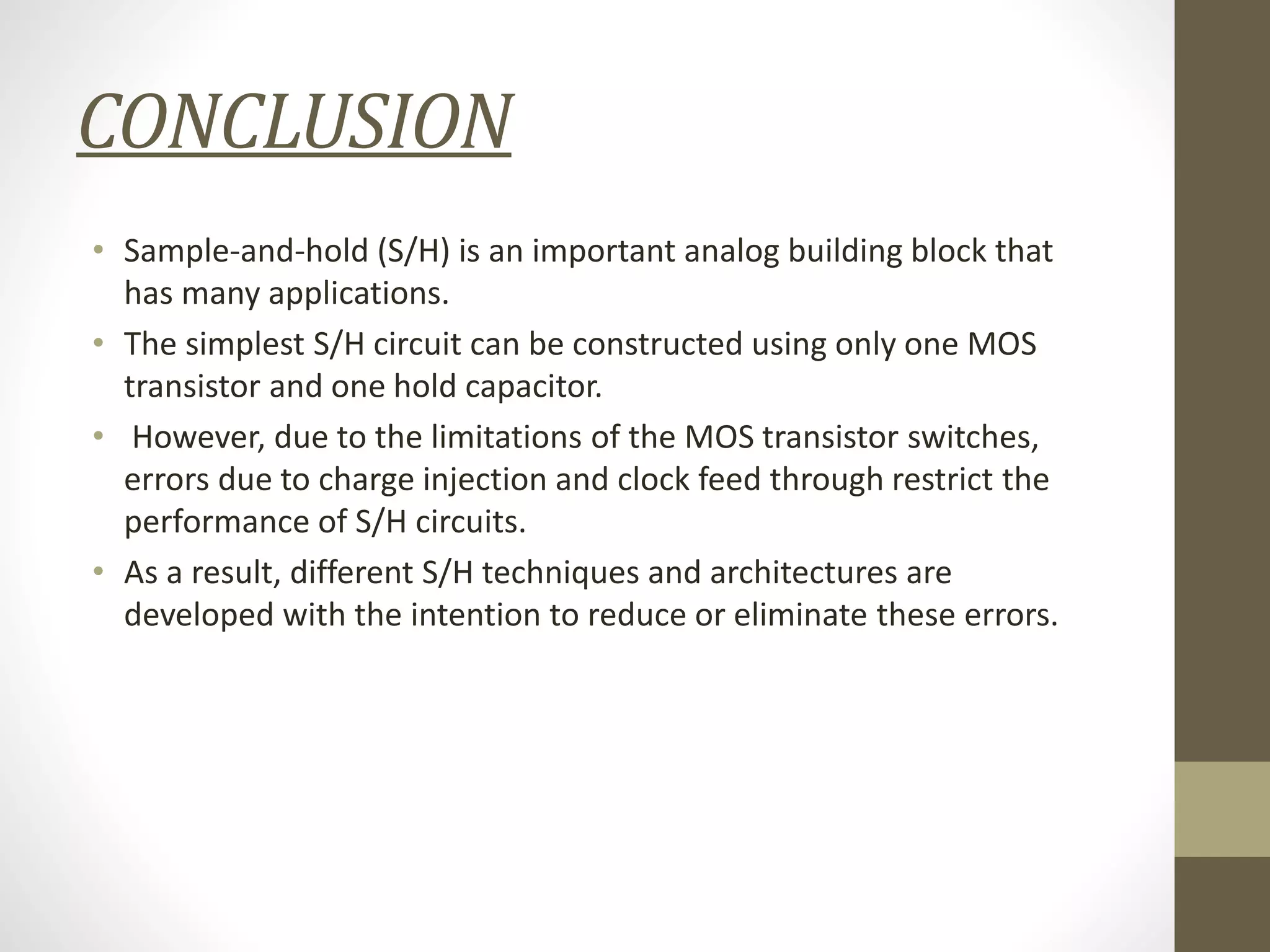

11. CONCLUSION
• Sample-and-hold (S/H) is an important analog building block that
has many applications.
• The simplest S/H circuit can be constructed using only one MOS
transistor and one hold capacitor.
• However, due to the limitations of the MOS transistor switches,
errors due to charge injection and clock feed through restrict the
performance of S/H circuits.
• As a result, different S/H techniques and architectures are
developed with the intention to reduce or eliminate these errors.

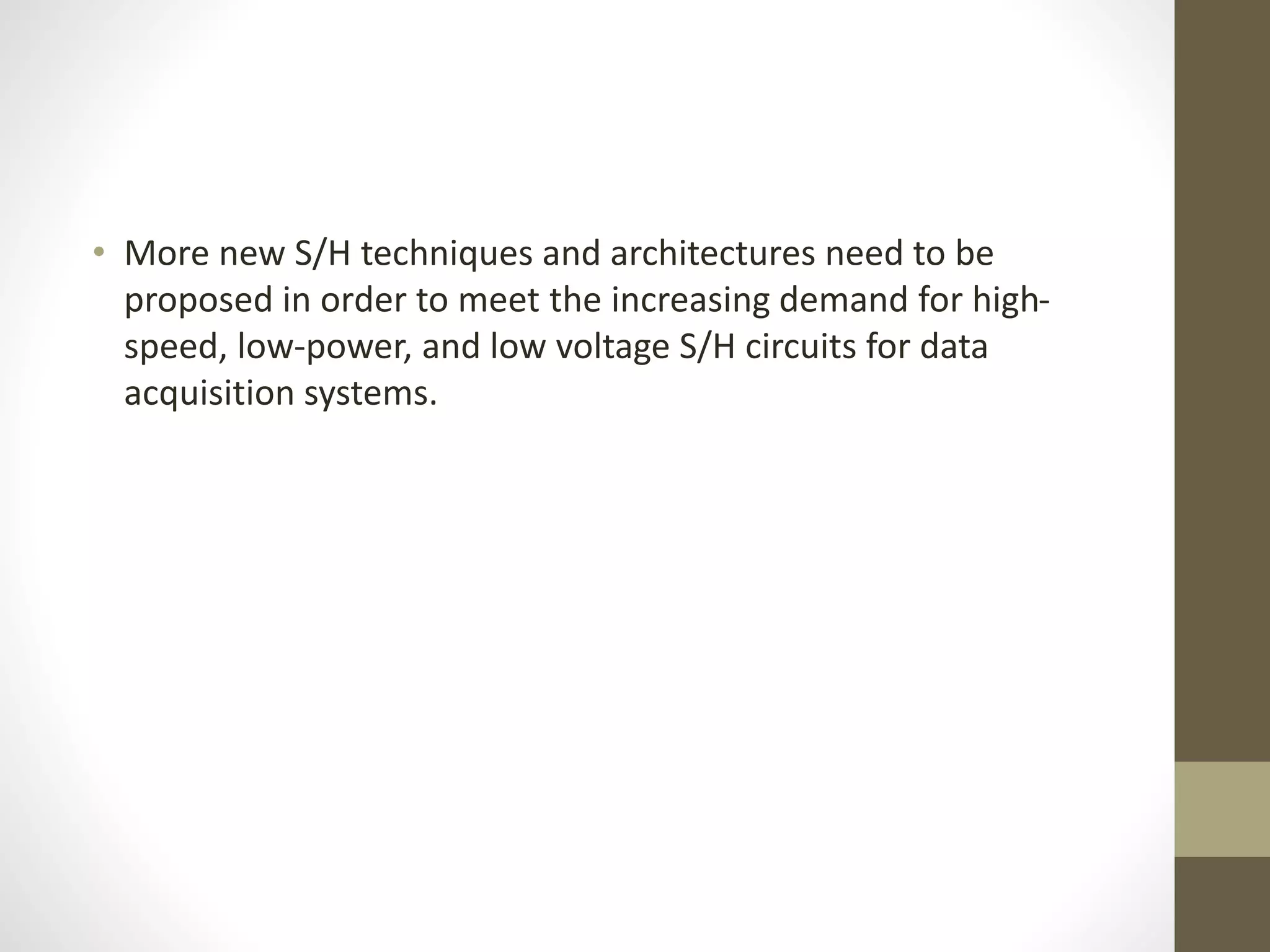

12. • More new S/H techniques and architectures need to be
proposed in order to meet the increasing demand for high-
speed, low-power, and low voltage S/H circuits for data
acquisition systems.
