Samba allows Linux servers to communicate with Windows machines using the SMB protocol. It lets Linux systems act as file and print servers for Windows clients on a network. Samba consists of client and server components that allow Linux machines to access Windows shares and Windows machines to access shared resources on Linux servers. The Samba configuration file smb.conf is used to define global parameters and shares. Windows machines can then browse and connect to the shared folders and printers using the SMB protocol.

1. Connecting Windows to Linux March 4,2001 Professor Tom Mavroidis

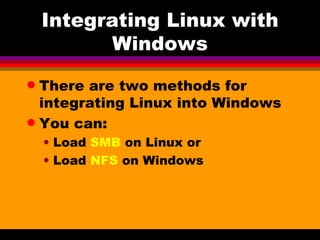

2. Integrating Linux with Windows There are two methods for integrating Linux into Windows You can: Load SMB on Linux or Load NFS on Windows

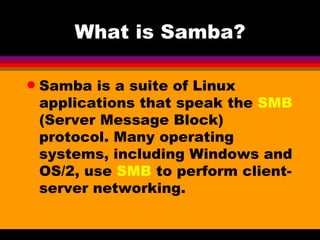

3. What is Samba? Samba is a suite of Linux applications that speak the SMB (Server Message Block) protocol. Many operating systems, including Windows and OS/2, use SMB to perform client-server networking.

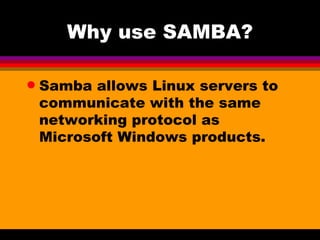

4. Why use SAMBA? Samba allows Linux servers to communicate with the same networking protocol as Microsoft Windows products.

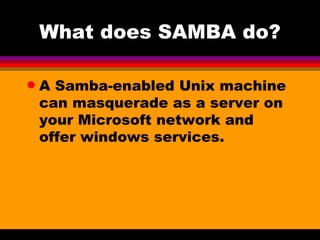

5. What does SAMBA do? A Samba-enabled Unix machine can masquerade as a server on your Microsoft network and offer windows services.

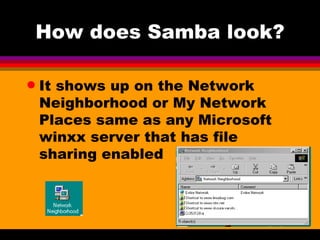

6. How does Samba look? It shows up on the Network Neighborhood or My Network Places same as any Microsoft winxx server that has file sharing enabled

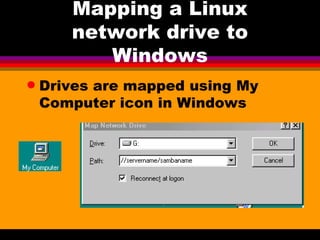

7. Mapping a Linux network drive to Windows Drives are mapped using My Computer icon in Windows

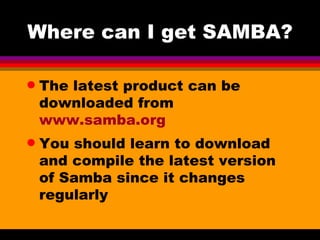

8. Where can I get SAMBA? The latest product can be downloaded from www.samba.org You should learn to download and compile the latest version of Samba since it changes regularly

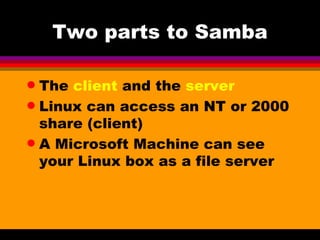

9. Two parts to Samba The client and the server Linux can access an NT or 2000 share (client) A Microsoft Machine can see your Linux box as a file server

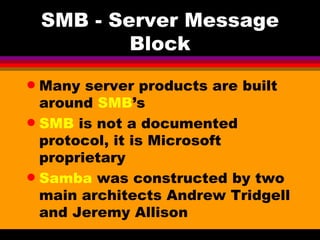

10. SMB - Server Message Block Many server products are built around SMB ’s SMB is not a documented protocol, it is Microsoft proprietary Samba was constructed by two main architects Andrew Tridgell and Jeremy Allison

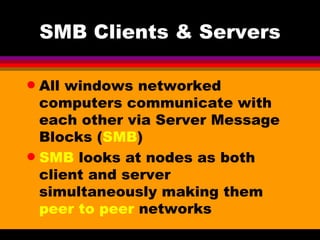

11. SMB Clients & Servers All windows networked computers communicate with each other via Server Message Blocks ( SMB ) SMB looks at nodes as both client and server simultaneously making them peer to peer networks

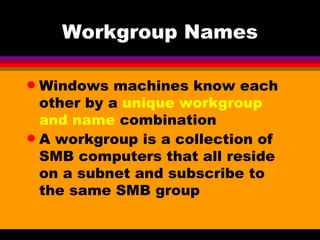

12. Workgroup Names Windows machines know each other by a unique workgroup and name combination A workgroup is a collection of SMB computers that all reside on a subnet and subscribe to the same SMB group

13. NetBios Named pairs must resolve to a unique hardware address This scheme is known as NetBios or Network Basic Input/Output System

14. Netbios Designed primarily for local networks No routing information is carried in the packet headers To communicate across lan segments packets must be encapsulated within a routable protocol I.e. TCP/IP

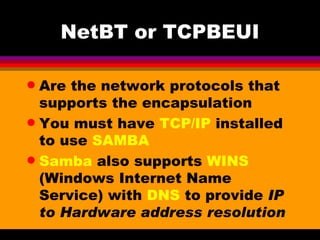

15. NetBT or TCPBEUI Are the network protocols that supports the encapsulation You must have TCP/IP installed to use SAMBA Samba also supports WINS (Windows Internet Name Service) with DNS to provide IP to Hardware address resolution

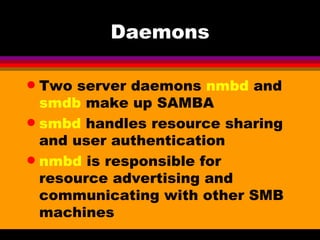

16. Daemons Two server daemons nmbd and smdb make up SAMBA smbd handles resource sharing and user authentication nmbd is responsible for resource advertising and communicating with other SMB machines

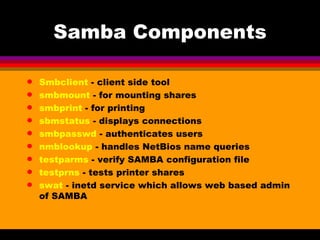

17. Samba Components Smbclient - client side tool smbmount - for mounting shares smbprint - for printing sbmstatus - displays connections smbpasswd - authenticates users nmblookup - handles NetBios name queries testparms - verify SAMBA configuration file testprns - tests printer shares swat - inetd service which allows web based admin of SAMBA

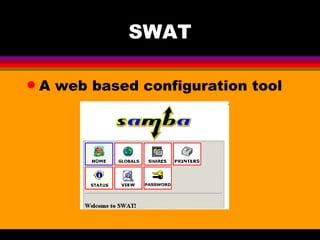

18. SWAT A web based configuration tool

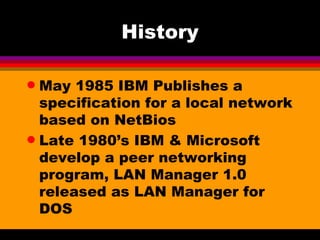

19. History May 1985 IBM Publishes a specification for a local network based on NetBios Late 1980’s IBM & Microsoft develop a peer networking program, LAN Manager 1.0 released as LAN Manager for DOS

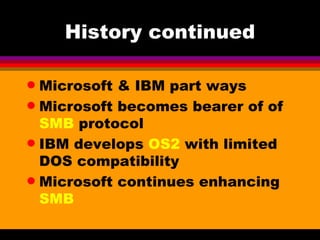

20. History continued Microsoft & IBM part ways Microsoft becomes bearer of of SMB protocol IBM develops OS2 with limited DOS compatibility Microsoft continues enhancing SMB

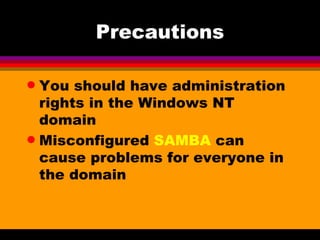

21. Precautions You should have administration rights in the Windows NT domain Misconfigured SAMBA can cause problems for everyone in the domain

22. Parameters needed Name of the Windows NT domain or the name of the local workgroup if peer to peer IP addresses of any WINS servers on this domain Names of users and groups in the Windows NT domain that will access services in SAMBA

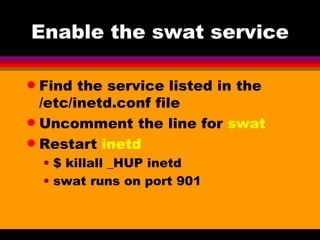

23. Enable the swat service Find the service listed in the /etc/inetd.conf file Uncomment the line for swat Restart inetd $ killall _HUP inetd swat runs on port 901

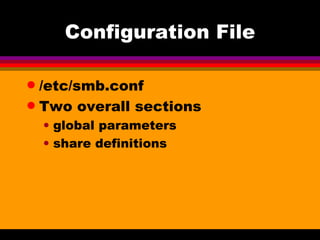

24. Configuration File /etc/smb.conf Two overall sections global parameters share definitions

25. Assumptions Windows will handle browsing Windows will handle name resolution issues

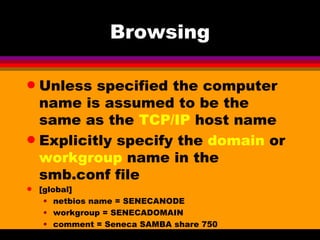

26. Browsing Unless specified the computer name is assumed to be the same as the TCP/IP host name Explicitly specify the domain or workgroup name in the smb.conf file [global] netbios name = SENECANODE workgroup = SENECADOMAIN comment = Seneca SAMBA share 750

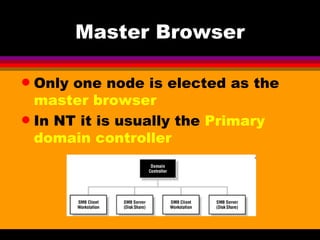

27. Master Browser Only one node is elected as the master browser In NT it is usually the Primary domain controller

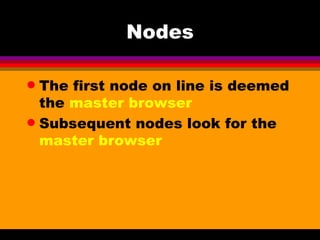

28. Nodes The first node on line is deemed the master browser Subsequent nodes look for the master browser

29. Agreeing on the master browser NetBios nodes agree on who should be handling browsing issues Any NetBios machine may act as the master browser If the master goes off line another master browser is elected

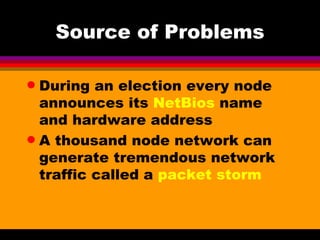

30. Source of Problems During an election every node announces its NetBios name and hardware address A thousand node network can generate tremendous network traffic called a packet storm

31. Losing Browser Election We want SAMBA to always lose browser election Set the OS level parameter in /etc.smb.conf to 1 os level = 1 local master = no domain master = no preferred master = no

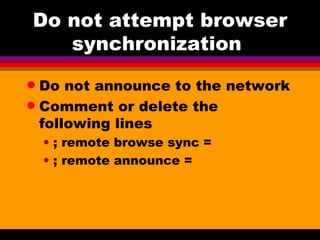

32. Do not attempt browser synchronization Do not announce to the network Comment or delete the following lines ; remote browse sync = ; remote announce =

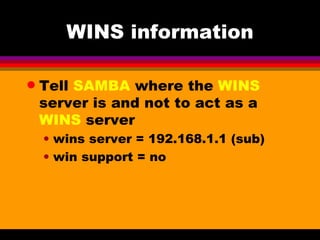

33. WINS information Tell SAMBA where the WINS server is and not to act as a WINS server wins server = 192.168.1.1 (sub) win support = no

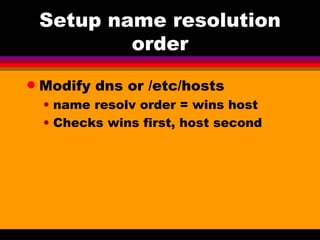

34. Setup name resolution order Modify dns or /etc/hosts name resolv order = wins host Checks wins first, host second

35. User authentication Windows NT 4 SP3 changed to encrypted passwords We will assume encrypted passwords Use user level authentication not share level, it is more secure

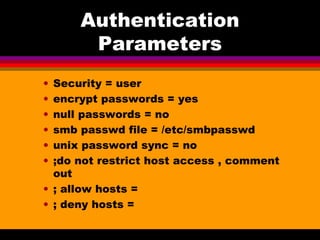

36. Authentication Parameters Security = user encrypt passwords = yes null passwords = no smb passwd file = /etc/smbpasswd unix password sync = no ;do not restrict host access , comment out ; allow hosts = ; deny hosts =

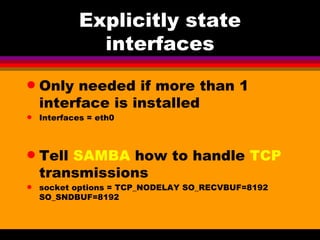

37. Explicitly state interfaces Only needed if more than 1 interface is installed Interfaces = eth0 Tell SAMBA how to handle TCP transmissions socket options = TCP_NODELAY SO_RECVBUF=8192 SO_SNDBUF=8192

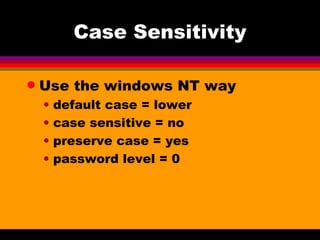

38. Case Sensitivity Use the windows NT way default case = lower case sensitive = no preserve case = yes password level = 0

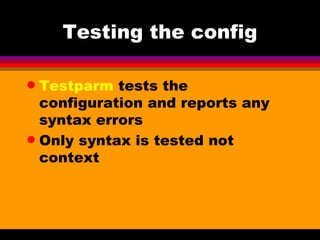

39. Testing the config Testparm tests the configuration and reports any syntax errors Only syntax is tested not context

40. Starting the server Both smbd and nmbd need to be started $ /etc/rc.d/init.d/smb start Check the log files /var/log/samba/ log.smb and log.nmb for errors

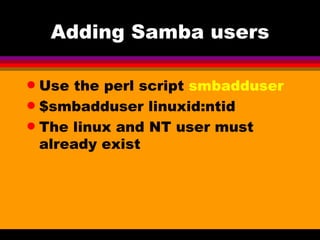

41. Adding Samba users Use the perl script smbadduser $smbadduser linuxid:ntid The linux and NT user must already exist

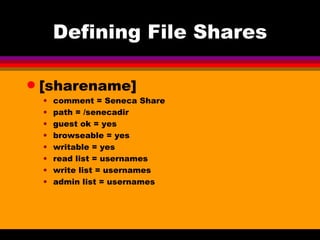

42. Defining File Shares [sharename] comment = Seneca Share path = /senecadir guest ok = yes browseable = yes writable = yes read list = usernames write list = usernames admin list = usernames

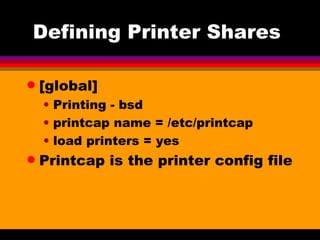

43. Defining Printer Shares [global] Printing - bsd printcap name = /etc/printcap load printers = yes Printcap is the printer config file

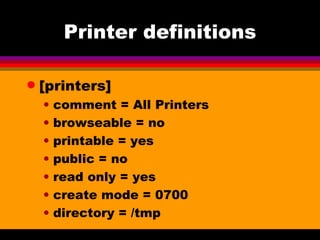

44. Printer definitions [printers] comment = All Printers browseable = no printable = yes public = no read only = yes create mode = 0700 directory = /tmp

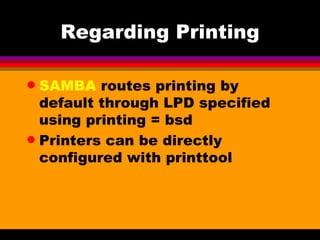

45. Regarding Printing SAMBA routes printing by default through LPD specified using printing = bsd Printers can be directly configured with printtool

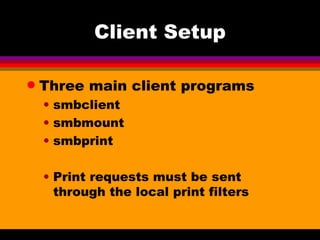

46. Client Setup Three main client programs smbclient smbmount smbprint Print requests must be sent through the local print filters

47. Connecting to an SMB share Mounting $ smbmount //servername/sharename /localpath -o options username= ?user? password= ?password?

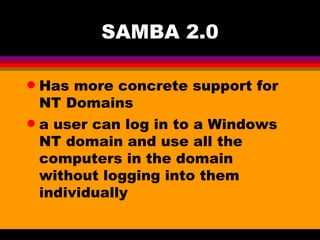

48. SAMBA 2.0 Has more concrete support for NT Domains a user can log in to a Windows NT domain and use all the computers in the domain without logging into them individually

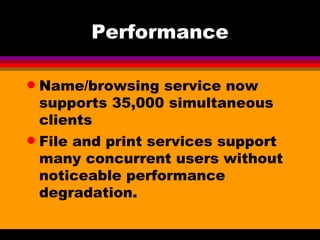

49. Performance Name/browsing service now supports 35,000 simultaneous clients File and print services support many concurrent users without noticeable performance degradation.

50. Performance Linux/Samba on identical hardware now consistently performs better than NT Server Improved locking allows client machines to cache entire files locally, improving speed and many more

51. End of Presentation
