RECOMBINATION
POOJA CHAWAN.S
2nd M.Sc

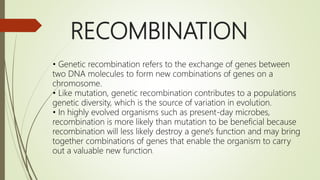

RECOMBINATION
• Genetic recombination refers to the exchange of genes between
two DNA molecules to form new combinations of genes on a
chromosome.
• Like mutation, genetic recombination contributes to a populations
genetic diversity, which is the source of variation in evolution.
• In highly evolved organisms such as present-day microbes,
recombination is more likely than mutation to be beneficial because
recombination will less likely destroy a gene's function and may bring
together combinations of genes that enable the organism to carry
out a valuable new function.

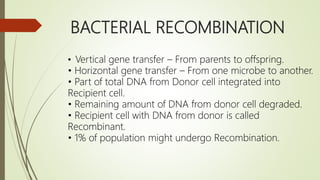

BACTERIAL RECOMBINATION
• Vertical gene transfer – From parents to offspring.
• Horizontal gene transfer – From one microbe to another.
• Part of total DNA from Donor cell integrated into
Recipient cell.
• Remaining amount of DNA from donor cell degraded.
• Recipient cell with DNA from donor is called
Recombinant.
• 1% of population might undergo Recombination.

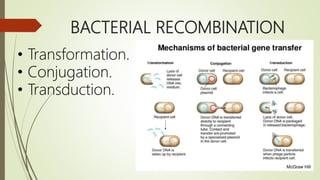

BACTERIAL RECOMBINATION
• Transformation.
• Conjugation.
• Transduction.

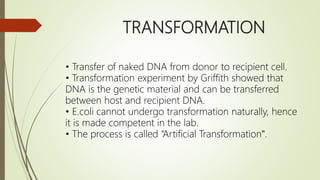

TRANSFORMATION
• Transfer of naked DNA from donor to recipient cell.

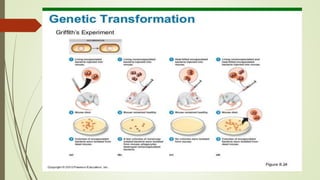

• Transformation experiment by Griffith showed that
DNA is the genetic material and can be transferred
between host and recipient DNA.
• E.coli cannot undergo transformation naturally, hence
it is made competent in the lab.
• The process is called “Artificial Transformation‟.

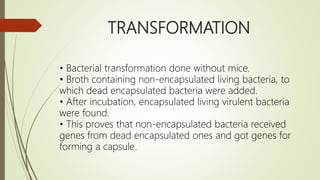

TRANSFORMATION
• Bacterial transformation done without mice.
• Broth containing non-encapsulated living bacteria, to
which dead encapsulated bacteria were added.
• After incubation, encapsulated living virulent bacteria
were found.
• This proves that non-encapsulated bacteria received
genes from dead encapsulated ones and got genes for
forming a capsule.

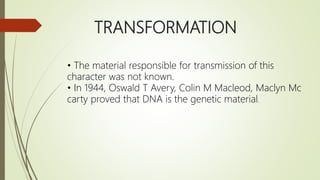

TRANSFORMATION
• The material responsible for transmission of this
character was not known.
• In 1944, Oswald T Avery, Colin M Macleod, Maclyn Mc
carty proved that DNA is the genetic material.

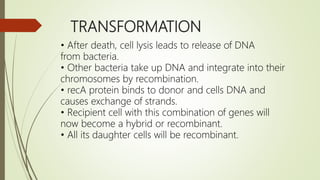

TRANSFORMATION
• After death, cell lysis leads to release of DNA
from bacteria.
• Other bacteria take up DNA and integrate into their
chromosomes by recombination.
• recA protein binds to donor and cells DNA and
causes exchange of strands.
• Recipient cell with this combination of genes will
now become a hybrid or recombinant.
• All its daughter cells will be recombinant.

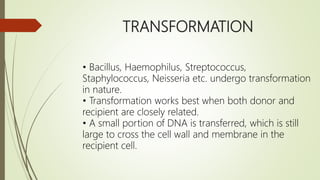

TRANSFORMATION
• Bacillus, Haemophilus, Streptococcus,
Staphylococcus, Neisseria etc. undergo transformation
in nature.
• Transformation works best when both donor and
recipient are closely related.
• A small portion of DNA is transferred, which is still
large to cross the cell wall and membrane in the
recipient cell.
TRANSFORMATION
• Physiological ability to take up DNA is called
“Competence‟ and such cells are Competent cells.
• E.coli cannot undergo transformation naturally,
hence made competent in the lab.
• This procedure is comparatively easy and simple.
• Involves Calcium chloride or Electroporation.

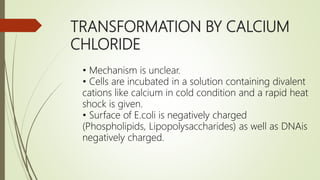

TRANSFORMATION BY CALCIUM
CHLORIDE
• Mechanism is unclear.
• Cells are incubated in a solution containing divalent
cations like calcium in cold condition and a rapid heat
shock is given.
• Surface of E.coli is negatively charged
(Phospholipids, Lipopolysaccharides) as well as DNAis
negatively charged.

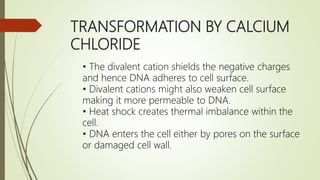

TRANSFORMATION BY CALCIUM
CHLORIDE
• The divalent cation shields the negative charges
and hence DNA adheres to cell surface.
• Divalent cations might also weaken cell surface
making it more permeable to DNA.
• Heat shock creates thermal imbalance within the
cell.
• DNA enters the cell either by pores on the surface
or damaged cell wall.

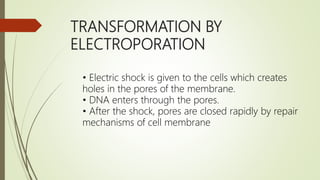

TRANSFORMATION BY
ELECTROPORATION
• Electric shock is given to the cells which creates
holes in the pores of the membrane.
• DNA enters through the pores.
• After the shock, pores are closed rapidly by repair
mechanisms of cell membrane

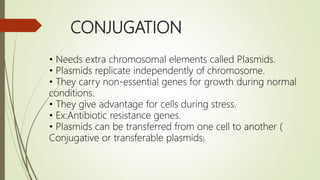

CONJUGATION
• Needs extra chromosomal elements called Plasmids.
• Plasmids replicate independently of chromosome.
• They carry non-essential genes for growth during normal
conditions.
• They give advantage for cells during stress.
• Ex:Antibiotic resistance genes.
• Plasmids can be transferred from one cell to another (
Conjugative or transferable plasmids).

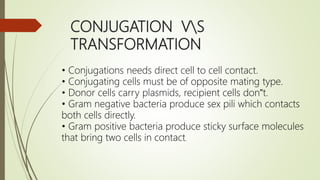

CONJUGATION VS
TRANSFORMATION
• Conjugations needs direct cell to cell contact.
• Conjugating cells must be of opposite mating type.
• Donor cells carry plasmids, recipient cells don‟t.
• Gram negative bacteria produce sex pili which contacts
both cells directly.
• Gram positive bacteria produce sticky surface molecules
that bring two cells in contact.

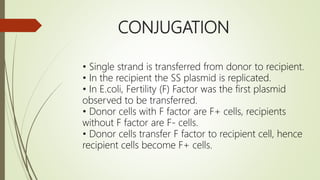

CONJUGATION
• Single strand is transferred from donor to recipient.
• In the recipient the SS plasmid is replicated.
• In E.coli, Fertility (F) Factor was the first plasmid
observed to be transferred.
• Donor cells with F factor are F+ cells, recipients
without F factor are F- cells.
• Donor cells transfer F factor to recipient cell, hence
recipient cells become F+ cells.

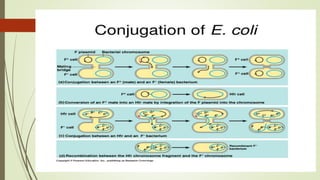

CONJUGATION
• In donor cells, F factor may integrate into the host
chromosome becoming hfr (High Frequency of
Recombination).
• Thus F+ cells become hfr cells.
• Conjugation between hfr and F- cells results in
replication of the chromosome with F factor.
• A single parental strand is transferred from hfr cell
to the F- cells.

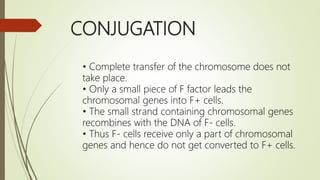

CONJUGATION
• Complete transfer of the chromosome does not
take place.
• Only a small piece of F factor leads the
chromosomal genes into F+ cells.
• The small strand containing chromosomal genes
recombines with the DNA of F- cells.
• Thus F- cells receive only a part of chromosomal
genes and hence do not get converted to F+ cells.
TRANSUDUCTION
Transduction is the process of moving bacterial DNA from
one cell to another using a bacteriophage.

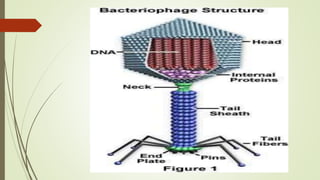

• Bacteriophage or just “phage” are bacterial viruses.
• They consist of a small piece of DNA inside a protein
coat.
• The protein coat binds to the bacterial surface, then
injects the phage DNA.
• The phage DNA then takes over the cells machinery and
replicates many virus particles.

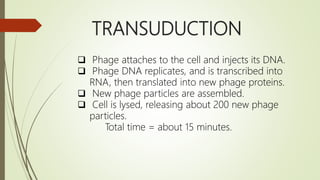

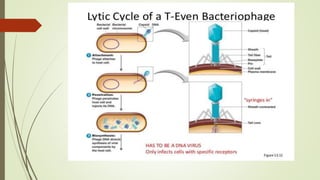

TRANSUDUCTION
 Phage attaches to the cell and injects its DNA.
 Phage DNA replicates, and is transcribed into
RNA, then translated into new phage proteins.
 New phage particles are assembled.
 Cell is lysed, releasing about 200 new phage
particles.
Total time = about 15 minutes.

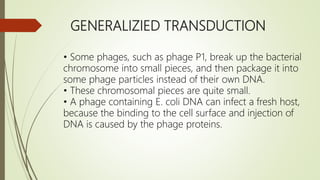

GENERALIZIED TRANSDUCTION
• Some phages, such as phage P1, break up the bacterial
chromosome into small pieces, and then package it into
some phage particles instead of their own DNA.
• These chromosomal pieces are quite small.
• A phage containing E. coli DNA can infect a fresh host,
because the binding to the cell surface and injection of
DNA is caused by the phage proteins.

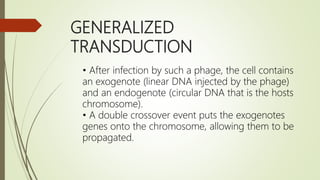

GENERALIZED
TRANSDUCTION
• After infection by such a phage, the cell contains
an exogenote (linear DNA injected by the phage)
and an endogenote (circular DNA that is the hosts
chromosome).
• A double crossover event puts the exogenotes
genes onto the chromosome, allowing them to be
propagated.

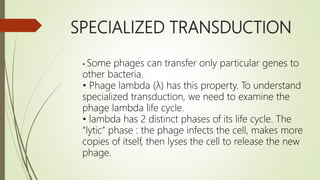

SPECIALIZED TRANSDUCTION
• Some phages can transfer only particular genes to
other bacteria.
• Phage lambda (λ) has this property. To understand
specialized transduction, we need to examine the
phage lambda life cycle.
• lambda has 2 distinct phases of its life cycle. The
“lytic” phase : the phage infects the cell, makes more
copies of itself, then lyses the cell to release the new
phage.

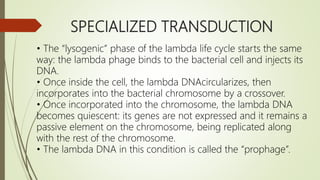

SPECIALIZED TRANSDUCTION
• The “lysogenic” phase of the lambda life cycle starts the same
way: the lambda phage binds to the bacterial cell and injects its
DNA.
• Once inside the cell, the lambda DNAcircularizes, then
incorporates into the bacterial chromosome by a crossover.
• Once incorporated into the chromosome, the lambda DNA
becomes quiescent: its genes are not expressed and it remains a
passive element on the chromosome, being replicated along
with the rest of the chromosome.
• The lambda DNA in this condition is called the “prophage”.

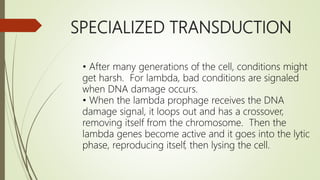

SPECIALIZED TRANSDUCTION
• After many generations of the cell, conditions might
get harsh. For lambda, bad conditions are signaled
when DNA damage occurs.
• When the lambda prophage receives the DNA
damage signal, it loops out and has a crossover,
removing itself from the chromosome. Then the
lambda genes become active and it goes into the lytic
phase, reproducing itself, then lysing the cell.
