Two main types of concrete pumps are used: direct-acting piston pumps and squeeze pumps. Direct-acting piston pumps can pump 130 cubic meters per hour over 1000 meters horizontally or 120 meters vertically using 8-inch pipes. Squeeze pumps can pump 20 cubic meters per hour over 90 meters horizontally or 30 meters vertically using 3-inch pipes. Proper concrete mixture design and pipe layout are important for efficient pumping to avoid blockages or losses. The concrete mixture should have an appropriate slump and composition to balance flowability and resistance to segregation during pumping.

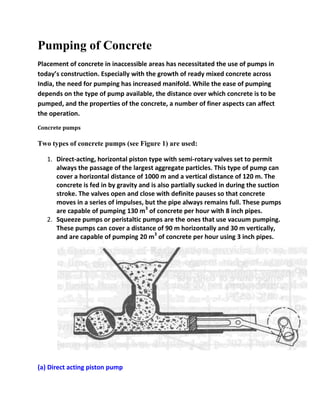

2. Pumping of Concrete
Placement of concrete in inaccessible areas has necessitated the use of pumps in
today’s construction. Especially with the growth of ready mixed concrete across
India, the need for pumping has increased manifold. While the ease of pumping
depends on the type of pump available, the distance over which concrete is to be
pumped, and the properties of the concrete, a number of finer aspects can affect
the operation.
Concrete pumps
Two types of concrete pumps (see Figure 1) are used:
1. Direct-acting, horizontal piston type with semi-rotary valves set to permit
always the passage of the largest aggregate particles. This type of pump can
cover a horizontal distance of 1000 m and a vertical distance of 120 m. The
concrete is fed in by gravity and is also partially sucked in during the suction
stroke. The valves open and close with definite pauses so that concrete
moves in a series of impulses, but the pipe always remains full. These pumps
are capable of pumping 130 m3 of concrete per hour with 8 inch pipes.
2. Squeeze pumps or peristaltic pumps are the ones that use vacuum pumping.
These pumps can cover a distance of 90 m horizontally and 30 m vertically,
and are capable of pumping 20 m3 of concrete per hour using 3 inch pipes.
(a) Direct acting piston pump

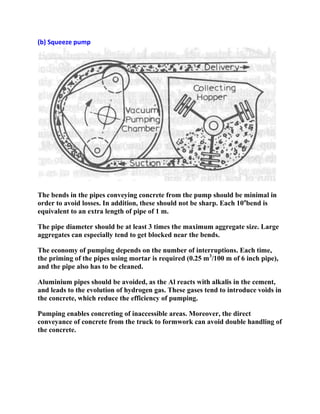

3. (b) Squeeze pump
The bends in the pipes conveying concrete from the pump should be minimal in
order to avoid losses. In addition, these should not be sharp. Each 10obend is
equivalent to an extra length of pipe of 1 m.
The pipe diameter should be at least 3 times the maximum aggregate size. Large
aggregates can especially tend to get blocked near the bends.
The economy of pumping depends on the number of interruptions. Each time,
the priming of the pipes using mortar is required (0.25 m3/100 m of 6 inch pipe),
and the pipe also has to be cleaned.
Aluminium pipes should be avoided, as the Al reacts with alkalis in the cement,
and leads to the evolution of hydrogen gas. These gases tend to introduce voids in
the concrete, which reduce the efficiency of pumping.
Pumping enables concreting of inaccessible areas. Moreover, the direct
conveyance of concrete from the truck to formwork can avoid double handling of
the concrete.

4. Requirements for pumped concrete
Concrete mixture should neither be too harsh nor too sticky; also, neither
too dry nor too wet
A slump between 50 and 150 mm is recommended (note that pumping
induces partial compaction, so the slump at delivery point may be
decreased)
If the water content in the mixture is low, the coarse particles would exert
pressure on the pipe walls. Friction is minimized at the correct water
contents. The presence of a lubricating film of mortar at the walls of the pipe
also greatly reduces the friction
High cement content in concrete is generally beneficial for pumping
Water is the only pumpable component in the concrete, and transmits the
pressure on to the other components
Two types of blockage to efficient pumping could occur: (1) Water can
escape from the mixture if the voids are not small enough; this implies that
closely packed fines would be needed in the mixture to avoid any
segregation. The pressure at which segregation occurs must be greater than
that needed to pump concrete. (2) When the fines content is too high, there
could be too much frictional resistance offered by the pipe. The first type of
blockage occurs in irregular or gap-graded normal strength mixtures, while
the second type occurs in high strength mixtures with fillers. In order to
avoid these two types of failure, the mixture should be proportioned
appropriately
Other mixture factors that could affect pumping are the cement content,
shape of aggregate, presence of admixtures such as pumping aids or air
entrainment. Air entrainment is helpful in moderate amounts, but too much
air can make pumping very inefficient
When flowing concrete is being pumped, an over-cohesive mixture with high
sand content is recommended. For lightweight aggregate concrete, pumping
can fill up the voids in the aggregate with water, making the mixture dry.

5. Concrete pumps..
