Programmable Timer 8253/8254

•Download as PPT, PDF•

9 likes•4,962 views

8253 Programmable Interval Timer IC. Basic descriptions, Internal block diagrams, Modes of operation and command words are included

Engineering

8254 / 8253

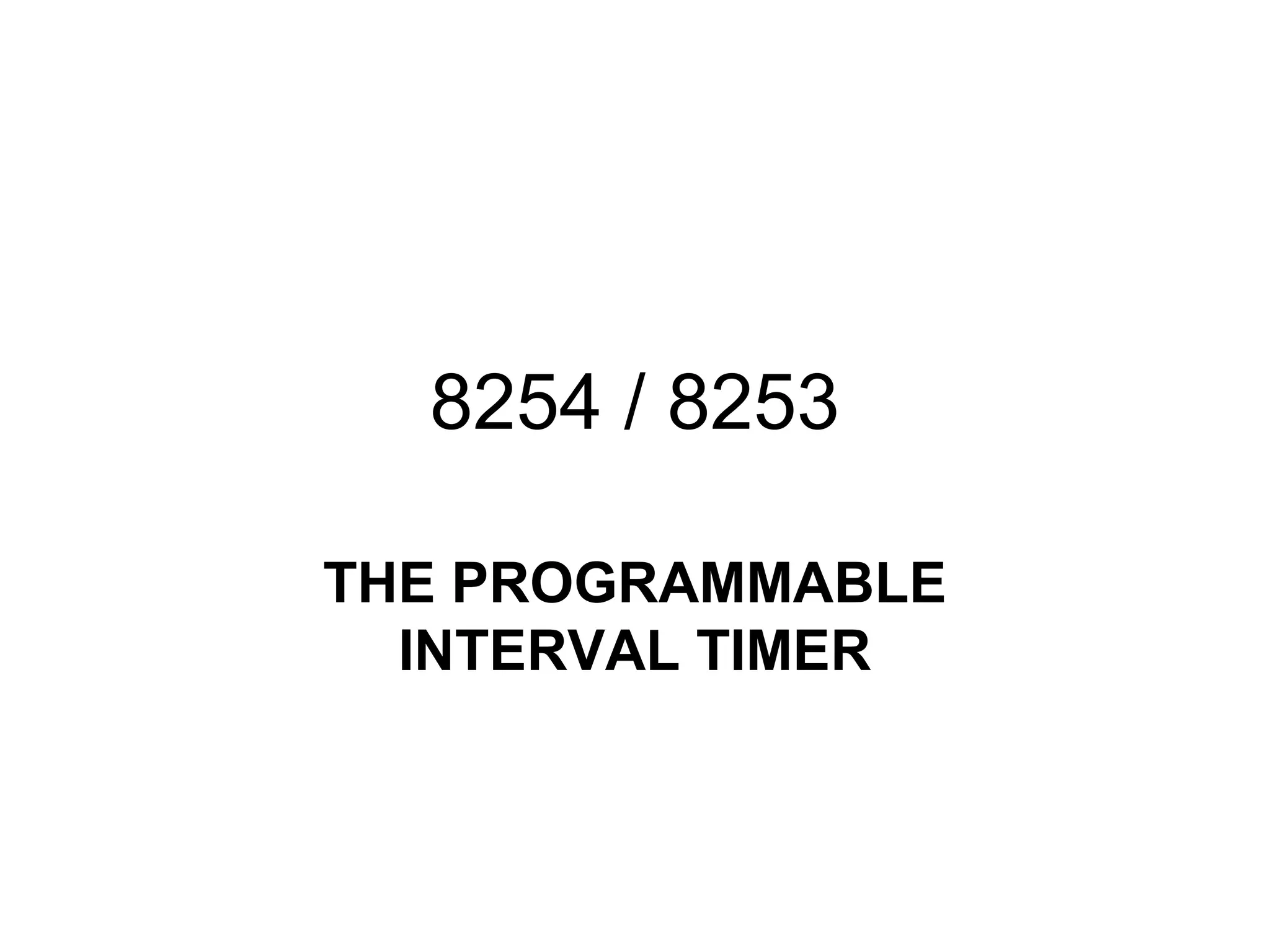

THE PROGRAMMABLE
INTERVAL TIMER

8254 / 8253

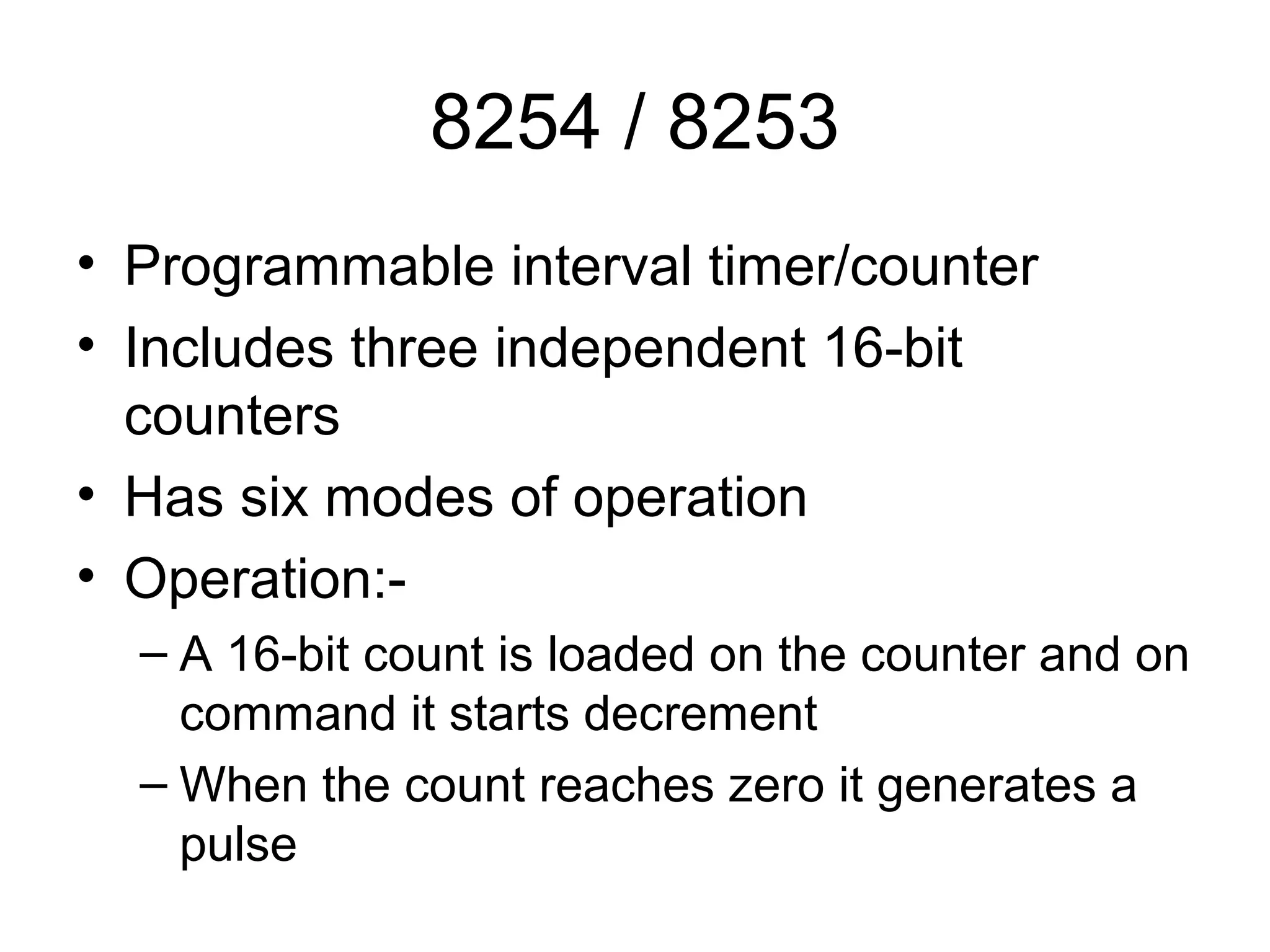

• Programmable interval timer/counter
• Includes three independent 16-bit
counters
• Has six modes of operation
• Operation:-
– A 16-bit count is loaded on the counter and on
command it starts decrement
– When the count reaches zero it generates a
pulse
