GETTING STARTED WITH RDO
Dan Radez
dradez@redhat.com
irc: radez
@radez

2. Overview

3. PackStack: Installation
Red Hat developed OpenStack installer
Deployment options
● Interactively
● Answer file
● Quick Start
● All-in-one
Features
● Single-host install
● Multi-host install
● RDO

4. PackStack: Installation
[root@workstation ~]# ssh 192.168.122.101
[root@control ~]# yum install -y openstack-packstack
[root@control ~]# packstack --gen-answer-file packstack.txt
[root@control ~]# packstack --answer-file packstack.txt
Updates
● CONFIG_COMPUTE_HOSTS=192.168.122.102
● CONFIG_PROVISION_DEMO=n
● CONFIG_CINDER_VOLUMES_CREATE=n

5. What is OpenStack?
● Cloud/Virtualization Platform
● Designed for standard hardware
● OpenSource

6. Red Hat's Community OpenStack
openstack.redhat.com

7. PackStack: Installation
Install OpenStack

8. Killing time while PackStack works magic

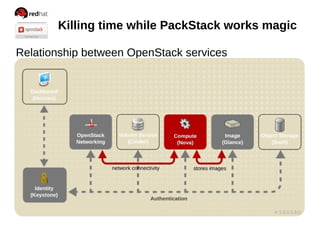

Relationship between OpenStack services

9. Killing time while PackStack works magic
Relationship between OpenStack services

10. Killing time while PackStack works magic
Relationship between OpenStack services

11. Killing time while PackStack works magic
Relationship between OpenStack services

12. Killing time while PackStack works magic
Relationship between OpenStack services

13. Killing time while PackStack works magic
Relationship between OpenStack services

14. Killing time while PackStack works magic
Relationship between OpenStack services

15. Killing time while PackStack works magic
Relationship between OpenStack services

16. Help!
$ keystone help
$ keystone help user-create
$ glance help
$ glance help image-create
$ nova help
$ nova help boot

17. Keystone: Identity Management

18. Keystone: Identity Management
● centralized identity service
● central catalog of services
Multiple forms of authentication
● User name and password
● Token-based systems
● Amazon Web Services style logins

19. Keystone: Identity Management
Login as admin
[root@control ~]# cat keystonerc_admin
export OS_USERNAME=admin
export OS_TENANT_NAME=admin
export OS_PASSWORD=5ffbe9d2a38d4a48
export OS_AUTH_URL=http://192.168.122.101:5000/v2.0/
export OS_REGION_NAME=RegionOne
export PS1="[u@h W(keystone_admin)]$ "
[root@control ~]# source keystonerc_admin
[root@control ~(keystone_admin)]#

20. Keystone: Identity Management
Get a token / troubleshooting auth
[root@control ~(keystone_admin)]# keystone token-get
+­­­­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
| Property | Value |
+­­­­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+
| expires | 2013­06­07T19:22:06Z |
| id | e50158f737f14791ae7831c955524de2 |
| tenant_id | 70784578887b4468adacd92f2f376bc9 |
| user_id | f4270a7b46af467892173a02d9cd49d4 |
+­­­­­­­­­­­+­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­+

21. Keystone: Identity Management

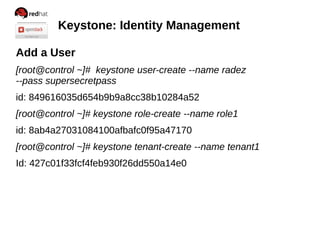

Add a User
[root@control ~]# keystone user-create --name radez
--pass supersecretpass
id: 849616035d654b9b9a8cc38b10284a52
[root@control ~]# keystone role-create --name role1
id: 8ab4a27031084100afbafc0f95a47170
[root@control ~]# keystone tenant-create --name tenant1
Id: 427c01f33fcf4feb930f26dd550a14e0

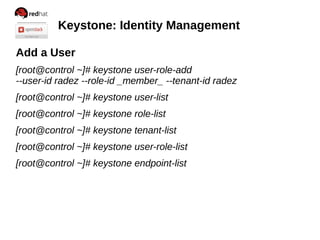

22. Keystone: Identity Management
Add a User
[root@control ~]# keystone user-role-add
--user-id radez --role-id _member_ --tenant-id radez
[root@control ~]# keystone user-list
[root@control ~]# keystone role-list
[root@control ~]# keystone tenant-list
[root@control ~]# keystone user-role-list
[root@control ~]# keystone endpoint-list

23. Keystone: Identity Management
Login as user
[root@control ~]# cp keystonerc_admin keystonerc_radez
export OS_USERNAME=radez
export OS_TENANT_NAME=tenant1
export OS_PASSWORD=supersecretpass
export OS_AUTH_URL=http://192.168.122.101:5000/v2.0/
export OS_REGION_NAME=RegionOne
export PS1="[u@h W(keystone_radez)]$ "
[root@control ~]# source keystonerc_radez
[root@control ~(keystone_radez)]# keystone token-get
[root@control ~(keystone_radez)]# source keystonerc_admin
[root@control ~(keystonerc_admin)]#

24. Keystone: Identity Management
Add a user

25. Glance: Image Management

26. Glance: Image Management
● registry for virtual machine images
● images used as templates for new servers

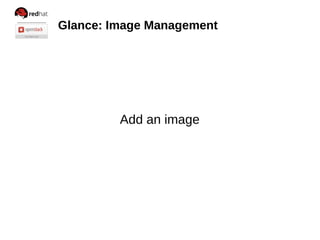

Add an image
[root@control ~]# glance image-create --name centos7
--is-public 1 --disk-format qcow2 --container-format bare
--file /mnt/CentOS-7-x86_64-GenericCloud.qcow2c
id: d3d1f38e-3f2c-4f45-91e1-cb4535f62d10
[root@control ~]# glance image-list

27. Glance: Image Management
Downloading Images
● Search for “Cloud Image”
● Fedora, CentOS, RHEL, Ubuntu, CirrOS
Image Building
● Virt-install / kickstart
● Manually (launch installer, import before first boot)
Build Notes:
● Include cloudinit for post boot configuration

28. Glance: Image Management
Add an image

29. Neutron: Networking

30. Neutron: Networking
● networking as a service
● built in modular architecture
Features
● Single or Multiple host deployment
● virtual network, subnet, and port abstractions
● Plugin architecture supports many network technologies

31. Neutron: Networking
Create networks, subnets and routers
[root@control ~]# neutron net-create internal
id: cc6052d8-2a6d-40e7-85ab-b7c8bb5b3a8c
[root@control ~]# neutron subnet-create internal 172.16.37.0/24
id: c6c4ded5-ac0a-4f7c-8f54-9218f2cf8ecc
[root@control ~]# neutron router-create router1
id: 30f385f0-8f1d-453e-b4ab-26ee6f8e80fe
[root@control ~]# neutron router-interface-add router1 c6c4ded5-
ac0a-4f7c-8f54-9218f2cf8ecc

32. Neutron: Networking
Create a Network

33. Neutron: Networking

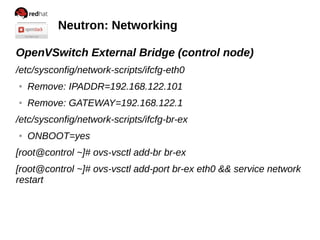

OpenVSwitch External Bridge (control node)
/etc/sysconfig/network-scripts/ifcfg-eth0
● Remove: IPADDR=192.168.122.101
● Remove: GATEWAY=192.168.122.1
/etc/sysconfig/network-scripts/ifcfg-br-ex
● ONBOOT=yes
[root@control ~]# ovs-vsctl add-br br-ex
[root@control ~]# ovs-vsctl add-port br-ex eth0 && service network
restart

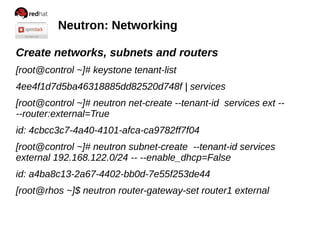

34. Neutron: Networking
Create networks, subnets and routers
[root@control ~]# keystone tenant-list
4ee4f1d7d5ba46318885dd82520d748f | services
[root@control ~]# neutron net-create --tenant-id services ext --
--router:external=True
id: 4cbcc3c7-4a40-4101-afca-ca9782ff7f04
[root@control ~]# neutron subnet-create --tenant-id services
external 192.168.122.0/24 -- --enable_dhcp=False
id: a4ba8c13-2a67-4402-bb0d-7e55f253de44
[root@rhos ~]$ neutron router-gateway-set router1 external

35. Neutron: Networking
Add Provider Network

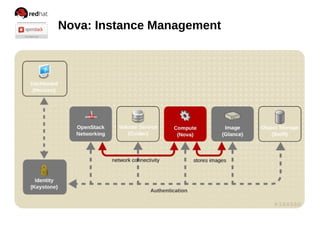

36. Nova: Instance Management

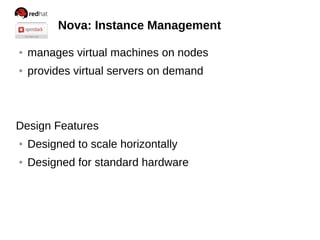

37. Nova: Instance Management
● manages virtual machines on nodes
● provides virtual servers on demand
Design Features
● Designed to scale horizontally
● Designed for standard hardware

38. Nova: Instance Management
Boot an instance
[root@control ~]# nova flavor-list
[root@control ~]# nova keypair-add --pub-key .ssh/id_rsa.pub mykey
[root@control ~]# nova keypair-list
mykey | 84:6e:28:d3:75:17:ab:25:4d:f3:0d:61:93:55:ee:e2
[root@control ~]# nova image-list
[root@control ~]# nova boot --flavor 1 --key_name mykey
--image cirros my_instance
[root@control ~]# nova list

39. Nova: Instance Management
Associate a floating ip to an instance
[root@control ~]# neutron floatingip-create external
id: 2b815236-f5f6-4d48-9860-4abbaec15990
[root@control ~]# nova list
Id: ip_address: 172.16.37.3
[root@control ~]# neutron port-list
id: 1abd07c4-8c7b-4701-92a3-482f69e5a4ee
ip_address: 172.16.37.3
[root@control ~]# neutron floatingip-associate 2b815236-f5f6-4d48-
9860-4abbaec15990 1abd07c4-8c7b-4701-92a3-482f69e5a4ee
Associated floatingip 2b815236-f5f6-4d48-9860-4abbaec15990

40. Neutron: Networking
Add security group rules
[root@control ~]# keystone tenant-list
70784578887b4468adacd92f2f376bc9 | radez
[root@control ~]# neutron security-group-list --tenant-id
70784578887b4468adacd92f2f376bc9
| 049ca2a9-7dc0-417c-9092-640e8a47a585 | default | default |
[root@control ~]# neutron security-group-rule-create --protocol tcp
--port-range-min 22 --port-range-max 22 --remote-ip-prefix 0.0.0.0/0
049ca2a9-7dc0-417c-9092-640e8a47a585
[root@control ~]# neutron security-group-rule-create --protocol icmp
--remote-ip-prefix 0.0.0.0/0 049ca2a9-7dc0-417c-9092-
640e8a47a585

41. Nova: Instance Management
Communicate with the instance
[root@control ~]# ping 192.168.122.3
PING 192.168.122.3 (192.168.122.3) 56(84) bytes of data.
64 bytes from 192.168.122.3: icmp_seq=2 ttl=63 time=0.668 ms
[root@control ~]# ssh centos@192.168.122.3
The authenticity of host '192.168.122.3 (192.168.122.3)' can't be
established.
RSA key fingerprint is
38:49:f2:67:80:11:31:84:1f:b1:79:df:5f:e4:e5:f7.
Are you sure you want to continue connecting (yes/no)? Yes
Warning: Permanently added '192.168.122.3' (RSA) to the list of
known hosts.
$

42. Nova: Instance Management
Boot an Instance

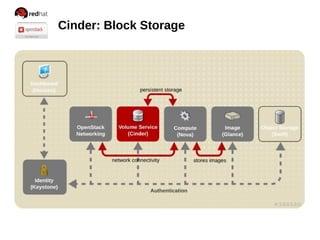

43. Cinder: Block Storage

44. Cinder: Block Storage
● manages persistent block storage volumes
● snapshots can be taken
Create and attach a volume
[root@control ~]# cinder create 1
id: 4d6cbb1f-5873-4357-99c7-8ae0502e6de5
[root@control ~]# nova volume-attach my_instance
4d6cbb1f-5873-4357-99c7-8ae0502e6de5 auto

45. Cinder: Block Storage

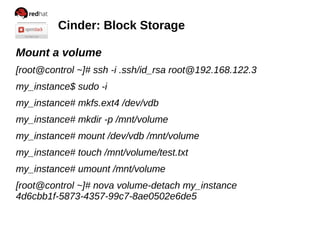

Mount a volume
[root@control ~]# ssh -i .ssh/id_rsa root@192.168.122.3
my_instance$ sudo -i
my_instance# mkfs.ext4 /dev/vdb
my_instance# mkdir -p /mnt/volume
my_instance# mount /dev/vdb /mnt/volume
my_instance# touch /mnt/volume/test.txt
my_instance# umount /mnt/volume
[root@control ~]# nova volume-detach my_instance
4d6cbb1f-5873-4357-99c7-8ae0502e6de5

46. Cinder: Block Storage
Create and attach a volume

47. Swift: Object Storage

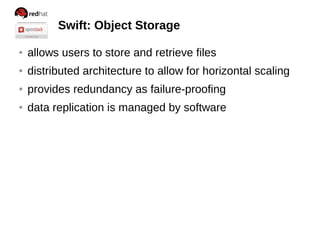

48. Swift: Object Storage
● allows users to store and retrieve files
● distributed architecture to allow for horizontal scaling
● provides redundancy as failure-proofing
● data replication is managed by software

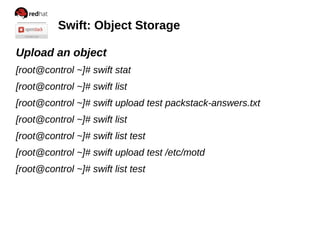

49. Swift: Object Storage
Upload an object
[root@control ~]# swift stat
[root@control ~]# swift list
[root@control ~]# swift upload test packstack-answers.txt
[root@control ~]# swift list
[root@control ~]# swift list test
[root@control ~]# swift upload test /etc/motd
[root@control ~]# swift list test

50. Swift: Object Storage
Create a container & upload an object

51. Dashboard: Web Interface

52. Dashboard: Web Interface
● web-based interface for managing OpenStack services
● modular design for interfacing with other projects
● includes interface for all core components

53. Review

54. Neutron Deep Dive
Control / Network Compute

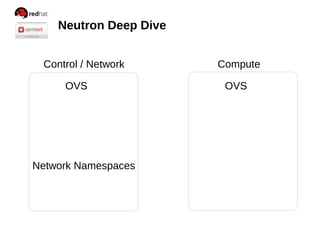

55. Neutron Deep Dive
Control / Network Compute
OVS OVS
Network Namespaces

56. Neutron Deep Dive
Control / Network Compute
OVS OVS
netns

57. Neutron Deep Dive
Control / Network Compute
OVS
● br-tun
● br-ex
● br-int
netns
OVS
● br-tun
● br-int

58. Neutron Deep Dive
Control / Network Compute
OVS
● br-tun
● br-ex
● br-int
netns
● qdhcp
● qrouter
OVS
● br-tun
● br-int

59. Neutron Deep Dive
Control / Network Compute
OVS
● br-tun
● br-ex
● br-int
netns
● qdhcp
● qrouter
OVS
● br-tun
● br-int

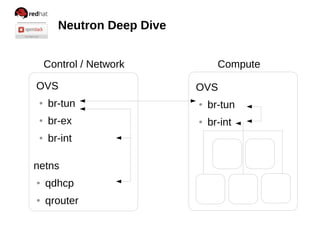

60. Neutron Deep Dive
Control / Network Compute
OVS
● br-tun
● br-ex
● br-int
netns
● qdhcp
● qrouter
OVS
● br-tun
● br-int

61. Neutron Deep Dive
Control / Network Compute
OVS
● br-tun
● br-ex
● br-int
netns
● qdhcp
● qrouter
OVS
● br-tun
● br-int

62. Neutron Deep Dive
Control / Network Compute
OVS
● br-tun
● br-ex
● br-int
netns
● qdhcp
● qrouter
OVS
● br-tun
● br-int

63. Neutron Deep Dive
Control / Network Compute
OVS
● br-tun
● br-ex
● br-int
netns
● qdhcp
● qrouter
OVS
● br-tun
● br-int

64. Neutron Deep Dive
Control / Network Compute
OVS
● br-tun
● br-ex
● br-int
netns
● qdhcp
● qrouter
OVS
● br-tun
● br-int

65. Neutron Deep Dive
Control / Network Compute
OVS
● br-tun
● br-ex
● br-int
netns
● qdhcp
● qrouter
OVS
● br-tun
● br-int

66. Neutron Deep Dive
Control / Network Compute
OVS
● br-tun
● br-ex
● br-int
netns
● qdhcp
● qrouter
OVS
● br-tun
● br-int

67. Resources
● RDO: openstack.redhat.com
● RH KB: https://access.redhat.com/
● OpenStack.org
● TryStack.org
● http://radez.fedorapeople.org/POSSCON2015.pdf
