OpenStack: Inside Out

Etsuji Nakai
Senior Solution Architect
Red Hat
ver1.0 2014/02/22
1
Copyright (C) 2014 National Institute of Informatics, All rights reserved.

$ who am i
■

Etsuji Nakai

- Senior solution architect
and Cloud evangelist at Red Hat.

- The author of “Professional Linux Systems” series.
●

Available in Japanese/Korean. Translation offering from publishers are welcomed ;-)

Self-study Linux
Deploy and Manage by yourself

Professional Linux Systems
Technology for Next Decade

Deployment and Management

Network Management

2

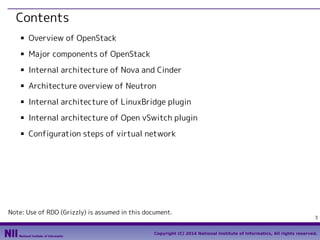

Contents
■

Overview of OpenStack

■

Major components of OpenStack

■

Internal architecture of Nova and Cinder

■

Architecture overview of Neutron

■

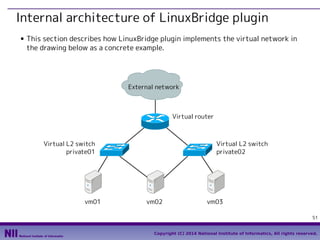

Internal architecture of LinuxBridge plugin

■

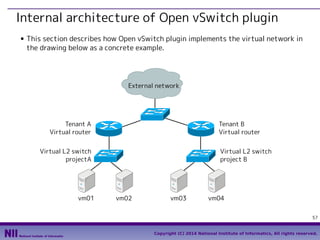

Internal architecture of Open vSwitch plugin

■

Configuration steps of virtual network

Note: Use of RDO (Grizzly) is assumed in this document.

3


Overview of OpenStack

4

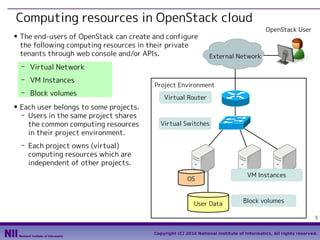

Computing resources in OpenStack cloud
■

The end-users of OpenStack can create and configure
the following computing resources in their private
tenants through web console and/or APIs.

OpenStack User

External Network

- Virtual Network
- VM Instances
- Block volumes
■

Each user belongs to some projects.
- Users in the same project shares
the common computing resources
in their project environment.

Project Environment
Virtual Router

Virtual Switches

- Each project owns (virtual)
computing resources which are
independent of other projects.
OS

User Data

VM Instances

Block volumes
5

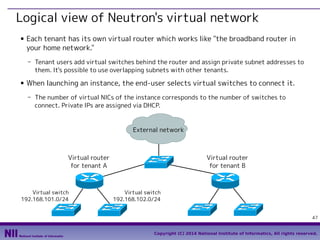

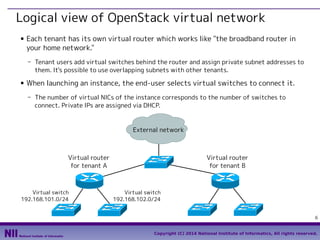

Logical view of OpenStack virtual network
■

Each tenant has its own virtual router which works like "the broadband router in
your home network."
- Tenant users add virtual switches behind the router and assign private subnet addresses to
them. It's possible to use overlapping subnets with other tenants.

■

When launching an instance, the end-user selects virtual switches to connect it.
- The number of virtual NICs of the instance corresponds to the number of switches to
connect. Private IPs are assigned via DHCP.

External network

Virtual router
for tenant A

Virtual switch
192.168.101.0/24

Virtual router
for tenant B

Virtual switch
192.168.102.0/24
6

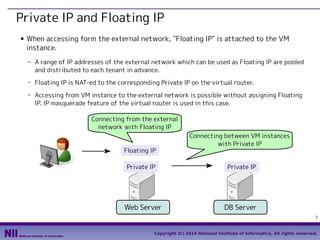

Private IP and Floating IP
■

When accessing form the external network, "Floating IP" is attached to the VM
instance.
- A range of IP addresses of the external network which can be used as Floating IP are pooled
and distributed to each tenant in advance.
- Floating IP is NAT-ed to the corresponding Private IP on the virtual router.
- Accessing from VM instance to the external network is possible without assigning Floating
IP. IP masquerade feature of the virtual router is used in this case.
Connecting from the external
network with Floating IP

Floating IP
Private IP

Web Server

Connecting between VM instances
with Private IP
Private IP

DB Server
7

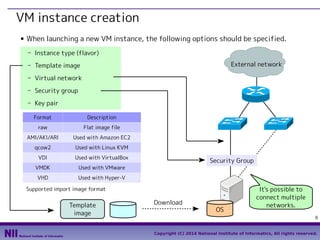

VM instance creation
■

When launching a new VM instance, the following options should be specified.
- Instance type (flavor)
External network

- Template image
- Virtual network
- Security group
- Key pair
Format

Description

raw

Flat image file

AMI/AKI/ARI

Used with Amazon EC2

qcow2

Used with Linux KVM

VDI

Used with VirtualBox

VMDK

Used with VMware

VHD

Used with Hyper-V

Security Group

Supported import image format

Template

Download

OS

It's possible to
connect multiple
networks.
8

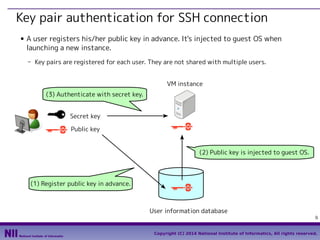

Key pair authentication for SSH connection
■

A user registers his/her public key in advance. It's injected to guest OS when
launching a new instance.
- Key pairs are registered for each user. They are not shared with multiple users.
VM instance
(3) Authenticate with secret key.
Secret key
Public key
(2) Public key is injected to guest OS.

(1) Register public key in advance.

User information database
9

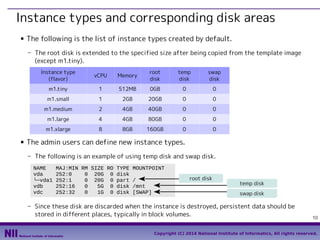

Instance types and corresponding disk areas
■

The following is the list of instance types created by default.
- The root disk is extended to the specified size after being copied from the template image
(except m1.tiny).
Instance type
(flavor)

Memory

root
disk

temp
disk

swap
disk

m1.tiny

1

512MB

0GB

0

0

m1.small

1

2GB

20GB

0

0

m1.medium

2

4GB

40GB

0

0

m1.large

4

4GB

80GB

0

0

m1.xlarge
■

vCPU

8

8GB

160GB

0

0

The admin users can define new instance types.
- The following is an example of using temp disk and swap disk.
NAME
vda
└─vda1
vdb
vdc

MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
252:0
0 20G 0 disk
252:1
0 20G 0 part /
252:16
0
5G 0 disk /mnt
252:32
0
1G 0 disk [SWAP]

root disk

temp disk
swap disk

- Since these disk are discarded when the instance is destroyed, persistent data should be
stored in different places, typically in block volumes.

10

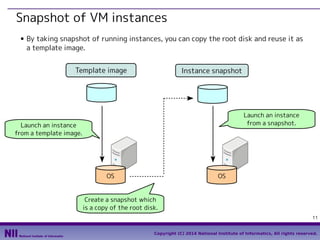

Snapshot of VM instances
■

By taking snapshot of running instances, you can copy the root disk and reuse it as
a template image.
Template image

Instance snapshot

Launch an instance
from a snapshot.

Launch an instance
from a template image.

OS

OS

Create a snapshot which
is a copy of the root disk.
11

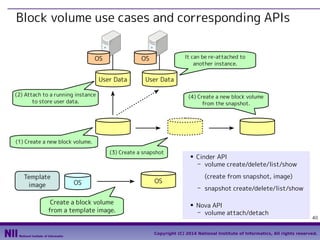

Block volume as persistent data store
■

Block volumes remain undeleted after destroying a VM instance. It can be used as a
persistent data store.

OS

OS

User Data

It can be re-attached to
another instance.

User Data

(2) Attach to a running instance
to store user data.

(4) Create a new block volume
from the snapshot.

(1) Create a new block volume.
(3) Create a snapshot

12

Boot from block volume
■

It's possible to copy a template image to a new block volume to create a bootable
block volume.
- When booting from block volume, the contents of guest OS remain undeleted even when the
instance is destroyed.
- You can create a snapshot of the bootable volume, and create a new bootable volume from
it when launching a new instance.

OS

OS

Boot an instance directly
from block volume.
Template

OS

Create a block volume

Copy
OS

Create a snapshot.
13


14

■

OpenStack is a set of component modules for various services and functions.
- Swift : Object store
●

Amazon S3-like object storage

- Nova : Virtual machine life cycle management
- Glance : Virtual machine image catalog
●

Actual images are stored in the backend storage, typically in Swift.

- Cinder : Virtual disk volume
●

Amazon EBS-like volume management

- Keystone : Centralized authentication and service catalogue system
- Neutron : Virtual network management API (formerly known as Quantum）
●

Actual network provisioning is delegated to external plugin modules.

- Horizon : Web based self-service portal

15

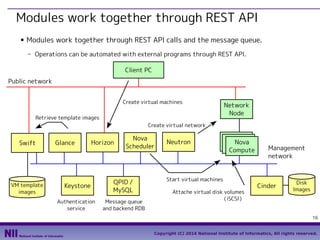

Modules work together through REST API
■

Modules work together through REST API calls and the message queue.
- Operations can be automated with external programs through REST API.
Client PC

Public network
Create virtual machines
Retrieve template images

Network
Node

Create virtual network

Swift

VM template
images

Glance

Horizon

Nova
Scheduler

Keystone

QPID /
MySQL

Authentication
service

Message queue
and backend RDB

Neutron

Nova
Nova
Nova
Compute
Compute
Compute

Start virtual machines
Attache virtual disk volumes
（iSCSI）

Management
network

Cinder

Disk
Images

16

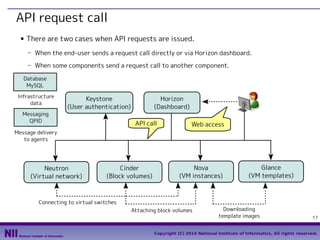

API request call
■

There are two cases when API requests are issued.
- When the end-user sends a request call directly or via Horizon dashboard.
- When some components send a request call to another component.

Database
MySQL
Infrastructure
data

Keystone
(User authentication)

Messaging
QPID

Horizon
(Dashboard)
API call

Web access

Message delivery
to agents

Neutron
(Virtual network)

Cinder
(Block volumes)

Nova
(VM instances)

Glance
(VM templates)

Connecting to virtual switches
Attaching block volumes

Downloading
template images

17

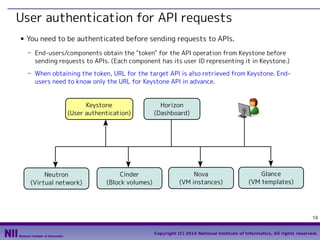

User authentication for API requests
■

You need to be authenticated before sending requests to APIs.
- End-users/components obtain the "token" for the API operation from Keystone before
sending requests to APIs. (Each component has its user ID representing it in Keystone.)
- When obtaining the token, URL for the target API is also retrieved from Keystone. Endusers need to know only the URL for Keystone API in advance.

Keystone

Neutron
(Virtual network)

Cinder
(Block volumes)

Horizon
(Dashboard)

Nova
(VM instances)

Glance
(VM templates)

18

Token mechanism of Keystone authentication
■

■

Since OpenStack clients make many API calls to various components,
authenticating with ID/password for every call is undesirable in terms of security
and performance.
Instead, the clients obtain the "token" as a "license" for API calls in advance, and
send the token ID to the component to use.
- The component receiving the request validates the token ID with Keystone before
accepting the request.
- The generated token is stored in Keystone for a defined period (default: 24hous). Clients
can reuse it until it expires. They don't need to obtain a token for each request call.
Keystone server

Obtain the token
(Authenticated with ID/password)

The generated token
is stored in Keystone.
ID=yyyy

Send back the token ID

Client

Send a request
with the token ID

Validate the token ID
and check the client's role.

19

Command operations of Keystone (1)
■

When using standard command line tools of OpenStack, you specify user name,
password, tenant and API's URL with the environment variables.
- Keystone API has different URLs (port numbers) for admin users and general users.
- You can also specify them with command line options.
- The following is an example of keystone operation using the default admin user "admin".
This is generated
# cat keystonerc_admin
export OS_USERNAME=admin
by packstack under /root.
export OS_TENANT_NAME=admin
export OS_PASSWORD=714f1ab569a64a3b
export OS_AUTH_URL=http://172.16.1.11:35357/v2.0/
export PS1='[u@h W(keystone_admin)]$ '

Port 35357 is used

# . keystonerc_admin
for admin users.
# keystone user-list
+----------------------------------+------------+---------+-------------------+
|
id
|
name
| enabled |
email
|
+----------------------------------+------------+---------+-------------------+
| 589a800d70534655bfade5504958afd6 |
admin
|
True |
test@test.com
|
| 3c45a1f5a88d4c1d8fb07b51ed72cd55 |
cinder
|
True | cinder@localhost |
| f23d88041e5245ee8cc8b0a5c3ec3f6c | demo_admin |
True |
|
| 44be5165fdf64bd5907d07aa1aaa5dab | demo_user |
True |
|
| cd75770810634ed3a09d92b61aacf0a7 |
glance
|
True | glance@localhost |
| a38561ed906e48468cf1759918735c53 |
nova
|
True |
nova@localhost |
| 157c8846521846e0abdd16895dc8f024 | quantum
|
True | quantum@localhost |
+----------------------------------+------------+---------+-------------------+

20

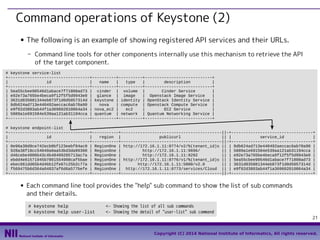

Command operations of Keystone (2)
■

The following is an example of showing registered API services and their URLs.
- Command line tools for other components internally use this mechanism to retrieve the API
of the target component.

# keystone service-list
+----------------------------------+----------+----------+----------------------------+
|
id
|
name
|
type
|
description
|
+----------------------------------+----------+----------+----------------------------+
| 5ea55cbee90546d1abace7f71808ad73 | cinder | volume |
Cinder Service
|
| e92e73a765be4beca9f12f5f5d9943e0 | glance | image
| Openstack Image Service
|
| 3631d835081344eb873f1d0d5057314d | keystone | identity | OpenStack Identity Service |
| 8db624ad713e440492aeccac6ab70a90 |
nova
| compute | Openstack Compute Service |
| e9f02d3803ab44f1a369602010864a34 | nova_ec2 |
ec2
|
EC2 Service
|
| 5889a1e691584e539aa121ab31194cca | quantum | network | Quantum Networking Service |
+----------------------------------+----------+----------+----------------------------+
# keystone endpoint-list
+----------------------------------+-----------+------------------------------------------||-+----------------------------------+
|
id
|
region |
publicurl
|| |
service_id
|
+----------------------------------+-----------+------------------------------------------||-+----------------------------------+
| 0e96a30d9ce742ecb0bf123eebf84ac0 | RegionOne | http://172.16.1.11:8774/v2/%(tenant_id)s || | 8db624ad713e440492aeccac6ab70a90 |
| 928a38f18cc54040a0aa53bd3da99390 | RegionOne |
http://172.16.1.11:9696/
|| | 5889a1e691584e539aa121ab31194cca |
| d46cebe4806b43c4b48499285713ac7a | RegionOne |
http://172.16.1.11:9292
|| | e92e73a765be4beca9f12f5f5d9943e0 |
| ebdd4e61571945b7801554908caf5bae | RegionOne | http://172.16.1.11:8776/v1/%(tenant_id)s || | 5ea55cbee90546d1abace7f71808ad73 |
| ebec661dd65b4d4bb12fe67c25b2c77a | RegionOne |
http://172.16.1.11:5000/v2.0
|| | 3631d835081344eb873f1d0d5057314d |
| f569475b6d364a04837af6d6a577befe | RegionOne | http://172.16.1.11:8773/services/Cloud || | e9f02d3803ab44f1a369602010864a34 |
+----------------------------------+-----------+------------------------------------------||-+----------------------------------+
■

Each command line tool provides the "help" sub command to show the list of sub commands
and their details.
# keystone help
# keystone help user-list

<- Showing the list of all sub commands
<- Showing the detail of "user-list" sub command
21

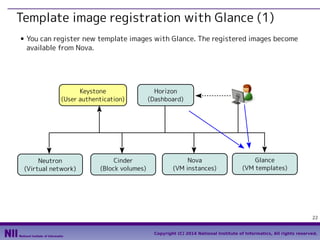

Template image registration with Glance (1)
■

You can register new template images with Glance. The registered images become
available from Nova.

Keystone

Neutron
(Virtual network)

Cinder
(Block volumes)

Horizon
(Dashboard)

Nova
(VM instances)

Glance
(VM templates)

22

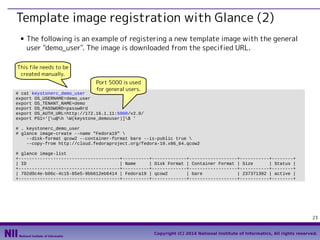

Template image registration with Glance (2)
■

The following is an example of registering a new template image with the general
user "demo_user". The image is downloaded from the specified URL.

This file needs to be
created manually.
Port 5000 is used
for general users.

# cat keystonerc_demo_user
export OS_USERNAME=demo_user
export OS_TENANT_NAME=demo
export OS_PASSWORD=passw0rd
export OS_AUTH_URL=http://172.16.1.11:5000/v2.0/
export PS1='[u@h W(keystone_demouser)]$ '
# . keystonerc_demo_user
# glance image-create --name "Fedora19"
--disk-format qcow2 --container-format bare --is-public true
--copy-from http://cloud.fedoraproject.org/fedora-19.x86_64.qcow2
# glance image-list
+--------------------------------------+----------+-------------+------------------+-----------+--------+
| ID
| Name
| Disk Format | Container Format | Size
| Status |
+--------------------------------------+----------+-------------+------------------+-----------+--------+
| 702d0c4e-b06c-4c15-85e5-9bb612eb6414 | Fedora19 | qcow2
| bare
| 237371392 | active |
+--------------------------------------+----------+-------------+------------------+-----------+--------+

23

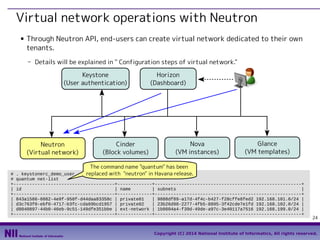

Virtual network operations with Neutron
■

Through Neutron API, end-users can create virtual network dedicated to their own
tenants.
- Details will be explained in " Configuration steps of virtual network."
Keystone

Neutron
(Virtual network)

Cinder
(Block volumes)

Horizon
(Dashboard)

Nova
(VM instances)

Glance
(VM templates)

The command name "quantum" has been
replaced with "neutron" in Havana release.

# quantum net-list
+--------------------------------------+-------------+-------------------------------------------------------+
| id
| name
| subnets
|
+--------------------------------------+-------------+-------------------------------------------------------+
| 843a1586-6082-4e9f-950f-d44daa83358c | private01
| 9888df89-a17d-4f4c-b427-f28cffe8fed2 192.168.101.0/24 |
| d3c763f0-ebf0-4717-b3fc-cda69bcd1957 | private02
| 23b26d98-2277-4fb5-8895-3f42cde7e1fd 192.168.102.0/24 |
| d8040897-44b0-46eb-9c51-149dfe351bbe | ext-network | 1b8604a4-f39d-49de-a97c-3e40117a7516 192.168.199.0/24 |
+--------------------------------------+-------------+-------------------------------------------------------+

24

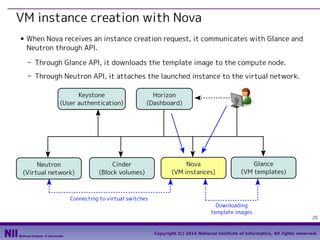

VM instance creation with Nova
■

When Nova receives an instance creation request, it communicates with Glance and
Neutron through API.
- Through Glance API, it downloads the template image to the compute node.
- Through Neutron API, it attaches the launched instance to the virtual network.
Keystone

Neutron
(Virtual network)

Horizon
(Dashboard)

Cinder
(Block volumes)

Nova
(VM instances)

Glance
(VM templates)

Connecting to virtual switches
Downloading
template images

25

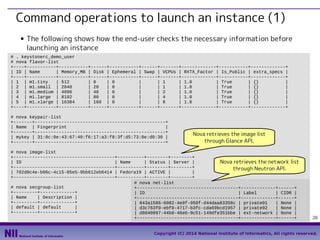

Command operations to launch an instance (1)
■

The following shows how the end-user checks the necessary information before
launching an instance

# nova flavor-list
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+-------------+
| ID | Name
| Memory_MB | Disk | Ephemeral | Swap | VCPUs | RXTX_Factor | Is_Public | extra_specs |
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+-------------+
| 1 | m1.tiny
| 512
| 0
| 0
|
| 1
| 1.0
| True
| {}
|
| 2 | m1.small | 2048
| 20
| 0
|
| 1
| 1.0
| True
| {}
|
| 3 | m1.medium | 4096
| 40
| 0
|
| 2
| 1.0
| True
| {}
|
| 4 | m1.large | 8192
| 80
| 0
|
| 4
| 1.0
| True
| {}
|
| 5 | m1.xlarge | 16384
| 160 | 0
|
| 8
| 1.0
| True
| {}
|
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+-------------+
# nova keypair-list
+-------+-------------------------------------------------+
| Name | Fingerprint
|
+-------+-------------------------------------------------+
| mykey | 31:8c:0e:43:67:40:f6:17:a3:f8:3f:d5:73:8e:d0:30 |
+-------+-------------------------------------------------+

Nova retrieves the image list
through Glance API.

# nova image-list
+--------------------------------------+----------+--------+--------+
| ID
| Name
| Status | Server |
Nova retrieves the network list
+--------------------------------------+----------+--------+--------+
through Neutron API.
| 702d0c4e-b06c-4c15-85e5-9bb612eb6414 | Fedora19 | ACTIVE |
|
+--------------------------------------+----------+--------+--------+
# nova net-list
# nova secgroup-list
+--------------------------------------+-------------+------+
+---------+-------------+
| ID
| Label
| CIDR |
| Name
| Description |
+--------------------------------------+-------------+------+
+---------+-------------+
| 843a1586-6082-4e9f-950f-d44daa83358c | private01
| None |
| default | default
|
| d3c763f0-ebf0-4717-b3fc-cda69bcd1957 | private02
| None |
+---------+-------------+
| d8040897-44b0-46eb-9c51-149dfe351bbe | ext-network | None |
+--------------------------------------+-------------+------+

26


■

The following is to launch an instance using the information in the previous page.
# nova boot --flavor m1.small --image Fedora19 --key-name mykey
--security-groups default --nic net-id=843a1586-6082-4e9f-950f-d44daa83358c vm01
+-----------------------------+--------------------------------------+
| Property
| Value
|
+-----------------------------+--------------------------------------+
| status
| BUILD
|
| updated
| 2013-11-22T06:22:52Z
|
| OS-EXT-STS:task_state
| scheduling
|
| key_name
| mykey
|
| image
| Fedora19
|
| hostId
|
|
| OS-EXT-STS:vm_state
| building
|
| flavor
| m1.small
|
| id
| f40c9b76-3891-4a5f-a62c-87021ba277ce |
| security_groups
| [{u'name': u'default'}]
|
| user_id
| 2e57cd295e3f4659b151dd80f3a73468
|
| name
| vm01
|
| adminPass
| 5sUFyKhgovV6
|
| tenant_id
| 555b49dc8b6e4d92aa74103bfb656e70
|
| created
| 2013-11-22T06:22:51Z
|
| OS-DCF:diskConfig
| MANUAL
|
| metadata
| {}
|
...snip...
+-----------------------------+--------------------------------------+
# nova list
+--------------------------------------+------+--------+-------------------------+
| ID
| Name | Status | Networks
|
+--------------------------------------+------+--------+-------------------------+
| f40c9b76-3891-4a5f-a62c-87021ba277ce | vm01 | ACTIVE | private01=192.168.101.3 |
+--------------------------------------+------+--------+-------------------------+
27

■

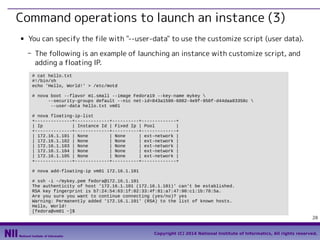

You can specify the file with "--user-data" to use the customize script (user data).
- The following is an example of launching an instance with customize script, and
adding a floating IP.
# cat hello.txt
#!/bin/sh
echo 'Hello, World!' > /etc/motd
--security-groups default --nic net-id=843a1586-6082-4e9f-950f-d44daa83358c
--user-data hello.txt vm01
# nova floating-ip-list
+--------------+-------------+----------+-------------+
| Ip
| Instance Id | Fixed Ip | Pool
|
+--------------+-------------+----------+-------------+
| 172.16.1.101 | None
| None
| ext-network |
| 172.16.1.102 | None
| None
| ext-network |
| 172.16.1.103 | None
| None
| ext-network |
| 172.16.1.104 | None
| None
| ext-network |
| 172.16.1.105 | None
| None
| ext-network |
+--------------+-------------+----------+-------------+
# nova add-floating-ip vm01 172.16.1.101
# ssh -i ~/mykey.pem fedora@172.16.1.101
The authenticity of host '172.16.1.101 (172.16.1.101)' can't be established.
RSA key fingerprint is b7:24:54:63:1f:02:33:4f:81:a7:47:90:c1:1b:78:5a.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '172.16.1.101' (RSA) to the list of known hosts.
Hello, World!
[fedora@vm01 ~]$
28

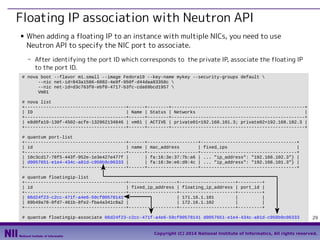

Floating IP association with Neutron API
■

When adding a floating IP to an instance with multiple NICs, you need to use
Neutron API to specify the NIC port to associate.
- After identifying the port ID which corresponds to the private IP, associate the floating IP
to the port ID.

# nova boot --flavor m1.small --image Fedora19 --key-name mykey --security-groups default
--nic net-id=843a1586-6082-4e9f-950f-d44daa83358c
--nic net-id=d3c763f0-ebf0-4717-b3fc-cda69bcd1957
Vm01
# nova list
+--------------------------------------+------+--------+--------------------------------------------------+
| ID
| Name | Status | Networks
|
+--------------------------------------+------+--------+--------------------------------------------------+
| e8d0fa19-130f-4502-acfe-132962134846 | vm01 | ACTIVE | private01=192.168.101.3; private02=192.168.102.3 |
+--------------------------------------+------+--------+--------------------------------------------------+
# quantum port-list
+--------------------------------------+------+-------------------+------------------------------------+
| id
| name | mac_address
| fixed_ips
|
+--------------------------------------+------+-------------------+------------------------------------+
| 10c3cd17-78f5-443f-952e-1e3e427e477f |
| fa:16:3e:37:7b:a6 | ... "ip_address": "192.168.102.3"} |
| d0057651-e1e4-434c-a81d-c950b9c06333 |
| fa:16:3e:e6:d9:4c | ... "ip_address": "192.168.101.3"} |
+--------------------------------------+------+-------------------+------------------------------------+
# quantum floatingip-list
+--------------------------------------+------------------+---------------------+---------+
| id
| fixed_ip_address | floating_ip_address | port_id |
+--------------------------------------+------------------+---------------------+---------+
| 06d24f23-c2cc-471f-a4e6-59cf00578141 |
| 171.16.1.101
|
|
| 89b49a78-8fd7-461b-8fe2-fba4a341c8a2 |
| 172.16.1.102
|
|
+--------------------------------------+------------------+---------------------+---------+
# quantum floatingip-associate 06d24f23-c2cc-471f-a4e6-59cf00578141 d0057651-e1e4-434c-a81d-c950b9c06333

29

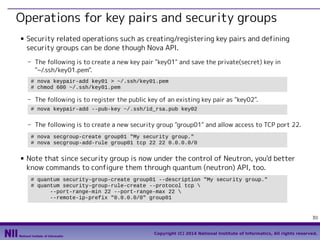

Operations for key pairs and security groups
■

Security related operations such as creating/registering key pairs and defining
security groups can be done though Nova API.
- The following is to create a new key pair "key01" and save the private(secret) key in
"~/.ssh/key01.pem".
# nova keypair-add key01 > ~/.ssh/key01.pem
# chmod 600 ~/.ssh/key01.pem

- The following is to register the public key of an existing key pair as "key02".
# nova keypair-add --pub-key ~/.ssh/id_rsa.pub key02

- The following is to create a new security group "group01" and allow access to TCP port 22.
# nova secgroup-create group01 "My security group."
# nova secgroup-add-rule group01 tcp 22 22 0.0.0.0/0
■

Note that since security group is now under the control of Neutron, you'd better
know commands to configure them through quantum (neutron) API, too.
# quantum security-group-create group01 --description "My security group."
# quantum security-group-rule-create --protocol tcp
--port-range-min 22 --port-range-max 22
--remote-ip-prefix "0.0.0.0/0" group01

30

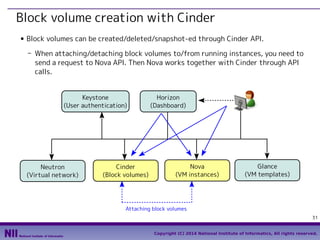

Block volume creation with Cinder
■

Block volumes can be created/deleted/snapshot-ed through Cinder API.
- When attaching/detaching block volumes to/from running instances, you need to
send a request to Nova API. Then Nova works together with Cinder through API
calls.
Keystone

Neutron
(Virtual network)

Cinder
(Block volumes)

Horizon
(Dashboard)

Nova
(VM instances)

Glance
(VM templates)

Attaching block volumes
31

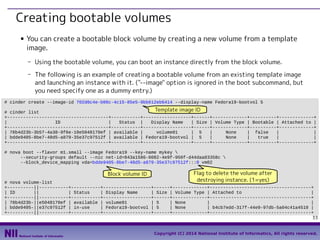

Creating bootable volumes
■

You can create a bootable block volume by creating a new volume from a template
image.
- Using the bootable volume, you can boot an instance directly from the block volume.
- The following is an example of creating a bootable volume from an existing template image
and launching an instance with it. ("--image" option is ignored in the boot subcommand, but
you need specify one as a dummy entry.)

# cinder create --image-id 702d0c4e-b06c-4c15-85e5-9bb612eb6414 --display-name Fedora19-bootvol 5

Template image ID
# cinder list
+--------------------------------------+-----------+------------------+------+-------------+----------+-------------+
|
ID
|
Status |
Display Name
| Size | Volume Type | Bootable | Attached to |
+--------------------------------------+-----------+------------------+------+-------------+----------+-------------+
| 78b4d23b-3b57-4a38-9f6e-10e5048170ef | available |
volume01
| 5
|
None
| false
|
|
| bdde9405-8be7-48d5-a879-35e37c97512f | available | Fedora19-bootvol | 5
|
None
|
true
|
|
+--------------------------------------+-----------+------------------+------+-------------+----------+-------------+
--security-groups default --nic net-id=843a1586-6082-4e9f-950f-d44daa83358c
--block_device_mapping vda=bdde9405-8be7-48d5-a879-35e37c97512f:::0 vm02

Block volume ID

Flag to delete the volume after
destroying instance. (1=yes)

# nova volume-list
+----------||-----------+-----------+------------------+------+-------------+--------------------------------------+
| ID
||
| Status
| Display Name
| Size | Volume Type | Attached to
|
+----------||-----------+-----------+------------------+------+-------------+--------------------------------------+
| 78b4d23b-||e5048170ef | available | volume01
| 5
| None
|
|
| bdde9405-||e37c97512f | in-use
| Fedora19-bootvol | 5
| None
| b4cb7edd-317f-44e9-97db-5a04c41a4510 |
+----------||-----------+-----------+------------------+------+-------------+--------------------------------------+
33

Internal services of Nova and Cinder

34

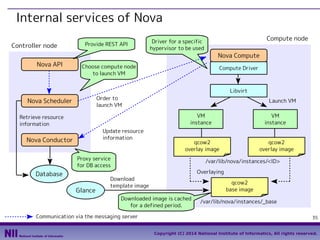

Internal services of Nova
Controller node
Nova API

Provide REST API

Compute node

Driver for a specific
hypervisor to be used

Nova Compute

Choose compute node
to launch VM

Compute Driver

Libvirt
Order to
launch VM

Nova Scheduler

Launch VM
VM
instance

Retrieve resource
information
Update resource
information

Nova Conductor

VM
instance

qcow2
overlay image

qcow2
overlay image

Proxy service
for DB access

Database
Glance

/var/lib/nova/instances/<ID>
Overlaying

Download
template image

qcow2
base image

Downloaded image is cached
for a defined period.
Communication via the messaging server

/var/lib/nova/instances/_base
35

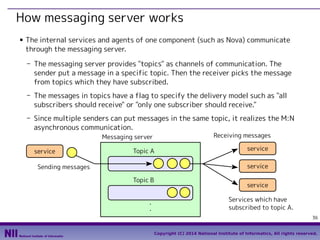

How messaging server works
■

The internal services and agents of one component (such as Nova) communicate
through the messaging server.
- The messaging server provides "topics" as channels of communication. The
sender put a message in a specific topic. Then the receiver picks the message
from topics which they have subscribed.
- The messages in topics have a flag to specify the delivery model such as "all
subscribers should receive" or "only one subscriber should receive."
- Since multiple senders can put messages in the same topic, it realizes the M:N
asynchronous communication.
Receiving messages

Messaging server
service

Topic A

service
service

Sending messages
Topic B

service

・・

Services which have
subscribed to topic A.
36

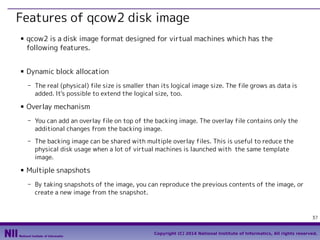

Features of qcow2 disk image
■

■

qcow2 is a disk image format designed for virtual machines which has the
following features.
Dynamic block allocation
- The real (physical) file size is smaller than its logical image size. The file grows as data is
added. It's possible to extend the logical size, too.

■

Overlay mechanism
- You can add an overlay file on top of the backing image. The overlay file contains only the
additional changes from the backing image.
- The backing image can be shared with multiple overlay files. This is useful to reduce the
physical disk usage when a lot of virtual machines is launched with the same template
image.

■

Multiple snapshots
- By taking snapshots of the image, you can reproduce the previous contents of the image, or
create a new image from the snapshot.

37

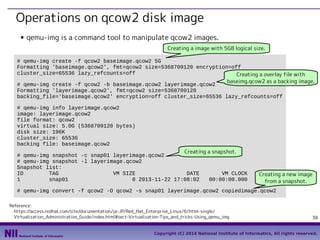

Operations on qcow2 disk image
■

qemu-img is a command tool to manipulate qcow2 images.
Creating a image with 5GB logical size.

# qemu-img create -f qcow2 baseimage.qcow2 5G
Formatting 'baseimage.qcow2', fmt=qcow2 size=5368709120 encryption=off
cluster_size=65536 lazy_refcounts=off
Creating a overlay file with
baseimg.qcow2 as a backing image.
# qemu-img create -f qcow2 -b baseimage.qcow2 layerimage.qcow2
Formatting 'layerimage.qcow2', fmt=qcow2 size=5368709120
backing_file='baseimage.qcow2' encryption=off cluster_size=65536 lazy_refcounts=off
# qemu-img info layerimage.qcow2
image: layerimage.qcow2
file format: qcow2
virtual size: 5.0G (5368709120 bytes)
disk size: 196K
cluster_size: 65536
backing file: baseimage.qcow2
Creating a snapshot.
# qemu-img snapshot -c snap01 layerimage.qcow2
# qemu-img snapshot -l layerimage.qcow2
Snapshot list:
ID
TAG
VM SIZE
DATE
VM CLOCK
1
snap01
0 2013-11-22 17:08:02
00:00:00.000

Creating a new image
from a snapshot.

# qemu-img convert -f qcow2 -O qcow2 -s snap01 layerimage.qcow2 copiedimage.qcow2
Reference:
　https://access.redhat.com/site/documentation/ja-JP/Red_Hat_Enterprise_Linux/6/html-single/ 　
　Virtualization_Administration_Guide/index.html#sect-Virtualization-Tips_and_tricks-Using_qemu_img

38


Public key injection mechanism
■

■

Nova Compute injects the public key into "/root/.ssh/authorized_keys" of the local
disk image before launching the instance.
Cloud-Init can also be used to setup public key authentication at the boot time as
it can retrieve the public key through meta-data(*).
- Because allowing root login is undesirable in many cases, you'd better configure
Cloud-Init to create a general user and setup public key authentication for it.
Retrieving the public key from meta-data.
$ curl http://169.254.169.254/2009-04-04/meta-data/public-keys/0/openssh-key
ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEA5W2IynhVezp+DpN11xdsY/8NOqeF8r7eYqVteeWZSBfnYhKn
8D85JmByBQnJ7HrJIrdMvfTYwWxi+swfFlryG3A+oSll0tT71FLAWnAYz26ML3HccyJ7E2bD66BSditbDITK
H3V66oN9c3rIEXZYQ3A+GEiA1cFD++R0FNKxyBOkjduycvksB5Nl9xb3k6z4uoZ7JQD5J14qnooM55Blmn2C
C2/2KlapxMi0tgSdkdfnSSxbYvlBztGiF3M4ey7kyuWwhE2iPBwkV/OhANl3nwHidcNdBrAGC3u78aTtUEwZ
tNUqrevVKM/yUfRRyPRNivuGOkvjTDUL/9BGquBX9Q== enakai@kakinoha

(*) Especially, when booting from block volume, Nova Compute fails to inject the public key. Use of Cloud-Int is
mandatroy in this case.
39

Block volume use cases and corresponding APIs
OS

It can be re-attached to
another instance.

OS

User Data

User Data

(2) Attach to a running instance
to store user data.

(4) Create a new block volume
from the snapshot.

(1) Create a new block volume.
(3) Create a snapshot

Template

OS

Create a block volume

■

Cinder API
- volume create/delete/list/show
(create from snapshot, image)

OS

- snapshot create/delete/list/show
■

Nova API
- volume attach/detach

40

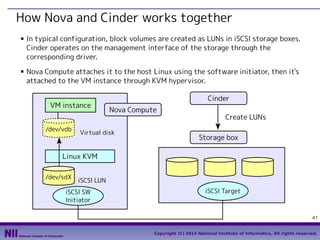

How Nova and Cinder works together
■

■

In typical configuration, block volumes are created as LUNs in iSCSI storage boxes.
Cinder operates on the management interface of the storage through the
corresponding driver.
Nova Compute attaches it to the host Linux using the software initiator, then it's
attached to the VM instance through KVM hypervisor.
VM instance
/dev/vdb

Cinder
Nova Compute

Virtual disk

Create LUNs
Storage box

Linux KVM
/dev/sdX

iSCSI LUN

iSCSI SW
Initiator

iSCSI Target

41

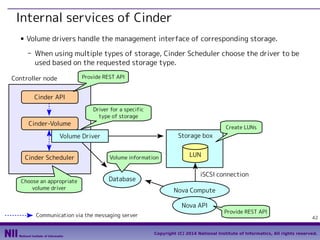

Internal services of Cinder
■

Volume drivers handle the management interface of corresponding storage.
- When using multiple types of storage, Cinder Scheduler choose the driver to be
used based on the requested storage type.
Provide REST API

Controller node
Cinder API

Cinder-Volume

Driver for a specific
type of storage
Create LUNs

Storage box

Volume Driver
Cinder Scheduler

Choose an appropriate
volume driver

Volume information

Database

LUN
iSCSI connection
Nova Compute
Nova API


Provide REST API

42

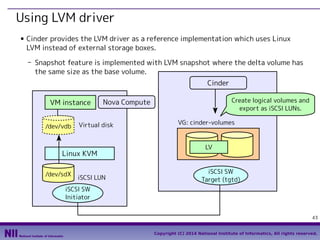

Using LVM driver
■

Cinder provides the LVM driver as a reference implementation which uses Linux
LVM instead of external storage boxes.
- Snapshot feature is implemented with LVM snapshot where the delta volume has
the same size as the base volume.
Cinder
VM instance
/dev/vdb

Virtual disk

Linux KVM
/dev/sdX

Create logical volumes and
export as iSCSI LUNs.

Nova Compute

iSCSI LUN

VG: cinder-volumes

LV

iSCSI SW
Target (tgtd)

iSCSI SW
Initiator
43

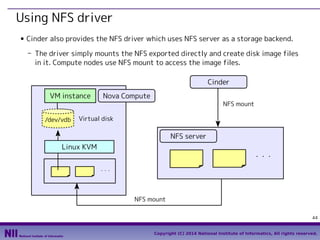

Using NFS driver
■

Cinder also provides the NFS driver which uses NFS server as a storage backend.
- The driver simply mounts the NFS exported directly and create disk image files
in it. Compute nodes use NFS mount to access the image files.
Cinder
VM instance
/dev/vdb

Nova Compute

NFS mount

Virtual disk

NFS server
Linux KVM
・・・
・・・

NFS mount
44

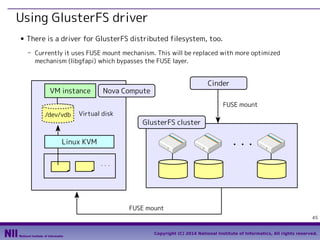

Using GlusterFS driver
■

There is a driver for GlusterFS distributed filesystem, too.
- Currently it uses FUSE mount mechanism. This will be replaced with more optimized
mechanism (libgfapi) which bypasses the FUSE layer.

VM instance

Cinder

Nova Compute

FUSE mount
/dev/vdb

Virtual disk

GlusterFS cluster

Linux KVM

・・・
・・・

FUSE mount
45

Architecture overview of Neutron

46

Logical view of Neutron's virtual network
■

Each tenant has its own virtual router which works like "the broadband router in
your home network."
- Tenant users add virtual switches behind the router and assign private subnet addresses to
them. It's possible to use overlapping subnets with other tenants.

■

When launching an instance, the end-user selects virtual switches to connect it.
- The number of virtual NICs of the instance corresponds to the number of switches to
connect. Private IPs are assigned via DHCP.

External network

Virtual router
for tenant A

Virtual switch
192.168.101.0/24

Virtual router
for tenant B

Virtual switch
192.168.102.0/24
47

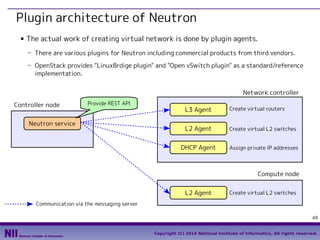

Plugin architecture of Neutron
■

The actual work of creating virtual network is done by plugin agents.
- There are various plugins for Neutron including commercial products from third vendors.
- OpenStack provides "LinuxBrdige plugin" and "Open vSwitch plugin" as a standard/reference
implementation.
Network controller

Controller node

Provide REST API

Create virtual routers

L2 Agent

Create virtual L2 switches

DHCP Agent

Neutron service

L3 Agent

Assign private IP addresses

Compute node
L2 Agent

Create virtual L2 switches

48

Network configuration with standard plugin
■

The following shows the typical configuration using LinuxBridge plugin or Open
vSwitch plugin.
- L3 Agent on the network node provides the virtual router functions connecting the private
and public network. ("eth0" of each node is used for accessing host Linux, not for VM
instance communication.)
- It's not possible to have multiple network nodes. Scalable network feature is under
development today.
Public network
Private network
eth0

eth1

eth2

eth0

L2 Agent
Provide DHCP function
for private networks

eth1
L2 Agent

DHCP Agent

Create virtual
仮想スイッチ作成
L2 switches

VM

eth1

eth0

VM

L2 Agent
VM

・・・

VM

L3 Agent
Network node

Provide virtual
router function

Compute node
49


50

■

This section describes how LinuxBridge plugin implements the virtual network in
the drawing below as a concrete example.

External network

Virtual router

Virtual L2 switch
private01

vm01

Virtual L2 switch
private02

vm02

vm03
51

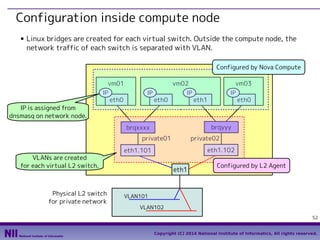

Configuration inside compute node
■

Linux bridges are created for each virtual switch. Outside the compute node, the
network traffic of each switch is separated with VLAN.
Configured by Nova Compute
vm01
IP

eth0

vm02
IP

eth0

vm03

IP

IP

eth1

eth0

IP is assigned from
dnsmasq on network node.
brqyyy

brqxxxx
private01
VLANs are created
for each virtual L2 switch.

Physical L2 switch
for private network

private02
eth1.102

eth1.101
eth1

Configured by L2 Agent

VLAN101
VLAN102
52

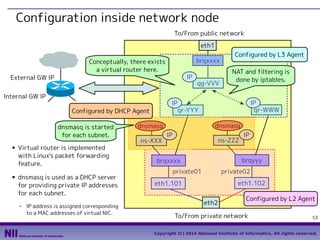

Configuration inside network node
To/From public network
eth1
brqxxxx

Conceptually, there exists
a virtual router here.

IP

External GW IP
Internal GW IP

IP
Configured by DHCP Agent
dnsmasq is started
for each subnet.

■

■

Virtual router is implemented
with Linux's packet forwarding
feature.
dnsmasq is used as a DHCP server
for providing private IP addresses
for each subnet.
- IP address is assigned corresponding
to a MAC addresses of virtual NIC.

qg-VVV

NAT and filtering is
done by iptables.
IP
qr-WWW

qr-YYY
dnsmasq

dnsmasq
ns-XXX


IP

ns-ZZZ

IP

brqyyy

brqxxxx
private01

private02
eth1.102

eth1.101
eth2


To/From private network

53



54

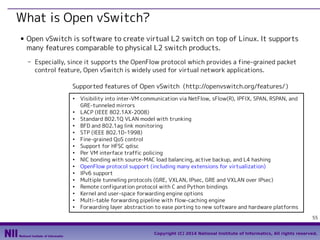

What is Open vSwitch?
■

Open vSwitch is software to create virtual L2 switch on top of Linux. It supports
many features comparable to physical L2 switch products.
- Especially, since it supports the OpenFlow protocol which provides a fine-grained packet
control feature, Open vSwitch is widely used for virtual network applications.
Supported features of Open vSwitch（http://openvswitch.org/features/）
●

●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

Visibility into inter-VM communication via NetFlow, sFlow(R), IPFIX, SPAN, RSPAN, and
GRE-tunneled mirrors
LACP (IEEE 802.1AX-2008)
Standard 802.1Q VLAN model with trunking
BFD and 802.1ag link monitoring
STP (IEEE 802.1D-1998)
Fine-grained QoS control
Support for HFSC qdisc
Per VM interface traffic policing
NIC bonding with source-MAC load balancing, active backup, and L4 hashing
OpenFlow protocol support (including many extensions for virtualization)
IPv6 support
Multiple tunneling protocols (GRE, VXLAN, IPsec, GRE and VXLAN over IPsec)
Remote configuration protocol with C and Python bindings
Kernel and user-space forwarding engine options
Multi-table forwarding pipeline with flow-caching engine
Forwarding layer abstraction to ease porting to new software and hardware platforms
55

What is OpenFlow?
■

OpenFlow is a protocol to provide fine-grained control of packet forwarding from
an external controller.
- OpenFlow switches query the external controller about how received packets should be
handled.
- Since the programmability of controller software gives flexibility over packet operations,
it suits to creating multi-tenant virtual network. For example, it can decide the forwarding
port according to source/destination MAC addresses, modify VLAN tag in the header, etc.
OpenFlow controller

Controller instructs how packets should
be handled through OpenFlow protocol.

OpenFlow switches

56

■

This section describes how Open vSwitch plugin implements the virtual network in
the drawing below as a concrete example.

External network

Tenant A
Virtual router

Tenant B
Virtual router

Virtual L2 switch
projectA

vm01

Virtual L2 switch
project B

vm02

vm03

vm04
57


Configuration inside compute node (1)
■

See the next page for explanation.
Configured by Nova Compute

IP

vm01

IP

eth0

qvoXXX

vm02

IP

eth0

qvoYYY

eth0

qvoZZZ

Port VLAN tag:1

"Internal VLAN" is assigned
to each virtual L2 switch.

vm03

IP

vm04
eth0

qvoWWW

Port VLAN tag:2

br-int
int-br-priv

phy-br-priv


br-priv

Translation between
"Internal" and "External" VLAN
- Internal VLAN1<->External VLAN101
- Internal VLAN2<->ExternalVLAN102

eth1

VLAN101
VLAN102

Open vSwitch
58

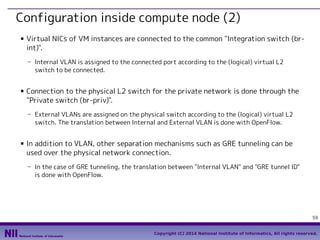

Configuration inside compute node (2)
■

Virtual NICs of VM instances are connected to the common "Integration switch (brint)".
- Internal VLAN is assigned to the connected port according to the (logical) virtual L2
switch to be connected.

■

Connection to the physical L2 switch for the private network is done through the
"Private switch (br-priv)".
- External VLANs are assigned on the physical switch according to the (logical) virtual L2
switch. The translation between Internal and External VLAN is done with OpenFlow.

■

In addition to VLAN, other separation mechanisms such as GRE tunneling can be
used over the physical network connection.
- In the case of GRE tunneling, the translation between "Internal VLAN" and "GRE tunnel ID"
is done with OpenFlow.

59

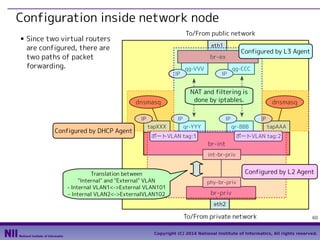

Configuration inside network node
■

To/From public network

Since two virtual routers
are configured, there are
two paths of packet
forwarding.

eth1

IP

IP

qg-VVV

IP
tapXXX

qg-CCC

IP

NAT and filtering is
done by iptables.

dnsmasq

Configured by DHCP Agent


br-ex

IP
qr-YYY

dnsmasq
IP

qr-BBB

ポートVLAN tag:1

tapAAA

ポートVLAN tag:2

br-int
int-br-priv
Translation between
"Internal" and "External" VLAN
- Internal VLAN1<->External VLAN101
- Internal VLAN2<->ExternalVLAN102

phy-br-priv

br-priv
eth2

To/From private network

60

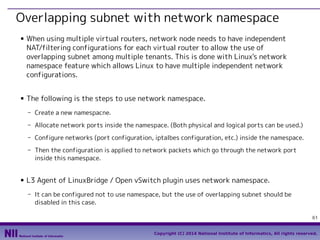

Overlapping subnet with network namespace
■

■

When using multiple virtual routers, network node needs to have independent
NAT/filtering configurations for each virtual router to allow the use of
overlapping subnet among multiple tenants. This is done with Linux's network
namespace feature which allows Linux to have multiple independent network
configurations.
The following is the steps to use network namespace.
- Create a new namespacne.
- Allocate network ports inside the namespace. (Both physical and logical ports can be used.)
- Configure networks (port configuration, iptalbes configuration, etc.) inside the namespace.
- Then the configuration is applied to network packets which go through the network port
inside this namespace.

■

L3 Agent of LinuxBridge / Open vSwitch plugin uses network namespace.
- It can be configured not to use namespace, but the use of overlapping subnet should be
disabled in this case.
61

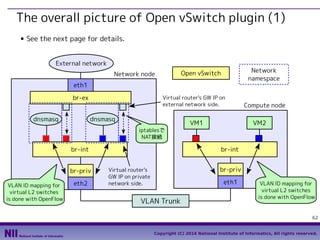

The overall picture of Open vSwitch plugin (1)
■

See the next page for details.
External network

Network
namespace

Open vSwitch

Network node
eth1
br-ex
dnsmasq

Virtual router's GW IP on
external network side.

dnsmasq
iptablesで
NAT接続

br-int
br-priv
VLAN ID mapping for
virtual L2 switches
is done with OpenFlow

eth2

VM1

Compute node
VM2

br-int
br-priv

Virtual router's
GW IP on private
network side.

eth1

VLAN Trunk

VLAN ID mapping for
virtual L2 switches
is done with OpenFlow

62

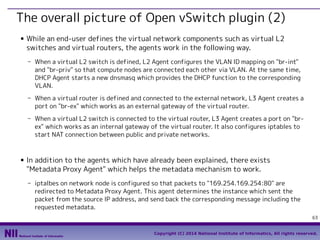

The overall picture of Open vSwitch plugin (2)
■

While an end-user defines the virtual network components such as virtual L2
switches and virtual routers, the agents work in the following way.
- When a virtual L2 switch is defined, L2 Agent configures the VLAN ID mapping on "br-int"
and "br-priv" so that compute nodes are connected each other via VLAN. At the same time,
DHCP Agent starts a new dnsmasq which provides the DHCP function to the corresponding
VLAN.
- When a virtual router is defined and connected to the external network, L3 Agent creates a
port on "br-ex" which works as an external gateway of the virtual router.
- When a virtual L2 switch is connected to the virtual router, L3 Agent creates a port on "brex" which works as an internal gateway of the virtual router. It also configures iptables to
start NAT connection between public and private networks.

■

In addition to the agents which have already been explained, there exists
"Metadata Proxy Agent" which helps the metadata mechanism to work.
- iptalbes on network node is configured so that packets to "169.254.169.254:80" are
redirected to Metadata Proxy Agent. This agent determines the instance which sent the
packet from the source IP address, and send back the corresponding message including the
requested metadata.
63

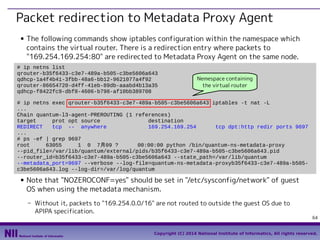

Packet redirection to Metadata Proxy Agent
■

The following commands show iptables configuration within the namespace which
contains the virtual router. There is a redirection entry where packets to
"169.254.169.254:80" are redirected to Metadata Proxy Agent on the same node.

# ip netns list
qrouter-b35f6433-c3e7-489a-b505-c3be5606a643
qdhcp-1a4f4b41-3fbb-48a6-bb12-9621077a4f92
qrouter-86654720-d4ff-41eb-89db-aaabd4b13a35
qdhcp-f8422fc9-dbf8-4606-b798-af10bb389708

Nemespace containing
the virtual router

# ip netns exec qrouter-b35f6433-c3e7-489a-b505-c3be5606a643 iptables -t nat -L
...
Chain quantum-l3-agent-PREROUTING (1 references)
target
prot opt source
destination
REDIRECT
tcp -- anywhere
169.254.169.254
tcp dpt:http redir ports 9697
...
# ps -ef | grep 9697
root
63055
1 0 7月09 ?
00:00:00 python /bin/quantum-ns-metadata-proxy
--pid_file=/var/lib/quantum/external/pids/b35f6433-c3e7-489a-b505-c3be5606a643.pid
--router_id=b35f6433-c3e7-489a-b505-c3be5606a643 --state_path=/var/lib/quantum
--metadata_port=9697 --verbose --log-file=quantum-ns-metadata-proxyb35f6433-c3e7-489a-b505c3be5606a643.log --log-dir=/var/log/quantum
■

Note that "NOZEROCONF=yes" should be set in "/etc/sysconfig/network" of guest
OS when using the metadata mechanism.
- Without it, packets to "169.254.0.0/16" are not routed to outside the guest OS due to
APIPA specification.

64


Configuration steps of virtual network

65

Configuration steps of virtual network (1)
■

The following is the steps for configuring virtual network with quantum command.
- We use the following environment variables as parameters specific to each setup.
public="192.168.199.0/24"
gateway="192.168.199.1"
nameserver="192.168.199.1"
pool=("192.168.199.100" "192.168.199.199")

- Define an external network "ext-network".
tenant=$(keystone tenant-list | awk '/ services / {print $2}')
quantum net-create
--tenant-id $tenant ext-network --shared
--provider:network_type flat --provider:physical_network physnet1
--router:external=True
●

●

●

●

Since the external network is shared by multiple tenants, the owner tenant (--tenant-id)
is "services" (a general tenant for shared services), and "--shared" option is added.
As we suppose there's no VLANs in the external network, network_type is "flat".
In the plugin configuration file (plugin.ini), Open vSwitch for the external network
connection (br-ex) has an alias "physnet1" which is specified as physical_network here.
"--router:external=True" is specified to allow to be a default gateway of virtual routers.

66

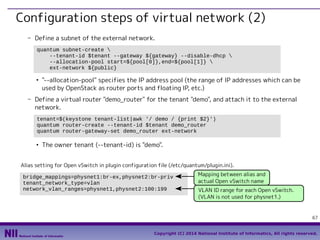

- Define a subnet of the external network.
quantum subnet-create
--tenant-id $tenant --gateway ${gateway} --disable-dhcp
--allocation-pool start=${pool[0]},end=${pool[1]}
ext-network ${public}
●

"--allocation-pool" specifies the IP address pool (the range of IP addresses which can be
used by OpenStack as router ports and floating IP, etc.)

- Define a virtual router "demo_router" for the tenant "demo", and attach it to the external
network.
tenant=$(keystone tenant-list|awk '/ demo / {print $2}')
quantum router-create --tenant-id $tenant demo_router
quantum router-gateway-set demo_router ext-network
●

The owner tenant (--tenant-id) is "demo".

Alias setting for Open vSwitch in plugin configuration file (/etc/quantum/plugin.ini).
bridge_mappings=physnet1:br-ex,physnet2:br-priv
tenant_network_type=vlan
network_vlan_ranges=physnet1,physnet2:100:199

Mapping between alias and
actual Open vSwitch name
VLAN ID range for each Open vSwitch.
(VLAN is not used for physnet1.)

67

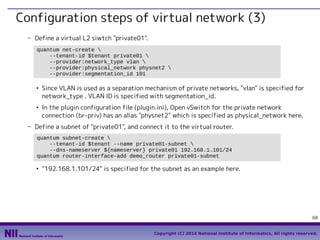

- Define a virtual L2 siwtch "private01".
quantum net-create
--tenant-id $tenant private01
--provider:network_type vlan
--provider:physical_network physnet2
--provider:segmentation_id 101
●

●

Since VLAN is used as a separation mechanism of private networks, "vlan" is specified for
network_type . VLAN ID is specified with segmentation_id.
In the plugin configuration file (plugin.ini), Open vSwitch for the private network
connection (br-priv) has an alias "physnet2" which is specified as physical_network here.

- Define a subnet of "private01", and connect it to the virtual router.
quantum subnet-create
--tenant-id $tenant --name private01-subnet
--dns-nameserver ${nameserver} private01 192.168.1.101/24
quantum router-interface-add demo_router private01-subnet
●

"192.168.1.101/24" is specified for the subnet as an example here.

68

69

Openstackinsideoutv10 140222065532-phpapp01

More Related Content

What's hot

Similar to Openstackinsideoutv10 140222065532-phpapp01

More from sprdd

Openstackinsideoutv10 140222065532-phpapp01
